DVD Stereo System

Operating Instructions

Model No. SC-DV170

Note

“EB” on the outer packaging indicates the United

Kingdom.

Before connecting, operating or adjusting this prod-

uct, please read these instructions completely.

Please keep this manual for future reference.

RQT5471-B

EB EG GN

The illustrations show the model for United Kingdom and Continental Europe.

GC EE

2

RQT5471

DVD/Video CD/CD changer

(Back of product)

System

Sound processor

Stereo tuner/amplifier

DVD/Video CD/CD changer

Stereo cassette deck

Front

Center

Surround

Subwoofer¤

SC-DV170

SH-DV170

SA-DV170

SL-DV170

RS-DV170

SB-EH760

SB-PC75

SB-PS75

SB-W85

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instruc-

tions carefully.

These operating instructions are applicable to the following system.

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORM-

ANCE OF PROCEDURES OTHER THAN THOSE SPECI-

FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION

EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOK-

CASE, BUILT IN CABINET OR IN ANOTHER CONFINED

SPACE. ENSURE THE UNIT IS WELL VENTILATED. EN-

SURE THAT CURTAINS AND ANY OTHER MATERIALS

DO NOT OBSTRUCT THE VENTILATION TO PREVENT

RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO

OVERHEATING.

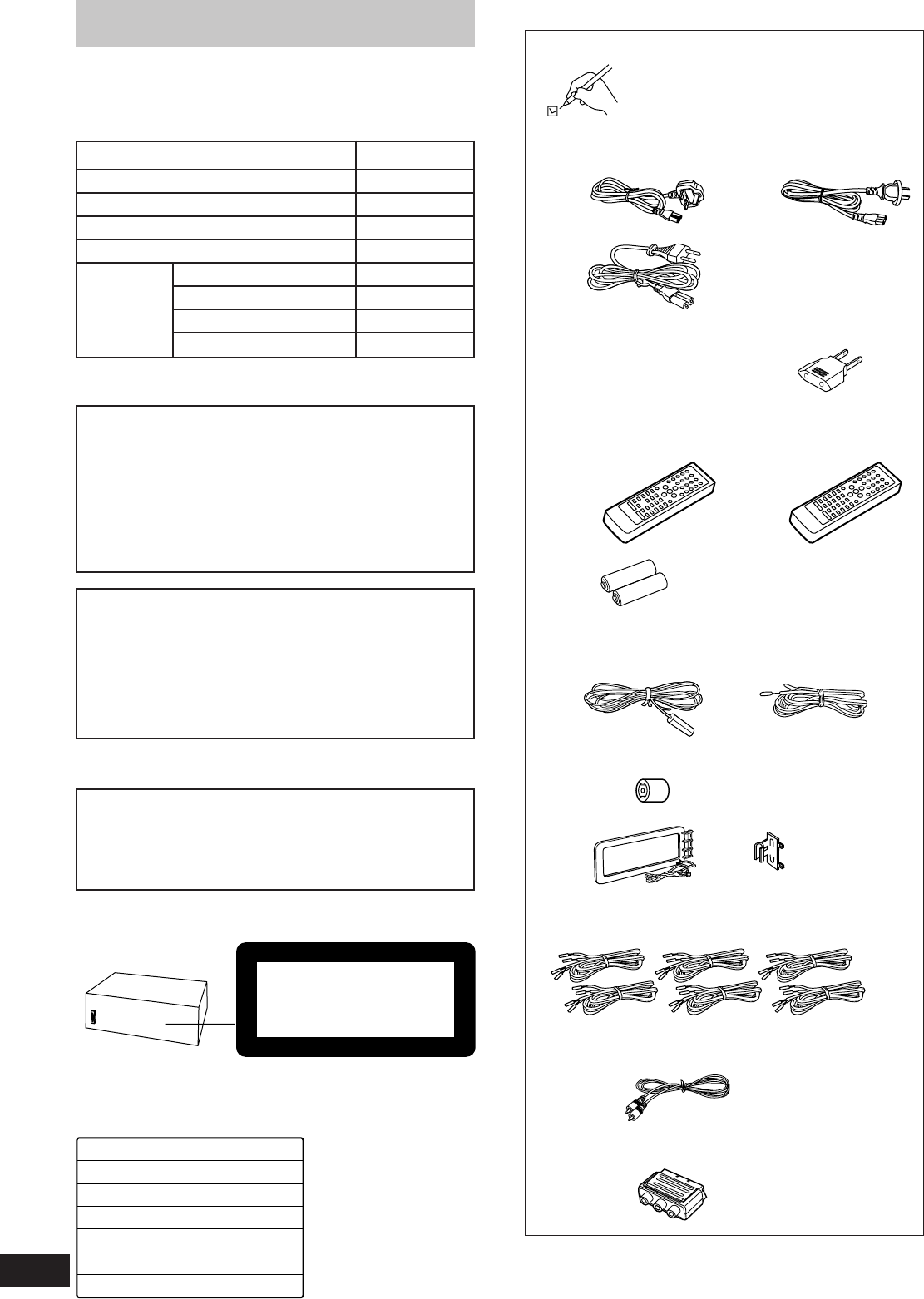

Supplied accessories

Please check and identify the supplied

accessories.

¸AC mains lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.

For the United Kingdom For Australia and N.Z.

(VJA0733) (RJA0035-X)

For others

(RJA0019-X)

¸Power plug adaptor (SJP5213-2) . . . . . . . . . . . . . . 1 pc.

(Except for the United Kingdom, Continental

Europe, Russia, Australia and N.Z.)

¸Remote control transmitter . . . . . . . . . . . . . . . . . . . 1 pc.

For the United Kingdom, For others

Continental Europe, Australia (RAK-EHA33WH)

and N.Z. (RAK-EHA32WH)

¸Remote control batteries . . . . . . . . . . . . . . . . . . . 2 pcs.

¸FM indoor antenna . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.

For the United Kingdom, For others

Continental Europe, and (RSA0006-J)

Russia (RSA0007)

¸FM antenna plug adaptor (SJP9009) . . . . . . . . . . . 1 pc.

(Only for the United Kingdom)

¸AM loop antenna set (RSA0022-J) . . . . . . . . . . . . . 1 set

¸Speaker cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 pcs.

(REE0393) (REE0984) (REE0985)

(Red0Black) (Blue0Black) (Gray0Black)

¸Video cord (RJL1P019B15)

For the United Kingdom and Continental Europe . . 1pc.

For others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 pcs.

¸RCAJ adaptor (VFA0151-1) . . . . . . . . . . . . . . . . . . . 1 pc.

(Only for the United Kingdom and Continental Europe)

Use numbers indicated in parentheses when asking for replacement

parts.

CAUTION!

The AC voltage is different according to the area.

Be sure to set the proper voltage in your area before

use.

(For details, please refer to page 5.)

(Except for the United Kingdom, Continental Europe,

Russia, Australia and N.Z.)

¤Except for the United Kingdom, Continental Europe, Australia and

N.Z.

Speaker

CLASS 1

LASER PRODUCT

DANGER

LASER RADIATION WHEN OPEN.

AVOID DIRECT EXPOSURE TO BEAM.

ADVARSEL

LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE

ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING.

VARO!

AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA

LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

VARNING

LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH

SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN.

ADVARSEL

LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS

BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.

VORSICHT

LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET.

NICHT DEM STRAHL AUSSETZEN.

DANGERS

RADIATION LASER LORSQUE OUVERT.

ÉVITER TOUTE EXPOSITION AU FAISCEAU.

(Indersiden at apparatet)

(Tuotteen sisällä)

(Apparatens insida)

(Produktets innside)

(Im Inneren des Gerätes)

(Inside of product)

(Intérieur de I’appareil)

3

Before use

RQT5471

Safety precautions

Placement

Set the system up on an even surface away from direct sunlight,

high temperatures, high humidity, and excessive vibration. These

conditions can damage the cabinet and other components, thereby

shortening the unit’s service life.

Place it at least 15 cm away from wall surfaces to avoid distortion

and unwanted acoustical effects.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit

and cause a fire.

Do not use a DC power source. Check the source carefully when

setting the unit up on a ship or other place where DC is used.

AC mains lead protection

Ensure the AC mains lead is connected correctly and not dam-

aged. Poor connection and lead damage can cause fire or electric

shock. Do not pull, bend, or place heavy items on the lead.

Grasp the plug firmly when unplugging the lead. Pulling the AC

mains lead can cause electric shock.

Do not handle the plug with wet hands. This can cause electric

shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric

shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock

or malfunction. If this occurs, immediately disconnect the unit from

the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flam-

mable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted,

indicators fail to light, smoke appears, or any other problem that is not

covered in these instructions occurs, disconnect the AC mains lead

and contact your dealer or an authorized service center. Electric

shock or damage to the unit can occur if the unit is repaired, disas-

sembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power

source if it is not to be used for a long time.

Table of contents

Before use

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . 13

Caution for AC Mains Lead. . . . . . . . . . . . . . . . . 14

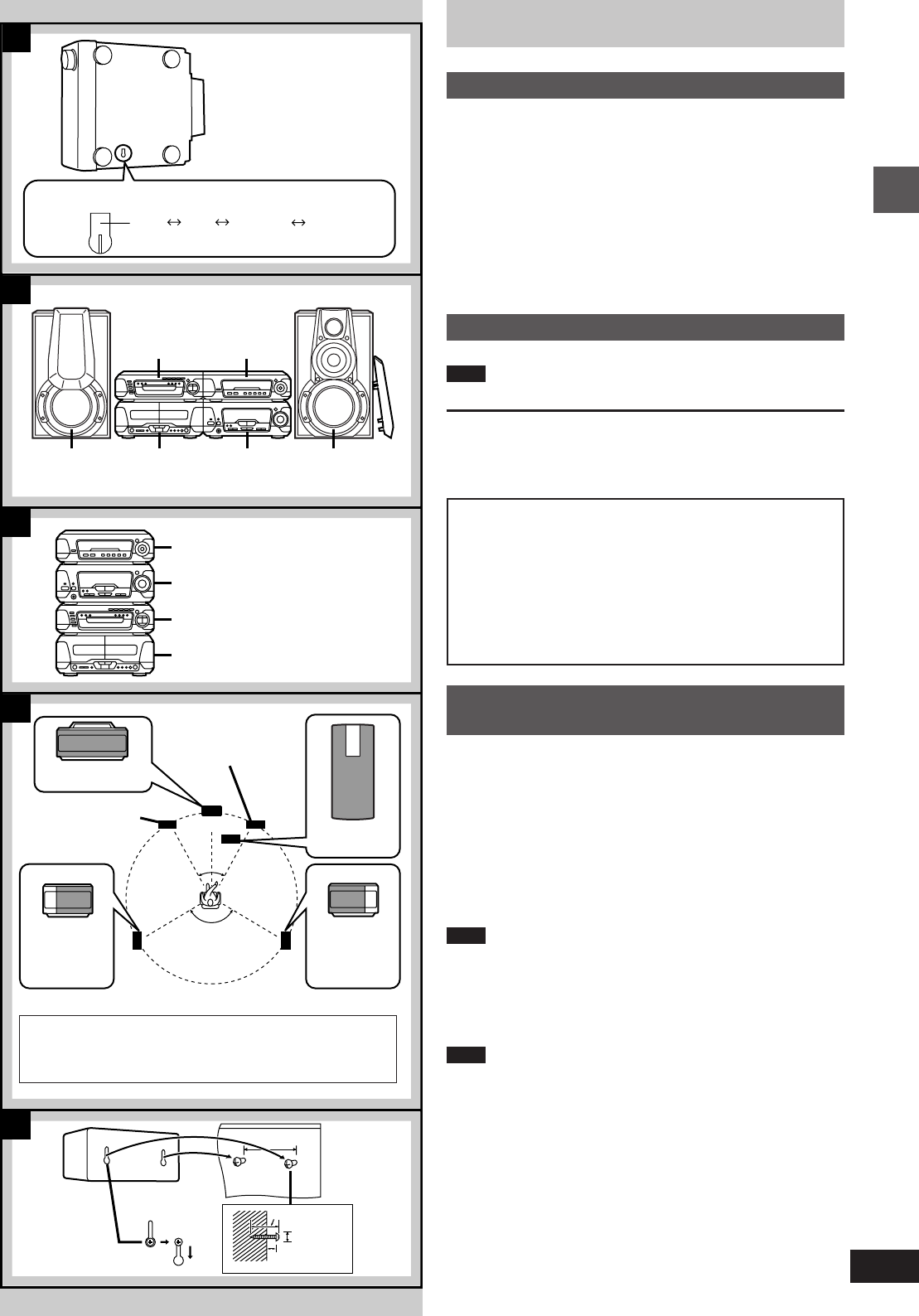

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

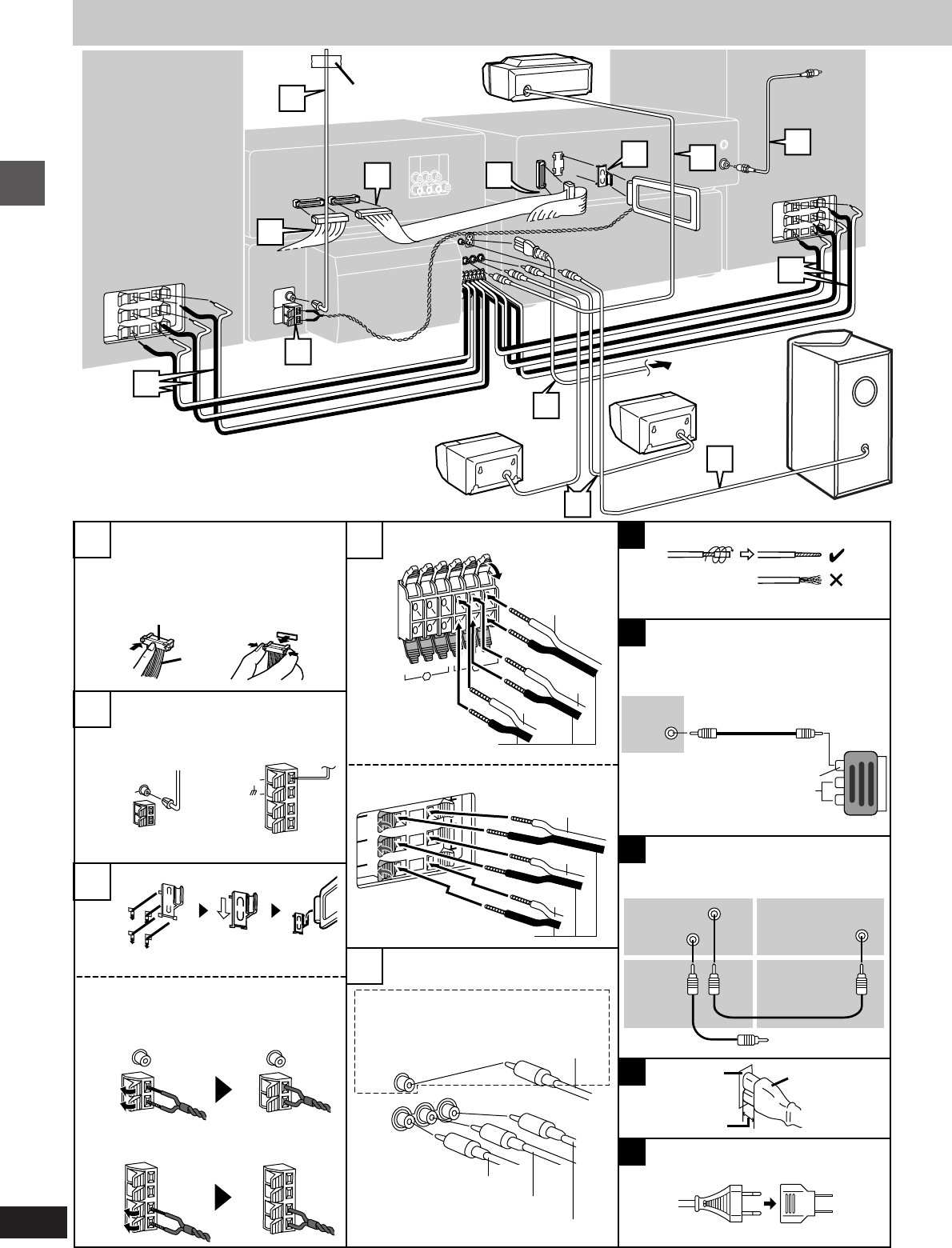

Basic connections. . . . . . . . . . . . . . . . . . . . . . . . 16

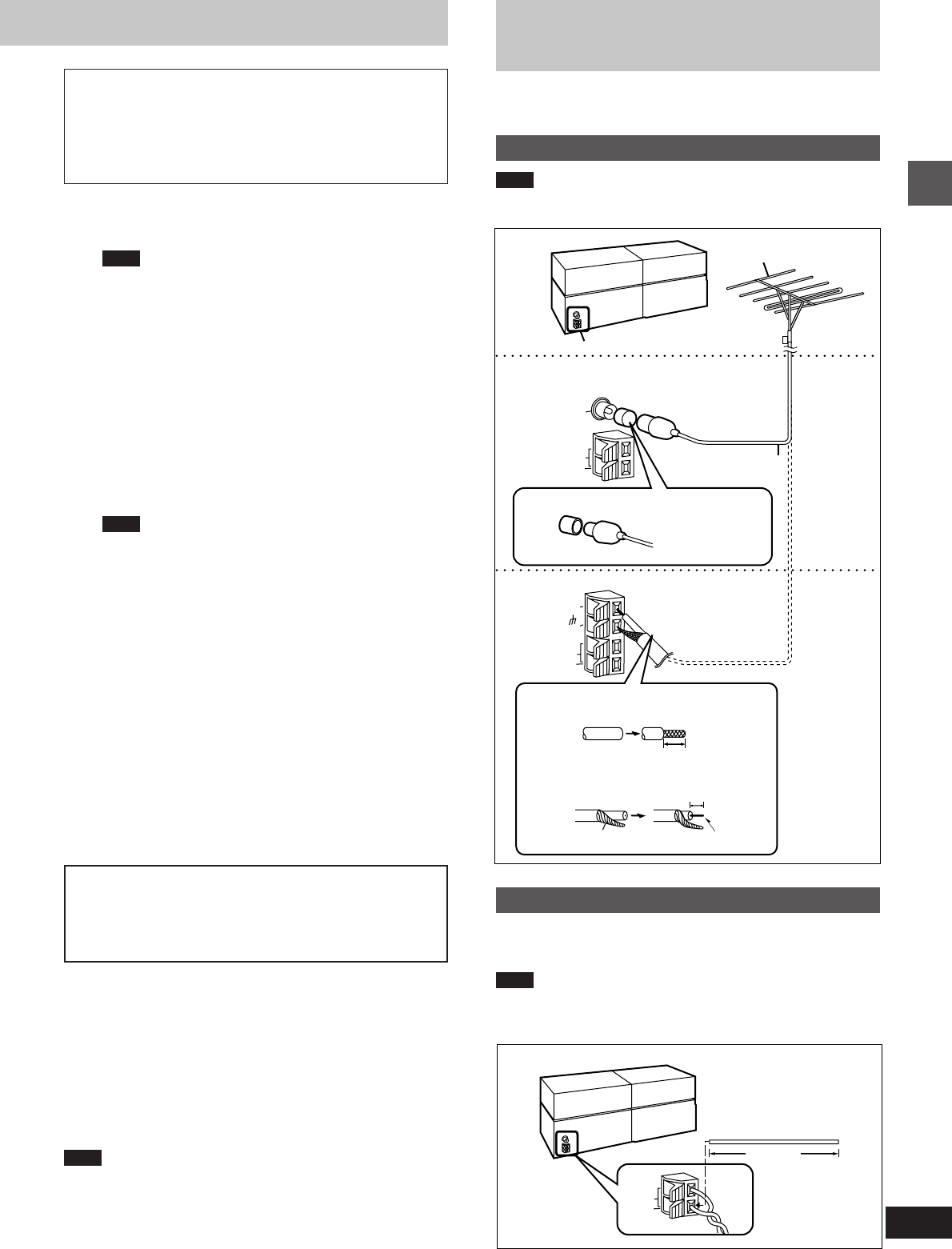

Optional antenna connections . . . . . . . . . . . . . . 17

Television settings . . . . . . . . . . . . . . . . . . . . . . . 18

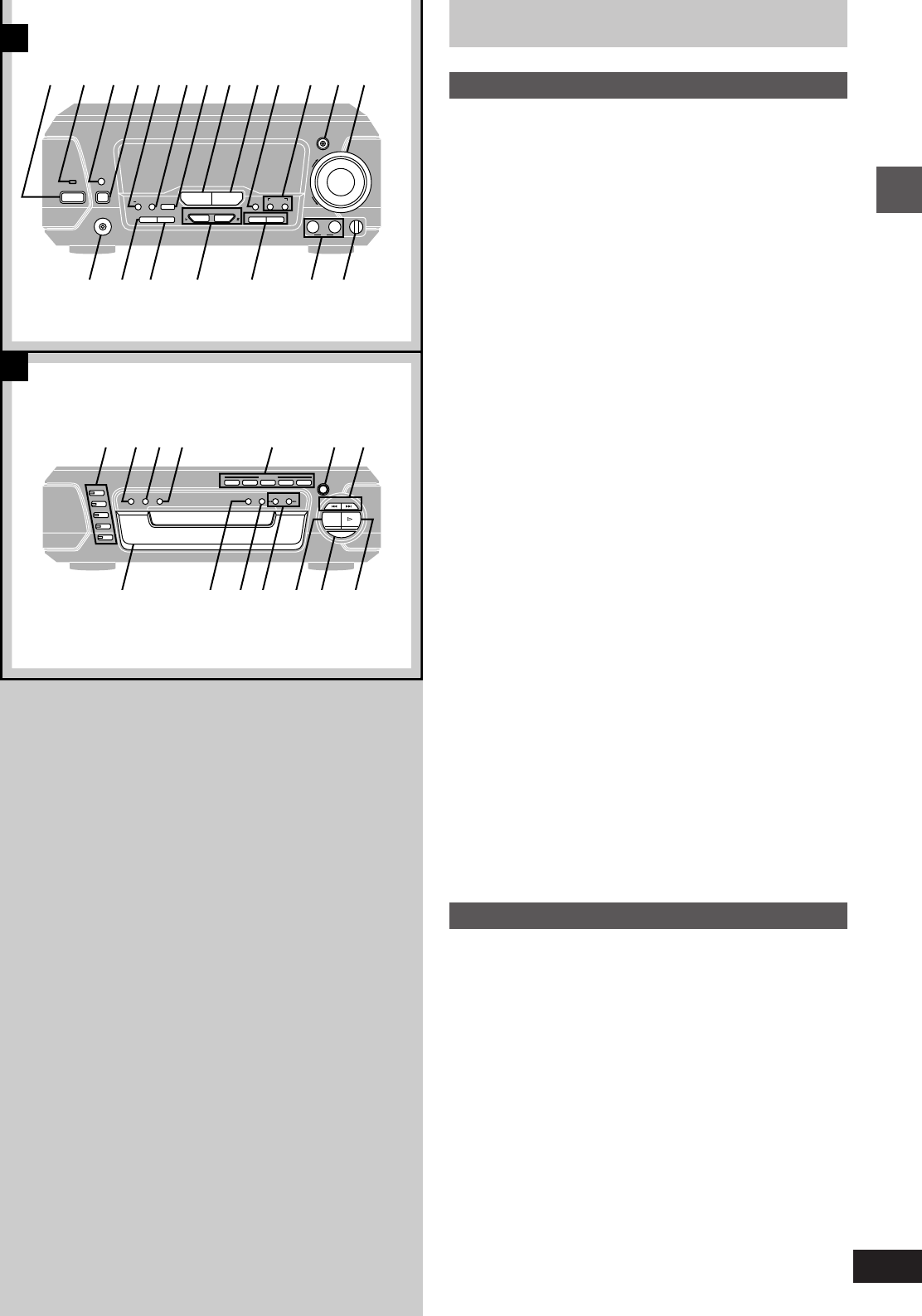

Front panel controls . . . . . . . . . . . . . . . . . . . . . . 19

The remote control . . . . . . . . . . . . . . . . . . . . . . . 11

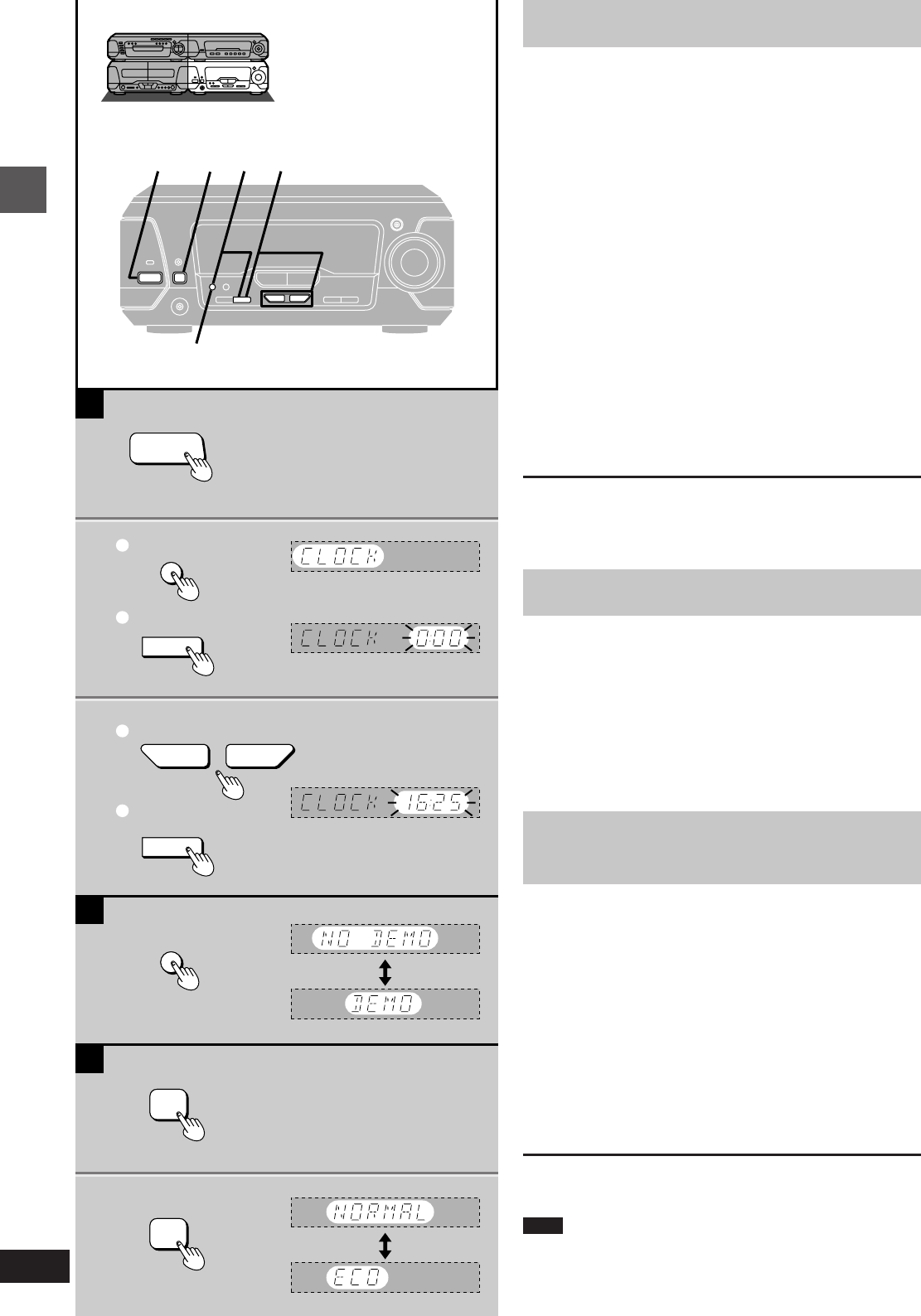

Setting the time . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning DEMO off . . . . . . . . . . . . . . . . . . . . . . . . 12

Saving power in the standby mode . . . . . . . . . . 12

Region numbers . . . . . . . . . . . . . . . . . . . . . . . . 113

Types of discs . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Basic operations

Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Normal play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Skip/Search/Still picture(Pause)/Slow-motion play/

Frame-by-frame viewing function . . . . . . . . . . . . . . . . . . . . . . 16

Changing soundtrack, subtitle languages and angles. . . . . . . . 17

Using menus to play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Changing the picture quality for movie viewing . . . . . . . . . . . . . 18

Marking a position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Repeat function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Program play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Random play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Starting play from a specific track . . . . . . . . . . . . . . . . . . . . . . . 21

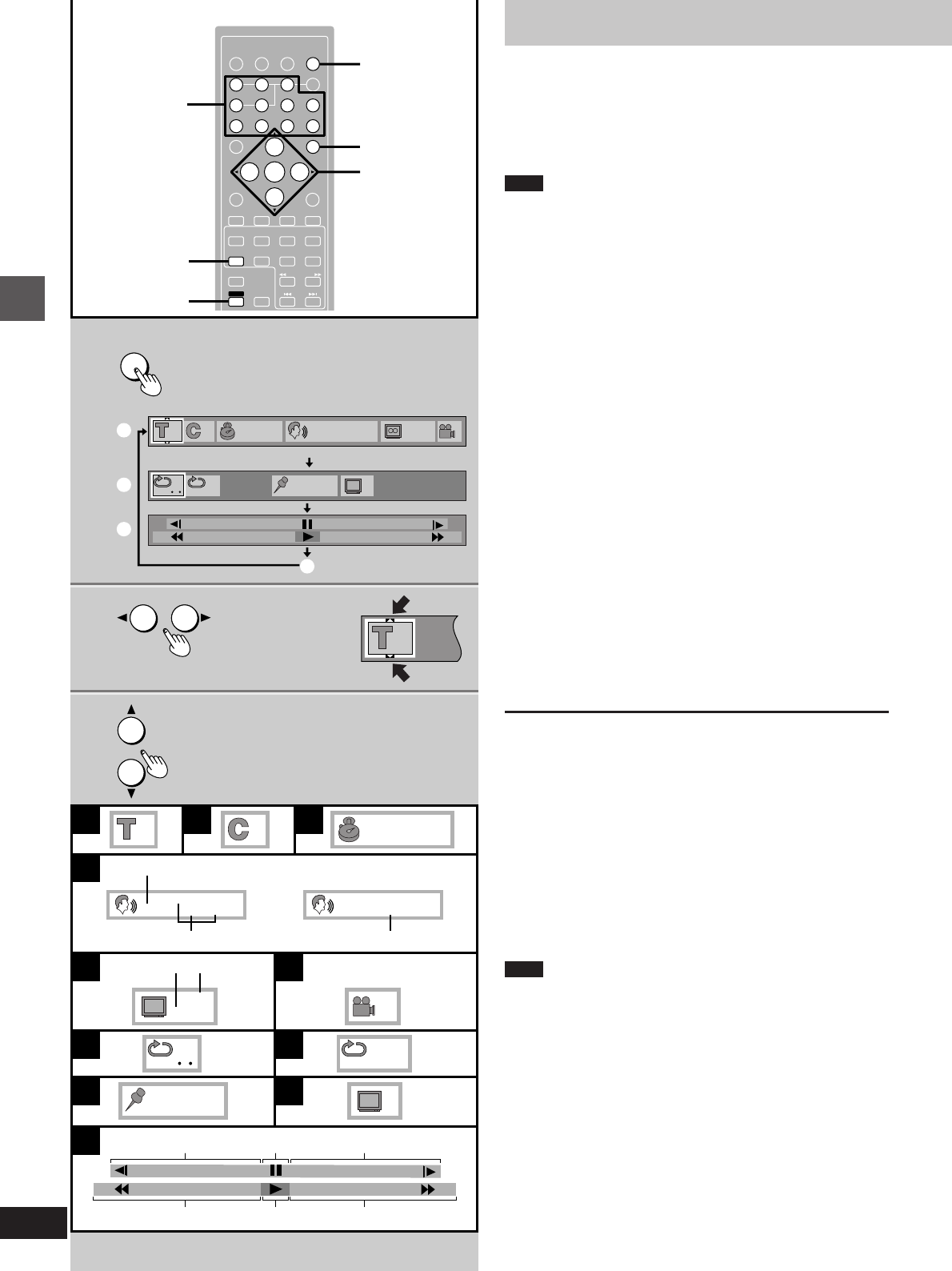

Using GUI screens . . . . . . . . . . . . . . . . . . . . . . . 22

The radio: manual tuning. . . . . . . . . . . . . . . . . . 24

The radio: preset tuning . . . . . . . . . . . . . . . . . . 25

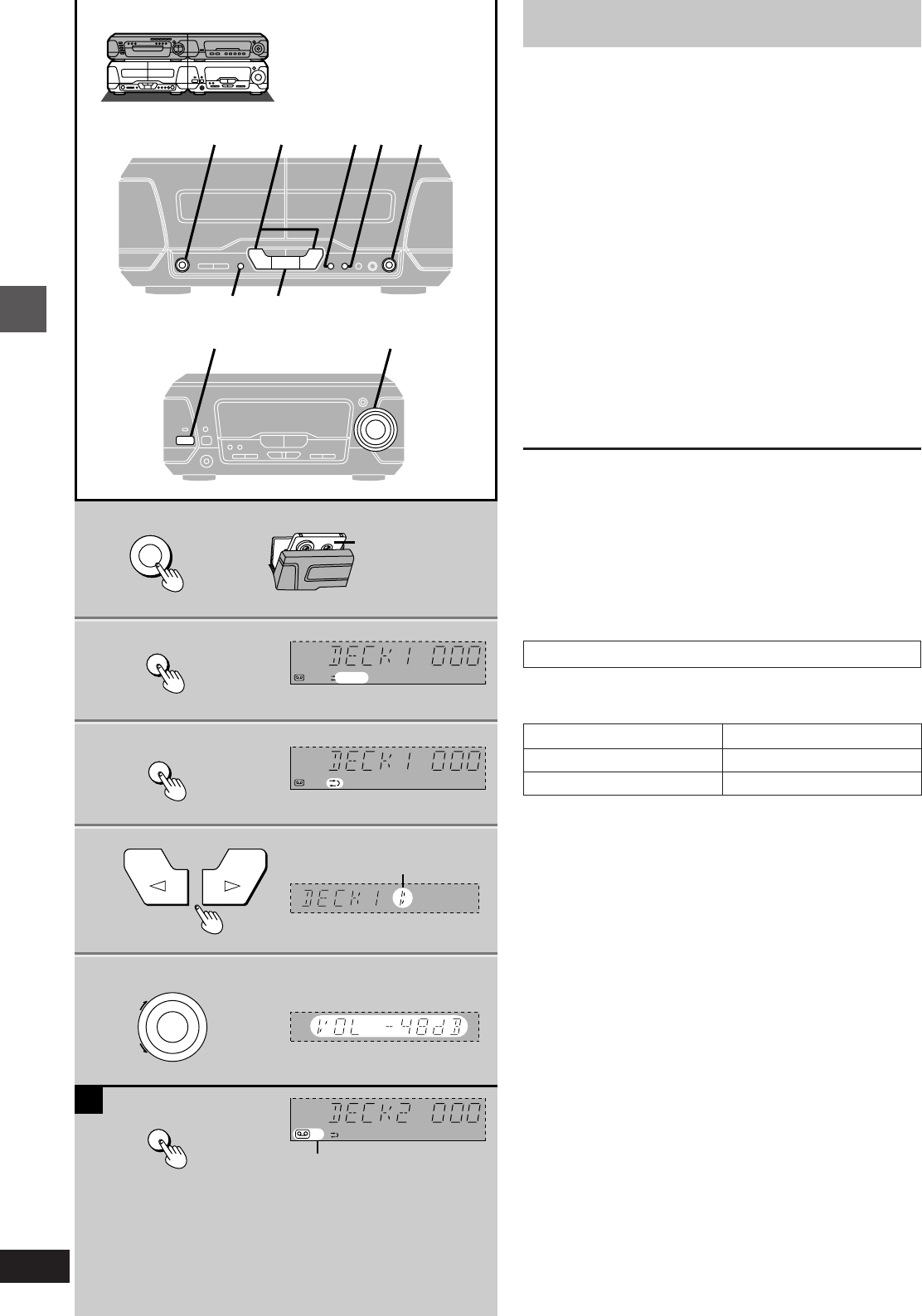

Cassette tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Changing sound field and quality

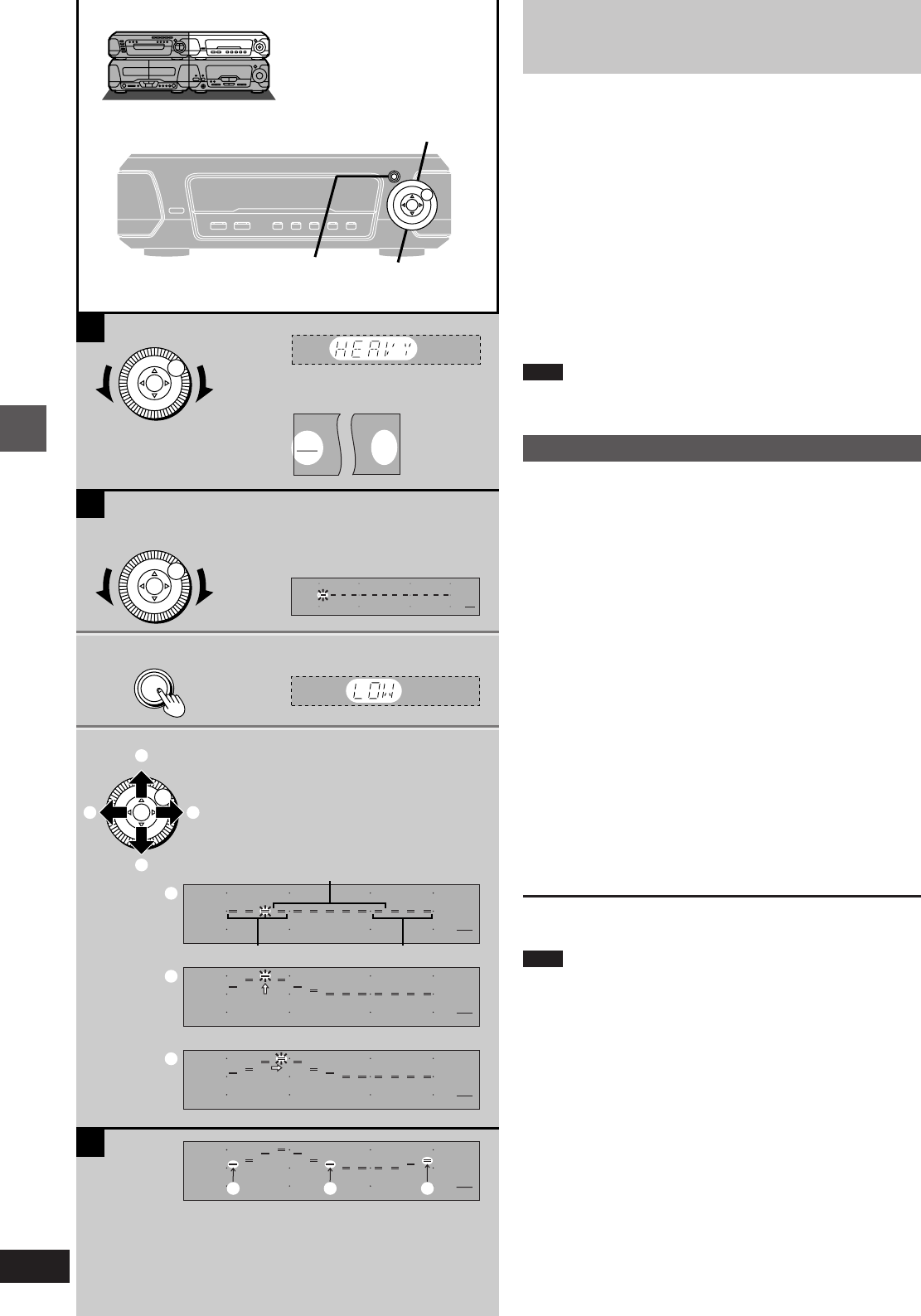

Changing sound field and quality . . . . . . . . . . . 28

Boosting the super woofer . . . . . . . . . . . . . . . . . 29

Enjoying surround sound. . . . . . . . . . . . . . . . . . 30

DOLBY DIGITAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

DOLBY PRO LOGIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

SUPER SURROUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

SIMULATED STEREO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Surround effects . . . . . . . . . . . . . . . . . . . . . . . . . 34

Recording operations

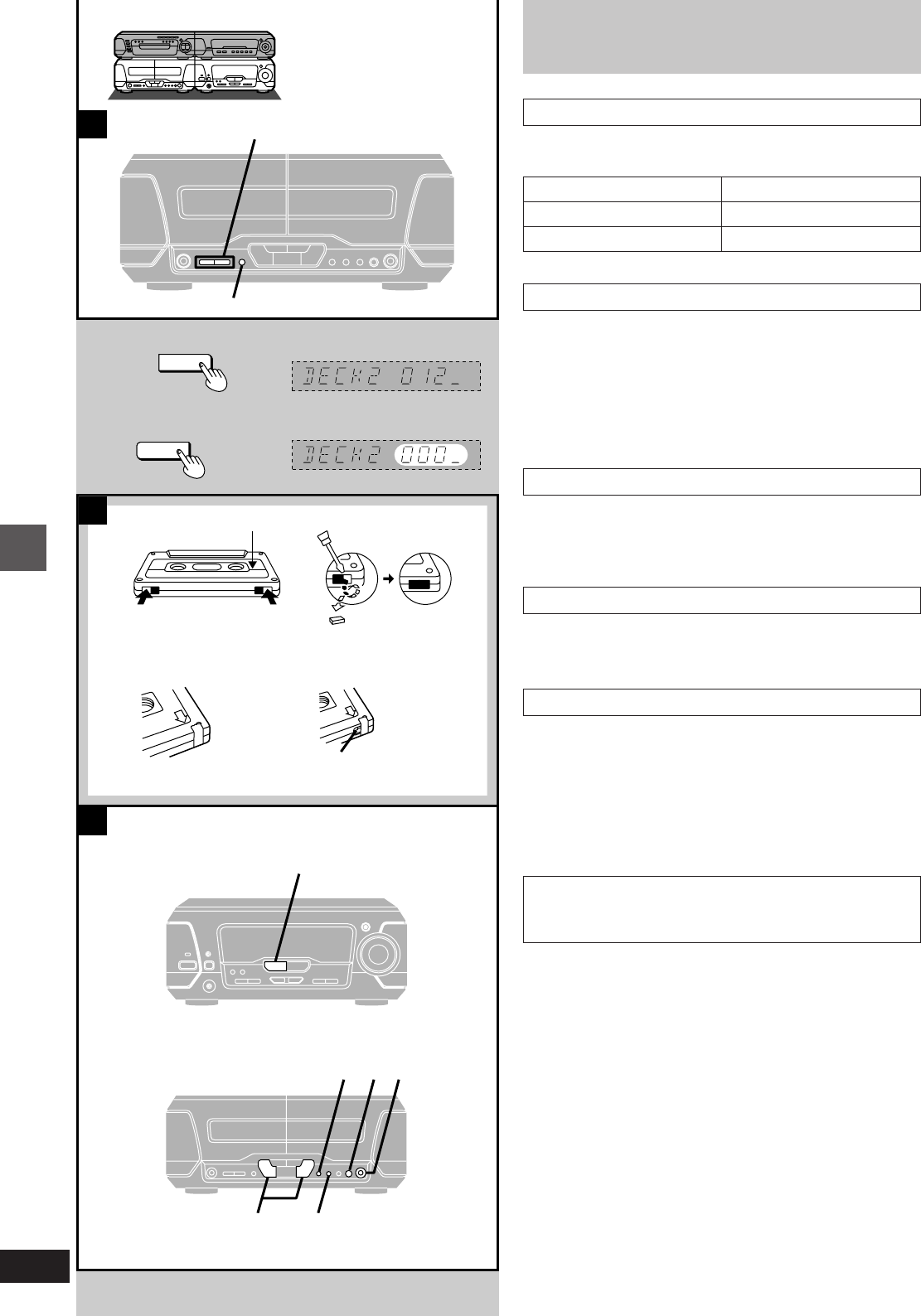

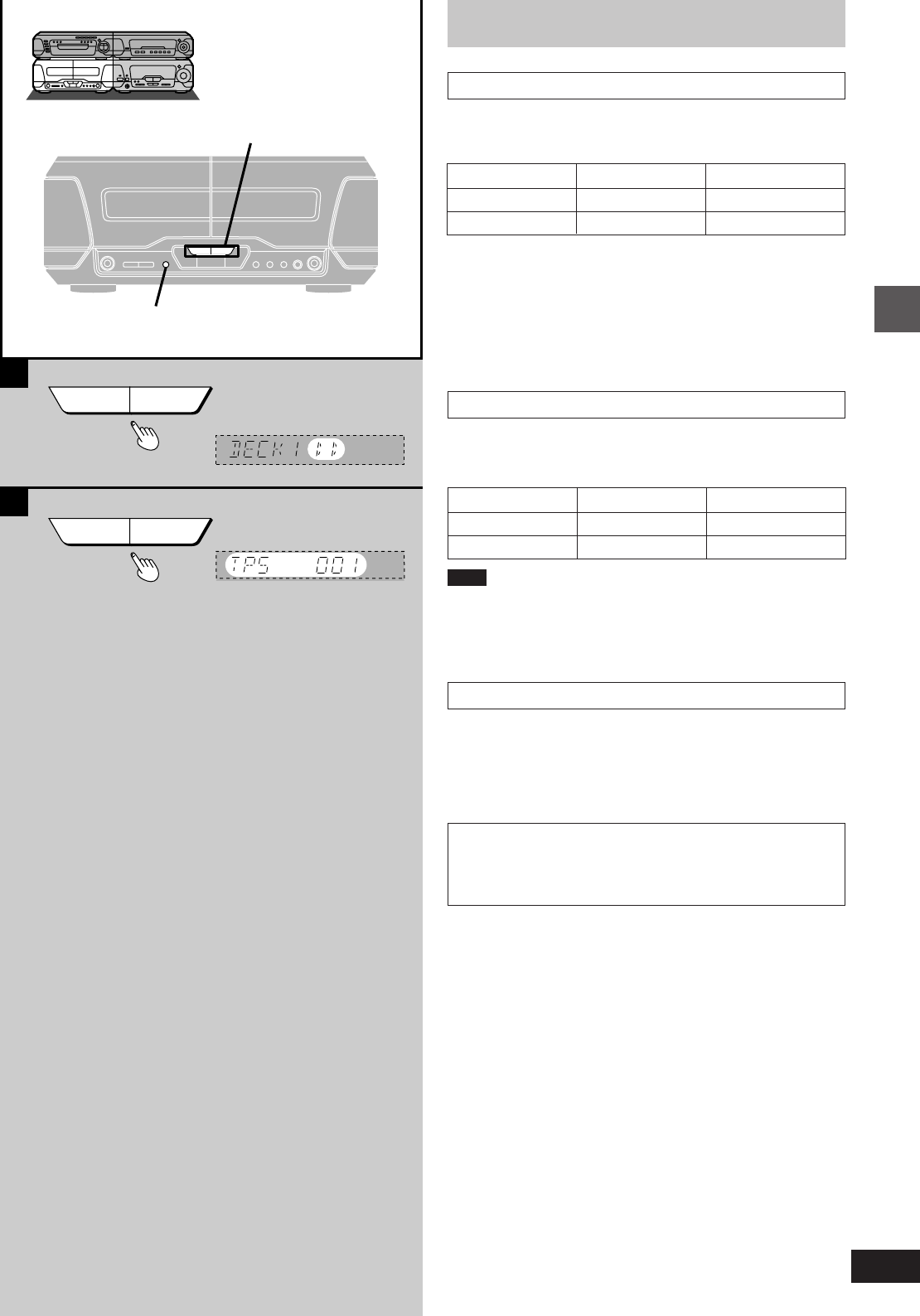

Before recording (Deck 2 only) . . . . . . . . . . . . . 36

Recording discs . . . . . . . . . . . . . . . . . . . . . . . . . 38

Recording the radio . . . . . . . . . . . . . . . . . . . . . . 39

Tape-to-tape recording . . . . . . . . . . . . . . . . . . . . 39

Convenient functions

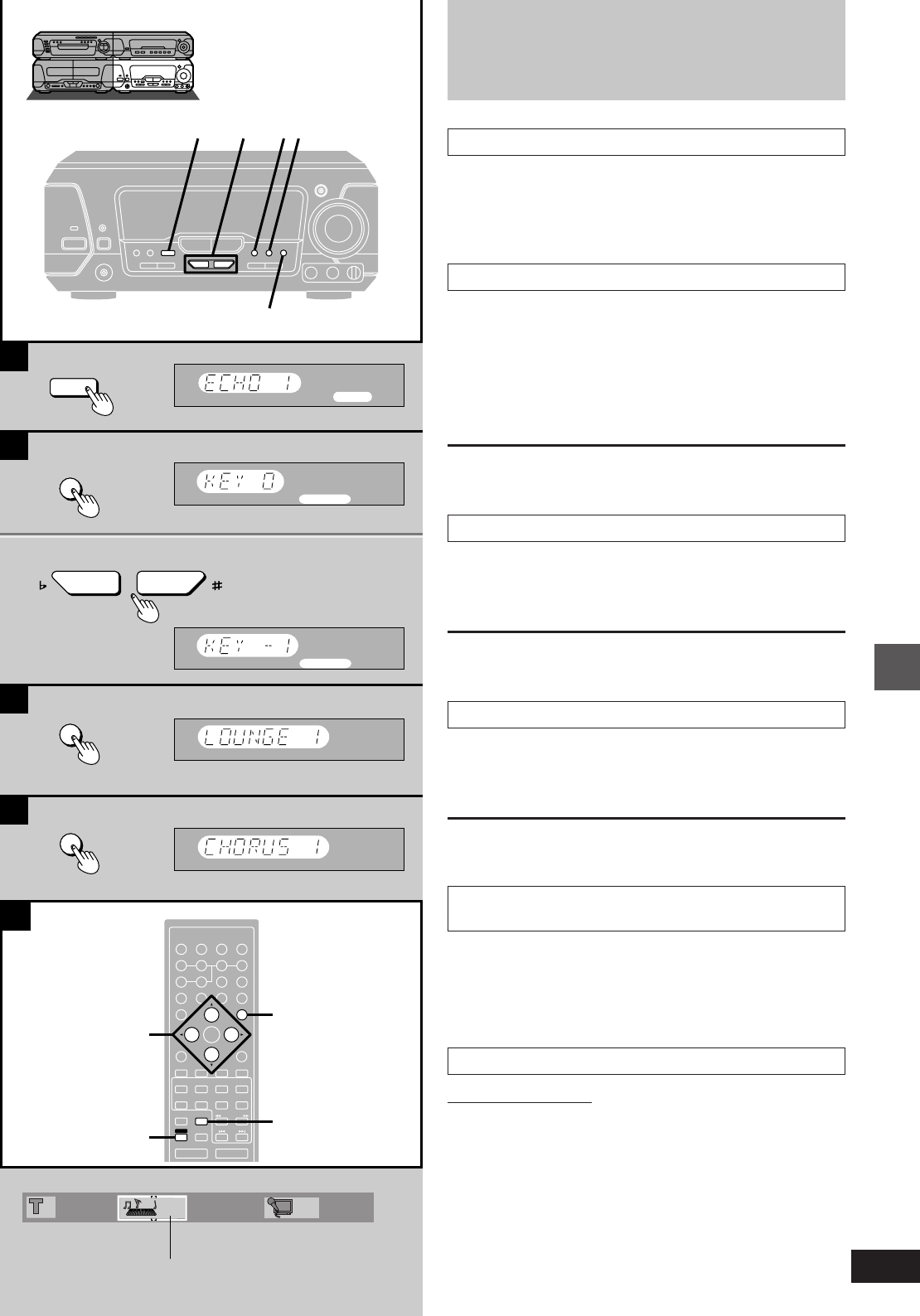

Enjoying KARAOKE . . . . . . . . . . . . . . . . . . . . . . 40

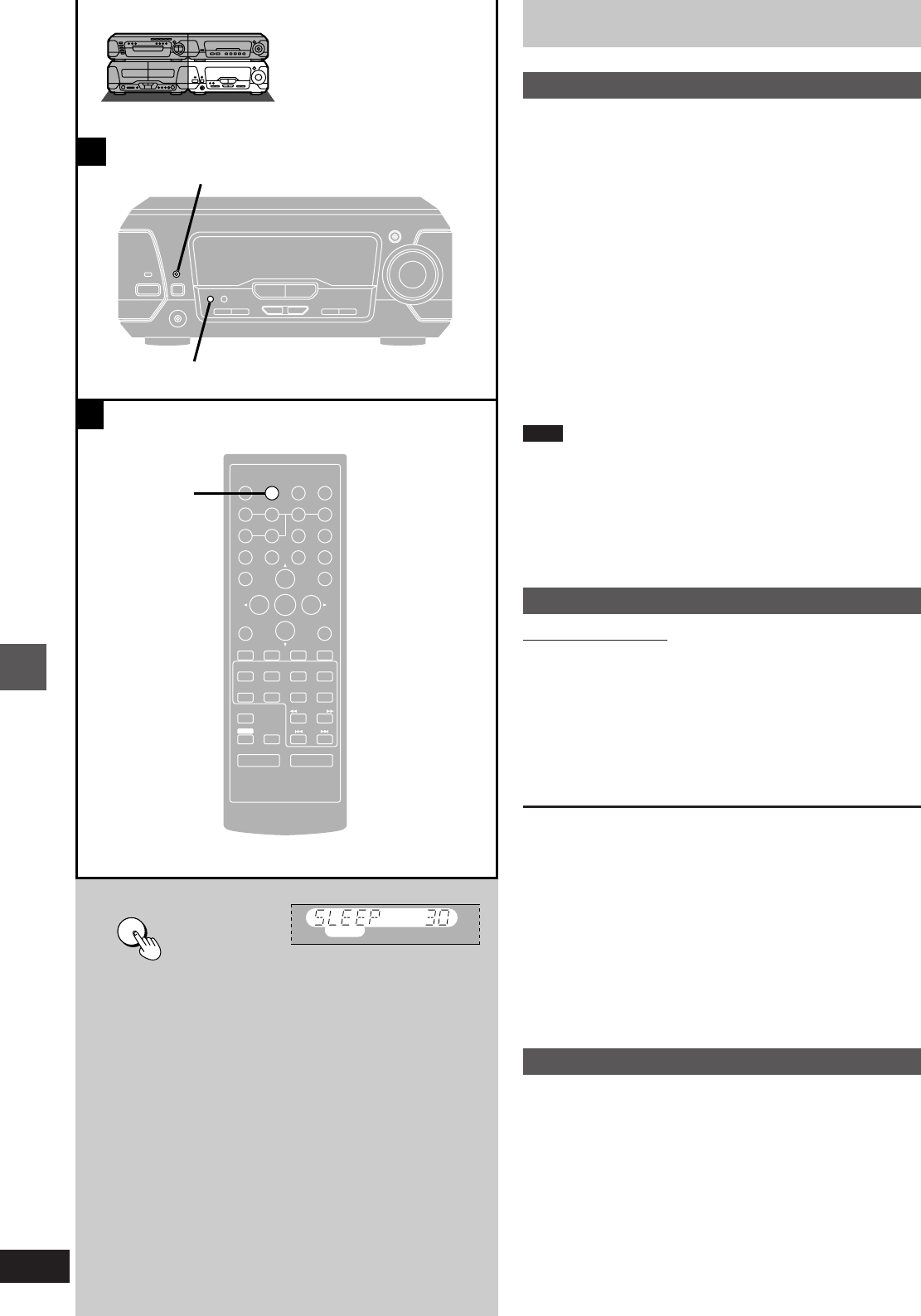

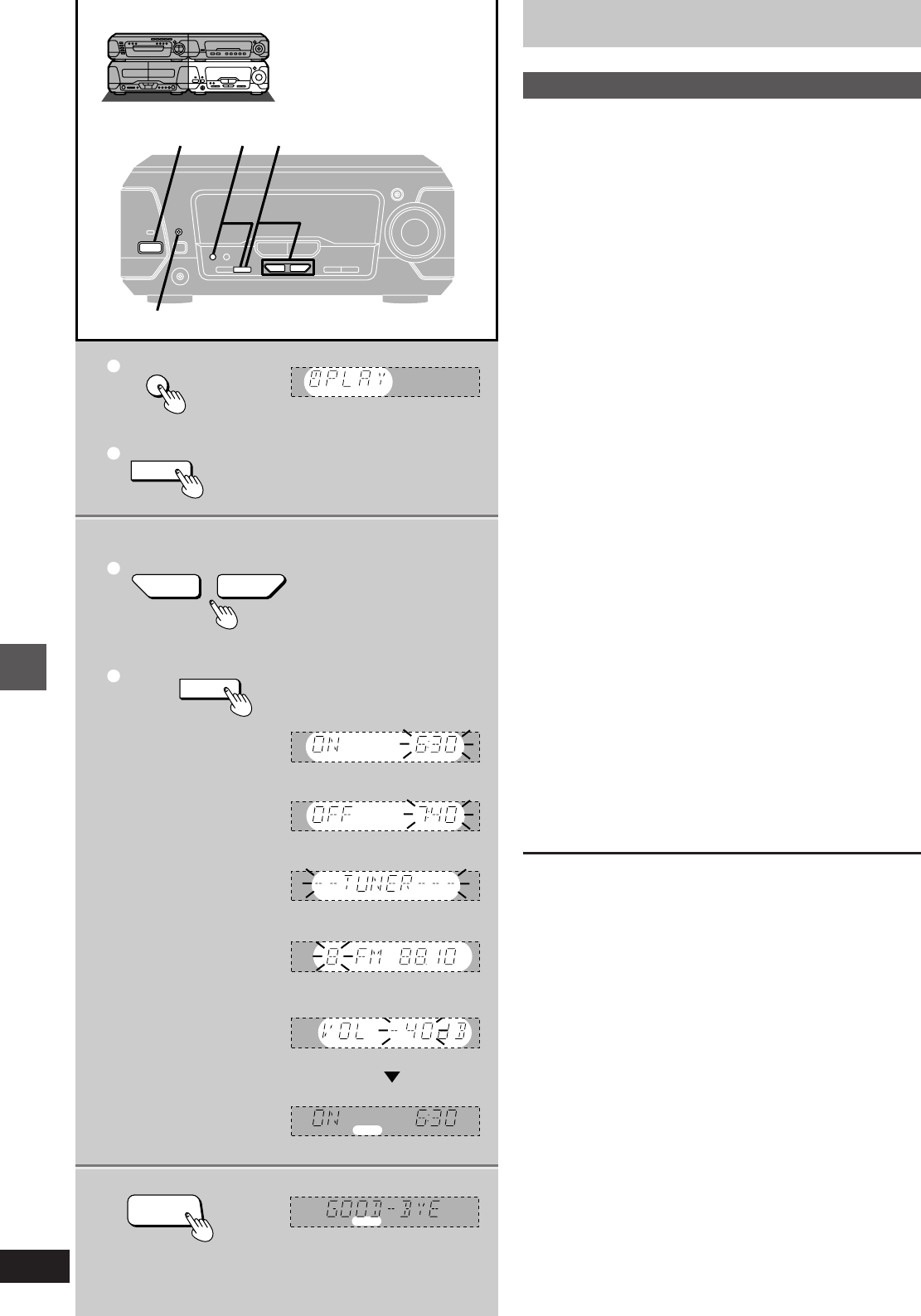

Using the timers . . . . . . . . . . . . . . . . . . . . . . . . . 42

Initial settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Changing the sound range display . . . . . . . . . . 50

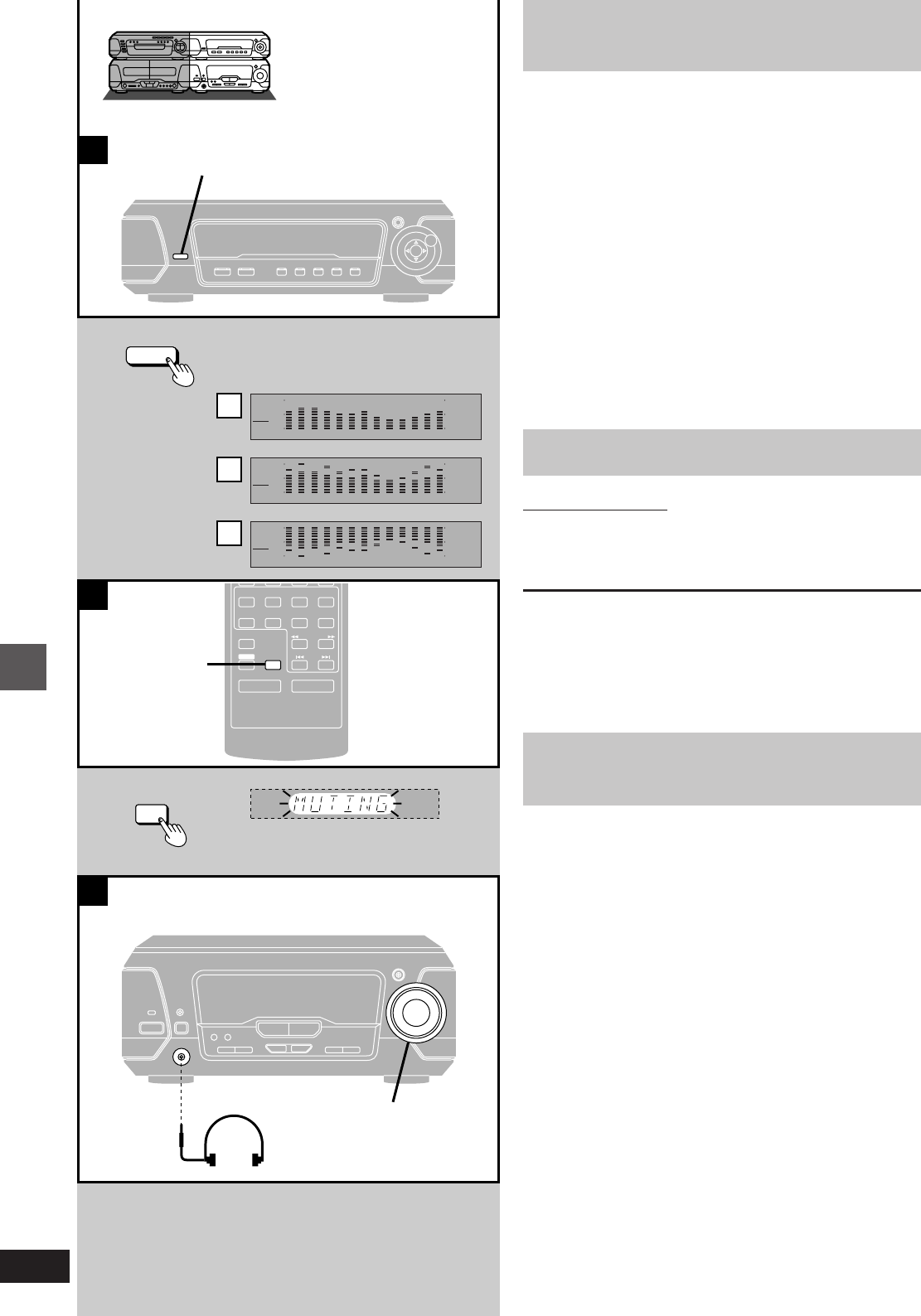

Muting the volume. . . . . . . . . . . . . . . . . . . . . . . . 50

Using headphones (not included) . . . . . . . . . . . 50

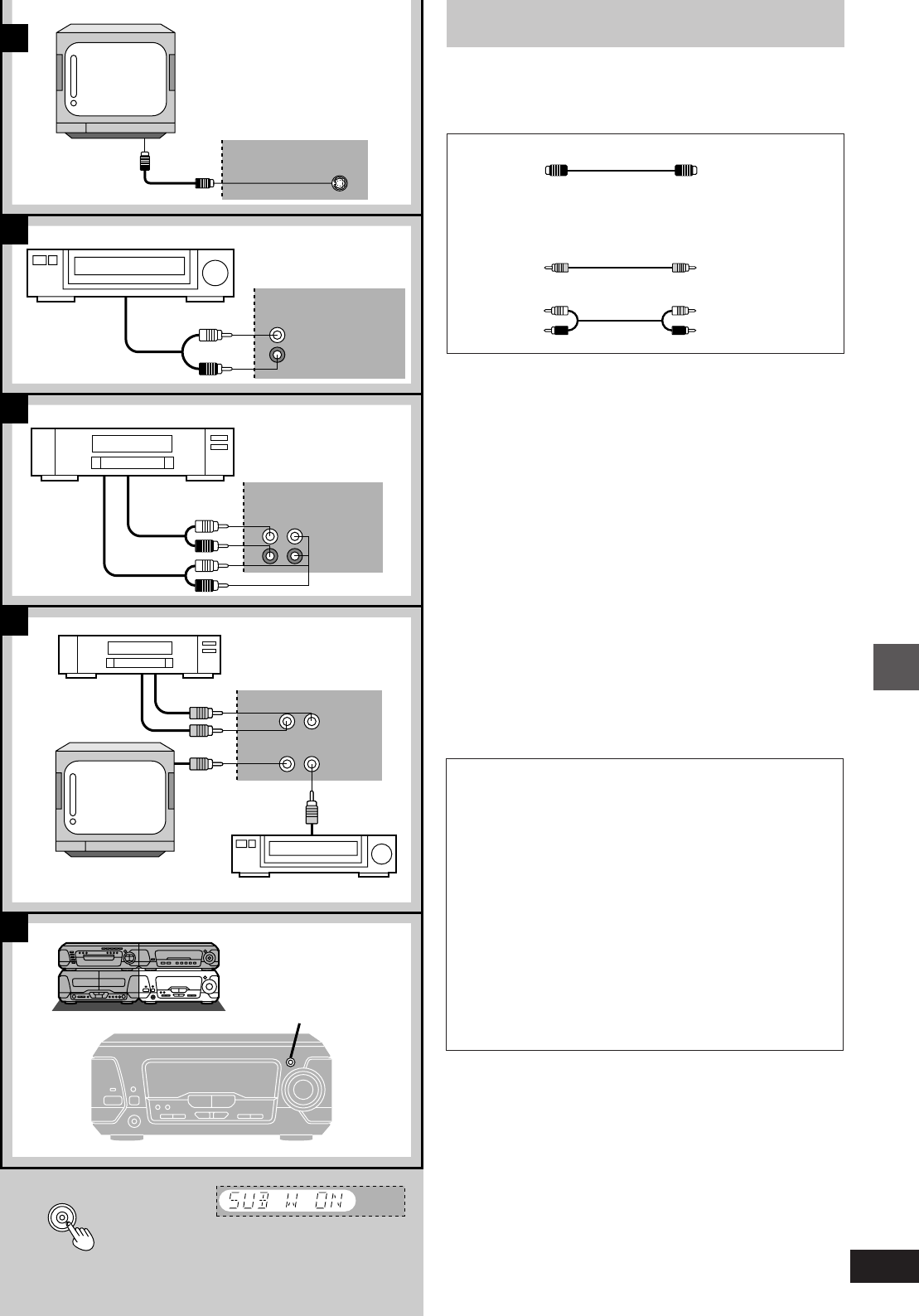

External unit connections . . . . . . . . . . . . . . . . . 51

Using other equipment . . . . . . . . . . . . . . . . . . . . 52

Reference

Technical specifications . . . . . . . . . . . . . . . . . . . 53

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . 54

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Disc symbols used in these operating

instructions

The functions you can use depend on the type of disc you

play.

These marks are used to indicate which type of disc is ex-

plained.

[DVD]:Feature can be used with DVD-Video

[V-CD]:Feature can be used with Video CD

[CD]:Feature can be used with Audio CD

Some features cannot be used even if these symbols are indi-

cated.

Before use

RQT5471

4

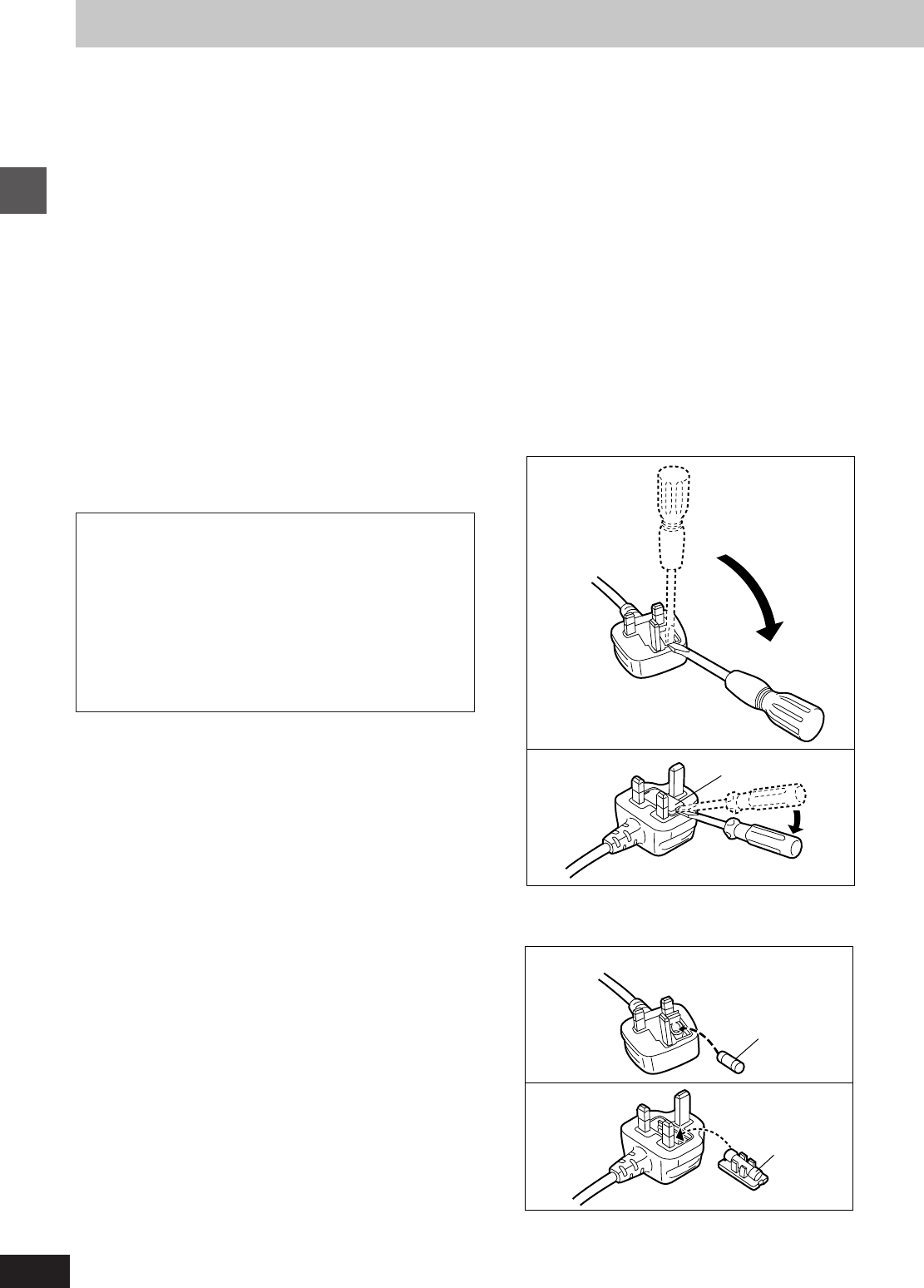

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text careful-

ly.

This appliance is supplied with a moulded three pin

mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure

that the replacement fuse has a rating of 5-ampere

and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark m or the BSI mark o on

the body of the fuse.

If the plug contains a removable fuse cover you must

ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used

until a replacement cover is obtained.

A replacement fuse cover can be purchased from

your local dealer.

WARNING: DO NOT CONNECT EITHER WIRE TO

THE EARTH TERMINAL WHICH IS MARKED WITH

THE LETTER E, BY THE EARTH SYMBOL n OR

COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of

AC mains plug (figures A and B). Confirm the AC

mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cov-

er.

Caution for AC Mains Lead

If a new plug is to be fitted please observe the wiring

code as stated below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accor-

dance with the following code:

Blue: Neutral, Brown: Live.

As these colours may not correspond with the co-

loured markings identifying the terminals in your plug,

proceed as follows:

The wire which is coloured Blue must be connected to

the terminal which is marked with the letter N or col-

oured Black or Blue.

The wire which is coloured Brown must be connected

to the terminal which is marked with the letter L or co-

loured Brown or Red.

Fuse

(5 ampere)

Fuse

(5 ampere)

Figure A

Figure B

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUIT-

ABLE FOR THE SOCKET OUTLET IN YOUR

HOME THEN THE FUSE SHOULD BE RE-

MOVED AND THE PLUG CUT OFF AND DIS-

POSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRI-

CAL SHOCK IF THE CUT OFF PLUG IS IN-

SERTED INTO ANY 13-AMPERE SOCKET.

Fuse cover

Figure A

Figure B

5

Before use

RQT5471

A

C

D

E

30–35 mm

100 mm

7–9 mm

Ø7.5~9.5

B

127V 110V 220–230V 240V

120e

30e 30e

b DVD/Video CD/

CD changer

(SL-DV170)

c Sound

processor

(SH-DV170)

e Cassette deck

(RS-DV170)

f Tuner/amplifier

(SA-DV170)

c Sound processor

(SH-DV170)

f Tuner/amplifier

(SA-DV170)

b DVD/Video CD/CD changer

(SL-DV170)

e Cassette deck

(RS-DV170)

h Center speaker

(SB-PC75)

g Front speaker (R)

(SB-EH760)

Installation

»

ASet the voltage

(Except for the United Kingdom, Continental Europe, Russia,

Australia and N.Z.)

Be sure to disconnect the AC mains lead before setting the voltage.

Use a flat-head screwdriver to turn the voltage selector to the appro-

priate position for the area in which this system is to be used.

If the power supply in your area is 115 V, 120 V or 230 V, set the

voltage selector as follows:

³For 115 V: set to 110 V

³For 120 V: set to 127 V

³For 230 V: set to 220–230 V

Note that the unit will be seriously damaged if this setting is not made

correctly.

Locating the components

[B] Side-by-side set-up/[C] Stacking

Note

Left and right front speakers are exactly the same.

Use only the supplied speakers.

The combination of the system and the speakers provides the best

sound. Using other speakers can damage the unit and sound quality

will be negatively affected.

»

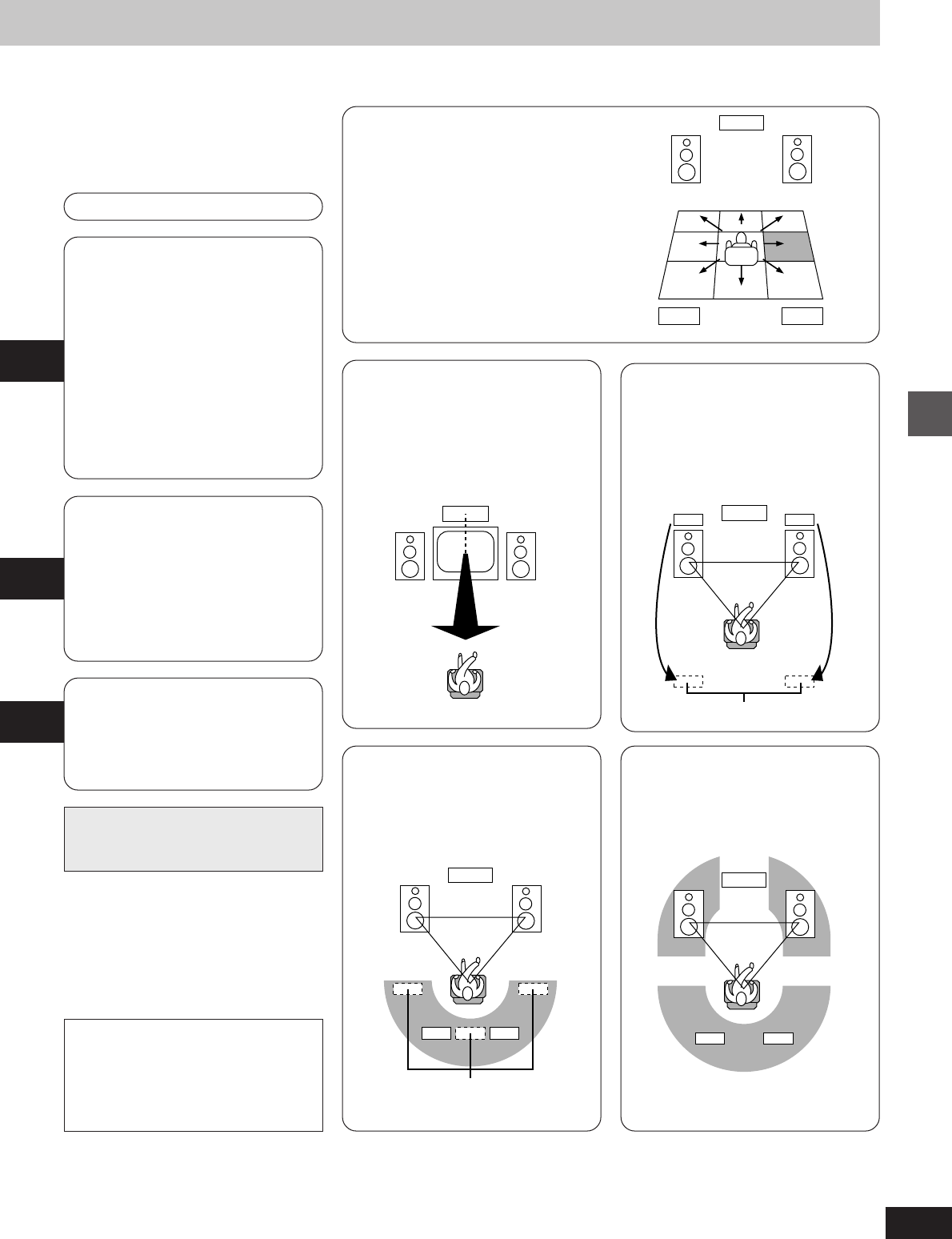

DPlacement of center/surround

speakers (and subwoofer)

Center speaker

Place the center speaker (h) directly above the television.

Surround speakers

Place the surround speakers (i, j) on either side of the listening

position, or slightly to the rear, about 1 meter higher than ear level.

Place the speakers with the Technics logo facing toward the listening

position.

However the position should be adjusted to your personal prefer-

ence, because the effect varies to some degree depending upon the

type of music and the music source.

Note

If you are unable to position the surround speakers as recommend-

ed, you can put them near the front speakers and still achieve a sur-

round-like effect (á page 35, “VIRTUAL REAR SURROUND”).

[E] Attaching to a wall

Set speaker onto screws and slide through the bracket to lock into

position.

Note

The wall or pillar on which the speaker systems are to be attached

should be capable of supporting 5 kg.

Subwoofer

(Included only for areas other than the United Kingdom, Conti-

nental Europe, Australia and N.Z.)

The subwoofer (m) can be placed anywhere as long as it is standing

and not too far from the television.

If irregular coloring occurs on your television

Turn the television off for about 30 minutes.

The television’s demagnetizing function should correct the problem.

If it persists, move the speakers farther away from the television.

d Front speaker (L)

(SB-EH760)

d Front speaker (L)

(SB-EH760)

g Front speaker (R)

(SB-EH760)

i Surround

speaker (L)

(SB-PS75)

j Surround

speaker (R)

(SB-PS75)

k Listening

position

l Front view l Front view

The front, center, and surround speakers should be placed

at approximately the same distance from the listening posi-

tion. The angles in the diagram are approximate.

a (Bottom of tuner/amplifier)

m Subwoofer

(SB-W85)

Caution

³Use the speakers only with the recommended system.

Failure to do so may lead to damage to the amplifier

and/or the speakers, and may result in the risk of fire.

Consult a qualified service person if damage has oc-

curred or if you experience a sudden change in perfor-

mance.

³Do not attempt to attach these speakers to walls using

methods other than those described in this manual.

VOLTAGE ADJUST SWITCH

Before use

RQT5471

6

B1

A1 B2

4

1

2

11

4

7

5

56

3

3

5

4

5

A

B

C

-

+

LOW MID

R

HIGH LOW MID

L

HIGH

1

2

2

1

HF

MF

LF

DVD

IN

MONITOR

OUT VIDEO

OUT

2

3

1

1

2

FM ANT

75∞

GND

75∞

FM ANT

SUB

-WOOFER

SURROUND D

E

VIDEO

OUT

RL

CENTER

(Right)

Adhesive tape

f To household

mains socket

(Left)

(Right)

d To unplug cables

Hold the connector

on both ends

and pull it out.

b Connector

(For the United

Kingdom, Continen-

tal Europe, and

Russia)

Tuner/amplifier side

Gray (i)

Speaker side

c White

line

a To connect cables

(For others)

(For others)

Basic connections

k Approx. 6 mm

l Connector

j Appliance

inlet

Black (j)

Black (j)

The illustrations show the model for Russia.

Gray (i)

e To your

television

(For the United Kingdom, Continen-

tal Europe, and Russia)

Sound processor Changer

e To your television

i Audio terminals

RCAJ adaptor

(Only for the United Kingdom and

Continental Europe)

h Video terminal

(Except for the United Kingdom,

Continental Europe, Russia, Australia

and N.Z.)

(Except for the United Kingdom and

Continental Europe)

Subwoofer: Except for the United

Kingdom, Continental Europe, Australia

and N.Z.

(Left)

Subwoofer cord

Center speaker cord

Surround speaker (R) cord

Surround speaker (L) cord

Changer

g Video cord

Blue (i)

Red (i)

Blue (i)

Red (i)

7

Before use

RQT5471

EXT

LOOP

AM ANT

5–12m

A

75∞

FM ANT

GND

EXT

LOOP

AM ANT

A

15mm

30mm

EXT

LOOP

75∞

AM ANT

FM ANT

A

1Flat cables.

Keep the cables as flat as possible against the back of the

unit.

Note

Connect the black connectors to the black terminals and the

blue connector to the blue terminal. Incorrect connection of the

flat cables can damage the unit.

2FM antenna.

Fix the other end of the antenna where reception is best.

3AM loop antenna.

1Attach the antenna holder to the rear panel of the changer .

Then clamp the antenna into the antenna holder.

2Connect the antenna to the rear panel of the tuner/ amplifi-

er.

Keep loose antenna cord away from other wires and cords.

4Front (L/R) speaker cords.

Connect the cords to the terminals of the same colour.

Note

³To prevent damage to circuitry, never short-circuit positive

(i) to negative (j) speaker wires.

³Be sure to connect only positive (red, blue or gray) wires to

positive (i) terminals and negative (black) wires to negative

(j) terminals.

5Surround and center speaker cords.

Subwoofer cord. (Except for the United King-

dom, Continental Europe, Australia and N.Z.)

6Video cord(s).

[B] Only for the United Kingdom and Continental Europe

Use the RCAJ adaptor (included) if your television has a 21-

pin SCART terminal.

You do not have to connect anything to the AUDIO terminals.

[C] Except for the United Kingdom and Continental Europe

Use this connection if you have connected a VCR or Laser

Disc player (á page 51 [D]). This enables you to control the

video and audio from this equipment with [INPUT SELEC-

TOR] (á page 52).

7AC mains lead.

[D] Insertion of connector

Even when the connector is perfectly inserted, depending on

the type of inlet used, the front part of the connector may jut

out as shown in the drawing.

However there is no problem using the unit.

[E] Except for the United Kingdom, Continental Europe,

Russia, Australia and N.Z.

If the power plug will not fit your socket, use the power plug

adaptor (included).

Note

The included AC mains lead is for use with this unit only. Do not use

it with other equipment.

For your reference:

Information you enter into the unit’s memory, except for time, remains

intact for up to two weeks after the mains lead is disconnected.

Optional antenna

connections

Use outdoor antennas if radio reception is poor.

FM outdoor antenna

Note

³Disconnect the FM indoor antenna.

³The antenna should be installed by a competent technician.

b FM outdoor antenna

1Remove a piece of the outer vinyl

insulator.

2Twist the shield braid to expose the

core wire.

Core wireShield braid

Use the antenna

plug adaptor

(included).

c 75  coaxial cable

(not included)

(Only for the United Kingdom)

(For the United Kingdom, Continental

Europe and Russia)

(For others)

a Tuner/amplifier

AM outdoor antenna

Run a piece of vinyl wire horizontally across a window or other con-

venient location.

Note

³Leave the loop antenna connected.

³Disconnect the antenna when the unit is not in use. Do not use the

antenna during an electrical storm.

d AM outdoor antenna

a Tuner/amplifier

Before connection

³Do not connect the AC mains lead until all other connections

are complete.

³To prepare the AM loop antenna and speaker cords (and FM

antenna for areas other than the United Kingdom, Continen-

tal Europe, and Russia), twist the vinyl tip and pull off ([A]).

(For the United Kingdom only)

READ THE CAUTION FOR THE AC MAINS

LEAD ON PAGE 4 BEFORE PROCEEDING TO

STEP 7.

Before use

RQT5471

8

1

1

3

3

6

4, 5

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

13

46

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤ ¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

5

2

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2

H

3

2

6

4, 5

ENTER

RETURN

SHIFT

SETUP

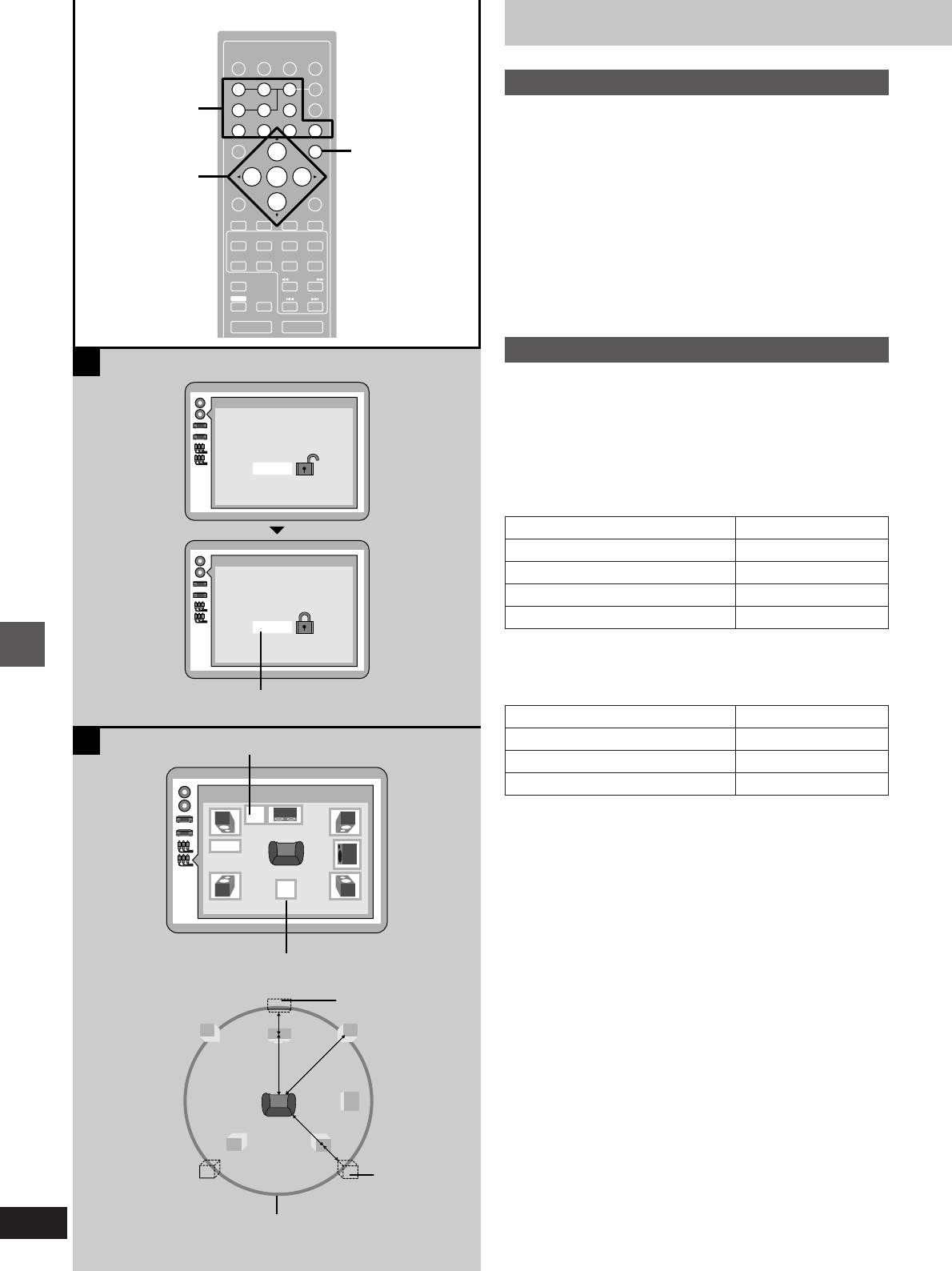

1 Disc Languages

Level 8

2 Ratings

3 Menu Language

4 On-Screen Messages

5 TV Aspect

6 Speaker Setting

Press RETURN to exit

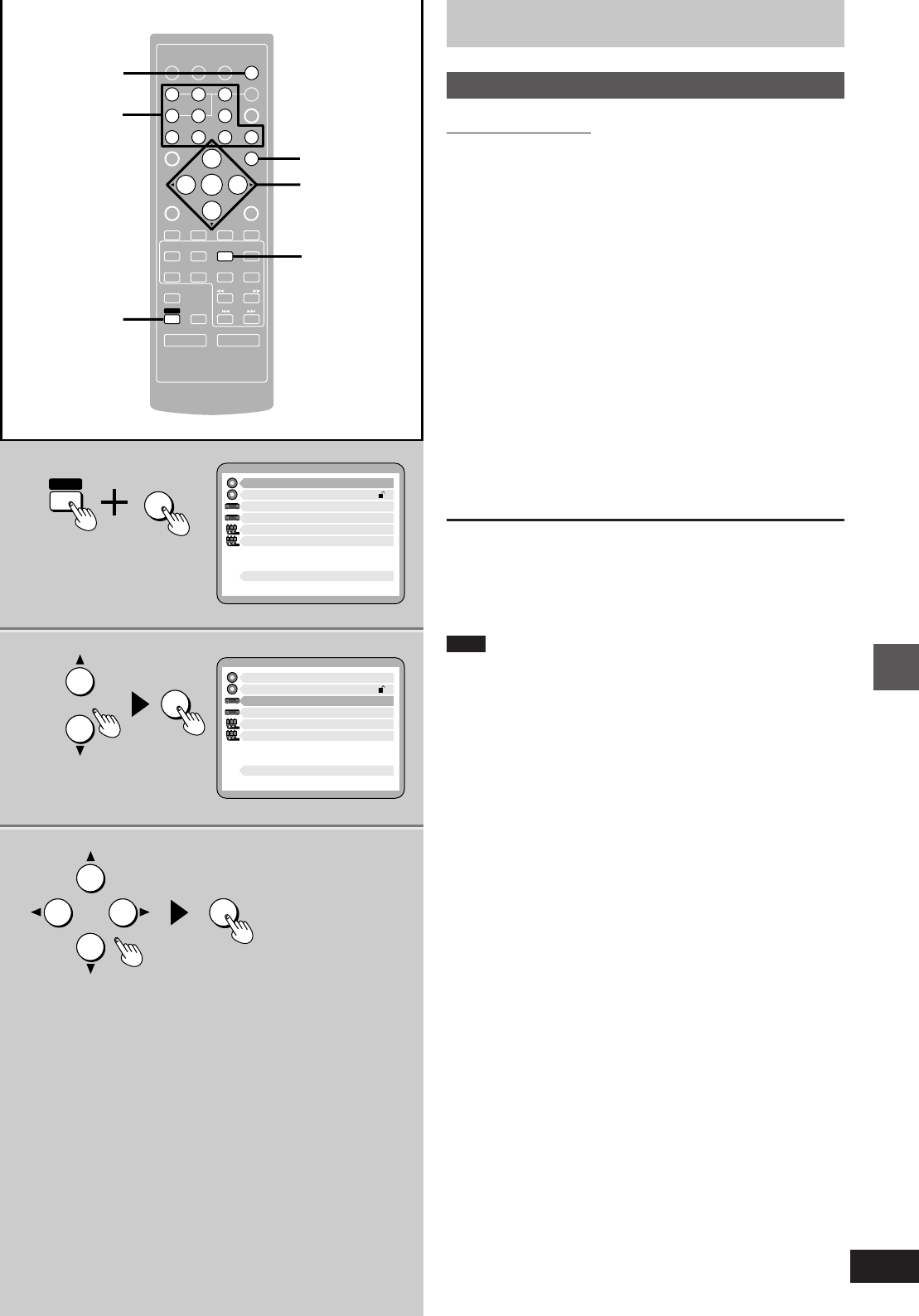

9 Other Settings

English

4:3

Select your TV aspect

1 4 : 3

2 16 : 9

Press RETURN to exit

DVD

Television settings

Remote control only

The menu language has been factory preset to English. You can

change the language by going to “3 Menu Language” of the initial

settings screen (á page 46).

Set the screen size to suit your television. The initial setting is for a

regular television with an aspect ratio of 4:3.

You do not have to change the setting if you have this kind of

television.

Preparation:

Turn on the television and switch the video input mode of the televi-

sion to suit the type of connection you have made (e.g., VIDEO 1).

1Press [ê] to turn the unit on.

2Press [DVD] to select “DVD” as the

source.

3While stopped

Press [SHIFT] i [SETUP] to display

the initial settings screen.

4Press [3] or [4] to highlight “5 TV

Aspect”, and press [ENTER].

5Press [3] or [4] to highlight the re-

quired size, and press [ENTER].

4:3: Regular television

16:9: Widescreen television

The initial settings screen is shown after you make your selec-

tion.

6Press [RETURN] to exit.

You can also do steps 4 and 5 with the numbered buttons.

Press the number next to the selected item.

For example, in step 4, press [5] to select “5 TV Aspect”.

a Numbered

buttons

b (On the TV screen)

9

Before use

RQT5471

Front panel controls

»

ATuner/amplifier

7, :, ;, C and D: Not available for the United Kingdom, Continen-

tal Europe, Australia and N.Z.

1Standby/on switch (ê/I) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Press to switch the unit from on to standby mode or vice versa.

In standby mode, the unit is still consuming a small amount of

power.

2Standby indicator (ê)

When the unit is connected to the AC mains supply, this indica-

tor lights up in standby mode and goes out when the unit is

turned on.

3Play timer/record timer button and indicator

(FPLAY/FREC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42, 43

4ECO mode button (MODE) . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5Clock/timer, Demo button

(CLOCK/TIMER, –DEMO) . . . . . . . . . . . . . . . . . . . . . . . . 12, 42

6FM mode button (FM AUTO/MONO) . . . . . . . . . . . . . . . . . . 24

7[Except\for\the\United\Kingdom,\Continental\Europe,\Australia\and\N.Z.]

Echo button (ECHO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

8Source input button (INPUT SELECTOR) . . . . . . . . . . . . . . 52

9Tuner/band button (TUNER/BAND) . . . . . . . . . . . . . . . . . . . 24

:[Except\for\the\United\Kingdom,\Continental\Europe,\Australia\and\N.Z.]

Key control button (KEY CON) . . . . . . . . . . . . . . . . . . . . . . 41

;[Except\for\the\United\Kingdom,\Continental\Europe,\Australia\and\N.Z.]

MIC effect buttons (MIC EFFECT, LOUNGE, CHORUS) . . . . 41

<Digital super woofer button and indicator

(DIGITAL S.WOOFER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

=Volume control (VOLUME) . . . . . . . . . . . . . . . . . . . . . . . . . . 14

>Headphone jack (PHONES) . . . . . . . . . . . . . . . . . . . . . . . . . 50

?Tuning mode button (TUNING MODE) . . . . . . . . . . . . . . . . 24

@Set button (SET) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

A[For\the\United\Kingdom,\Continental\Europe,\Australia\and\N.Z.]

Tuning buttons (X, W TUNING) . . . . . . . . . . . . . . . . . . . 12, 24

[For\others]

Tuning, Key up/down buttons

(X, W TUNING, Ý, ß) . . . . . . . . . . . . . . . . . . . . . . . . 12, 24, 41

B]For\the\United\Kingdom\and\Continental\Europe\

RDS display mode buttons

(RDS, PS–DISP MODE–PTY) . . . . . . . . . . . . . . . . . . . . . . . . 24

[For\Australia\and\N.Z.\

No buttons.

[For\others\

KARAOKE, Voice mute buttons

(KARAOKE, V.MUTE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

C[Except\for\the\United\Kingdom,\Continental\Europe,\Australia\and\N.Z.]

Microphone jacks (MIC, 1, 2) . . . . . . . . . . . . . . . . . . . . . . . . 40

D[Except\for\the\United\Kingdom,\Continental\Europe,\Australia\and\N.Z.]

Microphone volume control (MIC VOL) . . . . . . . . . . . . . . . 40

»

BDVD/Video CD/CD changer

EDisc select buttons and indicators (DISC, 1–5) . . . . . . . . . 14

Green: Indicates that the tray is ready to play its disc or to be

opened.

FA-B repeat button (A-B REPEAT) . . . . . . . . . . . . . . . . . . . . 19

GRepeat button (REPEAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

HCD edit button (CD EDIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

IDisc direct open buttons

(DIRECT OPEN, DISC 1– DISC 5) . . . . . . . . . . . . . . . . . . . . . 14

JDisc tray open/close button (< OPEN/CLOSE) . . . . . . . . . 14

KSkip buttons (:, 9 SKIP) . . . . . . . . . . . . . . . . . . . . . . . 16

LDisc tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

MCinema mode button (CINEMA) . . . . . . . . . . . . . . . . . . . . . . 18

NDisc management select button (1 DISC/ALL) . . . . . . . . . . 15

OSlow/search buttons (6, 5 SLOW/SEARCH) . . . . . . . 16

PStop button (º) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

QPause button (;) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RPlay button and indicator (!) . . . . . . . . . . . . . . . . . . . . . . . 15

The colour of the indicator depends on the operation taking place.

If stopped: orange

If playing: green

If paused: flashes green

RESUME on: flashes orange

B

A

H

H/I

MODE

?

TUNING

@

PHONES

TUNING MODE SET KARAOKE

V.MUTE

12

MIC

MIC VOL

MIN MAX

INPUT SELECTOR TUNER/BAND

DIGITAL

S.WOOFER

VOLUME

UP

DOWN

FM AUTO/

MONO

KEY CON LOUNGE CHORUS

MIC EFFECT

ECHO

œ

PLAY

/œ

REC

CLOCK/TIMER

@

DEMO

5 6 : ;7 8 9 =<3 41 2

> ? @ DA B C



1

DISC

A-B REPEAT

2

3

4

5

DISC

1

DISC

2

DIRECT OPEN

DISC

3

DISC

4

DISC

5

OPEN

/

CLOSE

»

E

REPEAT

CD EDIT

SLOW/SEARCH

SKIP

1 DISC/ALL

CINEMA

g

1

DISC

RANDOM

2

3

4

5

DISC

1

DISC

2

DIRECT OPEN

DISC

3

DISC

4

DISC

5

OPEN

/

CLOSE

»

MN

g

E

REPEAT

EDIT

E IF HG J

L PONM RQ

K

Before use

RQT5471

10

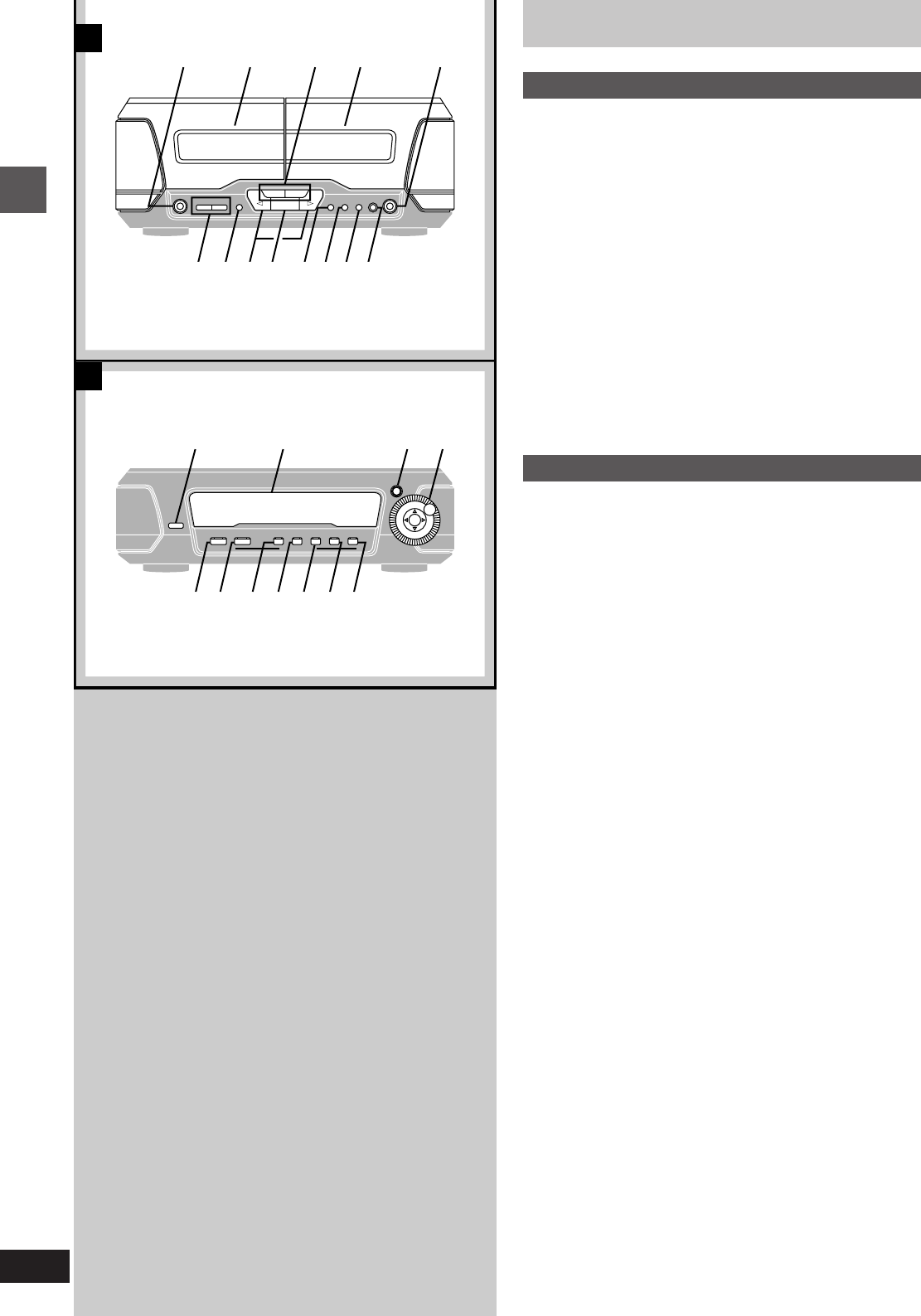

Front panel controls

»

ACassette deck

SDeck 1 cassette holder open button (< OPEN) . . . . . . . . . 26

TDeck 1 cassette holder

UFast forward/rewind buttons (6, 5) . . . . . . . . . . . . . . . 27

VDeck 2 cassette holder

WDeck 2 cassette holder open button (< OPEN) . . . . . . . . . 26

XCounter reset, display buttons

(COUNTER, RESET, DISPLAY) . . . . . . . . . . . . . . . . . . . . . . 36

YDeck 1/deck 2 select button (DECK 1/2) . . . . . . . . . . . . . . . 26

ZPlayback buttons and indicators (", !) . . . . . . . . . . . . . . 26

The colour of the indicators depends on the operation taking

place.

If stopped, fast-forwarding or rewinding: orange

If playing or recording: green

While carrying out TPS or recording is on standby: flashes green

[Stop button (º) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

\Dolby noise reduction button (DOLBY NR) . . . . . . . . . . . . 26

]Reverse mode button (REV MODE) . . . . . . . . . . . . . . . . . . . 26

^Tape edit button (TAPE EDIT) . . . . . . . . . . . . . . . . . . . . . . . 39

_Record pause button (´ REC PAUSE) . . . . . . . . . . . . . . . . 38

»

BSound processor

`Display mode button (DISPLAY MODE) . . . . . . . . . . . . . . . 50

aDisplay

b3D AI EQ, M.EQ BAND button

(3D AI EQ/M.EQ BAND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

cJog control and joystick (MULTI JOG) . . . . . . . . . . . . . . . . 28

dDOLBY PRO LOGIC button and indicator

(ë PRO LOGIC, OFF/ON) . . . . . . . . . . . . . . . . . . . . . . . . . . 33

eSuper surround button and indicator

(SUPER SURROUND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

fCenter focus button and indicator (CENTER FOCUS) . . . 35

gVirtual rear surround button and indicator

(VIRTUAL REAR SURROUND) . . . . . . . . . . . . . . . . . . . . . . . 35

hMulti rear surround button and indicator

(MULTI REAR SURROUND) . . . . . . . . . . . . . . . . . . . . . . . . . 35

i3D enhanced surround button and indicator

(3D ENHANCED SURROUND) . . . . . . . . . . . . . . . . . . . . . . . 35

jSeat position button and indicator

(SEAT POSITION) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

DSP CONTROL

DISPLAY MODE

U

PRO LOGIC

OFF/ON

MULTI JOG

SEAT

POSITION

CENTER

FOCUS 3D ENHANCED

SURROUND

MULTI REAR

SURROUND

VIRTUAL REAR

SURROUND

SUPER

SURROUND

3D AI EQ/

M.EQ BAND

COUNTER

RESET

DISPLAY

DECK 1/2

E

OPEN

E

OPEN

DOLBY NR

@

GF

REV MODE TAPE EDIT

H

REC

PAUSE

B

A

Y \] _^Z [X

` cba

d e f g i jh

A

UT V WS

11

Before use

RQT5471

1

R6/LR6

AA,UM-3

B

C

A

30 o 30 o

7m

f

MENU

EQ

ENTER

RETURN

KARAOKE

EFFECT

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE SETUP

123

456

7890

j/-/--

DISPLAY

DISC

PLAY MODE

CANCEL

AUDIO

KARAOKE

MIX 2CH

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

k

u

r

1

m

l

o

d

¢

~

|

<e

°†

9

K

£

=

t

vw

x

n

y

z

{

}

q

s

p

The remote control

»

AControls

Buttons such as 1 and d function in the same way as the corre-

sponding controls on the main unit.

kSleep timer button (SLEEP) . . . . . . . . . . . . . . . . . . . . . . . . . 44

lNumbered buttons (1–9, 0, M) . . . . . . . . . . . . . . . . . . 14

mMenu, EQ button (MENU, EQ) . . . . . . . . . . . . . . . . . . . . 17, 28

nCursor buttons (2, 1, 3, 4) . . . . . . . . . . . . . . . . . . . . . 8, 45

oMarker, 3D AI EQ, M.EQ BAND button

(MARKER, 3D AI EQ/M.EQ BAND) . . . . . . . . . . . . . . . . . 18, 28

pChannel select, Test signal button

(CH SELECT, TEST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

qInput select button [VCR (EXT)/VDP (AUX)] . . . . . . . . . . . . 52

rTAPE, Deck 1/deck 2 select button (TAPE/DECK 1/2) . . . . 26

sPlay mode, Cancel button (PLAY MODE, CANCEL) . . 18, 20

tDisc pause, Tape reverse play button (2/;) . . . . . . . . 16, 26

uAudio select, 2 channel down mixing button

(AUDIO, MIX 2CH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 32

v[Except\for\the\United\Kingdom,\Continental\Europe,\Australia\and\N.Z.]

KARAOKE button (KARAOKE) . . . . . . . . . . . . . . . . . . . . . . 40

wShift button (SHIFT)

To operate functions labeled in orange, press [SHIFT] and then

the corresponding button at the same time.

xMuting button (MUTING) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

yTop menu, Subtitle select button

(TOP MENU, SUBTITLE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

zGUI display, Initial setting button (DISPLAY, SETUP) . . 8, 22, 45

{Disc button (DISC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

|[For\the\United\Kingdom,\Continental\Europe,\Australia\and\N.Z.]

Return button (RETURN) . . . . . . . . . . . . . . . . . . . . . . . . . 8, 45

[For\others\

Return, Karaoke effect button

(RETURN, KARAOKE EFFECT) . . . . . . . . . . . . . . . . . 8, 41, 45

}Enter button (ENTER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 45

~Angle select, AV effect button (ANGLE, AV EFFECT) . . 17, 34

DVD button (DVD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

¡Disc play, Tape forward play button (1) . . . . . . . . . . . 15, 26

¢Disc stop, Tape stop button (º) . . . . . . . . . . . . . . . . . . 14, 26

£Disc slow/search, Tape fast forward/rewind buttons

(6, 5 SLOW/SEARCH) . . . . . . . . . . . . . . . . . . . . . . 16, 27

»

BBatteries

³Insert so the poles (i and j) match those in the remote control.

ÁDo not use rechargeable type batteries.

Do not;

³mix old and new batteries.

³use different types at the same time.

³heat or expose to flame.

³take apart or short circuit.

³attempt to recharge alkaline or manganese batteries.

³use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can

damage items the fluid contacts and may cause a fire.

If electrolyte leaks from the batteries, consult your dealer.

Wash thoroughly with water if electrolyte comes in contact with any

part of your body.

Remove if the remote control is not going to be used for a long period

of time. Store in a cool, dark place.

Replace if the unit does not respond to the remote control even when

held close to the front panel.

If the battery lid comes loose, slide it back into place horizontally.

»

CUse

Aim at the sensor, avoiding obstacles, at a maximum range of 7 me-

ters directly in front of the unit.

³Keep the transmission window and the unit’s sensor free from dust.

³Operation can be affected by strong light sources, such as direct

sunlight, and the glass doors on cabinets.

Do not;

³put heavy objects on the remote control.

³take the remote control apart.

³spill liquids onto the remote control.

a Tuner/amplifier

Before use

RQT5471

12

A

1

2

1

2

3

B

C

1 2 32

1

1

2

1

2

MODE

CLOCK/TIMER

—DEMO

SET

CLOCK/TIMER

—DEMO

SET

MODE

?

TUNING

@

H/I

CLOCK/TIMER

—DEMO

»

ASetting the time

This is a 24-hour clock.

The example shows how to set the clock for 16:25 (4:25 p.m.).

1Press [ê/I] to turn the unit on.

21Press [CLOCK/TIMER, –DEMO] to

display “CLOCK”.

Each time you press the button:

CLOCK>FPLAY>FREC>Original display

^-------------------------------------------------------------------}

2Within 7 seconds

Press [SET].

31Press [TUNING (X or W)] to set the

time.

The time display can be changed in one minute units by

tapping the buttons, and quickly by holding down the but-

tons.

2Press [SET].

The time is set and the original display is restored.

Displaying the clock

Press [CLOCK/TIMER, –DEMO].

The clock is shown for about 5 seconds.

»

BTurning DEMO off

A demonstration of the display is shown if you have not set the clock.

Turn DEMO off to get the most from ECO mode (see below).

While the unit is on:

Press and hold [CLOCK/TIMER, –DEMO]

until “NO DEMO” is displayed.

Each time you press and hold the button:

NO DEMO (off)bDEMO (on)

»

CSaving power in the standby

mode

Set the unit to reduce energy consumption in the standby mode

(11 W>0.5 W for the United Kingdom, Continental Europe, Russia,

Australia and N.Z. or 11 W>1.0 W for others).

While the unit is on:

1Press [MODE].

The current mode is displayed.

2Within 5 seconds

Press [MODE] to display “ECO”.

Each time you press the button:

NORMAL (off)bECO (on)

ECO: The clock is not displayed in the standby mode. The “ê” and

the “FPLAY/FREC” indicators still light.

Note

The mode can be switched to ECO when the unit is in standby but it

cannot be switched back to NORMAL.

13

Before use

RQT5471

B

C

A

2

2

ALL

24

1

c

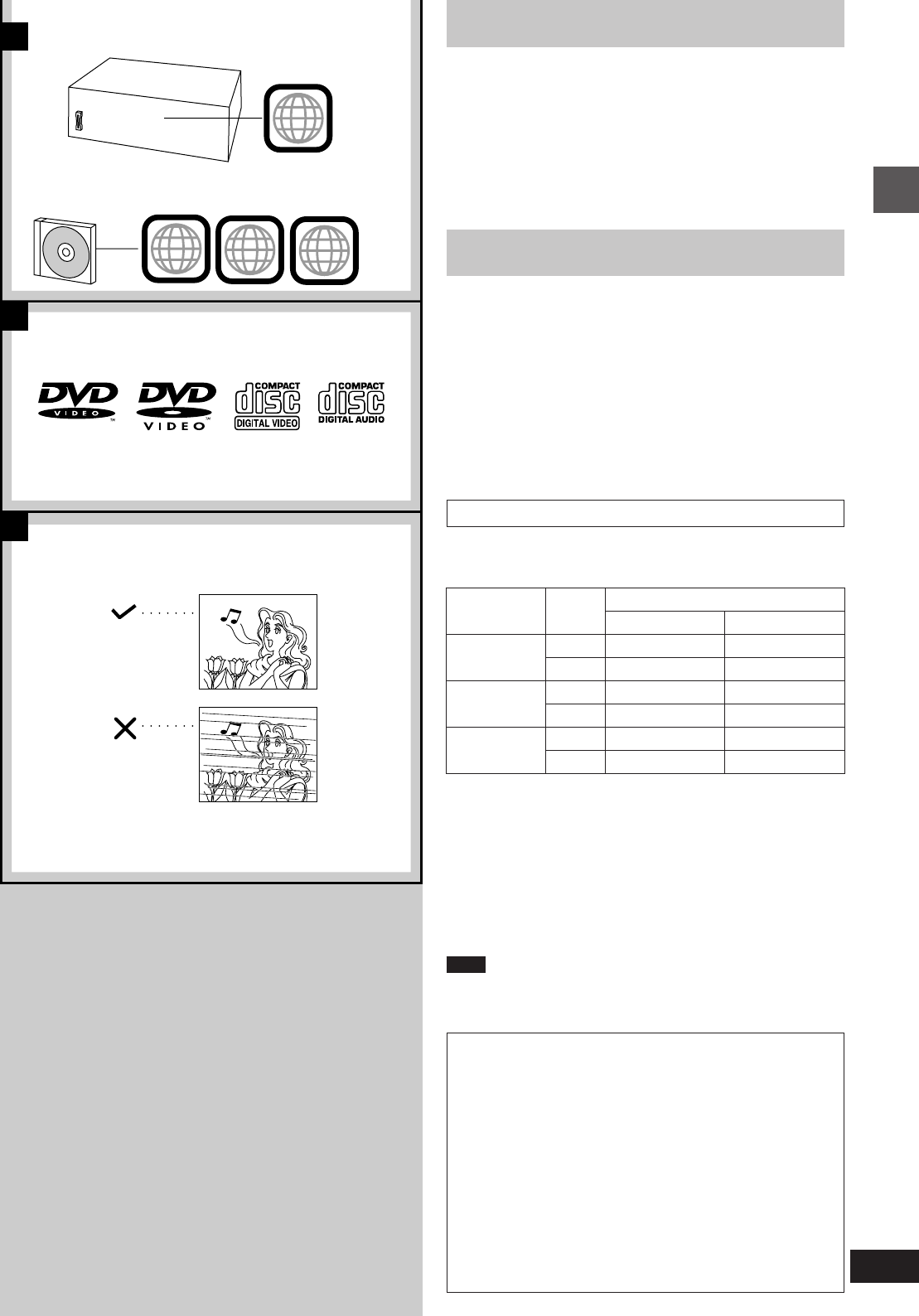

[A]Region numbers

Region numbers are allocated to DVD players and software accord-

ing to where they are sold.

DVDs can be played on this unit if their region number is the same or

includes the same number, or if the DVD is marked “ALL”.

Confirm the region number for this unit before choosing discs. The

number for this unit is indicated on the rear panel of the DVD/Video

CD/CD changer.

c Discs that can be played by the unit shown in this example.

[B]Types of discs

This system can play discs bearing any of the marks shown.

This system does not have a DTS decoder so it cannot play audio

encoded with DTS.

This system cannot play the following discs:

³DVD with an unsuitable region number

³DVD-Audio ³DIVX Video Disc ³CD-RW

³DVD-ROM ³VSD ³SACD

³DVD-R ³CD-ROM ³SVCD

³DVD-RAM ³CDV ³CD-R

³DVDiRW ³CVD ³Photo CD, etc.

³DVD-RW ³CD-G

»

CType of disc for the type of connected TV

DVDs and Video CDs are recorded using either PAL or NTSC.

Refer to this table when selecting discs.

The picture will appear on the screen as shown here.

¤1You may not able to perform operations that require interaction

with the television (e.g., initial settings) because on-screen mes-

sages are not displayed correctly.

¤2In “9 Other Settings”–“6 NTSC Disc Output”, select “1 PAL60” (á

page 46). If your television is not equipped to handle PAL 525/60

signals the picture will not be shown correctly.

¤3The factory setting for NTSC disc output is “PAL60”, so no chang-

es to the initial settings are necessary.

¤4If you select “2 NTSC” in “9 Other Settings”–“6 NTSC Disc Out-

put” (á page 46), the picture may be clearer.

Note

The bottom part of the picture may be cut off if the Video CD played

does not comply with standards.

a DVD/Video CD/CD changer

(Back of product)

TV type

Multi-

system TV

NTSC TV

PAL TV

Disc

PAL

NTSC

PAL

NTSC

PAL

NTSC

For others

4

4¤4

k

k

4

4¤3

For Russia

4

4

k

4

4¤1

4¤1¤2

TV Monitor

Glossary

Track

This is the smallest division on Video CDs and CDs, and

usually equates to a single song.

Chapter

This is the smallest division on DVDs and is roughly equiva-

lent to a track.

Title

This is the largest division on DVDs.

Playback control (PBC)

This method of controlling disc play is included on version 2.0

Video CDs. You are able to interact with the disc through

menus.

b (For example)

Basic operations

RQT5471

14



1

3

4

1

4

32

H/I

»

1

DISC

2

3

4

5

DISC 1 DISC 2

DIRECT OPEN

DISC 3 DISC 4 DISC 5

VOLUME

UP

DOWN

A

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

ENTER

2, 1, 3, 4,

RETURN

TOP MENU

MENU

of the world

TITLE MENU

Birds

Birds

Dogs

Lovers

Castles

2

OPEN

/

CLOSE

E

SKIP

ÎDIGITAL

DVD

Discs

Screens illustrated are examples.

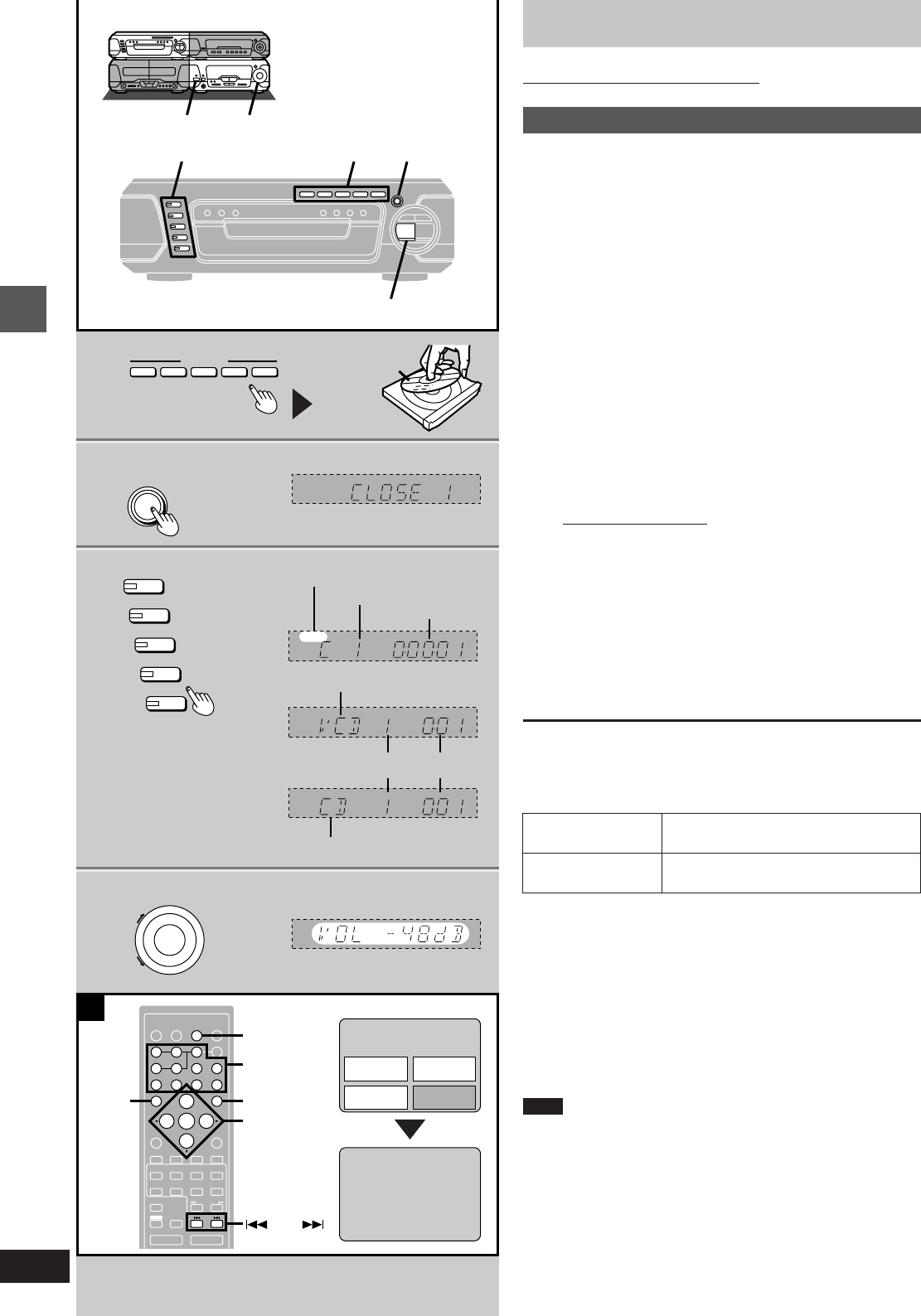

Normal play

[DVD] [V-CD] [CD]

Preparation:

³Press [ê/I] to turn the unit on.

³If you are going to play a DVD or Video CD, turn on the television

and switch the video input mode of the television to suit the type of

connection you have made (e.g., VIDEO 1).

1Press [DIRECT OPEN] ([DISC 1]–

[DISC 5]) to open a tray and set a disc.

2Press [< OPEN/CLOSE] to close the

tray.

The tray closed is in the play position (its disc indicator turns green).

Some discs start playing automatically.

Load other trays by repeating steps 1 and 2.

3Press [DISC 1]–[DISC 5] to change

the play position tray and start play.

[A] If a menu screen appears on the television

Remote control only

Use [2, 1,3,4] to highlight a title/chapter/track and press

[ENTER].

You can also select the desired item by pressing the num-

bered buttons with some discs.

To select title No.10 or over, press [L] then the two digits.

e.g. Title No. 12: [L] >[1] >[2]

³The cursor buttons are not effective for selecting items for

Video CDs.

4Adjust the volume.

To stop the disc

Press [º]. (The resume function is activated. á page 15)

[A] Using menus

“/” on the TV screen means:

The operation is prohibited by the unit or the disc.

The following messages on the tuner/amplifier mean:

³“NO DISC”: There is no disc on the selected tray or the disc is

set incorrectly.

³“NO PLAY”: The disc does not correspond to the system and

cannot be played.

³“96kHz 24bit”: The disc is one with high quality sound recorded

with a sampling frequency of 96 kHz and 24 bits.

Note

The disc continues to rotate while the menu is displayed even after a

particular item has finished. When no more items are to be selected,

be sure to press [º] to clear the menu display.

a Label must face

upward.

b (On the tuner/amplifier)

f Chapter number

i (On the TV screen)

j Numbered

buttons

To return to a menu

during play

To show the next or

previous menu

DVD: [MENU] or [TOP MENU]

Video CD: [RETURN]

[SKIP 9] (next menu)

[: SKIP] (previous menu)

g Playing time

d Indicates a Video CD is in the play position.

e Indicates a CD is in the play position.

h Track number g Playing time

c Indicates a DVD is in the play position.

15

Basic operations

RQT5471

D

A

C

a

b

c

d



»

1 DISC/ALL

ALL DISC

B

1 DISC/ALL

Discs

»

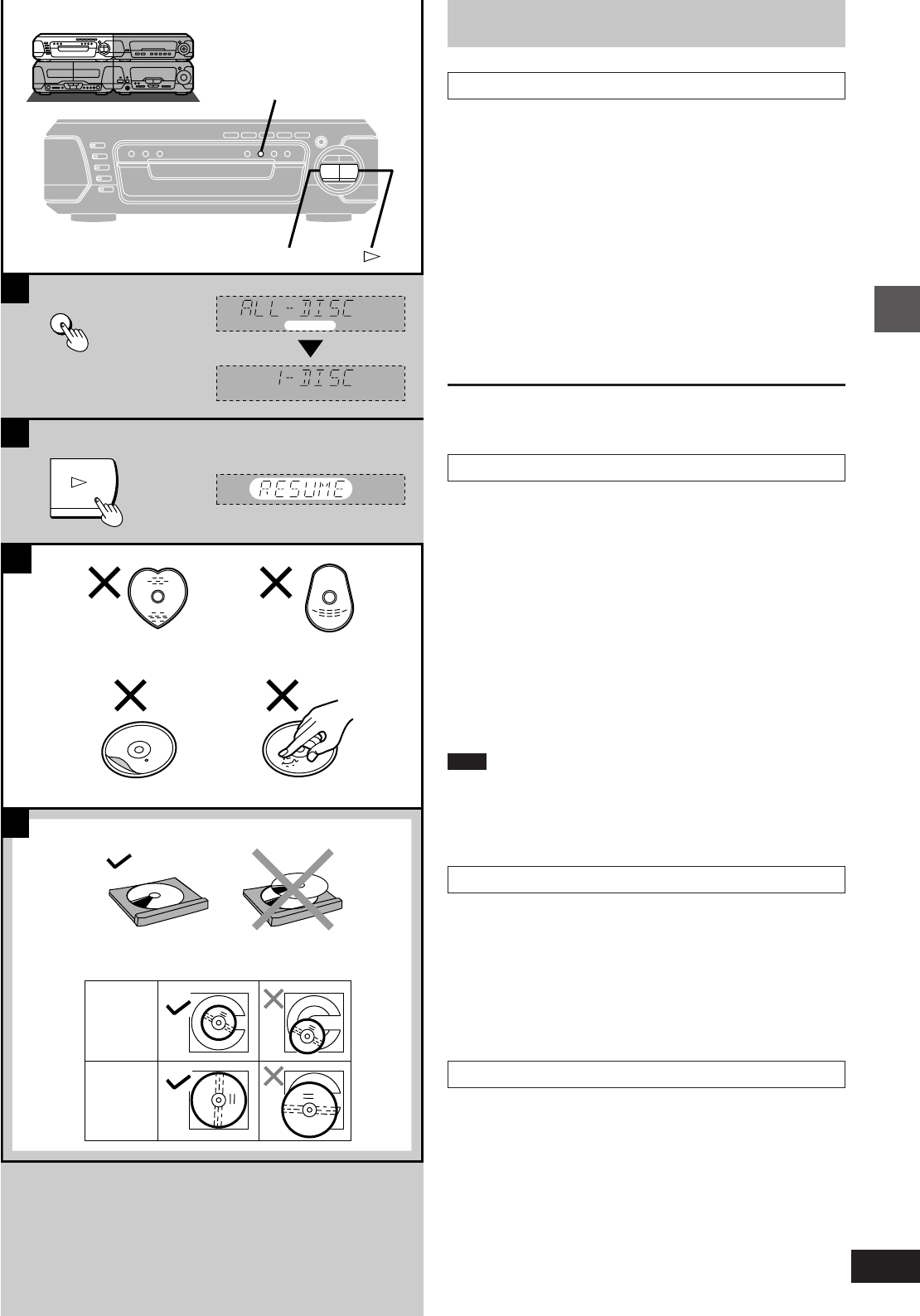

ASelecting ALL-DISC/1-DISC

[V-CD] [CD]

You can play up to 5 discs in succession to the “final disc”. ALL-

DISC skips trays that are empty or contain DVDs. If the disc is a

Video CD with PBC, menu play is automatically canceled.

Preparation:

Ensure a Video CD or CD is in the play position tray.

(You cannot switch between ALL DISC and 1-DISC if the play posi-

tion tray contains a DVD or is empty.)

Before play

Press [1 DISC/ALL] to select the desired

method while stopped.

Each time you press the button:

ALL-DISC: To play all discs in succession

1-DISC: To play 1 disc only

What is meant by “final disc”?

For example, if play starts from disc 4, disc 3 will be the “final disc”.

Order of progression: Disc 4 )5 )1 )2 )3

»

BResume function

[DVD] [V-CD] [CD]

If you press [º] during play, the unit remembers the

position.

This function does not work if the disc’s play time is not displayed on

the tuner/amplifier.

To restart play from the point (Only when “RESUME” is lit)

Press [!].

Play resumes from the point it was stopped.

With DVD

“Press PLAY to Chapter Review” appears on the TV screen for a few

seconds. If you press [!] while the message is on the screen, the

beginning portions of each chapter up to the current one are played.

Full play resumes from the point where you stopped play.

To cancel the resume function

Press [º] when “RESUME” is lit.

Note

³Resume is canceled if the disc tray is opened or if you change

discs.

³The position is saved even if the unit is turned off or a source other

than “DVD” is selected.

³Chapter review is not possible with some DVDs.

»

CDisc selection

Do not;

³use irregularly shaped discs (a).

³attach extra labels and stickers.

³use discs with labels and stickers that are coming off or with adhe-

sive exuding from under labels and stickers (b).

³attach scratch-proof covers or any other kind of accessory.

³write anything on the disc.

³clean discs with liquids. (Wipe with a soft, dry cloth.)

³use discs printed with label printers available on the market.

»

DTo prevent damage

Always observe the following points.

³Load only 1 disc per tray (c).

³Load discs as shown in figure (d).

An adaptor is not needed with 8 cm discs (singles).

³Set the system on a flat, level surface.

³Always unload all discs before moving the system.

Do not;

³set the system on top of magazines, inclined surfaces, etc.

³move the system while a tray is opening/closing, or when loaded.

³put anything except discs in trays.

³use cleaning discs or discs which are badly warped or cracked.

8 cm disc

12 cm disc

Basic operations

RQT5471

16

g

B

A

C

D

SLOW/SEARCH

6, 5

SKIP

:, 9

g

SLOW/SEARCH

SKIP

SLOW/SEARCH

Still

E

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2, 1

⁄/g¤

[ : ][ 9

]

Discs

»

ASkip function

[DVD] [V-CD] [CD]

You can skip chapters on DVDs and tracks on Video CDs and CDs.

Press [SKIP (: or 9)] during play.

:: Backward 9: Forward

Each press increases the number of skips.

Note

If pressed while playing a Video CD with PBC, you may return to a

menu screen.

»

BSearch function

[DVD] [V-CD] [CD]

Press [SLOW/SEARCH (6 or 5)]

during play.

6: Backward 5: Forward

³Each press increases the speed of the search. There are 5 speeds.

³Press [!] to resume play.

For your reference:

³Sound will be heard at speed one when searching forward during

DVD and Video CD play. You can turn this sound off

(á “9 Other Settings”–“2 Audio during Search”, page 46).

Audio is heard at any speed when playing CDs, regardless of any

settings at “2 Audio during Search”.

³If pressed while playing a Video CD with PBC, you may return to a

menu screen.

»

CStill picture (Pause)

[DVD] [V-CD] [CD]

Press [;] during play.

³Press [!] to resume play.

»

DSlow-motion play

[DVD] [V-CD]

While play is paused

Press [SLOW/SEARCH (6 or 5)].

6: Backward (DVD only)

5: Forward (DVD/Video CD)

³Each press increases the speed of the slow-motion. There are 5

speeds.

³Press [!] to resume play.

»

EFrame-by-frame viewing

[DVD] [V-CD]

Remote control only

While play is paused

Press the cursor button [2] or [1].

2: Backward (DVD only)

1: Forward (DVD/Video CD)

³Press [1] to resume play.

³Each press changes the frame.

³The frames change in succession if you press and hold a cursor

button.

³The frame also advances each time you press [2/;] on the remote

control or [;] on the changer.

a Play position

b Twicec Once

d Chapter/track

e (On the TV screen)

c Once

b Twice

d Chapter/track d Chapter/track

17

Basic operations

RQT5471

1

2

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g ¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2

1

1

A

SHIFT

B

ENTER

MENU

SUBTITLE

TOP MENU

AUDIO

ANGLE

SHIFT

Hello

1

Î Digital

ENG

3/2.1ch

I love you

1

ENG

ON

1

C

MENU

TOP MENU

TITLE MENU

Birds

Dogs

Lovers

Castles

ENTER

2, 1, 3, 4

ANGLE

Î

DIGITAL

DVD

Discs

[DVD]

Remote control only

»

AChanging soundtrack, subtitle

languages and angles

Some DVDs have multiple soundtracks, subtitle languages and cam-

era angles. You can change these during play.

“ANGLE” lights up on the tuner/amplifier during scenes recorded

with multiple angles.

Press the appropriate button(s) during

play.

[AUDIO]: To change the soundtrack

[SHIFT] i [SUBTITLE]: To change the subtitle language

[ANGLE]: To change the angle (only while “ANGLE”

is lit)

Each time you press the button(s), the item changes.

³The item can also be changed with [3] or [4], or the numbered

buttons.

³See the bottom of page 23 for the language abbreviation key.

To turn the subtitles on/off

Press the cursor button [2] or [1] after pressing [SHIFT] i

[SUBTITLE].

To clear the display

Press [ENTER].

For your reference:

³Soundtrack and subtitle languages can be set before play with the

initial settings (á “1 Disc Languages”, page 46).

³While playing Karaoke DVDs, you can also change the karaoke

mode as follows by pressing [AUDIO].

Solo: --- (off) or ON

Duet: --- (off), 1i2, V1 or V2

Note

You can change the items only if they are available on the disc.

»

BUsing menus to play

By calling up menus during play, you can start play from a specific

title or chapter.

Menu content depends on the disc. These operating instructions de-

scribe the basic steps.

1Press [TOP MENU] or [MENU].

A menu screen is displayed.

Press again to return to what you were watching with some

discs.

2Select an item with [2, 1, 3, 4] and

press [ENTER] to confirm the selec-

tion.

You can select items with the numbered buttons with some

discs.

Repeat if another menu is shown.

[C] DVDs can have several menus. The menu displayed by press-

ing [TOP MENU] may be different from the menu displayed by

pressing [MENU].

b (On the TV screen)

c Soundtrack language

d Subtitle language

e Angle number

g Title 1 h Title 2 i Title 3

j Disc’s top

menu kMenu

f (On the tuner/amplifier)

kMenu kMenu

a Numbered

buttons

Basic operations

RQT5471

18

2

11

22

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g ¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

22

11

2

1

CANCEL

SHIFT

ENTER

MARKER

ENTER

¢¢¢¢¢¢¢¢¢¢

1

¢¢¢¢¢¢¢¢

1 2 3 4

¢¢



CINEMA

B

A

1

CINEMA

C

Î

DIGITAL

DVD

CINEMA

Discs

»

AChanging the picture quality for

movie viewing

[DVD] [V-CD]

You can enjoy better pictures by changing the picture quality.

Press [CINEMA].

The CINEMA display appears on the TV screen.

Each time you press the button:

C (CINEMA is on)bN (CINEMA is off)

To cancel

Press [CINEMA] to display “N”.

»

BMarking a position

[DVD] [V-CD] [CD]

Remote control only

This feature allows you to mark up to 5 points on a disc so you can

return to them easily at a later time.

Marking a position

1Press [MARKER] during play.

The marker display appears on the TV screen.

2Press [ENTER] at the point you want

to mark.

To mark another position

While the marker display is on the screen, press the cursor button

[2] or [1] to select another “¢” and press [ENTER].

Recalling a marked position

1While the marker display is on the screen

Press the cursor button [2] or [1] to

highlight the required marker.

2Press [ENTER] to recall the position.

To clear a marker

While the marker display is on the screen

Press the cursor button [2] or [1] to highlight the marker you want to

clear and press [SHIFT] i [CANCEL].

To clear the marker display

Press [MARKER].

Note

³This feature cannot be used if the play time for the disc is not

displayed on the tuner/amplifier.

³Some subtitles may not appear around the marker (DVD).

³Markers clear in the following situations:

³The unit is turned off.

³The disc is changed or removed.

³A source other than “DVD” is selected.

a (On the TV screen)

c No marker

d Marker 1

b (On the tuner/amplifier)

19

Basic operations

RQT5471

2



A-B REPEAT

A-B REPEAT

@

AB

@

A

A-B REPEAT

REPEAT

!

REPEAT

b

c

d

T

C

OFF

f

g

B

A

1

Discs

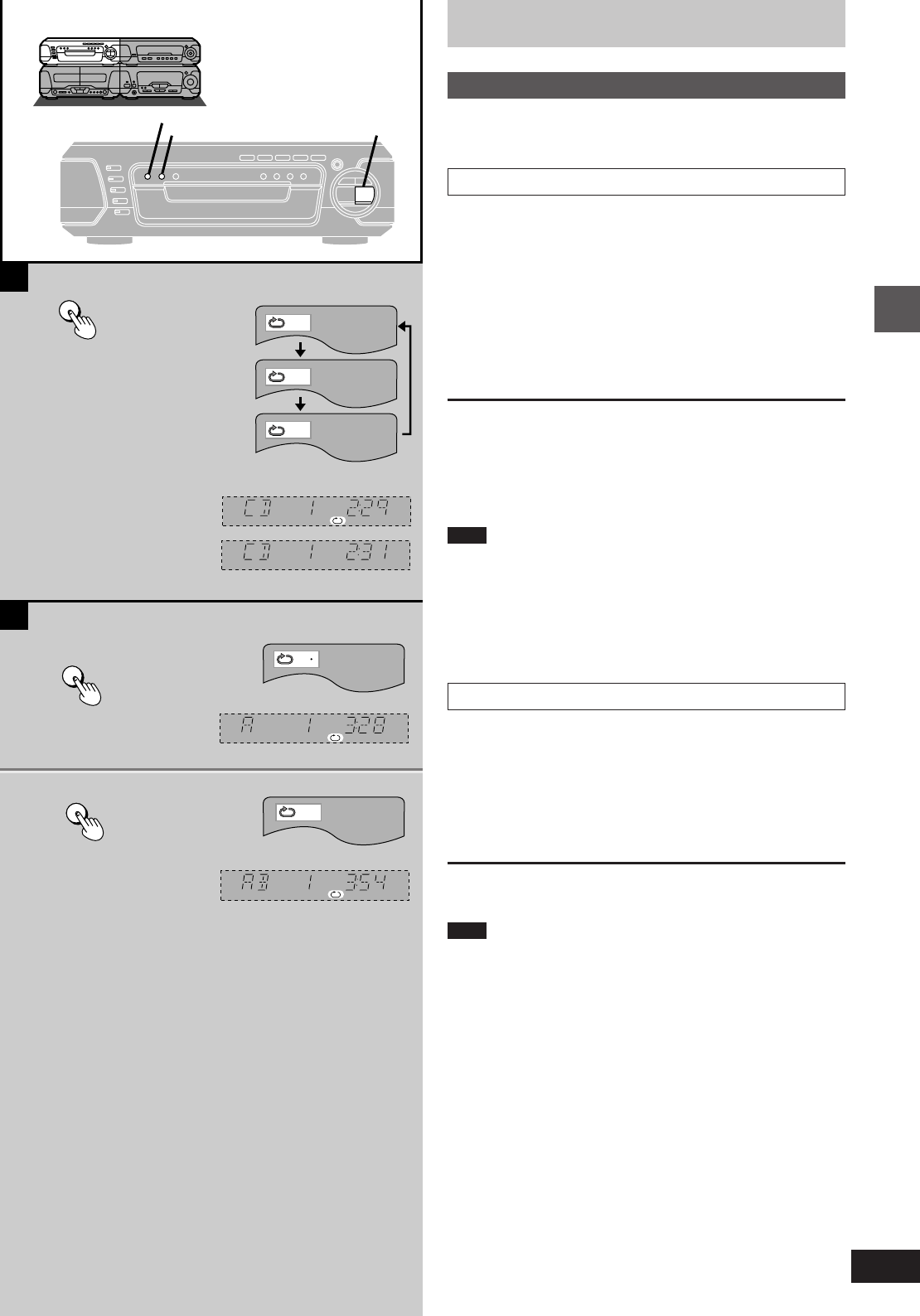

Repeat function

[DVD] [V-CD] [CD]

»

ARepeating chapters, titles and tracks

Press [REPEAT] during play.

Each time you press the button:

DVD

b` C: Current chapter is repeated.

c` T: Current title is repeated.

d` OFF: Repeat mode is canceled.

Video CD, CD

f“`” is displayed: All tracks on the disc(s) are repeated.

g“`” is cleared: Repeat mode is canceled.

For your reference:

Use the 1 DISC/ALL function if you want to listen to all discs (Video

CD/CD) repeatedly (á page 15).

To cancel repeat play

Press [REPEAT] to clear “`” on the tuner/amplifier.

Note

Repeat play does not work if the play time for the disc is not displayed

on the tuner/amplifier.

To repeat only your favorite tracks (Video CD/CD only)

1Program the tracks you want (á page 20).

2Press [1] . Play will start.

3Press [REPEAT] to display “`”.

»

BRepeating a specific section (A-B REPEAT)

1Press [A-B REPEAT] during play at

the starting point (A).

2Press [A-B REPEAT] at the finishing

point (B).

To cancel A-B repeat play

Press [A-B REPEAT] to clear “`” on the tuner/amplifier.

Note

³This feature cannot be used if the play time for the DVD is not

displayed on the tuner/amplifier.

³The end of a track or title is automatically determined as point B

when the end of the title/track is reached.

³Subtitles may not appear arround A and B.

e (On the tuner/amplifier)

a (On the TV screen)

DVD only

Basic operations

RQT5471

20

2

3

4

1

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2

1

2

3

4

CANCEL

SHIFT

DVD

: SKIP 9

»

123

456

7890

j/-/--

123

4 5

¤

DISC

PLAY MODE

PRGM

DISC

DISC PRGM

Discs

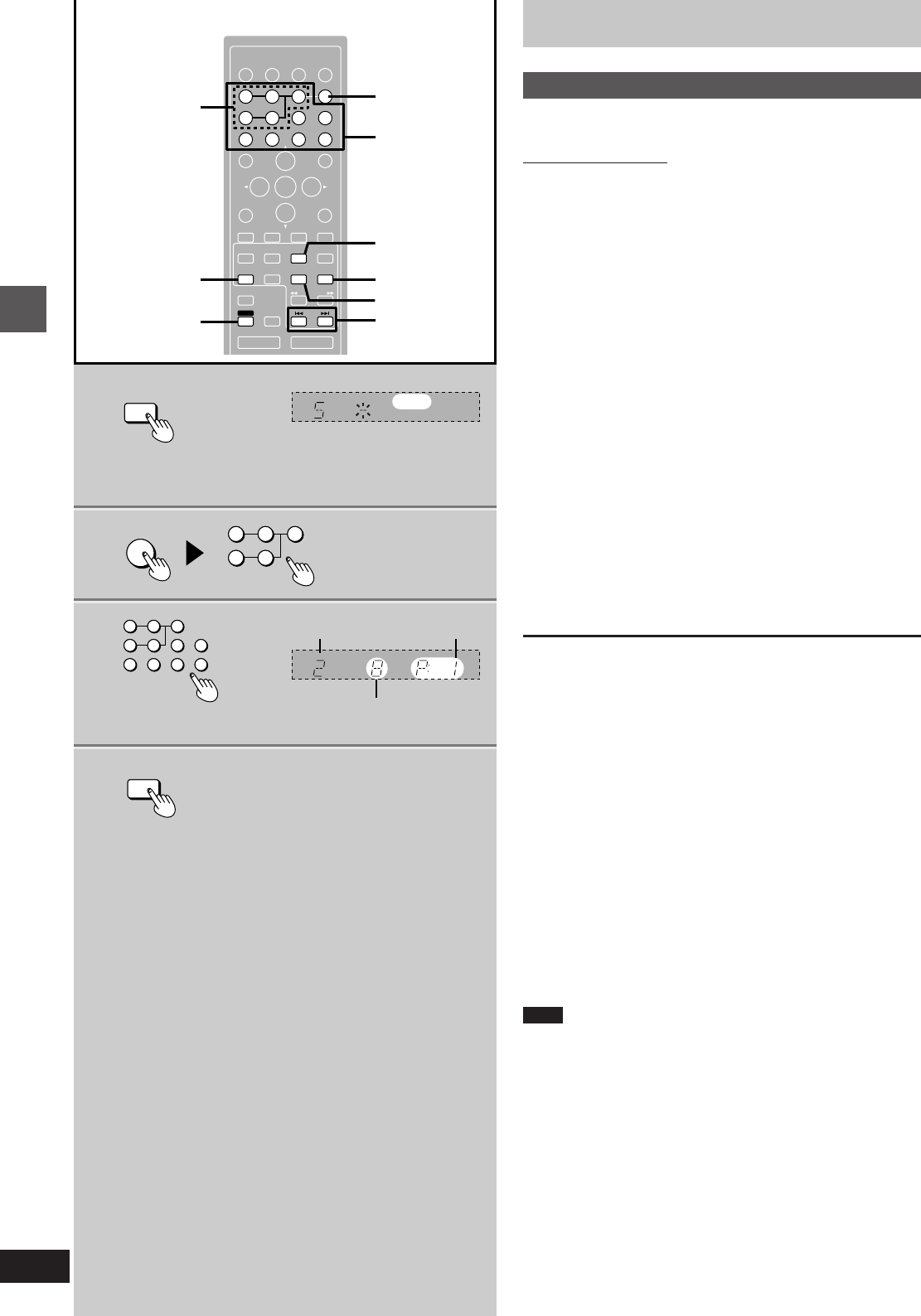

Program play

[V-CD] [CD]

Remote control only

You can select up to 24 tracks on any of the loaded Video CDs or

CDs to play in the order you choose.

Preparation:

³Press [DVD] to select “DVD” as the source.

³Ensure a Video CD or CD is in the play position tray. (Program play

is not possible if the play position tray contains a DVD or is empty.)

1While stopped

Press [PLAY MODE] to select

“PRGM” on the tuner/amplifier.

Each time you press the button: PRGM#RANDOM#(off)

^__-----------------__}

2Press [DISC] and (within 10 seconds)

[1]–[5] to select the disc.

3Select the track with the numbered

buttons.

For tracks numbered 10 and over, press [L] then the two

digits.

Repeat steps 2 and 3 to program the tracks in the required order.

4Press [1].

All the tracks are played in the selected order.

To exit program mode

Press [PLAY MODE] while in the stop mode to clear “PRGM” on the

tuner/amplifier.

Program contents will be saved in the memory.

You can do the following while the disc is stopped in

program mode

³Checking program contents

Each time you press [: SKIP] or [SKIP 9], the disc number,

track number and program position are displayed.

³Adding to the program

Repeat steps 2 and 3.

³Canceling a particular track

Select the track with [: SKIP] or [SKIP 9] then press [SHIFT]

i [CANCEL].

³Canceling all tracks

Hold [º] for 3 seconds.

If “FULL” is displayed

24 tracks have been programmed. No further tracks can be

programmed.

Note

³Discs and tracks the unit cannot find can be programmed but are

skipped during play. This is also the case if you program a DVD.

³You can program individual tracks even if the disc is a Video CD

with PBC.

³Skipping is done in the programmed order.

³You can search only within a track being played in program order.

³You cannot start play by pressing [DISC 1]–[DISC 5] on the main

unit while in the program mode.

a Programmed

disc no.

c Programmed

order

b Programmed

track no.

21

Basic operations

RQT5471

ENTER

RETURN

KARAOKE

EFFECT

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

KARAOKE

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

2/;1∫

sVOLUME r

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

1

1

2

A

PLAY MODE

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

2/;1∫

sVOLUME r

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2

1

RANDOM

123

456

7890

j/-/--

123

45

DISC

2

¤

B

1

2

1

∫

Discs

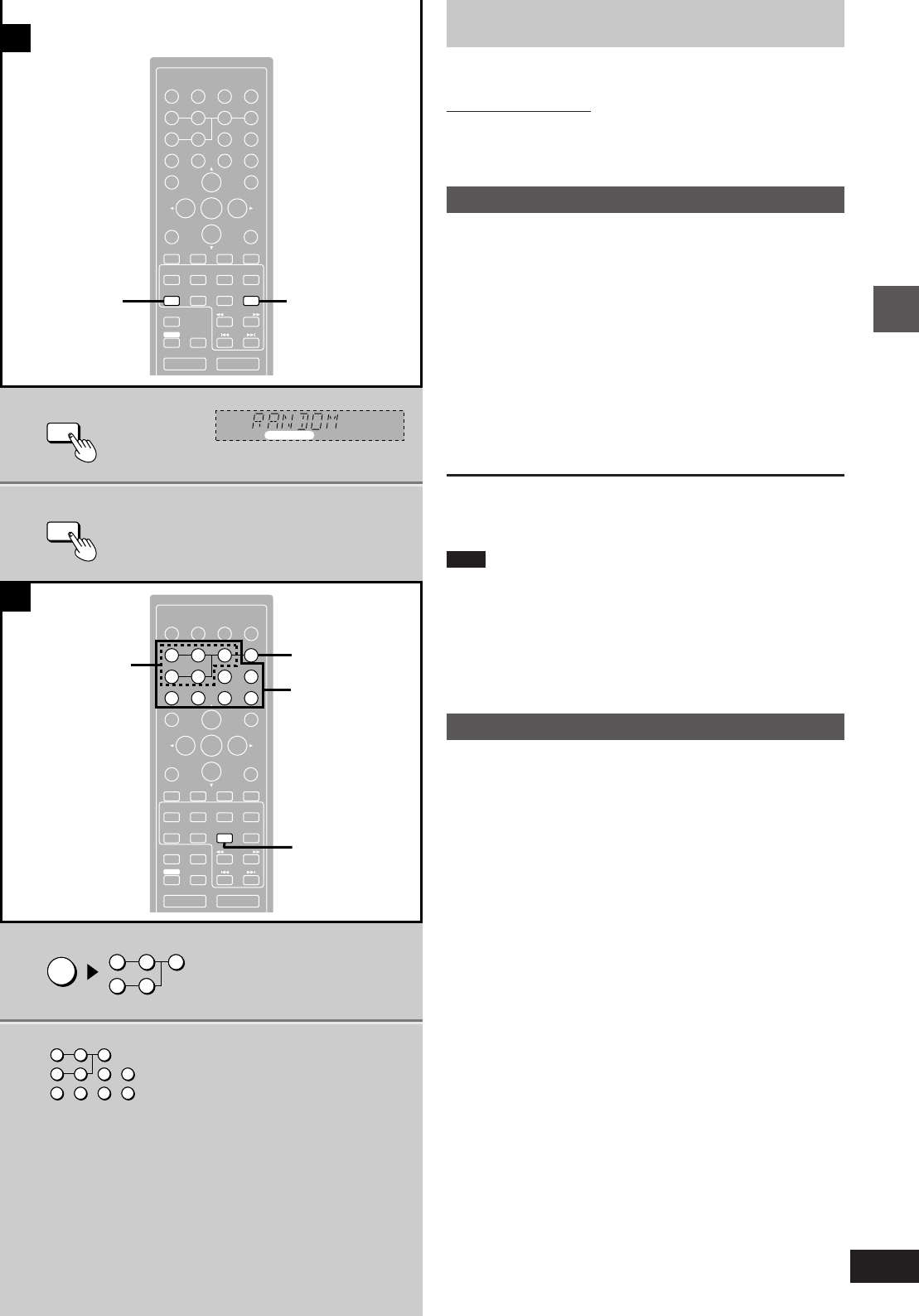

[V-CD] [CD]

Remote control only

Preparation:

Press [DVD] to select “DVD” as the source.

»

ARandom play

Plays all discs once each in random order.

Ensure a Video CD or CD is in the play position tray. (Random play is

not possible if the play position tray contains a DVD or is empty.)

1While stopped

Press [PLAY MODE] to select “RAN-

DOM” on the tuner/amplifier.

Each time you press the button: PRGM )RANDOM )(off)

^__-----------------__}

2Press [1] .

All tracks on all discs are played in random order.

To exit random mode

Press [PLAY MODE] while in the stop mode to clear “RANDOM” on

the tuner/amplifier.

Note

³If the disc is a Video CD with PBC, menu play is automatically can-

celed during random play.

³This function skips DVDs.

³You cannot skip tracks already played.

³You can search only within a track being played in random play.

³You cannot start play by pressing [DISC 1]–[DISC 5] on the main

unit while in the random mode.

»

BStarting play from a specific track

1Press [DISC] and (within 10 seconds)

[1]–[5] to select the disc.

Play starts from the first track.

³If a menu appears (Video CD with PBC), press [º] to cancel

menu play.

2Select the track with the numbered

buttons.

For tracks numbered 10 or over, press [L] then the two dig-

its.

Play starts from the selected track.

Basic operations

RQT5471

22

A B C

D

E F

G H

I

K

J

1

11

1

ENG

48k 16b

LPCM

1:56:37

h

g

1

¢

V1 + V2

Vocal

i

mlm

on

o

¢¢¢¢¢

+

100

-

100

OFF

1

ENG

ON

kj

N

2

3

1

3

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

1/;1∫

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

123

456

7890

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2, 3

1

RETURN

ENTER

DISPLAY

1

1 1:56:37 1

LPCM

ENG

48k 16

b

ENG

ON

1

r100

s100

OFF

¢¢¢¢¢

c

F

N

11

d

e

f

CANCEL

SHIFT

Using GUI screens

[DVD]

GUI (Graphic User Interface) are icons which appear on the TV

screen to allow you to interact with the unit. GUI screens show infor-

mation about the unit and discs. You can perform various operations

by changing the information shown in these screens.

Note

GUI screens will not be displayed if the play position tray contains a

Video CD or CD.

1Press [DISPLAY].

The GUI screen appears.

Each time you press the button:

Disc GUI (c)>Unit GUI (d)>Shuttle GUI (e)

^---------- Original display (f)-----------}

Disc GUI (c):

You can change the title or chapter, or change the position by

specifying the time. You can also change soundtracks, subti-

tles and angles.

Unit GUI (d):

You can start repeat play, mark a position and recall it, or turn

on/off the cinema mode.

Shuttle GUI (e):

You can fast-forward, backward or start slow-motion play.

Original display (f):

GUI is not displayed.

2Press the cursor button [2] or [1] to

select an item.

Settings can only be changed if “#” or “$” appears at the top

or bottom of the icon.

3Press [3] or [4] to change the set-

ting.

Some items can also be changed with the numbered buttons.

Press [ENTER] to confirm the setting after entering it with the

numbered buttons.

To clear the GUI screen

Press [DISPLAY] until the original display is restored or press

[RETURN].

For your reference:

³The contents of each screen depend on the kind of disc you are

playing.

³Some items require different operations to change the contents, so

refer to the GUI icon descriptions (á page 23) for details.

³The GUI screens disappear after performing some operations, such

as changing the title or chapter.

³If the GUI screen is partially cut off or fails to appear, change the

position with the initial settings, “4 On-Screen Messages”–“2 Col-

our and Position” (á page 46).

Note

Some discs will not allow some of these operations.

b (On the TV screen)

a Numbered

buttons

23

Basic operations

RQT5471

Unit GUI descriptions

»

KShuttle GUI descriptions

¤1 The number of channels recorded on the disc

Example:

3/2 .1ch

.1: Subwoofer signal

(not displayed if there is no subwoofer signal)

0: No surround

1: Mono surround

2: Stereo surround (left/right)

1: Center

2: Front leftiFront right

3: Front leftiFront rightiCenter

Language abbreviations

ENG: English

FRA: French

DEU: German

ITA: Italian

ESP: Spanish

NLD: Dutch

SVE: Swedish

NOR: Norwegian

DAN: Danish

POR: Portuguese

RUS: Russian

JPN: Japanese

CHI: Chinese

KOR: Korean

MAL: Malay

VIE: Vietnamese

THA: Thai

¢: Others

Content

[G] A-B repeat

(start and finish points for

A-B repeat)

[H] Repeat play

(select a repeat play

mode)

C (chapter), T (title), OFF

[I] Mark a position

[I] Recall a mark

[I] Erase a mark

[J] Cinema mode

C (on), N (off)

Operation

[ENTER] (at the start point)

Ð

[ENTER] (at the finish point)

³To cancel A-B repeat: [ENTER]

[3] or [4]

[ENTER] (to highlight the first marker)

Ð

[ENTER] (at the desired point)

[2] or [1] (to select the mark)

Ð

[ENTER] (to recall the position)

[2] or [1] (to select the mark)

Ð

[SHIFT] i [CANCEL]

[3] or [4]

Content

[A] Title number

[B] Chapter number

[C] Time (select a position to

start play by specifying a time)

[D] g Soundtrack language

(See below for language

abbreviations.)

[D] h Audio attribute

LPCM/ëDigital/DTS/MPEG:

Type of audio signal

48k/96k (LPCM):

Sampling frequency

(k=kHz)

16b/20b/24b (LPCM):

Number of bits

-- ch (ëDigital/DTS/MPEG):

Number of channels

(¤1 See below for details.)

[D] i Switching vocals on

Karaoke discs

Solo : --- (off) or ON

Duet: --- (off), V1iV2, V1 or V2

[E] j Subtitle language

(See below for language

abbreviations.)

[E] k Subtitles on or off

[F] Angle number

Operation

(á page 22 for details)

[3], [4] or numbered buttons

Ð

[ENTER]

[3], [4] or numbered buttons

Ð

[ENTER]

Numbered buttons

Ð

[ENTER]

[3], [4] or numbered buttons

—

[Karaoke\DVD\only]

[3] or [4]

[3], [4] or numbered buttons

[3] or [4]

[3], [4] or numbered buttons

Disc GUI descriptions

Content

lPause

mSlow-motion play

E: Backward

D: Forward

You can select 5 levels of

speed in either direction.

nPlay

oSearch

6: Backward

5: Forward

³You can select 5 levels of

speed in either direction.

³The numbers on either sides

of the shuttle screen indicate

the maximum speeds.

Operation

[3]

[3] (to pause)

Ð

[2] or [1]

[4]

[4]

Ð

[2] or [1]

Note

Actual information displayed depends on the disc.

Basic operations

RQT5471

24

2

3

4

1

A

B

1 42 3

H/I FM AUTO/

MONO

DISP MODE

RDS

PTYPS

TUNING MODE

VOLUME

UP

DOWN

FM AUTO/

MONO

DISP MODE

RDS

PS PTY

MHz

TUNED ST

MHz

TUNED

MONO

MHz

RDS PS

TUNED

RDS PTY

ST

TUNER/BAND

?

TUNING

@

TUNER/BAND

a PTY displays

NEWS VARIED FINANCE COUNTRY

AFFAIRS POP M CHILDREN NATIONAL

INFO ROCK M SOCIAL A OLDIES

SPORT M.O.R M¤RELIGION FOLK M

EDUCATE LIGHT M PHONE IN DOCUMENT

DRAMA CLASSICS TRAVEL TEST

CULTURE OTHER M LEISURE ALARM

SCIENCE WEATHER JAZZ

The radio: manual tuning

Radio stations can be tuned manually by selecting the station’s fre-

quency or they can be preset into channels to make it easy to tune

with the tuner/amplifier or the remote control (á page 25).

Preparation: Press [ê/I] to turn the unit on.

1Press [TUNER/BAND] to select “FM”

or “AM”.

Each time you press the button: FMbAM

2Press [TUNING MODE] to select

“MANUAL”.

Each time you press the button: MANUALbPRESET

3Press [TUNING (X or W)] to tune in the

desired broadcast.

“TUNED” is displayed when a radio station is tuned.

“ST” is displayed when a stereo FM broadcast is being received.

4Adjust the volume.

Auto tuning

Press and hold [TUNING (X or W)] for a moment until the frequency

starts changing rapidly. The unit begins auto tuning, stopping when it

finds a station.

³Auto tuning may not function when there is excessive interference,.

³To cancel auto tuning, press [TUNING (X or W)] once again.

»

AIf noise is excessive in FM

Press [FM AUTO/MONO] to display “MONO.”

This mode improves sound quality if reception is weak, but broad-

casts will be heard in monaural.

Press [FM AUTO/MONO] again to cancel the mode. “MONO” goes

out. MONO is also canceled if the frequency is changed.

Turn off “MONO” for normal listening. Stereo and monaural broad-

casts are automatically played as they are received.

Stations can be preset in monaural manually (á page 25).

RDS broadcasting

»

B(Only for the United Kingdom and Continental Europe)

This unit can display the text data transmitted by the radio data sys-

tem (RDS) available in some areas.

If the station you are listening to is transmitting RDS signals, “RDS”

will light up on the display.

Displaying the name of a broadcasting station

Press [PS-DISP MODE] to display the station name.

Press [DISP MODE-PTY] to display the program type.

Each time you press the button:

Frequency displaybPS or PTY display

If the PS display isn’t shown

Press and hold [PS-DISP MODE] for about 4 seconds.

The mode switches every time the button is pressed and held:

MODE 1bMODE 2

Note

RDS displays may not be available if reception is poor.

¤“M.O.R M”l“Middle of the road music”

AM allocation settings:

(Except for the United Kingdom, Continental Europe,

Russia, Australia and N.Z.)

By adjusting the AM allocation, you can enable the tuner to

receive AM broadcasts allocated in 10 kHz steps.

Press and hold [TUNER/BAND].

After a few seconds the display will change to a flashing dis-

play of the current minimum AM frequency. If you continue to

hold [TUNER/BAND] down, the minimum frequency will

change. Release the button at this time.

To return to the original frequency indication, repeat above.

Note

After changing the allocation setting, the frequencies you pre-

viously preset in the memory will be cleared.

25

Basic operations

RQT5471

A

2

3

1

2

3

B

C

32,4

TUNING MODE

SET

SET

SET

SET

4

TUNER/

BAND

∂VOLUME µ

MHz

?

TUNING

@

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2

1

3

123

456

7890

j/-/-- a Preset channel

The radio: preset tuning

You can choose either automatic presetting, which presets all the

stations the tuner/amplifier can receive, or manual presetting, which

allows you to select the stations to preset and the order they are to be

preset in.

There are 39 channels available for presetting.

»

AAutomatic presetting

Do the following once each for FM and AM.

Preparation: Tune to the frequency where presetting is to begin

(á page 24).

Hold down [SET].

Release the button when “AUTO MEMORY” appears.

The tuner presets all the stations it can receive into the channels in

ascending order. FM stations are preset into channels 1 to 39, and

AM stations are preset into channels 21 to 39.

“SET OK” is shown when presetting is complete and the last station

that was preset is played.

“ERROR” is displayed if the tuner doesn’t receive any stations. Try

presetting manually if this happens (see below).

Note

AM stations replace any FM channels that were preset in channels

21 to 39.

»

BManual presetting

Preset the stations one at a time.

1Tune to the required station.

2Press [SET].

3Press [TUNING (X or W)] to select a

channel.

4Press [SET].

The station occupying a channel is erased if another station is preset

in that channel.

»

CSelecting channels

On the remote control

1Press [TUNER/BAND].

2Press the numbered buttons to select

the channel.

For channels 1 to 9 press the corresponding number.

For channels 10 or over press [L], then the two digits.

e.g. To select channel 21: [L]>[2]>[1]

3Adjust the volume.

On the main unit

1Select “PRESET” with [TUNING MODE].

2Press [TUNING (X or W)] to select the channel.

Basic operations

RQT5471

26

2

1

3

4

5

5H/I

324 11

DECK 1/2 @

DECK 1/2

E

OPEN

DOLBY NR

REV MODE

VOLUME

UP

DOWN

A

Î

NR

1

ÎNR1

ÎNR

2

³Tapes exceeding 100 minutes are thin and can break or get caught

in the mechanism.

³Tape slack can get caught up in the mechanism and should be

wound up before the tape is played.

³Endless tapes can get caught up in the deck’s moving parts if used

incorrectly. Use tapes appropriate to this unit’s auto-reverse mech-

anism.

Normal position/TYPE I 4

High position/TYPE II 4

Metal position/TYPE IV 4

a Forward side

b Tape facing down

c Tape direction

d Deck in use

Cassette tapes

Preparation: Press [ê/I] to turn the unit on.

1Press [< OPEN] on deck 1 or deck 2

and insert the cassette.

2Press [DOLBY NR] to select Dolby NR

on (“ëNR” appears) or off.

(á “Dolby noise reduction”, page 27)

3Press [REV MODE] to select the re-

verse mode.

Each time you press the button:

h: One side is played.

d: Both sides are played.

f: Both sides are played 8 times each.

4Press ["] (reverse side) or [!] (forward side).

Play begins and the indicator changes to green.

5Adjust the volume.

To stop the tape

Press [º].

[A] To change the deck to be used

Press [DECK 1/2] to select the deck you want to play.

To listen to 2 tapes consecutively

Insert a tape into each deck and select “f”. Both tapes will be

played 8 times each.

Cassette tape selection and care

The unit can correctly play the following types. It identifies the type

automatically.

27

Basic operations

RQT5471

B

A

F, G

GF

GF

DECK 1/2

Cassette tapes

»

AFast-forwarding and rewinding

Press [6] or [5] while the tape is

stopped.

For your reference:

³Each deck’s play direction is stored in the system’s memory.

³You can fast-forward or rewind the tape while you are playing or

recording a tape in the other deck. Press [DECK 1/2] to switch to the

non-playing deck, and then press [6] or [5]. After the above

operation, be sure to press [DECK 1/2] to select the other deck in

which you are playing a tape.

»

BTape program sensor (TPS)

TPS finds the beginning of a track and resumes play from there.

Press [6] or [5] during play.

Tape direction rewind fast-forward

!65

"56

Note

TPS may not operate correctly in the following situations:

If the interval between tracks is less than 4 seconds.

If there is noise between tracks.

If there are silent sections within tracks.

Dolby noise reduction

Dolby NR reduces “hissing” when playing tapes. It increases the high

frequency region when recording and then reduces it during play.

Use the same system during play and recording. This unit has Dolby

B NR which reduces noise to a third.

Prerecorded cassettes and equipment marked “ë” use Dolby B NR.

Tape direction backward forward

!65

"56

Dolby noise reduction manufactured under license from Dolby

Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby

Laboratories.

Changing sound field and quality

RQT5471

28

B

1 1

3

2

1

2

2

3D AI EQ/

M.EQ BAND

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

A

FLAT

HEAVY

CLEAR

AI-EQ

M.EQ

HALL

MULTI JOG

MULTI JOG

MULTI JOG

LOW

MID

HIGH

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

1

2

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

c

C

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

d e f

1, 32

MULTI JOG

Changing sound field and

quality

Changes to sound field and quality have no effect on recordings.

[A]

Turn [MULTI JOG] to select a setting.

Each time you turn [MULTI JOG]:

HEAVY: Adds power to rock.

CLEAR: Clarifies higher sounds.

HALL: Expands sound.

AI-EQ: Adjust sound with the acoustic image equalizer

(á page 29).

M.EQ: Create your own effects (á see below).

FLAT: Canceled (no effect is added).

On the remote control

Press [SHIFT] i [EQ].

Note

Turn off the effect if sound quality is reduced when using HALL or 3D

AI EQ with a source.

»

BUsing the manual equalizer

Create your own sound quality effects.

1Turn [MULTI JOG] to select “M.EQ”.

2Press [3D AI EQ/M.EQ BAND] to se-

lect the band.

Each time you press the button:

LOW>MID>HIGH

^------------------------}

3Use [", !, #, $] to make the desired

curve.

1Select the frequency you want to use as the peak with [",

!].

2Adjust the level of the peak with [#, $].

³Adjacent frequencies are adjusted at the same time to

maintain a smooth curve.

³When you have adjusted the curve, you can move the

peak of the curve by pressing [", !] (c).

Repeat steps 2 and 3 to adjust the three bands.

The original display is restored on the display panel in about

5 seconds.

To cancel

Turn [MULTI JOG] to select “FLAT”.

Note

³The changes you make are stored and automatically recalled the

next time you select “M.EQ”.

³After making a curve in one band, any adjustments in another band

make a curve that is a combination of the two.

[C] To flatten the curves in all three bands

Set the frequencies d in LOW, e in MID, and f in HIGH to flat.

a (On the tuner/amplifier)

b (On the sound processor)

a (On the tuner/amplifier)

b (On the sound processor)

b (On the sound processor)

29

Changing sound field and quality

RQT5471

A

3

2

1

3D AI EQ/

M.EQ BAND

B

DIGITAL

S.WOOFER

DIGITAL

S.WOOFER

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

MULTI JOG

1

1

1

2

2

2

MULTI JOG

1, 32

Changing sound field and quality

»

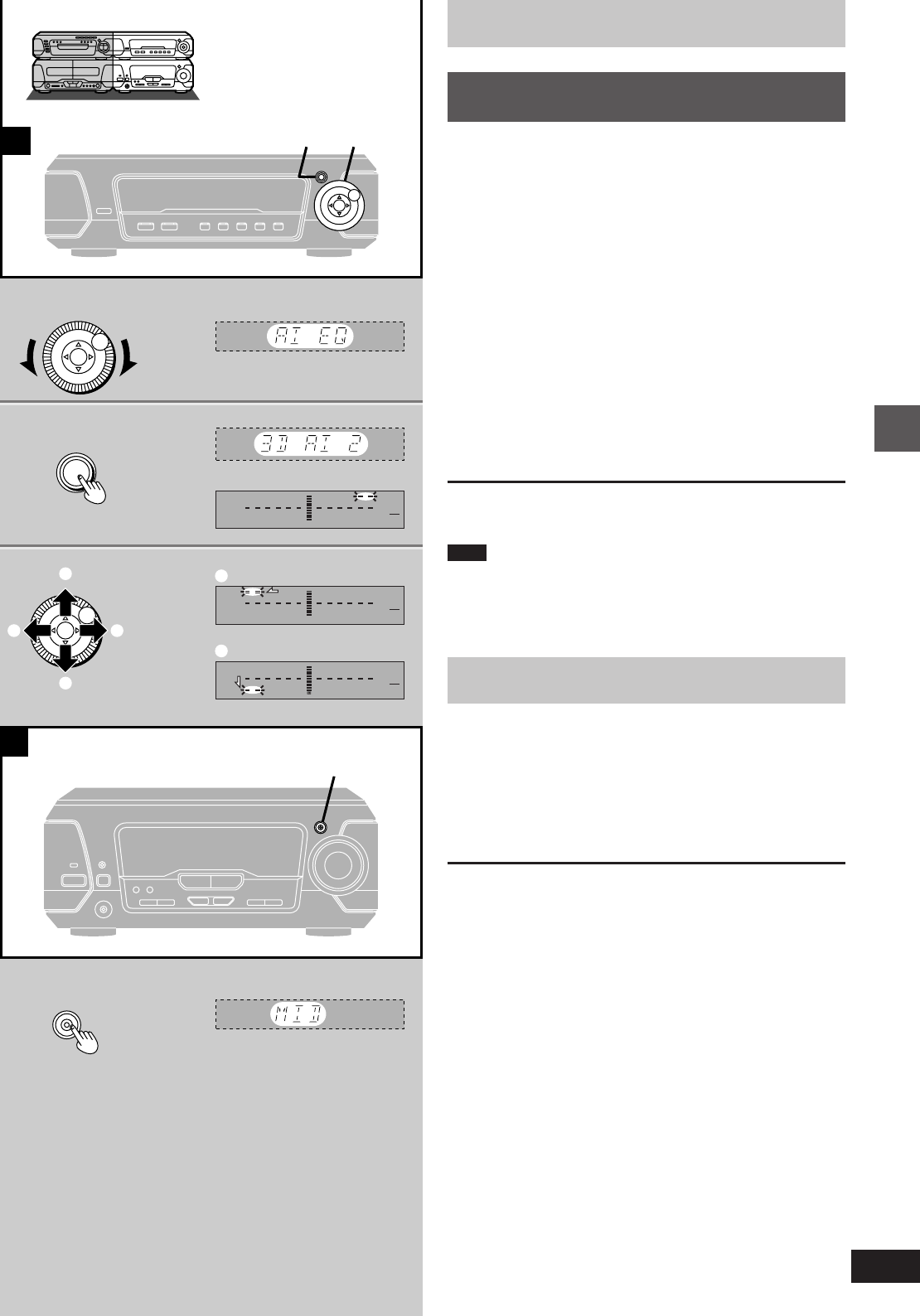

AUsing the acoustic image equalizer

(3D AI EQ)

Achieve subtle sound quality settings with the soft, sharp, heavy, and

light coordinates.

Select one of the two 3D settings for a surround effect.

1Turn [MULTI JOG] to select “AI-EQ”.

2Press [3D AI EQ/M.EQ BAND] to se-

lect the surround level.

Each time you press the button:

AI EQ>3D AI 1>3D AI 2

^__-----------------__}

3Change the sound quality with [", !,

#, $].

1Adjust softness and sharpness with [", !].

2Adjust heaviness and lightness with [#, $].

The original display is restored on the display panel in about

5 seconds.

To cancel

Turn [MULTI JOG] to select “FLAT”.

Note

³The changes you make are stored and automatically recalled the

next time you select “AI-EQ”.

³“3D AI 1” and “3D AI 2” cannot be selected while the surround sys-

tem or Karaoke mode is on (á page 30 or 40).

»

BBoosting the super woofer

Press [DIGITAL S.WOOFER].

The indicator lights.

Each time you press the button:

MID (middle)>MAX (maximum)>cancel

^_______---------------__}

There is only one level when listening through headphones.

To cancel

Press [DIGITAL S.WOOFER] to turn the indicator off.

For your reference:

(Except for the United Kingdom, Continental Europe, Australia

and N.Z.)

The level of the subwoofer (included) is also boosted with the super

woofer.

a (On the tuner/amplifier)

b (On the sound processor)

a (On the tuner/amplifier)

Changing sound field and quality

RQT5471

30

Enjoying surround sound

The following chart gives a summary of this unit’s surround features. It also shows additional features that can be used to enhance your listening

enjoyment.

Note

³None of the features are effective when headphones are used or when radio is selected as the source.

³You may experience a reduction in sound quality when these surround systems and effects are used with some sources. If this occurs, either turn

the surround system or effect off or reduce the level of the effect.

Surround system Features Software

DOLBY DIGITAL

(á page 32)

³Dolby Digital is a discrete 5.1 (6) channel

surround system developed for cinema

use. The sound signals in Dolby Digital

format are compressed to 1/10 their

original size, allowing an entire movie to

be recorded on a single DVD.

³This unit automatically recognizes DVDs

that have been recorded with Dolby

Digital.

³Not all Dolby Digital sources are

recorded with 5.1 (6) channels.

Some sources marked Dolby Digital may

be recorded in Dolby Surround, a 2

channel system.

DVDs encoded with Dolby Digital can be

identified with this mark.

Amplifier modes

When using the above surround systems (except for SIMULATED STEREO), the

amplifier is automatically switched to the surround mode.

In all other cases, the TRI-AMP mode (stereo) is engaged. In this mode, three

separate amplifiers are used to drive the three sections (LOW, MID, and HIGH) of

the two front speakers.

(On the tuner/amplifier)

Surround mode TRI-AMP mode (stereo)

DOLBY PRO LOGIC

(á page 33)

³Dolby Pro Logic is a decoding system

that was developed to get a better sense

of presence from sources encoded with

Dolby Surround. Positioning has been

improved by the addition of a separate

center speaker channel.

³This unit has built-in Dolby Pro Logic

circuitry.

Software encoded with Dolby Surround

can be identified with this mark.

³DVD

³Video CD

³CD

³Laser Disc

³Video tape

SUPER

SURROUND

(á page 34)

Any stereo sound source except for radio.

³DVD

³Video CD

³CD

³Cassette tape

³Laser Disc

³Video tape

MOVIE

MUSIC

³This mode adds surround effects to

movie software that hasn’t been

recorded with the above systems.

³In MOVIE mode you can adjust the

volume of the surround speakers to get

the best surround effect.

This mode adds surround effects to stereo

sources.

Any monaural sound source except for

radio.

³DVD

³Video CD

³CD

³Cassette tape

³Laser Disc

³Video tape

SIMULATED STEREO

(á page 34)

This mode adds stereo-like effects to

monaural sources.

31

Changing sound field and quality

RQT5471

Additional effects

ASeat position

BCenter focus

CVirtual rear surround

DMulti rear surround

E3D enhanced surround

ASeat position

Maintains the sound position even if the

listening position is changed.

When you select a surround effect, the cor-

responding indicator of the effects you can

use lights.

ASeat position

BCenter focus

CVirtual rear surround

DMulti rear surround

E3D enhanced surround

ASeat position

CVirtual rear surround

DMulti rear surround

E3D enhanced surround

CVirtual rear surround

If you have to place your surround speak-

ers near the front speakers, the sound from

the surround speakers appears to come

from behind you.

Virtual rear speakers

E3D enhanced surround

Adds width to the sound from the surround

and front speakers.

BCenter focus

³The sound from the center speaker

appears to come from within the

television.

You can select one of two levels.

³The center speaker should be placed on

top of the television.

Virtual rear speakers

DMulti rear surround

Feels like there are multiple surround

speakers in your room, increasing a

cinema-like atmosphere.

See pages 34 and 35 for operation.

Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic” and the

double-D symbol are trademarks of Dolby

Laboratories. Confidential unpublished

works. C 1992–1997 Dolby Laboratories.

All rights reserved.

Changing sound field and quality

RQT5471

32

ENTER

RETURN

KARAOKE

EFFECT

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

KARAOKE

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

SETUP

DISPLAY

MIX 2CH

MENU

EQ

DVD

B

C

SHIFT

sVOLUME r

1

2

3

TEST

MIX 2CH

SHIFT

Î

DIGITAL

MIX2CH

DVD

2

1

3

1

2

ENTER

RETURN

KARAOKE

EFFECT

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

KARAOKE

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

SHIFT

MIX 2CH

A

Î DIGITAL

Enjoying surround sound

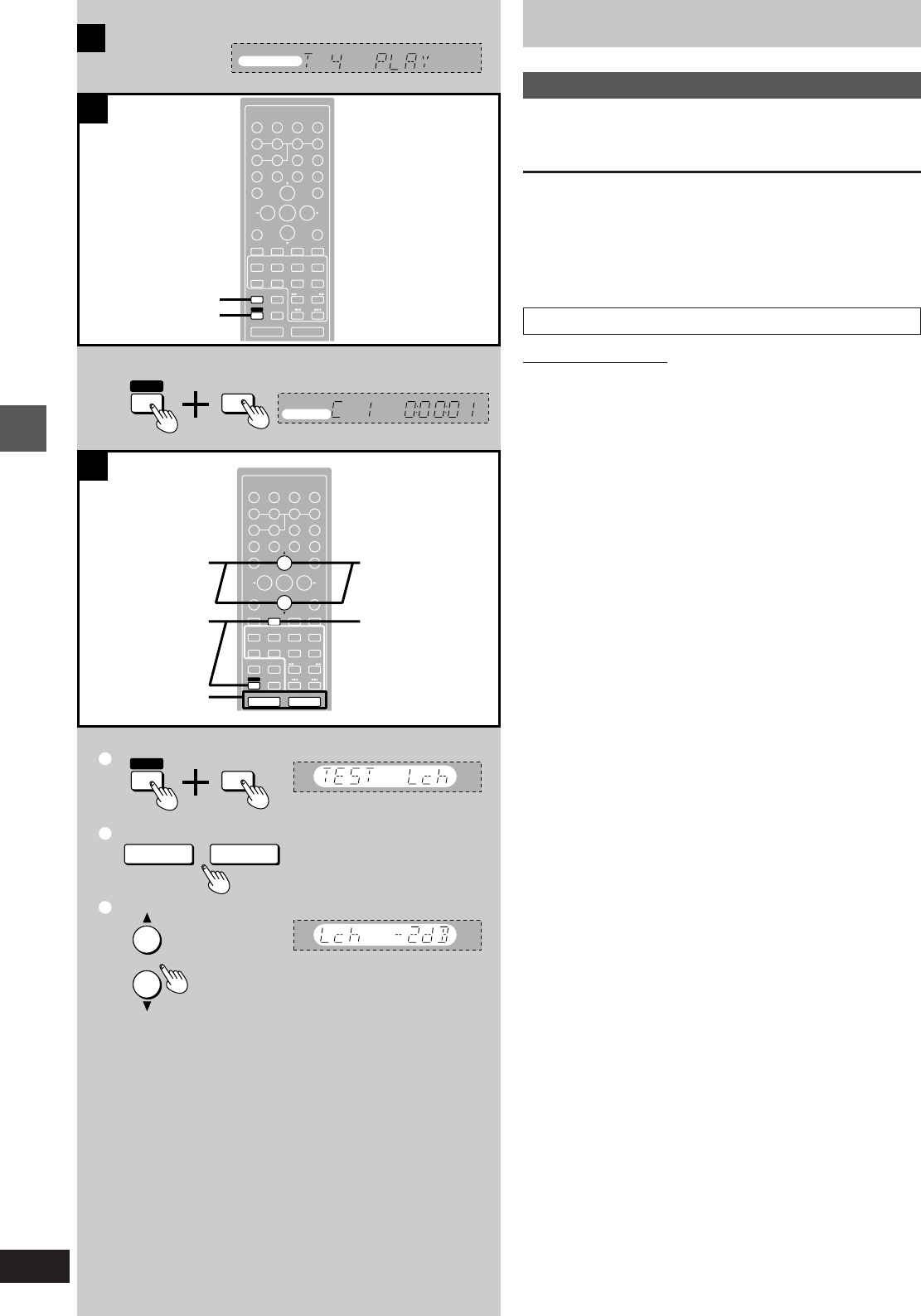

DOLBY DIGITAL

Play a DVD encoded with Dolby Digital.

[A] “ëDIGITAL” appears on the tuner/amplifier.

[B] To down-mix Dolby Digital (5.1ch) signals to 2 chan-

nels

Press [SHIFT] i [MIX 2CH].

To cancel

Press [SHIFT] i [MIX 2CH] again.

»

CSpeaker level adjustments

Remote control only

If the level of the speakers appears to be different while listening to a

source, adjust the levels of the speakers to the same apparent level.

1Press [SHIFT] i [TEST] to output a test signal.

A test signal is output from the speakers in the following order.

Lch: Front left speaker

Cch: Center speaker

Rch: Front right speaker

RSch: Right surround speaker

LSch: Left surround speaker

(No signal is output for the subwoofer.)

2Press [VOLUME (` or _)] to set the volume level of the front

speakers normally used for enjoying the source.

3While the speaker to be adjusted is outputting a signal

Press [3] (to increase the level) or [4] (to decrease the level).

The level of the speaker changes.

Repeat step 3 as desired.

To stop the test signal

Press [SHIFT] + [TEST] again.

To adjust the levels during play

1 Press [CH SELECT] to select the speaker.

Each time you press the button:

Lch>Cch>Rch>RSch>LSch>SWch

^---------------------------------------------------------------}

SWch: Subwoofer (Adjust only when connected)

2 Press [3] or [4] to adjust the level.

Repeat steps 1 and 2 as desired.

33

Changing sound field and quality

RQT5471

1

A

1

2

3

U

PRO LOGIC

OFF/ON

∂VOLUME µ

1

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

1

2

2

1

TEST

SHIFT



3

Enjoying surround sound

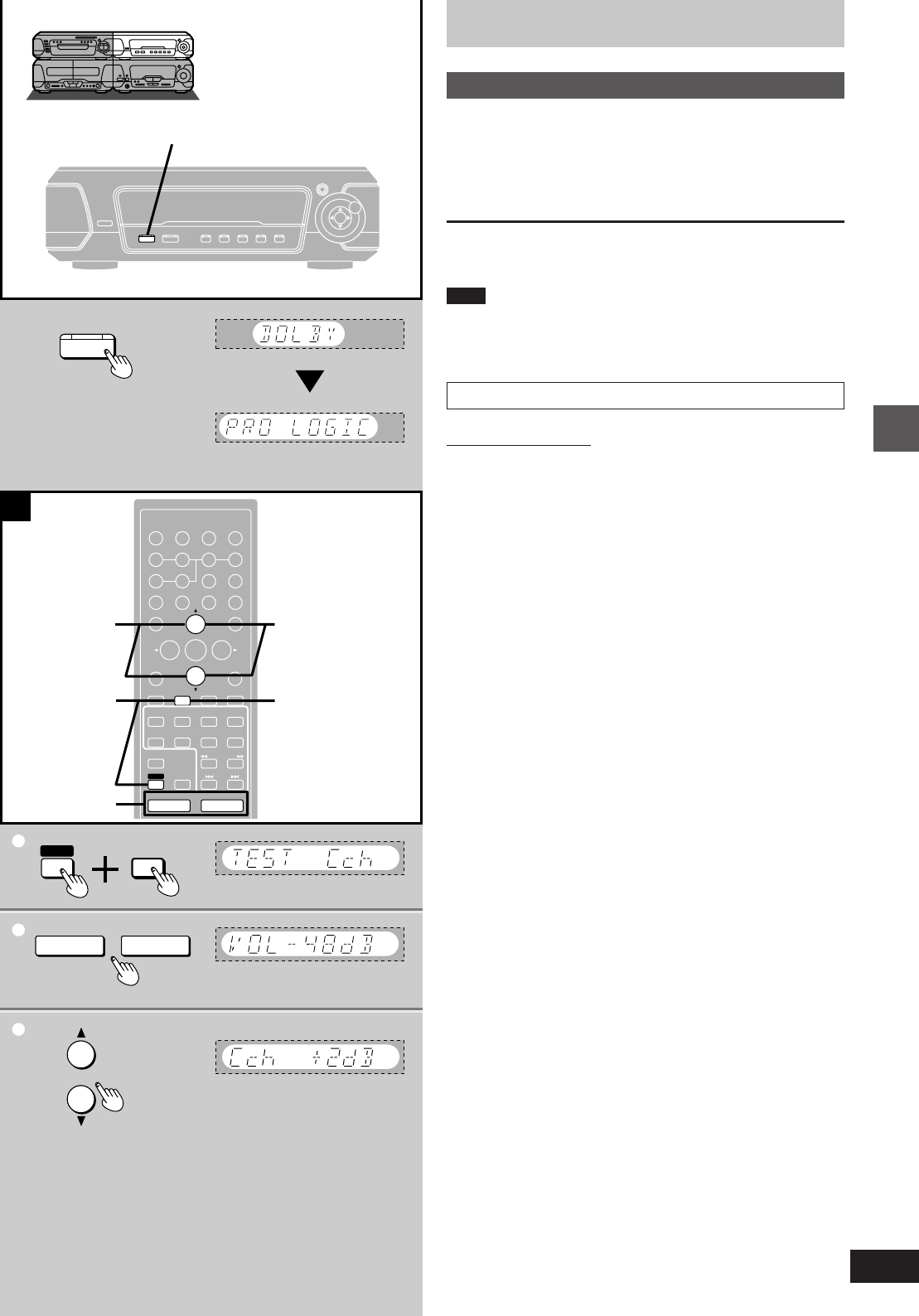

DOLBY PRO LOGIC

1Press [ëPRO LOGIC, OFF/ON].

The indicator turns green.

2Play a Dolby Surround source.

To cancel

Press [ëPRO LOGIC, OFF/ON] so the indicator goes out.

Note

Turn Dolby Pro Logic off when playing a DVD recorded with 5.1-

channel Dolby Digital. The surround effects will not be reproduced

correctly if this is left on.

»

ASpeaker level adjustments

Remote control only

If the level of the speakers appears to be different while listening to a

source, adjust the levels of the speakers to the same apparent level.

1Press [SHIFT] i [TEST] to output a test signal.

A test signal is output from the speakers in the following order.

Lch: Front left speaker

Cch: Center speaker

Rch: Front right speaker

Sch: Surround speakers

2Press [VOLUME (j or i)] to set the volume level of the front

speakers normally used for enjoying the source.

3While the speaker to be adjusted is outputting a signal

Press [3] (to increase the level) or [4] (to decrease the level).

The level of the speaker changes.

Repeat step 3 as desired.

To stop the test signal

Press [SHIFT] i [TEST] again.

To adjust the levels during play

1 Press [CH SELECT] to select the speaker.

Each time you press the button:

Lch>Cch>Rch>Sch

^-----------------------------------}

2 Press [3] or [4] to adjust the level.

Repeat steps 1 and 2 as desired.

Changing sound field and quality

RQT5471

34

D

E

C

A

SUPER

SURROUND

SUPER

SURROUND

SUPER

SURROUND

12

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

1

2, 3, 4

1

2

1

SEAT

POSITION

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

MULTI JOG

B

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

CANCEL

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

MENU

EQ

SETUP

DISPLAY

1

2

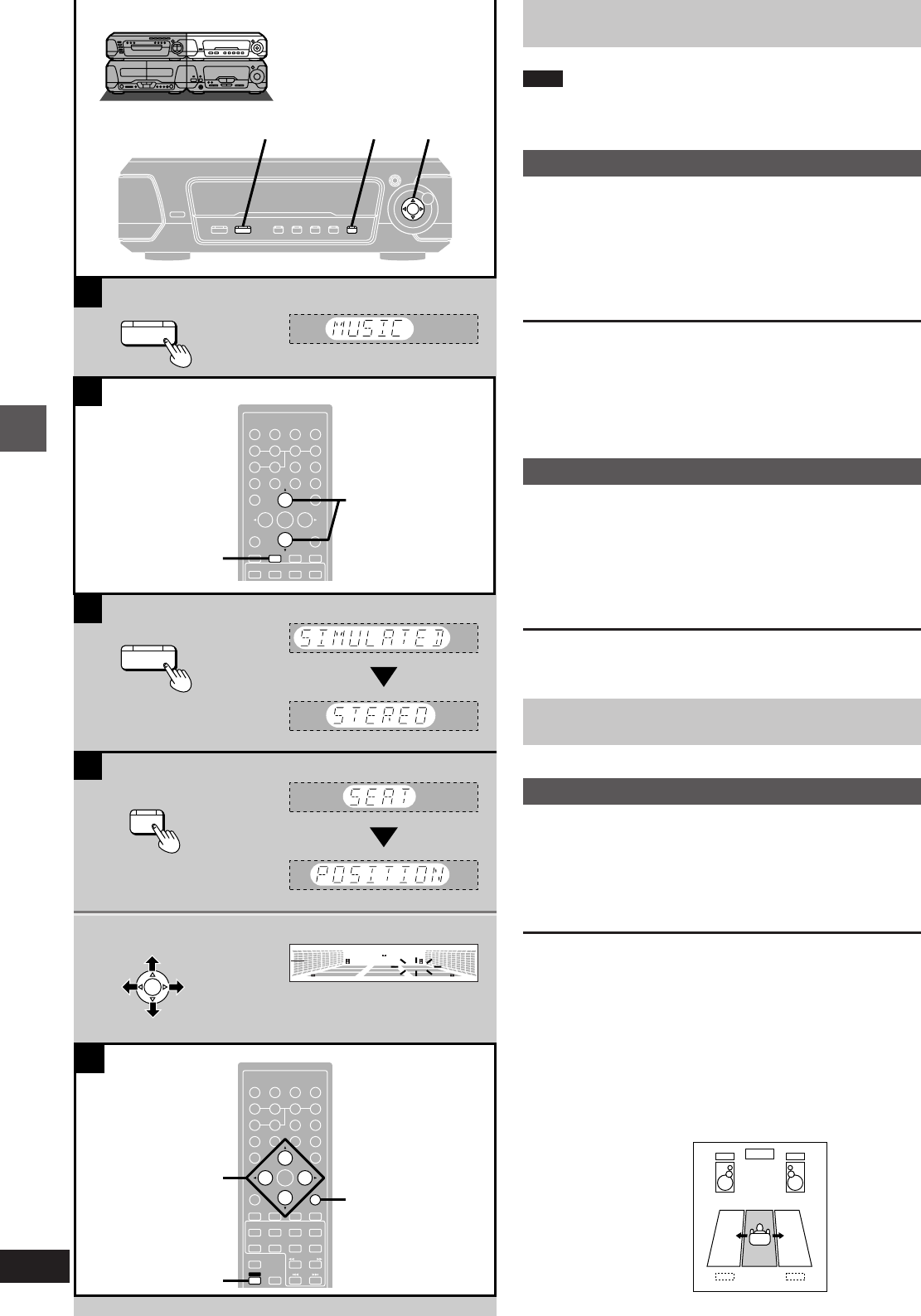

Enjoying surround sound

Note

Turn SUPER SURROUND or SIMULATED STEREO off when play-

ing a DVD recorded with 5.1-channel Dolby Digital. The surround ef-

fects will not be reproduced correctly if this is left on.

»

ASUPER SURROUND

Press [SUPER SURROUND] and select

“MOVIE” or “MUSIC”.

The indicator turns green.

Each time you press the button:

MUSIC>MOVIE>SIMULATED STEREO

^----------STEREO SOUND¤ (off)(---------}

¤Original display when playing DVDs

To cancel

Press [SUPER SURROUND] to select “STEREO SOUND”. The indi-

cator goes out.

[B] Surround speaker level adjustments

While playing a source

1Press [CH SELECT].

2Press [3] (to increase the level) or [4] (to decrease the level).

»

CSIMULATED STEREO

Press [SUPER SURROUND] and select

“SIMULATED STEREO”.

The indicator turns green.

Each time you press the button:

MUSIC>MOVIE>SIMULATED STEREO

^----------STEREO SOUND¤ (off)(---------}

¤Original display when playing DVDs

To cancel

Press [SUPER SURROUND] to select “STEREO SOUND”. The indi-

cator goes out.

Surround effects

This effect is available when the indicator is lit.

»

DSEAT POSITION

1Press [SEAT POSITION].

The indicator flashes green.

2While the indicator is flashing (10 seconds)

Adjust the seat position with [MULTI

JOG].

To cancel

1Press [SEAT POSITION] so the indicator flashes.

2Press [SEAT POSITION] again while the indicator is flashing so it

turns orange.

[E] On the remote control

1Press [SHIFT] i [AV EFFECT].

2Press the cursor button [2] or [1] so the “SEAT POSITION” indi-

cator flashes.

3Press [3] (ON).

4Adjust the seat position with [2, 1, 3, 4] .

To turn it off, after steps 1 and 2 press [4] so the indicator turns orange.

With virtual rear surround or

3D enhanced surround:

3 horizontal steps (c)

a (On the tuner/amplifier)

b (On the sound processor)

35

Changing sound field and quality

RQT5471

C

B

MULTI REAR

SURROUND

VIRTUAL REAR

SURROUND

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

3D ENHANCED

SURROUND

D

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

MULTI REAR

SURROUND

CENTER

FOCUS

VIRTUAL REAR

SURROUND 3D ENHANCED

SURROUND

A

CENTER

FOCUS

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

1

1

2, 3

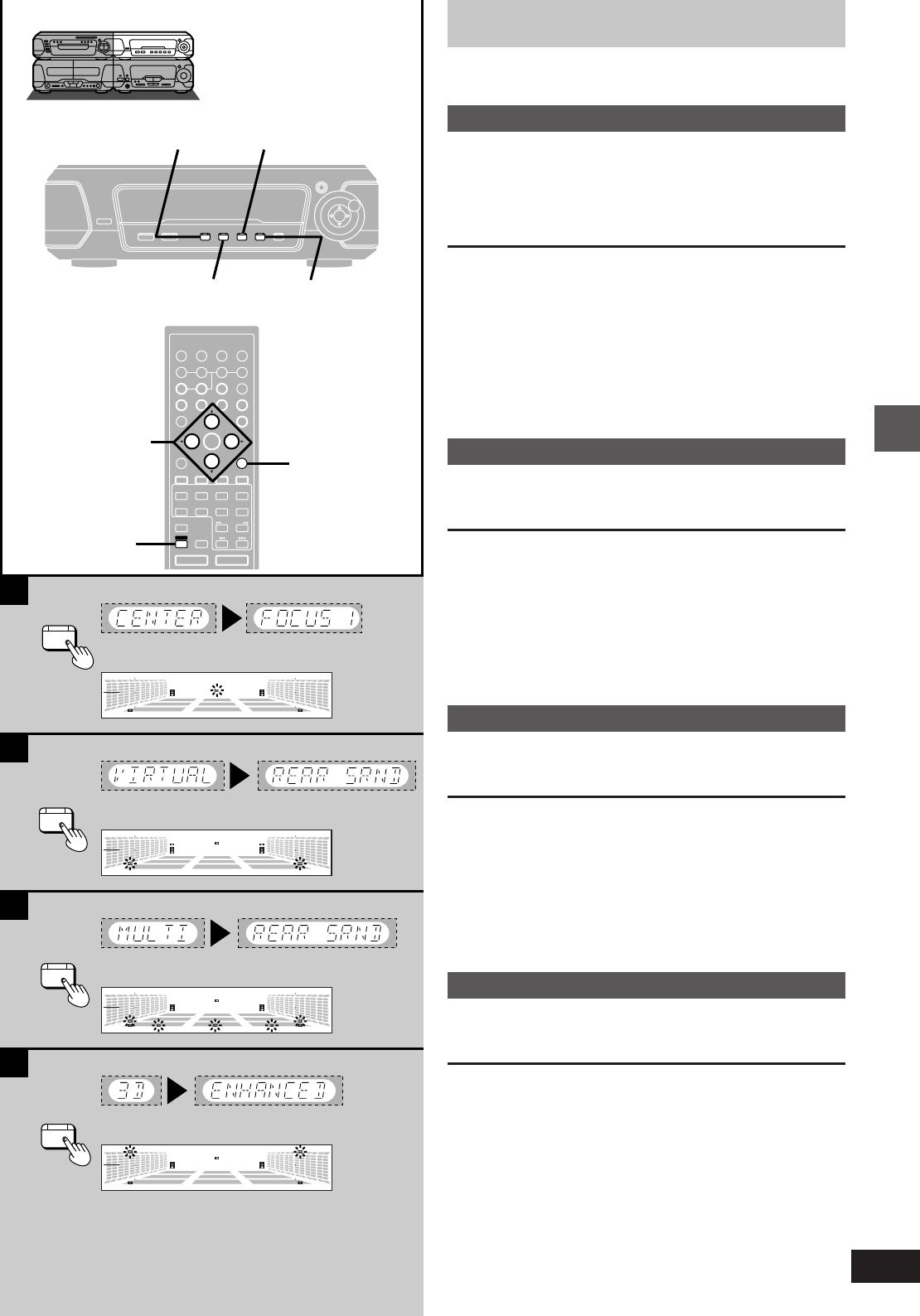

Surround effects

These effects are available when the corresponding indicators are lit.

»

ACENTER FOCUS

Press [CENTER FOCUS].

The indicator turns green.

Each time you press the button:

CENTER FOCUS 1>CENTER FOCUS 2>(off)

^_____----------------------------------------__-_}

To cancel

Press [CENTER FOCUS] so the indicator turns orange.

On the remote control

1Press [SHIFT] i [AV EFFECT].

2Press the cursor button [2] or [1] so the “CENTER FOCUS” indi-

cator flashes.

3Press [3] (to turn on or increase the level) or [4] (to decrease the

level or turn off).

(The indicator turns orange when off.)

»

BVIRTUAL REAR SURROUND

Press [VIRTUAL REAR SURROUND].

The indicator turns green.

To cancel

Press [VIRTUAL REAR SURROUND] so the indicator turns orange.

On the remote control

1Press [SHIFT] i [AV EFFECT].

2Press the cursor button [2] or [1] so the “VIRTUAL REAR SUR-

ROUND” indicator flashes.

3Press [3] (ON) or [4] (OFF).

(The indicator turns orange when off.)

»

CMULTI REAR SURROUND

Press [MULTI REAR SURROUND].

The indicator turns green.

To cancel

Press [MULTI REAR SURROUND] so the indicator turns orange.

On the remote control

1Press [SHIFT] i [AV EFFECT].

2Press the cursor button [2] or [1] so the “MULTI REAR SUR-

ROUND” indicator flashes.

3Press [3] (ON) or [4] (OFF) .

(The indicator turns orange when off.)

»

D3D ENHANCED SURROUND

Press [3D ENHANCED SURROUND].

The indicator turns green.

To cancel

Press [3D ENHANCED SURROUND] so the indicator turns orange.

On the remote control

1Press [SHIFT] i [AV EFFECT].

2Press the cursor button [2] or [1] so the “3D ENHANCED SUR-

ROUND” indicator flashes.

3Press [3] (ON) or [4] (OFF).

(The indicator turns orange when off.)

a (On the tuner/amplifier)

b (On the sound processor)

a (On the tuner/amplifier)

b (On the sound processor)

a (On the tuner/amplifier)

b (On the sound processor)

a (On the tuner/amplifier)

b (On the sound processor)

Recording operations

RQT5471

36

A

B

COUNTER

COUNTER

DISPLAY

A

A

COUNTER

RESET

RESET DISPLAY

C

3 5 2

46

DECK 1/2

1

Your attention is drawn to the fact that recording pre-recorded

tapes or discs or other published or broadcast material may

infringe copyright laws.

Before recording

(Deck 2 only)

Selection of tapes for recording

The unit automatically identifies the type of tape.

»

ATo display the tape counter while recording

Press [COUNTER DISPLAY].

The counter is displayed for about 5 seconds.

To reset the tape counter

Press [COUNTER RESET].

³To display or reset the tape counter for deck 1, first press

[DECK 1/2].

»

BErasure prevention

The illustration shows how to remove the tabs to prevent recording.

To record on the tape again, cover as shown, being careful not to

cover the high position discrimination hole.

Volume, sound quality and surround effects

These have no effect on recording. Sound quality and surround

effects are automatically set to flat when recording.

»

CErasing recordings

1Press [INPUT SELECTOR] to select “TAPE”.

2Insert the recorded tape into deck 2.

3Press [DOLBY NR] so the “ëNR” indicator goes out.

4Select the reverse mode.

5Press [´ REC PAUSE].

6Press ["] or [!].

Normal position/TYPE I 4

High position/TYPE II 4

Metal position/TYPE IV 4

a Side A

b Tab for side “B” c Tab for side “A”

d To re-record

e Normal tape f High-position tape

g Discrimination hole

37

Recording operations

RQT5471

1

23

2

3

DOLBY NR

REV MODE

E

OPEN

Î

NR

2

2

Î

NR

1

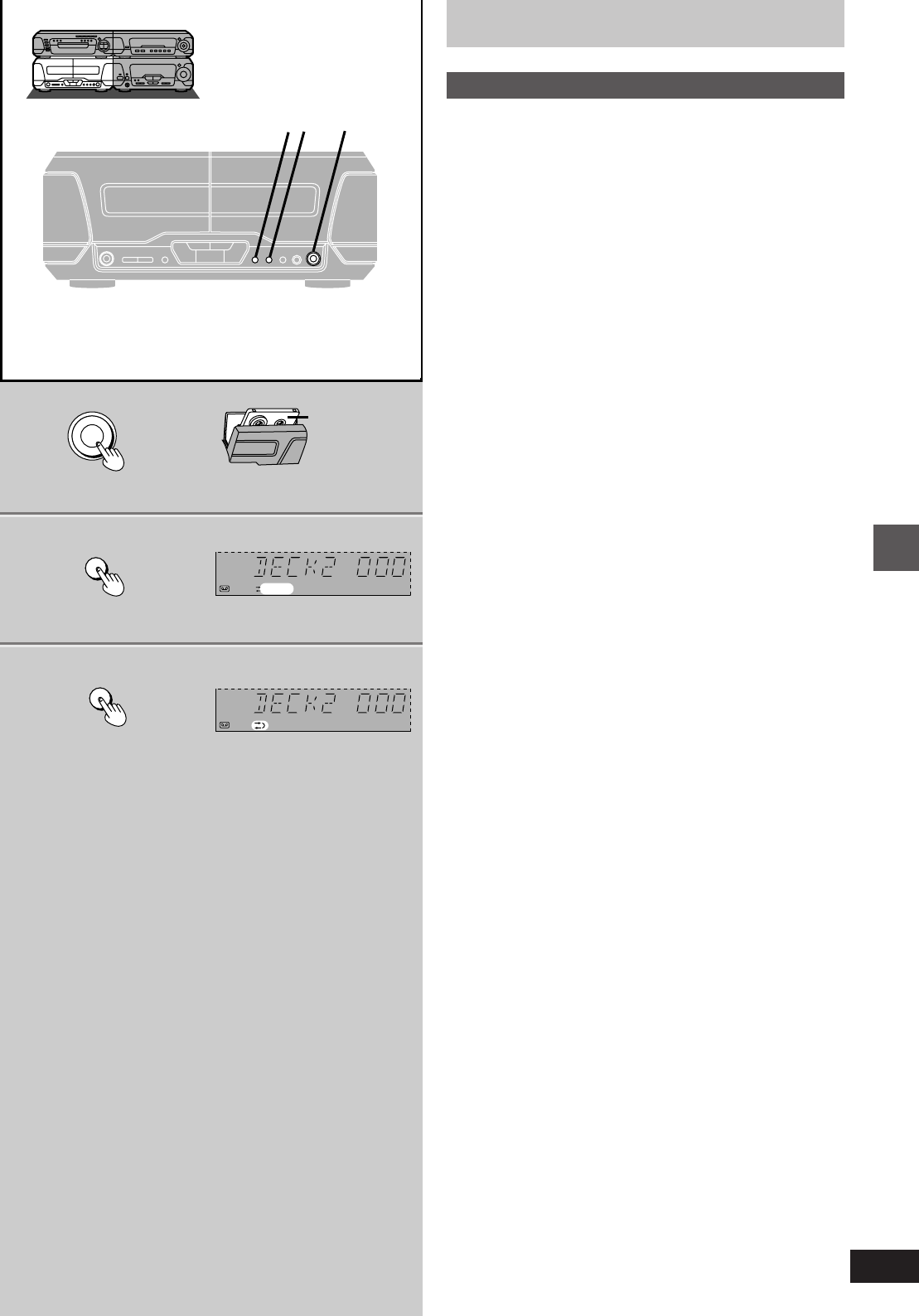

Before recording (Deck 2 only)

Preparatory steps

Do these steps before each recording.

Wind up the leader tape in deck 2 so recording can begin imme-

diately.

1Press [< OPEN] on deck 2 and insert

the cassette.

Insert the cassettes in both decks for tape-to-tape recording

(á page 39).

DECK 1: For playback

DECK 2: For recording

2Press [DOLBY NR] to select Dolby NR

on (“ëNR” appears) or off.

(á “Dolby noise reduction”, page 27)

3Press [REV MODE] to select the re-

verse mode.

Each time you press the button:

h: One side only records.

d and f: Both sides record (forward> reverse).

“f” automatically changes to “d” when [´ REC PAUSE],

[CD EDIT] or [TAPE EDIT] is pressed.

a Forward sida

b Tape facing

down

Recording operations

RQT5471

38

1

A

3

2

@

21



DISC 1—5

CD EDIT

@

3

H

REC

PAUSE

Î

NR2

REC

Î

NR2

REC

EDIT

B

CD EDIT

INPUT SELECTOR

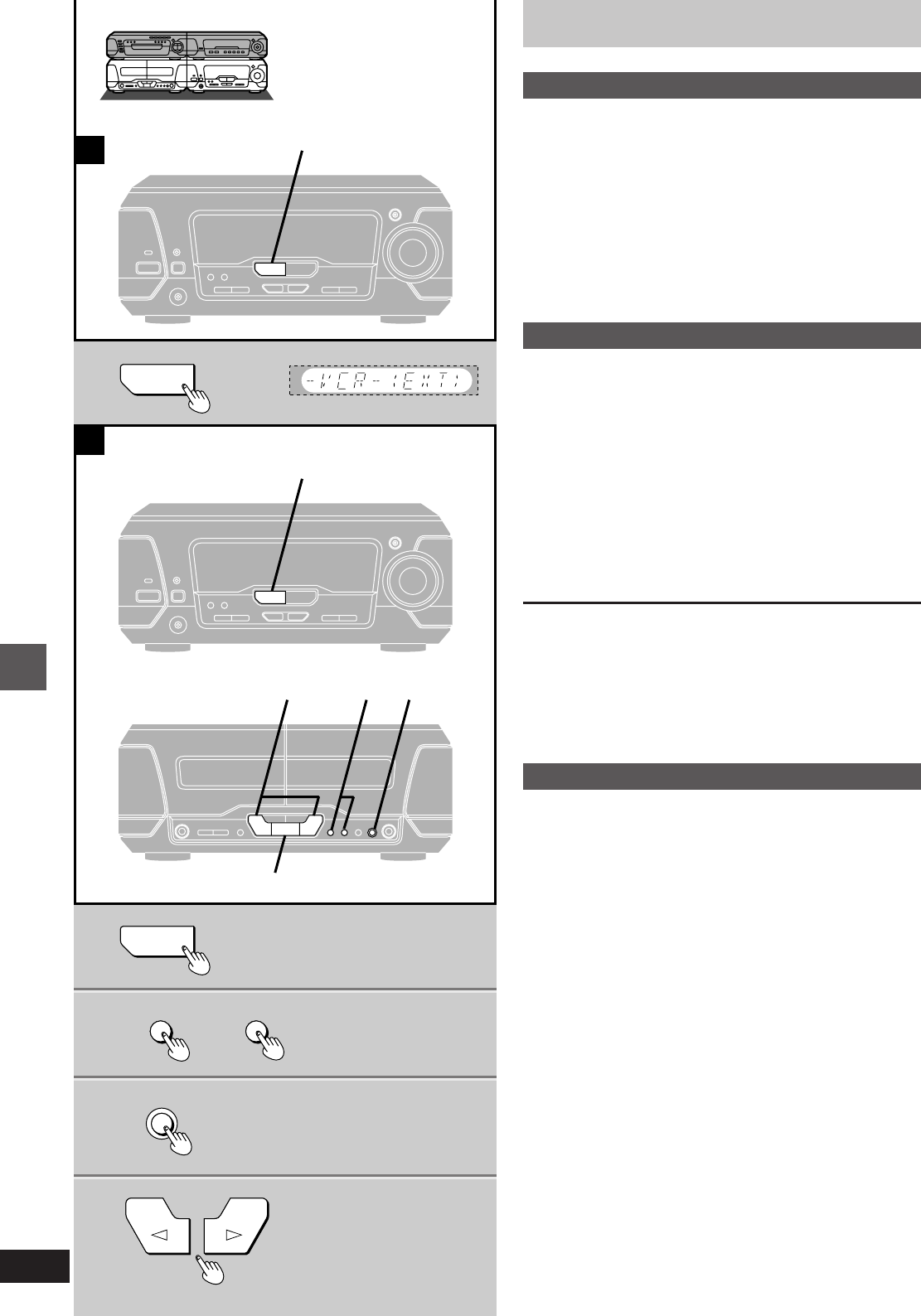

Recording discs

Preparation:

³Do the preparatory steps (á page 37).

³Insert the disc(s) you want to record (á page 14).

³Press [DISC 1]–[DISC 5] to select the disc you want to start record-

ing, then press [º] twice to stop the disc.

»

ANormal recording

[DVD] [V-CD] [CD]

1Press ["] (reverse side) or [!] (forward side)

then [º] to set the tape direction.

2Press [´ REC PAUSE].

3Press [!] on the changer.

Recording starts automatically.

4 seconds after the disc(s) finishes, the deck goes into the recording

standby mode.

To stop recording

EITHER

Press [º] on the changer.

The deck goes into recording standby mode 4 seconds later.

OR

Press [º] on the deck.

Recording stops immediately but the disc continues to play.

To record programmed tracks

Program tracks before step 1 (á page 20).

»

BOne touch disc editing

[V-CD] [CD]

This function makes it easier for you to record from Video CDs and

CDs.

³When recording, if a track is cut off in mid-track at the end of the

forward side, it is recorded from the beginning on the reverse side.

(Ensure the reverse mode “d” is selected.)

³At the end of the reverse side recording stops and the current track

will be interrupted.

Press ["] or [!] then [º] to set the tape direction, and

press [INPUT SELECTOR] to select “DVD” as the source,

then

Press [CD EDIT].

Recording starts. In the meantime, “CD EDIT” will scroll across the

display from right to left.

After edit-recording has finished, the cassette deck automatically

stops.

To stop editing

Press [º] on the changer. The cassette deck also stops.

“EDIT OUT” is displayed.

To edit programmed tracks

Program the tracks (á page 20) and press [CD EDIT].

For your reference:

³“ALL DISC” or “1-DISC” can be combined (á page 15).

³PBC on Video CDs is automatically canceled.

³“ERROR” is displayed if the disc in the playing position is a DVD or

the resume function is activated.

39

Recording operations

RQT5471

3

H

REC

PAUSE

ÎNR2 REC

2

A

23 ∫

21

1

2

@

DECK 1/2

TAPE EDIT

1

2

2REC1

B

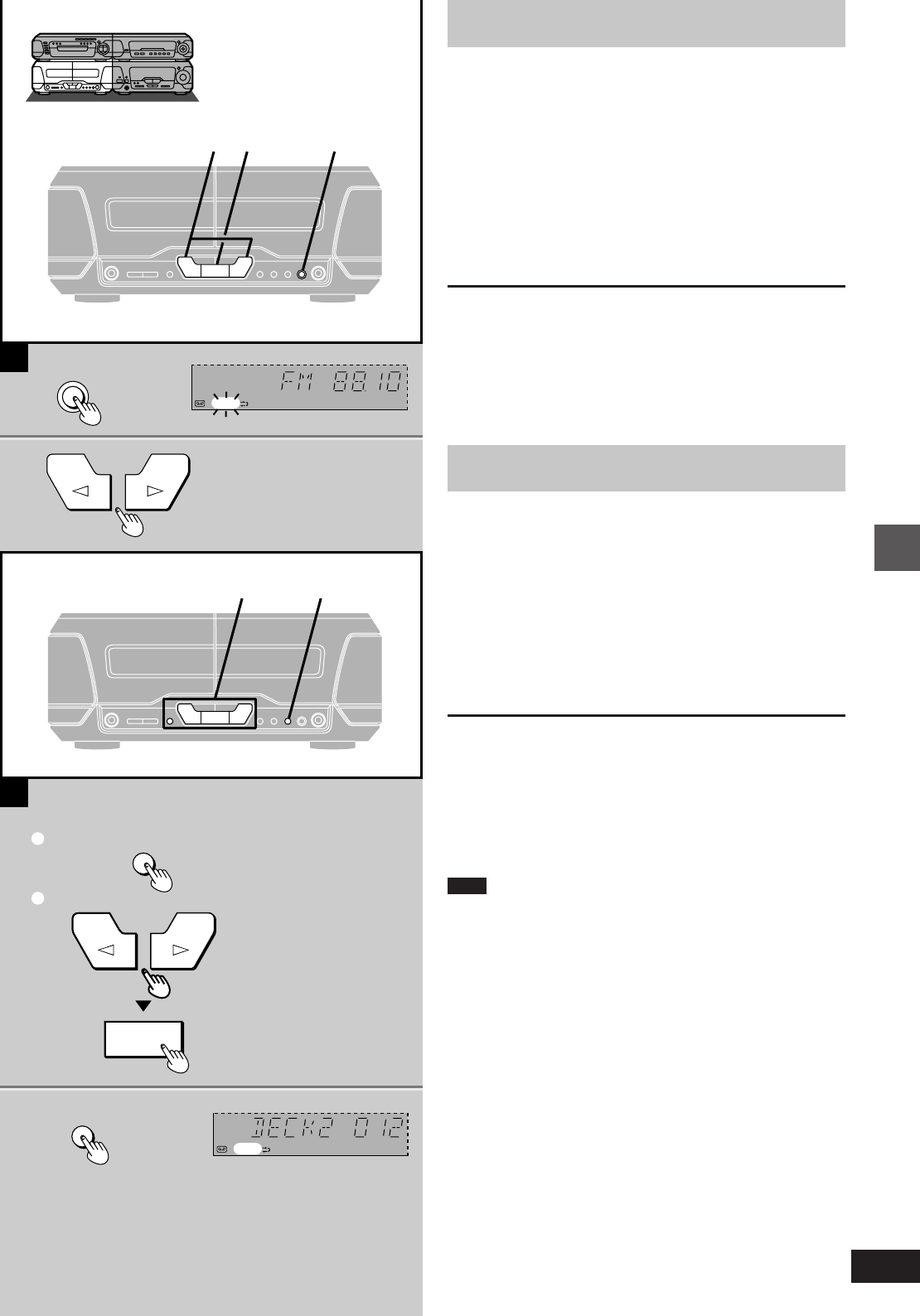

[A] Recording the radio

Preparation: Do the preparatory steps (á page 37).

1Tune to the required station.

(á page 24 or 25)

2Press [´ REC PAUSE].

The deck goes into the recording standby mode and the play

indicator “"” or “!” starts flashing.

3Press ["] (reverse side) or [!] (forward side) to

start recording.

To stop recording

Press [º].

To pause recording

Press [´ REC PAUSE].

The deck goes into recording standby mode.

To resume recording press the flashing ["] or [!].

»

BTape-to-tape recording

Preparation: Do the preparatory steps 1 and 3 (á page 37).

1Set the tape direction on both decks.

1Press [DECK 1/2] to select “DECK 2”.

2First press ["] or [!], and then [º].

Repeat steps 1 and 2 for deck 1.

2Press [TAPE EDIT] to start recording.

The indicator “"” or “!” shows deck 2 direction.

If either deck stops, the other deck also stops.

To stop recording

Press [º].

Both decks will stop.

To enjoy another source while recording

Start playing the other sound source.

You can change the volume level and tone quality without affecting

the recording.

Note

The recording level and the noise reduction effect of the original

(play) tape will be recorded on the new tape.

Convenient functions

RQT5471

40

C

B

A

3

KARAOKE

KARAOKE

V.MUTE

KARAOKE

V.MUTE

MONO·L

V.MUTE

3

MIN MAX

MIC VOL

VOLUME

UP

DOWN

Í/I

1

OFF

---

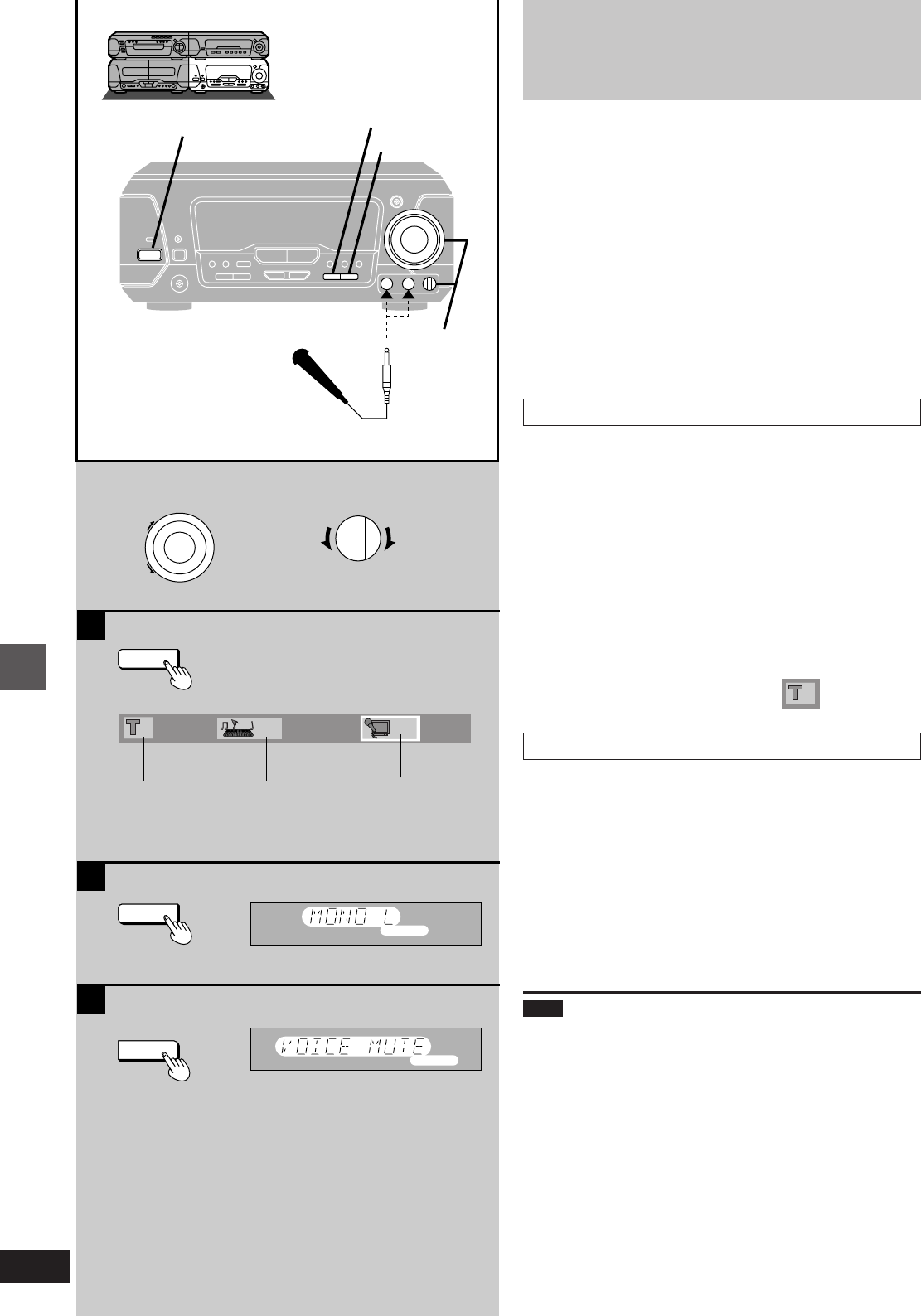

Enjoying KARAOKE

(Except for the United Kingdom,

Continental Europe, Australia and N.Z.)

[DVD] [V-CD] [CD]

Preparation:

³Press [ê/I] to turn the unit on.

³Turn on the television and switch the video input mode of the televi-

sion to suit the type of connection you have made (e.g., VIDEO 1).

³Lower volume with [MIC VOL], then connect the microphone(s) to

the microphone jack(s). (Plug type 6.3 mm monaural)

1Start the source.

2Select the Karaoke mode.

See below ([A], [B] or [C]) for operation details.

3Adjust the main volume and micro-

phone volume.

»

AKaraoke DVD

Icons are displayed on the television to assist operation.

Press [KARAOKE] to select the appropriate mode.

(Refer to the jacket concerned for Karaoke mode.)

Each time you press the button:

³Solo ³Duet

--- : Vocal off --- : Vocal off

ON: Vocal on 1+2: Vocal 1 i 2 on

V1: Vocal 1 on

V2: Vocal 2 on

On the remote control

1Press [KARAOKE].

2Press the cursor button [2] or [1] to select the vocal select

mode.

3Press [3] or [4] to select the appropriate mode.

³To select another song

Press the cursor button [2] or [1] to select and press [3] or

[4] to select the number for the song.

Other sources (except for radio)

The changes in Karaoke mode are shown on the tuner/amplifier.

[B] Video CD/CD/cassette tape (multiplex)

Press [KARAOKE] to turn the vocals off.

Each time you press the button:

MONO L: Vocal off (Lch only)

MONO R: Vocal on (Rch only)

(off): Karaoke mode canceled.

[C] DVD/Video CD/CD/cassette tape/video tape

(non-Karaoke)

Press [V.MUTE] to turn the vocals off.

V.MUTE: Vocal off

(off): Karaoke mode canceled.

Note

³The Karaoke modes cannot be used with the radio, 3D AI EQ or

surround effects (á pages 29 and 30).

³If a strange noise (squealing or howling) is emitted during use,

move the microphone away from the speakers, or turn down the

microphone volume.

When you are not using the microphone, disconnect it from the MIC

jack, and turn down the microphone volume level to MIN.

When using the VOICE MUTE function

Voice mute may not function sufficiently or noise may interfere when

using the following software.

³Monaural software

³Software with few musical instruments, including classical music

and poetry recitations

³Software with duets or strong choruses

To record your performance

Start recording in deck 2 and then start singing.

a (On the TV screen)

b Vocal select

c (On the tuner/amplifier)

Guide melody

(á page 41)

Title No.

1

41

Convenient functions

RQT5471

D

E

B

C

A

1

2

ENTER

RETURN

KARAOKE

EFFECT

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

KARAOKE

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2

1

LOUNGE

CHORUS

ECHO

?

TUNING

@

KEY CON

LOUNGE

CHORUS

ECHO

ECHO

KEY CON

KEY CON

2, 3

2, 3

1

1

1

1

1

---

Enjoying KARAOKE

(Except for the United Kingdom,

Continental Europe, Australia and N.Z.)

»

AUsing the echo effect

Press [ECHO].

Each time you press the button:

ECHO 1>ECHO 2>ECHO 3

^---------- ECHO OFF ------------}

»

BChanging the key (up to 6 steps)

1Press [KEY CON].

“KEY 0” appears on the display.

2Press [TUNING (Ý or ß)] to change

the key.

Ý: Lower the key by a halftone (j1, j2, j3)

ß: Raise the key by a halftone (i1, i2, i3)

To restore the original key

Press [KEY CON] to display “KEY OFF” on the tuner/amplifier.

»

CGiving the effect of singing at a Karaoke bar

Press [LOUNGE].

Each time you press the button:

LOUNGE 1>LOUNGE 2>LOUNGE 3

^---------------LOUNGE OFF--------------}

To cancel the effect

Press [LOUNGE] to select “LOUNGE OFF”.

»

DGiving the effect of singing in a chorus

Press [CHORUS].

Each time you press the button:

CHORUS 1>CHORUS 2

^----CHORUS OFF-----}

To cancel the effect

Press [CHORUS] to select “CHORUS OFF”.

Selecting the Karaoke effect with the remote

»

Econtrol

1Press [SHIFT] i [KARAOKE EFFECT].

2Press [2] or [1] to select the desired effect.

ECHO,-.KEY,-.LOUNGE,-.CHORUS

^----------------------------------------------------J

3Press [3] or [4] to select the desired level.

»

EUsing the guide melody function

Remote control only

This function can be used only with some Karaoke DVDs.

When singing a song whose melody you do not know well, use this

function to raise the volume of the melody.

1Press [KARAOKE] to display the Karaoke screen.

2Select the guide melody with [2, 1] .

3Select the desired level with [3, 4] .

1: Normal volume

2: Louder volume

OFF: Guide melody offc Guide melody

a (On the tuner/amplifier)

b (On the TV screen)

Convenient functions

RQT5471

42

2

3

4

5

1

6 1 2–5

1

2

1

2

œPLAY/œREC

SET

CLOCK/TIMER

—DEMO

SET

6

FPLAY

FPLAY

FPLAY

FPLAY

FPLAY

2–5 ?

TUNING

@

FPLAY

C

H

FPLAY

MHz

FPLAY

H/I

Using the timers

The play timer

This timer starts play of a selected source at a selected time.

The example shows settings for preset radio channel 8 to play be-

tween 6:30 and 7:40 at j40 dB.

Preparation: Turn the unit on, set the time (á page 12), preset

radio stations if you want the timer to start playing

the radio (á page 25).

11Press [CLOCK/TIMER, –DEMO] to

select “FPLAY.”

Each time you press the button:

CLOCK>FPLAY>FREC>Original display

^-------------------------------------------------------------------}

2Press [SET] within 3 seconds.

2–5

1Press [TUNING (X or W)] to select

the appropriate setting and

2press [SET] to confirm.

2 Select the start time.

3 Select the finish time.

4 Select the source.

TUNER()DVD()TAPE

^----------------------------------J

Insert a disc or tape if you select these sources.

If you select TUNER

Select a preset channel.

5 Select the volume.

The play timer is now on standby. The display shows each

setting again then restores the original display.

6Press [ê/I] to turn the unit off.

The “FPLAY/FREC” indicator remains lit to show the play (or

record) timer is on even when ECO mode is selected (á page

12).

The timer starts at the set time with the volume increasing gradually

to the set level.

To cancel the timer

Press [FPLAY/FREC] so “FPLAY” goes out.

Each time you press the button:

FPLAY>FREC>FPLAY FREC>Light off (OFF)

^---------------------------------------------------------------------------------}

The play timer function will be canceled, but the settings stay in

memory.

For your reference:

When you insert cassettes in decks 1 and 2, deck 1 has priority.

43

Convenient functions

RQT5471

2–4

2

3

4

1

1

2

1

2

SET

CLOCK/TIMER

—DEMO

SET

6

6 1 2–4

œPLAY/œREC

5

FREC

FREC

FREC

FRE

C

CH

?

TUNING

@

FREC

FREC

MHz

H/I

Using the timers

The record timer

This timer records the radio at a set time.

The example shows settings for recording preset channel 8 from

18:30 to 19:30.

Preparation: Turn the unit on, set the time (á page 12), preset

radio stations (á page 25).

11Press [CLOCK/TIMER, –DEMO] to

select “FREC”.

Each time you press the button:

CLOCK>FPLAY>FREC>Original display

^-------------------------------------------------------------------}

2Press [SET] within 3 seconds.

2–4

1Press [TUNING (X or W)] to select

the appropriate setting and

2press [SET] to confirm.

2 Select the start time.

3 Select the finish time.

4 Select the preset channel.

The record timer is now on standby. The display shows each

setting again then restores the original display.

5Prepare for recording.

1Insert a tape into deck 2.

2Select the Dolby NR mode.

3Select the reverse mode.

4Select the tape direction.

6Press [ê/I] to turn the unit off.

The “FPLAY/FREC” indicator remains lit to show the record

(or play) timer is on even when ECO mode is selected (á

page 12).

Recording starts 30 seconds before the set time with the volume mut-

ed during the set time.

To cancel the timer

Press [FPLAY/FREC] so “FREC” goes out.

Each time you press the button:

FPLAY>FREC>FPLAY FREC>Light off (OFF)

^---------------------------------------------------------------------------------}

The record timer function will be canceled, but the settings stay in

memory.

Convenient functions

RQT5471

44

B

A

CLOCK/TIMER

—DEMO

œPLAY/œREC

SLEEP

SLEEP

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

SLEEP

Using the timers

»

AThe play and record timers

Checking the timers

Press [CLOCK/TIMER, –DEMO] to select “FPLAY” (or “FREC”).

The timer settings are shown in the following order:

Play timer:

Start time>Finish time>Source>Volume

Record timer:

Start time>Finish time>Broadcast station you select

The timers can be checked even if the unit is off.

Playing the unit after the timers are set

The unit can be used after the timers are set, but ensure the unit is off

before the set start time.

Turning the timers on and off

The timers come on at the set times if the “FPLAY/FREC” indicator

is lit. They can be turned on and off by pressing [FPLAY/FREC] (á

pages 42 and 43).

Note

³If you turn the unit off and on again while a timer is functioning, the

finish time setting will not be activated.

³If the power is on, the timer will not function. The system must be in

the standby mode.

³This system retains the ON/OFF time settings until you make a new

setting. If you make a new ON time setting, you must make a new

OFF time setting.

»

BThe sleep timer

Remote control only

This timer turns the unit off after a set time.

Press [SLEEP] to select the time

(minutes).

Each time you press the button:

SLEEP 30_--)SLEEP 60_--)SLEEP 90

^-=SLEEP OFF(=SLEEP 120(_}

To cancel the sleep timer

Press [SLEEP] to select “SLEEP OFF”.

“SLEEP” goes out.

To confirm the remaining time

(While the timer is functioning)

Press [SLEEP].

The remaining time is shown for about 5 seconds.

To change the setting

Press [SLEEP] to display the remaining time, then press again to se-

lect the required time.

Using the timers together

Any of the timers can be used together, but ensure the unit is off be-

fore the start time for the record and play timers.

45

Convenient functions

RQT5471

1

2

3

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

⁄/g¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

123

456

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2, 3

1

1

RETURN

SHIFT

ENTER

1 Disc Languages

Level 8

2 Ratings

3 Menu Language

4 On-Screen Messages

5 TV Aspect

6 Speaker Setting

Press RETURN to exit

9 Other Settings

English

4:3

1 Disc Languages

Level 8

2 Ratings

3 Menu Language

4 On-Screen Messages

5 TV Aspect

6 Speaker Setting

Press RETURN to exit

9 Other Settings

English

4:3

SETUP

ENTER

DVD

a Numbered

buttons

Initial settings

Changing the initial settings

Remote control only

Once the initial settings have been completed, the system can

always be operated under the same settings.

Preparation: Press [DVD] to select “DVD” as the source.

1While stopped

Press [SHIFT] r [SETUP].

The initial settings menu is displayed.

2Press [3] or [4] to highlight an item,

and press [ENTER].

3Press [2, 1, 3, 4] to select an item

and press [ENTER].

Repeat step 3 as the menus require to make changes.

Steps 2 and 3 can also be done with the numbered buttons.

Press the number next to the required item. For example, press [3] to

select “3 Menu Language”.

To return to the previous screen

Press [RETURN].

To exit the initial settings menu

Press [RETURN].

Note

The initial settings menu will not be displayed if one of the program/

random/ALL DISC modes is activated.

b (On the TV screen)

Convenient functions

RQT5471

46

Item

1 Disc Languages

2 Ratings

3 Menu Language

4 On-Screen Messages

5 TV Aspect

6 Speaker Setting

9 Other Settings

Function

Select the soundtrack language.

Select the subtitle language.

Select the language for the top menu and other menus shown by

the disc.

Set a ratings level for playing a DVD.

Select the language used for menus and messages the unit

displays on the television (including these menus).

Choose whether to show the on-screen messages that appear

on the television when you perform operations.

Select the colour and position of on-screen massages and GUI.

Select the aspect ratio that suits your television (á page 8).

Set the delay time for your center and surround speakers (á

page 48).

Select a picture type for when the picture is paused.

Select whether to have sound on or off during the first level of

forward search (DVD/Video CD only).

Select to view how software made for a widescreen television is

displayed on a regular television (á page 49).

Select whether to have dynamic range compression during play

of Dolby Digital software.

Select whether to show the picture type (I/P/B) when a DVD is

paused.

Select whether to output the video signal on NTSC discs as PAL

60 or as NTSC.

Initial settings

Summary of initial settings

This chart shows the initial settings for this unit. See page 45 for details on menu operation.

³The menu and on-screen message language has been factory preset to English. You can change the language by going to “3 Menu Language”.

³There is no item 7 or 8.

Options

1 Audio

2 Subtitle

3 Menus

Setting ratings (When level 8 is selected)

Level 8: All DVDs can be played.

Level 1 to level 7: Prohibits play of DVDs with

corresponding ratings recorded on them.

Level 0: Prohibits play of all DVDs.

Changing ratings

(When level 0–7 is selected)

1 Unlock Player 3 Change Level

2 Change Password 4 Temporary Unlock

1 English 4 Italiano

2 Français 5 Español

3 Deutsch

1 On-Screen Messages

2 Colour and Position

1 4:3 (Regular television)

2 16:9 (Widescreen television)

Center speaker delay time

Surround speakers delay time

1 Still Mode

2 Audio during Search

3 TV Mode (4:3)

4 D. Range Compression

5 Still Picture Display

6 NTSC Disc output

47

Convenient functions

RQT5471

Remarks

³Some discs are designed to start in a certain language despite any changes you

make here.

³“Other ¢¢¢¢”: Input a code number with the numbered buttons (á page 49).

³“Original”: The original language of each disc will be selected.

³“Automatic”:

If the language selected for “1 Audio” is not available, subtitles of that language will

automatically appear if available on that disc.

³The password screen is shown if you choose levels 0 to 7 (á page 48).

³The DVDs must have ratings levels recorded on them for this feature to be effective.

Discs with this feature will be marked.

If the level 0 to level 7 has been selected, the password screen is shown when you

select “2 Ratings”. Enter your password with the numbered buttons and press

[ENTER]. The menu for changing ratings appears.

For optimum listening with 5.1 channel sound, all the speakers, except for the

subwoofer, should be the same distance from the listening position.

You can adjust the delay time for the center and surround speakers to adjust for

differences in distances between the speakers.

These adjustments are effective when playing DVDs recorded in Dolby Digital.

Field: Less blurred field stills are shown. Select if jittering occurs when “1

Automatic” is selected.

Frame: Sharper frame stills are shown. Select if small text or fine patterns cannot be

seen clearly when “1 Automatic” is selected.

Dynamic range is the difference between the loudest sound and the softest sound. By

compressing this range, you can listen at low volume but still enjoy clear dialog.

³If you have connected a PAL system television, select “1 PAL60”.

³If you have connected an NTSC system television, select “2 NTSC”.

³Shaded items are the factory settings.

³Changes to the initial settings remain intact after the unit is turned off.

Do the setting procedures again to restore to the original settings.

1 English 4 Italian 7 Other ¢¢¢¢

2 French 5 Spanish

3 German 6 Original

1 Automatic 4 German 7 Other ¢¢¢¢

2 English 5 Italian

3 French 6 Spanish

1 English 4 Italian

2 French 5 Spanish

3 German 6 Other ¢¢¢¢

1On

2 Off

1 Blue 4 Blue

2 Violet 5 Violet

3 Green 6 Green

0 ms 3.9 ms

1.3 ms 5.3 ms

2.6 ms

0 ms 10.6 ms

5.3 ms 15.9 ms

1 Automatic

2 Field

3 Frame

1 On

2 Off

1 Pan & Scan

2 Letterbox

1 Off

2 On

1 Off

2 On

1 PAL60 (Factory setting: “NTSC” for Russia,

2 NTSC “PAL60” for others)

Convenient functions

RQT5471

48

B

A

ENTER

RETURN

3D AI EQ/

M.EQ BAND AV EFFECT

H

ANGLE

SLEEP

MARKER

TOP MENU

SUBTITLE

123

456

7890

j/-/--

DISC

PLAY MODE

CANCEL

AUDIO

U

PRO LOGIC

CH SELECT

TEST

DIGITAL

S.WOOFER SUPER SRND

2/;1∫

sVOLUME r

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MENU

EQ

SETUP

DISPLAY

MIX 2CH

2, 1, 3, 4

ENTER

The player is locked.

Remember the password.

Ratings

¢¢¢¢

Ratings

Enter a 4-digit password,

then press ENTER

Press RETURN to exit

Press ENTER to continue

4 3 4 3

Press RETURN to exit

Speaker Setting

Exit

0

ms

0

ms

LS RS

LR

C

D2 D1

D3

SW

C



RETURN



C

SW

LS

LR

RS

Initial settings

»

AEntering a password

The password screen is shown if you choose levels 0 to 7.

1Input a 4-digit password with numbered buttons and press

[ENTER].

2Press [ENTER] to confirm the 4 digits.

Press [RETURN] to restore the original display.

To change the level setting or the password

1 Select “2 Ratings”.

The password screen is shown.

2Input the password with the numbered buttons and press

[ENTER].

3Select the item with [3] or [4] and press [ENTER].

»

BCalculating delay time

1Select “Center delay time” or “Surround delay time” with [2,

1,3,4] and press [ENTER].

2Select the desired delay time with [3] or [4] and press

[ENTER].

Center speaker delay time

If D1 R D2, then set the delay time to 0 ms.

If D1 N D2, then set the delay time as follows:

c Example: “4343”

D1: The distance from the front speaker

D2: The distance from the center speaker

D3: The distance from the surround speaker

d Center delay time

e Surround delay time

f Ideal position of

the center speaker

g Ideal position

of the surround

speaker

h It is recommended to locate all the

speakers inside of this circle.

Difference between D1 and D2

50 cm

100 cm

150 cm

200 cm

Delay time

1.3 ms

2.6 ms

3.9 ms

5.3 ms

Surround speaker delay time

If D1 R D3, then set the delay time to 0 ms.

If D1 N D3, then set the delay time as follows:

Difference between D1 and D3

200 cm

400 cm

600 cm

Delay time

5.3 ms

10.6 ms

15.9 ms

a Numbered

buttons

b (On the TV screen)

i Listening

position

49

Convenient functions

RQT5471

16:9

Auto mode

e Full screen

l Full screen with black

bands on the left and right

q Letterbox with extremities

of picture stretched

8365: Sanskrit

7168: Scots Gaelic

8382: Serbian

8372: Serbo-Croatian

8378: Shona

8368: Sindhi

8373: Singhalese

8375: Slovak

8376: Slovenian

8379: Somali

6983: Spanish

8385: Sundanese

8387: Swahili

8386: Swedish

8476: Tagalog

8471: Tajik

8465: Tamil

8484: Tatar

8469: Telugu

8472: Thai

6679: Tibetan

8473: Tigrinya

16:9

Zoom mode

d Top and bottom cut off

k Top and bottom cut off

p Full screen

16:9

Full mode

c Full screen

j Screen stretched

horizontally

o Letterbox with screen

stretched horizontally

4:3

b Edges cut off

g Letterbox

i Full screen

n Letterbox

Television and

picture mode

Software format

a Wide screen,

pan and scan

f Wide screen,

non-pan and scan

h Regular (4:3)

m Regular (4:3) letterbox

How different kinds of software appear on your television

DVD software is recorded in a variety of picture formats, and how they appear on your television depends on the software, the kind of television you

have, and the picture mode your television is set to.

³Letterbox refers to pictures where black bands appear at the top and bottom.

³Pan and Scan refers to pictures where part of the picture is cut off so it fills the whole screen.

The names given to the television picture modes depend on the maker of your television. There may also be slight differences in how the pictures

appear on the screen. Refer to your television’s operating instructions for details.

Language code list

6566: Abkhazian

6565: Afar

6570: Afrikaans

8381: Albanian

6577: Ameharic

6582: Arabic

7289: Armenian

6583: Assamese

6588: Aymara

6590: Azerbaijani

6665: Bashkir

6985: Basque

6678: Bengali, Bangla

6890: Bhutani

6672: Bihari

6682: Breton

6671: Bulgarian

7789: Burmese

6669: Byelorussian

7577: Cambodian

6765: Catalan

9072: Chinese

6779: Corsican

7282: Croatian

6783: Czech

6865: Danish

7876: Dutch

6978: English

6979: Esperanto

6984: Estonian

7079: Faroese

7074: Fiji

7073: Finnish

7082: French

7089: Frisian

7176: Galician

7565: Georgian

6869: German

6976: Greek

7576: Greenlandic

7178: Guarani

7185: Gujarati

7265: Hausa

7387: Hebrew

7273: Hindi

7285: Hungarian

7383: Icelandic

7165: Irish

7378: Indonesian

7365: Interlingua

7384: Italian

7465: Japanese

7487: Javanese

7578: Kannada

7583: Kashmiri

7575: Kazakh

7589: Kirghiz

7579: Korean

7585: Kurdish

7665: Latin

7686: Latvian, Lettish

7678: Lingala

7679: Laotian

7684: Lithuanian

7775: Macedonian

7771: Malagasy

7783: Malay

7776: Malayalam

7784: Maltese

7773: Maori

7782: Marathi

7779: Moldavian

7778: Mongolian

7865: Nauru

7869: Nepali

7879: Norwegian

7982: Oriya

8083: Pashto, Pushto

7065: Persian

8076: Polish

8084: Portuguese

8065: Punjabi

8185: Quechua

8277: Rhaeto-

Romance

8279: Romanian

8285: Russian

8377: Samoan

8479: Tonga

8482: Turkish

8475: Turkmen

8487: Twi

8575: Ukrainian

8582: Urdu

8590: Uzbek

8673: Vietnamese

8679: Volapük

6789: Welsh

8779: Wolof

8872: Xhosa

7473: Yiddish

8979: Yoruba

9085: Zulu

Convenient functions

RQT5471

50

B

C

A

a

b

c

DISPLAY MODE

DISPLAY MODE

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

PLAY MODE

CANCEL

AUDIO

⁄/g¤»

∂ VOLUME µ

VCR(EXT)/

VDP(AUX)

TAPE/

DECK 1/2 TUNER/

BAND

DVD

SLOW/SEARCH

MUTING

SKIP

SHIFT

MIX 2CH

MUTING

MUTING

VOLUME

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

FLAT

HEAVY

CLEAR

HALL

AI-EQ

M.EQ

»

AChanging the sound range

display

The sound processor shows the level of each sound range with the

three types of displays described below.

Press [DISPLAY MODE].

Each time you press the button, the spectrum display will change as

follows.

[a] Normal display

This display indicates the strength of the sound in each tonal

range.

[b] Peak-hold display

The peak sound value of each sound range is held on the dis-

play for about one second after it occurs.

[c] Aurora display

The peak sound value of each sound range is displayed in in-

verted form.

»

BMuting the volume

Remote control only

Press [MUTING].

Volume is muted.

To cancel

Press [MUTING] again.

“MUTING” goes out and the volume is restored.

To cancel from the tuner/amplifier, turn [VOLUME] to the minimum

(–– dB), then raise it to the required level.

Muting is also canceled when the unit is turned off.

»

CUsing headphones

(not included)

Reduce the volume before connection.

Avoid listening for prolonged periods of time to prevent hearing dam-

age.

Plug type: 3.5 mm stereo

a (On the sound processor)

b (On the tuner/amplifier)

51

Convenient functions

RQT5471

B

A

VDP

(AUX)

AUDIO

L/R OUT

L

R

C

D

VCR

(EXT)

OUT IN

L

R

VIDEO

MONITOR

OUT

AUDIO

OUT

AUDIO

IN

VIDEO

IN VIDEO

OUT

VCR

OUT

VIDEO OUT

VIDEO IN

VCR

IN

VDP

IN

A

S-VIDEO

OUT

DIGITAL

S.WOOFER

DIGITAL

S.WOOFER

E

External unit connections

³Turn off all units before making connections.

³Refer to the manuals of the other units for details.

(Cords and equipment not included.)

[A] Television with S-VIDEO terminal

The S-VIDEO output terminal achieves a more vivid picture than

the video output terminal by separating the colour and lumi-

nance signals before transmitting them to the television. (Actual

results depend on the television.)

[B] Laser Disc player (without 5.1ch output), etc.

This unit has Dolby Pro Logic circuitry. The sound will be repro-

duced with the same powerful stereophonic effects found in

movie theaters.

[C] Video cassette recorder

You can play the sound from a video cassette recorder through

this unit’s speakers or record sound from this unit onto a video

cassette.

[D] Televison

(Except for the United Kingdom and Continental Europe)

By connecting a video cord as shown along with the audio con-

nections shown in [B] and [C], you are able to control the video

and audio with [INPUT SELECTOR].

f S-video cord (not included)

g Video cord

(1 pc. included for the United Kingdom and Continental

Europe

2 pcs. included for others)

h Stereo phono cable (not included)

i White

j Red

c Laser Disc player, etc.

d Sound processor

e Video cassette recorder

a Television

b DVD/Video CD/CD changer

d Sound processor

e Video cassette recorder

a Television

d Sound processor

c Laser Disc player, etc.

(R)

(L)

Subwoofer

For the United Kingdom, Continental Europe, Australia

and N.Z.

The included front speakers have subwoofers, but you can

enhance the sound by connecting an optional subwoofer to

SUBWOOFER OUT on the back of the sound processor.

[E] If you connect a subwoofer:

Press and hold [DIGITAL S.WOOFER] on the main unit until

“SUB W ON” is displayed.

Sound will not come from the subwoofer if there is no specific

channel for the low frequency effect on DVD.

For others

Connect the included subwoofer (á page 6 for connection).

(You do not have to press [DIGITAL S.WOOFER] to turn the

SUBWOOFER on.)

Convenient functions

RQT5471

52

B

1

2

3

4

A

1

1

INPUT SELECTOR

1

INPUT SELECTOR

4 2 3

@

DOLBY NR

H

REC

PAUSE

REV MODE

Using other equipment

»

AListening to an external source

1Press [INPUT SELECTOR] to select

the external source.

Each time you press the button:

TUNER>DVD>TAPE>VCR (EXT)>VDP (AUX)

^----------------------------------------------------------------------------}

On the remote control

Press [VCR (EXT)/VDP (AUX)].

2Operate the unit.

See the unit’s manual for details on connection and operation.

»

BRecording an external source

1Press [INPUT SELECTOR] to select

the external source.

2Select Dolby NR and reverse mode.

(á page 37)

3Press [´ REC PAUSE].

4Press ["] or [!] to start recording.

5Start the source to be recorded.

See the unit’s manual for details on connection and operation.

To stop recording

Press [º] on the deck.

To pause recording

Press [´ REC PAUSE].

The deck goes into recording standby mode.

To resume recording press the flashing ["] or [!].

Recording onto an external unit

1Press [INPUT SELECTOR] to select the source to be recorded.

2Start recording on the external unit and start playing the source to

be recorded.

53

RQT5471

Reference

Recording system AC bias

Bias frequency 100 kHz

Erasing system AC erase

Heads

Deck 1 (Playback head) Permalloy head

Deck 2

(Recording/Playback head) Permalloy head

(Erasing head) Double gap ferrite head

Motors

Deck 1, 2 Capstan drive DC servo motor

Tape speed 4.8 cm/s

Wow and flutter 0.16 % (WRMS)

Fast forward and rewind times

Approx. 110 seconds with C-60 cassette tape

Frequency response (Dolby NR off)

TYPE I (NORMAL) 20 Hz–16 kHz (DIN)

TYPE II (HIGH) 20 Hz–16 kHz (DIN)

TYPE IV (METAL) 20 Hz–16 kHz (DIN)

S/N (Signal levelumax recording level, TYPE II

type tape)

NR off 56 dB (A weighted)

Dolby B NR on 66 dB (A weighted)

Input sensitivity and impedance

REC (IN) 150 mV/23 k

Output voltage and impedance

PLAY (OUT) 280 mV/360 

ºGeneral

Dimensions (WtHtD) 294k118.5k281 mm

Mass 2.1 kg

FRONT SPEAKER

Type 3 way, 3 speakers

Speaker(s)

Super woofer 17 cm cone type

Woofer 12 cm cone type

Tweeter 6 cm ring shaped dome type

Impedance High 6 , Mid 6 , Low 8 

Input power (Music)

High 60 W, Mid 60 W, Low 120 W

Output sound pressure level 87 dB/W (1.0 m)

Crossover frequency 120 Hz, 4 kHz

Frequency range 42 Hz–50 kHz (j16 dB)

46 Hz–36 kHz (j10 dB)

ºGeneral

Dimensions (WtHtD) 254k422k260 mm

Mass 6.4 kg

CENTER SPEAKER

Type 2 way, 2 speakers

Speaker

Woofer 10 cm cone type

Tweeter 6 cm cone type

Impedance 8 

Input power (Music) 120 W

Output sound pressure level 85 dB/W (1.0 m)

Crossover frequency 4 kHz

Frequency range 75 Hz–22 kHz (j16 dB)

ºGeneral

Dimensions (WtHtD) 250k121k147 mm

Mass 1.6 kg

SURROUND SPEAKER

Type 1 way, 1 speaker

Speaker

Full range 8 cm cone type

Impedance 8 

Input power (Music) 60 W

Output sound pressure level 84 dB/W (1.0 m)

Frequency range 120 Hz–20 kHz (j16 dB)

ºGeneral

Dimensions (WtHtD) 170k106k118 mm

Mass 0.9 kg

SUBWOOFER

(Except for the United Kingdom, Continental

Europe, Australia and N.Z.)

Type 1 way, 1 speaker, Bass-ref.

Speaker

Woofer 17 cm cone type

Impedance 8 

Input power

Music 180 W

DIN 90 W

Output sound pressure level 80 dB/W (1.0 m)

Frequency range 41 Hz–1.8 kHz (j16 dB)

45 Hz–1.6 kHz (j10 dB)

ºGeneral

Dimensions (WtHtD) 200k450k300 mm

Mass 5.9 kg

Note

1. Specifications are subject to change without

notice. Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the

digital spectrum analyzer.

RMS

FRONT 1 kHz THD 10 %/TTL Imp. 6 

(High/Mid/Low) 2k34 W

100 Hz THD 10 %/8  (Sub. W) 96 W

SURROUND 1 kHz THD 10 %/8 2k34 W

CENTER 1 kHz THD 10 %/8 88 W

PMPO 1 kHz/High or Mid 6 , Low

or Sub. W 8 3,000 W

Total harmonic distortion

Rated power at 1 kHz 1 % (6 )

Half power at 1 kHz 0.1 % (6 )

Load impedance

(For the United Kingdom, Continental

Europe, Australia and N.Z.)

FRONT (High/Mid) total impedance 6 

FRONT (Low) 8 

(For others)

FRONT (High/Mid/Low) total impedance 6 

(Sub. W) 8 

SURROUND 8 

CENTER 8 

S. WOOFER

Center frequency 70 Hz

LEVEL (VOL s20 dB) MID i8 dB

MAX i12 dB

ºFM tuner section

Frequency range 87.50–108.00 MHz

(0.05 MHz steps)

Sensitivity 1.8 ¬V (IHF usable)

S/N 26 dB 1.5 ¬V

S/N

MONO 70 dB (75 dB, IHF)

Antenna terminal(s) 75  (unbalanced)

ºAM tuner section

Frequency range 522–1629 kHz (9 kHz steps)

520–1630 kHz (10 kHz steps)

Sensitivity (S/N 20 dB) 500 ¬V/m

ºTimer section

Clock Quartz-lock type

Function Play timer (1 time, daily),

Rec timer (1 time, daily),

Sleep (120 min, 30 min intervals)

Setting intervals (Play/Rec)

1 minute–23 hours 59 minutes (1 min intervals)

ºGeneral

Power supply

(For the United Kingdom, Australia and N.Z.)

AC 230–240 V 50 Hz

(For Continental Europe and Russia)

AC 230 V 50 Hz

(For others)

AC 110/127/220–230/240 V, 50/60 Hz

Power consumption 230 W

Standby

Normal mode 11 W

ECO mode

(For the United Kingdom, Continental

Europe, Russia, Australia and N.Z.) 0.5 W

(For others) 1.0 W

Dimensions (WtHtD) 293k118.5k346 mm

Mass

(For the United Kingdom, Continental

Europe, Russia, Australia and N.Z.) 5.3 kg

(For others) 5.4 kg

DVD/VIDEO CD/CD CHANGER

ºDiscs played

DVD-Video disc8/12 cm single-sided, single-layer

8/12 cm single-sided, double-layer

8/12 cm double-sided, double-layer

(One layer per side)

Compact disc (CD-DA, Video CD) 8/12 cm disc

ºVideo

Signal system

(For Russia) NTSC/PAL (decided by disc format)

(For others) PAL (PAL 60/NTSC)

Output level

Composite video 1 Vp-p (75 )

S-video Y 1 Vp-p (75 )

S-video C 0.300 Vp-p (75 ) PAL

0.286 Vp-p (75 ) NTSC

ºPickup

Beam source Semiconductor laser

Wavelength 668 nm

ºGeneral

Dimensions (WtHtD) 293k89k288 mm

Mass 2.5 kg

CASSETTE DECK

Deck system Stereo cassette deck

Track system 4 track, 2 channel

SOUND PROCESSOR

ºEQ/SFP section

MANUAL GEQ

3-Band parametric EQ

Center frequency

High band

3.5 kHz, 5.3 kHz, 8 kHz, 12.5 kHz

Mid band 240 Hz, 390 Hz, 630 Hz, 1 kHz,

1.5 kHz, 2.3 kHz, 3.5 kHz

Low band 70 Hz, 90 Hz, 143 Hz, 240 Hz

Level control n1.2, 2.4, 3.6, 4.8, 6 dB

EQ SPACE mode

3 modes HEAVY, CLEAR, HALL

3D acoustic image EQ

3 modes AI EQ, 3D AI 1, 3D AI 2

ºPre-amplifier section

Input sensitivity/impedance

VCR (EXT) 250 mV/15 k

VDP (AUX) 250 mV/15 k

Output level

VCR REC OUT 150 mV/1.5 k

(Except for the United Kingdom and

Continental Europe)

VIDEO OUTPUT

MONITOR OUT 1 Vp-p, 75 

VCR REC OUT 1 Vp-p, 75 

ºDOLBY PRO LOGIC section

PRO LOGIC mode SURROUND

CENTER mode NORMAL

DELAY TIME 20 ms (Fixed)

ºAV SURROUND section

AV surround mode SIMULATED STEREO

SUPER SURROUND (MUSIC, MOVIE)

ºDSP CONTROL section

DSP control mode SEAT POSITION

CENTER FOCUS (1, 2),

VIRTUAL REAR SURROUND,

MULTI REAR SURROUND,

3D ENHANCED SURROUND

ºSpectrum analyzer section

Display mode NORMAL, PEAKHOLD, AURORA

ºGeneral

Dimensions (WtHtD) 293k89k270 mm

Mass 1.5 kg

TUNER/AMPLIFIER

ºAmplifier section

Power output (L/R both channel driven)

(For the United Kingdom, Continental Europe,

Australia and N.Z.)

Stereo Mode

DIN 10 kHz THD 1 %/6  (High) 2k20 W

1 kHz THD 1 %/6  (Mid) 2k20 W

100 Hz THD 1 %/8  (Low) 2k45 W

RMS 10 kHz THD 10 %/6  (High) 2k30 W

1 kHz THD 10 %/6  (Mid) 2k30 W

100 Hz THD 10 %/8  (Low) 2k65 W

PRO LOGIC mode

DIN

FRONT 1 kHz THD 1 %/TTL Imp. 6 

(High/Mid) 2k20 W

100 Hz THD 1 %/8  (Low) 2k45 W

SURROUND 1 kHz THD 1 %/8 2k20 W

CENTER 1 kHz THD 1 %/8 60 W

RMS

FRONT 1 kHz THD 10 %/TTL Imp. 6 

(High/Mid) 2k30 W

100 Hz THD 10 %/8  (Low) 2k65 W

SURROUND 1 kHz THD 10 %/8 2k30 W

CENTER 1 kHz THD 10 %/8 80 W

PMPO 1 kHz/High or Mid 6 , Low 8 ,

CENT. 8 , SURR. 8 3,000 W

(For others)

Stereo Mode

DIN 10 kHz THD 1 %/6  (High) 2k20 W

1 kHz THD 1 %/6  (Mid) 2k20 W

100 Hz THD 1 %/8  (Low) 2k45 W

100 Hz THD 1 %/8  (Sub. W) 60 W

RMS 10 kHz THD 10 %/6  (High) 2k30 W

1 kHz THD 10 %/6  (Mid) 2k30 W

100 Hz THD 10 %/8  (Low) 2k65 W

100 Hz THD 10 %/8  (Sub. W) 80 W

PRO LOGIC mode

DIN

FRONT 1 kHz THD 1 %/TTL Imp. 6 

(High/Mid/Low) 2k20 W

100 Hz THD 1 %/8  (Sub. W) 65 W

SURROUND 1 kHz THD 1 %/8 2k20 W

CENTER 1 kHz THD 1 %/8 60 W

Technical specifications

Reference

RQT5471

54

Noise heard.

Stereo indicator flickers or doesn’t

light.

Sound distorted.

A beat sound heard.

A low hum heard during AM

broadcasts.

Correct AM frequency can’t tune

in.

Use an outdoor antenna. 7

Turn the television off or separate it from the unit.

Separate the antenna from other cables and leads.

For the United Kingdom, Continental Europe, Russia, Australia and N.Z.

Change the frequency step. Hold [TUNER/BAND] down for 10 seconds to change the step to 9 kHz.

For others

Change to the correct frequency step. H

No sound.

Sounds unfixed, reversed or come

from one speaker only.

Humming heard during play.

“ERROR” displayed.

“––:––” appears on display.

“U70” displayed.

“F61” displayed.

ECO mode on but display still

lights up in standby mode.

“DTS NO AUDIO” displayed.

“DVD U11” displayed.

“DVD H ··” displayed.

(·· will be numbers.)

Initial settings menu cannot be

accessed.

Turn the volume up.

The speaker cords may be shorted. Turn the unit off, check and correct the connections and turn the

unit on. 6

Check the speaker connections. 6

An AC mains lead or fluorescent light is near the cables. Keep other appliances and leads away

from this unit’s cables.

If possible in your area, turn the AC mains lead’s plug or connector over to reverse the plug’s

polarity.

Incorrect operation performed. Read the instructions and try again.

You plugged the AC mains lead in for the first time or there was a power failure recently.

Set the time. <

Connect the flat cables firmly. If “U70” remains on the display, contact the dealer.

There is a problem with the tuner/amplifier. Contact the dealer.

Turn DEMO off. <

This unit is unable to decode DTS signals.

The disc is dirty. Wipe it with a soft cloth.

A problem has occurred. Turn the unit off and unplug the AC mains lead. Wait a moment and then

plug the lead in and turn on the unit again. If the unit is still not working correctly, consult your dealer.

Select DVD as the source. ]

Cancel ALL DISC, program and random play. ? D E

Troubleshooting guide

Before requesting service, make the below checks. If you can’t fix the system as described below, or if something not listed here occurs, refer to the

enclosed directory to locate an Authorized Service Center convenient to you or contact your dealer.

Reference pages are shown as black circled numbers 6.

Common Problems

Listening to tapes

Listening to the radio

Poor quality sound.

Recording not possible.

Clean the heads. g

Check the Dolby NR setting. J

If the erasure prevention tabs have been removed, cover the holes with adhesive tape. T

55

Reference

RQT5471

Enjoying discs

Remote control

Remote control doesn’t work. Check the batteries are inserted correctly. ;

Replace the batteries if they are worn.

Display is wrong or play won’t

start.

“TAKE OUT/DISC” appears on

display.

Picture does not appear on TV

screen when playing DVD.

Picture does not appear on TV

screen when playing Video CD.

ALL DISC, program and random

play cannot be used.

Picture on TV screen disappears

or stripes appear on screen.

You have forgotten your ratings

password.

(Reset all the settings to Factory

Preset)

The disc may be upside down. >

Wipe the disc.

Replace the disc if it is scratched, warped, or nonstandard.

Condensation may have formed inside the changer due to a sudden change in temperature. Wait

about an hour for it to clear and try again.

There is a problem with the disc mechanism. (A power failure may have occurred.)

The tray will open automatically. Remove the disc from the tray, and close it after ensuring there is

no disc in the tray. The unit will make disc changing noises for a few moments and then it should

operate normally.

The region number of the disc doesn’t match the region number of this unit. =

Connect the video cord. 6

Set the television to video input mode.

Connect the video cord. 6

Set the television to video input mode.

Ensure a Video CD or CD is in the play position tray.

The location and orientation of the antenna are incorrect. If you are using an indoor antenna, change

to an outdoor antenna.

The television antenna wire is too close to the system. Separate the antenna wire of the television

from the system.

Reset the unit to its original factory settings by doing the following procedure.

When “DVD” is selected as a source, press [º] on the changer and [L] on the remote control at

the same time for about 3 seconds until the message “Initialized” disappears from the television

screen.

All components are required to service the system. If service is ever necessary, bring the entire system.

Maintenance

During one touch disc editing (ápage 38)

“DECK NO TAPE” displayed.

“DECK CHANGE TAPE”

displayed.

Load a cassette into deck 2. U

If the erasure prevention tabs have been removed, cover the holes with adhesive tape. T

For a cleaner crisper sound

Clean the heads regularly to assure good quality playback and re-

cording. Use a cleaning tape (not included).

If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

If the surfaces are extremely dirty, use a soft cloth dipped in a soap-

and-water solution or a weak detergent solution.

ÁNever use alcohol, paint thinner or benzine to clean this unit.

ÁBefore using chemically treated cloth, read the instructions that

came with the cloth carefully.

Matsushita Electric Industrial Co., Ltd.

Osaka 542-8588, Japan

RQT5471-B

F0300MF0

%

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual

property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized

by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly is prohibited.
