1
Important Guarantee Information.
Congratulations on purchasing this television. We hope you have many
years of trouble free enjoyment from your purchase.
Your product is covered under the manufacturers guarantee for 12 months
from date of purchase.
In the event of a fault being diagnosed, please refer to the frequently
asked questions/troubleshooting section at the rear of this user guide.
If you are still unable to remedy the fault, try resetting the TV
to factory settings, (details in this user guide) or contact the helpline.
In the event that a fault is diagnosed, the helpline will arrange to collect
the TV from your home or work address, return it to our service centre,
repair the item and then return it to you.
If we believe we cannot offer a permanent repair, we will replace the item.
Sky Media UK LTD – Helpline Information
Telephone UK 0871 2000 463 ROI 01443 3940
Email: service@skymediauk.co.uk
Internet: www.skymediauk.co.uk
The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.
On the web site, you can register your product and guarantee, if you
do it within 7 days of purchase, you will also receive an extra FREE
3 months warranty, making the warranty 15 months from date of purchase.
You must retain all packaging materials as you will need these in the event of
warranty/service support.
If you need to call the helpline, you will need the following information.
Model Number ___________________ (Can be found on the front of this user guide)

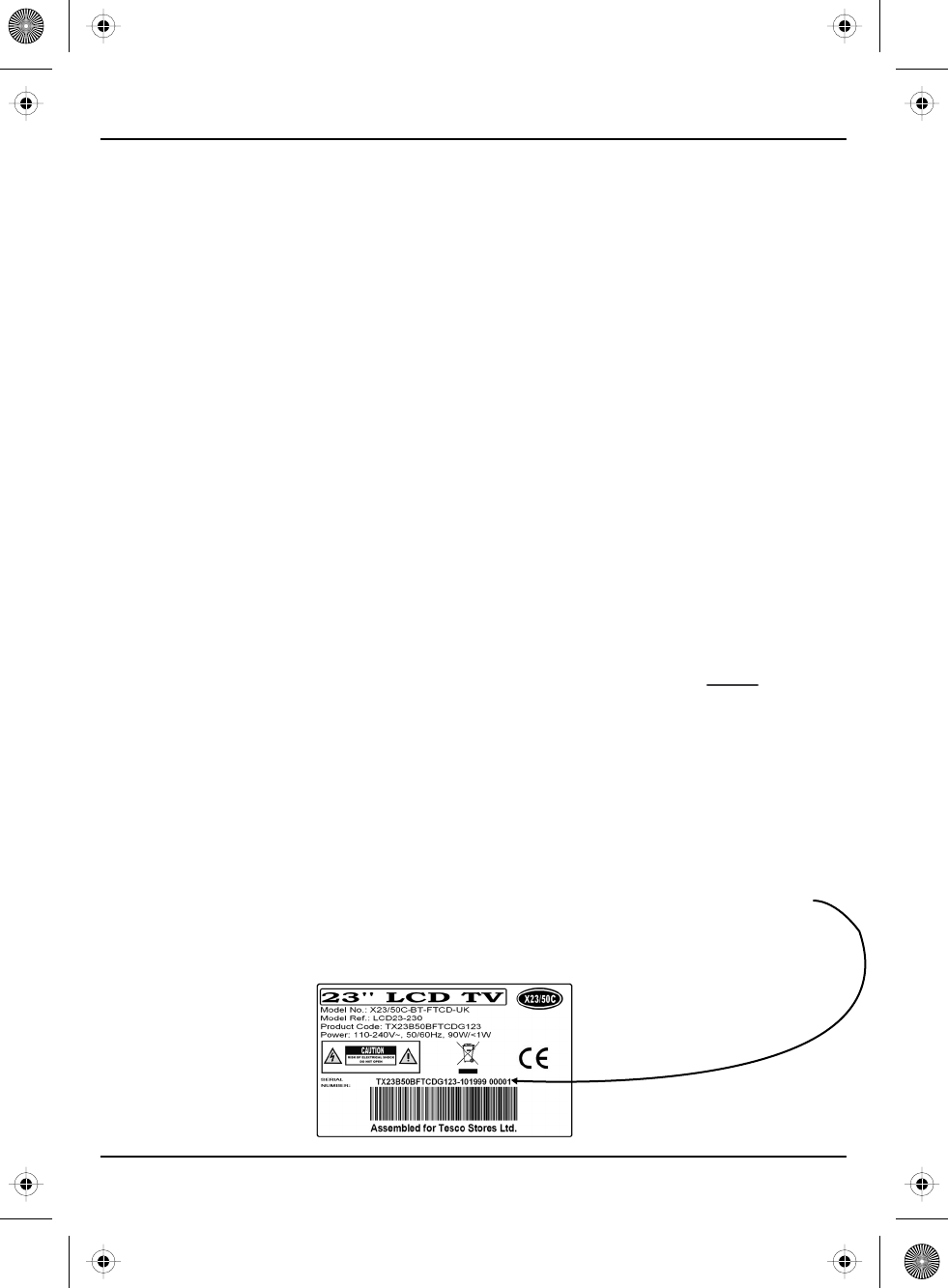

Serial Number __________________________ (Can be found on rear of TV)
Date of purchase __________________________ (Can be found on sales receipt)
216_17 full hd english manual 01Page 1 14. 7. 2009 8:19:01
User Guide
2
216_17 english manual 02.pdf 3. 11. 2008 13:57:03
IDTV
3

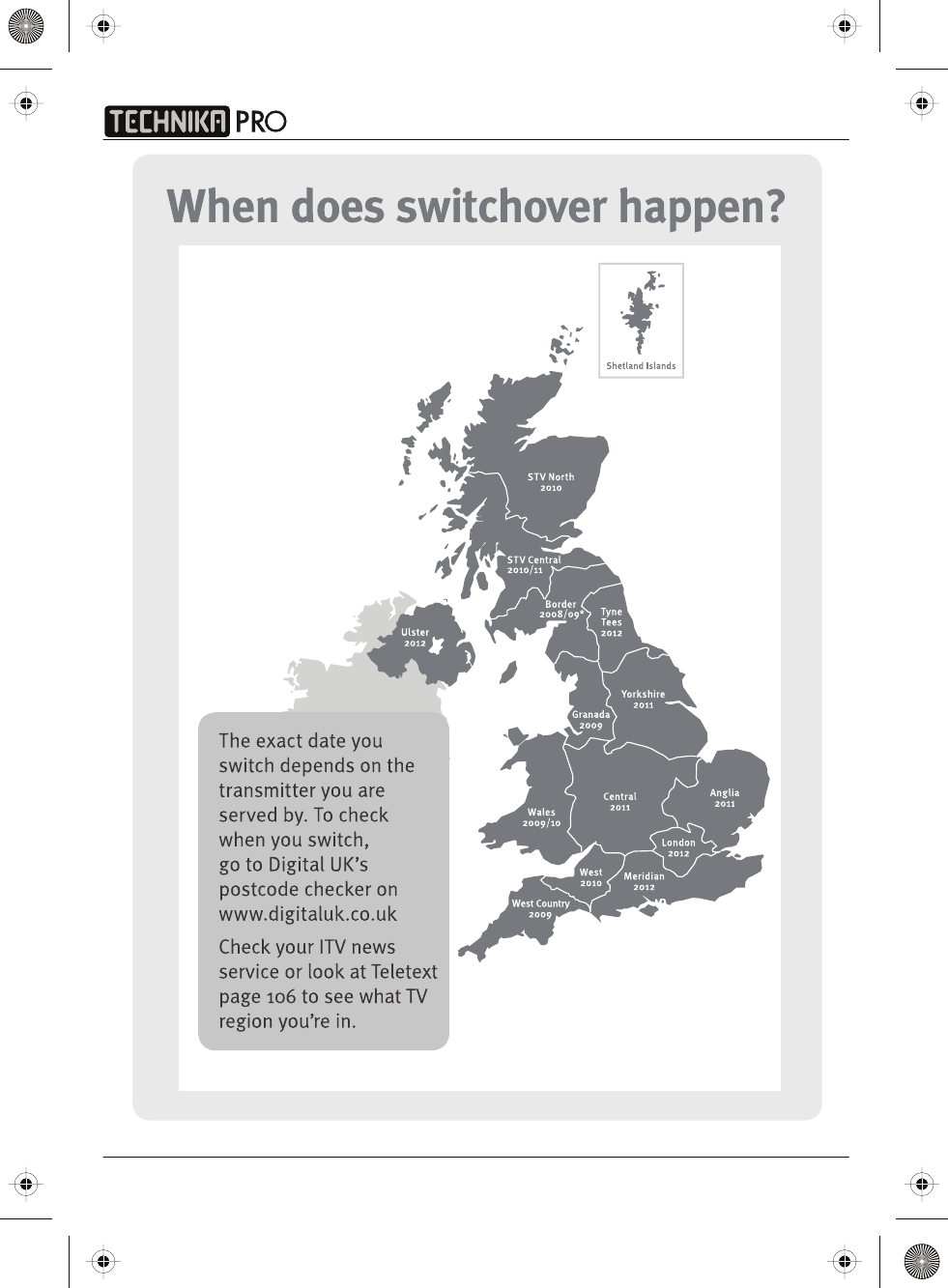

Important information regarding the digital TV switchover
Television in the UK is going digital, bringing us all more choice and new services. Starting late
2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.
How the switchover affects your TV equipment.
Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply
connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or
whether you will have to wait until the switchover at www.digitaluk.co.uk)
When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune
your TV in order to continue receiving your existing TV channels and also to pick up new ones. Digital UK, the
body leading the digital switchover, will advise you when you need to retune during the switchover.
How to retune.
Retuning your TV is a very quick and simple process. We recommend that you retune
every few months to ensure you are receiving the very latest TV and radio channels
that are broadcast.
• In digital/freeview mode, on the remote control press ‘menu’ quickly followed by 8-8-8-8 (so
press the number 8 four times)
• You will now enter the ‘First time installation’ mode. (if you do not, please refer to the section
called ‘getting started’ later in this user guide)
• Simply press ‘OK’ or ‘Enter’ on the remote control and your TV will retune.
If you do not retune your TV when advised to do so by Digital UK, you may lose some or all of your channels
until you do re-tune.
If you are missing any channels, it may be that they are not available in your area, or that your TV aerial
needs upgrading.
For help and support regarding the digital switchover, please contact Digital UK:
Telephone: 08456 50 50 50 (calls charged at local call rate, approx 3p per minute daytime or 1p per minute evenings from a BT landline)
Digital UK website: www.digitaluk.co.uk
If you require technical or warranty support on this television, please contact the manufacturer helpline, do
not contact Digital UK unless your query is regarding the digital switchover.
First Time Installation
Country
Language
Please ensure that the aerial is connected to the connector
labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may
require a signal booster .alternatively ,upgrade your aerial
to a high gain digital version .
OK Cancel
UK
English
216_17 english manual 03 new.pdfPage 1 3. 11. 2008 14:03:08
User Guide
WARNINGS
Caution
This television contains no user serviceable parts. Please refer to the manufacturer
or authorised repair agent in the event of malfunction. Do not remove the back cover
from the television.
Warning
To reduce the risk of fire, electric shock or damage to the television, do not expose
it to dust, rain or moisture, or place any objects filled with liquids on or near the television.
Do not place the television in a confined space, ensure that nothing can obstruct
the ventilation openings at the rear of the television.
Do not place naked flames on or near the television.
Dispose of this television and any components including batteries in an environmentally
friendly manner. If in doubt, please contact your local authority for details of recycling.
Your LCD TV should be cleaned using a dry or slightly damp cloth. You should not use
an alcohol based cleaner
Safety
For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should
the fuse need to be replaced, ensure that any replacement is of the same amperage
and approved with the BSI mark. ( )
Never try and replace the mains plug unless you have adequate qualifications and are
legally authorised to do so. In the event that a replacement Mains cable is required,
contact the manufacturer for a suitable replacement.
Never use the television if it is damaged in any way.
Always place the television on a flat level surface avoiding anywhere which may
be subject to strong vibration. Ensure the television is not placed on top of the power
cable as the weight of the television may damage the cable and cause a safety hazard.
Never place mobile phones, speakers or any other device which may cause magnetic
or radio interference with the television. If interference is apparent, move the device
causing the interference away from the television.
Packaging
Please save the packaging for the television as you will need this in the event
of warranty/service repair or support. We are unable to carry out warranty/service
if you are unable to package it correctly. The safest way to package your item in the
event of warranty/service repair is in its original box/packaging
4
216_17 english manual 04 new.pdfPage 1 3. 11. 2008 15:26:23

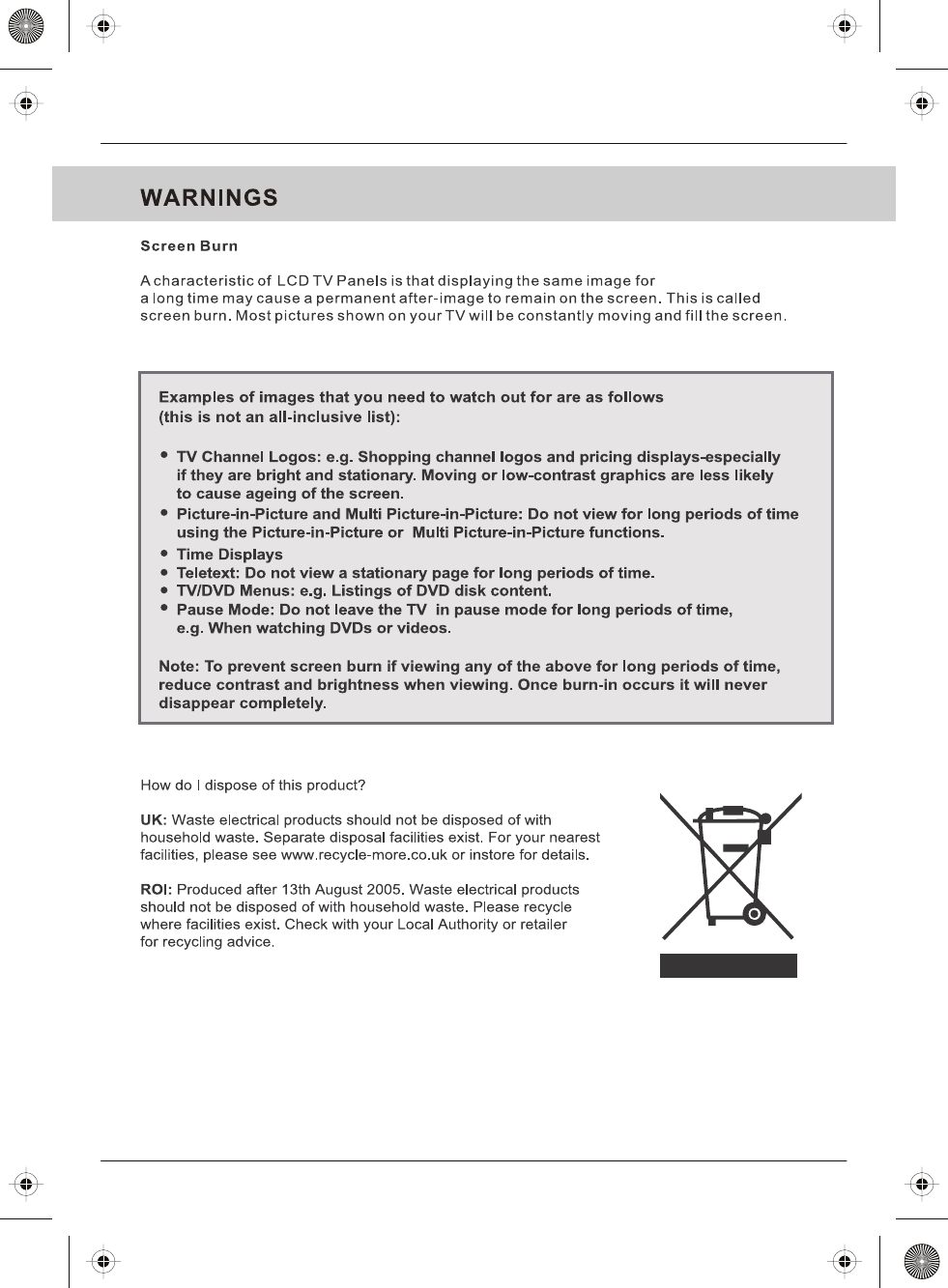

IDTV
5
216_17 english manual 05 new.pdfPage 1 5. 11. 2008 10:12:06
User Guide
6
216_17 english manual 06 new.pdfPage 1 3. 11. 2008 14:10:10
IDTV
CONTENTS
SETTING UP YOUR TV
- Digital Switchover Re-Tune 2
- What is included in the box 8
-Attaching/Detaching the
Stand & Wall mounting 9
- Tuning in TV 10
- Remote control buttons and their
functions 11
- TV buttons and their functions 12
- Inputs and Connections 13
TV MENU OPERATION
- Picture Settings Menu 14 - 15
- Sound Setttings Menu 16
- Tuning Settings Menu 17
- Common Inferface Slot 18
- Timer Settings Menu 18
- Sleep Timer 18
- On Screen Display Timer 18
- General Settings Menu 19
- On Screen Menu Language 19
- Adjusting Picture Format 19
- Blue Screen 19
- System Lock 19
- First Time Installation 20
- Reset Television to Factory Settings 20
CHANNEL SERVICES
- Using Electronic Program Guide 20
- Using Digital TV teletext 21
- Using Analogue TV teletext 21
PC OPERATION
- Using with a PC or Laptop 22 - 23
DVD MENU OPERATION
- System Setup 24
- Changing Regions 25
- Audio Setup 25
- Digital Setup 25
GENERAL INFORMATION
- Using with Sky Digital/Virgin Media 26
- Connecting a Games Console 27
- Frequently Asked Questions 28
- Technical Specifications 29
- Index 30
Customer Support/Technical Helpline
Sky Media UK LTD
Telephone UK ROI: 01443 3940: 0871 2000 463
Email: service@skymediauk.co.uk
If you experience any problems with this Television,
Please contact the helpline.
7
216_17 full hd english manual 07Page 1 20. 7. 2009 13:23:16
User Guide
8

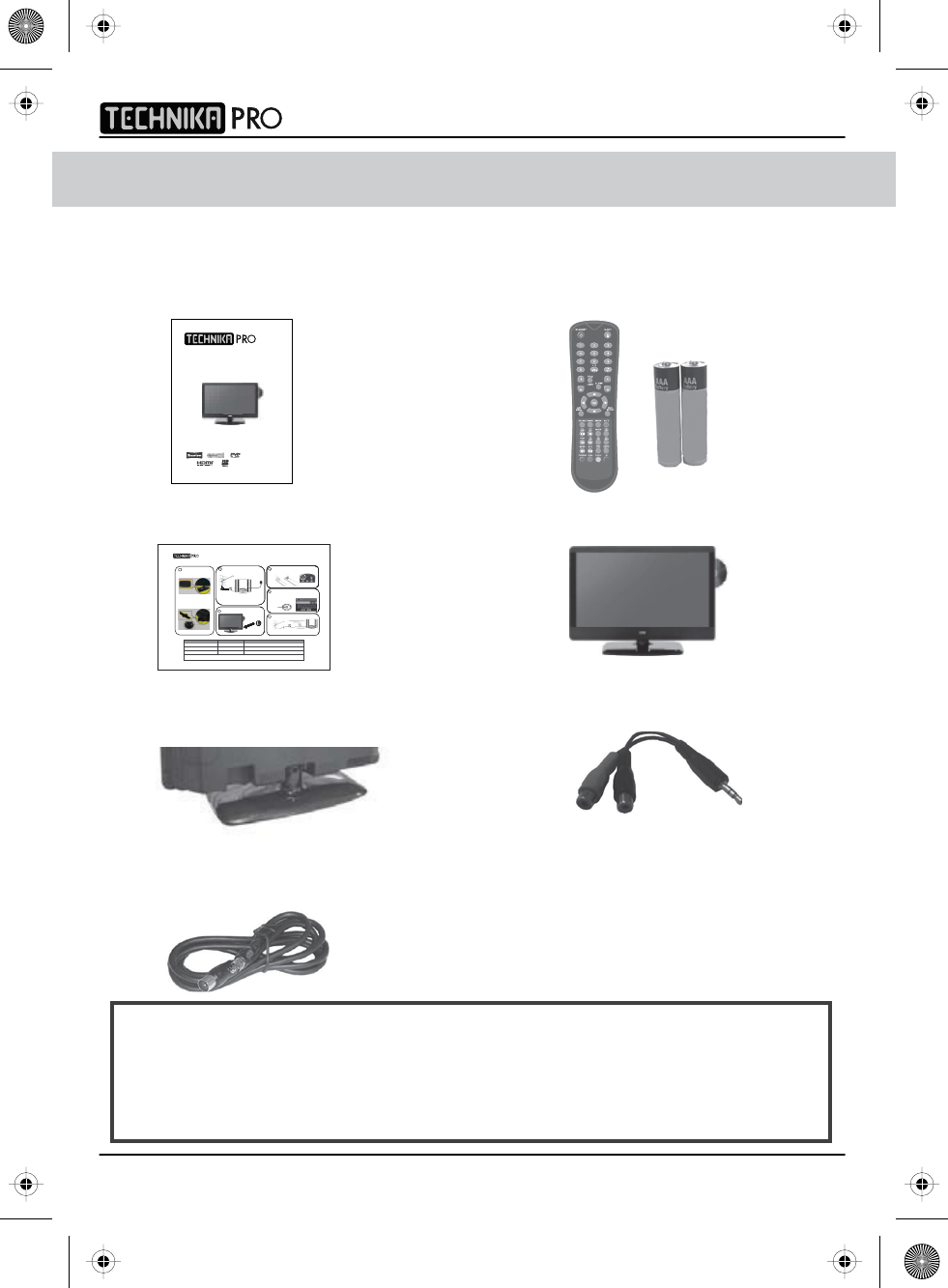

WHAT IS INCLUDED IN THE BOX
Accessories
Included with this TV are the following accessories:
1x - User Guide Book 1x - Remote control + AAA batteries
1x - Quick Start Guide 1x - TV
1x - Stand 1x - 3.5mm jack to phono cable
1x - RF lead
Please save your packaging as you will need this in the event
of warranty/service repair or support. We are unable to carry out
warranty/service if you are unable to package it correctly. The safest way
to package your item in the event of warranty/service repair
is in it’s original box/packaging.
PICTU RE
FORMAT
INFO
VOL CH
GUIDE
X23_50 full hd english manual paPage 1 1. 10. 2009 13:28:17
IDTV
Model No. 23-230
User Guide
IDTV
Quick Start Guide – Model 23-230
Online support: www.skymediauk.co.uk email: service@skymediauk.co.uk
y@ypp

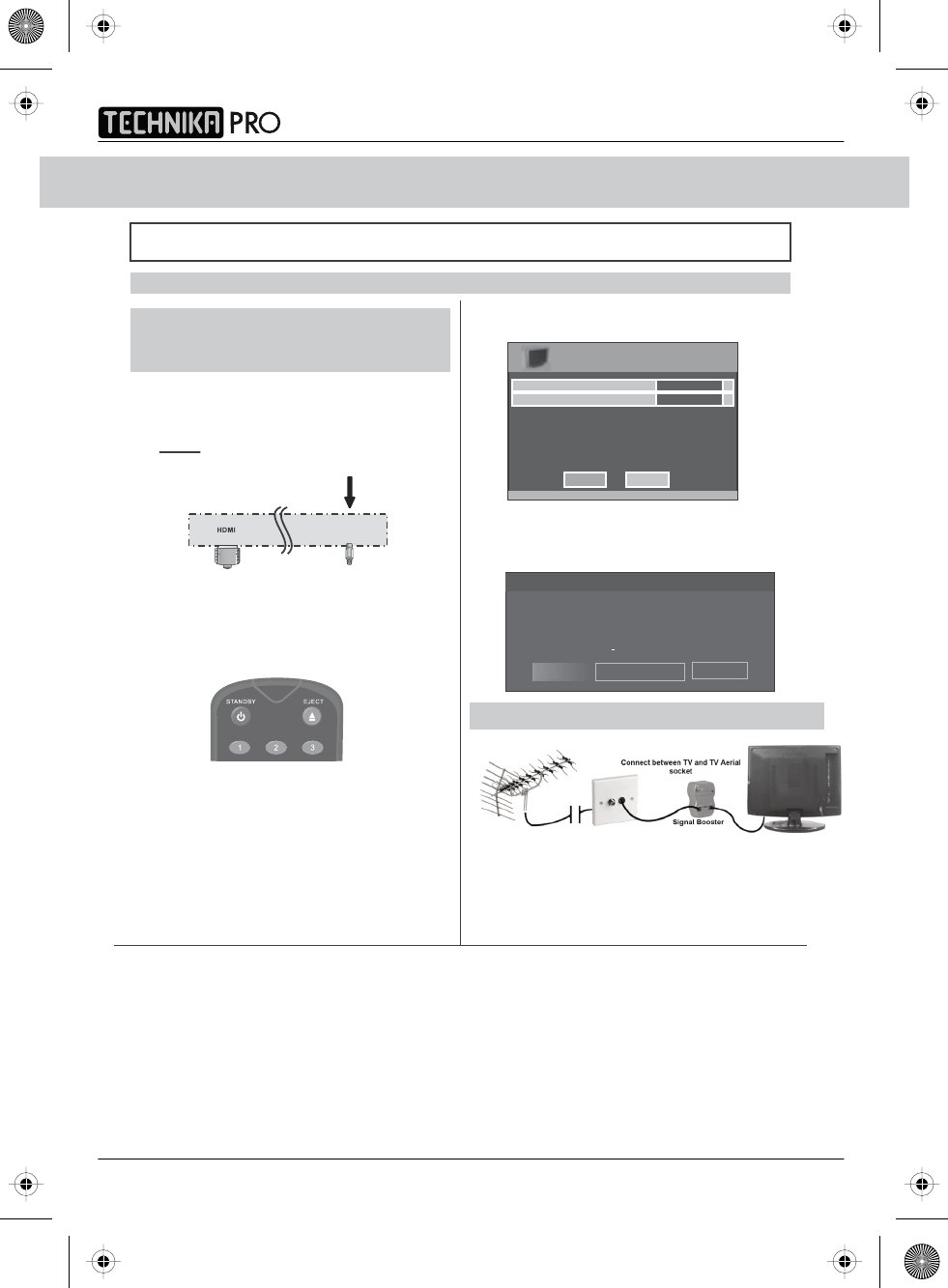

4RF cable supplied, connect the TV to the TV Aerial
wall socket (Fig A) then connect the Power cable
to your TV and Electrical outlet (Fig B)
6Insertthe batteries supplied into the Remote control and press
thePower/Standby button to power on the TV
FigB
46
7
Youwill now be welcomed with the initial set
upscreen Press
FigA
FigB
4
IMPORTANT:-If your TV signal is inadequate to receive a
goodDigital signal, you w illneed to connect a 'Signal
booster' betweenyour TV and TV Aerial Socket. See section
6.
6
7You willnow be welcomed with the initial set-up screen . Press
OK onthe remote control and tuning will start. If after tuning
somechannels are missing, pleas e refer to section 6.
Remotecontrol
butto
n
s
FigA
FigB
4
5Switchon the televisio nusing the power on/off s witch
locatedon the side or underside of the TV.
6
8
Connecta 'Si
nal booster'as shown below.
7
Remotecontrol
buttons
FigA
FigB
4
5
6
8
7
Remotecontrol
buttons
FigA
FigB
On/OffSwitch
4
5
6
Oncethe 'Signal booster' is connected, retune the TV in order to
receiveall of the channels.
8
7
Remotecontrol
buttons
FigA
FigB
On/OffSwitch
4
5
6
8
7
Remotecontrol
buttons
FigA
FigB
On/OffSwitch
2
3
4
6
5
Remotecontrol
buttons
FigA
FigB
On/OffSwitch
X23/MAN/0009
Fault Cause Solution
LED/Power on indicator light on TV not working No power being received to TV Ensure power outlet is switched on, check Power on/off switch on TV is switched on
No channels found or screen displays ‘no signal’ TV not receiving any signal Connect to loft/external aerial and retune TV
Some channels missing or picture appears ‘blocky’ Signal too weak If signal reception is below 85%, connect a signal booster (15-20Db) and retune (see
section 6). If signal reception below is 70%, an aerial upgrade may be necessary
If after checking the above you are unable to solve the problem, in the first instance contact the helpline as most problems
can be solved by the technical support team
TROUBLE SHOOTER:
Base of stand
Insert the TV into the stand
Twist the TV into the CLOSE position
until it clicks into place at 45 degrees
A
B
1
UKTECHNICAL SUPPORT HELPLINE ROI
087 01443 3940
1 2000 463 (Open Monday - Friday 8.30am - 6pm, Saturday 9am - 5pm)
9

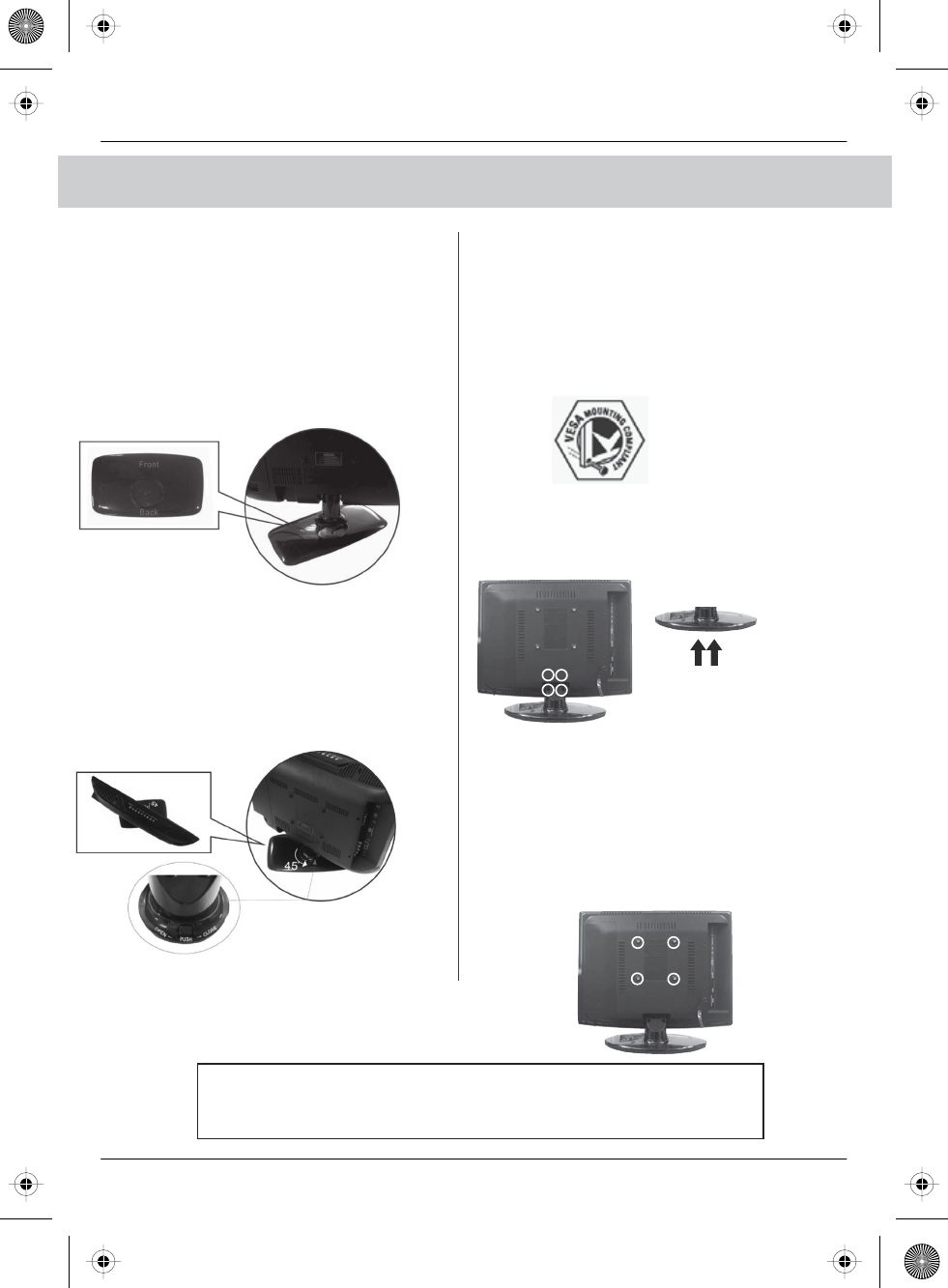

Attaching/Detaching the Stand & Wall mounting
Attaching the Stand
100
IMPORTANT— BEFORE DRILLING
ANY HOLES IN THE WALL ENSURE
YOU ARE NOT DRILLING WHERE
THERE COULD BE ANY ELECTRIC
WIRES, WATER OR GAS PIPES
THIS TV REQUIRES A VESA
100 WALL MOUNT, OR EQUIVALENT
To remove the stand
2) Re
1) Remove base as shown opposite
move the four screws highlighted
below
4) The stand will now come off
Wall Mounting the TV.
1) Remove the four screws highlighted
below.
2) The wall mount can now be easily attached
to the mounting holes on the rear of the
TV.
These holes are indicated in the picture
X23_50 full hd english manual paPage 1 5. 10. 2009 10:26:17
User Guide
Important – If wallmounting this TV, only use the screws already
provided in the wallmounting holes. Using other screws which are
longer could cause irreparable damage to internal parts.
Base of stand
Insert the TV into the stand
Twist the TV into the CLOSE position
until it clicks into place at 45 degrees
1)
2)
3) Remove the two screws in
the neck of the stand.
10

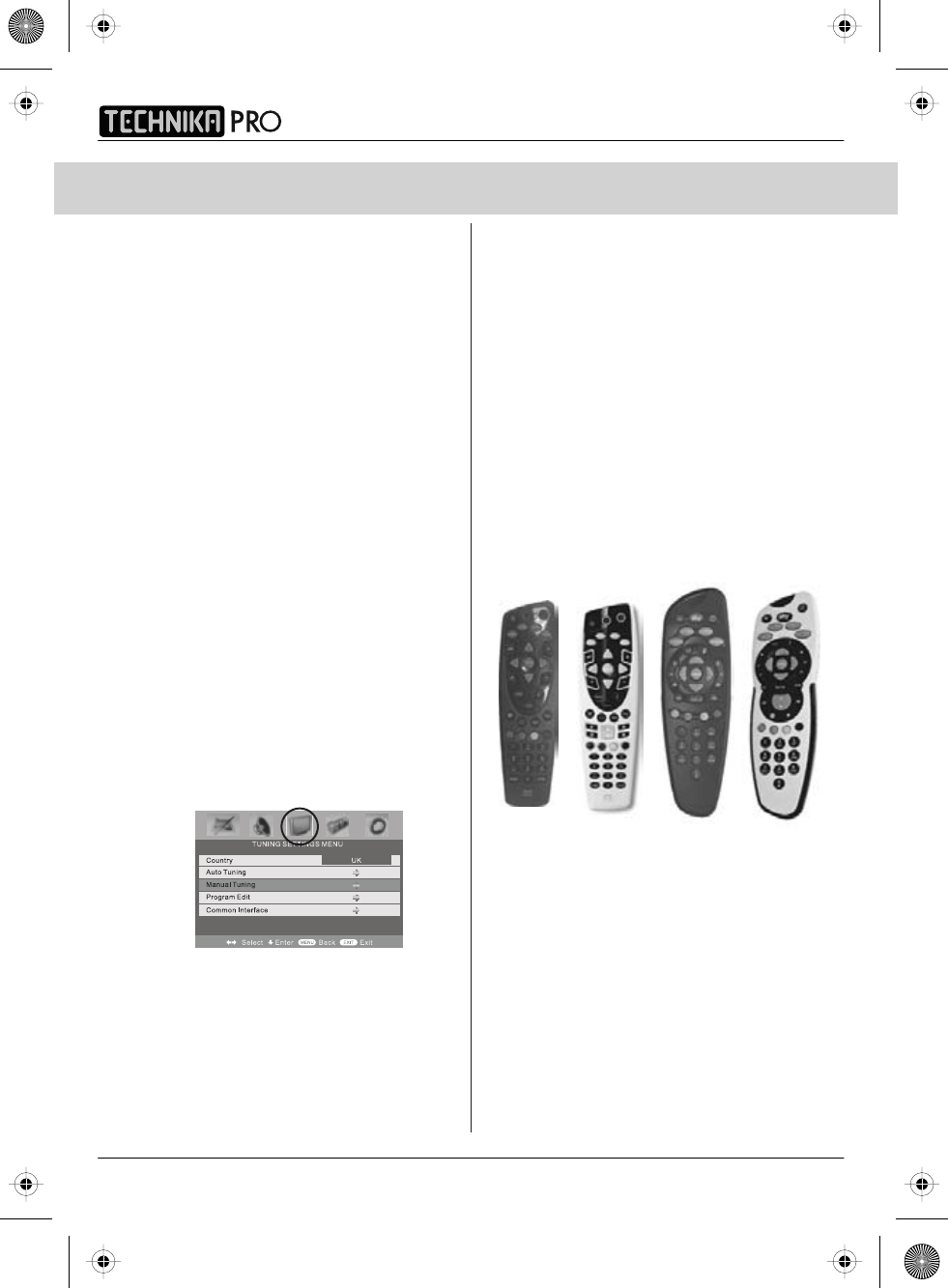

GETTING STARTED - INITIAL SET UP
TUNING IN
IMPORTANT — Please ensure the TV has
reached room temperature before
connecting the power for the first time
1) Connect the mains lead to your electrical outlet
2) Connect the RF cable supplied to the
'RF IN' on the rear of the TV and connect
the other end of the cable to your TV Aerial outlet
3) Switch on the television using the rocker switch
located on the side of the TV
4) Install batteries in the remote control and press
the [STANDBY] button to turn on the TV.
The ‘First Time Installation’ menu should
now appear. If it does not, please press
[LCD-MENU] then 8-8-8-8 and the menu will
appear.
5) Press [OK] on the remote control whilst ‘OK’
is highlighted on screen.
Tuning will now take place.
If the TV finds some, but not all, of the Digital channels, the TV is
functioning correctly but the signal being received is not strong enough.
(The signal strength needs to be above 85% - you can see the signal strength
the TV is receiving when you change channels/ programmes) you will
need to increase the signal reception in order to recieve all of the channels
available. The most economical way to do this is by purchasing
and connecting a 'signal booster' in between the TV and the TV aerial socket.
If this does not solve the problem, you will need to upgrade the TV
aerial to a digital hi-gain compatible aerial
IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE CHANNEL
INFORMATION CAN BE STORED.
First Time Installation
Country
Language
Please ensure that the aerial is connected to the connector
labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may
require a signal booster .alternatively ,upgrade your aerial
to a high gain digital version .
OK Cancel
UK
English
If no channels are found the following screen will appear,
please refer to additional information below.
TYPICAL SET-UP
Once you have connected a 'Signal booster' you will need
to retune the TV in order to receive all of the channels.
First Time Installation
Unfortunately the TV did not find any channels
Please check your aerial connection
and refer to the user manual
Do you wish to re tune your TV
Yes Do it next time No
RF IN
19_17 english manual 10.pdf 21. 7. 2009 14:03:09
IDTV
INFO
11

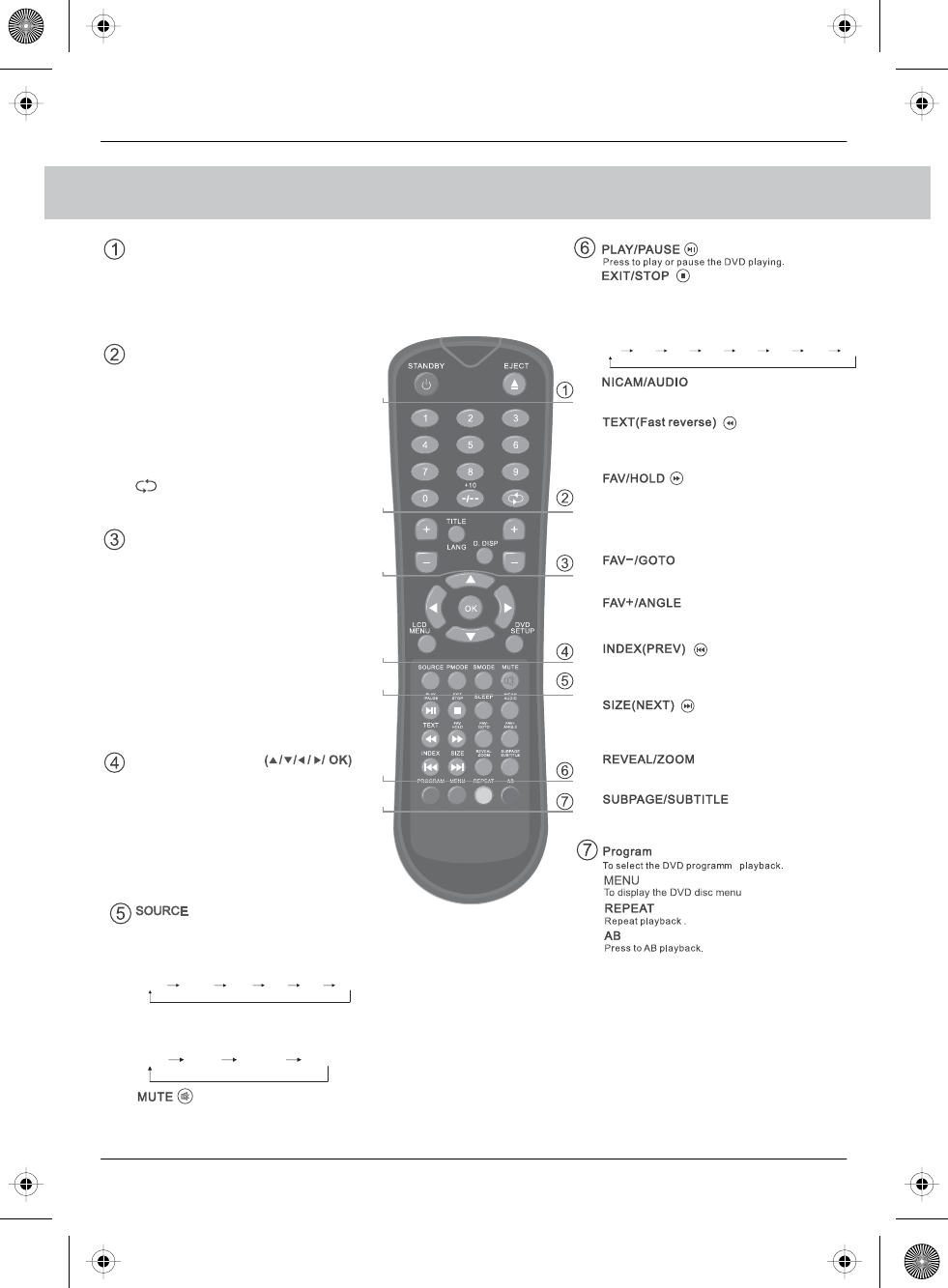

REMOTE CONTROL BUTTONS
Digital mode: Exit the Digital menu.
DVD mode: Stop the DVD playing.
DVD mode: select the zoom to change picture size.
Teletext mode: change the display size.
DVD mode: press to advance forward to the next
chapter.
Teletext mode: request the index page.
DVD mode: press to replay the current programme from
the previous chapter.
Digital mode: increase fav channel.
DVD mode: select different angle of DVD
Digital mode: decrease fav channel.
DVD mode: press to go to DVD.
Digital mode: press to display FAV menu.
Teletext mode: press hold on or off for current page
display.
DVD mode: press to play a DVD programme in fast
forward mode
Teletext mode: press to enter the teletext mode.
DVD mode: press to play a DVD programmein fast
rewind mode.
Digital mode: press to select NICAM.
DVD mode: press to select DVD audio channels.
Teletext mode: To reveal or hide the hidden words.
Teletext mode: Sub coded page acces
e
s.
Digital mode: To switch the dialogue at the bottom
off the screen
FORMAT
INFO
VOL CH
GUIDE
STANDBY
Switch on TV when in standby or vice versa
EJECT / INFO
DVD mode: To eject disc
Digital/analogue mode: To display channel
information
NUMBER BUTTONS
Digital/analogue mode: 0 – 9 to select a
TV channel directly.
The channel will change after 2 seconds.
Teletext mode: To enter a page number
-/--
Analogue mode: To enter a channel of 2 digits
i.e. channel 15
Digital/analogue mode: To return to the previous
channel viewed
VOL+/-
To increase / decrease the sound level
TITLE/LANG
DVD mode: To display the DVD title menu
Digital mode: To change the audio language
(if available)
D.DISP/GUIDE
DVD mode: To display the current disc
information
Digital mode : To open the TV Guide menu
CH +/-
To increase or decrease the channel being
watched
NAVIGATION BUTTONS
Allows you to navigate the on-screen menus
and adjust the system settings to your preference
LCD MEN
- TV/AV
U
To display OSD menu
DVD SETUP/PICTURE FORMAT
DVD mode: To display the DVD setup menu
All other modes: to switch the screen between
the different picture formats
PMODE
Press repeatedly to cycle through the available
picture modes
SMODE
Press repeatedly to cycle through the available
sound modes
SLEEP
Press repeatedly to cycle through the sleep options
Press to display the source menu
Press to mute the sound and press again to
restore
15min 45min30min 75min60min 90min 105min 120min
Standard MoviePersonal MildSport Game
Voice Theatre
Music Personal
19_17 english manual 11.pdf 28. 7. 2009 16:12:18
User Guide
TV/AV
12

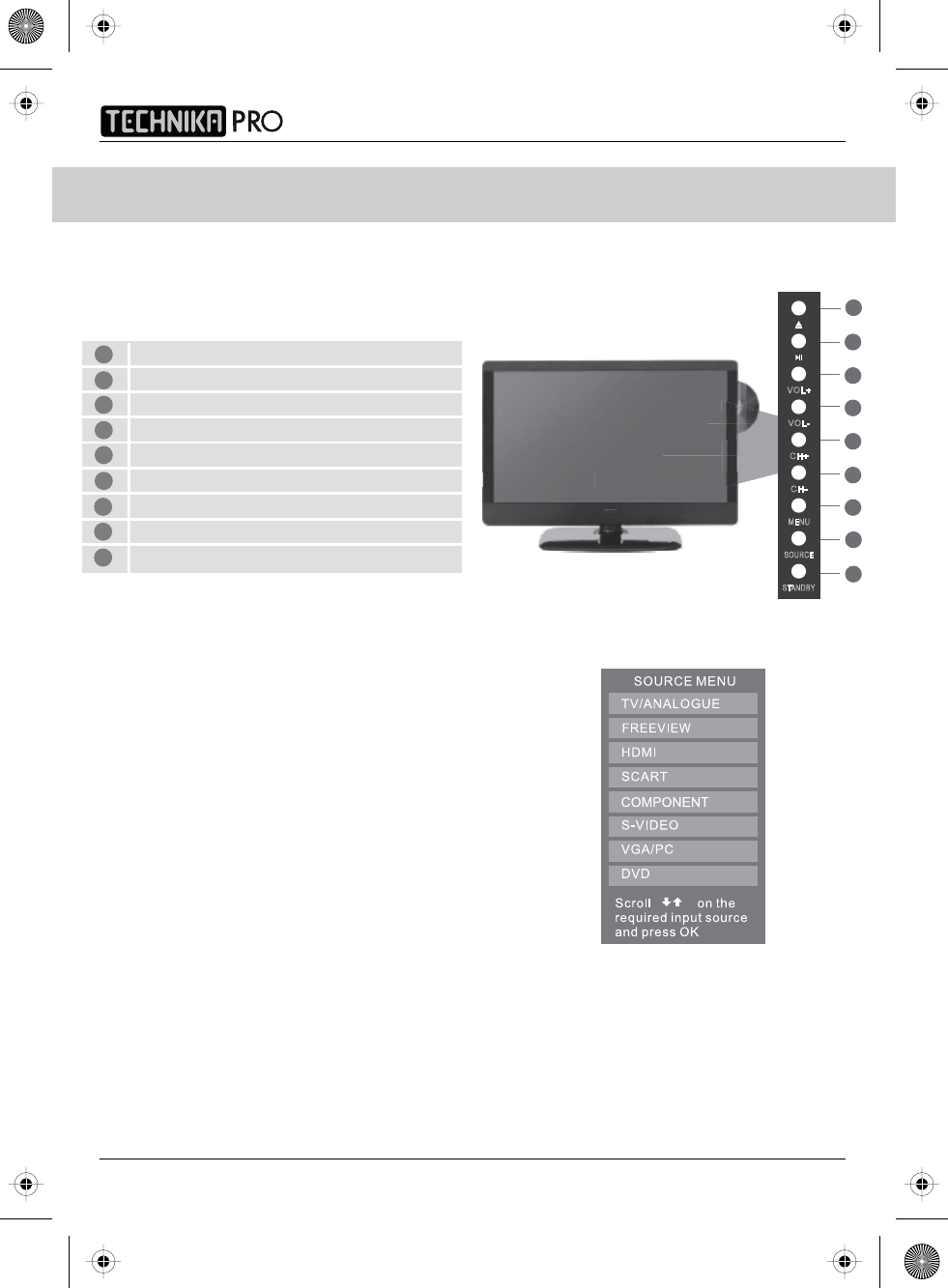

TV BUTTONS & THEIR FUNCTIONS
SIDE PANEL BUTTONS
DVD - Eject
DVD – Play/Pause
Volume up and menu right
Volume down and menu left
Programme/Channel up and menu up
Programme/Channel down and menu down
Displays Menu/OSD
Select the input source
Standby Power On/Off
Choosing Mode/Source
To switch between the different connections is very easy.
Using the buttons on the remote control:
1) Press [SOURCE] - The following will appear
2) Press [\/] or [/\] to select the input you require.
3) Press [OK]
Using the buttons on the Television:
1) Press [SOURCE]
2) Scroll up / down using CH+/ CH- buttons to the
input/source you require
3) Press Vol+ to change input/source to the one selected.
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
VOL+
VOL-
CH+
MENU
SOURCE
STANDBY
CH-
X23_50 full hd english manual paPage 1 1. 10. 2009 12:12:09
IDTV
CI Port
13
INPUTS & CONNECTIONS

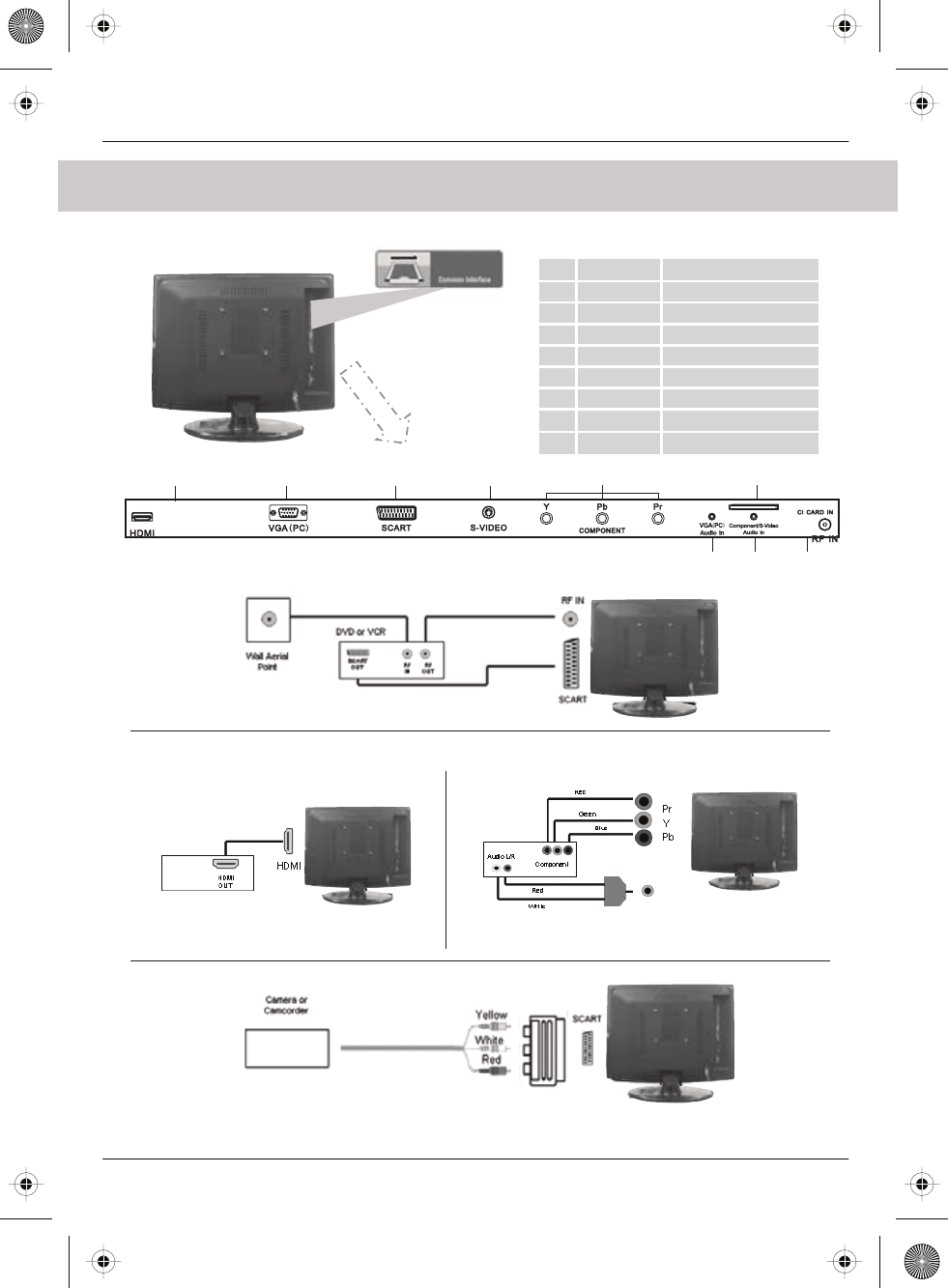

REAR CONNECTIONS
HDMI input
VGA-PC input
SCART input
S-Video input
Component input
3.5mm PC Audio input
RF input
CI Port input
A
B
C
D
E
F
G
H
I
HDMI
VGA (PC)
SCART
S-VIDEO
YPbPr
CI CARD IN
Component/
S-Video Audio In
VGA(PC) AUDIO IN
RF IN
CONNECTING A DVD RECORDER OR VIDEO RECORDER
Source should be set to SCART
CONNECTING A HIGH DEFINITION DEVICE
OPTION A – HDMI OPTION B – COMPONENT & AUDIO CABLES
Source should be set to HDMI Source should be set to YPbPr/COMPONENT
CONNECTING A CAMERA OR CAMCORDER
Source should be set to SCART
A B C D E F
G H I
3.5mm Component/S-Video Audio input
SCART Adaptor
Note - SCART to AV Adaptor
– often included with some devices,
alternatively, these can be purchased
from the helpline/website
3.5mm
YPbPr/S-Video
Audio
Note – you will need the Phono
to 3.5mm Audio cable included
to connect into the 3.5mm Audio
Input on the TV
19_17 english manual 13.pdf 2. 9. 2009 11:27:17
User Guide
14
TV MENU OPERATION
To access the OSD menu, press
‘LCD-Menu’ on the remote control.
Use the scroll up/down/right/left to
navigate through the menus.

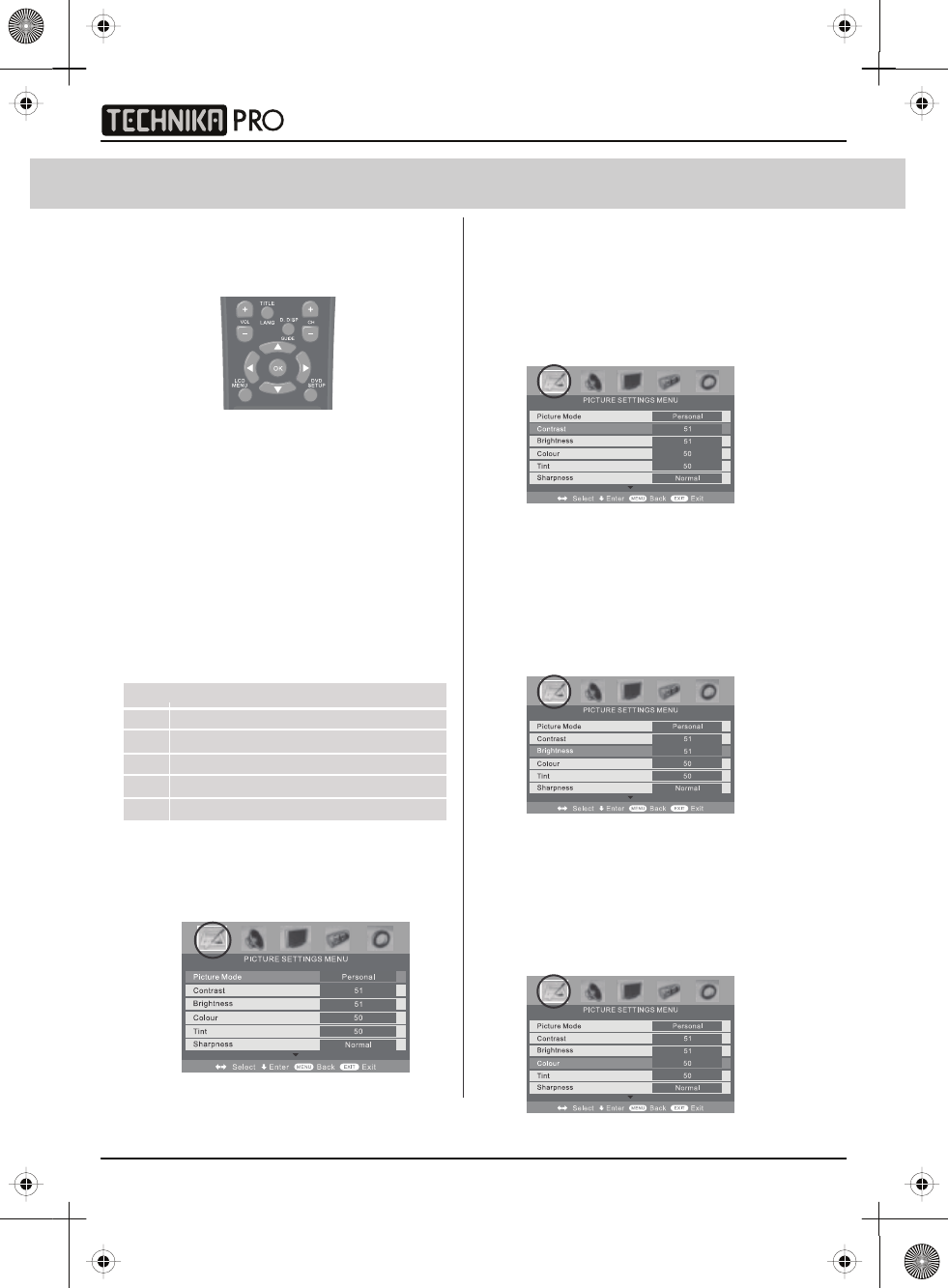

PICTURE SETTINGS MENU
Lets you adjust picture mode, contrast,
brightness, colour, tint and sharpness
to enhance the viewing experience.
PLEASE NOTE – YOU CAN ONLY MAKE
ADJUSTMENTS TO CONTRAST,
BRIGHTNESS & COLOUR WHEN
PICTURE MODE IS SET TO ‘PERSONAL’.
Selecting Picture Mode Preset
Switch between different preset picture
options
1) Press [LCD-MENU] to enter menu
2) Press [\/] to highlight Picture Mode
3) Press [>] to navigate through
the various options
4) Press [EXIT] to exit
Adjusting Contrast (Only available when
Picture Mode is set to Personal)
Switch the balance between black
and white
1) Press [LCD-MENU] to enter menu
2) Press [\/] to highlight Contrast
3) Press [>] to increase the contrast
or [<] to decrease the contrast
4) Press [EXIT] to exit
Adjusting Brightness (Only available
when Picture Mode is set to Personal)
Increase or decrease the brightness
of the picture
1) Press [LCD-MENU] to enter menu
2) Press [\/] to highlight Brightness
3) Press [>] to increase the brightness
or [<] to decrease the brightness
4) Press [EXIT] to exit
Adjusting Colour (Only available when
Picture Mode is set to Personal)
Increase the colour from black and white
to vivid
1) Press [LCD-MENU] to enter menu
2) Press [\/] to highlight Colour
3) Press [>] to increase the colour
or [<] to decrease the colour
4) Press [EXIT] to exit
Standard Default settings
Personal Lets you manually alter all the settings
Movie Set to enhance when watching a movie
Sport Set to enhance when watching a sport
Mild Set to be lighter in colour and less bright
Game Set to enhance when playing a games console
FORMAT
19_17 english manual 14.pdf 28. 7. 2009 10:43:35
IDTV
15
TV MENU OPERATION

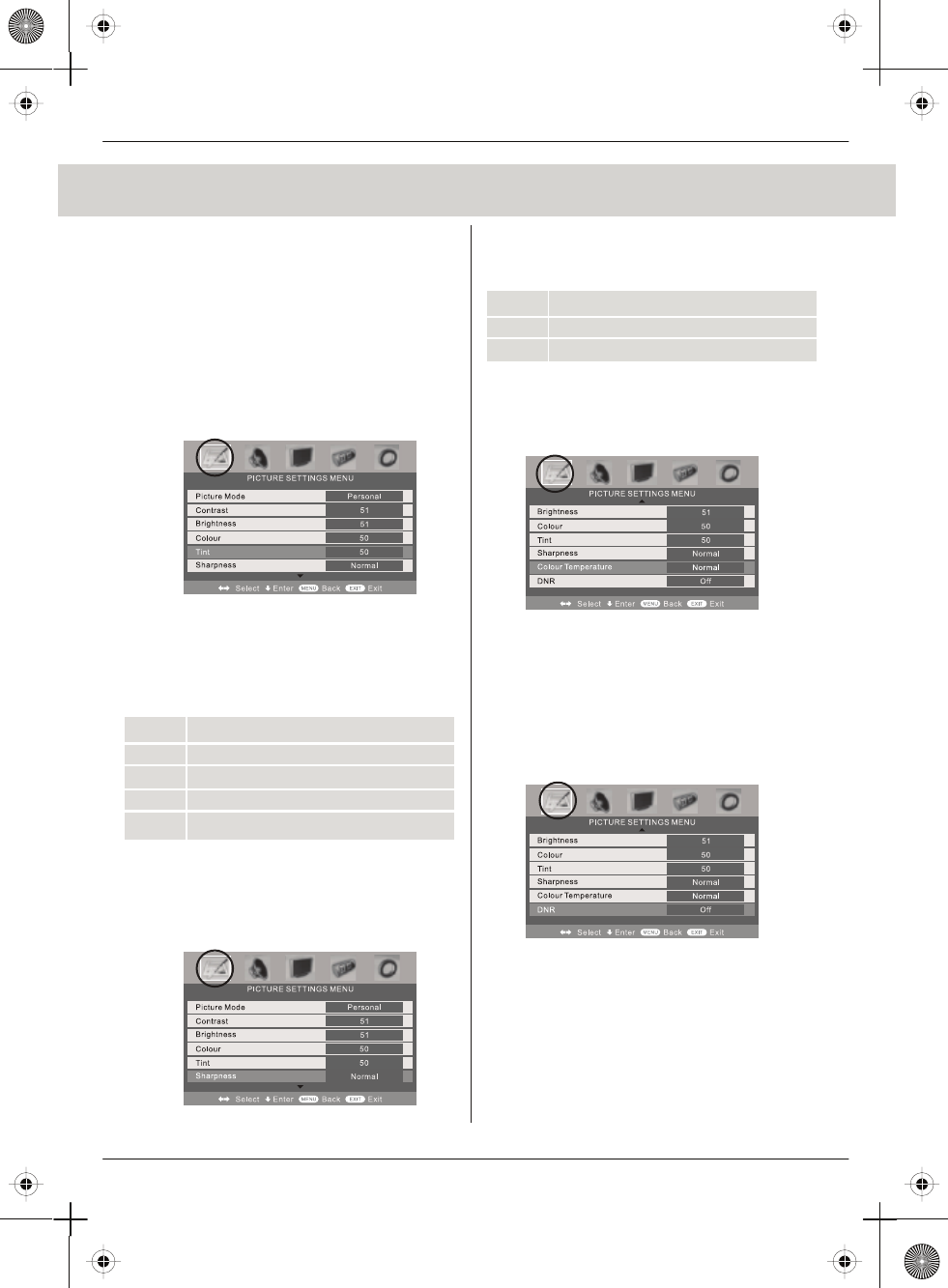

PICTURE SETTINGS MENU
Adjusting Tint (only available on some
sources)
Lets you increase or decrease the level
of tint within the picture
1) Press [LCD-MENU] to enter menu
2) Press [\/] to highlight Tint
3) Press [>] to increase the tint
or [<] to decrease the tint
4) Press [EXIT] to exit
Adjusting Sharpness
You can change the sharpness between
the different preset options
1) Press [LCD-MENU] to enter menu
2) Press [\/] to highlight Sharpness
3) Press [>] to navigate through
the various options
4) Press [EXIT] to exit
Adjusting Colour Temperature (only available
on some sources)
There are 3 presets for colour temperature
1) Press [LCD-MENU] to enter menu
2) Press [\/] to highlight Colour Temperature
3) Press [>] to navigate through the
various options
4) Press [EXIT] to exit
Dynamic Noise Reduction
Reduces the interference in the picture.
1) Press [LCD-MENU] to enter menu
2) Press [\/] to highlight DNR
3) Press [>] to switch between OFF, LOW,
MID & HIGH
4) Press [EXIT] to exit
Normal For standard use
Sharp For pictures with little movement
Sharpest For pictures with nearly no movement
Soft For pictures with large amount of movement
Softest For pictures with lots of movement
Normal Standard setting
Warm Increased red within the picture
Cold Increased blue within the picture
216_17 full hd english manual 15Page 1 20. 7. 2009 8:54:32
User Guide
16
TV MENU OPERATION

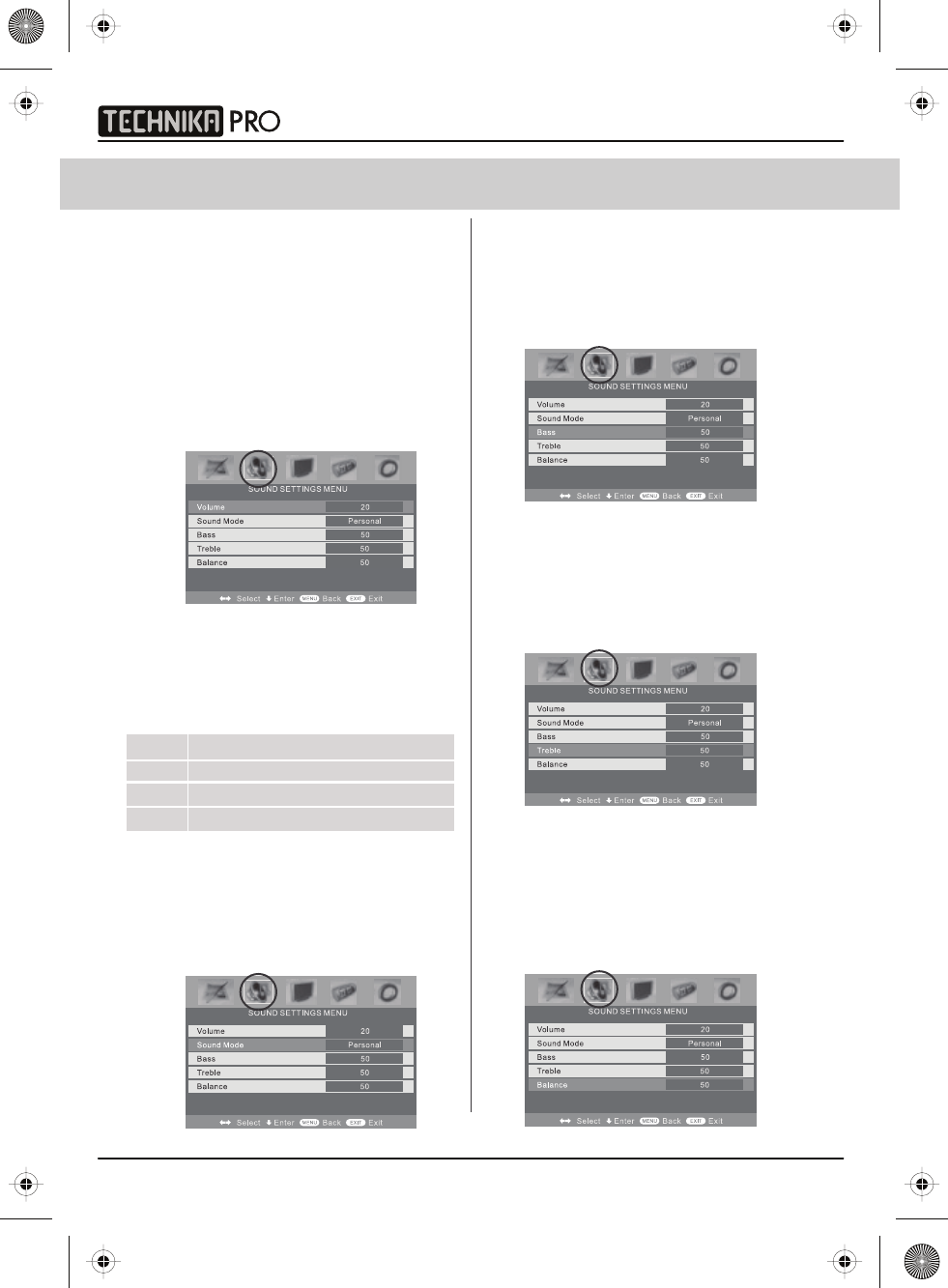

SOUND SETTINGS MENU
Adjusting Volume
Lets you adjust the volume
of the television
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Sound Settings
Menu
3) Press [\/] to highlight Volume
4) Press [>] to increase the volume
or [<] to decrease the volume
5) Press [EXIT] to exit
Selecting Sound Mode Preset
Switch between different preset sound
options
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Sound Settings
Menu
3) Press [\/] to highlight Sound Mode
4) Press [>] to navigate through
the various options
5) Press [EXIT] to exit
Adjusting Bass
To adjust the amount of bass within the sound
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Sound Settings Menu
3) Press [\/] to highlight Bass
4) Press [>] to increase the bass or [<]
to decrease the bass
5) Press [EXIT] to exit
Adjusting Treble
To adjust the amount of treble within the sound
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Sound Settings Menu
3) Press [\/] to highlight Treble
4) Press [>] to increase the treble or [<]
to decrease the treble
5) Press [EXIT] to exit
Adjusting Balance
To switch the sound between the left
and right speakers
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Sound Settings Menu
3) Press [\/] to highlight Balance
4) Press [>] to increase the balance or [<]
to decrease the balance
5) Press [EXIT] to exit
Voice Emphasises voice over other sounds
Music Emphasises music over voices
Theatre Provides liver and full sound for movies
Personal Selects your personal sound settings
216_17 english manual 16 new.pdfPage 1 3. 11. 2008 14:22:39
IDTV
17
TV MENU OPERATION

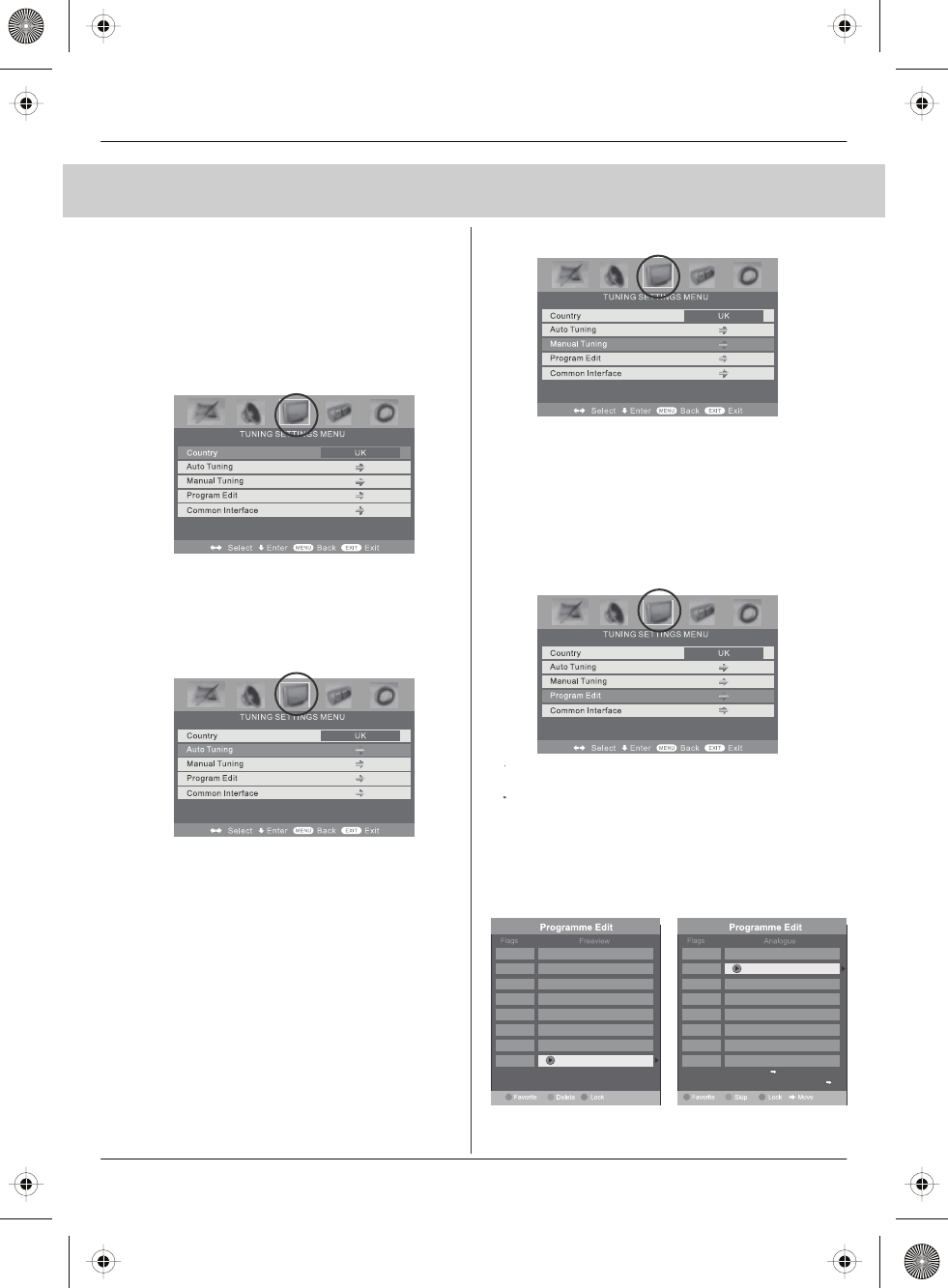

TUNING SETTINGS MENU
(Only Freeview & Analogue TV modes)
Adjusting Country
If you are moving country you may wish
to change the Country Settings
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Tuning Settings Menu
3) Press [\/] to highlight Country
4) Press [>] to alter the chosen country
5) Press [EXIT] to exit
Auto Tuning
Scan for all channels based on the current settings
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Tuning Settings Menu
3) Press [\/] to highlight Auto Tuning
4) Press [>] to enter Auto tuning
5) Press [OK] to start the tuning
6) Press [EXIT] to exit
Manual Tuning
You may wish to manual search if you can’t find a
certain channel or if you wish to connect to a
Satellite/Cable box via RF/Aerial connector
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Tuning Settings Menu
3) Press [\/] to highlight Manual Tuning
4) Press [>] to enter manual tuning
5) Press [>] to highlight Start Screen
6) Press [>] to start
7) Press [EXIT] to exit
Programme Edit / Changing Channel Position
(Only Freeview & Analague TV modes)
You can change the analogue channel
position to suit your requirements.
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Tuning Settings Menu
3) Press [\/] to highlight Programme Edit
4) Press [>] to enter the program edit menu
5a) Freeview mode – Press the [Green] button to add the
selected channel to your favorite, press it a second
time to remove. Press the [Yellow] to delete the channel
from the list. WARNING – this will remove the channel
complete from the TV. Press [Blue] to lock a channel (to
do this the Child Lock function must be set “ON”)
5b) Analogue TV mode – Press the [>] to select the change
you wish to move. Move to the new location and press
[OK]
6) Press [EXIT] to exit
To swap channel press on remote
move to the desire d location an d press
715.Magic
716.Q
718.SMOOTH RADIO
722.Kerrang!
723.talkSPORT
725. Premier Radio
727.Absolute Radio
728.Heart
1.
2.
3.
4.
5.
6.
7.
8.
19_17 english manual 17.pdf 22. 7. 2009 10:14:28
User Guide
18
TV MENU OPERATION

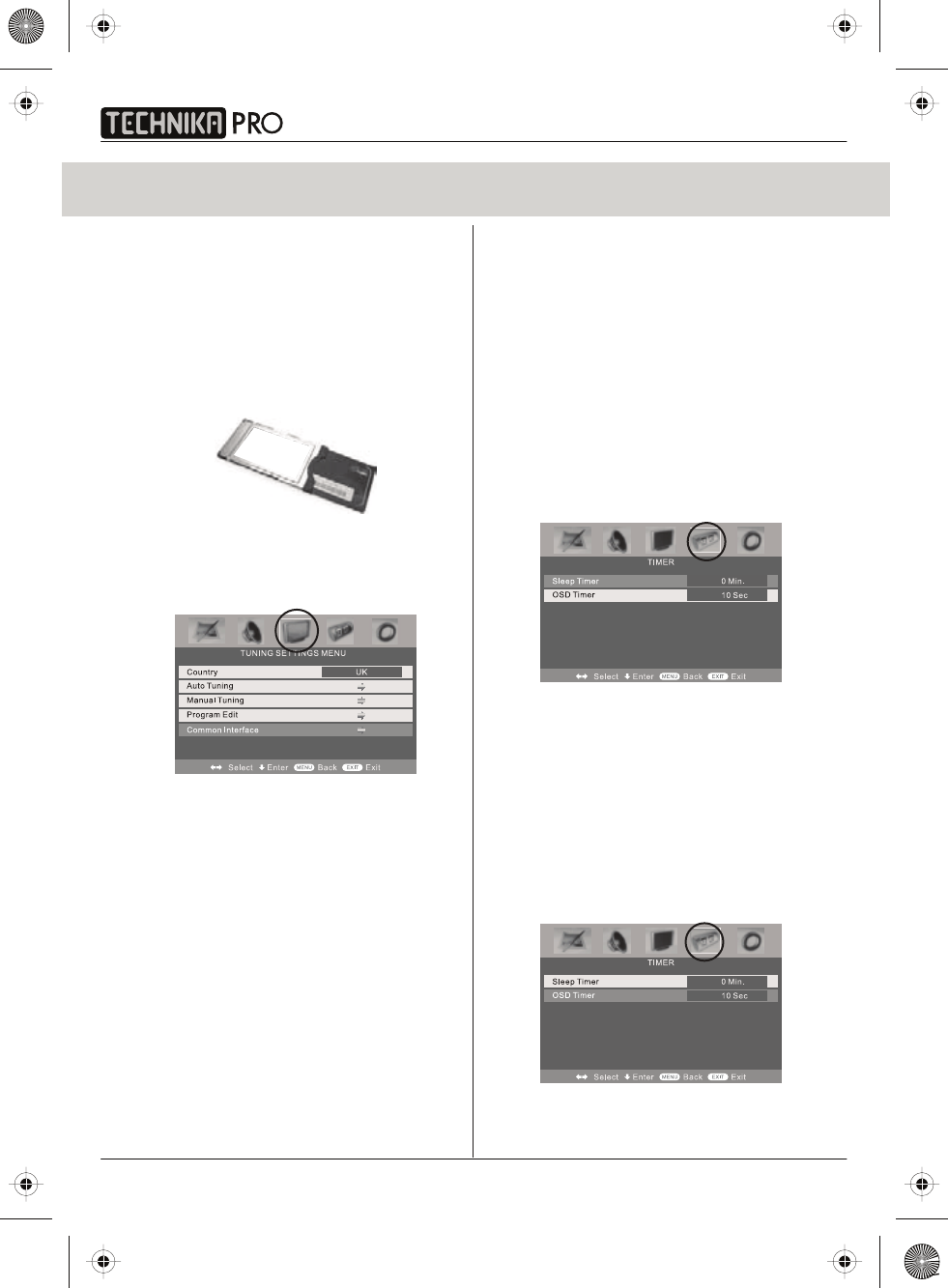

Common Interface Slot
(Only in Freeview Mode)
Pay per view services require a “smartcard” to
be inserted into the TV. If you subscribe to a
pay per view service the provider will issue you
with a ‘CAM’ and a “smartcard”. The CAM can
then be inserted into the COMMON
INTERFACE PORT. To access the card follow
the steps below.
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Tuning Settings Menu
3) Press [\/] to highlight Common Interface
4) Press [>] to enter the menu
5) Press [EXIT] to exit
TIMER SETTINGS MENU
Lets you adjust the OSD timing and
the sleep timer
Sleep Timer
Lets you set the sleep timer so
the television automatically switches off
after a certain amount of time.
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Timer Settings
Menu
3) Press [\/] to highlight Sleep Timer
4) Press [>] to increase the time
to the required amount
5) Press [EXIT] to exit
On Screen Display Timer
Lets you adjust the amount of time the On
Screen Menu stays on the screen before
disappearing.
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to Timer Settings Menu
3) Press [\/] to highlight OSD Timer
4) Press [>] to increase the time and [<] to
reduce the time
5) Press [EXIT] to exit
CAM and smartcard
216_17 full hd english manual 18Page 1 20. 7. 2009 8:55:45
IDTV
19
TV MENU OPERATION

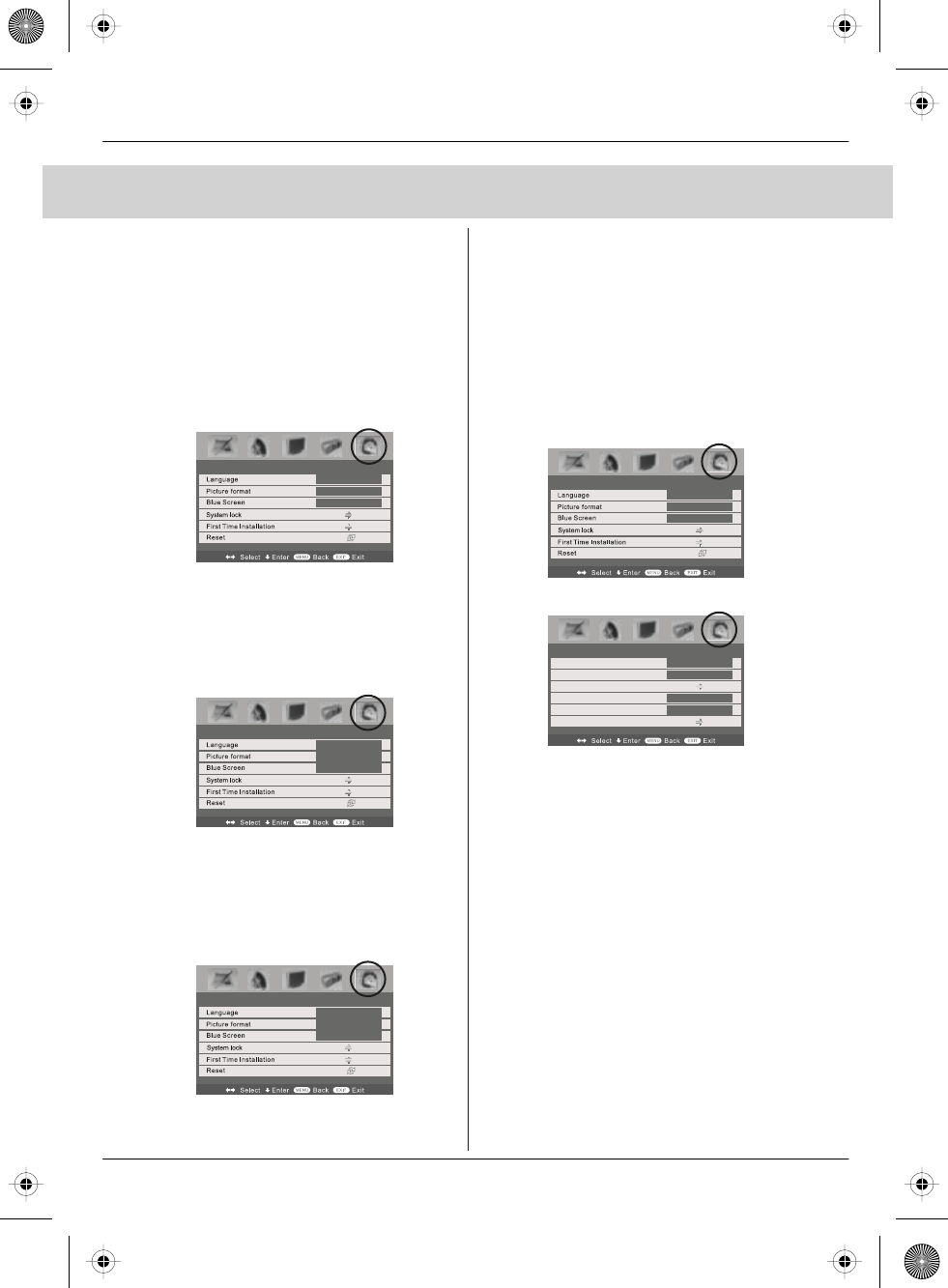

GENERAL SETTINGS MENU
Lets you adjust the language, picture size,
blue screen, add child lock, complete first
time installation and reset the television.
On Screen Menu Language
Lets you change the on screen menu language.
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to General Settings
Menu
3) Press [\/] to highlight Language
4) Press [>] to change the language
5) Press [EXIT] to exit
Picture Format
Lets you adjust the picture format
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to General Settings Menu
3) Press [\/] to highlight Picture Format
4) Press [>] to change the picture
format
5) Press [EXIT] to exit
Blue Screen
Changes the background when there is
no input between clear and a blue background
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to General Settings Menu
3) Press [\/] to highlight Blue Screen
4) Press [>] to switch between on and off
5) Press [EXIT] to exit
System Lock
This menu allows you to lock certain features of the
television so that they can not be used or viewed. For
example if you don’t want certain channels viewed by
children or if the television is to be used in a hotel and
you want to limit the volume.
You can lock any of the following - TV buttons,
TV source, set default start up source and limit the
maximum volume.
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to General Settings Menu
3) Press [\/] to highlight System Lock
4) Press [>] to enter System Lock menu
5) To enter this menu you will be asked for your pin code
(Default is blank so you just need to press [OK]).
6) To set locks you first need to switch System Lock to
ON, this will un grey the options.
You can now select the following:
Key Lock – Off/On – This stops the buttons on the
television working.
Source Lock – Press [>] to enter then apply On to lock
the source so it can’t be used
Default Source – You can set the default start up source,
so when the television is turned on it goes to this source.
Maximum Volume – You can limit the maximum volume
Change Pin Code – Press [>] to enter, first enter the
current code (default is blank so just press OK), then
enter your new code.
7) Once you happy with the settings press [EXIT] to exit
menu.
Channel Lock – please refer to Programme Edit section to
select the channels that you require to lock. Once locked
you can temporarily unlock a channel by entering the pin
code, the lock will be re-applied by switching off the TV
to standby and then back on.
GENERAL SETTINGS MENU
English
Auto
Off
GENERAL SETTINGS MENU
English
Auto
Off
GENERAL SETTINGS MENU
English
Auto
Off
GENERAL SETTINGS MENU
English
Auto
Off
SYSTEM LOCK
System Lock
Key Lock
Source Lock
Default Source
Max Volume
Change PIN Code
Off
On
ATV
99
216_17 full hd english manual 19Page 1 20. 7. 2009 8:56:23
User Guide
TV MENU OPERATION & 7 DAY TV GUIDE
20
7 DAY TV GUIDE
TV Guide is available in Digital TV mode.
It provides information about forthcoming
programmes (where supported by the
broadcasted channel).
You can view the start and end time of all
programs and on all channels for the next
7days.
It is very simple to operate.
1) Press [GUIDE]. The following now and next menu
will appear.
2) Navigate through the now and next menu using
the [>], [<], [V] and [/\] buttons
3) Press the [BLUE] button to enter the 7 day menu.
Reminders can now be added by pressing [OK].
4) Press [EXIT] to exit the 7 day TV Guide.

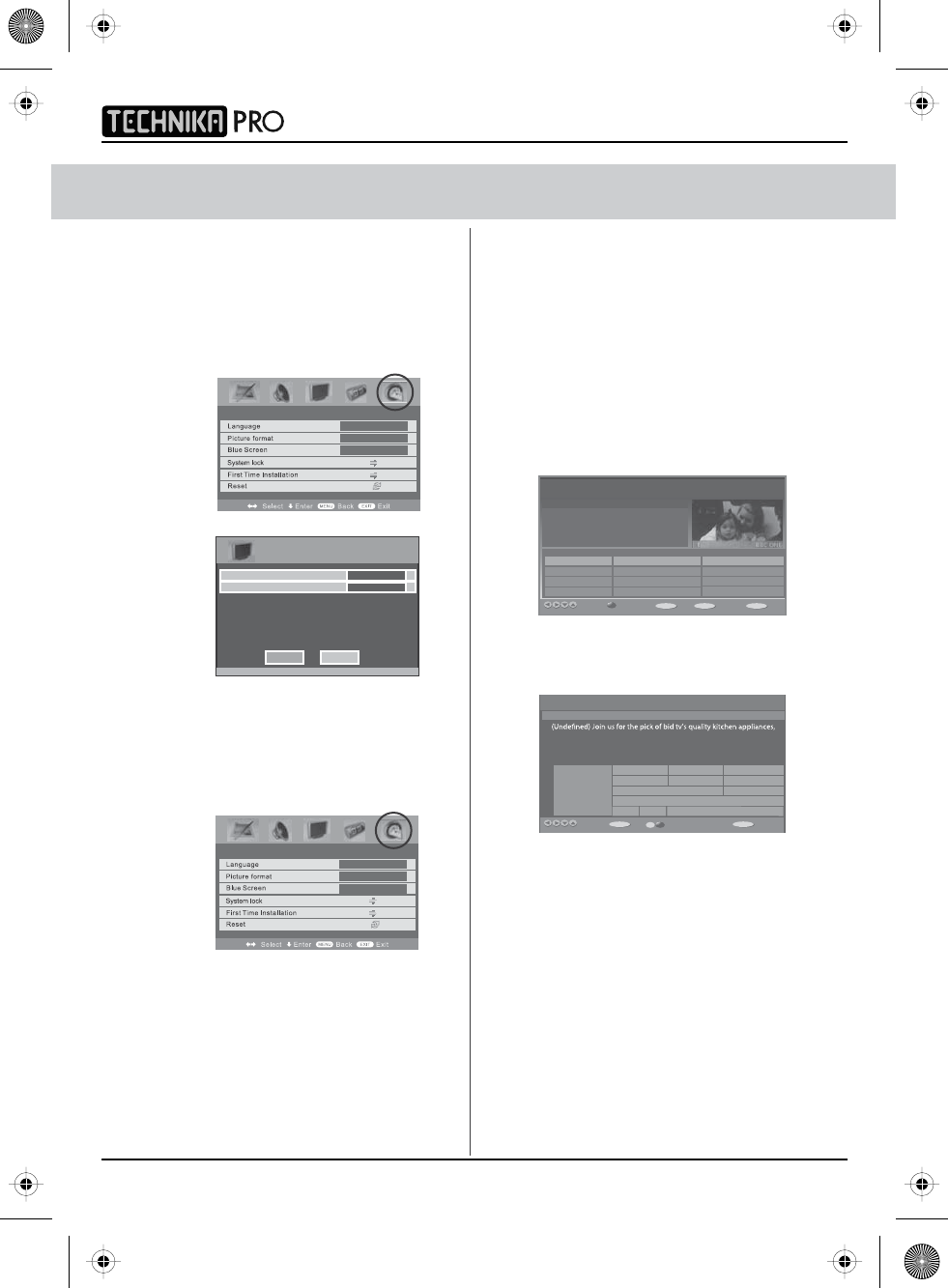

First Time Installation
Allows you to reset the television for first time
tuning.
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to General Settings Menu
3) Press [\/] to highlight First Time Installation
4) Press [>] and First time install screen will
appear
5) Press [OK] and tuning will commerce.
Reset television to factory settings
You may wish to reset the menus to factory
settings e.g. if you have forgotten a changed
password
1) Press [LCD-MENU] to enter menu
2) Press [>] to move to General Settings Menu
3) Press [\/] to highlight Reset
4) Press [OK] to reset the television
5) Press [EXIT] to exit
Please note – If you have applied the system
lock to reset the television you must press
[LCD-MENU] then 8-8-8-8, to start the first
time installation sequence.
First Time Installation
Country
Language
Please ensure that the aerial is connected to the connector
labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may
require a signal booster .alternatively ,upgrade your aerial
to a high gain digital version .
OK Cancel
UK
English
GENERAL SETTINGS MENU
Welsh
Auto
Off
GENERAL SETTINGS MENU
Welsh
Auto
Off
TV Guide
Tues 14/10 09:42
00:01-51:90seucseRlaeR
(News/CA) Nick Knowles presents dramatic
events from the day-to-day work of the
emergency services, The series is out on call
with the dedicated crews, answering 999
calls as they protect the public. [S]
Channels
1. BBC ONE Real Rescues Put your Money Where Y...
Little Red Tractor
This Morning
Freshly Squeezed Shorts
Balamory
The Jeremy Kyle Show
Impressionism: Revenge...
2. BBC TWO
3. ITV 1
4. Channel 4
Current Event Next Event
Navigate 7 Day Guide
EXIT OK
INFO
Quit Watch Help
7 Day TV Guide Tues 31/5 14:29
Essential Electricals 14:00-14:30
vacuum cleaners, irons, home telephones and many other essential
electricals.
Navigate KOEXIT Quit Change Day Reminder
Thur 31/5 14:00 14:45 15:30
23. bid tv Essential Electric
Closedown
Top 14: SPL Sna NRL on Fox
Quality Products
24. price-drop tv
26. UKTV Style
33. Eurosport UK
34. Setanta SP...
Handbag Heaven
Extreme Makeove
Extreme Makeover: Home Edition
Quality Products Quality Products a
19_17 english manual 20.pdf 29. 7. 2009 8:50:40
IDTV
21

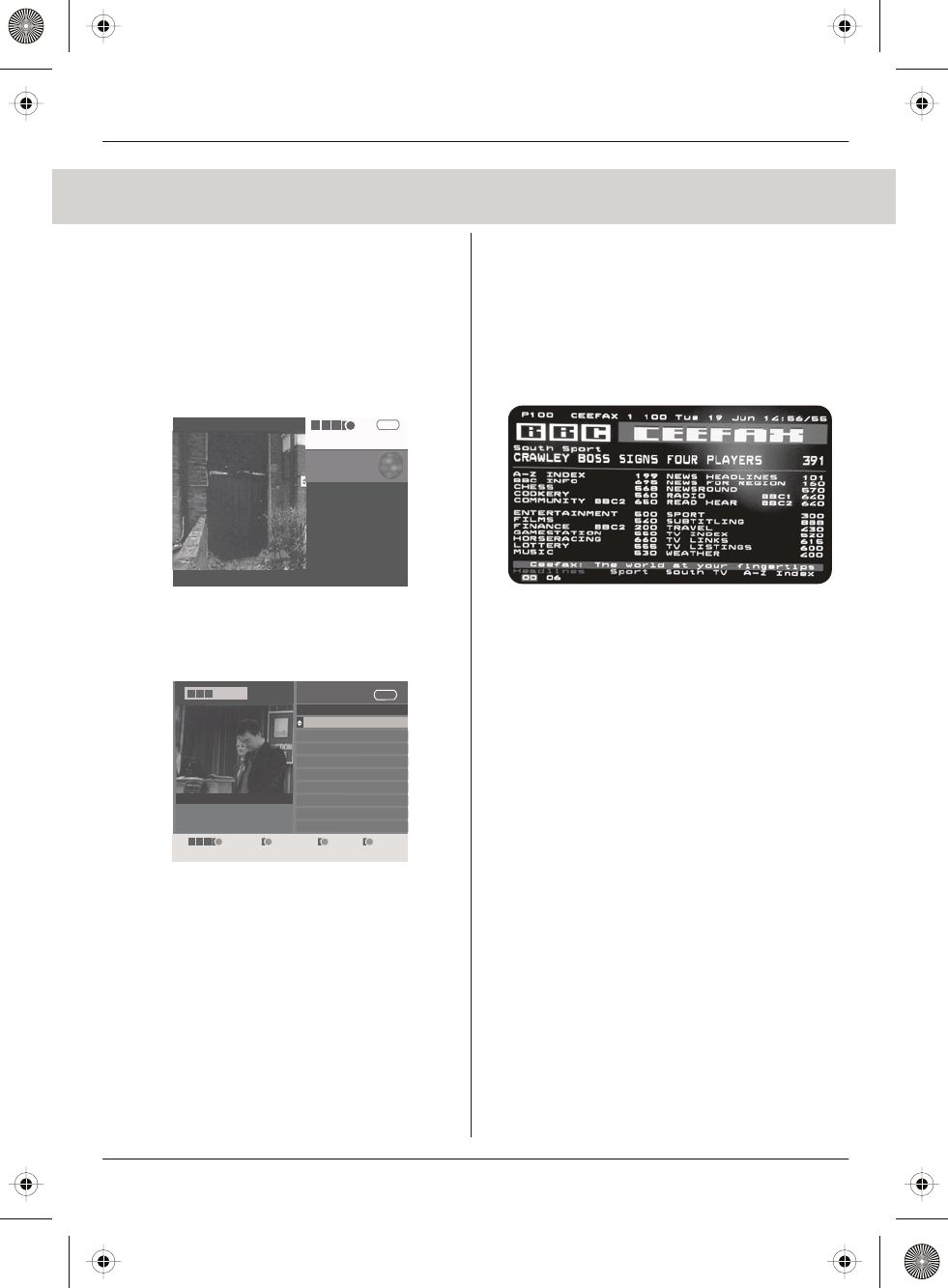

DIGITAL TELETEXT & ANALOGUE TELETEXT
B B C i 100
Tuesday 18 Dec
Press SELECT for
Live Crecket
Eng v SL
Radio Concert
News Multiscreen 1001
Sport 300
Weather 400
BBCi INDEX 199
Did Bee Movie Leave you
buzzing? BBC Movies - 540
To exit, press TEXT
B B C SPORT
BBCONE
To exit, press TEXT
For full screen TV, press 0
300
11:15 18 Dec
Sport
Sport in Video
Main Headlines
Football
Cricket
Rugby Union
Rugby League
Tennis
Golf
more...
B B C i HOME SHORTCUTS BACK INDEX
Teletext is a service offered by some
broadcasters.
Teletext Operation
1) Press [TEXT], after a few seconds
teletext page 100 should appear.
Here is an example of BBC1
2) You can now navigate to the page
you require in a number of ways:
a) Press the page you require using
the number buttons i.e. page 302,
by pressing [3][0][2]
b) Press the colour buttons, these will
take you to the page indicated
on screen for each colour
3) To exit Teletext press [TEXT] twice
at any time
Other buttons
[SIZE] this increases or decreases the
size of the text on screen
[INDEX] some pages are more than one
page long this button displays
the number of pages
[REVEAL] if there is an answer or
something hidden this will display it
[SUBPAGE] displays the sub page
if it exists
[HOLD] This stops the pages changing
when there are multiple pages
Digital TV Teletext
With Digital TV (Freeview) there is also
digital teletext available on some channels.
Simply follow the on screen commands. Here is
an example of the BBC digital teletext service.
1) To start digital teletext press the RED button
(BBC channels) or the TEXT buttons (Other
channels)
2) To select the information you require you
can scroll using [\/] or [/\] and press [OK]
alternatively you can key the page number
for example [3][0][0] followed by [OK]
You can then navigate using the colours
buttons (Red, Green, Yellow, Blue), the [/\] [\/]
buttons and numbers.
If you wish to exit at anytime press [EXIT]
216_17 full hd english manual 21Page 1 20. 7. 2009 8:57:30
User Guide
22

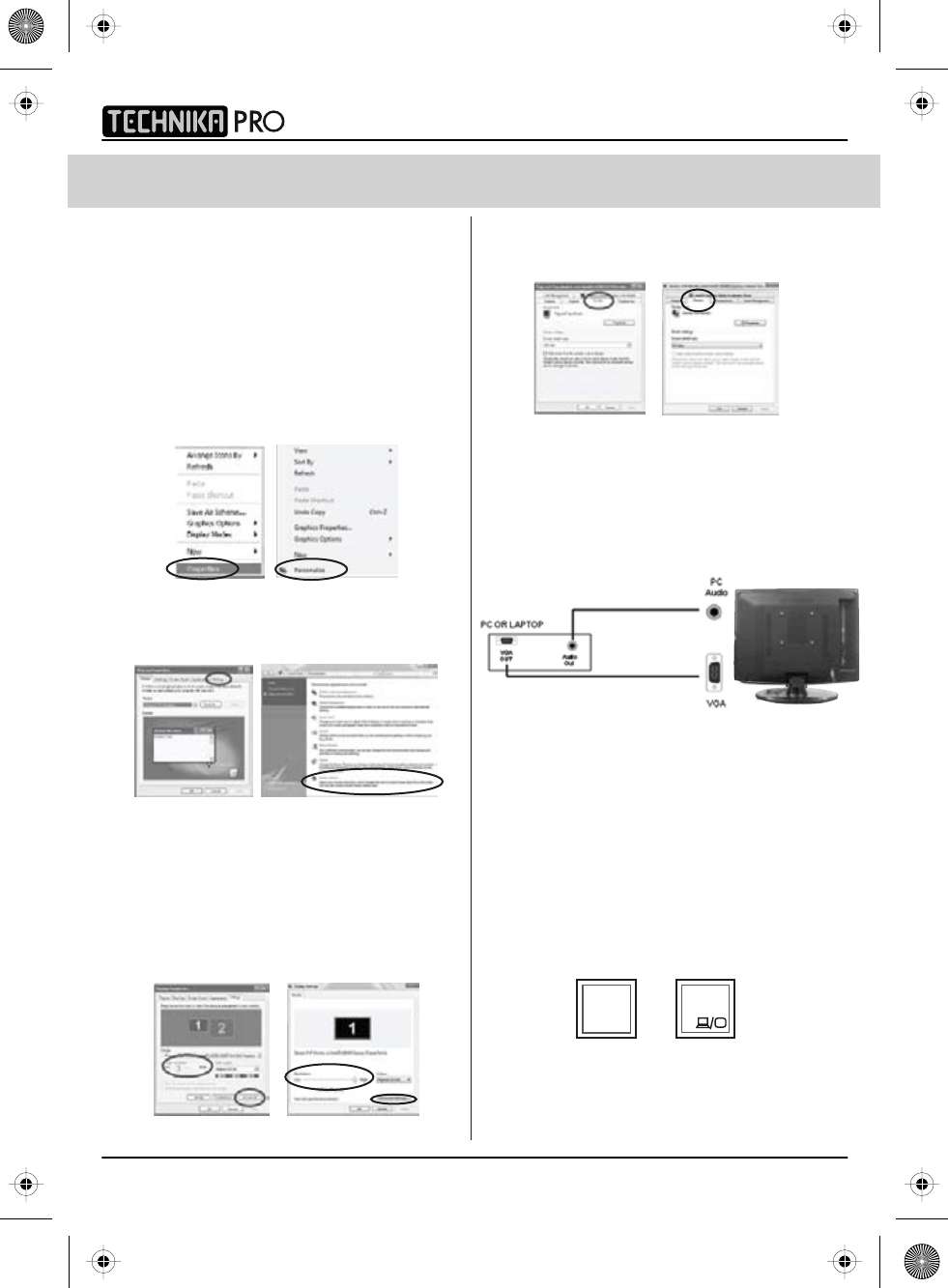

USING THE TELEVISION AS A COMPUTER MONITOR
IMPORTANT – Before connecting the
computer to the television you must
ensure the computer settings are
correct for the television. You MUST do
this using your old monitor.
WINDOWS XP, WINDOWS VISTA
1) Switch on your computer
2) When finishing booting up right click
your mouse anywhere on the screen
3) Left click your mouse on
Properties/Personalise
4) Left click your mouse on Setting/Display
Settings. Ensure the screen resolution
is set to what is shown in the technical
specifications section toward the rear of
this user guide. To correct the
resolution to that of the television move
the slider.
5) Left click your mouse on Advance/Advance
Settings and left click on Monitor
6) Left click on the drop down for Screen refresh rate
and select 60 Hertz.
7) Click on Apply, then click Yes and the settings will
be saved.
8) Now switch off your computer and connect the
television (as shown below)
9) Re-start your computer and switch the source
to VGA
CONNECTING A LAPTOP
In addition to the above if you are connecting a laptop
to the television you will also need to activate the VGA
connection on the laptop.
This can vary based on the brand of laptop you have.
1) Connect the laptop to the television
2) On the Laptop push buttons
The screen will now switch to the television.
XP Screen VISTA Screen
XP Screen VISTA Screen
XP Screen VISTA Screen
XP Screen VISTA Screen
+
Fn F5
216_17 full hd english manual 22Page 1 20. 7. 2009 13:37:18
IDTV
23

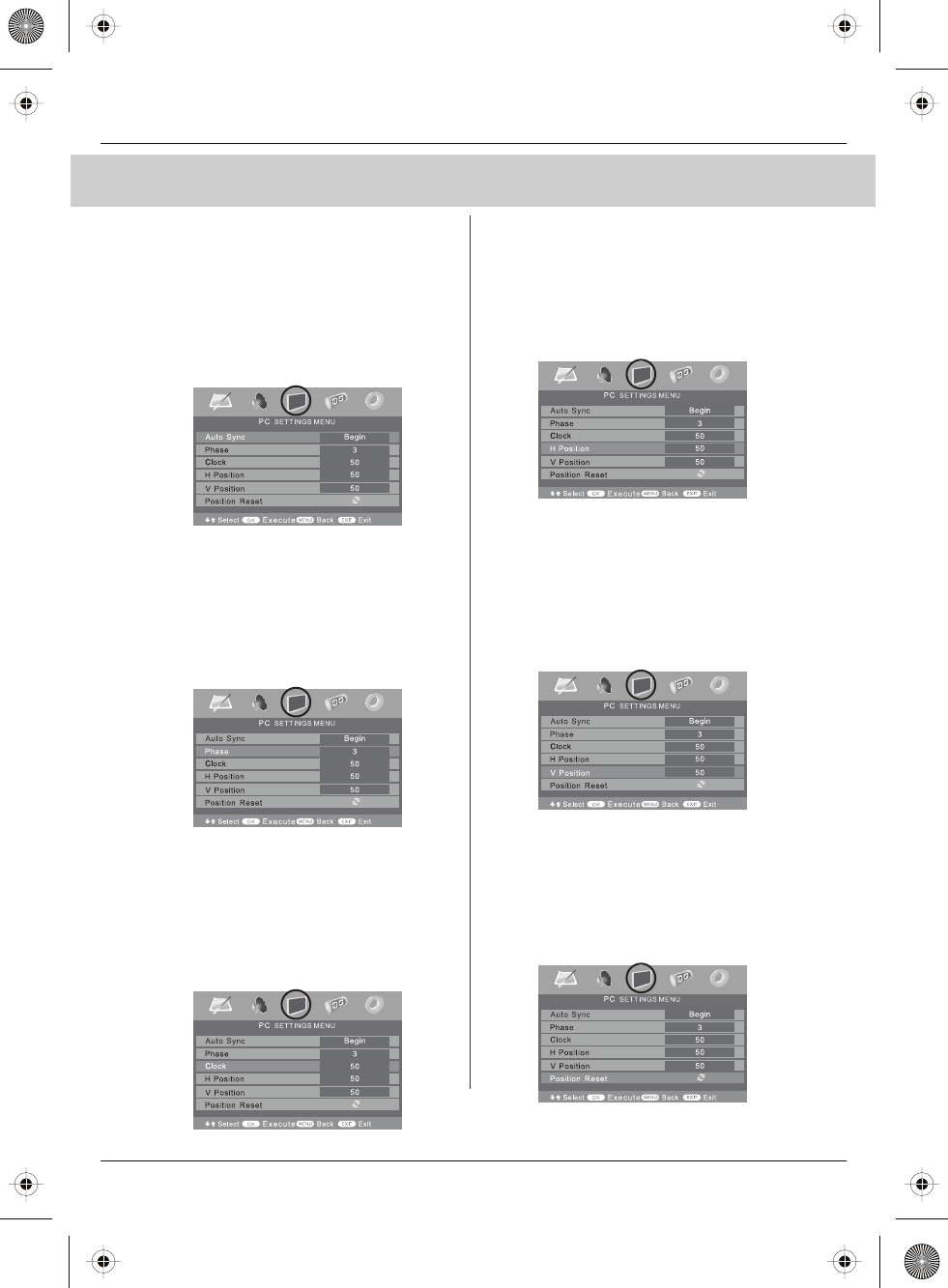

PC MENU OPERATION (VGA)
VGA MENU
Auto Configuration of Screen
Lets you automatically configure the
television to be used as a computer monitor
1) Press [LCD-MENU] to enter menu
2) Press [>] to select PC settings
3) Press [\/] to select Auto Sync
4) Then press [>] for the TV to
automatically configure itself
5) Press [EXIT] to exit
Phase
To adjust delay time of phase in order to
reduce the noise of picture
1) Press [LCD-MENU] to enter menu
2) Press [>] to select PC settings
3) Press [\/] to select Phase
4) Then press [>] or [<] to increase or
decrease the phase
5) Press [EXIT] to exit
Clock
Alter this in order to reduce the noise
within the picture
1) Press [LCD-MENU] to enter menu
2) Press [>] to select PC settings
3) Press [\/] to select Clock
4) Then press [>] or [<] to increase or
decrease the clock
5) Press [EXIT] to exit
Horizontal Position
Changes the horizontal position of the picture
1) Press [LCD-MENU] to enter menu
2) Press [>] to select PC settings
3) Press [\/] to select H-Position
4) Then press [>] or [<] to move the
picture to left or right
5) Press [EXIT] to exit
Vertical Position
Changes the vertical position of the
1) Press [LCD-MENU] to enter menu
2) Press [>] to select PC settings
3) Press [\/] to select V-Position
4) Then press [>] or [<] to move the
picture up or down
5) Press [EXIT] to exit
Position Reset
To position of the picture to the factory settings
1) Press [LCD-MENU] to enter menu
2) Press [>] to select PC settings
3) Press [\/] to select Position Reset
4) Then press [>] or [<] to move the
picture up or down
5) Press [EXIT] to exit
216_17 full hd english manual 23Page 1 14. 7. 2009 8:29:45
User Guide
24
DVD MENU OPERATION
HOW TO PLAY DVD’S
The DVD player has an automatic DVD feature
which means when you insert a disc it will
automatically switch source and start to play.
If you disc does not play please refer to
frequently asked questions section of the user
guide.

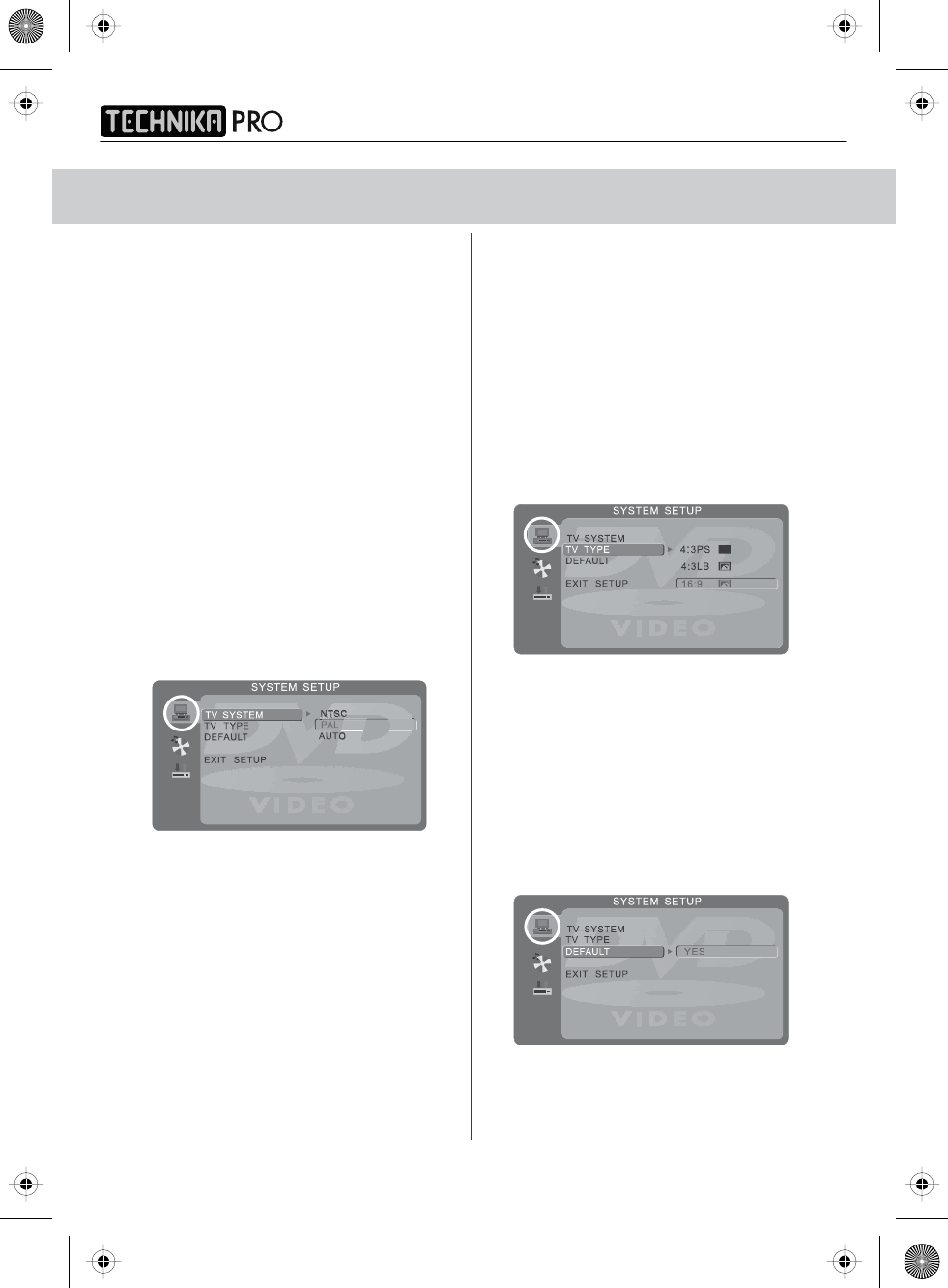

SYSTEM SET UP
Adjusting TV System
Lets you adjust between NTSC, PAL,
AUTO (PAL is default for the UK)
1) Press [DVD-SETUP] to enter menu
2) Press [>] to select TV System
3) Press [>] to enter menu
4) Press [\/] or [/\] to highlight NTSC, PAL
or AUTO
5) Press [OK] to confirm
6) Press [DVD-SETUP] to exit
Adjusting Picture Format
This lets you select the format of the picture
that is being shown between 16:9, 4:3
LetterBox and 4:3.
1) Press [DVD-SETUP] to enter menu
2) Press [>] to select TV System
3) Press [\/] to select TV Type
4) Press [>] to enter menu
5) Press [\/] or [/\] to highlight 4:3PS,
4:3LB or 16:9
6) Press [OK] to confirm
7) Press [DVD-SETUP] to exit
Returning to Default
This lets you switch the DVD menus show above
back to Default settings
1) Press [DVD-SETUP] to enter menu
2) Press [>] to select TV System
3) Press [\/] to select Default
4) Press [>] to enter menu
5) Press [>] to highlight Yes
6) Press [OK] to confirm
7) Press [DVD-SETUP] to exit
19_17 english manual 24.pdf 21. 7. 2009 15:01:32
IDTV
25
DVD MENU OPERATION

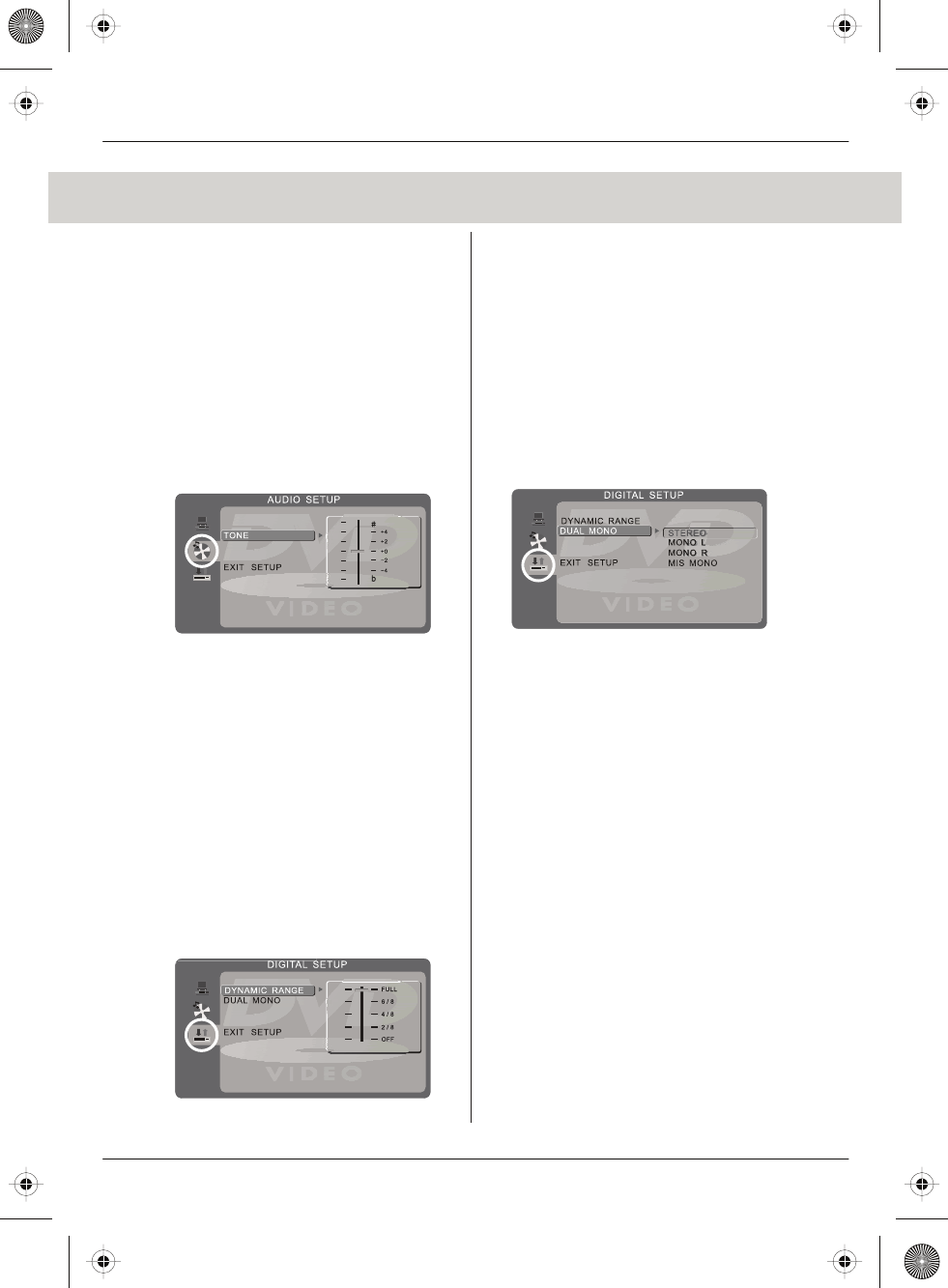

AUDIO SET UP
Adjusting Tone
Lets you increase or decrease the Tone
of the sound
1) Press [DVD-SETUP] to enter menu
2) Press [\/] to select Audio Set Up
3) Press [>] to enter menu
4) Press [\/] to select Tone
5) Press [>] to enter menu
6) Press [\/] or [/\] to increase or decrease
the tone
7) Press [OK] to confirm
8) Press [DVD-SETUP] to exit
DIGITAL SET UP
Adjusting Dynamic Range
This is the difference between the quietest and
loudest sounds. This setting works only with
DVD discs recorded in Dolby digital.
FULL: Set this to listen with the range recorded
on the disc.
4/8: Set this to listen with a range equivalent
to a normal television.
2/8: Set this to listen with a smaller difference
between the maximum and minimum volume.
1) Press [DVD-SETUP] to enter menu
2) Press [\/] twice to select Digital Set Up
3) Press [>] to select Dynamic Range
4) Press [>] to enter menu
5) Press [\/] or [/\] to increase or decrease
the Dynamic range
6) Press [OK] to confirm
7) Press [DVD-SETUP] to exit
Adjusting the Sound
Lets you change the sound between Stereo,
Mono Left, Mono Right and Mixed Mono.
1) Press [DVD-SETUP] to enter menu
2) Press [\/] twice to select Digital Set Up
3) Press [>] to enter menu
4) Press [\/] to select Dual Mono
5) Press [>] to enter menu
6) Press [\/] or [/\] to switch between Stereo,
Mono L, Mono R and Mix Mono
7) Press [OK] to confirm
8) Press [DVD-SETUP] to exit
Changing Regions
This TV/DVD player is pre-set to play Region 2 DVDs.
In the event you wish to use the TV/DVD in another
country that uses different region discs, please visit
www.skymediauk.co.uk. Select ‘product support’,
‘Changing Region’
[ ]
X216_84 full hd english manual pPage 1 28. 9. 2009 8:37:07
User Guide
26
USING WITH SKY DIGITAL / VIRGIN MEDIA
You may wish to use your TV with Sky
Digital, Virgin Media or another cable
or Satellite box
There are a number of connection options,
the best being connecting via SCART
cable.
Connecting via SCART
1) Connect the SCART cable from the
Cable/Satellite Box to SCART of the TV
2) Press [SOURCE]
3) Press [\/] or [/\] to select SCART
4) Press [OK]
The channel your Cable/Satellite box is
displaying will now be shown on the TV.
You may wish to share your Sky Digital
signal around the home by using an RF
connection.
Connecting via RF
1) Connect the RF cable from the RF
output socket of the sky/cable box to
the ‘RF IN’ of the TV.
2) Switch the TV to analogue TV mode
3) Press [LCD-MENU] to enter menu
4) Press [>] twice to select Tuning
Settings Menu
5) Press [\/] to select Manual Tuning
6) Press [>] to enter Auto tuning
7) Press [OK] to start tuning
Once tuning is complete the first channel
will appear. Press [CH+] to move through
the channel until you find the Sky channel.
The channel can then be moved if you
wish, please refer to the Tuning Setting
menu – Program Edit section of the manual.
USING WITH SKY DIGITAL REMOTE CONTROL
(BSKYB) OR UNIVERSAL REMOTE CONTROL
You may wish to use your Sky Digital or a universal
remote control to operate some of the functions of this
TV. For this you require a ‘code’ that needs to be
programmed into your Sky Digital or universal remote
control.
For codes for universal remote controls, please visit
our website where you will find the very latest
information and codes.
For codes for Sky/Sky+Sky HD, please note that at the
point of manufacture, BSkyB have not launched the
code required for this model of TV. They are due to
launch a new remote control which should include the
necessary code to operate the functions of the TV
during 2010 (called revision 9).
Please check our website for updates, alternatively,
see some alternative options of remote controls
that are available.

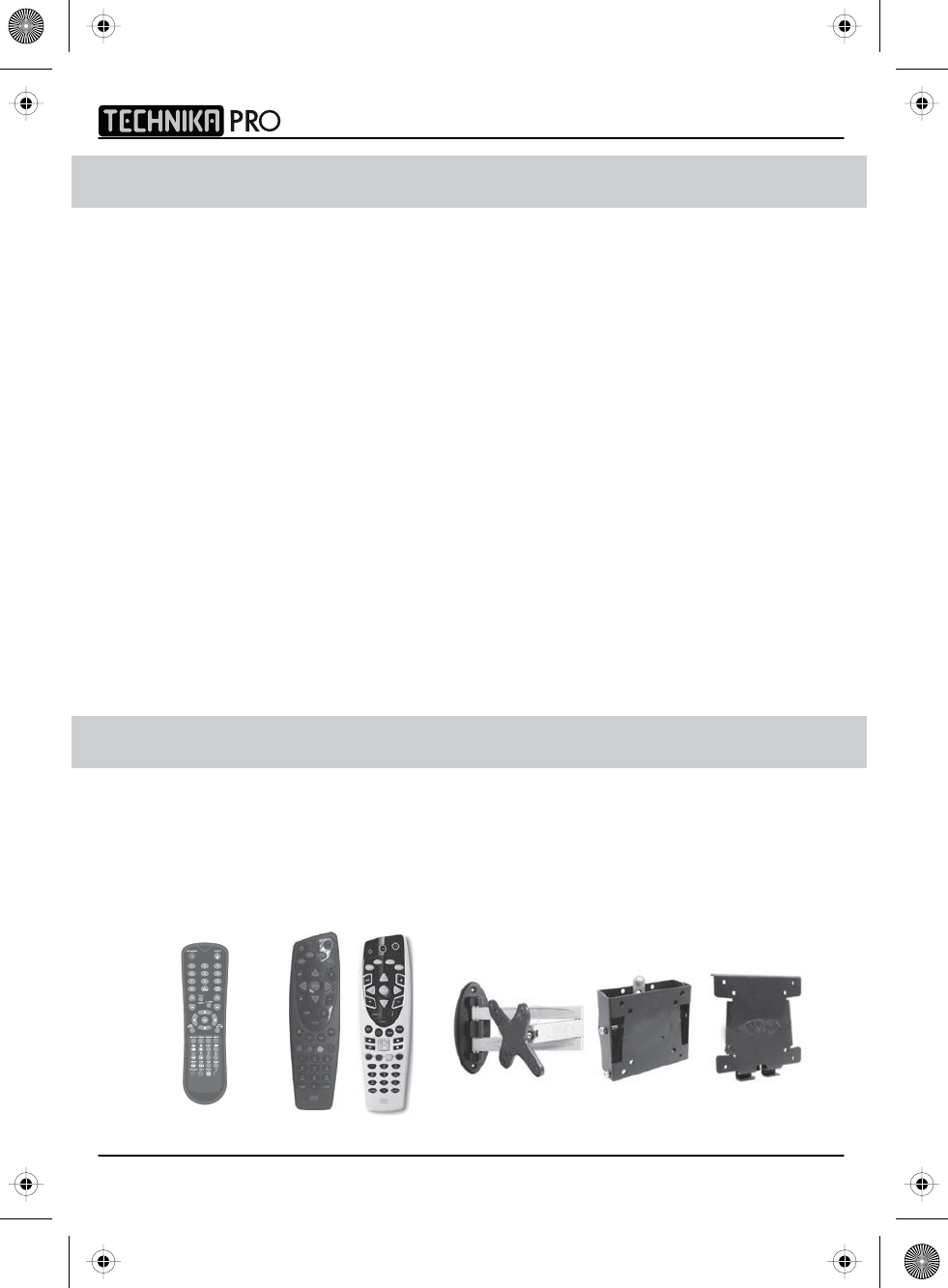

One for All Sky Originals
The One for All remote controls shown will operate
all of the functions of the Sky box in the same way the
original remote control will, in addition, they will also
operate the functions of this model of TV. The One for All
versions are available to purchase from the
helpline/website. The original Sky remote controls are
shown for comparison purposes
If you require any further information, you can contact us:
www.skymediauk.co.uk
email - service@skymediauk.co.uk
Tel UK
ROI
-
-
0871
01443 3940
2000 463
19_17 english manual 26.pdf 2. 9. 2009 11:23:58
IDTV
27

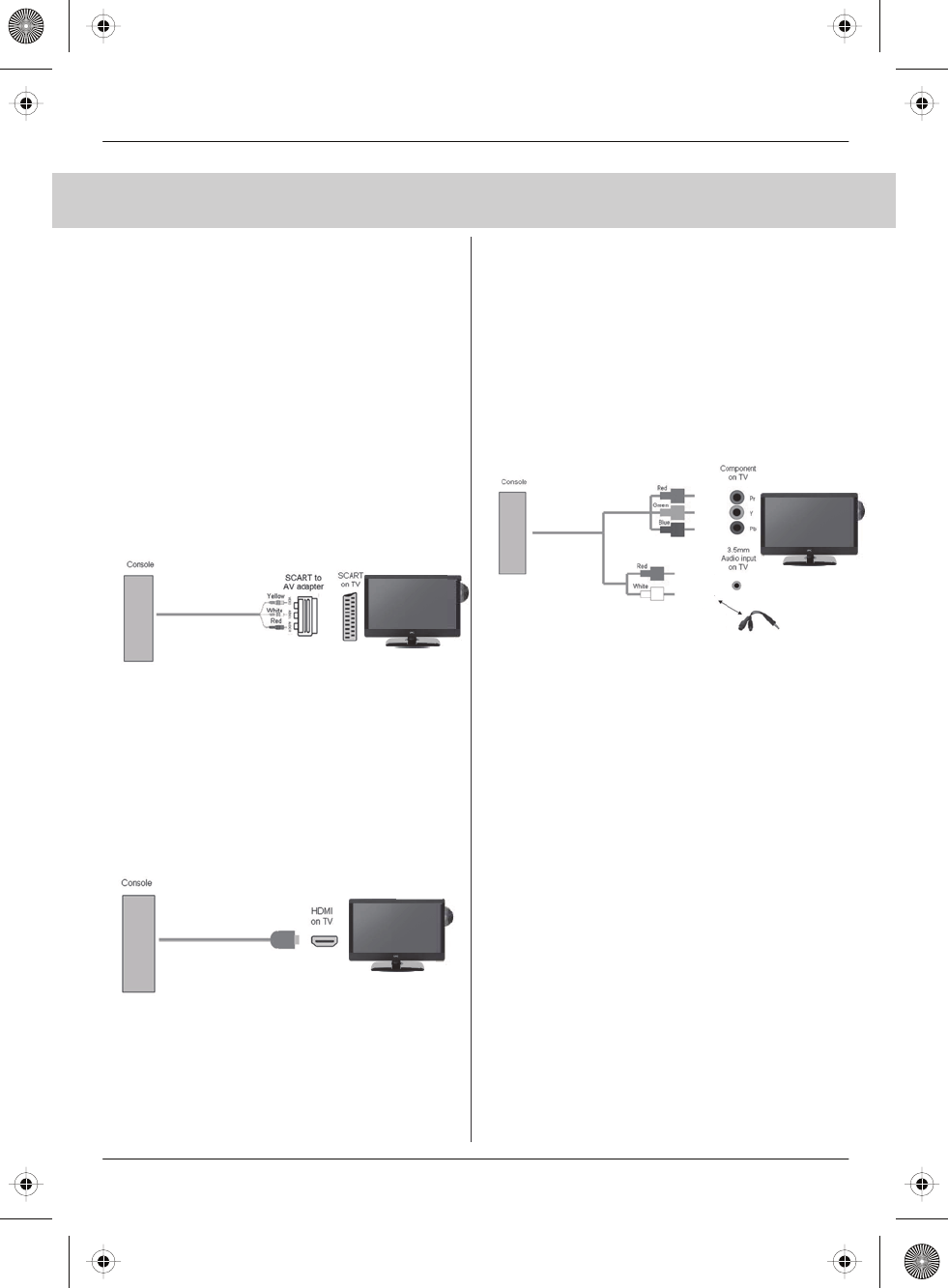

CONNECTING A GAMES CONSOLE
Connecting a games console can
sometimes seem very difficult. We have
simplified it to three options depending
on the cables that you have.
Option 1 – Connecting via Scart
to AV adapter
If you are supplied with a cable from the
console which has YELLOW,
RED & WHITE connectors you must
connect via a SCART to AV adapter
(Some consoles include this)
TV source should be set to SCART.
Option 2 – Connecting via HDMI cable
If you are supplied with a HDMI cable is
the easiest option. A HDMI cable can
output both video and audio and enables
you to enjoy digital-quality video and
audio with minimal loss of picture quality.
TV Source should be set to HDMI.
Option 3 – Connecting via Component
cable
If you are supplied with a cable from the
console which has RED, GREEN, BLUE,
RED & WHITE connectors you must
connect via Component (for picture)
and by 3.5mm to phono cable (for sound).
TV Source should be set to Component.
3.5mm jack
to phono
cable adaptor
X23_50 full hd english manual paPage 1 1. 10. 2009 12:15:13
User Guide
28
FREQUENTLY ASKED QUESTIONS
Question: Solution:
Ihave tuned in Digital TV but
I am not receiving any or all of the
channels and/or the channels I receive
are breaking up
The sound quality is high pitched?
I have inserted a disc but it is not playing
I have connected the TV to my VCR via
SCART but it is not recording
1) Check you are in an area that can
receive Freeview. Visit
www.freeview.co.uk or call
08701 111 270.
2) Check you are using an aerial that is
able to receive a good digital signal. In
most cases, you will need an outdoor
digital hi-gain/wideband aerial. In areas
that have excellent Freeview coverage,
you may be able to use a loft type aerial
but it is highly likely that you will also
need to connect a booster between the
back of the TV and the TV aerial wall
socket. Unfortunately, to receive a good
enough digital signal, it is not possible to
use a portable/indoor type aerial.
This may change once the analogue
signal is switched off in 2012 and the
Digital signal strength is increased.
Go into the sound settings menu as
shown earlier in the manual and increase
the level of the bass and decrease
the treble
1) Ensure you have inserted put the disc
in facing the correct way
2) Ensure the disc is clean and is not
scratched
3) Some copied discs will not play.
4) Check the DVD is a region 2 disc – to change
the region of the DVD player, refer to section
‘Changing Regions’.
In addition to connecting via SCART, you
should connect the aerial cable from the
wall socket to VCR and another aerial
cable from the VCR to the TV
216_17 full hd english manual 28Page 1 20. 7. 2009 14:50:07
IDTV
1) Ensure the TVs source is on HDMI
2) Check your settings on your PS3 are as
per the PS3 instruction manual
Component cables only provide HD Pictures. For
the sound you will need to connect the Red &
White audio cables on the Xbox to the 3.5mm
YPbPR/S-video Audio in on the TV. Please refer
to the ‘Connecting a games console’ page.
I have connected my Xbox 360 to the TV via
Component Cables (Red, Green & Blue) but I
am not receiving any sound
Why are some options in the menu
unavailable and greyed out
Some options are only available in certain
sources, i.e. HDMI, PC/VGA. They are
unavailable in the other sources where they have
no affect.
I have connected my PS3 to the TV via HDMI,
but I am not receiving any pictures or sound
on my Console
29
TECHNICAL SPECIFICATION
LCD23-230
3”2
)sehcnI(eziS
0801x0291
noituloseR
1:0001
oitaRtsartnoC
Bri
g
htness cd/m2300
seY
BGRCP
MACES-LAP/annetnAmho5
7
FR
Video 1 x SCART, 1 x S-Video, 1 x Component
(YPbPr - 1080p)
Sound
1 x 3.5mm jack for PC audio input, 1 x 3.5mm
jack, shared for S-Video & YPbPr
(component) audio input
)80p01otpu(1
IMDH
3x2
)SMR(sttaWtup
tuOrekaepS
seY
DVD
reyalpDVD
Power Voltage 110-240v 50/60Hz 1.5A 90W (standby <1W)
Dimensions Inc Stand 561W x 402H x 178D
3,6
)sgK(teN
7,7
)sgK(ssorG
Panel
Weight
Input Signal
X23_50 full hd english manual paPage 1 5. 10. 2009 12:01:37
User Guide
30
INDEX
Analogue TV teletext 21
Attaching/Detaching the
Stand & Wall mounting 9
Auto Tuning 17
Balance 16
Bass 16
Blue Screen 19
Brightness 14
Changing DVD Regions 25
System Lock 19
Colour 14
Colour Temperature 15
Common Inferface Slot 18
Connecting to a PC 22
Connecting a Games Console 27
Contrast 14
Country Settings 17
Digital Switchover Re-Tune 2-3
Digital TV teletext 21
Dynamic Noise Reduction 15
Dynamic Range 25
First Time Installation 20
Frequently Asked Questions 28
Horizontal Position (PC) 23
Inputs and Connections 13
Manual Tuning 17
OPTIONAL ACCESSORIES AND REPLACEMENT PARTS
If you need to order replacement parts for your TV, please visit our web site or call the helpline.
If you wish to wall mount your TV, we have a range of fully tested and compatible wall mounts available
to order from the helpline or via our web site.
If you wish to purchase a Sky or Sky+ remote control that includes the latest software/codes to operate both
your Sky Box as well as this TV, these are available to order from the helpline or web site. Our Sky / Sky+
remote controls operate your Sky or Sky+ box in exactly the same way your current Sky / Sky+ remote does
and our versions also look very similar to the Sky equivalent models, albeit slightly smaller in size, they will
also operate many of your TV’s functions including Power on/off, channel up/down, volume up/down as well
as many other functions.
On Screen Display Timer 18
On Screen Menu Language 19
Phase (PC) 23
Picture Format 19
Picture Format - (DVD) 24
Picture Mode Preset 14
Position Reset (PC) 23
Program Edit / Changing Channel
Position 17
Remote control buttons and their
functions 11
Reset Television 20
Returning to Default (DVD) 24
Sharpness 15
Sleep Timer 18
Sound Mode Preset 16
Technical Specifications 29
Tint 15
Tone (DVD) 25
Treble 16
TV Guide 20
Tuning in TV 10
TV buttons and their functions 12
TV System (DVD) 24
Using with Sky Digital / Virgin Media 26
Vertical Position (PC) 23
Volume 16
What is included in the box 8
Replacement
remote control stnuoM llaW slortnoc etomeR +ykS/ykS ruO
FORMAT
INFO
VOL CH
GUIDE
19_17 english manual 30.pdf 29. 7. 2009 8:54:06
IDTV
blank.pdf 10. 10. 2008 13:49:40
blank.pdf 10. 10. 2008 13:49:40
blank.pdf 10. 10. 2008 13:49:40
X23/MAN/0008TESCO Stores Ltd, Cheshunt, EN8 9SL, UK.
last.pdf 28. 9. 2009 8:42:45

Navigation menu
