42-8533D

COLOUR TELEVISION WITH REMOTE CONTROL

OPERATING INSTRUCTIONS

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

50198875

English - 1 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Contents

Features ................................................................. 2

Introduction ............................................................. 2

Preparation ............................................................. 2

Safety Precautions ................................................. 3

Package Contents .................................................. 6

Environmental Information ..................................... 7

Remote Control Buttons ......................................... 8

LCD TV and Operating Buttons .............................. 9

Viewing the Back side Connections ....................... 9

Viewing the Connections - Side Connectors ........ 10

Power Connection ................................................ 10

Aerial Connection ............................................. 10

Using Digital Multimedia Connectors.....................11

USB Memory Connection ..................................11

Connecting the LCD TV to a PC ............................11

Connecting to a DVD Player................................. 12

Using Side AV Connectors ................................... 12

Using Other Connectors ....................................... 12

Remote Control Handset ...................................... 12

Inserting Batteries ............................................. 12

Switching On/Off ................................................... 13

To Switch the TV On ......................................... 13

To Switch the TV Off ......................................... 13

Digital Teletext (** for UK only) ......................... 13

Analogue Teletext ............................................. 13

Input Selection ...................................................... 13

Operation with the Buttons on the TV ............... 13

Operation with the Remote Control .................. 13

First Time Installation............................................ 15

Auto Tuning .......................................................... 16

Auto Channel Scan Menu Operation ................ 16

Manual Tuning ..................................................... 16

Digital Manual Search....................................... 16

Analogue Manual Search ................................. 16

Analog Fine Tune.............................................. 17

Clear Service List (*) ......................................... 17

Managing Stations: Channel List .......................... 17

Operating the Channel List ............................... 17

Moving a Channel ............................................. 17

Deleting a Channel ........................................... 17

Renaming a Channel ........................................ 17

Locking a Channel ............................................ 18

Managing Stations: Favourites ............................. 18

Button Functions ............................................... 18

Managing Stations: Sorting Channel List ............. 18

On-Screen Information ......................................... 18

Media Playback Using Media Browser ................. 19

Viewing Videos via USB .................................. 19

Viewing Photos via USB ................................... 20

Media Browser Settings .................................... 21

Using the 3D Mode ............................................... 21

3D Mode ........................................................... 21

Changing Image Size: Picture Formats ................ 22

Confi guring Picture Settings ................................. 23

Operating Picture Settings Menu Items ............ 23

Picture Settings Menu Items ............................. 23

PC Picture Settings Operation .......................... 23

Confi guring Sound Settings .................................. 24

Operating Sound Settings Menu Items ............. 24

Sound Settings Menu Items.............................. 24

Confi guring Your TV’s Settings ............................. 25

Operating Settings Menu Items ........................ 25

Settings Menu Items ......................................... 25

Using a Conditional Access Module ..................... 25

Viewing Conditional Access Menu (*) ............... 25

Confi guring Language Preferences ...................... 26

Language Settings ............................................ 26

Parental Control.................................................... 26

Parental Settings Menu Operation (*) ............... 27

Timers ................................................................... 27

Setting Sleep Timer .......................................... 27

Setting Programme Timers ............................... 27

Confi guring Date/Time Settings ............................ 28

Confi guring Source Settings ................................. 28

Confi guring Other Settings ................................... 28

Operation .......................................................... 28

Other Features ..................................................... 29

Teletext ................................................................. 30

Tips ....................................................................... 30

Appendix A: PC Input Typical Display Modes ....... 31

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 31

Appendix C: Supported DVI Resolutions.............. 32

Appendix D: Supported File Formats for USB

Mode..................................................................... 33

Appendix E: Software Upgrade ............................ 34

Appendix F: Supported 3D Content Resolutions .. 35

3D Glasses ........................................................... 35

Using with PS3 (for UK only) ................................ 36

Using with SKY (for UK only) ................................ 36

Specifi cations ....................................................... 37

Important Instruction ............................................. 38

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 101_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1 27.09.2011 17:48:4627.09.2011 17:48:46

English - 2 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Features

3D Viewing: This product supports the 3D viewing • function via an available broadcast or via HDMI,

PC,YPBPR source.

Remote controlled colour LCD TV.•

Fully integrated Terrestrial digital TV (DVB-T - • MPEG2).

HDMI connectors for digital video and audio. This • connection is also designed to accept high defi nition

signals.

USB input.•

1000 programmes (analogue+digital).•

OSD menu system.•

Integrated tuner DVB-T, MPEG2 compatible.•

Scart socket for external devices (such as video, • video games, audio set, etc.).

Stereo sound system. (German+Nicam)•

Teletext, fastext, TOP text.•

Headphone connection.•

Automatic programming system.•

Forward or backward manual tuning.•

Sleep timer / Child lock.•

Automatic sound mute when no transmission.•

NTSC playback. •

AVL (Automatic Volume Limiting).•

Auto power down.•

PLL (Frequency Search).•

PC input. •

Plug&Play for Windows 98, Windows 7, ME, 2000, • XP, Vista.

Game Mode•

Introduction

Please read the corresponding instructions of this

handbook prior to the fi rst usage of the device, even

when the usage of electronic devices is familiar

to you. Notice especially the chapter SAFETY

PRECAUTIONS. Carefully keep the handbook as

future reference. When selling the device or giving it

away, absolutely give these direction for use.

Thank you for choosing this product. This manual will

guide you for the proper operation of your TV.

Before operating the TV, please read this

manual thoroughly. Please do keep this

manual in a safe place for future references.

This device is intended to receive and display TV

programs. The different connection options make

an additional expansion of the reception and display

sources possible (receiver, DVD player, DVD

recorder,

VCR, PC etc.). This device is only suitable for the

operation in dry interiors. This appliance is intended

solely for private domestic use and may not be used

for industrial and commercial purposes. We exclude

liability in principle, if the device is not used as

intended, or unauthorized modifi cations have been

made. To operate your LCD TV in extreme ambient

conditions may cause the damage of the device.

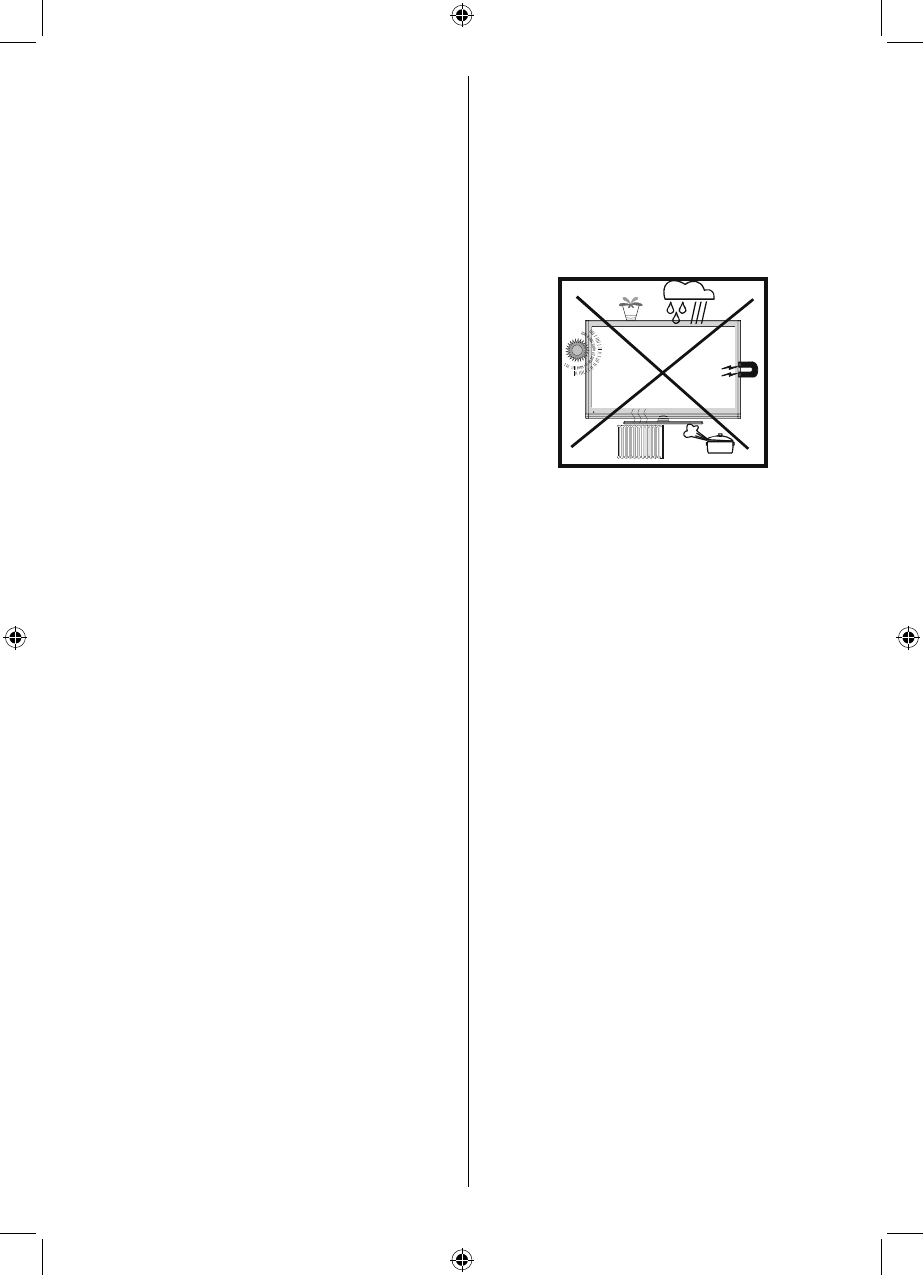

Preparation

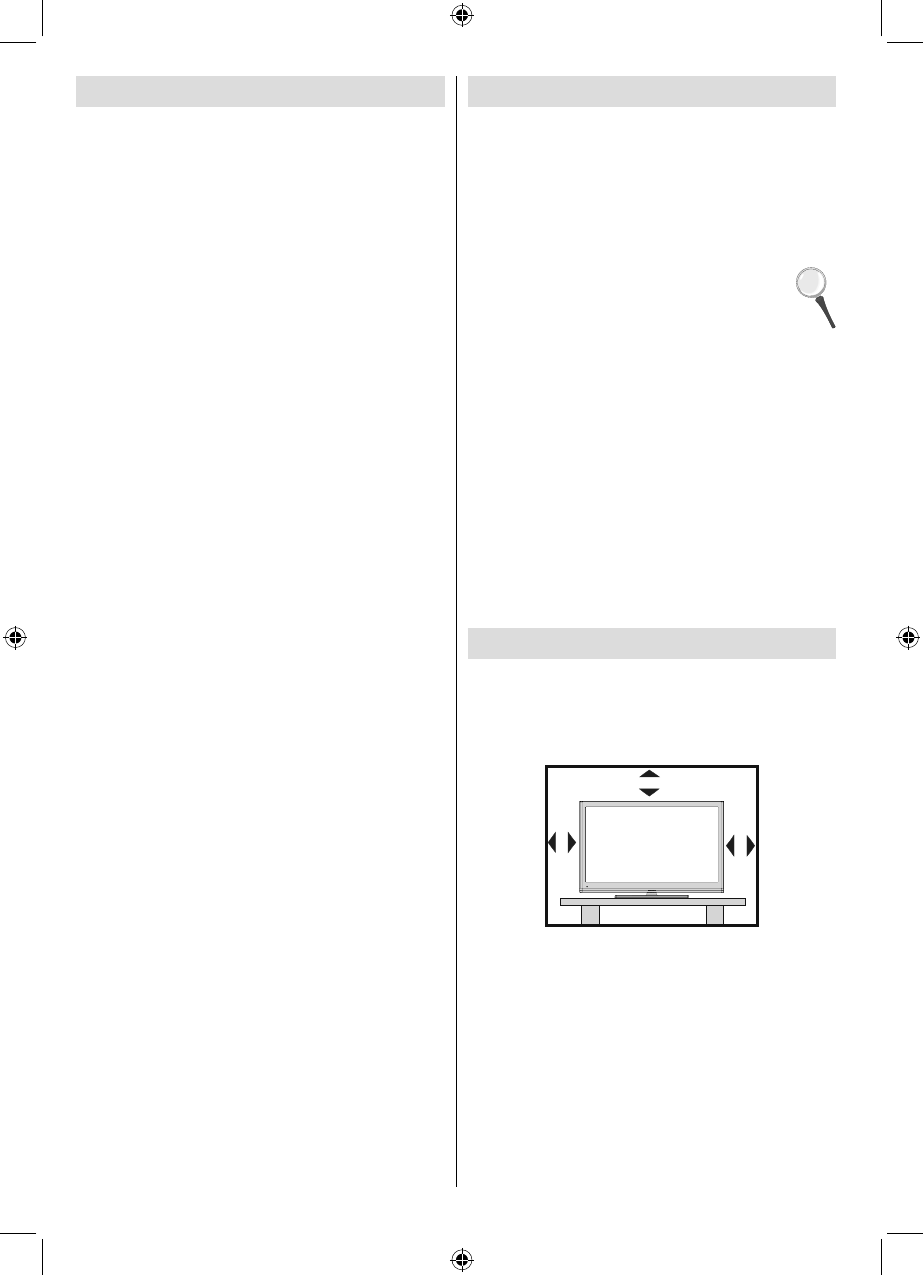

For ventilation, leave a free space of at least 10 cm

all around the set. To prevent any fault and unsafe

situations, please do not place any objects on top of

the set. Use this device in moderate climates.

10 cm

10 cm

10 cm

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 201_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2 27.09.2011 17:48:4727.09.2011 17:48:47

English - 3 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Safety Precautions

Read the following recommended safety

precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240

V AC, 50 Hz outlet. Ensure that you select the correct

voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the

power cord (mains lead) or pinch the cord. Handle the

power cord by the plug. Do not unplug the appliance by

pulling from the power cord and never touch the power

cord with wet hands as this could cause a short circuit or

electric shock. Never make a knot in the cord or tie it with

other cords. The power cords should be placed in such a

way that they are not likely to be stepped on. A damaged

power cord can cause fi re or give you an electric shock.

When it is damaged and needs to be replaced, it should

be done by qualifi ed personnel.

Moisture and Water

Do not use this device in a humid and

damp place (avoid the bathroom, the

sink in the kitchen, and near the washing

machine). Do not expose this device to

rain or water, as this may be dangerous

and do not place objects filled with

liquids, such as fl ower vases, on top.

Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug

the TV and have it checked by qualifi ed personnel

before operating it any further.

Cleaning

Before cleaning, unplug the TV set

from the wall outlet. Do not use liquid

or aerosol cleaners. Use soft and dry

cloth.

Ventilation

The slots and openings on the TV set are intended for

ventilation and to ensure reliable operation. To prevent

overheating, these openings must not be blocked or

covered in anyway.

Heat and Flames

The set should not be placed near to

open fl ames and sources of intense heat

such as an electric heater. Ensure that

no open fl ame sources, such as lighted

candles, are placed on top of the TV. Batteries should

not be exposed to excessive heat such as sunshine,

fi re or the like.

Lightning

In case of storm and lightning or when

going on holiday, disconnect the power

cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that

the service technician has used replacement parts,

which are specifi ed by the manufacturer or have the

same specifi cations as the original one. Unauthorized

substitutions may result in fi re, electrical shock or

other hazards.

Servicing

Please refer all servicing to qualifi ed

personnel. Do not remove the cover

yourself as this may result in an electric

shock.

Waste Disposal

Instructions for waste disposal:•

Packaging and packaging aids are recyclable and

should principally be recycled. Packaging materials,

such as foil bag, must be kept away from children.

Batteries, including those which are heavy metal-free,

should not be disposed of with household waste.

Please dispose of used battery in an environment

friendly manner. Find out about the legal regulations

which apply in your area.

• Don’t try to recharge batteries. Danger of explosion.

Replace batteries only with the same or equivalent

type.

This symbol on the product or on its

packaging means that your electrical

and electronic device should be disposed

at the end of its service life separately

from your household wastes. There are

separate collection systems for recycling

in EU. For more information, please contact the local

authority or the dealer where you purchased the

product.

Disconnecting the Device

The mains plug is used to disconnect TV set from

the mains and therefore it must remain readily

operable.

Headphone Volume

Excessive sound pressure from earphones

and headphones can cause hearing loss.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 301_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3 27.09.2011 17:48:4727.09.2011 17:48:47

English - 4 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

3D Mode and 3D Images

Read and understand the following safety

precautions carefully for your safety before using

the 3D function.

You may experience discomfort, headaches • or dizziness while watching 3D images. If you

experience such symptoms, you should remove 3D

glasses and stop watching 3D mode.

Take regular breaks while watching 3D images. The • length and frequency of breaks may change from

person to person. You must decide what works best

for you. If you experience discomforts such as eye

strain or nausea while watching 3D images for a

long time, remove 3D glasses, stop watching 3D

mode and rest. You should consult a doctor if you

believe it is necessary.

It is recommended that an adult should check • on children if the children are using 3D function.

If they experience symptoms such as dizziness,

headaches or eye strain, you should have the

children stop watching 3D TV and you should have

the children rest.

Do not use the 3D Glasses for other purposes such • as sunglasses or general eyeglasses.

Do not use the 3D mode or wear 3D Glasses while • you are moving around. Using the 3D mode or 3D

Glasses while moving may lead to injuries due to

running into objects, and falling.

Use only the supplied 3D glasses.•

If you experience screen fl ickering when watching • 3D images in poor light conditions, you should turn

the lamp off or dim the light.

When using headphones, you should adjust the • volume so as to avoid excessive levels, since

hearing damage may result.

Caution

Please read these safety instructions carefully to

ensure your personal safety and to prevent

damage.

If you experience difficulty while viewing 3D images

with the 3D glasses, you may have some problems

with your eyesight.

• You may experience headaches or fatigue when

viewing 3D images through the glasses for too long.

If you experience headaches, fatigue, or dizziness,

stop watching immediately.

• Do not drop objects onto the product or import

force to the product. This may result in electric shock

or fire.

• Do not use your product near a humidifier or kitchen

counter. This may result in electric shock or fire.

• Do not disassemble, repair or modify the product or

its parts. Failing to do so may result in damage to the

product or a malfunction.

• The following people should not use this product:

Pregnant women, infirm persons, persons with heart

issues, as well as persons that become nauseous

easily. People with these conditions should not use

this product.

• When watching 3D video, do not place anything

nearby that can be easily broken. You may mistake

a 3D image for an actual object and move your

body, causing you to break nearby objects and hurt

yourself.

• Use this product for watching 3D video only. Do not

use it for any other purpose.

• Do not use the 3D Glasses as sunglasses or reading

glasses.

• Do not spray cleaner directly onto the surface of the

product.This may result in discoloration and cracks

and may cause the screen display to peel off.

• Do not let water come into contact with the product

when cleaning it. Ensure that water does not enter the

product. This may result in electric shock or fire.

• Since the lens of the product is easily scratched,

make sure to clean the product with a soft cloth. As

the product may be scratched if there is any foreign

material on the cloth, make sure to shake off any dust

before using it.

• Do not scratch the surface of the Liquid crystal

shutters with a sharp tool and do not clean it using

chemicals. This may degrade the screen quality.

• Do not apply force to the liquid crystal.

• Do not drop or bend the product.

• If the receiving range is out of the specified range,

the screen may not be viewable as 3D video.

• Flickering may be generated by the 3D glasses (60

Hz) when watching the 3D screen when a magnetic

fluorescent lamp (50 Hz) is on.

• If you encounter this symptom, please turn off the

light and continue watching.

HEALTH WARNING!

When watching 3D images, you should leave a

distance of at least twice the screen width, and you

should keep the screen at eye level.

If you watch the 3D imaging too closely or for a long

period of time, it is possible that it may harm your

eyesight. Watching the TV or playing video games

that incorporate 3D imaging with the 3D glasses for a

long period of time can cause drowsiness, headaches

or fatigue to you and/or your eyes. If you have a

headache, or otherwise feel fatigued or drowsy, stop

watching the TV and take a rest. Pregnant woman,

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 401_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 4 27.09.2011 17:48:4727.09.2011 17:48:47

English - 5 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

seniors, persons with heart problems or persons

who experience frequent drowsiness should refrain

from watching 3D. Some 3D imaging may cause

you to duck or dodge the image displayed in the

video. Therefore, it is best if you do not watch 3D TV

near fragile objects or near any objects that can be

knocked over easily. Please prevent children under

the age of 5 from watching 3D. It may affect their

vision development.

Warning for photosensitization seizure

If you or a member of your family has a history of

epilepsy or seizure, please consult with your doctor

before watching 3D TV. It is possible that some

viewers may experience a seizure or epilepsy when

exposed to certain conditions, including fl ashing lights

or images in TV or video games.

Sometimes certain symptoms can occur in unspecifi ed

conditions even if you do not have any previous

history. In such a case, if you experience any of the

following symptoms, immediately stop watching the

3D TV and consult a doctor:

altered vision, visual or facial instability, such as eye

or muscle twitching, dizziness or light-headedness,

visual transition or unconscious action, convulsion,

loss of conscience, confusion or disorientation, loss

of directional sense, cramps, or nausea.

When watching 3D TV, monitor your children, including

teenagers because they may be more sensitive to the

effects of watching 3D such as these symptoms.

You can reduce the risk of photosensitization seizure

by taking the following actions:

While watching the 3D TV, do take frequent breaks.

If you have vision that is different in each eye, you

should watch the TV after taking vision correction

measures.

When watching the TV, ensure that your eyes are

on the same level with the screen and do not sit too

closely to the TV. Do not watch the 3D TB when you

are tired or sick. Avoid watching the 3D TV for a long

period of time.

Wear the 3D glasses only for viewing 3D imaging on

the TV. Do not use for other purposes.

Some viewers may feel disoriented afl er watching

3D. Therefore, after you watch 3D, take a moment to

regain awareness of your situation before moving.

Installation

To prevent injury, this device must be securely

attached to the wall in accordance with the installation

instructions when mounted to the wall (if the option

is available).

LCD Screen

The LCD panel is a very high technology product with

about a million thin fi lm transistors, giving you fi ne

picture details. Occasionally, a few non-active pixels

may appear on the screen as a fi xed blue, green or

red point. Please note that this does not affect the

performance of your product.

Warning! Do not leave your TV in standby or operating

mode when you leave your house.

The Standby / On button doesn´t separate this

device completely from mains. Moreover the device

consumes power in the standby operation. In order to

separate the device completely from mains, the mains

plug has to be pulled from the mains socket. Because

of that the device should be set up in a way, that an

unobstructed access to mains socket is guaranteed,

so that in case of emergency the mains plug can be

pulled immediately. To exclude the danger of fi re, the

power cord should principally be separated from the

mains socket prior to a longer period of non-usage,

i.e. during vacations.

Electrical device not in the hands of children

Never let children use electrical device unsupervised.

Children can´t always recognize properly the

possible dangers. Batteries / accumulators can be

life threatening when swallowed. Store batteries

unreachable for small children. In case of swallowing

a battery medical aid has to be sought immediately.

Also keep the packaging foils away from children.

There is danger of suffocation.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 501_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 5 27.09.2011 17:48:4827.09.2011 17:48:48

English - 6 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Licence Notifi cation (optional)

Manufactured under license from Dolby

Laboratories.

TRADEMARK ACKNOWLEDGMENT

“Dolby” and the double-D symbol are trademarks of

Dolby Laboratories.

Connection to a Television Distribution

System (Cable TV etc.) from Tuner

Device connected to the protective earthing of the

building installation through the mains connection or

through other apparatus with a connection to protective

earthing-and to a television distribution system using

coaxial cable, may in some circumstances create a

fi re hazard.

Connection to a cable distribution system has

therefore to be provided through a device providing

electrical isolation below a certain frequency range

(galvanic isolator, see EN 60728-11).

Package Contents

123

456

789

0

SCREEN LANG SUBTITLE

REPEAT TITLE

ZOOM ROOT

TEXT SWAP

OK

P/CH

MENU SOURCE RETURN

SEARCH

EPG INFO SLEEP

DISPLAY PRESETS

MODE

Remote

Control

LCD TV

Batteries: 2 X AAA

Instruction Book

3D Glasses: 2x

Note: You should check the accessories after

purchasing. Make sure that each accessory is

included.

If you need additional pairs of 3D Glasses, please

purchase them from your dealer.

Note: The HDMI connection between PC and TV

may cause radio interference in which case it is

recommended to use VGA(DSUB-15) connection.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 601_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 6 27.09.2011 17:48:4827.09.2011 17:48:48

English - 7 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Environmental Information

• This television is designed to consume less energy to save environment.

You not only help to save the environment but also you can save money by reducing electricity bills thanks to the

energy effi ciency feature of this TV. To reduce energy consumption, you should take the following steps:

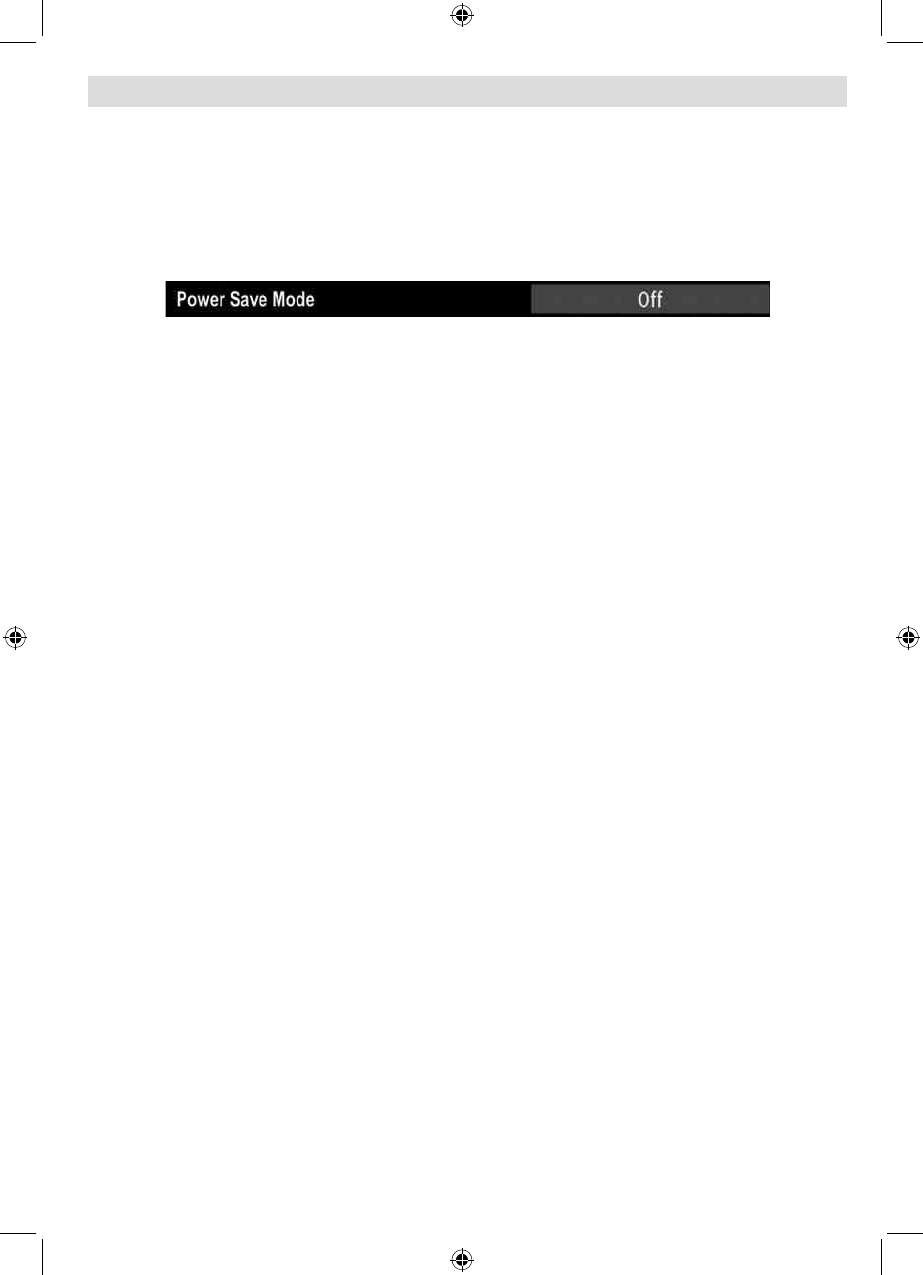

• You can use Power Save Mode setting, located in the Other Settings menu. If you set Power Save Mode as

On, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level.

Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

• When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce

energy consumption.

• Disconnect power when going away for longer time.

• Note that annually, using the TV set in Power Save Mode has more power effi ciency than disconnecting

the TV from the mains plug instead of keeping stand-by mode. Therefore disconnect the TV from the mains

plug to save energy when you do not use. However it is highly recommended to activate Power Save Mode

setting to reduce your annual power consumption.

• Please help us to save environment by following these steps.

Repair Information

Please refer all servicing to qualifi ed personnel. Only qualifi ed personnel must repair the TV. Please contact

your local dealer, where you have purchased this TV for further information.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 701_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 7 27.09.2011 17:48:4927.09.2011 17:48:49

English - 8 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

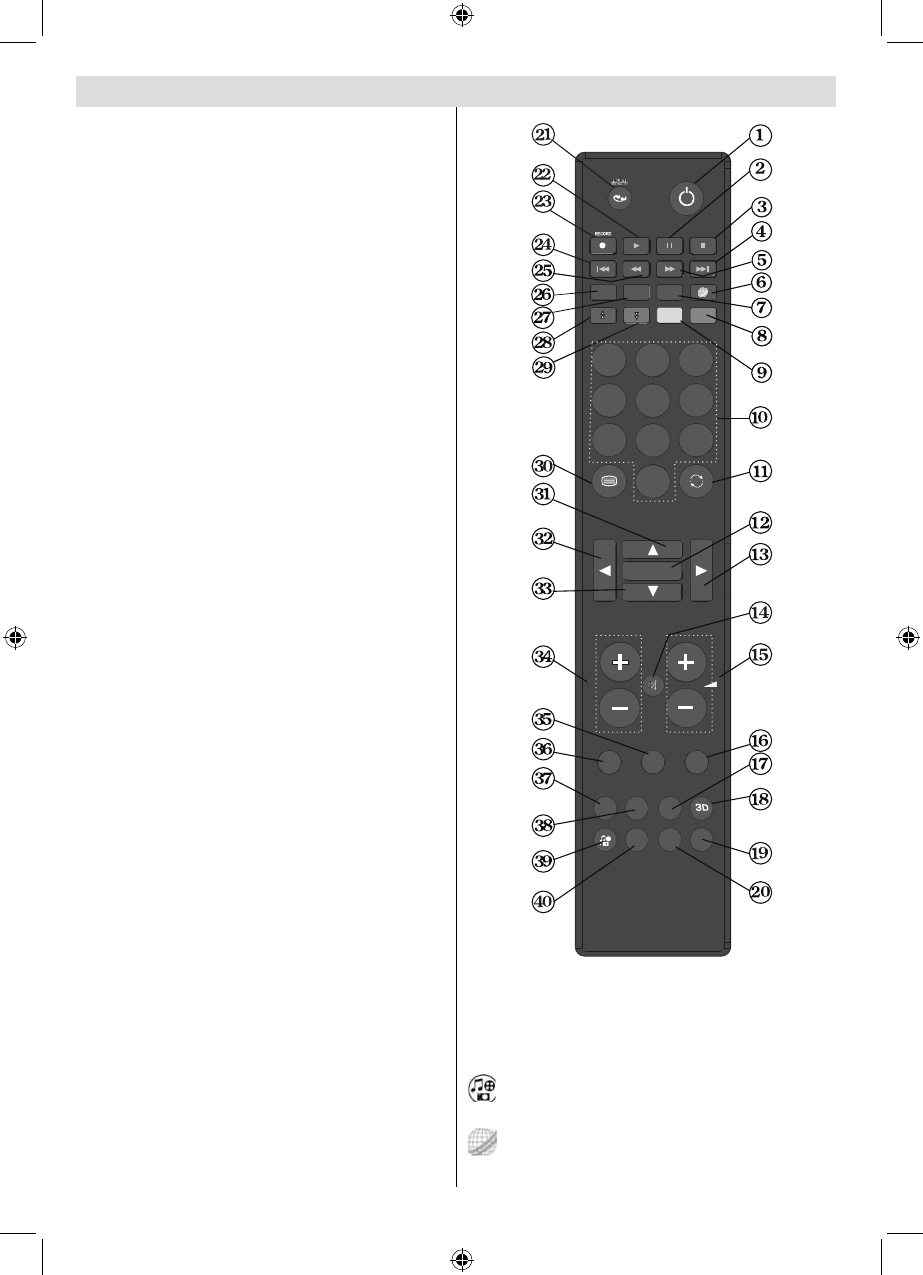

Remote Control Buttons

Standby1.

Pause (in Media Browser mode)2.

Stop (in Media Browser mode)3.

No function4.

Rapid advance (in Media Browser mode)5.

No function6.

Subtitle on-off / TXT subtitle (analogue TV 7. mode) / Subtitle (in Media Browser mode)

Blue button8.

Yellow button: Active channel list9.

Numeric buttons10.

Previous programme 11.

OK / Select / Hold (in TXT mode) / Channel List12.

Cursor right13.

Mute14.

Volume up / down15.

Exit / Return / Index page (in TXT mode)16.

Sleep timer 17.

3D Settings18.

Picture mode selection / Changes picture mode 19. (in Media Browser video mode)

Exit USB menu20.

No function21.

Play (in Media Browser mode)22.

No function23.

No function24.

Rapid reverse (in Media Browser mode)25.

Image size26.

Mono/Stereo - Dual I-II / Current Language27.

Red button / Zooms videos (in Media Browser 28. video mode)

Green button29.

Teletext / Mix30.

Cursor up31.

Cursor left32.

Cursor down33.

Programme Down - Page up / Programme Up - 34. Page down

AV / Source35.

Menu on/off36.

Electronic Programme Guide37.

Info / Reveal (in TXT mode)38.

Media Browser (optional)39.

No function40.

123

456

789

0

SCREEN LANG SUBTITLE

REPEAT TITLE

ZOOM ROOT

TEXT SWAP

OK

P/CH

MENU SOURCE RETURN

SEARCH

EPG INFO SLEEP

DISPLAY PRESETS

MODE

These buttons change according to the model:

/Media Browser(optional)

Angle/No function (optional)

/Web Browser(optional)

Pip/ Pip function(optional)

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 801_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 8 27.09.2011 17:48:4927.09.2011 17:48:49

English - 9 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

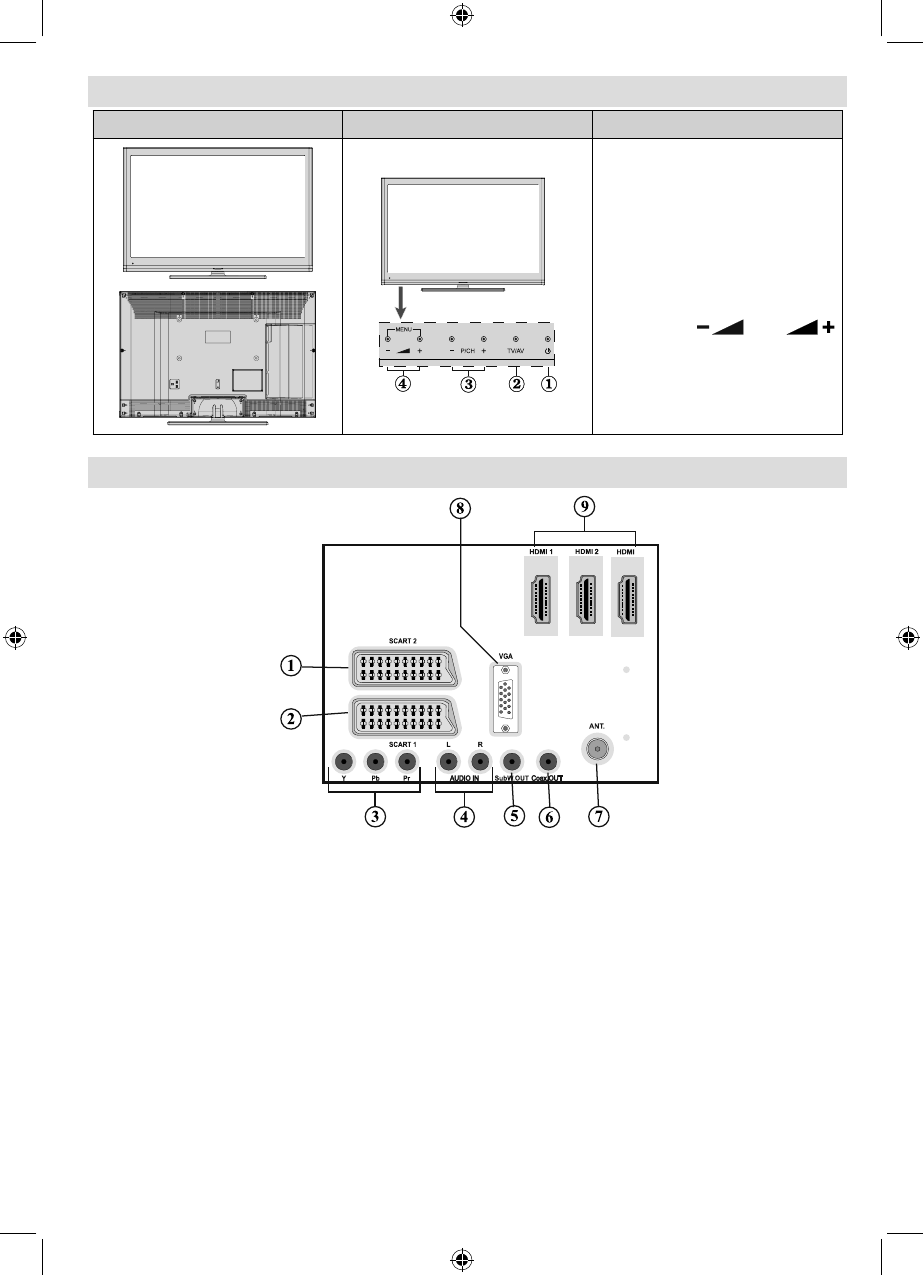

LCD TV and Operating Buttons

FRONT and REAR VIEW Control buttons VIEW Control Buttons

1. Standby/On button

2. TV/AV button

3. Programme Up/Down buttons

4. Volume Up/Down buttons

Note: Press “ ” and

buttons at the same time to view

main menu.

Viewing the Back side Connections

3

SCART 21. inputs or outputs for external devices.

SCART 1 2. input or output for external devices. Connect the SCART cable between SCART socket on

TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV

mode.

Note: To connect external device,please use to supplied scart connection cable.

Component Video Inputs (YPbPr)3. are used for connecting component video.

You can connect the component video and audio sockets with a device that has component output.

Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and

the component video outputs of your device. While connecting, be sure that the letters on your TV, “Y”,

“Pb”, “Pr” correspond with your device’s connectors.

PC/YPbPr Audio Inputs4. are used for connecting audio signals of a PC or a device that connects to the

TV via YPbPr. Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output

of your PC to enable PC audio. Connect the audio cable between AUDIO INPUTS on the TV and audio

outputs of your device to enable component audio.

Subwoofer Out5. is for connecting an external, active subwoofer to the set to give a much deeper bass

effect. Use an appropriate RCA cable to connect the TV set to a subwoofer unit.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 901_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 9 27.09.2011 17:48:4927.09.2011 17:48:49

English - 10 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

S/PDIF Coaxial Out6. outputs digital audio signals of the currently watched source.

Use an SPDIF coaxial cable to trasfer audio signals to a device that has S/PDIF input

RF Input7. connects to an aerial antenna system.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device

to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

PC Input8. is for connecting a personal computer to the TV set.

Connect the PC cable between the PC INPUT on the TV and the PC output on your PC

HDMI Inputs9. are for connecting a device that has an HDMI socket. Your LCD TV is capable of

displaying High Defi nition pictures from devices such as a High Defi nition Satellite Receiver or DVD

Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets

can accept either 720p or 1080p signals. No sound connection is needed for an HDMI to HDMI

connection.

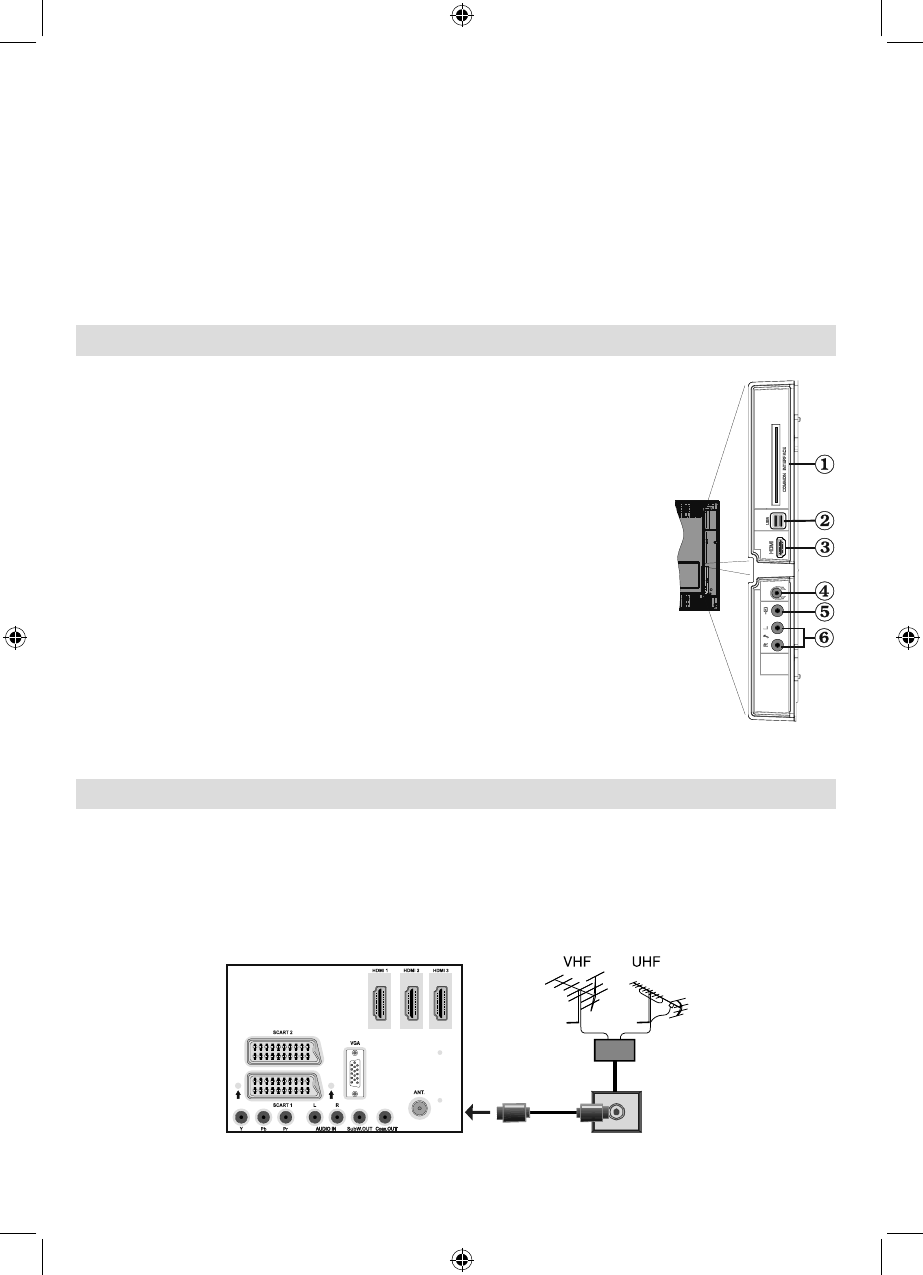

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to view all the 1. channels that you subscribe to. For more information, see “Conditional

Access” section.

Side USBs2.

HDMI Input3.

Headphone jack is used for connecting an external headphone to the system. 4. Connect to the HEADPHONE jack to listen to the TV from headphones

(optional).

Video Input is used for connecting video signals of external devices. Connect 5. the video cable between the VIDEO IN socket on the TV and the VIDEO OUT

jack on your device.

Audio Inputs are used for connecting audio signals of external devices. Connect 6. the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT

jacks on your device.

Note: If you connect a device to the TV via the VIDEO INPUT, you should also connect

your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the • mains. Plug the power cable to the mains socket outlet.

Aerial Connection

Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.•

5Vdc-Max500mA

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1001_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 10 27.09.2011 17:48:5627.09.2011 17:48:56

English - 11 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Using Digital Multimedia

Connectors

You can connect USB devices to your TV by using • the USB inputs of the TV. This feature allows you

to display/play JPG, MP3 and video fi les stored in

a USB stick.

It is possible that certain types of USB devices (e.g. • MP3 Players) may not be compatible with this TV.

You may back up your fi les before making any • connections to the TV set in order to avoid any

possible data loss. Note that manufacturer will not

be responsible for any fi le damage or data loss.

Do not pull out USB module while playing a fi le.•

CAUTION: Quickly plugging and unplugging USB

devices, is a very hazardous operation. Especially,

do not repeatedly quickly plug and unplug the

drive. This may cause physical damage to the USB

player and especially the USB device itself.

SIDE VIEW USB MEMORY

USB Memory Connection

IMPORTANT: The TV should be switched off while

plugging or unplugging a USB device. Plug your

USB device to the USB inputs of the TV. You can

connect two usb device to your TV by using the USB

inputs of the TV at the same time.

Note: It is possible certain types of hard disk drives

are not supported.

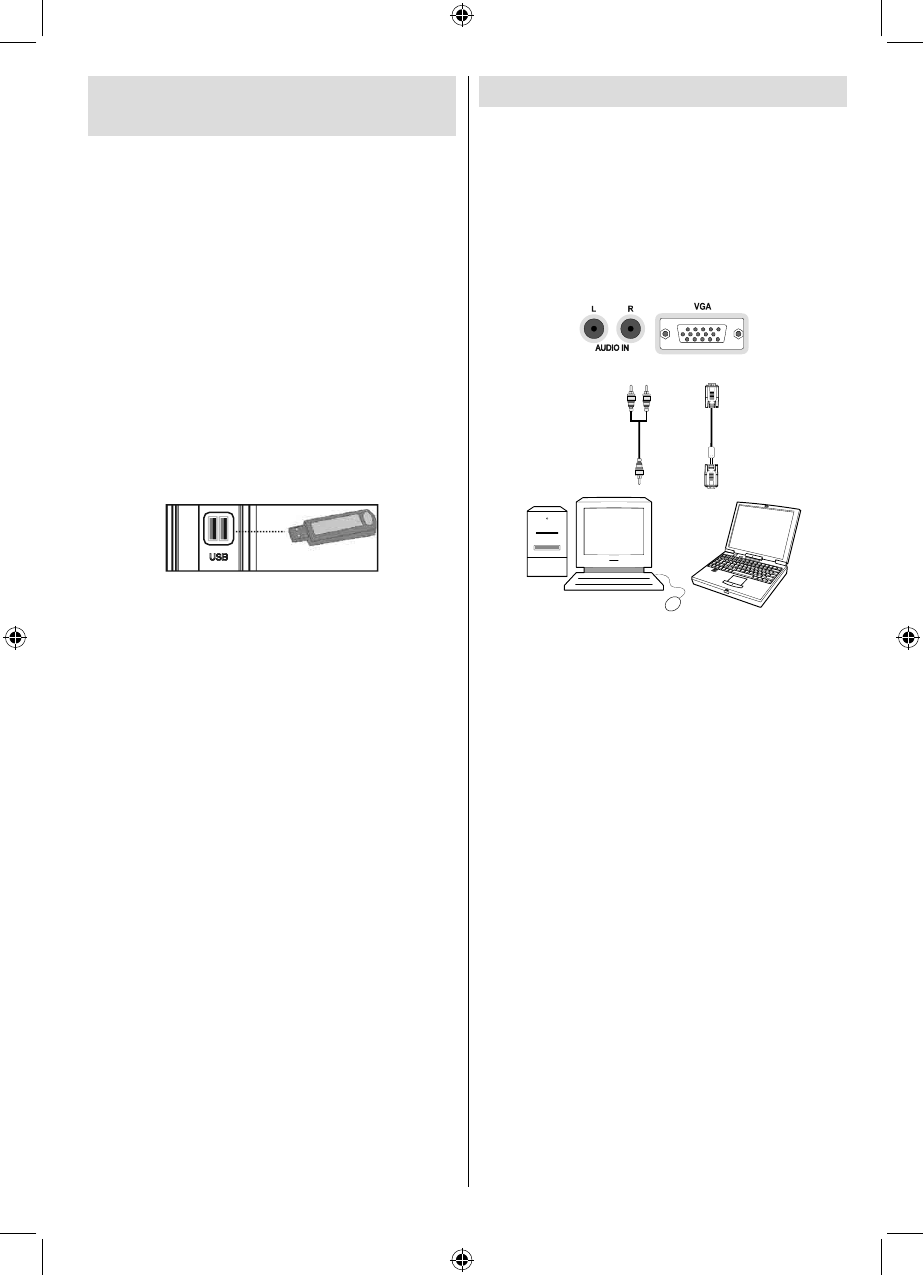

Connecting the LCD TV to a PC

For displaying your computer’s screen image on your

LCD TV, you can connect your computer to the TV set.

Power off both computer and display before making

any connections. Use 15-pin D-sub display cable to

connect a PC to the LCD TV. When the connection

is made, switch to PC source. See “Input selection”

section. Set the resolution that suits your viewing

requirements. Resolution information can be found

in the appendix parts.

PC audio cable

(not supplied)

PC VGA cable

(not supplied)

Audio inputs of the TV

PC input of the TV

Audio output of the PC Monitor output of the PC

Note: If you connect a PC to the TV using HDMI

connection, radio interference may occur. Therefore

this type of connection is not recommended. You

should use VGA connection instead.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1101_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 11 27.09.2011 17:48:5827.09.2011 17:48:58

English - 12 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Using Side AV Connectors

You can connect a range of optional equipment to

your LCD TV.

For connecting a camcorder, connect to the VIDEO • IN socket and the AUDIO SOCKETS. Do not connect

the camcoder to VIDEO IN socket at the same time

since it can cause noise in the picture. For selecting

the related source, see the section “Input selection”

in the following parts.

To listen the TV sound from headphones, connect •

to the HEADPHONE jack of theTV.

Using Other Connectors

You can connect a range of optional equipment

to your LCD TV. Possible connections are shown

below. Note that cables shown in the illustration are

not supplied.

For connecting a to a device that has SPDIF support, • use an appropriate SPDIF cable to enable sound

connection.

External Speakers

A device that

supports

SPDIF signal.

Remote Control Handset

Inserting Batteries

Remove the battery cover located on the back of • the handset by gently pulling backwards from the

indicated part.

Insert two • AAA/R3 or equivalent type batteries

inside. Observe the correct polarity (+/-) when

inserting batteries and replace the battery cover.

Note: Remove the battery from remote control

handset when it is not to be used for a long period.

Otherwise it can be damaged due to any leakage of

batteries. Remote range is approximately 7m/23ft.

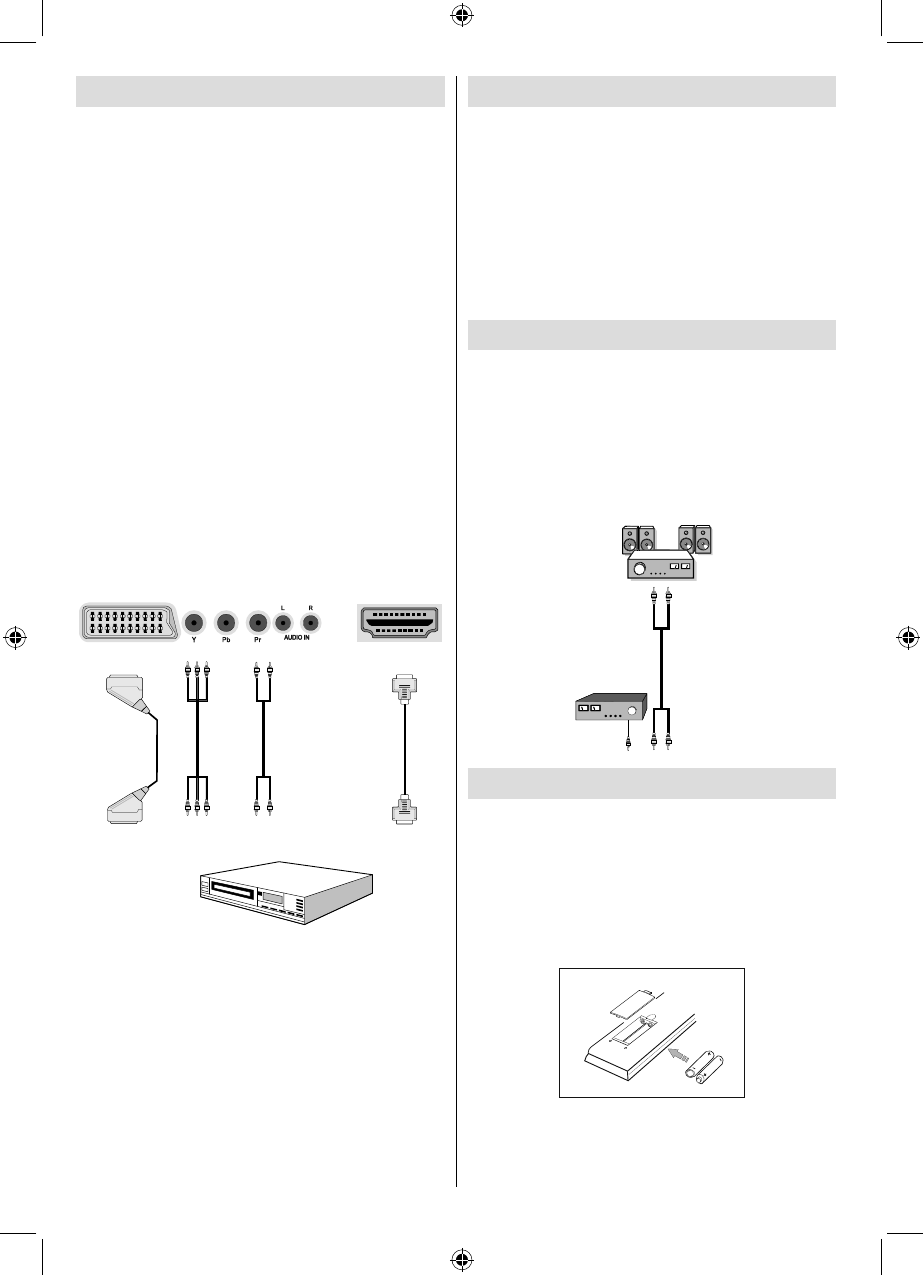

Connecting to a DVD Player

If you want to connect a DVD player to your LCD

TV, you can use connectors of the TV set. DVD

players may have different connectors. Please refer

to your DVD player’s instruction book for additional

information. Power off both the TV and the device

before making any connections.

Note: Cables shown in the illustration are not

supplied.

If your DVD player has an HDMI socket, you can • connect via HDMI. When you connect to DVD player

as illustrated below, switch to HDMI source. See,

“Input Selection” section.

Most DVD players are connected through • COMPONENT SOCKETS. Use a component video

cable to connect video input. For enabling audio,

use a component audio cable as illustrated below.

When the connection is made, switch to YPbPr

source. See, “Input selection” section.

You may also connect through the SCART 1 or • SCART 2. Use a SCART cable as shown below.

Note: These three methods of connection perform the

same function but in different levels of quality. It is not

necessary to connect by all three methods.

HDMI

HDMI

inputs

Scart sockets

Component

video

inputs

Component

audio

inputs

DVD Player

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1201_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 12 27.09.2011 17:48:5827.09.2011 17:48:58

English - 13 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC 50 Hz. •

Press STANDBY touch button. Then the standby • LED lights up.

To switch on the TV from standby mode either:•

Press the “• ” button, P+ / P- or a numeric button on

the remote control.

Press the • P/CH- or P/CH+ touch button on the TV. The

TV will then switch on.

Note: If you switch on your TV via PROGRAMME UP/

DOWN buttons on the remote control or on the TV

set, the programme that you were watching last will be

reselected.

By either method the TV will switch on.

To Switch the TV Off

Press the “• ” button on the remote control or press

the STANDBY touch button on the TV, so the TV will

switch to standby mode.

To power down the TV completely, unplug the • power cord from the mains socket.

Note: When the TV is switched to standby mode,

standby LED can blink to indicate that features such as

Standby Search, Over Air Download or Timer is active.

The LED can also blink when you switch on the TV from

standby mode.

Digital Teletext (** for UK only)

Press the “• ” button.

The digital teletext information appears.•

Operate it with the coloured buttons, cursor buttons • and OK button.

The operation method may differ depending on the

contents of the digital teletext.

Follow the instructions displayed on digital teletext

screen.

When Press “• OK” button or similar message appears

on the screen, press the OK button.

When the “• ” button is pressed, the TV returns to

television broadcasting.

With digital terrestrial broadcasting (DVB-T), in • addition to digital teletext broadcasting together with

the normal broadcasting, there are also channels

with just digital teletext broadcasting.

The aspect ratio (picture shape) when watching • a channel with just digital teletext broadcasting is

the same as the aspect ratio of the picture viewed

previously.

When you press the “• ” button again, the digital

teletext screen will be displayed.

Analogue Teletext

Use of teletext and its functions are identical to

the analogue text system. Please do refer to the

“TELETEXT” explanations.

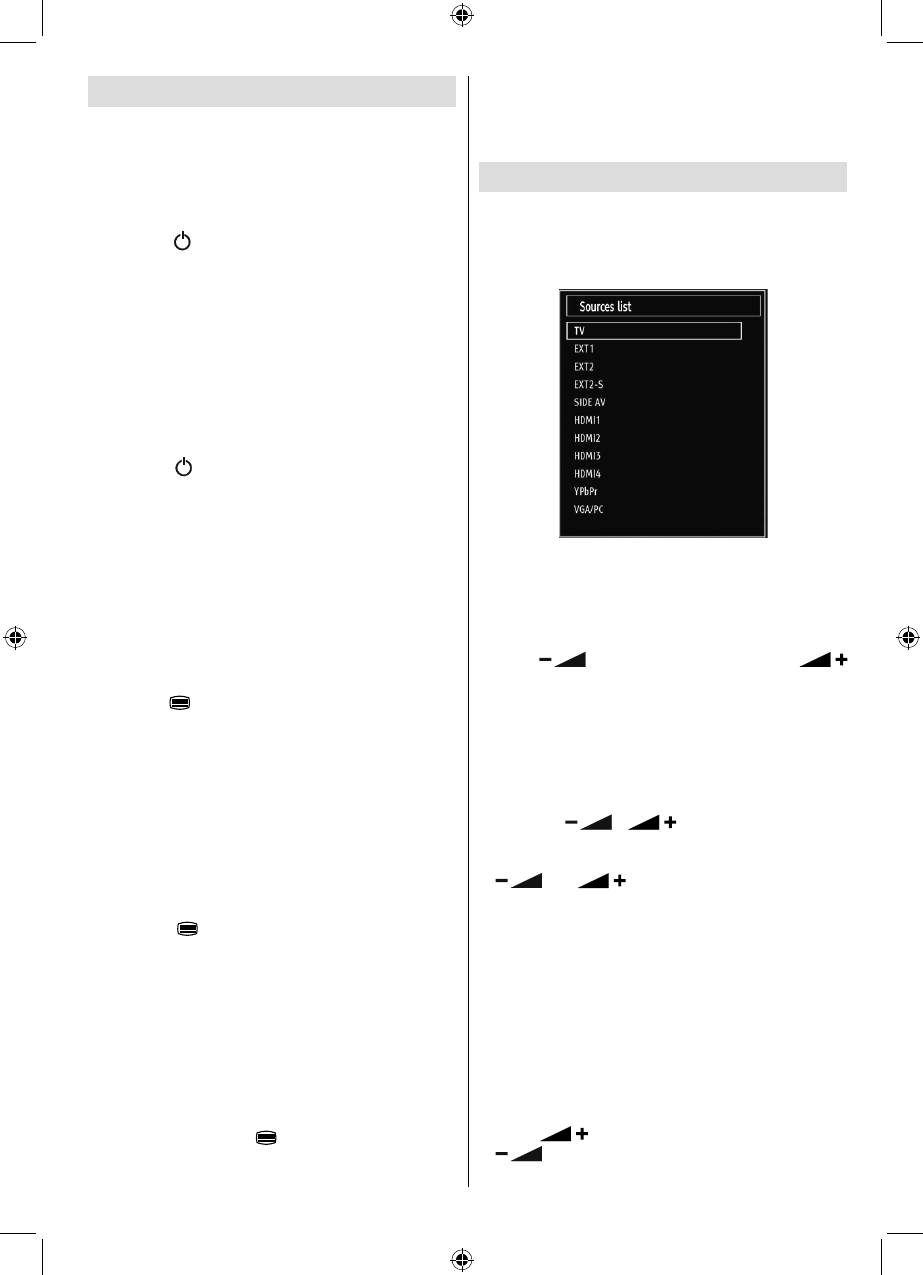

Input Selection

Once you have connected external systems to

your TV, you can switch to different input sources.

Press “SOURCE” button on your remote control

consecutively for directly changing sources.

You can operate your TV using both the remote control

and onset buttons.

Operation with the Buttons on the TV

Volume Setting

Press “• ” button to decrease volume or

button to increase volume, a volume level scale

(slider) will be displayed on the screen.

Programme Selection

Press “• P/CH +” button to select the next programme or

“P/CH -” button to select the previous programme.

Viewing Main Menu

Press the “• ”/“ ” button at the same time

to view main menu. In the Main menu select sub-

menu using “AV” button and set the sub-menu using

“” or “ ” buttons. To learn the usage of

the menus, refer to the menu system sections.

AV Mode

Press the “• AV” button in the control panel on the TV

to switch between AV modes.

Operation with the Remote Control

The remote control of your TV is designed to control • all the functions of the model you selected. The

functions will be described in accordance with the

menu system of your TV.

Volume Setting

Press “• ” button to increase the volume. Press

“” button to decrease the volume. A volume

level scale (slider) will be displayed on the screen.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1301_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 13 27.09.2011 17:48:5927.09.2011 17:48:59

English - 14 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Programme Selection (Previous or Next

Programme)

Press “• P/CH-” button to select the previous

programme.

Press “• P/CH+” button to select the next

programme.

Programme Selection (Direct Access)

Press numeric buttons on the remote control to select • programmes between 0 and 9. The TV will switch

to the selected programme. To select programmes

between, press the numeric buttons consecutively.

When the pressing time is due for the second

numeric button, only the fi rst digit programme will

be displayed. Press directly the programme number

to reselect single digit programmes.

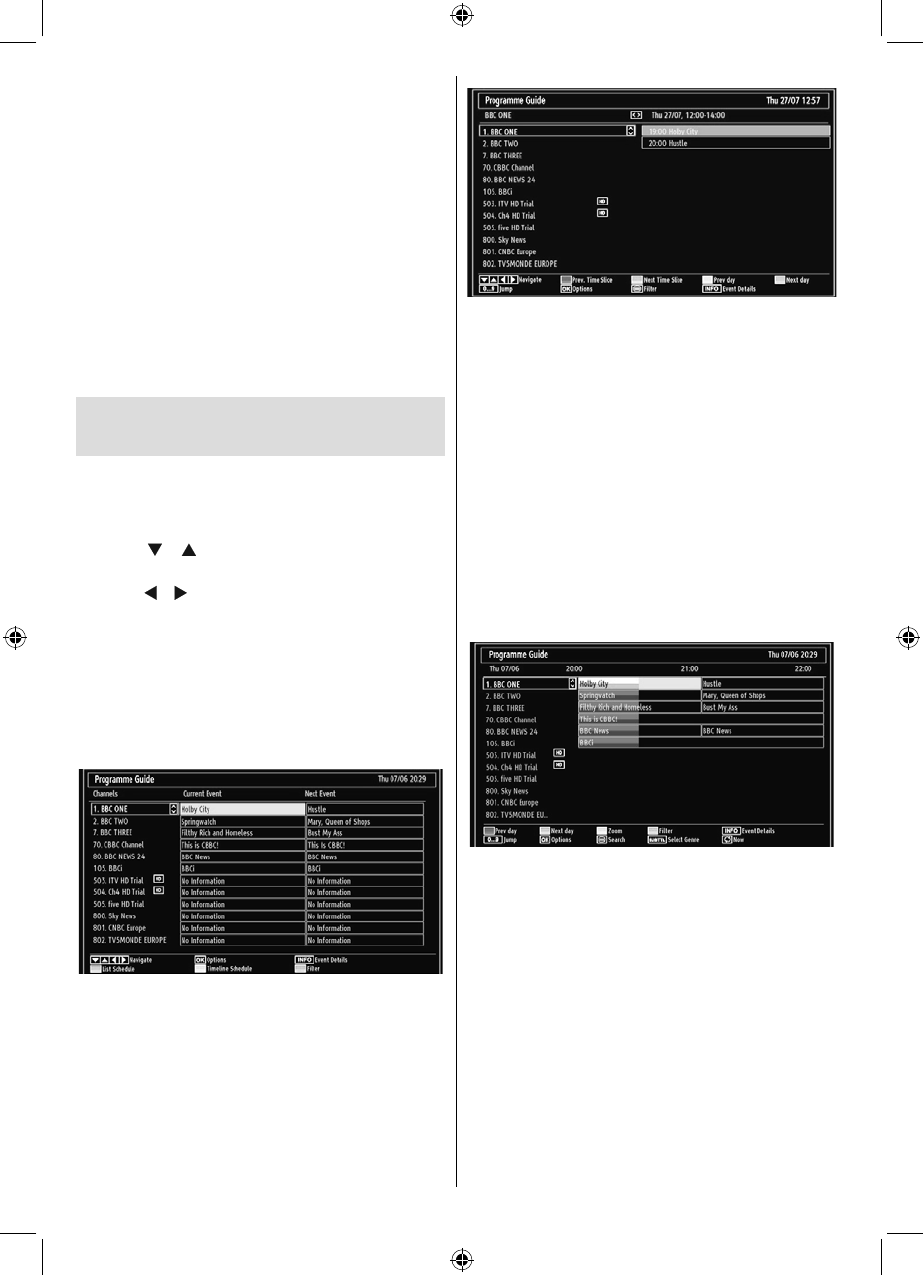

Viewing Electronic Programme

Guide (EPG)

You can view the electronic programme guide (EPG)

to view information about available programmes.To

view the EPG menu please press EPG button on the

remote control.

Press “• ”/“ ” buttons to navigate through

channels.

Press “• ”/“ ” buttons to navigate through the

programme list.

EPG• menu displays available information on all

channels.

Please note that event information is updated • automatically. If there are no event information

data available for channels, EPG will be displayed

with blanks.

OK (Options): Displays programme options including

“Select Channel” option.

INFO (Event Details): Displays the programmes in

detail.

Green button: Programme schedule will be listed

Yellow button: Display EPG data in accordane with

timeline schedule

Blue button (Filter): Views fi ltering options.

Red button (Prev Time Slice): Displays the

programmes of previous time slice.

Green button (Next Time Slice): Displays the

programmes of the next time slice.

Yellow button (Prev Day): Displays the programmes

of previous day.

Blue button (Next day): Displays the programmes

of the next day.

Numeric buttons (Jump): Jumps to the preferred

channel directly via numeric buttons.

OK (Options): Displays programme options including

“Select Channel” option.

Text button (Filter): Views fi ltering options.

INFO (Details): Displays the programmes in detail.

Red button (Prev Day): Displays the programmes

of previous day.

Green button (Next day): Displays the programmes

of the next day.

Yellow button (Zoom): Expands programme

information.

Blue button (Filter): Views fi ltering options.

INFO (Details): Displays the programmes in detail.

Numeric buttons (Jump): Jumps to the preferred

channel directly via numeric buttons.

OK (Options): Displays programme options including

“Select Channel” option.

Text (Search): Displays “Guide Search” menu.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1401_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 14 27.09.2011 17:48:5927.09.2011 17:48:59

English - 15 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

SUBTTL: Press SUBTITLE button to view Select

Genre menu. Using this feature, you can search the

programme guide database in accordance with the

genre. Info available in the programme guide will

be searched and results matching your criteria will

be listed.

(Now) : Shows the current programme.

First Time Installation

IMPORTANT: Ensure that the aerial is connected

and a Common Interface module is not inserted

before switching on the TV for the first time

installation.

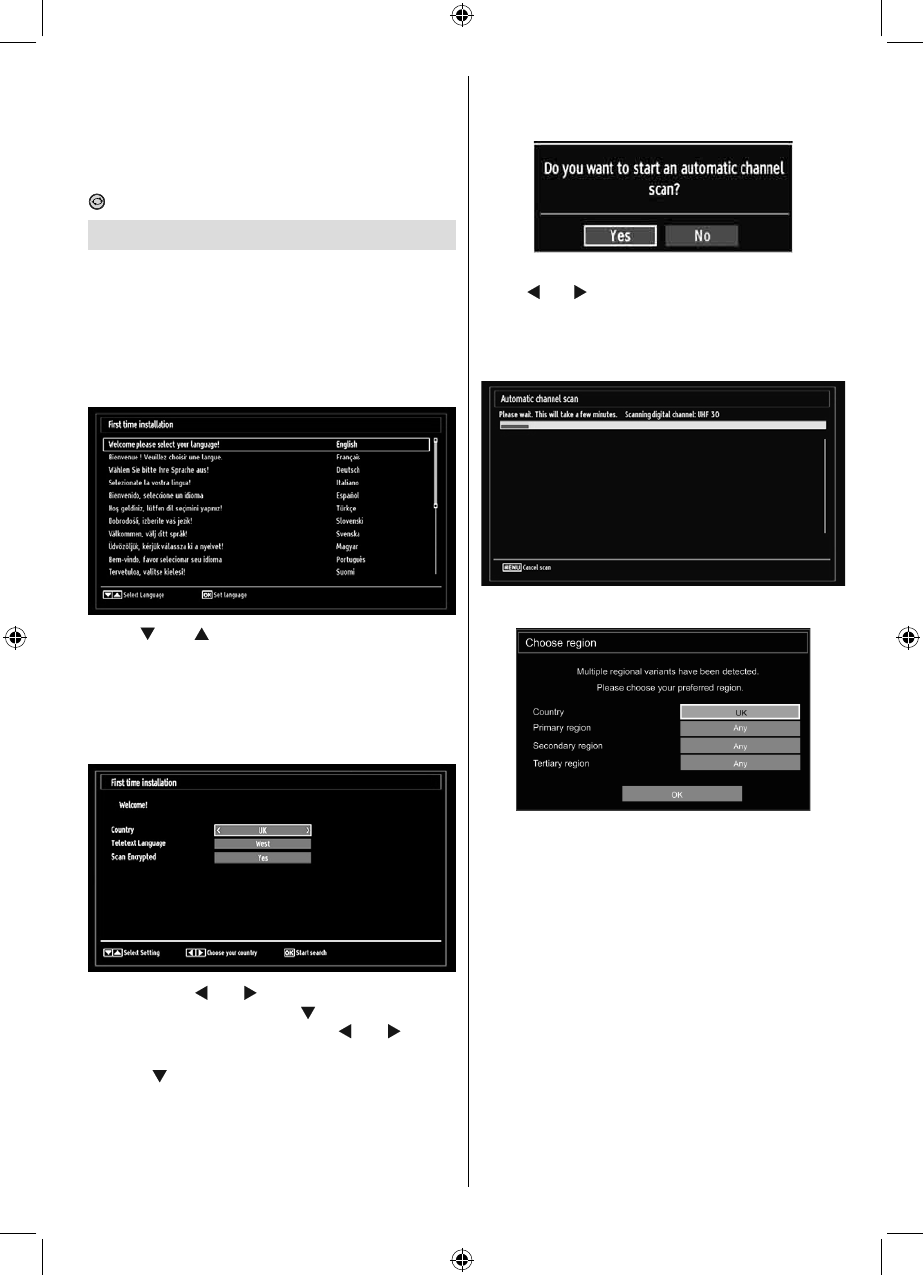

When the TV is operated for the fi rst time, installation • wizard will guide you through the process. First,

language selection screen will be displayed:

Use “• ” or “ ” buttons to select your language

and press OK button to set selected language and

continue.

After selecting the language, “• Welcome!” screen will

be displayed, requiring you to set Country, Teletext

Language and Scan Encrypted options.

By pressing “• ” or “ ” button, select the country

you want to set and press “ ” button to highlight

Teletext Language option. Use “ ” or “ ” button

to select desired Teletext Language.

Press “• ” button after setting Teletext Language

option. Scan Encrypted will be then highlighted.

You can set Scan Encrypted as Yes if you want to

scan coded stations. Afterwards select the desired

Teletext Language.

Press • OK button on the remote control to continue

and the following message will be displayed on the

screen:

To select the “Yes” or “No” option, highlight the item by

using “ ” or “ ” buttons and press OK button.

Afterwards, the following OSD will be displayed on

the screen and the television will search for digital

and analogue TV broadcasts.

Note: You can press “MENU” button to cancel.

End of the search process, Choose Region menu

screen will be displayed (if any multiple region variants

are detected). Please select country and region choice

then press OK to continue.

After all the available stations are stored, Channel • List will be displayed on the screen. If you like the

sort channels, according to the LCN (optional),

please select “Yes” and than press OK.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1501_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 15 27.09.2011 17:48:5927.09.2011 17:48:59

English - 16 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

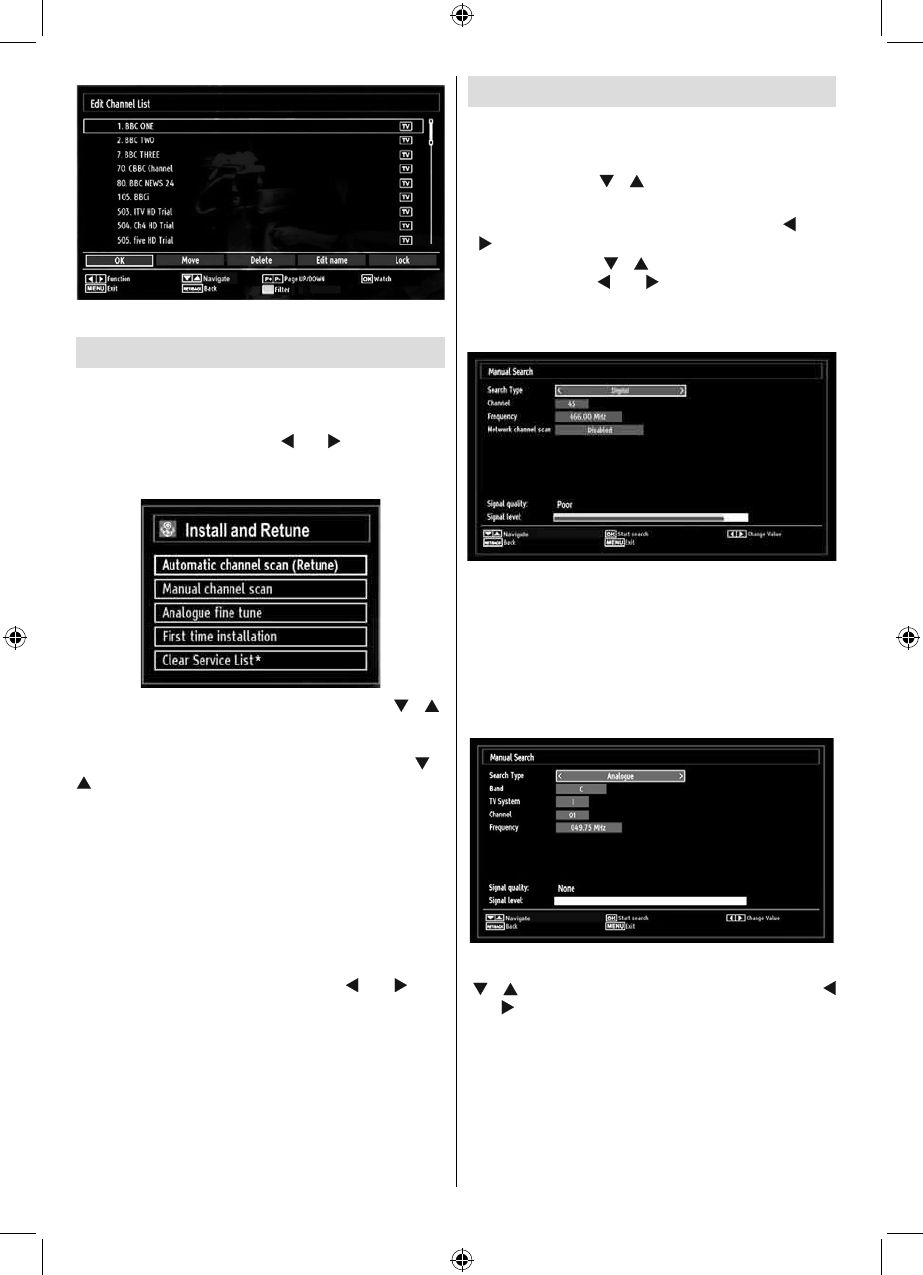

Press • OK button to quit channel list and watch TV.

Auto Tuning

HINT: Auto tuning feature will help you to retune the TV

set in order to store new services or stations.

Press “MENU” button on the remote control and

select Installation by using “ ” or “ ” button. Press

OK button and the following menu screen will be

displayed.

Select Automatic Channel Scan by using “”/“ ”

button and press OK button. Automatic Channel Scan

options will be displayed. You can select Digital Aerial,

Analog or Digital Aerial-Analogue tuning using “ ”/“

” and OK buttons.

Auto Channel Scan Menu Operation

Digital: Searches and stores aerial DVB stations.

Analogue: Searches and stores analog stations.

Full: Searches and stores both analog and aerial

DVB stations.

Whenever you select an automatic search type and • press OK button, a confi rmation screen will appear

on the screen. To start installation process, select

Yes, to cancel select No by using .“ ” or “ ” and

OK button.

After auto channel scan type is set and selected • and confi rmed, installation process will start and

progress bar will move along. Press “MENU” button

to cancel process. In such a case, located channels

are not stored.

Manual Tuning

HINT: This feature can be used for direct broadcast

entry.

Select • Manual Channel Scan from the Installation

menu by using “ ”/“ ” and OK buttons. Manual

Scan options screen will be displayed.

Select the desired • Search Type using “ ” or “

” button. Manual search options will change

accordingly. Use “ ”/“ ” button to highlight an item

and then press “ ” or “ ” button to set an option.

You can press “MENU” button to cancel.

Digital Manual Search

In manual channel scan, the number of the multiplex

or frequency are entered manually and only that

multiplex or frequency are searched for the channels.

After selecting search type as Digital, you can enter

the multiplex or frequency number using the numeric

buttons and press OK button to search.

Analogue Manual Search

After selecting search type as analogue, you can use

“ ”/“ ” button to highlight an item and then press “

” or “ ” button to set an option.

Enter the channel number or frequency using the

numeric buttons. You can then press OK button

to search. When the channel is located, any new

channels that are not on the list will be stored.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1601_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 16 27.09.2011 17:49:0027.09.2011 17:49:00

English - 17 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

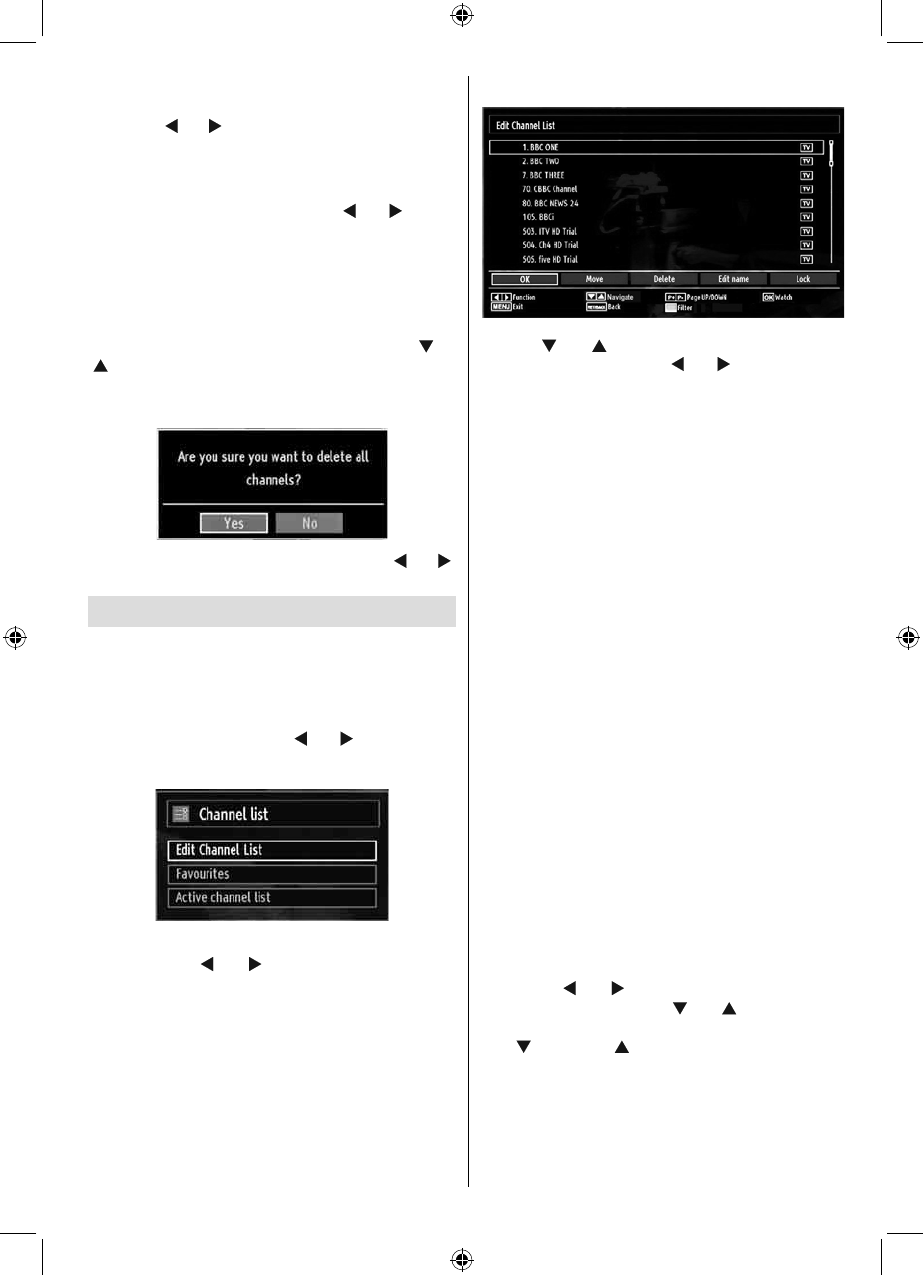

Analog Fine Tune

Select • Analog Fine Tune from the Installation menu

by using “ ” or “ ” and OK buttons. Analog fi ne tune

screen will be displayed. Analog Fine Tune feature

will not be available if there are no analog channels,

digital channels and external sources stored.

Press • OK button to proceed. Use “ ” or “ ” button

to set Fine Tune. When fi nished, press OK button

again.

Clear Service List (*)

(*) This setting is visible only when the Country option

is set to Denmark, Sweden, Norway or Finland.

Use this setting to clear channels stored. Press “ ” or

“” button to select Clear Service List and then press

OK. The following OSD message will be displayed

on the screen:

Press OK to cancel. Select Yes by pressing “ ” or “ ”

button and press OK to delete all of the channels.

Managing Stations: Channel List

The TV sorts all stored stations in the Channel List.

You can edit this channel list, set favourites or set

active stations to be listed by using the Channel List

options.

Press • “MENU” button to view main menu. Select

Channel List item by using “ ” or “ ” button. Press

OK to view menu contents.

Select Edit Channel List to manage all stored

channels. Use “ ” or “ ” and OK buttons to select

Edit Channel List.

Operating the Channel List

Press “• ” or “ ” button to select the channel that

will be processed. Press “ ” or “ ” button to select

a function on Channel List menu.

Use • P/CH+ / P/CH- buttons to move page up or

down.

Press • BLUE button to view fi ltering options.

Press • “MENU” button to exit.

Moving a Channel

First select the desired channel. Select Move option • in the channel list and press OK button.

Edit Number screen will be displayed. Enter the • desired channel number by using the numeric

buttons on the remote control. If there is a previously

stored channel on that number, a warning screen

will be displayed. Select Yes if you want to move the

channel and press OK.

Press • OK button to process. Selected channel is

now moved.

Deleting a Channel

You can press GREEN button to tag/untag all

channels; YELLOW button to tag/untag channel.

Select the channel that you want to delete and select • Delete option. Press OK button to continue.

A warning screen will appear. Select • YES to delete,

select No to cancel. Press OK button to continue.

Renaming a Channel

Select the channel that you want to rename and • select Edit Name option. Press OK button to

continue.

Pressing “• ” or “ ” button moves to the previous/

next character. Pressing “ ” or “ ” button toggles

the current character, i.e., ‘b’ character becomes ‘a’

by “ ” and ‘c’ by “ ”. Pressing the numeric buttons

‘0...9’ replaces the highlighted character with the

characters printed above the button one by one as

the button is pressed.

When fi nished, press • OK button to save. Press

“MENU” to cancel.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1701_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 17 27.09.2011 17:49:0127.09.2011 17:49:01

English - 18 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

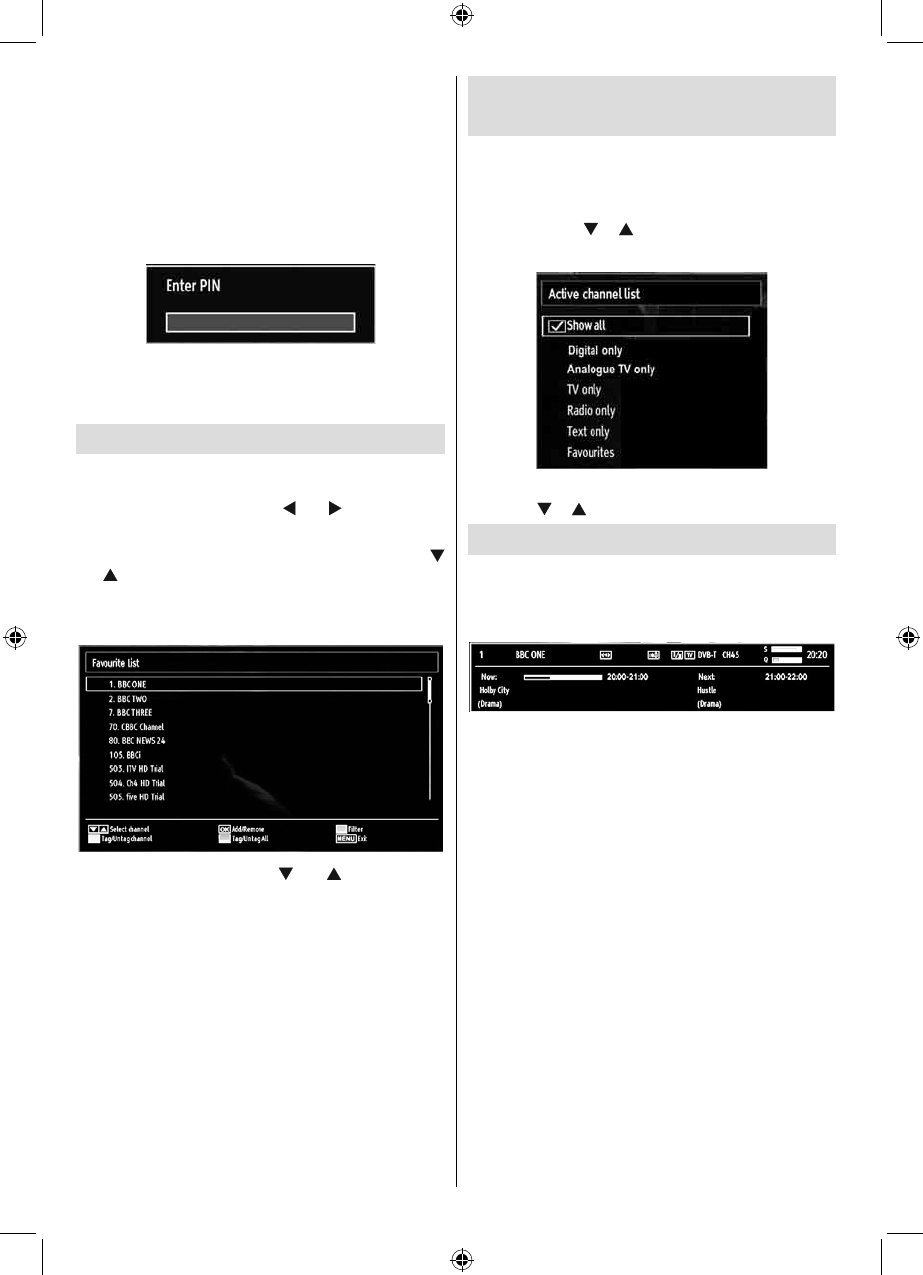

Locking a Channel

You can press GREEN button to tag/untag all

channels; YELLOW button to tag/untag a single

channel.

Select the channel that you want to lock and select • Lock option. Press OK button to continue.

You will be asked to enter parental control PIN. • Default PIN is set as 0000. Enter the PIN number.

Press • OK button when the desired channel is

highlighted to lock/unlock the channel. Lock symbol

will be displayed next to the selected channel.

Managing Stations: Favourites

You can create a list of favourite programmes.

Press • “MENU” button to view main menu. Select

Channel List item by using “ ” or “ ” button. Press

OK to view menu contents.

Select • Favourites to manage favourite list. Use “

”/“ ” and OK buttons to select Favourites.

You can set various channels as favourites so that • only the favourite channels are navigated.

Select a channel by using “• ” or “ ” button. Press

OK button to add selected channel to favourites list.

Press OK button again to remove.

Button Functions

OK• : Add/remove a station.

YELLOW• : Tag/untag a channel.

GREEN• : Tag/untag all channels.

BLUE• : Displays fi ltering options.

Managing Stations: Sorting

Channel List

You can select broadcasts to be listed in the channel

list. To display specifi c types of broadcast, you should

use Active channel list setting.

Select Active channel list from the Channel list

menu by using “ ” /“ ” button. Press OK button to

continue.

You can select a broadcast type option from the list

by using “ ” /“ ” and OK buttons.

On-Screen Information

You can press “INFO” button to display on-screen

information. Details of the station and current

programme will be displayed on the information

banner.

The information banner gives information on the

channel selected and the programmes on it. The name

of the channel is displayed, along with its channel

list number.

Hint: Not all channels broadcast the programme

data. If the name and time of the programme are not

available, then information banner will be displayed

with blanks.

If the selected channel is locked, you must enter the

correct four-digit numeric code to view the channel

(default code is 0000). “Enter PIN” will be displayed

on the screen in such a case:

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1801_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 18 27.09.2011 17:49:0227.09.2011 17:49:02

English - 19 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

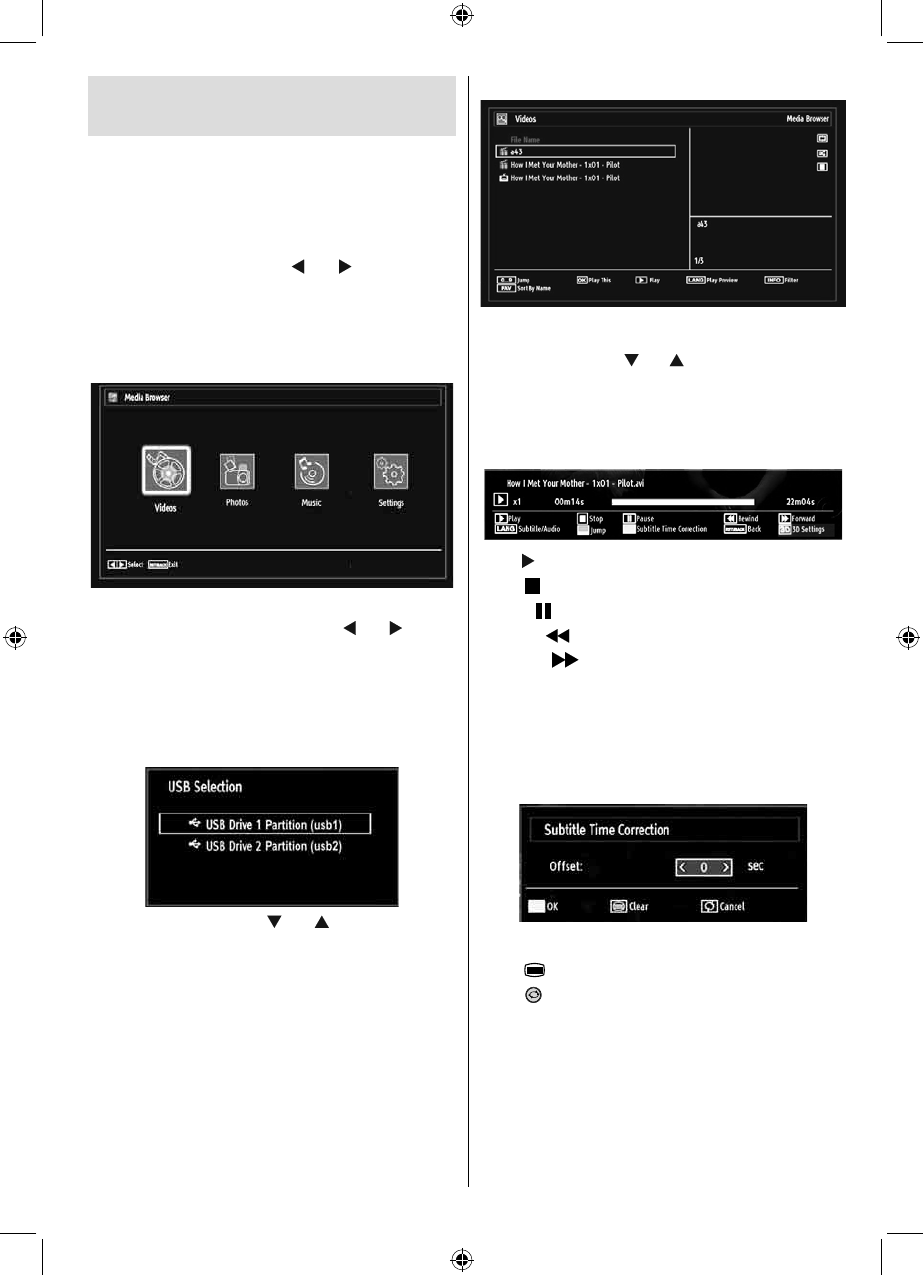

Media Playback Using Media

Browser

If the USB stick is not recognized after power off/on

or First Time Installation, fi rst, plug the USB device

out and power off/on the TV set. Plug the USB device

in again.

To display Media Browser window, press either

“MENU” button on the remote control and then select

Media Browser by pressing “ ” or “ ” button. Press

OK button to continue. Media Browser menu options

will be displayed.

Also, when you plug USB devices, media browser

screen will be displayed automatically:

You can play music, picture and video fi les from the

connected USB memory stick. Use “ ” or “ ” button

to select Videos, Photos, Music or Settings.

You can connect two USB devices to your TV. If both

USB devices include music, picture or video fi les, USB

selection osd will be displayed on the screen. The

fi rst USB device connected to the TV will be named

as USB Drive1.

Select a device by using “ ” or “ ” button and press

OK.

Viewing Videos via USB

When you select Videos from the main options,

available video fi les will be fi ltered and listed on this

screen. You can use “ ” or “ ” button to select a video

fi le and press OK button to play a video. If you select

a subtitle fi le and press OK button, you can select or

deselect that subtitle fi le. The following menu will be

displayed while playing a video fi le:

Play ( button): Starts the video playback.

Stop ( button): Stops the video playback.

Pause ( button): Pause the video playback.

Rewind ( button): Goes backward.

Forward ( button): Goes forward.

Subtitle/Audio (LANG. button): Sets subtitle/Audio.

Jump (GREEN button): Jumps to time. Use numeric

buttons to type the desired time and press GREEN

button again to proceed.

Yellow: Opens subtitle time correction menu

Press Yellow button to confi m.

Press button for clear.

Press button to switch back to previous menu.

3D: Press to view 3D Settings.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 1901_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 19 27.09.2011 17:49:0227.09.2011 17:49:02

English - 20 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

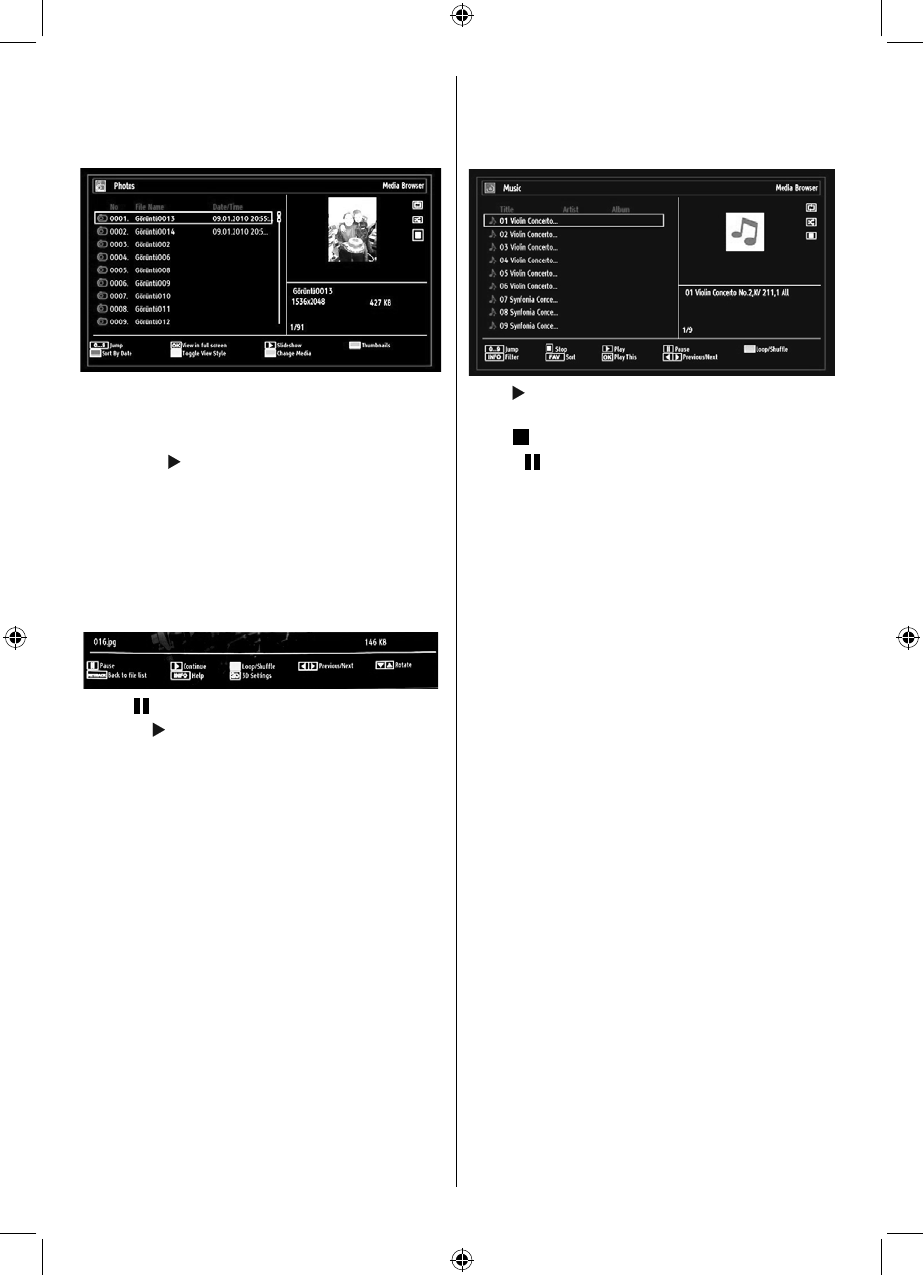

Viewing Photos via USB

When you select Photos from the main options,

available image fi les will be fi ltered and listed on this

screen.

0...9 (Jump) (Numeric buttons): Jump to selected

fi le using the numeric buttons.

OK: Views the selected picture in full screen.

Slideshow ( button): Starts the slideshow using

all images.

GREEN button: Views images in thumbnails.

RED button: Sorts fi les by date.

YELLOW button: Toggles viewing style.

BLUE button: Changes media type.

Slideshow Options

Pause ( button): Pauses the slideshow.

Continue ( button): Continues the slideshow.

Loop/Shuffl e (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shuffl e.

Press once more to enable only Shuffl e. Press again

to enable all. You can follow the disabled functions

with the change of the icons.

Previous/Next (Left/Right buttons): Jumps to

previous or next fi le on slideshow.

Rotate (Up/Down buttons): Rotates the image using

up/down buttons.

RET/BACK: Back to fi le list.

INFO: Displays help screen.

3D: Press to view 3D Settings.

Playing Music Files via USB

When you select Music from the main options,

available audio fi les will be fi ltered and listed on this

screen.

Play ( button): Plays all media fi les starting with

the selected one.

Stop ( button): Stops playback.

Pause ( button): Pauses the selected playback.

Sort (RED button): Sorts files by Title, Artist or

Album.

Loop/Shuffl e (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shuffl e.

Press once more to enable only Shuffl e. Press again

to enable all. You can follow the disabled functions

with the change of the icons.

0..9 (Numeric buttons): The TV will jump to the

fi le starting with the letter you input via the numeric

buttons on your remote control.

Play This (OK button): Plays the selected fi le.

Previous/Next (Left/Right buttons): Jumps to

previous or next fi le to play.

Toggle View Style (YELLOW button): Changes

viewing style.

Change Media (BLUE button): Changes media type.

Note: If the Viewing Style is set to Folder in Media

Browser Settings, Music folder will be displayed as

sorted and there is no need to sort fi les again by

pressing RED button.

INFO: Changes fi lter options.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2001_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 20 27.09.2011 17:49:0327.09.2011 17:49:03

English - 21 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

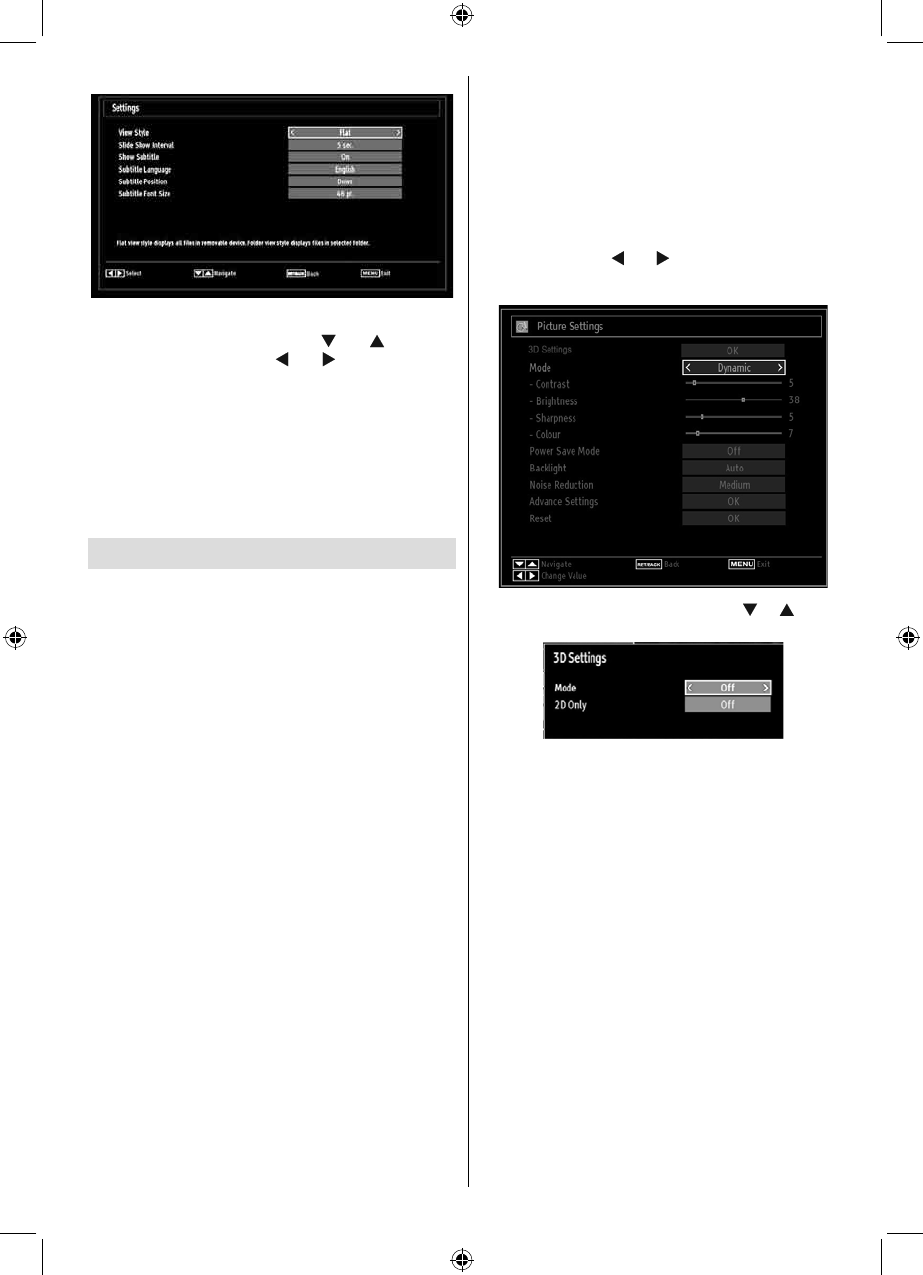

Media Browser Settings

You can set your Media Browser preferences by

using the Settings dialog. Press “ ” or “ ” button to

highlight an item and use “ ” or “ ” button to set.

View Style: Sets default browsing mode.

Slide Show Interval: Sets slide show interval time.

Show Subtitle: Sets subtitle enabling preference.

Subtitle Position: Sets subtitle position as up or

down.

Subtitle Font Size: Sets subtitle font size (max.

54pt).

Using the 3D Mode

IMPORTANT!

Read and understand the 3D mode safety

precautions carefully for your safety before using

the 3D function. Read and understand “3D Mode

and 3D Images” precautions section on page 4.

You must use 3D glasses parallel to your TV. The • picture may not be visible or may look dark if you

do not stay within the viewing angle.

Use 3D glasses only when watching 3D picture • with the correct angle. Remove the glasses in any

other case. The picture may not be visible or may be

dark if you look down or if you lie on your side while

watching 3D picture using 3D glasses.

3D picture may not be visible or become distorted • when watching under dense light conditions.

You can enjoy viewing 3D images on your TV by • wearing the supplied 3D Glasses. Note that this TV’s

3D feature works only with its specifi c 3D glasses.

Connect a 3D compatible player via an HDMI cable • and play the 3D content. Refer to the manual of the

player for the settings of the player.

Press • SOURCE button and select the connected

input.

You should select suitable 3D Mode before • viewing.

To view 3D contents or programmes in 3D mode • (3-Dimensional) you must wear the supplied 3D

Glasses.

3D Mode

Press 3D button to view 3D Settings menu

directly.

3D feature enables you to view 3D content using • the supplied 3D glasses.

To enable and customize 3D mode on the TV, • perform the following:

Press • MENU button on the remote control and select

Picture by using “ ” or “ ” button. Press OK button

to view Picture Settings.

Select • 3D Settings option by using “ ” / “ ” button

and press OK.

3D Settings

Mode

You can customize 3D mode settings to provide best

viewing experience. Select one of these modes to

experience 3D image viewing:

Auto: Automatically switches to 3D mode if 3D

information available in HDMI source.

Side by Side: Displays 3D content which is originally

in a form of side by side.

Top bottom: Displays 3D content which is originally

in a form of top and bottom.

Off: 3D function mode is turned off.

2D Only

If content is 3D but you want to watch it in 2D, you can

switch to 2D only mode. There are 2 options (LEFT

and RIGHT) to select which side of the content you

want to watch in 2D.

Note: This item is available when TV is in 3D mode.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2101_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 21 27.09.2011 17:49:0327.09.2011 17:49:03

English - 22 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

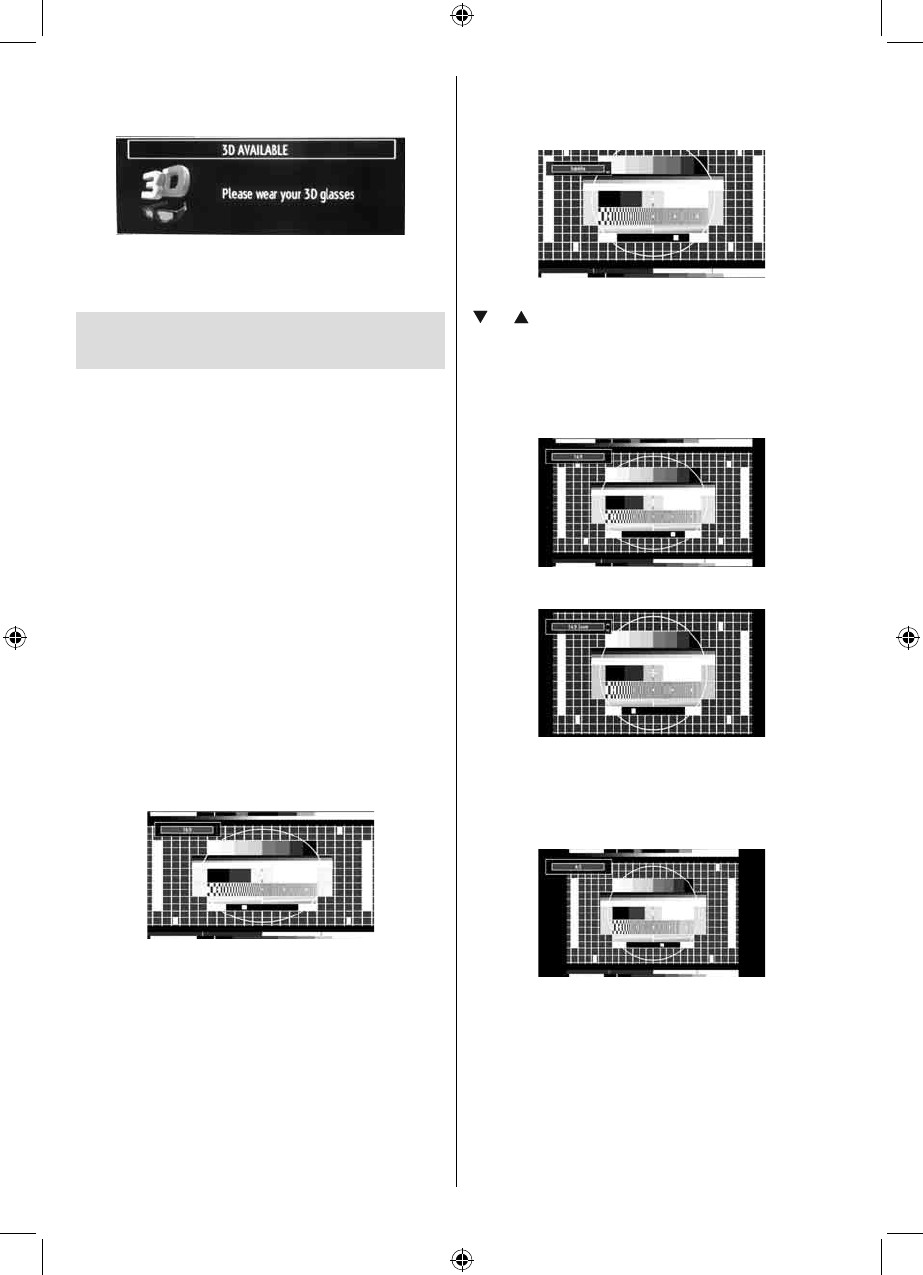

Note: If you select 3D modes, wear the supplied

3D glasses when this message is displayed on

the screen:

Supported 3D Content Resolutions

See Appendix F for supported 3D Content

resolutions.

Changing Image Size: Picture

Formats

Yo• u can change the aspect ratio (image size) of

the TV for viewing the picture in different zoom

modes.

Press • “SCREEN” button repeatedly to change

the image size. Available zoom modes are listed

below.

Auto

When AUTO is selected, the aspect ratio of the screen

is adjusted by the information provided by the selected

source(if available)

The format being displayed in AUTO mode is

completely independent of WSS information which

could be included in the broadcast signal or the signal

from an external device.

Note: Auto mode only will be available in HDMI, YPbPr

and DTV sources.

16:9

This uniformly stretches the left and right sides of a

normal picture (4:3 aspect ratio) to fi ll the wide TV

screen.

For 16:9 aspect ratio pictures that have been • squeezed into a normal picture (4:3 aspect ratio),

use the 16:9 mode to restore the picture to its

original shape.

Subtitle

This zooms up the wide picture (16:9 aspect ratio)

with subtitles to the full screen.

Note: You can shift to screen up or down by pressing

“” / “ ” buttons while picture zoom is selected as

panaromic, 14:9 Zoom, Cinema or Subtitle.

14:9

This zooms up the wide picture (14:9 aspect ratio) to

the upper and lower limits of the screen.

14:9 Zoom

This option zooms to the 14:9 picture.

4:3

Use to view a normal picture (4:3 aspect ratio) as this

is its original size.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2201_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 22 27.09.2011 17:49:0427.09.2011 17:49:04

English - 23 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

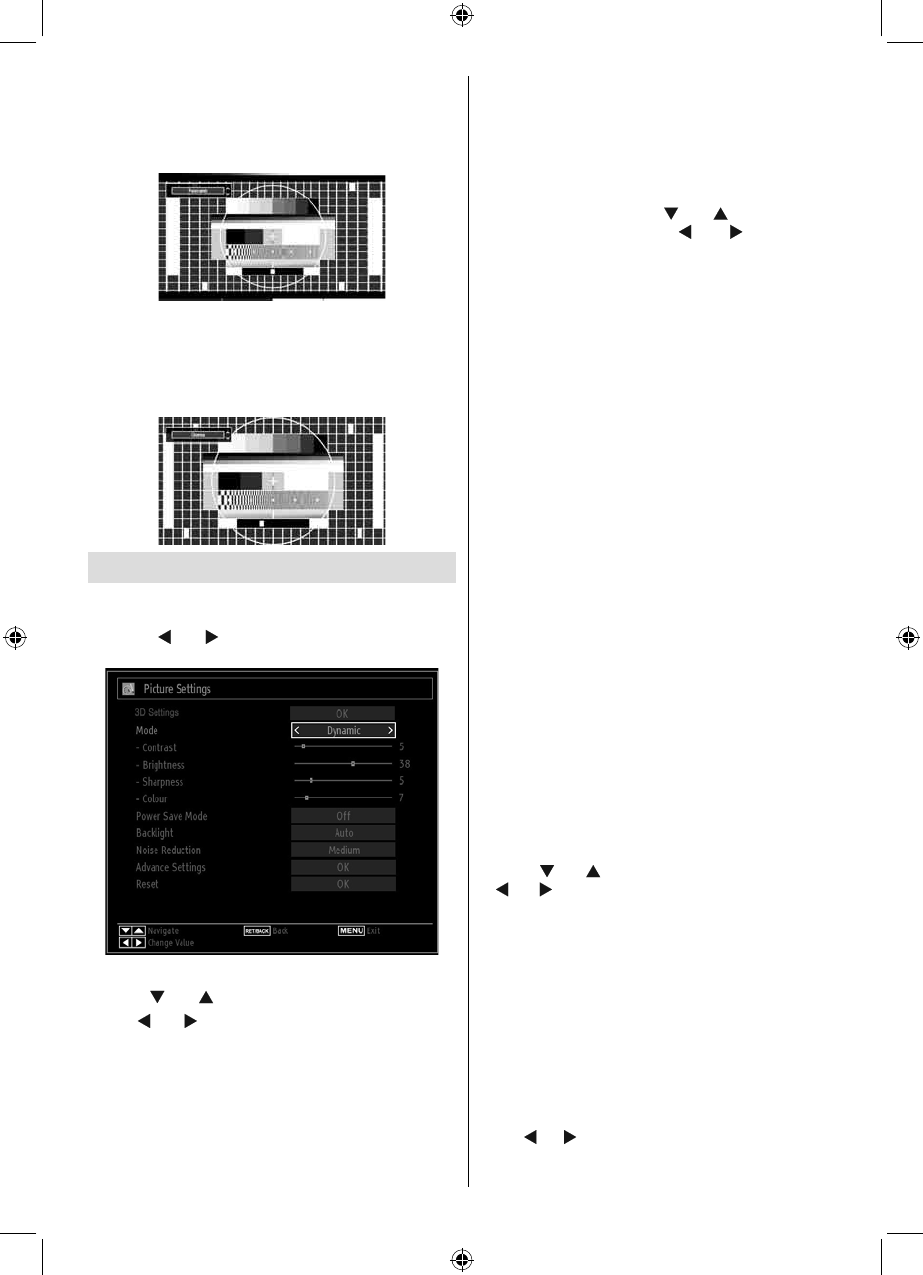

Panoramic

This stretches the left and right sides of a normal

picture (4:3 aspect ratio) to fi ll the screen, without

making the picture appear unnatural.

The top and bottom of the picture are slightly cut off.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to

the full screen.

Confi guring Picture Settings

You can use different picture settings in detail.

Press “MENU” button and select the Picture icon

by using “ ” or “ ” button. Press OK button to view

Picture Settings menu.

Operating Picture Settings Menu Items

Press “• ” or “ ” button to highlight a menu item.

Use “• ” or “ ” button to set an item.

Press • “MENU” button to exit.

Picture Settings Menu Items

Mode: For your viewing requirements, you can set

the related mode option. Picture mode can be set

to one of these options: Cinema ,Game , Dynamic

and Natural .

Contrast: Sets the lightness and darkness values

of the screen.

Brightness: Sets the brightness value for the

screen.

Sharpness: Sets the sharpness value for the objects

displayed on the screen.

Power Save Mode: Use “ ” or “ ” button to select

Power Save Mode. Press “ ” or “ ” button to set

Power Save Mode as On or Off. See the section,

“Environmental Information” in this manual for further

information on Power Save Mode.

Note: Backlight function will be invisible if Power Save

Mode is set to on.

Backlight: This setting controls the backlight level and

it can be set to Auto, Maximum, Minimum, Medium

and Eco Mode.

Noise Reduction: If the broadcast signal is weak and

the picture is noisy, use Noise Reduction setting to

reduce the noise amount. Noise Reduction can be set

to one of these options: Low, Medium, High or Off.

Advanced Settings

Colour Temp• : Sets the desired colour tone.

Setting Cool option gives white colours a slight blue

stress.

For normal colours, select Normal option.

Setting Warm option gives white colours a slight red

stress.

Picture Zoom• :Sets the picture size to Auto,16:9,

Subtitle,14:9, 14:9 Zoom, 4:3, Panoramic or

Cinema.

HDMI True Black:• While watching from HDMI

source, this feature will be visible in the Picture

Settings menu. You can use this feature to enhance

blackness in the picture. You can set this feature as

“On” for activating HDMI True Black mode.

Film Mode• : Films are recorded at a different number of

frames per second to normal television programmes.

Press “ ” or “ ” buttons to select Film mode. Press

“” or “ ” buttons to set this feature Auto or Off. Turn

this feature to Auto when you are watching fi lms to

see the fast motion scenes clearly.

Colour Shift:• Adjust the desired colour tone.

Reset: Resets the picture settings to factory default

settings.

While in VGA (PC) mode, some items in Picture menu

will be unavailable. Instead, VGA mode settings will be

added to the Picture Settings while in PC mode.

PC Picture Settings Operation

For adjusting PC picture items, do the following:

Press “ ” or “ ” button to select Picture icon. Picture menu

appears on the screen.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2301_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 23 27.09.2011 17:49:0427.09.2011 17:49:04

English - 24 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

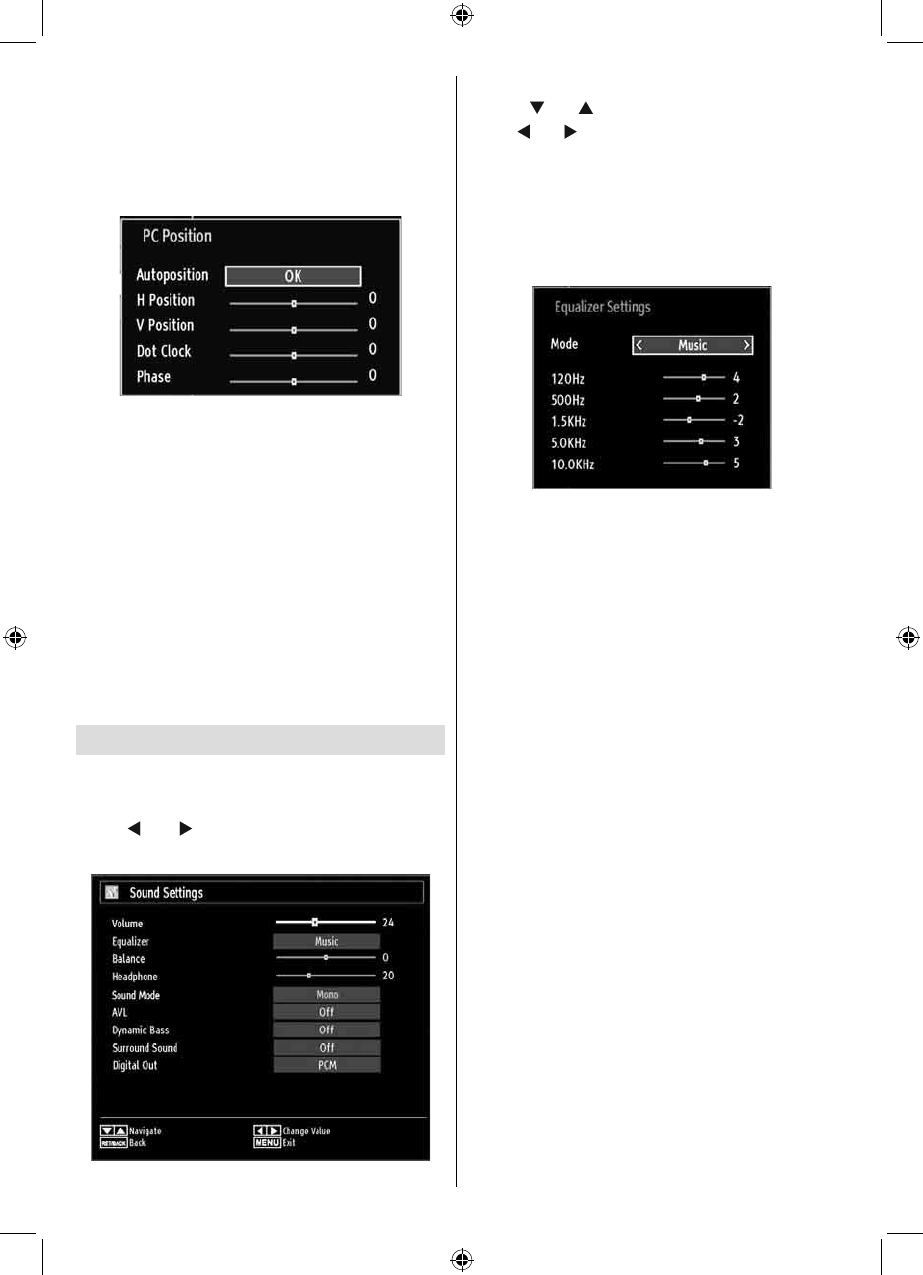

Contrast, Brightness, Colour, Colour Temp and Picture

Zoom, Reset settings in this menu are identical to settings

defi ned in TV picture settings menu. Sound ,Settings and

Source settings are identical to the settings explained in

the main menu system.

PC Position: Select this to display PC position menu

items.

Autoposition: Automatically optimizes the display.

Press OK to optimize.

H Position: This item shifts the image horizontally to

right hand side or left hand side of the screen.

V Position: This item shifts the image vertically

towards the top or bottom of the screen.

Dot Clock: Dot Clock adjustments correct the

interference that appear as vertical banding in

dot intensive presentations like spreadsheets or

paragraphs or text in smaller fonts.

Phase: Depending on the resolution and scan

frequency that you input to the TV set, you may see

a hazy or noisy picture on the screen. In such a case

you can use this item to get a clear picture by trial

and error method.

Confi guring Sound Settings

Sound settings can be confi gured according to your

personal preferences.

Press “MENU” button and select the fi rst icon by

using “ ” or “ ” button. Press OK button to view

Sound Settings menu.

Operating Sound Settings Menu Items

Press “• ” or “ ” button to highlight a menu item.

Use “• ” or “ ” button to set an item.

Press • “MENU” button to exit.

Sound Settings Menu Items

Volume: Adjusts volume level.

Equalizer: Press OK button to view equalizer sub-

menu.

In equalizer menu, the preset can be changed to

Music, Movie, Speech, Flat, Classic and User.

Press the “MENU” button to return to the previous

menu.

Note: Equalizer menu settings can be changed

manually only when the Equalizer Mode is in User.

Balance: This setting is used for emphasizing left or

right speaker balance.

Headphone: Sets headphone volume.

Sound Mode: You can select Mono, Stereo, Dual I

or Dual II mode, only if the selected channel supports

that mode.

AVL: Automatic Volume Limiting (AVL) function sets the

sound to obtain fi xed output level between programmes

(For instance, volume level of advertisements tend to

be louder than programmes).

Dynamic Bass: Dynamic Bass is used to increase

bass effect of the TV set.

Surround Mode: Surround mode can be change as

On or Off.

Digital Out: Sets digital out audio type.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2401_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 24 27.09.2011 17:49:0527.09.2011 17:49:05

English - 25 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

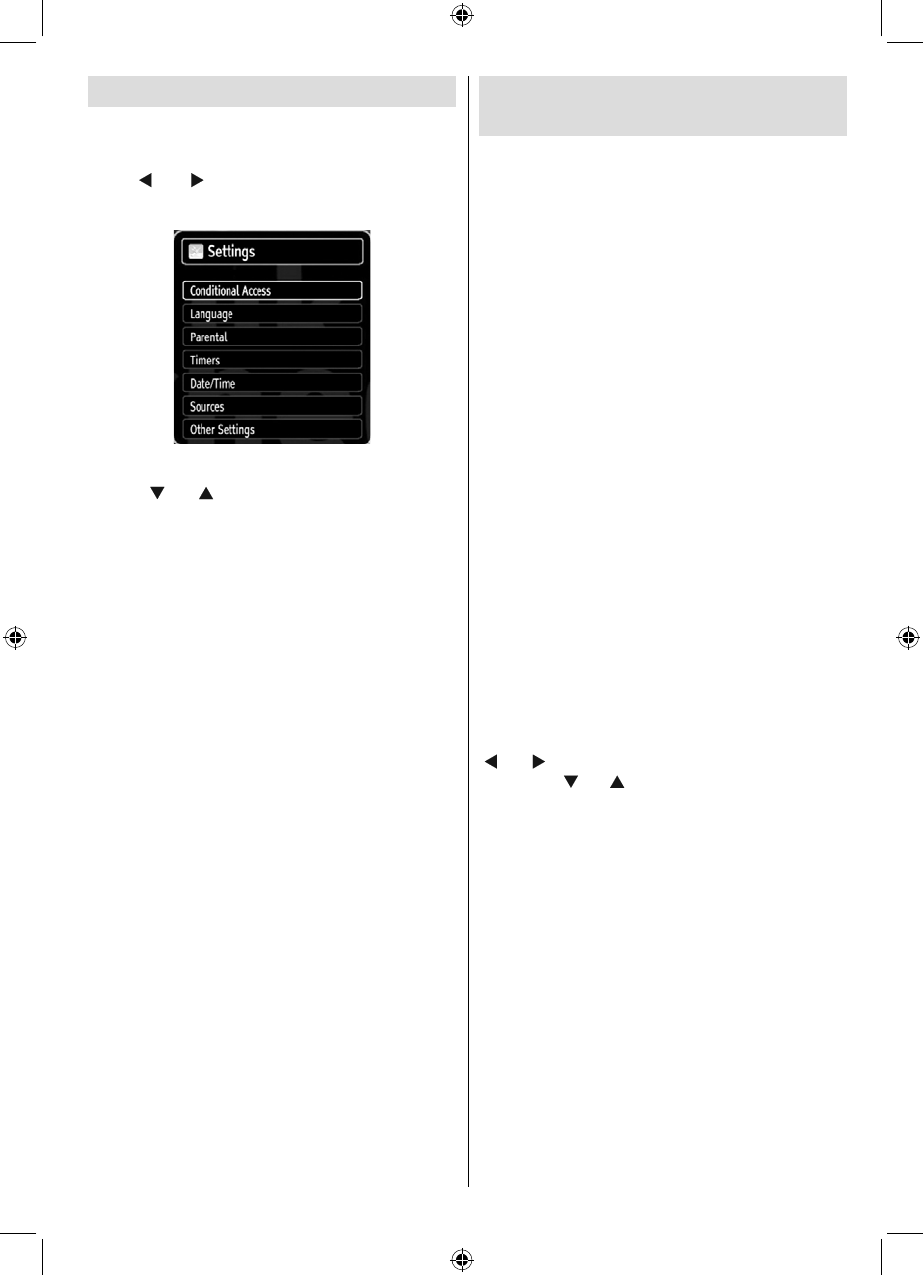

Confi guring Your TV’s Settings

Detailed settings can be configured to suit your

personal preferences.

Press “MENU” button and select Settings ikon by

using “ ” or “ ” button. Press OK button to view

Settings menu.

Operating Settings Menu Items

Press “• ” or “ ” button to highlight a menu item.

Press • OK button to select an item.

Press • “MENU” button to exit.

Settings Menu Items

Conditional Access: Controls conditional access

modules when available.

Language: Confi gures language settings.

Parental: Confi gures parental settings.

Timers: Sets timers for selected programmes.

Date/Time: Sets date and time.

Sources: Enables or disables selected source

options.

Other Settings: Displays other setting options of

the TV set.

Using a Conditional Access

Module

IMPORTANT: Insert or remove the CI module only

when the TV is SWITCHED OFF.

In order to watch certain digital channels, a • conditional access module (CAM) can be necessary.

This module must be inserted in the CI slot of your

TV.

Obtain the Conditional Access Module (CAM) and • the viewing card by subscribing to a pay channel

company, then insert those to the TV using the

following procedure.

Insert the CAM and then the viewing card to the • slot that is located in the terminal cover at the rear

side of the TV.

The CAM should be correctly inserted, it is • impossible to insert fully if reversed. The CAM or

the TV terminal may be damaged if the CAM is

forcefully inserted.

Connect the TV to the mains supply, switch on

and then wait for few moments until the card is

activated.

When no module is inserted, “• No Common

Interface module detected” message appears on

the screen.

Refer to the module instruction manual for details • of the settings.

Viewing Conditional Access Menu (*)

(*) These menu settings may change depending on

the service provider.

Press “MENU” button and select the icon by using

“” or “ ” button. Press OK button to view Settings

menu. Use “ ” or “ ” button to highlight Conditional

Access and press OK to view menu items.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2501_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 25 27.09.2011 17:49:0527.09.2011 17:49:05

English - 26 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

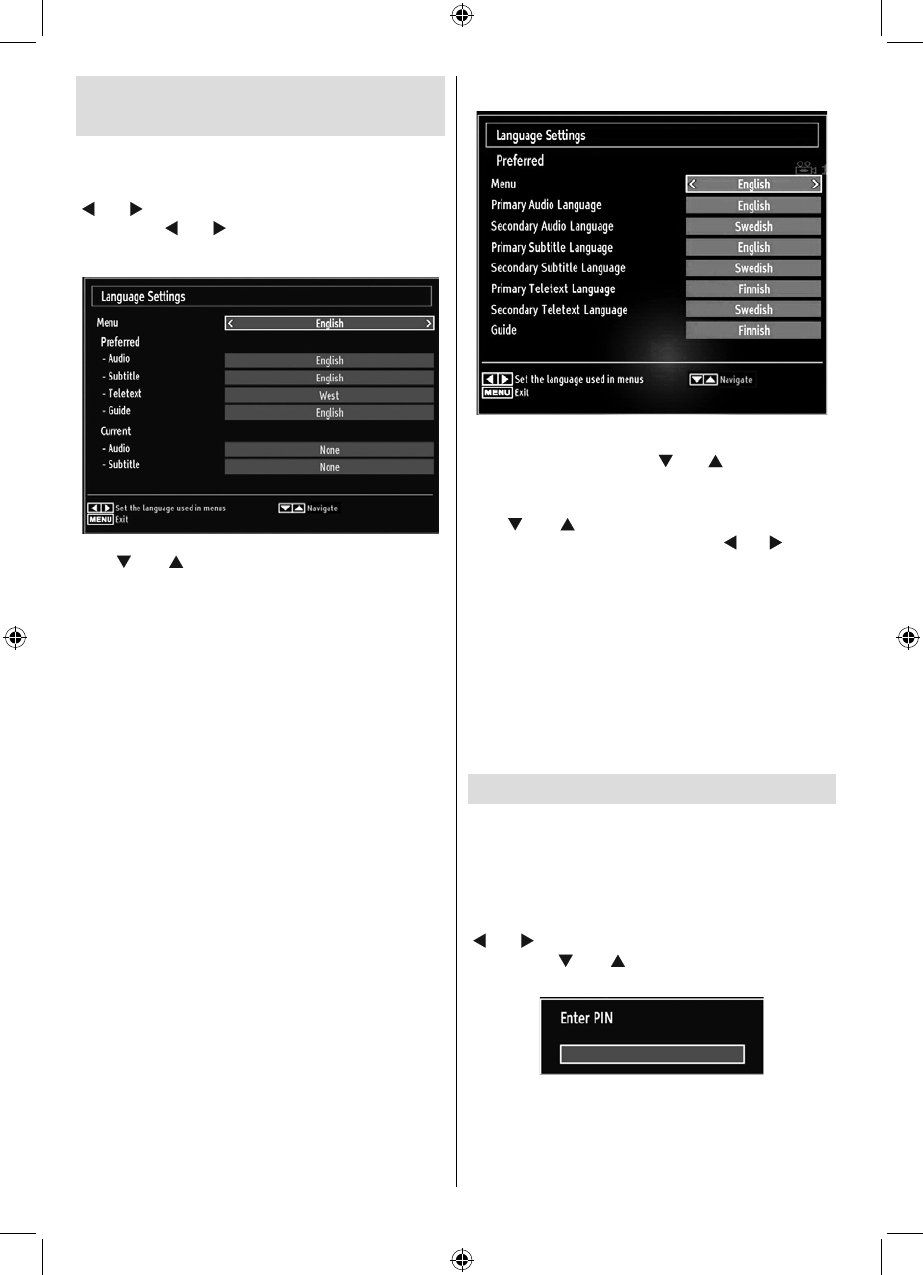

Confi guring Language

Preferences

You can operate the TV’s language settings using

this menu.

Press “MENU” button and select the fi fth icon by using

“” or “ ” button. Press OK button to view Settings

menu. Use “ ” or “ ” button to highlight Language

and press OK to continue:

Use “” or “ ” button to set an item. Settings are

stored automatically.

Menu: displays the system language.

Preferred

These settings will be used if available. Otherwise the

current settings will be used.

Audio• : Sets the preferred audio language.

Subtitle• : Sets the subtitle language. Selected

language will be seen in subtitles.

Teletext• : Sets teletext language.

Guide• : Sets the preferred Guide language.

Current (*)

(*) These settings can be changed if only the

broadcaster supports. Otherwise, settings will not be

available to be changed.

Audio: Changes the audio language for the current

channel.

Subtitle• : Sets the subtitle language for the current

channel.

Note: If the Country option is set to Denmark, Sweden,

Norway or Finland, the Language Settings menu will

function as described below:

Language Settings

In the confi guration menu, highlight the Language

Settings item by pressing “ ” or “ ” buttons. Press

OK and Language Settings submenu will be displayed

on the screen:

Use “ ” or “ ” buttons to highlight the menu item

that will be adjusted and then press “ ” or “ ” button

to set.

Notes:

System Language determines the on-screen menu • language.

Audio Language is used for selecting the soundtrack • of a channels.

Primary settings are the first priority when multiple • choices are available on a broadcast. Secondary

settings are the alternatives when the first options

are not available.

Parental Control

To prohibit viewing of certain programmes, channels

and menus can be locked by using the parental

control system.

This function enables or disables the menu protection

system and allows the PIN code to be changed.

Press “MENU” button and select the icon by using

“” or “ ” button. Press OK button to view Settings

menu. Use “ ” or “ ” button to highlight Parental

and press OK to continue:

To display parental lock menu options, PIN number

should be entered. Factory default PIN number is

0000. After coding the correct PIN number, parental

settings menu will be displayed:

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2601_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 26 27.09.2011 17:49:0527.09.2011 17:49:05

English - 27 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

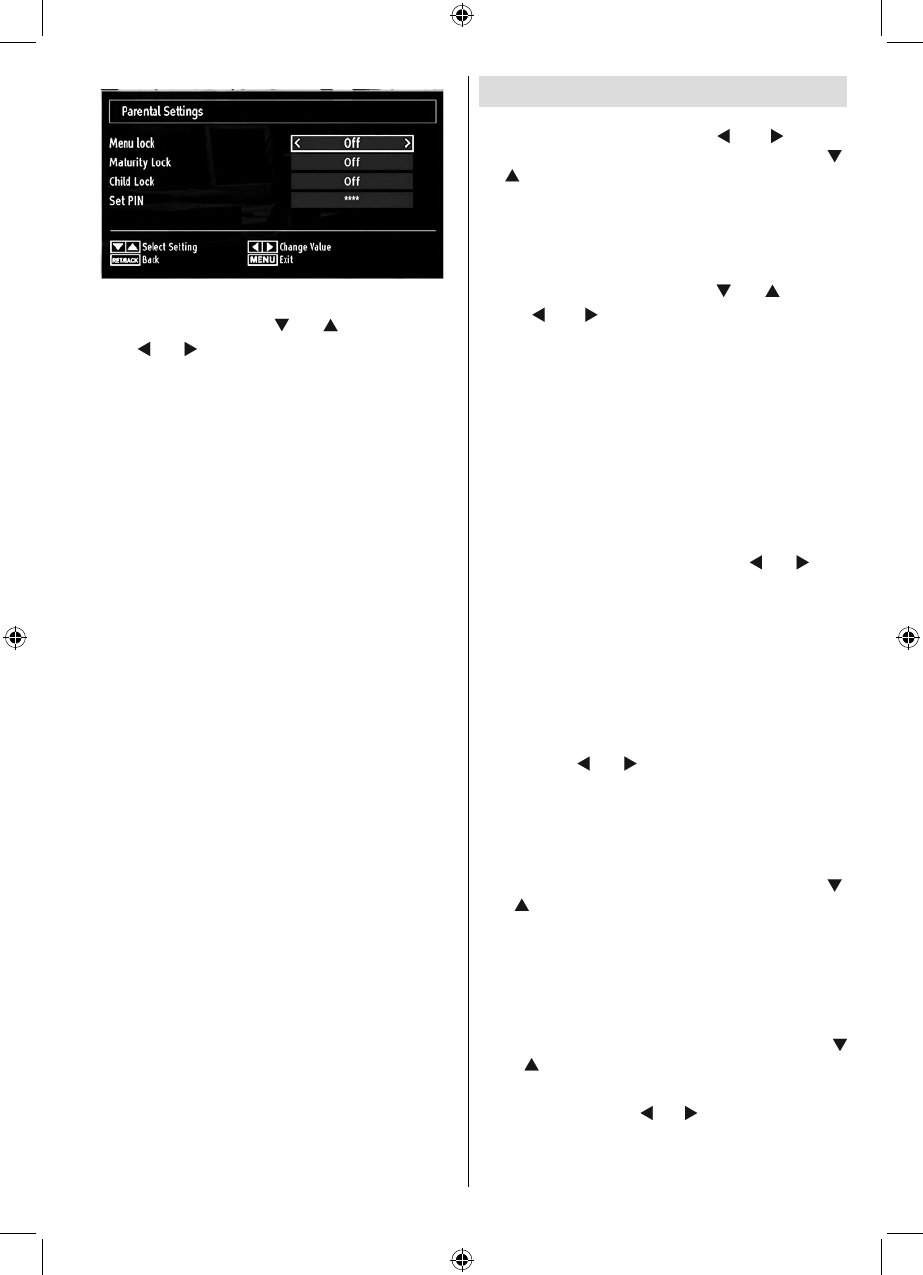

Parental Settings Menu Operation (*)

Select an item by using “• ” or “ ” button.

Use “• ” or “ ” button to set an item.

Press• OK button to view more options.

(*) If you set Country option as UK in the fi rst time

installation, Maturity Lock option will not be visible.

This setting is available only for EU countries.

Menu Lock: Menu lock setting enables or disables

the menu access. You can disable access to the

installation menu or the whole menu system.

Maturity Lock: When set, this option gets the maturity

information from the broadcast and if this maturity level

is disabled, disables access to the broadcast.

Child Lock: When Child Lock is set, the TV can only

be controlled by the remote control. In this case the

control panel buttons will not work, except for the

Standby/On button. When Child Lock is activated

you are able to switch the TV into Standby mode with

the Standby/On button. To switch the TV on again,

you need the remote control. Hence, if one of those

buttons is pressed, Child Lock Is On will be displayed

on the screen when the menu screen is not visible.

Set PIN: Defi nes a new PIN number. Use numeric

buttons to enter a new pin number. You will need

to code your new pin a second time for verifi cation

purposes.

IMPORTANT: The factory default pin number is 0000,

if you change the pin number make sure you write it

down and keep it safe.

Timers

To view Timers menu, press “MENU” button and

select Settings icon by using “ ” or “ ” button.

Press OK button to view Settings menu. Use “ ”

or “ ” button to highlight Timers and press OK to

continue:

Setting Sleep Timer

This setting is used for setting the TV to turn off after

a certain time.

Highlight Sleep Timer by using “• ” or “ ” button.

Use “• ” or “ ” button to set. The timer can be

programmed between Off and 2.00 hours (120

minutes) in steps of 30 minutes.

Setting Programme Timers

You can set programme timers for a particular

programme using this feature.

Press • YELLOW button on the remote control to

add a timer.

Note: • YELLOW button works only when the TV is

in digital mode.

Timer Type: This feature is unavailable to be set.

Channel: Changes channel by using “ ” or “ ”.

Date: Enter a date using the numeric buttons.

Start: Enter a starting time using the numeric

buttons.

End: Enter an ending time using the numeric

buttons.

Duration: Displays duration between the starting and

ending time.

Repeat: Sets a timer to be repeated as Once, Daily or

Weekly. Use “ ” or “ ” buttons to select an option.

Change/Delete: Controls parental settings on timers.

Press • GREEN button to save the timer. Press RED

button to cancel.

Editing a Timer

Select the timer you want to edit by pressing “• ”

or “ ” button.

Press • GREEN button. Edit Timer menu screen will

be displayed.

When fi nished with editing, press • GREEN button to

save. You can press “MENU” button to cancel.

Deleting a Timer

Select the timer you want to delete by pressing “• ” or “ ” button.

Press • RED button.

Select • YES by using “ ” or “ ” buttons to delete the

timer. Select NO to cancel.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2701_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 27 27.09.2011 17:49:0627.09.2011 17:49:06

English - 28 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

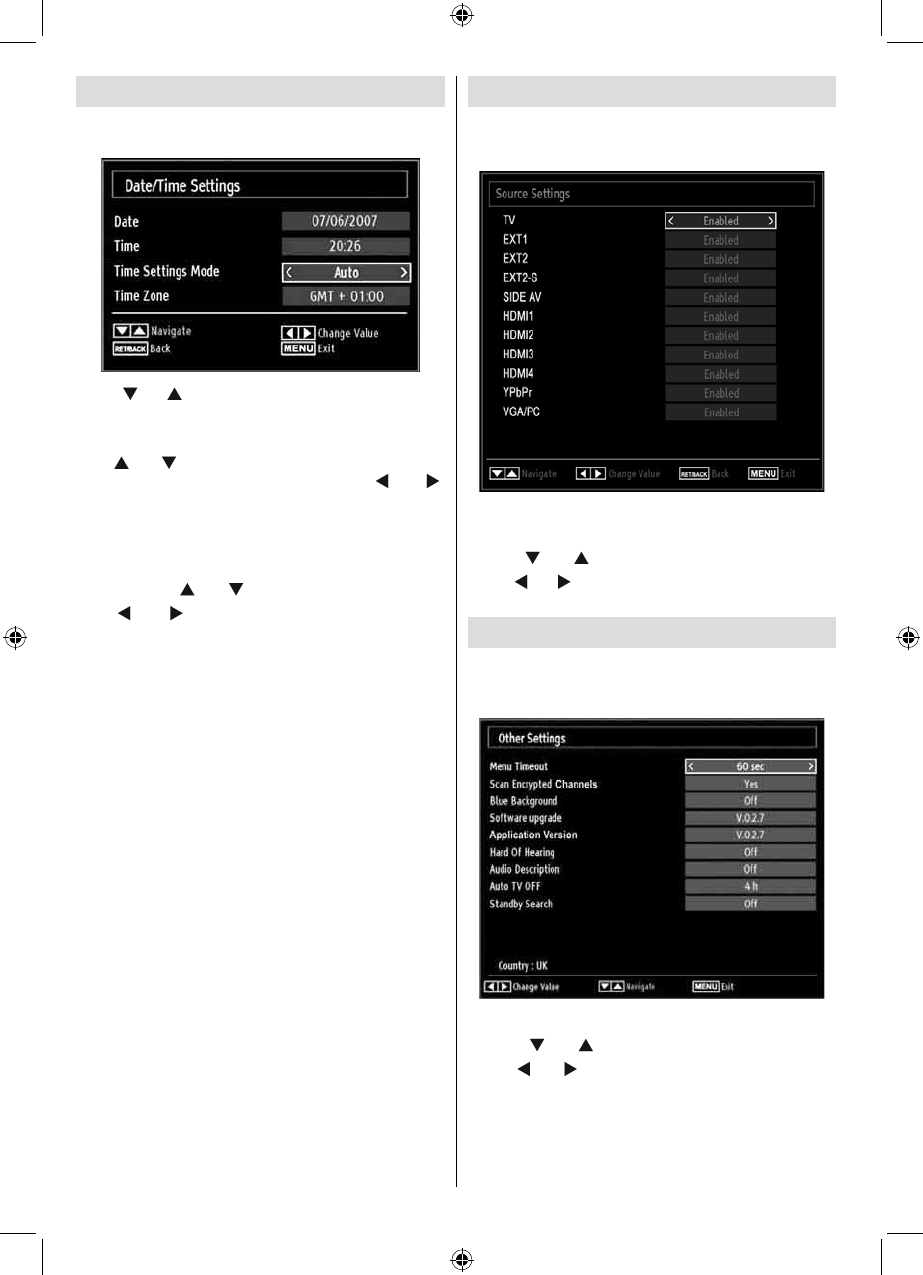

Confi guring Date/Time Settings

Select Date/Time in the Settings menu to confi gure

Date/Time settings. Press OK button.

Use “• ” or “ ” buttons to highlight Date/Time.

Date, Time, Time Settings Mode and Time Zone

Setting will be available.

Use “ ” or “ ” buttons to highlight the Time Settings

Mode. Time Settings Mode is set using “ ” or “ ”

buttons. It can be set to AUTO or MANUAL.

When AUTO is selected, Date/Time and Time Zone

options will not be available to be set. If MANUAL

option is selected as the Time Zone can be altered:

• By pressing “ ” or “ ” buttons select Time Zone.

Use “ ” or “ ” buttons to change the Time Zone

between GMT-12 or GMT+12. Date/Time on the top

of the menu list will then change according to the

selected Time Zone.

Changes are automatically stored. Press • “MENU”

to exit.

Confi guring Source Settings

You can enables or disable selected source options.

The TV will not switch to the disabled source options

when “SOURCE” button is pressed.

Select • Sources in the Settings menu and press

OK button.

Press“• ” or “ ” buttons to select a source.

Use “• ” or “ ” button to enable or disable the selected

source. Changes are automatically stored.

Confi guring Other Settings

To view general confi guration preferences, select

Other Settings in the Settings menu and press OK

button.

Operation

Press “• ” or “ ” buttons to select an item.

Use “• ” or “ ” button to set an option.

Press• OK button to view a sub-menu.

Menu Timeout: Changes timeout duration for menu

screens.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2801_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 28 27.09.2011 17:49:0627.09.2011 17:49:06

English - 29 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

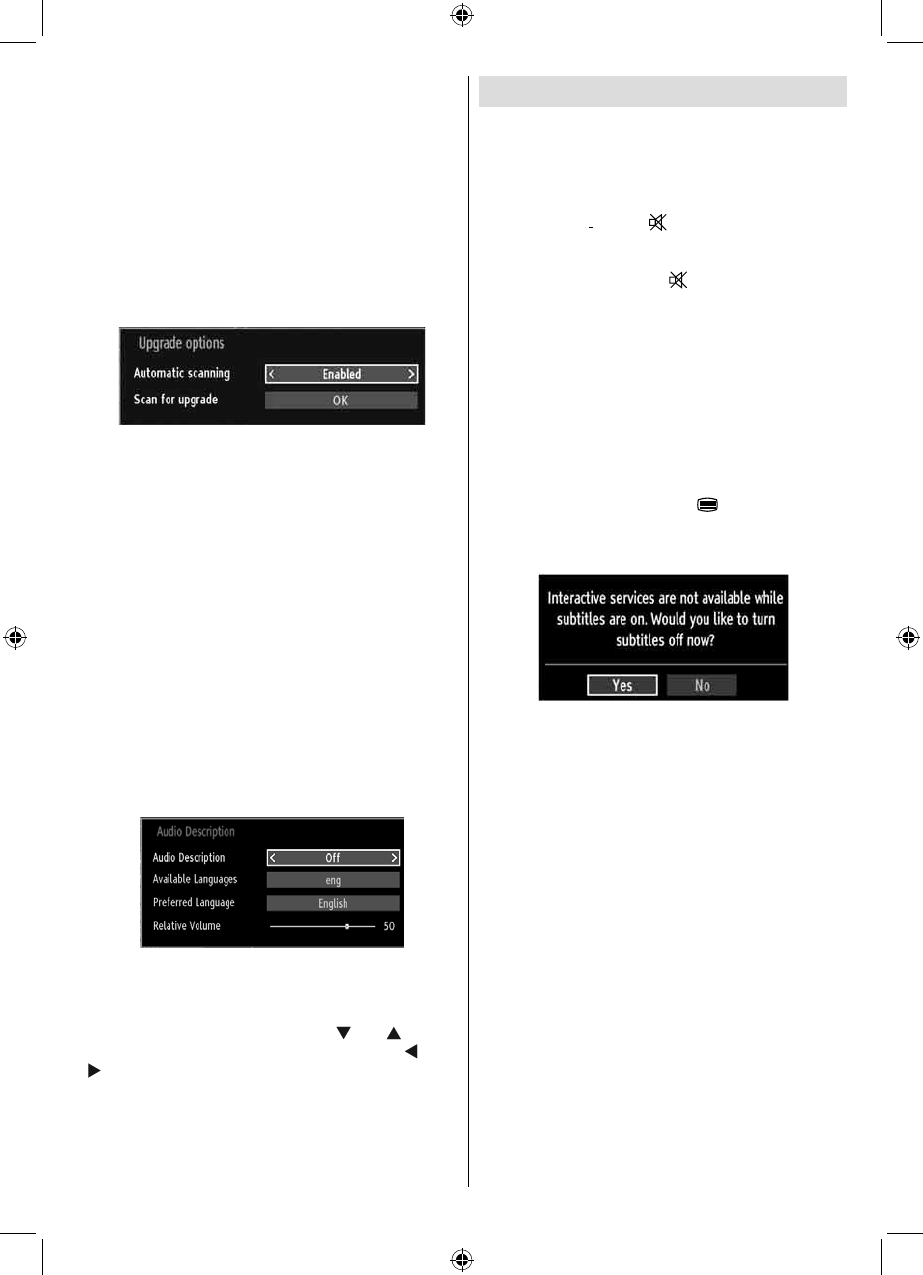

Scan Encrypted Channels: When this setting is set

as YES, search process will locate the encrypted

channels as well. If it is set as NO, encrypted channels

will not be located in automatic search or manual

search.

Blue Background: Activates or deactivates blue

background system when the signal is weak or

absent.

Software Upgrade: To ensure that your TV always

has the most update information, you can use this

setting. In order for the proper operation, please

ensure that the TV is set to standby mode.

You can enable or disable automatic upgrade by

setting Automatic Scanning option.

You can manually search for new software by

selecting Scan for upgrade.

Application version: Displays the current application

version.

Hard of Hearing: If the broadcaster enables any

special signal concerning the audio, you can set this

setting as On to receive such signals.

Audio Description: Audio description refers to

an additional narration track for blind and visually

impaired viewers of visual media, including television

and movies. The description narrator talks through

the presentation, describing what is happening on the

screen during the natural pauses in the audio (and

sometimes during dialogue, if deemed necessary).

You can use this feature, only if the broadcaster

supports that additional narration track.

Auto TV Off: You can set the timeout value of auto off

feature.After the timeout value is reached and the Tv is

not operated for selected time , the TV will go off.

Standby Search (optional): Use “ ” or “ ” button

to select Standby Search and then press “ ” or “

” button to set this setting as On or Off. If you

change Standby Search to Off, this function will be

unavailable.To use Standby search please make sure

that you select Standby Search as On.

Other Features

Displaying TV Information: Programme Number,

Programme Name, Sound Indicator, time, teletext,

channel type and resolution information is displayed

on the screen when a new programme is entered or

“INFO” button is pressed.

Mute Function: Press “ ” button to disable sound.

Mute indicator will be displayed in the upper side of

the screen. To cancel mute, there are two alternatives;

the fi rst one is pressing the “ ” button and the second

one is increasing the volume level.

Picture Mode Selection: By pressing PRESETS

button, you can change Picture Mode settings in

accordance with your viewing requirements. Available

options are Dynamic, Natural, Cinema and Game.

Displaying Subtitles: If there is any subtitle

information available in the broadcast, you can enable

subtitles by pressing the SUBTITLE button of the

remote control. Press SUBTITLE button again to

disable subtitle function.

If “Subtitle” is On, pressing the “ ” button causes the

following warning message display on the screen (**

for UK only)

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 2901_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 29 27.09.2011 17:49:0727.09.2011 17:49:07

English - 30 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Teletext

Teletext system transmits information such as news,

sports and weather on your TV. Note that is the signal

degrades, for example in poor/adverse weather

conditions, some text errors may occur or the teletext

mode may be aborted.

Teletext function buttons are listed below:

“” Teletext / Mix: Activates teletext mode when

pressed once. Press again to place the teletext screen

over the programme (mix).Pressing again will quit the

teletext mode.

“RETURN” Index: Selects the teletext index page.

“INFO” Reveal: Shows hidden information (e.g.

solutions of games).

“OK” Hold: Holds a text page when convenient. Press

again to resume.

“”/“ ” Subcode Pages: Selects subcode pages if

available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index

pages.

Coloured Buttons (RED/GREEN/YELLOW/

BLUE)

Your TV supports both FASTEXT and TOP text

systems. When these systems are available, the

pages are divided into groups or topics. When

FASTEXT system is available, sections in a teletext

page will become colour-coded and can be selected

by pressing the coloured buttons. Press a coloured

button that corresponds to with your needs. The

coloured writings will appear, showing you which

coloured buttons to use when TOP text transmission

is present. Pressing “ ” or “ ” commands will request

the next or previous page respec tively.

Tips

Screen Care: Clean the screen with a slightly damp,

soft cloth. Do not use abrasive solvents as they may

damage the coating layer of the TV screen. For your

safety, unplug the mains plug when cleaning the

set. When moving the TV, hold it properly from the

bottom part.

Image Persistence: Please note that ghosting may

occur while displaying a persistent image.LCD TVs’

image persistence may disappear after a short time.

Try turning off the TV for a while.

To avoid this, do not leave the screen in still picture

for extended periods.

No Power: If your TV system has no power, please

check the main power cable and connection to the

mains socket outlet.

Poor Picture: Have you selected the correct TV

system? Is your TV set or house aerial located too close

to a non-earthed audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures

or ghost images. Sometimes you can improve the

picture quality by changing the direction of the aerial.

Is the picture or teletext unrecognisable? Check if you

have entered the correct frequency. Please retune the

channels. The picture quality may degrade when two

peripherals are connected to the TV at the same time.

In such a case, disconnect one of the peripherals.

No Picture: Is the aerial connected properly? Are the

plugs connected tightly to the aerial socket? Is the

aerial cable damaged? Are suitable plugs used to

connect the aerial? If you are in doubt, consult your

dealer. No Picture means that your TV is not receiving

a transmission. Have you selected the correct button

on the remote control? Try once more. Also make sure

the correct input source has been selected.

Sound: You can not hear any sound. Did you perhaps

interrupt the sound, pressing the button? Sound is

coming from only one of the speakers. Is the balance

set to one extreme? See Sound Menu.

Remote Control: Your TV no longer responds to the

remote control. Perhaps the batteries are exhausted.

If so you can still use the local buttons on the TV.

Input Sources: If you cannot select an input source,

it is possible that no device is connected. Check

the AV cables and connections if you have tried to

connect a device.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3001_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 30 27.09.2011 17:49:0727.09.2011 17:49:07

English - 31 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Appendix A: PC Input Typical

Display Modes

The display has a maximum resolution of 1920 x 1200.

The following table is an illustration of some of the

typical video display modes. Your TV may not support

different resolutions. Supported resolution modes are

listed below. If you switch your PC to an unsupported

mode, a warning OSD will appear on the screen.

Appendix B: AV and HDMI Signal

Compatibility (Input Signal Types)

Source Supported Signals Available

EXT-1

(SCART-1)

PAL 50/60 O

NTSC 60 O

RGB 50 O

RGB 60 O

EXT-2

(SCART-2)

PAL 50/60 O

NTSC 60 O

RGB 50 X

RGB 60 X

SIDE AV PAL 50/60 O

NTSC 60 O

YPbPr

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

HDMI1

HDMI2

HDMI3

HDMI4

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

1080P 24 HZ O

(X: Not Available, O: Available)

In some cases a signal on the LCD TV may not be displayed

properly. The problem may be an inconsistency with standards

from the source equipment (DVD, Set-top box, etc. ). If you

do experience such a problem please contact your dealer and

also the manufacturer of the source equipment.

Index Resolution Frequency

1640x400 70Hz

2640x480 60Hz

3640x480 72Hz

4640x480 75Hz

5800x600 56Hz

6800x600 60Hz

7800x600 70Hz

8800x600 72Hz

9800x600 75Hz

10 1024x768 60Hz

11 1024x768 70Hz

12 1024x768 72Hz

13 1024x768 75Hz

14 1152x864 75Hz

15 1280x768 60Hz

16 1360x768 60Hz

17 1280x768 75Hz

18 1280x960 60Hz

19 1280x960 75HZ

20 1280x1024 60Hz

21 1280x1024 75HZ

22 1400x1050 60Hz

23 1600x1200 60Hz

24 1920x1080 60Hz

25 1920x1200 60Hz

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3101_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 31 27.09.2011 17:49:0827.09.2011 17:49:08

English - 32 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Appendix C: Supported DVI Resolutions

When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer

to the following resolution information.

Index Resolution Frequency

1640x400 70Hz

2640x480 60Hz

3640x480 72Hz

4640x480 75Hz

5800x600 56Hz

6800x600 60Hz

7800x600 70Hz

8800x600 72Hz

9800x600 75Hz

10 1024x768 60Hz

11 1024x768 70Hz

12 1024x768 72Hz

13 1024x768 75Hz

14 1152x864 75Hz

15 1280x768 60Hz

16 1360x768 60Hz

17 1280x768 75Hz

18 1280x960 60Hz

19 1280x960 75Hz

20 1280x1024 60Hz

21 1280x1024 75Hz

22 1400x1050 60Hz

23 1600x1200 60Hz

24 1920x1080 60Hz

25 1920x1200 60Hz

26 480p 60Hz

27 576p 50Hz

28 720p 50Hz

29 720p 60Hz

30 1080i 50Hz

31 1080i 60Hz

32 1080p 24Hz

33 1080p 25Hz

34 1080p 30Hz

35 1080p 50Hz

36 1080p 60Hz

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3201_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 32 27.09.2011 17:49:0827.09.2011 17:49:08

English - 33 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Appendix D: Supported File Formats for USB Mode

Media File

Extension Format Remarks

Video Audio

(

Maximum resolution/Bit rate etc.

)

Movie

.mpg, .mpeg MPEG1, 2 MPEG Layer 1/2/3

MAX 1920x1080 @ 30P 20Mbit/sec

.dat MPEG1, 2 MPEG2

.vob MPEG2

.avi

MPEG2 PCM/MP3

MAX 1920x1080 @ 30P 20Mbit/sec

Xvid 1.00, Xvid 1.01,

Xvid 1.02, Xvid 1.03,

Xvid 1.10-beta1/2 PCM

Music .mp3 - MPEG 1 Layer 1 / 2

(MP3)

32Kbps ~ 320Kbps(Bit rate)

32KHz ~ 48KHz(Sampling rate)

Photo .jpg .jpeg Baseline JPEG max WxH = 15360x8640 4147200bytes

Progressive JPEG max WxH = 1024x768 6291456bytes

.bmp - max WxH = 9600x6400 3840000bytes

Subtitle .sub --

.srt

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3301_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 33 27.09.2011 17:49:0827.09.2011 17:49:08

English - 34 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Appendix E: Software Upgrade

• Your TV is capable of fi nding and updating new software upgrades over broadcast channels.

• For broadcast channels search, TV looks the available channels stored in your settings. So before software

upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.

• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings

menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.

• In Upgrade Options menu select Scan for upgrade and press OK button.

• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download

progress. When download completes with success a message is displayed for reboot to activate new software.

Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

• If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast

channels for new software upgrade. If new software is found and downloaded successfully, with next power

up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is

fi nished successfully. During reboot TV makes fi nal initializations. In reboot sequence panel power is closed and

front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

• If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with

new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few

times more. If your set still can not operate, please call the service personnel to fi x the problem for you.

Caution: While led is blinking during reboot do not unplug your TV’s power. Doing this may cause

your TV not to re-open again and can only be fi xed by service personnel.

Products

Battery

Information for Users on Disposal of Old Equipment and

Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not

be disposed of as general household waste. If you want to dispose

of the product or battery, please consider the collection systems or

facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this

battery contains lead.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3401_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 34 27.09.2011 17:49:0827.09.2011 17:49:08

English - 35 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Appendix F: Supported 3D Content Resolutions

HDMI MBV MBP DTV ATV OTHER

1080p@24

FP Supported Not

Supported Not

Supported Not

Supported Not

Supported Not

Supported

720p@50

FP Supported Not

Supported Not

Supported Not

Supported Not

Supported Not

Supported

720p@60

FP Supported Not

Supported Not

Supported Not

Supported Not

Supported Not

Supported

1080p FC SBS, TB SBS, TB SBS, TB SBS, TB Not

Supported SBS, TB

720p FC SBS, TB SBS, TB SBS, TB SBS, TB Not

Supported SBS, TB

1080i FC SBS SBS SBS SBS Not

Supported SBS

OTHER Not

Supported Not

Supported (*) (*) Not

Supported Not

Supported

SBS: Side By Side

TB: Top Bottom

MBP: Media Browser Picture

MBV: Media Browser Video

FC: Frame Compatible

FP: Frame Pack

in MBP: Supported only when, the image’s height is multiples of 2 and the image’s width is multiples of 16

and if the image width is equal to the panel width or wider.

in DTV: Supported only when, the image’s height is between 1700 and 1900 and the image’s width is equal

to 1280 or 720.

(*): Not supported if the image provides 1080i resolution.

3D Glasses

Frame Material: ABS Frame Type: Foldable Weights: 21g

Polarization Film Type: Circular Light Penetration Rate: 40%

Polarization Effi ciency: 99.9% Lens Thickness: 0.28mm Lens Treatment: Hard-coated

3D Imaging Viewing Range

Note: Viewing angle, TV size and other circumstances may affect the viewing distance and the angle of

view.

Viewing Distance Maximum Viewing Distance

2 m -7 m 10 m

(6.5 ft - 22.9 ft) (32.8 ft)

Vertical Viewing Angle

15° Vertical

Horizontal Viewing Angle

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3501_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 35 27.09.2011 17:49:0827.09.2011 17:49:08

English - 36 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Using with PS3 (for UK only)

• Have both TV and console off.

• Turn on the TV and wait for it to power up, then turn on the console (Hold power button until beep)

• The PS3 will then identify the 3DTV and ask for resolution information and screen size.

• Once selected the PS3 will then have the ability to play both games and Blu-ray 3D discs.

Using with SKY (for UK only)

• Select Sky 3D channel.

• Press Menu on TV.

• Select Picture.

• Select 3D Menu.

• Change setting to 3D side by side.

• Once selected 3D channel can now be watched.

Note you will need to unselect this mode when going back to 2D channels.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3601_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 36 27.09.2011 17:49:0827.09.2011 17:49:08

English - 37 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

Specifi cations

TV BROADCASTING

PAL/SECAM B/G D/K K’ I/I’ L/L’

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

1000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (WRMS.) (10% THD)

2 x 8

POWER CONSUMPTION (W)

210 W (max)

PANEL

16:9 display, 42” Screen Size

DIMENSIONS (mm)

DxLxH (With foot): 219 x 1020 x 693

Weight (Kg): 19

DxLxH (Without foot): 99,5 x 1020 x 655

Weight (Kg): 18

Digital

Reception

MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Profi le 1

for UKObject carousel support compliant with ISO/IEC 135818-6 and UK DTT profi le

Frequency range: 474-850 MHz for UK models

170-862 MHz for EU models

Transmission standard: DVB-T. MPEG-2

Demodulation: COFDM with 2K/8K FFT mode

FEC: all DVB modes

Video: MP@ML, PAL, 4:3/16:9

Audio: MPEG Layer I&II 32/44.148kHz.

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3701_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 37 27.09.2011 17:49:0827.09.2011 17:49:08

English - 38 -

For assistance, please call our Tesco Electrical Helpline on 0845 456 6767

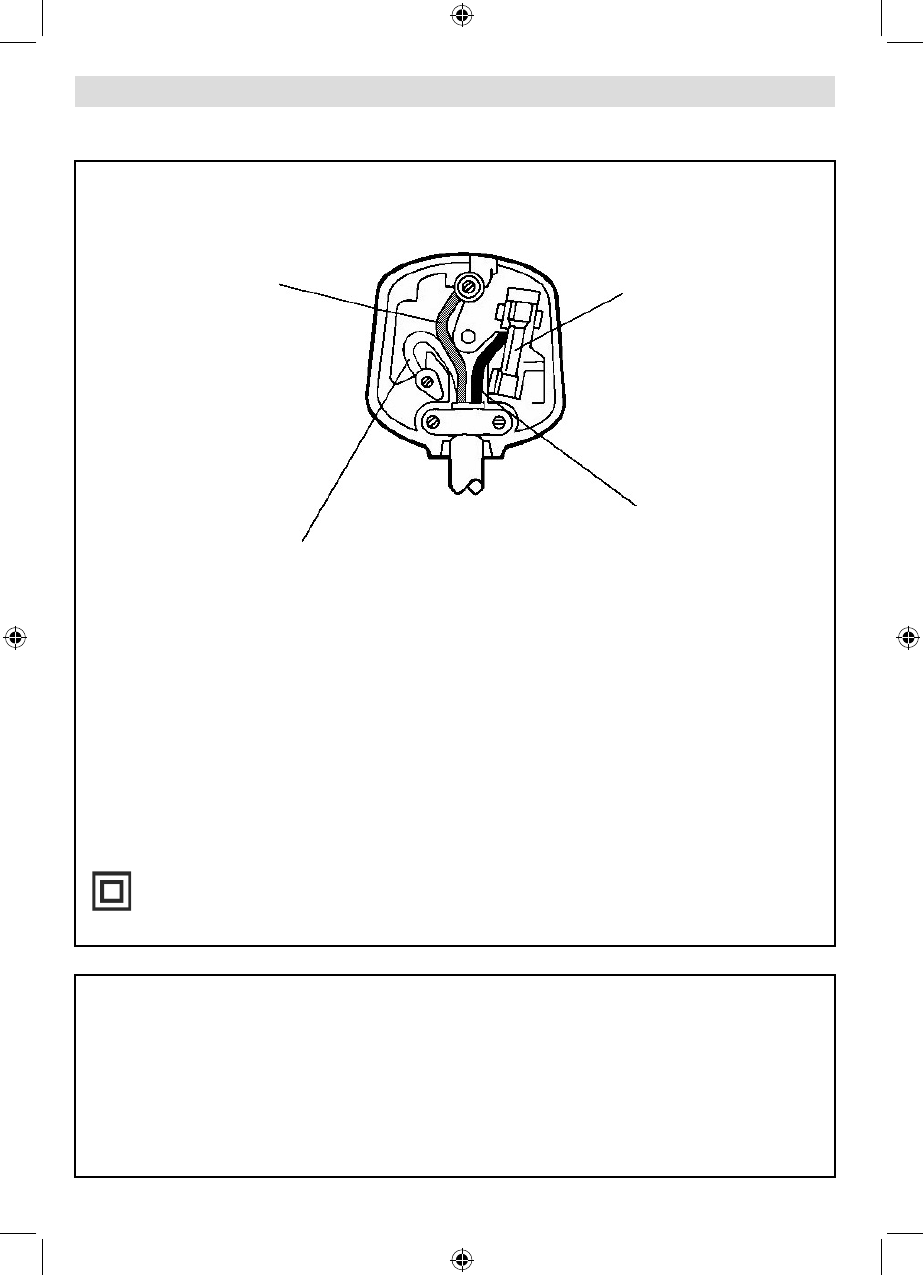

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains

supply.

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with

the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the

letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the

letter L or coloured Red.

For continued protection against risk of fi re, replace only with same type and rating of fuse (ASTA

approved 5A 250VAC fuse).

Note: Earth connection is used only for class I applications.

This symbol means this appliance is a class II appliance and therefore, an earth connection is

not required.

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING

COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT

ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

GREEN

&

YELLOW

(Earth)

(if there is earth cable)

FUSE

BROWN

(Live)

BLUE

(Neutral)

01_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 3801_MB65_[GB]_[3D]_5103UK_IDTV_GOLD14_42910W_10075094_50198875.indd 38 27.09.2011 17:49:0827.09.2011 17:49:08
