Congratulations on purchasing this television. We hope you have many years of trouble free
enjoyment from your purchase.
Your product is covered under the manufacturers guarantee for 12 months from date of
purchase.
In the event of a fault being diagnosed, please refer to the frequently asked questions/
troubleshooting section at the rear of this user guide.
If you are still unable to remedy the fault, try resetting the TV to factory settings, (details in this
user guide) or contact the helpline.
In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home
or work address, return it to our service centre, repair the item and then return it to you.
If we believe we cannot offer a permanent repair, we will replace the item.
Sky Media UK LTD – Helpline Information
Telephone UK 0871 2000 463, ROI 01443 3940
Email: service@skymediauk.co.uk
Web support: www.skymediauk.co.uk
The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.
You must retain all packaging materials, in addition to your proof of purchase/receipt, as you will need
these in the event of warranty/service support.
This guarantee is in addition to and does not affect your statutory rights.
If you need to call the helpline, you will need the following information.
1) Model Number ______________________________________ (You can fi nd this on the rear of the TV)
2) Date of purchase ______________________________________ (You can fi nd this on your sales receipt)
3) Serial Number ______________________________________ (You can fi nd this on the rear of the TV)
IMPORTANT GUARANTEE INFORMATION
Manufacturers Guarantee

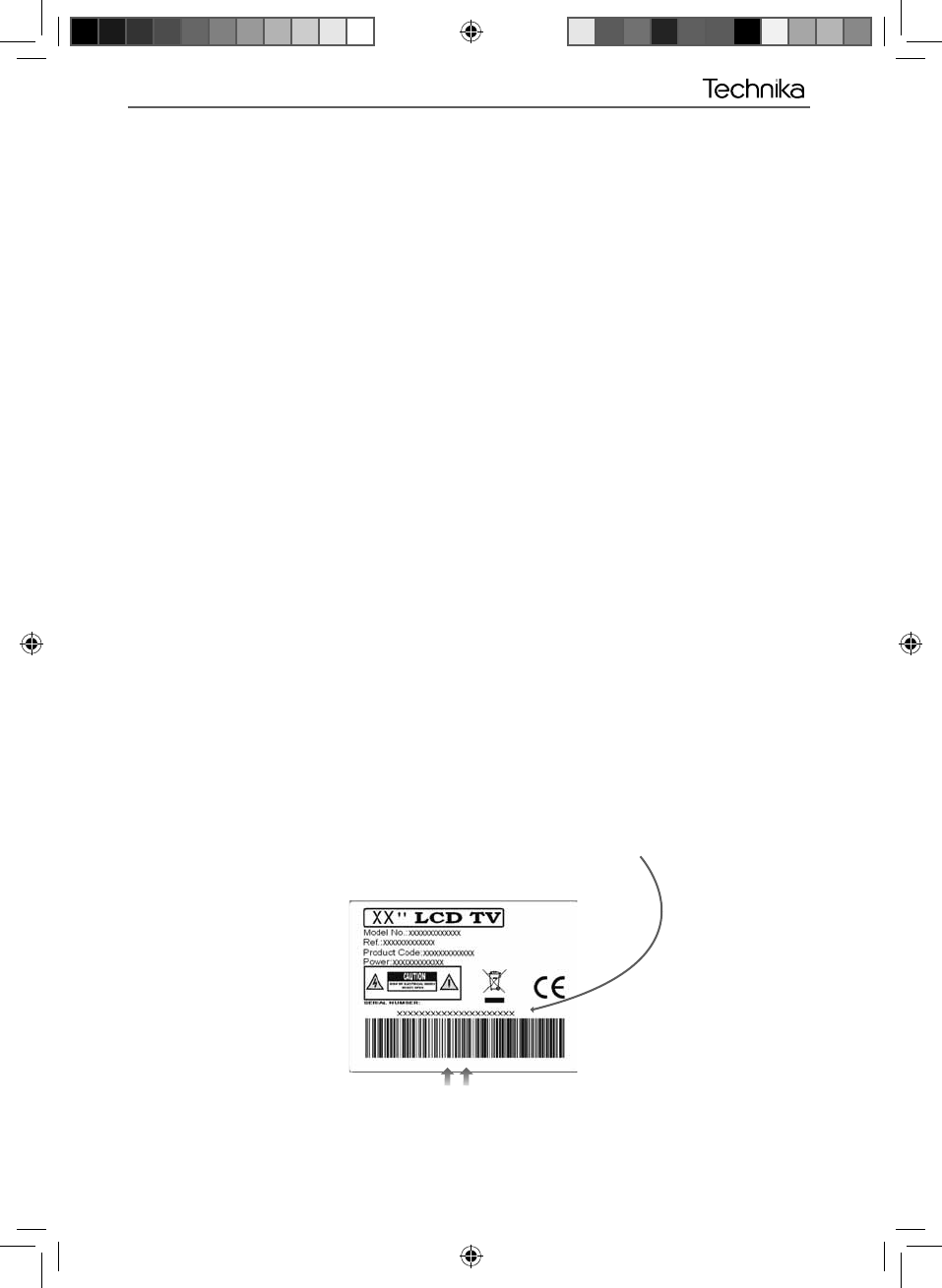

EXAMPLE OF LABEL ON REAR OF TV
Manual - Technika - LCD32-270(CR).indd Sec1:3Manual - Technika - LCD32-270(CR).indd Sec1:3 10/12/2010 3:48:12 PM10/12/2010 3:48:12 PM
4
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions. All the safety and operating instructions should be read before the
appliance is operated.
Warnings
To reduce the risk of fi re, electric shock or damage to the television, do not expose it to •
dust, rain or moisture, or place any objects fi lled with liquids on or near the television.
Do not place the television in a confi ned space, ensure that nothing can obstruct the •
ventilation openings at the rear of the television.
Dispose of this television and any components including batteries in an environmentally •
friendly manner. If in doubt, please contact your local authority for details of recycling.
Safety
For your safety, this appliance is fi tted with a fused moulded 3 pin mains plug. Should •
the fuse need to be replaced, ensure that any replacement is of the same amperage and
approved with the BSI mark.
Never try and replace the mains plug unless you have adequate qualifi cations and are •
legally authorised to do so. In the event that a replacement Mains cable is required,
contact the manufacturer for a suitable replacement.
Never use the television if it is damaged in any way.•
Always place the television on a fl at level surface avoiding anywhere which may be subject •
to strong vibration.
Ensure the television is not placed on top of the power cable as the weight of the •
television may damage the cable and cause a safety hazard.
Never place mobile phones, speakers or any other device which may cause magnetic or •
radio interference with the television. If interference is apparent, move the device causing
the interference away from the television.
Install the product keeping the specifi ed distance from the wall.•
To disconnect the apparatus from the mains, please use an all pole mains switch located on the side of •
the tv.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, •
fi re or the like.
Maintenance
To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, •
use a soft cloth dipped in a soap and water solution or a weak detergent solution.
Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.•
Never use alcohol, paint thinner or benzene to clean this unit.•
Before using a chemically treated cloth, read the instructions that came with the cloth carefully.•
CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction
may occur.
Packaging
The safest way to transport your item is in the original box/packaging - please save your •
packaging for this.
You will need original box/packaging in the event of warranty/service repair or support. We are unable •
to carry out warranty/service if you are unable to package it correctly.
To prevent spread of fi re, keep candles or
other open fl ames away from this product at all times
Manual - Technika - LCD32-270(CR).indd Sec1:4Manual - Technika - LCD32-270(CR).indd Sec1:4 10/12/2010 3:48:13 PM10/12/2010 3:48:13 PM
5
5
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions. All the safety and operating instructions should be read before the
appliance is operated.
Important Information Regarding Use of Video Games, Computers,
Captions or Other Fixed Image Displays
The extended use of fi xed image program material can cause a permanent “shadow image” on the LCD
panel.
This background image is viewable on normal programs in the form of a stationary fi xed image. This type
of irreversible LCD/LED panel deterioration can be limited by observing the following steps:
1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the fi xed image for extended periods of time.
3. Turn the power off when not in actual use.
Examples of images that you need to watch out for are as follows (this is not an exhaustive list):
TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are •
bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.
Time Displays•
Teletext: Do not view a stationary page for long period of time•
TV/DVD Menus: e.g. Listings of DVD disk content•
Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or •
videos.
Important - Once ‘shadow image/screen burn’ occurs, it will never disappear and is not repairable under
warranty.
How do I dispose of this product?
UK: Waste electrical products should not be disposed of with household waste. Separate
disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in
store for details.
ROI: Waste electrical products should not be disposed of with household waste. Separate
disposal facilities exist. Check with your Local Authority or retailer for recycling advice.
Batteries
Observe the correct polarity when inserting batteries.•
Do not use different types of batteries together or mix old and new batteries.•
Dispose of batteries in an environmentally friendly way. •
Certain regions may regulate the disposal of batteries. •
Please consult your local authority. Cd
Manual - Technika - LCD32-270(CR).indd Sec1:5Manual - Technika - LCD32-270(CR).indd Sec1:5 10/12/2010 3:48:13 PM10/12/2010 3:48:13 PM
6
Manual - Technika - LCD32-270(CR).indd Sec1:6Manual - Technika - LCD32-270(CR).indd Sec1:6 10/12/2010 3:48:13 PM10/12/2010 3:48:13 PM
7
7
CONTENTS
Manufacturers Guarantee Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

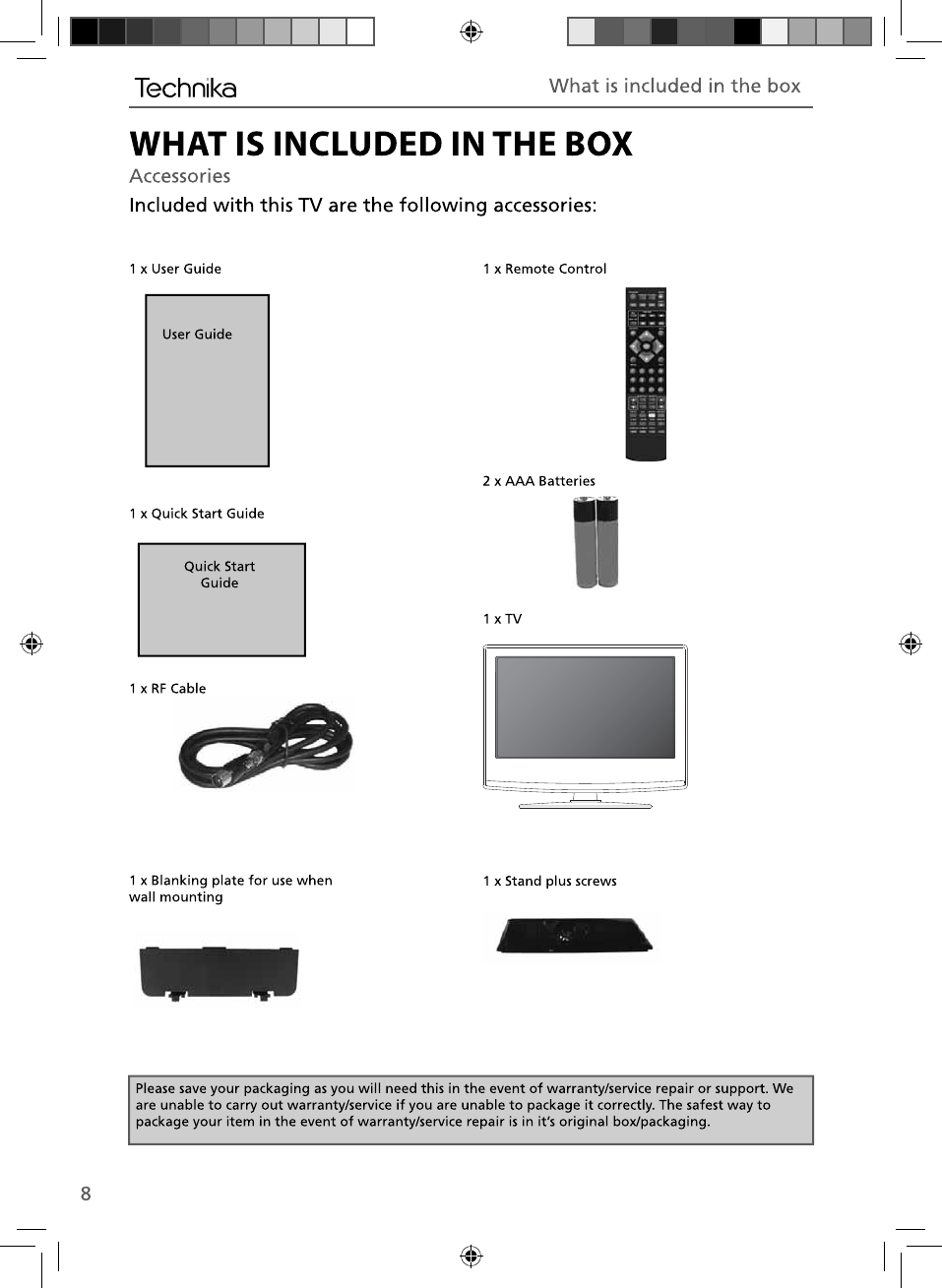

What is included in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Attaching/Detaching the stand and wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
Getting Started - Initial Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TV Buttons and Input Source Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

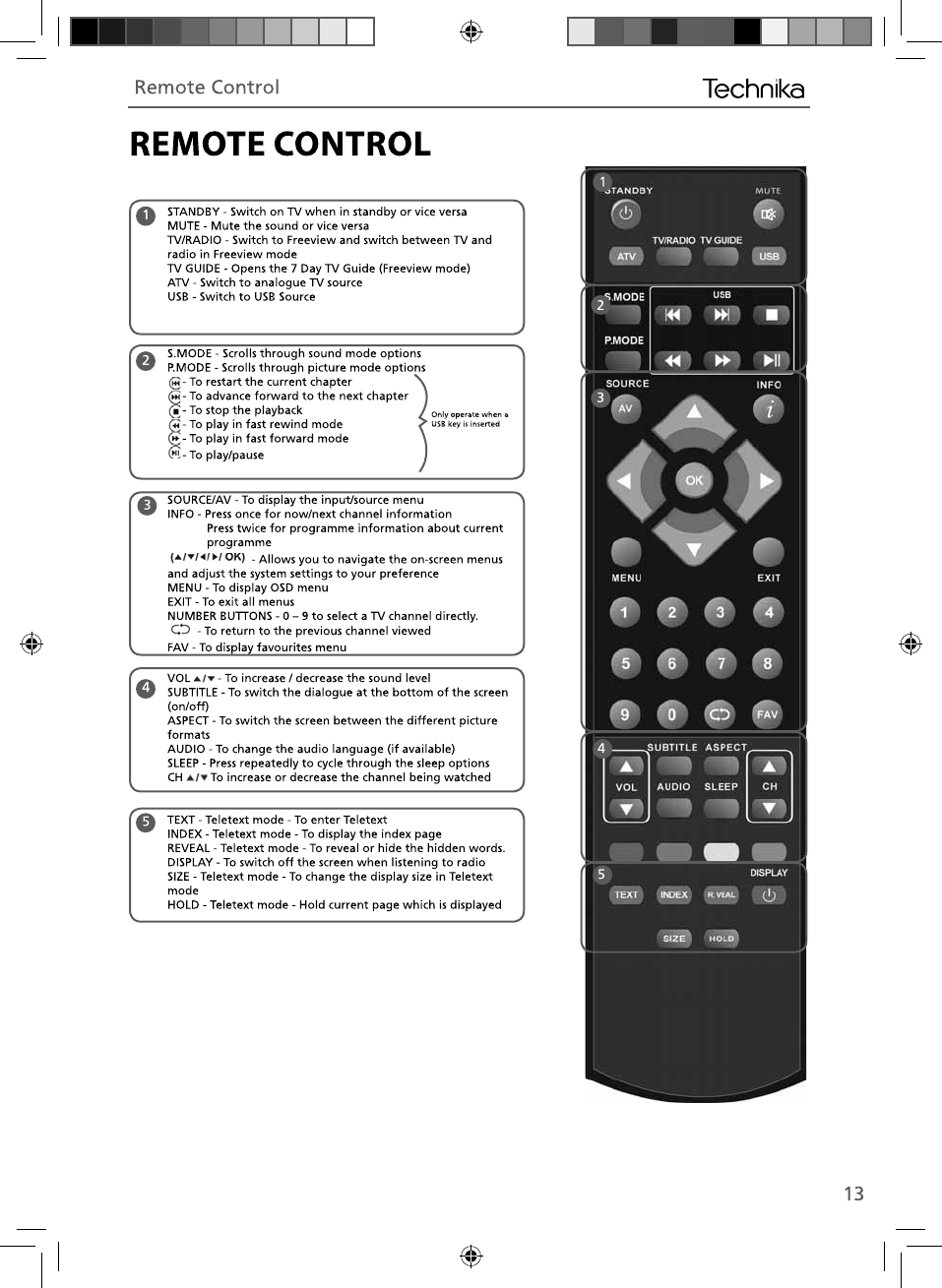

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
TV Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-21
Channel Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Time Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Feature Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
PC Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-23
7 Day TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
USB Mode / Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-30

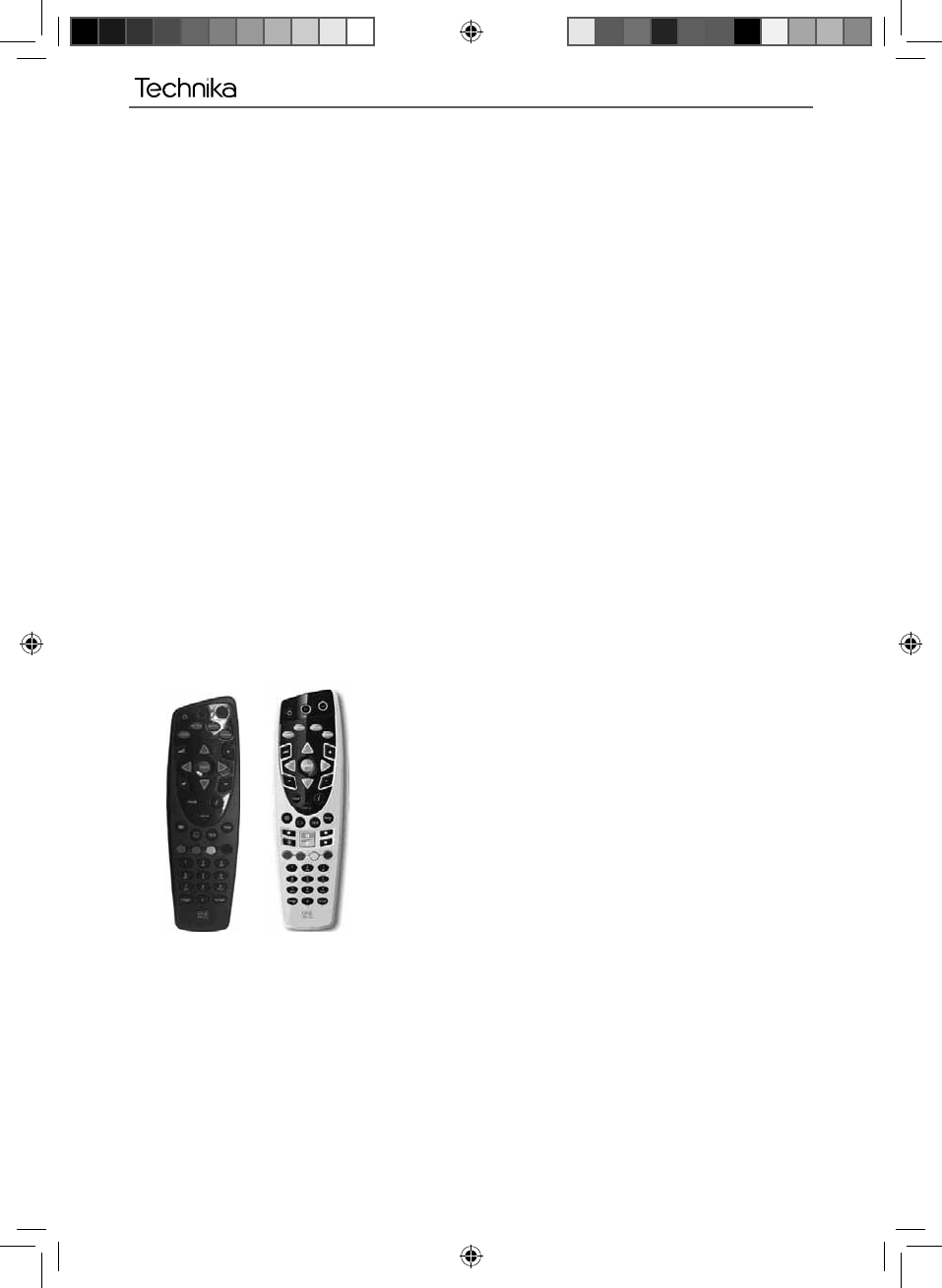

Operating the TV with a universal or Sky (BSKYB) remote control . . . . . . 26
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Digital Switchover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-30
Manual - Technika - LCD32-270(CR).indd Sec1:7Manual - Technika - LCD32-270(CR).indd Sec1:7 10/12/2010 3:48:13 PM10/12/2010 3:48:13 PM
Manual - Technika - LCD32-270(CR).indd Sec1:8Manual - Technika - LCD32-270(CR).indd Sec1:8 10/12/2010 3:48:13 PM10/12/2010 3:48:13 PM
9
9

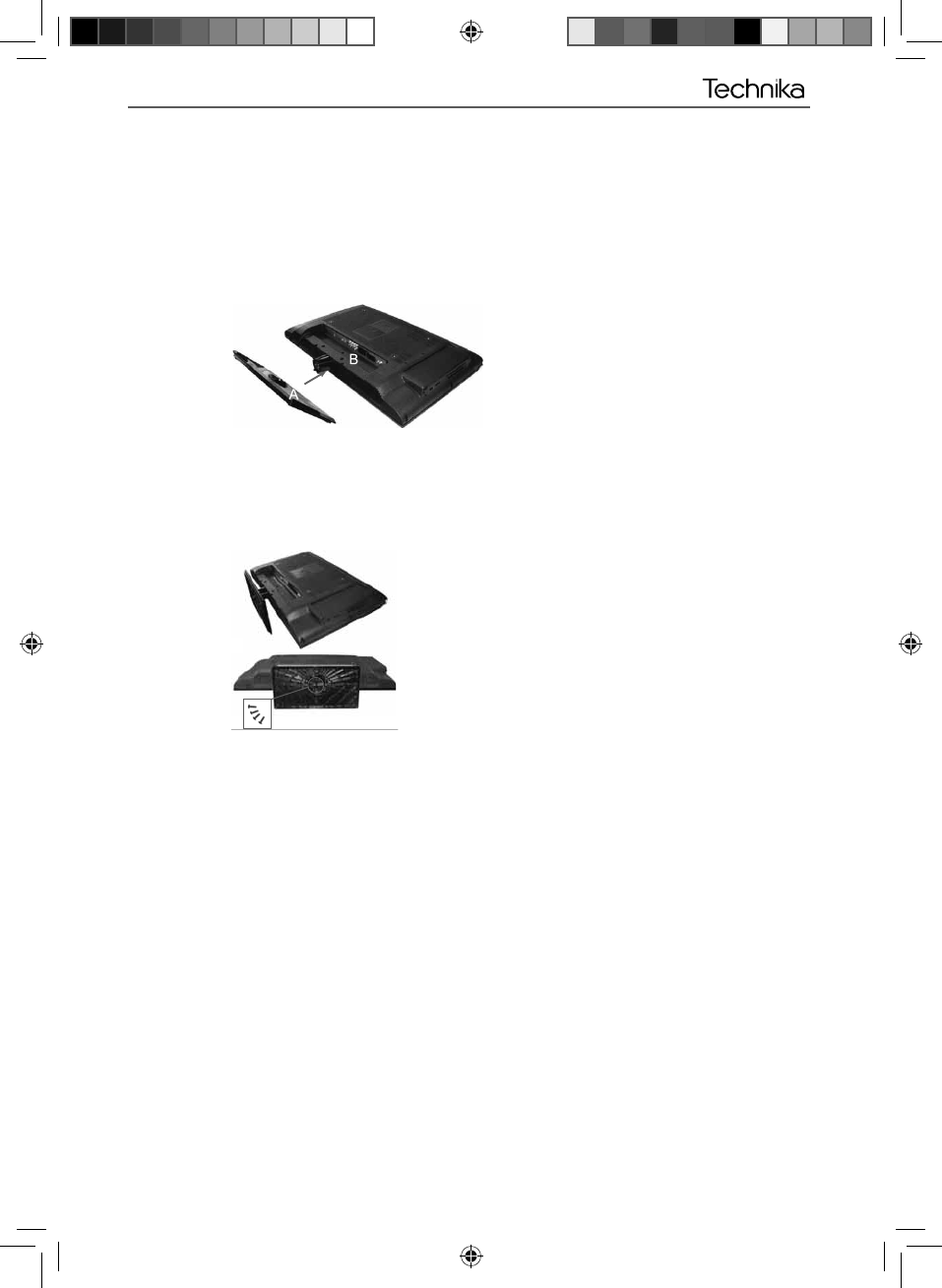

ATTACHING THE STAND
Attaching the stand
1) Insert the stand (PART A) into the stand neck (PART B)
2) Use the screws the provided to attach the stand
Manual - Technika - LCD32-270(CR).indd Sec1:9Manual - Technika - LCD32-270(CR).indd Sec1:9 10/12/2010 3:48:15 PM10/12/2010 3:48:15 PM

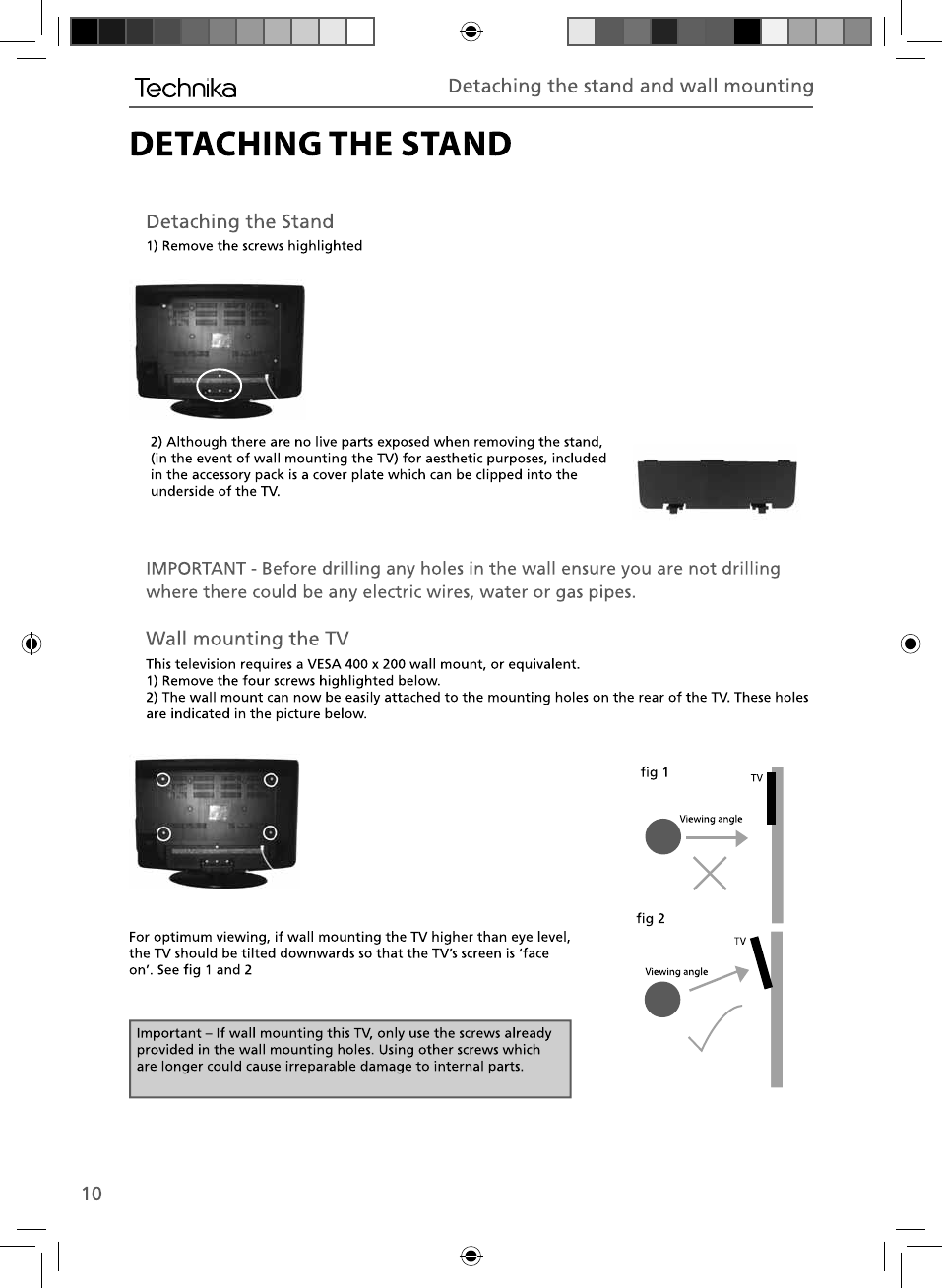

Manual - Technika - LCD32-270(CR).indd Sec1:10Manual - Technika - LCD32-270(CR).indd Sec1:10 10/12/2010 3:48:15 PM10/12/2010 3:48:15 PM
11
11

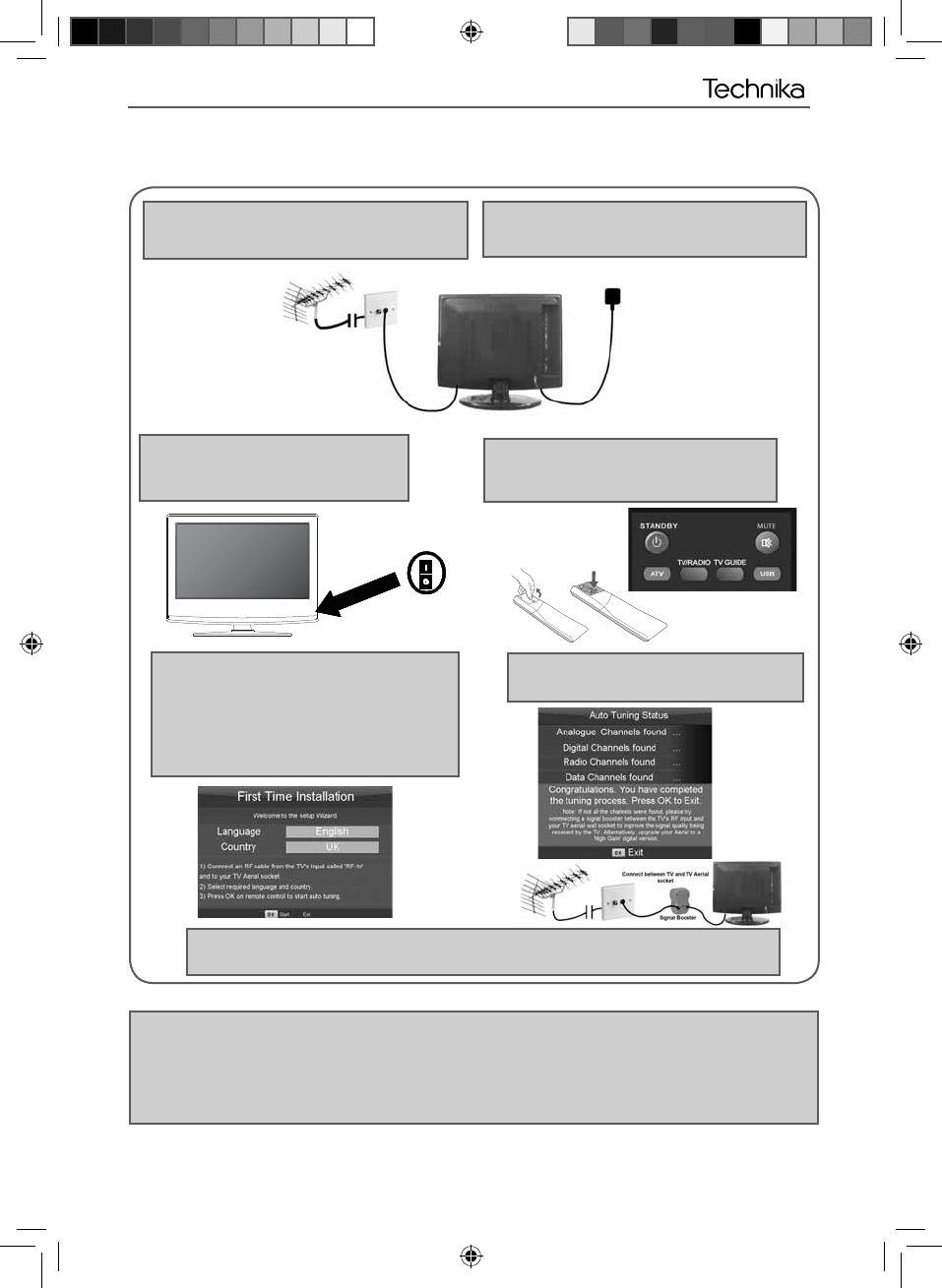

GETTING STARTED  INITIAL SET UP
Getting Started - Initial Set Up
1) Using the RF cable supplied, connect the TV
to the TV Aerial wall socket (Fig A)
2) Connect the power cable to the Electrical
outlet (Fig B)
5) You will now be welcomed with the initial
set-up screen.
If it does not appear, on the remote control,
please press [MENU] then 8-8-8-8 and the
menu will appear.
Press OK on the remote control and tuning
will start.
6) After tuning the following screen will
appear.
If you are missing channels, the reason for this is likely to be signal strength, you should
consider connecting signal booster and re-tuning the TV.
Fig A
Fig B
4) Insert the batteries supplied into the
Remote control and press the Standby
button to power on the TV
3) Switch on the television using the
power on/off switch.
Power on/off
Tip: If the TV fi nds some, but not all, of the Digital channels, the TV is functioning correctly but the
signal being received is not strong enough. (The signal strength needs to be above 85% - you can see the
signal strength the TV is receiving when you change channels/ programmes) you will need to increase
the signal reception in order to receive all of the channels available. The most economical way to do
this is by purchasing and connecting a ‘signal booster’ in between the TV and the TV aerial socket. If this
does not solve the problem, you will need to upgrade the TV aerial to a digital hi-gain compatible aerial
Manual - Technika - LCD32-270(CR).indd Sec1:11Manual - Technika - LCD32-270(CR).indd Sec1:11 10/12/2010 3:48:16 PM10/12/2010 3:48:16 PM
Manual - Technika - LCD32-270(CR).indd Sec1:12Manual - Technika - LCD32-270(CR).indd Sec1:12 10/12/2010 3:48:23 PM10/12/2010 3:48:23 PM
Manual - Technika - LCD32-270(CR).indd Sec1:13Manual - Technika - LCD32-270(CR).indd Sec1:13 10/12/2010 3:48:24 PM10/12/2010 3:48:24 PM
Manual - Technika - LCD32-270(CR).indd Sec1:14Manual - Technika - LCD32-270(CR).indd Sec1:14 10/12/2010 3:48:25 PM10/12/2010 3:48:25 PM
15
15

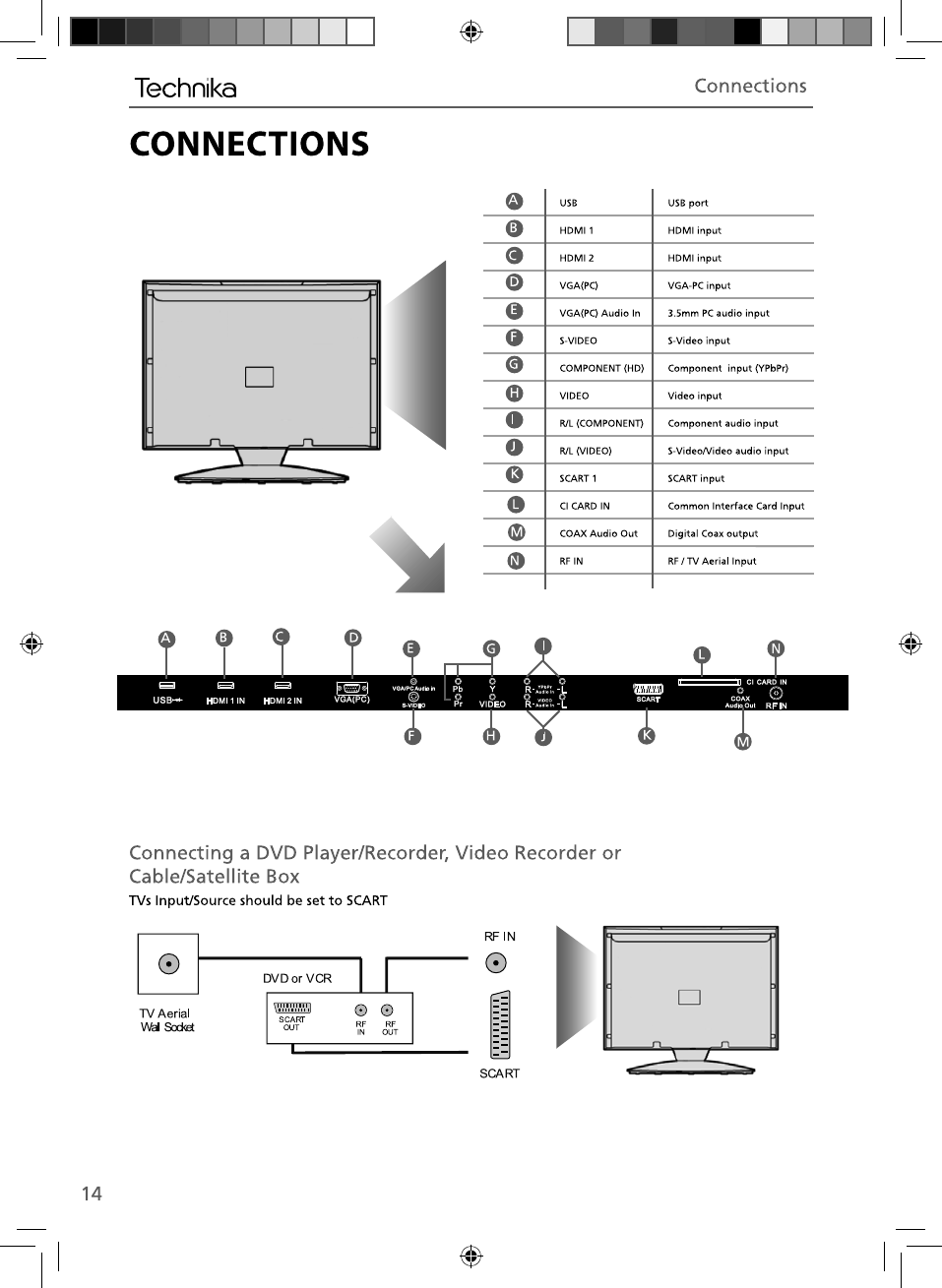

CONNECTIONS
HDMI
HDMI
OUT

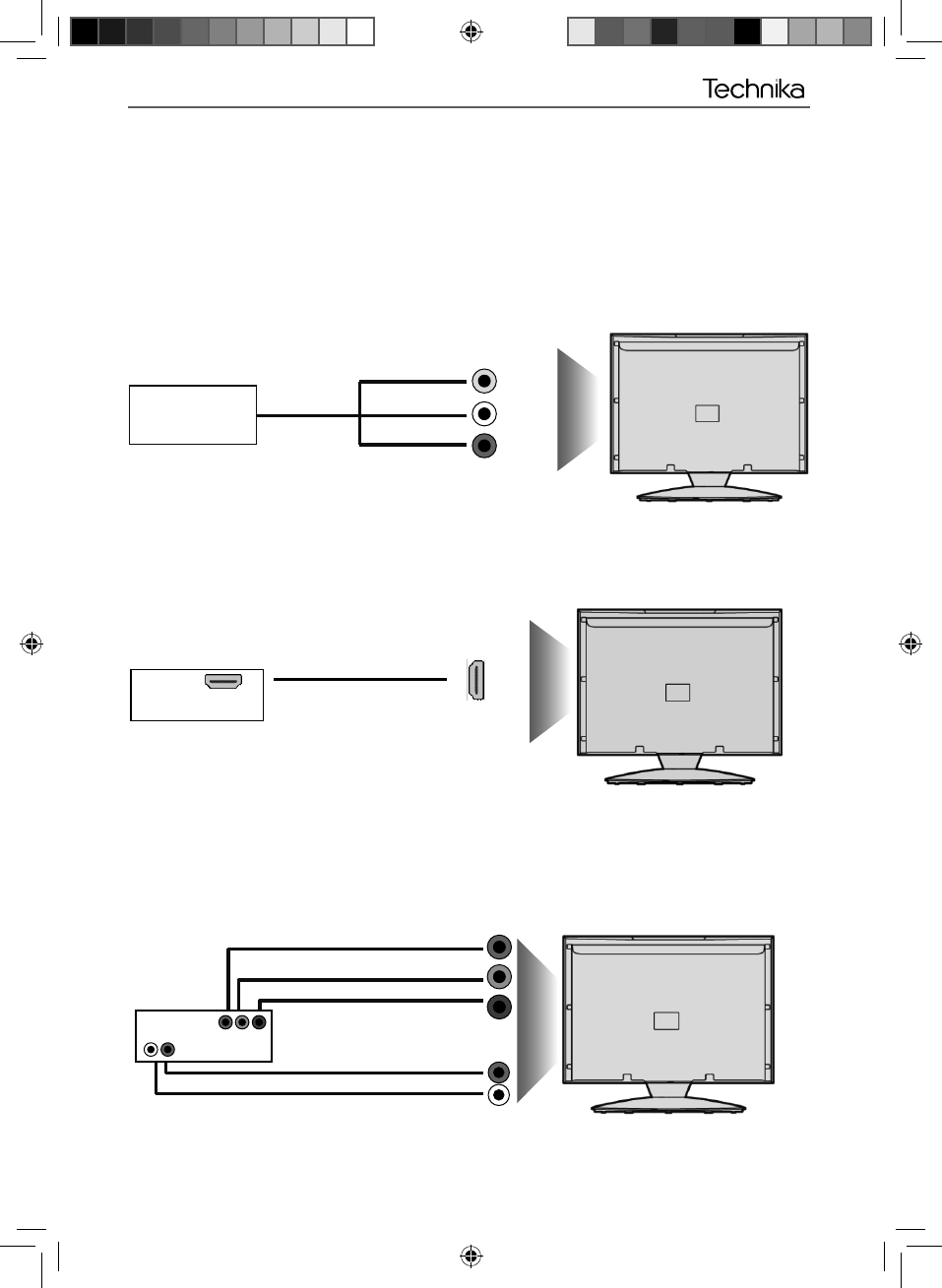

Connecting a Camcorder, Camera or Games Console
Source should be set to Video
Connecting a High Defi nition (HD) Device
Option 1 - via HDMI to HDMI cable
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.
TVs Input/Source should be set to HDMI.
Option 2 - via Component cable
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component.
Connections
Component (HD)
Component
Green
Blue
Red
A u di o L/R
White
Red
Audio
In L/R
Ca mera or
Camcorder Yellow
White
Red Audio
In L/R
Video
Manual - Technika - LCD32-270(CR).indd Sec1:15Manual - Technika - LCD32-270(CR).indd Sec1:15 10/12/2010 3:48:25 PM10/12/2010 3:48:25 PM
16

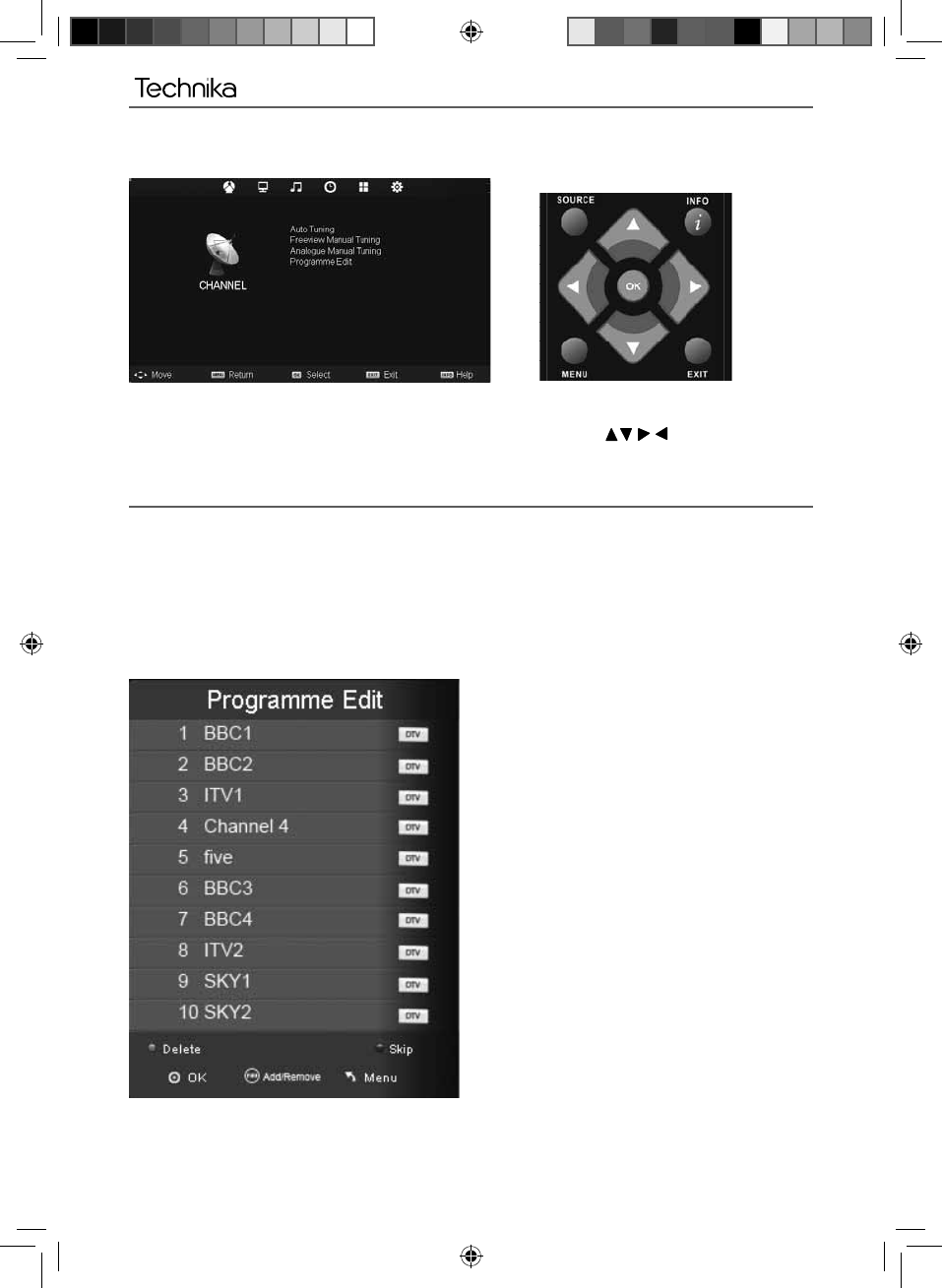

TV Menu Operation
CHANNEL MENU
Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and
analogue channels.
Freeview Manual Tuning- Allows you to manually tune your digital signal
Analogue Manual Tuning - Allows you to manually tune your analogue signal
Programme Edit - Allows you to delete, skip and add favourite channels.

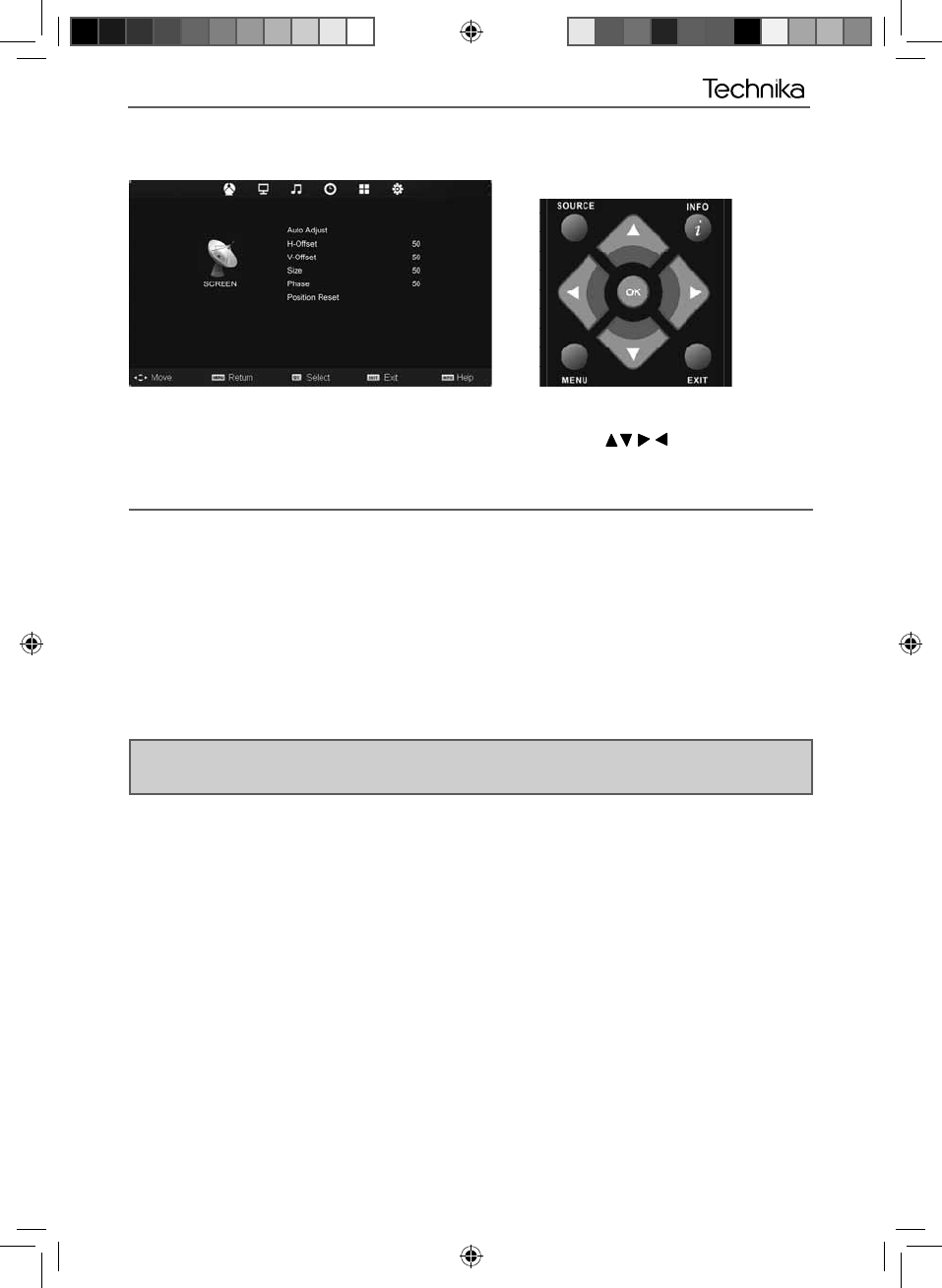

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
AV
Manual - Technika - LCD32-270(CR).indd Sec1:16Manual - Technika - LCD32-270(CR).indd Sec1:16 10/12/2010 3:48:25 PM10/12/2010 3:48:25 PM
17
17
TV Menu Operation

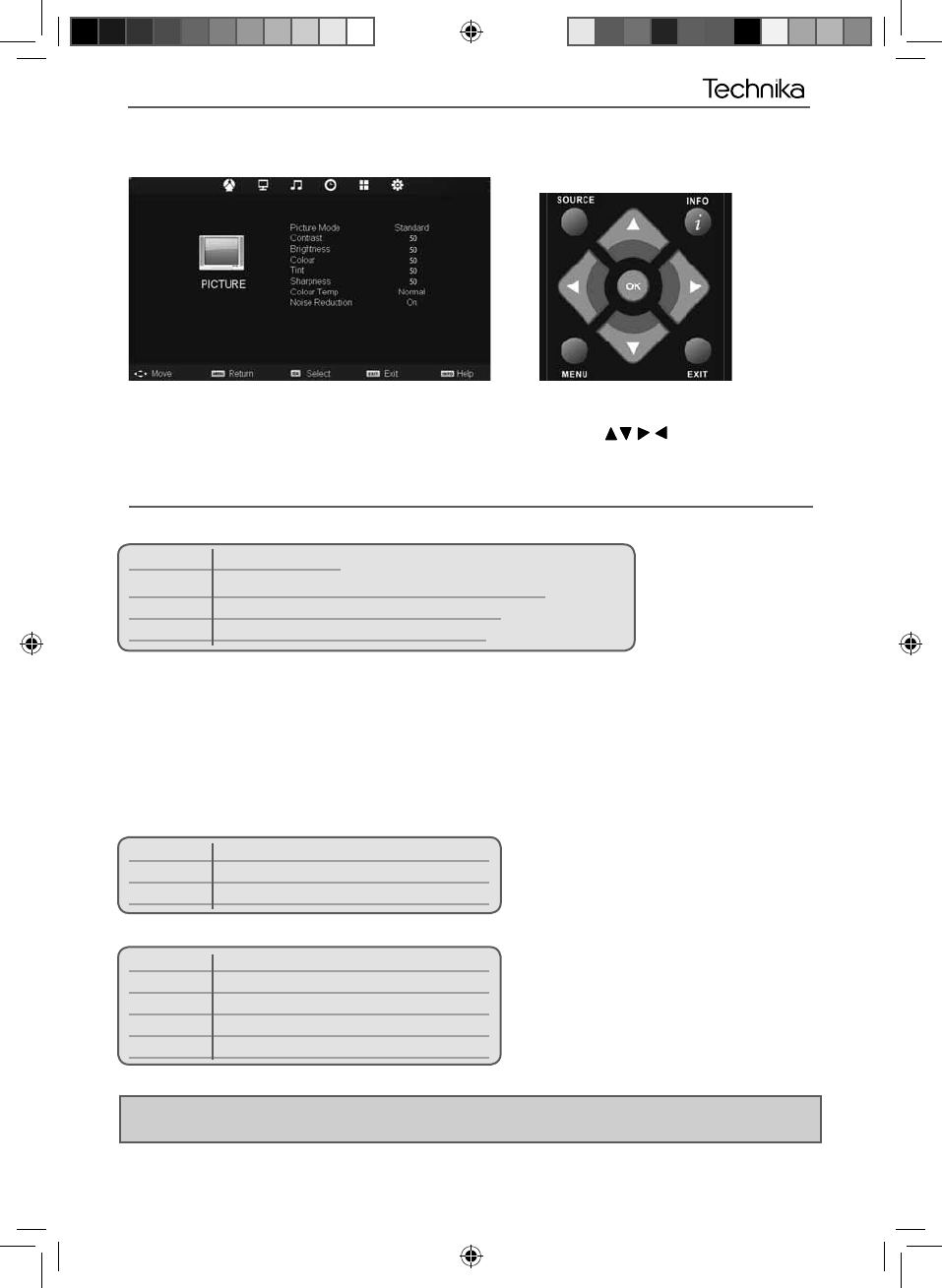

PICTURE MENU
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Picture Mode - Choose from the following presets
Standard Default settings
Dynamic Recommended settings for fast moving pictures
Mild Set to be lighter in colour and less bright
Personal Lets you manually alter all the settings
Contrast - Switch the balance between black and white
Brightness - Increase or decrease the brightness of the picture
Colour - Increases the colour from black and white
Tint - Lets you increase or decrease the level of tint within the picture
Sharpness - Increase or decrease the sharpness of the picture
Colour Temperature - Choose from the following presets
Normal Default settings
Warm Increases red within the picture
Cool Increases blue within the picture
Noise Reduction - Choose from the following presets
Off Turns noise reduction off
Low Minor system adjustment
Middle Medium system adjustments
High Maximum system adjustments
Default Default settings
Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the
length of time before the menu exits automatically - see ‘Menu Duration’ section.
AV
Manual - Technika - LCD32-270(CR).indd Sec1:17Manual - Technika - LCD32-270(CR).indd Sec1:17 10/12/2010 3:48:26 PM10/12/2010 3:48:26 PM
18
TV Menu Operation
SOUND MENU

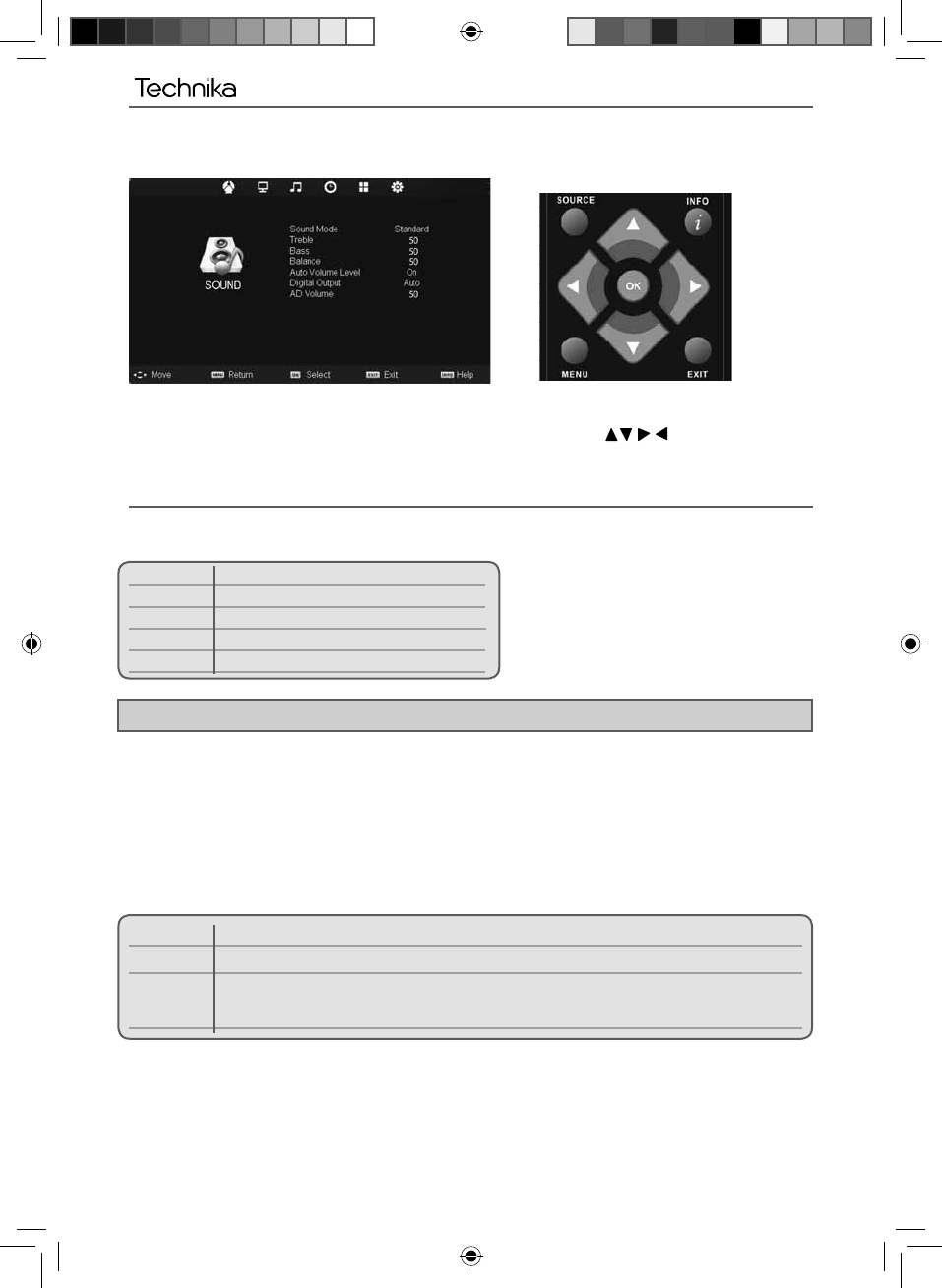

Treble - To adjust the amount of high frequency within the sound
Bass - To adjust the amount of low frequency within the sound
Balance - To switch the sound between the left and right speakers
Auto Volume Level (AVL) - When ‘on’ is selected, the volume will stay at a constant level regardless of
input/source
AD Volume - Increase or decrease the overall volume
Sound Mode - Choose from the following presets
Standard Default settings
Music Emphasises music over voices
Movie Provides live and full sound for movies
Personal Selects your personal sound settings
Sports Emphasises sound for sports
Digital Output - This is the digital COAX Audio output. Choose from the following options:
Off Off
Auto Selects the best settings automatically
PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code
modulation (PCM) is a digital representation of an analogue signal)
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Tip: Treble and bass levels can only be adjusted when the sound mode ‘Personal’ is selected.
AV
Manual - Technika - LCD32-270(CR).indd Sec1:18Manual - Technika - LCD32-270(CR).indd Sec1:18 10/12/2010 3:48:27 PM10/12/2010 3:48:27 PM
19
19
TV Menu Operation

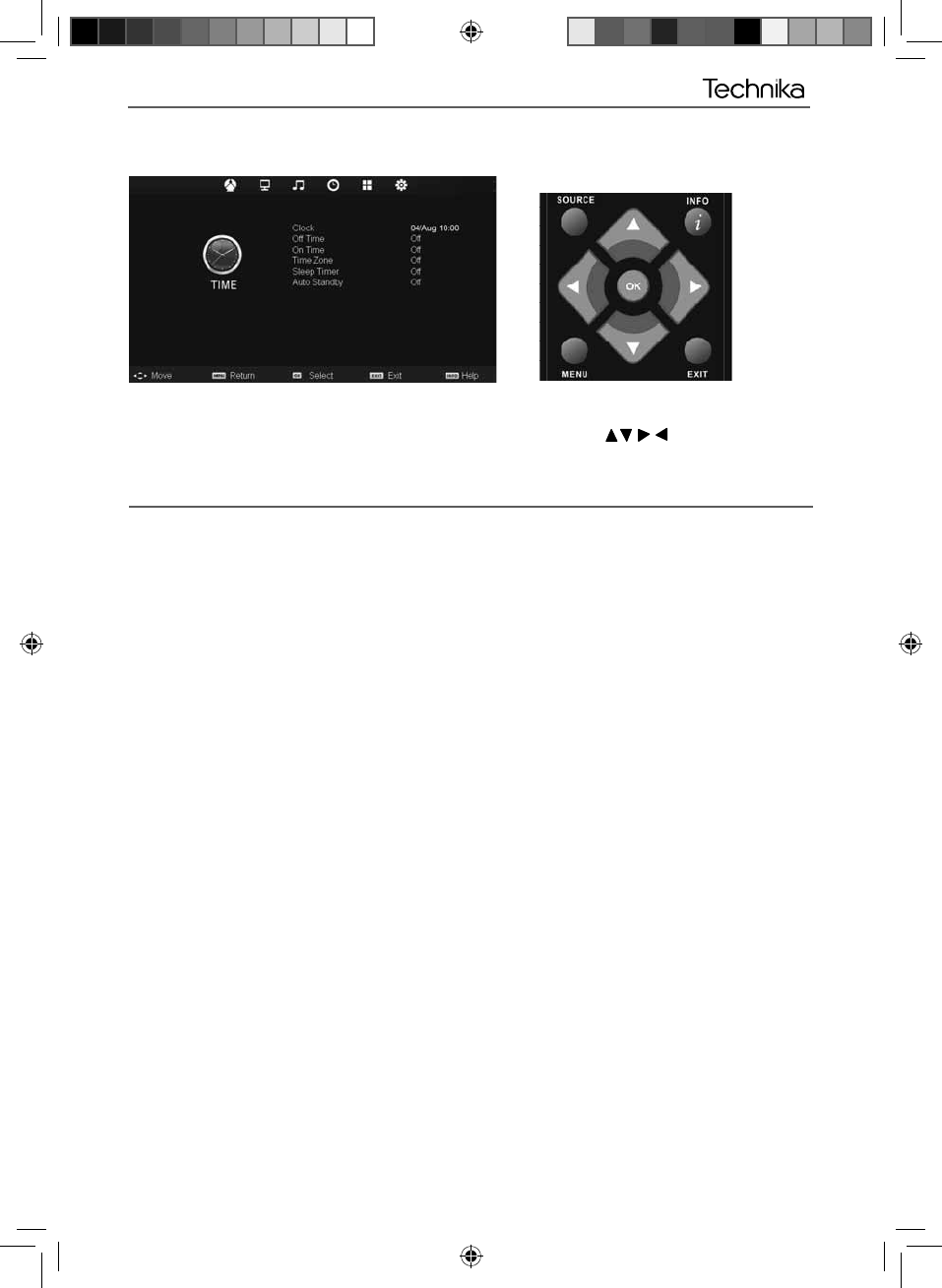

TIME MENU
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
AV
Clock - Set the date and time
Off Time - Allows you to set a specifi c time for your TV to turn off
On Time - Allows you to set a specifi c time for your TV to turn on, the channel it will then display, the
source it will be on and also the volume. This function can then be toggled to repeat every day or a
certain day.
Time Zone - Change your current time zone
Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of
time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min
Auto standby - Toggle the Function on and off
Manual - Technika - LCD32-270(CR).indd Sec1:19Manual - Technika - LCD32-270(CR).indd Sec1:19 10/12/2010 3:48:28 PM10/12/2010 3:48:28 PM
20
TV Menu Operation
FEATURE MENU
Schedule List - Lists your programme reminders
CI Information - Pay per view services require a “smartcard” to be inserted into the TV.
If you subscribe to a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The
CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).
System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use
the button to quit the password input. Use the button to clear. Default password is 0000
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
AV
Manual - Technika - LCD32-270(CR).indd Sec1:20Manual - Technika - LCD32-270(CR).indd Sec1:20 10/12/2010 3:48:29 PM10/12/2010 3:48:29 PM
21
21
TV Menu Operation
SETUP MENU
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
AV
Auto
Automatically displays the best picture format. So the
picture is in the correct position. May have black lines
At the top/bottom and/or sides.
Zoom
Original
16:9
The picture
is the correct
proportion but
zoomed in to
fi ll the screen
Will display the picture from the broadcaster
without any change
14:9
Blue Screen - Changes the background when there is no input between clear and a blue background (Only
available on some sources)
Menu Duration - Lets you adjust the amount of time the On Screen Menu stays on the screen before
disappearing
Reset to default
Reset Menu System - This resets the menus to factory settings.
Reset TV Channels - This clears all the TV channels from the television.
Software Update (USB) - From time to time we may release new fi rmware to improve the operation of
the television (available to download). This menu lets you install the new software/fi rmware onto the
television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer
to the ‘product support’ section of the website.

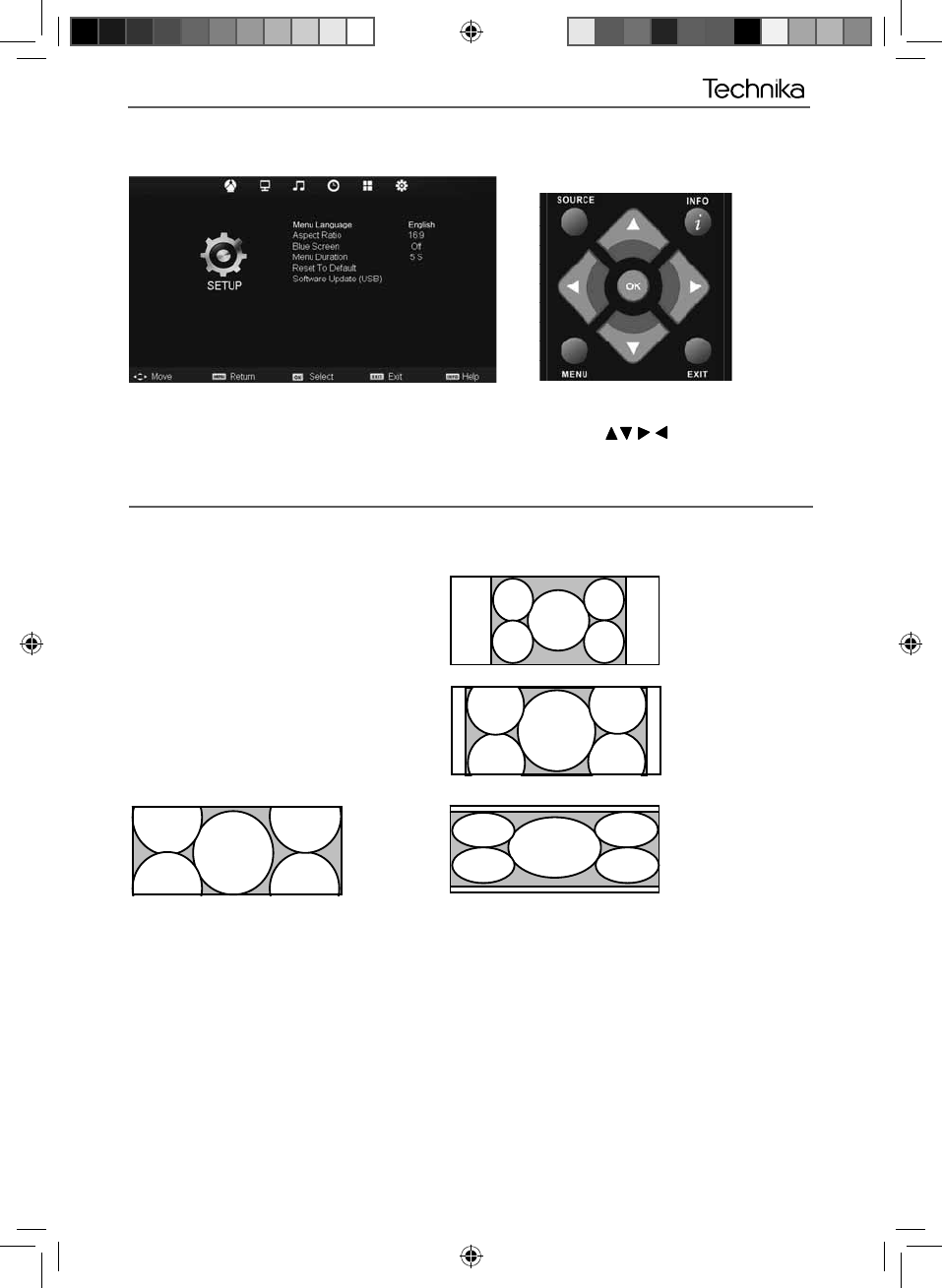

Aspect Ratio - Within the UK the picture format
varies depending on the channel/broadcast.
There are a number of different options to best
meet your needs
Menu language - Allows you to change the language of the menu
4:3
Displays the
14:9 picture
in the correct
proportion. As
a result side
bars are shown
on the screen
Displays the 4:3
picture in its
original size.
Side bars are
shown to fi ll the
16:10 screen
Top and
bottom bars
are shown to
fi ll the 16:10
screen. 4:3
pictures will be
stretched
Manual - Technika - LCD32-270(CR).indd Sec1:21Manual - Technika - LCD32-270(CR).indd Sec1:21 10/12/2010 3:48:30 PM10/12/2010 3:48:30 PM
22
PC Operation

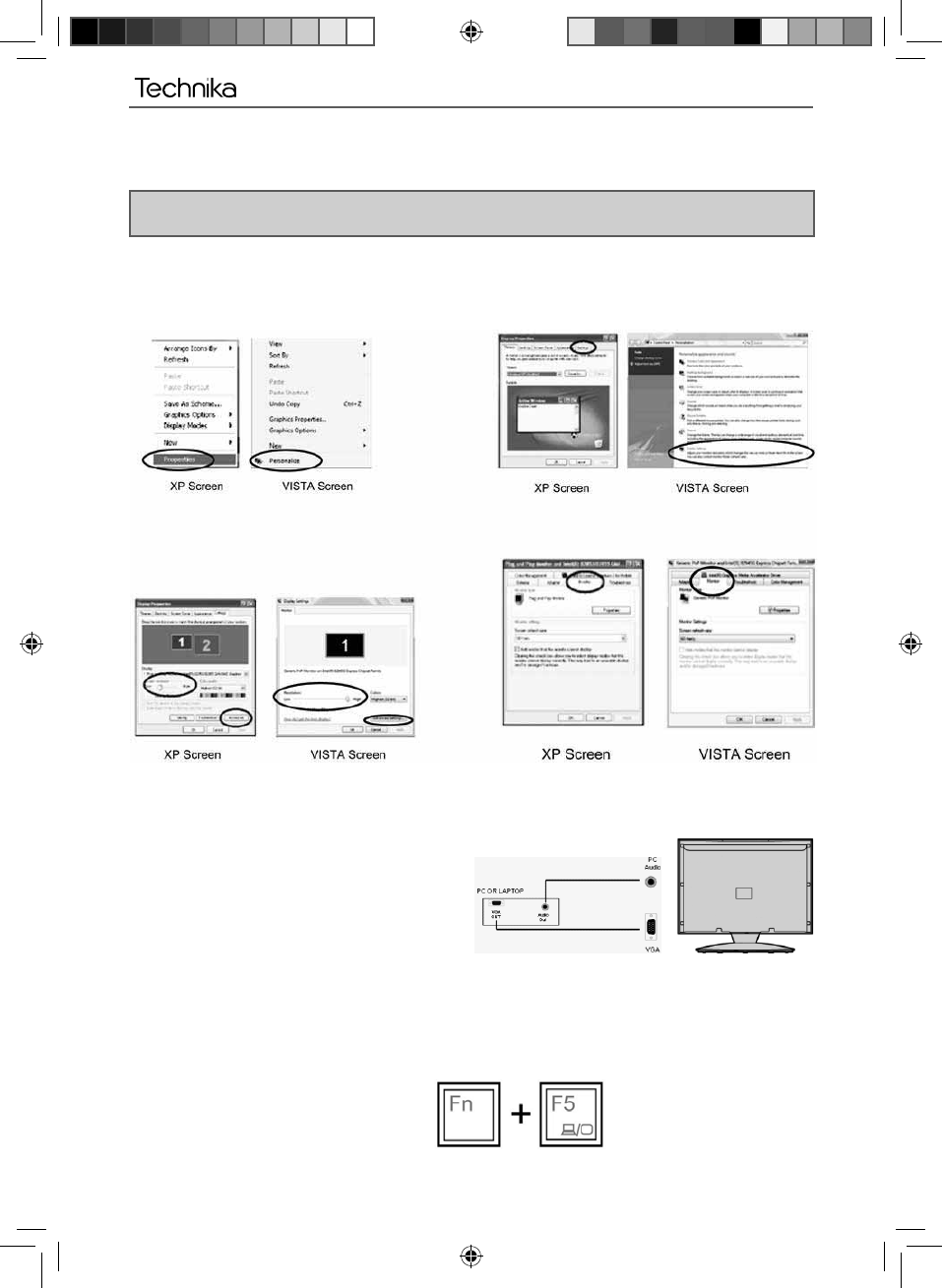

USING THE TELEVISION AS A COMPUTER MONITOR
IMPORTANT – Before connecting the computer to the television you must ensure the computer settings
are correct for the television. You MUST do this using your old monitor.
How to set up for Windows XP & Windows Vista (connecting via VGA cable to the TV)
1) Switch on your computer
2) When fi nished booting up right click your
mouse anywhere on the screen
4) Left click your mouse on Setting/Display Settings.
Ensure the screen resolution is set to what is shown
in the technical specifi cations section toward the
rear of this user guide. To correct the resolution to
that of the television move the slider.
6) Left click on the drop down for Screen refresh rate and select 60 Hertz, if you experience picture noise
or ‘fl ickering’, select 50 hertz or 70 hertz.
7) Click on Apply, then click Yes and the settings will be saved.
8) Now switch off your computer and connect the
television (as shown)
9) Switch on the TV, select the input/source to
VGA/PC and re-start your PC.
Connecting a Laptop
In addition to the above if you are connecting a laptop to the television you will also need to activate the
VGA connection on the laptop. This can vary based on the brand of laptop you have, on many brands/
models, it is as per below.
1) Connect the laptop to the television
2) On the Laptop push buttons
The screen will now switch to the television.
3) Left click your mouse on Properties/Personalise
5) Left click your mouse on Advance/Advanced
Settings and left click on Monitor
Manual - Technika - LCD32-270(CR).indd Sec1:22Manual - Technika - LCD32-270(CR).indd Sec1:22 10/12/2010 3:48:31 PM10/12/2010 3:48:31 PM
23
23
PC SETTINGS
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Auto Adjust - Lets you automatically confi gure the television to be used as a computer monitor
H Offset - Changes the horizontal position of the picture
V Offset - Changes the vertical position of the picture
Size - increase picture size
Phase - To adjust delay time of phase in order to reduce the noise of picture
Position Reset - Changes back to the original settings
Tip: If the computer is left in-active for a period of time, the television will switch into a ‘sleep’ state
(the screen will power off to save power). To switch back on press the standby button.
AV
PC Operation
Manual - Technika - LCD32-270(CR).indd Sec1:23Manual - Technika - LCD32-270(CR).indd Sec1:23 10/12/2010 3:48:32 PM10/12/2010 3:48:32 PM
24
7 Day TV Guide
7 DAY TV GUIDE

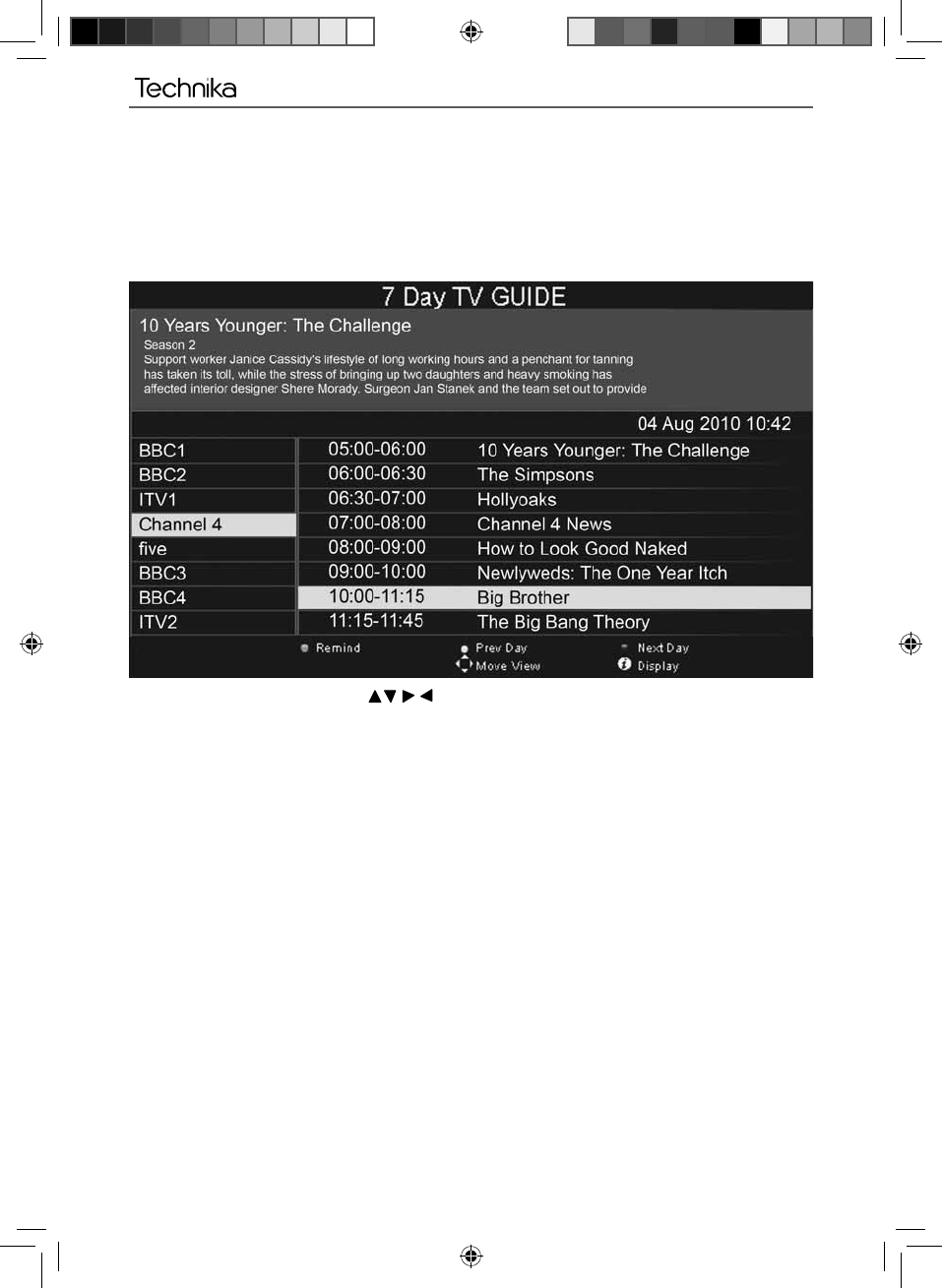

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where
supported by the freeview channel). You can view the start and end time of all programmes and on all
channels for the next 7 days and set reminders.
1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.
2) Navigate through the menu using
You can now:
Set a reminder by pressing GREEN
View a previous day by pressing YELLOW
View the next day by pressing BLUE
3) Press [EXIT] to exit the 7 day TV Guide.
Manual - Technika - LCD32-270(CR).indd Sec1:24Manual - Technika - LCD32-270(CR).indd Sec1:24 10/12/2010 3:48:32 PM10/12/2010 3:48:32 PM
25
25
USB MODE / MEDIA PLAYER

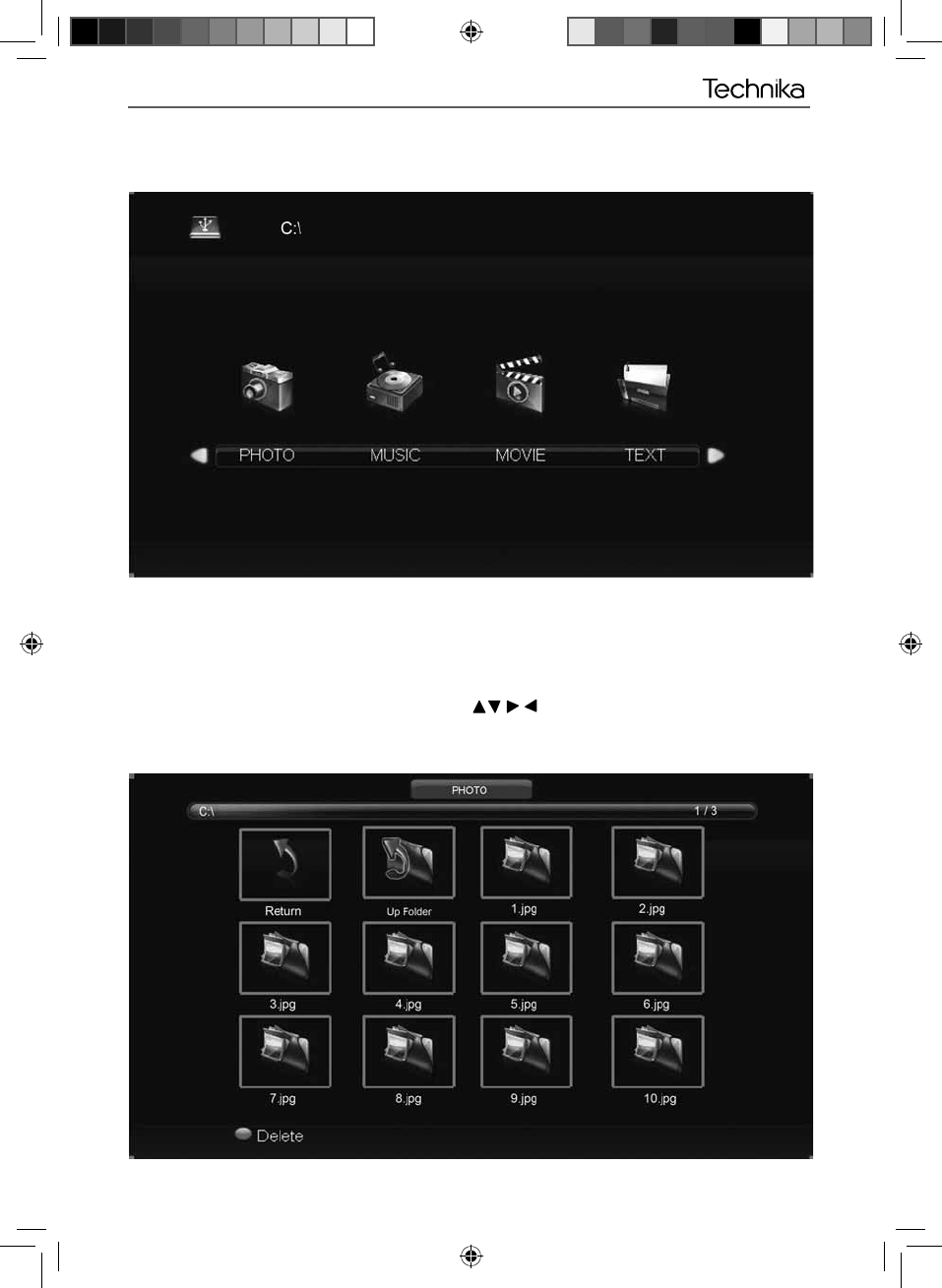

USB mode offers playback of various different types of content that you have saved on your USB Memory
Stick.
On switching to USB source the above menu screen will appear. The content will be divided into Photo,
Music, Movie and Text based on fi le type.
You can navigate through the menus using the scroll buttons. To confi rm the item you wish to
play/view press [OK] button.
USB Mode / Media Player
Manual - Technika - LCD32-270(CR).indd Sec1:25Manual - Technika - LCD32-270(CR).indd Sec1:25 10/12/2010 3:48:32 PM10/12/2010 3:48:32 PM
26
General Information
OPERATING THE TV WITH A UNIVERSAL
OR SKY (BSKYB) REMOTE CONTROL
Using a Universal Remote Control.
You may wish to use a Universal Remote control to operate your Television. In order to do so, you
will need to enter the ‘code’ below into your universal remote control, to do this, please follow the
instructions included with the Universal remote control. Please note that if your remote control does not
accept the code, this is because the software/fi rmware installed on the remote control is too old. Please
contact the manufacturer of the Universal Remote control for assistance.
Universal Remote Code - 2106 (TV functions) 2302 (DVD Functions - where included on the TV)
Using a Sky / Sky+ / Sky HD Remote Control
If you wish to use your Sky remote control to operate the your Television, you need to programme a 4
digit code into your Sky, Sky+ or Sky HD remote control.
Please note that the code below will only be accepted if the Sky remote control is a Revision 9 (launched
Autumn 2010) or later.
To fi nd out which version of Sky remote you have, remove the battery cover, you should see a sticker
showing the ‘Rev’ number.
If your Sky remote is Rev 8 or earlier, you will need to purchase a new Sky Remote control in order to
operate the TV’s functions. At the point of manufacturer of this TV, the latest Revision 9 remote controls
are only available to purchase directly from Sky, alternatively, you can purchase our versions from the
helpline / website.
If your Sky remote control is a Revision 9 or later, please follow the instructions below.
1) Switch on the TV set
2) Press the ‘TV’ button on the Sky Remote
3) Hold down the ‘select’ and ‘red’ buttons for 2-3 seconds until the LED blinks twice
4) Press the ‘TV’ button on the Sky Remote again
5) Enter the 4 digit code (see below)
6) The LED should blink twice, if not recheck the 4 digit code used and go back to step 1
7) Press the ‘standby’ button on the Sky Remote (The TV should go to standby)
8) Press ‘select’ to store this setting
Sky / Sky+ / Sky HD Remote code - 2134 (Revision 9 or later only)
The very latest versions of remote controls to operate your Sky
/ Sky+ / Sky HD in addition to operating the functions of the
Television can be purchased from the helpline or website.
www.skymediauk.co.uk
Our versions (from One for All) are slightly smaller than the
regular Sky remotes and operate your Sky box the same way
your current Sky remote does, in addition, our versions operate
the functions of your television as they include the very latest
software/fi rmware.
Please note that as we have to install the necessary software /
fi rmware onto the remote control prior to shipping, you must
provide us with your TV model number in order that we can
do this.
Sky Sky+/Sky HD
Manual - Technika - LCD32-270(CR).indd Sec1:26Manual - Technika - LCD32-270(CR).indd Sec1:26 10/12/2010 3:48:34 PM10/12/2010 3:48:34 PM
27
27
General Information
General I would like to have louder
sound by connecting
additional speakers
There are 2 options: (Subject to model)
1) Use Digital COAX output connected to an external amplifi er/surround
sound system
2) Use the 3.5mm headphone output and a 3.5mm to phono cable
(available separately) to connect to an amplifi er/surround sound system
General Why are some options in
the menu unavailable and
greyed out
Some options are only available in certain sources, i.e. HDMI, PC/VGA.
They are unavailable in the other sources where they have no affect.
TV I have tuned in Digital TV
but I am not receiving any
or all of the channels and/
or the channels I receive are
breaking up
1) Check you are in an area that can receive Freeview. Visit www.freeview.
co.uk or call 08701 111 270.
2) Check you are using an aerial that is able to receive a good digital
signal. In most cases, you will need an outdoor digital hi-gain/wideband
aerial. In areas that have excellent Freeview coverage, you may be able
to use a loft type aerial but it is highly likely that you will also need to
connect a booster between the back of the TV and the TV aerial wall
socket. Unfortunately, to receive a good enough digital signal, it is not
possible to use a portable/indoor type aerial. This may change once the
analogue signal is switched off in 2012 and the Digital signal strength is
increased.
TV I have re-tuned my television
but when I switch it off it is
not storing the channels
Complete a fi rst time installation, please refer to the set-up menu section
of the manual for how to do this
VCR/DVD
Recorder
I have connected the TV to
my VCR or DVD Recorder via
SCART but it is not recording
In addition to connecting via SCART, you should connect the aerial cable
from the wall socket to your VCR/DVD Recorder and another aerial cable
from the VCR/DVD Recorder to the TV
Game Consoles I have connected my PS3 to
the TV via HDMI, but I am
not receiving any pictures or
sound on my Television
1) Ensure the TVs source is on HDMI
2) Check your settings on your PS3 are as per the PS3 instruction manual
Game Consoles I have connected my
Xbox 360 to the TV via
Component Cables (Red,
Green & Blue) but I am not
receiving any sound
Component cables only provide HD Pictures. For the sound you will need
to connect the Red & White audio cables on the Xbox to the Red & White
phono inputs on the rear of the TV. Please refer to the ‘Connections’
pages.
USB Mode I have inserted a USB
Memory Key, but the TV
does not recognise it
Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Can I use a USB portable
hard drive with my TV?
If you wish to use a portable hard drive larger than 32GB, please note
that it must be formatted to the FAT32 fi le system in order to operate on
this TV. Windows XP/Vista computers are only capable of formatting up
to 32GB, therefore, you will need a software programme/utility to format
larger hard drives. Please refer to the web site for more information.
System Lock I have changed the password
on the television and now
forgotten it
There is a master password of 4711, to gain access to the TV menu and
reset the normal password
FREQUENTLY ASKED QUESTIONS
Manual - Technika - LCD32-270(CR).indd Sec1:27Manual - Technika - LCD32-270(CR).indd Sec1:27 10/12/2010 3:48:35 PM10/12/2010 3:48:35 PM
28
TECHNICAL SPECIFICATION
Model LCD 32-270
Screen size (diagonal) 32"/ 81cm
Resolution 1920x1080
Contrast Ratio 3000:1
Brightness cd/m2 450
PC RGB Yes
RF 75 ohm Antenna / PAL-SECAM
Video Inputs 1 x SCART, 1 x Video, 1 x S-Video, 1 x Component (YPbPr - 1080i)
Sound Inputs 1 x 3.5mm jack for PC audio input, 1 x pair RCA Audio input shared for Video
& S-Video, 1 x pair RCA Audio input for YPbPr (component)
Sound Outputs 1 x Coax Audio output
HDMI 2 (up to 1080p)
Watts (RMS) 2 x 8
Voltage 110-240V 50/60Hz 140W less than 1W
Dimensions including
stand (mm)
794W x 567H x 200D mm
Net weight (Kgs) 12.5kg
General Information
Manual - Technika - LCD32-270(CR).indd Sec1:28Manual - Technika - LCD32-270(CR).indd Sec1:28 10/12/2010 3:48:35 PM10/12/2010 3:48:35 PM
29
29
INDEX
DIGITAL SWITCHOVER
Television in the UK is going digital, bringing us all more choice and new services. Starting late 2007 and
ending in 2012, television services in the UK will go completely digital, TV region by TV region.
How the switchover affects your TV equipment.
Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply
connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or
whether you will have to wait until the switchover at www.digitaluk.co.uk)
When the TV switchover happens in your area, there are at least two occasions when you will need to
re-tune your TV in order to continue receiving your existing TV channels and also to pick up new ones.
Digital UK, the body leading the digital switchover, will advise you when you need to retune during the
switchover.
How to retune.
Retuning your TV is a very quick and simple process. We recommend that you retune every few months to
ensure you are receiving the very latest TV and radio channels that are broadcast.
1) On the remote control press [MENU] followed by 8 - 8 - 8 - 8 (so the number 8 button four times)
2) The First Time Installation menu will appear. Press [OK] and tuning will take place.
For help and support regarding the digital switchover, please contact Digital UK:
Telephone: 08456 50 50 50 (calls charged at local call rate, approx 3p per minute daytime or 1p per minute
evenings from a BT landline)
Digital UK website: www.digitaluk.co.uk
General Information
Attaching the stand ....................................................... 9
Aspect Ratio .................................................................... 21
Auto Confi guration of screen (PC) ................................ 23
Auto Tuning .................................................................... 16
Auto Volume Level ........................................................ 18
Balance ........................................................................... 18
Bass ................................................................................. 18
Blue Screen .................................................................... 21
Brightness ...................................................................... 17
Clock ................................................................................ 19
Colour ............................................................................ 17
Colour Temperature ...................................................... 17
Common Interface ........................................................ 20
Connections .................................................................... 14-15
Contrast .......................................................................... 17
Detaching the base/stand .............................................. 10
Digital Output ............................................................... 18
Digital Switchover .......................................................... 29-30
First Time Installation .................................................... 11
Frequently Asked Questions .......................................... 27
Getting Started ............................................................... 11
Horizontal Position (PC) ................................................. 23
Language ....................................................................... 21
Manual Search ................................................................ 16
Noise Reduction ............................................................ 17
Operating the TV with a universal or
Sky (BSKYB) remote control .......................................... 26
Phase (PC) ....................................................................... 23
Picture Mode ................................................................. 17
Remote control .............................................................. 13
Reset to default .............................................................. 21
Sharpness ....................................................................... 17
Sleep Timer .................................................................... 20
Sound Mode .................................................................. 18
Source Menu ................................................................... 12
System Lock ................................................................... 20
Technical Specifi cations ................................................. 28
Treble ............................................................................. 18
TV buttons ..................................................................... 12
TV Guide ........................................................................ 25
USB Mode / Media Player .............................................. 24
Using the television as a computer monitor ................ 22
Vertical Position (PC) .................................................. 23
Wall mounting ............................................................... 9
What is included in the box .......................................... 8
Manual - Technika - LCD32-270(CR).indd Sec1:29Manual - Technika - LCD32-270(CR).indd Sec1:29 10/12/2010 3:48:35 PM10/12/2010 3:48:35 PM
30
Manual - Technika - LCD32-270(CR).indd Sec1:30Manual - Technika - LCD32-270(CR).indd Sec1:30 10/12/2010 3:48:35 PM10/12/2010 3:48:35 PM
31
31
Manual - Technika - LCD32-270(CR).indd Sec1:31Manual - Technika - LCD32-270(CR).indd Sec1:31 10/12/2010 3:48:35 PM10/12/2010 3:48:35 PM
M32/MAN/0003
Manual - Technika - LCD32-270(CR).indd Sec1:32Manual - Technika - LCD32-270(CR).indd Sec1:32 10/12/2010 3:48:35 PM10/12/2010 3:48:35 PM

Navigation menu
