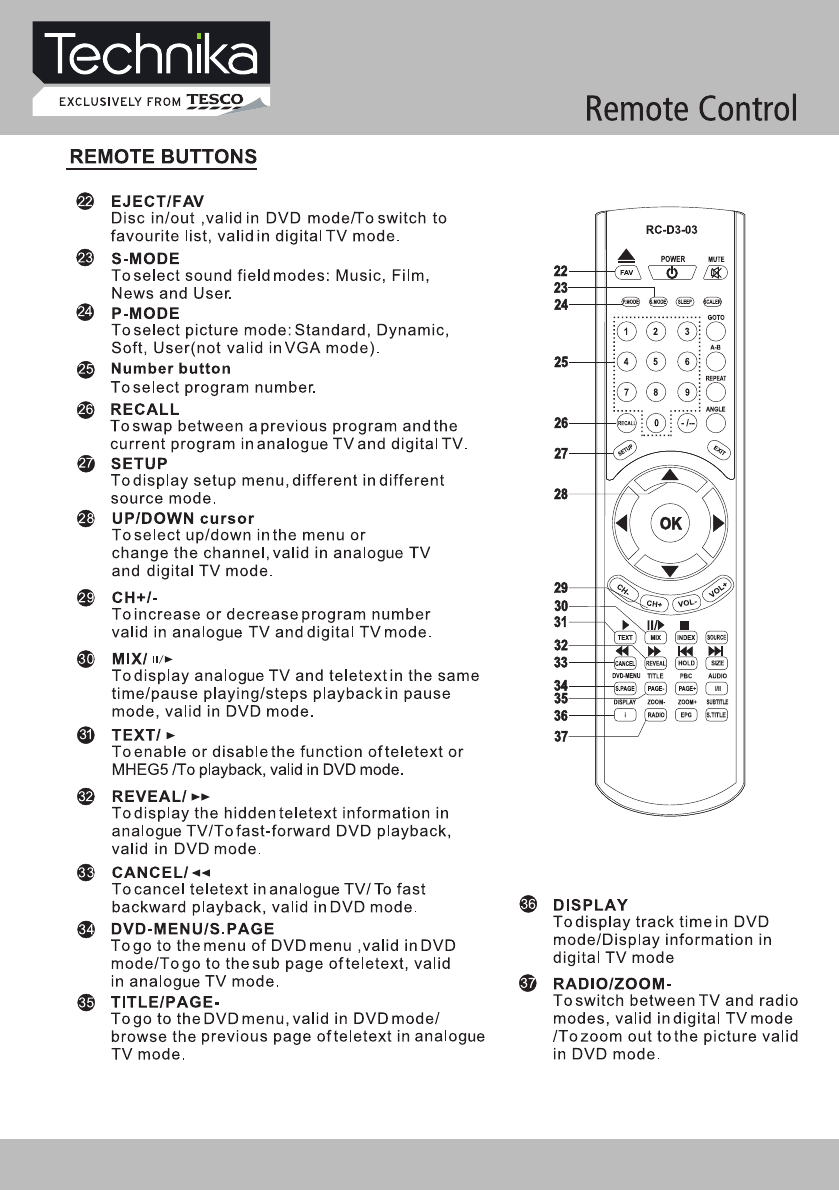

Remote Control

Remote buttons 14

Battery Installation

Let‘s Start

Switching on 17

Selecting source operation 17

DTV Menu Setup

ATV Menu Setup

Teletext Function

Teletext Function 26

SCART / S-VIDEO / HDMI Menu

Setup

Video Setting Menu 27

VGA Menu Setup

VGA Setting 28

Sound 28

Picture 29

Function 29

DVD Operation

Brief Introduction 30

Comparison between

DVD and other Discs 30

Function Introduction 30

Features 31

Compatible Disc types 32

Region code 32

Playback 33

Volume control 33

VCD, SVCD Menu Playback 34

Memory 34

Select track to play directly by

Number buttons 35

Select Language / Audio 35

Repeat Playback 36

Repeat Playback of

selected Segment 36

Fast Playback 37

Play from the Desired Position 37

Zooming the Displayed Frame 38

MPEG4 and JPEG file Playback 39

DTV Setting 18

Picture 21

Sound 22

Function 22

ATV Setting 23

Picture 24

Sound 25

Function 25

Contents

DVD Function Setup

Picture 42

Sound 42

DVD Settting 42

Function 44

Troubleshooting

Display Troubleshooting 45

Sound and TV Troubleshooting 45

DVD Troubleshooting 46

Specifications

Specifications 47

Display Mode

Additional Information

Care and Maintenance

(Handling Discs)

Disposal

Warranty

Introduction

Thank you for purchasing this Technika

HD Ready LCD/DVD TV which has been

designed and manufactured to give you many

years of trouble-free service.

You may already be familiar with using a

similar product but please take time to read

these instructions which have been written

to ensure you get the very best from your

purchase.

Throughout the remainder of this user guide

the Technika HD Ready LCD/DVD TV will

be referred to as the ‘TV’.

HDMI

HDMI (High Deﬁ nition Multimedia Interface)

is the next generation of digital interface.

Unlike conventional connections, it transmits

uncompressed digital and audio signals using

a single cable. This TV supports high-deﬁ nition

video input (720p and 1080i) via the HDMI

sockets on the back of the TV.

Safety is Important

To ensure your safety and the safety of others,

please read the Safety precautions BEFORE

you operate this product.

Keep this information in a safe place for

future reference.

In the box

You will ﬁ nd the following:

• HD Ready LCD/DVD TV

• User Guide

• Power Cable

• Remote Control

• 2 x AAA Batteries

Note: If any of the items listed are

damaged or missing, please contact

the TESCO electrical help line on

0845 456 6767.

32" HD Ready LCD/DVD TV User Guide 5

Safety Information

IMPORTANT SAFETY INSTRUCTIONS -

READ CAREFULLY BEFORE USE

Take note of the following safety information

which appears on the back of this TV.

CAUTION! RISK OF ELECTRIC SHOCK

DO NOT OPEN.

TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR

BACK).

NO USER-REMOVABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

This symbol indicates that there are

important operating and maintenance

instructions in the literature

accompanying this TV.

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this TV.

Keep these instructions.

• Do not use this TV near water.

• Clean only with a slightly damp cloth.

• Do not block any ventilation openings.

• Install in accordance with the supplied

this User Guide.

• Do not install or operate near any heat

sources such as radiators, stoves, or other

apparatus that produce heat.

• Protect the power cord from being walked

on or pinched, particularly at plugs, and the

point where it exits from the TV.

• Do not allow the power cord to overhang

the edge of a table.

• Unplug this TV during lightning storms or

when unused for long periods of time.

• To avoid interference, switch this TV off

while operating other radio devices in the

immediate vicinity.

• Refer all servicing to qualiﬁ ed service

personnel. Servicing is required when the TV

has been damaged in any way, such as the

power cord or plug being damaged, liquid

being spilled on or objects have fallen onto

the TV, the TV has been exposed to rain or

moisture, does not operate normally, or has

been dropped.

WARNING! TO REDUCE THE RISK

OF FIRE OR ELECTRICAL SHOCK,

DO NOT EXPOSE THIS TV TO RAIN

OR MOISTURE. THE TV MUST NOT

BE EXPOSED TO DRIPPING AND

SPLASHING AND NO OBJECTS FILLED

WITH LIQUIDS SHOULD BE PLACED ON

THE TV.

• No naked ﬂ ame sources such as candles

should be placed on the TV.

Caution! Changes or modiﬁ cations not

expressly approved by the manufacturer

could void the user’s authority to operate this

device.

Caution! Usage of controls or adjustments or

performance of procedures other than those

speciﬁ ed herein may result in hazardous

exposure.

Important

This TV generates, uses and can radiate radio

frequency energy and, if not installed and

used in accordance with these instructions,

may cause harmful interference to radio

communication. However, this is no guarantee

that interference will not occur in a particular

installation. If the TV does cause harmful

interference to electrical devices, which can

be determined by turning the TV off and on,

32" HD Ready LCD/DVD TV User Guide 6

Safety Information

the user is encouraged to try to correct the

interference by one of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the

external device and the TV.

• Connect the external device into an outlet

on a circuit different from that to which the

TV is connected.

• Consult the dealer or an experienced radio/

TV technician for help.

Electrical Information

Mains Supply

The mains operating voltage is detailed on the

rating plate on the rear of the TV.

The mains lead on this equipment may be

supplied with a moulded plug incorporating

a fuse. Should the fuse need to be replaced,

an ASTA or BSI approved BS1362 fuse must

be used of the same rating. If the fuse cover

is detachable never use the plug with the

cover removed. If a replacement fuse cover

is required, ensure it is of the same colour

as that visible on the pin face of the plug. If

there is no alternative to cutting off the mains

plug, dispose of it immediately, having ﬁ rst

removed the fuse, to avoid a possible shock

hazard by inadvertent connection to the mains

supply.

32" HD Ready LCD/DVD TV User Guide 7

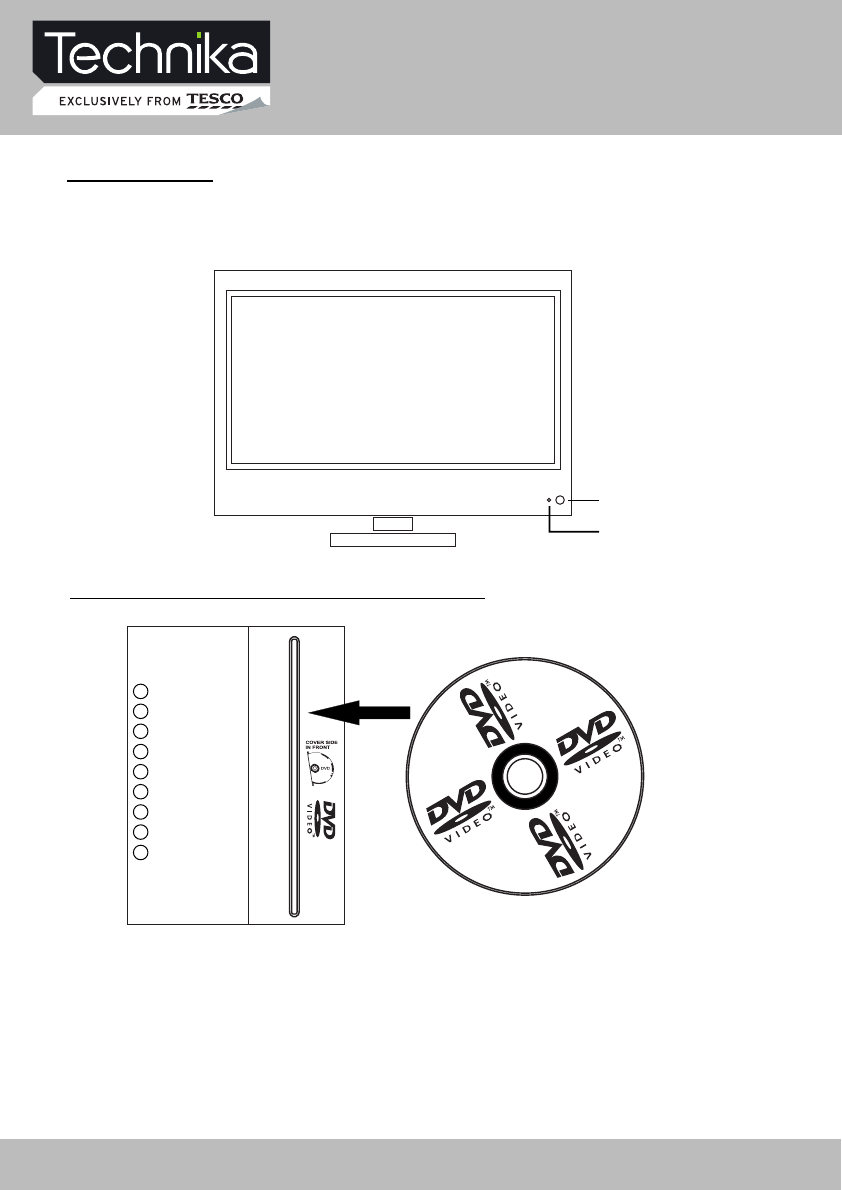

TV/AV

CH+

CH-

VOL+

VOL-

POWER

PLAY/ II

EJECT

COVER SIDE IN FRONT

2. Indicator (the indicator is red when in standby mode, and green when in working normally).

1. IR sensor window

Parts Identification

TV/AV – select input source

CH+ - increase channel number

CH- - decrease channel number

VOL+ - increase sound volume

VOL- - decrease sound volume

MENU – enter or exit menu

POWER – switch between standby and power-on mode

PLAY

II – start of play or pause of play

EJECT – take the disk out

FRONT PANEL

LOCAL KEYBOARD PANEL

32" HD Ready LCD/DVD TV User Guide8

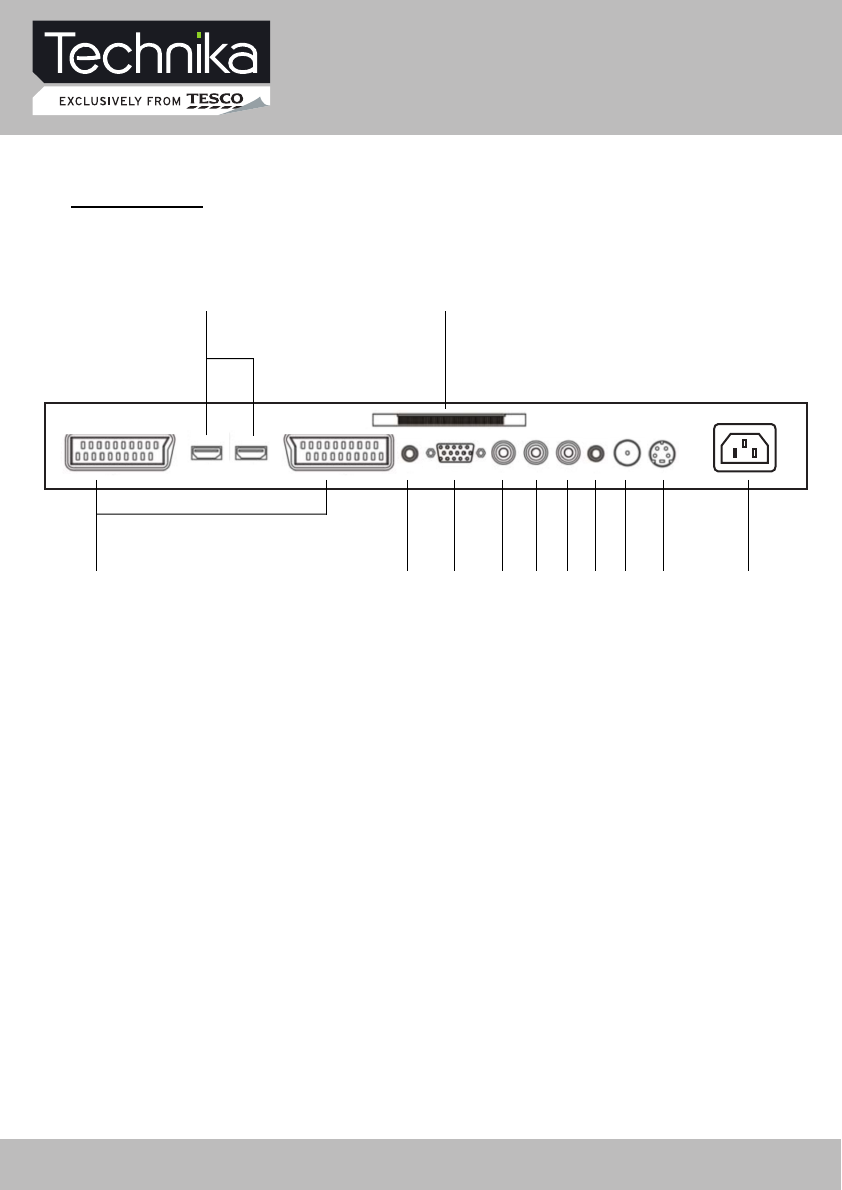

BACK PANEL

Parts Identification

2 3

4 5 6 7 8 9 10 11 12

12. AC Power supply

2. HDMI inputs

5. PC VGA input

1. SCART connecting terminals

3. CI connector

11. S-Video input

6. Y input

7. Pb input

8. Pr input

4. PC audio input

9. Audio Earphone output

10. TV signal input (75 Ohm)

32" HD Ready LCD/DVD TV User Guide 9

Connecting the TV

WARNING! ENSURE THE TV AND

ALL ANCILLARY EQUIPMENT IS

UNPLUGGED FROM THE MAINS

BEFORE MAKING ANY CONNECTIONS!

Connecting the TV antenna

Connect the TV antenna to the aerial socket

with a 75 ohm co-axial plug. For best results

use a high gain TV aerial, preferably roof or

loft mounted.

• To improve picture quality in a poor signal

area, purchase and install a signal ampli er.

• If the antenna needs to be split for two

TV‘s, use a 2-Way Signal Splitter

(not supplied).

Connecting external devices

SCART lead

You can connect this TV to a compatible

device using a SCART lead. The connection

uses component video signals, i.e. the red,

green and blue (RGB) content of the video are

sent on separate signals.

VGA cable

You can use your TV as a monitor for your

personal computer by using a VGA cable.

Sound from your personal computer may also

be played through the TV. This requires the

audio output of the personal computer to be

connected to the AUDIO IN connection of the

TV.

S-VIDEO lead

You can connect this TV to a compatible

device using an S-VIDEO lead.

Note: The TV will connect through

the HDMI cable by default. Only use

the HDMI cable and one other option.

Connecting more than one option

may cause interference.

HDMI lead

You can connect this TV to a compatible

device using a HDMI lead. This method will

give the best picture.

Connect the cable from the HDMI equipment

to the TV HDMI socket.

Component Input

(Y/Pb/Pr cables)

You can connect this TV to a compatible

device using Y/Pb/Pr cables. Connect

the red, green and blue outputs to

the matching coloured inputs on the

compatible device. An additional audio

input is required.

32" HD Ready LCD/DVD TV User Guide10

NOTE

You should insert all necessary cables BEFORE plugging in power cord.

Connecting the TV

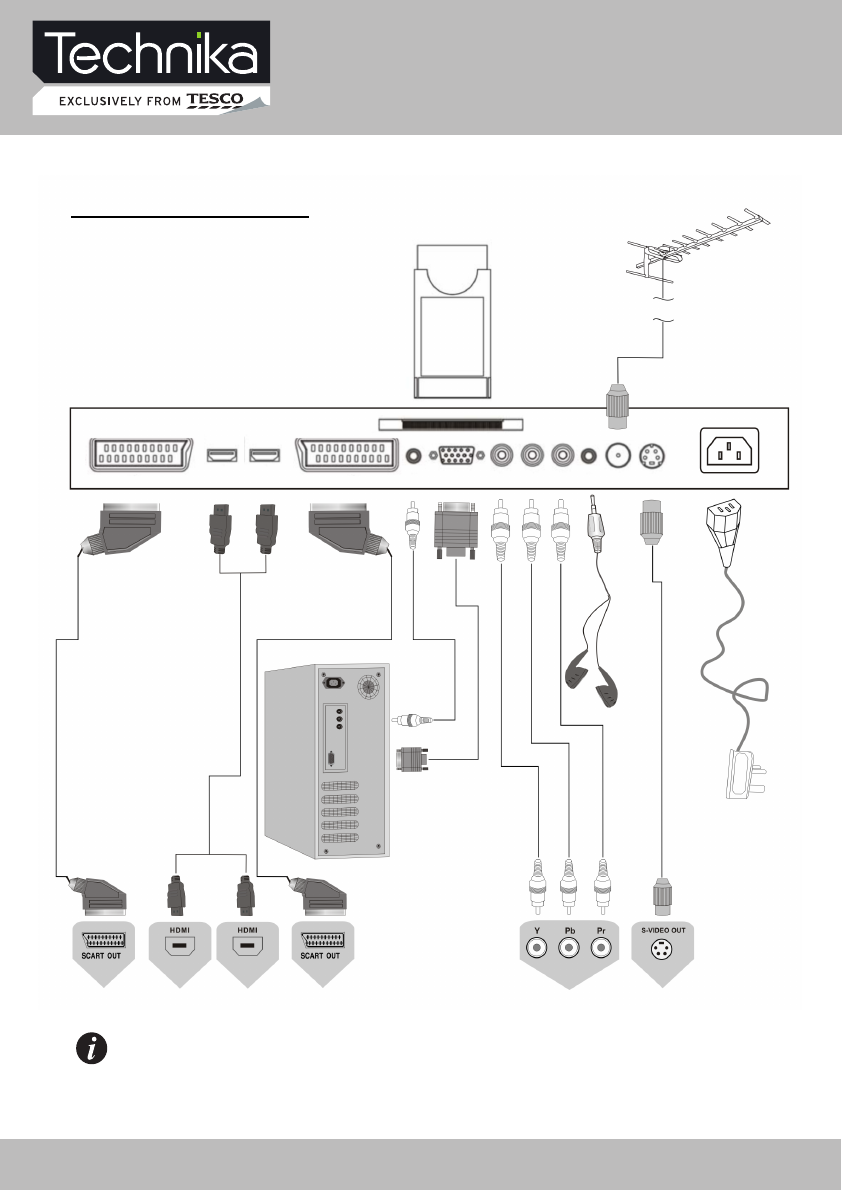

CONNECTING DIAGRAM

32" HD Ready LCD/DVD TV User Guide 11

Common Interface slot

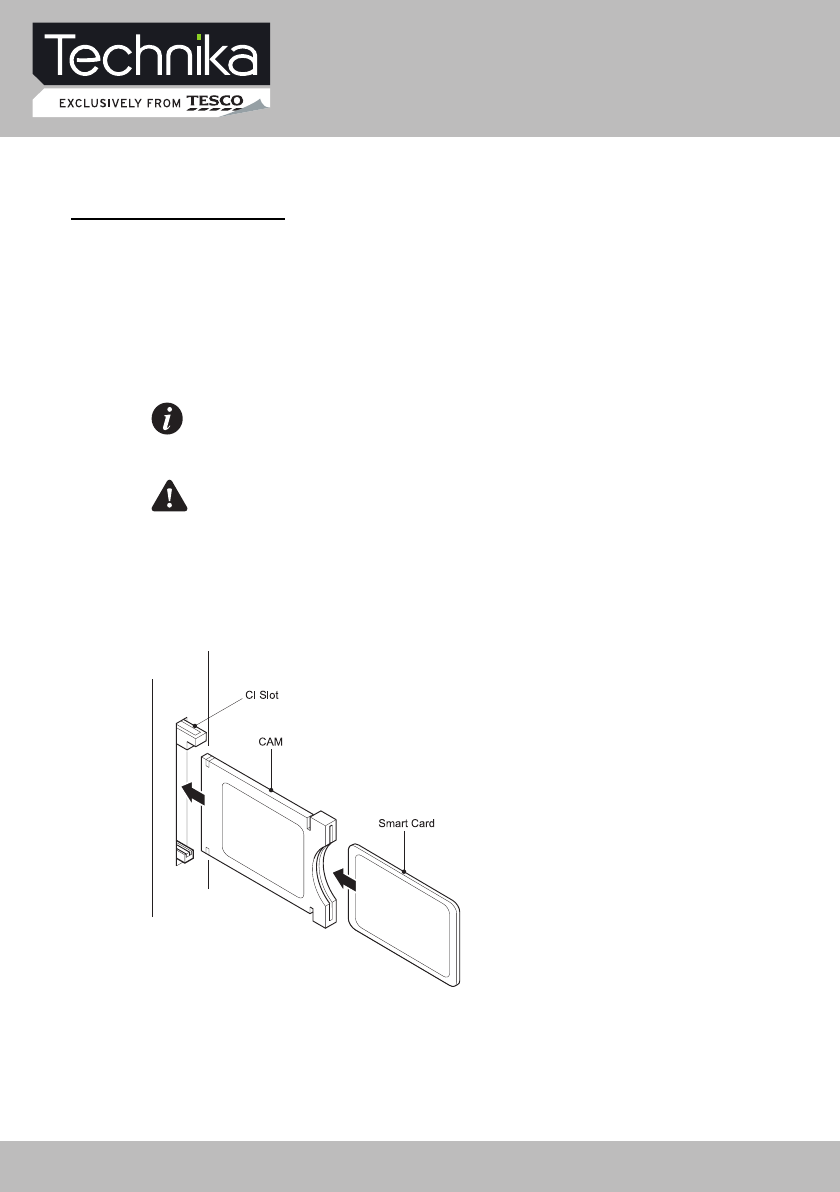

The Common Interface (CI) slot is designed to

accept the Conditional Access Module (CAM)

and Smart Card in order to view the pay TV

programmes and additional services. Contact

your Common Interface service provider to

get more information about the modules and

subscription.

Note: Conditional Access Modules and

Smart Cards are sold separately.

WARNING: SWITCH OFF YOUR TV

BEFORE ANY MODULE IS INSERTED IN

THE COMMON INTERFACE SLOT.

The CI slot is located on the side of your TV.

Insert the CAM correctly into the CI slot, then

add the Smart Card to the CAM.

COMMON INTERFACE

32" HD Ready LCD/DVD TV User Guide 12

Wall Mounting

WALL MOUNTING

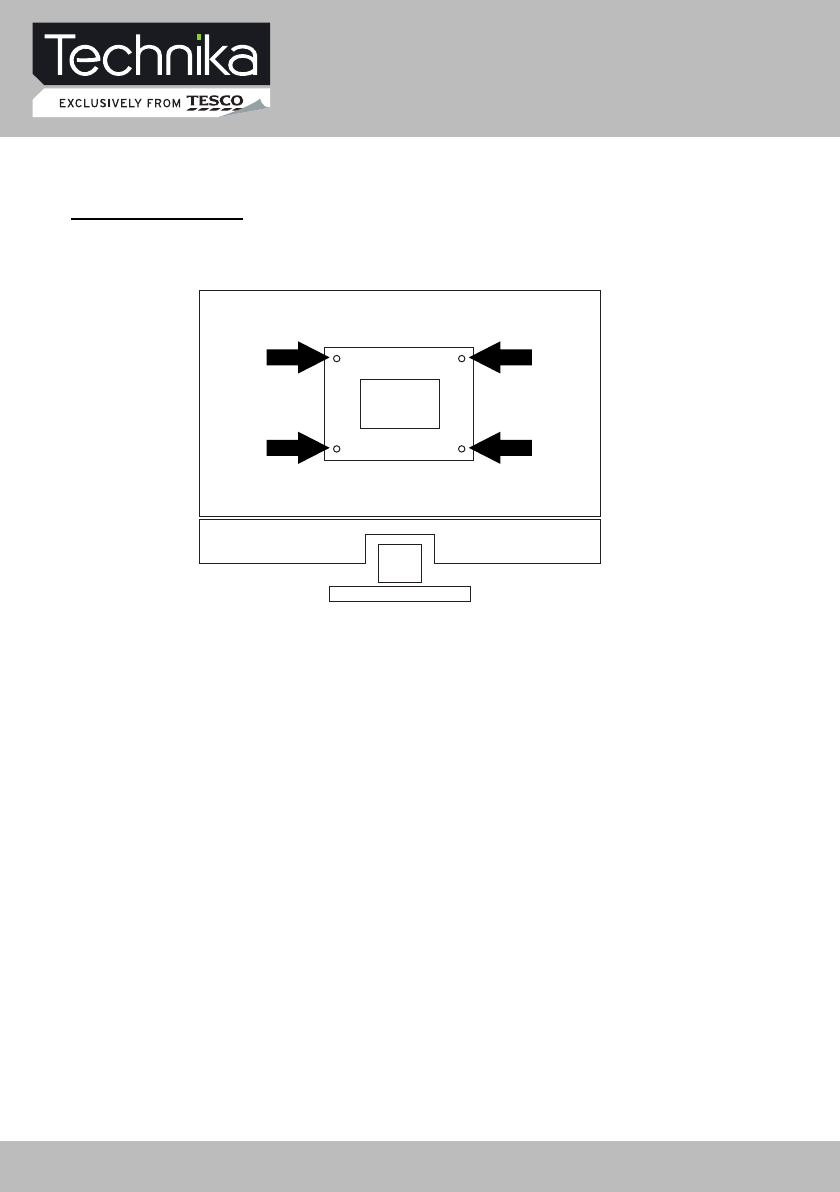

1. The base must first be removed. Place

the TV face down.

2. Remove the three screws holding the

base in position.

3. Remove and store the base and

screws.

4. Use four machine screws (M4 x 10 mm)

to mount the TV on the bracket.

Mounting the wall bracket - please refer

to the user instructions supplied with

the wall bracket (not supplied).

Suitable for wall mounting - VESA 400 x 200 mm

32" HD Ready LCD/DVD TV User Guide 13

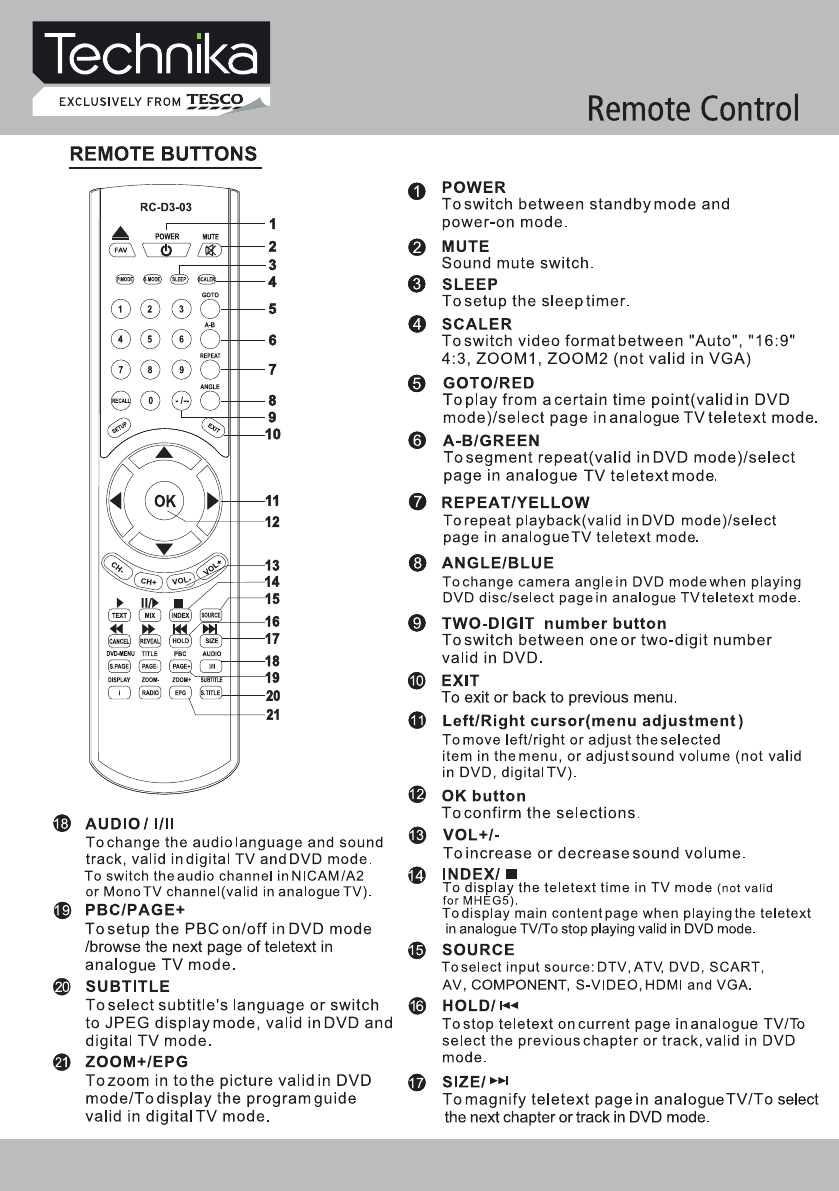

32" HD Ready LCD/DVD TV User Guide 14

32" HD Ready LCD/DVD TV User Guide 15

Remove the battery cover. Insert two SUM-4(AAA) batteries matching the -/+ polarities of

the battery to the -/+ marks inside the battery compartment, as follows:

BATTERY LIFE

Normally, battery can be used for one year.

Iftheremotecontrolisstillnot working, whenveryneartotheTV'sremotesensorwindow,

pleaseusenewbatterys.

Please use SUM-4(AAA) battery.

NOTES

Never use rechargeable battery.

Never charge, short-circuit, disassemble and heat the battery, or throw it into fire.

Pay attention not to fall or knock the remote controller, which will cause damage or

function failure to it.

Do not use a new and an old battery together.

If electrolyte splashes into the body, please clean it with water.

CAUTION：

Please put the battery into a place children cannot touch. If swallow by accident, please

contact your local doctor immediately.

Whennotusingtheremotecontrollerforalongtime,please take out the battery to avoid

liquidleakage.Beforereplacing a new battery,pleasecleantheelectrolyteintheremote

controller.

Remote Control

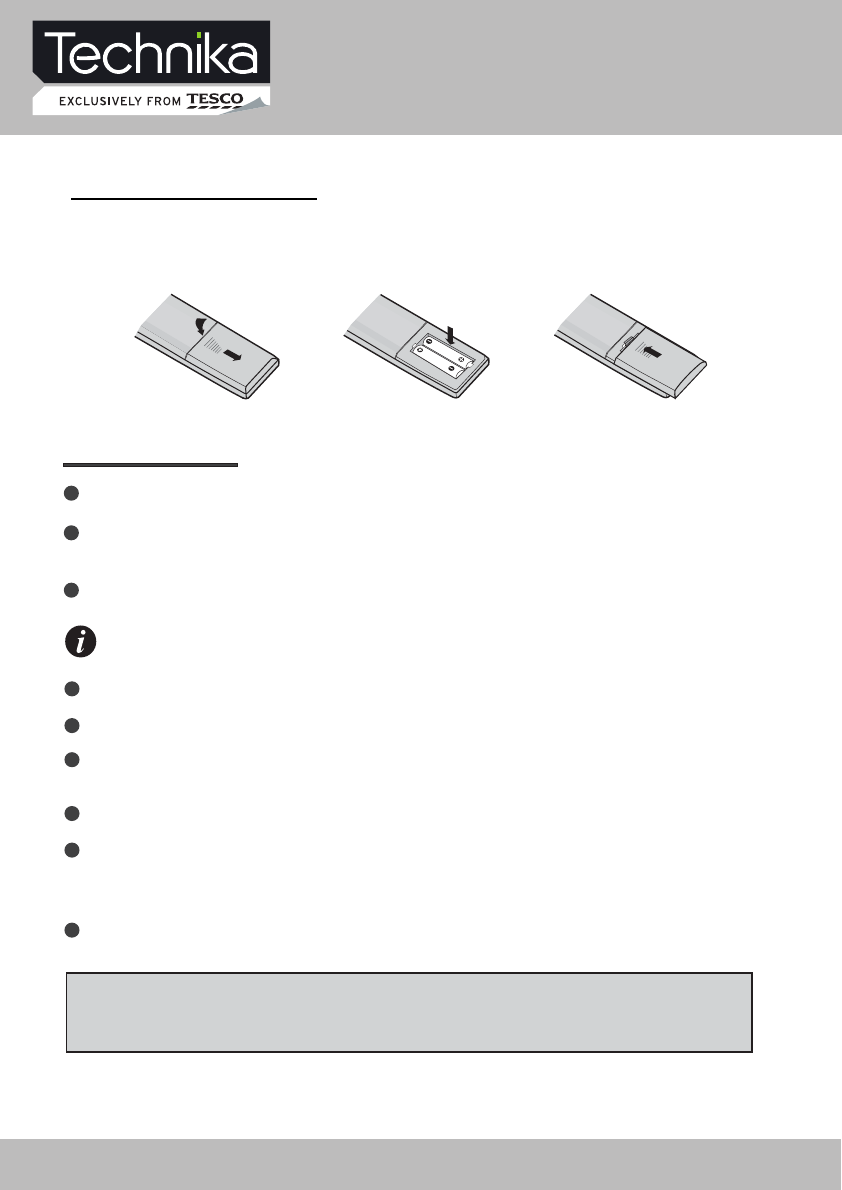

BATTERY INSTALLATION

32" HD Ready LCD/DVD TV User Guide 16

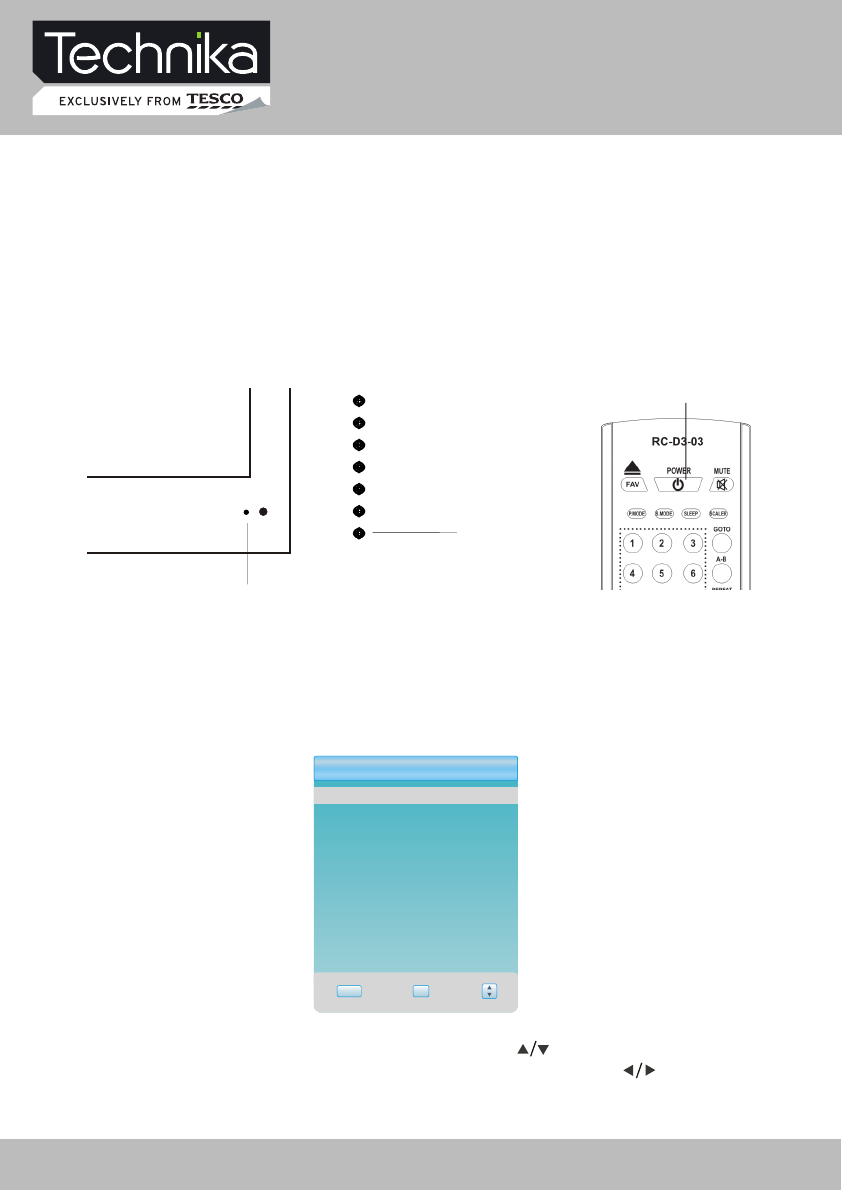

Let's Start

You can select input source by using source menu. Press [SOURCE] button to show the

menu as follows:

The current source item is highlighted. Through press [ ] button on the remote control

or [ CH+/CH- ] key on the LCD TV to select your required source, press [ ] button,

[VOL+/VOL-] key or [OK] button to confirm your choice .

SELECTING SOURCE OPERATION

After the unit has been suitably placed / fixed, on the table or on the wall, and all necessary

cables including the power have been connected,

Press the [STANDBY] button on the remote control to make the unit switch to power-on

mode - you will see the LED indicator turn green. Now you can enjoy the many features of

your new TV.

the next you should do is:

STANDBY

SWITCHING ON

InputSource

ATV

SCART 1

VGA

HDMI 1

EXIT OK

DTV

S-VIDEO

HDMI 2

SCART 2

DVD

COMPONENT

INDICATOR

STANDBY

32" HD Ready LCD/DVD TV User Guide 17

DTV Menu Setup

Select Return

SETUP

Adjust

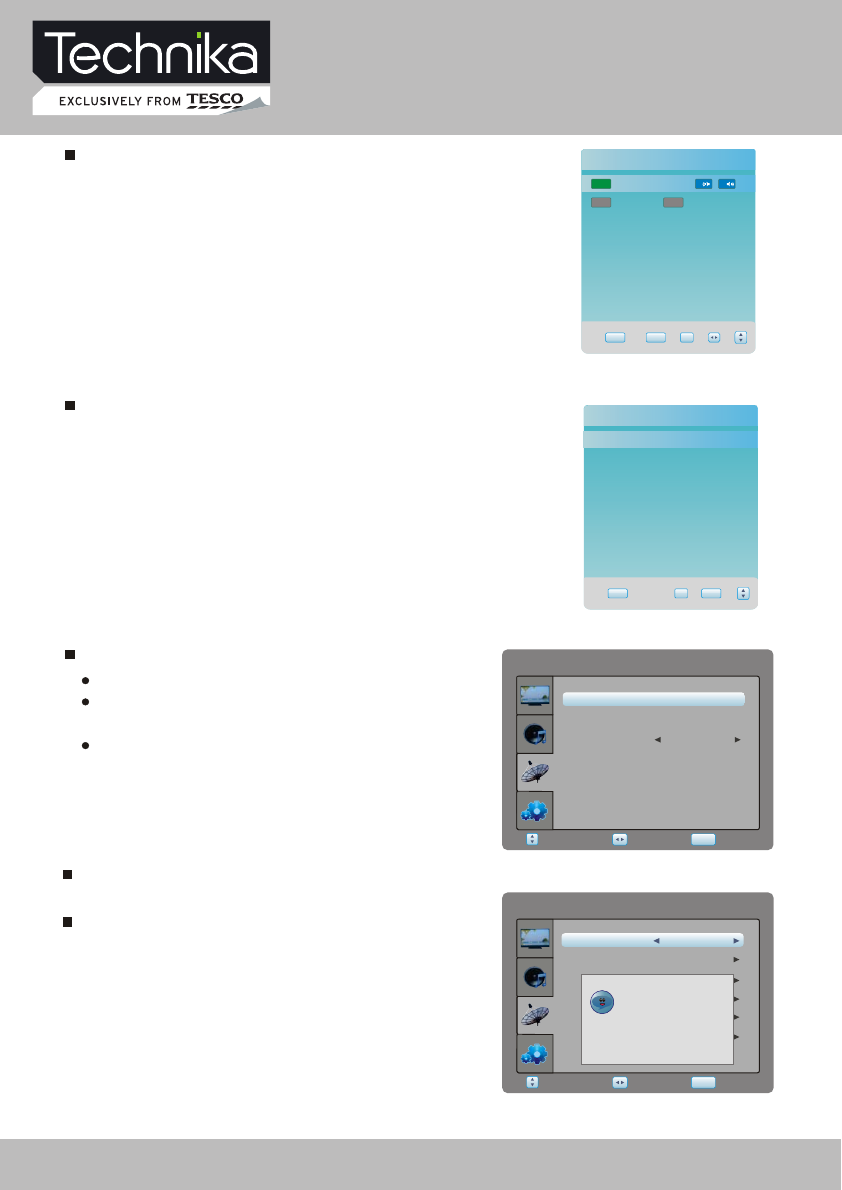

Manual Tuning item enables you to change channel settings.

Auto Tuning item enables you to adjust channel setting automatically.

Select Return

SETUP

Adjust

SubtitleLanguage

DTVSETTING

ManualTuning

AudioLanguage

ProgrammeEdit

Time

Preference

English

Off

AutoTuning

Pleaseselectcountryfirst,

ThenselectStarttoupdateinfo.

Countryselection Australia

NewAddCancel

ManualTuning

VHF 5 104.50MHz

Pleaseselectchannelthen

PressOKtosearch

NO SIGNAL

BadNormalGood

EXIT OK SETUP

ChannelTuning

6 %... UHF 24

DTV : 0 Programme(s)

Radio : 0 Programme(s)

Select DTV SETTING item to adjust channels.

You may select auto Tuning, Manual Tuning,

Programme Edit, Audio Language, Subtitle

Language, Time and Preference.

Doyouwanttoexittuning?

Yes No

SETUPexit

EXITexit

AutoTuning

Time

English

Programme Edit item enables you to enter submenu.

ProgrammeEdit

5 five

16 QVC

17 UK Gold

23 bid-up.tv

25 TCM

26 UK Style

27 Discovery

28 DiscoveryH&L

32 Cartoon Nwk

33 Boomerang

DELETE

SKIP FAV

DTV

MOVE

SubtitleLanguage

DTVSETTING

ManualTuning

AudioLanguage

ProgrammeEdit

Preference

DTV SETTING

In TV mode, press [SETUP] button into the main menu and the main menu will show as follows: D

Press [ ] button on the remote control, you can select main menu sections

(main menu sections consist of) .

Press [ ] or [OK] button to enter this menu section.

" DTV SETTING " , " PICTURE ", " SOUND " , " FUNCTION ")

Press [ ] button on the remote control to select the item, and then press [ ] button to

adjust parameter value. Press [SETUP] button to return to main menu sections.

32" HD Ready LCD/DVD TV User Guide 18

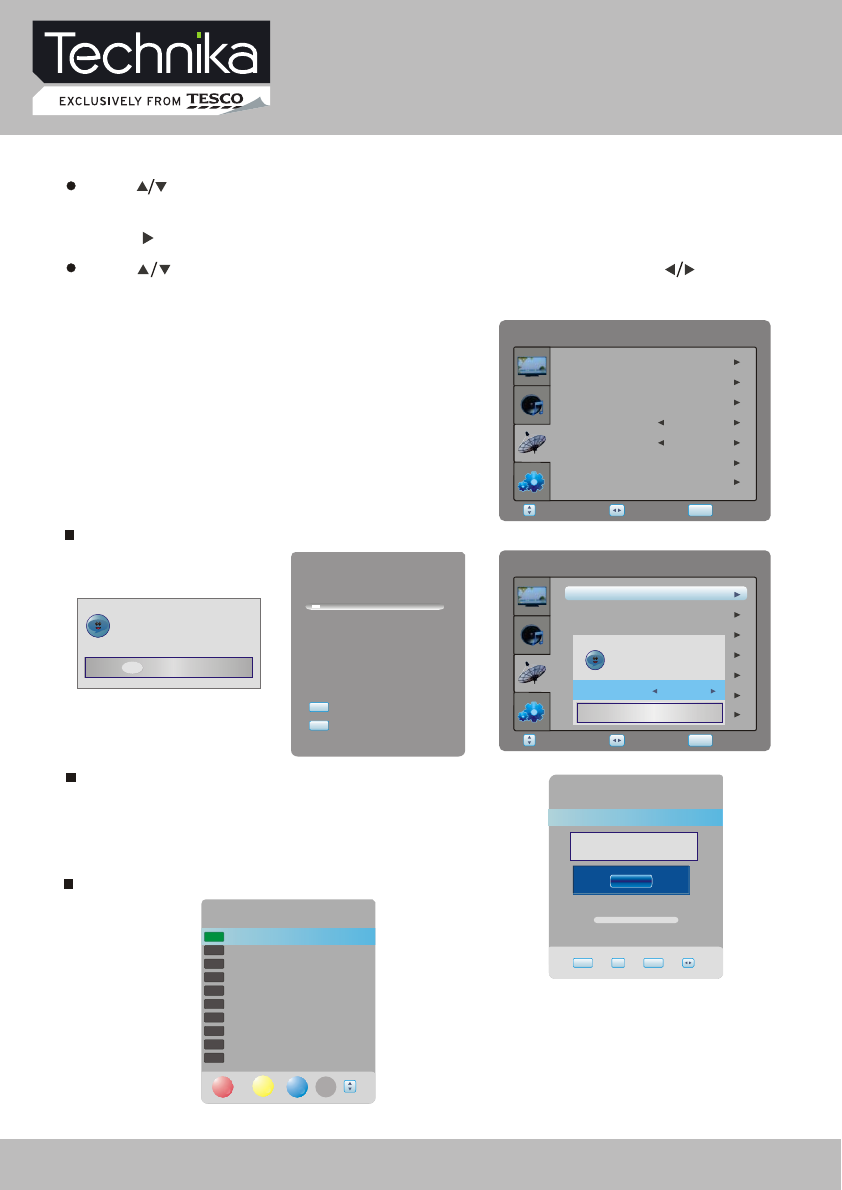

DTV Menu Setup

Lock System item enables you to lock the auto tuning,

manual tuning, programme edit and block

programme. if you want to change the lock

system, you must enter a password first.

Select Return

SETUP

Adjust

DTVSETTING

CIInfrormation

ChangePassword

ParentalGuidance

BlockProgramme

OffLockSystem

HearingImpairedOff

Off

Pleaseenterpassword

___

Preference item enables you to enter the lock system submenu.

EXIT OKSETUP

Audio Language

English

MPEG L R

English

MPEG VI

Audio Language item enables you to adjust audio language.

Time item enables you to enter submenu.

Clock to adjust the real time.

Time Zone to adjust the time zone from Canary

GMT to Berlin GMT+1.

Daylight to adjust summer time off or on.

Select Return

SETUP

Adjust

DTVSETTING

TimeZone

Daylight

Clock________

CanaryGMT

Off

EXIT OK SETUP

SubtitleLanguage

Off

English

Subtitle language item enables you toadjust subtitle language.

32" HD Ready LCD/DVD TV User Guide 19

DTV Menu Setup

EXIT OKSETUP

FAVOURITE LIST

5five

DTV

16QVC

DTV

17UKGold

DTV

Favourite List item enables to display favourite channel and

select the current channel in the list.

Change password item enables you to change the

locked password.

Block Programme item enables you to set the lock

channel.

Blockprogramme

5 five

16 QVC

17 UK Gold

23 bid-up.tv

25 TCM

26 UK Style

27 Discovery

28 DiscoveryH&L

32 Cartoon Nwk

33 Boomerang

LOCK

DTV

EXIT OK

SETUP

Select Return

SETUP

Adjust

DTVSETTING

CIInformation

ParentalGuidance

BlockProgramme

OffLockSystem

Off

ChangePassword

HearingImpairedOff

Pleaseenterpassword

___

____

New

Confirm

Select Return

SETUP

Adjust

DTVSETTING

ParentalGuidance

BlockProgramme

OffLockSystem

Off

ChangePassword

CIInformation

HearingImpaired Off

Parental Guidance item enables to set guidance

(0ff, from 4 to 18).

CIInformationitemenablestoreadthecard

information.

SMART

Hearing Impaired item enables to set the hearing

impaired off or on.

32" HD Ready LCD/DVD TV User Guide 20

DTV Menu Setup

To obtain more information about present

and following events, you can press twice

[OK] button. Like previously, the

following event is displayed by pressing

the [ ] buttons (toggle between present

and following events):

five

DTV

576i

SD MPEG

The Streets of San Francisco

Wed Mar 10 2004 14:35

Subtitle English MHEG5 576i

The cases of Detective Mike Stone and his partner Steve Keller.

15:38

14:54

Entertainment

INFORMATION

ELECTRONIC PROGRAM GUIDE (EPG)

By pressing the EPG button, an Electronic

Program Guide is displayed. The EPG

supplies information, such as program

lists, start and end times of all available

channels. In addition, the detailed

information about the program is often

available in the EPG. (The availability

and the amount of program details will

vary depending on the broadcaster.)

PROGRAMMEGUIDE

10 Mar 2004 14:53

DTV

5 five

16 QVC

17 UK Gold

23 bid-up.tv

25 TCM

26 UK Style

DTV 5

14:35 -15:38

five

The Streets of San Frandsco

14:30 15:30

10 Mar

The Streets of San Francisco No Information

No Information

Gold Workshop With Jan Springer

L...

Schedule DATE

Reminder

EXIT


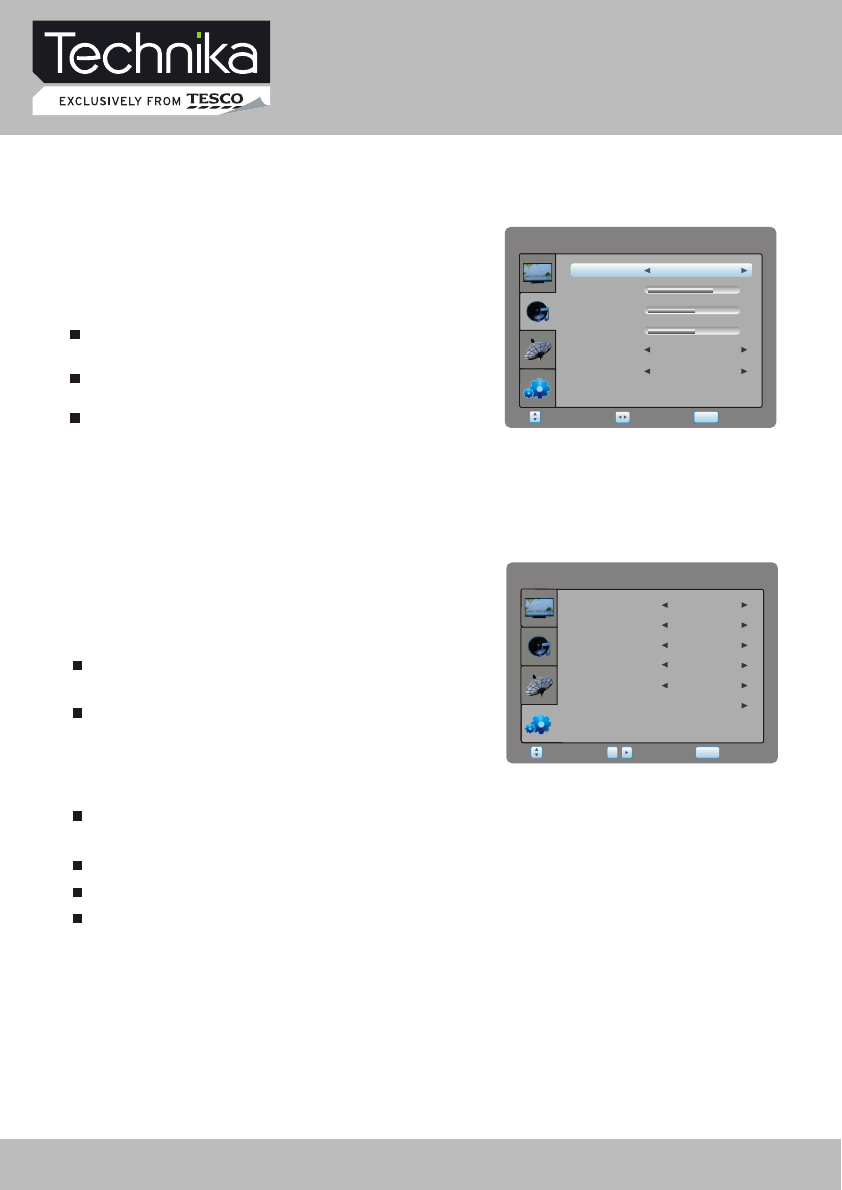

Select Return

SETUP

Enter


Contrast 70

Brightness 55

Colour 50

Sharpness

Tint

User

PictureMode

Preference

Picture mode item can be changed between

User, Standard, Soft, Dynamic

You may adjust Brightness, Contrast, Colour,

Sharpness, Tint for User mode.

Preference item enables you to enter the sub menu.

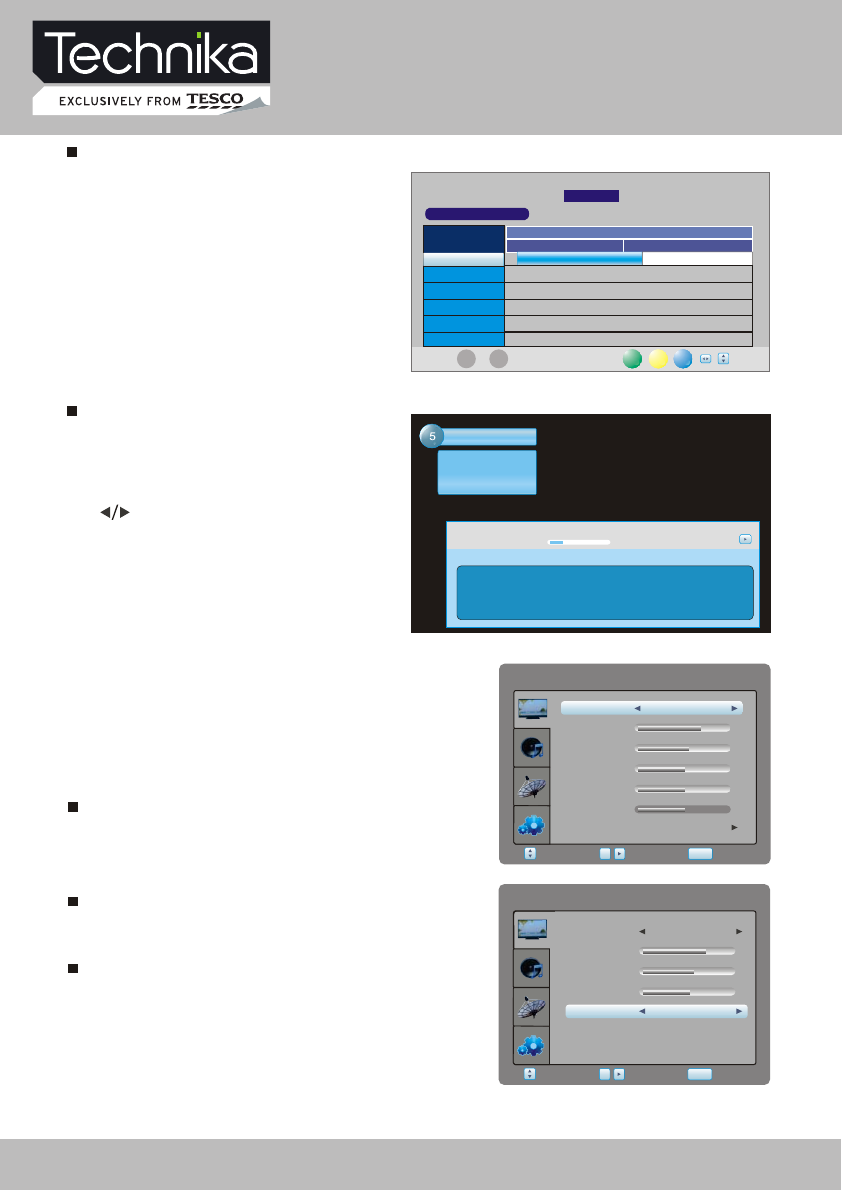

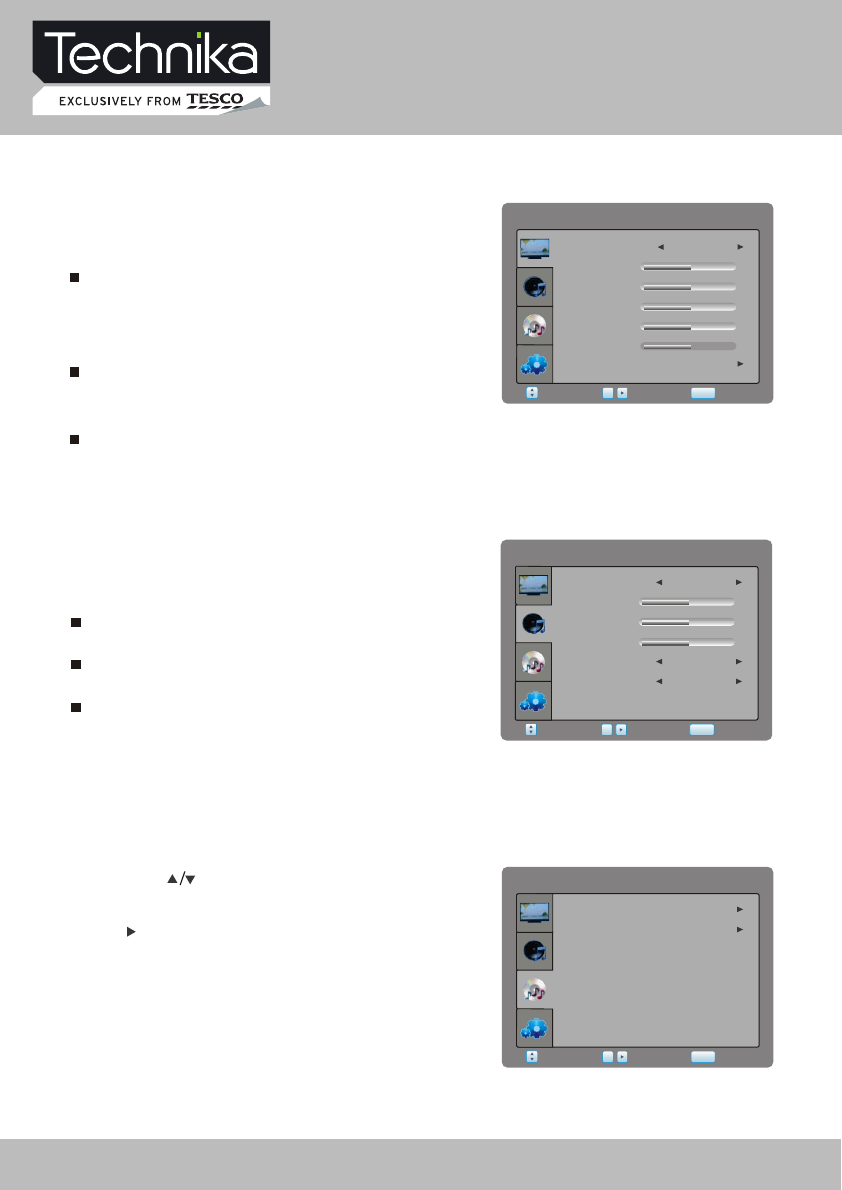

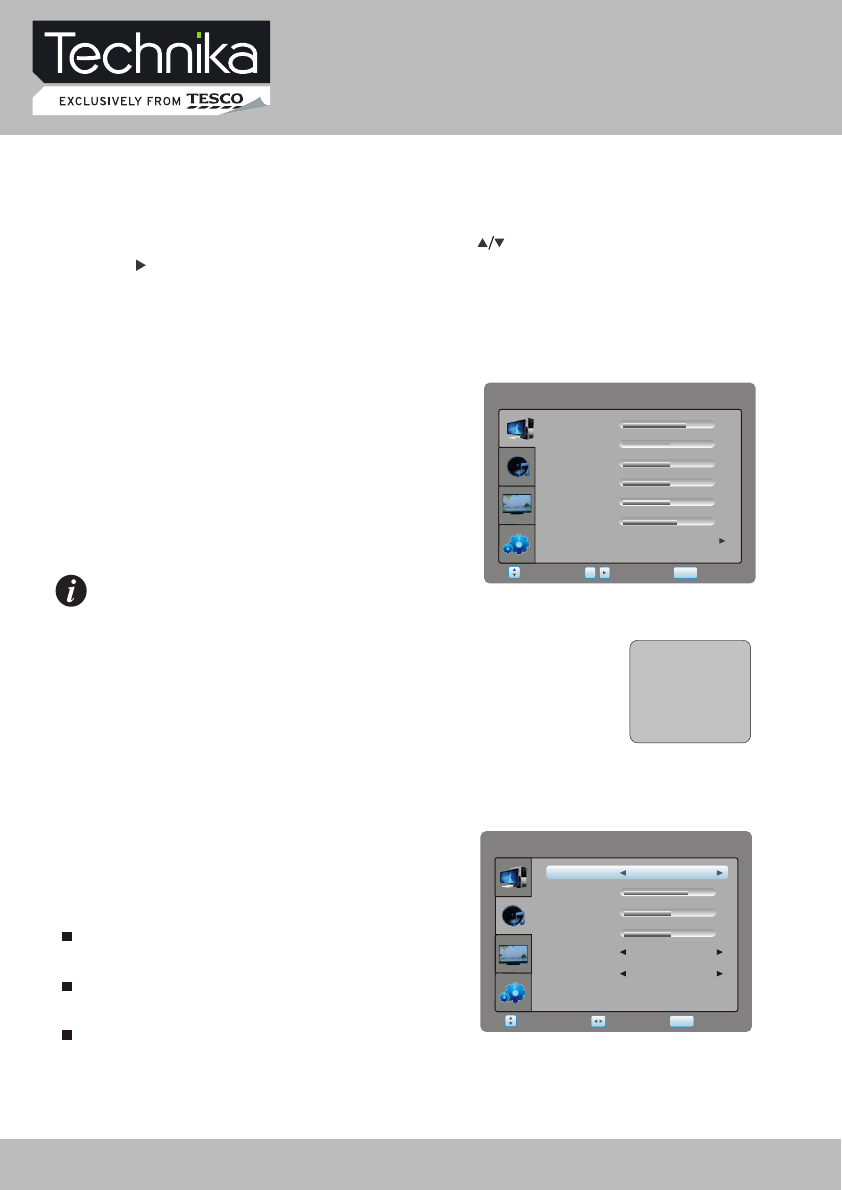

Select PICTURE item to adjust picture parameters.

You may adjust Picture Mode, Contrast, Brightness,

Colour, Sharpness, Tint and Preference.

Colour Temp. item can select colour temperature

mode: Standard, Warm, Cool and User.

Select Return

SETUP

Enter


Normal

Middle

Red

Green

Blue

NoiseReduction

ColourTemp

Noise Reduction item can select reduce noise

mode: Off, Low, Middle, High.

32" HD Ready LCD/DVD TV User Guide 21

DTV Menu Setup

FUNCTION

Region

FUNCTION

SleepTimer

BlueScreen

AspectRatio

Select Return

SETUP

Enter

Language

English

Off

16:9

Language item enables you to select the OSD

language.

Sleep Timer item enables you to set the sleep timer

(Off,10min,20min,30min,60min,90min,120min,180min and 240min)

Aspect Ratio item can bechanged between: Auto,16:9, 4:3, ZOOM1, ZOOM2

Region item can change between different regions.

Blue Screen item can be changed between On and Off.

Select FUNCTION item to adjust function parameters.

You may select Language, Sleep Timer, Aspect

Ratio, Blue Screen and Restore Setting.

RestoreSetting

Other

Restore Setting item enables you to reset all values to default.

Auto,ZOOM1, ZOOM2 not valid for VGA mode.

Select Return

SETUP

Adjust

SOUND

Treble 75

Bass 50

Balance 50

AutoVolume

SurroundSound

User

SoundMode

Off

Sound Mode item can be changed between

Music, Film, News, User.

Auto Volume item enables you to adjust off or on

for control volume automatic.

Surround Sound item enables you to select off or

on for surround sound.

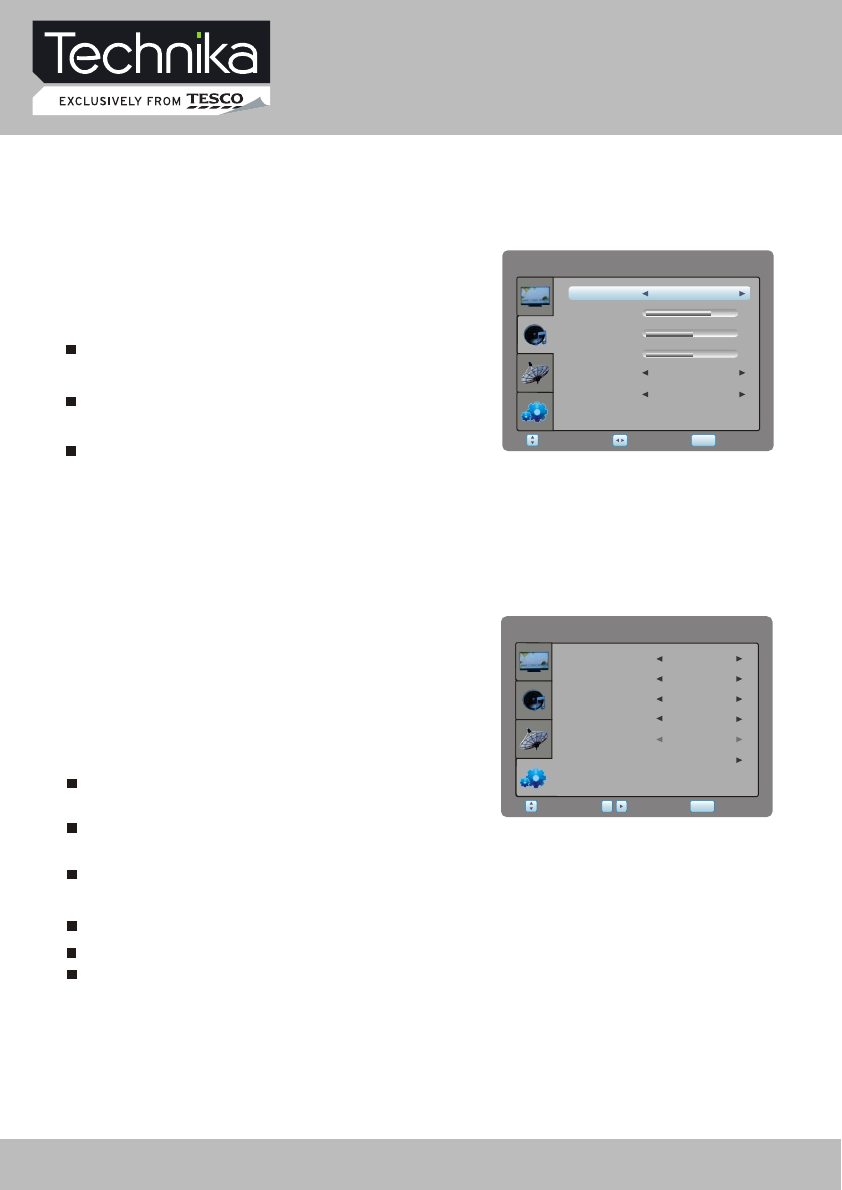

Select SOUND item to adjust sound parameters.

You may adjust Sound Mode, Treble, Bass,

Balance, Auto Volume and Surround Sound.

SOUND

32" HD Ready LCD/DVD TV User Guide 22

ATV Menu Setup

Auto Tuning item enables you to adjust channel setting automatically.

Channel Tuning

Doyouwanttoexittuning?

YesNo

9%...119.75MHz

TV:0Programme(s)

ChannelTuning

SETUPexit

EXIT exit

ATVSETTING

Select Return

SETUP

Adjust

ManualTuning

Coloursystem

Fine-Tune

Audiosystem

Channel

AutoTuning

ProgrammeEdit

224.25MHz

AUTO

Channel items enables you to change the channel

number.

NOTES

Colour System item enables you to select the colour

system: "AUTO", "PAL" and "SECAM".

Audio System item enables you to select sound

system:"B/G","DK","I" and "L".

"COLOUR SYSTEM" and "AUDIO SYSTEM" mode are according to the local ATV

broadcasting system.

If the local system is SECAM L, set the "REGION" to "FRANCE",

please refer"Function" in P25.

System will set "AUDIO SYSTEM" automatically. In some special conditions, "AUDIO

SYSTEM" setting will be wrong, please adjust manually.

Fine-Tune item enables you to adjust the channel frequency accurately to make the sound

and picture effect better.

Manual Tuning item enables you to change channel settings.

Select ATV SETTING item to adjust channels.

You may select Channel, Colour System,

Audio System, Fine-Tune, Manual Tuning,

Auto Tuning and Programme Edit.

ATV SETTING

This product can store up to 99-channel programs (199). You can select your favourite

channel through pressing [CH+/-] or number buttons, and you can scan and store all of the

channels through manual or automatic mode.

In TV mode, press [SETUP] button into the main menu and the main menu will show as follows: A

Press [ ] button on the remote control, you can select main menu sections

(main menu sections consist of .

Press [ ] or [OK] button to enter this menu section.

" ATV SETTING " , " PICTURE ", " SOUND " , " FUNCTION ")

Press [ ] button on the remote control to select the item, and then press [ ] button to

adjust parameter value. Press [SETUP] button to return to main menu sections.

32" HD Ready LCD/DVD TV User Guide 23

ATV Menu Setup

Programme Edit item enables you to enter submenu to

set channel DELETE, RENAME, MOVE, SKIP, FAV.

ProgrammeEdit

1 S-42

2 C-04

3S-02

4 S-04

5 S-04

6 S-05

7 S-06

8 S-07

9 S-08

10 S-09

DELETE

SKIP FAV

RENAME

MOVE

ProgrammeEdit

1 S-42

2 C-04

3 S-02

4 S-04

5 S-04

6 S-05

7 S-06

8 S-07

9 S-08

10 S-09

RENAME

EXIT SETUP

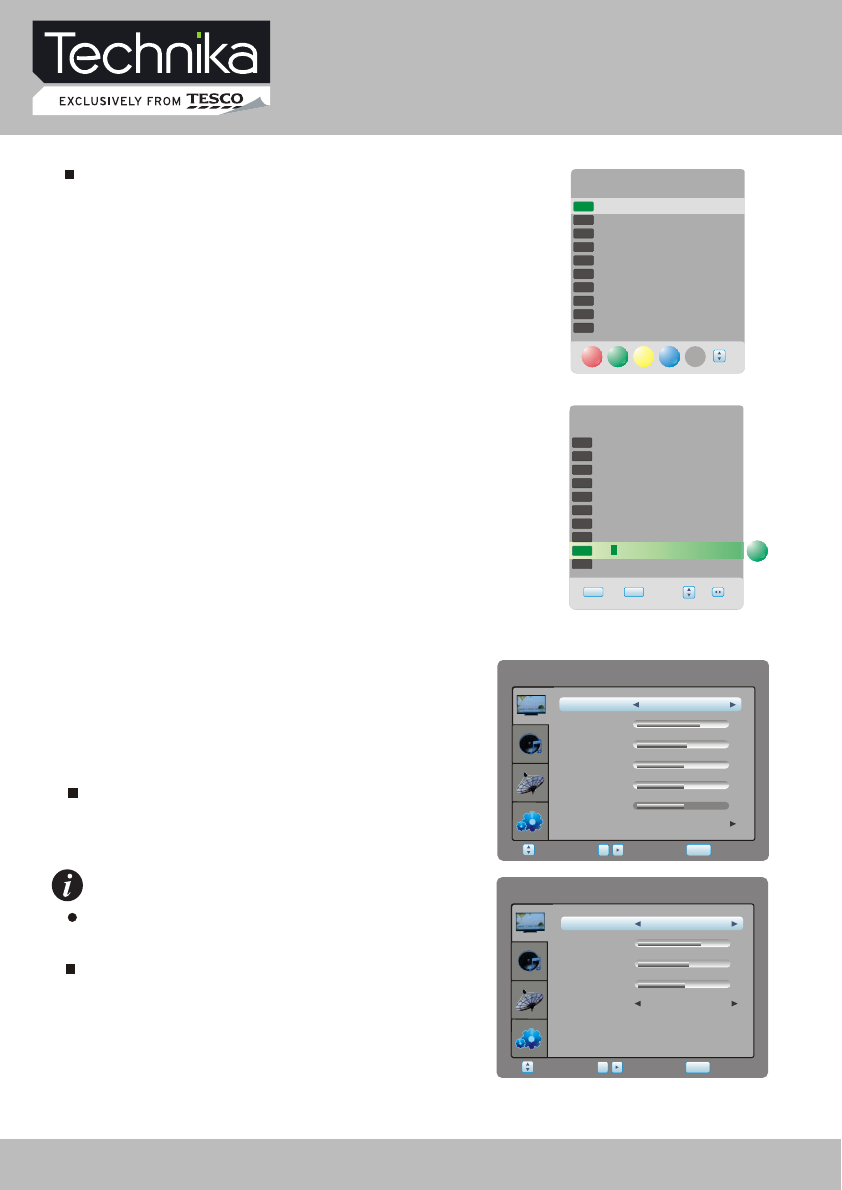

Press RED button to delete channel.

Press GREEN button to rename channel.

Press YELLOW button to move channel.

Press CYAN button to SKIP channel.

Press FAV button to set favourite channel.


Select PICTURE item to adjust picture parameters.

You may adjust Picture Mode, Contrast, Brightness,

Colour, Sharpness, Tint and Preference.

Select Return

SETUP

Enter


Contrast 70

Brightness 55

Colour 50

Sharpness

Tint

User

PictureMode

Preference

Picture Mode item can be changed between

User, Standard, Soft, Dynamic.

You may adjust Brightness, Contrast, Saturation,

Tint for user mode.

NOTES

You can't adjust TINT while watching TV channels.

Preference item enables you to enter the sub menu.

Colour Temp. item can select colour temperature

mode: Standard, Warm, Cool and User.

Select Return

SETUP

Enter


Red 70

Green 55

Blue 50

NoiseReduction

Normal

ColourTemp

Middle

32" HD Ready LCD/DVD TV User Guide 24

ATV Menu Setup

FUNCTION

SleepTimer

BlueScreen

AspectRatio

Select Return

SETUP

Enter

Language

English

Off

16:9

Select FUNCTION item to adjust function parameters.

You may select Language, Sleep Timer, Aspect Ratio,

Blue Screen and Restore Setting.

Language item enables you to select the OSD

language.

Sleep Timer item enables you to set the sleep timer

(

Off,10min,20min,30min,60min,90min,120min,180min

and 240min)

Restore Setting item enables you to reset all values to default.

Blue Screen item can be changed between On and Off.

Region Other

RestoreSetting

Region item enables you to set the analogue TV region.

Aspect Ratio item can be changed between:Auto,16:9, 4:3, ZOOM1, ZOOM2

Auto, ZOOM1, ZOOM2 not valid for VGA mode.

FUNCTION

SOUND

Select Return

SETUP

Adjust

SOUND

Treble 75

Bass 50

Balance 50

AutoVolume

SurroundSound

User

SoundMode

Off

Sound Mode item can be changed between

Music, Film, News, User.

Select SOUND item to adjust sound parameters.

You may adjust Sound Mode, Treble, Bass,

Balance, Auto Volume and Surround Sound.

Auto Volume item enables you to adjust off or on

for control volume automatic.

Surround Sound item enables you to select off or

on for surround sound.

32" HD Ready LCD/DVD TV User Guide 25

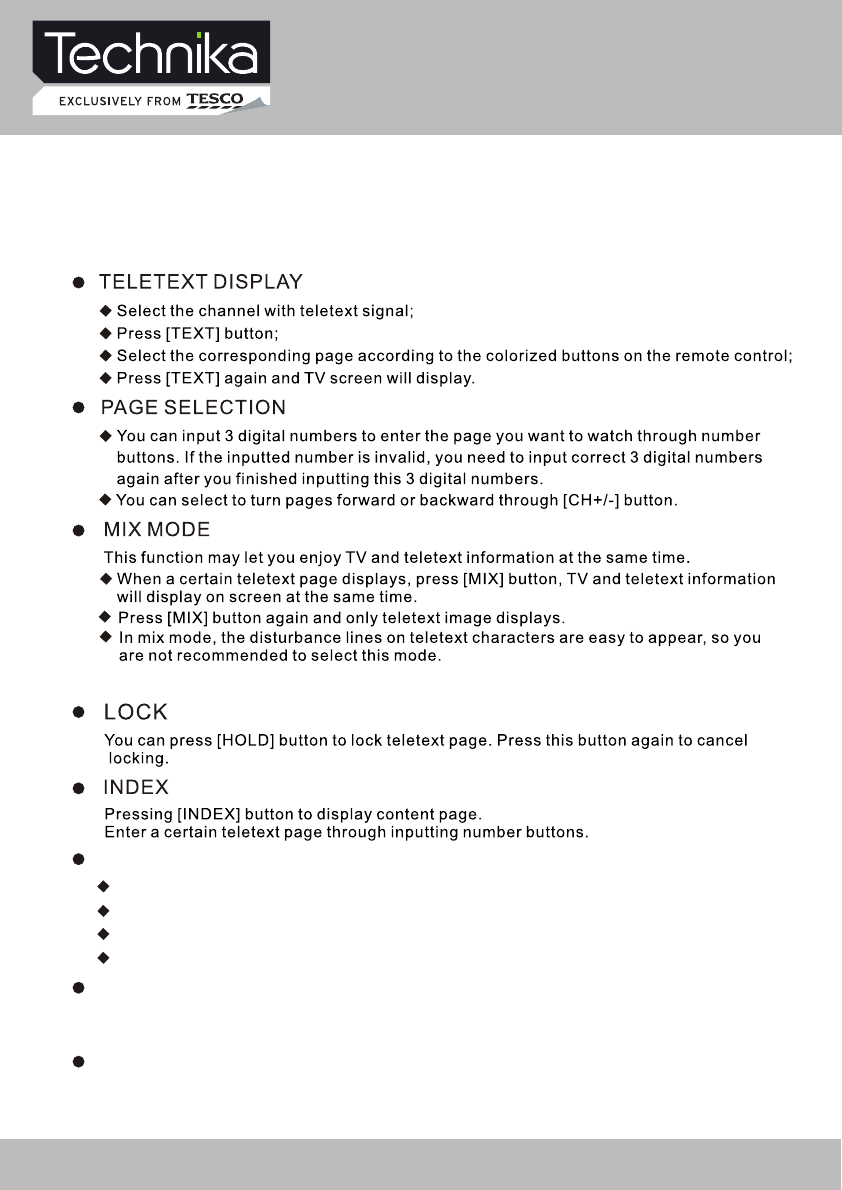

Teletext Function

Note : Press [CANCEL] button to cancel teletext.

When teletext page shows, you may double zoom in to display this teletext page;

Press [SIZE] button to zoom in the upper half part of the teletext page;

Press [SIZE] button again to enter the lower half of the teletext page;

Press this button once more to return to the original display mode.

ZOOM IN TELETEXT

Press [REVEAL] button to display the hidden teletext information. Press this button

again to cancel .

DISPLAY MODE

COLOURIZED BUTTONS (RED, GREEN, YELLOW, BLUE)

Select the corresponding teletext page through colourized buttons.

Most TV stations provide cost-free teletext information, including the latest news, weather

information, TV program list and stock information etc. You just input the needed teletext

page according to the teletext content.

32" HD Ready LCD/DVD TV User Guide 26

SCART / S-VIDEO / HDMI Menu Setup

SCART 1

NO SIGNAL

4:50

VIDEO SETTING MENU

This unit will switch to standby mode automatically if there is no signal input for more than 5 minutes.

The menu setup of SCART/ S-VIDEO/ COMPONENT/ HDMI modes is the same as that

of TV mode, except the " "section . You can find it in preceding pages.

If no signal input in DTV, ATV, SCART/ AV / S-VIDEO/ COMPONENT/ HDMI,

the screen will show as below.

NOTE

32" HD Ready LCD/DVD TV User Guide 27

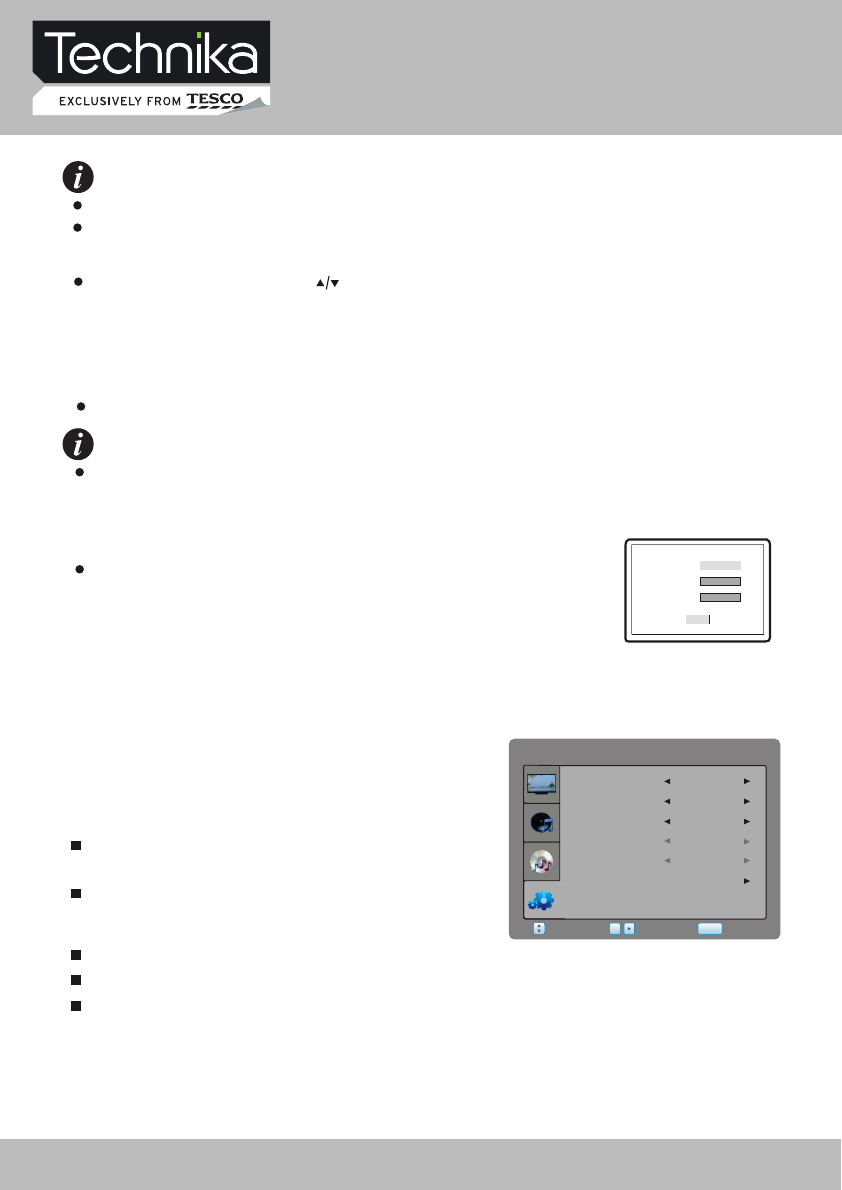

VGA Menu Setup

The VGA mode supported up to 1366X768@75Hz(for 32"), you can use this unit as a

multimedia PC monitor. When this unit works in VGA mode, the following setup can

be done.

Press [SETUP] button to enter main section. Press [ ] button to select sections and then

press [ ] button or [OK] button to enter. If all is complete, please press [SETUP] button twice to

exit and your setup data will be saved automatically.

Select VGA SETTING item to adjust such

parameters as Contrast, Brightness,

H-offset, V-offset, Frequency, Phase,

Auto Adjust.

VGA SETTING

NOTE

When your PC goes into standby mode, the screen will show

as right side. This unit will go into sleep mode if no signal

input for 5 minutes. In this mode, the indicator will remain

green, and the screen will turn off. You can wake it up by

waking up your PC.

VGA

NO SIGNAL

1: 50

VGASETTING

Brightness

V-Offset

H-Offset

Select Return

SETUP

Enter

Contrast

Frequency

Phase

AutoAdjust

SOUND

Sound Mode item can be changed between

Music, Film, News, User.

Select SOUND item to adjust sound parameters.

You may adjust Sound Mode, Treble, Bass,

Balance, Auto Volume and Surround Sound.

Auto Volume item enables you to adjust Off or On

for controlling volume automatically.

Surround Sound item enables you to select Off or

On for surround sound.

SOUND

Select Return

SETUP

Treble 75

Bass 50

Balance 50

AutoVolume

SurroundSound

User

SoundMode

Adjust

Off

32" HD Ready LCD/DVD TV User Guide 28

VGA Menu Setup

FUNCTION

Select FUNCTION item to adjust function parameters.

You may select Language, Sleep Timer, Aspect Ratio,

Blue Screen and Restore Setting.

Language item enables you to select the OSD

language.

Sleep Timer item enables you to set the sleep timer

(Off, 10 min, 20 min, 30 min, 60 min, 90 min, 120 min, 180 min and 240 min).

Aspect Ratio item can be changed between 16:9 and 4:3.

Restore Setting item enables you to reset all values to default.

Blue Screen item can be changed between On and Off.

FUNCTION

SleepTimer

BlueScreen

AspectRatio

Select Return

SETUP

Enter

Language

English

Off

16:9

Region UK

RestoreSetting


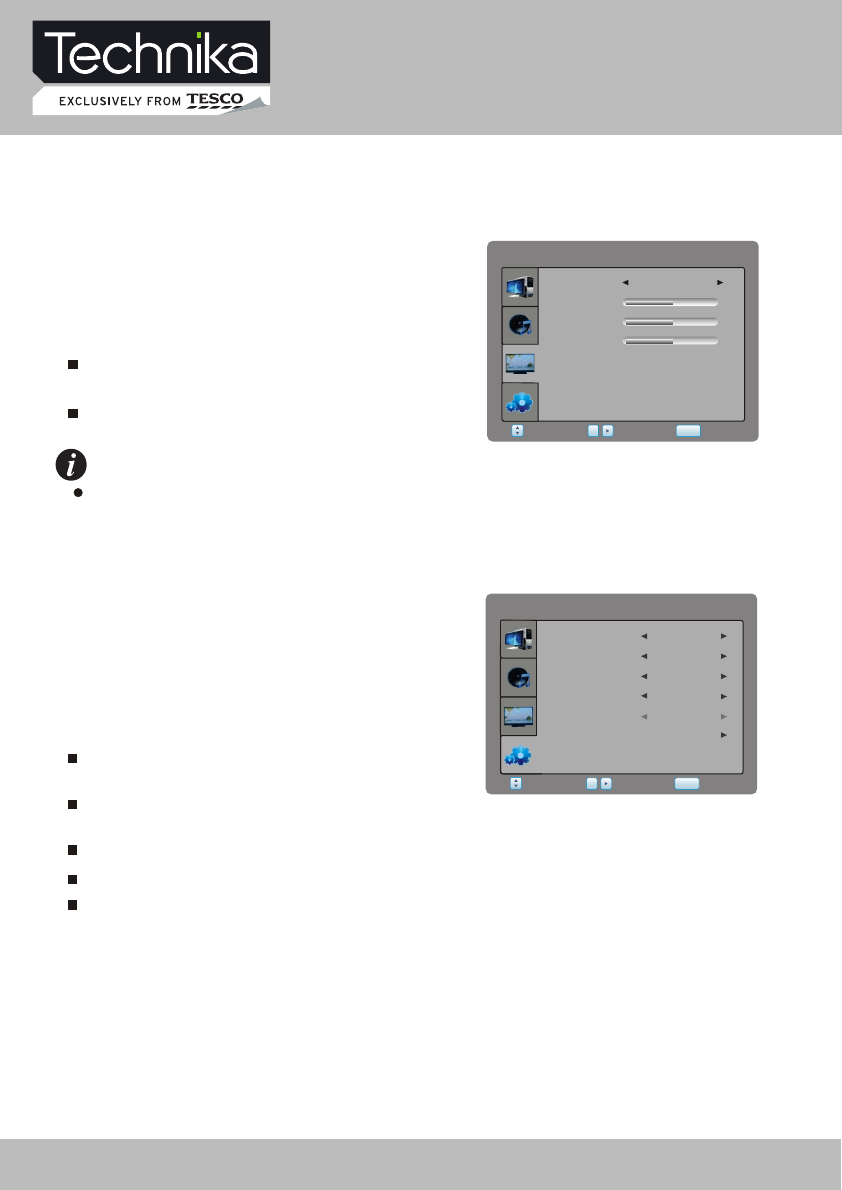

Select PICTURE item to adjust such parameters

as Colour Temp, Red, Green, Blue.

Colour Temp item can be set to: User, Standard,

Warm and Cool.

Red, Green and Blue items enables you to adjust

RGB value of colour temperature.

The picture will be displayed incorrectly while adjusting.

NOTE


Red

Blue

Green

Select Return

SETUP

Enter

Colour Temp

Standard

32" HD Ready LCD/DVD TV User Guide 29

DVD Operation

DVD provides brand-new AV effect for consumers with its extraordinarily large capacity and

outstanding audio-video effects. Its capacity is as high as 4.7-17 GB (approximately 7-26 times the

CD capacity) and horizontal resolution of picture is above 500-line.

Function Introduction

Multiple languages and subtitles

DVD disc can support as many as 8 dubbing languages and 32 subtitle languages.

User can select to play the desired plots (the beginning, development or ending) of the same disc.

Multiple story plots

Multiple aspect ratios support various TV screens.

DVD

Digital/MPEG2

Recording Method

Capacity

Playback Time

Disc Diameter

Horizontal Resolution

Aspect Ratio

Subtitle

Sound Quality

Audio

Single

sided

1 layer

4.7G

133min

12CM

500 lines or more

Multiple

Linear PCM

48kHz 96kHz/16 20 24bit

32 types

CDROM

Digital

650MB

12CM

Double-

sided

1 layer

8.5G

242min

Single

sided

2 layers

9.4G

266min

Double-

sided

2 layers

17G

484min

VCD

Digital/MPEG1

650MB

44.1kHz

250 lines or more

12CM

74min

SVCD

Digital/MPEG2

650MB

350 lines or more

12CM

45min

Digital

650MB

44.1kHz/16bit

Linear PCM

12CM

74min

Analogue

44.1kHz/16bit

Linear PCM

FM modulation

One

Max. 16 types

430 lines or more

30CM

1 side 60min.

2 sides 120min.

Multiple aspect ratios

ComparisonbetweenDVDandotherDiscs

BRIEF INTRODUCTION

32" HD Ready LCD/DVD TV User Guide 30

DVD Operation

Brand-new AV Effects

Convenient Functions

1Compatible with MPEG 4 format discs to produce wonderful pictures.

FEATURES

This player employs the new generation MTK decode chip with more convenient system

and more stable operation. Super error correction slot-in loader with twin laser with good

shockproof performance.

108MHz/12bit video DAC with more vivid and brilliant pictures.

Progressive-scan video outputs to eliminate the flickers not rectified by

interlacing scan and therefore your eyesight will be well-protected. At the same time,

the pictures definition is sharply enhanced and the pictures will be finer, smoother

and more stable.

Disc Pictures

TV Screen

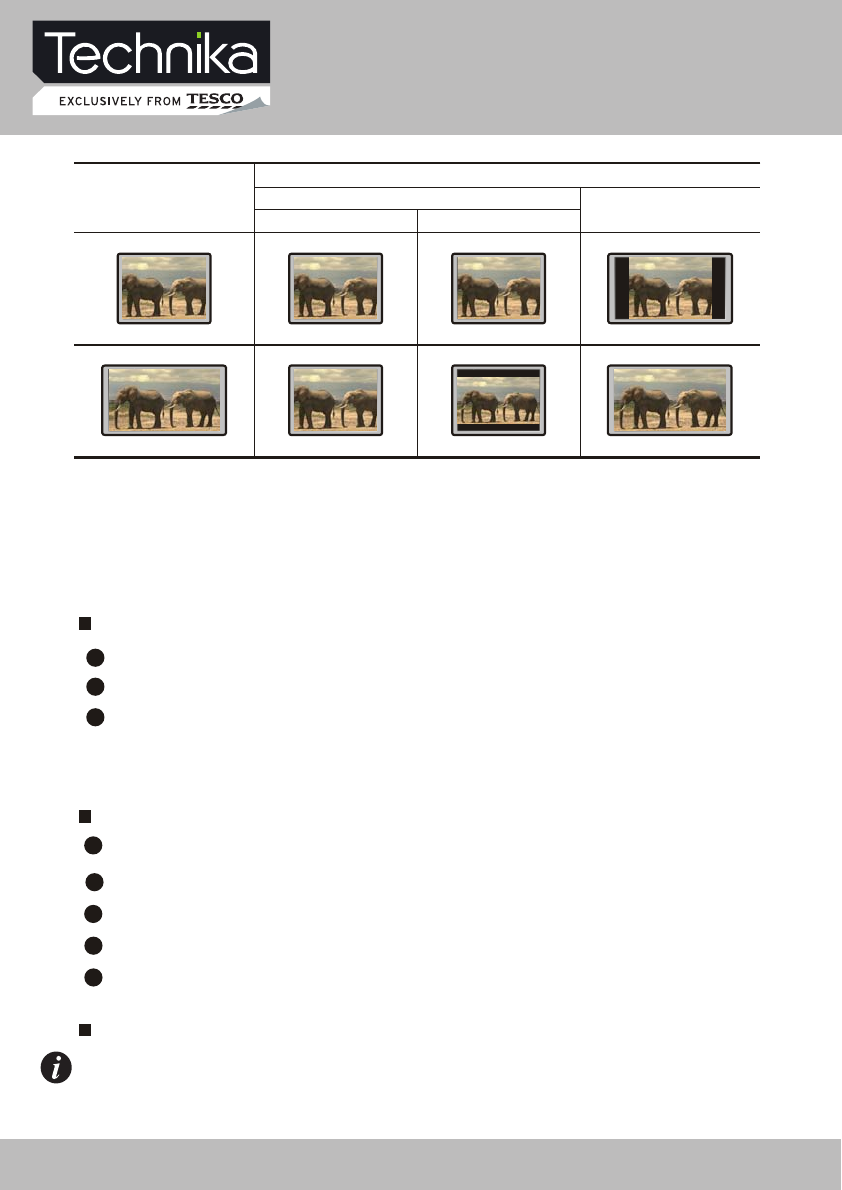

4:3 16:9

Pan-Scan Letterbox

16:9

4:3

1Direct entry into desired scenes (title/chapter/time/track search).

NOTE: * Some discs labelled with MPEG4 on the market actually are *.rm/*.ra/*.ram/*.rmm and others

which are not compatible. Please take care when buying discs.

Super compatible with VCD, SVCD, CD, HDCD, KODAK PICTURE CD etc.

Multi-levelzoom in/outplayback function to provide you with brand-new enjoyment method.

Multiple aspect ratios to fit TV sets of various screen ratios.

Parental lock function to prevent children from watching unsuitable discs.

Multiple dubbing languages and subtitle languages bring you the best entertainment status

all the time.

32" HD Ready LCD/DVD TV User Guide 31

DVD Operation

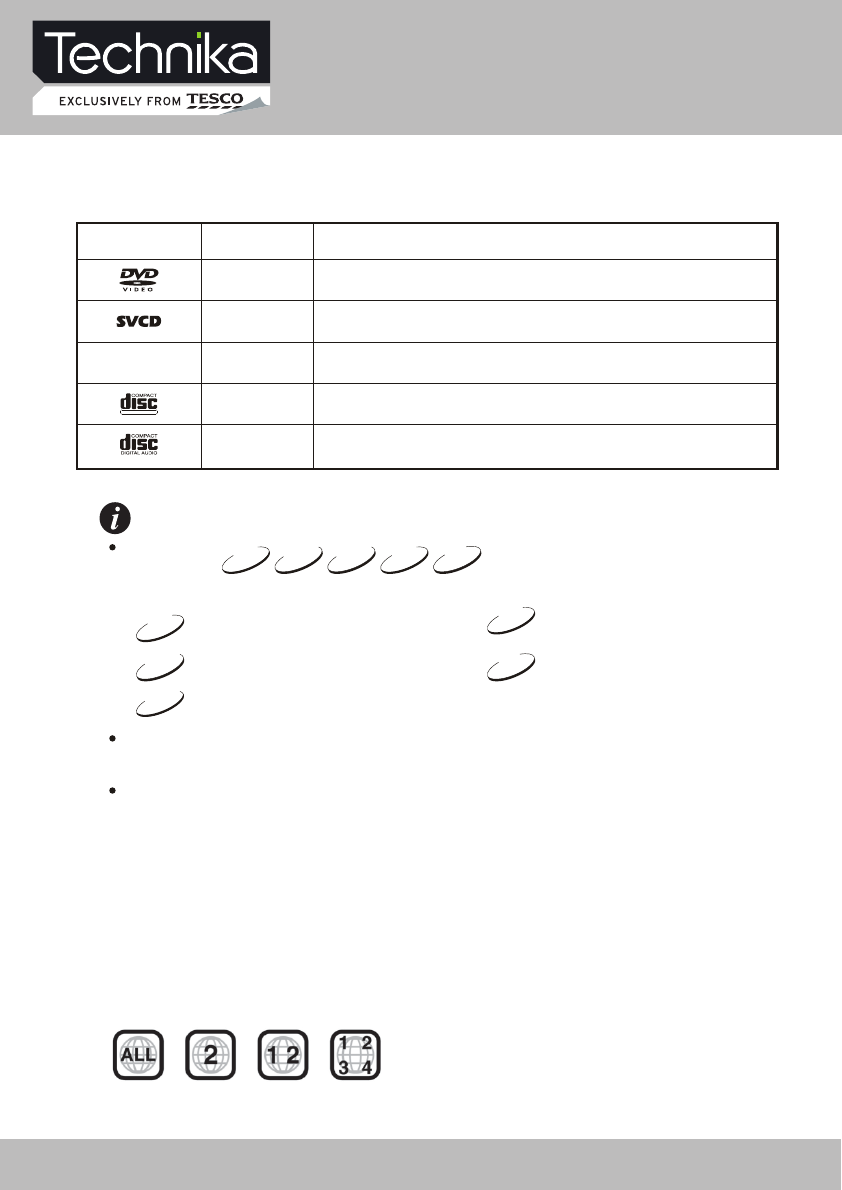

COMPATIBLE DISC TYPES

CD-DA: Digital audio

12cm

12cm VIDEO CD: Compressed digital audio + compressed digital video (dynamic picture)

DIGITAL VIDEO

12cm SVCD: Compressed digital audio + compressed digital video (dynamic picture)

12cm

DVD: Compressed digital audio + compressed digital video (dynamic picture)

12cm MPEG4: Compressed digital audio + compressed digital video (dynamic picture)

MPEG4

NOTES

These icons on the top banner indicate the disc types that the function described in the section applies to.

Applies to VCD disc

VCD

Issues related to CDVCDSVCDDVD

Applies to CD disc

Applies to DVD disc

DVD

MPEG4

Applies to SVCD disc

SVCD

Applies to MPEG4 disc

MPEG4

Types Sizes Recorded Contents

This model does not support the 8cm disc. Do not insert that type of disc into this device

to prevent a disc jam.

This model supports DIVX playback, but with data rate of up to 10Mbps.

DVD Operation

Region code

If the region code of the disc being played

does not match the region code of this DVD

player then the disc cannot be played. If you

do try to do this a region violation notice will

appear on the screen.

The region code for this player is region 2

(refer to the symbols below).

32" HD Ready LCD/DVD TV User Guide 32

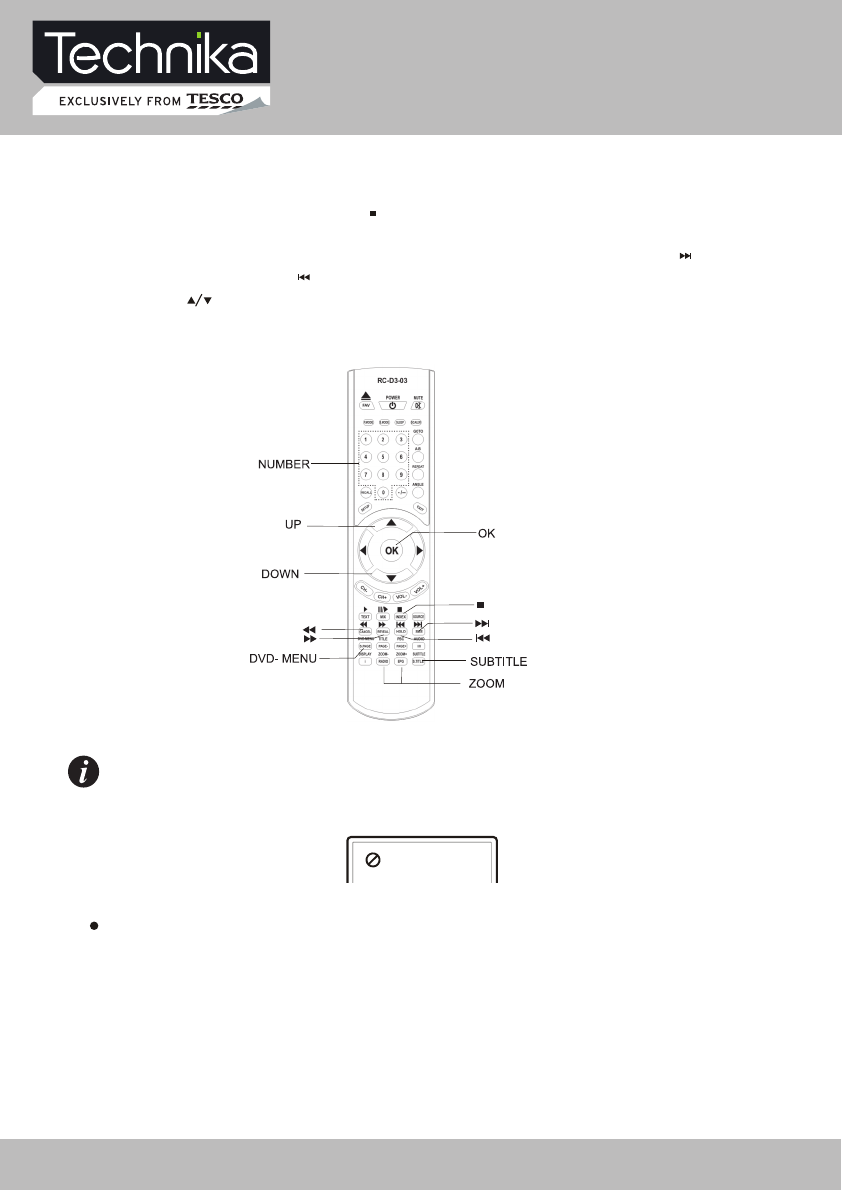

DVD Operation

2.Place the disc (with labelside facing user)to the door and the unit willdraw in the disc

automatically.

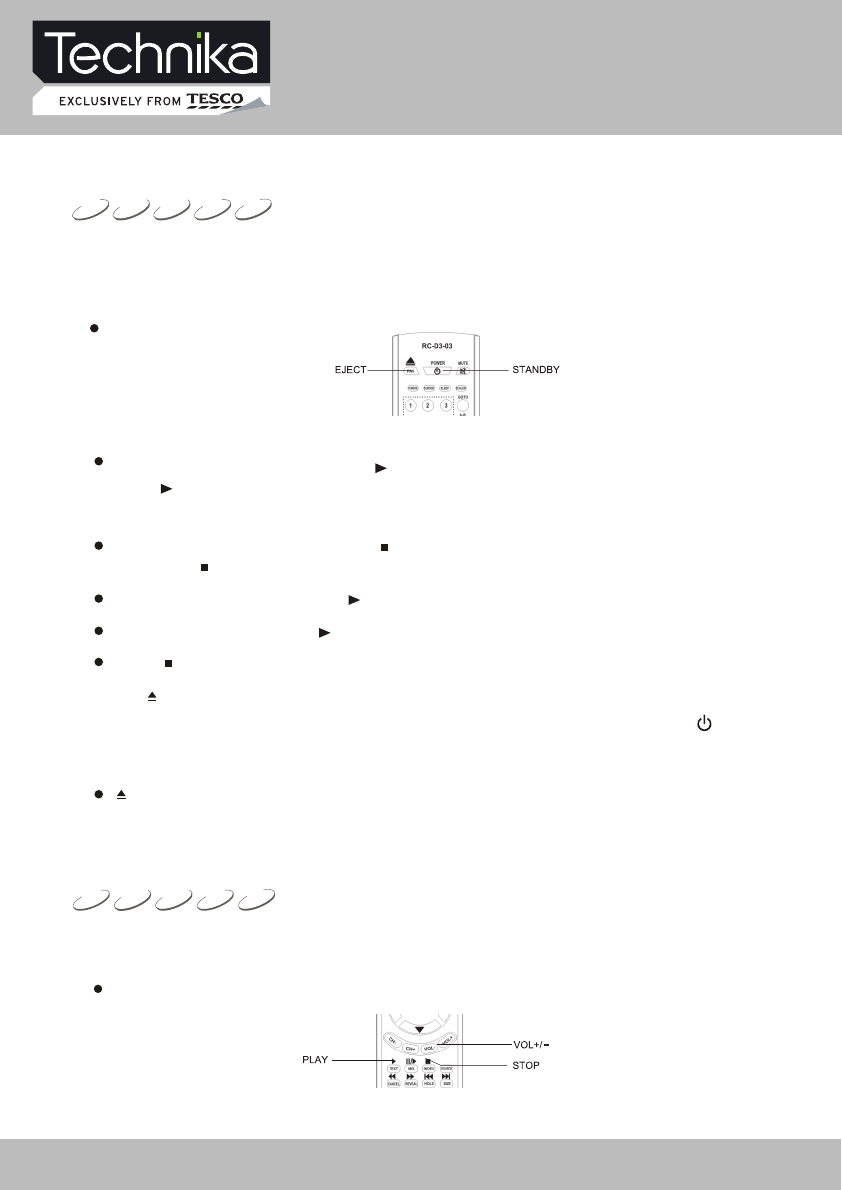

1. Power on and switch signal source to DVD mode and the unit begins to work.

3. Press [PLAY] button to begin playing disc.

4. Press [STOP] button to stop playing.

6. When finishing playing, switch signal source to other working state and press [ ]

button to make the unit enter standby state. Please pull out the power plug from power

socket when not using the unit for a long time.

PLAYBACK

The unit begins to read disc information.

CDVCDSVCDDVD MPEG4

5. Press [ ] button to take out disc.

When the unit is playing a disc, press[ ] button the first time and the unit enters pause state, while

press [ ] button again and the unit resumes playback.

When the unit is playing a disc, press [ ] button the first time and the unit enters pre-stop state,

while press [ ] button again and the unit enters stop state.

At the pre-stop state, if you press [ ] button, the unit will continue to play from the stopped point.

At the stop state, if you press [ ] button, the unit will play from the beginning point of the disc.

Press [ ] button when playing MPEG4 discs and the unit enters stop state directly.

[ ] button is effective only when selecting DVD signal source. In other signal source ,such as TV,

AV, etc, this button is invalid.

2. Press [VOL+/VOL-] buttons on the remote control of this unit.

Press [VOL+] button to increase volume; press [VOL-] button to decrease volume; the

maximum volume is 100.

CDVCDSVCDDVD

1. Press [VOL+/VOL-] buttons to adjust volume.

MPEG4

VOLUME CONTROL

32" HD Ready LCD/DVD TV User Guide 33

DVD Operation

VCDSVCD

When playing SVCD, VCD2.0 discs with the menu playback function, you may enjoy simple

menu playback alternative function. You may set menu playback state in the setup

menu and select menu playback or sequence playback.

For instance, VCD 2.0 disc menu playback.

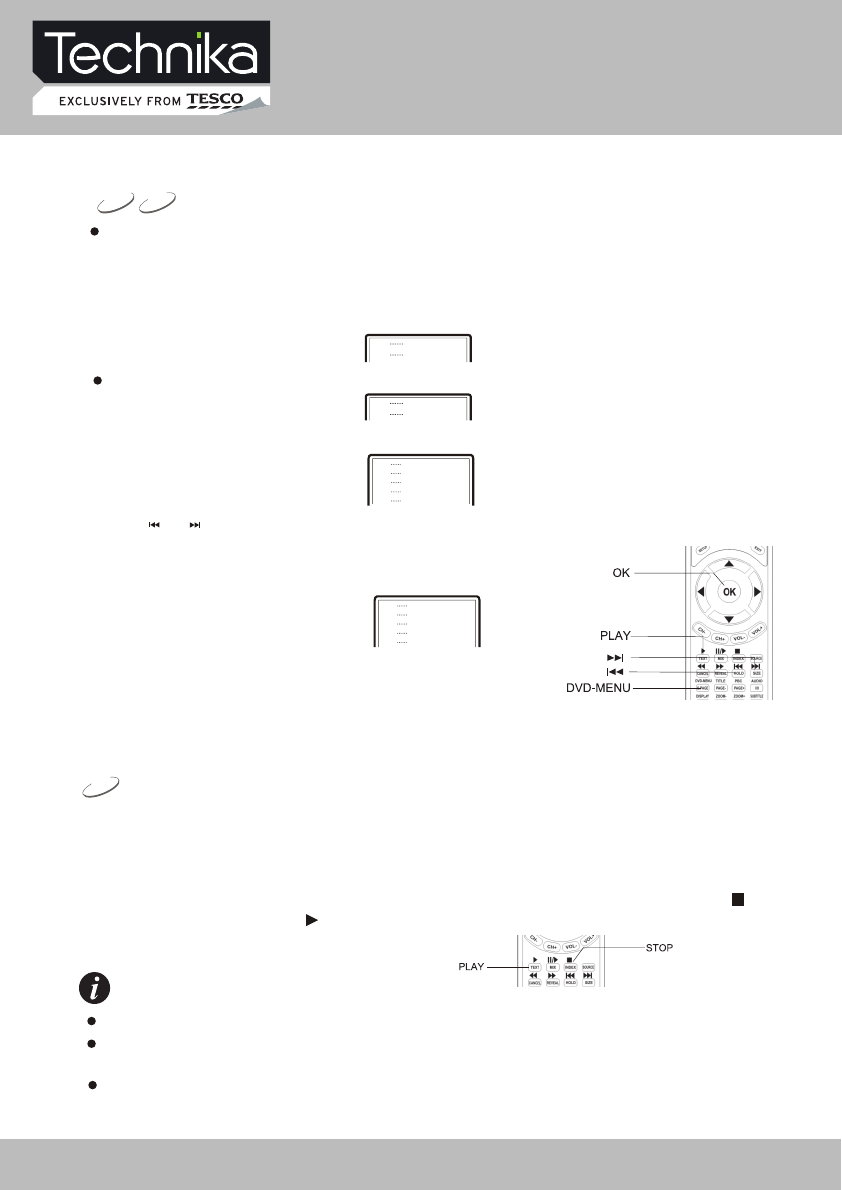

VCD, SVCD MENU PLAYBACK

2. After entering main menu 1, TV screen displays submenu.

3. Press [ ], [ ] buttons to turn pages.

4. Press number buttons to select submenu content. For instance,

press number button 5 and the unit begins to play the fifth track.

5. When playing, pressing [DVD-MENU] button to return to the

root menu.

1. TV screen displays main menu.

Press number buttons to select. For instance, press number button 1 to select main menu 1.

MEMORY

DVD

NOTE

1. This player can save the currently played time point automatically when you leave the current

DVD disc playback (switch from DVD to card read state, switch from DVD signal source to

other signal source, enter standby state in DVD mode).

2. When switching to DVD playback state again, this player can automatically search the time point

saved last time to continue playing. If you want to play from the beginning, please press [ ]

button twice and then press [ ] button.

This player may save one DVD disc for one time.

The DVD disc played the last time will be saved, and the former saved contents will be cleared

by new saved contents.

lf power is cut off unexpectedly, the DVD disc played currently will not be saved.

32" HD Ready LCD/DVD TV User Guide 34

DVD Operation

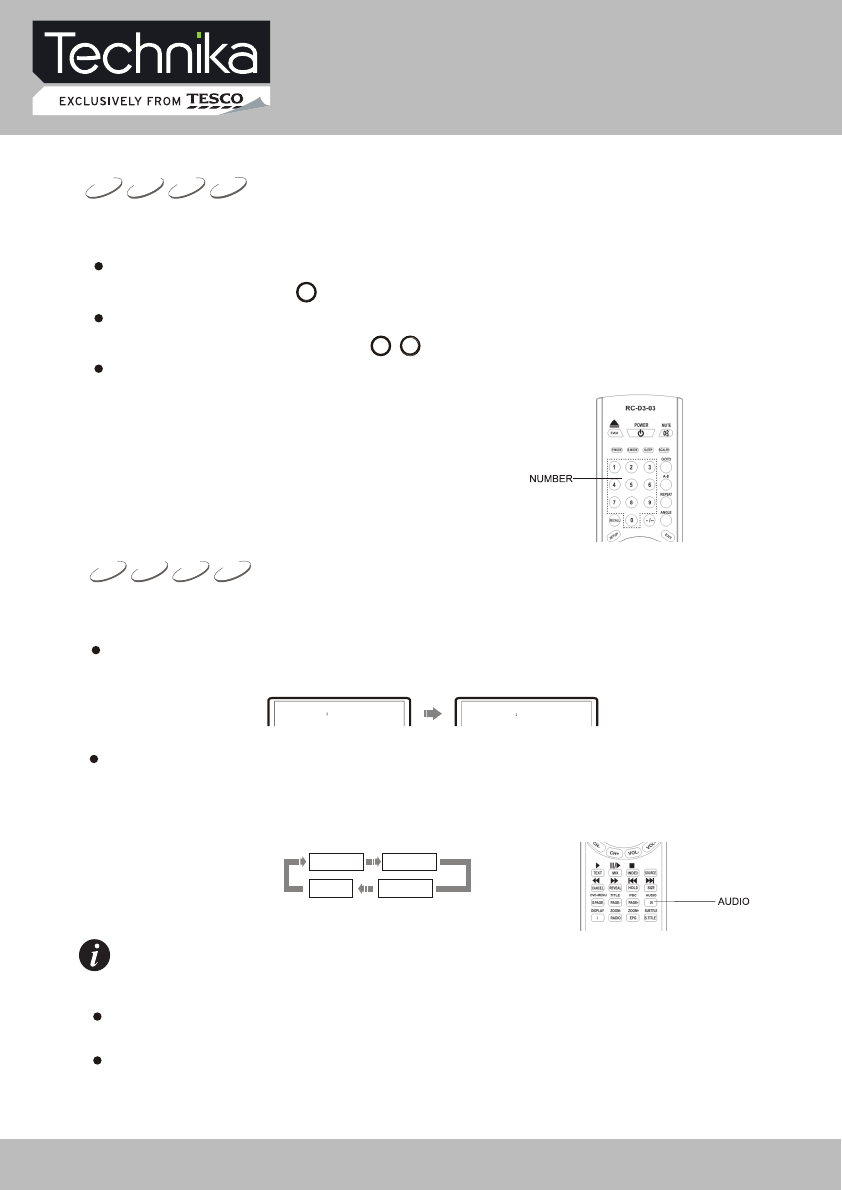

As for SVCD, VCD or CD disc with multiple channels, you may select audio output from

left or right channel or select stereo audio output. For VCD disc, left channel records

dubbing and right channel records singing, and you may select left channel for dubbing.

SVCD, VCD, CD disc:

Mono Right

Mono Left

Stereo

Language type varies with disc recording.

When playing some DVD discs, pressing [AUDIO] button to switch language may

result in playing the track from its beginning.

For VCD story disc with double languages, you may press [AUDIO] button to select

the desired language.

NOTE

DVD disc:

1. Press [AUDIO] button.

CDVCDSVCDDVD

As for DVD discs with multiple languages, you may select the desired language when playing.

Audio 1/2

French

Audio 2/2

Chinese

SELECT LANGUAGE/AUDIO

SELECT TRACK TO PLAY DIRECTLY BY NUMBER BUTTONS

CDVCDSVCDDVD

1. Insert disc, after disc reading and normal playback, press number buttons to select track

to play directly.

1 + 6

-/--

If track number is less than 10, press number buttons 1 to 9 to directly select. For instance,

select the seventh track: 7

For instance, select the 16th track

If track number is more than or equal to 10, press [-/- -] button and then number buttons 0 to 9.

If track number is more than or equal to 20, press [-/- -] button twice and then number buttons

0 to 9. The rest can be performed by analogue.

Mix-Mono

32" HD Ready LCD/DVD TV User Guide 35

DVD Operation

TheA-B repeatfunction may be invalid for some discs.In menu playback mode,the segment

can only be selected in the track.

3. Press [A-B] button for the third time.

The unit restores to normal playback.

NOTE

When playing disc, you may press [A-B] button to play your desired segment content repeatedly.

1. In normal playback, press [A-B] button at the beginning point (point A) of the segment that

you desire to play repeatedly.

TV screen displays:

2. In normal playback, press [A-B] button at the ending point (point B) of the segment that

you desire to play repeatedly.

TV screen displays:

The unit automatically returns to point A and begins to play the selected segment (A-B).

CDVCDSVCDDVD MPEG4

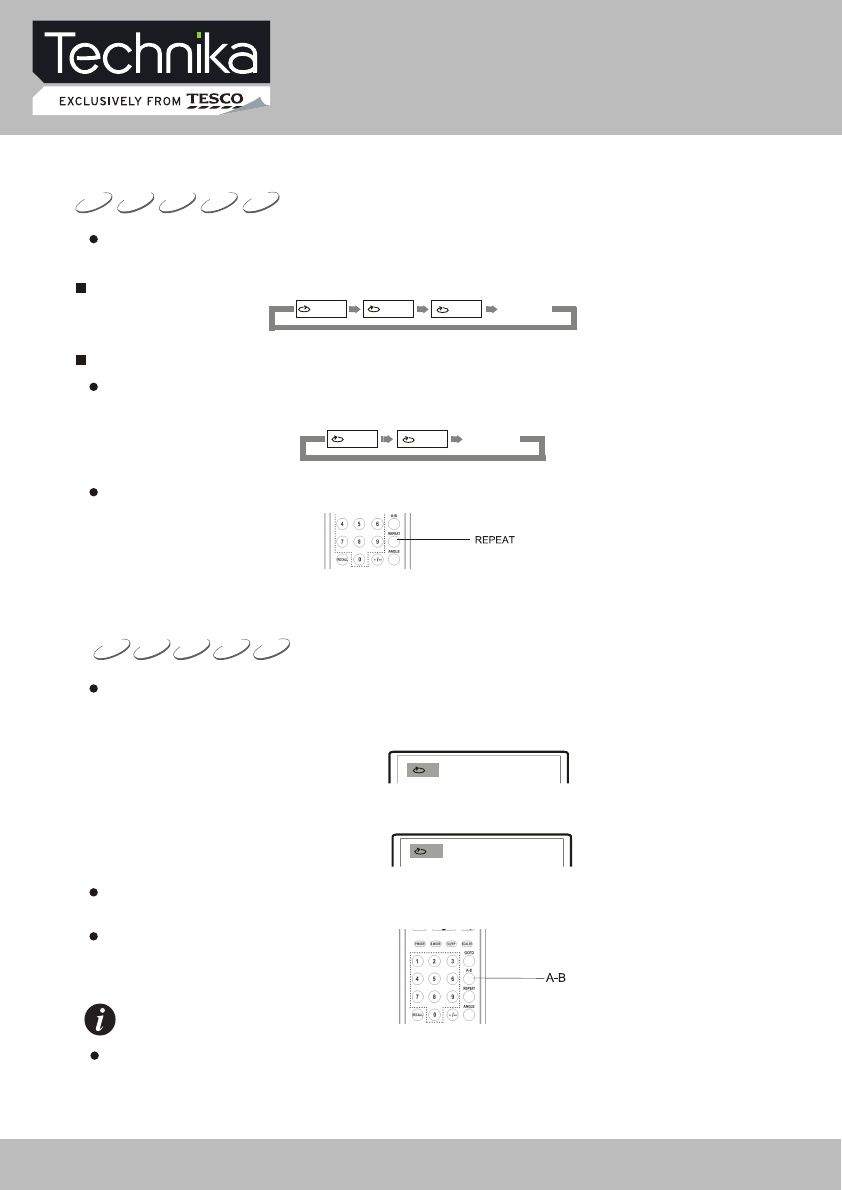

REPEAT PLAYBACK OF SELECTED SEGMENT

To SVCD,VCD2.0 discs,the repeatfunction cannotbe operated in menu playback mode.

1. Press [REPEAT] button. Each press of REPEAT button may realize different repeat functions.

The repeat playback function enables a certain title/chapter/track/disc repeated.

DVD DISC:

SVCD, VCD, CD discs:

To SVCD, VCD2.0 discs, the repeat function is effective in sequence playback mode; to VCD1.1,

CD discs, the repeat function may be directly operated.

Track Repeat Off

ALL

Repeat Off

TitleChapter ALL

CDVCDSVCDDVD MPEG4

REPEAT PLAYBACK

32" HD Ready LCD/DVD TV User Guide 36

DVD Operation

1. Search title and chapter. For instance, search the 2nd chapter in title 6.

Inputting a certain time,title numberorchapternumberdirectly may search the disc quickly and

then play forward from this position.

Play DVD disc

DVD SVCD VCD CD

MPEG4

1. Press [ ] button and the unit begins fast forward playback.

Press [ ] button each time and the disc playback speed switches in the following sequence

circularly:

2. Press [ ] button and the unit begins fast backward playback.

Press [ ] button each time and the disc playback speed switches in the following sequence

circularly:

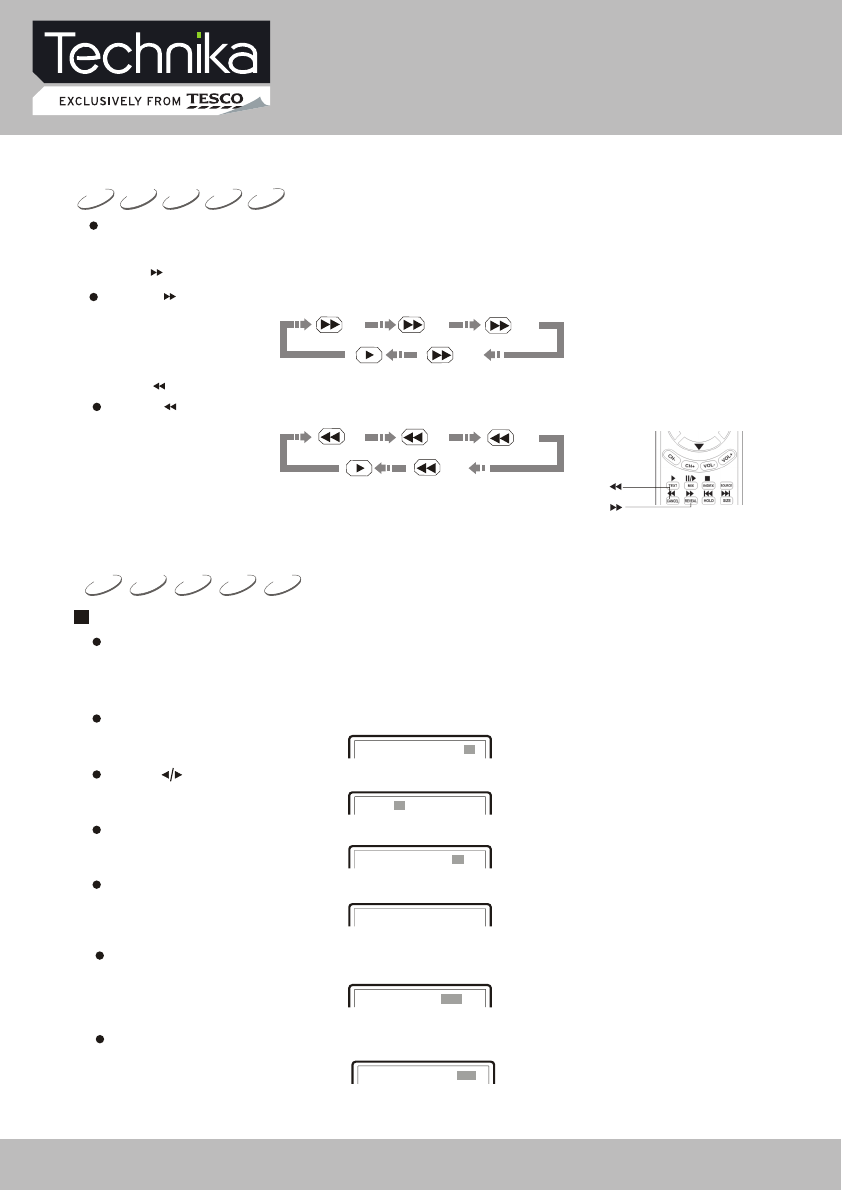

PLAY FROM THE DESIRED POSITION

When playing discs,you may selectfastforward orfastbackward playback to search for a certain

point.

CDVCDSVCDDVD MPEG4

FAST PLAYBACK

16X

Then press number button 6 to select Title 6, shown in the figure:

Title 06 /30 Chapter /02

2. Search title time

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input hour, minute and second.

Title 06/30 Time : :

Finally press number button 2 to select Chapter 2, shown in the figure:

Title 06 /30 Chapter 02/02

Press [GOTO] button and TV screen displays:

Press [ ] button to move cursor and lighten the title number, shown in the figure:

Title 03/30 Chapter /02

Title /30 Chapter 01/02

3. Search chapter time

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input hour, minute and second.

Chapter 01/04 Time : :

32" HD Ready LCD/DVD TV User Guide 37

DVD Operation

1. Search disc time

2. Search track time

Play SVCD, VCD and CD discs

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input minute and second.

Disc Go To --:--

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input minute and second.

Track Go To --:--

3. Select the track

1. Select track

2. Search track time

Play MPEG4 disc

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input the track.

Select

Press [GOTO] button until TV screen displays the following figure. Then press number buttons to

input hour, minute and second.

-:--:--

Select Track -- /15

Press [GOTO] button until TV screen displays the following figure. Press number buttons to input

track.

ZOOMING THE DISPLAYED FRAME

VCDSVCDDVD MPEG4

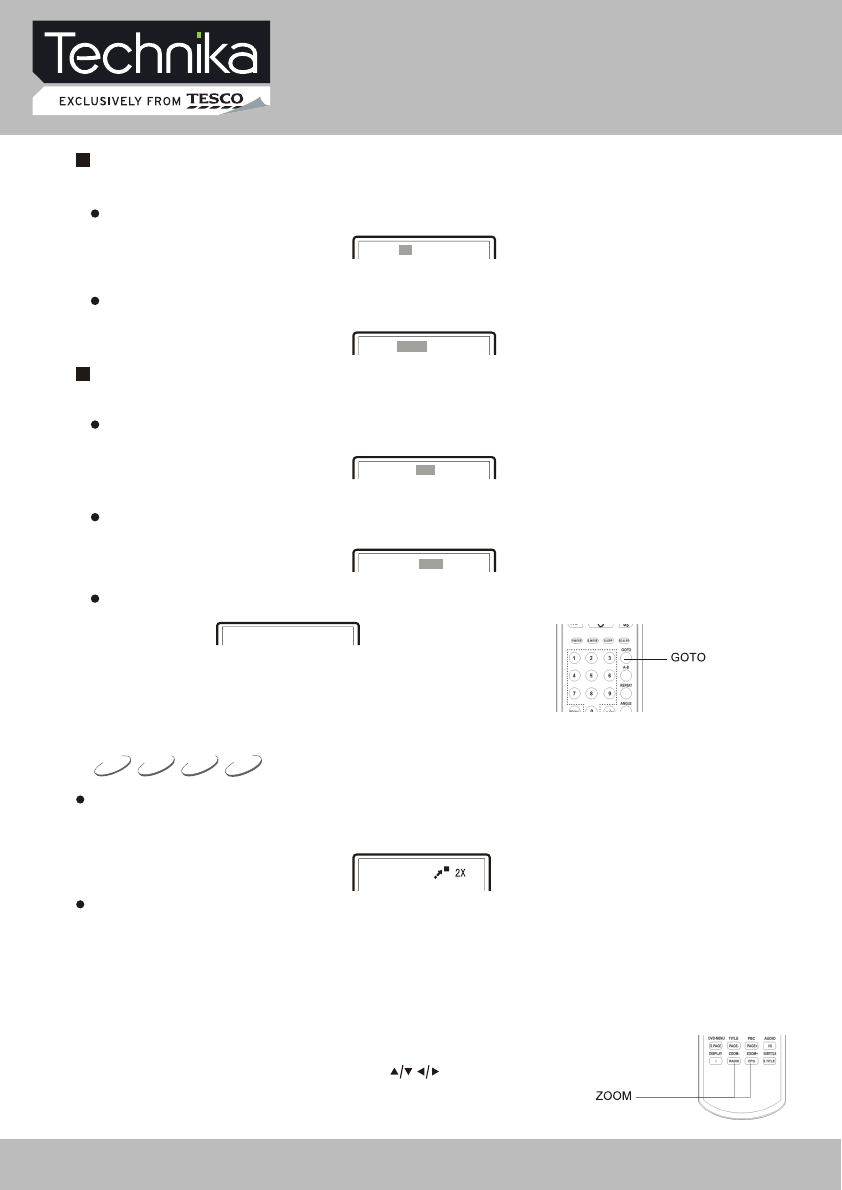

1. When playing a disc, press the [ZOOM+/-] button can open the zoom in/out function, and the TV

screen displays( take X2 mode as an example):

Zoom in/out the player frame.

The frame is magnified to 2 times of the normal size.

5. When the is magnified, press the [ ] buttons to move the frame.picture

2. Press the [ ZOOM + ] button continually, all the magnified/ minified modes display on the screen

in turn. The magnified/ minified modes includes:2X,3X,4X.

4. When the mode is on 4X, press [ ZOOM + ] button to close the zoom in/ out function, and the

frame restores normal size. When the mode is on 1/4,press [ ZOOM -] button.

Go To

3. Press the [ ZOOM - ] button continually, all the magnified/ minified modes display on the screen

in turn. The magnified/ minified modes includes:1/2,1/3,1/4.

32" HD Ready LCD/DVD TV User Guide 38

JPEG(Joint Photographic Experts Group) is the most widely used picture compression and

storage format today. Utilizing high efficiency compression algorithm, JPEG compresses

the original picture 15 to 20 times with excellent picture quality. JPEG is featuring small

size data, convenient application and supported by most picture processing software, so

it is very fit to store photos.

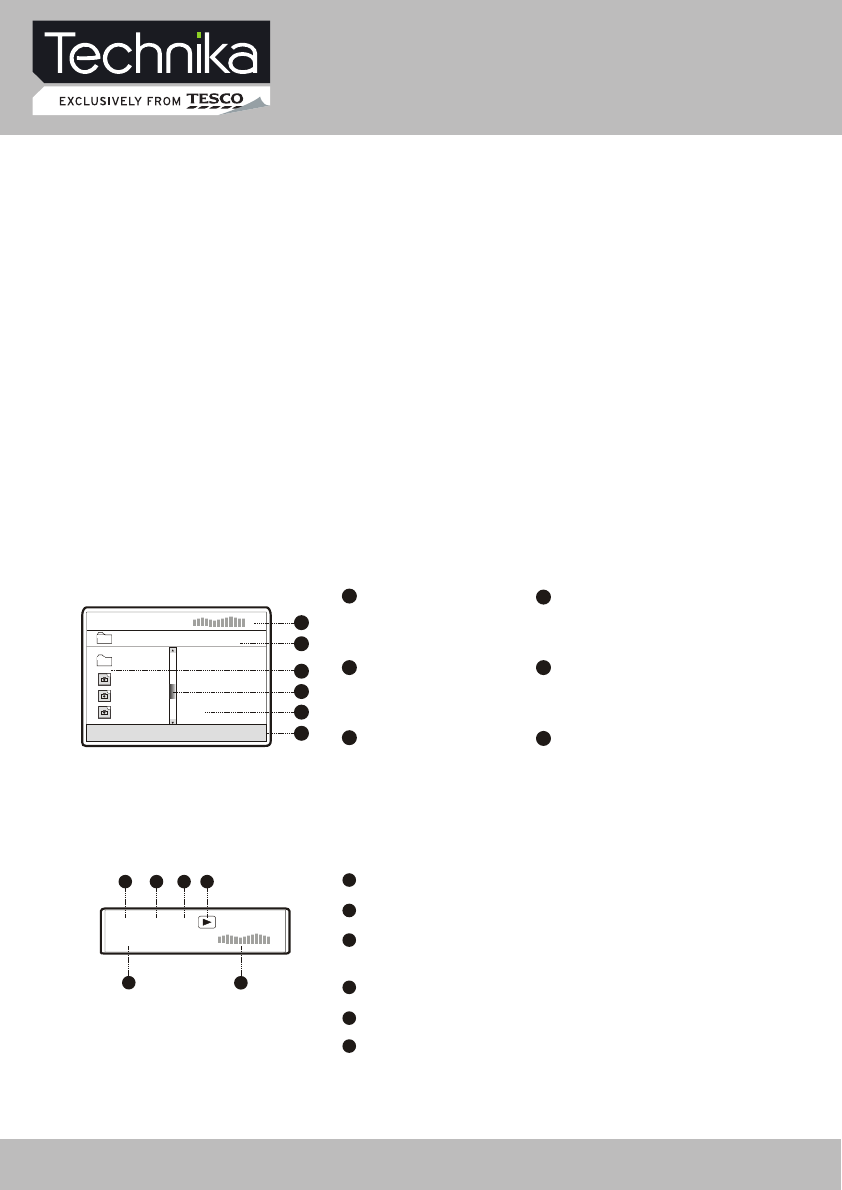

The strong decoding capability of this unit can decode and play the files with the above

formats. In the course of playing, an operation menu will appear and its construction is

shown as follows.

DIR window

Display the current

path.

Display the current

state information.

State window 4

Scroll bar window

Indicate the current file's

position.

Display the current

path's file.

File window

Preview window

JPEG image preview.

Information window

Display the current operation

prompts.

The state information in state window is as follows:

00:57

002/073

03:31 128

Elapsed playback time

Total playback time

The audio bit rate (generally the bit rate is 128kbps,

sometimes it is VBR.)

Current playback mode indicator

Track indicator

Dynamic frequency spectrum indicator

00:00 00:00

004/369

\PIC\

Du000

Du001

Du002

MPEG4ANDJPEGFILEPLAYBACK

MPEG4 is the audio standard published by MPEG(Moving Pictures Experts Group) in

November,1998.As the discrepant parts between frames of picture are only processed and

the same parts are deleted, the data number are greatly decreased. The most distinct

feature of MPEG4 is the high compression and clear imaging. Furthermore, MPEG4 provides

elastic specifications to adjust the stream according to the used requirements. The larger

stream can be used when collecting private films; and the small stream can be used in

network transferring, which make MPEG4 use widely.

DVD Operation

32" HD Ready LCD/DVD TV User Guide 39

2. Play JPEG file

After you put an JPEG format file into the unit, it will search disc information and display the

operation menu as in the following figure. After selecting JPEG file, the preview window will appear

this file's preview image to facilitate you to select. After you select the JPEG file you desired and

press [OK] button to confirm, the picture will display in full screen.

00:00 00:00

004/369

\PIC\

Du000

Du001

Du002

RESOLUTION 640 480

In Figure B, press [ ] button to select the MPEG4 format file you desired and press [OK]

button to confirm. The unit begins to play MPEG4 format movie.

After you put an MPEG4 format file into the unit, it will search disc information and display the

operation menu as figure A (The displayed content varies with disc.).

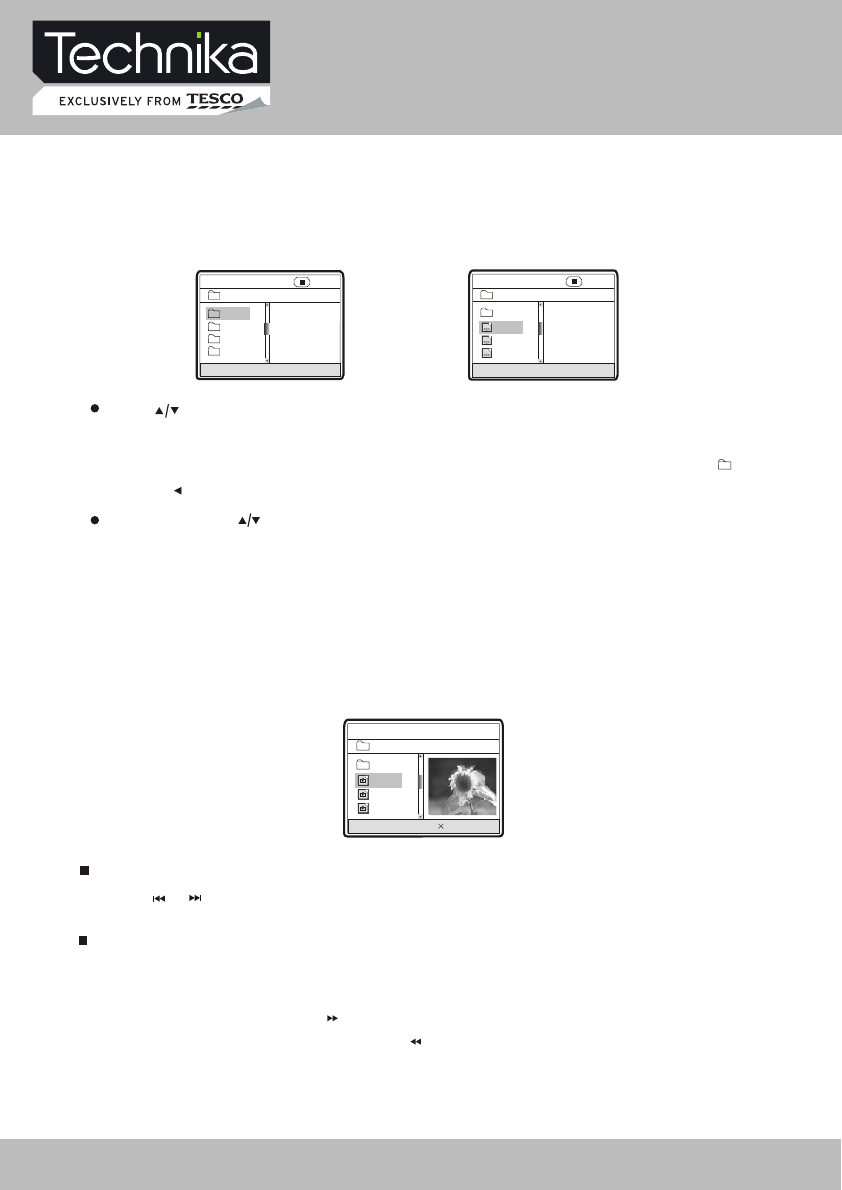

1. Play MPEG4 file

A: 00:00 00:00

Du000

Du002

Du001

Du003

001/004 B: 00:00 00:00

001/369

\Du000\

MP000

MP001

MP002

A/V

Press [ ] button to select the directory you desired and press [OK] button to confirm.

For instance, you select the directory Du000 in Figure A, press [OK] button and TV screen

displays as in Figure B. The window returns to the previous directory when you select [ ....]

or press [ ] button.

1. Press [ ],[ ] button may turn to the next or last page.

Other basic operation methods

Other functions of JPEG file

1. When playing JPEG file, press [ZOOM] button to enter zoom in/out, and press it again to

stop this function.

2. When in zoom in/out, pressing [ ] button may magnify the picture and it can magnify the frame

twice at most as the original one. Pressing [ ] button may minify the picture and it can minify

the frame half at most as the original one.

DVD Operation

32" HD Ready LCD/DVD TV User Guide 40

DVD Operation

4. When in preview playback, pressing [DVD-MENU] button may exit preview playback function.

NOTE

When buttons are invalid, TV screen displays:

Please press effective button again.

3. When playing JPEG file, pressing [ ] button may realize preview playback function.

At the same time, all JPEG files are displayed on the TV screen. One frame can display up to

12 pictures at most. The other ones are shown on the next frame. Pressing [ ] button may

enter the next frame and [ ] button may enter the previous frame. You may press number

buttons or [ ] button to select the picture you desired and press [OK] button to confirm.

32" HD Ready LCD/DVD TV User Guide 41

DVD Function Setup

DVD SETTING

Press [SETUP] button , and the main menu will show as follows:

By pressing [ ] button on the remote control, you

can select the following

press []or[OK]

items, "General", "Preference",

button to confirm.

DVDSETTING

Preference

Select Return

SETUP

Enter

General


Select Return

SETUP

Enter

Tint

Contrast

Colour

Brightness

PictureMode Dynamic

Sharpness

Preference

SOUND

SurroundSound

SOUND

Treble

Balance

Bass

Select Return

SETUP

Enter

SoundMode

User

AutoVolume

Off

Select SOUND item to adjust sound parameters.

You may select Sound Mode, Treble, Bass, Balance,

Auto Volume and Surround Sound.

Sound Mode item can be changed between

Music, Film, News, User.

Auto Volume item enables you to adjust Off or On

for control volume automatic.

Surround Sound item enables you to select Off or

On for surround sound.

Picture mode item can be changed between

User,, Soft, Dynamic. Standard

You may adjust Brightness, Contrast, Colour,

Sharpness, Tint for User mode.

Preference item enables you to enter sub menu.

Select PICTURE item to adjust picture parameters.

You may adjust Picture Mode, Contrast, Brightness,

Colour, Sharpness, Tint and Preference.

Colour Temp. item can select colour temperature

mode: Normal, Warm, Cool and User.

Noise Reduction item can select reduce noise

mode: Off, Low, Middle, High.

32" HD Ready LCD/DVD TV User Guide 42

Downmix: this item is used to set this unit's DOWNMIX mode to change multi-channel audio into

2-channel audio output.

Optional settings: Default: StereoStereo, LT/RT;

GENERAL SETUP

TV display: this item is used to set the output picture ratio of this unit.

Optional settings: Normal/Pan-Scan, Normal/Letterbox, Wide

Screen; Default: Normal/Letterbox

Screen Save: Open or close the screen saver

Optional settings: Off, On; Default: On

General Setup Page

Set TV Display Mode

Screen Save On

Downmix Stereo

PREFERENCE SETUP

TV Type:To setthe outputvideo system ofthis player.

Optionalsettings:Auto,PAL,NTSC;Default:PAL

Preference Page

Parental Off

Subtitle

Disc Menu

PAL

Audio ENG

PBC On

Password

Default

Set TV Standard

ENG

TV Display

You may select TV DISPLAY, SCREEN SAVE and

DOWNMIX and Divx.

PBC:this item is used to setPBC state.

Optionalsettings:On,Off;Default:On

When playing SVCD, VCD2.0 discs, if PBC is set On, this unit

enters PBC playback mode; if PBC is set Off, the unit plays the

disc according to track sequence.

Audio: this item is used to set the preference audio language when playing.

Subtitle: this item is used to set the preference subtitle language when playing.

Disc menu language: this item is used to set the preference disc menu language when playing.

Default of disc menu language: English

Default of subtitle: English

Divx 1252

TV Type

Divx: this item is used to set the codepage )character encoding table) for MPEG-4 format subtitles.

1252 - West European Latin (used by Western Eurpean languages)

1250 - East European Latin (used by Central & Eastern European languages)

1251 - Cyrillic (used by Belarusian, Bulgarian, Macedonian, Russian, Serbian and Ukrainian languages)

DVD Function Setup

32" HD Ready LCD/DVD TV User Guide 43

DVD Function Setup

When changing the parental control ratings, a password is needed. Please refer to the

following password item for details.

Password: this item is used to set a four digital password to enable you to change the parental

control ratings.

Default: 7890

Default: this item is used to restore all settings to the default value

except "Parental control" and "Password" in the setup menu.

Old password

Confirm PWD

New password

FUNCTION

Language item enables you to select the OSD

language.

Sleep Timer item enables you to set the sleep timer

(

Off,10min,20min,30min,60min,120min,180min

and 240min)

Aspect Ratio item can be changed between:Auto,16:9 and 4:3 (Auto is invalid for VGA)

Restore Setting item enables you to reset all values to default.

Blue Screen item can be changed between On and Off.

Select FUNCTION item to adjust function parameters.

You may select Language, Sleep Timer, Aspect Ratio,

Blue Screen and Restore Setting.

RestoreSetting

FUNCTION

SleepTimer

BlueScreen

AspectRatio

Select Return

SETUP

Enter

Language

English

Off

16:9

Region Other

Off

NOTE

Audio, subtitle and disc menu language are only effective to DVD disc.

If the disc is not recorded with the language you appointed, the unit will apply the language

that the disc appointed to play.

NOTE

Parental: this item is used to set the parental control ratings to prevent children from watching

the restricted contents. (In case the disc supports this function)

Optional settings: KID SAFE, G, PG, PG 13, PGR, R, NC17, ADULT, Off; Default: Off

Select other languages: press [ ] button to move cursor to "OTHER" item, press [OK] button

andthen numberbuttons to inputthe language code you desire.Afterinputfinishes,press

[OK] button again.

32" HD Ready LCD/DVD TV User Guide 44

Troubleshooting

Please check for causes of problems in accordance with the following chart before contacting

any maintenance personnel.

Cannot power onPlease make sure the power cord is connected correctly.

No sound

Please make sure the audio cord is connected correctly.

Check volume.

Volume too low

Check volume.

If volume is still too low when adjusting volume to maximum,

please check whether the input device is correctly set.

Input antenna damaged or not correctly connected.

Remote control failure

Check whether remote control batteries are functioning.

Check the battery installation is correct.

Check whether an obstacle is between the remote control and the

unit's receiving window.

Check whether the receiving window has a strong light.

Symptom Causes and Correction

Black screen, power

indicator light off

Check whether power cord is correctly connected, and

whether this unit is in power on.

Check whether the signal cord of input device is correctly

connected.

Check whether input device is in power on mode.

Check whether the input device signal is in this unit's

specification

Check computer output mode: control panel-display-setup

If the setup does not accord with this unit's specification,

please change the display setup

Hor scanning frequency: 30kHz 75kHz

Image display flicker,

unstable

Ver scanning frequency: 50 Hz 75Hz

DISPLAY TROUBLESHOOTING

SOUND AND TV TROUBLESHOOTING

Snowy picture

Make sure there is nothing plugged into the headphone jack.

32" HD Ready LCD/DVD TV User Guide 45

Troubleshooting

If the above methods still cannot solve the problems or the troubles are special, please

contact the local maintenance personnel.

Symptom

Causes

Correction

No sound 1. Disc warped or dirty

2. The unit in mute state

1. Clean the disc

2. Press MUTE button to cancel it.

No image 1. TV not set for proper system 1. Reset AV/TV state of TV

No colour1.

TV system not right

TV colour not well adjusted

1. Try to change the colour system

2. Reset the TV colour

No disc reading

1. Disc warped or dirty

2. Disc not correctly placed

3. Condensation on laser head

1. Clean the disc

2. Reload a disc with label side facing up

3. Switch on power, unload disc and leave

it for about 1 hour

Temporary

function failure

1. Mal-fabricated disc used

2. Wrong buttons pressed

3. Static leakage into the unit from

outside

1. Wait for 5 to 10 seconds to restore to

normality automatically

2. Operate again

3. Power off for 1 to 2 minutes to power

on again

Image rolling 1. System setup not suitable

for disc

1. Adjust system mode

Not play

1. Condensation on laser head

2. Disc not properly loaded

3. Disc not compatible with the unit

1. Switch on power and wait for 1 to 2 hours

2. Make sure label side of the disc is facing up

3. Confirm whether this unit compatible with

the inserted disc

Sound distortion

1. Too large volume of connected

device

2. Sound field mode not suitable for

disc

1. Adjust the device volume

2. Adjust appropriate sound field

No subtitle 1. No subtitle made in disc

2. The unit subtitle is turned off

1. Disc problem

2. Press Subtitle button to select it

DVD TROUBLESHOOTING

32" HD Ready LCD/DVD TV User Guide 46

Specifications

Panel Resolution 32": 1366 x 768

Video System PALǃSECAM

Frequency Band 42.25-- 863.25 MHz

BG/DK/I/L/L’

ATV

Sound System NICAM/A2

VLF(50.5-142.5MHz)

VHF(149.5-426MHz

Frequency Band

UHF(434-858MHz)

Channel bandwidth 7/8M

Modulation COFDM 2K/8K QPSK,16QAM, 64QAM

Video System MPEG-2 MP@ML

Sound System MPEG-1 layer 1,2

DTV

Basic Functions

EPG, Subtitle, Teletext (EURO)

Input Level 1.0Vp-p +/-10%

CVBS Format PAL,NTSC,SECAM

Format DOSǃVGAǃSVGAǃXGAǃSXGA

Color 24BIT

H-Frequency 30ü85KHz

Analog RGB

V-Frequency 56ü75Hz

480i,576i,1080i,480p,576p,720p

YPbP˄YCbCr˅Format 1080P

Input signal

S-video S-Y:0.7 Vp-p: ±5% S-C:0.3 Vp-p: ±5%

LCD Screen 32": 81 cm

DVD

Compatibility of Disc CD, HDCD , VCD , DVD, DVD+R, DVD-R, ,

DVD+RW, DVD-RW

Multimedia formats JPEG, MP3, WMA, MPEG-1, MPEG-2,

MPEG-4, DIVX3.xx , DIVX5.11 ;

32" HD Ready LCD/DVD TV User Guide 47

Specifications

Scart 1 Full Scart

Scart 2 Half Scart

480i,576i,1080i,480p,576p,720p

HDMI1/HDMI2 Format 1080P

Audio Input

Level 0.22 Vr.m.s.

TV/DTV 1 IEC 75¡

Analog RGB 1 D-SUB 15 Jack

SCART1 1 SCART Jack

SCART2 1 SCART Jack

YPbPr/YCbCr 3 RCA Jack (Green/Blue/Red)

PC Audio

YPbPr Audio

S-Video Audio

1 Headphones jack

HDMI 1 1 HDMI Jack

HDMI 2 1 HDMI Jack

CI Solt 1 CI Solt

INPUT

Terminals

Output Audio 1 Earphone Jack

Power

Standby Mode ˘1W

AC 100-240V 50Hz

Teletext 1000 Page

Comb Filter 3D

Amplifier 2 X 6W˄8

Other

32" HD Ready LCD/DVD TV User Guide 48

Display Mode

Below the preset mode for VGAǃYPbPr (pixel formatǃH-Frequency and V-Frequency)







ANALOGIC RGB FORMAT TABLE

Pixel Format Resolution Horiz. Freq. (KHz) Vert. Freq. (Hz) Standard

SXGA 1280X1024 63.5

80.0

75 VESA

XGA 1024X768

48.4

56.5

60.0

VESA

SVGA 800X600

37.9

47.2

46.9

VESA

VGA 640X480

31.5

37.9

37.5

VESA

DOS 640X480

720X400

31.5

70 VESA





 YPbPr FORMAT TABLE

Format Resolution Horiz. Freq. (KHz) Vert. Freq. (Hz)

576i 576 15.63 50.00

480i 480 15.73

59.94

60.00

576p 576 31.26 50.00

480p 480 31.47 60.00

1080i/50 1080 28.13 50.00

1080i/60 1080 33.75 60.00

720p/60 720 44.96 59.94

60.00

1080P/50 1080 56.26 50.00

1080P/50 1080 67.5 60.00

To prolong this unit's service life, you are suggested to use power management function

of computer.

Because of the difference of display card output signal (especially non-standard signal

output), the display image may appear with a little disturbance which can be adjusted through

" AUTO CONFIG " in the "PICTURE" menu by users.

This product does not support the display mode not listed above. In order to achieve

the best display effect, please select the above-listed 20 display modes input signal.

NOTES

32" HD Ready LCD/DVD TV User Guide 49

Additional Information

Care and Maintenance

Handling Discs

• To remove a disc from its storage case, press

down on the centre of the case and lift the

disc out.

• Discs should be returned to their cases after

use. This avoids serious scratches that could

cause the laser pickup to skip.

• Hold the disc by the edges, to avoid

touching the recorded side of the disc.

• Fingerprints and dust should be carefully

wiped from the disc’s surface with a soft

cloth.

• Never use chemicals such as record sprays,

antistatic sprays, benzene, or thinners

to clean the discs. These chemicals can

irreparably damage the disc’s surface.

• Audio discs and DVD discs have no grooves

to collect dust and microscopic debris so

gently wiping with a soft cloth should

remove most particles.

• Wipe in a straight line from the inside to

the outside of the disc. Small dust particles

and light stains should have no effect on

reproduction quality.

• Do not expose discs to direct sunlight,

high humidity, or high temperatures

for extended periods. Exposure to high

temperatures can warp the disc.

• Do not stick paper or write anything with a

ball point pen on the label side of the disc.

Disposal

UK: Waste electrical products should

not be disposed of with household

waste. Separate disposal facilities

exist, for your nearest facilities see

www.recycle-more.co.uk

or in-store for details.

ROI: Produced after 13th August 2005

Waste electrical products should not

be disposed of with household waste.

Please recycle where facilities exist.

Check with your Local Authority or

retailer for recycling advice.

Warranty

Your TESCO appliance is covered by a warranty

for 12 months from the date of purchase. If

a fault develops during this period, please

contact the TESCO electrical help line on

0845 456 6767. Please have your original

purchase receipt with you when you call. This

warranty in no way affects your consumer

rights.

32" HD Ready LCD/DVD TV User Guide 50

Technika 32 612 Users Manual GB_15 19 22T_L2M10 LEKALAS_A5 (

32-612 to the manual 13fb286b-8f37-4bbd-b3a7-df723280b690

Navigation menu

Versions of this User Manual:

Views

Navigation
