IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

3

3

Congratulations on purchasing this television. We hope you have many years of trouble free

enjoyment from your purchase.

Your product is covered under the manufacturers guarantee for 12 months from date of

purchase.

In the event of a fault being diagnosed, please refer to the frequently asked questions/

troubleshooting section at the rear of this user guide.

If you are still unable to remedy the fault, try resetting the TV to factory settings, (details in this

user guide) or contact the helpline.

In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home

or work address, return it to our service centre, repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Sky Media UK LTD – Helpline Information

Telephone UK 0871 2000 463, ROI 01443 3940

Email: service@skymediauk.co.uk

Web support: www.skymediauk.co.uk

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

You must retain all packaging materials, in addition to your proof of purchase/receipt, as you will need

these in the event of warranty/service support.

This guarantee is in addition to and does not affect your statutory rights.

If you need to call the helpline, you will need the following information.

1) Model Number ______________________________________ (You can fi nd this on the rear of the TV)

2) Date of purchase ______________________________________ (You can fi nd this on your sales receipt)

3) Serial Number ______________________________________ (You can fi nd this on the rear of the TV)

IMPORTANT GUARANTEE INFORMATION

Manufacturers Guarantee

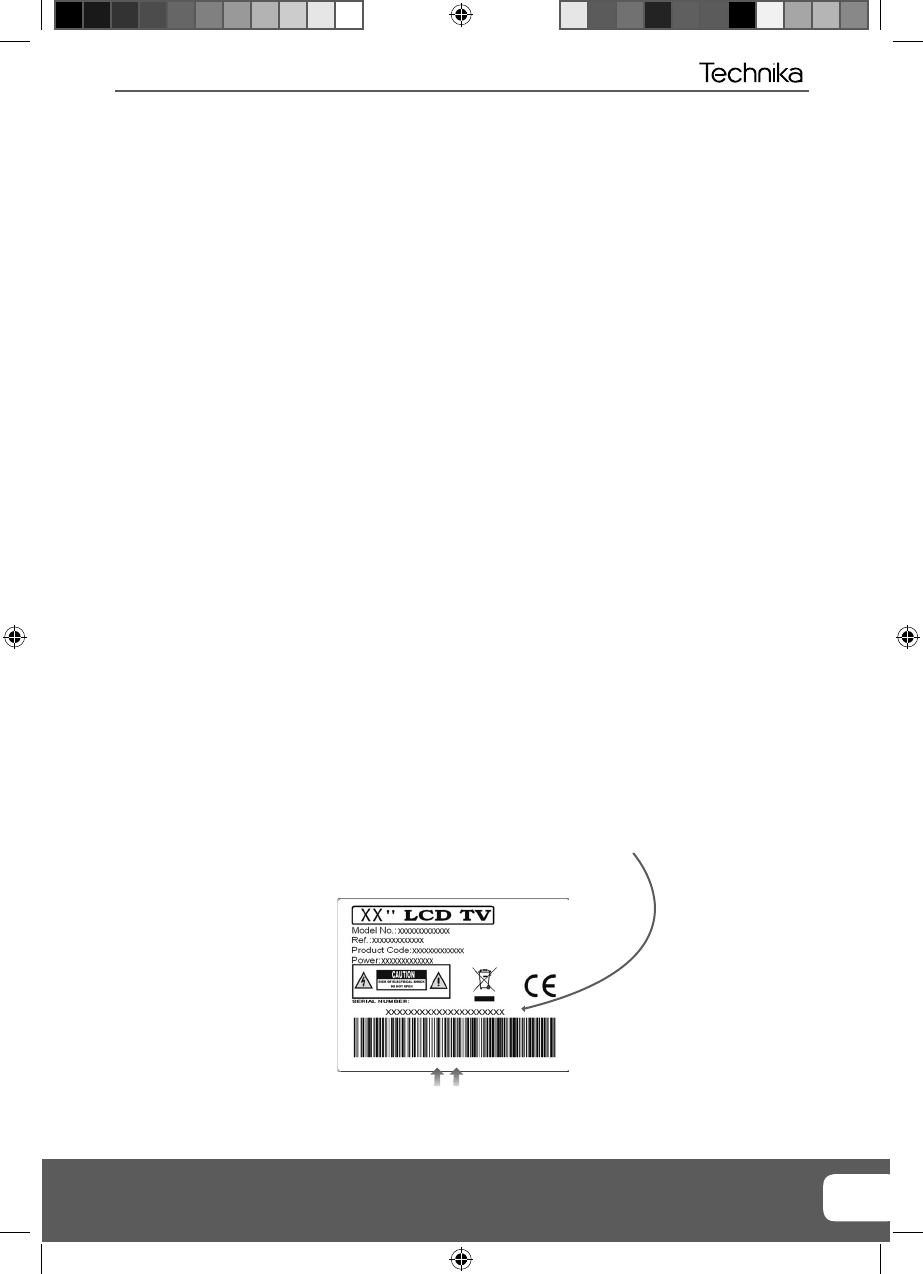

EXAMPLE OF LABEL ON REAR OF TV

Technika 40 LED.indd Sec1:3Technika 40 LED.indd Sec1:3 25/02/2010 17:37:3325/02/2010 17:37:33

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

4

Please read these instructions. All the safety and operating instructions should be read before the

appliance is operated.

Warnings

To reduce the risk of fi re, electric shock or damage to the television, do not expose it to •

dust, rain or moisture, or place any objects fi lled with liquids on or near the television.

Do not place the television in a confi ned space, ensure that nothing can obstruct the •

ventilation openings at the rear of the television.

Do not place naked fl ames on or near the television.•

Dispose of this television and any components including batteries in an environmentally •

friendly manner. If in doubt, please contact your local authority for details of recycling.

Safety

For your safety, this appliance is fi tted with a fused moulded 3 pin mains plug. Should •

the fuse need to be replaced, ensure that any replacement is of the same amperage and

approved with the BSI mark.

Never try and replace the mains plug unless you have adequate qualifi cations and are •

legally authorised to do so. In the event that a replacement Mains cable is required,

contact the manufacturer for a suitable replacement.

Never use the television if it is damaged in any way.•

Always place the television on a fl at level surface avoiding anywhere which may be subject •

to strong vibration.

Ensure the television is not placed on top of the power cable as the weight of the •

television may damage the cable and cause a safety hazard.

Never place mobile phones, speakers or any other device which may cause magnetic or •

radio interference with the television. If interference is apparent, move the device causing

the interference away from the television.

Maintenance

To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped •

in a soap and water solution or a weak detergent solution.

Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.•

Never use alcohol, paint thinner or benzene to clean this unit.•

Before using a chemically treated cloth, read the instructions that •

came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel

surface, a malfunction may occur.

Packaging

The safest way to transport your item is in the original box/packaging - please save your •

packaging for this.

You will need original box/packaging in the event of warranty/service repair or support. We are unable •

to carry out warranty/service if you are unable to package it correctly.

IMPORTANT SAFETY INSTRUCTIONS

Technika 40 LED.indd Sec1:4Technika 40 LED.indd Sec1:4 25/02/2010 17:37:3325/02/2010 17:37:33

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

5

5

IMPORTANT SAFETY INSTRUCTIONS

Please read these instructions. All the safety and operating instructions should be read before the

appliance is operated.

Important Information Regarding Use of Video Games, Computers,

Captions or Other Fixed Image Displays

The extended use of fi xed image program material can cause a permanent “shadow image” on the LCD

panel.

This background image is viewable on normal programs in the form of a stationary fi xed image. This type

of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum viewing level.

2. Do not display the fi xed image for extended periods of time.

3. Turn the power off when not in actual use.

Examples of images that you need to watch out for are as follows (this is not an exhaustive list):

TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are •

bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

Time Displays•

Teletext: Do not view a stationary page for long period of time•

TV/DVD Menus: e.g. Listings of DVD disk content•

Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or •

videos.

Important - Once ‘shadow image/screen burn’ occurs, it will never disappear and is not repairable under

warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Separate

disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in

store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate

disposal facilities exist. Check with your Local Authority or retailer for recycling advice.

Batteries

Observe the correct polarity when inserting batteries.•

Do not use different types of batteries together or mix old and new batteries.•

Dispose of batteries in an environmentally friendly way. •

Certain regions may regulate the disposal of batteries. •

Please consult your local authority. Cd

Technika 40 LED.indd Sec1:5Technika 40 LED.indd Sec1:5 25/02/2010 17:37:3325/02/2010 17:37:33

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

6

Technika 40 LED.indd Sec1:6Technika 40 LED.indd Sec1:6 25/02/2010 17:37:3325/02/2010 17:37:33

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

7

7

CONTENTS

Manufacturers Guarantee Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

What is included in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Detaching the stand and wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Getting Started - Initial Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

TV Buttons and Input Source Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

TV Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-21

Video Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

TV Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Time Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Tools Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

PC Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24

Using the television as a computer monitor . . . . . . . . . . . . . . . . . . . . . . . . 22

PC Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

USB Record / 7 Day TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-27

USB Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

7 Day TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

USB Mode / Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-32

Using with Sky Digital/Virgin Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Technical Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Digital Switch over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-32

Technika 40 LED.indd Sec1:7Technika 40 LED.indd Sec1:7 25/02/2010 17:37:3325/02/2010 17:37:33

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

8

Please save your packaging as you will need this in the event of warranty/service repair or support. We

are unable to carry out warranty/service if you are unable to package it correctly. The safest way to

package your item in the event of warranty/service repair is in it’s original box/packaging.

WHAT IS INCLUDED IN THE BOX

Accessories

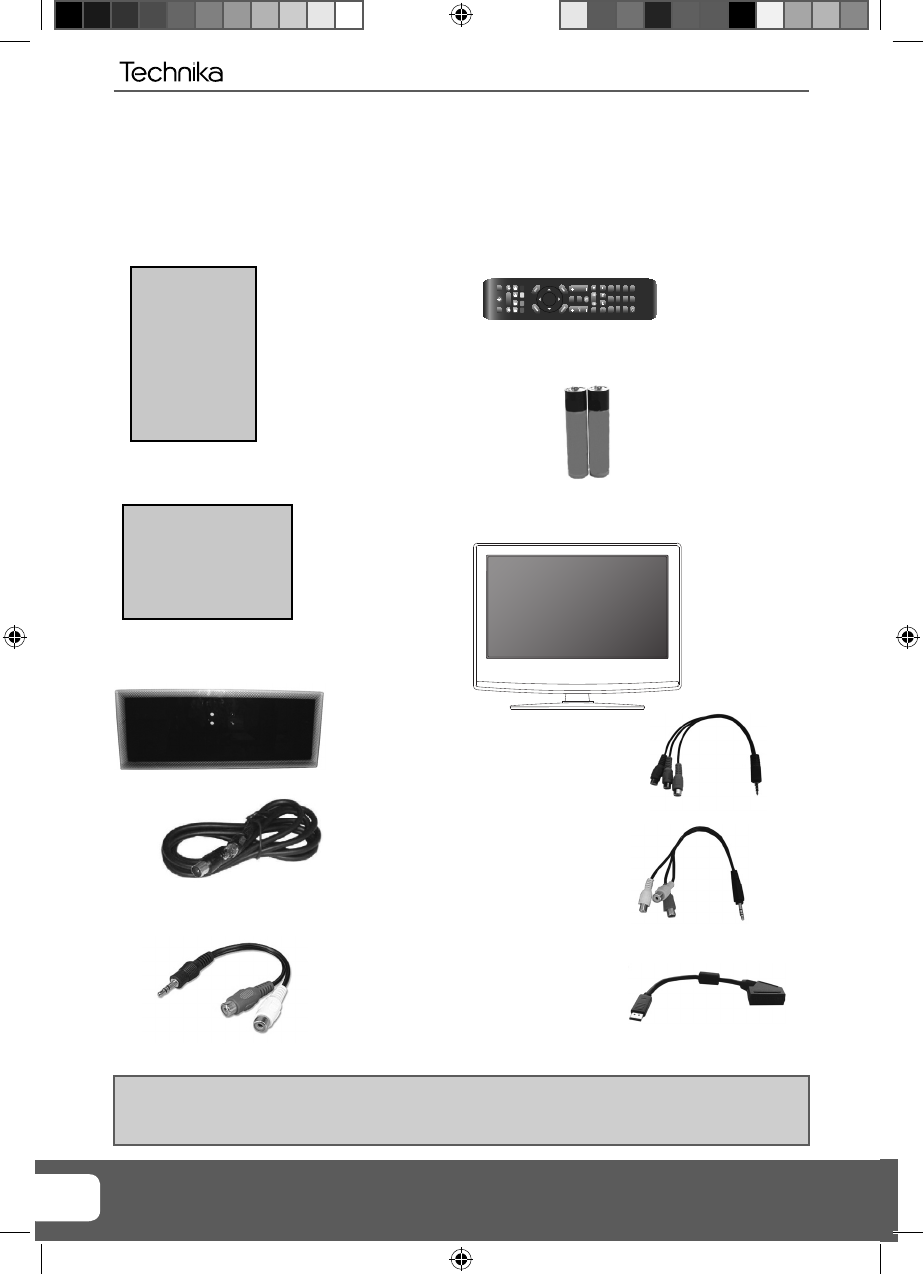

Included with this TV are the following accessories:

1 x User Guide

1 x Quick Start Guide

2 x AAA Batteries

1 x TV

1 x Stand

1 x RF Cable

1 x mini SCART to Standard

SCART adaptor cable

1 x 3.5mm to L/R Phono

adaptor cable

1 x 3.5mm to component

adaptor cable

1 x 3.5mm to video/audio

adaptor cable

1 x Remote Control

What is included in the box

User Guide

Quick Start

Guide

OK

123

6

45

9

78

0

CH

FAV

TV/

RADIO

AUDIO LANG ASPECT


DISPL

OFF

SOUND

SOURCE

MEDIA

FREEZE

SUBTITLE

PRESETS

SLEEP

Technika 40 LED.indd Sec1:8Technika 40 LED.indd Sec1:8 25/02/2010 17:37:3325/02/2010 17:37:33

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

9

9

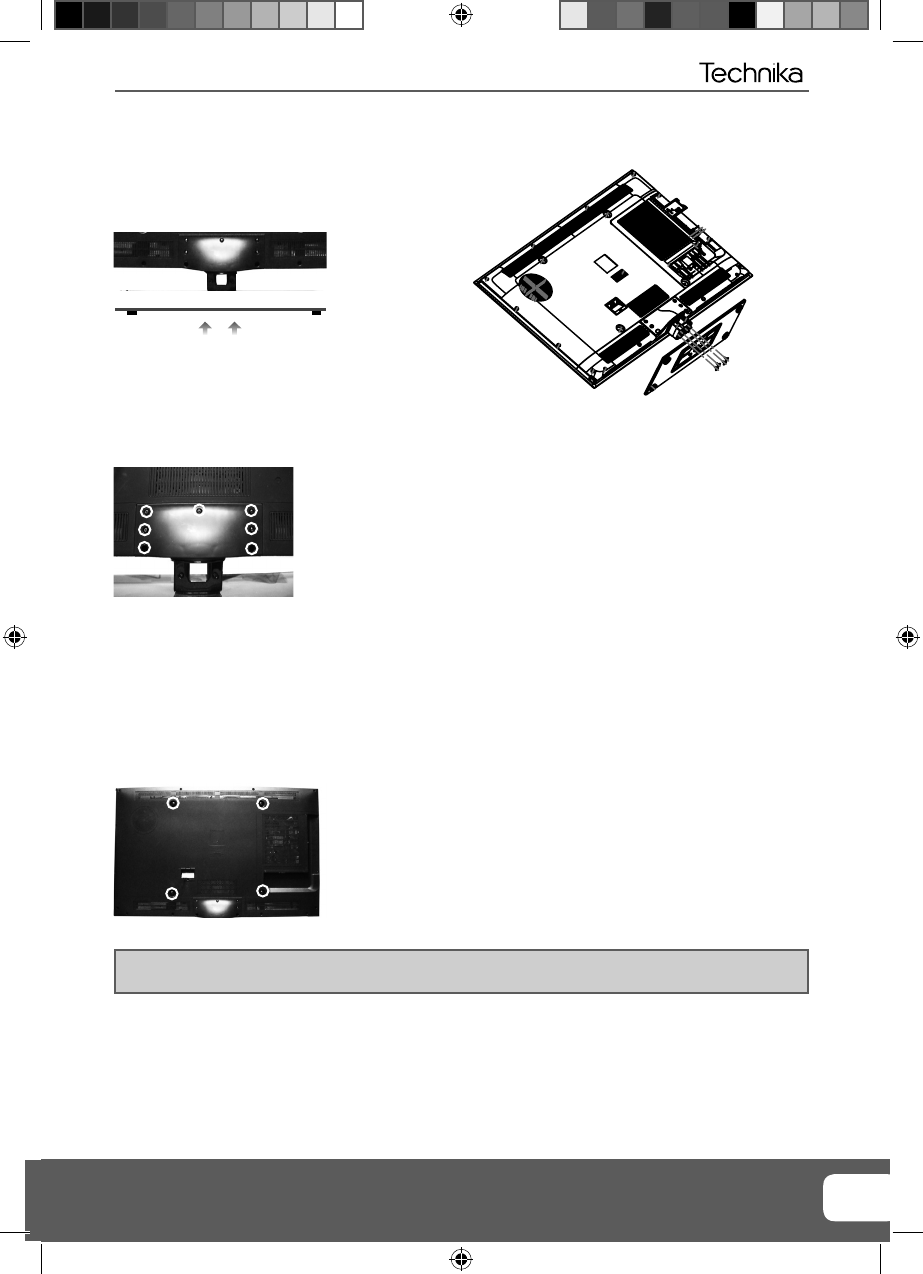

ATTACHING/DETACHING THE STAND

Detaching the Stand

1) Remove the 7 screws highlighted.

2) You should now be able to detach the stand.

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling

where there could be any electric wires, water or gas pipes.

Wall mounting the TV

1) Firstly detach the stand as shown above then remove the four screws highlighted below.

2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes

are indicated in the picture below.

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes.

Using other screws which are longer could cause irreparable damage to internal parts.

Attaching/Detaching the stand and wall mounting

Attaching the Stand

Insert the four screws into the base of the stand

Technika 40 LED.indd Sec1:9Technika 40 LED.indd Sec1:9 25/02/2010 17:37:4025/02/2010 17:37:40

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

10

Technika 40 LED.indd Sec1:10Technika 40 LED.indd Sec1:10 25/02/2010 17:37:4225/02/2010 17:37:42

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

11

11

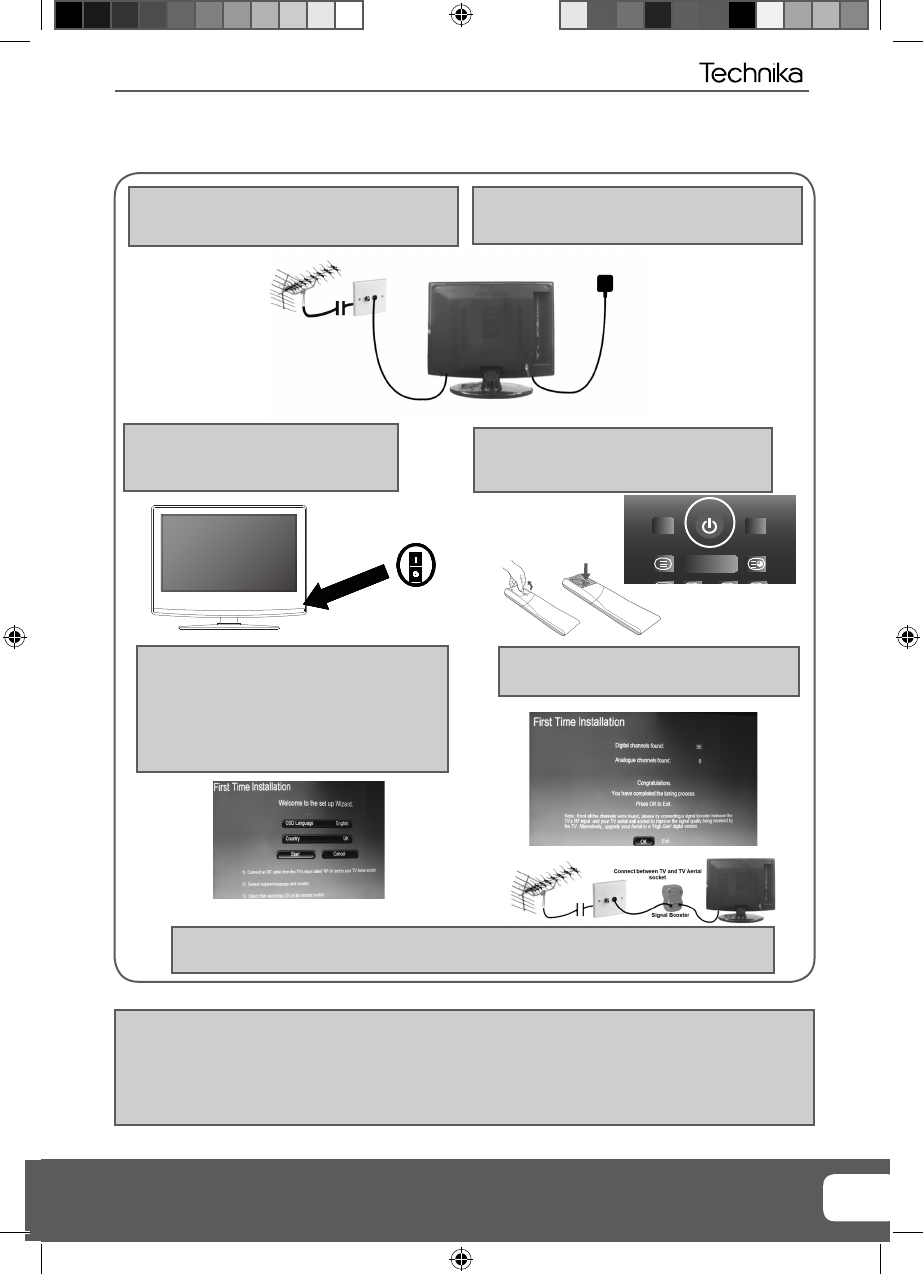

GETTING STARTED - INITIAL SET UP

1) Using the RF cable supplied, connect the TV

to the TV Aerial wall socket (Fig A)

2) Connect the power cable to the Electrical

outlet (Fig B)

5) You will now be welcomed with the initial

set-up screen.

If it does not appear, on the remote control,

please press [MENU] then 8-8-8-8 and the

menu will appear.

Press OK on the remote control and follow

the steps to begin tuning.

6) Once tuning has fi nished the following

screen will appear.

If you are missing channels, the reason for this is likely to be signal strength, you should

consider connecting signal booster and re-tuning the TV.

Getting Started - Initial Set Up

Fig A

Fig B

AUDIO LANG ASPECT


DISPL

OFF

SOUND

FREEZE

SUBTITLE

PRESETS

SLEEP

4) Insert the batteries supplied into the

Remote control and press the Standby

button to power on the TV

Tip: If the TV fi nds some, but not all, of the Digital channels, the TV is functioning correctly but the

signal being received is not strong enough. (The signal strength needs to be above 85% - you can see the

signal strength the TV is receiving when you change channels/ programmes) you will need to increase

the signal reception in order to receive all of the channels available. The most economical way to do

this is by purchasing and connecting a ‘signal booster’ in between the TV and the TV aerial socket. If this

does not solve the problem, you will need to upgrade the TV aerial to a digital hi-gain compatible aerial

3) Switch on the television using the

power on/off switch located on the side

of the TV.

Power on/off

Technika 40 LED.indd Sec1:11Technika 40 LED.indd Sec1:11 25/02/2010 17:37:4225/02/2010 17:37:42

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

12

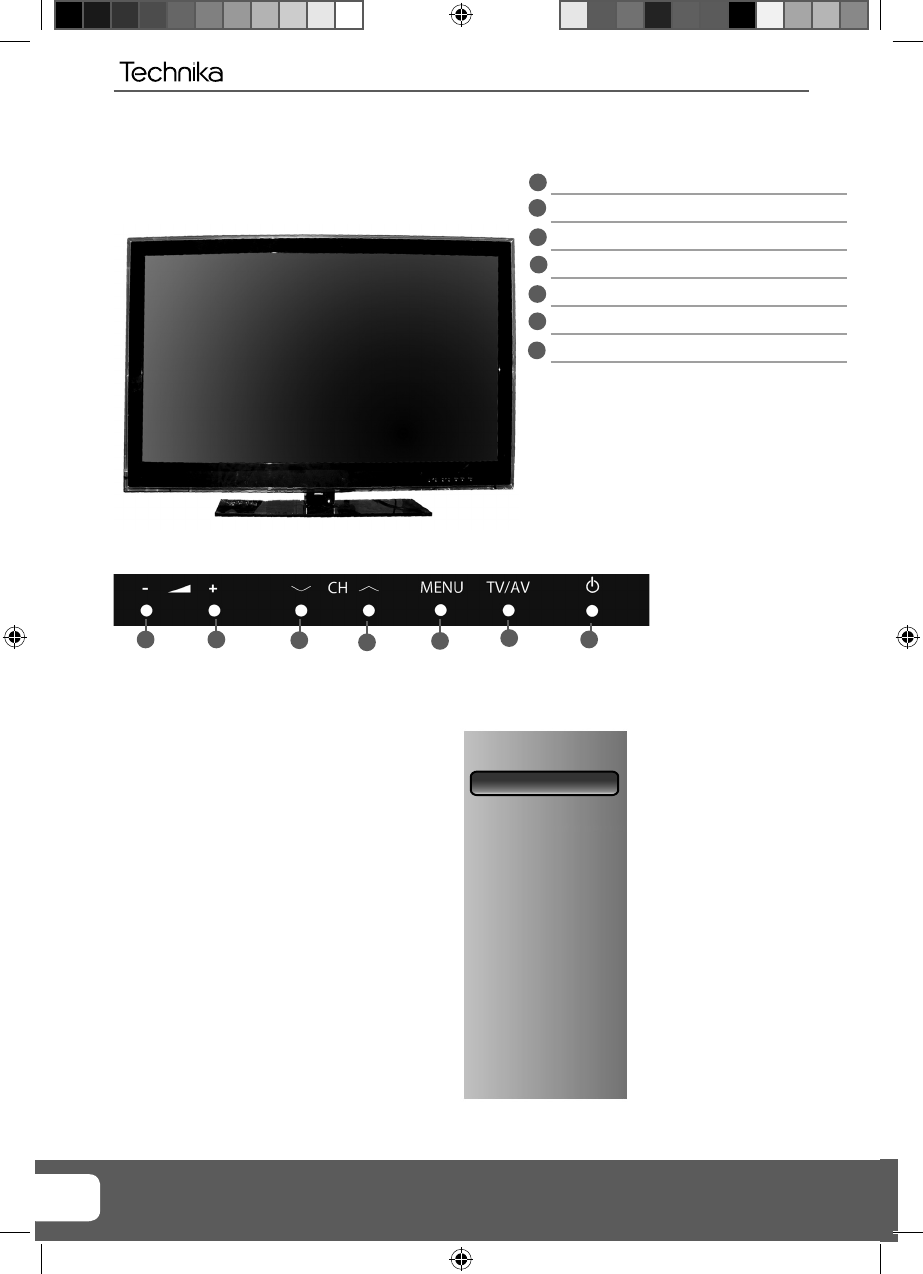

TV BUTTONS & SOURCE MENU

Choosing Mode Input/Source

To switch between the different input/

connections.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will

appear

2) Press [\/] or [/\] to select the input you

require.

3) Press [OK]

B) Using the buttons on the Television:

1) Press [TV/AV]

2) Scroll up / down using CH+/ CH- buttons to

the input/source you require

3) Press Vol+ to change input/source to the

one selected.

TV Buttons and Source Menu

23

Volume down and menu left

Volume up and menu right

Programme/Channel down and menu down

Programme/Channel up and menu up

Displays Menu/OSD

Displays the input source menu

Standby Power On/Off

1

2

3

4

5

6

7

14567

PLEASE NOTE THESE ARE

TOUCH SENSITIVE BUTTONS.

SOURCE

SCART 1

SCART 2

COMPONENT

PC/VGA

HDMI 1

HDMI 2

HDMI 3

USB

DLNA

Freeview

Analogue

Video

MEDIA

Technika 40 LED.indd Sec1:12Technika 40 LED.indd Sec1:12 25/02/2010 17:37:5325/02/2010 17:37:53

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

13

13

OK

123

6

45

9

78

0

CH

FAV

TV/

RADIO

AUDIO LANG ASPECT


DISPL

OFF

SOUND

SOURCE

MEDIA

FREEZE

SUBTITLE

PRESETS

SLEEP

DISPLAY - To switch off the screen when listening to radio

STANDBY - Switch on TV when in standby or vice versa

SLEEP - Press repeatedly to cycle through the sleep options

SOUND PRESETS - Scrolls through sound mode options

PICTURE PRESETS - Scrolls through picture mode option

SUBTITLE - To switch the dialogue at the bottom of the screen

(on/off)

AUDIO - Switches audio output from L - R and Mono - Stereo

LANG - Change subtitle language

ASPECT - To switch the screen between the different picture

formats

FREEZE - Teletext mode - Hold current page which is displayed

MENU - To display OSD menu

EXIT - To exit all menus

TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)

INFO - Press once for now/next channel information

Press twice for programme information about current

programme

- Allows you to navigate the on-screen menus

and adjust the system settings to your preference

VOL - To increase / decrease the sound level

CH To increase or decrease the channel being watched

SOURCE - To display the input/source menu

FAV - Displays Favourites list.

MUTE - Mute the sound or vice versa

USB - Switch to USB Source

- To Record what is currently on television

- To restart the current chapter

- To advance forward to the next chapter

- To stop the playback

- To play in fast rewind mode

- To play in fast forward mode

- To play/pause

NUMBER BUTTONS - 0 – 9 to select a TV channel directly.

TV/RADIO - Switch to Freeview and switch between TV and

radio in Freeview mode

- To return to the previous channel viewed

1

1

2

3

4

4

2

3

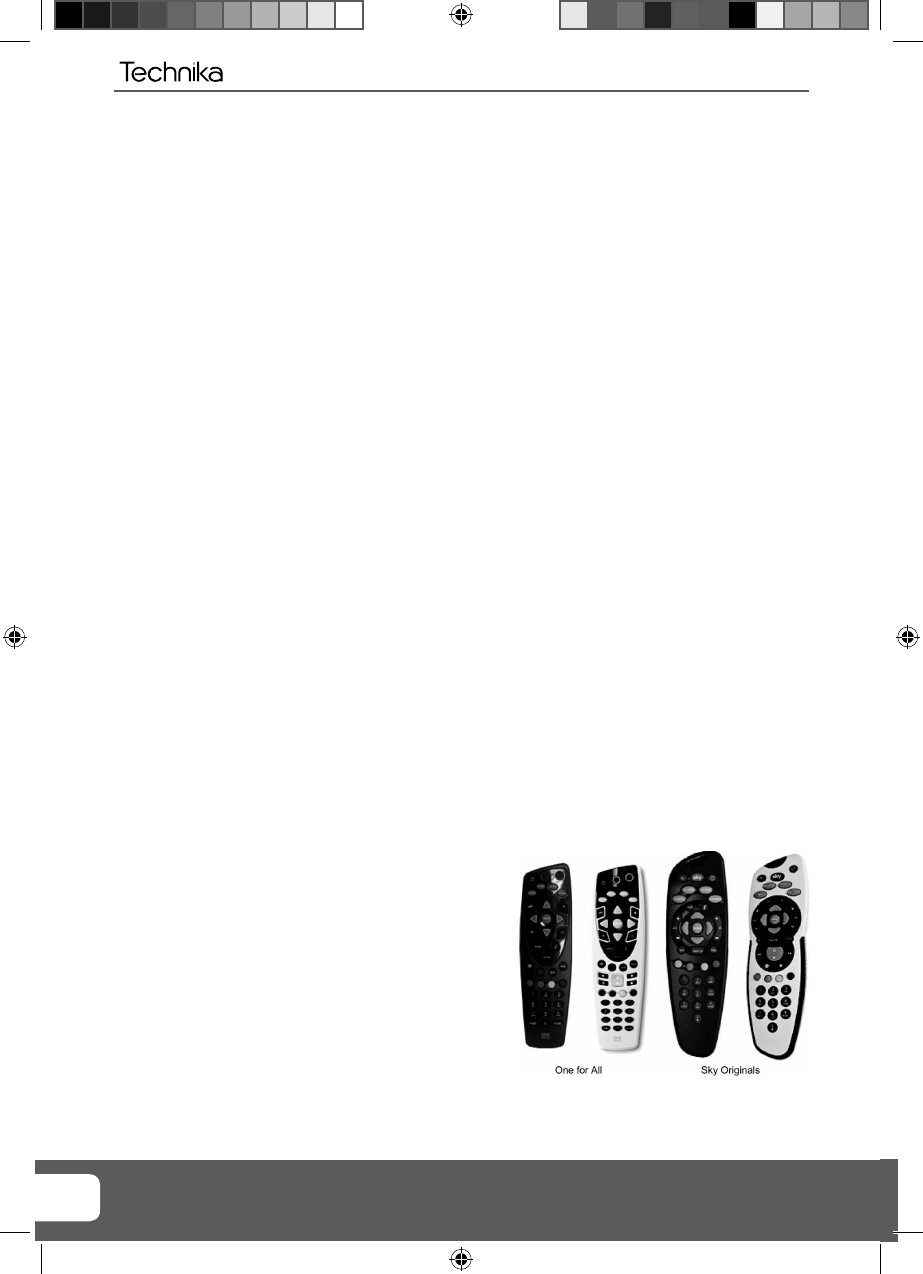

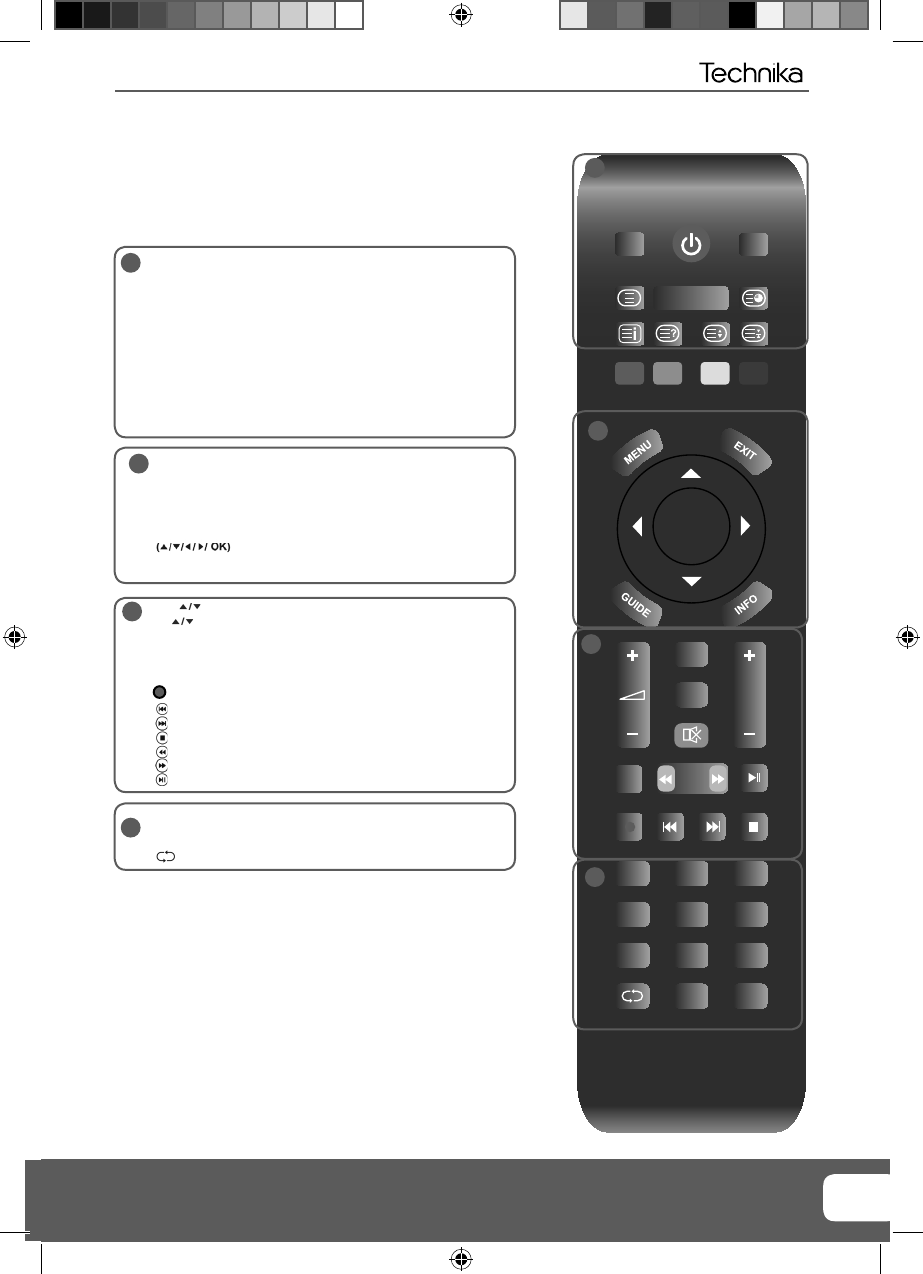

REMOTE CONTROL

Remote Control

Technika 40 LED.indd Sec1:13Technika 40 LED.indd Sec1:13 25/02/2010 17:37:5325/02/2010 17:37:53

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

14

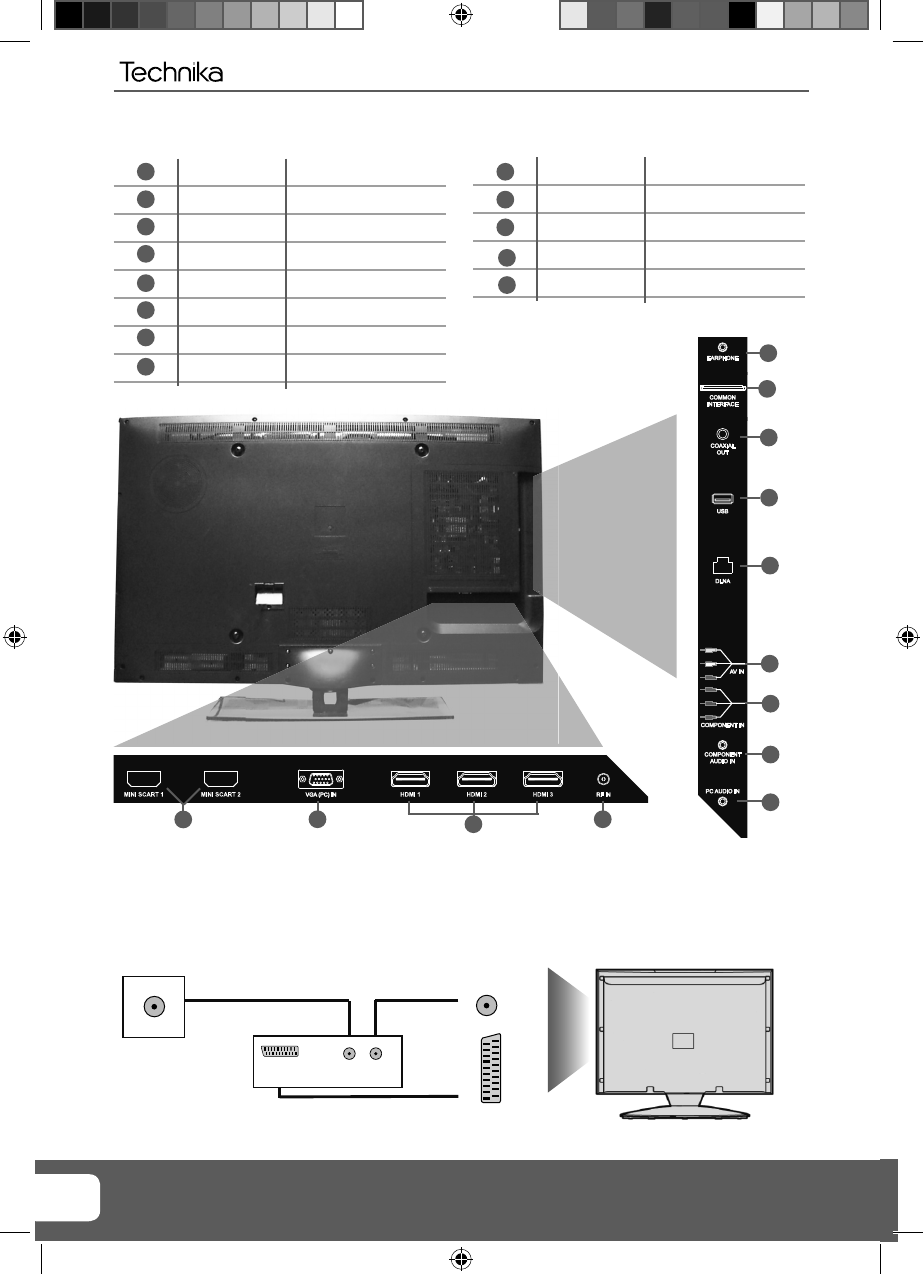

Connecting a DVD Player/Recorder, Video Recorder or

Cable/Satellite Box

TVs Input/Source should be set to SCART

CONNECTIONS

Connections

RF I N

SCART

TV Aerial

Wall Socket SCART

OUT RF

IN

RF

OUT

DVD or VCR

ABD

L

M

F

E

H

G

J

K

MINI SCART 2X Mini SCART input

VGA(PC) VGA-PC input

HDMI 3X HDMI input

RF IN RF / TV Aerial Input

HEADPHONES 3.5mm Headphone output

CI CARD IN Common Interface Card Input

COAX OUT Digital Coax output

USB USB port

DLNA Network Port

AV IN AV Input

Component HD Component HD Input

COMPONENT AUDIO Component audio input

VGA(PC) Audio In 3.5mm PC audio input

A

B

C

D

E

F

G

H

I

J

K

L

M

I

C

MINI

Technika 40 LED.indd Sec1:14Technika 40 LED.indd Sec1:14 25/02/2010 17:37:5425/02/2010 17:37:54

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

15

15

CONNECTIONS

HDMI

HDMI

OUT

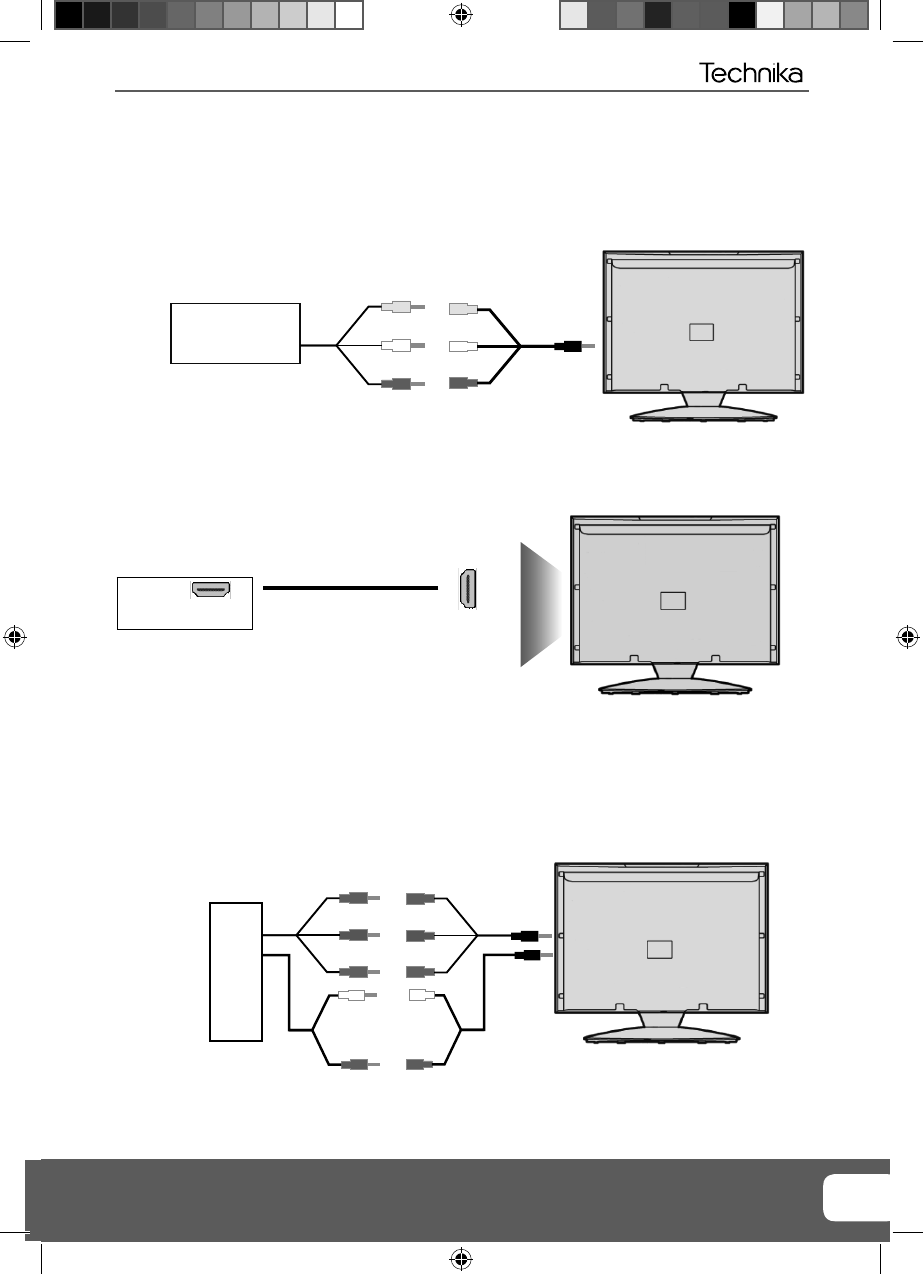

Connecting a Camcorder, Camera or Games Console

Source should be set to Video

Connecting a High Defi nition (HD) Device

Option 1 - via HDMI to HDMI cable

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio

with minimal loss of quality.

TVs Input/Source should be set to HDMI.

Option 2 - via Component cable

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors

you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component.

Connections

Component (HD)

Green

Blue

Red

White

Red

Audio

In L/R

Ca mer a or

Camcorder

Yellow

White

Red

Audio

In L/R

Video

Technika 40 LED.indd Sec1:15Technika 40 LED.indd Sec1:15 25/02/2010 17:37:5525/02/2010 17:37:55

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

16

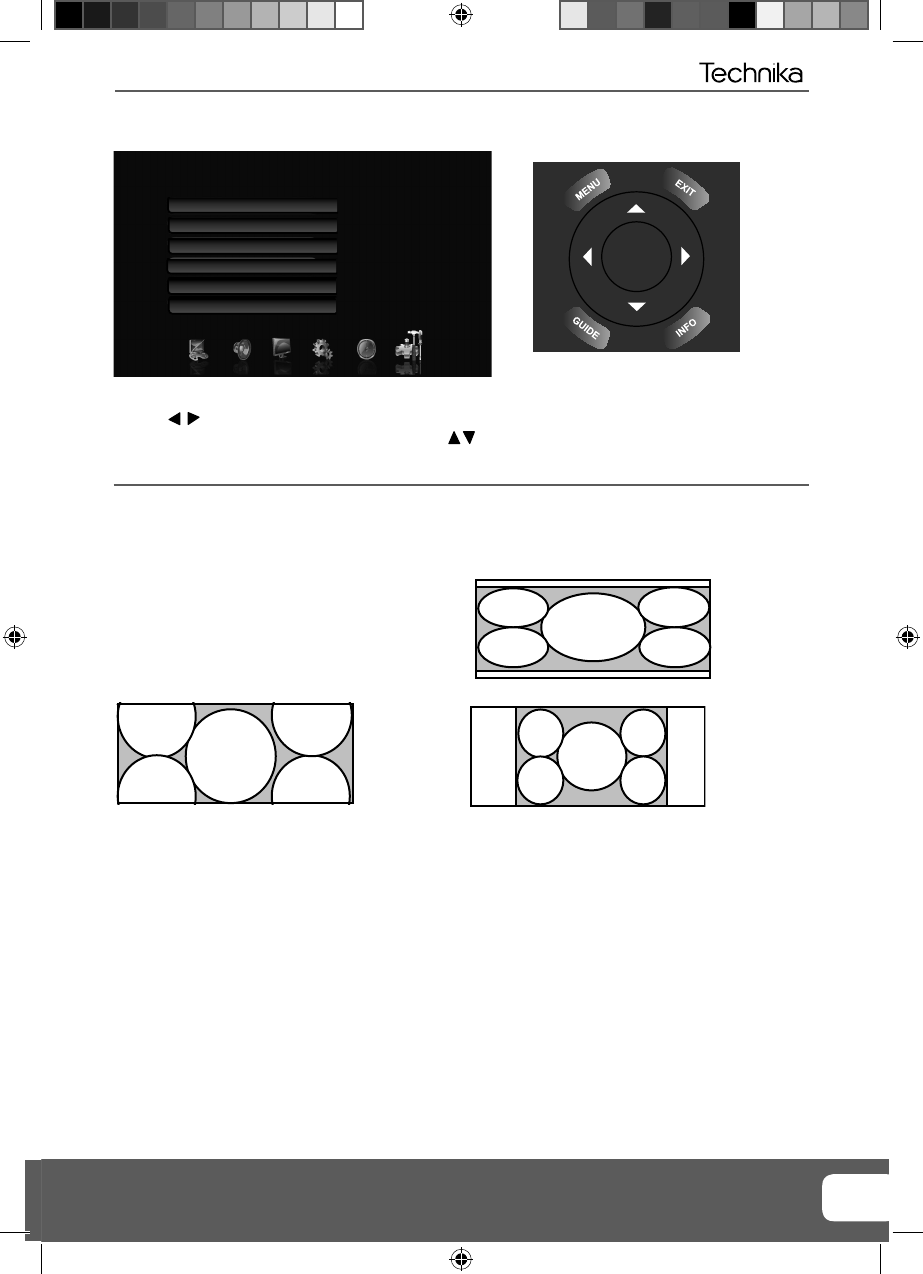

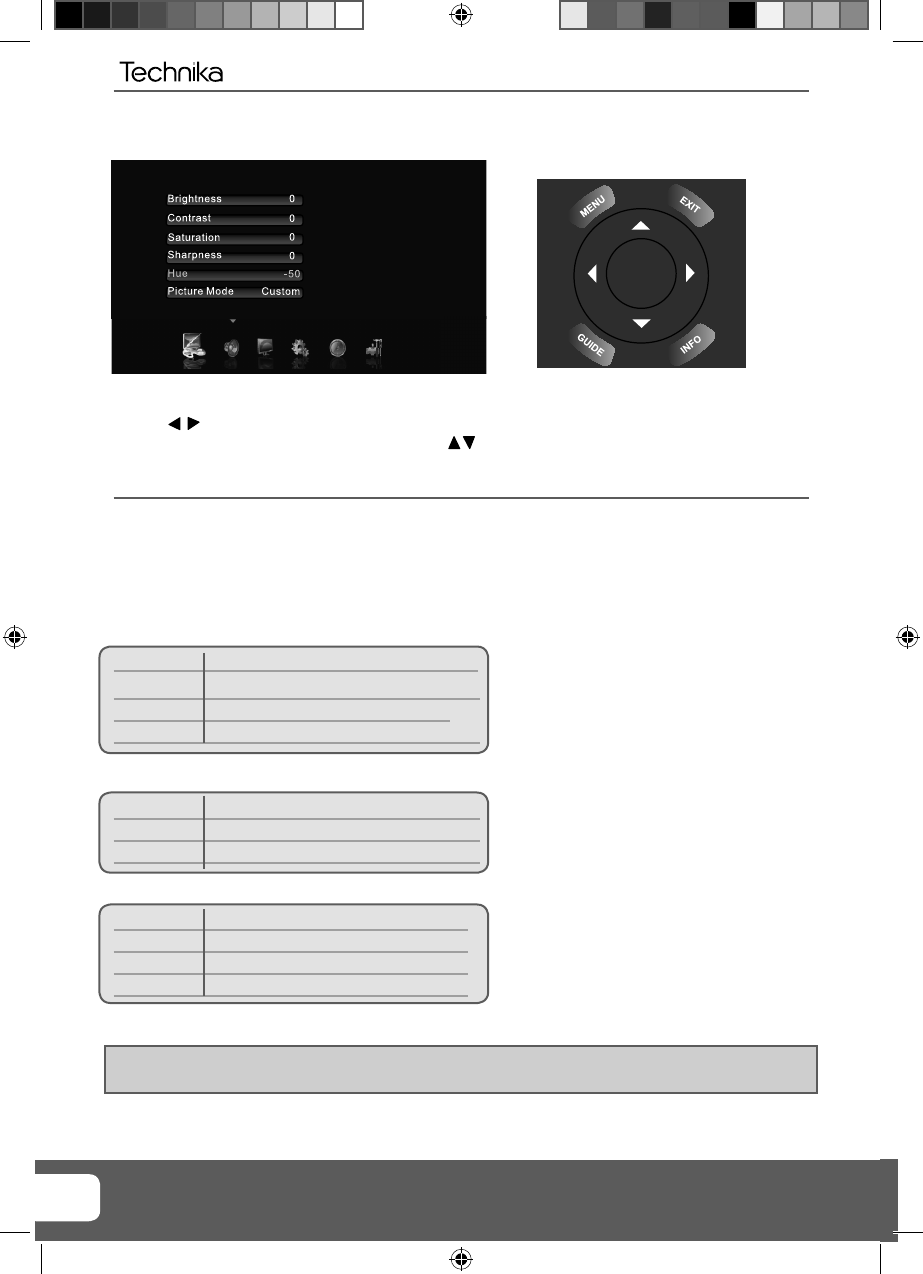

VIDEO MENU

To access this menu, press [MENU] button on the remote control.

Use the to navigate and press [OK] to select your chosen menu.

Once your chosen menu has been selected use the to navigate through the different menu items.

To exit this menu at anytime, press [EXIT] button.

Brightness - Increase or decrease the brightness of the picture

Contrast - Increases the colour from black and white

Saturation - Increase the colourfulness of the picture

Sharpness - Increase or decrease the sharpness of the picture

Hue - Change the tint and shade of the picture

Picture Mode - Choose from the following presets

Custom Lets you manually choose your settings

Standard Default settings

Mild Makes the picture lighter and blue

Vivid Makes the picture more red

Colour Temperature - Choose from the following presets

Standard Default settings

Warm Increases red within the picture

Cool Increases blue within the picture

Noise Reduction/MPEG Noise Reduction - Choose from the following presets

Low Minimum reduction in interference

Medium Medium reduction in interference

High Maximum reduction in interference

Off Off

Cinema Mode - Various presets to optimise cinema viewing

Tip: If you do not press any buttons for 20 seconds, the menu will automatically exit. You can change the

length of time before the menu exits automatically - see ‘OSD Timer’ section.

TV Menu Operation

OK

Technika 40 LED.indd Sec1:16Technika 40 LED.indd Sec1:16 25/02/2010 17:37:5525/02/2010 17:37:55

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

17

17

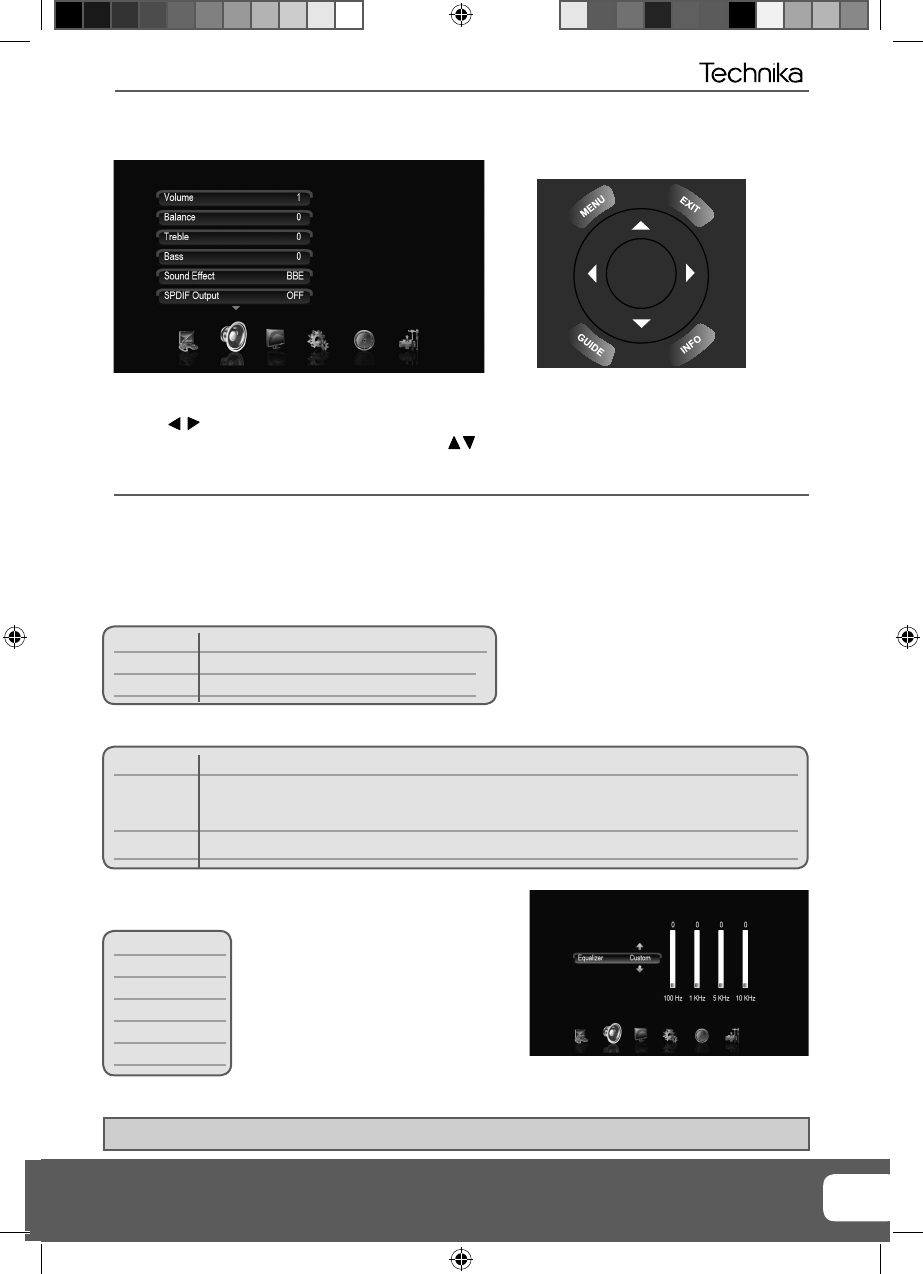

SOUND MENU

To access this menu, press [MENU] button on the remote control.

Use the to navigate and press [OK] to select your chosen menu.

Once your chosen menu has been selected use the to navigate through the different menu items.

To exit this menu at anytime, press [EXIT] button.

Volume - To adjust how loud or quiet the sound is

Balance - To switch the sound between the left and right speakers

Treble - To adjust the amount of high frequency within the sound

Bass - To adjust the amount of low frequency within the sound

Equalizer- Choose from the following presets

Default

Custom

Rock

Country

Jazz

Classical

Sound Effects - Choose from the following presets

BBE improves the quality of amplifi ed sound

SRS creates an immersive 3D soundfi eld

Normal Standard settings

SPDIF Output - This is the digital COAX Audio output. Choose from the following options:

OFF Off

PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code

modulation (PCM) is a digital representation of an analogue signal)

RAW Raw is to be used when you have a receiver that can decode the signal

Tip: Treble and bass levels can only be adjusted when the sound mode ‘Custom’ is selected.

TV Menu Operation

OK

Technika 40 LED.indd Sec1:17Technika 40 LED.indd Sec1:17 25/02/2010 17:37:5525/02/2010 17:37:55

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

18

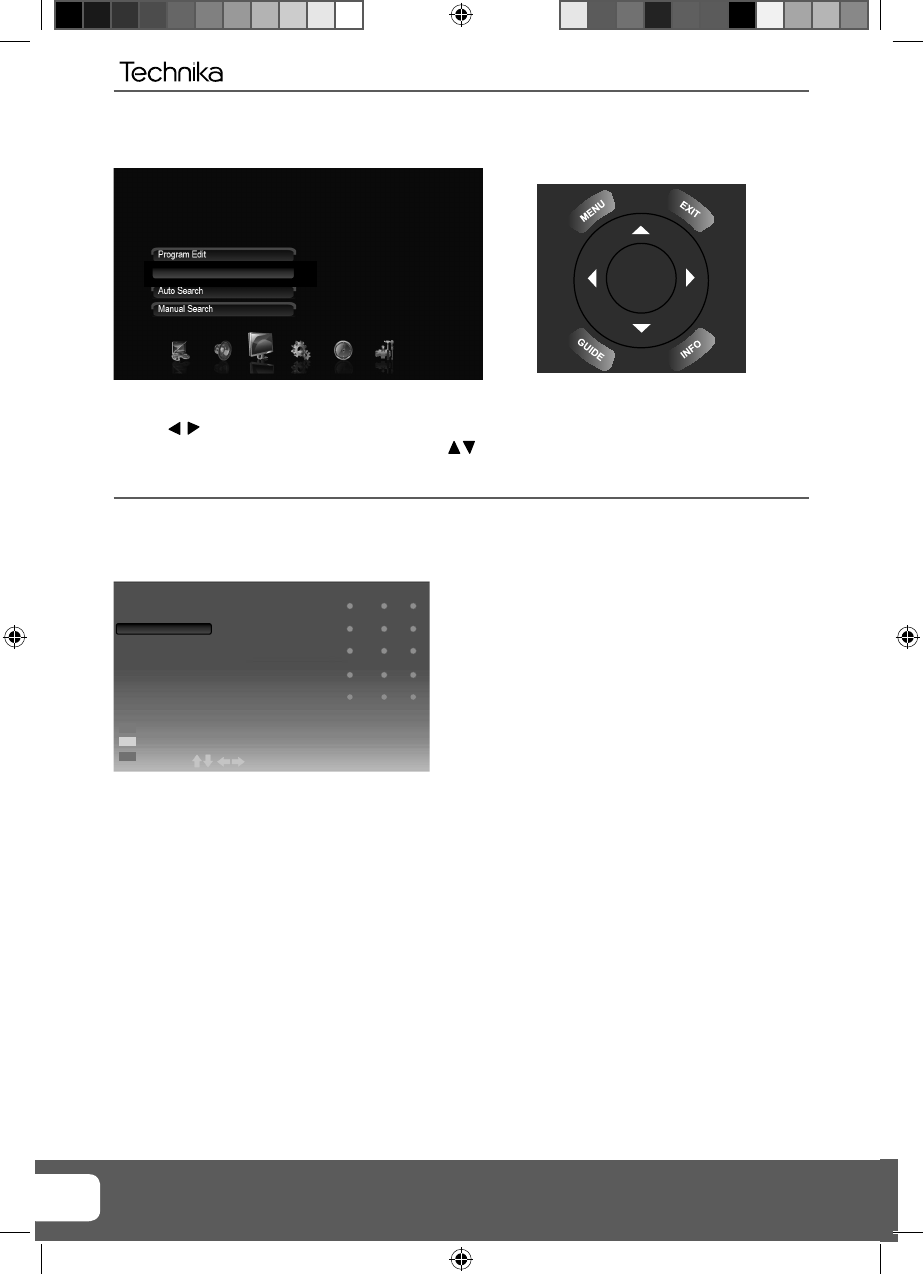

TV MENU

Programme Edit - Allows you to lock channels, delete channels, add/remove channel skip and

move channel position.

TV Guide - Opens the 7day TV guide. Allowing you to browse, set reminders and record different

programmes.

Auto Search - You can select the country and then complete re-tune of the television

Manual Search - Select the start channel (which relates to the frequency) and search manually for a

channel.

Note - This only searches for channels in the current source. i.e. Freeview channels on Freeview source

TV Menu Operation

To access this menu, press [MENU] button on the remote control.

Use the to navigate and press [OK] to select your chosen menu.

Once your chosen menu has been selected use the to navigate through the different menu items.

To exit this menu at anytime, press [EXIT] button.

OK

Service Type

Network

1

2

3

4

5

BBC ONE

BBC TWO

ITV1

Channel 4

FIVE

ALL

Fav. Lock Skip

ATV

Swap

Move

OK EXIT

Select Exit

Press color key to edit

Delete

Move

TV Guide

Technika 40 LED.indd Sec1:18Technika 40 LED.indd Sec1:18 25/02/2010 17:37:5625/02/2010 17:37:56

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

19

19

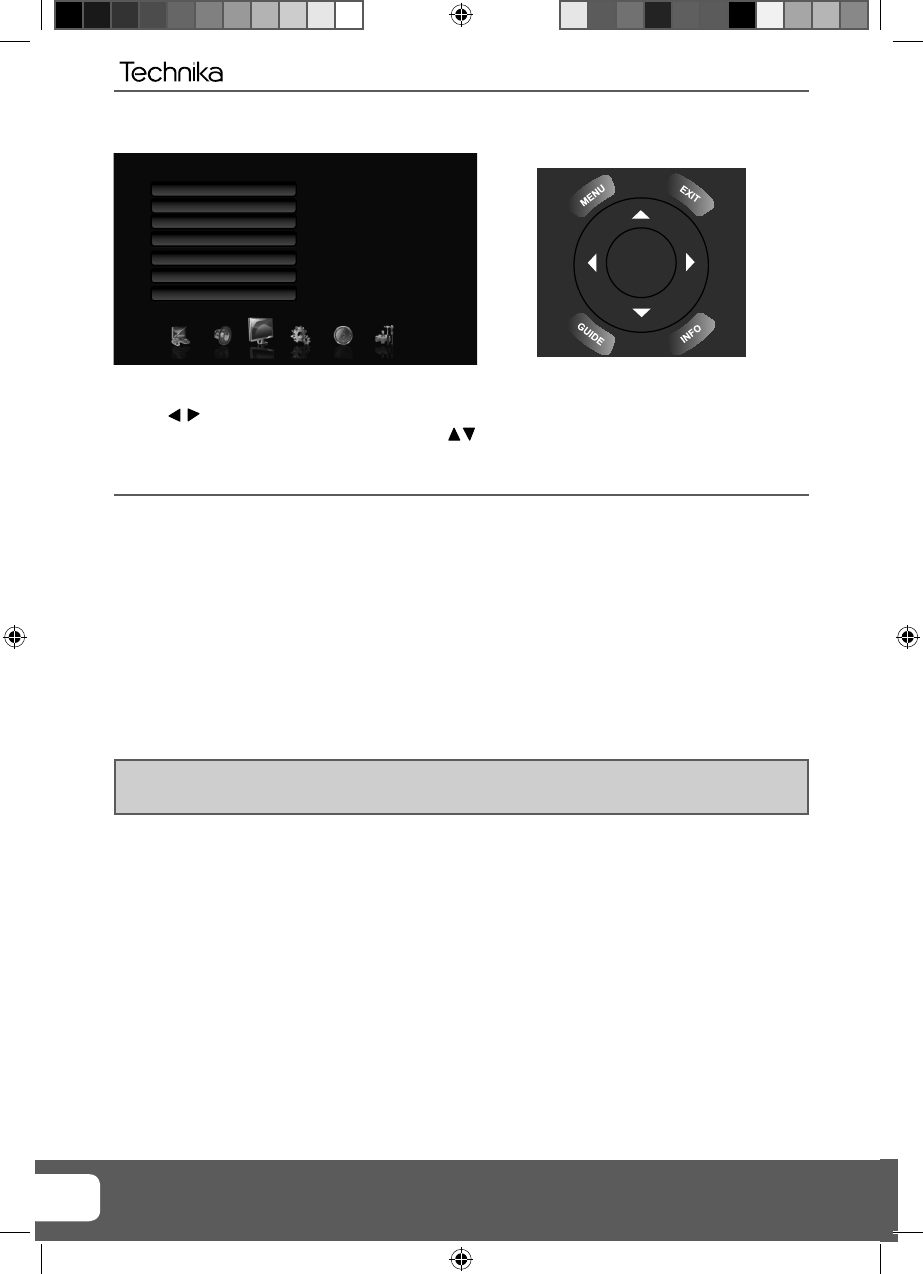

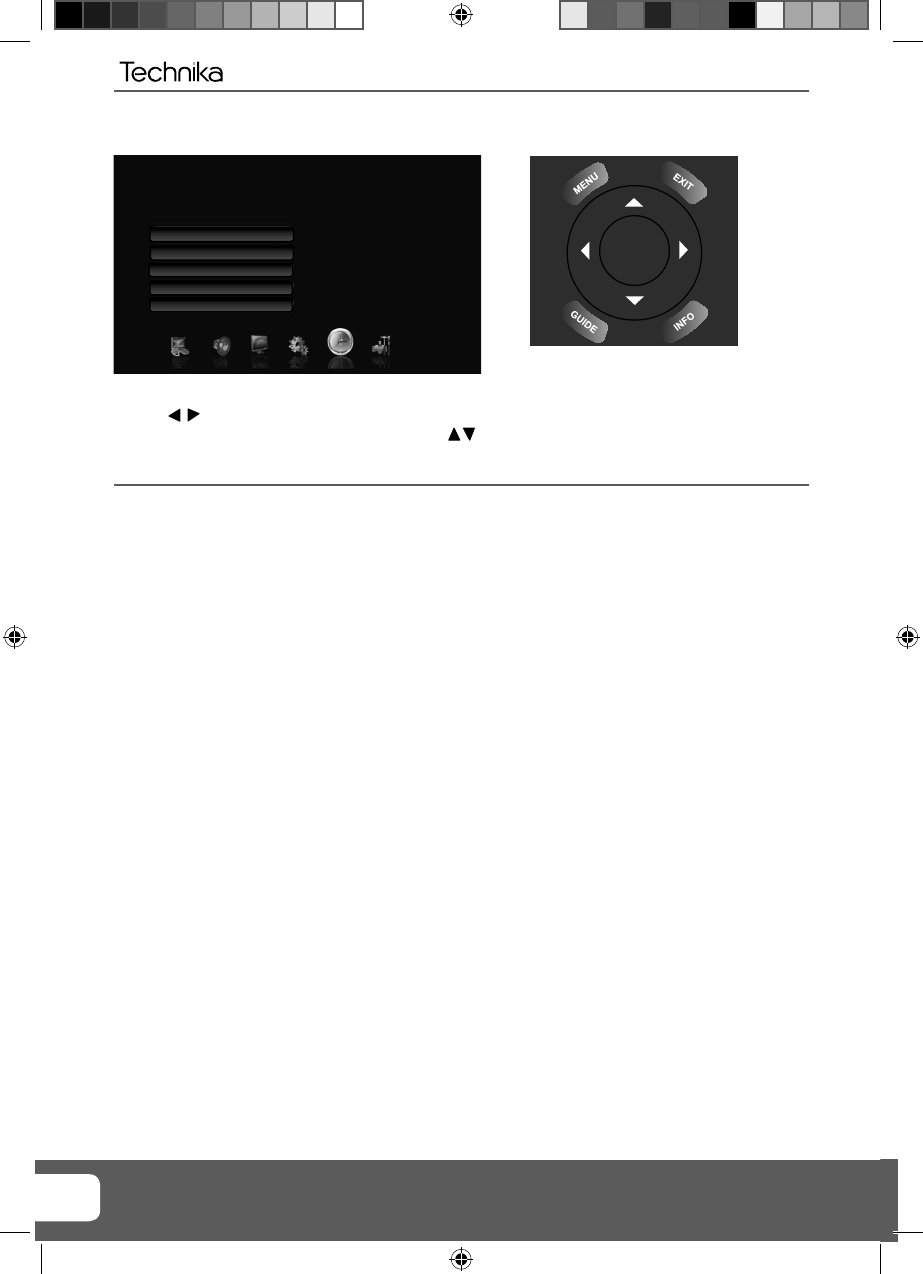

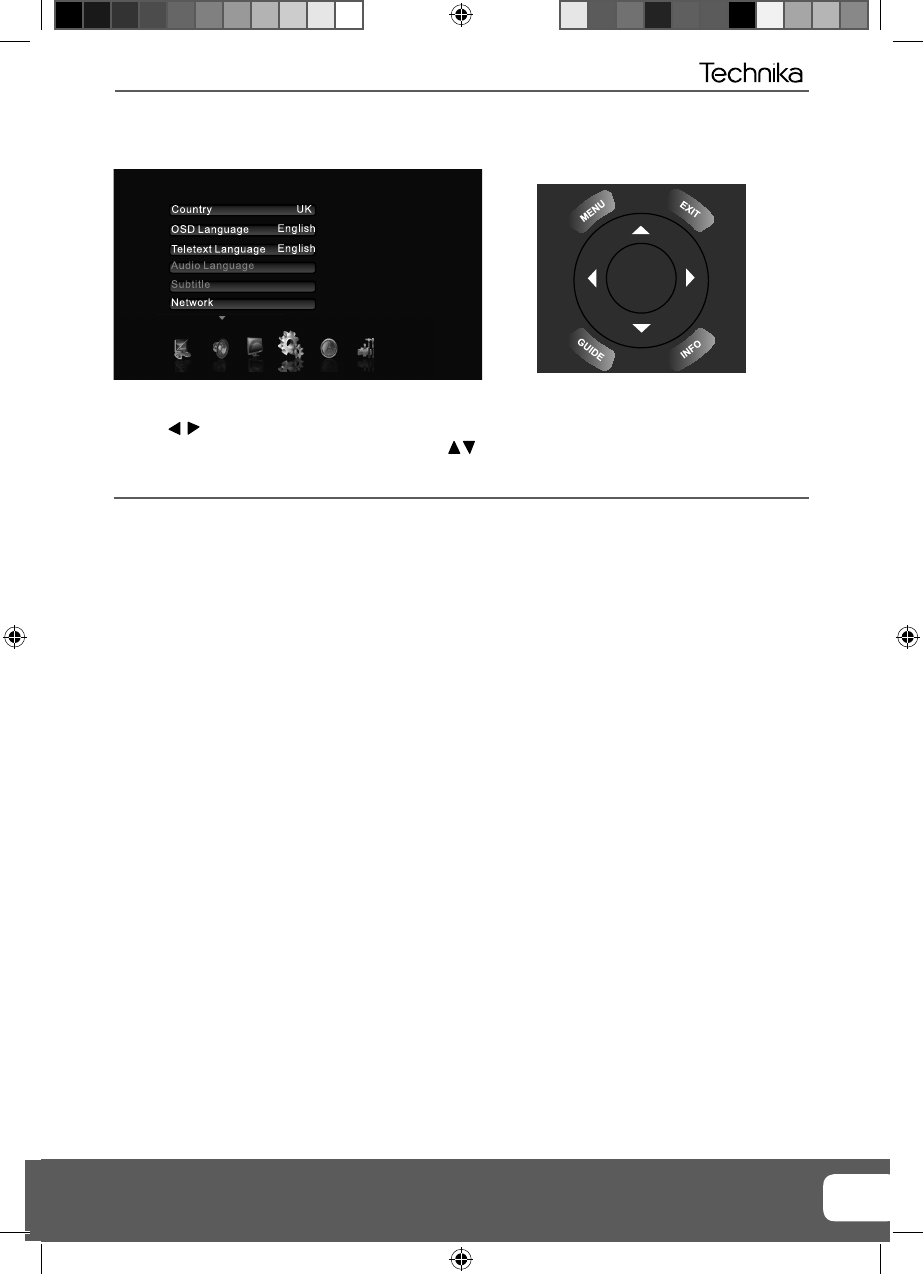

SETUP MENU

Country - Set your country

OSD Language - Change the language of the OSD

Teletext Language - Change the teletext language

Audio Language - Allows you to change the language on AD ( Audio Description, where available)

Subtitle - Change subtitle settings such as mode and language.

Network - Opens the network menu giving you different options allowing you to connect to a

network via an Ethernet cable

Reset Menu - Resets the menu to it’s factory settings

TV Menu Operation

To access this menu, press [MENU] button on the remote control.

Use the to navigate and press [OK] to select your chosen menu.

Once your chosen menu has been selected use the to navigate through the different menu items.

To exit this menu at anytime, press [EXIT] button.

OK

Technika 40 LED.indd Sec1:19Technika 40 LED.indd Sec1:19 25/02/2010 17:37:5625/02/2010 17:37:56

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

20

TIME MENU

TV Menu Operation

Current Time

Wakeup Timer

Sleep Time Off

Time Mode Auto

OK

To access this menu, press [MENU] button on the remote control.

Use the to navigate and press [OK] to select your chosen menu.

Once your chosen menu has been selected use the to navigate through the different menu items.

To exit this menu at anytime, press [EXIT] button.

Time Mode - Change from Auto to Manual

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a certain

amount of time

Current Time - Displays the current time and date (as default the information is taken automatically from

the digital TV signal).

Wakeup Time - Set an exact time for the tv to turn on

Programme Schedule - Manually set a record time rather than using the 7day TV Guide.

Programme Schedule

Technika 40 LED.indd Sec1:20Technika 40 LED.indd Sec1:20 25/02/2010 17:37:5625/02/2010 17:37:56

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

21

21

TOOLS MENU

Auto

Automatically displays the best picture format. So the

picture is in the correct position. May have black lines

At the top/bottom and/or sides.

16:9 Zoom

16:9 Wide

4:3

The picture

is the correct

proportion but

zoomed in to

fi ll the screen

Displays the 4:3

picture in its

original size.

Side bars are

shown to fi ll the

16:10 screen

Top and

bottom bars

are shown to

fi ll the 16:10

screen. 4:3

pictures will be

stretched

System Lock - This menu allows you to lock certain features of the television so that they cannot be used

or viewed. For example if you don’t want certain channels viewed by children or if the television is to be

used in a hotel and you want to limit the volume

Blue Screen - Changes the background when there is no input between clear and a blue background (Only

available on some sources)

PIP - Allows you to display a picture within a picture.

Note - The only sources available for this mode will be listed in the sub menu

USB - Opens up the USB menu and displays information about the USB inserted. Also allows you to format

and view it’s contents.

TV Menu Operation

OK

To access this menu, press [MENU] button on the remote control.

Use the to navigate and press [OK] to select your chosen menu.

Once your chosen menu has been selected use the to navigate through the different menu items.

To exit this menu at anytime, press [EXIT] button.

PIP

PIP Position

USB

Blue Screen Off

Off

Screen Mode Auto

Parental Control

Top Left

Off

Screen Mode - Within the UK the picture format varies depending on the channel/broadcast. There are a

number of different options to best meet your needs

Firmware Upgrade - From time to time we may release new fi rmware to improve the operation of

the television (available to download). This menu lets you install the new software/fi rmware onto the

television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer

to the ‘product support’ section of the website.

Technika 40 LED.indd Sec1:21Technika 40 LED.indd Sec1:21 25/02/2010 17:37:5725/02/2010 17:37:57

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

22

Technika 40 LED.indd Sec1:22Technika 40 LED.indd Sec1:22 25/02/2010 17:37:5725/02/2010 17:37:57

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

23

23

USING THE TELEVISION AS A COMPUTER MONITOR

IMPORTANT – Before connecting the computer to the television you must ensure the computer settings

are correct for the television. You MUST do this using your old monitor.

How to set up for Windows XP & Windows Vista (connecting via VGA cable to the TV)

1) Switch on your computer

2) When fi nished booting up right click your

mouse anywhere on the screen

4) Left click your mouse on Setting/Display Settings.

Ensure the screen resolution is set to what is shown

in the technical specifi cations section toward the

rear of this user guide. To correct the resolution to

that of the television move the slider.

6) Left click on the drop down for Screen refresh rate and select 60 Hertz, if you experience picture noise

or ‘fl ickering’, select 50 hertz or 70 hertz.

7) Click on Apply, then click Yes and the settings will be saved.

8) Now switch off your computer and connect the

Television (as shown)

9) Switch on the TV, select the input/source to

VGA/PC and re-start your PC.

Connecting a Laptop

In addition to the above if you are connecting a laptop to the television you will also need to activate the

VGA connection on the laptop. This can vary based on the brand of laptop you have, on many brands/

models, it is as per below.

1) Connect the laptop to the television

2) On the Laptop push buttons

The screen will now switch to the television.

3) Left click your mouse on Properties/Personalise

5) Left click your mouse on Advance/Advance

Settings and left click on Monitor

PC Operation

Technika 40 LED.indd Sec1:23Technika 40 LED.indd Sec1:23 25/02/2010 17:37:5725/02/2010 17:37:57

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

24

PC Operation

PC SETUP MENU

Note: When the VGA/PC source mode is selected the Display menu will switch to the PC setup menu and

display a different set of options.

Auto Adjust - Lets you automatically confi gure the television to be used as a computer monitor

Horizontal Position - Changes the horizontal position of the picture

Vertical Position - Changes the vertical position of the picture

Phase - To adjust delay time of phase in order to reduce the noise of picture

Clock - Alter this in order to reduce the noise within the picture

Auto adjust - Automatically adjust the display to it’s optimum settings

Auto phase - Automatically adjust the phase to it’s optimum settings

Reset - Restores the pc setup menu to it’s factory settings

Tip: If the computer is left in-active for a period of time, the television will switch into a ‘sleep’ state

(the screen will power off to save power). To switch back on press the standby button.

AV

OK

To access this menu, press [MENU] button on the remote control.

Use the to navigate and press [OK] to select your chosen menu.

Once your chosen menu has been selected use the to navigate through the different menu items.

To exit this menu at anytime, press [EXIT] button.

V. Position

H. Position

Phase

Clock

Auto Adjust

Auto Phase

Reset

Technika 40 LED.indd Sec1:24Technika 40 LED.indd Sec1:24 25/02/2010 17:37:5725/02/2010 17:37:57

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

25

25

USB Record

USB RECORD - DIGITAL/FREEVIEW MODE

USB RECORD – DIGITAL/FREEVIEW MODE

Built into this television is a USB record facility. This function is available in Digital/Freeview mode when

used in conjunction with a compatible USB memory stick or USB Hard drive. The benefi ts of this are as

follows:

• One button record, if you decide you want to record the current programme

• Easy programmable recording from the 7 day TV Guide

• Record TV/Radio and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads

from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection

of tested and compatible memory sticks available to purchase directly from the helpline/web site. These

are available in 4GB, 8GB and 16GB. (Please check the web site/helpline for latest specifi cations and prices)

Minimum Specifi cation - USB Memory Stick

Read Speed 20 MB/s (Mega Byte Per Second)

Write Speed 6 MB/s (Mega Byte Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear

of this user guide.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or

record one channel while the television is in standby mode.

Note: USB record function is only available in Digital/Freeview TV/Radio mode. Due to copyright laws

and illegal copying/recording it is not possible to record to/from any other input/output source.

One Button Record

At any point in time you may decide to record the current channel that you are watching. To do this you

need to press the [REC] button.

Technika 40 LED.indd Sec1:25Technika 40 LED.indd Sec1:25 25/02/2010 17:37:5725/02/2010 17:37:57

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

26

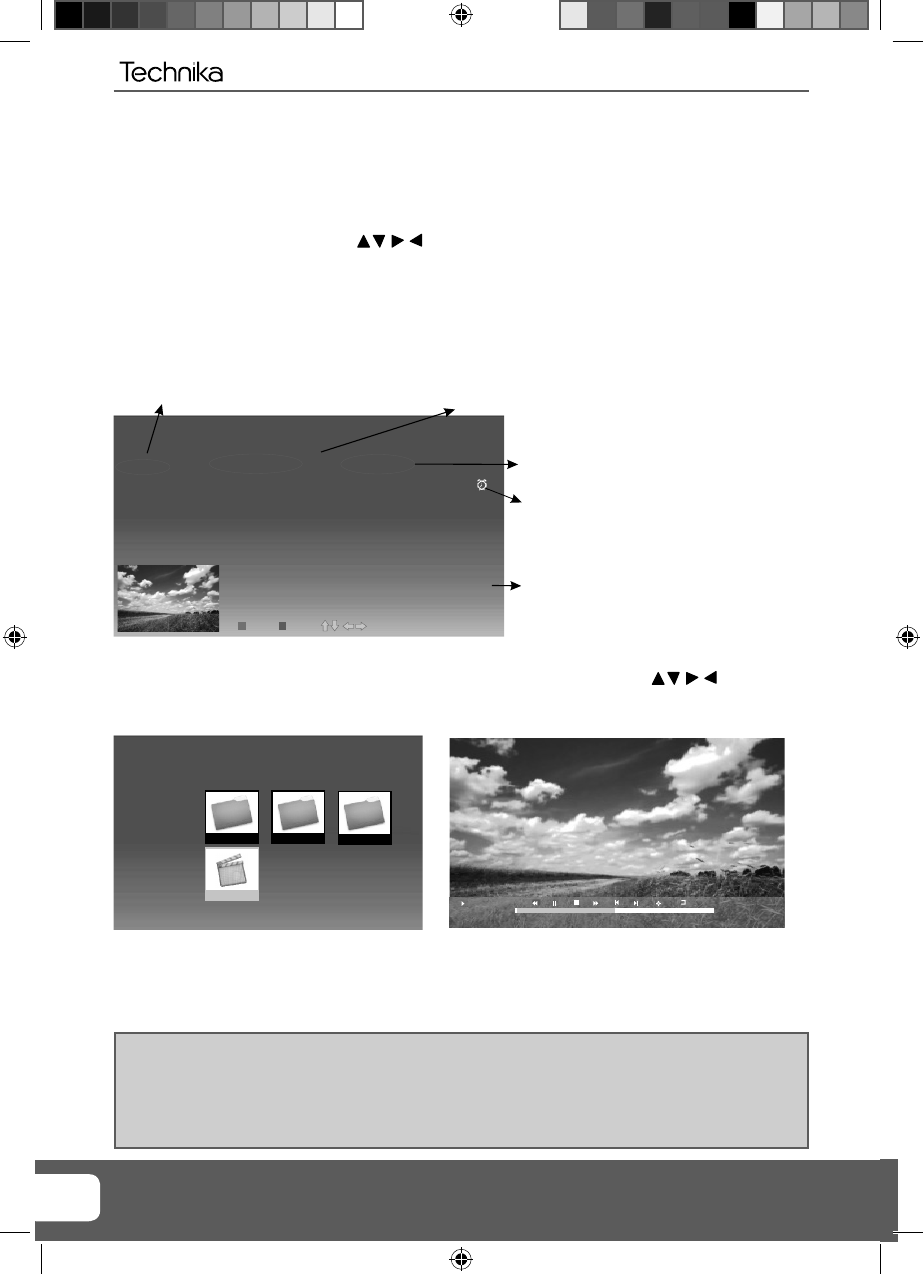

7 DAY TV GUIDE

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where

supported by the Freeview channel). You can view the start and end time of all programmes and on all

channels for the next 7 days and set reminders.

1) Press [GUIDE]. The following 7 Day TV Guide will appear.

2) Navigate through the menu using

You can now:

Set a reminder by pressing BLUE

Record programmes by pressing RED (press repeatedly to record daily and weekly)

3) Press [EXIT] to exit the 7 day TV Guide.

7 Day TV Guide

Thu Fri Sat Sun Mon Tue Wed

09-06-18 22:00~23:25

09-06-18 23:25~00:25

Planet of The Apes

Disorderly Conduct

– –

Big-budget sci-fi remake starring Mark Wahlberg and Tim

adventures of a daring astronaut who crash-lands on a plan

by intelligent, talking apes.(2001)[AD,S] The brief introduction of the

current program

5

16

17

23

24

Five

QVC

UKTV Gold

bid tv

price-drop tv

The current program’s channel No.and channel name.

The current program’s name.

The current program’s broadcast date and start-stop time.

Move OK E

EXIT

Select E

Reminder iron.

Note: This TV is designed to operate with USB memory sticks up to 32GB. It is possible to use either a

USB memory stick or a USB portable Hard Drive of a larger capacity, however, it must be formatted to

the FAT32 fi le system in order to operate correctly. At the time of printing this user guide, Windows

XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software

programme/utility to format larger USB drives/hard drives to FAT32. Additional help and support is

available from the web site.

USB File Name: La_lsla_Bonita-DVIX-3.11.avi

File Path: /mnt

MYRECORD Music PHOTO

All


Music

La_lasla_Boni...

Movie

Playing Back Recorded Content

To view all your recordings press the [MEDIA] button and then navigate using the buttons.

Open the folder named PVR_File this is the default folder where all your recordings will be saved.

00:02:12 00:04:24

La_lsla_.. Play

1

TV GUIDE

Reminder Record

Technika 40 LED.indd Sec1:26Technika 40 LED.indd Sec1:26 25/02/2010 17:37:5725/02/2010 17:37:57

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

27

27

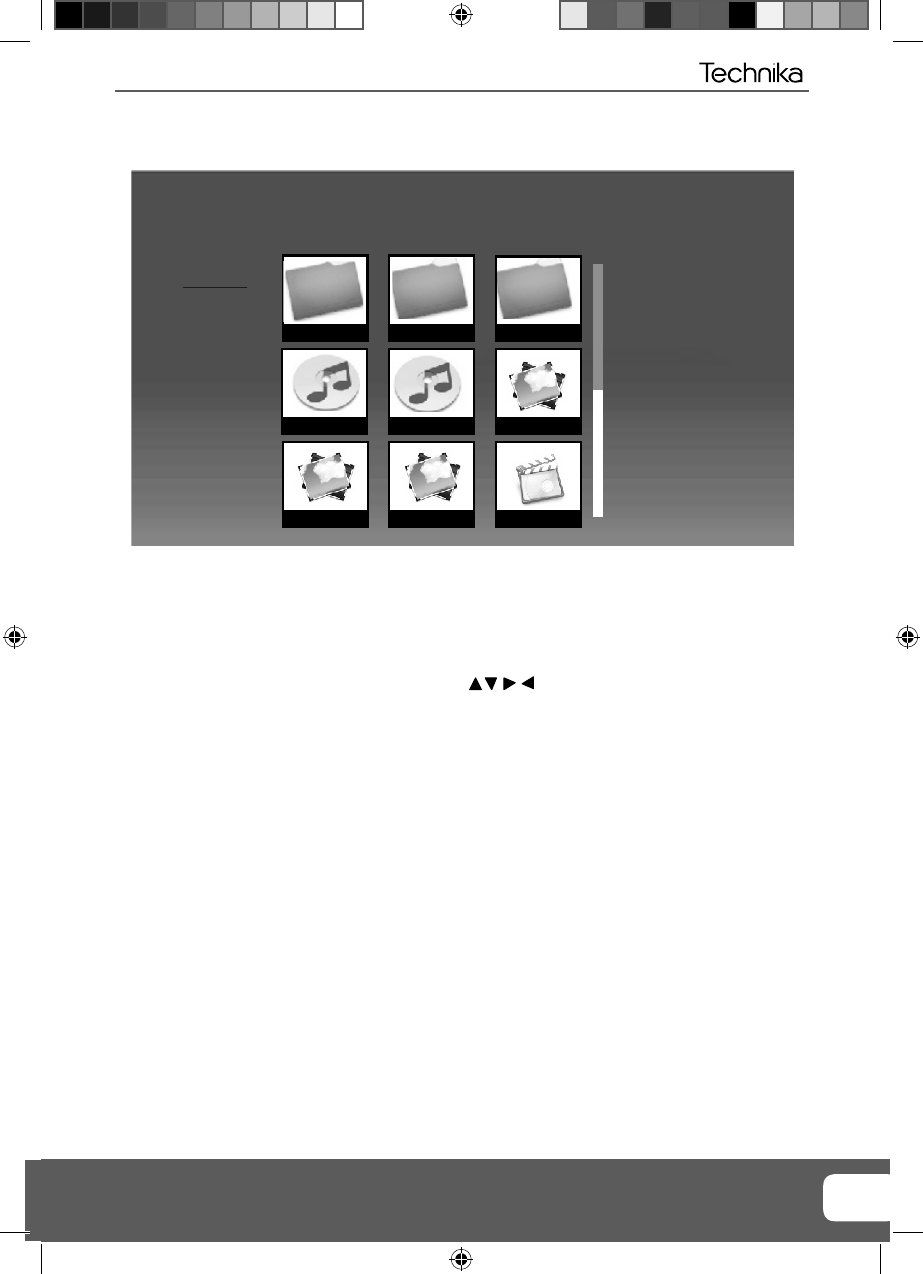

USB MODE / MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB Memory

Stick.

On switching to USB source the above menu screen will appear. The content will be divided into Movies,

Music and Picture.

You can navigate through the menus using the scroll buttons. To confi rm the item you wish to

play/view press [OK] button.

USB Mode / Media Player

USB File Name: MYRECORD

File Path: /mnt

MYRECORD Music PHOTO

blue.mp3 angle.mp3 DSC04632.JPG

DSC04633.JPG DSC04634.JPG La_lasla_Boni...

All


Music

Movie

Technika 40 LED.indd Sec1:27Technika 40 LED.indd Sec1:27 25/02/2010 17:37:5825/02/2010 17:37:58

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

28

USING WITH SKY DIGITAL / VIRGIN MEDIA

You may wish to use your TV with Sky Digital, Virgin Media or another cable or Satellite box. There are a

number of connection options, the best being connecting via SCART cable.

Connecting via SCART

1) Connect the SCART cable from the Cable/Satellite Box to SCART of the TV

2) Press [SOURCE]

3) Press [\/] or [/\] to select SCART

4) Press [OK]

The channel your Cable/Satellite box is displaying will now be shown on the TV.

Connecting via RF

You may wish to share your Sky Digital signal around the home by using an RF connection.

1) Connect the RF cable from the RF output socket of the sky/cable box to the ‘RF IN’ of the TV.

2) Switch the TV to analogue TV mode

3) Press [MENU] to enter menu

4) Press [>] twice to select Channel Menu

5) Press [OK] to enter menu

6) Press [\/] to select Auto Search

7) Press [OK] and then select Start

Once tuning is complete the fi rst channel will appear. Press [CH+] to move through the channel until you

fi nd the Sky channel. The channel can then be moved if you wish, please refer to the Channel Menu,

Channel Manager section of this user guide.

USING WITH SKY DIGITAL REMOTE CONTROL (BSKYB) OR UNIVERSAL

REMOTE CONTROL

You may wish to use your Sky Digital or a universal remote control to operate some of the functions

of this TV. For this you require a ‘code’ that needs to be programmed into your Sky Digital or universal

remote control.

For codes for universal remote controls, please visit our website where you will fi nd the very latest

information and codes. For codes for Sky/Sky+/Sky HD, please note that at the point of manufacture,

BSkyB have not launched the code required for this model of TV. They are due to launch a new remote

control which should include the necessary code to operate the functions of the TV during 2010 (called

revision 9).

Please check our website for updates, alternatively, see some

alternative options of remote controls that are available.

The One for All remote controls shown on the right will

operate all of the functions of the Sky box in the same way

the original remote control will, in addition, they will also

operate the functions of this model of TV. The One for All

versions shown are only available to purchase from the

helpline/website. When you order, we will need to know the

model and serial number of your TV in order that we can

include the necessary software/code for your particular TV.

The original Sky remotes are shown for comparison purposes

only.

General Information

Technika 40 LED.indd Sec1:28Technika 40 LED.indd Sec1:28 25/02/2010 17:37:5825/02/2010 17:37:58

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

29

29

FREQUENTLY ASKED QUESTIONS

General Information

General I would like to have louder

sound by connecting

additional speakers

There are 2 options:

1) Use Digital COAX output connected to an external amplifi er/surround

sound system

2) Use the 3.5mm headphone output and a 3.5mm to phono cable

(available separately) to connect to an amplifi er/surround sound system

General Why are some options in

the menu unavailable and

greyed out

Some options are only available in certain sources, i.e. HDMI, PC/VGA.

They are unavailable in the other sources where they have no affect.

TV I have tuned in Digital TV

but I am not receiving any

or all of the channels and/

or the channels I receive are

breaking up

1) Check you are in an area that can receive Freeview. Visit www.freeview.

co.uk or call 08701 111 270.

2) Check you are using an aerial that is able to receive a good digital

signal. In most cases, you will need an outdoor digital hi-gain/wideband

aerial. In areas that have excellent Freeview coverage, you may be able

to use a loft type aerial but it is highly likely that you will also need to

connect a booster between the back of the TV and the TV aerial wall

socket. Unfortunately, to receive a good enough digital signal, it is not

possible to use a portable/indoor type aerial. This may change once the

analogue signal is switched off in 2012 and the Digital signal strength is

increased.

TV I have re-tuned my television

but when I switch it off it is

not storing the channels

Complete a fi rst time installation, please refer to the set-up menu section

of the manual of how to do this

VCR/DVD

Recorder

I have connected the TV to

my VCR or DVD Recorder via

SCART but it is not recording

In addition to connecting via SCART, you should connect the aerial cable

from the wall socket to your VCR/DVD Recorder and another aerial cable

from the VCR/DVD Recorder to the TV

Game Consoles I have connected my PS3 to

the TV via HDMI, but I am

not receiving any pictures or

sound on my TV

1) Ensure the TVs source is on HDMI

2) Check your settings on your PS3 are as per the PS3 instruction manual

Game Consoles I have connected my

Xbox 360 to the TV via

Component Cables (Red,

Green & Blue) but I am not

receiving any sound

Component cables only provide HD Pictures. For the sound you will need

to connect the Red & White audio cables on the Xbox to the Red & White

phono inputs on the rear of the TV. Please refer to the ‘Connections’

pages.

USB Mode I have inserted a USB

Memory Key, but the TV

does not recognise it

Ensure the USB Memory Key is formatted to type FAT32.

USB Mode Using a USB portable hard

drive

If you wish to use a portable hard drive larger than 32GB, please note

that it must be formatted to the FAT32 fi le system in order to operate on

this TV. Windows XP/Vista computers are only capable of formatting up

to 32GB, therefore, you will need a software programme/utility to format

larger hard drives. Please refer to the web site for more information.

USB Record

/ TV

When using the USB to

record the picture ‘breaks

up’ or experience loss of

sound.

Check the USB Memory Stick meet the minimum requirements of Read

Speed - 20 MB/s (Mega Byte Per Second), Write Speed - 6 MB/s (Mega Byte

Per Second)

System Lock I have changed the password

on the television and now

forgotten it

There is a master password of 4711, to gain access to the TV menu and

reset the normal password

Technika 40 LED.indd Sec1:29Technika 40 LED.indd Sec1:29 25/02/2010 17:37:5825/02/2010 17:37:58

Helpline No UK. 0871 2000 463 ROI. 01443 3940

Web Support: www.skymediauk.co.uk

30

TECHNICAL SPECIFICATION

General Information

Model 40-260

Screen size (diagonal) 40”/102cm

Resolution 1920 x 1080

Contrast Ratio 5000:1

Brightness cd/m2 450

PC RGB Yes

RF 75 ohm Antenna / PAL-SECAM

Inputs 3 x HDMI, 1 x VGA/PC, 2 x SCART

Y Pb Pr (Component), AV Video and L/R audio

1 x USB, 1 x RJ45 (Ethernet/DNLA), 1 x 3.5mm Audio

Input (for PC/VGA), 1 x 3.5mm Audio Input

Outputs 1 x 3.5mm Audio Out, 1 x COAX Digital Audio Out

Watts (RMS) 2 x 3

Voltage Rating: AC 110-240V ~ 50/60Hz 130/180W (std/max)

Dimensions including

stand (mm)

980(W) x 670(H) x 220(D) mm

Net weight (Kgs) 20kg

Technika 40 LED.indd Sec1:30Technika 40 LED.indd Sec1:30 25/02/2010 17:37:5825/02/2010 17:37:58

IMPORTANT NOTE. Occasionally we may release new software/firmware

upgrades/enhancements for this television. Please check the ‘firmware

upgrade’ section of the website regularly.

31

31

7day TV Guide .................................................................................. 26

Aspect Ratio ...................................................................................... 21

Attaching the base/stand ................................................................. 9

Audio Language ............................................................................... 19

Auto Confi guration of screen (PC) .................................................. 23

Auto Search ...................................................................................... 18

Balance ............................................................................................. 17

Bass ................................................................................................... 17

Blue Screen ...................................................................................... 21

Brightness ........................................................................................ 16

Channel Manager ............................................................................. 18

Cinema mode ................................................................................... 16

Clock (PC) .......................................................................................... 23

Clock .................................................................................................. 19

Colour .............................................................................................. 16

Colour Temperature ........................................................................ 16

Common Interface .......................................................................... 19

Connections ...................................................................................... 14-15

Contrast ............................................................................................ 16

Country ............................................................................................. 19

Current Time ..................................................................................... 20

Detaching the base/stand ................................................................ 9

Digital Output ................................................................................. 17

Digital Switch over ........................................................................... 31-32

Equalizer ........................................................................................... 17

Favourites Manager ......................................................................... 18

Firmware Update ............................................................................. 21

First Time Installation ...................................................................... 20

Frequently Asked Questions ............................................................ 29

Getting Started ................................................................................. 11

Hearing Impaired ............................................................................. 19

Horizontal Position (PC) ................................................................... 23

Hue .................................................................................................... 16

Language ......................................................................................... 19

Manual Search .................................................................................. 18

Network ............................................................................................ 19

Noise Reduction .............................................................................. 16

OSD Language .................................................................................. 19

PIP...................................................................................................... 21

Phase (PC) ......................................................................................... 23

Picture Mode ................................................................................... 16

Programme Schedule ....................................................................... 20

Programme edit ............................................................................... 18

Remote control ................................................................................ 13

Reset Menu ....................................................................................... 19

Reset to default ................................................................................ 21

SPDIF Output .................................................................................... 17

Saturation ........................................................................................ 16

Screen Mode ..................................................................................... 21

Setup Menu ...................................................................................... 19

Sharpness ......................................................................................... 16

Sleep Timer ....................................................................................... 20

Sound Menu ..................................................................................... 17

Sound Mode .................................................................................... 17

Source Menu ..................................................................................... 12

Subtitle .............................................................................................. 19

System Lock ..................................................................................... 18

System Lock ...................................................................................... 21

TV Guide ........................................................................................... 18

TV Guide .......................................................................................... 24

TV Menu ........................................................................................... 18

TV buttons ....................................................................................... 12

Technical Specifi cations ................................................................... 30

Teletext ............................................................................................. 19

Time Menu ........................................................................................ 20

Tools Menu ....................................................................................... 21

Treble ............................................................................................... 17

USB .................................................................................................... 21

USB Mode / Media Player ................................................................ 27

USB Record ....................................................................................... 25

Using with Sky Digital / Virgin Media ............................................ 27

Vertical Position (PC) .................................................................... 23

Video Menu ...................................................................................... 16

Volume .............................................................................................. 17

Wake up Time ................................................................................... 20

Wall mounting ................................................................................. 9

What is included in the box ............................................................ 8

INDEX

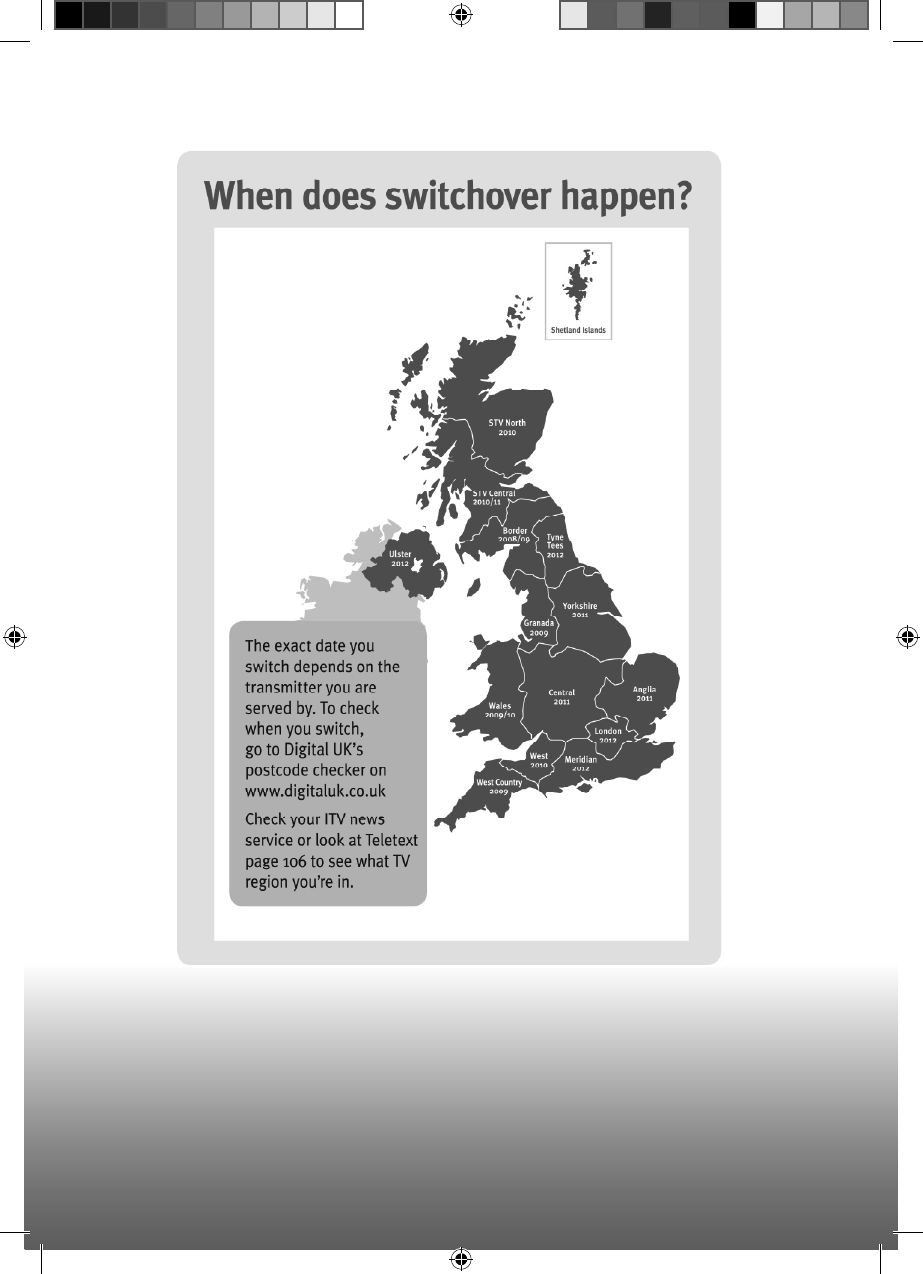

DIGITAL SWITCHOVER

Television in the UK is going digital, bringing us all more choice and new services. Starting late 2007 and

ending in 2012, television services in the UK will go completely digital, TV region by TV region.

How the switch over affects your TV equipment.

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply

connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or

whether you will have to wait until the switch over at www.digitaluk.co.uk)

When the TV switch over happens in your area, there are at least two occasions when you will need to

re-tune your TV in order to continue receiving your existing TV channels and also to pick up new ones.

Digital UK, the body leading the digital switch over, will advise you when you need to retune during the

switch over.

How to retune.

Retuning your TV is a very quick and simple process. We recommend that you retune every few months to

ensure you are receiving the very latest TV and radio channels that are broadcast.

1) On the remote control press [MENU] followed by 8 - 8 - 8 - 8 (so the number 8 button four times)

2) The First Time Installation menu will appear. Press [OK] and tuning will take place.

For help and support regarding the digital switch over, please contact Digital UK:

Telephone: 08456 50 50 50 (calls charged at local call rate, approx 3p per minute daytime or 1p per minute

evenings from a BT landline)

Digital UK website: www.digitaluk.co.uk

General Information

Technika 40 LED.indd Sec1:31Technika 40 LED.indd Sec1:31 25/02/2010 17:37:5825/02/2010 17:37:58

W40/MAN/0001

Tesco Stores Ltd.

Cheshunt EN8 9SL, UK

Technika 40 LED.indd Sec1:32Technika 40 LED.indd Sec1:32 25/02/2010 17:37:5825/02/2010 17:37:58
