Technisonic T3018 T3018 RF Module User Manual
Technisonic Industries Limited T3018 RF Module
User Manual
T3018 RF Module
P/N127502-3
Users Guide
DOCUMENT NO: 136574
REVISION:
DATE OF ISSUE: MAY 02, 2013
Technisonic Industries
Limited
240 Traders Boulevard, Mississauga, Ontario L4Z 1W7
Tel: (905) 890-2113 Fax: (905) 890-5338
www.til.ca
This document contains designs and other information which are the property of Technisonic Industries Ltd. This
document may not in whole or in part, be duplicated or disclosed or used for manufacture of the part disclosed herein,
without the prior written permission of Technisonic Industries Ltd.
INTRODUCTION
The T3018 RF module is a Dual Band transceiver assembly that operates in 136-174 MHZ and 764-870
MHz range. The T3018 RF module is a modified Motorola APX 7000 VHF/700/800 MHz portable radio.
The outer casing, top controls, front display and keypad are removed. The RF chassis is slightly
machined but all electronic circuits are unmodified from the original APX 7000 radio.
The transceiver is designed to be installed and operated in a Technisonic Multiband Airborne Radio
TDFM 9000 platform. All external power and antenna connections are provided by the TDFM 9000 as
well as controls are via the front panel and display from the TDFM 9000.
The RF module is capable of operating on Analog FM, Wide and Narrow and Project 25 Phase 1
conventional and P25 Trunked Phase 1 and 2 systems.

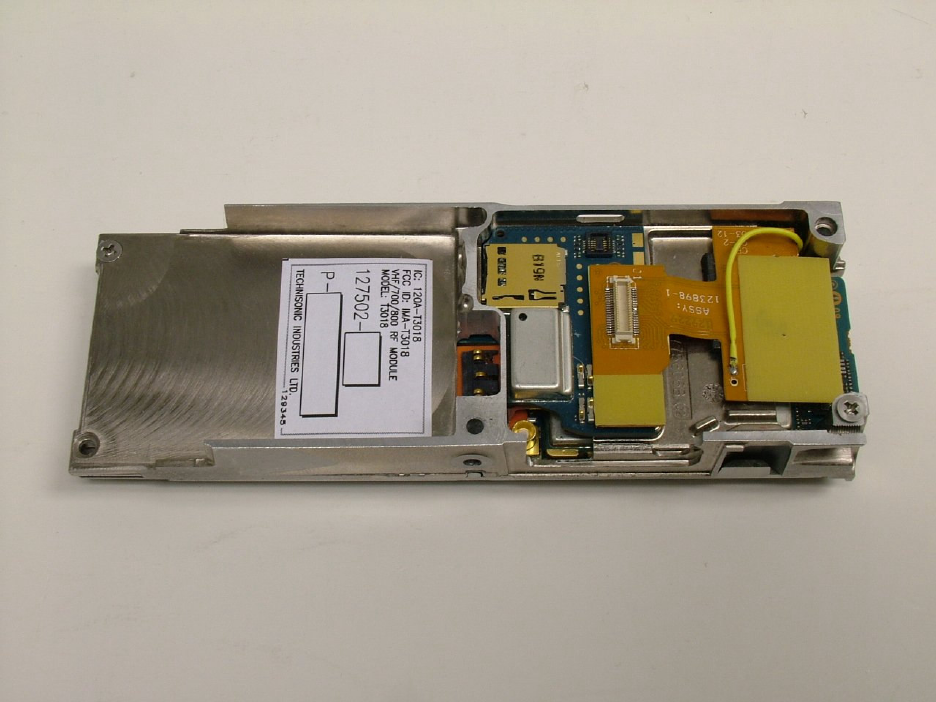

FIGURE 1: Overall view of the T3018 RF Module
NOTES
ESD CAUTION
This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves
when handling printed circuit boards.
FCC COMPLIANCE INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
WARNING: For compliance with FCC RF Exposure Requirements the mobile transmitter
antenna installation shall comply with the following two conditions:
1. The transmitter antenna gain shall not exceed 3 dBi.
2. The transmitter antenna is required to be located outside of a vehicle and kept at a separation distance of 80 cm
or more between the transmitter antenna of this device and persons during operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
TECHNICAL CHARACTERISTICS
Specification Characteristic
Model Designation: T3018
Physical Dimensions: Approx. (L) 5.77" x (W) 2.1" x (H) 0.95"
Operating Temperature Range: -30° C to +60° C
Power Requirement:
Voltage:
Current:
7.5 VDC ± 15%
300 mA minimum / 2.4A maximum
Audio Output Power: 500 mW into 600
Ω
FCC ID: IMA-T3018
INDUSTRY CANADA: 120A-T3018
RF Output Power: 1 or 6 Watts (VHF)
1 or 2.5 Watts (700 MHz)
1 or 3 Watts (800 MHz)
Frequency Range
VHF Band:
700 MHz Band:
800 MHz Band:
136 to 174 MHz
764 to 797 MHz
806 to 870 MHz
No. of channels per band: 2000 pre-programmable channels
Transmitter section VHF 700/800 MHz
FM Hum and noise in dB (wideband):
Audio Distortion:
Frequency Stability in ppm:
Modulation Limiting:
-48 -48
1% 1%
±2.5 ±1.5
Wide band ±5kHz
Narrow band ±2.5kHz
Receiver section VHF 700/800 MHz
Sensitivity in uV:
*Digital 1% BER (12.5kHz)
*Digital 5% BER (12.5kHz)
**Analog with 12dB SINAD
0.29 0.35
0.21 0.25
0.25 0.25
Selectivity in dB:
25 kHz Channel
12.5 kHz Channel
Intermodulation * **
-80 -75
-70 -65
-80 -80
*Measured in digital mode per TIA / EIA IS 102.CAAA under nominal conditions.
** Measured in analog mode per TIA / EIA 603 under nominal conditions.
INSTALATION
The T3018 module should be installed in the TDFM 9000 in accordance with TIL document 126556
“TDFM-9000 FINAL ASSEMBLY SSP".
FCC ID LABELS
The T3018 RF module is a modified Motorola APX 7000. Part of the modification requires removal if the
original Motorola FCC ID label. After all modifications are done the new Technisonic FCC/IC ID label is
applied.
FIGURE 2 APX 7000 FCC ID (Left), Right T3018 Module with new FCC ID applied
The FCC/Industry Canada label is shown below. It is mounted on the top near the front of the module.

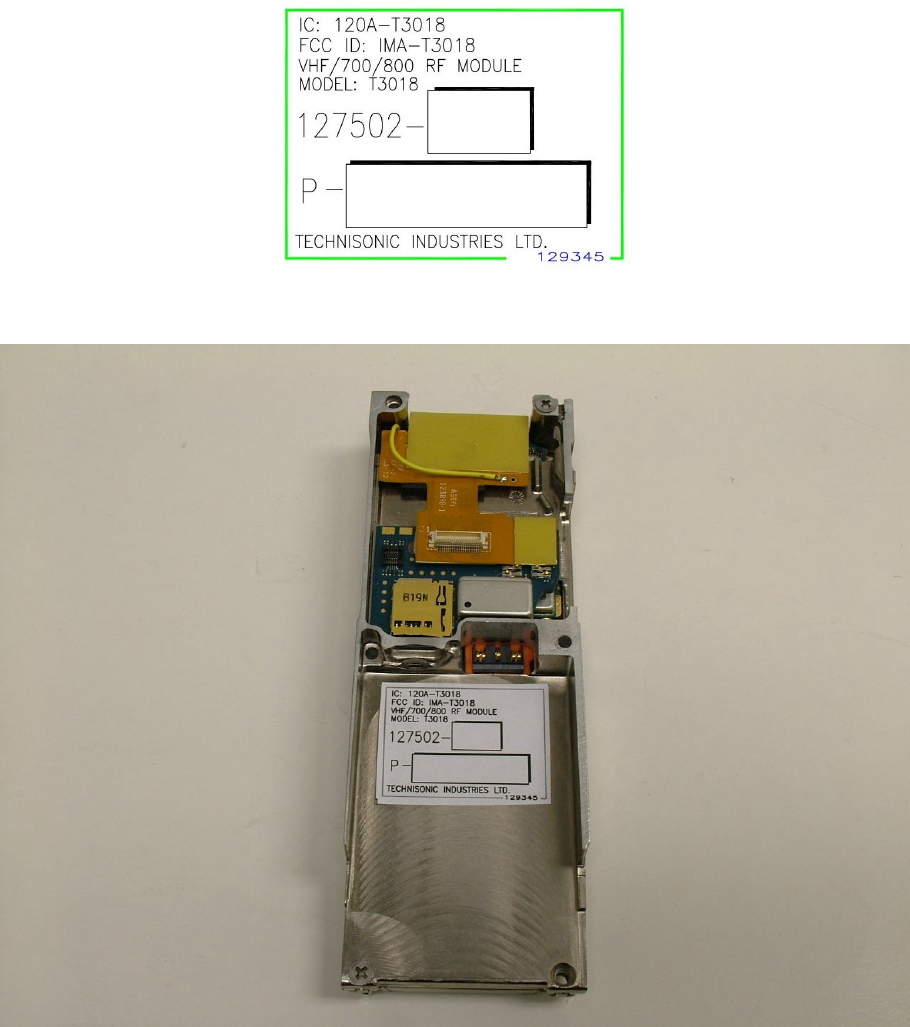

FIGURE 3 T3018 FCC/Industry Canada Label
Figure 4 FCC/Industry Canada Label placement on the T3018 Module
The T3018 is intended to be mounted in the TDFM 9000 chassis and is not visible. Therefore, a second
label must be applied to the outside of the TDFM 9000 that contains the following text:
“TDFM 9000 Multiband Transceiver. Contains Module: FCC ID IMA-T3018”.
In addition, external labeling for Industry Canada shall be applied to the TDFM 9000 to include the
following text: “Contains IC: 120A-T3018”.
WARNING AND DISCLAIMER
Changes or modifications not expressly approved by Technisonic Industries could void the user’s
authority to operate the equipment.
This manual is designed to provide information about the T3018 RF Module. Every effort has been made
to make this manual as complete and accurate as possible.
WARRANTY INFORMATION
The Model T3018 Transceiver is under warranty for one year from date of purchase. Failed units caused
by defective parts, or workmanship should be returned to:
Technisonic Industries Limited
240 Traders Boulevard
Mississauga, Ontario L4Z 1W7
Tel: (905) 890-2113
Fax: (905) 890-5338
