Technisonic TDFM-636 VHF P25 AIRBORNE TRANSCEIVER User Manual 01re293c 5

Technisonic Industries Limited VHF P25 AIRBORNE TRANSCEIVER 01re293c 5

users manual

MULTIBAND P25
AIRBORNE TRANSCEIVER
MODEL TDFM-600/6000
Installation and
Operating Instructions
Til Document No.
01RE293
Rev. C
Issue 6
May 2004
Technisonic Industries Limited
240 Traders Blvd, Mississauga, Ontario L4Z 1W7
Tel:(905)890-2113 Fax:(905)890-5338
www.til.ca
CAUTION
This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves when handling
printed circuit boards.
WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Warning:
Changes or modifications not expressly approved by Technisonic Industries could void
the users authority to operate the equipment.
WARRANTY INFORMATION
The Model TDFM-600/6000 Transceiver is under warranty for one year from date of purchase. Failed units caused by
defective parts, or workmanship should be returned to:
Technisonic Industries Limited Technisonic Industries Limited
240 Traders Boulevard 3840 E. Robinson Road, Suite 214
Mississauga, Amherst,
Ontario L4Z 1W7 New York 14228
Tel: (905) 890-2113 Fax: (905) 890-5338 Tel: (716) 691-0669
WARNING For compliance with FCC RF Exposure Requirements, the mobile
transmitter antenna installation shall comply with the following two
conditions:
1. The transmitter antenna gain shall not exceed 3 dBi
2. The transmitter antenna is required to be located outside of a vehicle and kept at a separation
distance of 70 cm or more between the transmitter antenna of this device and persons during
operation.
Summary of DO-160C Environmental Testing for Technisonic Model TDFM-600 and 6000 Transceiver.
Conditions
Section
Description of Conducted Tests
Temperature and Altitude
4.0
Equipment tested to categories C4
and D1.
Vibration
8.0
Equipment is tested without shock
mounts to categories B, M and N.
Magnetic Effect
15.0
Equipment is class Z.
Power Input
16.0
Equipment tested to category B.
Voltage Spike
17.0
Equipment tested to category B.
RF Emission
21.0
Equipment tested to category Z.
Installation Approval Note
Presently no TSO standard exists for airborne FM transceivers. To make it easier for installation agencies to provide
their customers with an approved installation supported by an effective Airworthiness Approval, Technisonic has
secured Supplemental Type Certificate (STC) Approvals (both US and Canadian) on its Airborne FM products for many
helicopters currently being delivered in the US and Canada as well as a number of single engine fixed wing aircraft. The
above referenced DO-160C test data is also on file and available from Technisonic to support approval requirements in
airframes for which Technisonic does not possess an STC.
Approved aircraft types are listed in the attachments to the formal STC documents. These STC's are the exclusive
property of Technisonic and require the written authority of Technisonic for their use. To assist Factory Authorized
Technisonic Dealers in the certification process, we have placed copies of our Canadian and US STC's on our web site
along with a letter of authorization for their use. These documents may be downloaded and used as support for the
technical submission to FAA or Transport Canada. Only factory authorized dealers/installers are permitted to download
and make use of these documents on behalf of their customers (end users) in support of regulatory agency approval.
Please refer to the Technisonic web site www.til.ca for the latest issue of available STC=s and letter of authorization for
use.
TABLE OF CONTENTS
Paragraph Title Page
SECTION 1 GENERAL DESCRIPTION
1.1 Introduction................................................................................................1-1
1.2 Description.................................................................................................1-1
1.3 Model Variation...........................................................................................1-1
1.4 Technical Summary .....................................................................................1-3
SECTION 2 OPERATING INSTRUCTIONS
2.1 General......................................................................................................2-1
2.2 Front Panel.................................................................................................2-1
2.3 Power Switch .............................................................................................2-2
2.4 Knob .........................................................................................................2-2
2.5 Soft Keys and HOME ...................................................................................2-3
2.6 Function Keys.............................................................................................2-3
2.7 MUP and MDN Keys ....................................................................................2-5
2.8 Up and Down Arrow Keys ............................................................................2-5
2.9 Left and Right Arrow Keys ...........................................................................2-5
2.10 ESW Key....................................................................................................2-5
2.11 TSW Key ...................................................................................................2-5
2.12 Display ......................................................................................................2-6
2.13 General Operation .......................................................................................2-6
2.14 Customer Programming Software (CPS) .........................................................2-6
2.15 Configuration Menu .....................................................................................2-8
2.16 Flash Upgrade Mode ....................................................................................2-8
2.17 Front Panel Programming (FPP) Mode.............................................................2-8
SECTION 3 INSTALLATION INSTRUCTIONS
3.1 General......................................................................................................3-1
3.2 Equipment Packing Log ................................................................................3-1
3.3 Transceiver Installation ................................................................................3-1
3.4 Installation Kit - Contents .............................................................................3-1
3.5 Pin Locations and Connections......................................................................3-2
3.6 Wiring Instructions ......................................................................................3-3
3.18 Post Installation Tests..................................................................................3-7
LIST OF TABLES
Table No. Title Page
3-1 25-pin D Connections ..................................................................................3-2
LIST OF ILLUSTRATIONS
Figure No. Title Page
2-1 Operator’s Controls – TDFM-600/6000 ..........................................................2-1

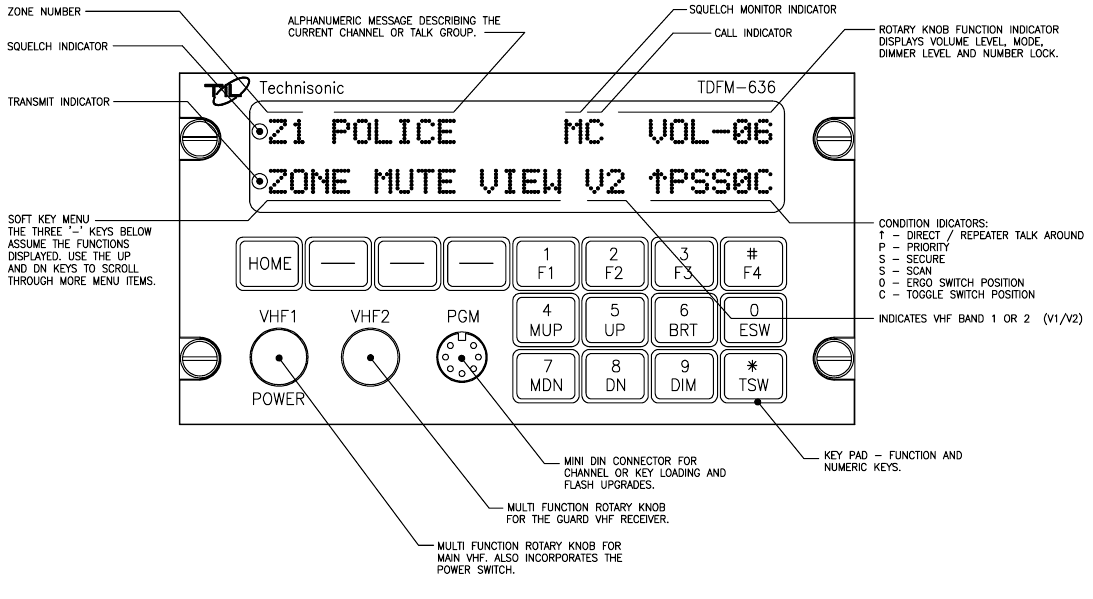

2-2 Operator’s Controls – TDFM-636 ..................................................................2-2

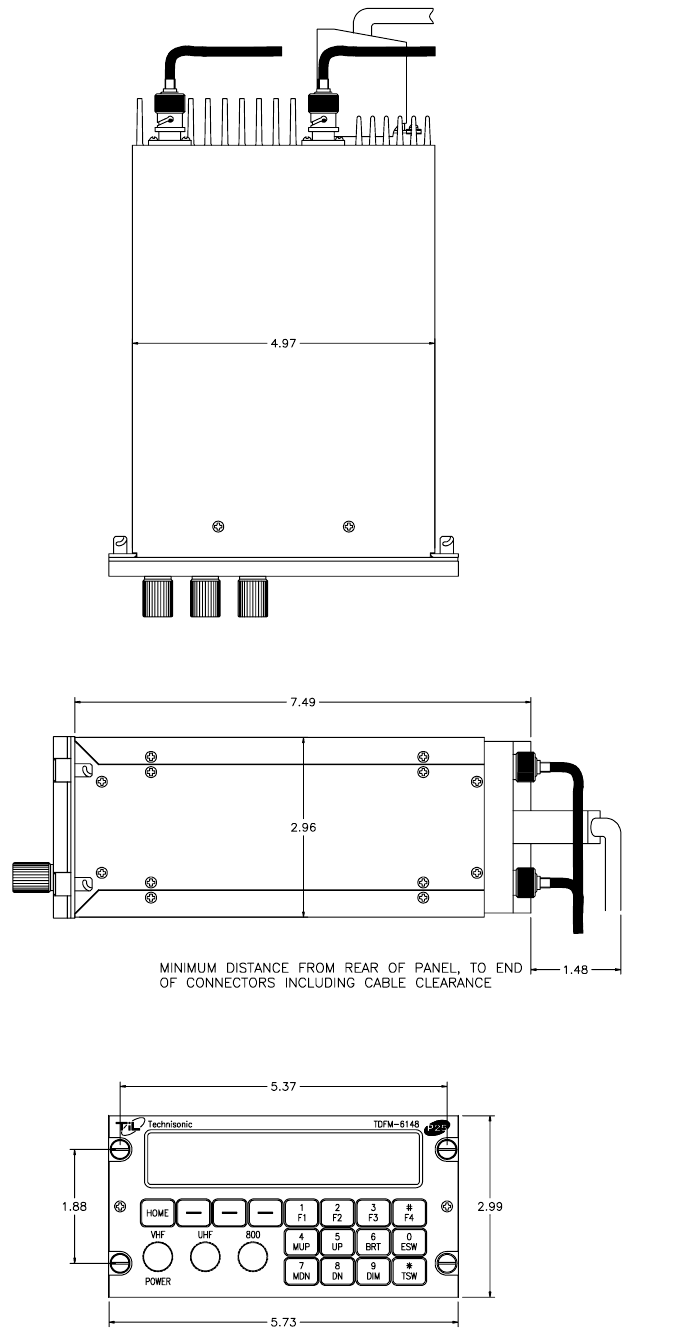

3-1 Outline Drawing ..........................................................................................3-1

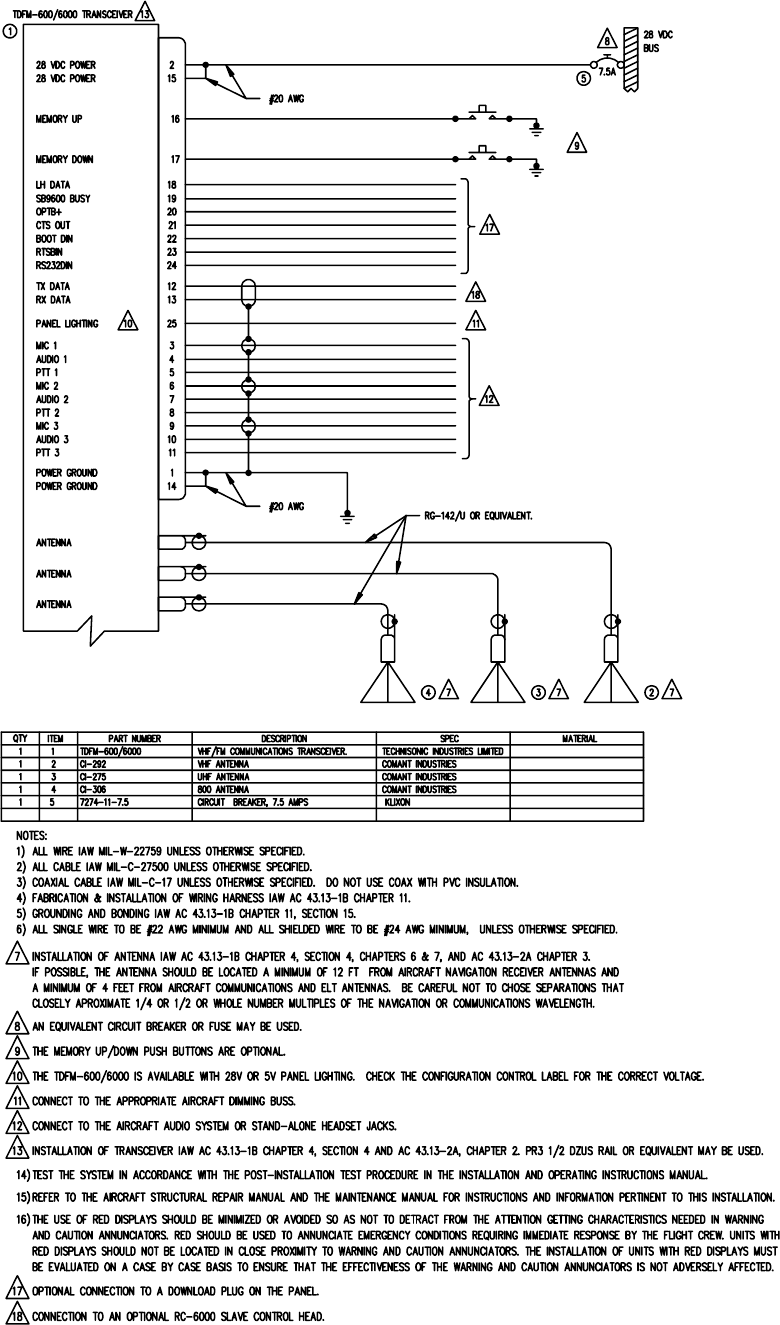

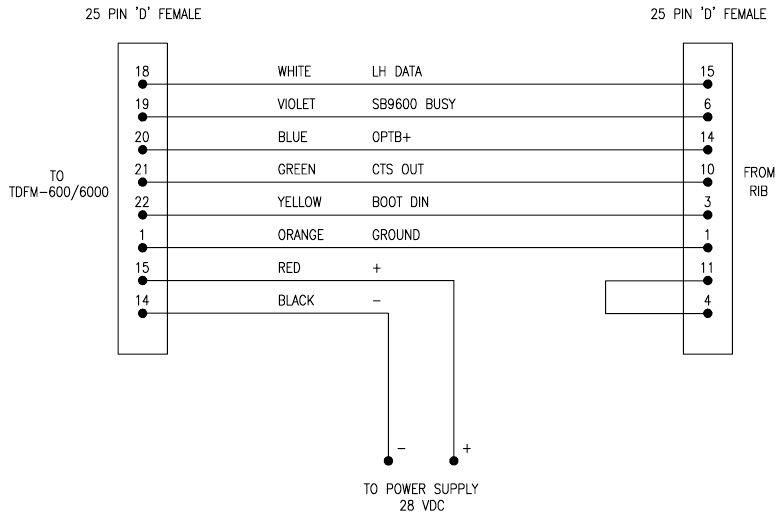

3-2 Wiring Connections and notes.......................................................................3-5
1-1
SECTION 1
GENERAL DESCRIPTION
1.1 INTRODUCTION
This publication provides operating and installation information on the TDFM-600/6000 series airborne
transceiver. The exact model number depends on which and how many RF modules are installed.
1.2 DESCRIPTION
The TDFM-600/6000 series of transceivers are airborne multi-band radios capable of operation in conventional
analog and P25 digital FM systems, SmartNet/SMART ZONE trunking systems and P25 9600 trunking systems.
Type I RF modules are available in VHF, UHFLO, UHFHI and 800 MHz bands. Type II RF modules support
additional optional features not available in type I modules and are currently available in VHF, UHFLO and
700/800 MHz.
These optional additional features include P25 9600 trunking that may be combined with AES and/or DES-OFB
encryption with OTAR in any of the available modules. The factory will only produce radios with all modules of
the type I or type II configuration since different Motorola CPS programming software is required for each type
of module.
It may be possible to retrofit existing type I transceivers with one or more type II modules to support optional
features not available on type I modules. Contact Technisonic for details.
Irrespective of module type the bands are numbered 1, 4, 5 and 8 respectively. The front panel LED display
indicates whether type I or II modules are present upon radio start-up. The transceiver’s part number will also
indicate which type of modules it contains. Please see section 1.3 on Model Variation below for details.
The following are typical model examples:
TDFM-655 - Two UHF high band modules
TDFM-688 - Two 800 MHz modules
TDFM-6148 - One VHF, UHF low and 800 MHz module
TDFM-6158 - One VHF, UHF high and 800 MHz module
Module numbers are always specified in ascending numerical order. ie/ TDFM-6814 is not available.
The one exception to this numbering scheme is the model TDFM-636 which is a VHF transceiver with two type
II VHF modules and a 10 watt RF amplifier for each module.
1.3 MODEL VARIATION
There are several variations of the Model TDFM-600/6000 Transceiver. Each variation offers different
features and performance based on the type of RF modules and options installed.
TDFM-600 Model Variations with type I Modules
TDFM-6XX, P/N 011210-1-6XX/PYYY/28 GREEN display and 28 Volt back lighting.
TDFM-6XX, P/N 011210-1-6XX/PYYY/5 GREEN display and 5 Volt back lighting.
TDFM-6XX, P/N 011210-2-6XX/PYYY/28 RED display and 28 Volt back lighting.
TDFM-6XX, P/N 011210-2-6XX/PYYY/5 RED display and 5 Volt back lighting.
TDFM-6XXNV, P/N 011210-1-6XXNV/PYYY/28 GREEN NV display and 28 Volt back lighting
TDFM-6XXNV, P/N 011210-1-6XXNV/PYYY/5 GREEN NV display and 5 Volt back lighting.
1-2
TDFM-6000 Model Variations with type I Modules
TDFM-6XXX, P/N 011210-1-6XXX/PYYY/28 GREEN display and 28 Volt back lighting.
TDFM-6XXX, P/N 011210-1-6XXX/PYYY/5 GREEN display and 5 Volt back lighting.
TDFM-6XXX, P/N 011210-2-6XXX/PYYY/28 RED display and 28 Volt back lighting.
TDFM-6XXX, P/N 011210-2-6XXX/PYYY/5 RED display and 5 Volt back lighting.
TDFM-6XXXNV, P/N 011210-1-6XXXNV/PYYY/28 GREEN NV display and 28 Volt back lighting
TDFM-6XXXNV, P/N 011210-1-6XXXNV/PYYY/5 GREEN NV display and 5 Volt back lighting.
X is represented by: PYYY represents a 3-digit project number
1 for VHF (138-174MHz) module that identifies specific options that are
4 for UHF Lo (403-470MHz) module contained in the module. The Technisonic
5 for UHF Hi (450-512MHz) module sales department assigns project numbers
8 for 800 MHz (806-870) based on customer requirements. P100
Module numbers must always be and P200 series project numbers are used
specified in ascending order. in transceivers with type I modules.
TDFM-600 Model Variations with type II Modules
TDFM-6XX, P/N 011210-3-6XX/PYYY/28 GREEN display and 28 Volt back lighting.
TDFM-6XX, P/N 011210-3-6XX/PYYY/5 GREEN display and 5 Volt back lighting.
TDFM-6XX, P/N 011210-4-6XX/PYYY/28 RED display and 28 Volt back lighting.
TDFM-6XX, P/N 011210-4-6XX/PYYY/5 RED display and 5 Volt back lighting.
TDFM-6XXNV, P/N 011210-3-6XXNV/PYYY/28 GREEN NV display and 28 Volt back lighting
TDFM-6XXNV, P/N 011210-3-6XXNV/PYYY/5 GREEN NV display and 5 Volt back lighting.
TDFM-6000 Model Variations with type II Modules
TDFM-6XXX, P/N 011210-3-6XXX/PYYY/28 GREEN display and 28 Volt back lighting.
TDFM-6XXX, P/N 011210-3-6XXX/PYYY/5 GREEN display and 5 Volt back lighting.
TDFM-6XXX, P/N 011210-4-6XXX/PYYY/28 RED display and 28 Volt back lighting.
TDFM-6XXX, P/N 011210-4-6XXX/PYYY/5 RED display and 5 Volt back lighting.
TDFM-6XXXNV, P/N 011210-3-6XXXNV/PYYY/28 GREEN NV display and 28 Volt back lighting
TDFM-6XXXNV, P/N 011210-3-6XXXNV/PYYY/5 GREEN NV display and 5 Volt back lighting.
X is represented by: PYYY represents a 3-digit project number
1 for VHF (138-174MHz) module that identifies specific options that are
4 for UHF Lo (380-470MHz) module contained in the module. P300, P400
8 for 700/800 MHz (764-870) and P500 project numbers are used in
Module numbers must always be transceivers with type II modules.
specified in ascending order.
TDFM-636 Model Variations with type II VHF Modules
TDFM-636, P/N 011210-5-636/PYYY/28 GREEN display and 28 Volt back lighting.
TDFM-636, P/N 011210-5-636/PYYY/5 GREEN display and 5 Volt back lighting.
TDFM-636, P/N 011210-6-636/PYYY/28 RED display and 28 Volt back lighting.
TDFM-636, P/N 011210-6-636/PYYY/5 RED display and 5 Volt back lighting.
TDFM-636NV, P/N 011210-5-636NV/PYYY/28 GREEN NV display and 28 Volt back lighting
TDFM-636NV, P/N 011210-5-636NV/PYYY/5 GREEN NV display and 5 Volt back lighting.
PYY represents a 3-digit project number that identifies specific options that are contained in the module. All
TDFM-636 transceivers are shipped as P600 units unless a custom project number is requested. P600
defines specific options in each VHF module. VHF Module 1 supports P25 Trunking, Smart Zone and
SMART NET trunking protocols. VHF Module 2 supports conventional (non-trunked) operation with FPP
(front panel programming) capability. Both modules support secure communications using AES/DES-
OFB/DES/DES-XL encryption formats and P25 OTAR. Custom project numbers can be assigned by the
Technisonic sales department to meet non-standard requirements.
1-3
All model variations are provided with 28 Volt back lighting unless a specific request is made for 5 Volt AC
operation. NV (Night Vision) compatible option is only available with green display.
1.4 TECHNICAL CHARACTERISTICS
Specification Characteristic
Model Designation: TDFM-600/6000
Physical Dimensions: Approx. 8" X 3" X 5.75"
Weight: 4.2 lbs. (1.9 kg)
Operating Temperature Range: -30°C to +60°C
Power Requirement:
Voltage: 28.0 Vdc, ± 15%
Current: 350mA minimum / 5A maximum
Audio Output Power (including sidetone): 500 mW into 600 ohms
Microphone Inputs: Carbon or Equivalent
Panel Back Lighting:
Voltage: 28 VDC or 5VAC
(specified when ordered)
Current: 100mA max. @28VDC
400mA max. @5VAC
Type I Modules
RF Output Power: 1 or 5 Watts (VHF)
1 or 4 Watts (UHF)
1 or 3 Watts (800)
Frequency Range - VHF Module: 136 to 178 MHz
UHF LO Module: 403 to 470 MHz
UHF HI Module: 450 to 512 MHz
800 Module: 806 to 870 MHz
No. of channels per band: 255 pre-programmable channels
Transmitter section VHF UHF 800
FM Hum and noise in dB (wideband): -48 -45 -45
Frequency Stability in ppm: ±2.0 ±2.0 ±1.5
Audio Distortion (at 1000Hz): <2% <2% <2%
Modulation Limiting: Wide band ±5kHz
Narrow band ±2.5kHz
1-4
1.3 TECHNICAL CHARACTERISTICS (continued)
Receiver section VHF UHF 800
Sensitivity
in uV:
*Digital 1% BER (12.5kHz) 0.35 0.35 0.45
*Digital 5% BER (12.5kHz) 0.25 0.25 0.25
**Analog with 12dB SINAD 0.25 0.25 0.25
Selectivity
in dB:
25 kHz Channel -78 -78 -75
12.5 kHz Channel -67 -68 -63
Intermodulation (dB) * ** -78 -77 -74
Type II Modules
RF Output Power: 1 or 7 Watts (VHF)
1 or 5 Watts (UHF)
1 or 3 Watts (800)
1 or 10 Watts (TDFM-636)
Frequency Range - VHF Module: 136 to 178 MHz
UHF LO Module: 380 to 470 MHz
700/800 Module: 764 to 870 MHz
No. of channels per band: 512 pre-programmable channels
240 channels (15 zones of 16 channels)
in modules with Front Panel Programming.
Transmitter section VHF UHF 800
FM Hum and noise in dB (wideband): -48 -45 -45
Audio Distortion: 1% 1.5% 1.5%
Frequency Stability (ppm): ±2.0 ±2.0 ±1.5
Modulation Limiting: Wide band ±5kHz
Narrow band ±2.5kHz
Receiver section VHF UHF 800
Sensitivity
in uV:
*Digital 1% BER (12.5kHz) 0.25 0.25 0.40
*Digital 5% BER (12.5kHz) 0.25 0.25 0.25
**Analog with 12dB SINAD 0.25 0.25 0.25
Selectivity
in dB:
25 kHz Channel -80 -78 -72
12.5 kHz Channel -63 -63 -63
Intermodulation * ** -78 -77 -75
*Measured in digital mode per TIA/EIA IS 102.CAAA under nominal conditions.
** Measured in analog mode per TIA/EIA 603 under nominal conditions.
2-1
SECTION 2
OPERATING INSTRUCTIONS
2.1 GENERAL
A 2 line display and a keypad and 2 or 3 rotary knobs provide the operator control of the 2 or 3 RF modules
installed in the unit. The display is showing the activity of one RF module at a time, selected by pressing the
desired knob. The knobs have multiple functions including volume, channel, display dimmer. The microphone,
key line and headphone audio are separate for each of the two or three bands therefore switching from band to
band is performed at an audio panel such as the Technisonic A710 series. This allows for separate and
simultaneous operation on each of the bands just like having 2 or 3 separate radios. If combined operation is
desired, a Technisonic AMS-6000 audio mode selector may be used ahead of the audio controller.
2.2 FRONT PANEL
Refer to the diagrams below:

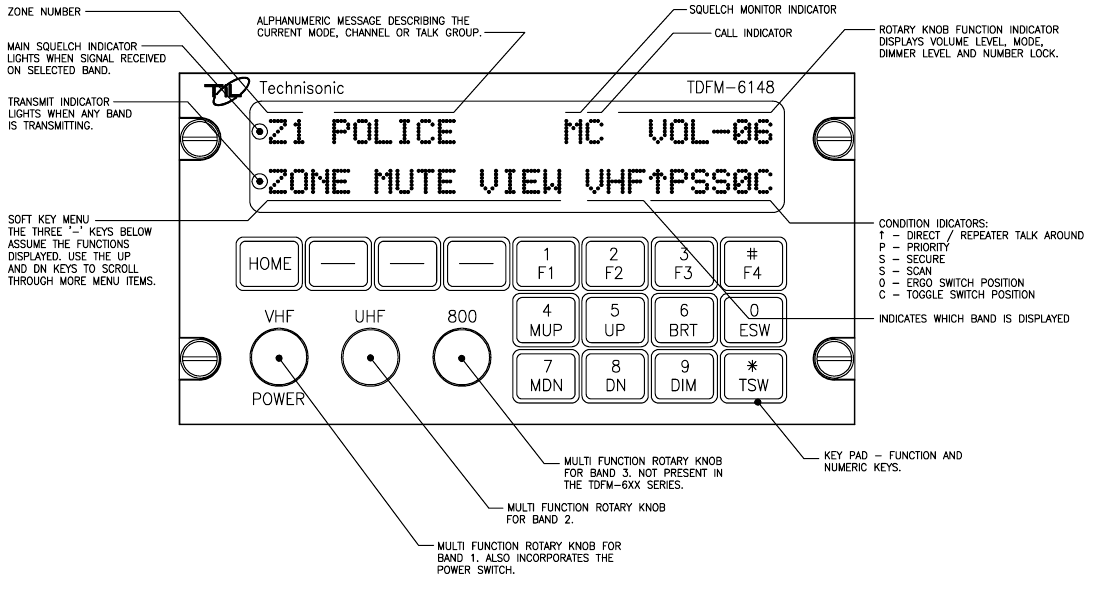

Figure 2-1 Front panel Controls – TDFM-600/6000 Series Transceivers (not including TDFM-636)
2-2
Figure 2-2 Front panel Controls – TDFM-636 Transceiver Only
2.3 POWER SWITCH
To switch the transceiver on, press and hold the left most knob until the radio powers up. The display will
show
TECHNISONIC
and the software version installed followed by the model number as determined by which
RF modules are installed. The display will then show the normal display for band 1. To switch off the
transceiver at any time, press and hold the left most knob for 2 seconds until the display shows
OFF
then
release. If it is desired that the radio comes on with the radio master in the aircraft, a power jumper may be
installed (see installation instructions) such that the radio is always on.
2.4 KNOBS
The transceiver will have two or three knobs depending on how many RF modules are installed. The knobs are
rotary encoders which turn endlessly which means their actual position is not important. Each knob also has a
push button incorporated in it so you can press the knob as well as turn it. Pressing a different knob will cause
the display and keyboard to switch to the band associated with that knob. The knob will start out as a volume
control. Pressing the same knob again will change its function to act as the channel/talkgroup selector
depending on how that band is programmed. Pressing the same knob again changes the function of the knob
to a display dimmer control. Pressing the knob again causes the key pad function to change from function keys
to number keys. The knob in this mode acts as a volume control. Another knob press will bring you the recall
mode (if this feature is enabled in the configuration menu). Typing in the channel number will bring you quickly
to that channel without scrolling through channels in between. Pressing the knob again brings it back to the
first mode of volume control. The current function of the knob is shown at the top right of the display.
2-3
The function of the knobs for the unselected bands is always the volume control mode. The starting mode
(when the band is selected) of the knob can be programmed in the configuration menu to be VOLUME or
CHAN.
2.5 SOFT KEYS AND HOME
The transceiver has three
soft
keys which assume the function shown above them on the display. The
functions displayed depend on how the module was programmed with the radio service software (CPS)™.
Functions can be different on a channel by channel basis as well. These may include:
ZONE - Pressing this function will prompt you for a new zone number which can be entered directly or
scrolled using the UP and DN keys.
MUTE - Selecting this function will prompt you for an on or off entry using the soft keys to mute the
tones. Tones refer to the beeps heard when pressing buttons.
VIEW - The view function is used to view lists. Lists can include phone numbers, call lists and or page.
PWR - Selecting PWR will allow the power output of the radio to be set to high or low.
PROG - Selecting PROG allows brings you to user programmable features of the radio such as
telephone numbers. The ability for the user to program phone numbers, etc can be enabled or
disabled by the CPS™.
FPP – Front Panel Programming mode. Allows you to program channels at the front panel without the
customer programming software. This option usually on VHF band 2 (V2) in the TDFM-636
only.
At any time while in one of these functions, you can escape back to the normal mode by pressing the HOME
key. When programming the modules with the CPS™, it is suggested not to double up functions. For example,
programming a soft key to CHAN would be redundant since there is already a channel function using the
knobs. Using the CHAN soft key would also not update the channel number on the display, causing some
confusion.
2.6 FUNCTION KEYS
Four function keys at the top of the keypad provide the same actions as the three side buttons and the top
button found on the XTS-3000 or XTS-5000 portable. They are as follows:
F1 - Top side button (purple button) on the portable.
F2 - Center side button (with one dot) on the portable.
F3 - Bottom side button (with two dots) on the portable.
F4 - Top button (orange button) on the portable.
2-4
TDFM-600/6000 Transceiver Recommended Keypad Menu Defaults:
TDFM-600/6000
Series
Transceiver
ITEM
Portable
ITEM
Conventional
Operation
SmartNet
Operation
SMARTZONE
Operation
F1 Key
Top Side
Button 1
Monitor
Phone
Phone
F2 Key
Center Side
Button 2
Scan
Scan
Scan
F3 Key
Bottom Side
Button 3
Talkaround/
Direct
Private Call
Site
Display/Search
F4 Key
Orange (Top)
Button
Emergency
Emergency
Emergency
MUP and
MDN keys
16-Position
Rotary Knob
Channel Select
Channel Select
Channel Select
ESW Key
Two-Position
Concentric or
Ergo Switch
Blank (O)
Low Power ()
Blank (O)
Low Power ()
Blank (O)
Low Power ()
TSW Key
Three-Position
Toggle Switch
Blank (A)
Scan (B)
Blank (C)
Blank (A)
Scan (B)
Blank (C)
Blank (A)
Scan (B)
Blank (C)
Note: It is possible to use Motorolas Customer Programming Software (CPS™) to alter the default keypad
settings of the TDFM-600/6000 series radios. However if custom key settings are chosen it will not be
possible for Technisonic to help the Pilot or other Radio User through operational difficulties. These
questions will have to be referred to the Radio System Administrator responsible for customising the
settings. Technisonic recommends that the default key settings stay in place until all airframe
installation and operational issues have been overcome.
The TDFM-600/6000 series Transceivers are programmable by Motorola CPS™. The following settings may be
programmed for each Channel in a Conventional Radio:
Tx Frequency Zone
Tx PL/DPL Code Channel
Rx Frequency Name
Rx PL/DPL Code RX Signal Voice Type
Time-Out Timer TX Signal Voice Type
Scan List Network Access Code
Phone Tx Power
Smart PTT
2-5
The following settings must be programmed for each mode in a Trunked (P25 9600, SmartNet or SMARTZONE)
Radio:
System Type TG Strapping
System ID Zone
Individual ID Scan List
Coverage Type Scan Type
Affiliation Type Interconnect
Control Channel 1 Phone Display Format
Control Channel 2 Private Call
Talkgroup 1 Private Call Type
Talkgroup 2 Private Call Operation
The function keys along with the rest of the key pad, revert to normal number keys during transmit and when
NUM LOCK is selected by pressing the rotary knob.
2.7 MUP AND MDN KEYS
These keys provide the same function as the rotary knob does when it is set to CHAN. This equates to the 16
position rotary knob on the portable. When one of these keys is pressed, the function of the rotary knob is
automatically set to CHAN.
2.8 UP AND DN KEYS
The keys provide the same function as the left and right arrow keys on the portable. The UP key equates to the
right arrow key. These keys are used for a variety of functions but in the normal mode they are used to scroll
through the soft key menus.
2.9 BRT AND DIM KEYS
Use these keys to dim or brighten the display. The radio powers up at full brightness for normal use but can be
dimmed for night operations.
2.10 ESW KEY
The ESW key provides the function of the concentric or ergo switch on the portable. The switch has two
conditions which are represented by O’ and . Pressing the ESW key toggles the condition back and forth.
The condition is displayed at the bottom of the display, second character from the right. The ergo switch
condition is saved when the unit is turned off. There are separate conditions for each band installed. The ESW
key can be programmed with the CPS™ to a variety of functions such as low power, scan, channel, and secure
mode.
2.11 TSW KEY
The TSW key provides the function of the toggle switch on the portable. The switch has three conditions
which are represented by A’, ‘B and C. Pressing the TSW key toggles the condition A,B,C,A,B, etc. The
condition is displayed at the bottom of the display, last character on the right. The toggle switch condition is
saved when the unit is turned off. There are separate conditions for each band installed. The TSW key can be
programmed with the CPS™ to a variety of functions such as low power, scan, channel, and secure mode.
2-6
2.12 DISPLAY
The transceiver has a two line, 48 character LED display which gives information about the selected band. On
the top line is shown the zone number, channel name and rotary knob function. The bottom line displays the
soft key menu, the band selected, and the ESW/TSW condition. Also displayed are letters and symbols
indicating scan, direct/repeater talk around, monitor, secure, priority and call. In addition to the character
display, there are two LED indicators on the left. The top LED indicates a signal is being received on the
selected band while the bottom LED indicates that any one or more of the installed bands are transmitting.
2.13 GENERAL OPERATION
Switch on the transceiver as described in 2.3. Select the desired band by pressing the appropriate knob. Select
the same band on the audio panel. Press the knob again so that CHAN shows up on the top right of the
display. Rotate the knob until the desired channel or talk group is selected. Press the knob until VOL is again
shown on the display. You can adjust the volume by waiting until a signal is received or by pressing F1 (factory
programmed for monitor function) and adjusting the rotary knob. The radio is ready to use. Remember that the
band selected by pressing the rotary knobs is what is displayed on the screen but the band selected by the
audio panel is band that you are actually transmitting and receiving on. If another band is displayed, the rotary
knob for the band you are using is still operating the volume level. To use the DTMF key pad while
transmitting, the band you are using must be displayed on the screen.
2.14 CUSTOMER PROGRAMMING SOFTWARE (CPS™)
To make any changes to the programming in the radio, CPS™ software must be used. There is no provision in
the radio to allow the user to change frequencies, zones, talk groups, etc. CPS™ software can be purchased
from Motorola Customer Service (see following page). A Motorola Radio Interface Box (RIB) is required to
connect the computer to the TDFM-600/6000. Each band in the TDFM-600/6000 is considered a type I (XTS-
3000) or a type II (XTS-5000) portable by the CPS™ software. To program a band in the transceiver, it must be
selected by pressing the appropriate knob before running the CPS™. Follow the instructions supplied with the
CPS™ and RIB. The
radio cable supplied
with the RIB will
not connect to the
TDFM-600/6000,
therefore you will
need to fabricate or
purchase the type I
programming cable,
P/N 013524-1.
FIGURE 2-2
Type I
(XTS-3000)
Programming
Cable
(Requires RIB)
2-7
2.14 CUSTOMER PROGRAMMING SOFTWARE (CPS™) - continued
Programming Cables for units with Type I modules
The following items are Motorola part numbers and are required to program the TDFM-600/6000 with type
I modules. They must be purchased from Motorola Customer service (1-888-567-7347).
P/N RVN4182 CPS Programming Software, Note: Latest revision will be provided.
P/N RLN10150 Smart RIB Interface Box
P/N 0180202E27 Smart RIB AC PWR PAC 110V
P/N 3080390B48 Computer RIB Cable
A Technisonic type I programming cable P/N 013524-1 is also required and available from Technisonic.
If encryption keys need to be loaded via a KVL-3000, key loader cable P/N 047381-1 may be also be
obtained from Technisonic. This keyloader cable will plug into the rear connector of the TDFM-600/6000
transceiver and work with type I or type II modules.
If the AMS-6000 is used with a TDFM-600/6000 transceiver with type I modules the following
programming cables plug directly into the AMS-6000 front panel connector. They are available from
Technisonic.
P/N 037347-1 AMS-6000 Download/Programming Cable that mates with RIB interface
Box to program TDFM-600/6000 units employing type I modules.
P/N 037352-1 AMS-6000 Encryption Keyload Cable that mates with Motorola KVL-3000
Keyloader. Same P/N for type I or type II modules.
Programming cables for units with Type II modules
The TDFM-600/6000 series transceivers that employ type II modules do not require a Smart RIB box, AC
power pack or computer RIB cable. A Technisonic PC-6000 II programming cable, P/N 047366-1 and
Motorola CPS Programming software, P/N RVN4186 (Latest revision) is all that is required to program
transceivers with type II modules. Programming cable P/N 047366-1 must be ordered from Technisonic and
cannot be field fabricated. The CPS Programming software P/N RVN4186 must be ordered from Motorola
Customer service (1-888-567-7347).
If encryption keys need to be loaded via a KVL-3000, key loader cable P/N 047381-1 may be also be
obtained from Technisonic. This keyloader cable will plug into the rear connector of the TDFM-600/6000
transceiver and work with type I or type II modules.
If the AMS-6000 is used with a TDFM-600/6000 transceiver with type II modules the following
programming cables plug directly into the AMS-6000 front panel connector. They are available from
Technisonic.
P/N 047365-1 AMS-6000/TDFM-636 Download/Programming Cable that mates with PC computer
to program TDFM-600/6000 units employing type II modules.
P/N 037352-1 AMS-6000/TDFM-636 Encryption Keyload Cable that mates with Motorola KVL-
3000 Keyloader. Same P/N for type I or type II modules.
The TDFM-636 transceiver employs a front panel programming connector identical to the AMS-6000. The
above cables can plug directly into the TDFM-636 front panel.
2-8
2.15 CONFIGURATION MENU
Some features of the TDFM-600/6000 transceiver can be configured to the user’s preference. To enter the
configuration menu, turn the unit on while simultaneously pressing the F4, ESW and TSW keys. Hold the
keys until the display reads ‘Configuration Menu’. The first menu item to show will be
‘Knob Default’
.
Rotating the left knob will toggle back and forth between ‘volume’ and ‘channel’. This will select which
mode the knobs will be in when you select a band or when the radio is first turned on. Press the left knob
to accept the desired setting. The next menu item is
‘Recall Mode’
. Rotating the left knob will enable and
disable this feature. When enabled, a recall mode is added to the available knob functions. Press the left
knob to accept the desired setting. The last menu item is the
‘Auto reset’
function. Rotating the left knob
will toggle the function ‘enabled’ or ‘disabled’. This function should be left enabled. However, if a module
has failed or has been removed from the radio, this feature should be disabled to prevent the radio from
continuously trying to establish communication with the missing or failed module. Press the left knob to
accept the setting. The radio will then power up normally. The radio will keep these settings until they are
changed again by the configuration menu.
2.16 FLASH UPGRADE MODE
On occasion it may be required to flash upgrade one or more of the modules in the radio to change or add
new features. This can be done using the Motorola RIB box and software supplied in a Motorola flash
upgrade kit. The transceiver must be put into flash upgrade mode by turning on the radio while holding the
HOME key. Select the band to be upgraded by pressing the desired band knob. Follow the software
instructions. During the flash procedure, the software will ask you to turn off and on the radio, use the
RESET soft key, do not turn off the transceiver.
2.17 FRONT PANEL PROGRAMMING (FPP) MODE
One of the bands may have the capability to program channel information such as frequencies, PL tones,
modulation types, etc from the front panel. ‘FPP’ will show up as one of the soft menu items at the bottom
of the screen. When the FPP soft key is pressed, you will be prompt for channel information. Wait until the
cursor is flashing then press ‘OK’ for the next input or press ‘QUIT’ to finish and get out of the
programming mode. All changes up to that point will be saved. The prompts are as follows:
TX Frequency – Enter the desired transmit frequency using the numeric key pad. If the
frequency entered is not within band limits or not on proper channel spacing, the
frequency will automatically be changed to the closest valid channel.
RX Frequency – Enter the desired receive frequency.
TX PL – Enter the desired transmit PL tone frequency. After the last digit is pressed the radio will
verify that it is a valid frequency and flash the first cursor again. Press ‘OK’ at this time.
The transceiver supports all standard PL tones. (Also known as CTCSS tones) TXPL tones
are generally used to open repeaters or in talk groups where the receivers are squelch
protected by PL tones. Enter ‘000.0’ for no tone. PL tones are used by analog mode only.
RX PL – Enter the desired receive PL tone frequency. Enter ‘000.0’ no tone – carrier squelch
operation.
TX DPL – Enter the desired DPL code. You can not have both a PL and a DPL at the same time.
The one that is entered last will turn the other off. A DPL of 000 means off.
DPL codes are also known as DCS codes.
RX DPL – Enter the receive DPL code as above.
TX NAC – Enter the desired transmit P25 NAC code if using digital, otherwise just press ‘OK’.
The code is hexadecimal therefore the letters A to F could also be used. Press the ‘A-F’
soft key to use buttons 1-6 as A-F. A NAC or Network Access Code is used like PL
tones but are only used by P25 (digital) mode. A value of 293 is considered to be the
standard code for open channel.
2-9
2.17 FRONT PANEL PROGRAMMING (FPP) MODE - continued
RX NAC – Enter the desired receive P25 NAC code as above.
RX TYPE – Select the receive mode using the UP and DN keys – Analog, digital or mixed.
Mixed mode will allow the receiver to decode analog and P25 digital signals as needed.
TX TYPE – This prompt will only come up if you selected mixed for RX. Select analog or digital.
BANDWIDTH – Select 12.5, 20.0 or 25.0 kHz using the UP and DN keys. Bandwidth may also
be called ‘Channel Spacing’.
CHANNEL NAME – Use the UP and DN keys to scroll to the desired letter and press the NXT
soft key to get to the next character. Press ‘OK’ when done. There will be a delay while
the channel is saved, then the display will return to normal.
The following is a list of the standard PL tones:
Number Tone Number Tone Number Tone
01 67.0 13 103.5 25 156.7
02 71.9 14 107.2 26 162.2
03 74.4 15 110.9 27 167.9
04 77.0 16 114.8 28 173.8
05 79.7 17 118.8 29 179.9
06 82.5 18 123.0 30 186.2
07 85.4 19 127.3 31 192.8
08 88.5 20 131.8 32 203.5
09 91.5 21 136.5
10 94.8 22 141.3
11 97.4 23 146.2
12 100.0 24 151.4
Standard DPL Codes:
017 051 116 156 243 266 346 431 466 612 721
023 053 122 162 244 271 351 432 503 624 731
025 054 125 165 245 274 356 445 506 627 732
026 065 131 172 246 306 364 446 516 631 734
031 071 132 174 251 311 365 452 523 632 743
032 072 134 205 252 315 371 454 526 654 754
036 073 143 212 255 325 411 455 532 662
043 074 145 223 261 331 412 462 546 664
047 114 152 225 263 332 413 464 565 703
050 115 155 226 265 343 423 465 606 712
3-1
SECTION 3
INSTALLATION INSTRUCTIONS
3.1 GENERAL
This section contains information and instructions for the correct installation of the TDFM-600/6000
Transceiver.
3.2 EQUIPMENT PACKING LOG
Unpack the equipment and check for any damage that may have occurred during transit. Save the original
shipping container for returns due to damage or warranty claims. Check that each item on the packing slip has
been shipped in the container.
3.3 INSTALLATION
The TDFM-600/6000 Transceiver is designed to be dzus mounted and should be installed in conjunction with
an IN-600 installation kit. See figure 3-1 for an outline drawing of the unit with dimensions to facilitate the
installation.
3.4 INSTALLATION KIT - CONTENTS
The IN-600 installation kit (P/N 019301-1) consists of:
1. One 25 pin Cannon D mating connector (female) complete with crimp pins and hood.
2. 3 BNC connectors.
3.5 ANTENNA INSTALLATION
The type and number of antennas depends on the model of transceiver being installed. The following is a list of
recommended antennas for the various RF modules:
VHF 136 to 176 MHz Comant part # CI-292
UHFLO 403 to 470 MHz Comant part # CI-275
UHFHI 450 to 512 MHz Comant part # CI-275
800 806 to 870 MHz Comant part # CI-306
The antenna should be mounted on the bottom of the aircraft whenever possible. Consult with instructions
provided with the antenna. Connect the RF cables to the back of the transceiver using the BNC connectors
provided in the installation kit.
3-2
FIGURE 3-1 OutlineDrawing for Model TDFM-600/6000
3-3
3.6 INSTALLATION - PIN LOCATIONS AND CONNECTIONS
J1 - 25 Pin D Connections - Use FEMALE Connector
Pin #
Description
1 Ground
2 Main Power +28 VDC
3 Mic 1
4 Audio 1
5 PTT 1
6 Mic 2
7 Audio 2
8 PTT 2
9 Mic 3 (TDFM-6000 only)
10 Audio 3 (TDFM-6000 only)
11 PTT 3 (TDFM-6000 only)
12 TX Data
13 RX Data
14 Ground
15 Main Power +28 VDC
16 Channel Up
17 Channel Down
18 LH Data
19 SB9600 Busy
20 OPTB+
21 CTS Out
22 Boot DIN
23 RTSBIN
24 RS232DIN
25 Panel Backlighting
TABLE 3-1
3.7 INSTALLATION - WIRING INSTRUCTIONS
Figure 3-2 shows all required connections and recommended wire sizes for the TDFM-600/6000
transceiver.
3.8 MAIN GROUND - PINS 1 AND 14
Both pins should be connected to ground. The main ground is internally connected to the chassis.
3.9 MAIN POWER +28 VDC - PINS 2 AND 15
Both pins should be connected to +28 volts DC +/- 15%.
3-4
3.10 MIC 1, 2 AND 3 - PINS 3, 6 AND 9
The microphone input signals shall be connected using shielded wire with the shield connected to ground
(pin 1 or 14). It is recommended for best results to leave the other end of the shield floating to prevent
ground currents unless you are connecting to an audio panel with floating hi and lo inputs (like the
Technisonic A710 or A711 series) in which case the shield must be connected to the lo input.
3.11 AUDIO 1, 2 AND 3 - PINS 4, 7 AND 10
Audio outputs 1, 2 and 3 are 600 ohms impedance against ground. The output power is 500 mW
maximum.
3.12 PTT 1, 2 AND 3 - PINS 5, 8 AND 11
The PTT lines should be floating when in receive and grounded for transmit. The input has a pull up resistor
to 5 volts. Connecting an audio panel which wishes to see more, may result in no receive audio. Connect a
1N4006 diode in series with the cathode towards the audio panel in this case.
3.13 TX DATA AND RX DATA - PINS 12 AND 13
These are an RS-232 serial port for the RC-6000 remote control head if installed. Consult the RC-6000
installation manual for details.
3.14 CHANNEL UP AND CHANNEL DOWN - PINS 16 AND 17
These pins can be used to scroll up and down through the zone/channel/mode/talk group selections for the
band currently displayed on the screen. The inputs normally floating are grounded to activate. Two push
buttons or a center off, SPDT, spring loaded toggle switch are typically used on these inputs.
3.15 LH DATA, SB9600 BUSY, OPTB+, CTS OUT, BOOT DIN, RTSBIN AND RS232DIN - PINS 18 THROUGH
24
These pins are used for programming or updating the transceiver using Motorola Radio Service Software
(RSS™) or encryption key loading and are generally left unconnected. However, if it is desirable to update
the radio without removing it from the aircraft, these lines can be run to a 25 pin D male connector located
on the panel where a laptop computer can plug in. Use the same pin numbers so the programming cable
described in section 2 can be used (minus the power pins).
3.16 PANEL BACKLIGHTING - PINS 25
Connect to aircraft panel dimming bus. The transceiver comes with either 28 VDC or 5 VAC backlighting
circuits. Check the label on the side of the transceiver before applying power.
3.17 POWER JUMPER
The radio must be turned on manually each time the avionics bus is switched on. If it is desired that the
radio comes on with the radio master in the aircraft, remove the right side panel from the radio and install a
0.1” jumper across JP1 (two pins) near the rear of the radio on the right side of the MCU board. If you
attempt to turn off the radio with the jumper installed, it will just come back on again in 5 seconds.
3-5
FIGURE 3-2 Wiring connections and notes for the TDFM-600/6000 Transceiver
3-6
3.18 POST INSTALLATION EMI TEST
PURPOSE
The purpose of this test is to identify any interference that the TDFM-600/6000 transceiver
may cause with existing aircraft systems.
TEST CONDITIONS
The TDFM-600/6000 transceiver should be installed and function tested. The antenna VSWR
should be checked. A forward/reverse power check with a in-line wattmeter should show no
more than 10% reflected power. For the following tests, insure that the output power is set to
high.
METHODOLOGY
Most of the EMI tests can be accomplished on the ground. In some cases flight testing is
required or is easier. If the aircraft is approved for IFR operations, then it is mandatory that
interference between the TDFM-600/6000 transceiver and the approach aids be checked in
flight.
The GPS should be operational and navigating with at least the minimum compliment of
satellites. The VHF comm should be set to the frequencies indicated with the squelch open.
VOR/DME receivers should be set to the frequencies indicated and selected for display. If
possible, set up a DME ramp test set on the frequencies indicated and adjust the output until
the flags are out of view. The transponder and encoder should be monitored with ramp test
equipment. Set the output of the transponder test set to 3db above the output necessary to
achieve 90% reply. If possible set the ADF to a nearby navigation station.
Modulate the TDFM-600/6000 transmitter on the indicated frequencies for at least 20 seconds.
Observe the GPS for any degradation in satellite status or availability or flags. Listen for any
noise or detected audio signals on the VHF comm(s). Listen for any noise or detected audio
signals on the VOR/LOC receiver audio; look for any moment of flags or needles on the
VOR/LOC/GS navigation display(s). Observe the transponder for any loss of reply or spurious
reply.
List the power plant, fuel and other electric instruments in the chart provided and note any
anomalies that occur while transmitting. Assess the results.
If the aircraft is equipped with an autopilot or a stability augmentation system, then test fly the
aircraft and verify that operation of the TDFM-600/6000 transceiver does not have adverse
effects on these systems. After checking for gross effects at a safe altitude, fly an approach
with each of the different navigation systems coupled to the autopilot (ILS, GPS ETC.) and
look for any anomalies.
3-7
RESULTS
If the installed system passes all of the applicable EMI tests, then no further action is required.
If interference is observed then the interference must be assessed against the appropriate
standards of airworthiness for the system in question. For example it is permissible for a VFR
certified GPS to lose navigation capability while the TDFM-600/6000 unit is transmitting,
providing that it recovers properly and promptly, but it is not permissible for an IFR Approach
certified GPS to be affected in the same way. A complete discussion of all the standards of
airworthiness to be applied in assessing EMI effects is beyond the scope of this document.
PROCEDURE
A. Operate the TDFM-600/6000 transmitter on the following frequency for at least 20 seconds.
Observe the GPS for any degradation in satellite status or availability or flags.
FREQUENCIES
GPS #1
GPS #2
TDFM-600/6000
PASS
FAIL
PASS
FAIL
143.2125 MHz
143.2250 MHz
157.5375 MHz
157.5500 MHz
512 MHz
NOTES:
B. Determine if the image frequency for the VHF Comm falls within the range of the TDFM-
600/6000. If so, select a set of frequencies that will cause the TDFM-600/6000 to be set as
close as possible to the image frequency. Any one of the many possible sets will suffice.
Record those values in the spaces provided in the following chart. Modulate the TDFM-
600/6000 transmitter on the following frequencies for at least 20 seconds. Listen for any noise
or detected audio signals on the VHF comm.
Example - Bendix/King KY 196A:
The first IF frequency is 11.4 MHz. The L.O. is above the received frequency (high side
injection), therefore the image frequency is 22.8 MHz above the selected frequency. Set the
KY 196A to 120.000 MHz and the TDFM-600/6000 to 142.8000 MHz.
3-8
FREQUENCIES
RESULTS
VHF #1
TDFM-600/6000
PASS
FAIL
135.975
136.0000
121.150
157.5000
131.250
157.5000
Image:
FREQUENCIES
RESULTS
VHF #2
TDFM-600/6000
PASS
FAIL
135.975
136.0000
121.150
157.5000
131.250
157.5000
Image:
NOTES:
C. Determine if the image frequency for the VOR/ILS Nav falls within the range of the TDFM-
600/6000. If so, select two sets of frequencies that will cause the TDFM-600/6000 to be set as
close as possible to the image frequency. Choose one set in the localizer frequency range
and one in the VOR frequency range. Record those values in the spaces provided in the
following chart. Modulate the TDFM-600/6000 transmitter on the following frequencies for at
least 20 seconds. Listen for any noise or detected audio signals on the receiver audio; look
for any moment of flags or needles on the navigation display.
FREQUENCIES
RESULTS
VOR/ILS #1
TDFM-600/6000
PASS
FAIL
108.000
162.0000
108.100
162.1500
Image:
3-9
FREQUENCIES
RESULTS
VOR/ILS #2
TDFM-600/6000
PASS
FAIL
108.000
162.0000
108.100
162.1500
Image:
NOTES:
D. Modulate the TDFM-600/6000 transmitter on the following frequencies for at least 20 seconds.
Observe the Glideslope displays. Look for any movement of flags or needles on the
navigation display.
FREQUENCIES
RESULTS
G/S #1
TDFM-600/6000
PASS
FAIL
334.7 (108.1)
167.35
FREQUENCIES
RESULTS
G/S #2
TDFM-600/6000
PASS
FAIL
334.7 (108.1)
167.35
NOTES:
3-10
E. Operate the TDFM-600/6000 transmitter on the following frequency for at least 20 seconds.
Observe the Transponder for any spurious replies or loss of reply to test set.
FREQUENCIES
TRANSPONDER #1
TRANSPONDER #2
TDFM-600/6000
PASS
FAIL
PASS
FAIL
512 MHz
NOTES:
F. Modulate the TDFM-600/6000 transmitter on the following frequencies for at least 20 seconds.
Observe the DME displays. Look for loss of distance information on the display.
FREQUENCIES
RESULTS
DME 1
TDFM-600/6000
PASS
FAIL
978 (108.0)
489
1020 (112.1)
510
FREQUENCIES
RESULTS
DME 2
TDFM-600/6000
PASS
FAIL
978 (108.0)
489
1020 (112.1)
510
NOTES:
3-11
NOTE:
For the following tests, select a frequency at the top, middle and bottom of each band of the TDFM-
600/6000 transceiver.
136 to 178
MHz Band
403 to 470
MHz Band
450 to 512
MHz Band
806 to 870
MHz Band
Frequency
#1
Frequency
#2
Frequency
#3
H. At a safe altitude engage the autopilot or stability augmentation system. Modulate the TDFM-
600/6000 transmitter on the above frequencies for at least 20 seconds. Observe any effect on
the autopilot or stability augmentation system.
Observations:
I. Perform a coupled ILS approach to the aircraft's certified limits. Modulate the TDFM-600/6000
transmitter on the above frequencies for at least 20 seconds. Observe any effect on the
autopilot. Repeat for second flight director/autopilot if equipped.
Observations:
3-12
J. List the power plant, fuel and other electric instruments in the chart provided and note any
anomalies that occur while transmitting. Assess the results.
STEP
SYSTEM
PASS
FAIL
NOTES
1
Com 1&2
(UHF Lo, UHF Hi, and 800
MHz)
2
Transponder & Encoder
(VHF, UHF Lo, and 800
MHz)
3
ADF 1 & 2
4
VG
5
Glideslope 1&2
(UHF Lo, UHF Hi, and 800
MHz)
6
VOR/LOC 1&2
(UHF Lo, UHF Hi, and 800
MHz)
7
Compass
8
Directional Gyro
9
Fuel Pressure
10
Oil Temp
11
Amps
3-13
STEP
SYSTEM
PASS
FAIL
NOTES
12 Bus Voltage
13
Fuel %
14
Ng
15
TOT
16
Torque %
17
Annunciators
18
Digital Clock
19
Oil Pressure
20
DME 1&2
(VHF, UHF Lo, and 800
MHz)
21
GPS 1&2
(UHF Lo and 800 MHz)
3-14
STEP
SYSTEM
PASS
FAIL
NOTES
NOTES:

Navigation menu
