Technovare Systems OPSPCAF-SHSWSH Embedded Computer User Manual 72 Megabit QDR 4 Word Burst Module

Technovare Systems, Inc. Embedded Computer 72 Megabit QDR 4 Word Burst Module

User Manual

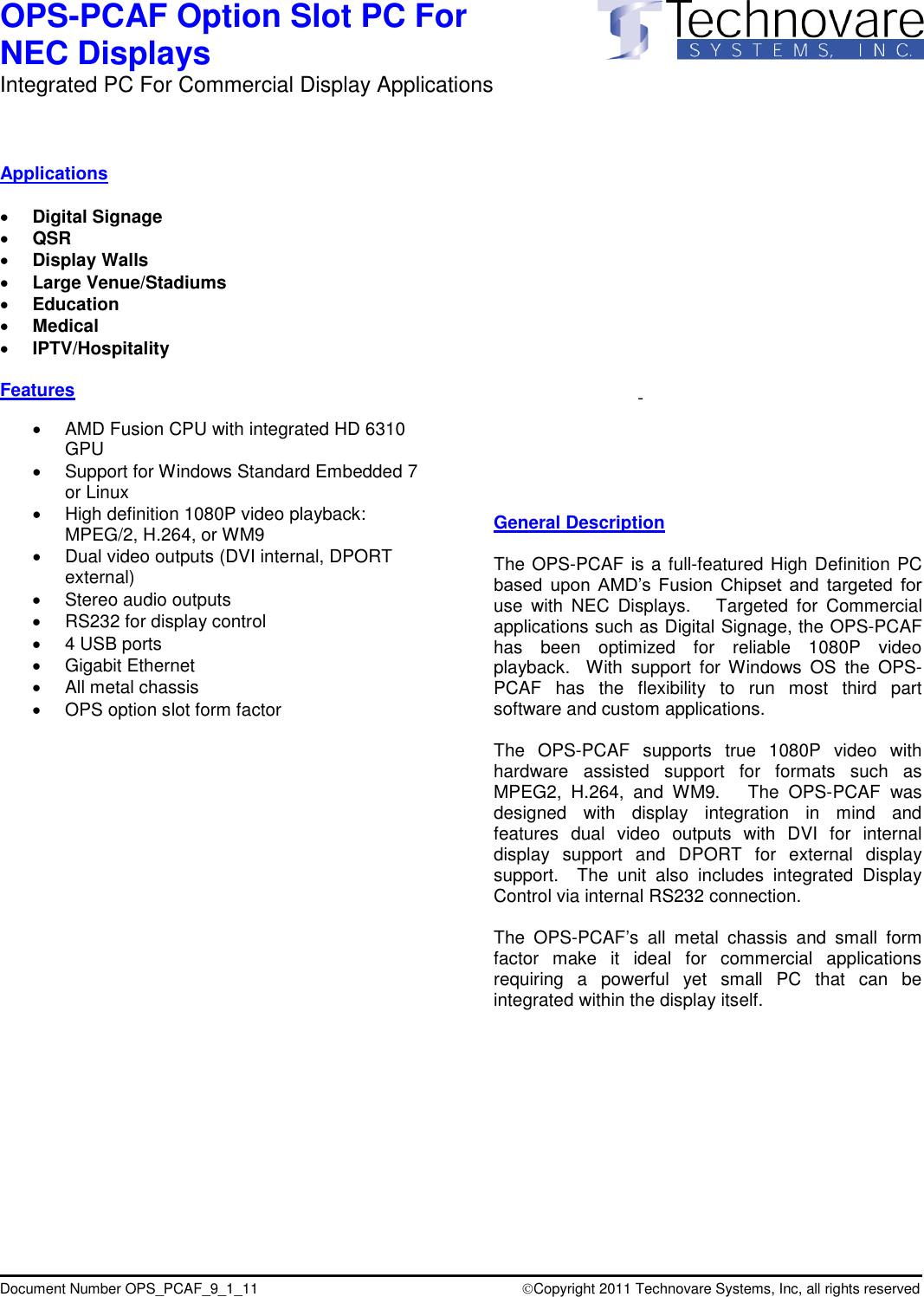

OPS-PCAF Option Slot PC For NEC Displays Integrated PC For Commercial Display Applications Document Number OPS_PCAF_9_1_11 Copyright 2011 Technovare Systems, Inc, all rights reserved Applications  Digital Signage  QSR  Display Walls  Large Venue/Stadiums  Education  Medical  IPTV/Hospitality Features  AMD Fusion CPU with integrated HD 6310 GPU  Support for Windows Standard Embedded 7 or Linux  High definition 1080P video playback: MPEG/2, H.264, or WM9  Dual video outputs (DVI internal, DPORT external)  Stereo audio outputs  RS232 for display control  4 USB ports  Gigabit Ethernet  All metal chassis  OPS option slot form factor - General Description The OPS-PCAF is a full-featured High Definition PC based upon AMD’s Fusion Chipset and targeted for use with NEC Displays. Targeted for Commercial applications such as Digital Signage, the OPS-PCAF has been optimized for reliable 1080P video playback. With support for Windows OS the OPS-PCAF has the flexibility to run most third part software and custom applications. The OPS-PCAF supports true 1080P video with hardware assisted support for formats such as MPEG2, H.264, and WM9. The OPS-PCAF was designed with display integration in mind and features dual video outputs with DVI for internal display support and DPORT for external display support. The unit also includes integrated Display Control via internal RS232 connection. The OPS-PCAF’s all metal chassis and small form factor make it ideal for commercial applications requiring a powerful yet small PC that can be integrated within the display itself.
OPS-PCAF Option Slot PC For NEC Displays Integrated PC For Commercial Display Applications Document Number OPS_PCAF_9_1_11 Copyright 2011 Technovare Systems, Inc, all rights reserved Technical Specification OS Options Windows Standard Embedded 7 Linux Performance CPU 1.6 GHz AMD Fusion Dual Core (T56N) GPU Integrated HD 6310 RAM 2 GB DDR3 Hard Drive 160 GB SATA Video Output DVI internal connector DPORT external connector Audio Output Stereo internal connector DPORT external connector Network Connections LAN Gigabit Ethernet Control I/O USB2.0 x4 RS232 internal connector Power Input Voltage 16 VDC Power Dissipation 35 Watts Environmental Operating Temperature 0° to 40° C Operating Humidity 80% maximum relative humidity, non-condensing General Dimensions 180 mm W x 118 mm D X 30 mm H Unit Weight 2.5 lb Certifications FCC, Section 15 CE Corporate Offices: 1675 Scenic Ave, Suite 200 Costa Mesa, CA 92626 Phone: 714-966-9099 Fax: 714-966-9199 URL: www.technovare.com Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one or more ofthe following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help
