Technovare Systems OPSPCIB-PH-PS Embedded Computer User Manual 1

Technovare Systems, Inc. Embedded Computer 1

User manual

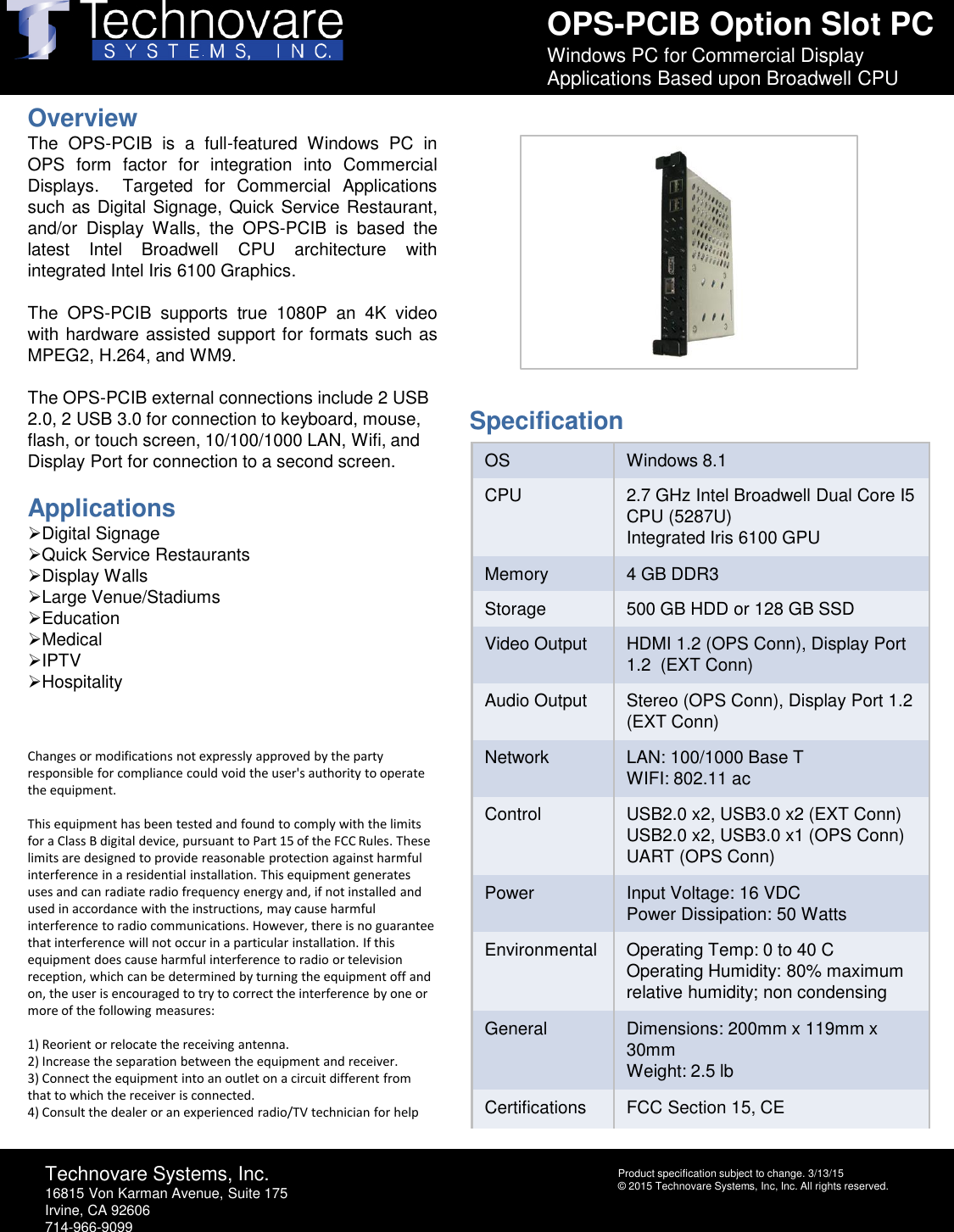

OPS-PCIB Option Slot PCWindows PC for Commercial Display Applications Based upon Broadwell CPUTechnovare Systems, Inc.16815 Von Karman Avenue, Suite 175Irvine, CA 92606714-966-9099Product specification subject to change. 3/13/15 © 2015 Technovare Systems, Inc, Inc. All rights reserved.OverviewThe OPS-PCIB is a full-featured Windows PC inOPS form factor for integration into CommercialDisplays. Targeted for Commercial Applicationssuch as Digital Signage, Quick Service Restaurant,and/or Display Walls, the OPS-PCIB is based thelatest Intel Broadwell CPU architecture withintegrated Intel Iris 6100 Graphics.The OPS-PCIB supports true 1080Pan 4K videowith hardware assisted support for formats such asMPEG2, H.264,and WM9.The OPS-PCIB external connections include 2 USB 2.0, 2 USB 3.0 for connection to keyboard, mouse, flash, or touch screen, 10/100/1000 LAN, Wifi, and Display Port for connection to a second screen.ApplicationsDigital SignageQuick Service RestaurantsDisplay WallsLarge Venue/StadiumsEducationMedicalIPTVHospitalityChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  1) Reorient or relocate the receiving antenna.2) Increase the separation between the equipment and receiver.3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.4) Consult the dealer or an experienced radio/TV technician for helpOS Windows 8.1CPU 2.7 GHz Intel BroadwellDual Core I5 CPU (5287U)Integrated Iris 6100 GPUMemory 4 GB DDR3 Storage 500 GB HDD or 128 GB SSDVideo Output HDMI 1.2 (OPS Conn), Display Port 1.2  (EXT Conn)Audio Output Stereo (OPS Conn), Display Port 1.2 (EXT Conn)Network LAN: 100/1000 Base TWIFI: 802.11 acControl USB2.0 x2, USB3.0 x2 (EXT Conn)USB2.0 x2, USB3.0 x1 (OPS Conn)UART (OPS Conn)Power Input Voltage: 16 VDCPower Dissipation: 50 WattsEnvironmental Operating Temp: 0 to 40 COperating Humidity: 80% maximum relative humidity; non condensingGeneral Dimensions: 200mm x 119mm x 30mmWeight: 2.5 lbCertifications FCC Section 15, CESpecification
