1 Connect Your Small Cell
Note Refer to the USC 9330 Installation Guide online for information
regarding the optimal placement of your USC 9330 small cell.
Follow these instructions to connect your USC 9330 for use:
Step 1 Screw the two antennas into the antenna ports on the top of the
small cell: Ant1 port=3G antenna, Ant2 port=2G antenna.
Step 2 Seal the antenna ports with waterproof glue or tape to prevent
any moisture from penetrating.
Step 3 Mount the USC 9330 small cell on a wall, ceiling or pipe as
described in the USC 9330 Installation Guide:
http://www.cisco.com/en/US/docs/wireless/...
Step 4 If you are using the DC power option:
a. Remove the connector cap from the DC power connector.
b. Connect the DC cable to the DC power connector on the
USC 9330.
For warranty information, refer to:
http://www.cisco-servicefinder.com/WarrantyFinder.aspx
3 Safety Instructions
Translated versions of the following safety warnings are provided in Cisco USC 9330
Regulatory Compliance and Safety Information, located on Cisco.com.
Warning
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could
cause bodily injury. Before you work on any equipment, be aware of the
hazards involved with electrical circuitry and be familiar with standard
practices for preventing accidents. Use the statement number provided
at the end of each warning to locate its translation in the translated
safety warnings that accompanied this device.
Statement 1071
SAVE THESE INSTRUCTIONS
Warning
Read the installation instructions before you connect the system to its
power source.
Statement 1004
Warning
Installation of the equipment must comply with local and national
electrical codes.
Statement 1074
Warning
In order to comply with FCC radio frequency (RF) exposure limits,
antennas should be located at a minimum of 7.9 inches (20 cm) or more
from the body of all persons.
Statement 332
Note Use only with listed ITE equipment.
USC 9330 QUICK START CARD

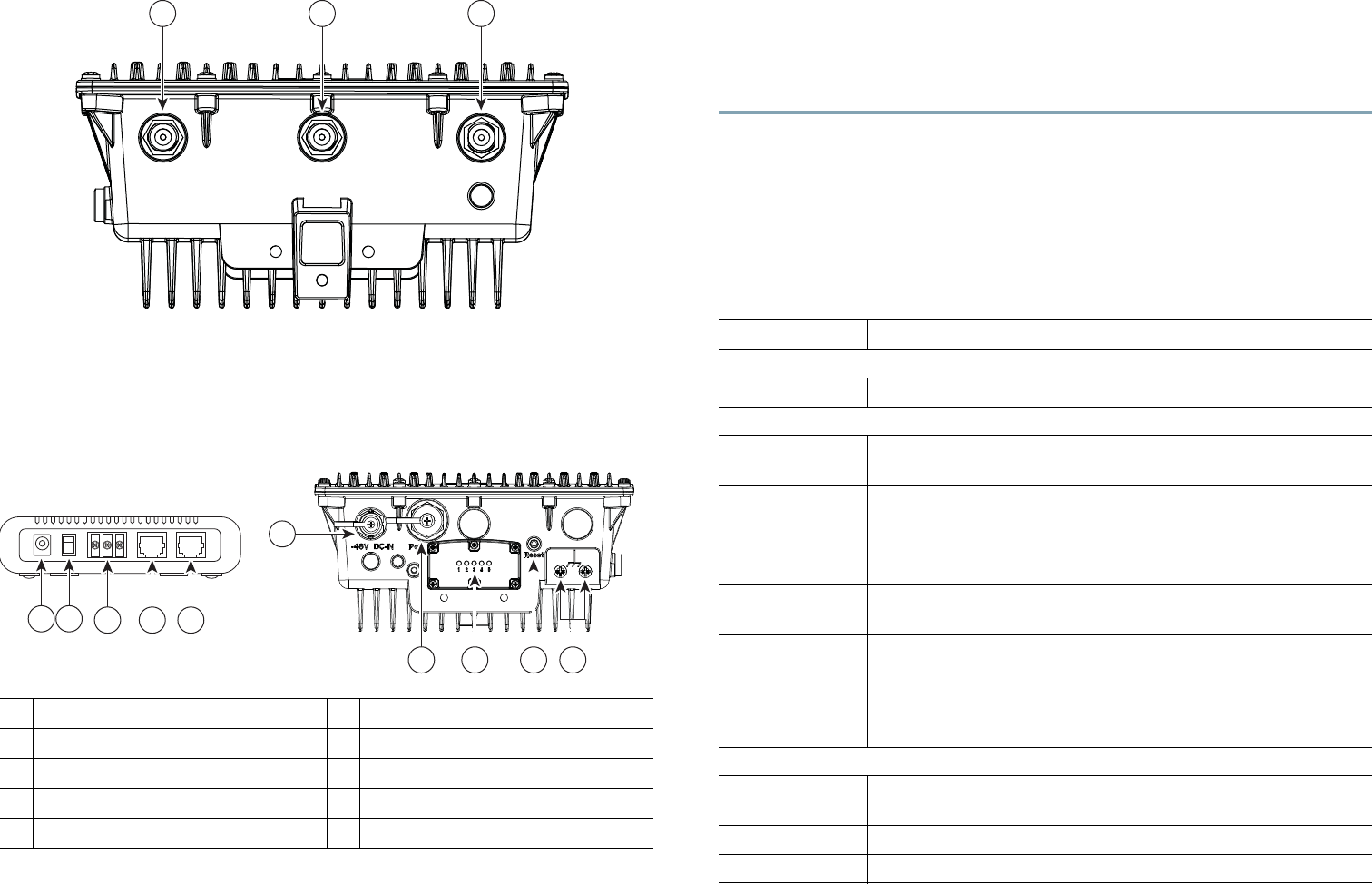

Figure 1USC 9330 Antenna Ports
c. Seal the DC power connector with waterproof glue or tape.
d. Connect the black end of the DC cable to the block 1 (0) power output of
the PSE and connect the red end of the DC cable to the block 2 (-48) power
output of the PSE.
Figure 2PSE and USC 9330 Connections
Step 5 If you are using the power over Ethernet (PoE) option:
a. Remove the connector cap from the Ethernet connector.
b. Connect the Ethernet cable to the Ethernet connector on the USC 9330.
c. Seal the Ethernet connector with waterproof glue or tape.
1PSE 48V DC input 6USC 9330 DC power connector
2PSE power source selector switch 7USC 9330 RJ45 connector
3PSE terminal block 8USC 9330 LED display
4PSE PoE RJ45 connector 9USC 9330 reset button
5PSE WAN Ethernet connector 10 USC 9330 grounding screws
Ant 2
GPS
Ant 1
1 2 3
382244
6
9
87 10
1 2 3 4 5
382089
d. Connect the other end of the Ethernet cable to the PoE port on the PSE.
e. Connect the WAN port on the PSE to the Internet.
Step 6 Connect two grounding wires to the grounding screws on the USC 9330.
Step 7 Flip the power switch on the PSE to the appropriate location (1 for DC
power and 0 for PoE). The LED on the top of the PSE unit indicates the
power mode: Green: PoE; Blue: DC power.
2 Verify that the USC 9330 is Operational
The LED display is located on the bottom of your USC 9330. Note the color and
activity of the LEDs and refer to this table to diagnose any problems:
If you require assistance installing or operating your small cell, contact customer
support.
Ta b l e 1 USC 9330 Status LED Indications
LED Indication Small Cell State / Action
Power LED (1)
Green Power is supplied to the unit.
Status LED (2)
Red blink 1 time
in 4 seconds
No electrical connection with residential gateway. Verify
connection and verify that the residential gateway is operational
Red blink 2 times
in 4 seconds
No Internet connection—Verify that the residential gateway is
connected to the Internet and is providing service
Red blink 3 times
in 4 seconds
Local interference—phones may be too close to your small cell.
If this problem persists, contact customer support.
Red blink 4 times
in 4 seconds
Overheating—verify that the small cell is located where there is
proper air flow
Red Initial boot—wait up to 20 minutes; if still red, perform a reset
Internal fault—Contact customer support
Excessive interference—Verify whether another small cell is
located in close proximity and if so, relocate unit
Provisioning failure—Contact customer support
Service LED (3)
Fast Green Initialization or provisioning—Wait for action to complete
Factory reset—Wait up to 20 minutes for action to complete
Green In service, no calls or data sessions—ready to support calls
Slow Green In service with active calls or data sessions
