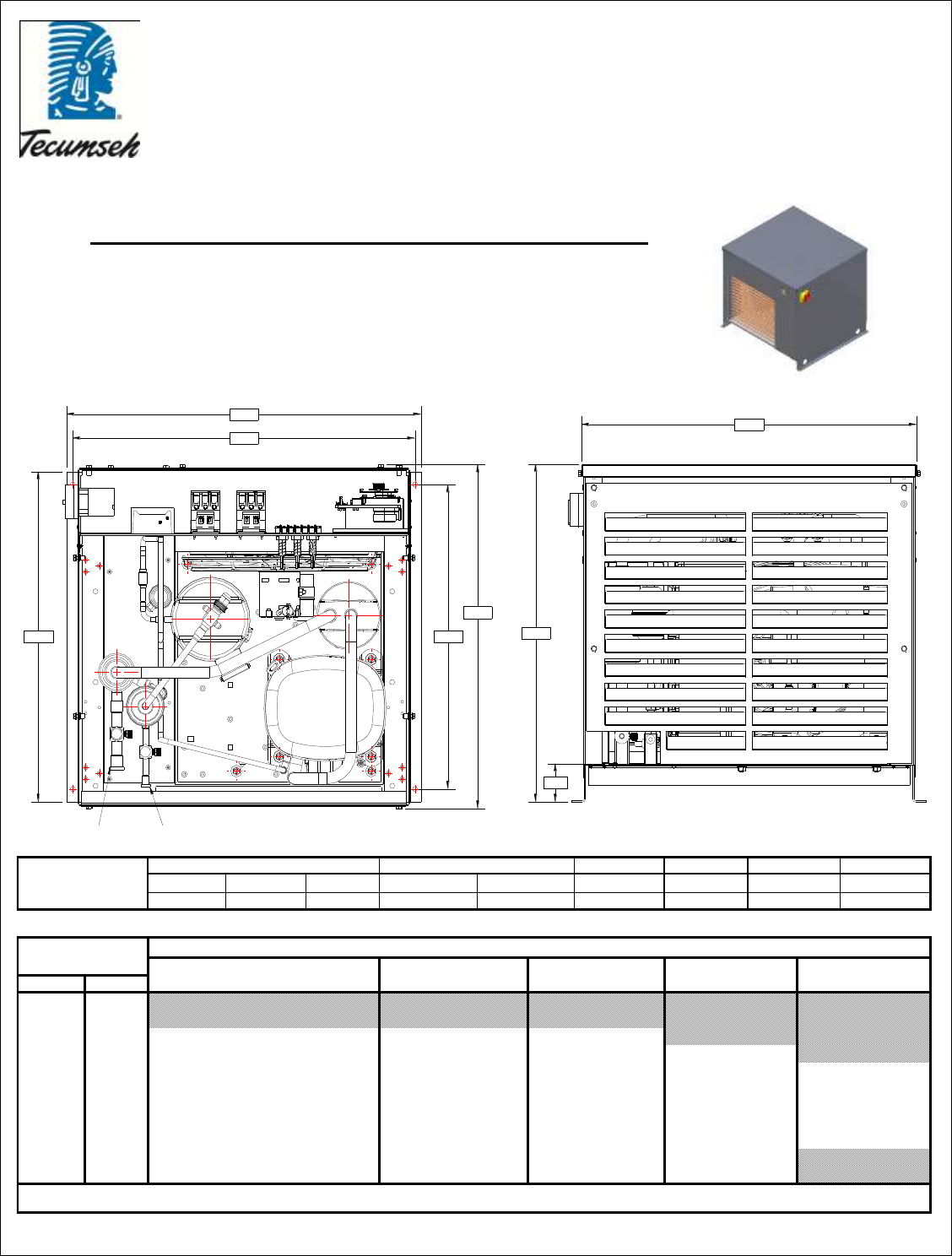

Tecumseh Ava2510Zxths Performance Data Sheet

2015-04-01

: Tecumseh Tecumseh-Ava2510Zxths-Performance-Data-Sheet-689145 tecumseh-ava2510zxths-performance-data-sheet-689145 tecumseh pdf

Open the PDF directly: View PDF PDF.
Page Count: 2

28.94
27.94
23.50 26.08
2.96
27.35
25.50
SUCTION 78"LIQUID 12"
26.55
L W H
26.55 (674) 28.94 (735) 26.08 (662)
Factory charge 20 psig dry air, MUST BE EVACUATED
Ambient Temperatures
T, °F PSIG BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T
-40 5.5 4400 1500 93 3700 1500 100 3300 1480 104 3000 1460 109 2200 1390 118
-35 8.0 5600 1710 95 4700 1690 103 4300 1670 107 3900 1640 111 3000 1570 120
-30 10.7 6800 1930 98 5800 1890 106 5300 1870 110 4800 1840 114 3900 1760 122
-25 14.0 8000 2150 101 6800 2100 109 6200 2080 113 5700 2040 117 4700 1960 125
-20 17.1 9200 2370 104 7800 2320 112 7200 2290 116 6600 2260 120 5500 2180 128
-15 19.3 10400 2600 107 8900 2550 115 8200 2520 119 7500 2490 123 6300 2420 130
-10 24.5 11600 2830 110 10000 2780 118 9200 2760 122 8400 2730 126 7100 2670 133
-5 28.8 12900 3070 114 11000 3030 122 10200 3010 126 9300 2980 129 7900 2940 136
033.5 14100 3310 117 12100 3280 125 11100 3260 129 10300 3250 133 8600 3220 140
536.5 15400 3550 121 13200 3540 129 12100 3530 133 11200 3530 136 9400 3520 143
10 43.7 16700 3800 125 14200 3810 133 13100 3810 137 12100 3810 140 10200 3830 146
Performance @ 60 Hz, Return gas 40oF , SubCooling 5oF
Evaporator
Air flow
Oil Ch.
Gross weight
SCFM
Oz.
Lbs. (kg)
750
54.9
250 (113)
100°F
AVA2510ZXTHS
Dim. Enclosure, inch (mm)
Line connections
80°F
90°F
95°F
Pumpdown
Suction
Liquid
90% @ 90oF
7/8"
1/2"
15.70
* OPTION CODE: See reverse side for Available Options
TECUMSEH OUTDOOR
CONDENSING UNIT
Model AVA2510ZXTHS
BOM 32L2117-2E*
Air Cooled 2 ½ HP
Application Low Temp
Refrigerant R404A
Volts-Hz-Ph 200-230/60/3
AVA2510ZXTHS_REV1
TPC - June 27, 2014

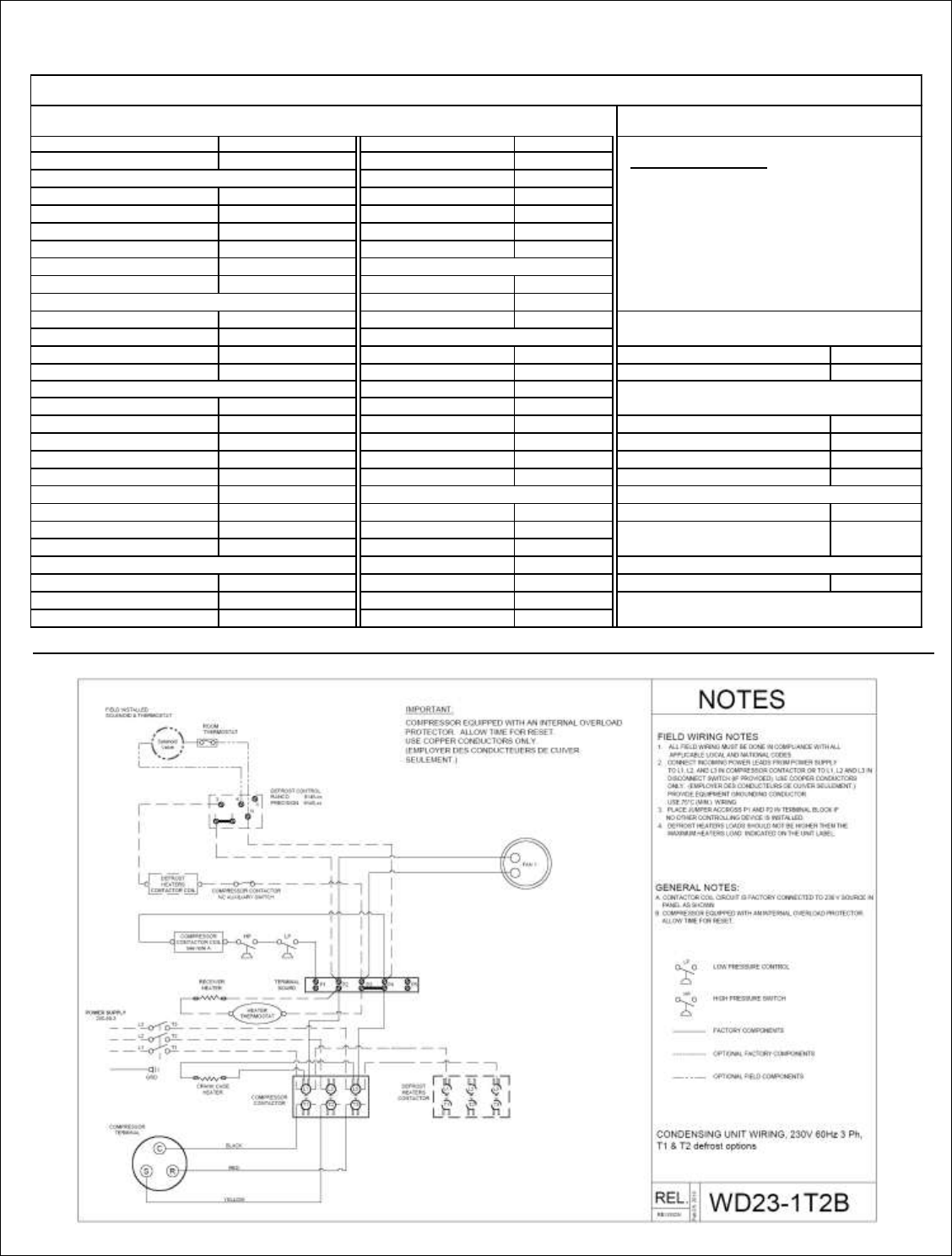

Unit BOM 32L2117-2E Fan Motor 810F050C20
Unit MODEL AVA2510ZXTHS Replacement Fan Motor 50W230 32Lxxxx-2ER(F)ATnD
Fan Motor Qty 1 R Heated/Insulated Receiver
Refrigeration Range -40°F to 10°F Fan Motor RLA 0.7 F Fixed Fan Control
Design Pressure Low / High 181 / 450 Fan Blade 51568-1 A Adjustable Fan Control
Volts - HZ - Ph 200-230V 3~ 60HZ Fan Guard 70831 T1 Air Defrost Timer
Voltage Range 180 - 253 Shroud 70727-2 T2 Electrical Defrost Timer & Defrost
Min. Circuit Ampacity 13.25 Heater Contactor
Max. Fuse Size 25 High Pressure Switch 84095-2L D Disconnect Switch (nonfused)
Low Pressure Control 84026-2
Compressor MODEL AVA2490ZXT Dual Pressure Conrol
Compressor BOM AV182RT-012-A2Y
Compressor LRA 65.1 Head Master Valve 70083 Solenoid Valve (supplied loose) KSVC-264
Compressor RLA 9.87 Check Valve 56626 Hail Louver Assy LLPG-101
Process Valve
OverLoad Internal Discharge Valve (Base) 56618
Replacement Kit - O/L Liquid Valve (Base) 56500-K06 Receiver Heater (R option) 92124-2
Relay Liquid Valve (Receiver) 31590 Receiver Thermostat (R option) 84102-2
Replacement Kit - Relay Suction Valve (Base) 56500-K10 Fixed Fan Control (F option)
Run Capacitor Suction Valve (Rotolock) 31531-1 Adjustable Fan Control (A option)
Run Capacitor Rating
Start Capacitor Condenser 50857-1 Defrost Timer (T1 or T2 option) 84110
Start Capacitor Rating Receiver 51082-1K Defrost Heater Contactor and 91014B and
Contactor 91014B Accumulator TK00042000 Auxiliary Switch (T2 opt.) 91014-AUX
Liquid Filter 52000-084D
Unit Drawing DGU1920-L311 Sight Glass 70084-S Disconnect (D option) LDSG-301
Wiring Diagram WD23-1T2B Suction Filter 70822-5S
Wiring Diagram (A or F opt.) CrankCase Heater 90699
AVAILABLE ACCESSORIES
REPLACEMENT PARTS
Parts/Specifications
STANDARD
AVAILABLE OPTIONS
AVA2510ZXTHS_REV1
TPC - June 27, 2014
