Tekk XU-100 LICENSED NON-BROADCAST TRANSMITTER HELD TO FACE User Manual UserMan XU100 R1

Tekk International Inc. LICENSED NON-BROADCAST TRANSMITTER HELD TO FACE UserMan XU100 R1

USERS MANUAL

XV-100 / XU-100 Portable Radio
Service Manual
* This Service manual is subject to change according to improvement of XV-100 / XU-100 Portable Radio
without notice.
* Version #1 (2008-03-10)
2
----- Table of Contents -----
1. XV/XU-100 Features ------------ 3
2. Components of XV/XU-Series Radio ------------ 6
3. Appearance of XV/XU-Series Radio ------------ 7
4. Basic Operation of XV/XU Series Radio ------------ 8
5. Operating XU/XV-100 RADIO ------------ 11
6. Operating Instructions of XV/XU Series Radio ------------ 14
7. Precautions ------------ 27
8. Safety Notes ------------ 28
9. Specification ------------ 29
9.1 XU-100 ------------ 29
9.2 XU-100 ------------ 30
3
1. XV/XU-100 Features
The features of XV/XU-100 are various as below. XV/XU-100 can used under tough industrial environments as
well as public places. XV/XU-100 series have following functions:
z 128 channels and 16 groups are selectable
z Call guard squelch of standardized CTCSS / DCS
z Built-in Scrambler
z Built-in Compander
z Dual Tone Modulation Frequency (DTMF)
z Normal scanning / Priority scanning
z VOX(Voice Operated Transmit)
z Identification origination(2 Tone and 5 Tone)
z BCL(Busy Channel Lock)/BCLO(Busy Channel Lock Out)
z Time-Out Timer (TOT)
z Channel Spacing Only 12.5KHz
z High/Low Power Switching
z Selectable Squelch Level(0~4)
z Monitor
z Lone Worker
z High-Quality Audio Output
z PLL synthesizer method
z DC+3.7V 1,800mAH rechargeable Li-ion employment quantity battery use
z Advanced Speaker Protection technology
z Remote Radio Stun / Kill / Revive (Use 5 tone)
z Various Parameters and PC downloading methods
z PC Tuning
1) Numeric LCD Windows
Numeric LCD Windows enable to represent any kind of expression on LCD Display.

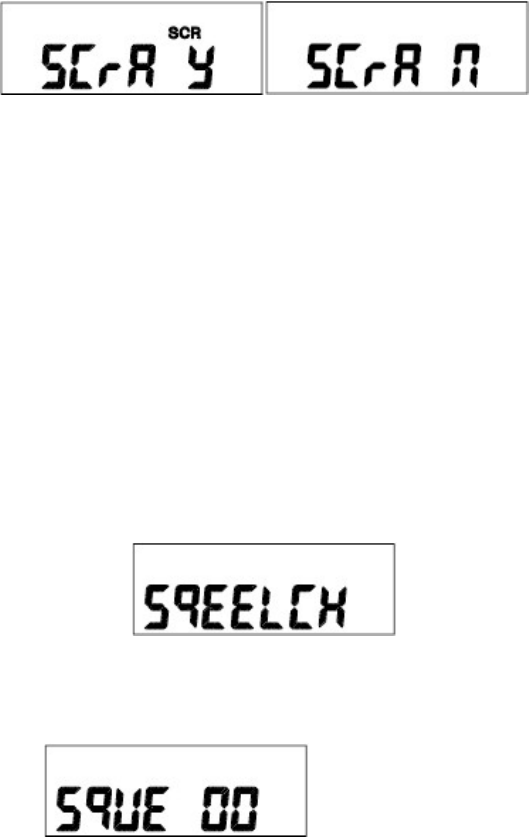

2) Built-in Scrambler
Maintaining private and secure communications is increasingly important, with potentially sensitive
information flowing back and forth. The XV/XU-100 Scrambler feature provides enhanced security for your
important public safety and private security communications.

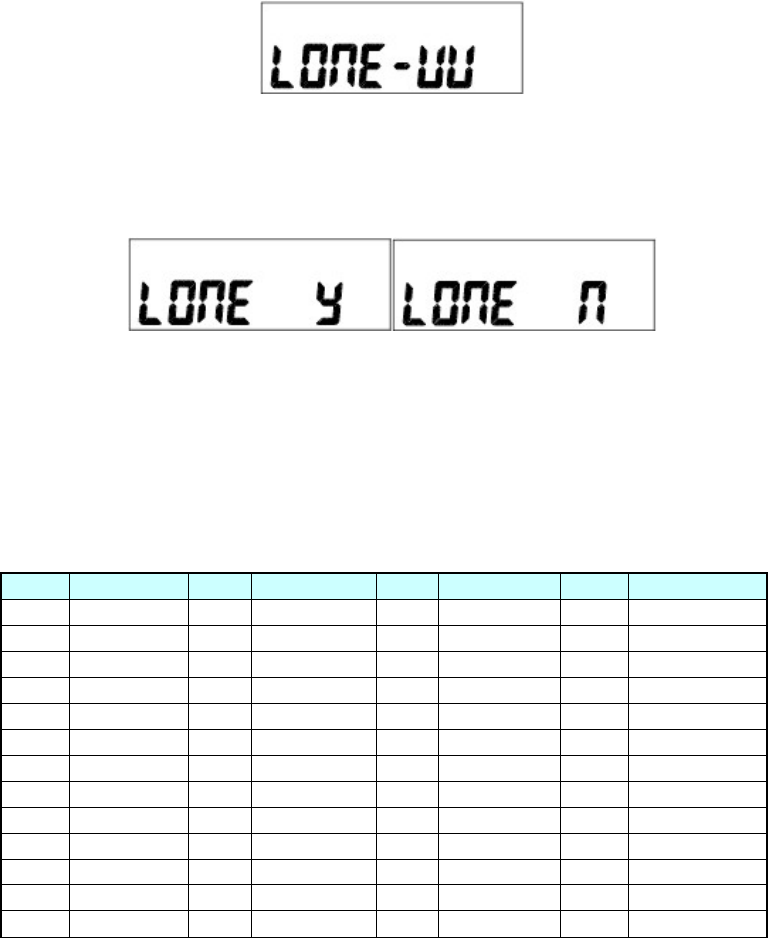

3) Lone Worker
The feature provides added security and safety for individuals who work remotely from their team. Should a
user not respond to a regular warning tone then a defined emergency procedure is activated.
4
4) Powerful Audio Output
XV/XU-1000 Voice compander audio enhancement and powerful 1W Speaker ensure superb clear, crisp
sound, even in noisy environments.

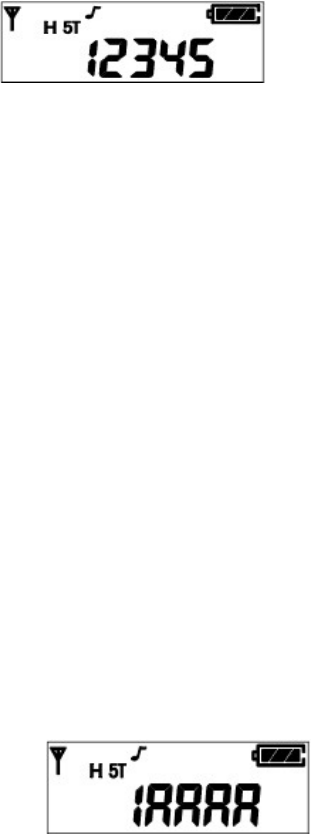

5) Caller ID (Paging Feature)
XV/XU-1000 have a Caller ID Function that is usually used in the TRS Radio to maximize communication
efficiency and convenience. The caller’s ID is displayed on the right bottom on screen.
6) Power Output Setting
Output levels are factory set to provide 2 Watts.
7) Selectable Squelch Level (0~4)
Helps minimize interference from undesired signals and helps weak signals be heard.
8) 512 Channels and 16 Groups Selectable
Users can use various tones with 53 CTCSS and 104 DCS 512 channels can be divided into 16 groups so
that users can make group for other users and page each group.
9) Multi-functional Ear/MIC Jack
With multi-functional Ear/MIC Jack, it is possible to be used together with various accessories.
10) Cloning
For compatibility with current models of TEKK, the data of those models (such as channels, tones, 5-tone ID,
etc.) are cloned to another radio with Cloning cable. .
11) Voice Operated Transmit(VOX)
Enjoy the convenience of hands-free operation when used with optional accessories.
12) PC Programming and Tuning
Radio parameter programming and tuning can be accomplished via the accessory connector from a PC-
compatible computer without ever having to open the radio to save both time and expense (requires optional
programming JIG and software)
13) Flash Memory Advantage
Flash memory permits updates, advanced feature sets and system architectural changes to be made
electronically without ever opening the unit. This means fast changes for the system operator and less down
time for users.
5
1.1 Part Number Breakdown
The following is a breakdown of the part number used to identify this transceiver
X U – 100
Enhanced
Or Extreme TEKK International Inc
Radio Version NO
V : VHF Portable Radio
U : UHF Portable Radio
Model History Table
Model Name Frequency Range RF Power Channel Spacing Remark
XV-100 146~174MHz 2Watt 12.5 KHz
XU-100 440~470MHz 2Watt 12.5 KHz
6
2. Components of XV/XU-Series Radio
7

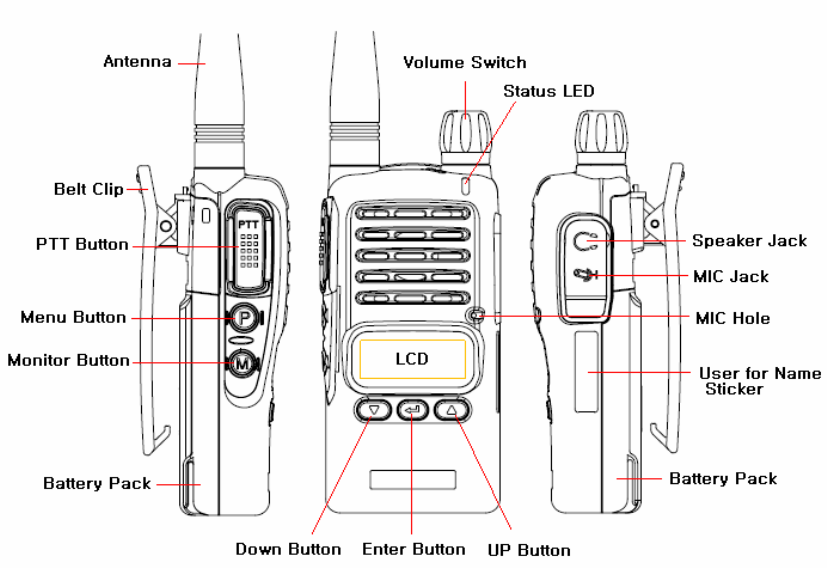

3. Appearance of XV/XU-Series Radio

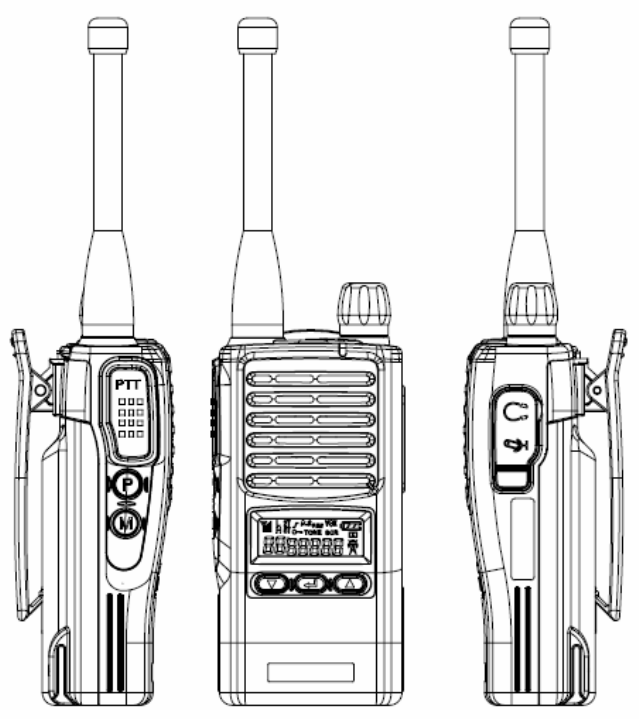

Figure 3-1) Appearance of XV/XU-100 Series Radio
Figure 3-2) XV/XU-100 Series LCD Indication
8
4. Basic Operation of XV/XU Series Radio
Pease read this manual carefully before using XV/XU series Radio.
This manual contains important information about using Radio.
4.1 Installation and Removing the Antenna
To install the antenna, insert the antenna into antenna connector and screw the antenna clockwise. To remove
the antenna, screw the antenna counter clockwise.
Figure 4-1) Installation and Removing the Antenna
When installation of the antenna, giving a strong pressure to the Radio
or pulling the antenna with a strong power from the Radio can make a
damage on the antenna connector, which may cause the Radio to have
a critical problem.

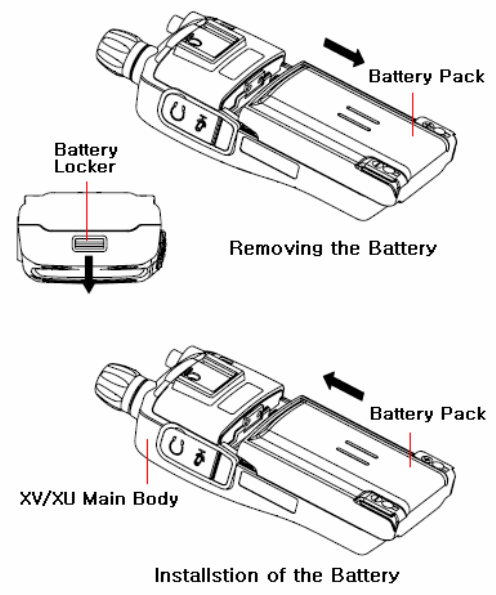

4.2 Installation and Removing the Battery
4.2.1 Installation of the battery
To install battery, slide up the battery towards the top of the radio until battery latch is locked.
4.2.2 Removing the Battery
- Slide the battery latch located on the bottom of radio to the open position as shown in
Figure 4-2.
- The battery is removed by pressing it against and sliding it towards the bottom of the radio
9
Figure 4-2) Installation and Removing the Battery

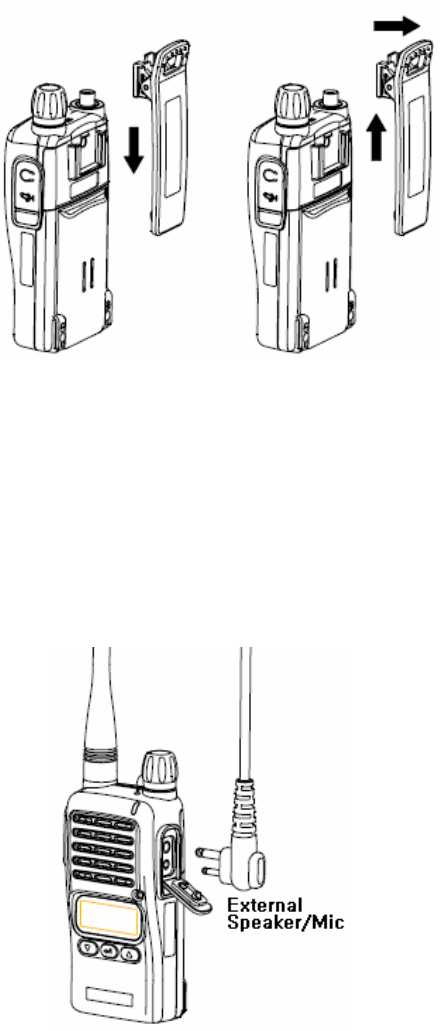

4.3 Installation and Removing the Belt Clip
- To attach belt clip to radio, align belt clip rails with the grooves in radio and slide the belt clip onto the
mounting rails until it latches into place.
- To remove belt clip from radio, push up on tab of belt clip with flat bladed screwdriver and at the same
time, slide the belt clip towards the top of Radio (Figure4-3).
10
Figure 4-3) Installation and Removing the Belt Clip
4.4 Accessory connector
Accessory connector is used to connect external speaker/Mic, and headset, etc.
Please close the cover when nothing is connected.
Figure 4-4) Accessory connector
11
5. Operating XU/XV-100 RADIO
5.1 On/Off/Volume Control
Turns the radio on and off and adjusts audio volume level.
5.2 PTT Button(Push-To-Talk Button)
Radio transmission button.

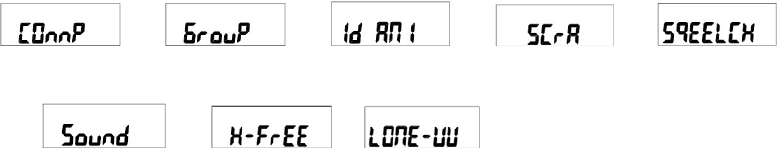

5.3 Menu Button(P, Program Menu Button)
Enter into Menu mode by pressing the Menu button (P) for 2 seconds.
The sequence of menu mode is as follows.
→ → → →

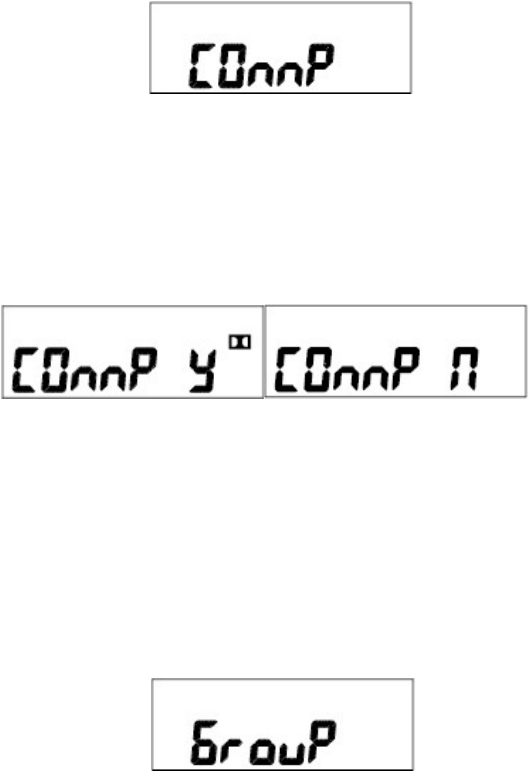

Compander → Change Group → ID → Scramble → Squelch
→ → →
→ KEY Sound → VOX → Lone Worker
5.4 Monitor Button(M)
The monitor mode is enabled and disabled by pressing the Monitor button (M) on the side.
Normal Mode : During pressing the (M) button for about 2 seconds, it is possible to check the receiving status.
Continuous Mode : During pressing the (M) button for more than 2 seconds, the Radio will make a “Beep”
tone, which means the monitor function is maintained and if you press the (M) button again, the monitor
function will be released.
5.5 Emergency Button
In case of emergency situation, if you press the Emergency button, a siren sound will be heard through the
speaker in the Radio and the Radio will transmit the emergency signal to the party through the emergency
channel.
5.6 Channel Buttons(▼,▲)
Channel Buttons(▼,▲) have 3 functions as shown in following.
1 Channel buttons(▼,▲) are to change channels.
2 Channel buttons(▼,▲) are to select menu at menu mode.
3 Channel buttons(▼,▲) are to change transmission power. By pressing Up button(▲) while PTT button
is being pressed, the user can select ”H”(High Power), or by pressing Down button(▼), the user can
select ”L”(Low Power).
12
5.7 Accessory Connector
The Accessory Connector is used when using an external speaker microphone or doing PC programming or
making the Cloning or using as a Repeater.
5.8 RX /TX Led
This LED is a lamp indicating the current status of the Radio and please refer to the below contents.
1 RX : Red Lamp
2 TX : Green Lamp
3 CTCSS, DCS Error : Green Blinks.
4 Low Battery: Red Blinks With “beep” sound.
5. Charging the Battery
5.1 Safety Notes
1) The radio of XV/XU series receives power from high-performance Li-ion battery
(XSB-1800). XSB-2400 Battery is safe of high performance and highly reliable, and could be charged
very fast. XSB-2400 Battery has been designed suitably only for the charger of Tekk (WLB-100).
The charging of the enclosed Radio on the other maker’s charger will cause
a damage on the battery and also, will cause a trouble on the Radio.
2) Please charge the battery before using the radio for best performance and safety.
3) When you charge the battery that is installed in the Radio, please turn off the radio first to charge the
battery.
The continuous rapid discharge (for example, when making a short circuit
on the ‘+’ terminal of battery by a metal substance) may make a fatal defect
and the battery can be exploded. Also, it can cause a fire.
4) Using the correct battery will improve the efficiency and safety.
5.2 The Time of Charging
Low battery voltage will make the radio less coverage and also make the performance worse. Please charge
the battery in case of following:
1 When you think performance of the radio becomes lower
2 When the red lamp on RX/TX Led blinks (every 0.5 second) during transmission or reception
3 When the battery icon blinks
4) When “beep” sound is generated while the radio is in use.
13
Figure 5-1) XV/XU-100 Charging the Battery
5.3 How to Charge
1) Plug the DC-100 charger into the electricity power outlet.
2) When charging the Radio with the battery installed, please turn off the power of the Radio and place
the Radio on the charger (The charger has a slide slot.).
3) After completion of the charging, the green LED on the charger will light. However, please continue
the charging for 30 more minutes for the complete full charge.
status LED indication status LED indication
During charging Red LED lights. Detecting error Red LED is off.
After charging Green LED lights. When charging Green LED lights
14
5.4 Charger (XDC-100)
The DC-1000 charger is designed to charge only the Li-ion battery enclosed in this Radio.
Figure 5-2) XDC-100 Charger
Specifications of XDC-100 Charger :
• Input Voltage : DC85 ~ 250V
• Battery : XSB-1800
• Quick Changing Time : In 4Hours and half
• Operation Temperature : 0℃~+50℃
• Size : 75(W)x84.5(D)x36(H)m/m
• Charging Current : 750mA(Fast charging)
6. Operating Instructions of XV/XU Series Radio
6.1 Power On/Off
Turn Power switch clockwise. As soon as power is supplied, the backlight will be turned on.
If the user had set up the user ID, it will be displayed on the LCD and radio will enter into the latest state as a
signal sound is generated.
☞ Caution) When turning (power) on the radio by pressing a button on it, the radio may enter into a
special modes in which transmission and reception is impossible. Please don’t turn on the radio by
above way.
15

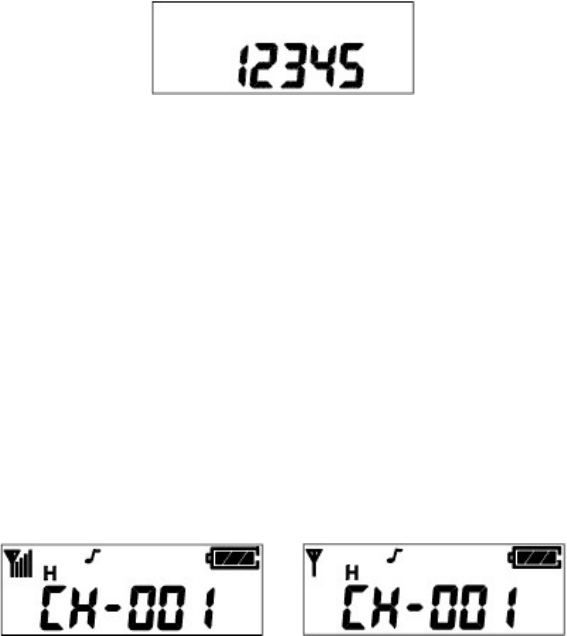

Figure 6-1) User ID
6.2 Transmission Method
For transmission, press PTT button on the left side of the radio. As soon as the user presses keys
according to the setting, DTMF or 5-tone ID will be transmitted, and during this time, voice communication
will be interrupted for several seconds. Then, red LEDs for transmission and reception will be turned on. It
is recommended to talk 5 ~ 10cm away from the microphone for the best voice communication.
.
☞ Note: If the user makes transmission for more than a certain time while BCLO or TOT feature is on,
transmission will be forcefully disconnected for other users.
☞ Caution) If present channel is TX Inhibited by pc program, TX will not be worked.
(By PC Program, it could be set)

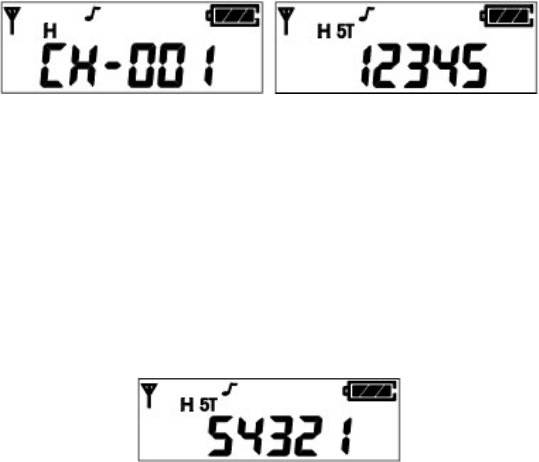

figure 6-2) When receiving figure 6-3) When transmitting
6.3 Reception Method
The user should not press PTT button during the reception. The user can adjust the volume by Volume switch,
and during reception, the green LED will be turned on. Depending on conditions of the transmitting radio,
6.4 Changing Channels
Channel buttons (▼,▲) are to change channels. Press Up button (▲). Then, “beep” sound will be generated
and the channel number will be increased. Or press Down button (▼) to decrease the channel. If the user
presses Up or Down button while only one channel is set, the channel will not be changed and a different
sound from “beep” will be generated. For fast increase or decease channel numbers, press Channel
buttons (▼,▲) for a while. In this case, however, “beep” sound will not be generated.

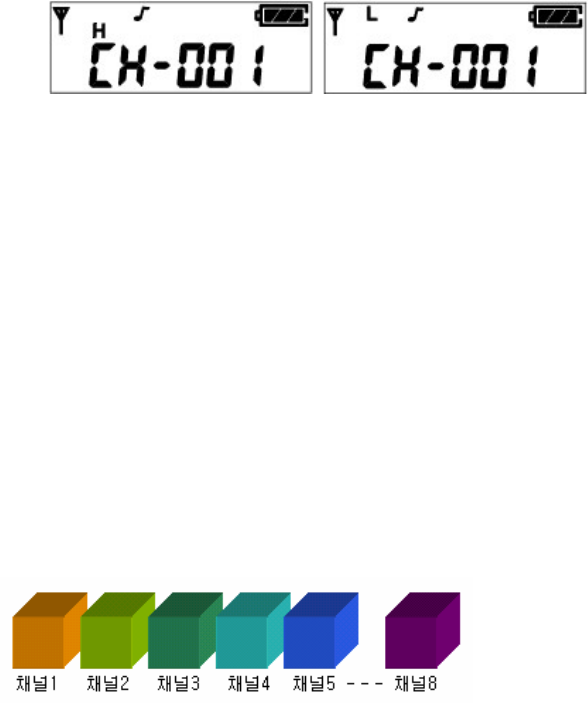

6.5 Adjusting the Transmission Power
The user can change the transmission power – High Power or Low Power. By pressing Up button (▲)
while PTT button is being pressed, the user can select “H” (High Power), or by pressing Down button (▼),
the user can select “L” (Low Power). By selecting Low power under good communication conditions, the
user can extend the battery use time.
16
Figure 6-4) High Power Figure 6-5) Low Power
6.6 Operation of Scan function
By pressing Menu Button (P) and Enter Button ( ) in order within 0.5 second in Standby mode, the user
can activate Scan function. After Scan function is activated, the radio will automatically search channels
and detect a channel corresponding to the frequency. To deactivate Scan function, press Menu Button (P)
once.
6.6.1 Normal Scan
At the Scan mode, the LCD displays ‘SCAN’ icon. When the scan list is S1, S2, S3, the Radio proceeds
the channel scan in the sequence of S1, S2, S3, S1, S2, …. During receiving a signal, if you press the
UP(▲) or DOWN (▼) button, you can delete the receiving channel temporarily from the scan list and at that
time, you can move to the next channel.
6.6.2 Priority Scan
At the Priority Scan mode, the LCD displays ‘SCAN’ and ‘P-‘ icons. The Radio scans the channel in the
sequence of P, S1, P, S2, P, S3, … at the priority scan mode. During receiving signal through the
common channel, the Radio scans the priority channel periodically and if the Radio detects the Priority
channel, it starts receiving the channel. During receiving the signal, you can move to the following scan
channel by pressing the UP or DOWN button. If you press the Enter button, you can erase the current
receiving channel temporarily from the scan list and at that time, you can move to the next channel.
But in the course of receiving the Priority channel signal, you can not change or erase
the channel by the UP/DOWN buttons(▲,▼).
6.7 Key Lock function
During pressing the “Enter” button at the receiving standby mode, press the "▲" button within 0.5second and
then, the Key Lock function will be executed and the key icon of LCD will appear. At this situation, the other
key except for the PTT and the Monitor key will not be operated. In order to release the Lock function, press
the " Enter " button and during pressing the button, press the "▼" button within 0.5second.
17
6.8 2TONE / 5TONE function
6.8.1 2TONE
You can use the private and group tone functions by the central control system which is using the 2TONE
SIGNALLING. If the Radio receives the tone signal, the Radio will make a Beep sound which is advising the
tone signal status and which means the Radio is ready to talk.
6.8.2 5TONE
At the tone mode, you can make the private & group calls by the 5TONE and each call memory has the call
IDs up to 30 numbers. The set-up of call memory and 5-TONE is made by PC programming. If pressing the
“Enter” button for 2seconds at the general mode, the Radio is converted to the call mode and if pressing the
"P(Program-MENU)" button for 2seconds at the call mode, the Radio is converted to the general mode. By
using the channel buttons (▲,▼) at the call mode, the call number of a channel which is available for the call is
displayed.
Figure 6-6) General Mode Figure 6-7) Call Mode
1) 1:1 Call at call mode
Press the “Enter” button for a long period(about 2seconds) at the general mode in order to enter into
the call mode.
1 Select your party to call by using the channel button (▲, ▼). If you ( ID : 12345 ) want to call your
party(ID : 54321), select him(ID : 54321) by using the channel button
(▲,▼) at the call mode.
Figure 6-8) ID Selection
2 You can call the party (ID : 54321) by pressing the “Enter” button and then, the Radio of your
party(ID:54321) displays the ID number "12345". Even though your party’s Radio is in general mode,
the Radio will be converted to the call mode automatically.
18
Ffigure 6-9) ID Transmission
3 After the call is completed, the Transmission and the Reception have no restriction, which means
that the TX/RX will be free.
2) 2) Group(1:N) Call at call mode
1 In order to make the Group call at the call mode, the following should be set up at the PC
programming.
2 If the 1
st party (ID:53579) and the 2nd party(ID:52468) are in one group, the "5AAAA"which is a call
number / call name(example : baseball player) should be designated. ("A" means that all the numbers
are applied.)
3) If the caller makes a call to the group of baseball players, the caller’s Radio should press the “Menu” and
“▲” buttons at the same time after selecting the party with ID “1AAAA”. In this case, the Radios of the
party1 and the party2 display the ID "1AAAA". In case of the group call, the party’s Radio displays the
group ID number.
After the call is completed, the Transmission and the Reception have no restriction, which means that
the TX/RX will be free.
Figure 6-10) Group Call
3) RESET
This Reset function converts the TX/RX with no restriction to the previous Close mode. Press the Monitor
button (M) at the call mode.
1 The call signal will be transmitted to the party’s Radio with the ID number + “C” tone.
2 If the party’s Radio is in the Close channel and after receiving the call with the “C” tone, the call is
converted to the “TX/RX with no restriction” mode.
19
6.9 Emergency Call function
1) This Emergency call is used for calling the party in emergency and if pressing for about 2 seconds the
button in Red color on the top side of Radio, the Emergency Call is transmitted.
In case of setting to the emergency call channel (available by PC programming) with your ID at the general
mode or if the Radio is in the call mode, you can make an Emergency Call by pressing the button in Red
color for about 2 seconds.
The transmission is sent with the “C” tone after your ID number.
1 The party’s Radio receives the “C” tone along with your ID number. The Radio recognizes it as an
emergency call and displays your ID number with the consecutive alarm sound.
2) Without transmitting the emergency call to the party, the Radio itself makes the emergency call sound
continuously.
6.10 STUN function
The Radio is lost or in case you don’t want someone to use your Radio, the reception of STUN ID saved in the
Radio protects the Radio from the use by someone.
(The Stun ID can be set up by PC Program.) If the STUN ID is saved in the Radio, the Radio can’t be used
even after the power off & on of Radio. After receiving the UNSTUN ID, you can use the Radio.
Figure 6-11) STUN Screen
6.11 Programming function
The Programming is the function for input of the data such as Frequency/Tone/Scan
into the Radio.
* Programming Method
First, please prepare the Program cable for XP-Series Radio.
1 Press the “P” button of the Radio to turn on. Then, the –Prog- message is displayed.
2 Connect the Programming cable to the Ear/Microphone Jack of Radio.
3 By using the PC Program, store the data and after disconnecting the cable, turn off the power and
turn on the power again.
20

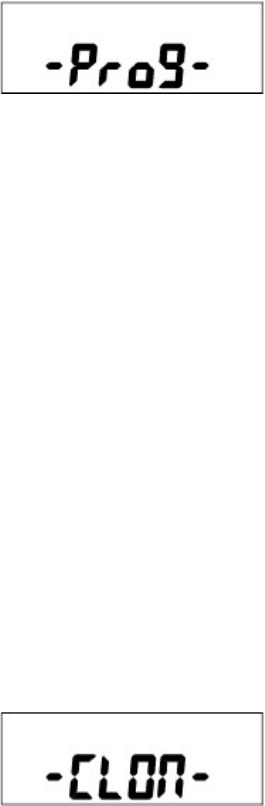

Figure 6-12) Program Screen
6.12 Cloning function
The CLONING is to copy the data such as Frequency/Tone/Scan into the other Radio.
* Cloning Method
① First, please prepare the Clone cable for XP-Series Radio.
2 The original Radio should be turned on with pressing the PTT button and the Radio
to be copied should be turned on with pressing the “ P “ button .
3 The original Radio displays –CLON- message, and the Radio to be copied displays
–Prog- message.
④ Connect the Clon cable to the Ear/Mic Jack of 2 Radios.
⑤ If pressing the "Enter" button of the original Radio, the copy is made and after completing, please
disconnect the cable and turn off & on the power of the 2 Radios. Finally please use the Radio after
checking if the copy is made without problem.
☞Caution) If the Cloning is made into the other brand’s Radio, a malfunction can happen.
Figure 6-13) CLON Screen
6.13 Menu description
If pressing the "P" button on the side for 2 seconds, the Radio will be in Menu mode. The Menu mode consists
of 9 Menus and you can use your desired Menu after selection.
☞ Caution) After entering into the Menu, if you don’t operate the Menu for more than 8 seconds, the Menu
mode will be terminated automatically and it is converted to the Receiving mode.
6.13.1 Compander selection
This Compander selection is for On/Off of the Compander.
The selection can be made by the PC program and at the Menu.
21
1 Enter into the Menu mode.
2 By using the channel button(▲, ▼), choose the "Comp" and press the "Enter" button.
3 By using the channel button(▲,▼), choose the ON(”y") or the OFF(“n”) and press the “Enter” button to
store.
4 In order to come out of the Menu mode, press the “P” button and by selecting the On/Off, the
Compander ICON on LCD disappears/appears.
6.13.2 Group change
The Radio is designed to have total 512 channels and 16 Groups and the selection of each Group & Channel
can be available by PC program and Menu.
1 Enter into the Menu mode.
2 By using the channel button(▲, ▼), choose the "Group" and press the "Enter" button.
3 Using the channel button(▲,▼), choose the Group and press the “Enter” button
to store.
④ In order to come out of the Menu mode, press the “P” button.
6.13.3 ID output
This is for transmission of your ID and reception of your party’s ID. ID is divided by DTMF and Call ID.
Especially the Call ID transmits your ID to the party and also, the party’s ID is displayed on your Radio to use
your Radio in convenience and efficiently.
22

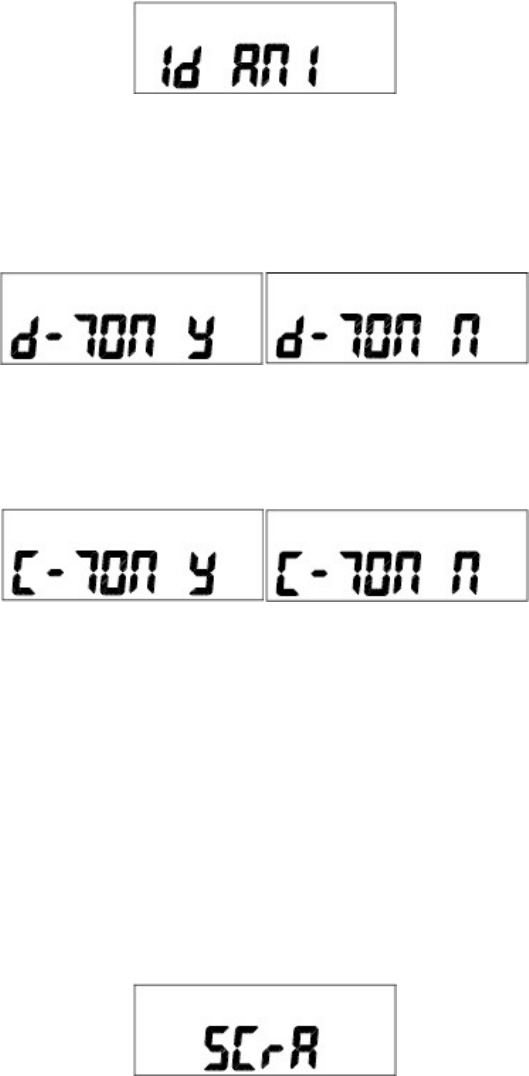

1 Choose the "Id ANI" by the channel button and press the " Enter " button.
② After the “d-TON” message comes out, choose the ON(”y")/OFF(“n”) by the channel button and press
the “Enter” button.
③ After the“C-TON” message comes out, choose the ON(”y")/OFF(“n”) by the channel button and press
the “Enter” button.
④ Comes out of the Menu mode by pressing the “P” button.
6.13.4 Scramble selection
The Scramble is for protection from overhearing and the scramble reverses the voice signal from microphone
to a specific frequency and a mixed voice in order for the other person not to hear your voice.
The selection can be available by PC program and Menu.
1 Enter into Menu mode.
2 Select “SCrA” by pressing Channel buttons (▼,▲), and press Enter button( )..
3 Select On(y) or Off (n) by pressing Channel buttons (▼,▲), and save the selected status by pressing Enter
button( )..
23
④ Exit Menu mode by pressing Menu Button(P) button. Select “Off”. Then, the “ SCR “ symbol will disappear on
the LCD
6.13.5 Set Squelch
Squelch sensitivity level is selectable by 5step.
By PC Program and menu, it could be set.
1. Enter into Menu mode.
2. Select “SQUELCH” by pressing Channel buttons (▼,▲), and press Enter button( ). Then, the message of
the squelch sensitivity will be displayed.
.
3. Select squelch sensitivity -0~5- by pressing Channel buttons (▼,▲), and press Enter button( ) to save the
level
.
4. Exit Menu mode by pressing Menu Button(P).
6.13.6 Set KEY Sound
Set Key Sound menu is to decide whether to generate sound or not when the user presses four buttons .
By PC Program and menu, it could be set.
1. Enter into Menu mode.

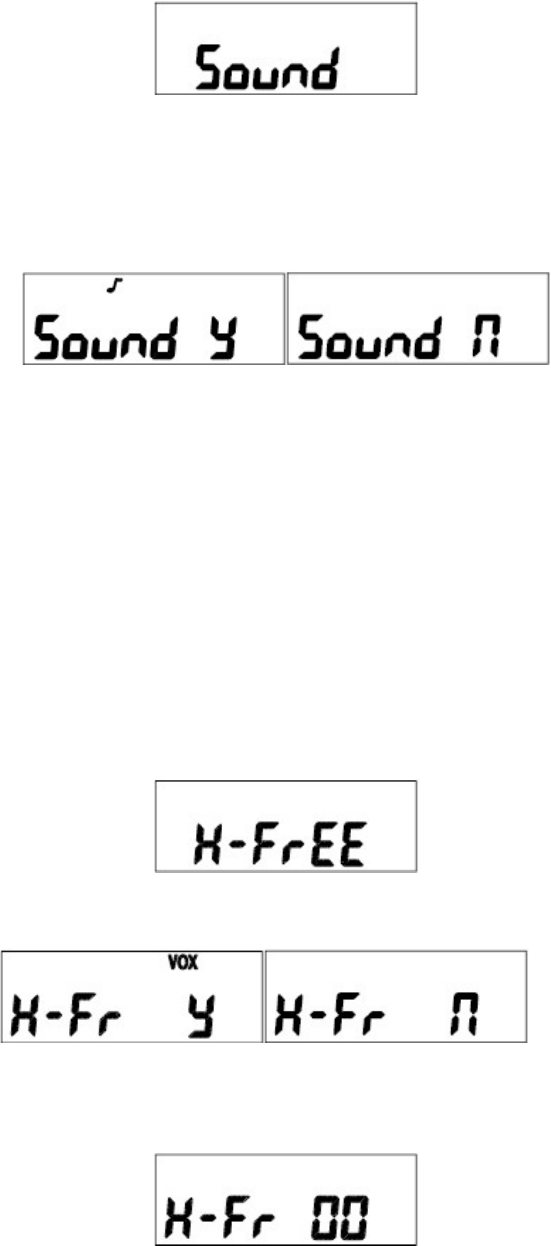

2. Select “Sound” by pressing Channel buttons (▼,▲), and press Enter button( ). .
24
3. Select On(y) or Off (n) by pressing Channel buttons (▼,▲), and save the selected status by pressing Enter
button( ).
4. Exit Menu mode by pressing Menu Button(P) button. Select “Off”. Then, the “ “ symbol will disappear on
the LCD.
6.13.7 Set VOX
Set VOX is to enable users to make transmission for VOX without pressing PTT button. (This function could be
available with Ear Mic [External VOX]).
By PC Program and menu, it could be set.
1. Enter into Menu mode.
2. Select “H-FrEE” by pressing Channel buttons (▼,▲), and press Enter button( ).
3. Select On(y) or Off (n) by pressing Channel buttons (▼,▲), and press Enter button( )..
4. Select on(y). Then, the “vox , H-Fr 05“ symbol s will appear on the LCD.
Set sensitivity by pressing Channel buttons (▼,▲), and press Enter button( ).
25
5. Select “Off”. Then, the “ vox “ symbol will disappear on the LCD.
6. Exit Menu mode by pressing Menu Button(P) button.
6.13.8 Set Lone Worker
The Set Lone Worker is for transmission of emergency alarm sound without pressing the designated button
within a period of time when night patrol or guarding and the Lone Worker can be set to be ON/OFF.
The selection can be available by PC program and Menu.
1. Enter into Menu mode.
2. Select “LONE W” by pressing Channel buttons (▼,▲), and press Enter button( ).
3. Select On(y) or Off (n) by pressing Channel buttons (▼,▲), and save the selected status by pressing Enter
button( )..
4. Exit Menu mode by pressing Menu Button(P) button.
6.14 Sub-Tone Table
1) TCSS Frequency Table
No. Frequency No. Frequency No Frequency No. Frequency
1 67.0 14 107.2 27 167.9 40 159.8
2 71.9 15 110.9 28 173.8 41 183.5
3 74.4 16 114.8 29 179.9 42 189.9
4 77.0 17 118.8 30 186.2 43 196.6
5 79.7 18 123.0 31 192.8 44 199.5
6 82.5 19 127.3 32 203.5 45 206.5
7 85.4 20 131.8 33 210.7 46 229.1
8 88.5 21 136.5 34 218.1 47 254.1
9 91.5 22 141.3 35 225.7 48 165.5
10 94.8 23 146.2 36 233.6 49 171.3
11 97.4 24 151.4 37 241.8 50 177.3
12 100.0 25 156.7 38 250.3 51 60.7
13 103.5 26 162.2 39 69.3 52 62.5
26
2) DCS Tone Table
No. DCS Code No. DCS Code No. DCS Code No. DCS Code
1 023 28 172 55 431 82 743
2 025 29 174 56 432 83 754
3 026 30 205 57 445 84 053
4 031 31 223 58 464 85 122
5 032 32 226 59 465 86 036
6 043 33 243 60 466 87 14
7 047 34 244 61 503 88 212
8 051 35 245 62 506 89 225
9 054 36 251 63 516 90 246
10 065 37 261 64 532 91 252
11 071 38 263 65 546 92 255
12 072 39 265 66 565 93 266
13 073 40 271 67 606 94 274
14 074 41 306 68 612 95 325
15 114 42 311 69 624 96 332
16 115 43 315 70 627 97 356
17 116 44 331 71 631 98 446
18 125 45 343 72 632 99 452
19 131 46 346 73 654 100 454
20 132 47 351 74 662 101 455
21 134 48 364 75 664 102 462
22 143 49 365 76 703 103 523
23 152 50 371 77 712 104 526
24 155 51 411 78 723
25 156 52 412 79 731
26 162 53 413 80 732
27 165 54 423 81 734
27
7. Precautions
7.1 When using the XP Series Radios
Don’t remove the antenna from the Radio or don’t transform the antenna or
don’t make any change on the antenna. The strong electronic wave to be
emitted from the Radio can have an effect on the performance of the Radio and
can cause the Radio to have a defect.
Don’t use the accessories (such as rechargeable battery, adaptor, external
speaker microphone and earphone, etc.) from the other makers, which can
cause to make a defect on battery and a malfunction or a defect on the Radio.
Don’t disassemble or reorganize the Radio. The disassembly or reorganization
will be causes of defect or malfunction and it will be impossible to make repair
afterward. Also, a punishment can be made by law.
Don’t use the other frequency except for the permitted frequency in order not to
be punished by law.
• Don’t give an excessive shock to the Radio.
• Don’t place the Radio where the direct sunlight and/or the high temperature
occurs.
• If the Radio is placed for a long time in car in summer, the hot temperature in
the car may cause an explosion of battery.
• Don’t make a damage to the battery by a sharp substance and/or an
excessive shock.
7.2 Influences to the operations of Radio or other Equipments
The Radio emits a strong electronic wave, which may have an effect on the operation of other equipments
and also, can be influenced by the other devices.
Please turn off the Radio before boarding on airplane.
When you want to use the Radio in the airplane, please follow the rules in the
airplane or the instructions by crew.
28
In case of the area that medical equipments are being used, please use the
Radio after discussion with the equipment maker or the related doctor.
Please don’t use the Radio at the place where computer or the other
electric/electronic devices are being used, because the strong electronic wave
from the Radio can have an effect on the equipments.
8. Safety Notes
Please make sure to read the followings for safe and effective use of the Radio.
• Please keep the Radio away at least 1inch from the body.
• If the outside surface of antenna gets stripped out, it can make a burn on the
skin.
• If you contact a conductive metal to battery terminal, a heat can be made and
it may cause fire, explosion and burn. Especially, please be careful when
putting the battery in a pocket or a bag.
• When using an earphone, please don’t listen to the sound at a high level. The
high sound may have a bad effect on your ear.
• After setting the volume of the Radio at a low level, please adjust the volume
step by step to the level you want. A sudden high sound may give a bad
damage to the ear or the heart.
• Please don’t remove or replace or charge or discharge the battery at a
dangerous area, since it may cause an explosion or a fire by an electrical
spark.
• At the area where an electromagnetic force can be made, please make sure
to turn off the power of the Radio.
29
FCC Information
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
CONDITION THAT THIS DEVICE DOS NOT CAUSE HARMFUL INTERFERENCE.
MODIFICATIONS OR CHANGES NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD
VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
IMPORTANT NOTE: To maintain compliance with Radio Frequency exposure guidelines, hold the
transmitter and antenna at least 1 inch (2.5 centimeters) from your face. If you wear, the handset
on your body while using the approved accessories, use only the manufacturers supplied belt clip
for this product and ensure that the antenna is at least 1.5 centimeters from your body when
transmitting.
Your radio generates radio frequency electromagnetic energy during transmission mode. The radio is
designed for and classified as “Occupational Use Only” and must be used by individuals who are properly
trained and aware of these hazards and the means in which to minimize such hazards. This radio is NOT
intended for use by the “General Population” or in uncontrolled environments.
To ensure that your exposure to radio frequency electromagnetic energy is within the FCC allowable limits
for occupational use, always follow these guidelines:
DO NOT transmit for more than 50% of the total radio use time (this is a maximum 50% duty cycle radio).
Transmitting more than 50% can cause FCC RF exposure compliance requirements to be exceeded.
Pressing the PTT switch enables the radio to transmit. Use ONLY authorized accessories with this
equipment. Use of unauthorized accessories can cause the Radio Frequency Exposure compliance
requirements to be exceeded.
30
9. Specification
9.1 XV-100 Specification
General
Frequency Range
Frequency Stability
Programmable Channels
Channel Spacing
Dimensions
Weight
Power Source
Current Drain (maximum)
Duty Cycle(5/5/90)
VHF: 146 ~ 174 MHz
±2.5PPM (-30 to +60℃)
128 Channels/16 Group
Dual Channel Spacing 12.5 KHz
97.5mm (H)×49.5mm (W)×25.5mm (D)
150g (with Battery pack & Antenna)
DC +3.7V rechargeable Li-ion 1800 ㎃H battery pack
Receive mode, rated audio out - 280 ㎃ (Audio Max)
Transmit mode – 1,500mA
Standby mode – 50mA
15.5 Hours(High) / 21 Hours(Low)
Receiver
Sensitivity
Squelch Sensitivity
Selectivity
Spurious and Harmonic Rejection
Inter-modulation
FM Hum and Noise
Audio Output Power
Audio Distortion
Audio Response
Speaker Impedance
IF Frequencies
Input Impedance
.282uV 12 dB SINAD
.25uV 10dB SINAD
60dB
70dB
60dB
40dB
1 Watt across an 8-ohm load
Less than 5% at rated output
+1, -3 dB from 6dB per octave de-emphasis Characteristic
from 300 ~ 3000Hz
8 ohms
21.4MHz and 455KHz
50 ohms
Transmitter
RF Power Output
Spurious and Harmonic
FM Hum and Noise
Audio Distortion
Audio Frequency Response
Output Impedance
2Watt
60dB
40dB
5% maximum with 1KHz modulation
+1, -3dB from 6dB per octave pre-emphasis Characteristic
from 300 ~ 3000Hz
50 ohms
31
9.2 XU-100 Specification
General
Frequency Range
Frequency Stability
Programmable Channels
Channel Spacing
Dimensions
Weight
Power Source
Current Drain (maximum)
Duty Cycle(5/5/90)
UHF: 440 ~ 470 MHz
±2.5PPM (-30 to +60℃)
128 Channels/16 Group
Dual Channel Spacing 12.5 KHz
97.5mm (H)×49.5mm (W)×25.5mm (D)
150g (with Battery pack & Antenna)
DC +3.7V rechargeable Li-ion 1800 ㎃H battery pack
Receive mode, rated audio out - 2800 ㎃ (Audio Max)
Transmit mode – 1500mA
Standby mode - 50mA
15 Hours(High) / 20 Hours(Low)
Receiver
Sensitivity
Squelch Sensitivity
Selectivity
Spurious and Harmonic Rejection
Inter-modulation
FM Hum and Noise
Audio Output Power
Audio Distortion
Audio Response
Speaker Impedance
IF Frequencies
Input Impedance
.282uV 12 dB SINAD
.25uV 10dB SINAD
60dB
70dB
60dB
40Db
Watt across an 8-ohm load
Less than 5% at rated output
+1, -3 dB from 6dB per octave de-emphasis Characteristic
from 300 ~ 3000Hz
8 ohms
45.3MHz and 455KHz
50 ohms
Transmitter
RF Power Output
Spurious and Harmonic
FM Hum and Noise
Audio Distortion
Audio Frequency Response
Output Impedance
2Watt
60dB
40dB
5% maximum with 1KHz modulation
+1, -3dB from 6dB per octave pre-emphasis Characteristic
from 300 ~ 3000Hz
50 ohms

Navigation menu
