Technical Reference
TDS 500C, TDS 600B & TDS 700C
Digitizing Oscilloscopes
Performance Verification and Specifications
070-9874-02
Copyright Tektronix, Inc. All rights reserved.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes
that in all previously published material. Specifications and price change privileges reserved.
Printed in the U.S.A.
Tektronix, Inc., P.O. Box 1000, Wilsonville, OR 97070–1000
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
WARRANTY
Tektronix warrants that this product will be free from defects in materials and workmanship for a period of three (3) years
from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either
will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the
defective product.
In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the
warranty period and make suitable arrangements for the performance of service. Customer shall be responsible for
packaging and shipping the defective product to the service center designated by Tektronix, with shipping charges prepaid.
Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the
Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any
other charges for products returned to any other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate
maintenance and care. Tektronix shall not be obligated to furnish service under this warranty a) to repair damage resulting
from attempts by personnel other than Tektronix representatives to install, repair or service the product; b) to repair
damage resulting from improper use or connection to incompatible equipment; or c) to service a product that has been
modified or integrated with other products when the effect of such modification or integration increases the time or
difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY TEKTRONIX WITH RESPECT TO THIS PRODUCT IN LIEU OF ANY
OTHER WARRANTIES, EXPRESSED OR IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
TEKTRONIX’ RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND
EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS WARRANTY. TEKTRONIX
AND ITS VENDORS WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER TEKTRONIX OR THE VENDOR HAS
ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications i
Table of Contents
General Safety Summary v. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preface ix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contacting Tektronix x. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performance Verification Procedures
Performance Verification Procedures 1–1. . . . . . . . . . . . . . . . . . . . . . . . . .
Input Channels vs. Model 1–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conventions 1–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief Procedures 1–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Self Tests 1–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional Tests 1–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performance Tests 1–15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Prerequisites 1–15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Equipment Required 1–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TDS 600B Test Record 1–19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TDS 500C/700C Test Record 1–23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Signal Acquisition System Checks 1–27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Time Base System Checks 1–43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trigger System Checks 1–45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output Signal Checks 1–58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Option 05 Video Trigger Checks 1–67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sine Wave Generator Leveling Procedure 1–84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optical Filters Checks (TDS 500C/TDS 700C Only) 1–87. . . . . . . . . . . . . . . . . . . . .
Specifications
Specifications 2–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Description 2–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Interface 2–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Signal Acquisition System 2–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horizontal System 2–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trigger System 2–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Acquisition Control 2–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On-Board User Assistance 2–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Measurement Assistance 2–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage 2–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O 2–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display 2–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nominal Traits 2–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranted Characteristics 2–17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical Characteristics 2–25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table of Contents
ii TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
List of Figures

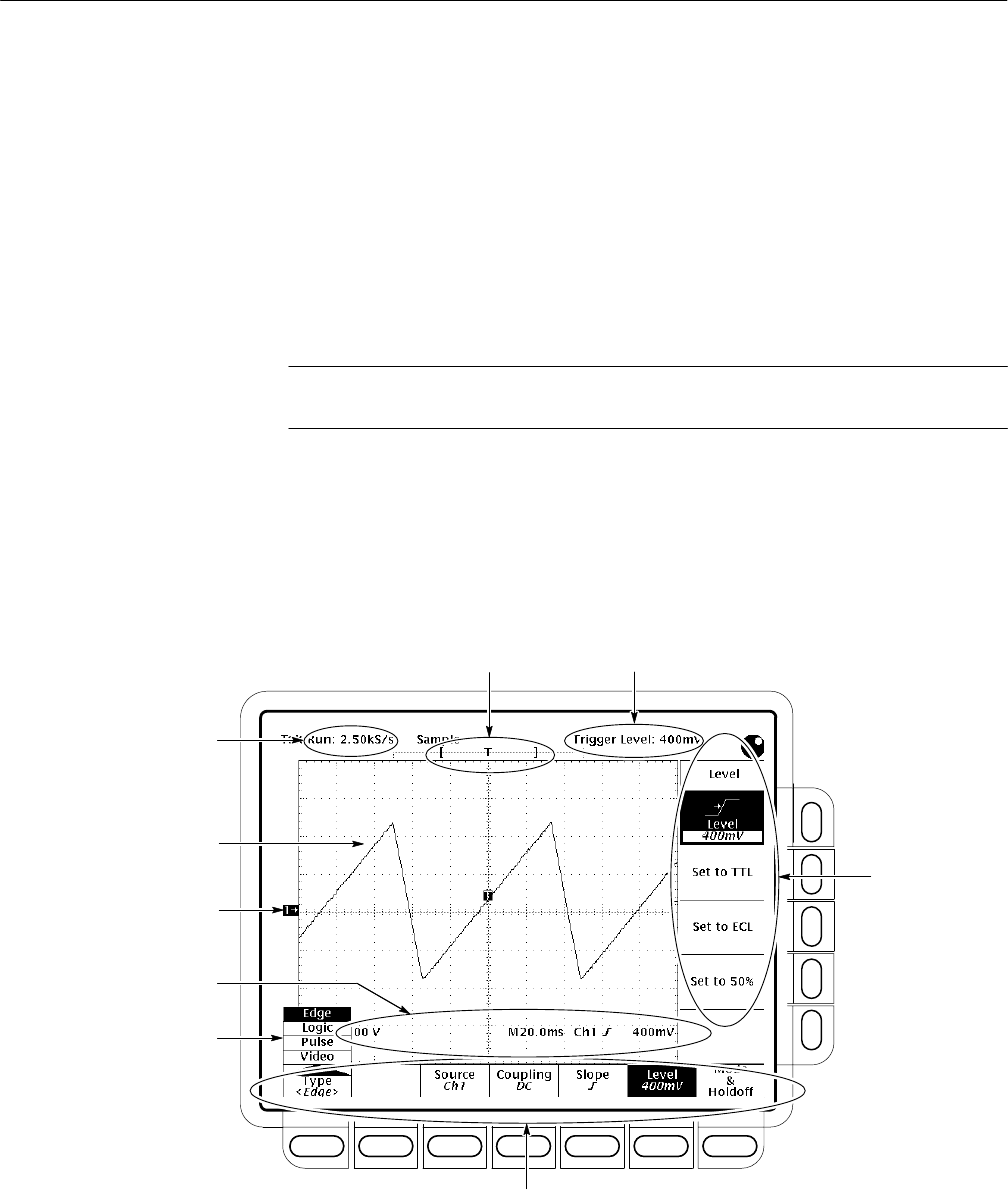

Figure 1–1: Map of display functions 1–3. . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–2: Verifying adjustments and signal-path compensation 1–6. .

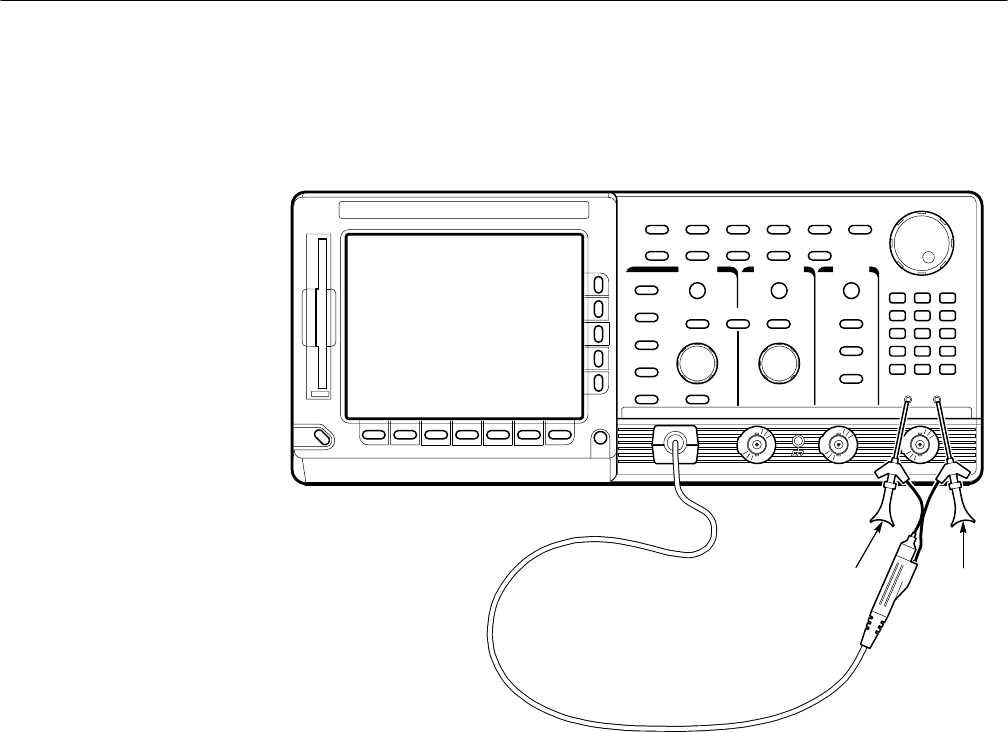

Figure 1–3: Universal test hookup for functional tests –
TDS 600B shown 1–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–4: Measurement of DC offset accuracy at zero setting 1–29. . . .
Figure 1–5: Initial test hookup 1–30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–6: Measurement of DC accuracy at maximum offset
and position 1–32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–7: Initial test hookup 1–34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

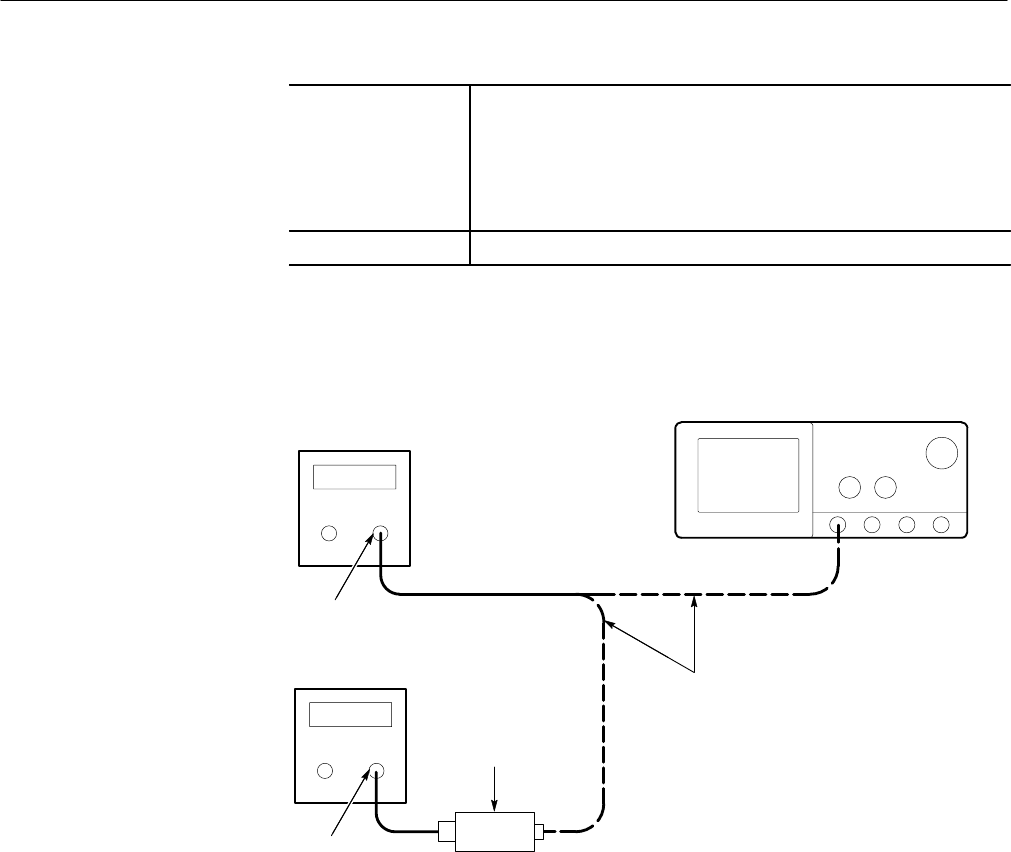

Figure 1–8: Optional initial test hookup 1–34. . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–9: Measurement of analog bandwidth 1–37. . . . . . . . . . . . . . . . . .
Figure 1–10: Initial test hookup 1–39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–11: Measurement of channel delay – TDS 684B shown 1–41. . . .
Figure 1–12: Initial test hookup 1–43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–13: Measurement of accuracy — Long-term and delay time 1–45
Figure 1–14: Initial test hookup 1–46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–15: Measurement of time accuracy for pulse and
glitch triggering 1–48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–16: Initial test hookup 1–49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–17: Measurement of trigger-level accuracy 1–51. . . . . . . . . . . . .
Figure 1–18: Initial test hookup 1–54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–19: Measurement of trigger sensitivity — 50 MHz results
shown on a TDS 684B screen 1–55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–20: Initial test hookup 1–58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–21: Measurement of main trigger out limits 1–60. . . . . . . . . . . . .
Figure 1–22: Initial test hookup 1–62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

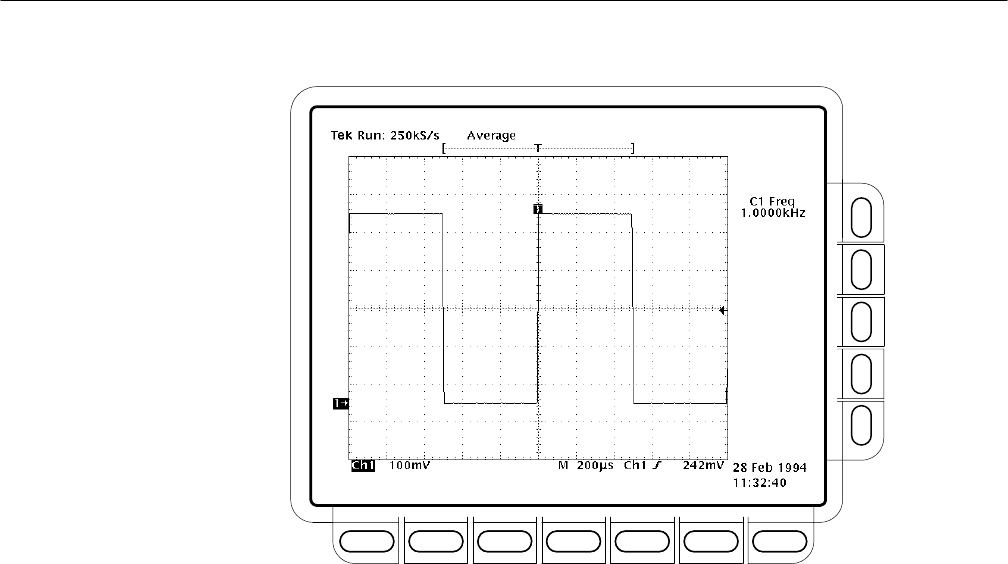

Figure 1–23: Measurement of probe compensator frequency 1–64. . . . . . .
Figure 1–24: Subsequent test hookup 1–65. . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–25: Measurement of probe compensator amplitude 1–66. . . . . .
Figure 1–26: Jitter test hookup 1–68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–27: Jitter test displayed waveform – TDS 684B shown 1–69. . . .
Figure 1–28: Jitter test when completed – TDS 684B shown 1–70. . . . . . .
Figure 1–29: Triggered signal range test – 300 mV 1–72. . . . . . . . . . . . . . .
Figure 1–30: Triggered signal range test – 75 mV 1–73. . . . . . . . . . . . . . . .
Figure 1–31: 60 Hz Rejection test hookup 1–74. . . . . . . . . . . . . . . . . . . . . .
Figure 1–32: 60 Hz Rejection test setup signal 1–74. . . . . . . . . . . . . . . . . . .
Table of Contents
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications iii
Figure 1–33: Subsequent 60 Hz Rejection test hookup 1–75. . . . . . . . . . . .
Figure 1–34: 60 Hz Rejection test result – TDS 684B shown 1–76. . . . . . .
Figure 1–35: Line count accuracy test hookup 1–77. . . . . . . . . . . . . . . . . . .
Figure 1–36: Line count accuracy test setup waveform –
TDS 684B shown 1–78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Figure 1–37: Line count accuracy correct result waveform 1–79. . . . . . . .
Figure 1–38: Setup for sync duty cycle test 1–81. . . . . . . . . . . . . . . . . . . . . .

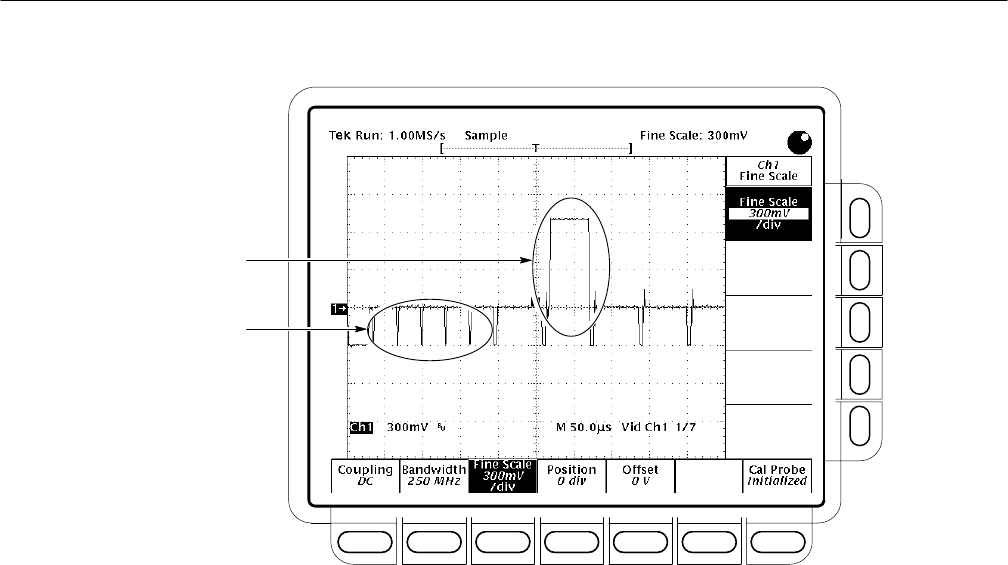

Figure 1–39: Sync duty cycle test: one-div neg pulse waveform 1–82. . . . .
Figure 1–40: Sync duty cycle test: critically adjusted pulse 1–83. . . . . . . .
Figure 1–41: Sine wave generator leveling equipment setup 1–85. . . . . . .
Figure 1–42: Equipment setup for maximum amplitude 1–86. . . . . . . . . .
Figure 1–43: Reference-receiver performance-verification set up 1–89. . .

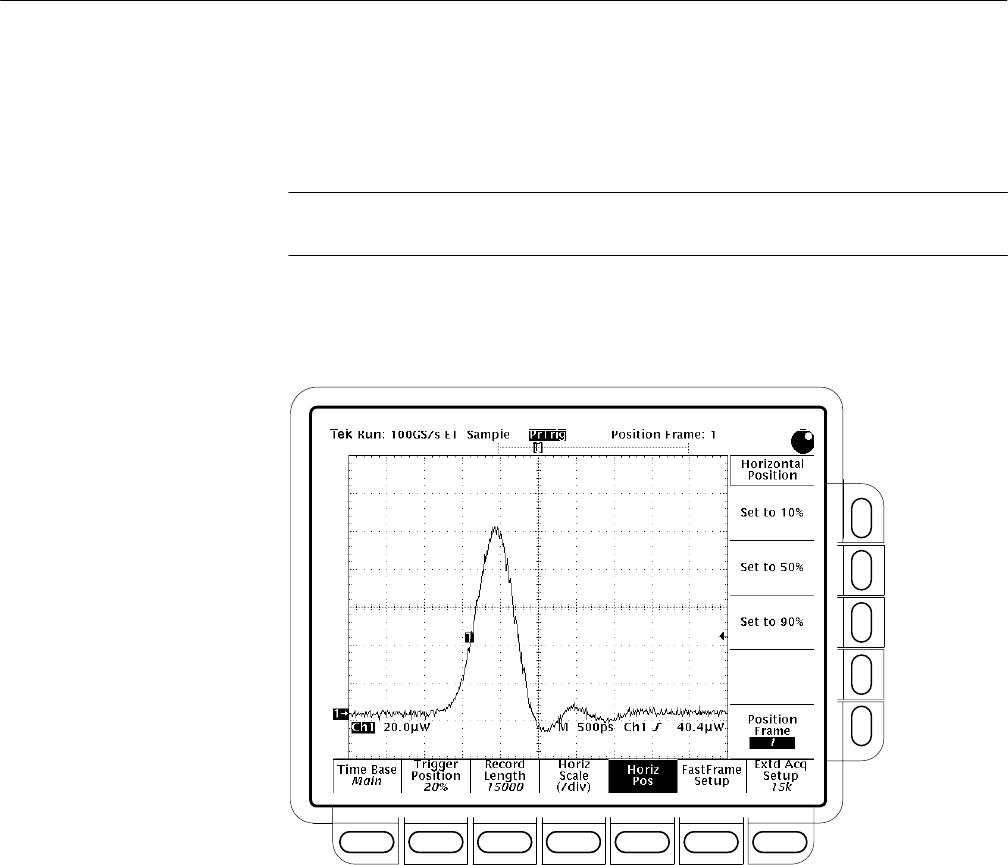

Figure 1–44: Optical impulse of Ch1 input from OA5022 Optical
Attenuator (OIG501 / OIG502 fed into optical attenuator
in Step 1) 1–91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

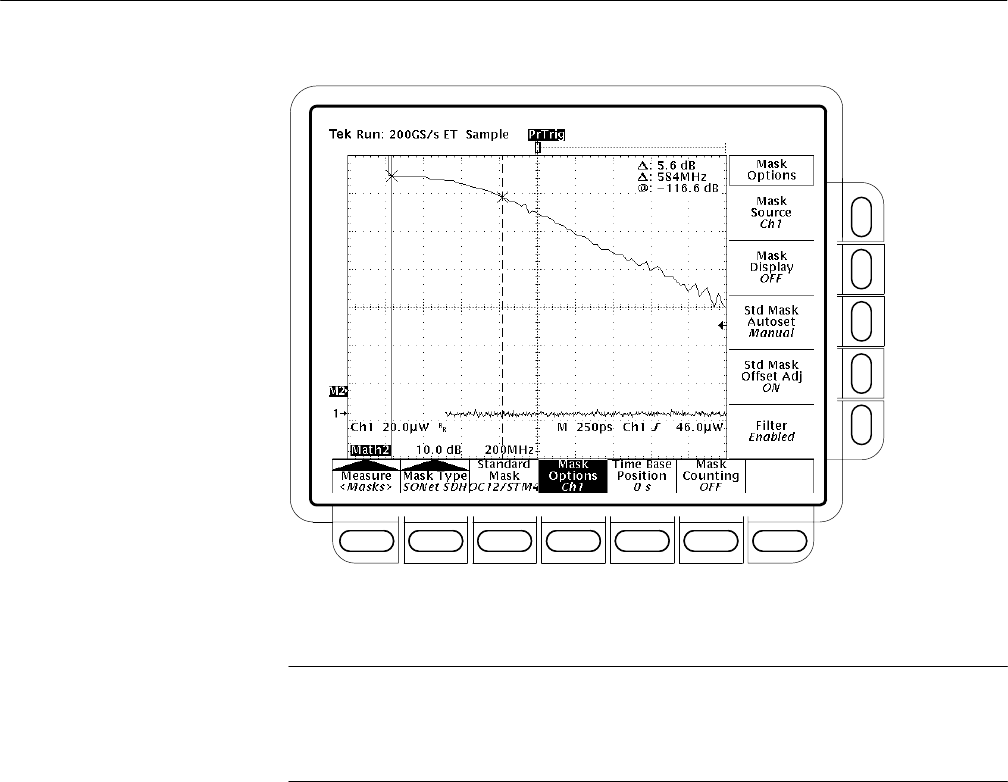

Figure 1–45: Optical impulse response for OC–12 SONET
Reference Receiver 1–94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

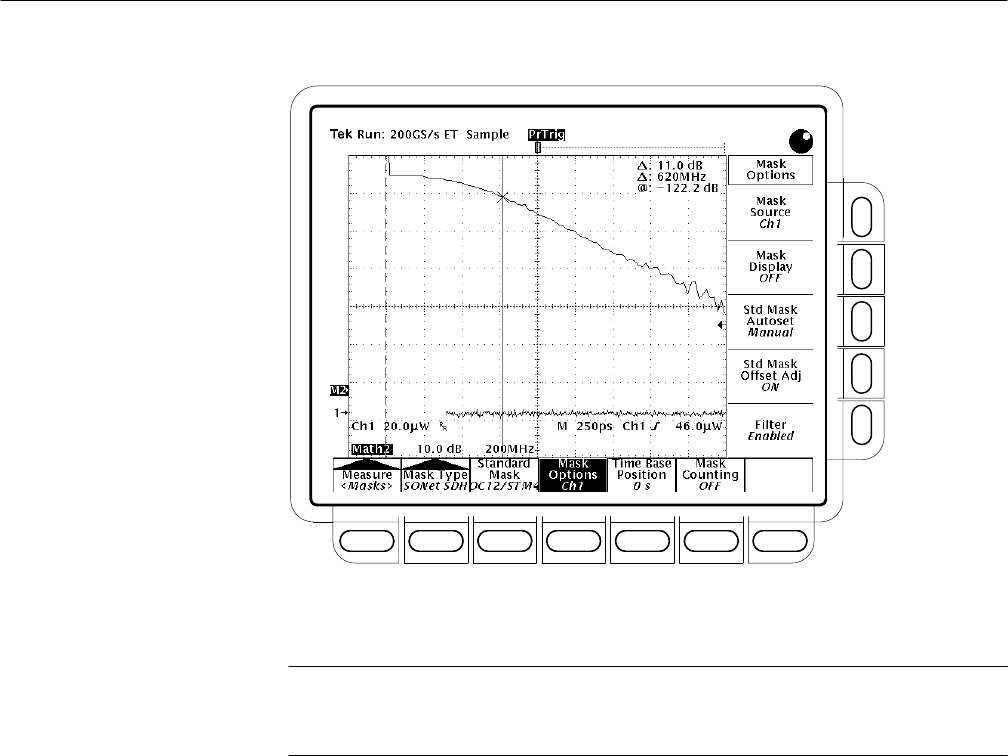

Figure 1–46: Optical impulse response for OC–12 SONET
Reference Receiver 1–95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table of Contents
iv TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
List of Tables
Table 1–1: Test equipment 1–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 1–2: DC offset accuracy (zero setting) 1–28. . . . . . . . . . . . . . . . . . . .
Table 1–3: DC Voltage measurement accuracy 1–31. . . . . . . . . . . . . . . . . .
Table 1–4: Analog bandwidth 1–35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 1–5: Delay between channels worksheet 1–42. . . . . . . . . . . . . . . . . .
Table 1–6: Available Filters 1–87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 1–7: Reference Receiver Filter Options: 1–88. . . . . . . . . . . . . . . . . . .
Table 1–8: Option 3C and 4C Specifications 1–88. . . . . . . . . . . . . . . . . . . .
Table 1–9: Available receivers 1–88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 1–10: Bessel Thompson frequency response and reference
receiver limits 1–96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 2–1: Key features of the TDS 500C, 600B and 700C
oscilloscopes 2–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 2–2: Record length and divisions per record vs. TDS model 2–4. .
Table 2–3: Nominal traits — Signal acquisition system 2–9. . . . . . . . . . .
Table 2–4: Nominal traits — Time base system 2–10. . . . . . . . . . . . . . . . . .
Table 2–5: Nominal traits — Triggering system 2–11. . . . . . . . . . . . . . . . .
Table 2–6: Nominal traits — Display system 2–13. . . . . . . . . . . . . . . . . . . .
Table 2–7: Nominal traits — GPIB interface, output ports, and
power fuse 2–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table 2–8: Nominal traits — Data handling and reliability 2–14. . . . . . . .
Table 2–9: Nominal traits — Mechanical 2–15. . . . . . . . . . . . . . . . . . . . . . .
Table 2–10: Warranted characteristics — Signal acquisition system 2–18
Table 2–11: Warranted characteristics — Time base system 2–19. . . . . . .
Table 2–12: Warranted characteristics — Triggering system 2–20. . . . . .
Table 2–13: Warranted characteristics — Output ports, probe
compensator, and power requirements 2–20. . . . . . . . . . . . . . . . . . . . .
Table 2–14: Warranted characteristics — Environmental 2–22. . . . . . . . .
Table 2–15: Certifications and compliances 2–24. . . . . . . . . . . . . . . . . . . . .
Table 2–16: Typical characteristics — Signal acquisition system 2–25. . .
Table 2–17: Typical characteristics — Triggering system 2–28. . . . . . . . .
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications v
General Safety Summary
Review the following safety precautions to avoid injury and prevent damage to
this product or any products connected to it. To avoid potential hazards, use the
product only as specified.
Only qualified personnel should perform service procedures.
While using this product, you may need to access other parts of the system. Read
the General Safety Summary in other system manuals for warnings and cautions
related to operating the system.
Injury Precautions
To avoid fire hazard, use only the power cord specified for this product.
To avoid electric shock or fire hazard, do not apply a voltage to a terminal that is
outside the range specified for that terminal.
This product is grounded through the grounding conductor of the power cord. To
avoid electric shock, the grounding conductor must be connected to earth
ground. Before making connections to the input or output terminals of the
product, ensure that the product is properly grounded.
To avoid electric shock or fire hazard, do not operate this product with covers or
panels removed.
To avoid fire hazard, use only the fuse type and rating specified for this product.
To avoid electric shock, do not operate this product in wet or damp conditions.
To avoid injury or fire hazard, do not operate this product in an explosive
atmosphere.
Use Proper Power Cord
Avoid Electric Overload
Ground the Product
Do Not Operate Without
Covers
Use Proper Fuse
Do Not Operate in
Wet/Damp Conditions
Do Not Operate in
Explosive Atmosphere
General Safety Summary
vi TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Product Damage Precautions
Do not operate this product from a power source that applies more than the
voltage specified.
To prevent product overheating, provide proper ventilation.
If you suspect there is damage to this product, have it inspected by qualified
service personnel.
Clean the probe using only a damp cloth. Refer to cleaning instructions.
Safety Terms and Symbols
These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that could result
in injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in
damage to this product or other property.
These terms may appear on the product:
DANGER indicates an injury hazard immediately accessible as you read the
marking.
WARNING indicates an injury hazard not immediately accessible as you read the
marking.
CAUTION indicates a hazard to property including the product.
Use Proper Power Source
Provide Proper Ventilation
Do Not Operate With
Suspected Failures
Do Not Immerse in Liquids
Terms in This Manual
Terms on the Product
General Safety Summary
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications vii
The following symbols may appear on the product:
DANGER
High Voltage Protective Ground
(Earth) Terminal ATTENTION
Refer to
Manual
Double
Insulated
Certifications and Compliances
CSA Certification includes the products and power cords appropriate for use in
the North America power network. All other power cords supplied are approved
for the country of use.
Symbols on the Product
CSA Certified Power
Cords
General Safety Summary
viii TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications ix
Preface
This is the Performance Verification and Specifications for the TDS 500C,
TDS 600B, and TDS 700C Oscilloscopes. It contains procedures suitable for
determining if each instrument functions, was adjusted properly, and meets the
performance characteristics as warranted. The following models are covered:
TDS 500C: TDS 520C and TDS 540C
TDS 600B: TDS 620B, TDS 644B, TDS 680B, and TDS 684B
TDS 700C: TDS 724C, TDS 754C, and TDS 784C
This document also contains the technical specifications for these oscilloscopes.
Related Manuals
The following documents are related to the use or service of this digitizing
oscilloscope:
HThe TDS 500C, TDS 600B & 700C User Manual describes how to use this
digitizing oscilloscope.
HThe TDS Family Programmer Manual describes using a computer to control
the digitizing oscilloscope through the GPIB interface.
HThe TDS 500C, TDS 600B & 700C Reference describes a quick overview of
how to operate your digitizing oscilloscope.
HThe TDS 500C, TDS 600B & 700C Service Manual describes information
for maintaining and servicing the digitizing oscilloscope to the module level.
Preface
xTDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Contacting Tektronix
Product
Support For application-oriented questions about a Tektronix measure-
ment product, call toll free in North America:
1-800-TEK-WIDE (1-800-835-9433 ext. 2400)
6:00 a.m. – 5:00 p.m. Pacific time
Or, contact us by e-mail:
tm_app_supp@tek.com
For product support outside of North America, contact your
local Tektronix distributor or sales office.
Service
Support Contact your local Tektronix distributor or sales office. Or, visit
our web site for a listing of worldwide service locations.
http://www.tek.com
For other
information In North America:
1-800-TEK-WIDE (1-800-835-9433)
An operator will direct your call.
To write us Tektronix, Inc.
P.O. Box 1000
Wilsonville, OR 97070-1000
Performance Verification
Procedures
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–1
Performance Verification Procedures
Two types of Performance Verification procedures can be performed on this
product: Brief Procedures and Performance Tests. You may not need to perform
all of these procedures, depending on what you want to accomplish.
HTo rapidly confirm that the oscilloscope functions and was adjusted properly,
just do the brief procedures under Self Tests, which begin on page 1–5.
Advantages: These procedures are quick to do, require no external
equipment or signal sources, and perform extensive functional and accuracy
testing to provide high confidence that the oscilloscope will perform
properly. They can be used as a quick check before making a series of
important measurements.
HTo further check functionality, first do the Self Tests just mentioned; then do
the brief procedures under Functional Tests that begin on page 1–7.
Advantages: These procedures require minimal additional time to perform,
require no additional equipment other than a standard-accessory probe, and
more completely test the internal hardware of the oscilloscope. They can be
used to quickly determine if the oscilloscope is suitable for putting into
service, such as when it is first received.
HIf more extensive confirmation of performance is desired, do the Perform-
ance Tests, beginning on page 1–15, after doing the Functional and Self Tests
just referenced.
Advantages: These procedures add direct checking of warranted specifica-
tions. They require more time to perform and suitable test equipment is
required. (See Equipment Required beginning on page 1–16).
If you are not familiar with operating this oscilloscope, read the TDS 500C,
TDS 600B & TDS 700C Reference (070-9861-XX) or the TDS 500C, TDS 600B
& TDS 700C User Manual (070-9869-XX). These contain instructions that will
acquaint you with the use of the front-panel controls and the menu system.
Performance Verification Procedures
1–2 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Input Channels vs. Model
When performing the procedures in this section, be aware that some TDS models
refer to input channels Ch 3 and Ch 4 as Aux 1 and Aux 2 respectively. Where
appropriate, both names will appear in the procedure, for example, Ch 3 (Aux 1).
The channel names for the various TDS models are shown below.
TDS Model Channel Names
TDS 540C, 644B, 684B, 754C, and 784C Ch 1, Ch 2, Ch 3, and Ch 4
TDS 520C, 620B, 680B, and 724C Ch 1, Ch 2, Aux 1, and Aux 2
Conventions
Throughout these procedures the following conventions apply:
HEach test procedure uses the following general format:
Title of Test
Equipment Required
Prerequisites
Procedure
HEach procedure consists of as many steps, substeps, and subparts as required
to do the test. Steps, substeps, and subparts are sequenced as follows:
1. First Step
a. First Substep
HFirst Subpart
HSecond Subpart
b. Second Substep
2. Second Step
HIn steps and substeps, the lead-in statement in italics instructs you what to
do, while the instructions that follow tell you how to do it, as in the example
step below, “Initialize the oscilloscope” by doing “Press save/recall SETUP.
Now, press the main-menu button...”.
Performance Verification Procedures
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–3
Initialize the oscilloscope: Press save/recall SETUP. Now, press the
main-menu button Recall Factory Setup; then the side-menu button OK
Confirm Factory Init.
HWhere instructed to use a front-panel button or knob, or select from a main
or side menu, or verify a readout or status message, the name of the button or
knob appears in boldface type: “press SHIFT; then UTILITY, press the
main-menu button System until Cal is highlighted in the pop-up menu.
Verify that the status message is Pass in the main menu under the Voltage
Reference label.”
STOP. The symbol at the left is accompanied by information you must read to do
the procedure properly.
HRefer to Figure 1–1: “Main menu” refers to the menu that labels the seven
menu buttons under the display; “side menu” refers to the menu that labels
the five buttons to the right of the display. “Pop-up menu” refers to a menu
that pops up when a main-menu button is pressed.
Brief status
information
Position of waveform
record relative to
the screen and display General purpose
knob readout
Waveform reference
symbols show ground levels
and waveform sources
Graticule and waveforms Side menu area.
Readouts for
measurements
move here when
CLEAR MENU
is pressed.
Main menu display area. Readouts in lower graticule
area move here when CLEAR MENU is pressed.
Pop-up menu
Vertical scale, horizontal scale,
and trigger level readouts
Figure 1–1: Map of display functions
Performance Verification Procedures
1–4 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–5
Brief Procedures
The Self Tests use internal routines to confirm basic functionality and proper
adjustment. No test equipment is required to do these test procedures.
The Functional Tests utilize the probe-compensation output at the front panel as
a test-signal source for further verifying that the oscilloscope functions properly.
A probe is required to do these test procedures.
Self Tests
This procedure uses internal routines to verify that the oscilloscope functions and
was adjusted properly. No test equipment or hookups are required.
Equipment
required None
Prerequisites Power on the digitizing oscilloscope and allow a 20 minute warm-up
before doing this procedure.
1. Verify that internal diagnostics pass: Do the following substeps to verify
passing of internal diagnostics.
a. Display the System diagnostics menu:
HPress SHIFT; then press UTILITY.
HRepeatedly press the main-menu button System until Diag/Err is
highlighted in the pop-up menu.
b. Run the System Diagnostics:
HFirst disconnect any input signals from all four channels.
HPress the main-menu button Execute; then press the side-menu
button OK Confirm Run Test.
c. Wait: The internal diagnostics do an exhaustive verification of proper
oscilloscope function. This verification will take up to three and a half
minutes on some models. When the verification is finished, the resulting
status will appear on the screen.
d. Confirm no failures are found: Verify that no failures are found and
reported on-screen.
e. Confirm the three adjustment sections have passed status:
Verify Internal Adjustment,
Self Compensation, and
Diagnostics
Brief Procedures
1–6 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HPress SHIFT; then press UTILITY.
HHighlight Cal in the pop-up menu by repeatedly pressing the
main-menu button System. See Figure 1–2.
HVerify that the word Pass appears in the main menu under the
following menu labels: Voltage Reference, Frequency Response,
and Pulse Trigger. See Figure 1–2.
f. Run the signal-path compensation: Press the main-menu button Signal
Path; then press the side-menu button OK Compensate Signal Paths.
g. Wait: Signal-path compensation may take five minutes on the
TDS 500C/700C and fifteen minutes on the 600B to run. While it
progresses, a “clock” icon (shown at left) is displayed on-screen. When
compensation completes, the status message will be updated to Pass or
Fail in the main menu. See step h.
h. Confirm signal-path compensation returns passed status: Verify that the
word Pass appears under Signal Path in the main menu. See Figure 1–2.
Verify Pass
3
Highlight Cal 1
Verify Pass
2
Figure 1–2: Verifying adjustments and signal-path compensation
2. Return to regular service: Press CLEAR MENU to exit the system menus.
Brief Procedures
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–7
Functional Tests
The purpose of these procedures is to confirm that the oscilloscope functions
properly. The only equipment required is one of the standard-accessory probes
and, to check the file system, a 3.5 inch, 720 K or 1.44 Mbyte floppy disk.
CAUTION. The P6243 and P6245 probes that can be used with this oscilloscope
provide an extremely low loading capacitance (<1 pF) to ensure the best
possible signal reproduction. These probes should not be used to measure
signals exceeding ±8 volts, or errors in signal measurement will be observed.
Above 40 volts, damage to the probe may result. To make measurements beyond
±10 volts, use either the P6139A probe (good to 500 volts peak), or refer to the
catalog for a recommended probe.
STOP. These procedures verify functions; that is, they verify that the oscilloscope
features operate. They do not verify that they operate within limits.
Therefore, when the instructions in the functional tests that follow call for you to
verify that a signal appears on-screen “that is about five divisions in amplitude”
or “has a period of about six horizontal divisions,” etc., do NOT interpret the
quantities given as limits. Operation within limits is checked in Performance
Tests, which begin on page 1–15.
STOP. DO NOT make changes to the front-panel settings that are not called out
in the procedures. Each verification procedure will require you to set the
oscilloscope to certain default settings before verifying functions. If you make
changes to these settings, other than those called out in the procedure, you may
obtain invalid results. In this case, just redo the procedure from step 1.
When you are instructed to press a menu button, the button may already be
selected (its label will be highlighted). If this is the case, it is not necessary to
press the button.
Equipment
required One probe such as the P6243, P6245 or P6139A
Prerequisites None
1. Install the test hookup and preset the oscilloscope controls:
a. Hook up the signal source: Install the probe on CH 1. Connect the probe
tip to PROBE COMPENSATION SIGNAL on the front panel;
Verify All Input Channels
Brief Procedures
1–8 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
connect the probe ground (typically black) to PROBE COMPENSA-
TION GND. If using a P6243 or P6245 probe, you may want to attach a
Y-lead connector and two SMD KlipChips as shown in Figure 1–3.
Signal Gnd
Figure 1–3: Universal test hookup for functional tests – TDS 600B shown
b. Initialize the oscilloscope:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
2. Verify that all channels operate: Do the following substeps — test CH 1
first, skipping substep a and b since CH 1 is already set up for verification
and as the trigger source from step 1.
a. Select an unverified channel:
HPress WAVEFORM OFF to remove the channel just verified from
display.
HPress the front-panel button that corresponds to the channel you are
to verify.
Brief Procedures
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–9
HMove the probe to the channel you selected.
b. Match the trigger source to the channel selected:
HPress TRIGGER MENU.
HPress the main-menu button Source.
HPress the side-menu button that corresponds to the channel selected,
Ch2, Ch3, or Ch4. (Some TDS models use Ax1 and Ax2 instead of
Ch3 and Ch4).
c. Set up the selected channel:
HSet the vertical SCALE to 200 mV.
HSet the horizontal SCALE to 200 s. Press CLEAR MENU to
remove any menu that may be on the screen.
HPress SET LEVEL TO 50%.
d. Verify that the channel is operational: Confirm that the following
statements are true.
HThe vertical scale readout for the channel under test shows a setting
of 200 mV, and a square-wave probe-compensation signal about
2.5 divisions in amplitude is on-screen. See Figure 1–1 on page 1–3
to locate the readout.
HThe vertical POSITION knob moves the signal up and down the
screen when rotated.
HTurning the vertical SCALE knob counterclockwise decreases the
amplitude of the waveform on-screen, turning the knob clockwise
increases the amplitude, and returning the knob to 200 mV returns
the amplitude to about 2.5 divisions.
e. Verify that the channel acquires in all acquisition modes: Press SHIFT;
then press ACQUIRE MENU. Use the side menu to select, in turn, each
of the three hardware acquire modes and confirm that the following
statements are true. Refer to the icons at the left of each statement as you
confirm those statements.

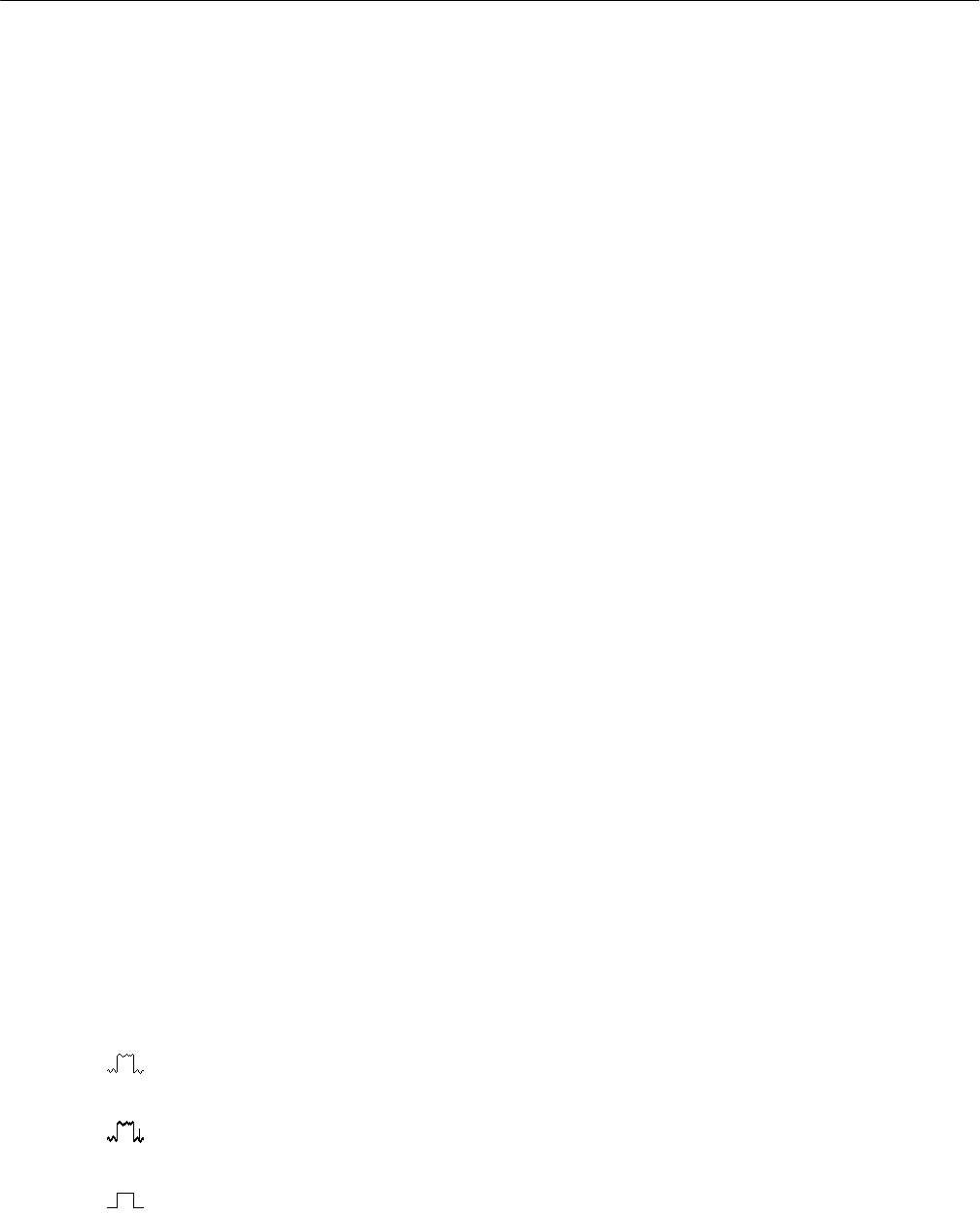

HSample mode displays an actively acquiring waveform on-screen.
(Note that there is noise present on the peaks of the square wave).
HPeak Detect mode displays an actively acquiring waveform
on-screen with the noise present in Sample mode “peak detected.”
HHi Res mode (TDS 500C and 700C only) displays an actively
acquiring waveform on-screen with the noise that was present in
Sample mode reduced.
Brief Procedures
1–10 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HEnvelope mode displays an actively acquiring waveform on-screen
with the noise displayed.
HAverage mode displays an actively acquiring waveform on-screen
with the noise reduced.
f. Test all channels: Repeat substeps a through e until all four input
channels are verified.
3. Remove the test hookup: Disconnect the probe from the channel input and
the probe-compensation terminals.
Equipment
required One probe such as the P6243, P6245 or P6139A
Prerequisites None
1. Install the test hookup and preset the oscilloscope controls:
a. Hook up the signal source: Install the probe on CH 1. Connect the probe
tip to PROBE COMPENSATION SIGNAL on the front panel;
connect the probe ground to PROBE COMPENSATION GND. See
Figure 1–3 on page 1–8.
b. Initialize the oscilloscope:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup; then press the
side-menu button OK Confirm Factory Init.
c. Modify default settings:
HSet the vertical SCALE to 200 mV.
HSet the horizontal SCALE to 200 s.
HPress SET LEVEL TO 50%.
HPress CLEAR MENU to remove the menus from the screen.
2. Verify that the time base operates: Confirm the following statements.
a. One period of the square-wave probe-compensation signal is about five
horizontal divisions on-screen for the 200 s horizontal scale setting (set
in step 1c).
b. Rotating the horizontal SCALE knob clockwise expands the waveform
on-screen (more horizontal divisions per waveform period), counter-
clockwise rotation contracts it, and returning the horizontal scale to
200 s returns the period to about five divisions.
Verify the Time Base
Brief Procedures
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–11
c. The horizontal POSITION knob positions the signal left and right
on-screen when rotated.
3. Remove the test hookup: Disconnect the probe from the channel input and
the probe-compensation terminals.
Equipment
required One probe such as the P6243, P6245, or P6139A
Prerequisites None
1. Install the test hookup and preset the oscilloscope controls:
a. Hook up the signal source: Install the probe on CH 1. Connect the probe
tip to PROBE COMPENSATION SIGNAL on the front panel;
connect the probe ground to PROBE COMPENSATION GND. See
Figure 1–3 on page 1–8.
b. Initialize the oscilloscope:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
c. Modify default settings:
HSet the vertical SCALE to 200 mV.
HSet the horizontal SCALE for the M (main) time base to 200 s.
HPress SET LEVEL TO 50%.
HPress TRIGGER MENU.
HPress the main-menu button Mode & Holdoff.
HPress the side-menu button Normal.
HPress CLEAR MENU to remove the menus from the screen.
2. Verify that the main trigger system operates: Confirm that the following
statements are true.
HThe trigger level readout for the main trigger system changes with the
trigger-LEVEL knob.
HThe trigger-LEVEL knob can trigger and untrigger the square-wave
signal as you rotate it. (Leave the signal untriggered, which is indicated
by the display not updating).
Verify the Main and
Delayed Trigger Systems
Brief Procedures
1–12 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HPressing SET LEVEL TO 50% triggers the signal that you just left
untriggered. (Leave the signal triggered).
3. Verify that the delayed trigger system operates:
a. Select the delayed time base:
HPress HORIZONTAL MENU.
HPress the main-menu button Time Base.
HPress the side-menu button Delayed Triggerable; then press the
side-menu button Delayed Only.
HSet the horizontal SCALE for the D (delayed) time base to 200 s.
b. Select the delayed trigger level menu:
HPress SHIFT; then press DELAYED TRIG.
HPress the main-menu button Level; then press the side-menu button
Level.
c. Confirm that the following statements are true:
HThe trigger-level readout for the delayed trigger system changes as
you turn the general purpose knob.
HAs you rotate the general purpose knob, the square-wave probe-com-
pensation signal can become triggered and untriggered. (Leave the
signal untriggered, which is indicated by the display not updating).
HPressing the side-menu button Set to 50% triggers the probe-com-
pensation signal that you just left untriggered. (Leave the signal
triggered).
d. Verify the delayed trigger counter:
HPress the main-menu button Delay by Time.
HUse the keypad to enter a delay time of 1 second. Press 1, then press
ENTER.
HVerify that the trigger READY indicator on the front panel flashes
about once every second as the waveform is updated on-screen.
4. Remove the test hookup: Disconnect the probe from the channel input and
the probe-compensation terminals.
Brief Procedures
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–13
Equipment
required One probe such as the P6243, P6245 or P6139A
One 720 K or 1.44 Mbyte, 3.5 inch DOS-compatible disk.
You can use a disk of your own or you can use the Programming
Examples Software 3.5 inch disk (Tektronix part number 063-1134-XX)
contained in the TDS Family Programmer Manual (Tektronix part
number 070-9556-XX).
Prerequisites None
1. Install the test hookup and preset the oscilloscope controls:
a. Hook up the signal source: Install the probe on CH 1. Connect the probe
tip to PROBE COMPENSATION SIGNAL on the front panel;
connect the probe ground to PROBE COMPENSATION GND. See
Figure 1–3 on page 1–8.
b. Insert the test disk: Insert the floppy disk in the floppy disk drive to the
left of the monitor.
HPosition the disk so the metal shutter faces the drive.
HPosition the disk so the stamped arrow is on the top right side. In
other words, place the angled corner in the front bottom location.
HPush the disk into the drive until it goes all the way in and clicks
into place.
c. Initialize the oscilloscope:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
d. Modify default settings:
HSet the vertical SCALE to 200 mV.
HSet the horizontal SCALE for the M (main) time base to 200 s.
Notice the waveform on the display now shows two cycles instead of
five.
HPress SET LEVEL TO 50%.
HPress CLEAR MENU to remove the menus from the screen.
e. Save the settings:
HPress SETUP.
HPress the main-menu button Save Current Setup; then press the
side-menu button To File.
Verify the File System
Brief Procedures
1–14 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HTurn the general purpose knob to select the file to save. Choose
(or fd0:, the floppy disk drive, or hd0:, the optional
hard disk drive). With this choice, you will save a file starting with
, then containing 5-numbers, and a extension. For example,
the first time you run this on a blank, formatted disk or on the
Example Programs Disk, the oscilloscope will assign the name
to your file. If you ran the procedure again, the
oscilloscope would increment the name and call the file
.
f. To test the optional hard disk drive, use the general purpose knob to
select the file to save. Then choose the hard disk drive (hd0:). Save the
file as in step e.
HPress the side-menu button Save To Selected File.
2. Verify the file system works:
HPress the main-menu button Recall Factory Setup and the side-menu
button OK Confirm Factory Init to restore the 500 s time base and
the five cycle waveform.
HPress the main-menu button Recall Saved Setup; then press the
side-menu button From File.
HTurn the general purpose knob to select the file to recall. For example, if
you followed the instructions previously and saved the file to either the
floppy disk drive (fd0:), or the optional hard disk drive (hd0:), you had
the oscilloscope assign the name TEK00000.SET to your file.
HPress the side-menu button Recall From Selected File.
HVerify that digitizing oscilloscope retrieved the saved setup from the
disk. Do this by noticing the horizontal SCALE for the M (main) time
base is again 200 s and the waveform shows only two cycles just as it
was when you saved the setup.
3. Remove the test hookup:
HDisconnect the probe from the channel input and the probe-compensa-
tion terminals.
HRemove the floppy disk from the floppy disk drive.
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–15
Performance Tests
This section contains a collection of procedures for checking that the TDS 500C,
TDS 600B, and TDS 700C Digitizing Oscilloscopes perform as warranted.
The procedures are arranged in four logical groupings: Signal Acquisition System
Checks, Time Base System Checks, Triggering System Checks, and Output Ports
Checks. They check all the characteristics that are designated as checked in
Specifications. (The characteristics that are checked appear in boldface type
under Warranted Characteristics in Specifications).
STOP. These procedures extend the confidence level provided by the basic
procedures described on page 1–5. The basic procedures should be done first,
then these procedures performed if desired.
Prerequisites
The tests in this section comprise an extensive, valid confirmation of perform-
ance and functionality when the following requirements are met:
HThe cabinet must be installed on the digitizing oscilloscope.
HYou must have performed and passed the procedures under Self Tests, found
on page 1–5, and those under Functional Tests, found on page 1–7.
HA signal-path compensation must have been done within the recommended
calibration interval and at a temperature within ±5_ C of the present
operating temperature. (If at the time you did the prerequisite Self Tests, the
temperature was within the limits just stated, consider this prerequisite met).
HThe digitizing oscilloscope must have been last adjusted at an ambient
temperature between +20_ C and +30_ C, must have been operating for a
warm-up period of at least 20 minutes, and must be operating at an ambient
temperature between +4_ C and either +45_ C for the TDS 600B or +50_ C
for the TDS 500C and 700C. (The warm-up requirement is usually met in
the course of meeting the Self Tests and Functional Tests prerequisites listed
above).
Performance Tests
1–16 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Equipment Required
These procedures use external, traceable signal sources to directly check
warranted characteristics. The required equipment list follows this introduction.
Table 1–1: Test equipment
Item number and
description Minimum requirements Example Purpose
1. Attenuator,10X
(two required) Ratio: 10X; impedance 50 ; connec-
tors: female BNC input, male BNC
output
Tektronix part number
011-0059-02 Signal Attenuation
2. Attenuator, 5X Ratio: 5X; impedance 50 ; connec-
tors: female BNC input, male BNC
output
Tektronix part number
011-0060-02 Signal Attenuation
3. Adapter, BNC female to
Clip Leads BNC female to Clip Leads Tektronix part number
013-0076-00 Signal Coupling for Probe
Compensator Output Check
4. Terminator, 50 Impedance 50 ; connectors: female
BNC input, male BNC output Tektronix part number
011-0049-01 Signal Termination for
Channel Delay Test
5. Cable, Precision 50
Coaxial (two required) 50 , 36 in, male to male BNC
connectors Tektronix part number
012-0482-00 Signal Interconnection
6. Connector, Dual-Banana
(two required) Female BNC to dual banana Tektronix part number
103-0090-00 Various Accuracy Tests
7. Connector, BNC “T” Male BNC to dual female BNC Tektronix part number
103-0030-00 Checking Trigger Sensitivity
8. Coupler, Dual-Input Female BNC to dual male BNC Tektronix part number
067-0525-02 Checking Delay Between
Channels
9. Generator, DC Calibra-
tion Variable amplitude to ±104 V; accura-
cy to 0.1% Data Precision 8200 Checking DC Offset, Gain,
and Measurement Accuracy
10. Generator, Calibration 500 mV square wave calibrator
amplitude; accuracy to 0.25% Wavetek 9100 with options
100 and 250 (or, optionally,
Tektronix PG 506A Calibra-
tion Generator1 )
To check accuracy of CH 3
Signal Out
11. Generator, Time Mark Variable marker frequency from 10 ms
to 10 ns; accuracy within 2 ppm Wavetek 9100 with options
100 and 250 (or, optionally,
Tektronix TG 501A Time
Mark Generator1)
Checking Sample-Rate and
Delay-time Accuracy
12. Probe, 10X A P6139A, P6243, or P6245 probe2Tektronix part number
P6139A or P6245 Signal Interconnection
13. 3.5 inch, 720 K or
1.44 Mbyte, DOS-com-
patible floppy disk
Programming Examples
Software Disk (Tektronix part
number 063-1134-XX) that
comes with the TDS Family
Programmer Manual (Tektro-
nix part number
070-9556-XX)
Checking File System Basic
Functionality
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–17
Table 1–1: Test equipment (cont.)
Item number and
description PurposeExampleMinimum requirements
14. Generator, Video Signal Provides PAL compatible outputs Tektronix TSG 121 Used to Test Video Option 05
Equipped Instruments Only
15. Oscillator, Leveled Sine
wave Generator 60 Hz Sine wave Wavetek 9100 with options
100 and 250 (or, optionally,
Tektronix SG 502)
Used to Test Video Option 05
Equipped Instruments Only
16. Pulse Generator Tektronix CFG280
(or, optionally, PG 502) Used to Test Video Option 05
Equipped Instruments Only
17. Cable, Coaxial
(two required) 75 , 36 in, male to male BNC
connectors Tektronix part number
012-1338-00 Used to Test Video Option 05
Equipped Instruments Only
18. Terminator, 75
(two required) Impedance 75 ; connectors: female
BNC input, male BNC output Tektronix part number
011-0102-01 Used to Test Video Option 05
Equipped Instruments Only
19. Generator, Sine Wave 100 kHz to at least 400 MHz. Variable
amplitude from 12 mV to 2 Vp-p.
Frequency accuracy >2.0%
Rohde & Schwarz SMY3Checking Analog Bandwidth,
Trigger Sensitivity, Sample-
rate, External Clock, and
Delay-Time Accuracy
20. Meter, Level and Power
Sensor Frequency range:10 MHz to 400MHz.
Amplitude range: 6 mVp-p to 2 Vp-p Rohde & Schwarz URV 35,
with NRV-Z8 power sensor3Checking Analog Bandwidth
and Trigger Sensitivity
21. Splitter, Power Frequency range: DC to 1 GHz.
Tracking: >2.0% Rohde & Schwarz RVZ3Checking Analog Bandwidth
22. Generator, Function Frequency range 5 MHz to 10 MHz.
Square wave transition time 25 ns.
Amplitude range: 0 to 10 Vp-p
into 50
Tektronix CFG280 Checking External Clock
23. Adapter (four required) Male N to female BNC Tektronix 103-0045-00 Checking Analog Bandwidth
24. Adapter Female N to male BNC Tektronix 103-0058-00 Checking Analog Bandwidth
25. Generator,
Leveled Sine Wave,
Medium-Frequency
(optional)
200 kHz to 250 MHz; Variable ampli-
tude from 5 mV to 4 Vp-p into 50 Tegam/Tektronix SG 503
Leveled Sine Wave Genera-
tor1, 3
Checking Trigger Sensitivity
at low frequencies
26. Generator, Leveled Sine
Wave, High-Frequency
(optional)
250 MHz to 1 GHz; Variable ampli-
tude from 5 mV to 4 Vp-p into 50 ;
6 MHz reference
Tegam/Tektronix SG 504
Leveled Sine Wave Genera-
tor1 with SG 504 Output
Head3
Checking Analog Bandwidth
and Trigger Sensitivity at high
frequencies
Performance Tests
1–18 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 1–1: Test equipment (cont.)
Item number and
description PurposeExampleMinimum requirements
27. Generator, Optical Im-
pulse 850 nm optical impulse Tektronix OIG501 Optical
Impulse Generator1Checking Option 3C
28. Generator, Optical Im-
pulse 1300 nm optical impulse Tektronix OIG502 Optical
Impulse Generator1Checking Option 4C
29. Attenuator, Optical 62.5 micron optical attenuator Tektronix OA5022 Optical
Attenuator1Checking Option 3C and 4C
30. Cable, Fibre Optic FC-FC fiber cable 174-2322-00 Checking Option 3C and 4C
31. Optical-to-Electrical
Converter P6701B (used with Option 3C) or
P6703B (used with Option 4C)
optical-to-electrical converter
Tektronix part number
P6701B or P6703B Checking Option 3C and 4C
1Requires a TM 500 or TM 5000 Series Power Module Mainframe.
2Warning: The P6243 and P6245 probes that may be used with this oscilloscope provide an extremely low loading
capacitance (<1 pF) to ensure the best possible signal reproduction. These probes should not be used to measure
signals exceeding ±8 V, or errors in signal measurement will be observed. Above 40 V, damage to the probe may result.
To make measurements beyond ±8 V, use either the P6139A probe (good to 500 V), or refer to the catalog for a recom-
mended probe.
3You can replace items 19, 20, or 21 with a Tegam/Tektronix SG503 (item 25) or SG504 (item 26) – if available.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–19
TDS 600B Test Record
Photocopy this and the next three pages and use them to record the performance
test results for your TDS 600B.
TDS 600B Test Record
Instrument Serial Number: Certificate Number:
Temperature: RH %:
Date of Calibration: Technician:
TDS 600B Performance Test Minimum Incoming Outgoing Maximum
Offset Accuracy
CH1 Offset +1 mV
+101 mV
+1.01 V
– 2.1 mV
– 75.6 mV
– 756 mV
__________
__________
__________
__________
__________
__________
+ 2.1 mV
+ 75.6 mV
+ 756 mV
CH2 Offset +1 mV
+101 mV
+1.01 V
– 2.1 mV
– 75.6 mV
– 756 mV
__________
__________
__________
__________
__________
__________
+ 2.1 mV
+ 75.6 mV
+ 756 mV
CH3 or AX1 +1 mV
Offset +101 mV
+1.01 V
– 2.1 mV
– 75.6 mV
– 756 mV
__________
__________
__________
__________
__________
__________
+ 2.1 mV
+ 75.6 mV
+ 756 mV
CH4 or AX2 +1 mV
Offset +101 mV
+1.01 V
– 2.1 mV
– 75.6 mV
– 756 mV
__________
__________
__________
__________
__________
__________
+ 2.1 mV
+ 75.6 mV
+ 756 mV
DC Voltage Measurement Accuracy (Averaged)
CH1 5 mV Vert scale setting,
–5 Div position setting, +1 V offset + 1.0329 V __________ __________ + 1.0471 V
CH1 5 mV Vert scale setting,
+5 Div position setting, –1 V offset – 1.0471 V __________ __________ – 1.0329 V
CH1 200 mV Vert scale setting,
–5 Div position setting, +10 V offset + 11.4165 V __________ __________ + 11.7835 V
CH1 200 mV Vert scale setting,
+5 Div position setting, –10 V offset – 11.7835 V __________ __________ – 11.4165 V
CH1 1 V Vert scale setting,
–5 Div position setting, +10 V offset + 17.2425 V __________ __________ + 18.7575 V
CH1 1 V Vert scale setting,
+5 Div position setting, –10 V offset – 18.7575 V __________ __________ – 17.2425 V
CH2 5 mV Vert scale setting,
–5 Div position setting, +1 V offset + 1.0329 V __________ __________ + 1.0471 V
CH2 5 mV Vert scale setting,
+5 Div position setting, –1 V offset – 1.0471 V __________ __________ – 1.0329 V
CH2 200 mV Vert scale setting,
–5 Div position setting, +10 V offset + 11.4165 V __________ __________ + 11.7835 V
Performance Tests
1–20 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
TDS 600B Test Record (Cont.)
Instrument Serial Number: Certificate Number:
Temperature: RH %:
Date of Calibration: Technician:
TDS 600B Performance Test MaximumOutgoingIncomingMinimum
CH2 200 mV Vert scale setting,
+5 Div position setting, –10 V offset – 11.7835 V __________ __________ – 11.4165 V
CH2 1 V Vert scale setting,
–5 Div position setting, +10 V offset + 17.2425 V __________ __________ + 18.7575 V
CH2 1 V Vert scale setting,
+5 Div position setting, –10 V offset – 18.7575 V __________ __________ – 17.2425 V
CH3 5 mV Vert scale setting,
or AX1 –5 Div position setting, +1 V offset + 1.0329 V __________ __________ + 1.0471 V
CH3 5 mV Vert scale setting,
or AX1 +5 Div position setting, –1 V offset – 1.0471 V __________ __________ – 1.0329 V
CH3 200 mV Vert scale setting,
or AX1 –5 Div position setting, +10 V offset + 11.4165 V __________ __________ + 11.7835 V
CH3 200 mV Vert scale setting,
or AX1 +5 Div position setting, –10 V offset – 11.7835 V __________ __________ – 11.4165 V
CH3 1 V Vert scale setting,
or AX1 –5 Div position setting, +10 V offset + 17.2425 V __________ __________ + 18.7575 V
CH3 1 V Vert scale setting,
or AX1 +5 Div position setting, –10 V offset – 18.7575 V __________ __________ – 17.2425 V
CH4 5 mV Vert scale setting,
or AX2 –5 Div position setting, +1 V offset + 1.0329 V __________ __________ + 1.0471 V
CH4 5 mV Vert scale setting,
or AX2 +5 Div position setting, –1 V offset – 1.0471 V __________ __________ – 1.0329 V
CH4 200 mV Vert scale setting,
or AX2 –5 Div position setting, +10 V offset + 11.4165 V __________ __________ + 11.7835 V
CH4 200 mV Vert scale setting,
or AX2 +5 Div position setting, –10 V offset – 11.7835 V __________ __________ – 11.4165 V
CH4 1 V Vert scale setting,
or AX2 –5 Div position setting, +10 V offset + 17.2425 V __________ __________ + 18.7575 V
CH4 1 V Vert scale setting,
or AX2 +5 Div position setting, –10 V offset – 18.7575 V __________ __________ – 17.2425 V
Analog Bandwidth
CH1 100 mV 424 mV __________ __________ N/A
CH2 100 mV 424 mV __________ __________ N/A
CH3 100 mV
or AX1 424 mV __________ __________ N/A
CH4 100 mV
or AX2 424 mV __________ __________ N/A
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–21
TDS 600B Test Record (Cont.)
Instrument Serial Number: Certificate Number:
Temperature: RH %:
Date of Calibration: Technician:
TDS 600B Performance Test MaximumOutgoingIncomingMinimum
Delay Between Channels
Delay Between Channels N/A __________ __________ 100 ps
Time Base System
Long Term Sample Rate/
Delay Time @ 500 ns/10 ms –2.0 Div __________ __________ +2.0 Div
Trigger System Accuracy
Pulse-Glitch or Pulse-Width,
Hor. scale ≤ 1 ms
Lower Limit
Upper Limit 3.5 ns
3.5 ns __________
__________ __________
__________ 6.5 ns
6.5 ns
Pulse-Glitch or Pulse-Width,
Hor. scale > 1 ms
Lower Limit
Upper Limit 1.9 ms
1.9 ms__________
__________ __________
__________ 2.1 ms
2.1 ms
Main Trigger, DC Coupled, Positive Slope 9.863 V __________ __________ 10.137 V
Main Trigger, DC Coupled, Negative Slope 9.863 V __________ __________ 10.137 V
Delayed Trigger, DC Coupled, Positive Slope 9.863 V __________ __________ 10.137 V
Delayed Trigger, DC Coupled, Negative Slope 9.863 V __________ __________ 10.137 V
CH1 Sensitivity, 50 MHz, Main Pass/Fail __________ __________ Pass/Fail
CH1 Sensitivity, 50 MHz, Delayed Pass/Fail __________ __________ Pass/Fail
CH1 AUX Trigger Input Pass/Fail __________ __________ Pass/Fail
CH1 Sensitivity, 1 GHz, Main Pass/Fail __________ __________ Pass/Fail
CH1 Sensitivity, 1 GHz, Delayed Pass/Fail __________ __________ Pass/Fail
Output Signal Checks
MAIN TRIGGER OUTPUT, 1 MW
High
Low High ≥ 2.5 V __________
__________ __________
__________ Low ≤ 0.7 V
MAIN TRIGGER OUTPUT, 50 W
High
Low High ≥ 1.0 V __________
__________ __________
__________ Low ≤ 0.25 V
DELAYED TRIGGER OUTPUT, 50 WHigh ≥ 1.0 V __________
__________ __________
__________ Low ≤ 0.25 V
DELAYED TRIGGER OUTPUT, 1 MWHigh ≥ 2.5 V __________
__________ __________
__________ Low ≤ 0.7 V
Performance Tests
1–22 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
TDS 600B Test Record (Cont.)
Instrument Serial Number: Certificate Number:
Temperature: RH %:
Date of Calibration: Technician:
TDS 600B Performance Test MaximumOutgoingIncomingMinimum
CH 3 or AX1 SIGNAL OUTPUT, 1 MPk-Pk ≥ 80 mV __________ __________ Pk-Pk ≤ 120 mV
CH 3 or AX1 SIGNAL OUTPUT, 50 Pk-Pk ≥ 40 mV __________ __________ Pk-Pk ≤ 60 mV
Probe Compensator Output Signal
Frequency (CH1 Freq). 950 Hz __________ __________ 1.050 kHz
Voltage (difference) 495 mV __________ __________ 505 mV
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–23
TDS 500C/700C Test Record
Photocopy this and the next three pages and use them to record the performance
test results for your TDS 500C/700C.
TDS 500C/700C Test Record
Instrument Serial Number: Certificate Number:
Temperature: RH %:
Date of Calibration: Technician:
TDS 500C/700C Performance Test Minimum Incoming Outgoing Maximum
Offset Accuracy
CH1 Offset +1 mV
+101 mV
+1.01 V
– 1.6 mV
– 25.1 mV
– 251 mV
__________
__________
__________
__________
__________
__________
+ 1.6 mV
+ 25.1 mV
+ 251 mV
CH2 Offset +1 mV
+101 mV
+1.01 V
– 1.6 mV
– 25.1 mV
– 251 mV
__________
__________
__________
__________
__________
__________
+ 1.6 mV
+ 25.1 mV
+ 251 mV
CH3 or AX1 Offset +1 mV
+101 mV
+1.01 V
– 1.6 mV
– 25.1 mV
– 251 mV
__________
__________
__________
__________
__________
__________
+ 1.6 mV
+ 25.1 mV
+ 251 mV
CH4 or AX2 Offset +1 mV
+101 mV
+1.01 V
– 1.6 mV
– 25.1 mV
– 251 mV
__________
__________
__________
__________
__________
__________
+ 1.6 mV
+ 25.1 mV
+ 251 mV
DC Voltage Measurement Accuracy (Averaged)
CH1 5 mV Vert scale setting,
–5 Div position setting, +1 V offset + 1.0355 V __________ __________ + 1.0445 V
CH1 5 mV Vert scale setting,
+5 Div position setting, –1 V offset – 1.0445 V __________ __________ – 1.0355 V
CH1 200 mV Vert scale setting,
–5 Div position setting, +10 V offset + 11.5195 V __________ __________ + 11.6805 V
CH1 200 mV Vert scale setting,
+5 Div position setting, –10 V offset – 11.6805 V __________ __________ – 11.5195 V
CH1 1 V Vert scale setting,
–5 Div position setting, +10 V offset + 17.7575 V __________ __________ + 18.2425 V
CH1 1 V Vert scale setting,
+5 Div position setting, –10 V offset – 18.2425 V __________ __________ – 17.7575 V
CH2 5 mV Vert scale setting,
–5 Div position setting, +1 V offset + 1.0355 V __________ __________ + 1.0445 V
CH2 5 mV Vert scale setting,
+5 Div position setting, –1 V offset – 1.0445 V __________ __________ – 1.0355 V
CH2 200 mV Vert scale setting,
–5 Div position setting, +10 V offset + 11.5195 V __________ __________ + 11.6805 V
Performance Tests
1–24 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
TDS 500C/700C Test Record (Cont.)
Instrument Serial Number: Certificate Number:
Temperature: RH %:
Date of Calibration: Technician:
TDS 500C/700C Performance Test MaximumOutgoingIncomingMinimum
CH2 200 mV Vert scale setting,
+5 Div position setting, –10 V offset – 11.6805 V __________ __________ – 11.5195 V
CH2 1 V Vert scale setting,
–5 Div position setting, +10 V offset + 17.7575 V __________ __________ + 18.2425 V
CH2 1 V Vert scale setting,
+5 Div position setting, –10 V offset – 18.2425 V __________ __________ – 17.7575 V
CH3 5 mV Vert scale setting,
or AX1 –5 Div position setting, +1 V offset + 1.0355 V __________ __________ + 1.0445 V
CH3 5 mV Vert scale setting,
or AX1 +5 Div position setting, –1 V offset – 1.0445 V __________ __________ – 1.0355 V
CH3 200 mV Vert scale setting,
or AX1 –5 Div position setting, +10 V offset + 11.5195 V __________ __________ + 11.6805 V
CH3 200 mV Vert scale setting,
or AX1 +5 Div position setting, –10 V offset – 11.6805 V __________ __________ – 11.5195 V
CH3 1 V Vert scale setting,
or AX1 –5 Div position setting, +10 V offset + 17.7575 V __________ __________ + 18.2425 V
CH3 1 V Vert scale setting,
or AX1 +5 Div position setting, –10 V offset – 18.2425 V __________ __________ – 17.7575 V
CH4 5 mV Vert scale setting,
or AX2 –5 Div position setting, +1 V offset + 1.0355 V __________ __________ + 1.0445 V
CH4 5 mV Vert scale setting,
or AX2 +5 Div position setting, –1 V offset – 1.0445 V __________ __________ – 1.0355 V
CH4 200 mV Vert scale setting,
or AX2 –5 Div position setting, +10 V offset + 11.5195 V __________ __________ + 11.6805 V
CH4 200 mV Vert scale setting,
or AX2 +5 Div position setting, –10 V offset – 11.6805 V __________ __________ – 11.5195 V
CH4 1 V Vert scale setting,
or AX2 –5 Div position setting, +10 V offset + 17.7575 V __________ __________ + 18.2425 V
CH4 1 V Vert scale setting,
or AX2 +5 Div position setting, –10 V offset – 18.2425 V __________ __________ – 17.7575 V
Analog Bandwidth
CH1 100 mV 424 mV __________ __________ N/A
CH2 100 mV 424 mV __________ __________ N/A
CH3
or AX1 100 mV 424 mV __________ __________ N/A
CH4
or AX2 100 mV 424 mV __________ __________ N/A
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–25
TDS 500C/700C Test Record (Cont.)
Instrument Serial Number: Certificate Number:
Temperature: RH %:
Date of Calibration: Technician:
TDS 500C/700C Performance Test MaximumOutgoingIncomingMinimum
Delay Between Channels
Delay Between Channels N/A __________ __________ 50 ps
Time Base System
Long Term Sample Rate/
Delay Time @ 100 ns/10.0 ms –2.5 Div __________ __________ +2.5 Div
Trigger System Accuracy
Pulse-Glitch or Pulse-Width,
Hor. scale ≤ 1 ms
Lower Limit
Upper Limit 3.5 ns
3.5 ns __________
__________ __________
__________ 6.5 ns
6.5 ns
Pulse-Glitch or Pulse-Width,
Hor. scale > 1 ms
Lower Limit
Upper Limit 1.9 ms
1.9 ms__________
__________ __________
__________ 2.1 ms
2.1 ms
Main Trigger, DC Coupled, Positive Slope 9.9393 V __________ __________ 10.1147 V
Main Trigger, DC Coupled, Negative Slope 9.9393 V __________ __________ 10.1147 V
Delayed Trigger, DC Coupled, Positive Slope 9.9393 V __________ __________ 10.1147 V
Delayed Trigger, DC Coupled, Negative Slope 9.9393 V __________ __________ 10.1147 V
CH1 Sensitivity, 50 MHz, Main Pass/Fail __________ __________ Pass/Fail
CH1 Sensitivity, 50 MHz, Delayed Pass/Fail __________ __________ Pass/Fail
CH1 AUX Trigger Input Pass/Fail __________ __________ Pass/Fail
CH1 Sensitivity, full bandwidth, Main Pass/Fail __________ __________ Pass/Fail
CH1 Sensitivity, full bandwidth, Delayed Pass/Fail __________ __________ Pass/Fail
Output Signal Checks
MAIN TRIGGER OUTPUT, 1 MW
High
Low High ≥ 2.5 V __________
__________ __________
__________ Low ≤ 0.7 V
MAIN TRIGGER OUTPUT, 50 W
High
Low High ≥ 1.0 V __________
__________ __________
__________ Low ≤ 0.25 V
DELAYED TRIGGER OUTPUT, 50 W
High
Low High ≥ 1.0 V __________
__________ __________
__________ Low ≤ 0.25 V
DELAYED TRIGGER OUTPUT, 1 MW
High
Low High ≥ 2.5 V __________
__________ __________
__________ Low ≤ 0.7 V
Performance Tests
1–26 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
TDS 500C/700C Test Record (Cont.)
Instrument Serial Number: Certificate Number:
Temperature: RH %:
Date of Calibration: Technician:
TDS 500C/700C Performance Test MaximumOutgoingIncomingMinimum
CH 3 or AX 1 SIGNAL OUTPUT, 1 MPk-Pk ≥ 88 mV __________ __________ Pk-Pk ≤ 132 mV
CH 3 or AX 1 SIGNAL OUTPUT, 50 Pk-Pk ≥ 44 mV __________ __________ Pk-Pk ≤ 66 mV
Probe Compensator Output Signal
Frequency (CH1 Freq). 950 Hz __________ __________ 1.050 kHz
Voltage (difference) 495 mV __________ __________ 505 mV
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–27
Signal Acquisition System Checks
These procedures check those characteristics that relate to the signal-acquisition
system and are listed as checked under Warranted Characteristics in Specifica-
tions.
Equipment
required None
Prerequisites The oscilloscope must meet the prerequisites listed on page 1–15.
See Input Channels vs. Model on page 1–2.
1. Preset the instrument controls:
a. Initialize the oscilloscope:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
HPress CLEAR MENU to remove the menus from the screen.
b. Modify the default settings:
HPress SHIFT; then press ACQUIRE MENU.
HOn the TDS 600B, press the main-menu button Mode; then press the
side-menu button Average 16.
HOn the TDS 500C and 700C, press the main-menu button Mode;
then press the side-menu button Hi Res.
HPress CURSOR.
HPress the main-menu button Function; then press the side-menu
button H Bars.
HPress CLEAR MENU.
HBe sure to disconnect any input signals from all four channels.
2. Confirm input channels are within limits for offset accuracy at zero offset:
Do the following substeps — test CH 1 first, skipping substep a since CH 1
is already set up to be checked from step 1.
a. Select an unchecked channel: Press WAVEFORM OFF to remove the
channel just confirmed from the display. Then, press the front-panel
button that corresponds to the channel you are to confirm.
Check Offset Accuracy
(Zero Setting)
Performance Tests
1–28 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
b. Set the vertical scale: Set the vertical SCALE to one of the settings
listed in Table 1–2 that is not yet checked. (Start with the first setting
listed).
HPress VERTICAL MENU. Press the main-menu button Fine Scale.
HUse the keypad to enter the vertical scale. For the 1 mV setting,
press 1, SHIFT, m, then ENTER. For the 101 mV setting, press
101, SHIFT, m, then ENTER. For the 1.01 V setting, press 1.01,
then ENTER.
HPress CLEAR MENU.
Table 1–2: DC offset accuracy (zero setting)
Vertical scale
setting
Vertical
position and
offset setting1TDS 600B offset
accuracy limits
TDS 500C/700C
offset accuracy
limits
1 mV 0 ±2.1 mV ±1.6 mV
101 mV 0 ±75.6 mV ±25.1 mV
1.01 V 0 ±756 mV ±251 mV
1Vertical position is set to 0 divisions and vertical offset to 0 V when the
oscilloscope is initialized in step 1.
c. Display the test signal: The waveform position and offset were
initialized for all channels in step 1 and are displayed as you select each
channel and its vertical scale.
d. Measure the test signal: Align the active cursor over the waveform by
rotating the general purpose knob. Ignore the other cursor. See
Figure 1–4.
e. Read the measurement results at the absolute (@:) cursor readout, not
the delta (D:) readout on screen. That is, read the offset relative to the
ground reference. See Figure 1–4.
f. Check against limits: Do the following subparts in the order listed.
HCHECK that the measurement results are within the limits listed for
the current vertical scale setting.
HEnter voltage on test record.
HRepeat substeps b through f until all vertical scale settings listed in
Table 1–2, are checked for the channel under test.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–29
Align the active cursor
over the waveform. 1
Read the
measurement
results. 2
Figure 1–4: Measurement of DC offset accuracy at zero setting
g. Test all channels: Repeat substeps a through f for all input channels.
3. Disconnect the hookup: No hookup was required.
WARNING. The generator is capable of outputting dangerous voltages. Be sure to
set the DC calibration generator to 0 volts before connecting, disconnecting,
and/or moving the test hookup during the performance of this procedure.
Equipment
required Two dual-banana connectors (Item 6)
One BNC T connector (Item 7)
One DC calibration generator (Item 9)
Two precision 50 W coaxial cables (Item 5)
Prerequisites The oscilloscope must meet the prerequisites listed on page 1–15
See Input Channels vs. Model on page 1–2.
Check DC Voltage
Measurement Accuracy
Performance Tests
1–30 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
1. Install the test hookup and preset the instrument controls:
a. Hook up the test-signal source:
HSet the output of a DC calibration generator to 0 volts.
HConnect the output of a DC calibration generator through a
dual-banana connector followed by a 50 W precision coaxial cable to
one side of a BNC T connector. See Figure 1–5.
HConnect the Sense output of the generator through a second
dual-banana connector followed by a 50 W precision coaxial cable to
the other side of the BNC T connector. Now connect the BNC T
connector to CH 1. See Figure 1–5.

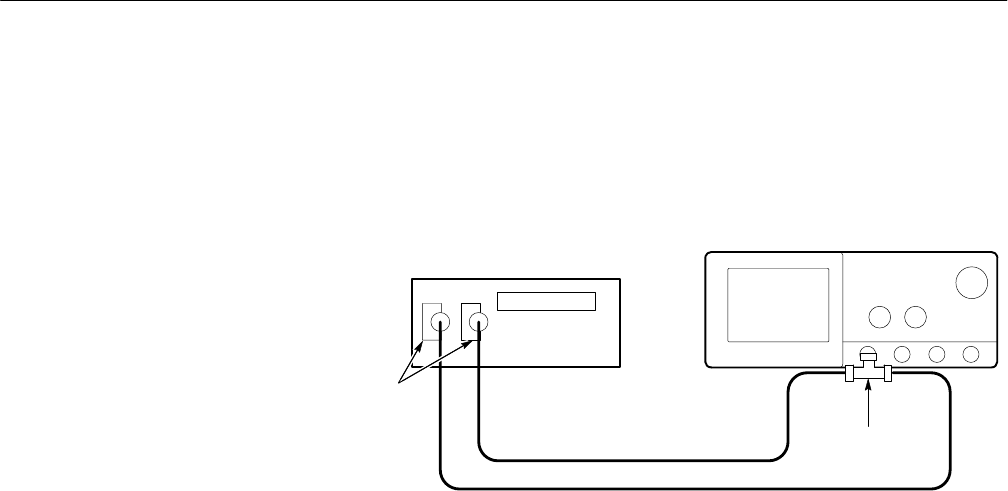

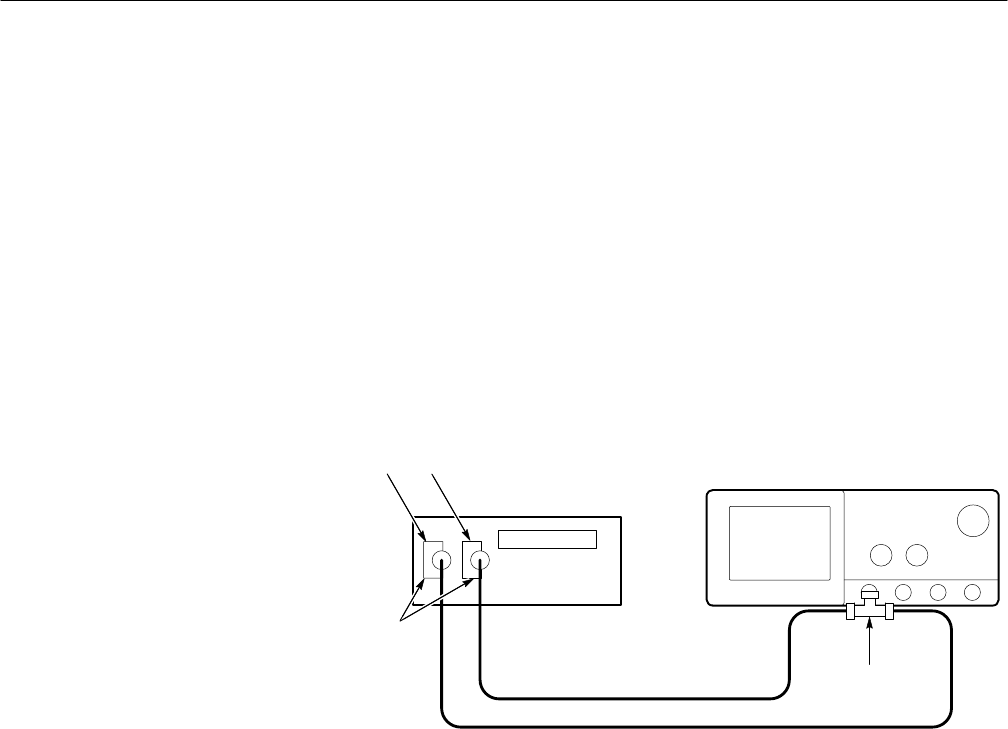

DC Calibrator
50 coaxial cables
Dual banana to
BNC adapters
BNC T
connector
Digitizing Oscilloscope
Output Sense

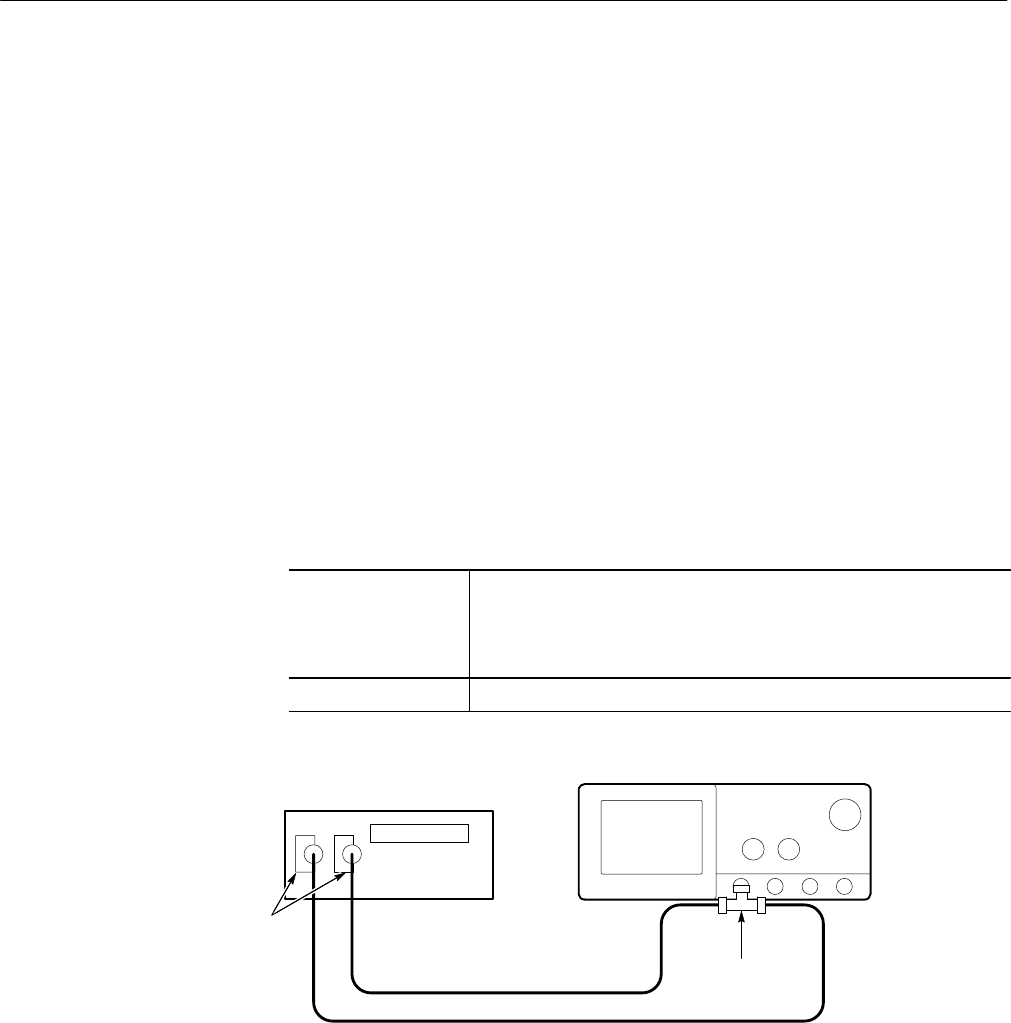

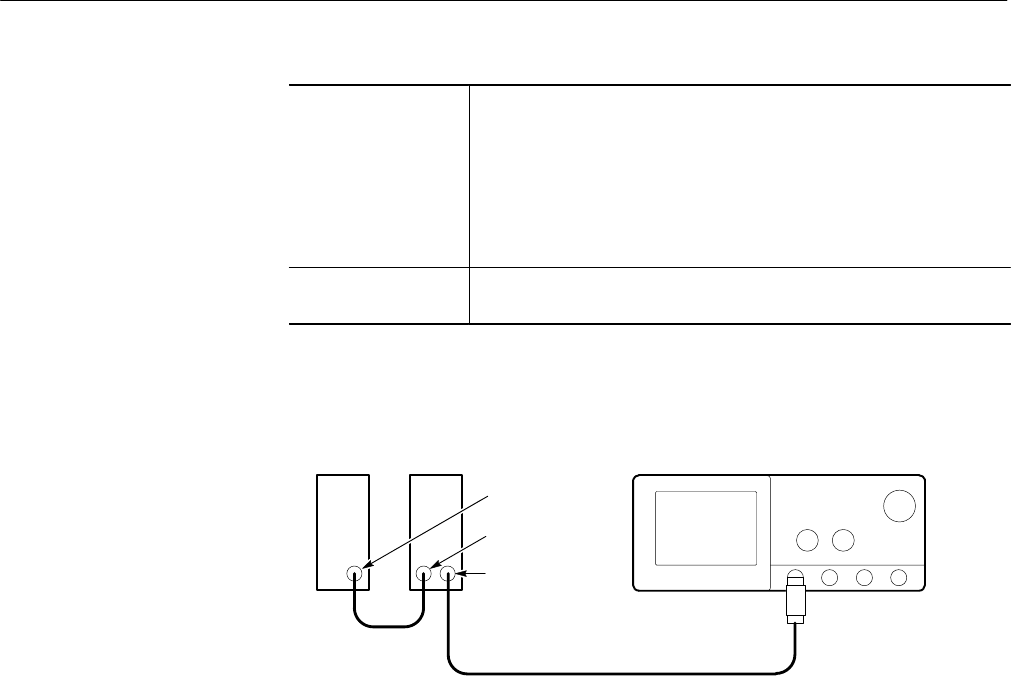

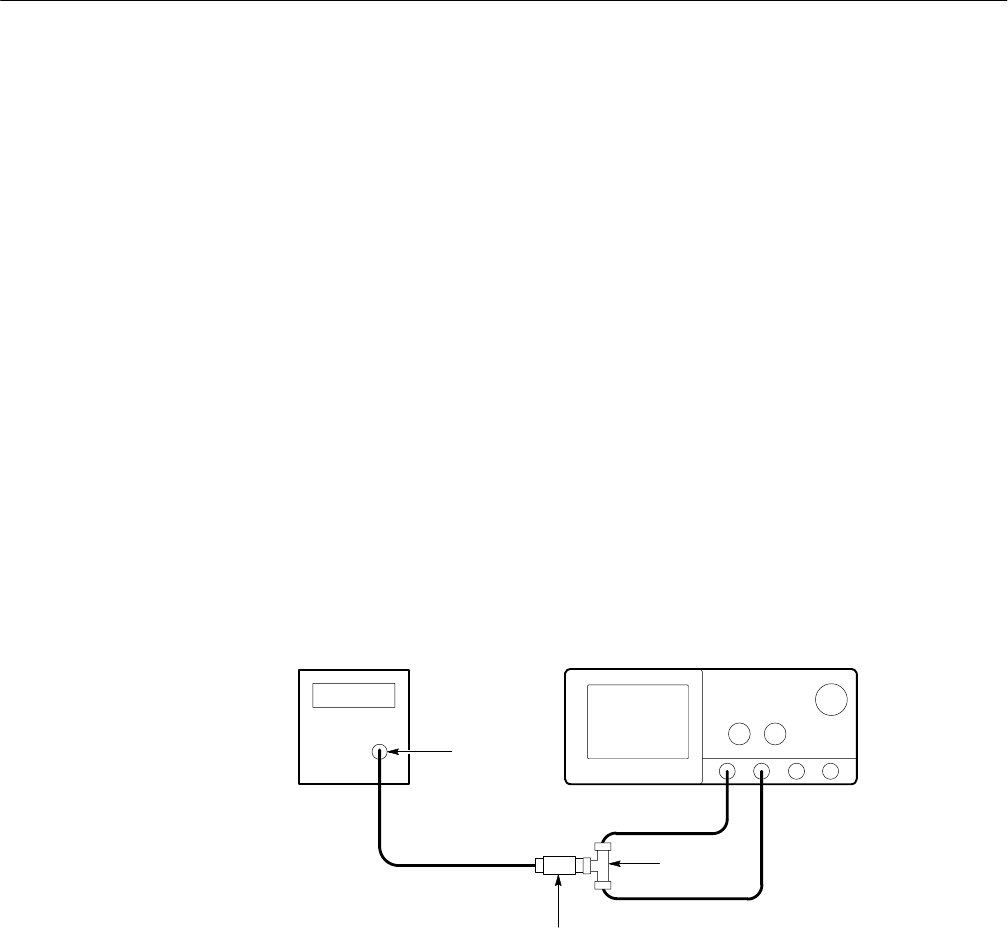

Figure 1–5: Initial test hookup
b. Initialize the oscilloscope:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
c. Modify the default settings:
HPress SHIFT; then press ACQUIRE MENU.
HPress the main-menu button Mode; then press the side-menu button
Average 16.
2. Confirm input channels are within limits for DC accuracy at maximum offset
and position: Do the following substeps — test CH 1 first, skipping substep
2a since CH 1 is already selected from step 1.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–31
a. Select an unchecked channel:
HPress WAVEFORM OFF to remove the channel just confirmed
from the display.
HPress the front-panel button that corresponds to the channel you are
to confirm.
HSet the generator output to 0 V.
HMove the test hookup to the channel you selected.
b. Turn on the measurement Mean for the channel:
HPress MEASURE, then press the main-menu button Select
Measrmnt for CHx.
HPress the side-menu button more until the menu label Mean appears
in the side menu (its icon is shown at the left). Press the side-menu
button Mean.
HPress CLEAR MENU.
c. Set the vertical scale: Set the vertical SCALE to one of the settings
listed in Table 1–3 that is not yet checked. (Start with the first setting
listed).
Table 1–3: DC Voltage measurement accuracy
Scale
setting
Position
setting
(Divs) Offset
setting Generator
setting TDS 600B
Accuracy limits TDS 500C/700C
Accuracy limits
5 mV –5 V +1 V +1.040 V +1.0329 V to +1.0471 V +1.0355 V to +1.0445 V
+5 V –1 V –1.040 V –1.0471 V to –1.0329 V –1.0445 V to –1.0355 V
200 mV –5 V +10 V +11.6 V +11.4165 V to +11.7835 V +11.5195 V to +11.6805 V
+5 V –10 V –11.6 V –11.7835 V to –11.4165 V –11.6805 V to –11.5195 V
1 V –5 V +10 V +18V +17.2425 V to +18.7575 V +17.7575 V to +18.2425 V
+5 V –10 V –18 V –18.7575 V to –17.2425 V –18.2425 V to –17.7575 V
d. Display the test signal:
HPress VERTICAL MENU. Press the main-menu button Position.
HUse the keypad to set vertical position to –5 divisions (press –5, then
ENTER, on the keypad). The baseline level will move off screen.
HPress the main-menu button Offset.
Performance Tests
1–32 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HUse the keypad to set vertical offset to the positive-polarity setting
listed in the table for the current vertical scale setting. The baseline
level will remain off screen.
HSet the generator to the level and polarity indicated in the table for
the vertical scale, position, and offset settings you have made. The
DC test level should appear on screen. (If it doesn’t return, the DC
accuracy check is failed for the current vertical scale setting of the
current channel).
e. Measure the test signal: Press CLEAR MENU. Read the measurement
results at the Mean measurement readout. See Figure 1–6.
Turn on the
measurement called
mean and read the
results here.

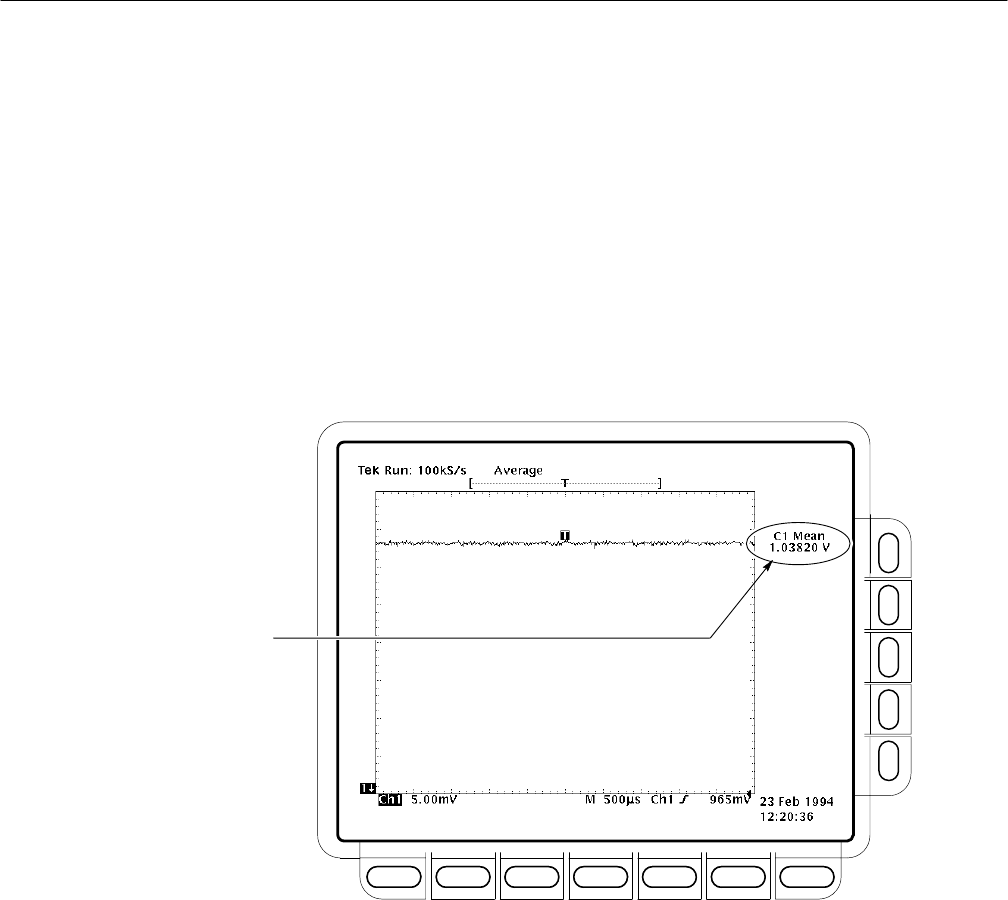

Figure 1–6: Measurement of DC accuracy at maximum offset and position
f. Check against limits:
HCHECK that the readout for the measurement Mean readout on
screen is within the limits listed for the current vertical scale and
position/offset/generator settings. Enter value on test record.
HRepeat substep d, reversing the polarity of the position, offset, and
generator settings as is listed in the table.
HCHECK that the Mean measurement readout on screen is within the
limits listed for the current vertical scale setting and position/offset/
generator settings. Enter value on test record.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–33
HRepeat substeps c through f until all vertical scale settings, listed in
Table 1–3, are checked for the channel under test.
g. Test all channels: Repeat substeps a through f for all four channels.
3. Disconnect the hookup:
a. Set the generator output to 0 V.
b. Disconnect the cable from the generator output at the input connector of
the channel last tested.

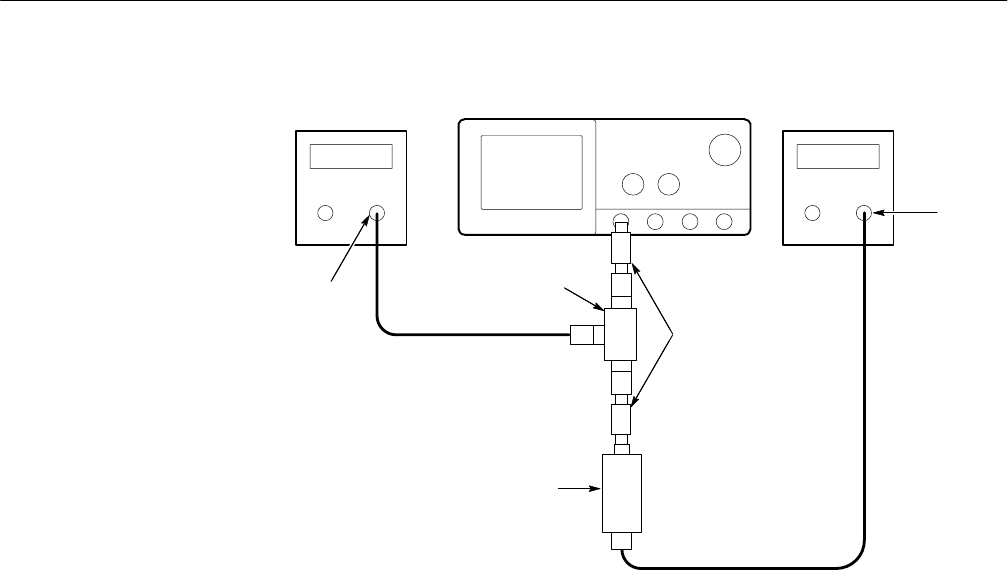

Equipment
required One sine wave generator (Item 19)
One level meter and power sensor (Item 20)
One power splitter (Item 21)
One female N to male BNC adapter (Item 24)
Four male N to female BNC adapters (Item 23)
Two 50 precision cables (Item 5)
Attenuators (Items 1 and 2)
Optional: One high-frequency leveled sine wave generator and its
leveling head (Item 26) – replaces items 19, 20, 21, 23, 24, and 5
Prerequisites See page 1–15
1. Install the test hookup and preset the instrument controls:
a. Initialize the oscilloscope:
HPress save/recall SETUP. Press the main-menu button Recall
Factory Setup; then press the side-menu button OK Confirm
Factory Init.
b. Modify the default settings:
HPress TRIGGER MENU.
HPress the main-menu button Coupling. Then press the side menu
button Noise Rej.
HTurn the horizontal SCALE knob to 50 ns. Press SHIFT; then press
ACQUIRE MENU.
HPress the main-menu button Mode; then press the side-menu button
Average 16.
HPress MEASURE. Press the main-menu button Level Setup; then
press the side-menu button Min-Max.
Check Analog Bandwidth
Performance Tests
1–34 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
NOTE. Refer to the Sine Wave Generator Leveling Procedure on page 1–84 if
your sine wave generator does not have automatic output amplitude leveling.

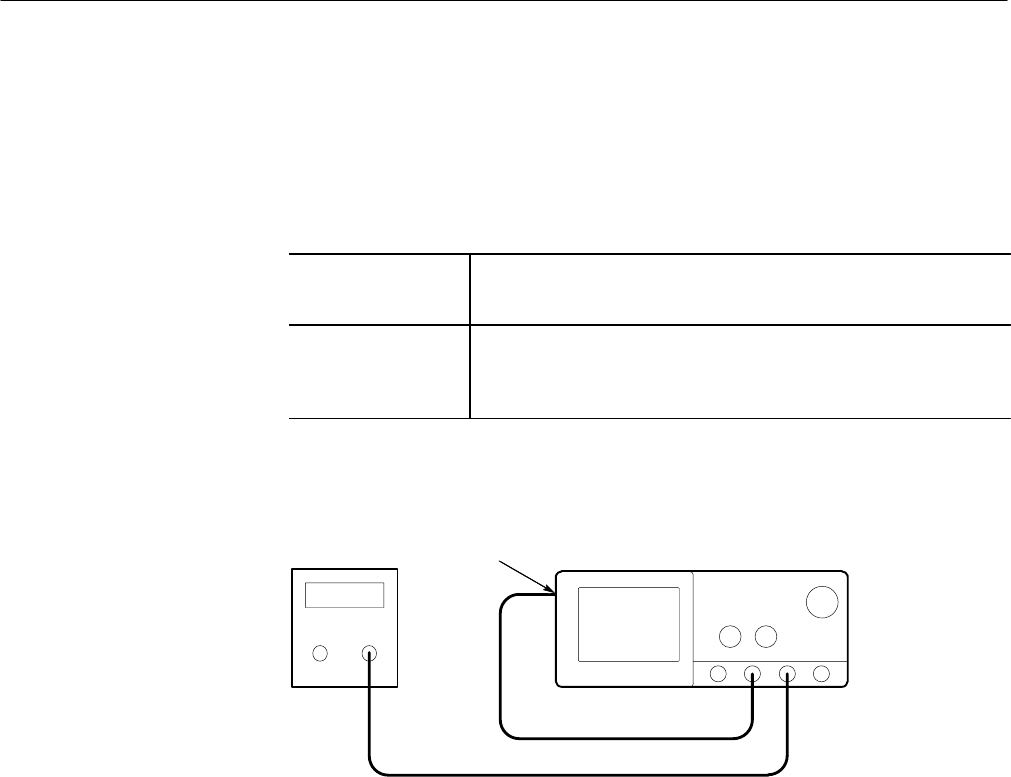

c. Hook up the test-signal source: Connect the sine wave output of a
leveled sine wave generator to CH 1. Set the output of the generator to a
reference frequency of 10 MHz or less. See Figure 1–7. For the optional
setup using a leveled sine wave generator with a leveling head (item 26)
see Figure 1–8 and, if using this optional setup with the example
Tektronix SG 504, set the generator output to 6 MHz.
Digitizing Oscilloscope
Sine Wave
Generator
Output

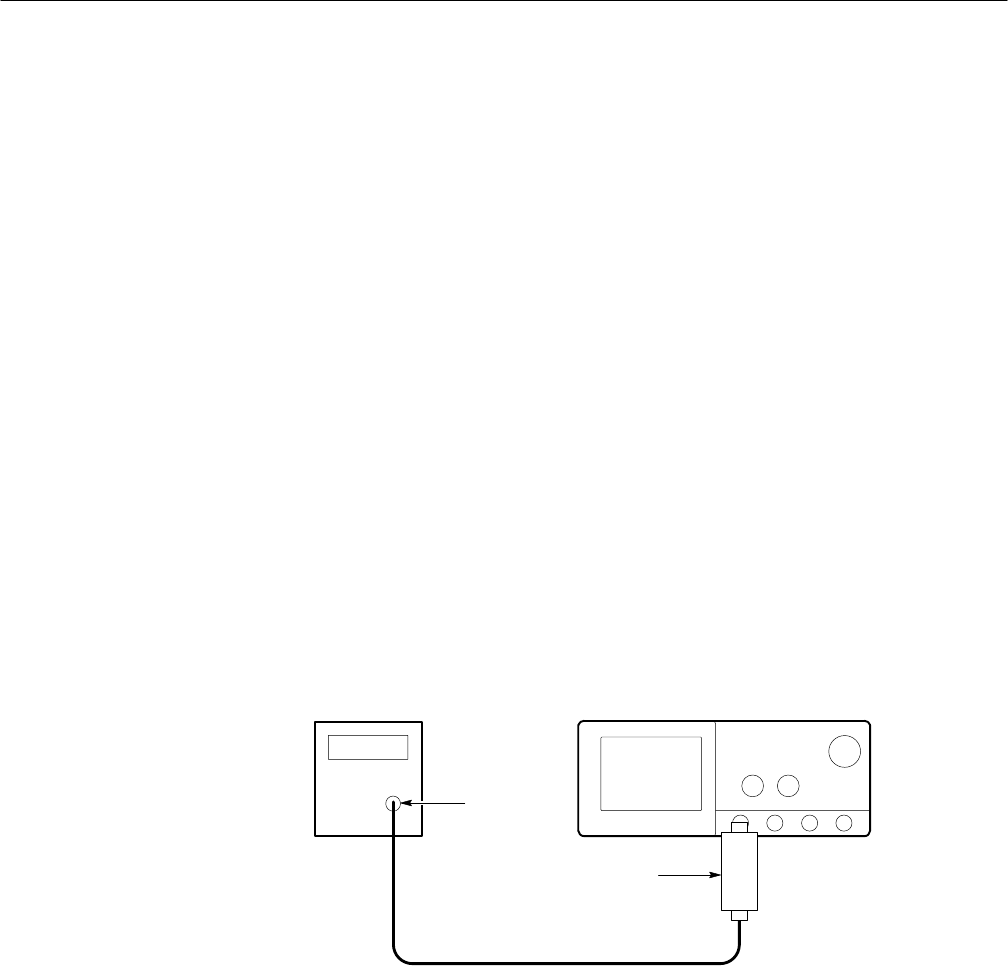

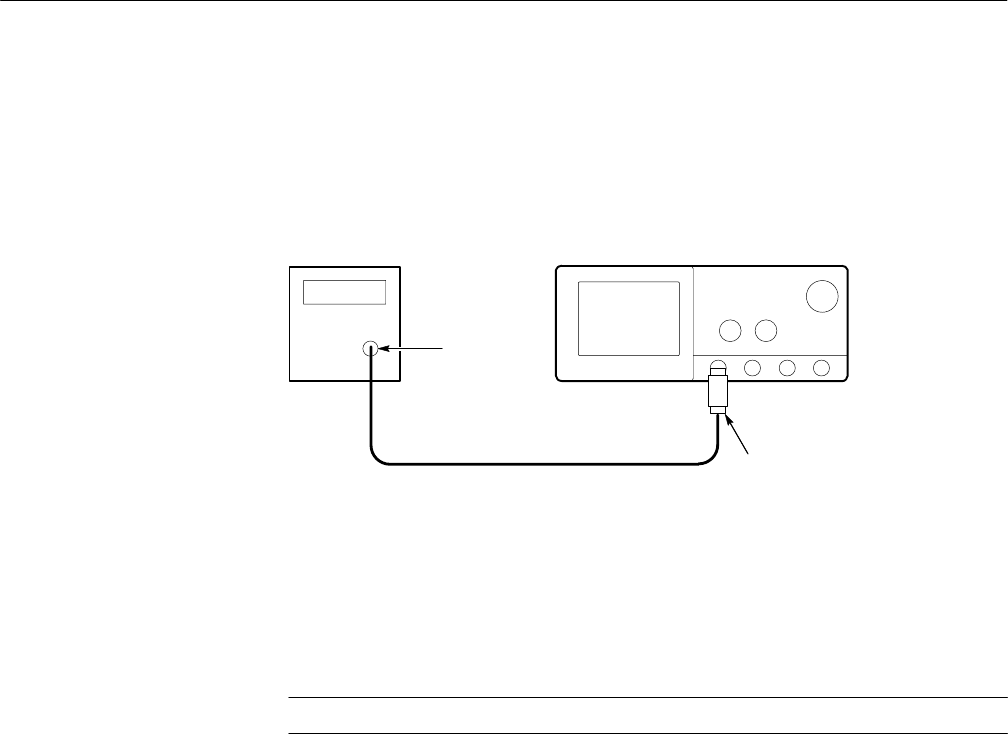

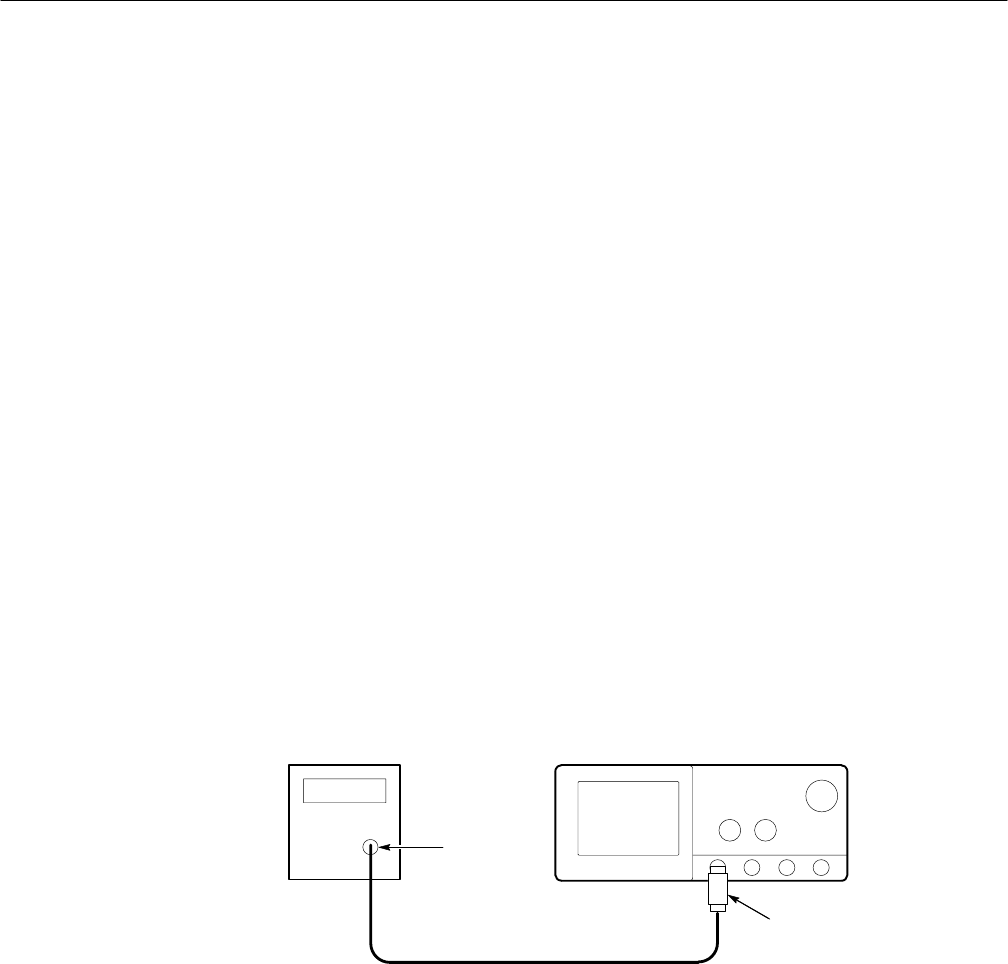

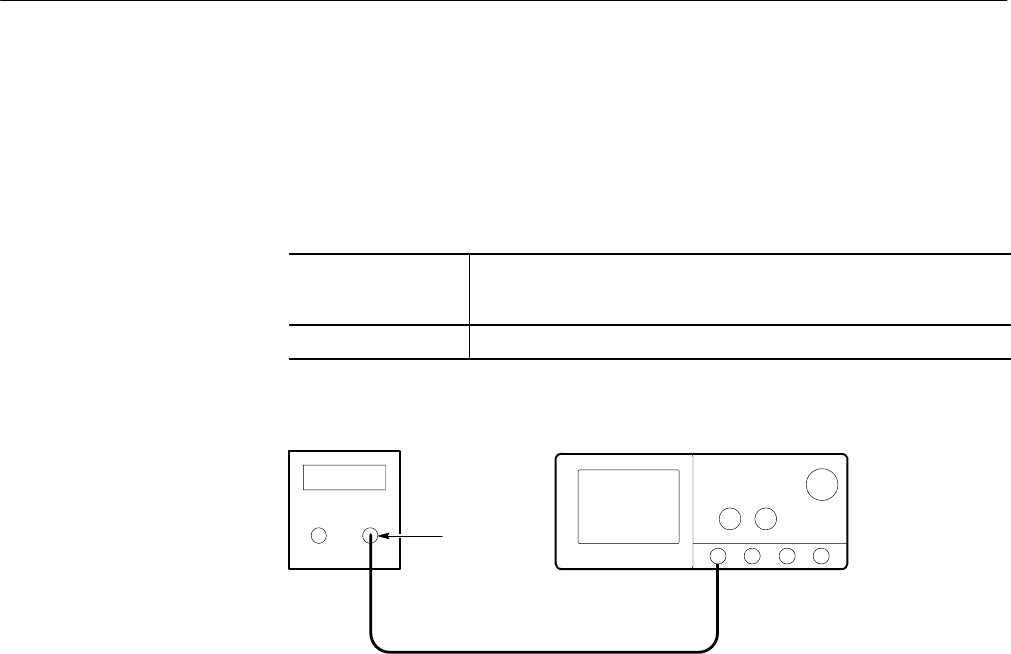

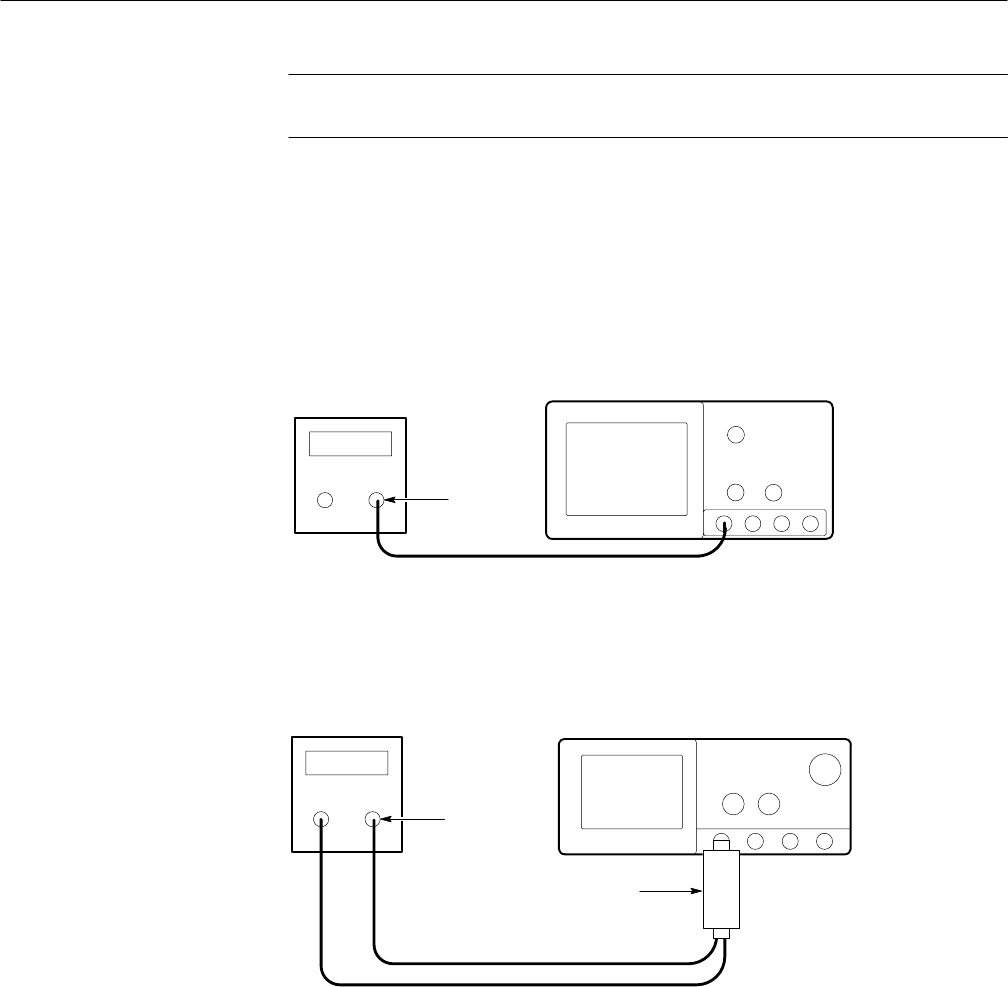

Figure 1–7: Initial test hookup
High Frequency Sine
Wave Generator
(example: Tek SG 504) Digitizing Oscilloscope
Output
Leveling head
Figure 1–8: Optional initial test hookup
2. Confirm the input channels are within limits for analog bandwidth: Do the
following substeps — test CH 1 first, skipping substeps a and b since CH 1
is already set up for testing from step 1.
a. Select an unchecked channel:
HPress WAVEFORM OFF to remove the channel just confirmed
from display.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–35
HPress the front-panel button that corresponds to the channel you are
to confirm.
HMove the leveling output of the sine wave generator to the channel
you selected.
b. Match the trigger source to the channel selected:
HPress TRIGGER MENU. Press the main-menu button Source; then
press the side-menu button that corresponds to the channel selected.
c. Set its input impedance:
HPress VERTICAL MENU; then press the main-menu button
Coupling.
HPress the side-menu button to toggle it to the 50 setting.
d. Set the vertical scale: Set the vertical SCALE to one of the settings
listed in Table 1–4 not yet checked. (Start with the 100 mV setting).
Table 1–4: Analog bandwidth
er ical cale
Re ere ce ampli e
Hri al
Test frequency
Limi
V
er
t
ical
s
cale
Re
f
ere
n
ce
ampli
tud
e
H
o
ri
zont
al
scale
TDS 680B
TDS 684B
TDS 784C TDS 620B
TDS 644B
TDS 520C
TDS 540C
TDS 724C
TDS 754C
Limi
ts
100 mV 600 mV (6 divisions) 1 ns 1 GHz 500 MHz 500 MHz ≥424 mV
1 V 5 V (5 divisions) 1 ns 1 GHz 500 MHz 500 MHz ≥3.535 V
500 mV 3 V (6 divisions) 1 ns 1 GHz 500 MHz 500 MHz ≥2.121 V
200 mV 1.2 V (6 divisions) 1 ns 1 GHz 500 MHz 500 MHz ≥848 mV
50 mV 300 mV (6 divisions) 1 ns 1 GHz 500 MHz 500 MHz ≥212 mV
20 mV 120 mV (6 divisions) 1 ns 1 GHz 500 MHz 500 MHz ≥84.8 mV
10 mV 60 mV (6 divisions) 1 ns 1 GHz 500 MHz 500 MHz ≥42.4 mV
5mV 30 mV (6 divisions) 1 ns 750 MHz 450 MHz 500 MHz ≥21.2 mV
2mV 12 mV (6 divisions) 1 ns 600 MHz 300 MHz 500 MHz ≥8.48 mV
1mV 6 mV (6 divisions) 1 ns 500 MHz 250 MHz 450 MHz ≥4.24 mV
e. Display the test signal: Do the following subparts to first display the
reference signal and then the test signal.

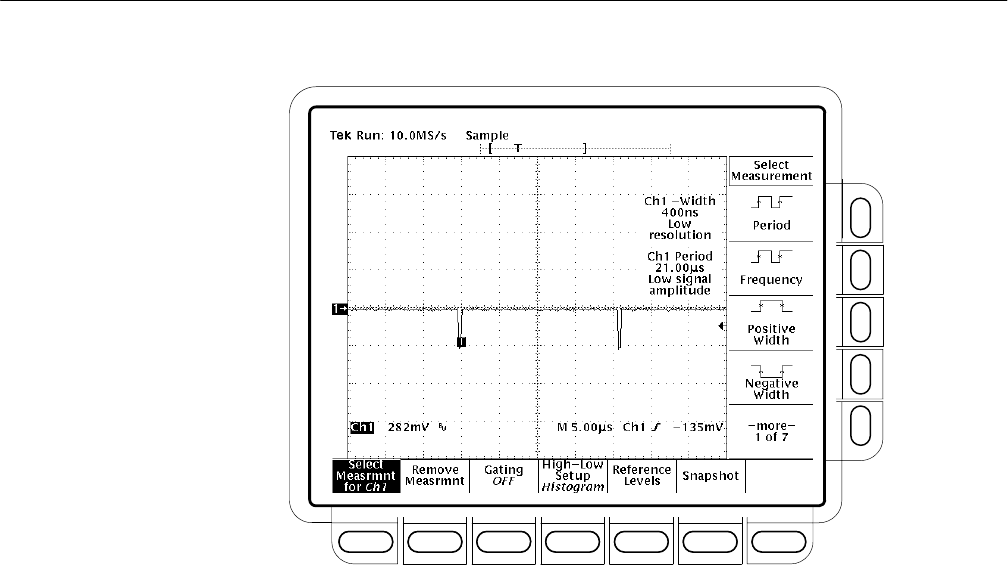

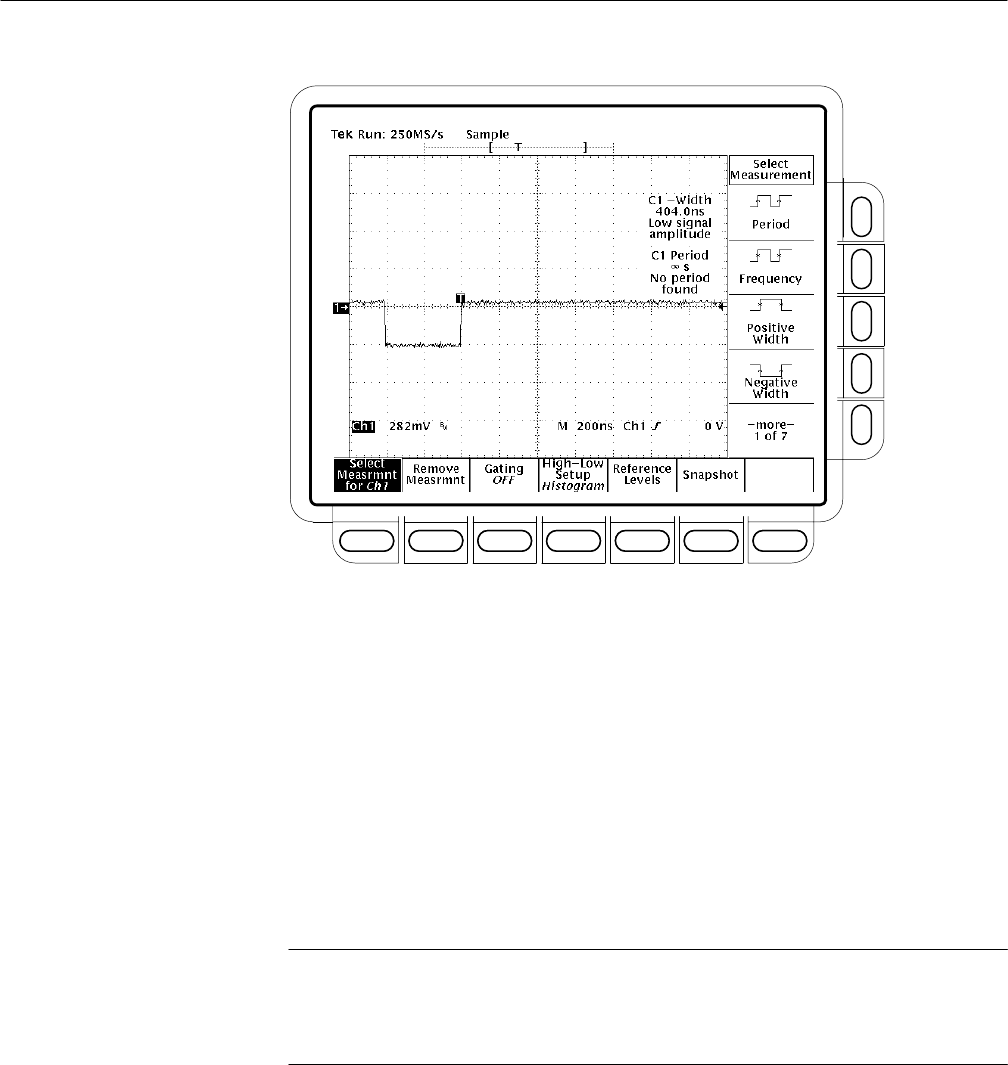

HPress MEASURE; then press the main-menu button Select
Measrmnt for CHx.
Performance Tests
1–36 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HPress the side-menu button more, if needed, until the menu label
Frequency appears in the side menu (its icon is shown at the left).
Press the side-menu button Frequency.
HPress the side-menu button more until the menu label Pk-Pk
appears in the side menu (its icon is shown at the left). Press the
side-menu button Pk-Pk.
HPress CLEAR MENU.
HSet the generator output so the CHx Pk-Pk readout equals the
reference amplitude in Table 1–4 that corresponds to the vertical
scale set in substep d.
HPress the front-panel button SET LEVEL TO 50% as necessary to
trigger a stable display. At full bandwidth, you may also want to
make small, manual adjustments to the trigger level. You can use the
TRIGGER LEVEL knob to do this. (Full bandwidth varies with
TDS model as is shown in Table 1–4).
f. Measure the test signal:
HSet the frequency of the generator, as shown on screen, to the test
frequency in Table 1–4 that corresponds to the vertical scale set in
substep d. See Figure 1–9.
HSet the horizontal SCALE to the horizontal scale setting in
Table 1–4 that corresponds to the vertical scale set in substep d.
Press SET LEVEL TO 50% as necessary to trigger the signal.
HRead the results at the CHx Pk-Pk readout, which will automatically
measure the amplitude of the test signal. See Figure 1–9.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–37
Set the generator
(reference) frequency to
the test frequency from
Table 1–4. 1
Set the horizontal scale
from Table 1–4. 2
Read results. 3
Figure 1–9: Measurement of analog bandwidth
g. Check against limits:
HCHECK that the Pk-Pk readout on screen is within the limits listed
in Table 1–4 for the current vertical scale setting.
HEnter voltage on test record.
HWhen finished checking, set the horizontal SCALE back to the
50 ns setting.
STOP. Checking each channel’s bandwidth at all vertical scale settings is time
consuming and unnecessary. You may skip checking the remaining vertical scale
settings in Table 1–4 (that is, skip the following substep, h) if this digitizing
oscilloscope has performed as follows:
HPassed the 100 mV vertical scale setting just checked in this
procedure.
HPassed the Verify Internal Adjustment, Self Compensation, and
Diagnostics procedure found under Self Tests, on page 1–5.
Performance Tests
1–38 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
NOTE. Passing the signal path compensation confirms the signal path for all
vertical scale settings for all channels. Passing the internal diagnostics ensures
that the factory-set adjustment constants that control the bandwidth for each
vertical scale setting have not changed.
h. Check remaining vertical scale settings against limits (optional):
HIf desired, finish checking the remaining vertical scale settings for
the channel under test by repeating substeps d through g for each of
the remaining scale settings listed in Table 1–4 for the channel under
test.
HWhen doing substep e, skip the subparts that turn on the CHx Pk-Pk
measurement until you check a new channel.
HInstall/remove attenuators between the generator leveling head and
the channel input as needed to obtain the six division reference
signals listed in the table.
i. Test all channels: Repeat substeps a through g for all four channels.
3. Disconnect the hookup: Disconnect the test hook up from the input
connector of the channel last tested.
Equipment
required One sine wave generator (Item 19, or optionally, item 25)
One precision 50 W coaxial cable (Item 5)
One 50 terminator (Item 4)
One dual-input coupler (Item 8)
Prerequisites See page 1–15
See Input Channels vs. Model on page 1–2.
STOP. DO NOT use the vertical position knob to reposition any channel while
doing this check. To do so invalidates the test.
1. Install the test hookup and preset the instrument controls:
a. Initialize the front panel:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
Check Delay Between
Channels
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–39
b. Modify the initialized front-panel control settings:
HDo not adjust the vertical position of any channel during this
procedure.
HSet the horizontal SCALE to 500 ps.
HPress SHIFT; then press ACQUIRE MENU.
HPress the main-menu button Mode, and then press the side-menu
button Average 16.

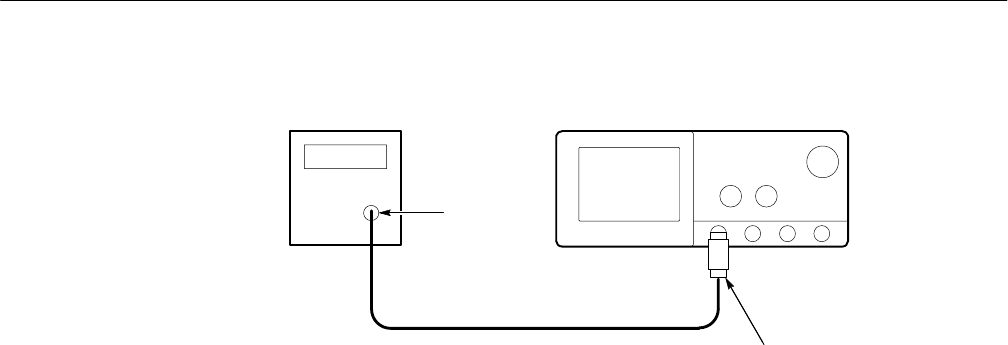

c. Hook up the test-signal source:
HConnect the sine wave output of a sine wave generator (item 19 or,
optionally, 25) to a 50 W precision coaxial cable followed by a 50 W
termination, and a dual-input coupler. See Figure 1–10.
HConnect the coupler to both CH 1 and CH 2. See Figure 1–10.
Sine Wave
Generator
Dual input
coupler
Digitizing Oscilloscope
50 terminator
Output

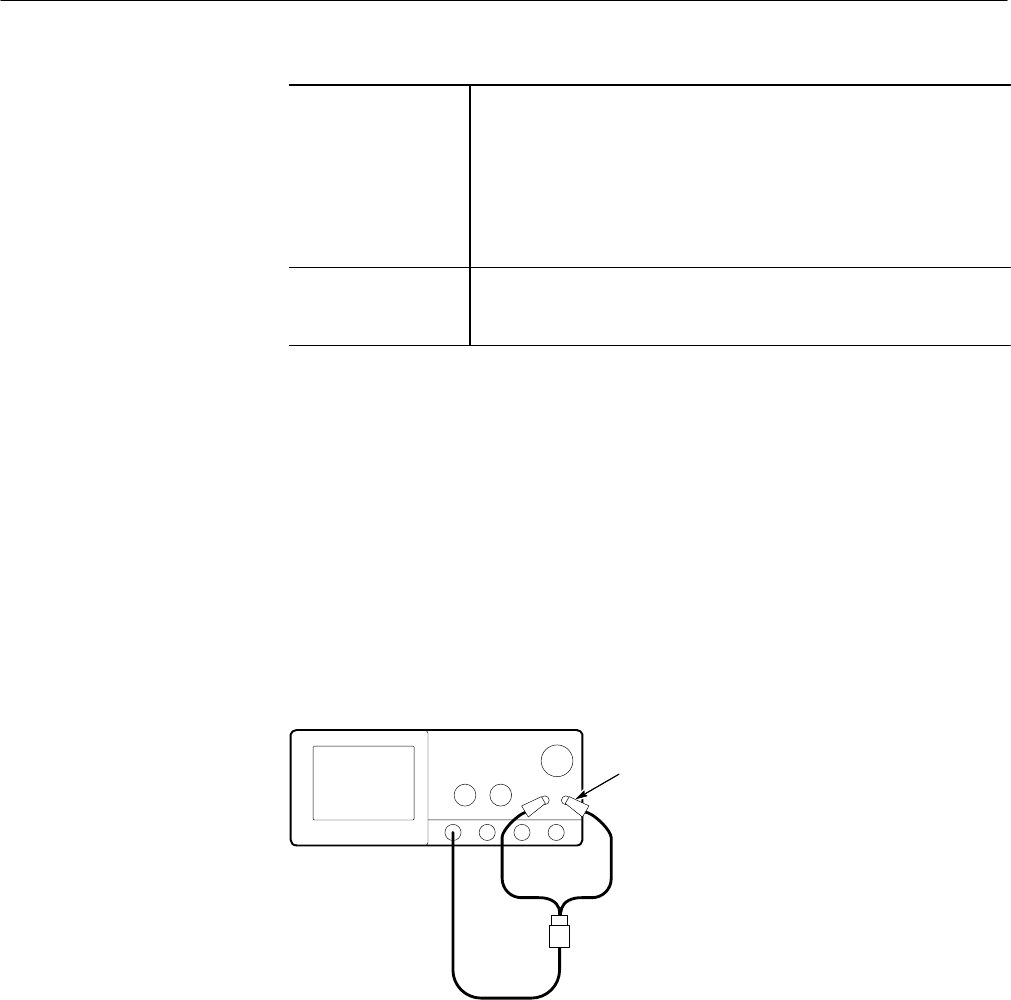

Figure 1–10: Initial test hookup
2. Confirm all four channels are within limits for channel delay:
a. Set up the generator: Set the generator frequency to 250 MHz and the
amplitude for about six divisions in CH 1.
Hint: As you are adjusting the generator amplitude, push SET LEVEL
TO 50% frequently to speed up the updating of the waveform amplitude
on screen.
Performance Tests
1–40 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
b. The horizontal SCALE should already be set to 500 ps. On the
TDS 784C, and 600B, now set it to 200 ps. On the TDS 520C, 540C,
724C, and 754C, push the front-panel ZOOM button, press the
side-menu On button, set the horizontal SCALE to 250 ps, and be sure
the vertical scale factor is kept at 1.0X and the horizontal scale factor is
2.0X.
c. Save a CH 2 waveform: Press CH 2. Be sure the vertical scale factor is
kept at 1.0X. Then press save/recall WAVEFORM. Now, press the
main-menu button Save Wfm; then press the side-menu button
To Ref 2.
d. Save CH 3 (AX1 on some TDS models) waveform:
HMove the coupler from CH 2 to CH 3 (AX1 on some TDS models),
so that CH 1 and CH 3 are driven. Press WAVEFORM OFF. Press
CH 3. Be sure the vertical scale factor is kept at 1.0X. Then press
the side-menu button
To Ref 3.
e. Display all test signals:
HPress WAVEFORM OFF to remove CH 3 (AX1 on some TDS
models) from the display.
HDisplay the live waveform. Move the coupler from CH 3 to CH 4,
so that CH 1 and CH 4 are driven. (Use AX1 and AX2 instead of
CH3 and CH4 if your TDS model is so equipped). Press CH 4 to
display. Be sure the vertical scale factor is kept at 1.0X. See Figure
1–11 on page 1–41.
HDisplay the reference waveforms. To do this, press the front-panel
button MORE. Press the main-menu buttons Ref 2 and Ref 3. You
may notice their overlapping ground reference indicators. See
Figure 1–11 on page 1–41.
f. Measure the test signal:
HLocate the time reference points for these waveforms. Do this by
first identifying the point where the rising edge of the left-most
waveform crosses the center horizontal graticule line. Next, note the
corresponding time reference point for the right-most waveform. See
Figure 1–11 on page 1–41.

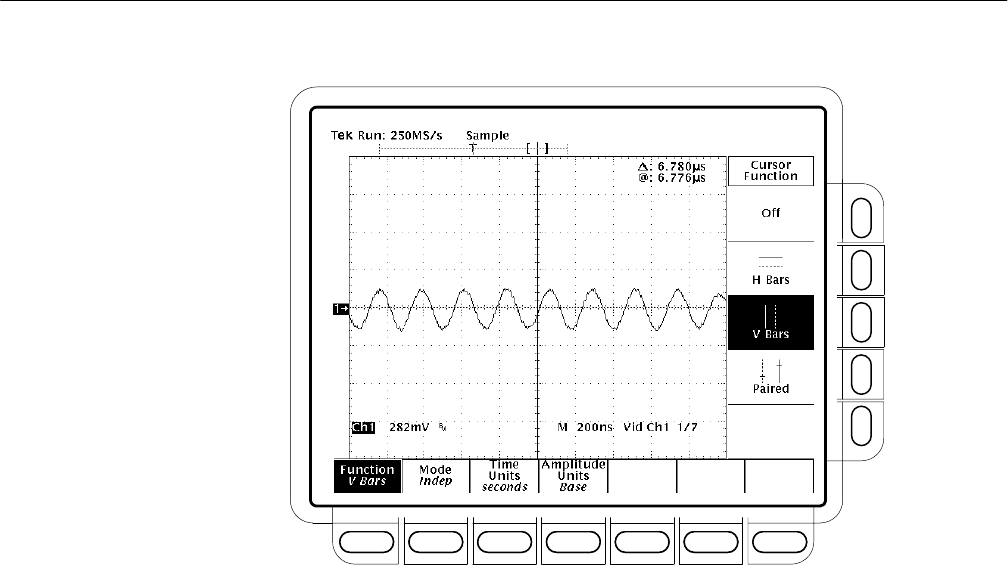

HPress CURSOR.
HPress the main-menu button Function; then press the side-menu
button V Bars.
HPress CLEAR MENU.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–41
HAlign one V bar cursor to the time reference point of the left-most
waveform edge and the other cursor to the time reference point of the
right-most waveform edge by rotating the General Purpose knob.
(Press SELECT to switch between the two cursors). See Figure
1–11 on page 1–41.
HRead the measurement results at the D: cursor readout, not the @:
readout on screen.
Locate the time reference
points for these waveforms.
2
Display the waveforms. 1
Read results. 4
Align each cursor to the time
reference points
3

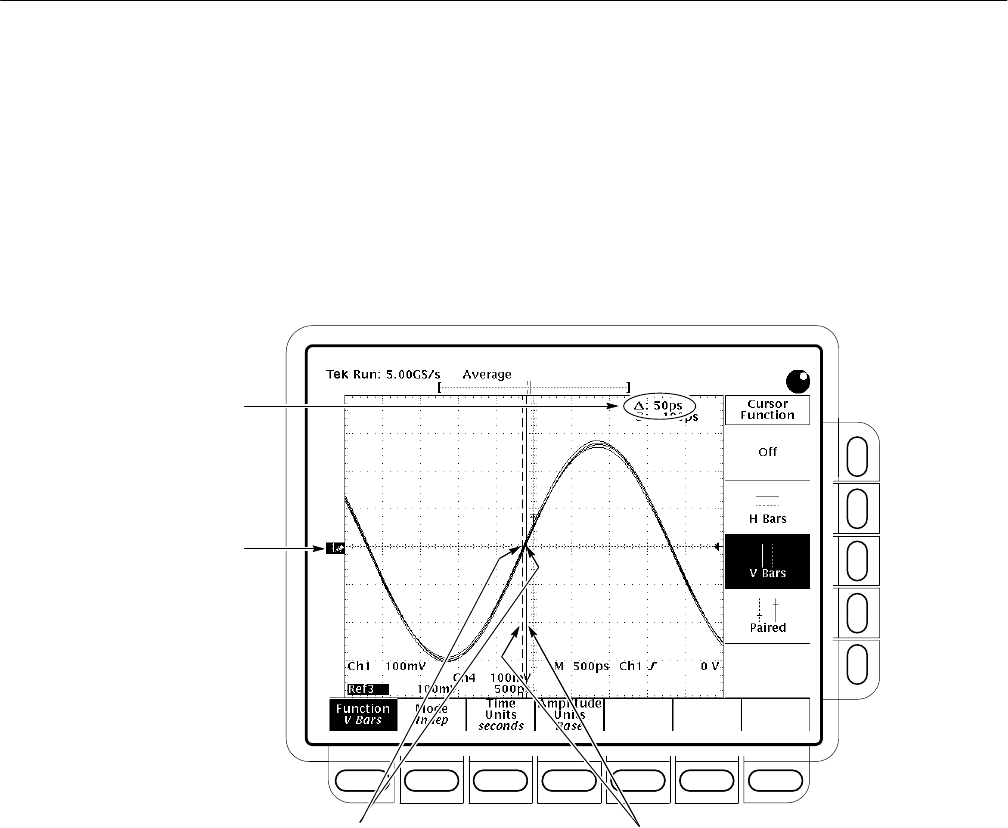

Figure 1–11: Measurement of channel delay – TDS 684B shown
g. Check against limits: CHECK that the cursor readout on screen is
≤100 ps for the TDS 600B or ≤50 ps for the TDS 500C/700C.
h. If the channel skew is within the limits, enter time on the test record and
proceed to step 3. Otherwise, proceed with steps i through p.
i. Use the cursors to measure the skew from CH1 to CH2, CH1 to CH3,
and CH1 to CH4 (use AX1 and AX2 instead of CH3 and CH4 if your
TDS model is so equipped). Write down these three numbers in the first
measurement column of Table 1–5. Note that these numbers may be
either positive or negative.
Performance Tests
1–42 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
j. Repeat the procedure from step 1.c through 2.e.
k. Again use the cursors to measure the skew from CH1 to CH2, CH1 to
CH3, and CH1 to CH4. Write down these numbers in the second
measurement column of Table 1–5. Note that these numbers may be
either positive or negative.
l. Add the first CH1 to CH2 skew measurement to the second CH1 to CH2
skew measurement and divide the result by 2. Use Table 1–5.
m. Add the first CH1 to CH3 (AX1 on some TDS models) skew measure-
ment to the second CH1 to CH3 skew measurement and divide the result
by 2. Use Table 1–5.
n. Add the first CH1 to CH4 (AX2 on some TDS models) skew measure-
ment to the second CH1 to CH4 skew measurement and divide the result
by 2. Use Table 1–5.
o. Check against limits: CHECK that the largest of the three results from
steps l, m, and n is between –100 ps and + 100 ps for the TDS 600B or
between –50 ps and + 50 ps for the TDS 500C/700C.
p. Enter time on the test record.
Table 1–5: Delay between channels worksheet
Coupling First
measurement Second
measurement
Add first and
second
measurements Divide sum
by 2
CH1 to CH2
skew
CH1 to CH3
skew
CH1 to CH4
skew
3. Disconnect the hookup: Disconnect the cable from the generator output at
the input connectors of the channels.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–43
Time Base System Checks
These procedures check those characteristics that relate to the Main and Delayed
time base system and are listed as checked under Warranted Characteristics in
Specifications.
Equipment
required One time-mark generator (Item 11)
One 50 , precision coaxial cable (Item 5)
Prerequisites See page 1–15
50 coaxial cable
Time Mark
Generator Digitizing Oscilloscope
Output
Figure 1–12: Initial test hookup
1. Install the test hookup and preset the instrument controls:
a. Hook up the test-signal source: Connect, through a 50 W precision
coaxial cable, the time-mark output of a time-mark generator to CH 1.
Set the output of the generator for 10 ms markers.
b. Initialize the oscilloscope:
HPress save/recall SETUP. Press the main-menu button Recall
Factory Setup. Press the side-menu button OK Confirm Factory
Init.
c. Modify the initialized front-panel control settings:
HSet the vertical SCALE to 200 mV (or 500 mV with the optional
Tektronix TG 501A Time Mark Generator).
HPress VERTICAL MENU; then press the main-menu button
Coupling. Press the side-menu button to toggle it to the 50
setting.
HPress SET LEVEL TO 50%.
Check Accuracy for
Long-Term Sample Rate,
Delay Time, and Delta
Time Measurements
Performance Tests
1–44 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HUse the vertical POSITION knob to center the test signal on screen.
HSet the horizontal SCALE of the Main time base to 1 ms.
HPress TRIGGER MENU; then press the main-menu button Mode
& Holdoff. Press the side-menu button Normal.
2. Confirm Main and Delayed time bases are within limits for accuracies:
a. Display the test signal:
HAlign the trigger T to the center vertical graticule line by adjusting
the horizontal POSITION. See Figure 1–13 on page 1–45.
HPress HORIZONTAL MENU.
HSet horizontal modes. To do this, press the main-menu button Time
Base. Press the side-menu buttons Delayed Only and Delayed Runs
After Main. See Figure 1–13.
b. Measure the test signal:
HSet the horizontal SCALE of the D (delayed) time base to 500 ns for
the TDS 600B or to 100 ns for the TDS 500C/700C.
HSet delayed time to 10 ms. Do this on the keypad by pressing 10,
then SHIFT, then m followed by ENTER).
c. Check long-term sample rate and delay time accuracies against limits:
H CHECK that the rising edge of the marker crosses the center
horizontal graticule line at a point within either ±2.0 divisions, for
the TDS 600B, or ±2.5 divisions, for the TDS 500C/700C, of center
graticule. See Figure 1–13.
HEnter number of divisions on test record.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–45
Check long–term sample
rates and delay time
accuracies against limits.
4
Align the trigger T to the
center graticule line. 1
Set
horizontal
mode.
2
Set horizontal scale
and delayed time.
3
Figure 1–13: Measurement of accuracy — Long-term and delay time
3. Disconnect the hookup: Disconnect the cable from the generator output at
the input connector of CH 1.
Trigger System Checks
These procedures check those characteristics that relate to the Main and Delayed
trigger systems and are listed as checked in Specifications.
Equipment
required One medium-frequency sine wave generator
(Item 19 or, optionally, item 25)
One 10X attenuator (Item 1)
One 50 , precision coaxial cable (Item 5)
Prerequisites See page 1–15
Check Accuracy (Time) for
Pulse-Glitch or
Pulse-Width Triggering
Performance Tests
1–46 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
1. Install the test hookup and preset the instrument controls:
a. Initialize the instrument:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
b. Modify the default setup:
HPress VERTICAL MENU.
HPress the main-menu button Coupling; then press the side-menu
button to select 50 coupling.
HSet the horizontal SCALE to 10 ns on the TDS 600B and 12.5 ns on
the TDS 500C/700C.
c. Hook up the test-signal source: Connect the output of a
medium-frequency leveled sine wave generator (Item 25) to CH 1. Do
this through a 50 W precision coaxial cable, followed by a 10X
attenuator. See Figure 1–14.
50 coaxial cable
Medium-Frequency
Sine Wave Generator Digitizing Oscilloscope
Output
10X Attenuator
Figure 1–14: Initial test hookup
2. Confirm the trigger system is within time-accuracy limits for pulse-glitch or
pulse-width triggering (Horizontal Scale ≤1 s):
a. Display the test signal: Set the output of the sine wave generator for a
100 MHz, five-division sine wave on screen. Press SET LEVEL TO
50%.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–47
b. Set the trigger mode: Press TRIGGER MENU. Now press the
main-menu button Mode & Holdoff; then press the side-menu button
Normal.
c. Set upper and lower limits that ensure triggering: See Figure 1–15.
HPress the main-menu button Type; then repeatedly press the same
button until Pulse is highlighted in the menu that pops up.
HPress the main-menu button Class; then repeatedly press the same
button until Width is highlighted in the menu that pops up.
HPress the main-menu button Trig When; then press the side-menu
button Within Limits.
HPress the side-menu button Upper Limit. Use the keyboard to set
the upper limit to 10 ns: press 10, then SHIFT, then n, and ENTER.
HPress the side-menu button Lower Limit. Use the keypad to set the
lower limit to 2 ns.
d. Change limits until triggering stops:
HPress SET LEVEL TO 50%.
HWhile doing the following subparts, monitor the display (it will stop
acquiring) and the front-panel light TRIG (it will extinguish) to
determine when triggering is lost.
HPress the side-menu button Lower Limit.
HUse the general purpose knob to increase the Lower Limit readout
until triggering is lost.
HCHECK that the Lower Limit readout, after the oscilloscope loses
triggering, is within 3.5 ns to 6.5 ns, inclusive.
HEnter time on test record.
HUse the keypad to return the Lower Limit to 2 ns and reestablish
triggering.
HPress the side-menu button Upper Limit; then use the general
purpose knob to slowly decrease the Upper Limit readout until
triggering is lost.
HCHECK that the Upper Limit readout, after the oscilloscope loses
triggering, is within 3.5 ns to 6.5 ns, inclusive.
HEnter time on test record.
Performance Tests
1–48 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Set upper
and lower
limits that
ensure
triggering.
Then change
limits until
triggering
stops.
Figure 1–15: Measurement of time accuracy for pulse and glitch triggering
3. Confirm the trigger system is within time-accuracy limits for pulse-glitch or
pulse-width triggering (horizontal scale >1 s):
a. Set upper and lower limits that ensure triggering at 250 kHz:
HPress the side-menu button Upper Limit. Use the keyboard to set
the upper limit to 4 s.
HPress the side-menu button Lower Limit. Use the keypad to set the
lower limit to 500 ns.
b. Display the test signal:
HSet the horizontal SCALE to 5 s.
HSet the output of the sine wave generator for a 250 kHz,
five-division sine wave on screen. Set the vertical SCALE to 20 mV
(the waveform will overdrive the display).
HPress SET LEVEL TO 50%.
c. Check against limits: Do the following subparts in the order listed.
HPress the side-menu button Lower Limit.
HUse the general purpose knob to increase Lower Limit readout until
triggering is lost.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–49
HCHECK that the Lower Limit readout, after the oscilloscope stops
triggering, is within 1.9 s to 2.1 s, inclusive.
HEnter time on test record.
HUse the keypad to return the Lower Limit to 500 ns and reestablish
triggering.
HPress the side-menu button Upper Limit; then use the general
purpose knob to slowly decrease the Upper Limit readout until
triggering stops.
HCHECK that the Upper Limit readout, after the oscilloscope loses
triggering, is within 1.9 s to 2.1 s, inclusive.
HEnter time on test record.
4. Disconnect the hookup: Disconnect the cable from the generator output at
the input connector of CH 1.
Equipment
required One DC calibration generator (Item 9)
One BNC T connector (Item 7)
Two 50 W, precision coaxial cables (Item 5)
Prerequisites See page 1–15.

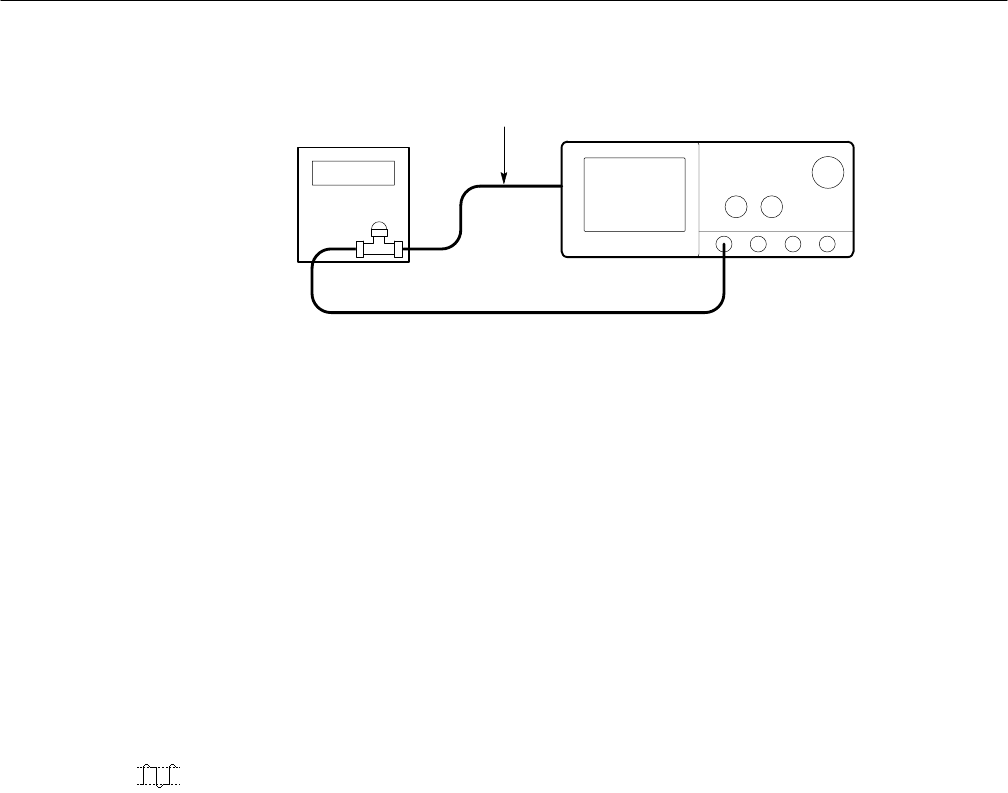

DC Calibrator
50 W coaxial cables
Dual banana to
BNC adapters
BNC T
connector
Digitizing Oscilloscope
Figure 1–16: Initial test hookup
1. Install the test hookup and preset the instrument controls:
a. Hook up the test-signal source:
HSet the output of the DC calibration generator to 0 volts.
Check Accuracy,
Trigger-Level or
Threshold, DC Coupled
Performance Tests
1–50 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HConnect the output of the DC calibration generator, through a
dual-banana connector followed by a 50 W precision coaxial cable,
to one side of a BNC T connector.
HConnect the Sense output of the generator, through a second
dual-banana connector followed by a 50 W precision coaxial cable,
to other side of the BNC T connector. Now connect the BNC T
connector to CH 1.
b. Initialize the oscilloscope:
HPress save/recall Setup.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
2. Confirm Main trigger system is within limits for Trigger-level/Threshold
accuracy:
a. Display the test signal:
HSet the vertical SCALE to 200 mV.
HPress VERTICAL MENU, then press the main-menu button
Position.
HSet vertical position to –3 divisions (press –3, then ENTER, on the
keypad). The baseline level will move down three divisions. See
Figure 1–17 on page 1–51.
HPress the main-menu button Offset.
HSet vertical offset to +10 volts with the keypad. The baseline level
will move off screen.
HSet the standard output of the DC calibration generator equal to the
offset (+10 volts). The DC test level will appear on screen. See
Figure 1–17.
b. Measure the test signal:
HPress SET LEVEL TO 50%.
HPress TRIGGER MENU.
HRead the measurement results from the readout below the label
Level in the main menu, not the trigger readout in the graticule area.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–51
c. Read results (Check against limits): See Figure 1–17.
HCHECK that the Level readout in the main menu is within 9.863 V
to 10.137 V, inclusive, for the TDS 600B or is within 9.9393 V to
10.1147 V, inclusive, for the TDS 500C/700C.
HEnter voltage on test record.
HPress the main-menu button Slope; then press the side-menu button
for negative slope. See icon at left. Repeat substep b.
HCHECK that the Level readout in the main menu is within 9.863 V
to 10.137 V, inclusive, for the TDS 600B or is within 9.9393 V to
10.1147 V, inclusive, for the TDS 500C/700C.
HEnter voltage on test record.

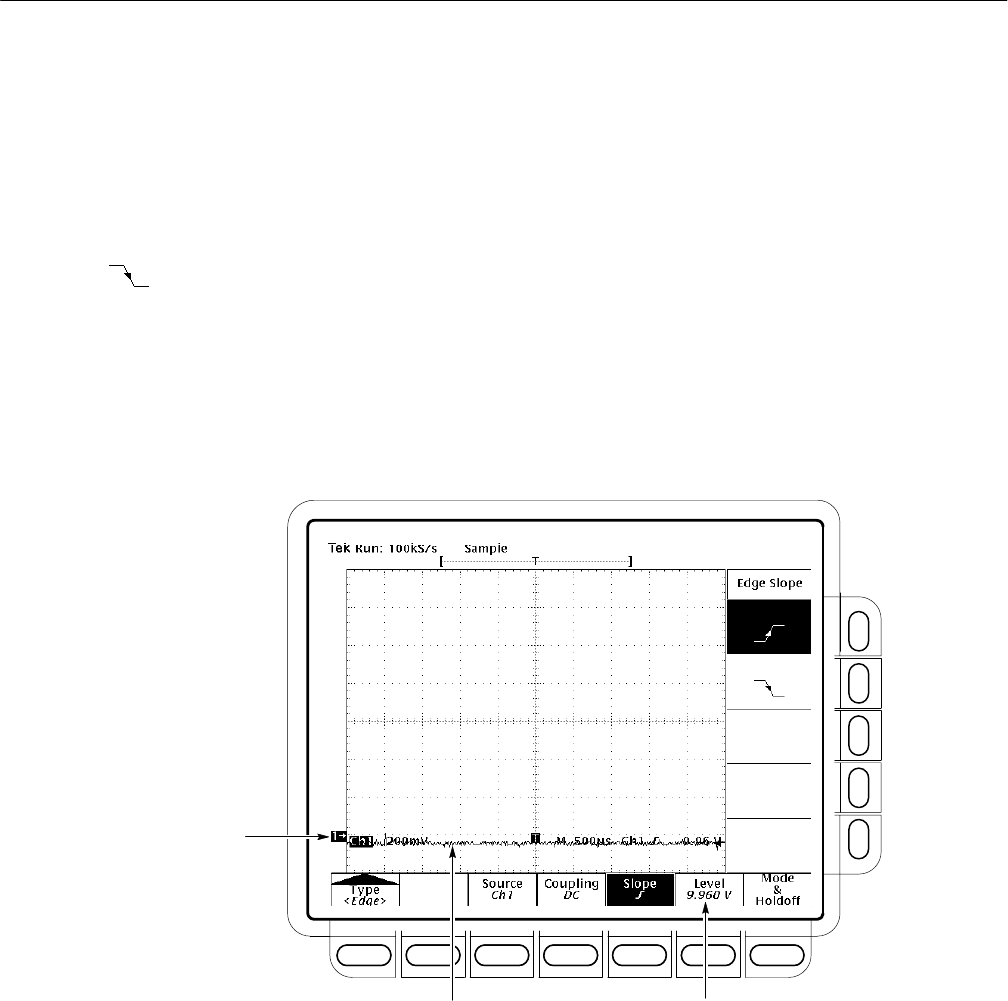

Set DC calibration generator
to equal offset (+10 V).
2
Set vertical position to –3 divs.
Set vertical offset to +10 volts. 1
Read results.
3
Figure 1–17: Measurement of trigger-level accuracy
3. Confirm Delayed trigger system is within limits for Trigger-level/Threshold
accuracy:
a. Select the Delayed time base:
Performance Tests
1–52 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HPress HORIZONTAL MENU.
HPress the main-menu button Time Base.
HPress the side-menu buttons Delayed Only and Delayed Trigger-
able.
HSet D (delayed) horizontal SCALE to 500 s.
b. Select the Delayed trigger system:
HPress SHIFT; then press the front-panel DELAYED TRIG button.
HPress the main-menu button Level.
c. Measure the test signal: Press the side-menu button SET TO 50%.
Read the measurement results in the side (or main) menu below the label
Level.
d. Check against limits: Do the following subparts in the order listed.
HCHECK that the Level readout in the side menu is within 9.863 V to
10.137 V, inclusive, for the TDS 600B or is within 9.9393 V to
10.1147 V, inclusive, for the TDS 500C/700C.
HEnter voltage on test record.
HPress the main-menu button Slope; then press the side-menu button
for negative slope. See icon at left. Press the main-menu button
Level. Repeat substep c.
HCHECK that the Level readout in the side menu is within 9.863 V to
10.137 V, inclusive, for the TDS 600B or is within 9.9393 V to
10.1147 V, inclusive, for the TDS 500C/700C.
HEnter voltage on test record.
4. Disconnect the hookup:
a. First set the output of the DC calibration generator to 0 volts.
b. Disconnect the cable from the generator output at the input connector of
CH 1.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–53
Equipment
required One sine wave generator (Item 19 or, optionally, items 25 and 26)
Two precision 50 coaxial cables (Item 5)
One 10X attenuator (Item 1)
One BNC T connector (Item 7)
One 5X attenuator (Item 2)
Prerequisites See page 1–15.
1. Install the test hookup and preset the instrument controls:
a. Initialize the oscilloscope:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
b. Modify the initialized front-panel control settings:
HSet the horizontal SCALE for the M (main) time base to 20 ns on
the TDS 600B or 25 ns on the TDS 500C/700C.
HPress HORIZONTAL MENU; then press the main-menu button
Time Base.
HPress the side-menu button Delayed Only; then press the side-menu
button Delayed Triggerable.
HSet the horizontal SCALE for the D (delayed) time base to 20 ns on
the TDS 600B or 25 ns on the TDS 500C/700C; then press the
side-menu button Main Only.
HPress TRIGGER MENU; then press the main-menu button Mode
& Holdoff. Press the side-menu button Normal.
HPress VERTICAL MENU; then press the main-menu button
Coupling. Press the side-menu button to select the 50 W setting.
HPress SHIFT; then press ACQUIRE MENU. Press the main-menu
button Mode; then press the side-menu button Average 16.
c. Hook up the test-signal source:
HConnect the signal output of a medium-frequency sine wave
generator (item 19 or, optionally, item 25) to a BNC T connector.
Connect one output of the T connector to CH 1 through a 50 W
precision coaxial cable. Connect the other output of the T connector
to the AUX TRIG INPUT at the rear panel. See Figure 1–18.
Sensitivity, Edge Trigger,
DC Coupled
Performance Tests
1–54 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Sine Wave
Generator Digitizing Oscilloscope
To AUX TRIG INPUT
on rear panel
Figure 1–18: Initial test hookup
2. Confirm Main and Delayed trigger systems are within sensitivity limits
(50 MHz):
a. Display the test signal:
HSet the generator frequency to 50 MHz.
HPress MEASURE.
HPress the main-menu button Level Setup; then press the side-menu
button Min-Max.
HPress the main-menu button Select Measrmnt for Ch1.
HPress the side-menu button –more– until Amplitude appears in the
side menu (its icon is shown at the left). Press the side-menu button
Amplitude.
HPress SET LEVEL TO 50%.
HPress CLEAR MENU.
HSet the test signal amplitude for about three and a half divisions on
screen. Now fine adjust the generator output until the CH 1
Amplitude readout indicates the amplitude is 350 mV. Readout may
fluctuate around 350 mV.
HDisconnect the 50 W precision coaxial cable at CH 1 and reconnect
it to CH 1 through a 10X attenuator.
b. Check the Main trigger system for stable triggering at limits:
HRead the following definition: A stable trigger is one that is
consistent; that is, one that results in a uniform, regular display
triggered on the selected slope (positive or negative). This display
should not have its trigger point switching between opposite slopes,
nor should it roll across the screen. At horizontal scale settings of
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–55
2 ms/division and faster, TRIG’D will remain constantly lighted. It
will flash for slower settings.
HPress TRIGGER MENU; then press the main-menu button Slope.
HPress SET LEVEL TO 50%. Adjust the TRIGGER LEVEL knob
so that the TRIG’D light is on. Set the level to near the middle of
the range where the TRIG’D light is on. CHECK that the trigger is
stable for the test waveform on both the positive and negative slopes.
Use the side menu to switch between trigger slopes.
HEnter pass/fail result for main trigger on the test record.
HLeave the Main trigger system triggered on the positive slope of the
waveform before continuing to the next step.

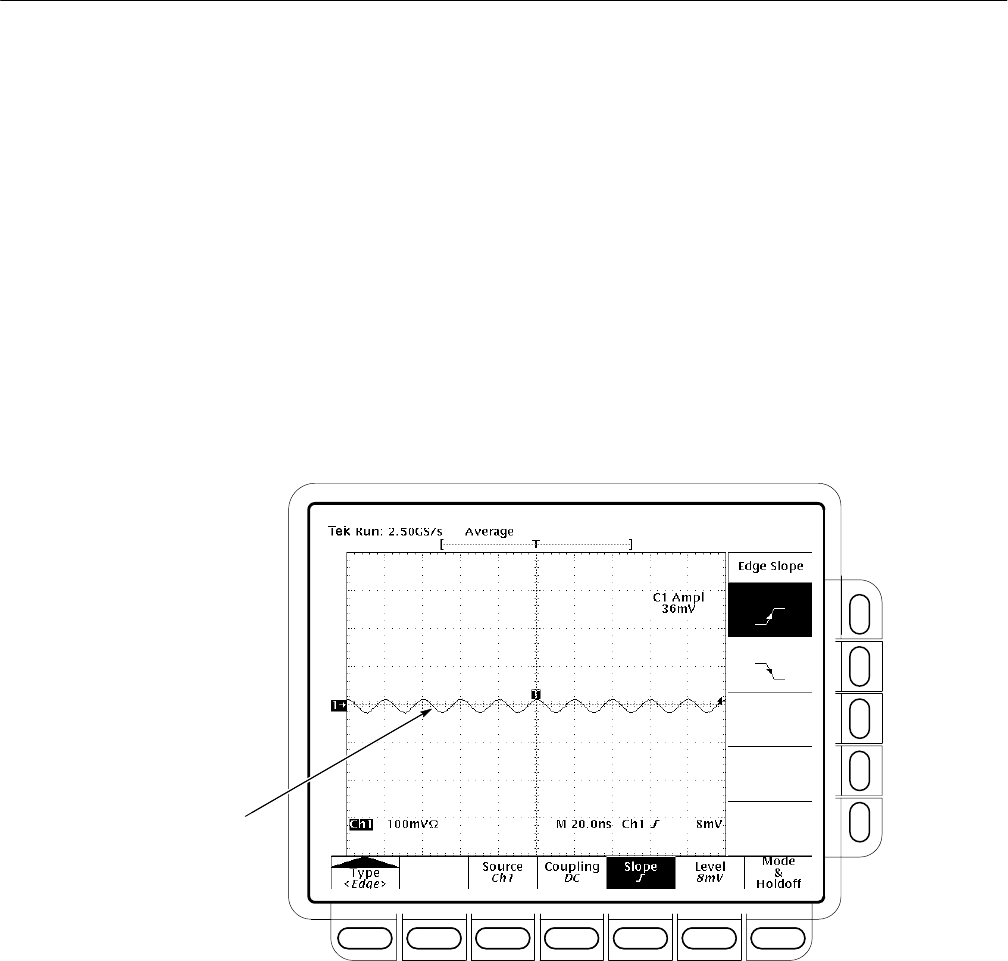

Check if stable trigger.
Figure 1–19: Measurement of trigger sensitivity — 50 MHz results shown on a
TDS 684B screen
c. Check Delayed trigger system for stable triggering at limits: Do the
following subparts in the order listed.
HPress HORIZONTAL MENU; then press the main-menu button
Time Base. Press the side-menu button Delayed Only; then press
Delayed Triggerable in the same menu.
Performance Tests
1–56 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HPress SHIFT; then press DELAYED TRIG. Press the main-menu
button Level.
HPress the side-menu button SET TO 50%.
CHECK that a stable trigger is obtained for the test waveform for
both the positive and negative slopes of the waveform. Use the
TRIGGER LEVEL knob to stabilize the Main trigger. Use the
general purpose knob to stabilize the Delayed trigger. Press the
main-menu button Slope; then use the side menu to switch between
trigger slopes. See Figure 1–19.
HEnter pass/fail result for delayed trigger on the test record.
HLeave the Delayed trigger system triggered on the positive slope of
the waveform before continuing to the next step. Also, return to the
main time base: Press HORIZONTAL MENU; then press the
main-menu button Time Base. Press the side-menu button Main
Only.
HPress CLEAR MENU.
3. Confirm the AUX Trigger input:
a. Display the test signal:
HRemove the 10X attenuator and reconnect the cable to CH 1.
HSet the test signal amplitude for about 2.5 divisions on screen.
HNow fine adjust the generator output until the CH 1 Amplitude
readout indicates the amplitude is 250 mV. (Readout may fluctuate
around 250 mV).
b. Check the AUX trigger source for stable triggering at limits: Do the
following in the order listed.
HUse the definition for stable trigger from step 2.
HPress TRIGGER MENU; then press the main-menu button Source.
HPress the side-menu button –more– until the side-menu label
DC Aux appears; then press DC Aux.
HPress SET LEVEL TO 50%. CHECK that a stable trigger is
obtained for the test waveform on both the positive and negative
slopes. Press the main-menu button Slope; then use the side menu to
switch between trigger slopes. Use the TRIGGER LEVEL knob to
stabilize the trigger if required.
HEnter the pass/fail result on the test record.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–57
HLeave the Main trigger system triggered on the positive slope of the
waveform before proceeding to the next check.
HPress the main-menu button Source; then press the side-menu button
–more– until CH 1 appears. Press CH 1.
4. Confirm that the Main and Delayed trigger systems are within sensitivity
limits (full bandwidth):
a. Hook up the test-signal source: Disconnect the hookup installed in
step 1. Connect the signal output of a high-frequency sine wave
generator (item 19 or, optionally, item 26) to CH 1.
b. Set the Main and Delayed Horizontal Scales:
HSet the horizontal SCALE to 500 ps for the M (Main) time base.
HPress HORIZONTAL MENU. Now press the main-menu button
Time base; then press the side-menu button Delayed Triggerable.
HPress the side-menu button Delayed Only.
HSet the horizontal SCALE to 500 ps for the D (Delayed) time base.
Press the side-menu button Main Only.
c. Display the test signal:
HSet the generator frequency to full bandwidth as follows:
TDS 680B, 684B, & 784C: 1 GHz
TDS 520C, 540C, 620B, 644B, 724C, & 754C: 500 MHz
HSet the test signal amplitude for about five divisions on screen. Now
fine adjust the generator output until the CH 1 Amplitude readout
indicates the amplitude is 500 mV. (Readout may fluctuate around
500 mV).
HDisconnect the leveling head at CH 1 and reconnect it to CH 1
through a 5X attenuator.
d. Repeat step 2, substeps b and c only, since only the full bandwidth is to
be checked here.
NOTE. You just checked the trigger sensitivity. If desired, you may repeat steps 1
through 4 for the other channels (CH2, CH3, and CH4).
5. Disconnect the hookup: Disconnect the cable from the channel last tested.
Performance Tests
1–58 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Output Signal Checks
The procedure that follows checks those characteristics of the output signals that
are listed as checked under Warranted Characteristics in Specifications. The
oscilloscope outputs these signals at its front and rear panels.
Equipment
required Two 50 precision cables (Item 5)
One calibration generator (Item 10)
Prerequisites See page 1–15. Also, the digitizing oscilloscope must have passed
Check DC Voltage Measurement Accuracy on page 1–29.
See Input Channels vs. Model on page 1–2.
1. Install the test hookup and preset the instrument controls:
50 coaxial cables
To MAIN
TRIGGER
OUT
Calibration
Generator Digitizing Oscilloscope
Figure 1–20: Initial test hookup
a. Hook up test-signal source 1:
HConnect the standard amplitude output of a calibration generator
through a 50 W precision coaxial cable to CH 3 (AX1 on some TDS
models).
HSet the output of the calibration generator to 0.500 V.
b. Hook up test-signal source 2: Connect the Main Trigger Out at the rear
panel to CH 2 through a 50 W precision cable.
c. Initialize the oscilloscope:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
Check Outputs — CH 3
(AX1 on some models)
Main and Delayed Trigger
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–59
d. Modify the initialized front-panel control settings:
HSet the horizontal SCALE to 200 ms.
HPress SHIFT; then press ACQUIRE MENU.
HPress the main-menu button Mode; then press the side-menu button
Average.
HSelect 64 averages. Do this with the keypad or the general purpose
knob
2. Confirm Main and Delayed Trigger outputs are within limits for logic levels:
a. Display the test signal:
HPress WAVEFORM OFF to turn off CH 1.
HPress CH 2 to display that channel.
HSet the vertical SCALE to 1 V.
HUse the vertical POSITION knob to center the display on screen.
b. Measure logic levels:
HPress MEASURE; then press the main-menu button Select
Measurement for Ch2.
HSelect high and low measurements. To do this, repeatedly press the
side-menu button –more– until High and Low appear in the side
menu (their icons are shown at the left). Press both side-menu
buttons High and Low.
c. Check Main Trigger output against limits:
HCHECK that the Ch2 High readout is ≥2.5 volts and that the Ch2
Low readout is ≤0.7 volts. See Figure 1–21.
HEnter high and low voltages on test record.
HPress VERTICAL MENU; then press the main-menu button
Coupling. Now press the side-menu button to toggle it to the
50 W setting.
HCHECK that the Ch2 High readout is ≥1.0 volt and that the Ch2
Low readout ≤0.25 volts.
HEnter high and low voltages on test record.
Performance Tests
1–60 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Check output

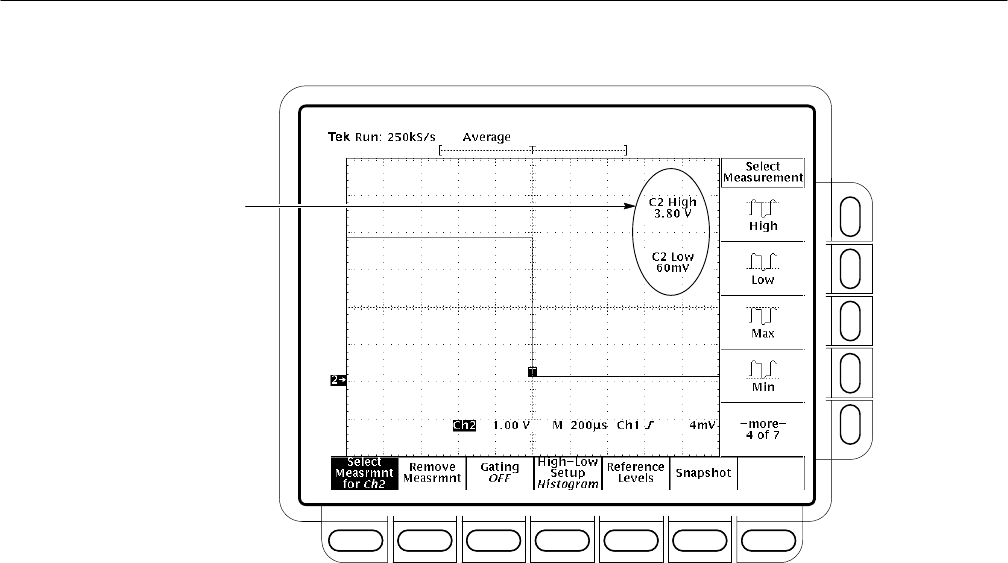

Figure 1–21: Measurement of main trigger out limits
d. Check Delayed Trigger output against limits: See Figure 1–21.
HMove the precision 50 W cable from the rear-panel Main Trigger
Output BNC to the rear-panel Delayed Trigger Output BNC.
HCHECK that the Ch2 High readout is ≥1.0 volt and that the Ch2
Low readout ≤0.25 volts.
HEnter high and low voltages on test record.
HPress the side-menu button to select the 1 MW setting.
HPress CLEAR MENU.
HCHECK that the Ch2 High readout is ≥2.5 volts and that the Ch2
Low readout is ≤0.7 volts.
HEnter high and low voltages on test record.
3. Confirm CH 3 (Ax1 on some TDS models) output is within limits for gain:
a. Measure gain:
HMove the precision 50 W cable from the rear-panel DELAYED
TRIGGER OUTPUT BNC to the rear-panel SIGNAL OUT BNC.
HPush TRIGGER MENU.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–61
HPress the main-menu button Source.
HPress the side-menu button Ch3.
(Ax1 on some TDS models)
HSet vertical SCALE to 100 mV.
HPress SET LEVEL TO 50%.
HPress MEASURE; then press the main-menu button Select
Measrmnt for Ch2.
HRepeatedly press the side-menu button –more– until Pk-Pk appears
in the side menu (its icon is shown at the left). Press the side-menu
button Pk-Pk.
HPress CLEAR MENU.
b. Check against limits:
HCHECK that the readout Ch2 Pk-Pk is between 80 mV and 120 mV,
inclusive, for the TDS 600B or is between 88 mV and 132 mV,
inclusive, for the TDS 500C/700C.
HEnter voltage on test record.
HPress VERTICAL MENU; then press the side-menu button to
toggle to the 50 W setting.
HPress CLEAR MENU.
HCHECK that the readout Ch2 Pk-Pk is between 40 mV and 60 mV,
inclusive, for the TDS 600B or is between 44 mV and 66 mV,
inclusive, for the TDS 500C/700C.
HEnter voltage on test record.
4. Disconnect the hookup: Disconnect the cables from the channel inputs and
the rear panel outputs.
Performance Tests
1–62 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Equipment
required One female BNC to clip adapter (Item 3)
Two dual-banana connectors (Item 6)
One BNC T connector (Item 7)
Two 50 precision cables (Item 5)
One DC calibration generator (Item 9)
Prerequisites See page 1–15. Also, the digitizing oscilloscope must have passed
Check Accuracy For Long-Term Sample Rate, Delay Time, and Delta
Time Measurements on page 1–43.
1. Install the test hookup and preset the instrument controls:
a. Hook up test-signal:
HConnect one of the 50 W cables to CH 1. See Figure 1–22.
HConnect the other end of the cable just installed to the female
BNC-to-clips adapter. See Figure 1–22.
HConnect the red clip on the adapter just installed to the PROBE
COMPENSATION SIGNAL on the front panel; connect the black
clip to PROBE COMPENSATION GND. See Figure 1–22.
Digitizing Oscilloscope
50 coaxial cable
Female BNC to
clip adapter
Black lead
to GND
Figure 1–22: Initial test hookup
b. Initialize the oscilloscope:
HPress save/recall SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
Check Probe
Compensator Output
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–63
c. Modify the initialized front-panel control settings:
HSet the horizontal SCALE to 200 s.
HPress SET LEVEL TO 50%.
HUse the vertical POSITION knob to center the display on screen.
HPress SHIFT; then press ACQUIRE MENU.
HPress the main-menu button Mode; then press the side-menu button
Average.
HSelect 128 averages with the keypad or the general purpose knob.
2. Confirm that the Probe Compensator signal is within limits for frequency:
a. Measure the frequency of the probe compensation signal:
HPress MEASURE; then press the main-menu button Select
Measrmnt for Ch1.
HRepeatedly press the side-menu button –more– until Frequency
appears in the side menu (its icon is shown at the left). Press the
side-menu button Frequency.
b. Check against limits:
HCHECK that the CH 1 Freq readout is within 950 Hz to 1.050 kHz,
inclusive. See Figure 1–23.
HEnter frequency on test record.
HPress MEASURE; then press the main-menu button Remove
Measrmnt. Press the side-menu Measurement 1.
Performance Tests
1–64 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Figure 1–23: Measurement of probe compensator frequency
c. Save the probe compensation signal in reference memory:
HPress SAVE/RECALL WAVEFORM; then press the main-menu
button Save Wfm Ch 1.
HPress the side-menu button To Ref 1 to save the probe compensation
signal in reference 1.
HDisconnect the cable from CH 1 and the clips from the probe
compensation terminals.
HPress MORE; then press the main-menu button Ref 1 to displayed
the stored signal.
HPress CH 1.
d. Hook up the DC standard source:
HSet the output of a DC calibration generator to 0 volts.
HConnect the output of a DC calibration generator through a
dual-banana connector followed by a 50 W precision coaxial cable to
one side of a BNC T connector. See Figure 1–24.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–65
HConnect the Sense output of the generator through a second
dual-banana connector followed by a 50 W precision coaxial cable to
the other side of the BNC T connector. Now connect the BNC T
connector to CH 1. See Figure 1–24.
DC Calibrator
50 coaxial cables
Dual banana to
BNC adapters
BNC T
connector
Digitizing Oscilloscope
Figure 1–24: Subsequent test hookup
e. Measure amplitude of the probe compensation signal:
HPress SHIFT; then press ACQUIRE MENU. Press the side-menu
button AVERAGE then enter 16 using the keypad or the general
purpose knob.
HAdjust the output of the DC calibration generator until it precisely
overlaps the top (upper) level of the stored probe compensation
signal. (This value will be near 500 mV).
HRecord the setting of the DC generator.
HAdjust the output of the DC calibration generator until it precisely
overlaps the base (lower) level of the stored probe compensation
signal. (This value will be near zero volts).
HRecord the setting of the DC generator.
f. Press CLEAR MENU to remove the menus from the display. See
Figure 1–25.
Performance Tests
1–66 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Figure 1–25: Measurement of probe compensator amplitude
g. Check against limits:
HSubtract the value just obtained (base level) from that obtained
previously (top level).
HCHECK that the difference obtained is within 495 mV to 505 mV,
inclusive.
HEnter voltage difference on test record.
3. Disconnect the hookup: Disconnect the cable from CH 1.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–67
Option 05 Video Trigger Checks
Equipment
required PAL signal source (Item 14)
60 Hz. sine wave generator (Item 15)
Pulse generator (Item 16)
Two 75 cables (Item 17)
Two 75 terminators (Item 18)
One BNC T connector (Item 7)
50 cable (Item 5)
50 terminator (Item 4)
Prerequisites See page 1–15. These prerequisites include running the signal path
compensation routine.
1. Set up digitizing oscilloscope to factory defaults by completing the following
steps:
a. Press save/recall SETUP.
b. Press the main-menu Recall Factory Setup.
c. Press the side-menu OK Confirm Factory Init.
d. Wait for the Clock Icon to leave the screen.
e. CONFIRM the digitizing oscilloscope is setup as shown below.
Channel: CH1
Volt/div: 100 mV
Horizontal scale: 500 s/div
2. Set up digitizing oscilloscope for TV triggers by completing the following
steps:
a. Press TRIGGER MENU.
b. Press the main-menu Type pop-up until you select Video.
c. Press the main-menu Standard pop-up until you select 625/PAL.
d. Press the main-menu Line.
e. Use the keypad to set the line number to 7 (press 7, then ENTER).
f. Press VERTICAL MENU.
Check Video Trigger
Performance Tests
1–68 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
g. Press the main-menu Bandwidth.
h. Select 250 MHz from the side menu.
i. Press the main-menu Fine Scale.
j. Use the keypad to set the fine scale to 282mV (press 282, SHIFT, m,
then ENTER).
k. Press HORIZONTAL MENU.
l. Press the main-menu Horiz Scale.
m. Use the keypad to set the horizontal scale to 200 ns (press 200, SHIFT,
n, then ENTER).
3. Check Jitter vs. Signal Amplitude
a. Set up equipment for Jitter Test. See Figure 1–26.
HConnect one of the rear panel composite outputs marked COMPST
on the TSG121 through a 75 W cable and a 75 W terminator to the
CH1 input of the TDS.
HPress the 100% FIELD control (the fourth TSG121 front-panel
button from the left) of the PAL signal source.
PAL Signal
Source Digitizing Oscilloscope
75 cable 75 terminator
COMPST
Figure 1–26: Jitter test hookup
b. CHECK that the oscilloscope lights up its front panel TRIG’D LED and
it displays the waveform on screen. See Figure 1–27.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–69

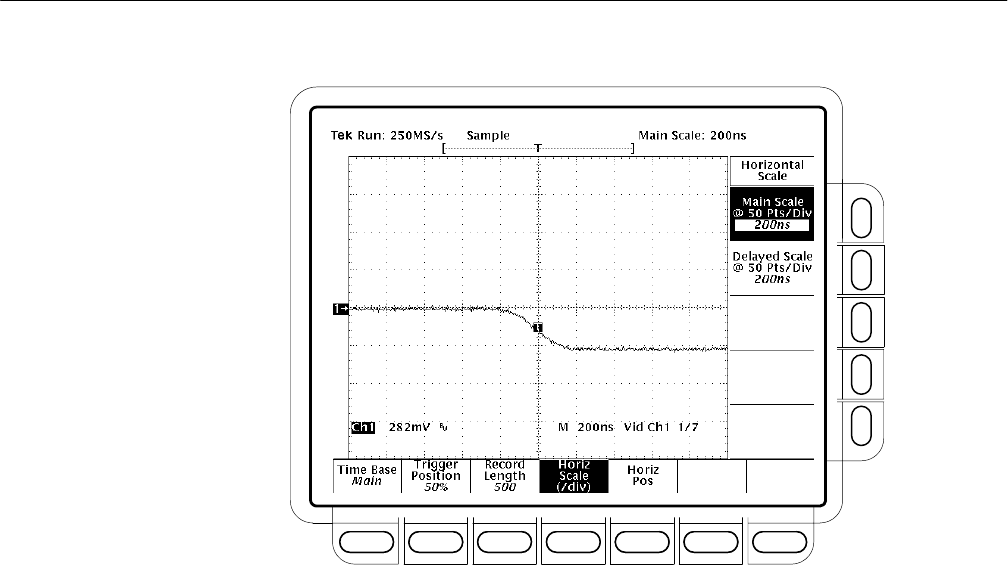

Figure 1–27: Jitter test displayed waveform – TDS 684B shown
c. Press SHIFT; then press ACQUIRE MENU.
d. Press the main-menu Mode.
e. Select the side-menu Average. It should be already set to 16.
f. Press the main-menu Create Limit Test Template.
g. Press the side-menu V Limit.
h. Use the keypad to set V Limit to 180 mdiv (press 180, SHIFT, m, then
ENTER).
i. Press the side-menu OK Store Template.
j. Press MORE.
k. Press the main-menu Ref1.
l. Press CH1.
m. Press SHIFT; then press ACQUIRE MENU.
n. Press the main-menu Limit Test Setup.
o. Toggle the side-menu Limit Test to ON.
p. Toggle the side-menu Ring Bell if Condition Met to ON.
Performance Tests
1–70 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
q. Press the main-menu Mode.
r. Press the side-menu Envelope.
s. Use the keypad to set envelope to use 100 acquisitions (press 100, then
ENTER).
t. Press the main-menu Stop After button.
u. Press the side-menu Single Acquisition Sequence.
v. Confirm that the oscilloscope successfully makes 100 acquisitions. If not
successful, the oscilloscope bell will ring. When the word Run in the top
left corner of the display changes to STOP, the test is complete. See
Figure 1–28.

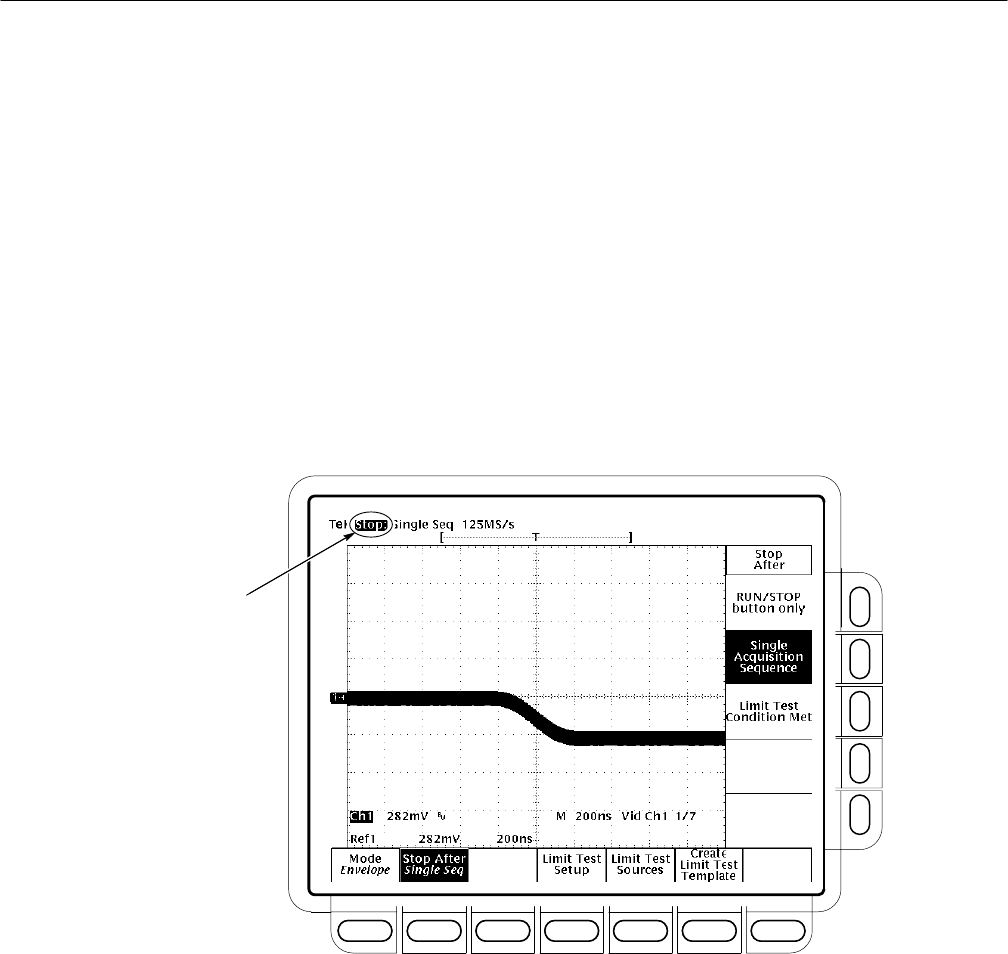

Stop shows test complete
Figure 1–28: Jitter test when completed – TDS 684B shown
w. Press the main-menu Limit Test Setup.
x. Toggle the side-menu Ring Bell if Condition Met to OFF.
y. Toggle the side-menu Limit Test to OFF.
4. Check Triggered Signal Range.
Set up oscilloscope for Triggered Signal Test.
a. Press MORE.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–71
b. Press WAVEFORM OFF.
c. Press HORIZONTAL MENU.
d. Use the keypad to set horizontal scale (/div) to 50 s (press 50, SHIFT,
m, then ENTER).
e. Press SHIFT; then press ACQUIRE MENU.
f. Press the main-menu Stop After.
g. Press the side-menu RUN/STOP button only.
h. Press the main-menu Mode.
i. Press the side-menu Sample.
j. Press RUN/STOP.
k. Press VERTICAL MENU.
l. Use the keypad to set fine scale to 300 mV (press 300, SHIFT, m, then
ENTER).
m. CONFIRM that the TRIG’D LED stays lighted and that the waveform
on screen is stable. That is, it does not move horizontally or vertically.
Also, CONFIRM that the waveform on the screen has one positive pulse
and a number of negative pulses. See Figure 1–29.
Performance Tests
1–72 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Positive pulse
Negative pulses
Figure 1–29: Triggered signal range test – 300 mV
n. Use the keypad to set the fine scale to 75 mV (press 75, SHIFT, m, then
ENTER).
o. CONFIRM that the TRIG’D LED stays lighted and that the waveform
on screen is stable. That is, it does not move horizontally or vertically.
Also, CONFIRM that the waveform on the screen has one positive pulse
and a number of negative pulses. See Figure 1–30.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–73
Positive pulse
Negative pulses
Figure 1–30: Triggered signal range test – 75 mV
p. Disconnect all test equipment (TSG121) from the digitizing oscillo-
scope.
5. Check 60 Hz Rejection.
a. Set up oscilloscope for 60 Hz Rejection Test:
HUse the keypad to set the Ch1 Fine Scale to 282 mV (press 282,
SHIFT m, then ENTER).
HPress WAVEFORM OFF.
HPress CH2.
HPress VERTICAL MENU.
HUse the keypad set the fine scale to 2 V (press 2, then ENTER).
HPress HORIZONTAL MENU.
HUse the keypad to set the horizontal scale (/div) to 5 ms (press 5,
SHIFT, m, then ENTER).

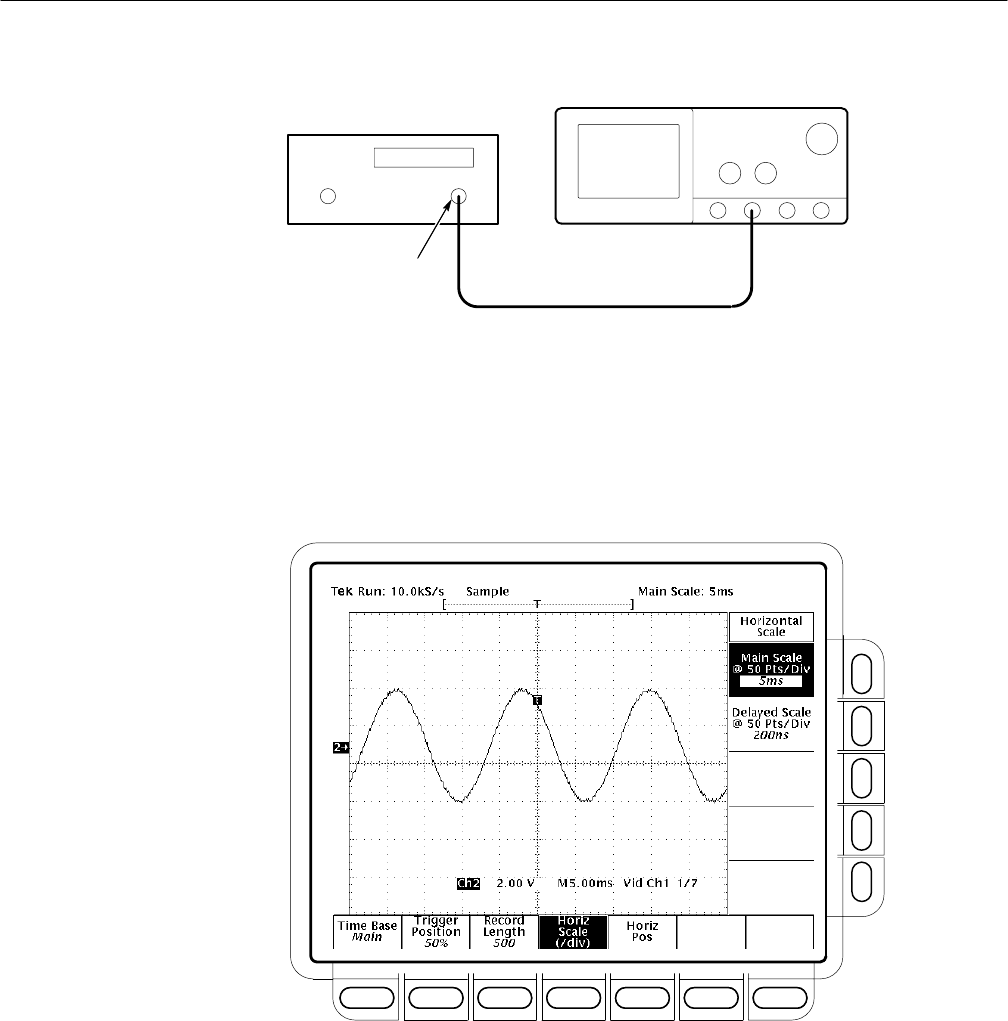

b. Set up 60 Hz signal generator:
HConnect the output of the signal generator to the CH2 input through
a 50 W cable. See Figure 1–31.
Performance Tests
1–74 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Digitizing Oscilloscope
50 cable
Signal Generator
Output
Figure 1–31: 60 Hz Rejection test hookup
HAdjust the signal generator for three vertical divisions of 60 Hz
signal. See Figure 1–32. The signal will not be triggered. That is, it
will run free.
Figure 1–32: 60 Hz Rejection test setup signal
c. Check 60 Hz rejection:
HUse the keypad to set the horizontal scale (/div) to 50 s (press 50,
SHIFT, m, then ENTER).
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–75
HReconnect the output of the signal generator. Connect the composite
signal connector of the PAL signal source (labeled COMPST on the
TSG 121) to a 75 W cable and a 75 W terminator. Connect both
signals to the CH1 input through a BNC T. See Figure 1–33.
HPress VERTICAL MENU.
HIf needed, press the main-menu Fine Scale.
HUse the keypad to set fine scale to 500 mV (press 500, SHIFT, m,
then ENTER).
HConnect another composite signal connector of the PAL signal
source (labeled COMPST on the TSG 121) through a 75 W cable
and a 75 W terminator to the CH2 input. See Figure 1–33.

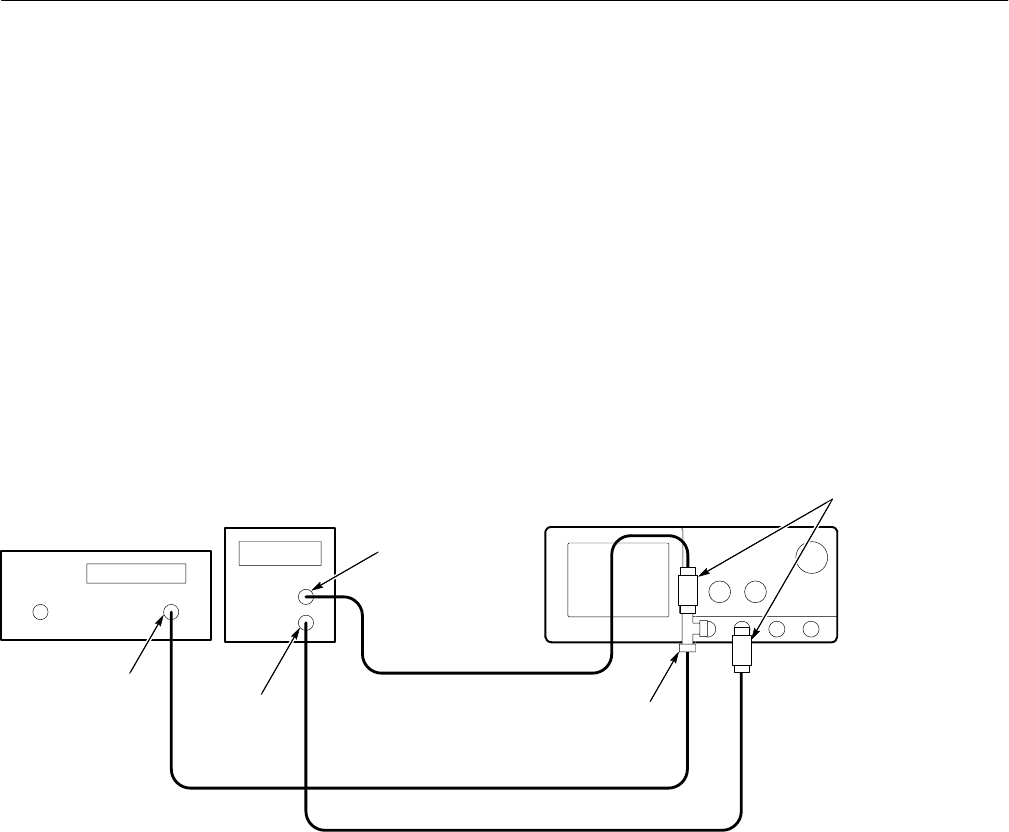

PAL signal
source
BNC T connector
75 terminators
Digitizing Oscilloscope
50 cable
Signal Generator
75 cable
75 Cable
COMPST
COMPST
Output
Figure 1–33: Subsequent 60 Hz Rejection test hookup

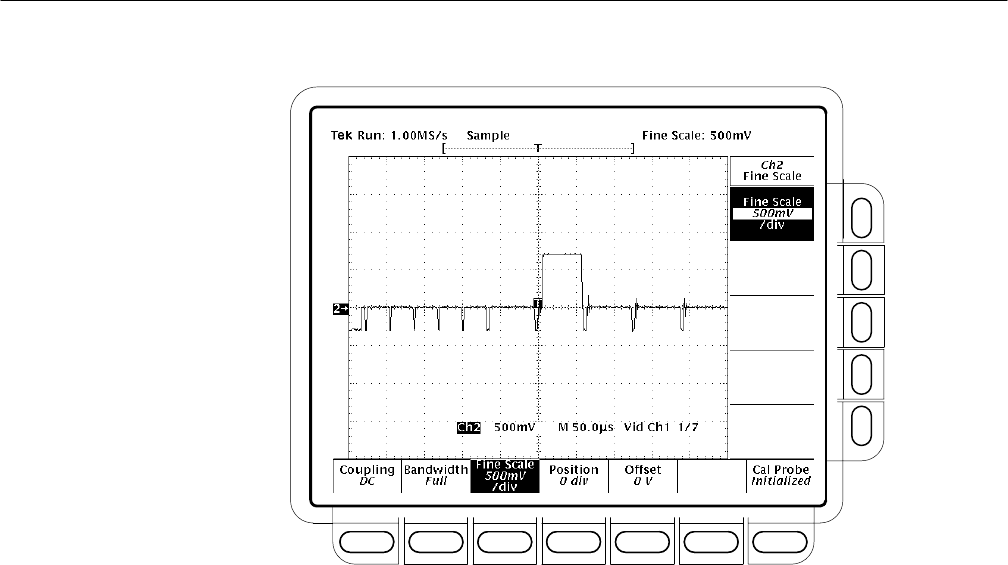

HCONFIRM that the TRIG’D LED stays lighted and that the
waveform on screen is stable. In other words, be sure the waveform
does not move horizontally or vertically. Also, confirm that the
waveform on the screen has one positive pulse and a number of
negative pulses. See Figure 1–34.
HDisconnect all test equipment from the digitizing oscilloscope.
Performance Tests
1–76 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Figure 1–34: 60 Hz Rejection test result – TDS 684B shown
6. Check Line Count Accuracy.
a. Set up oscilloscope for Line Count Accuracy Test:
HPress WAVEFORM OFF.
HPress CH1.
HPress HORIZONTAL MENU.
HPress the main-menu Record Length.
HPress the side-menu –more– until you see the appropriate menu.
HPress the side-menu 5000 points in 100divs.
HPress the main-menu Horiz Scale (/div).
HUse the keypad to set the horizontal scale to 200 ns (press 200,
SHIFT, n, then ENTER).
b. Check Line Count Accuracy:
HConnect a composite output signal from the rear of the PAL signal
source (labeled COMPST on the TSG 121) to the CH1 input
through a 75 W cable and a 75 W terminator. See Figure 1–35.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–77
PAL signal
source Digitizing Oscilloscope
75 cable
75 terminator
Output
Figure 1–35: Line count accuracy test hookup
HPress the main-menu Trigger Position.
HPress the side-menu to Set to 50%.
HPress the main-menu to Horiz Pos.
HPress the side-menu to Set to 50%.
HUse the HORIZONTAL POSITION knob to move the falling edge
of the sync pulse to two divisions to the left of center screen. See
Figure 1–36.
Performance Tests
1–78 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Figure 1–36: Line count accuracy test setup waveform – TDS 684B shown
HPress CURSOR.
HPress the main-menu Function.
HPress the side-menu V Bars.
HUsing the General Purpose knob, place the left cursor directly over
the trigger ‘T’ icon.
HPress SELECT.
HTurn the General Purpose knob to adjust the right cursor for a cursor
delta reading of 6.780us.
HUse the HORIZONTAL POSITION knob to position the right
cursor to center screen.
HVerify that the cursor is positioned on a positive slope of the burst
signal. See Figure 1–37.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–79
Figure 1–37: Line count accuracy correct result waveform
HDisconnect all test equipment (TSG 121) from the digitizing
oscilloscope.
HTurn off cursors by pressing CURSOR, then the main-menu
Function button, and, finally, Off from the side menu.
7. Check the Sync Duty Cycle.
a. Set up digitizing oscilloscope for Sync Duty Cycle Test:
HPress TRIGGER MENU.
HPress the Standard pop-up to select FlexFmt. Trigger Type should
already be set to Video.
HPress the main-menu Setup.
HPress the side-menu Field Rate.
HUse the keypad to set the field rate to 60.05 Hz (press 60.05, then
ENTER).
HPress the side-menu Lines.
HUse the keypad to set the field rate to 793 lines (press 793, then
ENTER).
Performance Tests
1–80 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HPress the side-menu Fields.
HUse the keypad to set the number of fields to 1 (press 1, then
ENTER).
HPress the side-menu Sync Width.
HUse the keypad to set the width to 400 ns (press 400, SHIFT, n,
then ENTER).
HPress the side-menu –more– 1 of 2. Then press V1 Start Time.
HUse the keypad to set V1 start time to 10.10 s (press 10.10, SHIFT,
m, then ENTER).
HPress the side-menu V1 Stop Time.
HUse the keypad to set V1 stop time to 10.50 s (press 10.50, SHIFT,
m, then ENTER).
HPress the main-menu Type pop-up to select Edge.
HPress HORIZONTAL MENU.
HPress the main-menu Record Length.
HSelect the side-menu 1000 points in 20div. If needed, first press the
side-menu –more– until you see the appropriate side-menu item.
HTurn the HORIZONTAL POSITION knob to position the trigger
‘T’ two divisions to the left of the center screen.
HPress MEASURE.
HIf needed, press the main-menu Select Measrmnt.
HPress the side-menu Negative Width.
HPress the side-menu Period.
b. Set up the pulse generator for Sync Duty Cycle Test:
HSet PULSE DURATION to 50 ns.
HSet PERIOD to 10 s.
HSet OUTPUT (VOLTS) to –1 for LOW LEVEL and +1 for HIGH
LEVEL.
HDepress the COMPLEMENT button.
HBe sure BACK TERM is depressed (in).
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–81
c. Check Sync Duty Cycle:
HConnect the pulse generator through a 50 W cable and a 50 W
terminator to the oscilloscope CH1 input. See Figure 1–38.
Pulse
Generator Digitizing Oscilloscope
50 cable 50 terminator
Output
Figure 1–38: Setup for sync duty cycle test
HTurn the pulse generator OUTPUT (VOLTS) control until the signal
on the oscilloscope shows a one division negative going pulse. See
Figure 1–39.
NOTE. You may need to adjust the trigger level control to obtain a stable trigger.
Performance Tests
1–82 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Figure 1–39: Sync duty cycle test: one-div neg pulse waveform
HTurn the pulse generator PULSE DURATION variable control to
adjust the negative pulse so the oscilloscope’s CH1 – Width
measurement displays 400ns +/–10 ns.
HTurn the HORIZONTAL SCALE knob to set the oscilloscope time
base to 5ms/div.
HTurn the pulse generator PERIOD variable control to adjust the
period until the oscilloscope CH1 Period measurement reads
21.000ms –25/+50 ns. See Figure 1–40. Read note shown below.
NOTE. The pulse duration and period adjustments are critical in making this
measurement. If the pulse duration and/or the duty cycle are not stable, the
FLEXFMT function may not function. You must take care when making these
adjustments.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–83
Figure 1–40: Sync duty cycle test: critically adjusted pulse
HPress TRIGGER MENU.
HPress the main-menu Type pop-up until you select Video.
If the TRIG’D LED is not lighted, check that the CH1 – Width and
CH1 Period measurements are adjusted correctly. See note above.
CONFIRM that the setup is correct and the oscilloscope will trigger.
HCONFIRM that the TRIG’D LED is lighted and the waveform is
stable.
HDisconnect the signal source from CH1, wait a few seconds, then
reconnect the signal.
HCONFIRM that the TRIG’D LED is lighted and the waveform is
stable.
HPress Sync Polarity.
HPress Pos Sync.
HPush the pulse generator COMPLEMENT button out.
HCONFIRM that the TRIG’D LED is lighted and the waveform is
stable.
Performance Tests
1–84 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HDisconnect the signal source from CH1, wait a few seconds, then
reconnect the signal.
HCONFIRM that the TRIG’D LED is lighted and the waveform is
stable.
HDisconnect all test equipment from the digitizing oscilloscope.
HPress save/recall SETUP, the main-menu button Recall Factory
Setup, and the side-menu OK Confirm Factory Init.
Sine Wave Generator Leveling Procedure
Some procedures in this manual require a sine wave generator to produce the
necessary test signals. If you do not have a leveled sine wave generator, use one
of the following procedures to level the output amplitude of your sine
wave generator.
Equipment
required Sine wave generator (Item 19)
Level meter and power sensor (Item 20)
Power splitter (Item 21)
Two male N to female BNC adapters (Item 23)
One precision coaxial cable (Item 5)
Prerequisites See page 1–15
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–85
Digitizing Oscilloscope
Sine Wave
Generator Level Meter
Power sensor
Power splitter
Attenuators
(if necessary)
Input
Output
Figure 1–41: Sine wave generator leveling equipment setup
1. Install the test hookup: Connect the equipment as shown in Figure 1–41.
2. Set the Generator:
HSet the sine wave generator to a reference frequency of 10 MHz.
HAdjust the sine wave generator amplitude to the required number of
divisions as measured by the digitizing oscilloscope.
3. Record the reference level: Note the reading on the level meter.
4. Set the generator to the new frequency and reference level:
HChange the sine wave generator to the desired new frequency.
HInput the correction factor for the new frequency into the level meter.
HAdjust the sine wave generator amplitude until the level meter again
reads the value noted in step 3. The signal amplitude is now
correctly set for the new frequency.
Performance Tests
1–86 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Equipment
required Sine wave generator (Item 19)
Level meter and power sensor (Item 20)
Two male N to female BNC adapters (Item 23)
Two precision coaxial cables (Item 5)
Prerequisites See page 1–15
1. Install the test hookup: Connect the equipment as shown in Figure 1–42
(start with the sine wave generator connected to the digitizing oscilloscope).
Digitizing Oscilloscope
Level Meter
Power sensor
Sine Wave
Generator
Output
Input
Connect the sine wave
generator to the
oscilloscope and the
power sensor as
directed in the text.
Figure 1–42: Equipment setup for maximum amplitude
2. Set the Generator:
HSet the sine wave generator to a reference frequency of 10 MHz.
HAdjust the sine wave generator amplitude to the required number of
divisions as measured by the digitizing oscilloscope.
3. Record the reference level:
HDisconnect the sine wave generator from the digitizing oscilloscope.
HConnect the sine wave generator to the power sensor.
HNote the level meter reading.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–87
4. Set the generator to the new frequency and reference level:
HChange the sine wave generator to the desired new frequency.
HInput the correction factor for the new frequency into the level meter.
HAdjust the sine wave generator amplitude until the level meter again
reads the value noted in step 3. The signal amplitude is now correctly set
for the new frequency.
HDisconnect the sine wave generator from the power sensor.
HConnect the sine wave generator to the digitizing oscilloscope.
Optical Filters Checks (TDS 500C/TDS 700C Only)
The procedure that follows verifies that the frequency response of the combined
P670xB and TDS500C/700C oscilloscope system is a Fourth Order Bessel
Thompson Filter which is within limits.
Nominal Filters are available with Option 2C. Reference Receiver Filters are
available with Options 3C and 4C (3C and 4C are not available without 2C).
Table 1–6 lists the available vertical scale factors for each option. Tables 1–7,
1–8, and 1–9 list the available filters and their specifications.
Table 1–6: Available Filters
Nominal Filters
(Option 2C) Reference Receivers Filters
(Options 3C, 4C)
1 mW per division
2 mW per division
5 mW per division
10 mW per division 10 mW per division
20 mW per division 20 mW per division
50 mW per division 50 mW per division
100 mW per division
200 mW per division
500 mW per division
1 mW per division
Filter Availability
Performance Tests
1–88 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 1–7: Reference Receiver Filter Options:
Option 4C – SONET (P6703B 1300nm) Option 3C – Fibre Channel (P6701B 850nm)
52Mbit OC1 FC133Mbit
FC266Mbit
FC531Mbit
155Mbit OC3 155Mbit OC3
622Mbit OC12 622Mbit OC12
FC1063 (TDS784C Only) FC1063 (TDS784C Only)
Table 1–8: Option 3C and 4C Specifications
Name Description
Calibration Range, Reference Receiver 10 mW per division
20 mW per division
50 mW per division
Temperature Range, Warranted Filter 23_C, "5_C
Calibration Range, Controlled Up to 2X the data rate for all filters except
FC1063 filter
Up to 1.5X the data rate for FC1063 filter
Table 1–9: Available receivers
Option 4C1Option 3C2
OC14OC3 OC12 FC10633FC133 FC266 FC531 FC10633OC3 OC12
TDS 520C n n n n
TDS 540C n n n n n n n n
TDS 724C n n n n
TDS 754C n n n n n n n n
TDS 784C n n n n n n n n n n
1Requires Tektronix P6703B, 1300 nm Optical to Electrical Converter.
2Requires Tektronix P6701B, 850 nm Optical to Electrical Converter.
3Reference receivers are warranted to 2.0 times the bit rate except for FC1063 which is warranted to 1.5 times the bit rate.
4OC1 is type tested
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–89
Equipment
required OIG501 (use with P6701B) (Item 27)
OIG502 (use with P6703B) (Item 28)
Optical Attenuator OA5022 (Item 29)
Fibre Optic Cable (Item 30)
Optical-to-Electrical Converter (item 31)
Prerequisites See page 1–15. Also, the probe and the oscilloscope channel it is
attached to must have been calibrated as a reference receiver.
1. Install the test hookup and preset the instrument controls:
Digitizing Oscilloscope
Optical to electrical converter
Output
Input
Optical Impulse
Generator
Output
Optical
Attenuator
Fiber optic cable
Figure 1–43: Reference-receiver performance-verification set up
a. Initialize the oscilloscope:
HPress SAVE/RECALL SETUP.
HPress the main-menu button Recall Factory Setup.
HPress the side-menu button OK Confirm Factory Init.
b. Connect the probe, oscilloscope, optical impulse generator (OIG), and
the optical attenuator:
HConnect the optical probe to CH 1 of the oscilloscope under test (see
Figure 1–43).
HSee Table 1–9. If using a P6701B probe, connect the OIG501
(Item 27) OPTICAL OUTPUT to the optical attenuator (Item 29)
OPTICAL INPUT using a fiber-optic cable (Item 30). If using a
P6703B probe, connect the OIG502 (Item 28) OPTICAL OUTPUT
to the optical attenuator (Item 29) OPTICAL INPUT using a
fiber-optic cable (Item 30).
Reference Receiver
Verification
Performance Tests
1–90 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HConnect the optical probe on CH 1 of the oscilloscope to the
OPTICAL OUTPUT of the optical attenuator using the fiber-optic
cable of the probe. Set an optical impulse level that does not clip the
vertical channel of the oscilloscope.
c. Set up the OIG to run with LOW impulse energy.
HKeep the impulse below 100 W peak level because high-energy
impulses into the P670x probe will cause major changes in the
frequency response of the probe.
HSet the OIG for 1 Mhz internal trigger.
HSet the OIG for the wavelength shown in Table 1–9 that is required
for the standard and option you are verifying.
d. Enable the laser.
e. Set the VERTICAL SCALE of the oscilloscope to either 10 W, 20 W
or 50 W/division.
NOTE. These are the only scale settings for which the reference receivers have
calibrated filters.
f. Set the trigger type to edge:
HPress TRIGGER MENU; then select Edge from the Type pop-up
menu.
HPress SET LEVEL TO 50%.
g. Set the HORIZONTAL SCALE to 500 ps.
h. Set the Optical Attenuator for several divisions of display on the
oscilloscope.
i. Set the horizontal controls:
HIf Fit To Screen is not OFF, press HORIZONTAL MENU; then
press Record Length. Then press Fit to Screen to toggle it to the
OFF setting. Fit to Screen needs to be OFF so that the FFT
waveform horizontal scale can be adjusted to obtain the desired
display of the frequency response.
HTo obtain a 10000 point FFT in step 3, press HORIZONTAL
MENU; then press Record Length. Then repeatedly press the
side-menu button –more– until 15000 appears in the side menu.
Press the side-menu button 15000.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–91
HPress HORIZONTAL MENU; then press the main-menu button
Trigger Position. Set the Trigger Position to 20% using the general
purpose knob or keypad.
NOTE. Press SHIFT to change the horizontal position speed. The position moves
faster when SHIFT is lighted.
HAdjust the HORIZONTAL POSITION to move the 20% trigger
point onto the display (see Figure 1–44).
Figure 1–44: Optical impulse of Ch1 input from OA5022 Optical Attenuator
(OIG501 / OIG502 fed into optical attenuator in Step 1)
j. Select linear interpolation:
HIf SHIFT is lighted, press SHIFT.
HPress DISPLAY; then press the main-menu button Filter.
HPress the side-menu button Linear Interpolation.
2. Select the desired Mask standard and turn it on:
HPress MEASURE; then select Masks from the Measure pop-up menu.
Performance Tests
1–92 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
NOTE. <xxx> is the standard that you are verifying (such as OC1, OC3, OC12,
FC1063; see Table 1–10).
HFrom the Mask Type pop-up menu, select the mask type (<xxx>) of your
reference receiver.
HPress the Standard Mask main menu; then select your reference
receiver mask (<xxx>) from the side menu.
NOTE. For the Bessel Thompson (BT) filter to be active, the VERTICAL MENU
deskew must be set to zero on all four channels. Also, the ACQUIRE MENU
Acquisition Mode must be Sample. If you did the Factory Setup specified in
Step 1a, you selected these modes.
HIf checking a reference receiver, verify that RR is displayed to the right
of the vertical scale factor (see Figure 1–45).
HPress TRIGGER MENU; then select Edge from the Type pop-up
menu.
3. Turn on an FFT of the optical impulse [the Impulse Response (or Frequency
Response) of the P670xB and oscilloscope system] (Refer to Figure 1–46):
a. Press the front panel MORE button; then press the main-menu button
Math2. This turns on a math waveform.
b. If the math waveform is not set to FFT, create an FFT waveform:
HPress Change Math waveform definition; then press the main-
menu button FFT.
HPress the side-menu button Set FFT source to Ch1.
NOTE. Verify the FFT window is set to Rectangular. Also verify the FFT Vert
Scale is set to dBV RMS. If you did the Factory Setup in Step 1a, you selected
these modes.
HPress the side-menu button OK Create Math Waveform.
HPress the side menu button Average, then set the number of averages
to 16 using the general purpose knob or keypad.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–93
4. Move the beginning of the FFT data record onto the screen:
NOTE. Press SHIFT to change the horizontal position speed. The position moves
faster when SHIFT is lighted.
HAdjust the HORIZONTAL POSITION control to move the beginning
of the FFT data record onto the display.
NOTE. Expanding the horizontal scale of the FFT waveform gives greater
resolution when making cursor measurements. Expand the FFT to display DC to
the highest frequency listed in Table 1–10 for the standard being verified.
HAdjust the HORIZONTAL SCALE and VERTICAL SCALE to view
the frequency response of the BT filter. The large spike around DC is
due to DC offset in the signal and should be ignored.
5. Observe the desired response characteristics using the vertical paired
cursors (see figures 1–45 and 1–46):
a. Press CURSOR.
b. Press the main-menu button Function; then press the side-menu button
Paired.
c. Press CLEAR MENU.
NOTE. Pressing SHIFT will change cursor speed. Use the select key to alternate
between cursors.
d. Position one cursor at the beginning of the FFT record.
e. Position the other cursor at the bit rate (the frequency closest to the bit
rate) of the mask that is turned on (see Table 1–10 and Figure 1–45).
Performance Tests
1–94 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Figure 1–45: Optical impulse response for OC–12 SONET Reference Receiver
NOTE. In Figure 1–45, the left cursor is at the DC frequency. The right cursor is
at the OC-12 data rate of 622 MHz "4 MHz. Also, note that the reference
receiver, RR, designation is beside the 20 W vertical scale factor.
f. Next, move the cursor currently positioned at the beginning of the record
until the cursor is just right of the DC spike in the response (see
Figure 1–46). The unsigned D dB readout should be at or between the
upper and lower limits shown in Table 1–10 (note that the entries in the
table are signed numbers, but the D dB readout is not) for the mask that
is turned on.
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–95
Figure 1–46: Optical impulse response for OC–12 SONET Reference Receiver
NOTE. In Figure 1–46 the left cursor has been moved to the zero dB level. The
right cursor remains at the OC–12 data rate of 622 MHz "4 MHz (the delta
frequency is 584 MHz because the right cursor is no longer referenced to DC).
The delta attenuation from the zero dB level to the 622 MHz Cursor is 5.6 dB.
6. Repeat steps 5d through 5f, starting on page 1–93, moving the second cursor
to twice the bit rate (1.5 times the bit rate for the FC1063 standard).
7. For an exhaustive test of the reference receiver, repeat steps 5d through 5f for
each frequency shown in Table 1–10 for the standard.
8. If verifying additional standards, repeat this procedure for each standard.
Performance Tests
1–96 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 1–10: Bessel Thompson frequency response and reference receiver limits
Standard Frequency (MHz) Lower Limit (dB) Nominal (dB) Upper Limit (dB) Measured (delta dB)
OC–12 SONET or STM–4 SDH, Data Rate: 622.08 Mb/s
0.0 –0.3 0.0 0.3
93.31 –0.41 –0.11 0.19
186.6 –0.75 –0.45 –0.15
279.9 –1.32 –1.02 –0.72
373.2 –2.16 –1.86 –1.56
466.7 –3.31 –3.00 –2.71
5.60.0 –5.15 –4.51 –3.87
622.08 –6.58 –5.71 –4.84
653.2 –7.35 –6.37 –5.39
746.5 –9.86 –8.54 –7.22
839.8 –12.59 –10.93 –9.27
933.1 –15.41 –13.41 –11.41
1244.2 –24.58 –21.44 –18.31
OC–3 SONET or STM–1 SDH, Data Rate: 155.52 Mb/s
0.0 –0.3 –0.0 0.3
23.327 –0.41 –0.11 0.19
46.65 –0.75 –0.45 –0.15
69.975 –1.32 –1.02 –0.72
93.3 –2.16 –1.86 –1.56
116.88 –3.31 –3.00 –2.71
139.97 –5.15 –4.51 –3.87
155.52 –6.58 –5.71 –4.84
163.3 –7.35 –6.37 –5.39
209.95 –9.86 –8.54 –7.22
209.95 –12.59 –10.93 –9.27
233.27 –15.41 –13.41 –11.41
311.04 –24.58 –21.44 –18.31
Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 1–97
Table 1–10: Bessel Thompson frequency response and reference receiver limits (Cont.)
Standard Measured (delta dB)Upper Limit (dB)Nominal (dB)Lower Limit (dB)Frequency (MHz)
FC133 Fibre Channel, Data Rate: 132.8125 Mb/s
0.00 –0.5 0.0 0.5
19.922 –0.6 –0.1 0.4
38.440 –0.9 –0.4 –0.1
59.765 –1.5 –1.0 –0.5
79.690 –2.4 –1.9 –1.4
99.610 –3.5 –3.0 –2.5
119.53 –5.5 –4.5 –3.5
132.81 –7.03 –5.7 –4.37
139.45 –7.9 –6.4 –4.9
159.37 –10.5 –8.5 –6.5
179.29 –13.4 –10.9 –8.4
199.22 –16.4 –13.4 –10.4
265.62 –26.17 –21.5 –16.5
FC266 Fibre Channel, Data Rate: 265.625 Mb/s
0.0 –0.5 0.0 0.5
39.844 –0.6 –0.1 0.4
79.688 –0.9 –0.4 –0.1
119.53 –1.5 –1.0 –0.5
159.38 –2.4 –1.9 –1.4
199.22 –3.5 –3.0 –2.5
239.06 –5.5 –4.5 –3.5
265.62 –7.03 –5.7 –4.37
278.91 –7.9 –6.4 –4.9
318.75 –10.5 –8.5 –6.5
358.59 –13.4 –10.9 –8.4
398.44 –16.4 –13.4 –10.4
531.25 –26.17 –21.5 –16.5
Performance Tests
1–98 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 1–10: Bessel Thompson frequency response and reference receiver limits (Cont.)
Standard Measured (delta dB)Upper Limit (dB)Nominal (dB)Lower Limit (dB)Frequency (MHz)
FC531 Fibre Channel, Data Rate: 531.25 Mb/s
0.0 –0.5 –0.0 0.5
79.688 –0.6 –0.1 0.4
159.38 –0.9 –0.4 –0.1
239.06 –1.5 –1.0 –0.5
318.76 –2.4 –1.9 –1.4
398.44 –3.5 –3.0 –2.5
478.12 –5.5 –4.5 –3.5
531.24 –7.03 –5.7 –4.37
557.82 –7.9 –6.4 –4.9
637.50 –10.5 –8.5 –6.5
717.18 –13.4 –10.9 –8.4
796.88 –16.4 –13.4 –10.4
1062.5 –26.17 –21.5 –16.3
FC1063 Fibre Channel (Controlled to 1.5X Data Rate), Data Rate: 1062.5 Mb/s
0.0 –0.5 0.0 0.5
159.38 –0.6 –0.1 0.4
318.75 –0.9 –0.4 0.1
478.12 –1.5 –1.0 –0.5
637.50 –2.4 –1.9 –1.4
796.87 –3.5 –3.0 –2.5
956.25 –5.5 –4.5 –3.5
1062.5 –7.03 –5.7 –4.37
1115.63 –7.9 –6.4 –4.9
1275.0 –10.5 –8.5 –6.5
1434.37 –13.4 –10.9 –8.4
1593.75 –16.4 –13.4 –10.4
Specifications
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–1
Specifications
This section begins with a general description of the traits of the TDS 500C,
TDS 600B, and TDS 700C oscilloscopes. Three sections follow, one for each of
three classes of traits: nominal traits, warranted characteristics, and typical
characteristics.
Product Description
The TDS 500C, TDS 600B and TDS 700C Digitizing Oscilloscopes are
portable, four-channel instruments suitable for use in a variety of test and
measurement applications and systems. Table 2–1 lists key features.
Table 2–1: Key features of the TDS 500C, 600B and 700C oscilloscopes
Feature TDS 600B TDS 500C & TDS 700C
Digitizing rate,
maximum TDS 684B: 5 GS/s on ea. of 4 ch
TDS 680B: 5 GS/s on ea. of 2 ch
TDS 644B: 2.5 GS/s on ea. of 4 ch
TDS 620B: 2.5 GS/s on ea. of 2 ch
TDS 784C: 4 GS/s
TDS 540C, 754C: 2 GS/s
TDS 520C, 724C: 1 GS/s
Analog bandwidth TDS 680B, 684B, and 784C: 1 GHz
TDS 520C, 540C, 620B, 644B, 724C and 754C: 500 MHz
No. of Channels TDS 644B & 684B: 4
TDS 620B & 680B: 2 + 21TDS 540C, 754C & 784C: 4
TDS 520C & 724C: 2 + 21
Record lengths,
maximum 15,000 samples 50,000 samples
(500,000 with option 1M)
(8,000,000 with option 2M)
Acquisition modes Sample, envelope, peak detect
and average Sample, envelope, average,
high-resolution, and
peak-detect
Trigger modes Modes include:
Edge, logic, and pulse.
Video trigger, with option 05, modes include:
NTSC, SECAM, PAL, HDTV, and FlexFormat.
Communications Trigger with option 2C (available on
TDS 500C/700C), modes include: AMI, CMI, and NRZ
Display TDS 520C, 540C, 620B, 680B: Monochrome
TDS 644B, 684B, 724C, 754C, 784C: Color
Specifications
2–2 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–1: Key features of the TDS 500C, 600B and 700C oscilloscopes (cont.)
Feature TDS 500C & TDS 700CTDS 600B
Storage Floppy disk drive:
1.44 Mbyte, 3.5 inch, DOS 3.3-or-later floppy disk drive
Internal hard disk drive
(option HD available on the TDS 500C and 700C)
170 MByte capacity
Subject to change due to the fast-moving PC component
environment.
NVRAM storage for saving waveforms, hardcopies, and setups
I/O Full GPIB programmability.
Hardcopy output using GPIB, RS-232, or Centronics ports
1Two plus Two channel operation allows up to two of the four channels to be
displayed simultaneously. Channels not displayed can be used to couple a
triggering signal to the oscilloscope.
User Interface
Use a combination of front-panel buttons, knobs, and on-screen menus to control
the many functions of the oscilloscope. The front-panel controls are grouped
according to function: vertical, horizontal, trigger, and special. Set a function you
adjust often, such as vertical positioning or the time base setting, directly by its
own front-panel knob. Set a function you change less often, such as vertical
coupling or horizontal mode, indirectly using a selected menu.
Pressing one (sometimes two) front-panel button(s), such as vertical menu,
displays a main menu of related functions, such as coupling and bandwidth, at
the bottom of the screen. Pressing a main-menu button, such as coupling,
displays a side menu of settings for that function, such as AC, DC, or GND
(ground) coupling, at the right side of the screen. Pressing a side-menu button
selects a setting such as DC.
On-screen readouts help you keep track of the settings for various functions,
such as vertical and horizontal scale and trigger level. Some readouts use the
cursors or the automatic parameter extraction feature (called measure) to display
the results of measurements made or the status of the instrument.
Assign the general purpose knob to adjust a selected parameter function. More
quickly change parameters by toggling the SHIFT button. Use the same method
as for selecting a function, except the final side-menu selection assigns the
Menus
Indicators
General Purpose Knob
Specifications
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–3
general purpose knob to adjust some function, such as the position of measure-
ment cursors on screen, or the setting for a channel fine gain.
The user interface also makes use of a GUI, or Graphical User Interface, to make
setting functions and interpreting the display more intuitive. Some menus and
status are displayed using iconic representations of function settings, such as
those shown here for full, 250 MHz and 20 MHz bandwidth. Such icons allow
you to more readily determine status or the available settings.
Signal Acquisition System
The signal acquisition system provides four, full-featured vertical channels with
calibrated vertical scale factors from 1 mV to 10 V per division. All channels can
be acquired simultaneously.
Each of the full-featured channels can be displayed, vertically positioned, and
offset, can have their bandwidth limited (250 MHz or 20 MHz) and their vertical
coupling specified. Fine gain can also be adjusted.
Besides these channels, up to three math waveforms and four reference wave-
forms are available for display. (A math waveform results when you specify dual
waveform operations, such as add, on any two channels. A reference waveform
results when you save a waveform in a reference memory).
Horizontal System
There are three horizontal display modes: main only, main intensified, and
delayed only. You can select among various horizontal record length settings.
A feature called “Fit to Screen” allows you to view entire waveform records
within the 10 division screen area. Waveforms are compressed to fit on the
screen. See Table 2–2.
Both the delayed only display and the intensified zone on the main intensified
display may be delayed by time with respect to the main trigger. Both can be set
to display immediately after the delay (delayed runs after main mode). The
delayed display can also be set to display at the first valid trigger after the delay
(delayed-triggerable modes).
The delayed display (or the intensified zone) may also be delayed by a selected
number of events. In this case, the events source is the delayed-trigger source.
The delayed trigger can also be set to occur after a number of events plus an
amount of time.
GUI
Specifications
2–4 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–2: Record length and divisions per record vs. TDS model
S a ar el
Rec r le
Divisions per record
S
t
a
nd
ar
d Mod
el
s
Rec
o
r
d
le
ngth FTS1 Off2FTS1 On3
All
T
D
S 500C, T
D
S600B & T
D
S 700C
All ha els4
500 10 divs 10 divs
All
c
ha
nn
els4
1,000 20 divs 10 divs
2,500 50 divs 10 divs
5,000 100 divs 10 divs
15,000 300 divs 10 divs
TDS 500C & TDS 700C,
All channels 50,000 1,000 divs 10 divs
el i p i 1
Rec r le
Divisions per record
Mod
el
s w
i
th O
p
t
i
on
1
M
Rec
o
r
d
le
ngth FTS1 Off2FTS1 On3
TDS 500C & TDS 700C,
All channels 75,000 1,500 divs 10 divs
TDS 500C & TDS 700C,
All channels 100,000 2,000 divs 10 divs
TDS 500C & TDS 700C,
All channels 130,000 2,600 divs 10 divs
250,000 5,000 divs 10 divs
500,000 10,000 divs 10 divs
el i p i 2
Rec r le
Divisions per record
Mod
el
s w
i
th O
p
t
i
on
2
M
Rec
o
r
d
le
ngth FTS1 Off2FTS1 On3
TDS 520C & TDS 724C
One or two channels
TDS 540C, TDS 784C & TDS 754C
Three or four channels
2,000,000 40, 000 divs 10 divs
TDS 520C & TDS 724C
One channel only
TDS 540C, TDS 784C & TDS 754C
Two channels
4,000,000 80,000 divs 10 divs
TDS 540C, TDS 784C & TDS 754C
One channel only 8,000,000 160,000 divs 10 divs
1Fit to Screen setting
2Fit to Screen off preserves 50 samples/division in a 1–2–5 sec/division sequence.
3Fit to Screen on lets the samples/division and the sec/division sequence vary.
4All channels means all that may be displayed at one time: four channels for some
models, two for others. See Table 2–1 and its footnote on page 2–1.
Specifications
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–5
Trigger System
The triggering system supports a varied set of features for triggering the
signal-acquisition system. Trigger signals recognized include:
HEdge (main- and delayed-trigger systems): This familiar type of triggering is
fully configurable for source, slope, coupling, mode (auto or normal), and
holdoff.
HLogic (main-trigger system): This type of triggering can be based on pattern
(asynchronous) or state (synchronous). In either case, logic triggering is
configurable for sources, for Boolean operators to apply to those sources, for
logic pattern or state on which to trigger, for mode (auto or normal), and for
holdoff. Time qualification may be selected in pattern mode. Another class
of logic trigger, setup/hold, triggers when data in one trigger source changes
state within the setup and hold times that you specify relative to a clock in
another trigger source.
HPulse (main-trigger system): Pulse triggering is configurable for triggering
on runt or glitch pulses, or on pulse widths or periods inside or outside limits
that you specify. It can also trigger on a pulse edge that has a slew rate faster
or slower than the rate you specify. The timeout trigger will act when events
do not occur in a defined time period. The pulse trigger is also configurable
for source, polarity, mode, and holdoff.
HVideo (with option 05: Video Trigger): Video triggering is compatible with
standard NTSC, PAL, SECAM, and HDTV formats. An additional feature
called FlexFormatTM (flexible format) allows the user to define the video
format on which to trigger.
HComm (with option 2C): is provided for triggering on AMI, CMI, or NRZ
communications signals.
You can choose where the trigger point is located within the acquired waveform
record by selecting the amount of pretrigger data displayed. Presets of 10%,
50%, and 90% of pretrigger data can be selected in the horizontal menu, or the
general purpose knob can be assigned to set pretrigger data to any value within
the 0% to 100% limits.
Acquisition Control
You can specify a mode and manner to acquire and process signals that matches
your measurement requirements.
HSelect the mode for interpolation (linear or sin (x)/x). This can increase the
apparent sample rate on the waveform when the maximum real-time rate is
exceeded.
Specifications
2–6 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
HUse sample, envelope, average and peak detect modes to acquire signals.
With the TDS 500C/700C, also use high-resolution mode.
HSet the acquisition to stop after a single acquisition (or sequence of
acquisitions if acquiring in average or envelope modes) or after a limit
condition has been met.
HSelect channel sources for compliance with limit tests. You can direct the
TDS to signal you or generate hard copy output either to a printer or to a
floppy-disk file based on the results. Also, you can create templates for use
in limit tests.
On-Board User Assistance
Help and autoset can assist you in setting up the digitizing oscilloscope to make
your measurements.
Help displays operational information about any front-panel control. When help
mode is in effect, manipulating any front-panel control causes the digitizing
oscilloscope to display information about that control. When help is first
invoked, an introduction to help is displayed on screen.
Autoset automatically sets up the digitizing oscilloscope for a viewable display
based on the input signal.
Measurement Assistance
Once you have set up to make your measurements, the cursor and measure
features can help you quickly make those measurements.
Three types of cursors are provided for making parametric measurements on the
displayed waveforms. Horizontal bar cursors (H Bar) measure vertical parame-
ters (typically volts). Vertical bar cursors (V Bar) measure horizontal parameters
(typically time or frequency). Paired cursors measure both amplitude and time
simultaneously. These are delta measurements; that is, measurements based on
the difference between two cursors.
Both H Bar and V Bar cursors can also be used to make absolute measurements.
For the H Bars, either cursor can be selected to read out its voltage with respect
to any channel’s ground reference level. For the V Bars, the cursors measure time
with respect to the trigger point (event) of the acquisition. The cursors can also
control the portion of the waveform on which automatic measurements are made.
Help
Autoset
Cursor
Specifications
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–7
For time measurements, units can be either seconds or hertz (for 1/time).
With the video trigger option installed (Option 05), you can measure the video
line number using the vertical cursors. You can measure IRE amplitude (NTSC)
using the horizontal cursors with or without the video trigger option installed.
Measure can automatically extract parameters from the signal input to the
digitizing oscilloscope. Any four out of the 25 parameters available can be
displayed to the screen. The waveform parameters are measured continuously
with the results updated on-screen as the digitizing oscilloscope continues
to acquire waveforms.
An important component of the multiprocessor architecture of this digitizing
oscilloscope is Tektronix’s proprietary digital signal processor, the DSP. This
dedicated processor supports advanced analysis of your waveforms when doing
such compute-intensive tasks as interpolation, waveform math, and signal
averaging. It also teams with a custom display system to deliver specialized
display modes (See Display, later in this description).
Storage
Acquired waveforms may be saved in any of four nonvolatile REF (reference)
memories or on a 3.5 inch, DOS 3.3-or-later compatible disk. Any or all of the
saved waveforms may be displayed for comparison with the waveforms being
currently acquired.
The TDS 500C/700C instrument with option HD or option 2M can save
waveforms to an internal hard disk drive. Any or all of the saved waveforms
may be displayed for comparison with the waveforms being currently acquired.
The source and destination of waveforms to be saved may be chosen. You can
save any of the four channels to any REF memory or move a stored reference
from one REF memory to another. Reference waveforms may also be written
into a REF memory location via the GPIB interface.
I/O
The oscilloscope is fully controllable and capable of sending and receiving
waveforms over the GPIB interface (IEEE Std 488.1–1987/IEEE Std 488.2–1987
standard). This feature makes the instrument ideal for making automated
measurements in a production or research and development environment that
calls for repetitive data taking. Self-compensation and self-diagnostic features
built into the digitizing oscilloscope to aid in fault detection and servicing are
also accessible using commands sent from a GPIB controller.
Measure
Digital Signal Processing
(DSP)
Specifications
2–8 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
The oscilloscope can also output copies of its display using the hardcopy feature.
This feature allows you to output waveforms and other on-screen information to
a variety of graphic printers and plotters from the TDS front panel, providing
hard copies without requiring you to put the TDS into a system-controller
environment.
You can make hardcopies in a variety of popular output formats, such as PCX,
TIFF, BMP, RLE, EPS, Interleaf, and EPS mono or color. You can also save
hardcopies in a disk file in any of the formats listed in the I/O section.
The hardcopies obtained are based on what is displayed on-screen at the time
hardcopy is invoked. The hardcopies can be stamped with date and time and
spooled to a queue for printing at a later time. You can output screen information
via GPIB, RS-232C, or Centronics interfaces.
Display
The TDS 500C, TDS 600B and TDS 700C Digitizing Oscilloscopes offer
flexible display options. You can customize the following attributes of your
display:
HColor (TDS 644B, TDS 684B, and TDS 700C): Waveforms, readouts,
graticule, and variable persistence with color coding
HIntensity: waveforms, readouts, and graticule
HStyle of waveform display(s): vectors or dots, intensified or nonintensified
samples, infinite persistence, and variable persistence
HInterpolation method: Sin(x)/x or Linear
HDisplay format: xy or yt with various graticule selections including NTSC
and PAL to be used with video trigger (option 05)
This oscilloscope also provides an easy way to focus in on those waveform
features you want to examine up close. By invoking zoom, you can magnify the
waveform using the vertical and horizontal controls to expand (or contract) and
position it for viewing.
Zoom
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–9
Nominal Traits
This section contains a collection of tables that list the various nominal traits
that describe the TDS 500C, TDS 600B, and TDS 700C oscilloscopes. Electrical
and mechanical traits are included.
Nominal traits are described using simple statements of fact such as “Four, all
identical” for the trait “Input Channels, Number of,” rather than in terms of
limits that are performance requirements.
Table 2–3: Nominal traits — Signal acquisition system
Name Description
Bandwidth Selections 20 MHz, 250 MHz, and FULL
Samplers, Number of TDS 540C, 644B, 684B, 754C, and 784C: Four, simultaneous
TDS 520C, 620B, 680B, and 724C: Two, simultaneous
Digitized Bits, Number of 8 bits1
Input Channels, Number of Four
Input Coupling DC, AC, or GND
Input Impedance Selections 1 MWor 50 W
Ra
n
ges
,
O
ff
set
Volts/Div setting Offset range
1 mV/div – 100 mV/div
101 mV/div – 1 V/div
1.01 V/div – 10 V/div
±1 V
±10 V
±100 V
Range, Position ±5 divisions
Range, 1 MW Sensitivity 1 mV/div to 10 V/div2
Range, 50 W Sensitivity 1 mV/div to 1 V/div5
1Displayed vertically with 25 digitization levels (DLs) per division and 10.24 divisions dynamic range with zoom off. A DL
is the smallest voltage level change of the oscilloscope input that can be resolved by the 8-bit A-D Converter. Expressed
as a voltage, a DL is equal to 1/25 of a division times the volts/division setting.
2The sensitivity ranges from 1 mV/div to 10 V/div (for 1 M) or to 1 V/div (for 50 ) in a 1–2–5 sequence of coarse settings
with Fit-to-Screen off. Between coarse settings, the sensitivity can be finely adjusted with a resolution equal to 1% of the
more sensitive coarse setting. For example, between 50 mV/div and 100 mV/div, the volts/division can be set with 0.5 mV
resolution.
Nominal Traits
2–10 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–4: Nominal traits — Time base system
Name Description
Range, Sample-Rate1,3 TDS 684B: 5 Samples/sec to 5 GSamples/sec on four channels simultaneously
TDS 680B: 5 Samples/sec to 5 GSamples/sec on two channels simultaneously
TDS 644B: 5 Samples/sec to 2.5 GSamples/sec on four channels simultaneously
TDS 620B: 5 Samples/sec to 2.5 GSamples/sec on two channels simultaneously
TDS 520C and 724C: 5 Samples/sec to 1 GSamples/sec when acquiring 1 channel,
to 500 MSamples/sec when acquiring 2 channels
TDS 540C: 5 Samples/sec to 2 GSamples/sec when acquiring 1 channel,
to 1 GSample/sec when acquiring 2 channels,
or to 500 MSamples/sec when acquiring 3 or 4 channels
TDS 754C: 5 Samples/sec to 2 GSamples/sec when acquiring 1 or 2 channels,
to 1 GSamples/sec when acquiring 3 or 4 channels
TDS 784C: 5 Samples/sec to 4 GSamples/sec when acquiring 1 channel,
to 2 GSample/sec when acquiring 2 channels,
or to 1GSamples/sec when acquiring 3 or 4 channels
Range, Interpolated Waveform Rate2,3 TDS 600B: 10 GSamples/sec to 250 GSamples/sec
TDS 520C, 540C, 724C, and 754C: 1 GSamples/sec to 100 GSamples/sec
TDS 784C: 2 GSamples/sec to 250 GSamples/sec
Range, Seconds/Division TDS 600B: 0.2 ns/div to 10 s/div
TDS 500C, 724C, and 754C: 0.5 ns/div to 10 s/div
TDS 784C: 0.2 ns/div to 10 s/div
Nominal Traits
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–11
Table 2–4: Nominal traits — Time base system (cont.)
Name Description
Record Length Selection TDS 500C & TDS 700C:
500, 1,000, 2,500, 5,000, 15,000 and 50,000 samples
In addition to the record lengths previously listed, the following record lengths are
available with the following options:
TDS 520C & TDS 724 with option 1M:
1-channel: up to 250,000 samples
2-channels: up to 130,000 samples
TDS 520C & TDS 724 with option 2M:
1-channel: up to 4,000,000 samples
2-channels: up to 2,000,000 samples
TDS 540C, TDS 754C & TDS 784C with option 1M:
1-channel: up to 500,000 samples
2-channels: up to 250,000 samples
3 or 4-channels up to 130,000 samples
TDS 540C, TDS 754C & TDS 784C with option 2M:
1-channel: up to 8,000,000 samples
2-channels: up to 4,000,000 samples
3 or 4-channels up to 2,000,000 samples
1The range of real-time rates, expressed in samples/second, at which a digitizer samples signals at its inputs and stores
the samples in memory to produce a record of time-sequential samples.
2The range of waveform rates for interpolated (or equivalent-time on the TDS 700C) waveform records.
3The Waveform Rate (WR) is the equivalent sample rate of a waveform record. For a waveform record acquired by
real-time sampling of a single acquisition, the waveform rate is the same as the real-time sample rate; for a waveform
created by interpolation of real-time samples from a single acquisition or, on applicable products, the equivalent-time
sampling of multiple acquisitions, the waveform rate created is faster than the real time sample rate. For all these cases,
the waveform rate is 1/(Waveform Interval) for the waveform record, where the waveform interval (WI) is the time between
the samples in the waveform record.
Table 2–5: Nominal traits — Triggering system
Name Description
Range, Delayed Trigger Time Delay 16 ns to 250 s
Range, Events Delay TDS 600B; 2 to 10,000,000
TDS 500C/700C: 1 to 10,000,000
Range (Time) for Pulse-Glitch,
Pulse-Width, Time-Qualified Runt, Timeout,
or Slew Rate Trigger, Delta Time
1 ns to 1 s
Nominal Traits
2–12 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–5: Nominal traits — Triggering system (cont.)
Name Description
Ra
n
ges
, S
et
up
a
nd
Hol
d f
o
r
ime et /Hol iolatio igge
Feature Min to max
Ra ges et a Hol o
T
ime
S
et
up
/Hol
d V
iolatio
n Tr
igge
rSetup Time
Hold Time
Setup + Hold Time
–100 ns to 100 ns
–1 ns to 100 ns
2 ns
For Setup Time, positive numbers mean a data transition before the clock edge and
negative means a transition after the clock edge.
For Hold Time, positive numbers mean a data transition after the clock edge and negative
means a transition before the clock edge.
Setup + Hold Time is the algebraic sum of the Setup Time and the Hold Time
programmed by the user.
Ra
n
ges
, Tr
igge
r
Le
v
el
o
r T
h
r
eshol
dSource Range
Any Channel
Auxiliary
Line
±12 divisions from center of screen
±8 V
±400 V
Video Trigger Modes of Operation
(Option 05 Video Trigger) Supports the following video standards:
HNTSC (525/60) – 2 field mono or 4 field
HPAL (625/50) – 2 field mono or SECAM, 8 field
HHDTV –
(787.5/60)
(1050/60)
(1125/60)
(1250/60)
HFlexFormatTM (user definable standards)
User can specify: field rate, number of lines, sync pulse width and polarity, line rate,
and vertical interval timing.
Nominal Traits
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–13
Table 2–5: Nominal traits — Triggering system (cont.)
Name Description
Communication Trigger Modes of
Operation
(Option 2C Comm Trigger)
Standard Name Code1Bit Rate
OC1/STM0 NRZ 51.84 Mb/s
OC3/STM1 NRZ 155.52 Mb/s
OC12/STM4 NRZ 622.08 Mb/s
DS0 Sgl Masks264 kb/s
DS0 Dbl Masks264 kb/s
DS0 Data Contra Masks264 kb/s
DS0 Timing Masks264 kb/s
E1 AMI 2.048 Mb/s
E2 AMI 8.44 Mb/s
E3 AMI 34.368 Mb/s
E4 CMI 139.26 Mb/s
E5 (CEPT) NRZ 565 Mb/s
STM1E CMI 155.52 Mb/s
DS1 AMI 1.544 Mb/s
DS1A AMI 2.048 Mb/s
DS1C AMI 3.152 Mb/s
DS2 AMI 6.312 Mb/s
DS3 AMI 44.736 Mb/s
DS4NA CMI 139.26 Mb/s
STS-1 AMI 51.84 Mb/s
STS-3 CMI 155.52 Mb/s
FC133 NRZ 132.8 Mb/s
FC266 NRZ 265.6 Mb/s
FC531 NRZ 531.2 Mb/s
FC1063 NRZ 1.0625 Mb/s
D2 NRZ 143.18 Mb/s
D1 NRZ 270 Mb/s
FDDI NRZ 125 Mb/s
1AMI = Alternate Mark Inversion. CMI = Code Mark Inversion. NRZ = Non-return to Zero.
2These Telecom DS0 standards are automatically selected from the Mask Menu. The trigger uses Pulse/Width trigger.
Table 2–6: Nominal traits — Display system
Name Description
Video Display 7 inch diagonal, with a display area of 5.04 inches horizontally by 3.78 inches vertically
TDS 520C, 540C, 620B, and 680B: Monochrome display
TDS 644B, 684B, 724C, 754C, and 784C: Color display
Video Display Resolution 640 pixels horizontally by 480 pixels vertically
Nominal Traits
2–14 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–6: Nominal traits — Display system (cont.)
Name Description
Waveform Display Graticule Single Graticule: 401 × 501 pixels, 8 ×10 divisions, where divisions are 1 cm by 1 cm
Waveform Display Levels/Colors TDS 520C, 540C, 620B, and 680B:
Sixteen levels in infinite-persistence or variable persistence display
TDS 644B, 684B, 724C, 754C, and 784C:
Sixteen colors in infinite-persistence or variable persistence display
Table 2–7: Nominal traits — GPIB interface, output ports, and power fuse
Name Description
Interface, GPIB GPIB interface complies with IEEE Std 488-1987
Interface, RS-232 RS-232 interface complies with EIA/TIA 574 (talk only)
Optional on the TDS 520C, 540C, 620B, and 680B
Interface, Centronics Centronics interface complies with Centronics interface standard
C332-44 Feb 1977, REV A
Optional on the TDS 520C, 540C, 620B, and 680B
Interface, Video VGA video output with levels that comply with EIA RS 343A standard. DB-15 connector
Logic Polarity for Main- and Delayed-
Trigger Outputs Negative TRUE. High to low transition indicates the trigger occurred.
Fuse Rating Either of two fuses1 may be used: a 0.25I × 1.25I (UL 198.6, 3AG): 6 A FAST, 250 V
or a 5 mm × 20 mm (IEC 127): 5 A (T), 250 V.
1Each fuse type requires its own fuse cap.
Table 2–8: Nominal traits — Data handling and reliability
Name Description
Time, Data-Retention,
Nonvolatile Memory1, 2Battery life ≥5 years
Floppy disk drive 3.5 inch, 720 K or 1.44 Mbyte, DOS 3.3-or-later compatible
Internal hard disk drive
(option HD and 2M available on the
TDS 500C and 700C)
170 MByte capacity
1The times that reference waveforms, stored setups, and calibration constants are retained.
2Data is maintained by small lithium-thionyl-chloride batteries internal to the memory ICs. At the time of manufacture, no
special disposal requirements were in effect for these batteries as the amount of hazardous material contained was below
the regulated threshold. Consult your local waste disposal agency for proper disposal.
Nominal Traits
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–15
Table 2–9: Nominal traits — Mechanical
Name Description
Cooling Method Forced-air circulation with no air filter. Clearance is required. Refer to the TDS 500C,
TDS 600B & TDS 700C User Manual for minimum clearance dimensions.
Construction Material Chassis parts constructed of aluminum alloy; front panel constructed of plastic laminate;
circuit boards constructed of glass laminate. Cabinet is aluminum and is clad in Tektronix
Blue vinyl material.
Weight Standard Digitizing Oscilloscope
14.1 kg (31 lbs), with front cover.
24.0 kg (53 lbs), when packaged for domestic shipment
Rackmount Digitizing Oscilloscopes
14.1 kg (31 lbs) plus weight of rackmount parts, for the rackmounted Digitizing
Oscilloscopes (Option 1R).
Rackmount conversion kit
2.3 kg (5 lbs), parts only; 3.6 kg (8 lbs), parts plus package for domestic shipping
Overall Dimensions Standard Digitizing Oscilloscope
Height: 193 mm (7.6 in), with the feet installed
Width: 445 mm (17.5 in), with the handle
Depth: 434 mm (17.1 in), with the front cover installed
Rackmount Digitizing Oscilloscope
Height: 178 mm (7.0 in)
Width: 483 mm (19.0 in)
Depth: 558.8 mm (22.0 in)
Nominal Traits
2–16 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–17
Warranted Characteristics
This section lists the various warranted characteristics that describe the
TDS 500C, TDS 600B and TDS 700C oscilloscopes. Electrical and environmen-
tal characteristics are included.
Warranted characteristics are described in terms of quantifiable performance
limits which are warranted.
NOTE. In these tables, those warranted characteristics that are checked in the
procedure Performance Verification appear in boldface type under the column
Name.
As stated above, this section lists only warranted characteristics. A list of typical
characteristics starts on page 2–25.
Performance Conditions
The performance limits in this specification are valid with these conditions:
HThe oscilloscope must have been calibrated/adjusted at an ambient tempera-
ture between +20_ C and +30_ C.
HThe oscilloscope must be in an environment with temperature, altitude,
humidity, and vibration within the operating limits described in these
specifications.
HThe oscilloscope must have had a warm-up period of at least 20 minutes.
HThe oscilloscope must have had its signal-path-compensation routine last
executed after at least a 20 minute warm-up period at an ambient temperature
within ±5_ C of the current ambient temperature.
Warranted Characteristics
2–18 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–10: Warranted characteristics — Signal acquisition system
Name Description
Accuracy, DC Gain TDS 600B: ±1.5% for all sensitivities from 2 mV/div to 10 V/div
± 2.0% at 1 mV/div sensitivity
TDS 500C, 700C: ±1% for all sensitivities from 1 mV/div to 10 V/div with offset from 0 V
to ±100V
Acc
u
rac
y, DC Vo
l
t
a
g
e
M
ea
su
reme
nt,
Avera e i Avera e m e)
Measurement type DC Accuracy
Avera
g
e
d (us
i
ng
Avera
g
e
m
od
e)
Average of ≥16 waveforms
Delta volts between any two averages
of ≥16 waveforms acquired under the
same setup and ambient conditions
TDS 600B: ±((1.5% ×| reading – Net Offset1 | )
+ Offset Accuracy) + (0.06 div × V/div))
TDS 500C, 700C: ±((1.0% ×| reading – Net
Offset1 | ) + Offset Accuracy + (0.06 div x V/div))
TDS 600B: ±((1.5% ×| reading | ) +
(0.1 div × V/div) + 0.3 mV)
TDS 500C, 700C: ±((1.0% ×| reading | ) +
(0.1 div x V/div) + 0.3 mV)
Acc
u
rac
y, Offs
e
tVolts/Div setting TDS 600B
Offset accuracy TDS 500C/700C
Offset accuracy
1 mV/div – 100 mV/div ±((0.2% ×| Net Off-
set1 | ) + 1.5 mV +
(0.6 div x V/div))
±((0.2% ×| Net Off-
set1 | ) + 1.5 mV +
(0.1 div x V/div))
101 mV/div – 1 V/div ±((0.25% × | Net Off-
set1 | ) + 15 mV +
(0.6 div x V/div))
±((0.25% × | Net Off-
set1 | ) + 15 mV +
(0.1 div x V/div))
1.01 V/div – 10 V/div ±((0.25% ×| Net Off-
set1 | ) + 150 mV +
( 0.6 div x V/div))
±((0.25% × | Net Off-
set1 | ) + 150 mV +
(0.1 div x V/div))
A
n
al
og
Ba
ndw
i
dth, DC-
5
0 Cou
ple
d
and Bandwidth selection is FULL,
TS6 B
Volts/Div TDS 620B & 644B
Bandwidth2TDS 680B & 684B
Bandwidth2
T
D
S
6
00
B
10 mV/div – 1 V/div DC – 500 MHz DC – 1 GHz
5 mV/div – 9.95 mV/div DC – 450 MHz DC – 750 MHz
2 mV/div – 4.98 mV/div DC – 300 MHz DC – 600 MHz
1 mV/div – 1.99 mV/div DC – 250 MHz DC – 500 MHz
A
n
al
og
Ba
ndw
i
dth, DC-
5
0 Cou
ple
d
and Bandwidth selection is FULL,
TDS 500C/700C Volts/Div
TDS 520C, 540C,
724C & 754C
Bandwidth2TDS 784C
Bandwidth2
10 mV/div – 1 V/div DC – 500 MHz DC – 1 GHz
5 mV/div – 9.95 mV/div DC – 500 MHz DC – 750 MHz
2 mV/div – 4.98 mV/div DC – 500 MHz DC – 600 MHz
1 mV/div – 1.99 mV/div DC – 450 MHz DC – 500 MHz
Crosstalk (Channel Isolation) ≥100:1 at 100 MHz and ≥30:1 at the rated bandwidth for the channel’s Volt/Div setting,
for any two channels having equal Volts/Div settings
Warranted Characteristics
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–19
Table 2–10: Warranted characteristics — Signal acquisition system (cont.)
Name Description
Delay Between Channels, Full
Bandwidth TDS 600B: ≤100 ps for any two channels with equal Volts/Div and Coupling settings and
both channels’ deskew values set to 0
TDS 500C/700C: ≤50 ps for any two channels with equal Volts/Div and Coupling settings
and both channel deskew values set to 0.0 ms.
Input Impedance, DC–1 M Coupled 1 M ±0.5% in parallel with 10 pF ±3 pF
Input Impedance, DC–50 Coupled 50 ±1% with VSWR ≤1.3:1 from DC – 500 MHz, ≤1.5:1 from 500 MHz – 1 GHz
Input Voltage, Maximum,
DC–1 M,
AC–1 M, or
GND Coupled
TDS 600B: ±300 V CAT II, 400 V peak;
derate at 20 dB/decade above 1 MHz
TDS 500C/700C: ±300 V CAT II, 400 V peak;
derate at 20 dB/decade above 1 MHz
Input Voltage, Maximum, DC-50 or
AC–50 Coupled 5 VRMS, with peaks ≤ ±30 V
Lower Frequency Limit, AC Coupled ≤10 Hz when AC–1 M Coupled; ≤200 kHz when AC–50 Coupled3
1Net Offset = Offset – (Position × Volts/Div). Net Offset is the nominal voltage level at the oscilloscope input that
corresponds to the center of the A-D converter’s dynamic range. Offset Accuracy is the accuracy of this voltage level.
2The limits given are for the ambient temperature range of 0_C to +30_C. Reduce the upper bandwidth frequencies by
5 MHz for the TDS 600B or by 2.5 MHz for the TDS 500C/700C for each _C above +30_C.
3The AC Coupled Lower Frequency Limits are reduced by a factor of 10 when 10X passive probes are used.
Table 2–11: Warranted characteristics — Time base system
Name Description
Accuracy, Long Term Sample Rate and
Delay Time TDS 600B: ±100 ppm over any ≥1 ms interval
TDS 500C/700C: ±25 ppm over any ≥1 ms interval
Warranted Characteristics
2–20 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–12: Warranted characteristics — Triggering system
Name Description
Se
ns
i
t
ivi
ty, Edg
e
-
T
y
pe
Tri
gg
er
, Cou
pli
ng
e1
Trigger source Sensitivity
s
e
t to “DC”
1
Any Channel
Auxiliary
TDS 620B & 644B: 0.35 division from DC to 50 MHz, increasing to
1 division at 500 MHz
TDS 680B & 684B: 0.35 division from DC to 50 MHz, increasing to
1 division at 1 GHz MHz
TDS 500C, 724C, & 754C: 0.35 division from DC to 50 MHz,
increasing to 1 division at 500 MHz
TDS 784C: 0.35 division from DC to 50 MHz, increasing to
1 division at 1 GHz
TDS 600B: 250 mV from DC to 50 MHz, increasing to 500 mV at
100 MHz
TDS 500C, 724C, & 754C: 400 mV from DC to 50 MHz,
increasing to 750 mV at 100 MHz
TDS 784C: 250 mV from DC to 50 MHz, increasing to
500 mV at 100 MHz
Acc
u
rac
y (
Time)
fo
r
P
u
l
s
e
-
Gli
t
c
h o
r
P l e Wi Tri eri
Time range Accuracy
P
u
l
s
e
-
Wi
dth
Tri
gg
eri
ng 1 ns to 1 ms
1.02 ms to 1 s
±(20% of setting + 0.5 ns)
±(100 ns + 0.01% of Setting)
Input Signal Sync Amplitude for Stable
Triggering, NTSC and PAL modes
(Option 05 Video Trigger)
Field selection “Odd”, “Even”, or “All”: 0.6 division to 4 divisions
Field selection “Numeric”: 1 division to 4 divisions (NTSC mode)
Jitter (Option 05 Video Trigger) 60 nsp-p on NTSC or PAL signal
1The minimum sensitivity for obtaining a stable trigger. A stable trigger results in a uniform, regular display triggered on
the selected slope. The trigger point must not switch between opposite slopes on the waveform, and the display must not
“roll” across the screen on successive acquisitions. The TRIG’D LED stays constantly lighted when the SEC/DIV setting
is 2 ms or faster but may flash when the SEC/DIV setting is 10 ms or slower.
Table 2–13: Warranted characteristics — Output ports, probe compensator, and power requirements
Name Description
L
og
ic
Level
s, M
ai
n-
a
nd D
ela
y
e
d-
Tri
gg
er
p
Characteristic Limits
Out
p
uts Vout (HI)
Vout (LO)
≥2.5 V open circuit; ≥1.0 V into a 50 W
load to ground
≤0.7 V into a load of ≤4 mA;
≤0.25 V into a 50 W load to ground
Warranted Characteristics
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–21
Table 2–13: Warranted characteristics — Output ports, probe compensator, and power requirements (cont.)
Name Description
Out
p
ut Vo
l
t
a
g
e
a
nd F
re
qu
e
n
c
y,
Pr be mpe a r
Characteristic Limits
Pr
o
be
Co
mpe
ns
a
to
r
Output Voltage
Frequency
0.5 V (base-top) ±1% into a ≥50 load
1 kHz ±5%
Output Voltage, Signal Out (CH 31)For TDS 600B: 20 mV/division ±20% into a 1 M load;
10 mV/division ±20% into a 50 load
For TDS 500C/700C:
22 mV/division ±20% into a 1 M load;
11 mV/division ±20% into a 50 load
Source Voltage 90 to 250 VACRMS, continuous range, CAT II
Source Frequency 45 Hz to 440 Hz
Power Consumption ≤300 W (450 VA)
1CH 3 signal out is present at the rear panel if CH 3 (AUX 1 on the TDS 620B or 680B) is selected as the trigger source for
the main and/or delayed trigger systems. It is not available when a channel other than CH3 (AUX 1 on the TDS 620B or
680B) is the source for the Video Trigger when Option 05 is installed.
Warranted Characteristics
2–22 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–14: Warranted characteristics — Environmental
Name Description
Atmospherics Temperature (no disk in floppy drive):
TDS 600B: Operating: +4_ C to +45_ C
Floppy disk drive: Operating: +10_ C to +45_ C
Nonoperating: –22_ C to +60_ C
TDS 500C/700C: Operating: +0_ C to +50_ C
Floppy disk drive: Operating: +10_ C to +50_ C
Nonoperating: –22_ C to +60_ C
Relative humidity (no disk in floppy drive):
Operating: 20% to 80%, at or below +32_ C,
upper limit derates to 30% relative humidity at +45_ C
Nonoperating: 5% to 90%, at or below +31_ C,
upper limit derates to 20% relative humidity at 60_ C
Altitude:
To 4570 m (15,000 ft.), operating (excluding hard disk drive)
To 3048 m (10,000 ft.), operating (including hard disk drive)
To 12190 m (40,000 ft.), nonoperating
Dynamics Random vibration (floppy disk not installed):
0.31 g rms, from 5 to 500 Hz, 10 minutes each axis, operating
3.07 g rms, from 5 to 500 Hz, 10 minutes each axis, nonoperating
Emissions (TDS 500C/700C) 1, 2Meets or exceeds the requirements of the following standards:
FCC Code of Federal Regulations, 47 CFR, Part 15, Subpart B, Class A
European Community Requirements
EN 55011 Class A Radiated Emissions
EN 55011 Class A Conducted Emissions
EN 50081–1
EN60555–2 Power Line Harmonic Emissions
Emissions (TDS 600B)1, 2Meets or exceeds the requirements of the following standards:
FCC Code of Federal Regulations, 47 CFR, Part 15, Subpart B, Class A
EN 50081–1 European Community Requirements
EN 55022 Radiated Emissions Class B
EN 55022 Class B Conducted Emissions
EN60555–2 Power Line Harmonic Emissions
Warranted Characteristics
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–23
Table 2–14: Warranted characteristics — Environmental (cont.)
Name Description
Susceptibility1, 2Meets or exceeds the EMC requirements of the following standards:
EN 50082–1 European Community Requirements
IEC 801-2 Electrostatic Discharge Performance Criteria B
IEC 801-3 Radiated Susceptibility 3 V/meter from 27 MHz to 500 MHz
unmodulated
IEC 801-4 Fast Transients Performance Criteria B
IEC 801-5 AC Surge Performance Criteria B
Approvals Conforms to and is certified where appropriate to:
UL 3111–13 – Standard for electrical measuring and test equipment
CAN/CSA C22.2 no. 1010.13 – Safety requirements for electrical equipment for
measurement, control and laboratory use
1VGA output cable needs to be terminated, if connected at all, for the Instrument to meet these standards. The test will
pass with LCOM part # CTL3VGAMM–5.
2The GPIB cable connected to the instrument for certain of the emissions tests must be “low EMI” having a high-quality
outer shield connected through a low impedance to both connector housings. Acceptable cables are Tektronix part
numbers 012-0991-00, -01, -02, and -03. In order to maintain the EMI performance conforming to the above regulations,
the following cables, or their equivalent, should be used: a shielded Centronics cable, 3 meters in length, part number
012-1214-00, and a shielded RS-232 cable, 2.7 meters in length, CA part number 0294-9.
3UL 3111, CSA 22.2 no.1010 Safety Certification Compliance:
Temperature (operating) 5 to +40 C
Altitude (maximum operating): 2000 meters
Equipment Type: Test and Measurement
Safety Class: Class I (as defined in IEC 1010–1, Annex H) – grounded product
Overvoltage Category: Overvoltage Category II (as defined in IEC 1010–1, Annex J)
Pollution Degree: Pollution Degree 2 (as defined in IEC 1010–1)
Note – Rated for indoor use only
Warranted Characteristics
2–24 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–15: Certifications and compliances
EC Declaration of Conformity
(TDS 500C and TDS 700C) Meets intent of Directive 89/336/EEC for Electromagnetic Compatibility. Compliance was
demonstrated to the following specifications as listed in the Official Journal of the European
Communities:
EMC Directive 89/336/EEC:
EN 55011 Class A Radiated and Conducted Emissions
EN 50081-1 Emissions:
EN 60555-2 AC Power Line Harmonic Emissions
EN 50082-1 Immunity:
IEC 801-2 Electrostatic Discharge Immunity
IEC 801-3 RF Electromagnetic Field Immunity
IEC 801-4 Electrical Fast Transient/Burst Immunity
IEC 801-5 Power Line Surge Immunity
Australian Declaration of
Conformity – EMC
(TDS 500C and TDS 700C)
Conforms with the following standards in accordance with the Electromagnetic Compatibility
Framework:
AS/NZS 2064.1/2 Class A radiated and Conducted Emissions
EC Declaration of Conformity
(TDS 600B) Meets intent of Directive 89/336/EEC for Electromagnetic Compatibility. Compliance was
demonstrated to the following specifications as listed in the Official Journal of the European
Communities:
EMC Directive 89/336/EEC:
EN 50081-1 Emissions:
EN 55022 Class B Radiated and Conducted Emissions
EN 60555-2 AC Power Line Harmonic Emissions
EN 50082-1 Immunity:
IEC 801-2 Electrostatic Discharge Immunity
IEC 801-3 RF Electromagnetic Field Immunity
IEC 801-4 Electrical Fast Transient/Burst Immunity
IEC 801-5 Power Line Surge Immunity
EC Declaration of Conformity –
Low Voltage Compliance was demonstrated to the following specification as listed in the Official Journal of the
European Communities:
Low Voltage Directive 73/23/EEC
EN 61010-1:1993 Safety requirements for electrical equipment for measurement,
control, and laboratory use
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–25
Typical Characteristics
This subsection contains tables that list the various typical characteristics which
describe the TDS 500C, TDS 600B and TDS 700C oscilloscopes.
Typical characteristics are described in terms of typical or average performance.
Typical characteristics are not warranted.
Table 2–16: Typical characteristics — Signal acquisition system
Name Description
A
n
al
og
Ba
ndw
i
dth, DC-
5
0 Cou
ple
d
i P6243 r P6245 Pr be a
Volts/Div as read out on screen 520C, 540C, 724C & 754C Bandwidth1
w
i
th
P6243
o
r
P6245
Pr
o
be
a
nd
Ba i elec i i ULL
10 V/div – 100 V/div Not Applicable
Ba
ndw
i
dth s
elec
t
i
on
i
s F
ULL
TDS 520C, 540C, 724C & 754C 100 mV/div – 10 V/div DC – 500 MHz
T S 52 54 724 754
50 mV/div – 99.5 mV/div DC – 500 MHz
20 mV/div – 49.8 mV/div DC – 500 MHz
10 mV/div – 19.9 mV/div DC – 450 MHz (P6243)
DC – 500 MHz (P6245)
A
n
al
og
Ba
ndw
i
dth, DC-
5
0 Cou
ple
d
i P6245 Pr be a
Volts/Div as read out on screen TDS 784C
w
i
th
P6245
Pr
o
be
a
nd
Ba i elec i i ULL T S 784
10 V/div –100 V/div (Not Applicable)
Ba
ndw
i
dth s
elec
t
i
on
i
s F
ULL
T
D
S
784
C100 mV/div – 10 V/div DC – 1 GHz
50 mV/div – 99.5 mV/div DC – 750 MHz
20 mV/div – 49.8 mV/div DC – 600 MHz
10 mV/div – 19.9 mV/div DC – 500 MHz
A
n
al
og
Ba
ndw
i
dth, DC-
1
M Cou
ple
d
with P6139A Probe and Bandwidth
elec i i ULL
Volts/Div as read out on screen 520C, 540C, 724C, 754C & 784C
Bandwidth1
s
elec
t
i
on
i
s F
ULL
T S 52 54 724 754 784
10 V/div – 100 V/div 500 MHz
T
D
S
52
0C,
54
0C,
724
C,
754
C &
784
C100 mV/div – 10 V/div 500 MHz
50 mV/div – 99.5 mV/div 500 MHz
20 mV/div – 49.8 mV/div 500 MHz
10 mV/div – 19.9 mV/div 500 MHz
A
n
al
og
Ba
ndw
i
dth, DC-
5
0 Cou
ple
d
with P6139A Probe (TDS 620B & 644B)
r P6245 Pr be T S 68 B 684B) a
Volts/Div as read out on screen 620B & 644B
Bandwidth1680B & 684B
Bandwidth1
o
r
P6245
Pr
o
be
(
T
D
S
68
0
B
&
684B)
a
nd
Ba i elec i i ULL
10 V/div – 100 V/div (Not Applicable) (Not Applicable)
Ba
ndw
i
dth s
elec
t
i
on
i
s F
ULL
TDS 600B 100 mV/div – 10 V/div DC – 500 MHz DC – 1 GHz
TS6 B
50 mV/div – 99.5 mV/div DC – 450 MHz DC – 750 MHz
20 mV/div – 49.8 mV/div DC – 300 MHz DC – 600 MHz
10 mV/div – 19.9 mV/div DC – 250 MHz DC – 500 MHz
Typical Characteristics
2–26 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–16: Typical characteristics — Signal acquisition system (cont.)
Name Description
Accuracy, Delta Time Measurement The limits are given in the following table for signals having amplitude greater than
5 divisions, reference level = 50%, filter set to (sinX/X), acquired at 5 mV/div or greater. For
the TDS 700C, pulse duration < 10 div. Channel skew not included.
For the Single Shot condition, 1.4 ≤ Tr/Si ≤ 4, where Si is the sample interval and Tr is the
displayed rise time.
TDS 600B: For the averaged condition, 1.4 ≤ Tr/Wi ≤ 40, where Wi is the Waveform
Interval, as described elsewhere in these specifications.
TDS 600B: Extra error in the measurement will occur for two-channel measurements due
to channel-to-channel skew. This is described elsewhere in these specifications.
Time measurement accuracy
Conditions for accuracy listed at right
are: Single Shot or Sample mode (or
HiRes mode on the TDS 500C/700C),
with Full Bandwidth selected.
TDS 600B:±( (0.20 ×sample interval) + (100 ppm × | Reading |) + (0.05 ×Wi ) )
TDS 600B example: at 5 GS/s, 5 ns/div, measuring a 40 ns wide pulse, accuracy = ±( 40
ps + 4 ps + 5 ps) = ±49 ps.
TDS 500C/700C: ±0.15 sample interval + (25 ppm × | Reading |) + t/div/1000
TDS 500C/700C example: at 4 Gs/s, accuracy = 37.5 ps
Conditions for accuracy listed at right
are: ≥100 Averages, will Full Band-
width selected, and for TDS
500C/700C, repetitive mode.
TDS 600B: ±( 10 ps + (100 ppm ×| Reading |) + (0.25 ×Wi ) )
TDS 500C/700C: 20 ps + (25 ppm × | Reading |) + t/div/1000
C
al
cu
late
d
Rise
T
ime
, T
D
S 600B
2
Volts/Div setting 620B & 644B
Rise time 680B & 684B
Rise time
10 mV/div – 1 V/div 900 ps 450 ps
5 mV/div – 9.95 mV/div 1 ns 600 ps
2 mV/div – 4.98 mV/div 1.5 ns 750 ps
1 mV/div – 1.99 mV/div 1.8 ns 900 ps
C
al
cu
late
d
Rise
T
ime
,
TDS 500C/700C2Volts/Div setting 520C, 540C, 724C,
& 754C Rise time 784C
Rise time
10 mV/div – 1 V/div 800 ps 400 ps
5 mV/div – 9.95 mV/div 800 ps 530 ps
2 mV/div – 4.98 mV/div 800 ps 600 ps
1 mV/div – 1.99 mV/div 890 ps 800 ps
E
ff
e
c
ti
v
e
B
its
— T
D
S 600B Input frequency Effective bits
The chart on the right gives the typical
effective bits for a 9-division p-p
sine-wave input, 50 mV/div, 10 ns/div
(5 GS/s), with a record length of 1000
points
98 MHz
245 MHz
490 MHz
990 MHz
6.3 bits
6.0 bits
5.5 bits
5.2 bits (TDS 680B & 684B only)
Typical Characteristics
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–27
Table 2–16: Typical characteristics — Signal acquisition system (cont.)
Name Description
E
ff
e
c
ti
v
e
B
its
— T
D
S 520C & 724C Sample rate
The chart on the right gives the typical
e e ti e its o a si e a e a ste
Input frequency 1 GS/s 10 MS/s & HiRes
e
ff
e
c
ti
v
e
b
its
f
o
r
a
si
n
e
w
a
v
e
a
dju
ste
d
to i isio s at MH m / i
1 MHz – 9.2 divs 6.8 bits 9.7 bits
to
9.2 d
i
v
isio
n
s
at
1
MH
z, 50
m
V
/
d
i
v @
25° C. 490 MHz – 6.5 divs 6.5 bits N/A
E
ff
e
c
ti
v
e
B
its
— T
D
S 540C & 754C
preec
Sample rate
The chart on the right gives the typical
e e ti e its o a si e a e a ste
In
p
ut f
re
qu
e
n
c
y2 GS/s 10 MS/s & HiRes
e
ff
e
c
ti
v
e
b
its
f
o
r
a
si
n
e
w
a
v
e
a
dju
ste
d
to i isio s at MH m / i
1 MHz – 9.2 divs 6.8 bits 9.7 bits
to
9.2 d
i
v
isio
n
s
at
1
MH
z, 50
m
V
/
d
i
v @
25° C. 500 MHz 6.8 bits N/A
E
ff
e
c
ti
v
e
B
its
— T
D
S 784C
preec
Sample rate
The chart on the right gives the typical
effective bits for a sine wave adjusted
to i isio s at MH m / i
In
p
ut f
re
qu
e
n
c
y4 GS/s 10 MS/s & HiRes
e e ti e its o a si e a e a ste
to 9.2 divisions at 1 MHz, 50 mV/div @
°
1 MHz – 9.2 divs 6.6 bits 9.7 bits
25
°
C. 1 GHz – 6.5 divs 5.5 bits N/A
Frequency Limit, Upper, 250 MHz
Bandwidth Limited 250 MHz
Frequency Limit, Upper, 20 MHz Bandwidth
Limited 20 MHz
S
te
p
Res
p
o
n
se
S
ettli
n
g
E
rr
o
r
s
livei
S ep ampli e
Settling error (%)3 at
Vo
l
ts/D
iv
s
e
tt
i
ng ±
S
t
ep
ampli
tud
e
20 ns 100 ns 20 ms
1 mV/div – 100 mV/div ≤2 V ≤0.5% ≤0.2% ≤0.1%
101 mV/div – 1 V/div ≤20 V ≤1.0% ≤0.5% ≤0.2%
1.01 V/div – 10 V/div ≤200 V ≤1.0% ≤0.5% ≤0.2%
1The limits given are for the ambient temperature range of 0_C to +30_C. Reduce the upper bandwidth frequencies by
5 MHz for the TDS 600B or by 2.5 MHz for the TDS 500C/700C for each _C above +30_C.
2The numbers given are valid 0_C to +30_C and will increase as the temperature increases due to the degradation in
bandwidth. Rise time is calculated from the bandwidth. It is defined by the following formula:
Note that if you measure rise time, you must take into account the rise time of the test equipment (signal source, etc.) that
you use to provide the test signal. That is, the measured rise time (RTm) is determined by the instrument rise time (RTi) and
the rise time of the test signal source (RTgen) according to the following formula:
TDS 600B Rise Time (ns)+450
BW (MHz)
RTm2+RTi2)RTgen 2
TDS 500Cń700C Rise Time (ns)+400
BW (MHz)
3The values given are the maximum absolute difference between the value at the end of a specified time interval after the
midlevel crossing of the step and the value one second after the midlevel crossing of the step, expressed as a percentage
of the step amplitude.
Typical Characteristics
2–28 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–17: Typical characteristics — Triggering system
Name Description
Acc
u
rac
y,
Tri
gg
er
Level
o
r
T
h
re
sho
l
d, DC
ple
Trigger source Accuracy
Cou
ple
d
(for signals having rise and fall times
≥ 20 ns)
Any Channel
Auxiliary
±((2% × | Setting – Net Offset |)
+ (0.3 div ×Volts/div Setting ) + Offset
Accuracy)
Not calibrated or specified
Input, Auxiliary Trigger The input resistance is ≥1.5 kW; the maximum safe input voltage is
±20 V (DC + peak AC).
Tr
igge
r P
ositio
n
E
rr
o
r,
E ge igge i g
Acquisition mode Trigger-position error1,2
E
d
ge
Tr
igge
r
i
n
g
Sample, Average
Envelope
±(1 Waveform Interval + 1 ns)
±(2 Waveform Intervals + 1 ns)
Holdoff, Variable, Main Trigger For all Time/Division ranges, the minimum holdoff is 250 ns and the maximum holdoff is 12
seconds. The minimum resolution is 8 ns for settings ≤ 1.2 ms.
Lowest Frequency for Successful Operation
of “Set Level to 50%” Function 30 Hz
S
e
n
siti
v
it
y,
E
d
ge
Tr
igge
r,
Not
D
C C
o
up
le
d
3
Trigger source Typical signal level for stable
triggering
AC
Noise Reject
High Frequency Reject
Low Frequency Reject
Same as the DC-coupled limits for frequen-
cies above 60 Hz. Attenuates signals below
60 Hz.
Three times the DC-coupled limits.
One and one-half times the DC-coupled
limits from DC to 30 kHz. Attenuates signals
above 30 kHz.
One and one-half times the DC-coupled
limits for frequencies above 80 kHz.
Attenuates signals below 80 kHz.
Sensitivities, Logic Trigger and Events
Delay, DC Coupled41.0 division, from DC to 500 MHz, at vertical settings >10 mV/div and ≤ 1 V/div at the
BNC input
Sensitivities, Pulse-Type Runt Trigger51.0 division, from DC to 500 MHz, at vertical settings >10 mV/div and ≤ 1 V/div at the
BNC input
Sensitivities, Pulse-Type Trigger Width and
Glitch61.0 division, at vertical settings >10 mV/div and ≤ 1 V/div at the BNC input
Width, Minimum Pulse and Rearm, for Logic
Triggering or Events Delay For vertical settings >10 mV/div and ≤ 1 V/div at the BNC input
Triggering type Minimum pulse
width Minimum re-arm
width Minimum time
between channels7
Logic Not Applicable 1 ns 1 ns
Events Delay 1 ns (for either + or
– pulse widths) Not Applicable 2 ns
Typical Characteristics
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications 2–29
Table 2–17: Typical characteristics — Triggering system (cont.)
Name Description
Wi
d
th
,
Mi
n
im
u
m
Pu
lse
a
nd
Rea
r
m
, f
o
r
lse igge i g
For vertical settings > 10 mV/div. and 3 1 V/div at the BNC input
Pu
lse
Tr
igge
r
i
n
g
The minimum pulse widths and rearm
i ths a t a sitio times8eieo
Pulse class Minimum pulse
width Minimum re-arm width
he mi im m lse i ths a ea m
widths and transition times
8
required for
lse et igge i g
Glitch 1 ns 2 ns + 5% of Glitch Width Setting
Pu
lse
-Typ
e
t
r
igge
r
i
n
g
.Runt 2 ns 2 ns
Time-Qualified Runt 2 ns TDS 600B: 7 ns + 5% of Width Setting
TDS 700C: 8.5 ns + 5% of Width Setting
Width 1 ns 2 ns + 5% of Width Upper Limit Setting
Timeout 1 ns 2 ns + 5% of Width Upper Limit Setting
Slew Rate 600 ps8TDS 600B: 7 ns + 5% of Delta Time Setting
TDS 700C: 8.5 ns + 5% of Delta Time
Setting
Setup/Hold Time Violation Trigger,
Minimum Clock Pulse Widths For vertical settings > 10 mV/div and ≤ 1 V/div at the BNC input,
the minimum requirements are:
Minimum Pulsewidth,
Clock High Minimum Pulsewidth,
Clock Low
Users Hold Time + 2.5 ns 92 ns
Input Signal Sync Amplitude for Stable
Triggering, HDTV and FLEXFMT modes
(Option 05 Video Trigger)
All field selections: 0.6 division to 4 divisions
Jitter for HDTV mode
(Option 05 Video Trigger) 17 nsp-p
Sync Width Flex Format and HDTV
modes (Option 05 Video Trigger) min. 400 ns
Sync Duty Cycle, Flex Format and HDTV
modes (Option 05 Video Trigger) min. 50 to 1
Hum Rejection
(Option 05 Video Trigger) NTSC and PAL: –20 dB without any trigger spec deterioration. Triggering will continue
down to 0 dB with some performance deterioration.
1The trigger position errors are typically less than the values given here. These values are for triggering signals having a
slew rate at the trigger point of ≥0.5 division/ns.
2The waveform interval (WI) is the time between the samples in the waveform record. Also, see the footnote for the
characteristics Sample Rate Range or Interpolated Waveform Rates in Table 2–4, on page 2–10.
3The minimum sensitivity for obtaining a stable trigger. A stable trigger results in a uniform, regular display triggered on the
selected slope. The trigger point must not switch between opposite slopes on the waveform, and the display must not
“roll” across the screen on successive acquisitions. The TRIG’D LED stays constantly lighted when the SEC/DIV setting is
2 ms or faster but may flash when the SEC/DIV setting is 10 ms or slower.
4The minimum signal levels required for stable logic or pulse triggering of an acquisition, or for stable counting of a
DC-coupled, events-delay signal. Also, see the footnote for Sensitivity, Edge-Type Trigger, DC Coupled in this table. (Stable
counting of events is counting that misses no events and produces no extra, phantom events).
Typical Characteristics
2–30 TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
Table 2–17: Typical characteristics — Triggering system (cont.)
Name Description
5The minimum signal levels required for stable runt pulse triggering of an acquisition. Also, see the footnote for Sensitivity,
Edge-Type Trigger, DC Coupled in this table. (Stable counting of events is counting that misses no events).
6The minimum signal levels required for stable pulse width or glitch triggering of an acquisition. Also, see the footnote for
Sensitivity, Edge-Type Trigger, DC Coupled in this table. (Stable counting of events is counting that misses no events).
7For Logic, time between channels refers to the length of time a logic state derived from more than one channel must exist
to be recognized. For Events, the time is the minimum time between a main and delayed event that will be recognized if
more than one channel is used.
8For Slew Rate Triggering, this is the minimum transition time, defined to be the time the user’s signal spends between the
two trigger threshold settings.
9User Hold Time is the number selected by the user in the Hold Time Menu.
