TeleEpoch M570A CDMA Mobile Phone User Manual M570 UserManx

TeleEpoch Limited CDMA Mobile Phone M570 UserManx

UserManual.wiki >

TeleEpoch >

M570A User Manual HTML Version

User Manual

1

MobilePhone

UserGuide



2

Contents

1.SafetyandCautions.......................................................................................................................................5

2.LookandFeel.................................................................................................................................................6

3.GettingStarted...............................................................................................................................................8

Boxcontents...................................................................................................................................................................8

Installingthebattery...................................................................................................................................................8

Chargingyourbattery.................................................................................................................................................8

MicroSDCardLoading.................................................................................................................................................9

4.EssentialTopics..........................................................................................................................................10

CommunicationControlkeys.................................................................................................................................10

NavigationkeysandSoftkeys................................................................................................................................10

Standbyscreen.............................................................................................................................................................10

TheKeypad...................................................................................................................................................................10

Backlight........................................................................................................................................................................10

Alertmodes...................................................................................................................................................................10

5.DisplayIcons................................................................................................................................................11

6.BasicOperations.........................................................................................................................................12

Turningonthephone................................................................................................................................................12

Turningoffthephone................................................................................................................................................12

Answeringacall..........................................................................................................................................................12

Dialingaphonenumber...........................................................................................................................................12

Rejectinganincomingcall.......................................................................................................................................12

Dialinganumberfromcallhistory.......................................................................................................................12

Endingacall..................................................................................................................................................................12

DialinganumberfromContacts............................................................................................................................12

AddingaContact.........................................................................................................................................................13

Silencingaring............................................................................................................................................................13

Adjustingthevolumeduringacall.......................................................................................................................13

Missedcall.....................................................................................................................................................................13

7.UsingtheMenu............................................................................................................................................13

Accessingthemainmenu.........................................................................................................................................13

Returningtothepreviousmenu............................................................................................................................13

Returningtothestandbyscreenfromanywhereinthemenu....................................................................13

8.Messages........................................................................................................................................................14

NewtextMessage(SMS)...........................................................................................................................................15

Inbox...............................................................................................................................................................................15

Outbox............................................................................................................................................................................16

Sentbox...........................................................................................................................................................................16

Draftbox.........................................................................................................................................................................16

Template........................................................................................................................................................................16

Deferred.........................................................................................................................................................................16

HotMessages................................................................................................................................................................16

Settings...........................................................................................................................................................................16

Delete..............................................................................................................................................................................17

VoiceMail......................................................................................................................................................................17

PictureMessaging(MMS).........................................................................................................................................17

3

CreateaPictureMessage(MMS)............................................................................................................................17

Inbox...............................................................................................................................................................................18

Outbox............................................................................................................................................................................18

Drafts..............................................................................................................................................................................18

Sent..................................................................................................................................................................................18

Templates......................................................................................................................................................................19

Settings...........................................................................................................................................................................19

9.Contacts.........................................................................................................................................................19

Toenteracontact.......................................................................................................................................................19

Todialfromyourcontactslist...............................................................................................................................19

Contactlist.....................................................................................................................................................................20

CreateNewContacts..................................................................................................................................................20

Group..............................................................................................................................................................................20

SetSpeedDial...............................................................................................................................................................20

Memoryinfo.................................................................................................................................................................20

10.Downloads..................................................................................................................................................20

11.Tools&Games...........................................................................................................................................20

Alarm..............................................................................................................................................................................20

Notes...............................................................................................................................................................................21

Calculator......................................................................................................................................................................21

Stopwatch......................................................................................................................................................................21

WorldTime...................................................................................................................................................................21

Calendar.........................................................................................................................................................................21

Downloads.....................................................................................................................................................................22

Games..............................................................................................................................................................................22

12.CallHistory.................................................................................................................................................22

Missedcalls...................................................................................................................................................................22

Receivedcalls...............................................................................................................................................................23

Dialedcalls....................................................................................................................................................................23

Deletelog.......................................................................................................................................................................23

Calltime.........................................................................................................................................................................23

13.Profiles........................................................................................................................................................23

14.Settings........................................................................................................................................................24

PhoneSetup..................................................................................................................................................................24

DisplaySetup................................................................................................................................................................24

CallSetup.......................................................................................................................................................................25

SecuritySetup..............................................................................................................................................................25

PhoneInfo.....................................................................................................................................................................25

15.Internet.......................................................................................................................................................26

16.CameraOperation...................................................................................................................................26

17.Multimedia.................................................................................................................................................27

AudioPlayer.................................................................................................................................................................27

Camera............................................................................................................................................................................27

Recorder........................................................................................................................................................................27

Gallery............................................................................................................................................................................28

18.Bluetooth....................................................................................................................................................28

4

19.TextInputMethod...................................................................................................................................29

AppendixICommonFaultDiagnoses....................................................................................................30

AppendixIIAbbreviationsandexplanations......................................................................................31



5

1.SafetyandCautions

• Switchoffthemobilephoneinthevicinityofchemicalplants,gasstationsandother

locationscontainingexplosiveobjects.

• Keepthemobilephoneawayfromsmallchildren.

• Switchoffthemobilephoneasinstructedwheresignsarepresent.

• Switchoffthemobilephonebeforeboardingplanesandduringflight.

• Obeythelocallawswhiledriving.Whenhandsfreefunctionisavailable,usethehandsfree

callingdevicetoensuresafety.

• Takespecialcarewhenusingthemobilephoneinthevicinityofsuchdevicesaspacemakers,

hearingaidsandelectro‐medicalequipment,whichmaybeaffectedbythemobilephone.

Whenusingothermedicalequipment,verifywithsuppliersandmedicalstaffthatthe

equipmentwillnotbeaffected.

• Thereisnowarrantyorguaranteeforaccessoriesnotproducedbytheoriginalmobile

phonemanufacturer.

• Neverattempttodisassemblethemobilephone.Openingtheunitmayvoidanywarranty.

• Attemptingtochargethemobilephonewithoutthebatteryinstalledcandamagethe

phoneandcreateafirehazard.

• Chargethemobilephoneinawell‐ventilatedenvironment,andkeepitawayfrom

flammableorexplosiveobjects.

• Toavoiddemagnetization,keepthehandsetawayfrommagneticsubstancessuchas

magneticdiscsorcreditcards.

• Keepthehandsetawayfromliquids.Removethebatteryifthehandsetgetswet.Donot

attempttousethemobilephoneunderthesecircumstances.

• Avoidusingthemobilephoneinextremetemperatureenvironments.Neverleavethe

mobilephoneexposeddirectlytosunlightorinanextremelyhumidordust‐filled

environment.

• Donotcleanthehandsetwithliquidsordetergents.

• Donotdropthehandsetorsubjectittostrongpressureoranyotherformofabuse.

• Theoriginalmobilephonemanufacturerwillnothonoranywarrantiesorguaranteesifthe

aboveinstructionsarenotfollowedbythemobilephoneuser.

• PleaserecycletheLithium‐ionbatteriesordisposeofthemproperly.Donotdisposeofthe

batteriesbythrowingthemintothehouseholdwaste.

6

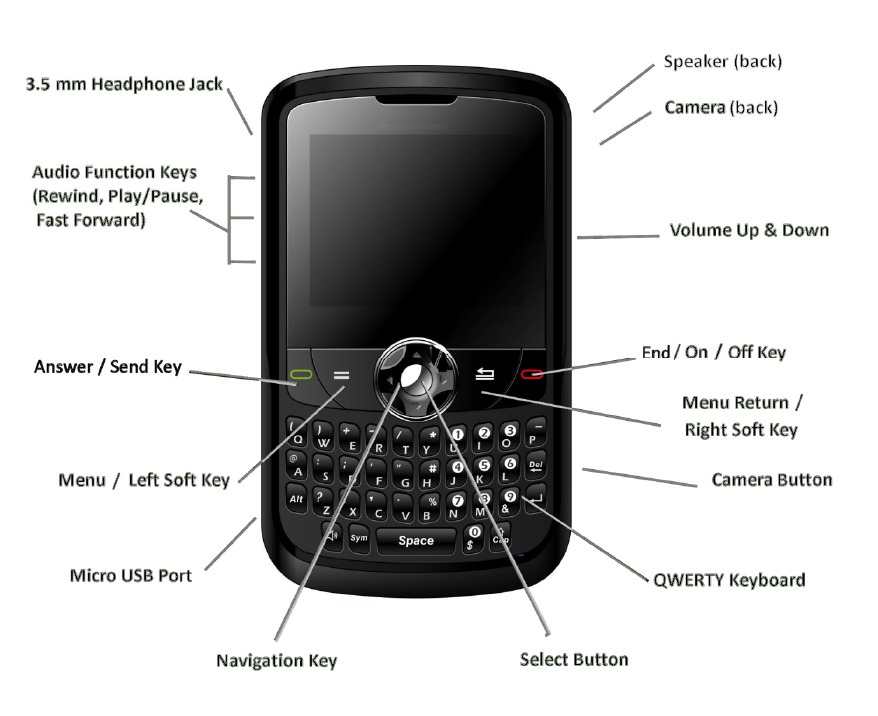

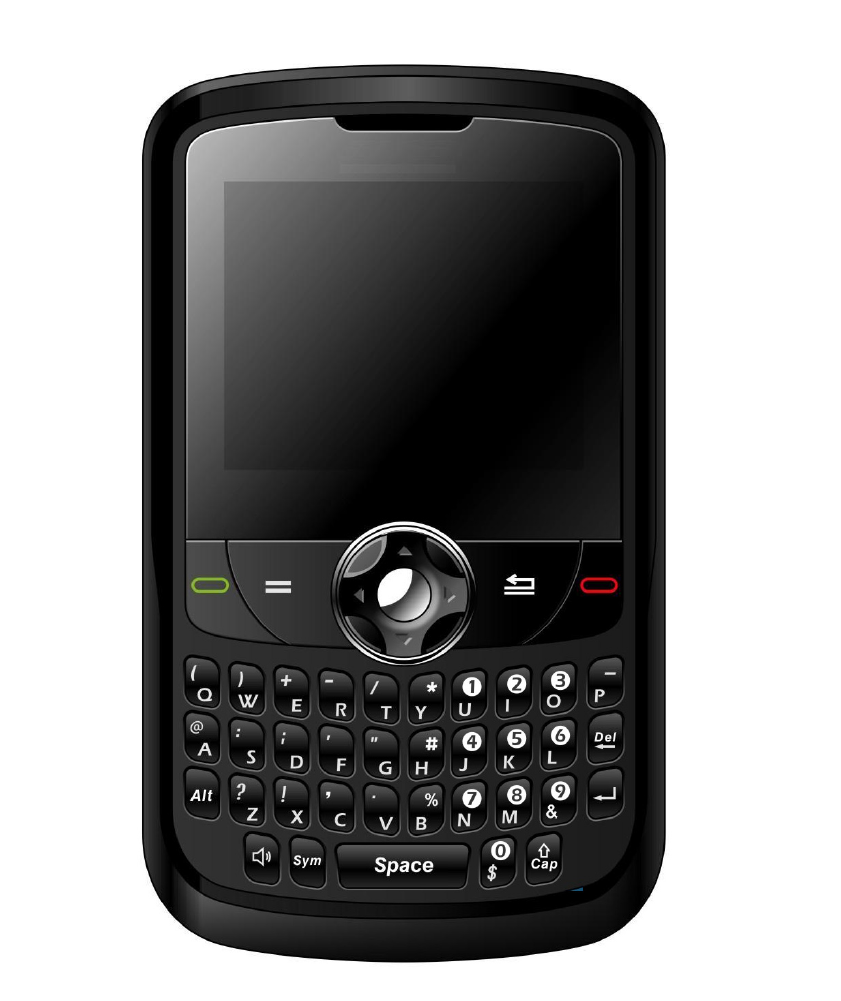

2.LookandFeel



7

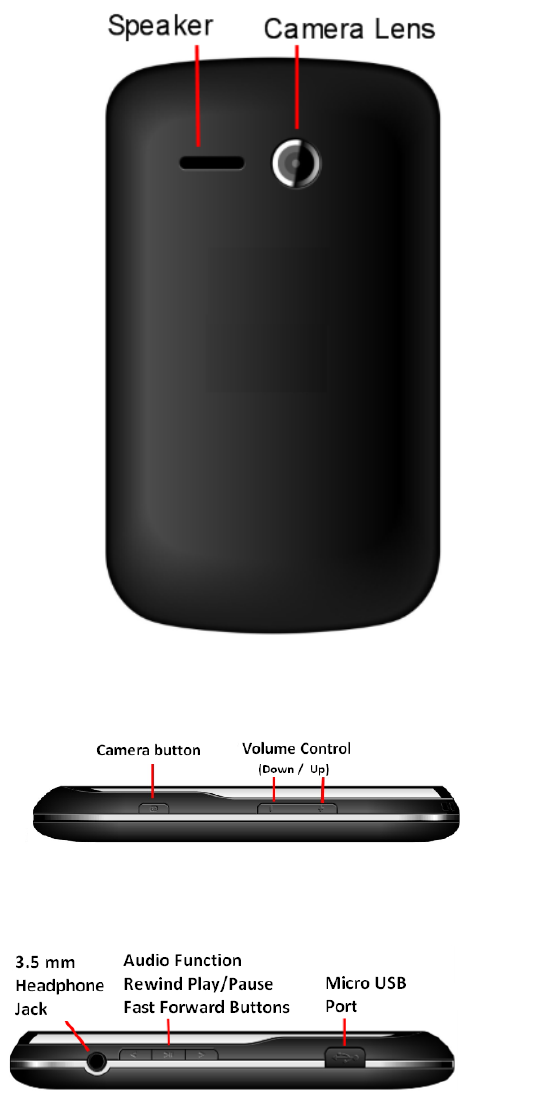

Backcover



Rightside



Leftside



8

3.GettingStarted

Boxcontents

• 1phone

• 1battery

• 1microUSBwallcharger

• 1usermanual

• 1userquickstartguide

Installingthebattery

1. Removetherearcoverofthephone.Thereisaslotatthebottomrearofthephonefora

coinorfingernail.

2. Placethebatteryintheopening.Besurethatthecontactsalignbetweenthephoneand

battery.

3. Replacetherearcover.

 

Warning:Ifthephoneisonwhenremovingthebattery,youmaylosestoredinformation.

Chargingyourbattery

Thephonecomeswitha2piececharger(USBcableandACadapter)

Tochargethephone:

1. ConnecttheUSBcabletotheACadapter.

2. ConnecttheACadaptertothewallpowersocket.

3. RemovetheUSBcoveronthelowerleftsideofthephone.

4. ConnectmicroUSBconnectorontheUSBcabletothephone.

ThephonecanalsobechargedfromaUSBportonacomputer.

• Whilethebatteryischarging,thebatterysymbolwillgraduallyscanfromrighttoleft.

• Anewbatterymustbefullychargedbeforeitisusedforthefirsttime.

9

• Tokeepthebatteryfunctioningoptimally,itisrecommendedthatyouoccasionally

dischargethebatteryfullybyconsumingthepoweruntilthephoneisswitchedoff

automatically.

• Duringthecourseofcharging,itisnormalforthephoneandthebatterytoheatupslightly.

Thephonewillautomaticallyprotectitselfwhenbatterytemperaturerisestocontrol

temperaturevariationbyextendingthechargingtime.

• Thehandsetwillgiveanalertasthebatteryisrunningout.Whenthepowerhasrunout,

thehandsetwillbeswitchedoffautomatically.

• Actualtimeofusageofthebatteryvariesaccordingtodifferentoperationmodesand

settingsofnetworkbasestation.Ifyouusethephonewhenbatteryisratherlow,the

phonemayswitchoffautomatically.

• Youmaychoosetochargethebatteryunderpower‐offorstandbystate.Ifthephoneis

chargedunderpower‐offstate,itwillstartanddisplaythegraphicdenotingthattheunitis

charging.

• Whenthebatteryisfullycharged,chargingoperationstopsautomatically.Thebattery

symbolonthescreenwillmaintainagraphicshowingthatthebatteryisfull.Atthistime,

pleaseunplugthechargingcable.

• Callscanbemadewhilecharging.

MicroSDCardLoading

TheMicroSDcardslotislocatedunderneaththebattery.Pleasefollowthebatteryinstallation

instructionsabovetoaccesstheMicroSDcardslot.TheMicroSDcardslotislocatedintheupper

rightcornerofthebatterywell.

1. ToinserttheMicroSDcard,unlockandopenthecoverbygentlyslidingthemicroSDcard

slotcoverintheupwarddirectionuntilitclicks.

2. Liftthecover,placetheMicroSDcardintheslotsothatthecontactsofthemicroSDcard

andthephonemate.Thereisanoutlineofthecardtoensurethecardseatsproperlyinthe

slot.

3. Closethecover,andlocktheMicroSDcardslotbygentlyslidingthecoverinthedownward

directionuntilitclicks.

4. Reinsertthebatteryandbackcover,followingthebatteryinstructionsabove.



10

4.EssentialTopics

CommunicationControlkeys

TheAnswer/Sendkeyisusedforansweringacall,makingacall(afteranumberhasbeenentered),or

fordialingfromthecallhistory.

TheEnd/On/Offkeyisusedforendingacall(duringdialingandcommunicationstate),orforexitinga

menutoreturntostandbymenu.Pressingandholdingthiskeywillswitchthephoneonoroff.

NavigationkeysandSoftkeys

TheNavigationkeyisusedtoscrollacrossthescreen.ThebuttonatthecenteroftheNavigationkey

isusedtoSelectanitem.

TheLeftSoftkeyisusedtoenterthemenu.

TheMenuReturn/RightSoftkeyisusedtoreturntothepreviousmenu.Thefunctionsofthetwosoft

keysdependontheapplicationandthefunctionsthatarebeingaccessed.

TheEnd/On/Offkeyisusedtoreturntothestandbyscreenfromanywhereinthemenu.

Standbyscreen

TheStandbyscreenprovidesusertheabilitytoaccess5commonandfrequentlyusedicons:Contacts,

Messages,Multimedia,CalendarandInfoPortal.TheNavigationkeyisusedtoscrollacrosstheicons

andtheSelectbuttonisusedtomaketheselection.

TheKeypad

Keysfrom0to9,*and#areusedfordialing.Inputtingpassword,letters,symbolsetc.,is

accomplishedbytheQWERTYkeyboard.Seethesectiononinputmethodforfurtherdetails.

Backlight

Afterthemobilephoneisinstandbyforaperiodoftime(lengthoftimeissetbytheuser),thephone

willturnoffthescreenbacklighttosavepower.Ifthescreenbacklightgoesout,youcanpressanykey

onthephone’skeypadtoturnonthebacklightagain.Backlightoffdelaytimecanbechangedbythe

followingsteps:

1. FromtheStandbyscreen,presstheLeftSoftkey

2. SelectSettings

3. SelectDisplaySetup

4. SelectLCDBackLight

5. Selecteither10s,20s,30sorAlwayson

Alertmodes

Therearemultipleuser‐selectabletonesavailablefortextmessageandcallnotifications.Pleasefollow

thepathsbelowforselectingthemodesandthespecifictonesforeachtype.

11

ForTextmessagealerts:

1. SelectProfilesfromthemainmenu

2. SelectoneoftheProfileSettings(Normal,Loud,Vibrate,orSilent)

3. SelectPersonalize

4. SelectIncomingcallalert/Ringtone/Messagealerttone/RoamingRingtone

5. Selectthetone

5.DisplayIcons



Signalstrengthreceivedbythe

antennaBatterylevelindicator

Alarmclock

Vibrateicon

Unreadmessages



Ringicon

Silent

Vibratefirstthenring

Missedcall

Keypadlocked

Roaming



Bluetooth

Createnewtextmessage



Inbox



Audioplayer



Outbox



Camera



Sentbox



Recorder



Draftbox



Search



Delete

12

6.BasicOperations

Turningonthephone

PresstheEnd/On/Offkeyandholdfor5‐6seconds.Thephonewillautomaticallysearchthenetwork

aslongasthephonehasnopasswordprotection.Afterthephonehasregisteredonthenetwork,the

signalstrengthwillbedisplayedatthetoprightcornerofthescreen.Thephoneisnowinthestandby

stateandyoucanmakeoransweracall.

Yourphoneremainsinasearchingstateifitfailstofindtheavailablenetworksystem.

Ifapasswordforthephoneisrequiredafteritisswitchedon,pleaseinputthepassword,andthen

presstherightsoftkeyforconfirmation.Afterunlocking,thephonewilldisplaythesignalstrength.

Turningoffthephone

PresstheEnd/On/Offkeyandholdfor5‐6seconds.

Warning:Ifyouswitchoffthephonebyremovingthebattery,youmaylosestoredinformation.

Answeringacall

PresstheAnswer/Sendkey.

Dialingaphonenumber

Inthestandbystate,enterthetelephonenumber(includecountryandareacodesifnecessary)and

presstheAnswer/Sendkey.

Rejectinganincomingcall

PresstheEnd/On/Offkey.

• Thecallwillgodirectlytovoicemail,ifthatserviceisactive.

• IfyouhavesubscribedtocallerIDservice,thenduringanincomingcallthecallerIDwill

bedisplayedonthescreen.Ifthisnumberisalreadysavedinthecontactslistthen

caller’snamewillalsobedisplayedonthescreen.

Note:Ifyouhavesubscribedtothecallforwardingservices,incomingcallsmaybeforwardedtothe

specifiednumberautomatically.

Dialinganumberfromcallhistory

PresstheAnswer/Sendkey,selectnumberfromthelistandpresstheAnswer/Sendkeyagain.

Endingacall

PresstheEnd/On/OffKey.

Whenacallisended,thecalltimerstopsandthetext‘CallEnded’isdisplayedonthescreen.

DialinganumberfromContacts

1. SelectContactsfromthemainmenu

13

2. SelectContactList

3. Scrollthroughthelistandselectthecontacttodial

4. PresstheAnswer/Sendkeytodialthenumber

AddingaContact

Toaddanewcontact

1. SelectContacticonfromstandbymenu

2. PressLeftSoftkeytoselectOptions

3. SelectCreateNewContact

4. SelectNametoenternameusingkeypad

5. PressLeftSoftkeytoselectOK

6. Selectcontactnumber

7. PressLeftSoftkeytoselectEdit

8. Entercontactnumbers

9. PressLeftSoftkeytoselectOK

10. PressSavethenLeftSoftkeytoselectYestosavecontact

Silencingaring

Pressthe#keyandholdfor3seconds.

Tochangefromringtonetovibrate,Pressthe#keyandholdfor3seconds.Pressthe#keyagainto

revertbacktoringtone.

Adjustingthevolumeduringacall

Duringaconversation,youmaypressthevolumeupanddownkey(ontherightsideofthephone)to

adjustthevolumeofearpiece.

Missedcall

Iftherearemissedcalls,themissedcallsymbolwillbedisplayedonthemainscreen.Missedcallscan

beviewedbyselectingtheCallHistoryicononthemainmenu.

7.UsingtheMenu

Accessingthemainmenu

PresstheMenu/LeftSoftkey.

Returningtothepreviousmenu

PresstheMenuReturn/RightSoftkey.

Returningtothestandbyscreenfromanywhereinthemenu

PresstheEnd/On/Offkey.

14

Navigatingthemenus

UsetheNavigationkey,thenpressSelectkey(inthecenteroftheNavigationkey).

Thestandbyscreenmenuhasfiveoptions,Contacts,Messages,Multimedia,CalendarandInfoPortal.



StandbyScreenMenuSelection



ContactsMessagesMultimediaCalendarInfoPortal



BypressingtheMenu/Leftsoftkey,thefollowing12mainmenuiconscanbeviewed.



Messages



CallHistory



Contacts



Multimedia



Camera



InfoPortal



Internet



Tools&Games



Profiles



Settings



Bluetooth



Downloads



Eachsetofmenusisfurtherdividedintomulti‐itemsub‐menus.Menufunctionsmayletyouset,check

orchangethephone’svariousfunctionalsettingstomeetyourpersonalrequirements.Pleasereferto

thefollowing‘Menuoptionlist’forselectionofthefunctionsyourequire.

8.Messages

Messagingisanetworkservice.Youmayberequiredtosubscribetotheservicefromyournetwork

operatorpriortosendingandreceivingtextmessages.

15

Amessageissenttothemessagescenterofthenetwork,thentothetargeteduserbythenetwork.If

thetargeteduser’sphoneisofforoutofnetworkarea,thenetworkwillstorethemessagetemporarily.

Whenthephonereceivesanewtextmessage,youwillbepromptedaccordingtosettingandthe

UnreadMessagesiconwillappearatthetopofthemainscreentoindicateunreadtextmessage.

ToopenandreadanincomingTextmessage

1. SelecttheMessagesIcon,then

2. SelectthetypeofMessage

a. SelectTextMessaging(forsimpletextmessages,upto140characters),thenselect

Inbox

b. SelectPictureMessaging(forattached,multimediafiles(photos,video,audio,etc),then

selectInbox

NewtextMessage(SMS)

Youcancreateatextmessageinthismenu.Everytextmessagehasacapacityof140characters.To

createanewtextmessage

1. SelectMessagesicon

2. SelectTextMessaging

3. SelectNewTextMessage

4. Usethekeypadandtypeyourmessage

Oncethetexthasbeenentered,thefollowingoptionsareavailable,bypressingtheleftsoftkey.

• Sendto:sendtextmessage

• Insert:

1. InsertContactinfo:Insertcontactnumber.

2. Inserttexttemplate:Insertcommonphraseinthetextmessage.Itprovidesyouwith12

commonphrases.

• SendingOptions:Setdeliverypriority,deliveryreport,immediate/scheduledelivery

• TextEntry:Selectinputmethod(seeTextInputMethodsection)

• SavetoDrafts:Savetooutbox.

• CancelMessage:Returntoinformationlistinterface

Inbox

TheInboxisusedforreadingtextmessagesreceived.Intheinbox,thephonecanstoreupto50text

messages.Youmaypressupanddown‐navigationkeytobrowsethemessagelist.InthemessageRead

mode,thefollowingoptionsareavailable.

• Reply:Replytothetextmessageyouarecurrentlyreading.

• Forward:Forwardthetextmessageyouarecurrentlyreadingtoothers.

16

• MovetoHotMessages.

• Delete:Deletethetextmessageyouarecurrentlyreading.

Outbox

Thisfeatureisusedtostoresentandfailedmessages.InthemessageReadmode,thefollowing

optionsareavailable.

• Send:Sendthemessagecurrentlybeingread.

• Forward:Forwardthemessagecurrentlybeingread(itcanbeedited).

• Delete:Deletethemessagecurrentlybeingread.

• DeleteMultiple:Deletemultipleitems.

• CleanupMessage:DeleteallOutboxmessages.

• NewTextMessage:Createanewtextmessage.

Sentbox

TheSentboxisusedforstoringthetextmessagesyouhavesentandselectedtheSaveandSendoption

intheSendtomenu.

• Delete:Deletethemessagecurrentlybeingread.

• DeleteMultiple:Deletemultipleitems.

• CleanupMessage:DeleteallOutboxmessages.

• NewTextMessage:Createanewtextmessage.

Draftbox

Aftereditinganewtextmessage,choose“Save”.Themessagewillbesavedintothedraftbox.

• Delete:Deletethemessagecurrentlybeingread.

• DeleteMultiple:Deletemultipleitems.

• CleanupMessage:DeleteallOutboxmessages.

• NewTextMessage:Createanewtextmessage.

Template

Thereare12commonshortphrasesstoredinthephone.Youcanadd,theneditordeleteyourown

commonphrases.

Deferred

Listsmessagesthathavebeendeferredsending.

HotMessages

Storesmessagesthattheuserdeemsareimportantor‘hot’.

Settings

• AutoDelete:On/Off

17

• MemoryStatus:DisplaystheamountofmemorybeingusedforContactsandtext

messages.

• Signature:Setsignatureinformation.

Delete

• ALL:Deletealltextmessagesstoredintheoutbox,inbox,sentbox,outbox.

• Inbox:Deletealltextmessagesintheinboxinthephone.

• Outbox:Deletealltextmessagesstoredintheoutbox.

• Sentbox:Deletealltextmessagesinthesentboxinthephone.

• Draftbox:Deletealltextmessagesinthedraftboxinthephone.

• VoiceMail:Deleteallmessagesinvoicemail.

VoiceMail

ByselectingtheVoiceMailmenu,thephonewillautomaticallyaccesstheVoiceMailservice.The

VoiceMailservicecanalsobeaccessedbyholdingthe“1”keyinstandbymode.

PictureMessaging(MMS)

YourcellphonecanalsosendandreceiveMMS.Thismeansyoucansendmessagesthatcontain

photos,sounds,andtextthroughaMMSservice.

WhensendingaMMSmessage,thereceivermustbeusingaMMScompatiblecellphoneinorderfor

themtoviewyourmessage.

Note:ThisfeaturecanonlybeusedwithanetworkproviderorservicethatsupportsMMS.MMS

messagescanonlybereceivedandviewedbydeviceswithMMScompatibilityore‐mailfeatures.

PleasecontactyourlocalnetworkoperatorforsettingupMMSmessaging.

CreateaPictureMessage(MMS)

TocreateaPictureMessage

1. SelectMessagesicon

2. SelectPictureMessaging

3. SelectCreatePictureMessaging

WithinCreatePictureMessaging,youcanenterthefollowingfields:

i. Receiver:Setthenumberore‐mailaddressofthereceiver.

ii. EditContent:EditthecontentoftheMMS.Press“Edit”toenterthefollowing

options.

• E‐mailaddress.

• Insert:Youcaninsertimages,soundsorotherelementsusingthecell

phoneorT‐FLASH.

• Preview:Previewtheinsertedmultimediaelements.

18

• Add:Youcanaddanewpage,theme,numbertoCC,numbertoBCC,or

SlideshowTime:Setthetimewhentheimageschangeinthepreviewed

multimediamessage.

4. PresstheLeftSoftkeyfortheoptionstoSend,Add,Saveasdraft,SaveasTemplate.

Inbox

ThismenuallowsyoutoreviewyourreceivedMMSmessages.

• Open:ViewthecontentofaMMSmessage.

• Reply:ReplytothesenderwithaMMS,text,ore‐mailmessage.

• Forward:ForwardtheselectedMMSmessagetoanotherperson.

• Delete:DeletethecurrentMMSmessage.

• DeleteAll:DeletealltheMMSmessagesintheInbox.

• Lock/Unlock:Wheninlockedmode,messagecannotbedeleted.

Outbox

MMSmessagesthatfailedtosendorarebeingsentarestoredintheOutbox.Thefollowingoperations

canbeperformedonthemessagesintheOutbox:

• Resend:ResendtheselectedMMSmessage.

• Delete:DeletethecurrentMMSmessage.

• DeleteAll:DeletealltheMMSmessagesintheInbox.

• Lock/Unlock:Wheninlockedmode,messagecannotbedeleted.

Drafts

MMSmessagescanbeoptionallystoredinDraftsafterbeingedited.Thefollowingoperationscanbe

performedonmessagesinDrafts:

• Forward:Forwardtheselectedmessage.

• Delete:DeletethecurrentMMSmessage.

• DeleteAll:DeletealltheMMSmessagesintheInbox.

• Lock/Unlock:Wheninlockedmode,messagecannotbedeleted.

Sent

MMSmessagesthereweresuccessfullysentarestoredinSent.Thefollowingoperationscanbe

performedonmessagesinSent

• SendAgain:ResendtheselectedMMSmessage.

• Forward:Forwardtheselectedmessage.

• Delete:DeletethecurrentMMSmessage.

• DeleteAll:DeletealltheMMSmessagesintheInbox.

• Lock/Unlock:Wheninlockedmode,messagecannotbedeleted.

19

Templates

EditedMMSmessagescanbestoredinTemplates.

Settings

Thismenuallowsyoutomakethefollowingsettingstotheconfigurationforsendingandreceiving

messages.

• Profile:SelectaPublicmobileorUser‐definedNetwork.

• Send:

 Savesentitems:Settoenableordisablethesavesentitems.

 Deliverytime:SetthedeliverytimeasImmediate,1hour,3hours,6hours,or12

hours.

• Receive:

 RetrievalMode:Settheretrievalmodeasautomaticormanual.

• EditSettings:

 Signature:Settoenableordisablethesignature.

 SlideTime:SettheswitchtimewhenpreviewingMMSmessageslideshowsto2

seconds,5seconds,8seconds,or10seconds.

• ViewMode:Setthepreviewtimetomanualorautomatic.

• MemoryStatus:DisplaytheuserateandstoragespaceofreceivedandsentMMSmessages.

• Restoredefault:Restoresettingstotheirdefaults.

• SavePictureMessages:Selectthestoragelocationasinternalmemorycardorcellphone.

9.Contacts

Toenteracontact

1. FromtheMainMenuselecttheContactsIcon

2. SelectCreateNewContact

3. Enterthecontactinformationinthevariousfields

4. SelectSavetostorethecontactinformation

Todialfromyourcontactslist

1. FromtheMainMenuorStandbyscreenselecttheContactsIcon

2. SelectContactList

3. Selectthecontact

4. Highlightthecontact’sphonenumberyouwouldliketodial

5. PressAnswer/Sendkeytodialthephonenumber

IntheContactsmenufromtheMenuscreenthefollowingoptionsareavailable:

20

Contactlist

Displayallcontacts.

CreateNewContacts

Allowstheusertocreatenewcontactsinthecontractbook

Group

Youcanset10differentgroups.

SetSpeedDial

Enablestheusertoassignspeeddialkeystoaphonenumberinthecontactlist.Speeddialnumber1is

reservedforvoicemail;2through9canbesetbytheuser.

Memoryinfo

Displaythememorystatusofthephonebookinthephone.

10.Downloads

ThisphoneprovidesaccesstotheBREW™(binaryruntimeenvironmentforwireless)catalogue

downloadingfeature.TheBREWShopletsusersbrowsethecarrier'sApplicationDownloadServerto

seewhatapplicationsareavailableforpurchaseortrial.

Fromthemainmenuscreen,selecttheDownloadIcon.

WithintheDownloadmenu,therearetwooptions:DownloadsandSettings,plusaHelpfeature.

WithintheDownloads,youcanselectCatalogueorAbout.

WithintheSettingsmenu,youcanselectOrderApps,MoveApps,ManageApps,MainMenuView,

ScreenSaversorViewLog.

11.Tools&Games

SelecttheTools&GamesIconfromthemainmenu,andthenselectToolsorGames.UndertheTools

section,thefollowingItemsapply.

Alarm

Youmaysetupto6alarms.

1. Presstheupanddown‐navigationkeyinthetoolsmainmenuandselectAlarm.

2. Presstheupanddown‐navigationkeytoselectoneofthealarmsandpresstheleftsoftkey

toaccessthealarmsetting.

3. Presstheleftandright‐navigationkeyinthealarmclocksettinginterfacetoselectalarm

clocksettingcontent.YoumaysetthealarmclockusingState(On/Off),Time,Modeand

Prompt.

21

4. TheAM/PMissetbypressingthecenterofthenavigationkeys.

5. Whenyouhaveselectedandseteachitem,presstheupanddown‐navigationkeytoselect

thenextline;whenyouhaveselectedtime,youcaninputthetimedirectly.

Notes

Thisfunctionisaplacetowritenotestoyourself,assignatypeofnoteandstorethem.

1. SelectNotes

2. SelectCreateNote

3. Save

Calculator

TheCalculatorcanperformfourstandardoperations(add,subtract,multiply,divide).Use0‐9keysto

inputavalue.

Thelayoutofthecalculatormatchesthekeypad,sothatmultiplicationisshownwiththe“*”key,the

enterkeyistheLeftSoftKeysign,additioniswiththe“+”keyandsoon.Youcanalsopressthe

navigationkeystoselectoneofthefouroperations:add,subtract,multiplyanddivide.

1. Pressthenumberkeystoenteravalue

2. Selectanoperation

3. Pressnumerickeystoinputthesecondoperationvalue

4. Selectthe=key.Theresultwillbedisplayedonthescreen.

Toperformmultiplemathematicaloperations,youmustpressequal(=)aftereachoperation.

Stopwatch

Thisunitprovidestwostopwatchfunctions:commonmodeandloopmode.

TheCommonModeisasimplestopwatch,on/offandreset.

1. Press“Select”tostarttiming.

2. PressSelectorleftsoftkeytostop.

3. Pressagaintocontinuetiming.Ifthereisatimenoted,presstherightsoftkeytoclear.

TheLoopModeissothatadditionaltimesegmentscanbeadded,startedandstoppedtorecord

variousactivitieswithintheevent.The“add”buttonaddsanotherloopwhilerecordingtheprevious

loop’stime.

WorldTime

Toviewthetimeindifferentlocationsoftheworld,scrollright/leftacrossthemap.

Calendar

Youcanviewthecurrentdateorscrollthecalendartoviewothermonths.

Youcanalsoviewweeklyordailycalendarentries,bygoingto:

22

1. Select“Option”

2. SelectWeekVieworDayView

Schedule:Youmayscheduleaneventintothecalendar,withdate,timeandanalarmtonotifyyouof

thatevent,bygoingto:

1. Scrollingtoadate,

2. Select“Option”

3. Select“Makeanote”

a. Typeofevent:Meeting,Birthday,Memo,etc.

b. EnteringSubject,Location,Time,etc

c. Repeat,Alarm,AlarmDate

d. Done

e. Save

Downloads

TheDownloadmenucanbeaccessedfromthislevelofthemenuaswellasfromthemainmenu.See

thesectionabovefordetails.

Games

Thishandsetprovidestwofull‐graphicgames:RussianBlockandSnake.

1. SelectGamesfromthemenutoaccessthegamelist.

2. PresstheMenu/LeftSoftkeytoconfirm.

3. Whenthegameinterfaceanddescriptionoftheselectedgameappears,pressthe

Menu/LeftSoftkeyagaintostartthegame.

BothgamesallowturningtheaudioOn/OffandprovideHelpandHighScores.Pleaseseethemenufor

eachgameforRulesandHelp.

12.CallHistory

CallHistorycanbeaccessedfromthemenuscreenbyselectingtheCallHistoryiconfromthemain

menu.

Missedcalls

Iftherearemissedcalls,youcanviewthedetailedinformationofthemissedcallsinthe‘missedcalls’

menu.Eachrecordcontainsthenumber(andthecontactnameifnumberisalreadyinthephonebook),

date,timeetc.Presstheupanddown‐navigationkeytoviewtheinformationofothermissedcalls.

Pressthe‘Callcontrol’keytodialtheselectednumberandpresstherightsoftkeytoreturntohigher‐

levelmenu.Missedcallsaredividedintothefollowingtwosituations:

23

1. Ifthenumberisnotstoredinthephone,thephonenumberwillbedisplayedinthemissed

calllist.Selectthenumberandpresstheleftsoft/menukeytoaccessthesub‐menuofthis

missedcall,whichhasthefollowing5items:

• Delete:Deletethismissedcallnumberrecord.

• SavetoContacts

• Dial

• SendSMS:Sendtextmessagetothismissedcallnumber.

• Blacklist:Blockallincomingcallsfromthisnumber

2. Ifthisnumberisalreadystoredinthephone,thecaller’snamewillbedisplayedinthe

missedcalllist.

Receivedcalls

Thephonesavesthe20mostrecentlyreceivedcallsautomatically.Functionaloperationanddisplay

modeisthesameasthoseofmissedcalls.

Dialedcalls

Thephonesavesthe20mostrecentlydialedcallsautomatically.Functionaloperationanddisplay

modeisthesameasthoseofmissedcalls.

Deletelog

• DeleteMissedCalls:Deleteallrecordsofmissedcalls.

• DeleteReceivedCalls:Deleteallrecordsofreceivedcalls.

• DeleteDialedCalls:Deleteallrecordsofdialedcalls.

• DeleteAll:Deleteallrecordsofrecentcalls.

Calltime

• LastCallTime

• TotalDialed:Totalofalldialedcallstimesincethetimerwasresetlasttime.

• TotalReceived:Totalofallreceivedcallstimesincethetimerwasresetlasttime.

• TotalCallTime

• TotalLifeTime

13.Profiles

TheProfilessettingisusedtocustomizethephone’salertsandringtones.Toselectandpersonalize

theProfilesettings,selecttheProfilesiconfromthemainmenu.

Therearefivepredefinedprofilesettingswhichcanbecustomized:Normal,Loud,Vibrate,Silent,and

AirplaneMode.

24

Note:inAirplaneMode,pleaseconsultairlinestaffabouttheuseofAirplaneModeinflight.Turnoff

yourphonewheneverinstructedtodosobyairlinestaff.AirplaneModeturnsoffyourphone’scalling

featuresinlocationswherewirelessphoneuseisprohibited.Youcannnotmakeorreceivecallsin

AirplaneMode,butyoucanuseyourphone’sothernon‐callingfeatures

Activate

Settobecurrentactiveprofile.

Personalize

Youareabletocustomizethefollowingsettingsforeachoftheabovechoices:

• Incomingcallalert:Alertmethodforincomingcalls.

• Voicevolume:Setthespeakervolume.

• Ringtone:Selecttheincomingringtone.

• Ringvolume:Settheringvolumeforincomingcalls.

• Vibratingalert:Selectwhetherornottoenablevibration.

• Messagealerttone:Selectthetextmessagealerttone.

• RoamingRingtone

• Keypadtone:Setthekeypadtone.

• AutoAnswer:Setautoanswertime.

• Speakerphone:Selectwhetherornottoenablethespeaker.

14.Settings

SettingsfeaturescanbeaccessedfromthemenuscreenbyselectingtheSettingsiconfromthemain

menu.

PhoneSetup

• Language:ChooseEnglishorFrench

• Greeting:SwitchbetweenEnableandDisable.Thegreetingisshownwhenthephoneis

poweredonandcanbeeditedbyhighlightingthecurrentgreetingandpressingtheleft

soft/menu

• ClockFormat:Setbetween12hour(w/AMandPM)or24hour.

• Roaming:SelectAutomatictoenableroamingorHomeOnlytodisableroaming.

• USBDiskMode:EnablesthetransferofdatebetweenaPCandtheinstalledmicroSDcard

onthephoneusingthedatacable.

DisplaySetup

• Wallpaper:Selectapictureasthebackgroundimageonthephone.

25

• LCDBacklight:Thebacklighttimecanbesettoturnoffafter10,20,or30seconds.Itcan

alsobesettoalwayson,howeverthelongerabacklightisonthefasterthebatterywill

drain.

• Brightness:YoucanselectthebrightnessleveloftheLCDbacklightusingtheleft/right

navigationkey.

CallSetup

• CallDurationReminder:Settheremindertosoundduringcallsat45seconds,50seconds,

55seconds,oroff.

• CallConnectNotification:Ifthisfeatureisturnedon,thenanotificationwillsoundeach

timeacallisconnected.

• Blacklist:Youcansetupablacklist.Afterenablingtheblacklist,thephonenumberslistedin

theblacklistwillnotbeabletocallthisphone.

o Status:Disable/Enable.

o BlacklistList:Uptonineblacklistedentriescanbeadded.Youcaneditthelist

throughthismenu.

SecuritySetup

TomakechangesintheSecuritymenu,youmustcorrectlyinputthephonepassword.Theinitial

passwordis1234.

• PhoneLock:If“Enabled”,whenthephoneispoweredonyouwillbepromptedtoenterthe

phone’spasswordcorrectlytousethephone.

• KeypadLock:Thekeypadlockcanbesettobeenabledafter5seconds,30seconds,60

seconds,or5minutes.Tounlockthekeypad,press“*”thentheAnswer/Sendkey.Even

whenlocked,youmayansweranincomingcall.

• CallHistoryLock:Ifenabledthephonewillrequirethepasswordtobeenteredeachtime

youaccessthephone’sCallHistory.

• PhonebookLock:Ifenabled,thephonebookcannotbevieweduntilthepasswordisentered.

• MessageLock:Ifenabled,thephonewillrequirethepasswordtobeenteredtoaccess

messages.

• ChangePassword:Changethepasswordusingthisoption.TheOldPasswordmustbe

enteredbeforeanewoneisaccepted.Enterthesamenewpasswordtwiceandpressthe

leftsoft/menukeytoconfirm.Thenewpasswordwillthenbecomeeffective.Duringthis

courseyoumaypresstherightsoftkeytodiscardthechangeatanytimeandreturnto

higher‐levelmenu.Youcancreateseparatepasswordsforthephonelock,thecallhistory

lock,thephonebooklock,andthemessagelock.

• RestoreFactorySettings:Thisfunctionisusedforrestoringtothedefaultfactorysettings.

PhoneInfo

Displaystheinformationaboutthephone.

26

15.Internet

ToaccesstheInternet,SelectInternetIconfromthemainmenu.

Thisfeatureallowsyourphonetobrowsetheinternet.

• HomePage:Ahomepagecanbesavedwitheachmode.WhenusingWAPtobrowse,the

homepageforthismodewillfirstbeaccessed.

• EnterURL:EntertheURLforthewebsitetobeconnected.

• Search:Highlighttoselectasearchenginetoperformsearches,thenentertextcriteriaTo

searchon.

• Search:Enterkeysearchwords

• History:Youcanreviewthelatestaccessedwebpages.

• Bookmarks:Multiplebookmarkscanbecreated.EntertheOptionsmenuandyoucan

performthefollowingoperationsonBookmarks:

 Open:Logintotheselectedwebaddress.

 Addbookmark:Addanewbookmark.

 Deletebookmark:Deletetheselectedbookmark.

 Deleteallbookmarks:Deleteallthebookmarks.

 Editbookmark:Editthenameandwebaddressoftheselectedbookmark.

 Lockbookmark:Lockthebookmark.

 Newdirectory:Addanewdirectory.

 Details:Viewthedetailsontheselectedbookmark.

 Reset:Restoredefaultsettings.

•PushBox:StoreinformationonmessagestonotifytheuseraboutWAPsitemessages.

•Savewebpages:Usetosaveapageforreviewingthewebpagelater.

•AdvancedOptions:Advancedoptionsareprimarilyusedtoconfigurecertaininternet

parametersandinformation.

•About:Displaybrowserandplatformversionnumbers.

•ExitBrowser:Exitthebrowserandreturntothemenuinterface.

16.CameraOperation

Toactivatethecamera(fromthestandbymode)presstheCamerakeyatthelowerrightsideofthe

phone.

ThecameracanalsobeaccessedfromthemenuscreenbyselectingtheCameraIcon.

Thecameracanbeaccessedineitherofthreeways:simplybypressingthebuttononthesideofthe

phone,thruthemainmenuorthruthemultimediamenu.Onceyouareinthecamerainterface,you

canusethisfeaturetotakepicturesasyouwish.

Select“Camera”toentertheinterface.

27

Note:Pleasefollowlocallawsandregulationswhenusingthiscellphonetotakepictures.

17.Multimedia

MultimediafeaturescanbeaccessedbyselectingtheMultimediaIcon.

AudioPlayer

Themusicplayerisprovidedforyoutoplayallmusicfiletypesstoredonthecellphoneorstoragecard.

Supportedmusicfileformatsinclude:MP3,MIDI,AMR,AAC,WAV,andQCP.

Themusicplayerinterfaceiconsaresequentially:Previous,Pause,Play,Stop,andNext.Youcanmove

thecursorusingtheleftandrightkeypadandthenpressthe“OK”keytoperformanoperation.

Presstheleftkeypadtoentertooptions.Thefunctionsforthe“Options”providedareasfollows:

•AddToList:Newsongscanbeaddedfromthefilemanager.

•Play:Playthecurrentlyselectedsong.

•PlayList:Afterselectedaplaylist,themusicplayerinterfacewilldisplaytheitemsinthelist.

Theycanbeplayinorderorsongscanbeselectedfromthelist.

•Repeat:Repeatthesong.

•BluetoothPlayback:AfterconnectingaBluetoothdevice,themusiccanbeheardthrough

Bluetoothearphones.

•Delete:Deletethecurrentlyselectedsong.

•DeleteAll:Cleartheplaylist.

•Artist

Note:Whenaddingnewmusictothephone,select“UpdatePlaylist”atthefirst“Option”screen.)

WhentheAudioplayerisactive,thebuttonsontheleftsideofthephoneprovideRewind/Previous

Selection,Pause/PlayandForward/nextSelectionchoices.

Camera

Thecameraisalsoaccessiblewithinthismenuscreen.SeethesectiononCameraforfurtherdetails.

Recorder

Thisfeatureallowstherecordingofvoicethroughthephone’smicrophone.Thefileswillbestoredin

thephone’smemoryandthesizeofthefiledependsupontheamountofmemoryavailable.

Standardfunctionsinthisfeatureare:

•Record

•Play

•Pause

•Stop

28

•Rewind

•FastForward

Note:Pleaseobeyallapplicablelawswhenrecordingconversations.

Gallery

Thisphoneprovidesmemoryspaceforusebytheuser.SDMicrocards(ofoptionalcapacity)arealso

supported.Youcanusethesefeaturestoeasilymanagethedirectoriesandfilesofallformsstoredon

thecellphoneorSDMicrocard.

1.EnterGallery

2.Goto“Phone”(or“Card”ifavailable)

3.SelectOpen:Usethisfunctiontoentertherootdirectoryofthememory.Defaultsystem

directories,createddatadirectories,andaccountfileswillbelistedattherootdirectory

(therootdirectorywillonlycontainsystemfoldersthefirsttimethephoneisturnedonorif

theuserhasyettocreateanydirectories).

4.Orclick“Options”toaccessthefollowingoperations:

•Manage:Thefollowingactionscanbeperformedonthefileslisted:copy,move,

delete,rename,andviewproperties.AddOptionintheManagemenu:

•Mark

•NewDirectory

•MemoryStatus:Displayavailablespaceandtotalcapacity.

18.Bluetooth

TheBluetoothfeaturesofthephonecanbeaccessedbyselectingtheBluetoothIconfromthemenu

screen.

TosetupanewBluetoothdevice:

1.SelectDeviceSearch:WhenaBluetoothdeviceisenabled,allBluetoothhandsfreedevices

andBluetoothdeviceswillbesearchedfor.Bluetoothdevicesarethenaddedandpaired.

2.AfterdetectingaBluetoothhandsfreedevice,aBluetoothpasswordmustbeenteredto

performthepairing.(BluetoothpasswordsaresetbyotherBluetoothdevices.)

3.Oncepairingcompletes,itwillconnectwiththedevice.

Otheroptionsinclude:

1.Discoverable:Enablethisfunctionfinddeviceswithinthreeminutes.

2.FoundDevices:Displaydetecteddevices.

3.Manage:Listthedevicesconnecttothecellphone.Bluetoothhandsfreedevicesand

Bluetoothdevicescanbedeletedandconfigured.

 Pair:Pairwiththedeviceselected.

 Remove:Removetheselecteddevicefromthelist.

29

 BrowseFiles:Whenbrowsingfiles,theselecteddevicemustbesuccessfullypaired.

 SetupBluetooth:EnableanddisableBluetooth,rename,anddevicestatus.

19.TextInputMethod

ThishandsetsupportsfullEnglishandFrench.Youcansetthelanguageunderthepath[Settings]>

[PhoneSetup]>[Language].

MultipletextentrymodesareavailableintheSMStextinputscreen.Byselecting,‘More”andthen

‘TextEntry,’themodecanbechanged.TheiconintheupperleftoftheSMSscreenchangestoshow

themodes.

•Abc–firstlettercapitalized

•abc–allletterslowercase

•ABC–alllettersuppercase

•En–predictivetextinEnglish

•Fr–predictivetextinFrench

•123‐numeric

Inthepredictivetextmodes,afterthefirsttwolettersareinput,suggestionstothewordarenotedat

thebottomofthescreen.Bypressingthe‘navigation’keytotheright,additionalwordsarepresented.

Byselectingthewordandpressingthe‘select’key,thatwordisentered.

SymThiskeybringsupaseparatescreenshowingcommonlyusedsymbols.Thisisactiveforone

keystrokeonly.

Cap Changesthecaseoflettersforonekeystroke,revertingbacktostandardcasewiththenextkey

pressed.

AltChangesthekeyfromlettertotherelatednumberorpunctuation,foronekeystrokeonly.

30

AppendixICommonFaultDiagnoses



TroublePossiblereasons

Thephone

cannotbe

switchedon

1.Anypowerinbattery?

2.Batteryisinstalledproperly?

Batterycannotbe

charged

1.Checkifthechargerisconnectedwiththephonecorrectly.



2.Checkifthechargerisconnectedwiththesocketcorrectly.

3.Isthebatteryusable?Theperformanceofthebatterywill

degradeovertime.



Failtolinkthe

network

1.Thesignalistooweak,ortheremaybesomeradiointerference.

Viewthesignalindicatoronthescreentoseewhetheranybars

areshowing



Cannotmakea

call

1.Isthephoneregisteredinthenetwork?Checkwhetherthe

screendisplayssignalindicator.

2.Callingprohibitedduetocallchargesnotpaid?



Cannotanswera

call

1.Isthephoneregisteredinthenetwork?



2.Incomingcallprohibitedduetocallchargesnotpaid?

3.Isthe‘callforwarding’functionenabled?

4.Isthe‘Blacklistincoming’functionenabled?



Unabletouse

somefunctions



Consultwithnetworkoperatorforwhetheritsupportsthese

functionsandwhethersubscriptionisrequired.



31

AppendixIIAbbreviationsandexplanations

MMSMultimediaMessageService

SMSShortMessageService



*Coveragedisclaimer:Variousservicesthroughthisdevice,suchasroaming,mayrequireupgradesor

additionalchargesfromthecarrier.Pleasecontactyourproviderforadditionalinformation.

DisclaimerNote:Someofthecontentsinthisprintedmaterialmaydifferfromyourphonedepending

onthesoftwareleveland/oryourserviceprovider’srequirements.

Fordetailspertainingtothewarrantytermsforyourphonemodel,pleasecontactcustomerserviceat

1.877.999.5055orvisitastore.



32

FCC Regulations:

This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This mobile phone has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiated radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the

user‘s authority to operate the equipment.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

33

4RF Exposure Information (SAR)

This mobile phone meets the government’s requirements for exposure to radio waves.

This phone is designed and manufactured not to exceed the emission limits for exposure to radio

frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific

Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted

using standard operating positions accepted by the FCC with the phone transmitting at its highest

certified power level in all tested frequency bands. Although the SAR is determined at the highest

certified power level, the actual SAR level of the phone while operating can be well below the

maximum value. This is because the phone is designed to operate at multiple power levels so as to use

only the poser required to reach the network. In general, the closer you are to a wireless base station

antenna, the lower the power output.

The highest SAR value for the device as reported to the FCC when tested for use at the ear is 0.629

W/kg for WWAN Head SAR and when worn on the body, as described in this user guide, is 0.849

W/kg for WWAN Body SAR (Body-worn measurements differ among device models, depending upon

available accessories and FCC requirements.

While there may be differences between the SAR levels of various phones and at various positions, they

all meet the government requirement.

The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels

evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model

phone is on file with the FCC and can be found under the Display Grant section of

http://www.fcc.gov/oet/fccid after searching on FCC ID: U46-M570A

For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use

with an accessory that contains no metal and positions the handset a minimum of 1.5 cm from the body.

Use of other accessories may not ensure compliance with FCC RF exposure guidelines. If you do not

use a body-worn accessory and are not holding the phone at the ear, position the handset a minimum of

1.5 cm from your body when the phone is switched on.

This device is in compliance with SAR for general population / uncontrolled exposure limits in

ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and

procedures specified in OET Bulletin 65 Supplement C.

TeleEpoch M570A CDMA Mobile Phone User Manual M570 UserManx

TeleEpoch Limited CDMA Mobile Phone M570 UserManx

User Manual

Navigation menu

Namespaces

Views

Navigation
