Telecell Mobile A240 Mobile Phone User Manual Processor
Telecell Mobile (H.K) Ltd. Mobile Phone Processor
Users Manual
1
Table of Contents
1.Security······················································································································································· 5
2.Getting Started·········································································································································6
2.1.1.Installing and uninstalling SIM card····························································································· 6
2.1.2.Charging the battery······················································································································ 7
2.2.Connecting to the Network················································································································ 7
2.2.1.SIM card············································································································································7
2.2.2.Connecting to the network············································································································8
3.Contacts······················································································································································8
4.Messaging·················································································································································· 9
4.1.Write message··································································································································· 9
4.2.Inbox / Outbox/ Drafts/Sentbox·····································································································10
4.3.Security inbox···································································································································10
4.4.Templates········································································································································· 10
4.5.Broadcast Messages························································································································ 10
4.6.Voice mail service······················································································································ 10
4.7.SMS backup································································································································11
4.8.Options(Settings)·······················································································································11
2
5.Call logs····················································································································································· 11
6.Multimedia················································································································································12
6.1.Images········································································································································ 12
6.2.Video Recorder···························································································································12
6.3.udio player··································································································································13
6.4.Video Player································································································································14
6.5.FM radio······································································································································14
6.6.Sound Recorder························································································································· 15
7.Camera·······················································································································································16
8.Bluetooth·················································································································································· 16
9.File Manager············································································································································ 16
10.Organizer················································································································································17
10.1.Calendar····································································································································17
10.2.Alarm·········································································································································17
10.3.World Clock······························································································································ 17
10.4.Torch·········································································································································17
10.5.Calculator··································································································································17
10.6.STK············································································································································18
3
11.Settings···················································································································································18
11.1.Call settings······························································································································18
11.2.Phone settings························································································································· 19
11.3.Display······································································································································ 19
11.4.Security·····································································································································20
11.5.Connections······························································································································21
11.6.Shortcut settings······················································································································21
12.Games······················································································································································21
12.1.Snake········································································································································ 21
13.User Profile············································································································································ 21
14.Browser···················································································································································23
15.Appendix·················································································································································23
16.Health······················································································································································ 24
4
Manual Statements
2016. Thank you for selecting our mobile phone. This user guide will provide you with the general information and
operation instructions.
Note:
Use only accessories approved by the phone manufacturer to ensure safety. Failing to comply with this
will violate the terms and conditions of the warranty.
If the contents and displays described in this user guide do not match the actual operation of the phone
set, please use the display of the actual phone set. We reserved the rights to change the mechanisms of the
phone without notice.
Protect your environment! We strive to produce products in compliance with global environmental
standards. Please consult your local authorities for proper disposal.
5
General Information
1. Security
Emergency call
In any country, you can dial 112 (or other emergency call number) for emergency help.
Note: Based on the nature of cellular networking, the success of the emergency call cannot be guaranteed.
Safety Precautions
Before using your phone, please read the following important information to eliminate or reduce any possibility
causing damage and personal injury.
Do not use wireless phones while driving.
Switch off wireless devices in aircraft.
Do not use mobile phones at refueling point. Don’t use near fuel or chemicals.
Follow regulations or rules in hospital and health care facilities. Switch phone off.
Only qualified service personnel can install or repair this device.
Use only approved accessories and batteries.
Do not expose your phone to extreme high temperatures above+60℃(+140 F).
6
Battery Information
Information Charging and Discharging
The charger is designed to be used in temperatures between 0 to 40℃.
Do not charge the phone in wet and damp conditions.
We strive to produce products in compliance with global environmental standards.
When a charger is not in use, disconnect it from the power source. Do not leave the battery
connected a charger for longer than 12 hours, since overcharging may shorten its life.
Tips for Battery
Do not disassemble or modify the battery by yourself.
Do not short-circuit the battery.
Do not dispose of batteries in fire.
If you smell anything strange from the battery or find that the battery is overheated, you should
stop using it immediately and contact the authorized Service Center in your region.
2. Getting Started
2.1.1. Installing and uninstalling SIM card
Switch off the phone; remove the back cover, battery and other external power source. Fit the SIM card into the
7
SIM card slot.
2.1.2. Charging the battery
Plug the charger into the socket on the side of your phone. Connect the charger to an AC wall socket. The blinking
of the battery level icon indicates the battery is being charged. When the blinking stops, it indicates the charging
is finished
During charging, the phone and charger will feel warm to the touch. This is normal.
Warning:
The operating ambient temperature of the charger is 0
C-50
C. Do not use it when the temperature
exceeds this limit.
Use only chargers approved by the phone manufacturer to ensure safety. Failing to comply with this will
violate the terms and conditions of the warranty.
2.2. Connecting to the Network
2.2.1. SIM card
Please insert available Subscriber Identity Module (SIM) card into your phone before using it. SIM card is supplied
8
by your network carrier. All the information related to network connection is recorded on the SIM card, so are the
contact information such as names, phone numbers and SMS that you set to store on the SIM. You can take out
the SIM card from the phone and insert it into another GSM phone to use it. Most new phones will recognize the
SIM card automatically.
2.2.2. Connecting to the network
After the SIM card is unlocked, you phone will automatically search for the registered network or other local
available network. Once connected, the name of the network carrier will appear on the top of the screen.
You phone is now in Standby mode, ready for making and receiving call
Main menu
3. Contacts
You can save a phone number in the memories of SIM cards or phone. Select a contact in the contact list window
and press LSK to perform:
9
View contact: View the detail of the current contact.
New: Create a new contact inside phonebook.
SMS: Directly input the SMS and send it to the searched phone number.
Call: Call the current contact.
Delete: Delete the current contact.
Delete multiple: Delete all the marked contacts in one time.
Delete all: Delete all contacts.
Import/Export: Export the contacts from SIM card & phone memory / Import the backup from
memory card.
Send vCard: Send a vCard via SMS or Bluetooth.
Add to blacklist: Add the current contact to black list and block the same number to call you.
Others：You can setup the speed dial number and check the Memory status.
4. Messaging
You can send and receive the SMS as well as use Cell Location Display with this function.
4.1. Write message
Edit contents, Insert phone number and others.
Send: Insert the number of the contacts and then send SMS / MMS to this number.
10
4.2. Inbox / Outbox/ Drafts/Sentbox
This function is used to check messages in Inbox/ Outbox/ Drafts /Sentbox.
4.3. Security inbox
You can create a security message inside this folder, user to open it, must need the password, the default
password is “0000”
4.4. Templates
Some message templates given inside this menu.
4.5. Broadcast Messages
Look up the broadcast messages.
4.6. Voice mail service
This is similar to the Answer machine. You may transfer the incoming call that you fail to answer duly to your
Voice mail server, where the caller can leave message.
11
4.7. SMS backup
Import or Export the message which is saved in your phone or memory card.
4.8. Options(Settings)
You can check the SMS Settings, MMS settings, push message, and Message capacity.
5. Call logs
With this function, you can view the information of Missed calls、Dialed calls、Received calls、Rejected calls and
also you can clean all these records via Delete Call Logs. Enter into any history interface, Select anyone logs,
Press LSK Key to enter the Option list:
Details: View the detail of the current call.
Call: Call the current number.
Write message: Directly input the SMS or MMS and send it to the current number.
Add to contacts: save to phonebook.
Add to blacklist: Add the number to black list and block the same number to call you.
Delete: Delete the current logs.
Delete all: Delete all the current logs.
12
6. Multimedia
6.1. Images
You can view the photos snapped with the camera through this function.
6.2. Video Recorder
More options: You can switch to Camera mode;modify the Effect, Contrast, Brightness and
others.
Camcorder Settings: Set up the video recorder.
13
6.3. Audio player
You can enjoy the music with this function. You can use the following keys during the play.
Key
Function
Left direction Key
Press to switch to a previous song with cursor. Press and hold: go
backwards
Right direction
Key
Press to switch to a next song with cursor. Press and hold: go forwards
OK Key
Press to play/pause the Audio.
Up 、Down key
Press to volume up and down.
14
6.4. Video Player
You can play the video with this function. You can use the following keys during the play.
Key
Function
Left key
Press to go backwards. Press and hold to continuously go
backwards.
Right key
Press to go forwards. Press and hold to continuously go forwards.
OK Key
Press to play/pause the video.
Up、Down key
Press to volume up and down.
6.5. FM radio
You can listen the FM radio with this phone, also you can record the FM radio station which do you want record.
Auto search and save: Search and save the channels.
15
Channel List: Play, edit or delete the saved channels.
Save: Save current playing frequency into channel list.
Manual search: Search the radio by manual.
Open speaker: Playing FM in loudspeaker mode. (It active when headset inserted only)
Background play: Return the standby interface and keep paying FM radio.
Record: Record the currently-hearing FM.
Timing record: You can set up that the FM (one channel which you selected) will record at a specific
time with this function.
Record file List: View the recorded files list.
Help: You can get the operation guide in here.
6.6. Sound Recorder
You can take a recorder in this function. After record, access Options:
Start recording: Select this option to record the sound.
Record file List: View the currently-selected sound files.
File format: You can choose the format (AMR, or WAV) for record file.
16
7. Camera
With this function, you can snap. Press OK Key to snap under the view-finding window. Enter Camera Option,
Your options include:
Image viewer: Enter in the album folder.
More options: You can modify the DC/DV mode, Effect, Contrast, Brightness, White Balance
and others.
Settings: You can select different Size, Quality,Banding and others.
8. Bluetooth
Bluetooth: Open or close the Bluetooth
Bluetooth visibility: Open or close the visibility.
Paired device: Show the device which is connected
Device name: Show off the name of Bluetooth.
Bluetooth file Storage: You can select Storage memory card.
Help: You can read some help information from it.
9. File Manager
The File Manager lists the all the files stored in your memory card.
17
10. Organizer
10.1. Calendar
The screen will highlight the date of today after displays the monthly calendar when you enter in the calendar
function.
Add new schedule: Select Menu →Add new schedule→Write the schedule details →Select Store.
10.2. Alarm
You can set up that the alarm clock will ring at a specific time with this function.
10.3. World Clock
You can view the current local time of various countries.
10.4. Torch
Turn on or turn off the torch light here.
10.5. Calculator
Press OK Key to view the calculation results. Press the up, down, left, right and OK key to select +, -, *, /, =
respectively. Press Clear to delete the figure.
18
10.6. STK
SIM Card support is required in this service.
11. Settings
11.1. Call settings
Dual SIM Settings: You can set your phone network status, including Standby mode, Reply by original
SIM, Set SIM name.
Call divert: Divert an incoming call to a designated phone number under the presetting condition. This
function can be launched or closed.
Call waiting: The network will inform you for a newly incoming call during the call. Please contact with
your network operator to launch or close the function because the function requires the network support.
Call barring: Set up the right of calling and answering. This function requires the network support. You
can launch or close the function.
Black list: You can check the blacklist in here, and also can set the feature whether need to act on
calling or messaging.
Others: The settings item include Call time minute reminder, Auto redial, Vibration when connected,
Reject By SMS and Auto Call Record.
19
11.2. Phone settings
You can customize your favorite phone functions based on your interest with this function.
Date & Time: You can set time, date and the format for your phone.
Language settings：Set the current system language.
Auto power on/off：Phone can power on/off according to your preset time.
Power management: You can check the battery’s power.
Restore factory settings: You can recover the phone into the initial settings with this function. The
default password is: 0000.
11.3. Display
Animation effect: Set the power-On or power-Off animations.
Wallpaper settings: Set an image as wallpaper.
Idle display settings: On, it will be displayed in the standby interface.
Screen saver settings: Set the default screen saver animation.
Brightness: Adjust the displaying contrast.
Backlight: Set the backlight time.
Keypad backlight time: Set the duration for keypad backlight.
20
11.4. Security
The phone lock password, SIM card password and PIN2 support 4-8digit numbers, do not support other
characters. The default password of the phone when leaving the factory is 0000.
The PUK /PUK2 are required to input if you want to unlock the SIM card. The PUK/PUK2 is provided by the
network operator.
PIN lock: open or close the PIN lock function. When PIN lock is launched, the PIN shall be input upon
each power-on.
Modify PIN2: Input the correct PIN 2. Just can be change.( The SIM2 security setup is same to the
SIM1 security setup.)
Phone locked: Open or close the phone lock function. When the phone lock is launched, the phone lock
password shall be input upon each power-on.
Modify the cell phone password: You can change the phone password.
Privacy protect: If you select these modules for Data security, you must input the correct password
when you want to view these modules.
Auto keypad lock: Set the default time to lock the keypad.
Lock screen by end-key: Activate, in the idle mode, you can use the power-key to lock the screen.
Mobile tracker: You can track your phone when the phone lost; The default password is “0000”
21
11.5. Connections
Network account: choice the network settings for data account before you want to use internet.
GPRS Service: Enable/disable the GPRS network.
Data connection settings: You can control the internet access as “always connect” or “Connect when
needed”..
Network selection: choice the modes of searching the phone network, including Auto and Manual
modes.
11.6. Shortcut settings
You can set the direction key designated menu.
12. Games
12.1. Snake
Eat the red points as more as you can for higher score by using the snakes.
13. User Profile
Enter in the function; display the profile mode list including: Normal, Silent, Meeting, Outdoor and Flight
mode.
22
Activate: Press OK key to activate the profile mode.
Settings: Customize the profile mode as following:
Rename: Change the profile mode’s name.
Ring settings:
SIM1/2 Incoming Call: Set the ringtone for the SIM1/2 incoming call. You can also select ringtone
from Memory card.
SIM1/2 message: Select the ringtone for the SIM1/2 message. You can also select the
ringtone from Memory card.
Adjust volume：Set the volume for Caller Volume, Message Volume, Alarm & calendar
ringtone, Call volume, Power ringtone.
Ring Type: Set the ring type such as Ringtone, Vibrate, Mute,Vibrate then ring, Ring and
Vibrate.
Other alert rings: Select the Key tone, Battery low alert, Power ringtone, Dial tone.
Note 1: After plugging in the headset, ringtone will output from the headset as well as the phone, when there is
incoming call or message.
Note 2: At the flight mode, Phone won’t be received any signal; you can activate flight mode in this menu.
23
14. Browser
Internet Browser.
Option: You can enter the Homepage and modify the default settings, like the Account settings.
15. Appendix
The phone cannot be turned on: When the battery is very low, the phone may not be turned on properly.
Please charge the battery.
My call is picked up by another phone: Check if call divert is set. If it is set, your incoming calls may be
diverted to other numbers or devices.
No service
If you are in an area not covered by your network, or if a physical obstacle is present, such as in an enclosed area,
the message “No service” will be displayed on your Standby screen and you will not be able to make or receive
calls. You can try move closer to a window for better reception.
For emergency only: When you are outside your network but inside other network, you can only make
emergency call.
24
No Valid SIM card: Your SIM card is locked or it has an error. Please insert the right SIM card or contact your
service provider.
Enter PUK code: After three consecutive incorrect PIN code entries, the code is blocked, and you need the PUK
code to unblock it. Contact your service provider.
16. Health
Please read these simple guidelines.
Your phone is designed not to exceed the limits of emission of radio waves recommended by
international guidelines.

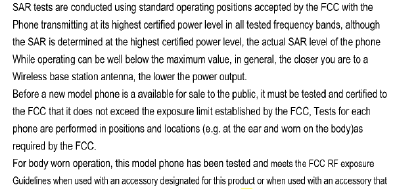

SAR (specific absorption rate) is the measurement of body-absorbed RF quantity when the phone is in
use. SAR value is ascertained according to the highest RF level generated during laboratory tests.
SAR
SAR Compliance
Compliance
25
The SAR value of the phone may depend on factors such as proximity to the network tower, use of
accessories or other accessories.
Use a wireless hands-free s
y
stem
(
head
p
hone
,
headset
)
with a low
p
ower Bluetooth emitter.
Please keep your calls short and use SMS whenever more convenient. This advice applies especially to
children, adolescents and pregnant women
Prefer to use your cell phone when the signal quality is good.
People having active medical implants should preferably keep the cell phone at least 10 cm away from
the implant.
Maintain a preferable distance of 10 mm from the device.
SAR
SAR Recommendations
Recommendations
1
FIGO A240 Duos
Contenido
1 Introducción
1.1 Instalación de las tarjetas SIM y la batería
1.2 Carga de la batería
1.3 Configuración de la red
2 Método de entrada
2.1 Introducir números e Idioma Ingles
2.2 Inserción de un símbolo.
3 Navegación en el menú
2
3.1 Historial de llamadas
3.2 Guía telefónica
3.3 Internet
3.4 Multimedia
3.5 Mensajes
3.6 Extras
3.7 Diversión
3.8 Configuraciones
1. Introducción
1.1 Instalación de las tarjetas SIM y la batería
Step 1: Asegurese que el Dispositivo Movil este apagado
Step 2: Remueve la Parte Trasera del Dispositivo
Step 3: Remueve la batería
Step 4: Deslizar las tarjetas SIM en las bandejas de la tarjeta SIM
3
Step 5: Vuelva a colocar la batería y la cubierta posterior del teléfono
Step 6: Enciende el equipo y comprobar el estado de la red
1.2 Carga de la batería
La batería de litio suministrada con su teléfono móvil se puede poner en uso inmediatamente después de haber sido
desempaquetado.
El nivel actual de la batería se muestra en la esquina superior derecha de la pantalla.
El teléfono le avise de un nivel bajo de batería con una notificación en la pantalla y el tono de alerta.
El icono de la batería en pantalla indicará cuando el dispositivo se está cargando.
Sólo use la batería suministrada con el dispositivo.
Encienda siempre el teléfono antes de retirar la batería.
No aplaste, perfore ni ponga un alto grado de presión en la batería. Esto puede causar un corto circuito
interno, ocasionando un sobrecalentamiento.
4
1.3 Configuración de la red
Una vez que la tarjeta SIM y la batería se insertan correctamente, podrá encender el dispositivo. El teléfono celular
configurará automáticamente todos los parámetros de red necesarios para emitir llamadas, texto y utilizar datos 2G.
2. Método de entrada
2.1 Introducción de números y Inglés
La FIGO A240 Duo ofrece varios idiomas de entrada, incluyendo Inglés, español y portugués; Para cambiar entre los
idiomas, pulse la tecla #.
El ingreso de números, se puede tocar y mantener el número deseado en el teclado de marcación.
2.2 Inserción de un símbolo
Al pulsar la tecla * lanzará un menú de símbolos.
5
3. Navegación en el menú
3.1 Historial de llamadas
Puede ver la lista siguientes opciones del menú de historial de llamadas:
oTodas las llamadas
oLlamadas perdidas
oLlamadas Marcadas
oLlamadas recibidas
oRechazado los pedidos
oEliminar todo
oDuración de las llamadas
oContador GPRS
6
3.2 Guía telefónica
Desde este menú puede agregar, ver, editar y eliminar contactos.
El dispositivo puede almacenar hasta 100 números de teléfono diferentes.
3.3 Internet
Internet es el navegador de Internet predeterminado.
Puede visitar cualquier sitio web que introducir la URL. También puede establecer una página de inicio, marcadores y
guardar cualquier página para verlas sin conexión.
Para volver a visitar un sitio web, puede seleccionar "Historial".
3.4 Multimedia
Puede ver la lista siguiente desde el menú multimedia:
oVista de imágenes
Le permite capturar imágenes nuevas, o ver los que están almacenados en la tarjeta SD.
oGrabador de vídeo
Permite captar nuevos vídeos y almacenarlos en la tarjeta SD.
oVideo
7
Le permite ver videos almacenados en la tarjeta SD, calcular el uno capturado con la
cámara de 2 megapíxeles.
oFM Radio
Puede utilizar la aplicación como una radio FM tradicional con sintonización automática y
canales guardados.
oGrabador de Sonido
Utilice esta función para grabar archivos de audio. El teléfono es compatible con formato
WAV y AMR.
3.5 Mensajes
Puede enviar y recibir mensajes de texto desde esta aplicación. Si la memoria de mensajes de texto está llena, un icono
de mensaje parpadeante aparecerá en la parte superior de la pantalla.
Durante el ingreso de la interfaz de mensajes, verá las siguientes opciones de menú:
Escribe un mensaje
oBandeja de entrada
oBandeja de salida
oBorradores
oEnviados
8
oCaja de Seguridad
oPlantillas
oMensajes de difusión
oServidor de Correo de Voz
3.6 Extras
Puede ver la lista siguiente desde el menú de extras:
Bluetooth
oAlarma
oCalendario
oCalculadora
oReloj Mundial
oLibro electronico
oCronómetro
oAntorcha
9
3.7 Diversión
Puede ver la lista siguiente desde el menú Diversión:
oEmpuja La Caja
Clasico juego de Empujar la Caja
oFacebook
Acceso Facil a su cuenta de Facebook
oYahoo
Acceso Facil a la Pagina de Yahoo
oGoogle
Acceso directo al buscador de google
oTwitter
Acceso directo a su cuenta de twitter
3.8 Configuraciones
Configuración de llamadas:
En el menú de ajustes de llamadas que son capaces de establecer lo siguiente:
oConfiguración de doble SIM
oDesvío
10
oLlamada en espera
oBloqueo de llamadas
oOcultar ID
Junto con la siguiente configuración avanzada:
oLlame a minuto Tiempo Recordatorio
oRellamada automática
oVibración cuando se conecta
oRechazar por SMS
oRegistro de llamada automática
Configuración de Teléfono:
oEl tiempo y la fecha:
Ajuste la fecha y la hora actual con el formato correcto
oAjustes o Idioma:
Selecciona tu Idioma
oConfiguración de acceso directo:
Seleccionar los accesos directos para acceder a aplicaciones y funciones de la pantalla de
inicio
11
oAuto Power Prendido/Apagado
Seleccione automático de encendido o apagado veces
oEstado o de la batería
Ver el porcentaje de carga de la Batería
oRestaurar configuración de fábrica
Limpiar el dispositivo y restaurar todos los ajustes de fábrica.
ADVERTENCIA: Serán eliminados todos los datos almacenados en el dispositivo. La contraseña es 1234
FCC Caution
Any changes or modifications not expressly approved by the party
could void the user's authority to operate the equipment.
responsible for compliance
The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference,and(2) this device must accept any interference received,
including interference that may cause undesired operation.
Contains no metal and that positions the handset a minimum of 15mm from the body.
