1 INTRODUCTION
The Product
The product is based on the IEEE 802.11g standard, which is the latest 54Mbps
Wireless LAN (WLAN) standard. This standard is five times faster than the widely
deployed WiFi (802.11b) products that are found in homes, airport and public
wireless hotspots. Because 802.11g uses the same 2.4GHz frequency band, the
product is fully interoperable with existing WiFi cards and devices. Having two
wireless protocols in one product ensure that your investments are protected, while
enabling you to enjoy the fastest Wireless LAN speed.
The product is a combination of 3 devices:
a. Wireless Access Point (AP) compliant to 802.11b/g standards.
b. Wireless Ethernet Client (Bridge)
c. Client, CPE
The product is an all-in-one device that allows multiple PCs to share a common
broadband (ADSL/Cable) modem. It can serve up to 4 Ethernet-PCs and many
WLAN-notebooks. The built-in NAT and DHCP Servers ensure almost plug-and-play
convenience for your home network. Advanced features such as Firewall, DMZ and
WPA Encryption make this a product equally suitable for your office needs.
Product Features
Fully compatibility with IEEE 802.11g WLAN standard
Utilize OFDM (Orthogonal Frequency Division Multiplexing)
Wireless data rate of up to 54Mbps, support “Turbo” mode up to 108Mbps
Operates in the 2.4GHz license-free frequency band
Connects multiple computers to a broadband modem to share Internet
connection
Full backward compatibility with 802.11b standard (WiFi 11Mbps)
WEP (Wired Equivalent Privacy) authorizes users based on a simple WLAN
encryption standard to protect wireless data from sniffers.
WPA (WiFi Protected Access) authorizes users and identifies users based on
an improved WLAN encryption standard where the secret key changes
dynamically at regular intervals
TKIP (Temporal Key Integrity Protocol), when used in conjunction with a
corporate RADIUS server, ensure higher security for enterprise networks.
Pre Shared Key, suitable for home user, without a RADIUS server. A
new key is generated each time the PC connects to the network, vastly
improving the safety of information exchange within the network
User-friendly web-based interface for managing and configuring the wireless
AP.
2
2 STANDARD PACKAGE

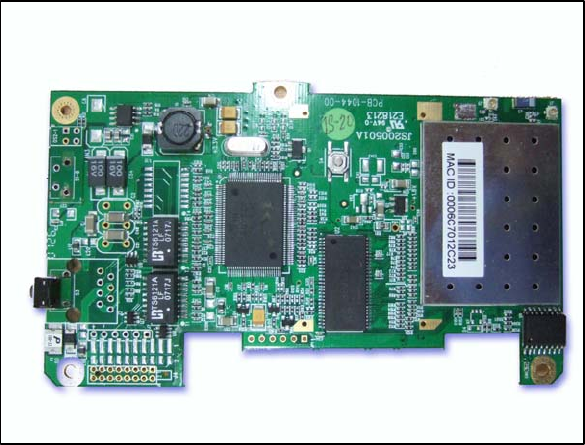

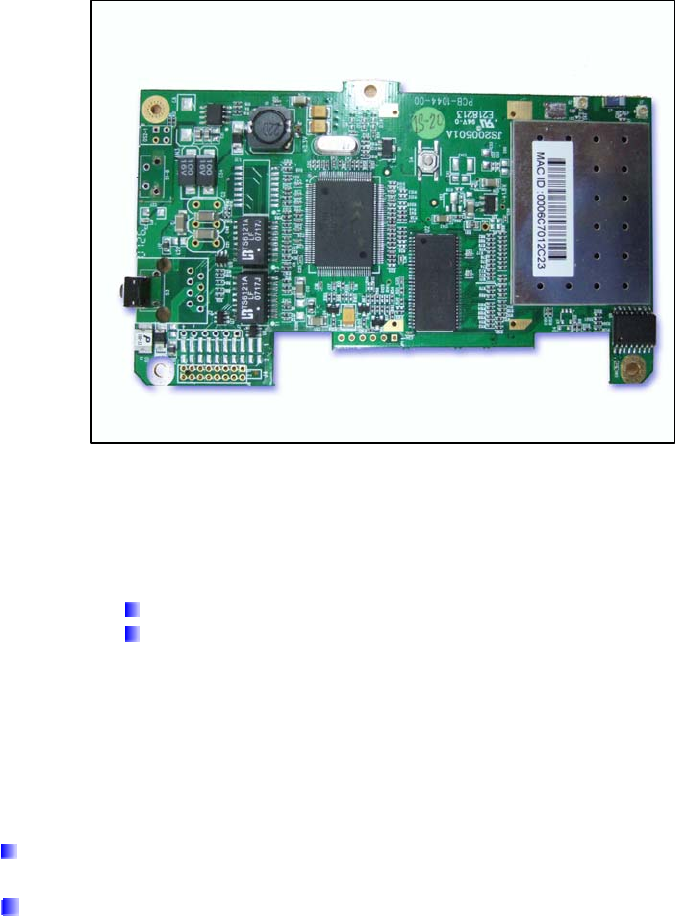

Contents of Package
2.4GHz Wireless AP & Ethernet Bridge (EB1-T002-TLD01)
Software Interface User Manual
Note: Using a power adaptor with a power rating other than the one included in the
package will cause serious damage to the AP and void the warranty for this product.
System Requirements for Configuration
Computers with Windows, Macintosh or Linux-based operating
systems and with an Ethernet adaptor
Internet Explorer version 5.5 and above or Netscape Navigator
that supports Java.
3
3 BASIC IP NETWORKING
Internet Protocol (IP)
IP stands for Internet Protocol. In an IP network, every device has a unique IP
Address (For example: 192.168.1.35) to identify itself. There are two ways of
assigning an IP address to a PC or Router: Static and Automatic (DHCP). Static IP
addresses are keyed-in manually, while Dynamic IP's are distributed by a DHCP
Server.
Ports
Every packet of traffic is identified by its Source and Destination Addresses, which
would ensure that the packet arrives at the correct destination. A Port Number is
also embedded in each packet; to identify which software application that generated
and uses that packet. Therefore, if the Router blocks a certain port number, it denies
the particular software from using the connection.
Static IP Address
Static IP addressing ensures that the device will always have the same IP address.
Static addressing is commonly used for your servers.
Dynamic IP Address
A dynamic IP address is one that is automatically assigned to a PC. These IP
addresses are “dynamic” because they are only temporarily leased to the PC when it
connects to the network. This is the most convenient and common way of managing
IP addresses in a network. The Server that manages this pool of IP addresses is
called the DHCP Server. The product has a DHCP Server built-in to simplify the
network management.
DHCP (Dynamic Host Configuration Protocol)
The PC obtaining an IP address from the Server is called the DHCP Client. If there is
already a DHCP Server running on your network, you must disable one of the two
DHCP servers. Running more than one DHCP server together will cause network
problems!
4
What is a Router?
A router is a network device that connects two networks together, to let them
communicate. All the PCs in your home or office would be considered to be in one
network: the Local Area Network (LAN). The Internet (including the ADSL modem) is
considered to be another network: the Wide Area Network (WAN). The Router
serves 2 purposes:
Connect all the PCs in the LAN together, allowing them to communicate with
one another. (File sharing, Printer sharing etc.)
Connect all the PCs in the LAN to the Internet, allowing them to
simultaneously surf the web and access e-mails.
The Router is connected to 2 networks at the same time. Therefore, it has two IP
addresses: one for the LAN, and one for the WAN. The Router’s LAN IP address can
be configured, but it is best to use the default settings. The WAN port is a DHCP
client by default.
4 WIRELESS LAN BASICS
A Wireless LAN (WLAN) is a computer network that transmits and receives data with
radio signals instead of using cables. WLAN have become common in homes, offices,
airports and public Hotspots. WLAN can support the same applications and software
that run on a wired network (LAN). Besides supporting the same software and
functions, WLAN brings greater convenience and eliminates the need to lay Ethernet
cables in a home or office.
The wireless AP is based on the finalized 802.11g standard. The IEEE 802.11g
standard is an improvement on the 802.11b (WiFi) standard. It increases the data
rate up to 54 Mbps within the 2.4GHz band. As the 802.11b standard is also using
the 2.4GHz frequency band, the product is fully backward compatible with the older
802.11b devices. WiFi cards can be used to connect to the wireless AP at 11Mbps.
The AP is also known as the Wireless Bridge. The PC using the Card bus is known as
the Client. WLAN networking involves a few additional parameters to be configured:
SSID
The SSID is the “network name” for the WLAN network. The SSID is any name, and
can be any set of characters or numbers, and must be configured on both the AP and
Client. The Client sniffs the radio frequencies for an AP with the same SSID with
itself. The client locks onto the AP and they are “associated”.
To enable plug-and-play convenience, most client cards can sniff the frequencies to
extract the available SSID to let the user choose from. Alternatively, setting the
client’s SSID to “ANY” can allow it to connect to most AP's regardless of the AP’s
SSID setting.
5
Encryption
WLAN traffic can be captured by anybody to be read! The solution is to use
encryption to make the traffic appear as random characters to the eavesdropper.
Both the AP and client must use the same encryption standard and key to enable
them to decode the “rubbish”. If the encryption settings are mismatched, the client
and AP cannot associate. WEP (Wired Equivalent Privacy) is the most common WLAN
encryption standard.
MAC Address Control
Every client card has a unique MAC Address. This MAC Address can be input into the
wireless AP such that the wireless AP only allows this pool of MAC Addresses to use
the WLAN.
Channel
There are a total of 11 channels in the 2.4GHz band. Depending on regulation, not all
the frequencies may be available in every country. Frequency is configured on the
wireless AP only. The client searches for the wireless AP and locks onto that AP’s
channel.
Signal Strength
Radio signals drop in power over a distance. Even if all the settings are correct, low
signal strength makes association impossible. The usable distance between the AP
and client can range from a few meters indoor to 200m outdoors maximum. When
setting up the wireless AP, make sure that you:
Keep the distance from the wireless AP to the clients as short as possible.
Make sure that the WLAN signals do not have to pass through too many
concrete walls and metal structures to reach the client.
Make sure that wireless AP is located far away from one another to avoid
interference.
To access the Configuration menu of the Wireless AP connect the device as shown in
the previous section.

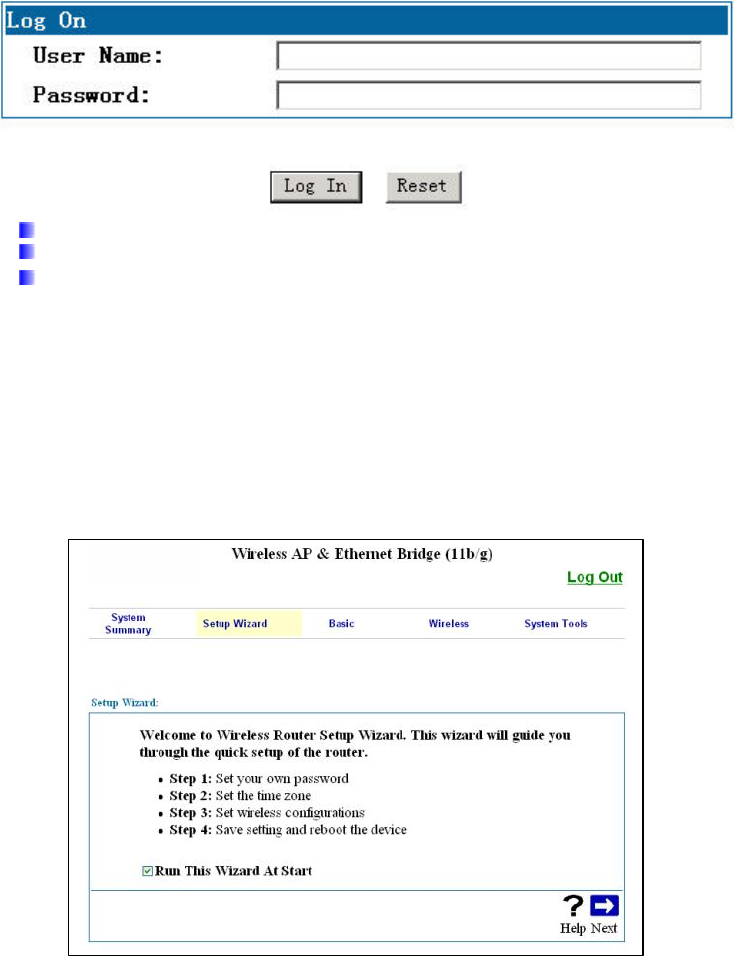

Open the web browser.

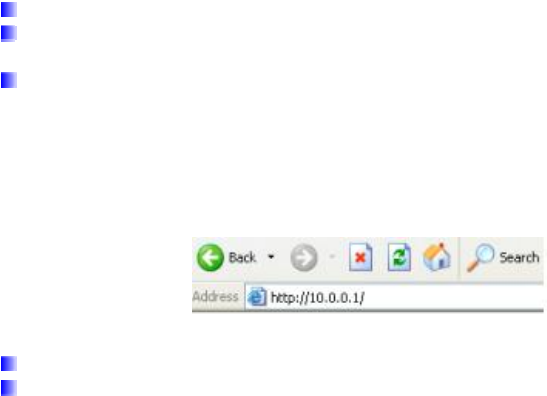

Type the AP default IP address (10.0.0.1) into the browser’s Address field.
6
Type in admin for the password.
Click on Log In.
Note: If you have changed the default user name and password of the Router, make
sure you enter the correct user name and password.
Once the login is successful, you’ll see a configuration menu and a pop up window for
wizard setup. The wizard is a quick guide to run you through the configuration
process so as to setup your system in the shortest time. After the initial setup, you
may wish to turn off the setup wizard by removing the tick on Run This Wizard at
Start. Click on Next to proceed with the setup wizard.
Note: If you have pop-ups blocker installed on your computer, it may prevent the
Wizard window from functioning properly.
7
Detailed configuration for the wireless AP can be found at the configuration menu.

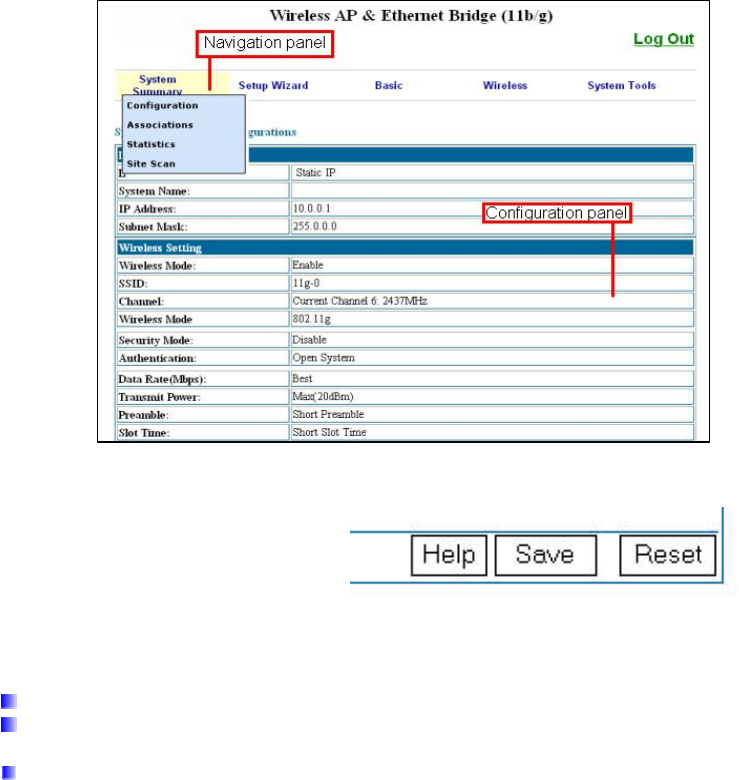

The Configuration menu consists of a navigation menu and a configuration panel.
The configuration panel is a place to set the entire detailed configuration.
These buttons will appear at most configuration pages.
Help: Clicking help will bring up helpful information on the functions.
Save: Click to save the configuration. Do a reboot when you have configured
all the parameters.
Reset: Click to reset all the parameters on the page.
9
5 CONFIGURATION WIZARD

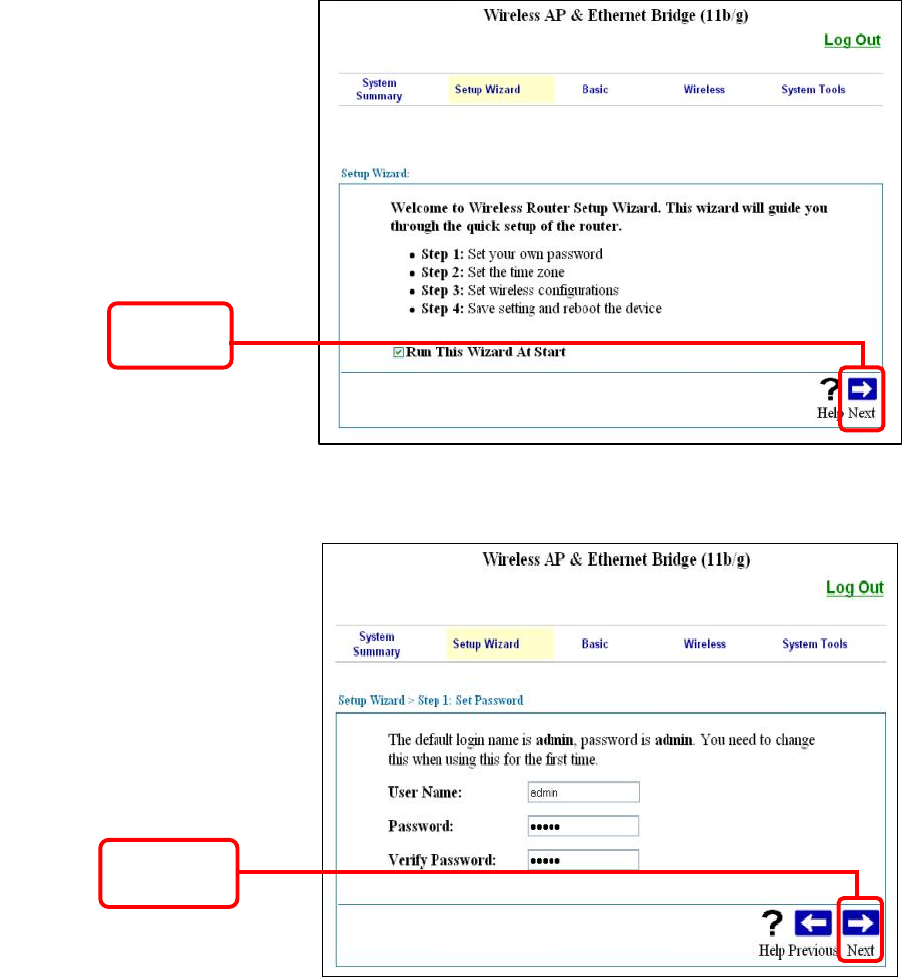

Once you have logged in, the
Wizard screen will appear.

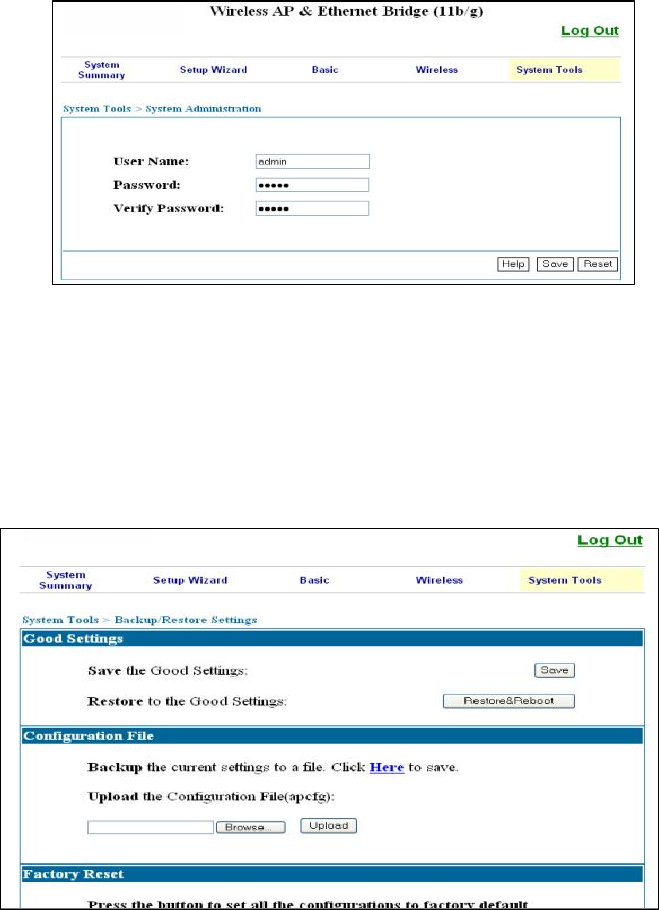

Set up your new password
The default User Name is
admin and the password is
admin.
Click Next
Click Next
10

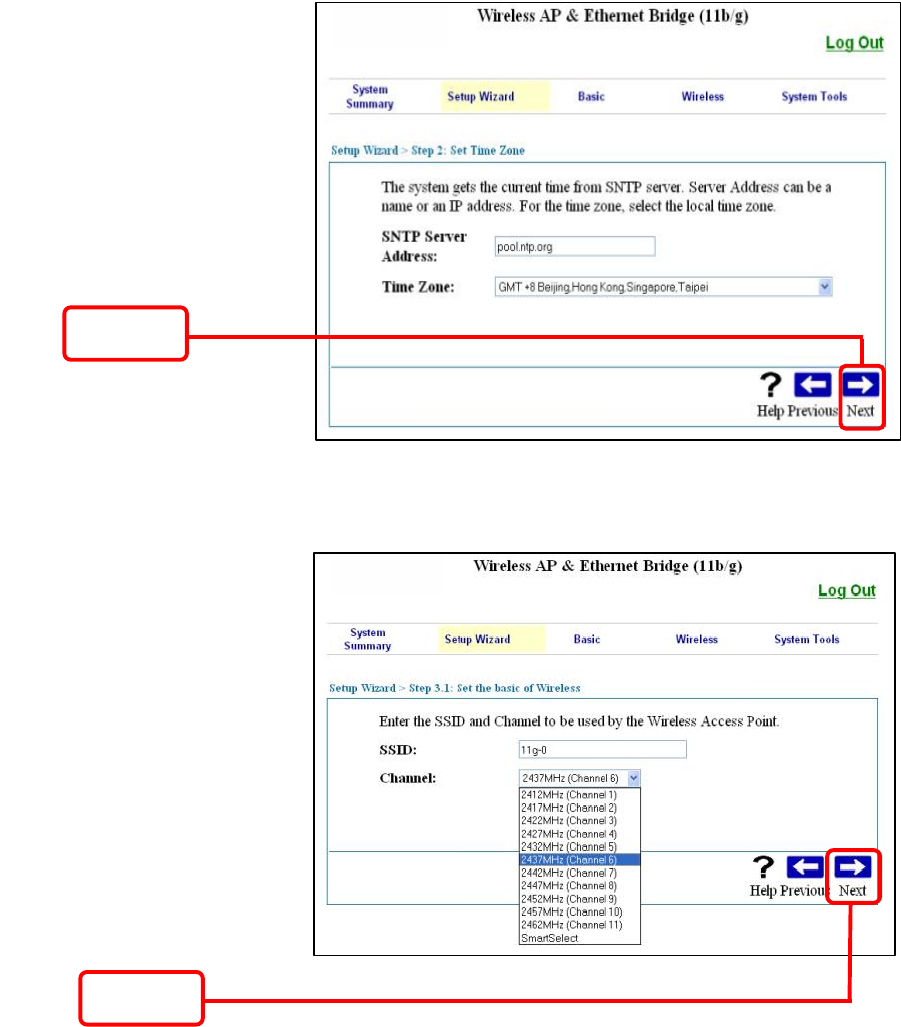

Choose your Time Zone
Enter the SNTP Server. If
you do not know of any
SNTP Server, you can use
the default.
Choose your time zone from
the drop down list.
Wireless Setup
Enter the SSID you preferred
for your network.
You can manually select the
channel you wish to use or
allow the wireless AP to select a
clean channel to use by
selecting SmartSelect.
11
Click Reboot to
finish the setup
Wizard
Click Discard to
cancel all settings

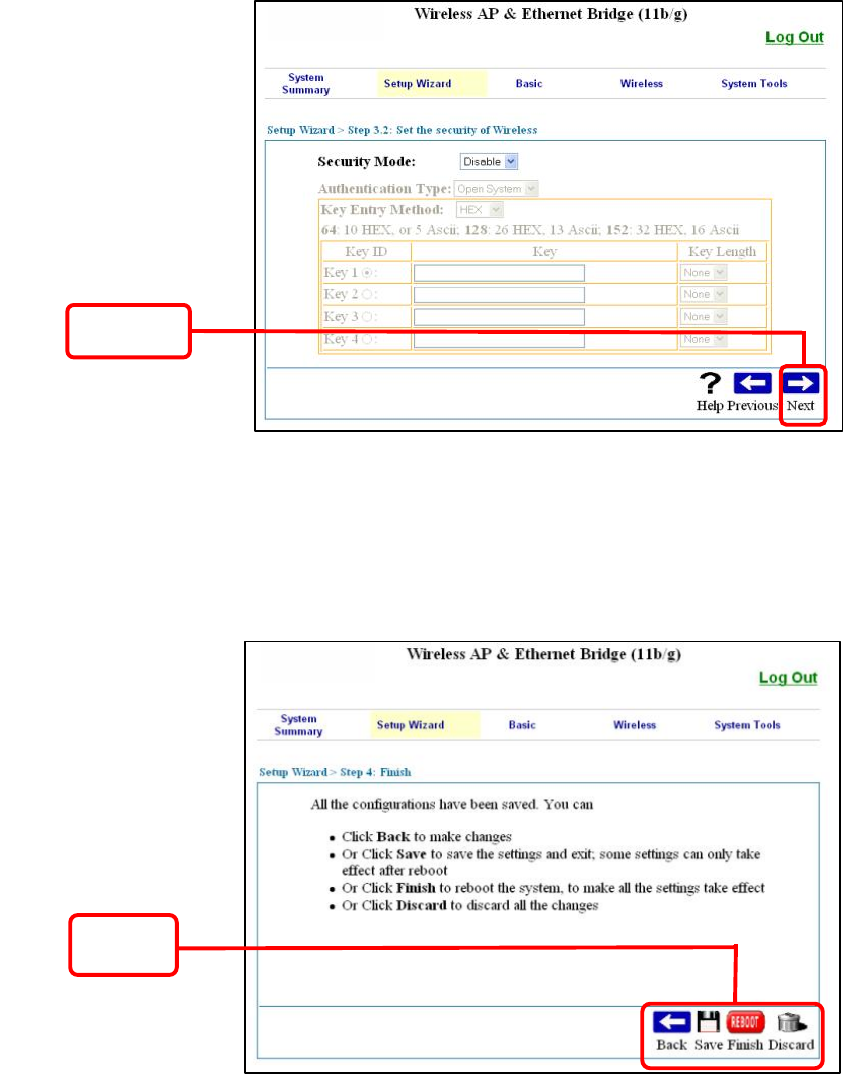

Wireless Security
Enter the type of security
mode you wish to use.
Take note that if you are
using 802.11b card, it
does not support WPA-
PSK or WPA.
End of Setup
Click on Reboot to
save the setting and
reboot the wireless
AP. If you wish to
discard all the setting,
click on Discard.
Click Next
12
6 CONFIGURATION MENU
System Summary > Configuration

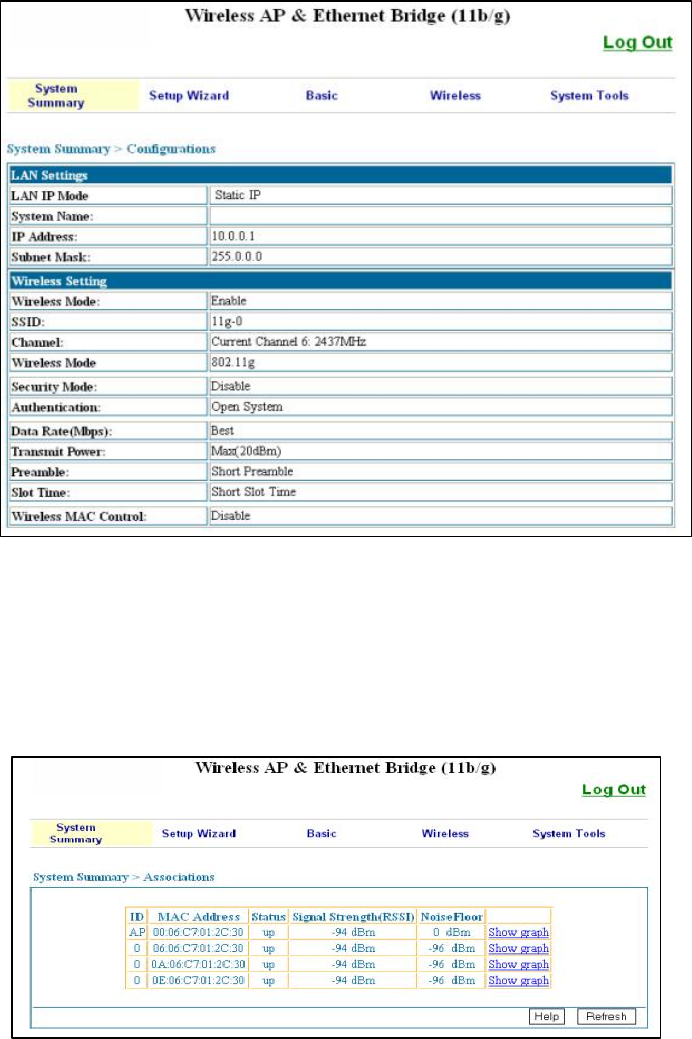

This page presents a convenient overview of the overall status of the wireless AP.
The most common configuration parameters are shown here, for a quick look.
System Summary > Associations
This page allows you to view the MAC address of all the wireless laptop and PC
connected to the Wireless AP. ID AP is the MAC address of the AP itself. Any wireless
computers or laptop associated with the access point will have an ID of STA.
13

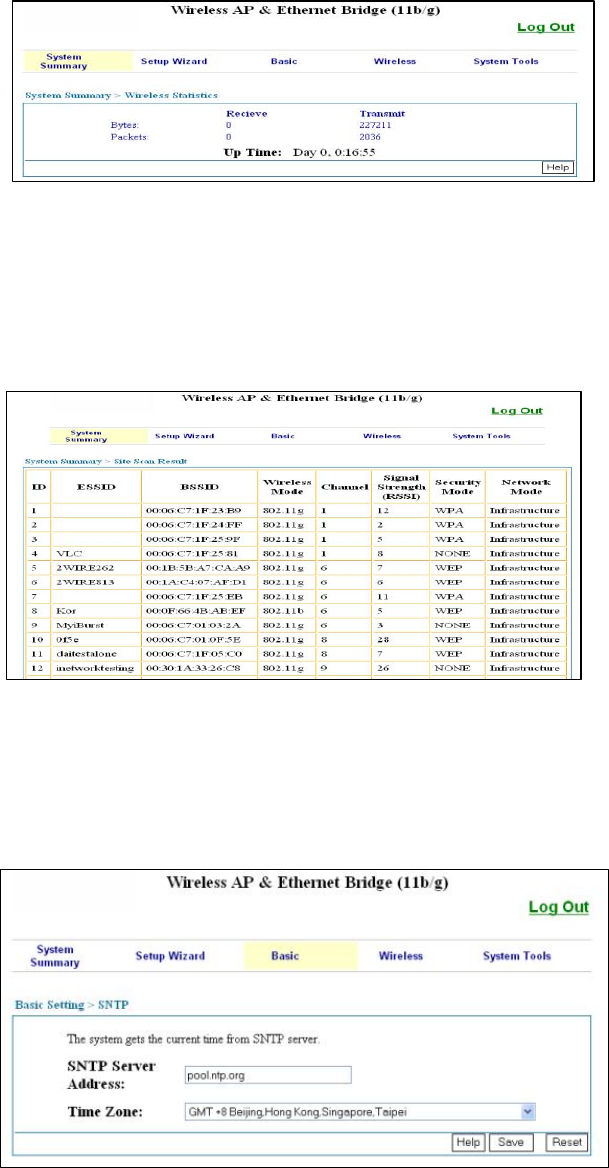

System Summary > Statistics
This page allows you to view the packets and bytes receive and transmit by the
wireless AP.
System Summary > Site Scan
Using the site scan, you can scan for the presence of other wireless AP near you. The
ESSID, BSSID, wireless mode, channel, signal strength, security mode and network
mode of the surrounding AP will be display in the table. You can use this function to
select a clean channel for your AP. Take note that there would be no any result if the
wireless function of the AP is disabled.
Basic > SNTP Setting
Simple Network Time Protocol (SNTP) allows the wireless AP to set its internal clock
based on periodic updates from the specified timeserver (SNTP or NTP). The time is
useful in the IP filter section, where you can configure to block certain IP address
daily at a certain time.
14

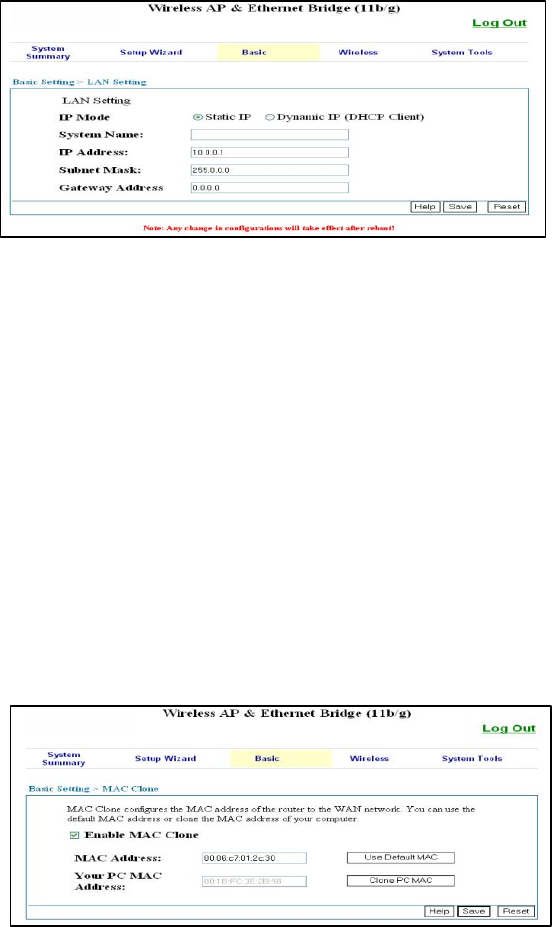

Basic > LAN Setting
This page is for the configuration of the wireless Access Point internal (LAN) IP
Address.
System Name: This is to assign a name to the wireless AP so that you can identify
the device.
LAN IP address: This is where you assign a local IP address to your access point
LAN port. The factory default value is 10.0.0.1 if you give your computer a static IP
address, the gateway of your computer must be set to this IP for you to access the
Internet.
Subnet Mask: This is where you assign the corresponding subnet mask. The default
subnet mask is 255.0.0.0
Basic > MAC CLONE
The default WAN MAC address is set to the WAN’s physical interface MAC address on
the wireless Access Point. You can use the MAC Clone function to replace the default
MAC address to that of the Ethernet Card installed by your ISP. It is not
recommended that you change the default MAC address unless required by your ISP.
Enable MAC Clone: Tick to enable MAC Clone function.
MAC Address: Enter the MAC address you wish to clone or use the default MAC by
clicking on the Use Default MAC button.
Your PC MAC Address: This field reflects the MAC address of your computer.
15
Basic > VLAN Setting
The VLAN provides broadcast filtering, security, address summarization, and traffic
flow management. VLAN tagging is to control traffic flow patterns and react to port
relocations.
Note: LAN3 is not supported for EB1-T002-TLD01 as per hardware design.

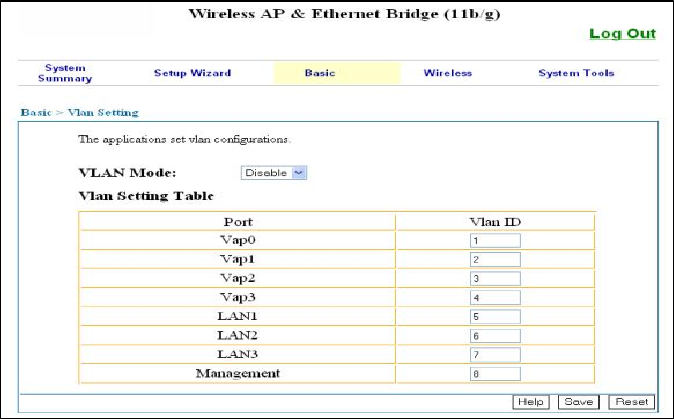

This page lets you configure the wireless Access Point, VLAN tagging configuration
and additional function of the wireless AP.
The new features of this firmware are described as follows:
1. VLAN Tagging function in Access Point mode
2. VLAN Tagging function in Ethernet Bridge mode
3. Management VLAN support for both Access Point and Ethernet Bridge
mode
4. Viper features enable for EB1-T002-TLD01
VLAN mode: Can be set as enabled or disabled.
VLAN Tagging: Can be configured both in AP & Bridge mode.
Once the AP or Bridge is set to Enabled mode, use LAN1 as your uplink port to
connect to your PC (for configuration use). You may also set LAN2 port to have the
same VLAN ID as the management port to enable the PC connected to LAN2 to get
access to webpage or management console.
16

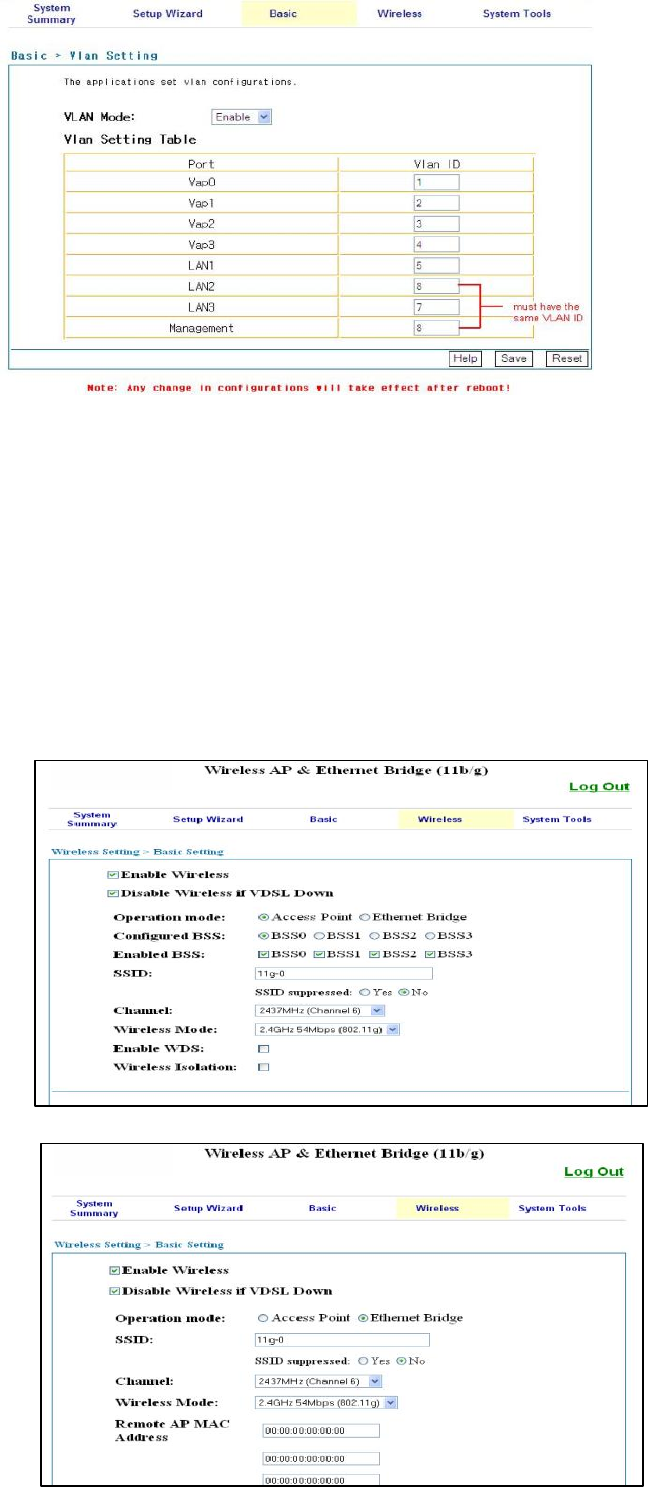

VLAN Settings Table: are created to provide the segmentation services
traditionally provided by routers in LAN configurations. VLAN tagging addresses
issues such as scalability, security, and network management.
Wireless > Basic Setting
This page lets you configure the wireless settings of the Access Point. There are 2
sections: Radio and Security.
17
Enable Wireless: Tick to enable wireless function. With this function, laptop with
card bus or in-built wireless function can access the AP wirelessly.
SSID: Service Set Identifier. It is a sequence of characters that uniquely names a
Wireless LAN. This name allows PCs to connect to the correct Wireless Access Point
when multiple Access Points (or Wireless Routers) operate in the same location.
Channel: The radio channel number. You can select channel 1 to 11 or use
SmartSelect, where the Access Point will select the cleanest channel to use upon
booting up. The number of channels varies according to countries.
SSID Suppressed: When SSID is suppressed, the wireless AP will not broadcast the
SSID. Unwelcome PCs will not be able to scan for the SSID of this AP, and they can
only associate if they know exactly what the SSID is.
Wireless Mode: You can choose to operate the wireless Access Point 802.11g or
802.11b mode. The data rate for 802.11g is 54Mbps while the data rate for 802.11b
is 11Mbps. 802.11g is compatible with 802.11b.Other model such as the APRT-
2518gs, you will be able to select Dynamic Turbo or Static Turbo Mode. Turbo mode
operates in 108Mbps.
Security Mode: This section allows you to configure wireless encryption to prevent
unwelcome parties from reading your traffic. You must Enable the Security Mode
before choosing the type of wireless security
18
Open-System/Shared Key
System: When chosen, the Key is not used for authentication. It is only used for
encryption. Open-System uses Static Keys for encryption. Static (Shared) Keys are
never changed, and a hacker can crack the key after a period of time.
19
Shared-Key: When chosen, the encryption Key is also used for authentication
between the Access Point and Client. Note that this system is also using Static Keys.

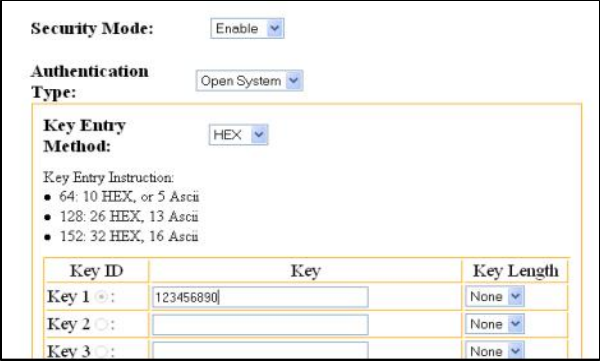

Key Entry Method: Choose HEX if you want to enter the Keys in hexadecimal
format. Otherwise, enter in ASCII format. ASCII is also called Alphanumeric in some
systems. Use the same key format for the Access Point and Client!
Key 1-4: The Key is to be entered in the boxes. The SAME Key must be entered in
both the Access Point and Client. Take note that there is a different Key length for a
different number of encryption bits. 152 bits is the most secure, but make sure that
your Client card supports it. The last point to take note is that if you use Key 4 on
the AP, you must also use Key 4 on the Client, for example. The same logic applies
for Keys 1-3.
20

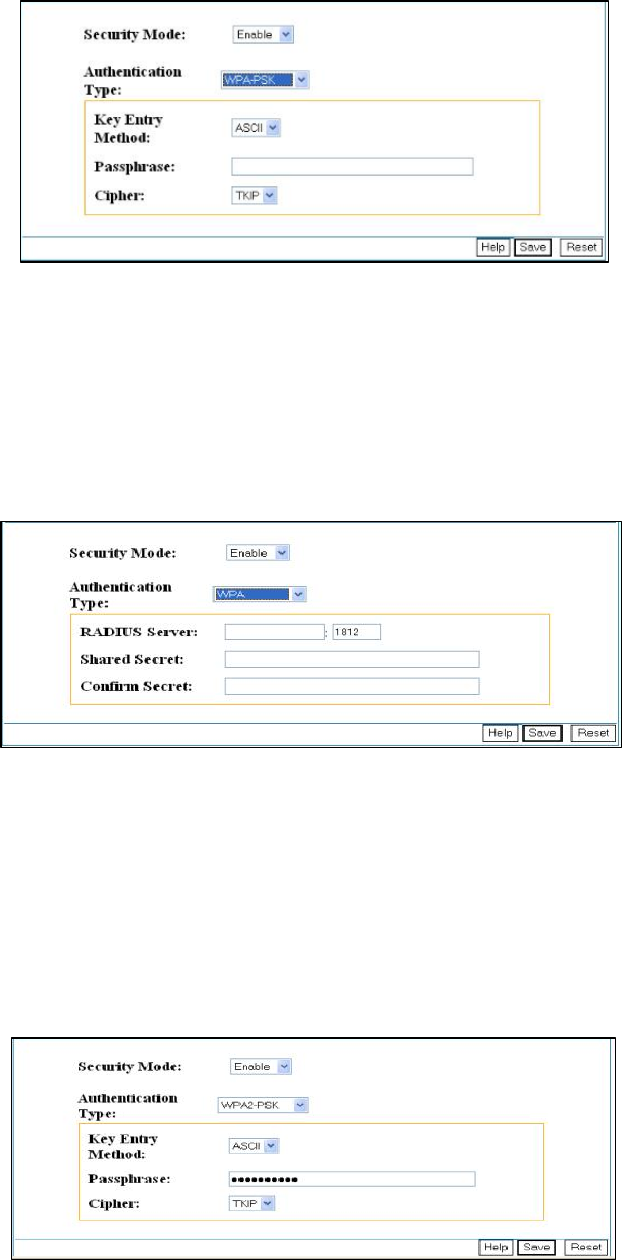

WPA-PSK
WPA-PSK is also known as WPA-Preset-Key. This implementation is more secure
than WEP as the encryption is automatically changed periodically. To configure this
feature, just key in an 8-63 ASCII character or 64 HEX character pass-phrase for
both the Router and Cards.
Cipher: You can choose to use TKIP or AES for the cipher type.
WPA
WPA (WiFi Protected Access) is a standard where the Wireless Card has to
authenticate to a RADIUS Server, through the Access Point. The Server can also
manage the encryption keys such that they are changed dynamically. You need to
have a RADIUS Server to be able to use this feature.
RADIUS Server: Enter the IP Address and the port of the RADIUS Server.
Shared Secret: Enter the Shared Secret of the RADIUS Server.
Confirm Source: Enter the Shared Secret again to confirm.
21

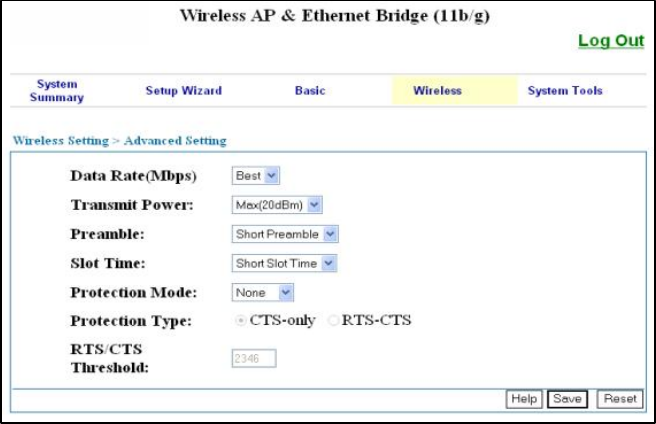

Wireless > Advance Setting
This page allows you to configure the advance wireless setting of the
Access Point.
Date Rate (Mbps): You can set the wireless data rate from the available list or
choose the best to allow the access point to choose the most appropriate data rate.
When Best is used, the access point will determine the optimal data rate according to
the environment.
Transmit Power: To adjust the transmit power of the antenna. Sometimes, it is
useful to decrease the coverage range of each access point, so that more AP’s can be
located together without interfering one another.
Preamble: Choose Short Preamble or Long Preamble. Most manufacturers
implement long preambles. Even if there is a mismatch between the access point and
the card, they can still connect well and the mismatch may not be noticeable to most
users. Do not change this setting without seeking advice.
Slot Time: Choose short or long slot time. The slot time is the amount of time a
device waits after a collision before retransmitting.
22

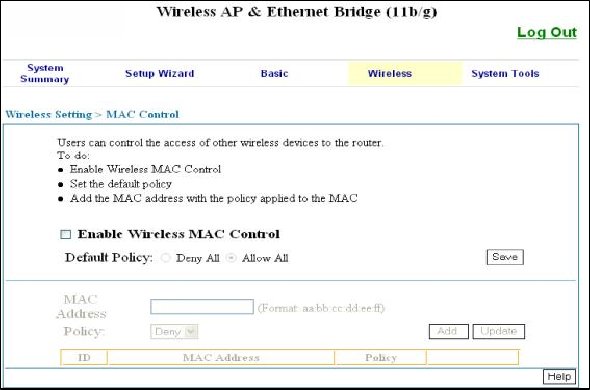

Wireless > MAC Address Control
This page allows you to specify which wireless computer can get access to the
internet and which wireless computer cannot access the internet. The specified MAC
address and the policy for the computer are reflected in the table.
Enable Wireless MAC Control: Tick to enable Wireless MAC Control.
Default Policy: This policy determines whether computers, whose MAC addresses
are not in the table, are able to access the Internet. If you choose Deny All, all
computer associated to the access point will not be able to access the internet other
than those specified in the table.
MAC Address: Enter the MAC address of the computer. The format for the MAC
address is aa:bb:cc:dd:ee:ff.
Policy: Choose to deny or allow the computer to access the computer. Click on the
Add button to add the policy.
IP Address pool: When ‘System Define’ is selected, router will assign IP address
automatically from the pre-defined pool. If ‘User Define’ is selected, you would have
to define the range of the pool manually.
IP Address pool (For User Defined only), Start Address: This is the start
address of the DHCP pool. The router will assign this to the first computer connected
to the router.
IP Address pool (For User Defined only), End Address: This is the end address
that the router will assign to the computers connected to the router.
Lease Time: The amount of time a network computer will be allowed to connect with the DHCP
Server. By default, the lease time is 2880 minutes.
23

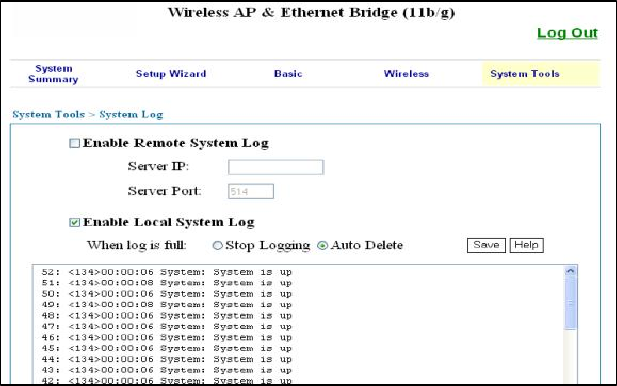

System Tools > System Log
This page allows you to configure the wireless AP to dump its status to a System Log
Server.
Enable Remote System Log: Enable this feature to allow the wireless to constantly
update its status on a System log Server.
System Log Server IP: Enter the IP Address of the System Log Server if you had
enabled Remote Logging.
System Log Server Port: Enter the port number the System Log Server is using.
Enable Local System Log: Enable this feature if you do not have a System log
Server. The events would then be logged locally on the Router.
Log Management when log is full (Stop Logging): When this option is chosen,
the Router will stop logging.
Log Management when log is full (Auto Delete): The maximum number of local
log entry is 200. When all the 200 entries are used up, the Router will overwrite
previous entries with new logs.
Remember to click Apply and Reboot for the settings to take effect.
24
System Tools > System Admin
This page allows you to change the Administrator’s Username and Password. The
default username and password is admin / admin. After every Factory Reset, the
Router reverts to this combination.
System Tools > Backup/Restore Settings
Use this page to preserve any good setting. You can save the configuration file into
your computer and upload it back to the wireless AP when the setting of your AP
when necessary. In addition, you can do a factory reset and restore the Access Point
back to factory default setting. The factory default setting is shown in the Factory
Reset section.
25

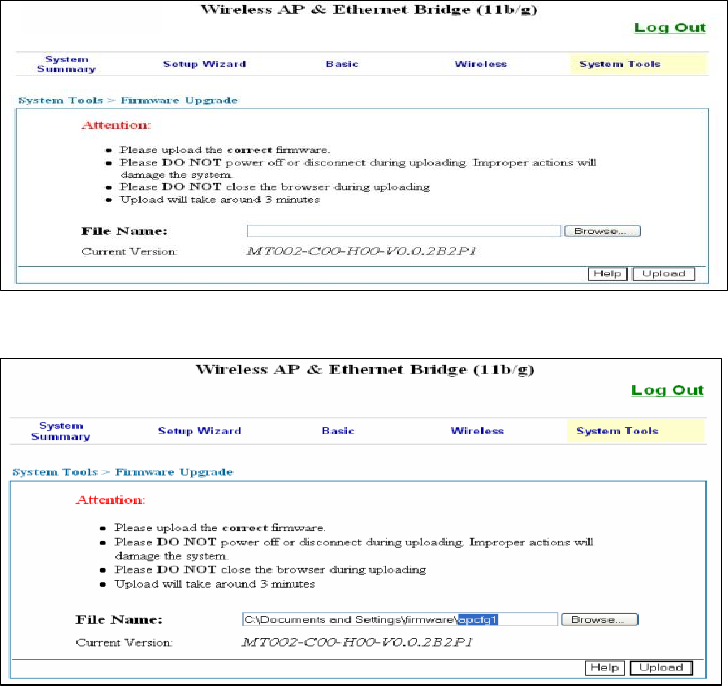

System Tools > Firmware Update
This page allows you to update the firmware (software) in the wireless AP. New
firmware is issued to improve the performance and provide additional features to the
product.
1. The new firmware is a file name “apimg1”.
2. Save the file in your PC.
3. Browse and select the firmware file.

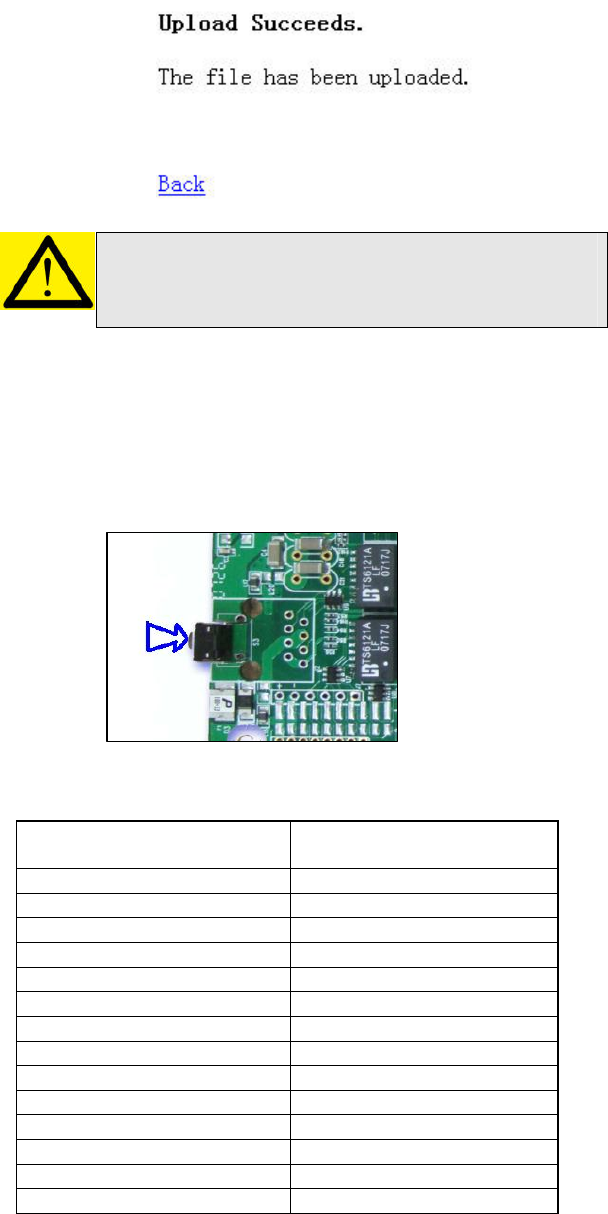

You will see the following page when firmware upgrading is successful.
26
6 FACTORY RESET
When you have wrongly configured the wireless Access Point and wish to start all
over again, you can perform a Factory Reset to restore the AP to its original state.
Simply use a paper clip or any pointed object to press in the switch button for 10
seconds and release.
The wireless Access Point would be reset to its original Factory Default configuration:
Access Point Feature
Factory Default
User Name admin
Password admin
WAN IP -
WAN subnet mask -
LAN IP 10.0.0.1
LAN subnet mask 255.255.255.0
SysLog Local System logging on
SSID 11g
Channel SmartSelect
MAC Address Control Off
Wireless Security Off
DMZ Off
Virtual Server Off
IP Filter Off.
Do not close the browser or shutdown the Router
during firmware upgrading. Failure to do so will
cause serious damage to Router.
27
7 TECHNICAL SUPPORT
For technical support, please contact the following local distributor or reseller.
8 DISCLAIMER
• Manufacturer assumes no responsibility for any damage or loss
resulting from the use of this manual.
• Manufacturer assumes no responsibility for any loss or claims by
third parties that may arise through the use of this product.
• Manufacturer assumes no responsibility for any damage or loss
caused by incorrect use of Wireless Access Point, 802.11g &
Ethernet Bridge.
• The contents of this manual are subject to change without prior
notice due to engineering improvement.
• No part of this manual may be reproduced in any form without the
express written consent of the Manufacturer.
• Sample displays shown in this Manual may differ somewhat from the
displays actually produced by the product.
• User Manual may differ for different firmware version.
• All brands and product names are trademarks or registered
trademarks of their respective holders.

Navigation menu
