INSTRUCTION MANUAL

MODEL T200H/M

NITROGEN OXIDES ANALYZER

9480 CARROLL PARK DRIVE

SAN DIEGO, CA 92121-5201

USA

Toll-free Phone: 800-324-5190

Phone: 858-657-9800

Fax: 858-657-9816

Email: api-sales@teledyne.com

Website: http://www.teledyne-api.com/

Teledyne Advanced Pollution Instrumentation 20 June 2012

ABOUT TELEDYNE ADVANCED POLLUTION INSTRUMENTATION (TAPI)

Teledyne Advanced Pollution Instrumentation, Inc. (TAPI) is a worldwide market

leader in the design and manufacture of precision analytical instrumentation used

for air quality monitoring, continuous emissions monitoring, and specialty process

monitoring applications. Founded in San Diego, California, in 1988, TAPI

introduced a complete line of Air Quality Monitoring (AQM) instrumentation,

which comply with the United States Environmental Protection Administration

(EPA) and international requirements for the measurement of criteria pollutants,

including CO, SO2, NOX and Ozone.

Since 1988 TAPI has combined state-of-the-art technology, proven measuring

principles, stringent quality assurance systems and world class after-sales

support to deliver the best products and customer satisfaction in the business.

For further information on our company, our complete range of products, and the

applications that they serve, please visit www.teledyne-api.com or contact

sales@teledyne-api.com.

NOTICE OF COPYRIGHT

TRADEMARKS

All trademarks, registered trademarks, brand names or product names appearing

in this document are the property of their respective owners and are used herein

for identification purposes only.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual

This page intentionally left blank.

07270B DCN6512

iii

SAFETY MESSAGES

Important safety messages are provided throughout this manual for the purpose of

avoiding personal injury or instrument damage. Please read these messages carefully.

Each safety message is associated with a safety alert symbol, and are placed

throughout this manual; the safety symbols are also located inside the instrument. It is

imperative that you pay close attention to these messages, the descriptions of which

are as follows:

WARNING: Electrical Shock Hazard

HAZARD: Strong oxidizer

GENERAL WARNING/CAUTION: Read the accompanying message for

specific information.

CAUTION: Hot Surface Warning

Do Not Touch: Touching some parts of the instrument without

protection or proper tools could result in damage to the part(s) and/or the

instrument.

Technician Symbol: All operations marked with this symbol are to be

performed by qualified maintenance personnel only.

Electrical Ground: This symbol inside the instrument marks the central

safety grounding point for the instrument.

CAUTION

This instrument should only be used for the purpose and in the manner described

in this manual. If you use this instrument in a manner other than that for which it

was intended, unpredictable behavior could ensue with possible hazardous

consequences.

NEVER use any gas analyzer to sample combustible gas(es)!

For Technical Assistance regarding the use and maintenance of this instrument or any other

Teledyne API product, contact Teledyne API’s Technical Support Department:

Telephone: 800-324-5190

Email: sda_techsupport@teledyne.com

or access any of the service options on our website at http://www.teledyne-api.com/

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual

CONSIGNES DE SÉCURITÉ

Des consignes de sécurité importantes sont fournies tout au long du présent manuel

dans le but d’éviter des blessures corporelles ou d’endommager les instruments.

Veuillez lire attentivement ces consignes. Chaque consigne de sécurité est

représentée par un pictogramme d’alerte de sécurité; ces pictogrammes se retrouvent

dans ce manuel et à l’intérieur des instruments. Les symboles correspondent aux

consignes suivantes :

AVERTISSEMENT : Risque de choc électrique

DANGER : Oxydant puissant

AVERTISSEMENT GÉNÉRAL / MISE EN GARDE : Lire la consigne

complémentaire pour des renseignements spécifiques

MISE EN GARDE : Surface chaude

Ne pas toucher : Toucher à certaines parties de l’instrument sans protection ou

sans les outils appropriés pourrait entraîner des dommages aux pièces ou à

l’instrument.

Pictogramme « technicien » : Toutes les opérations portant ce symbole doivent

être effectuées uniquement par du personnel de maintenance qualifié.

Mise à la terre : Ce symbole à l’intérieur de l’instrument détermine le point central

de la mise à la terre sécuritaire de l’instrument.

MISE EN GARDE

Cet instrument doit être utilisé aux fins décrites et de la manière décrite dans

ce manuel. Si vous utilisez cet instrument d’une autre manière que celle pour

laquelle il a été prévu, l’instrument pourrait se comporter de façon imprévisible

et entraîner des conséquences dangereuses.

NE JAMAIS utiliser un analyseur de gaz pour échantillonner des gaz

combustibles!

07270B DCN6512

WARRANTY

WARRANTY POLICY (02024 F)

Teledyne Advanced Pollution Instrumentation (TAPI), a business unit of Teledyne

Instruments, Inc., provides that:

Prior to shipment, TAPI equipment is thoroughly inspected and tested. Should equipment

failure occur, TAPI assures its customers that prompt service and support will be available.

COVERAGE

After the warranty period and throughout the equipment lifetime, TAPI stands ready to

provide on-site or in-plant service at reasonable rates similar to those of other manufacturers

in the industry. All maintenance and the first level of field troubleshooting are to be

performed by the customer.

NON-TAPI MANUFACTURED EQUIPMENT

Equipment provided but not manufactured by TAPI is warranted and will be repaired to the

extent and according to the current terms and conditions of the respective equipment

manufacturer’s warranty.

PRODUCT RETURN

All units or components returned to Teledyne API should be properly packed for

handling and returned freight prepaid to the nearest designated Service Center. After the

repair, the equipment will be returned, freight prepaid.

The complete Terms and Conditions of Sale can be reviewed at http://www.teledyne-

api.com/terms_and_conditions.asp

CAUTION – Avoid Warranty Invalidation

Failure to comply with proper anti-Electro-Static Discharge (ESD) handling and packing instructions

and Return Merchandise Authorization (RMA) procedures when returning parts for repair or

calibration may void your warranty. For anti-ESD handling and packing instructions please refer to

“Packing Components for Return to Teledyne API’s Customer Service” in the Primer on Electro-

Static Discharge section of this manual, and for RMA procedures please refer to our Website at

http://www.teledyne-api.com under Customer Support > Return Authorization.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual

This page intentionally left blank.

07270B DCN6512

vii

ABOUT THIS MANUAL

This manual is comprised of multiple documents, in PDF format, as listed below.

Part No. Rev Name/Description

07270 B T200H/M Operation Manual

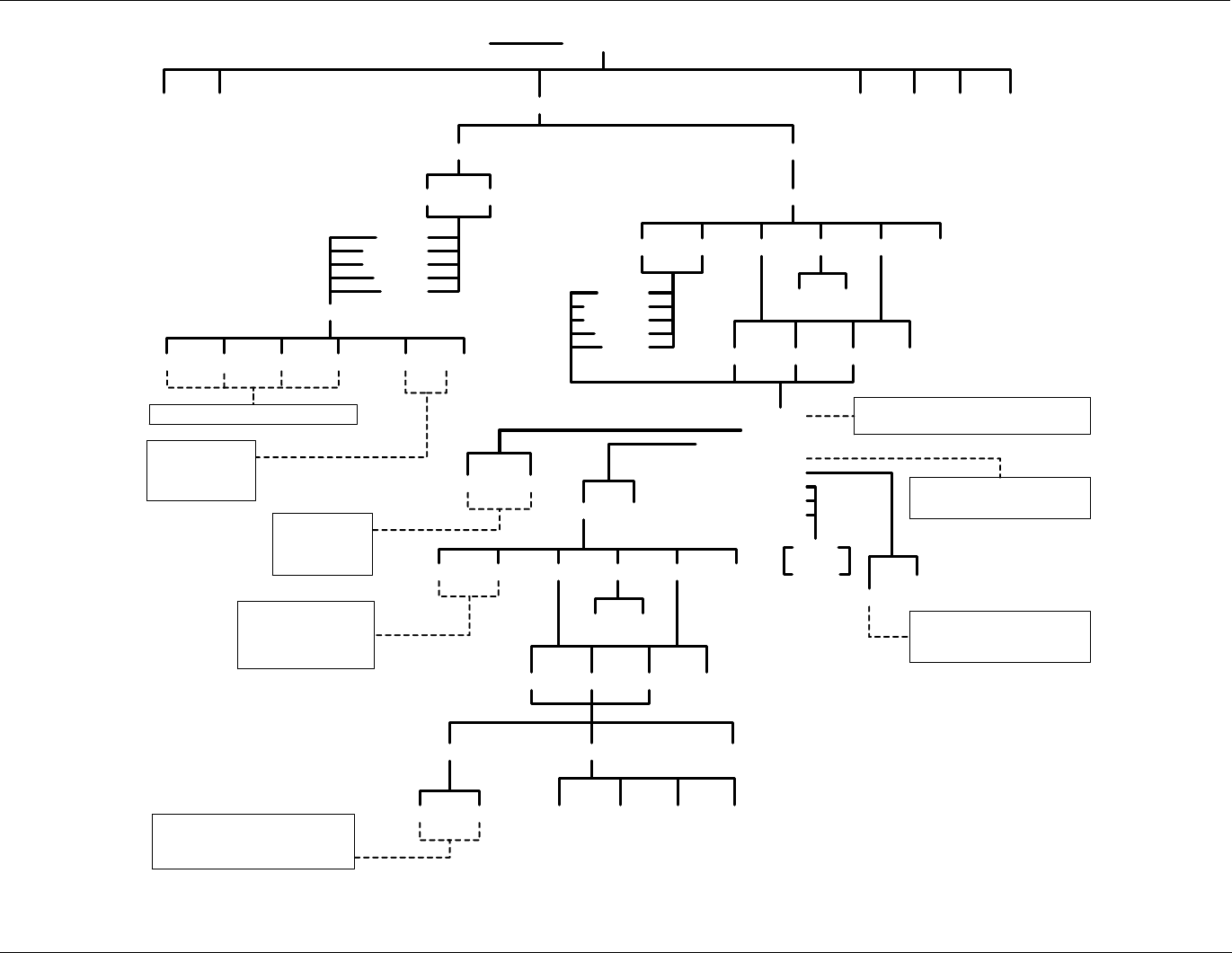

05147 H Menu Trees and Software Documentation (inserted as Appendix A in this manual)

07351 A Spare Parts List - T200H (located in Appendix B of this manual)

07367 A Spare Parts List - T200M (located in Appendix B of this manual)t

05149 B Repair Request Form (inserted as Appendix C in this manual)

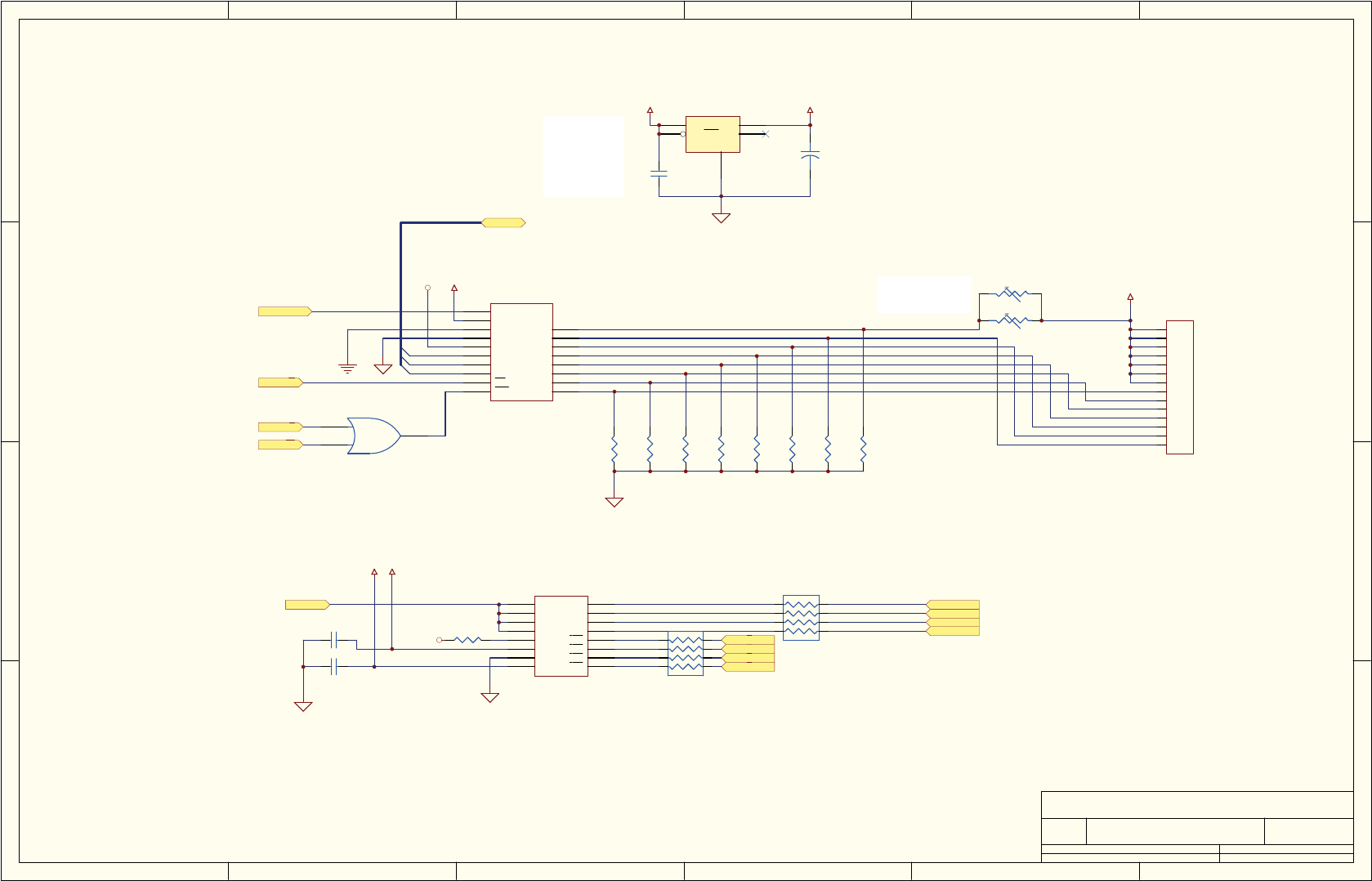

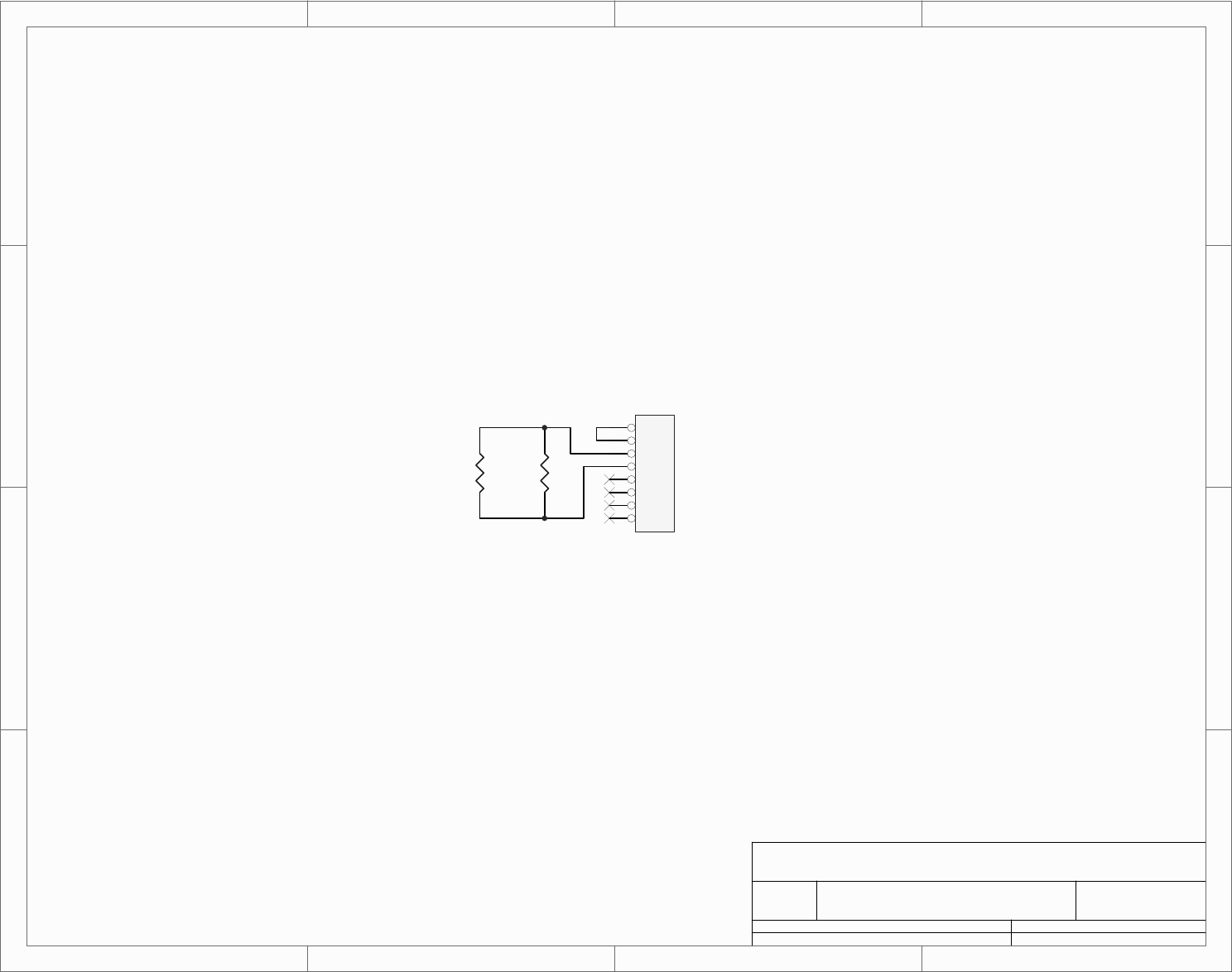

Documents included in Appendix D:

0691101 A Interconnect Wire List

06911 A Interconnect Wiring Diagram

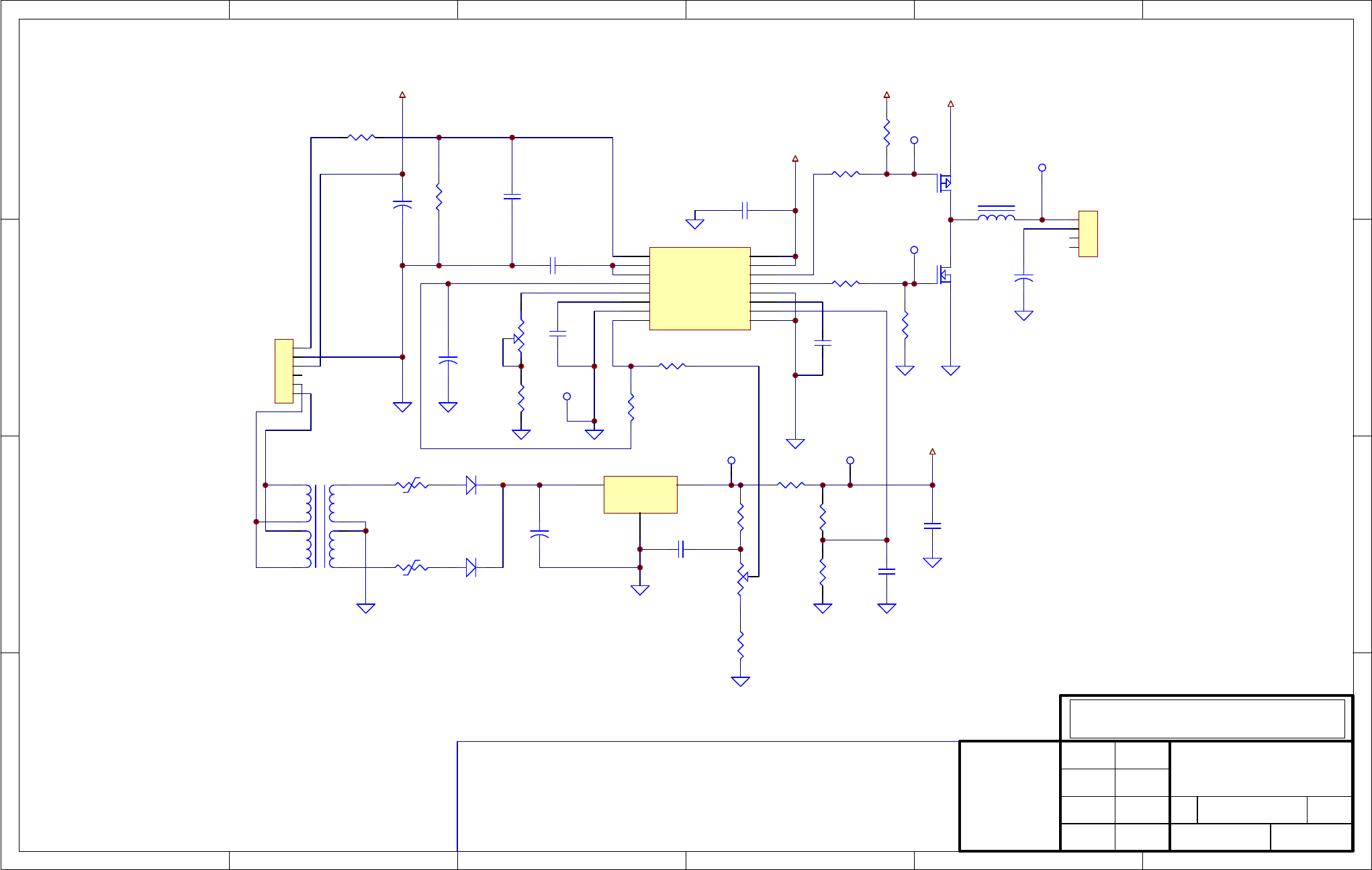

01669 G PCA 016680300, Ozone generator board

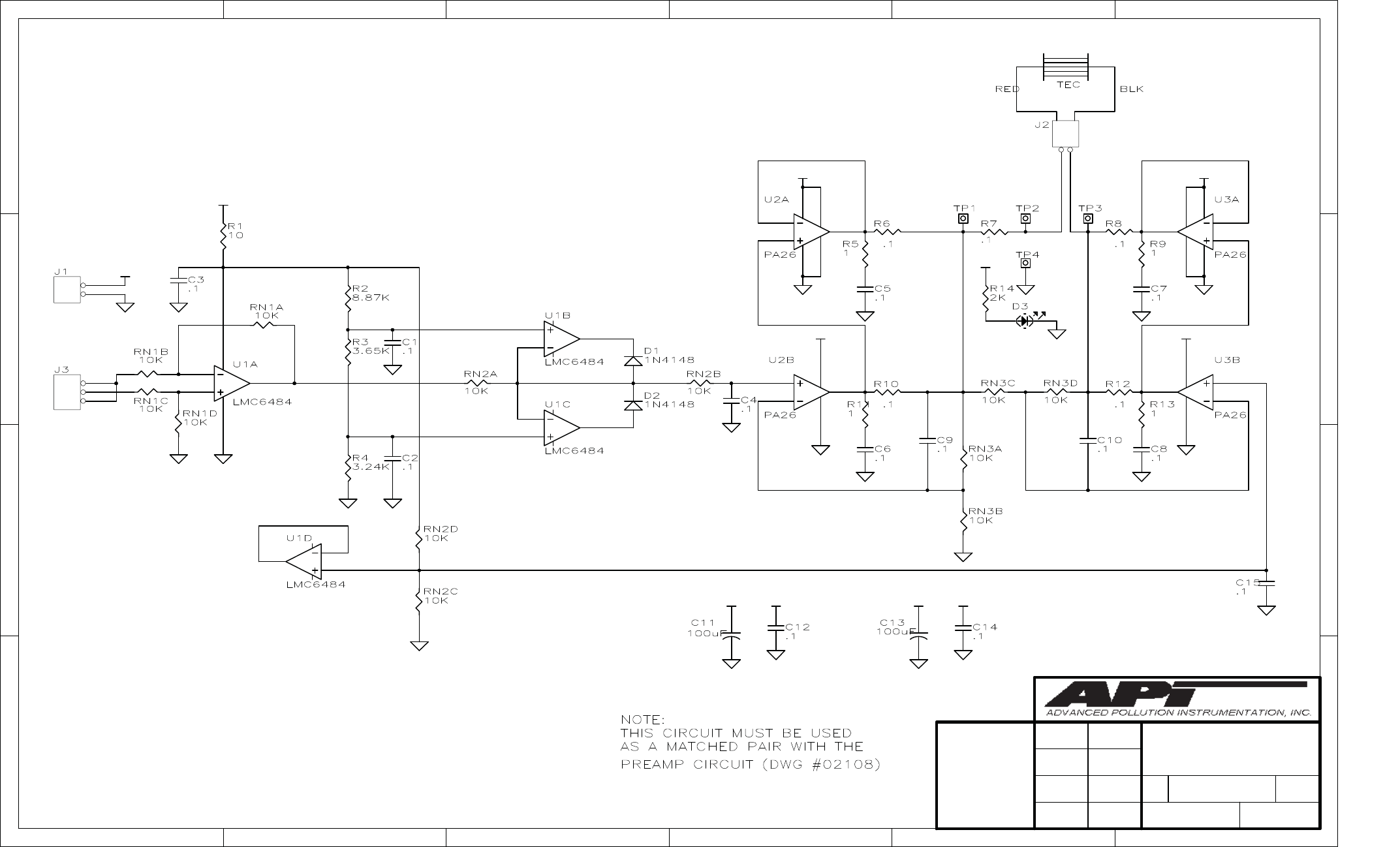

01840 B PCA Thermo-electric cooler board

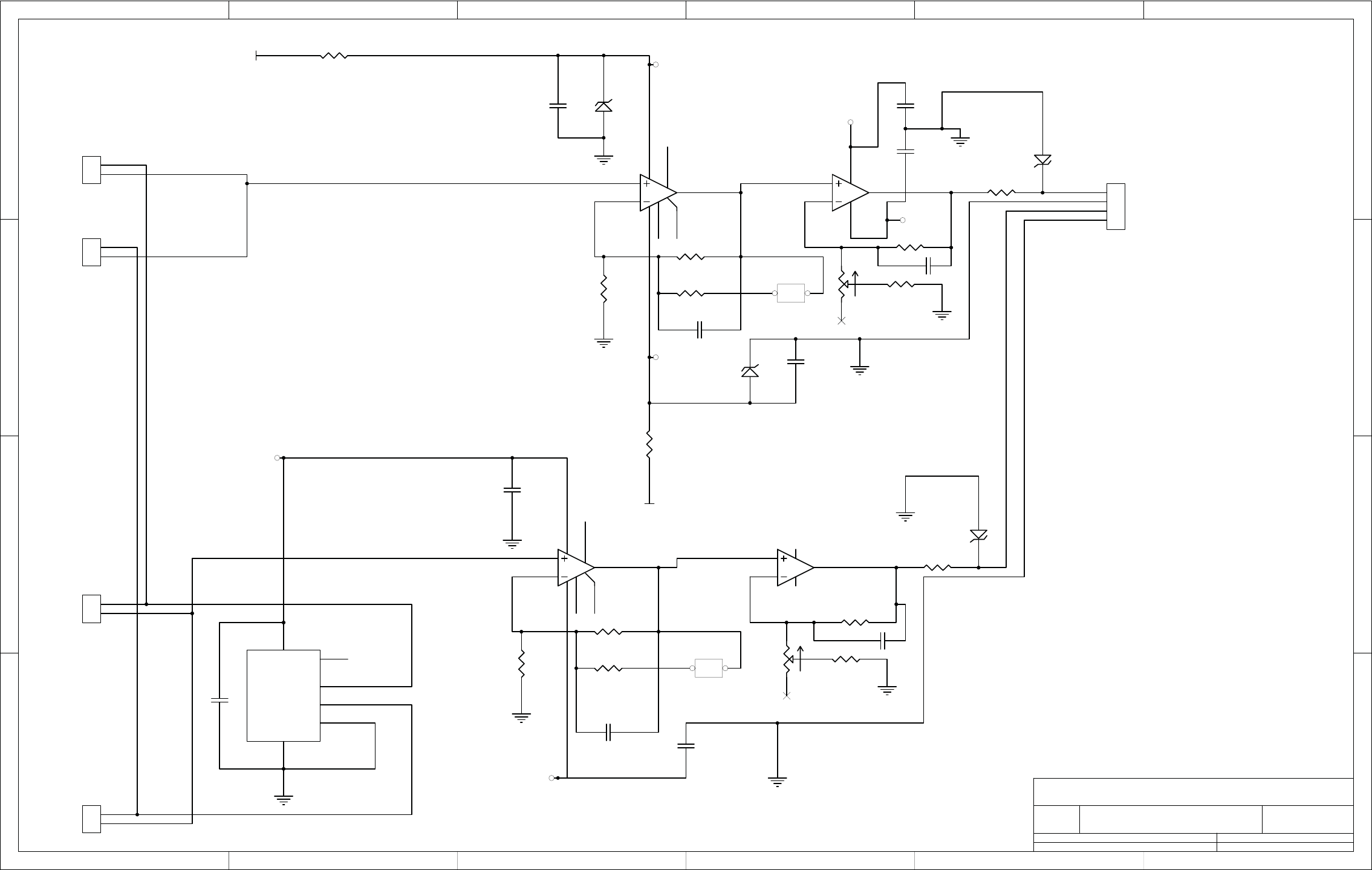

03632 A PCA 03631, 0-20mA Driver

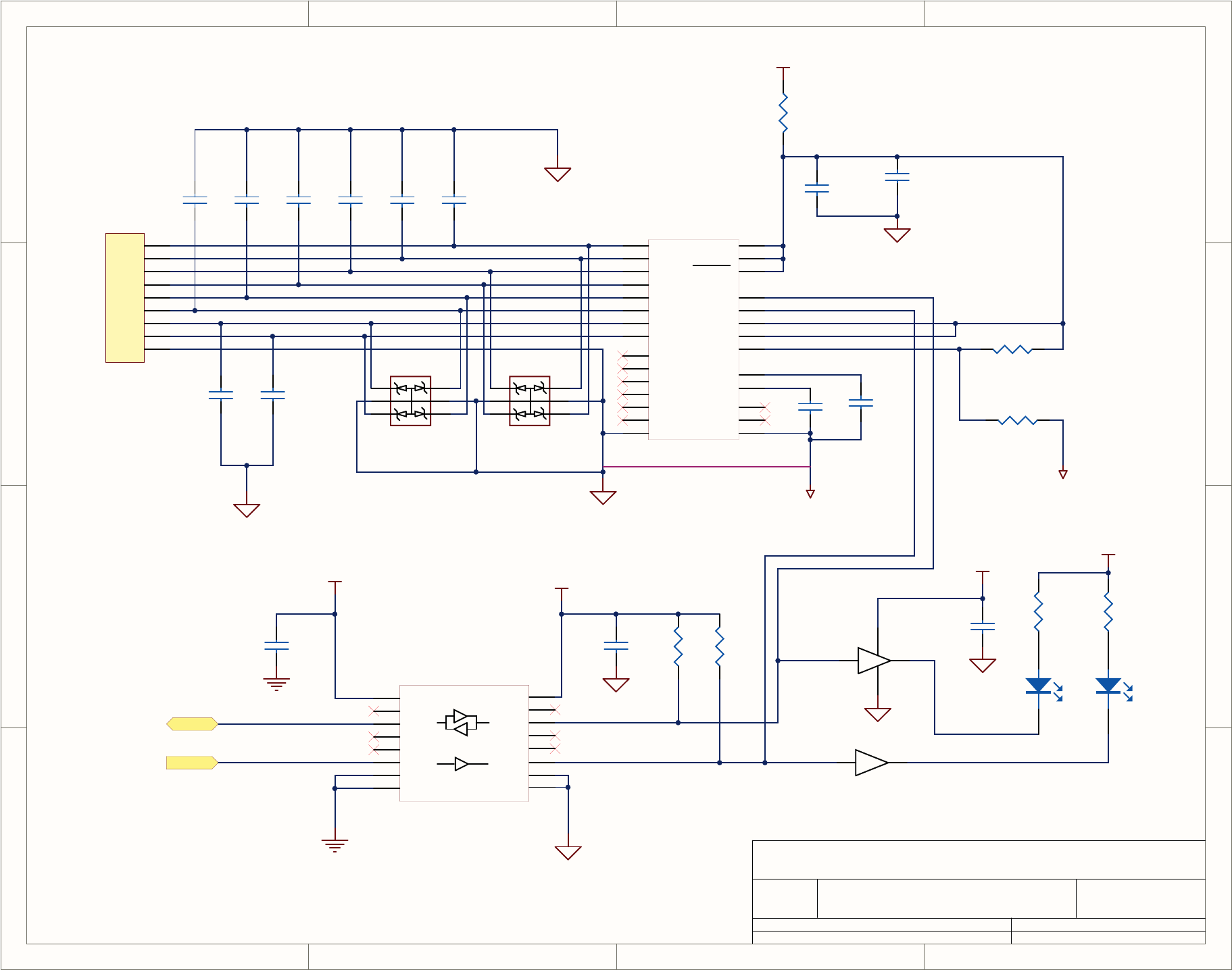

03956 A PCA 039550200, Relay Board

04354 D PCA 04003, Pressure/Flow Transducer Interface

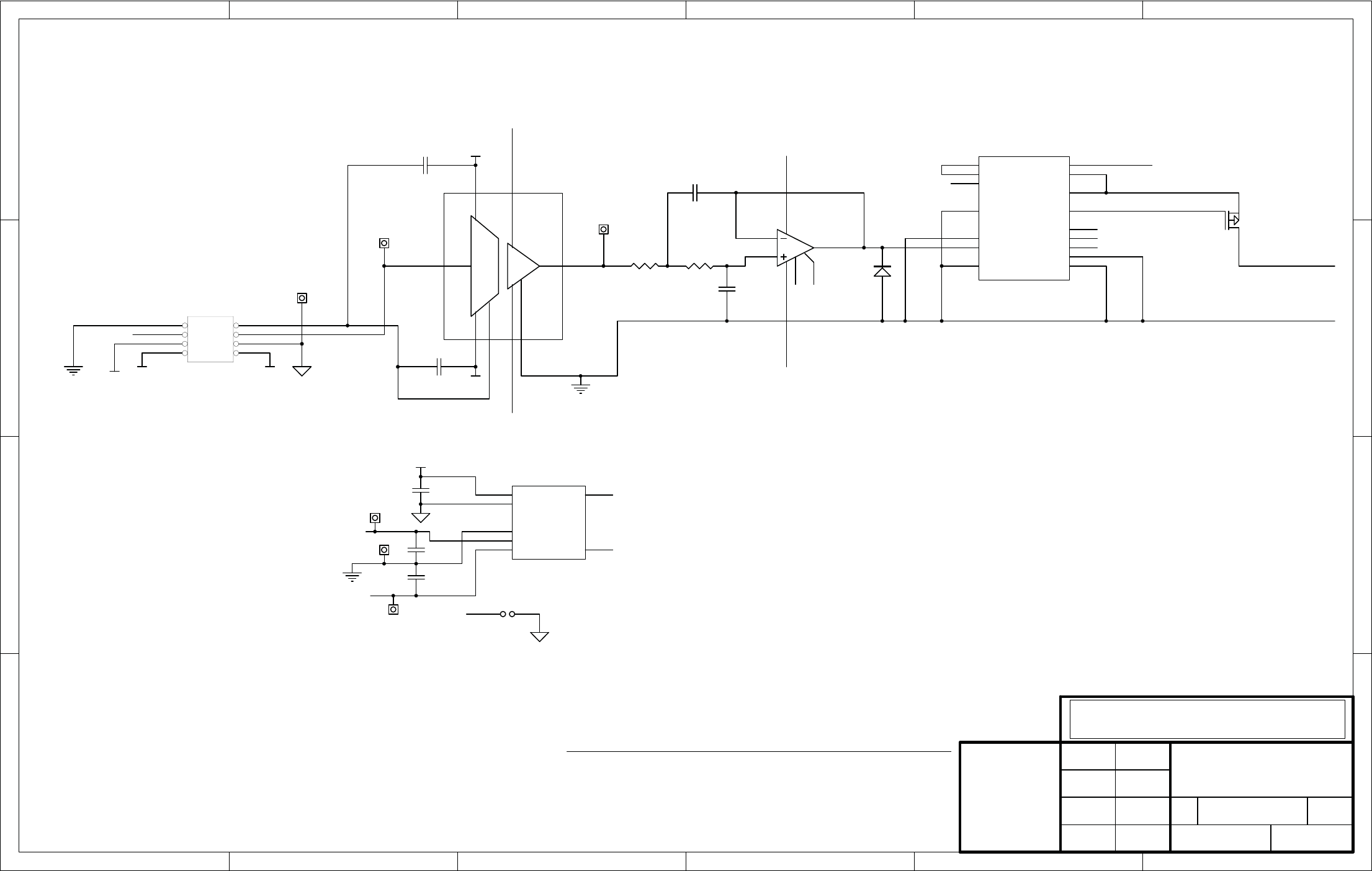

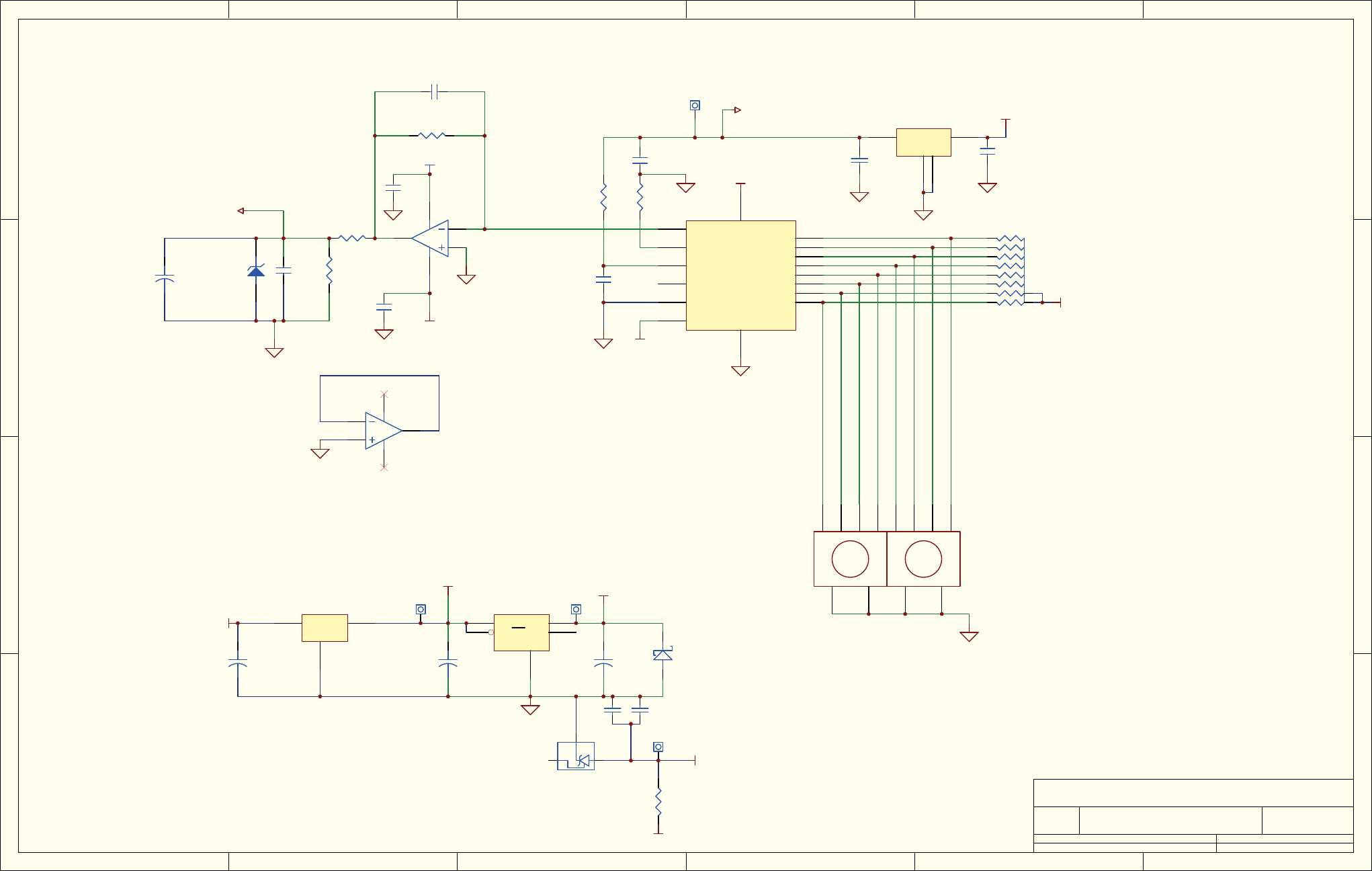

04181 H PCA 041800200, PMT pre-amplifier board

04468 B PCA, 04467, Analog Output

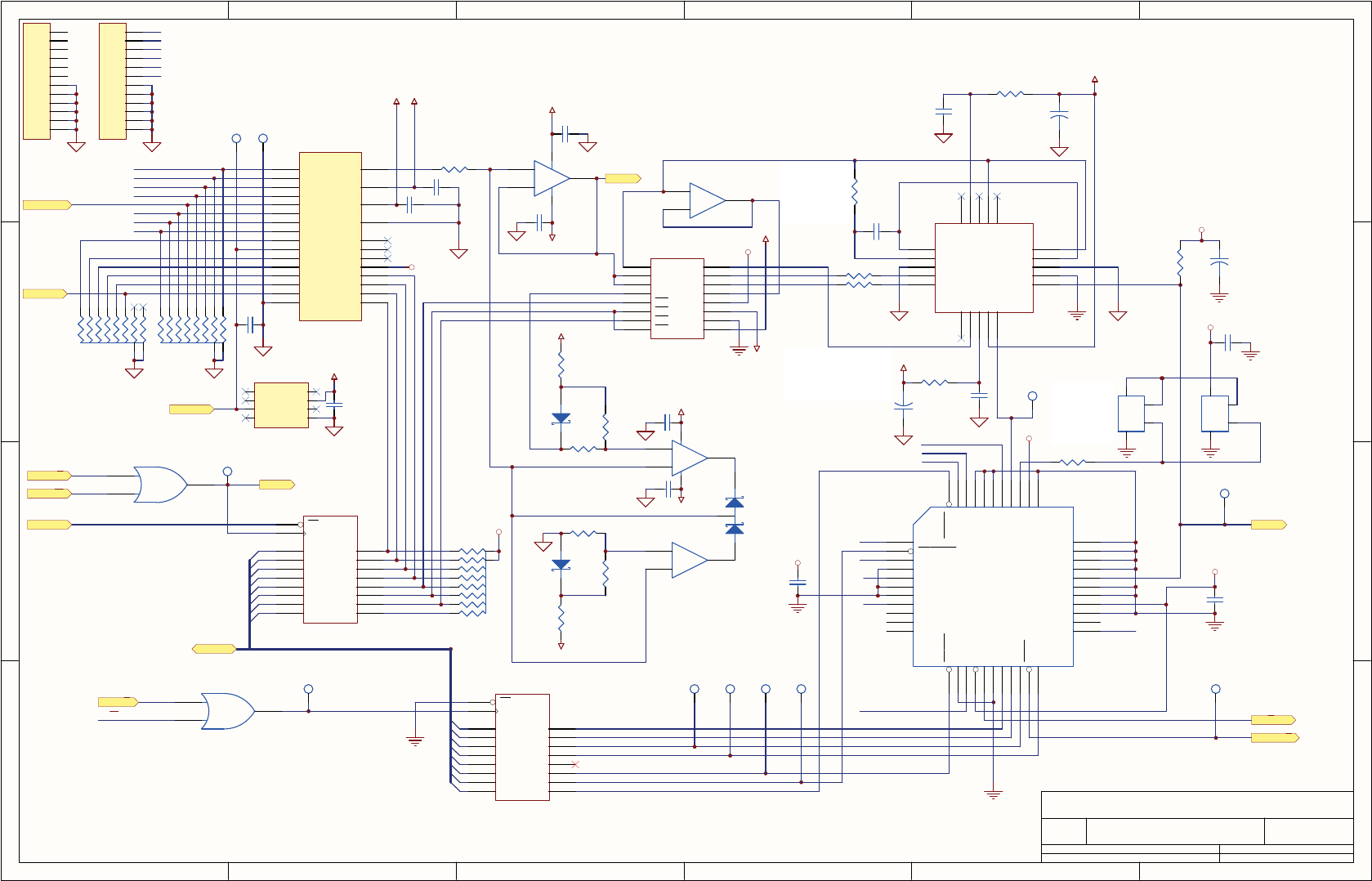

01840 B SCH, PCA 05802, MOTHERBOARD, GEN-5

03632 D SCH, PCA 06697, INTRFC, LCD TCH SCRN,

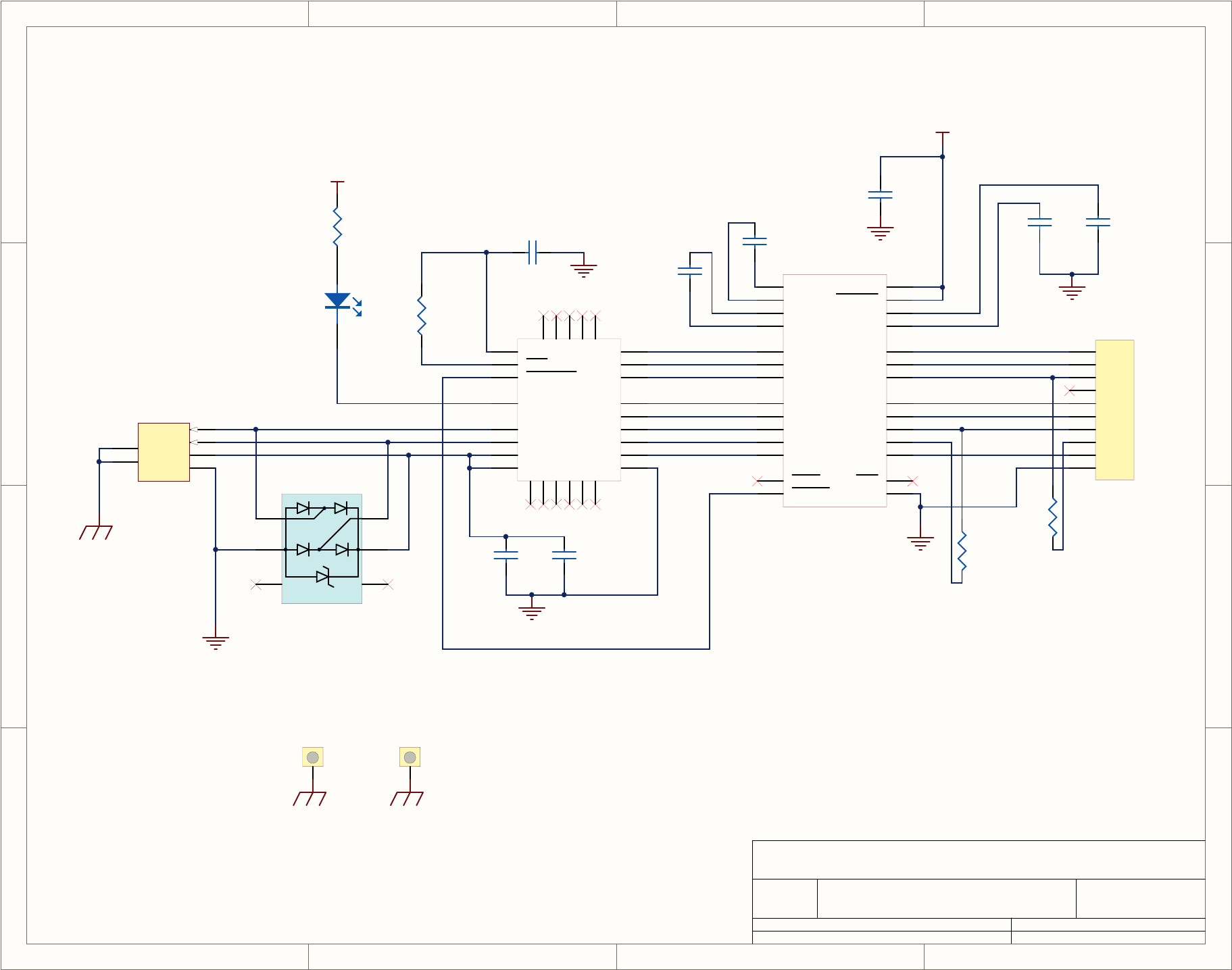

03956 B SCH, LVDS TRANSMITTER BOARD

06731 A SCH, AUXILLIARY-I/O BOARD

Note We recommend that all users read this manual in its entirety before

operating the instrument.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual

viii

This page intentionally left blank.

07270B DCN6512

REVISION HISTORY

This section provides information regarding changes to this manual.

T200H/T200M Operation Manual PN 07270

Date Rev DCN Change Summary

2012 June 20 B 6512 Administrative updates

2011 March 04 A 5999 Initial Release

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual

This page intentionally left blank.

07270B DCN6512

TABLE OF CONTENTS

ABOUT TELEDYNE ADVANCED POLLUTION INSTRUMENTATION (TAPI) ............................................................................... i

SAFETY MESSAGES..................................................................................................................................................................iii

CONSIGNES DE SÉCURITÉ...................................................................................................................................................... iv

Warranty ...................................................................................................................................................................................... v

About This Manual ......................................................................................................................................................................vii

Revision History .......................................................................................................................................................................... ix

Table of Contents........................................................................................................................................................................ xi

List of Figures.............................................................................................................................................................................xiv

List of Tables..............................................................................................................................................................................xvi

LIST OF APPENDICES ............................................................................................................................................................xvii

1. Introduction, Features, and Options.......................................................................................................................................19

1.1. Overview ........................................................................................................................................................................19

1.2. Features .........................................................................................................................................................................19

1.3. Using This Manual..........................................................................................................................................................19

1.4. Options...........................................................................................................................................................................20

2. Specifications and Approvals .................................................................................................................................................23

2.1. T200H/M Operating Specifications.................................................................................................................................23

2.2. Approvals and Certifications...........................................................................................................................................24

2.2.1. Safety .....................................................................................................................................................................24

2.2.2. EMC........................................................................................................................................................................24

3. Getting Started.......................................................................................................................................................................25

3.1. Unpacking and Initial Setup............................................................................................................................................25

3.2. Ventilation Clearance .....................................................................................................................................................26

3.3. T200H/M Layout.............................................................................................................................................................26

3.4. Electrical Connections....................................................................................................................................................32

3.4.1. Power Connection ..................................................................................................................................................32

3.4.2. Analog Inputs (Option 64) Connections..................................................................................................................33

3.4.3. Analog Output Connections....................................................................................................................................33

3.4.4. Connecting the Status Outputs...............................................................................................................................34

3.4.5. Current Loop Analog Outputs (OPT 41) Setup .......................................................................................................36

3.4.6. Connecting the Control Inputs ................................................................................................................................38

3.4.7. Connecting the Alarm Relay Option (OPT 61)........................................................................................................39

3.4.8. Connecting the Communications Ports...................................................................................................................40

3.5. Pneumatic Connections .................................................................................................................................................42

3.5.1. About Zero Air and Calibration (Span) Gases ........................................................................................................42

3.5.2. Pneumatic Connections to T200H/M Basic Configuration ......................................................................................44

3.5.3. Connections with Internal Valve Options Installed..................................................................................................49

3.6. Initial Operation ..............................................................................................................................................................59

3.6.1. Startup....................................................................................................................................................................59

3.6.2. Warning Messages.................................................................................................................................................59

3.6.3. Functional Check....................................................................................................................................................60

3.7. Calibration ......................................................................................................................................................................61

3.7.1. Basic NOx Calibration Procedure............................................................................................................................61

3.7.2. Basic O2 Sensor Calibration Procedure..................................................................................................................66

4. Operating Instructions ............................................................................................................................................................71

4.1. Overview of Operating Modes ........................................................................................................................................71

4.2. Sample Mode .................................................................................................................................................................73

4.2.1. Test Functions ........................................................................................................................................................73

4.2.2. Warning Messages.................................................................................................................................................75

4.3. Calibration Mode ............................................................................................................................................................77

4.3.1. Calibration Functions..............................................................................................................................................77

4.4. SETUP MODE................................................................................................................................................................77

4.5. SETUP  CFG: Viewing the Analyzer’s Configuration Information ...............................................................................78

4.6. SETUP  ACAL: Automatic Calibration.........................................................................................................................79

4.7. SETUP  DAS - Using the Data Acquisition System (DAS).........................................................................................80

4.7.1. DAS Structure.........................................................................................................................................................81

4.7.2. Default DAS Channels............................................................................................................................................83

4.7.3. Remote DAS Configuration ....................................................................................................................................96

07270B DCN6512

Table of Contents Teledyne API - Model T200H/T200M Operation Manual

xii

4.8. SETUP  RNGE: Range Units and Dilution Configuration............................................................................................97

4.8.1. Range Units............................................................................................................................................................97

4.8.2. Dilution Ratio ..........................................................................................................................................................98

4.9. SETUP  PASS: Password Feature .............................................................................................................................99

4.10. SETUP  CLK: Setting the Internal Time-of-Day Clock ............................................................................................101

4.11. SETUP  MORE  COMM: Setting Up the Analyser’s Communication Ports .........................................................103

4.11.1. DTE and DCE Communication ...........................................................................................................................103

4.11.2. COM Port Default Settings .................................................................................................................................103

4.11.3. Communication Modes, Baud Rate and Port Testing.........................................................................................104

4.11.4. Analyzer ID.........................................................................................................................................................108

4.11.5. RS-232 COM Port Cable Connections ...............................................................................................................109

4.11.6. RS-485 Configuration of COM2..........................................................................................................................111

4.11.7. Ethernet Interface Configuration.........................................................................................................................111

4.11.8. USB Port Setup ..................................................................................................................................................117

4.11.9. Multidrop RS-232 Set Up....................................................................................................................................119

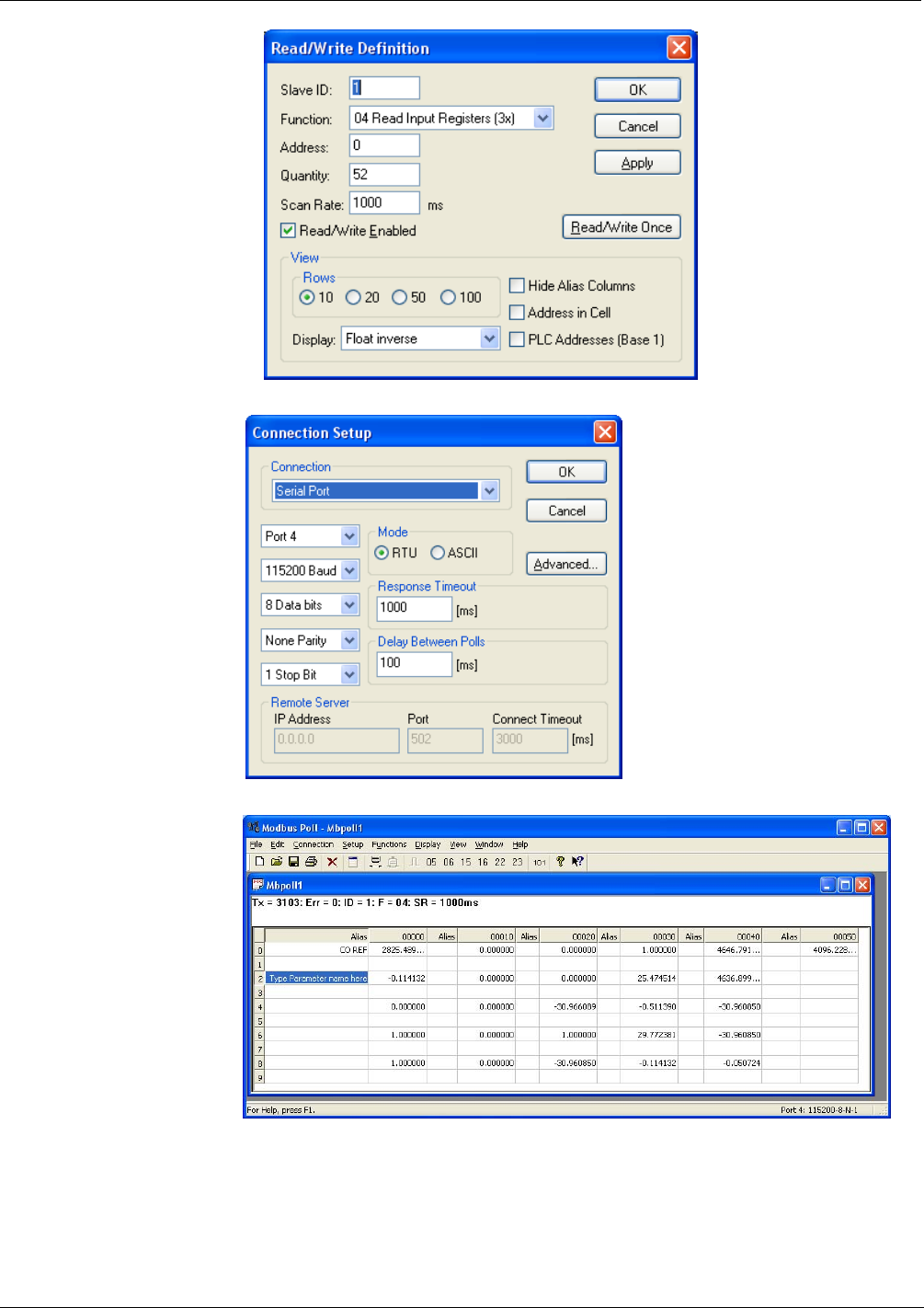

4.11.10. MODBUS SETUP.............................................................................................................................................122

4.12. SETUP  MORE  VARS: Internal Variables (VARS) .............................................................................................124

4.12.1. Setting the Gas Measurement Mode ..................................................................................................................126

4.13. SETUP  MORE  DIAG: Diagnostics MENU........................................................................................................127

4.13.1. Accessing the Diagnostic Features.....................................................................................................................128

4.13.2. Signal I/O............................................................................................................................................................128

4.13.3. Analog Output Step Test ....................................................................................................................................130

4.13.4. ANALOG OUTPUTS and Reporting Ranges......................................................................................................131

4.13.5. ANALOG I/O CONFIGURATION........................................................................................................................134

4.13.6. ANALOG OUTPUT CALIBRATION ....................................................................................................................148

4.13.7. OTHER DIAG MENU FUNCTIONS ....................................................................................................................158

4.14. SETUP – ALRM: Using the optional Gas Concentration Alarms (OPT 67) ................................................................166

4.15. Remote Operation ......................................................................................................................................................167

4.15.1. Remote Operation Using the External Digital I/O ...............................................................................................167

4.15.2. Remote Operation ..............................................................................................................................................169

4.15.3. Additional Communications Documentation .......................................................................................................176

4.15.4. Using the T200H/M with a Hessen Protocol Network .........................................................................................176

5. Calibration Procedures.........................................................................................................................................................183

5.1.1. Interferents for NOX Measurements......................................................................................................................183

5.2. Calibration Preparations...............................................................................................................................................184

5.2.1. Required Equipment, Supplies, and Expendables................................................................................................184

5.2.2. Zero Air.................................................................................................................................................................184

5.2.3. Span Calibration Gas Standards & Traceability....................................................................................................185

5.2.4. Data Recording Devices.......................................................................................................................................186

5.2.5. NO2 Conversion Efficiency (CE) ........................................................................................................................... 186

5.3. Manual Calibration .......................................................................................................................................................191

5.4. Calibration Checks .......................................................................................................................................................195

5.5. Manual Calibration with Zero/Span Valves...................................................................................................................196

5.6. Calibration Checks with Zero/Span Valves...................................................................................................................199

5.7. Calibration With Remote Contact Closures ..................................................................................................................200

5.8. Automatic Calibration (AutoCal) ...................................................................................................................................201

5.9. Calibration Quality Analysis..........................................................................................................................................204

6. Instrument Maintenance.......................................................................................................................................................205

6.1. Maintenance Schedule.................................................................................................................................................205

6.2. Predictive Diagnostics ..................................................................................................................................................207

6.3. Maintenance Procedures..............................................................................................................................................207

6.3.1. Changing the Sample Particulate Filter ................................................................................................................207

6.3.2. Changing the O3 Dryer Particulate Filter...............................................................................................................209

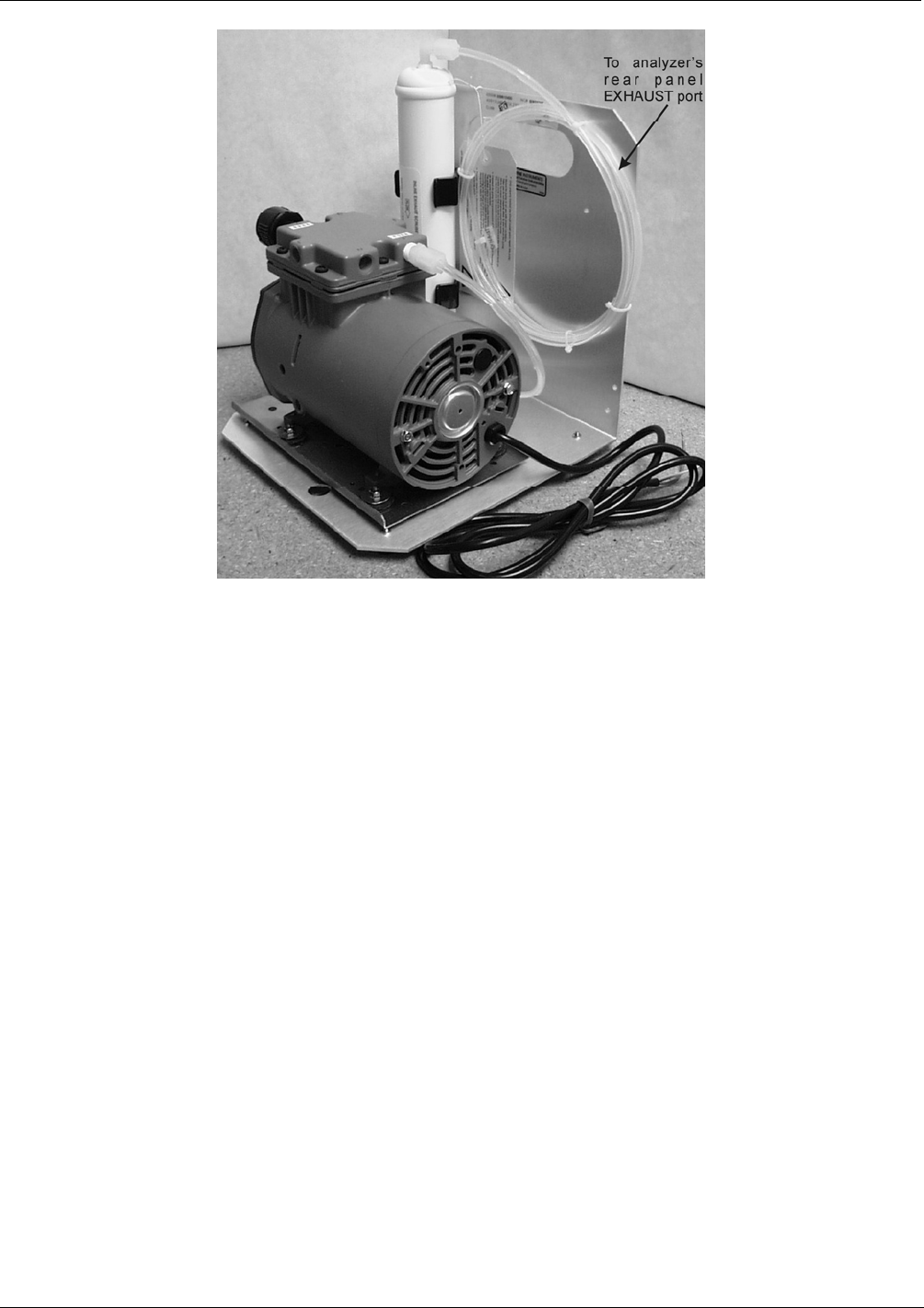

6.3.3. Maintaining the External Sample Pump................................................................................................................210

6.3.4. Changing the NO2 converter.................................................................................................................................211

6.3.5. Cleaning the Reaction Cell ...................................................................................................................................212

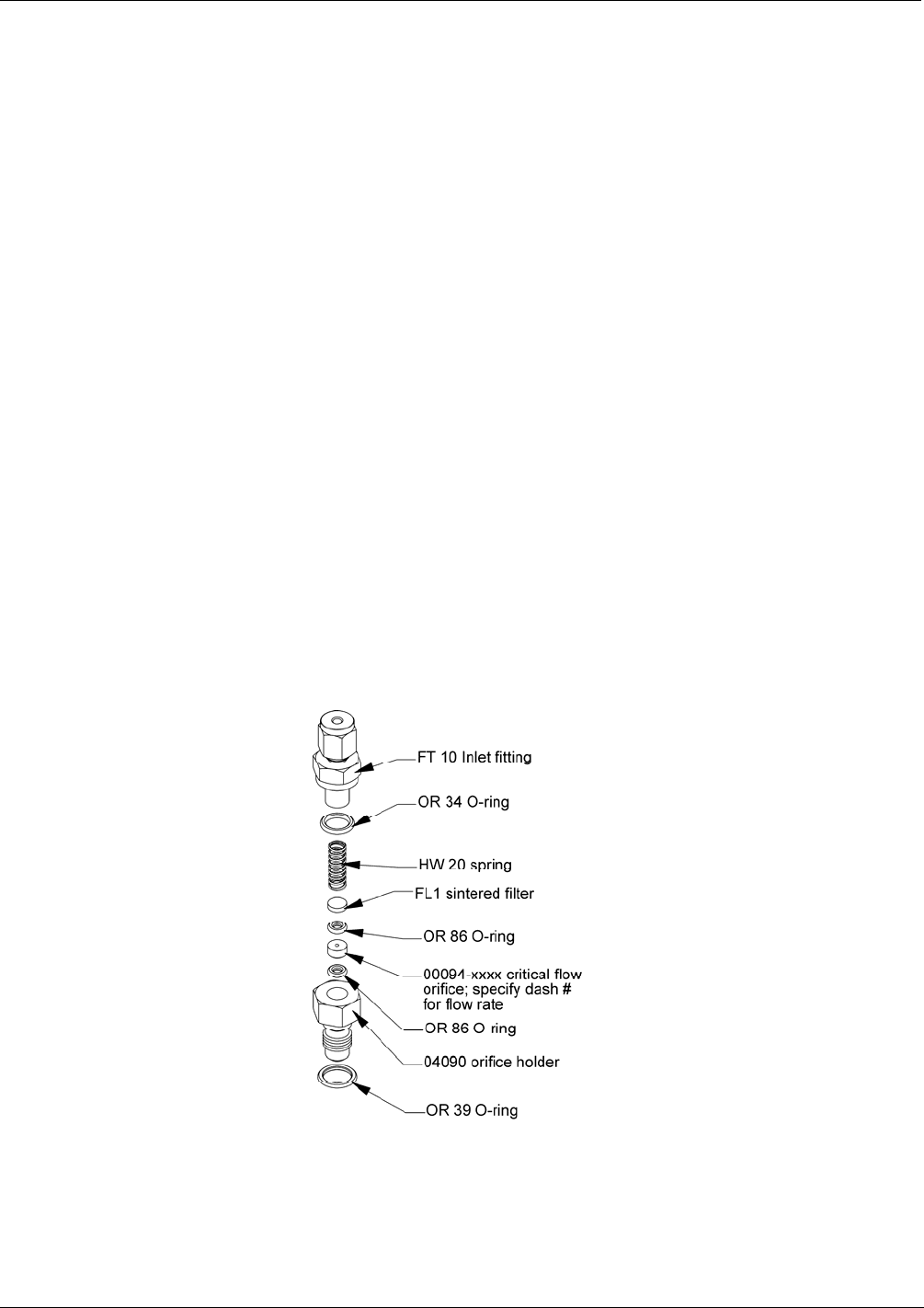

6.3.6. Changing Critical Flow Orifices.............................................................................................................................214

6.3.7. Checking for Light Leaks ......................................................................................................................................215

7. Troubleshooting & Repair ....................................................................................................................................................217

7.1. General Troubleshooting..............................................................................................................................................217

7.1.1. Fault Diagnosis with Warning Messages..............................................................................................................218

7.1.2. Fault Diagnosis with Test Functions .....................................................................................................................219

7.1.3. Using the Diagnostic Signal I/O Function .............................................................................................................220

7.1.4. Status LED’s.........................................................................................................................................................222

7.2. Gas Flow Problems ......................................................................................................................................................225

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Table of Contents

xiii

7.2.1. T200H Internal Gas Flow Diagrams......................................................................................................................226

7.2.2. T200M Internal Gas Flow Diagrams .....................................................................................................................229

7.2.3. Zero or Low Flow Problems..................................................................................................................................231

7.2.4. High Flow..............................................................................................................................................................233

7.2.5. Sample Flow is Zero or Low But Analyzer Reports Correct Flow .........................................................................233

7.3. Calibration Problems ....................................................................................................................................................234

7.3.1. Negative Concentrations ......................................................................................................................................234

7.3.2. No Response........................................................................................................................................................234

7.3.3. Unstable Zero and Span.......................................................................................................................................235

7.3.4. Inability to Span - No SPAN Key ..........................................................................................................................235

7.3.5. Inability to Zero - No ZERO Button .......................................................................................................................236

7.3.6. Non-Linear Response...........................................................................................................................................236

7.3.7. Discrepancy Between Analog Output and Display ...............................................................................................237

7.3.8. Discrepancy between NO and NOX slopes...........................................................................................................237

7.4. Other Performance Problems.......................................................................................................................................237

7.4.1. Excessive noise....................................................................................................................................................238

7.4.2. Slow Response.....................................................................................................................................................238

7.4.3. Auto-zero Warnings..............................................................................................................................................238

7.5. Subsystem Checkout ...................................................................................................................................................239

7.5.1. Simple Leak Check using Vacuum and Pump......................................................................................................239

7.5.2. Detailed Leak Check Using Pressure ...................................................................................................................239

7.5.3. Performing a Sample Flow Check ........................................................................................................................240

7.5.4. AC Power Configuration .......................................................................................................................................241

7.5.5. DC Power Supply Test Points .............................................................................................................................. 245

7.5.6. I2C Bus .................................................................................................................................................................245

7.5.7. Touch Screen Interface ........................................................................................................................................246

7.5.8. LCD Display Module.............................................................................................................................................246

7.5.9. General Relay Board Diagnostics.........................................................................................................................246

7.5.10. Motherboard .......................................................................................................................................................247

7.5.11. CPU....................................................................................................................................................................249

7.5.12. RS-232 Communication......................................................................................................................................250

7.5.13. PMT Sensor........................................................................................................................................................251

7.5.14. PMT Preamplifier Board .....................................................................................................................................251

7.5.15. High Voltage Power Supply................................................................................................................................251

7.5.16. Pneumatic Sensor Assembly..............................................................................................................................252

7.5.17. NO2 Converter ....................................................................................................................................................253

7.5.18. O3 Generator ......................................................................................................................................................255

7.5.19. Box Temperature................................................................................................................................................255

7.5.20. PMT Temperature...............................................................................................................................................255

7.6. Repair Procedures .......................................................................................................................................................256

7.6.1. Disk-on-Module Replacement ..............................................................................................................................256

7.6.2. O3 Generator Replacement ..................................................................................................................................257

7.6.3. Sample and Ozone Dryer Replacement ...............................................................................................................257

7.6.4. PMT Sensor Hardware Calibration .......................................................................................................................258

7.6.5. Replacing the PMT, HVPS or TEC .......................................................................................................................260

7.7. Removing / Replacing the Relay PCA from the Instrument..........................................................................................263

7.8. Frequently Asked Questions ........................................................................................................................................264

7.9. Technical Assistance....................................................................................................................................................265

8. Principles of Operation.........................................................................................................................................................267

8.1. Measurement Principle.................................................................................................................................................267

8.1.1. Chemiluminescence .............................................................................................................................................267

8.1.2. NOX and NO2 Determination ................................................................................................................................. 269

8.2. Chemiluminescence Detection .....................................................................................................................................270

8.2.1. The Photo Multiplier Tube.....................................................................................................................................270

8.2.2. Optical Filter .........................................................................................................................................................270

8.2.3. Auto Zero..............................................................................................................................................................271

8.2.4. Measurement Interferences..................................................................................................................................272

8.3. Pneumatic Operation....................................................................................................................................................274

8.3.1. Pump and Exhaust Manifold.................................................................................................................................274

8.3.2. Sample Gas Flow .................................................................................................................................................275

8.3.3. Flow Rate Control - Critical Flow Orifices .............................................................................................................276

8.3.4. Sample Particulate Filter.......................................................................................................................................280

8.3.5. Ozone Gas Air Flow..............................................................................................................................................281

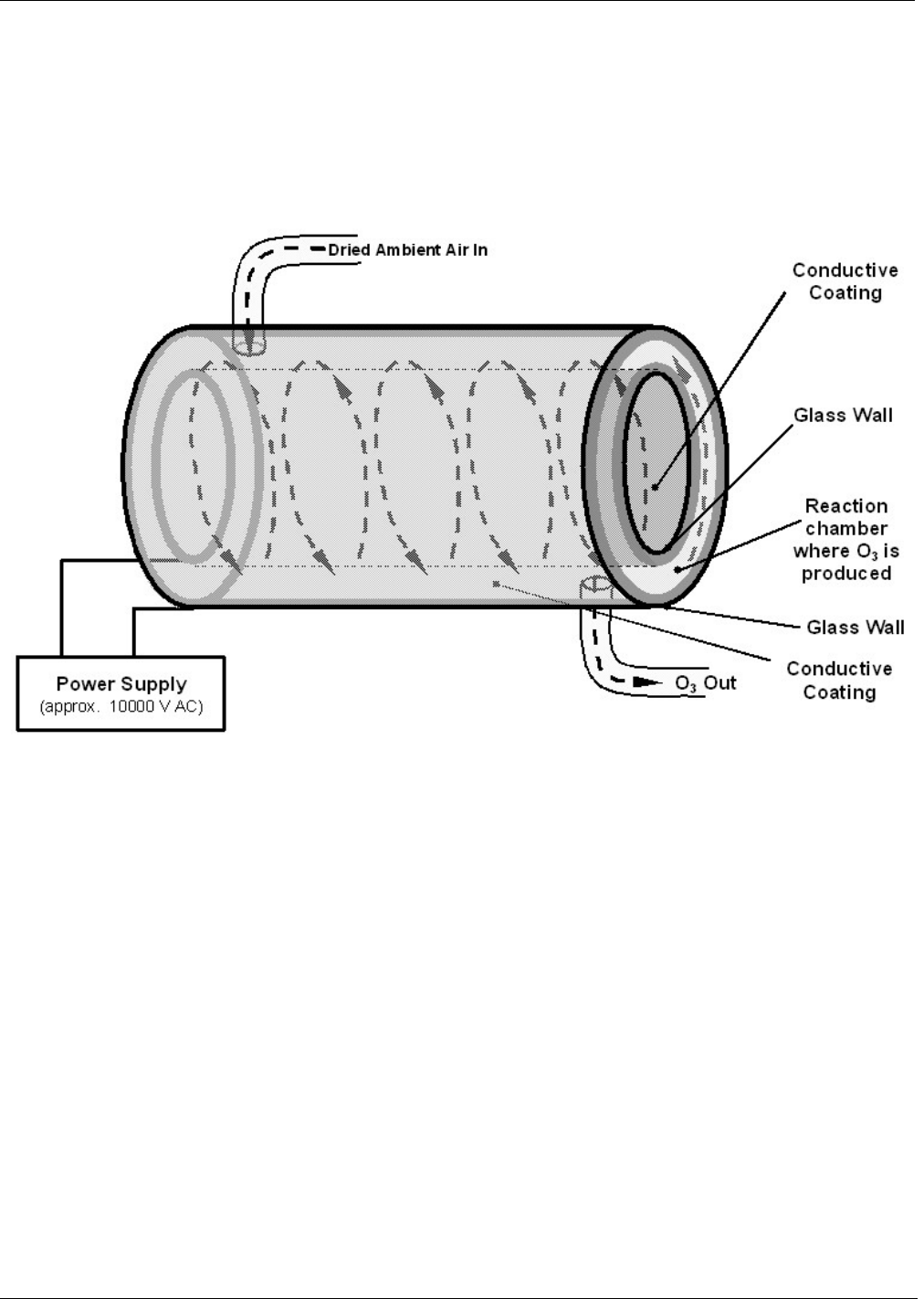

8.3.6. O3 Generator ........................................................................................................................................................282

8.3.7. Perma Pure® Dryer...............................................................................................................................................283

07270B DCN6512

Table of Contents Teledyne API - Model T200H/T200M Operation Manual

xiv

8.3.8. Ozone Supply Air Filter.........................................................................................................................................285

8.3.9. Ozone Scrubber ...................................................................................................................................................285

8.3.10. Pneumatic Sensors.............................................................................................................................................286

8.3.11. Dilution Manifold .................................................................................................................................................287

8.4. Oxygen Sensor (OPT 65A) Principles of Operation .....................................................................................................288

8.4.1. Paramagnetic Measurement of O2........................................................................................................................288

8.4.2. Operation Within the T200H/M Analyzer ..............................................................................................................289

8.4.3. Pneumatic Operation of the O2 Sensor.................................................................................................................289

8.5. Electronic Operation.....................................................................................................................................................290

8.5.1. CPU......................................................................................................................................................................291

8.5.2. Sensor Module, Reaction Cell ..............................................................................................................................292

8.5.3. Photo Multiplier Tube (PMT).................................................................................................................................293

8.5.4. PMT Cooling System............................................................................................................................................295

8.5.5. PMT Preamplifier..................................................................................................................................................295

8.5.6. Pneumatic Sensor Board......................................................................................................................................297

8.5.7. Relay Board..........................................................................................................................................................297

8.5.8. Status LEDs & Watch Dog Circuitry......................................................................................................................301

8.5.9. Motherboard .........................................................................................................................................................302

8.5.10. Analog Outputs...................................................................................................................................................304

8.5.11. External Digital I/O..............................................................................................................................................304

8.5.12. I2C Data Bus.......................................................................................................................................................304

8.5.13. Power-up Circuit .................................................................................................................................................304

8.6. Power Distribution & Circuit Breaker ............................................................................................................................305

8.7. Front Panel/Display Interface Electronics.....................................................................................................................306

8.7.1. Front Panel Interface PCA....................................................................................................................................306

8.8. Software Operation ......................................................................................................................................................307

8.8.1. Adaptive Filter.......................................................................................................................................................308

8.8.2. Calibration - Slope and Offset...............................................................................................................................308

8.8.3. Temperature/Pressure Compensation (TPC) .......................................................................................................309

8.8.4. NO2 Converter Efficiency Compensation..............................................................................................................310

8.8.5. Internal Data Acquisition System (DAS) ...............................................................................................................310

9. A Primer on Electro-Static Discharge...................................................................................................................................311

9.1. How Static Charges are Created..................................................................................................................................311

9.2. How Electro-Static Charges Cause Damage................................................................................................................312

9.3. Common Myths About ESD Damage ...........................................................................................................................313

9.4. Basic Principles of Static Control..................................................................................................................................314

9.4.1. General Rules.......................................................................................................................................................314

9.4.2. Basic anti-ESD Procedures for Analyzer Repair and Maintenance ......................................................................315

Glossary...................................................................................................................................................................................319

LIST OF FIGURES

Figure 3-1: Front Panel ..................................................................................................................................27

Figure 3-2: Display Screen and Touch Control..............................................................................................27

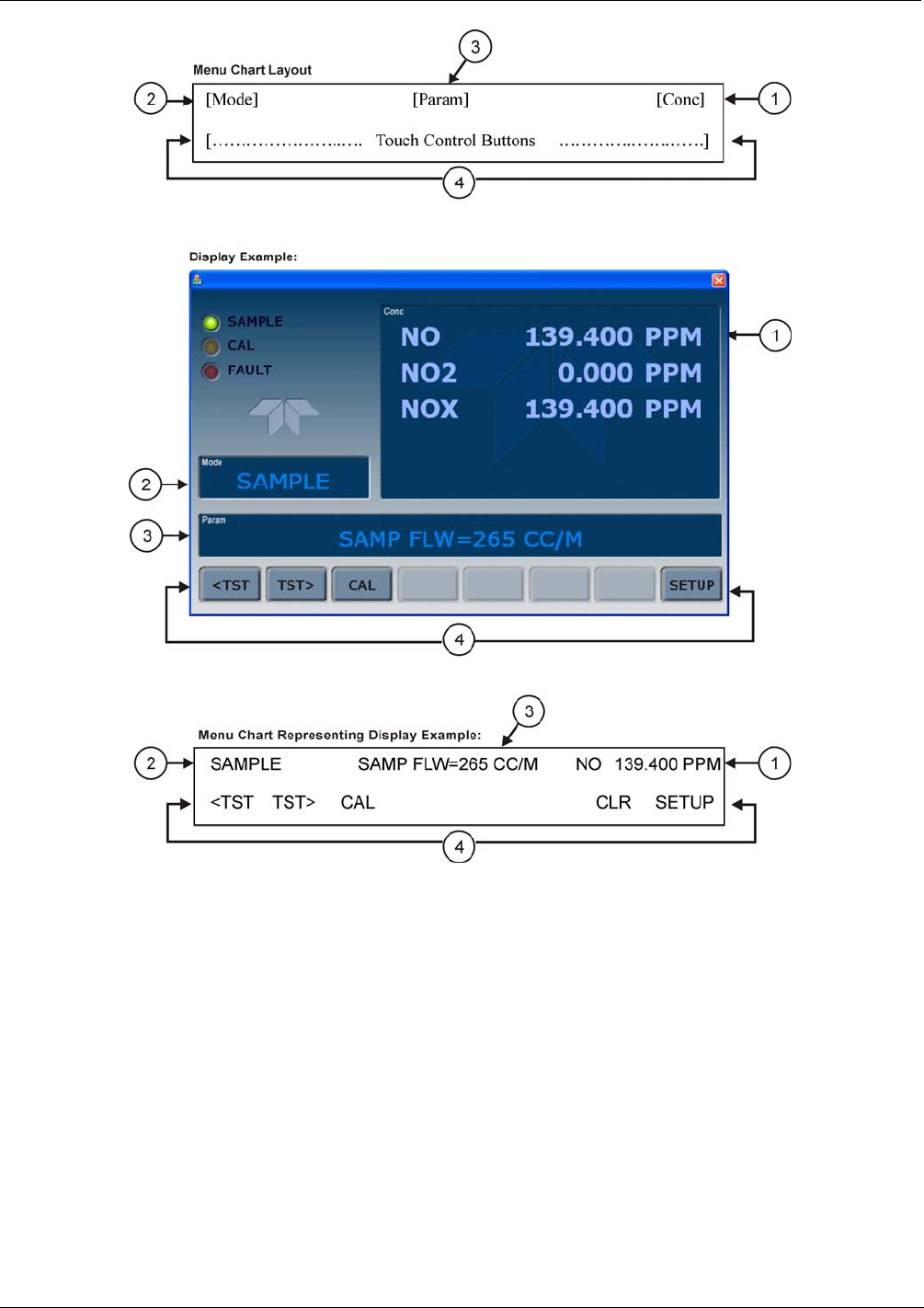

Figure 3-3: Display/Touch Control Screen Mapped to Menu Charts .............................................................29

Figure 3-4: T200H/M Rear Panel Layout .......................................................................................................30

Figure 3-5: T200H/M Internal Layout .............................................................................................................31

Figure 3-6: Analog In Connector ....................................................................................................................33

Figure 3-7: Analog Output Connector ............................................................................................................34

Figure 3-8: Status Output Connector .............................................................................................................35

Figure 3-9: Current Loop Option Installed on the Motherboard .....................................................................36

Figure 3-10: Control Input Connector...............................................................................................................38

Figure 3-11: Alarm Relay Output Pin Assignments..........................................................................................39

Figure 3-12: T200H/M Multidrop Card .............................................................................................................41

Figure 3-13: Pneumatic Connections–Basic Configuration–Using Gas Dilution Calibrator.............................44

Figure 3-14: Pneumatic Connections–Basic Configuration–Using Bottled Span Gas.....................................45

Figure 3-15: T200H Internal Pneumatic Block Diagram - Standard Configuration..........................................47

Figure 3-16: T200M Internal Pneumatic Block Diagram - Standard Configuration..........................................48

Figure 3-17: Pneumatic Connections–With Zero/Span Valve Option (50A) ....................................................49

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Table of Contents

Figure 3-18: Pneumatic Connections–With 2-Span point Option (50D) –Using Bottled Span Gas.................49

Figure 3-19: T200H – Internal Pneumatics with Ambient Zero-Span Valve Option 50A .................................50

Figure 3-20: T200M – Internal Pneumatics with Ambient Zero-Span Valve Option 50A.................................51

Figure 3-21: T200H - Internal Pneumatics for Zero Scrubber/Dual Pressurized Span, Option 50D ...............55

Figure 3-22: T200M - Internal Pneumatics for Zero Scrubber/Dual Pressurized Span, Option 50D...............56

Figure 3-23: T200H – Internal Pneumatics with O2 Sensor Option 65A .........................................................57

Figure 3-24: T200M – Internal Pneumatics with O2 Sensor Option 65A..........................................................58

Figure 3-23: O2 Sensor Calibration Set Up ......................................................................................................66

Figure 4-1: Front Panel Display with “SAMPLE” Indicated in the Mode Field ...............................................72

Figure 4-2: Viewing T200H/M TEST Functions..............................................................................................75

Figure 4-3: Viewing and Clearing T200H/M WARNING Messages...............................................................76

Figure 4-4: APICOM Graphical User Interface for Configuring the DAS .......................................................96

Figure 4-5: Default Pin Assignments for Rear Panel com Port Connectors (RS-232 DCE & DTE) ........... 109

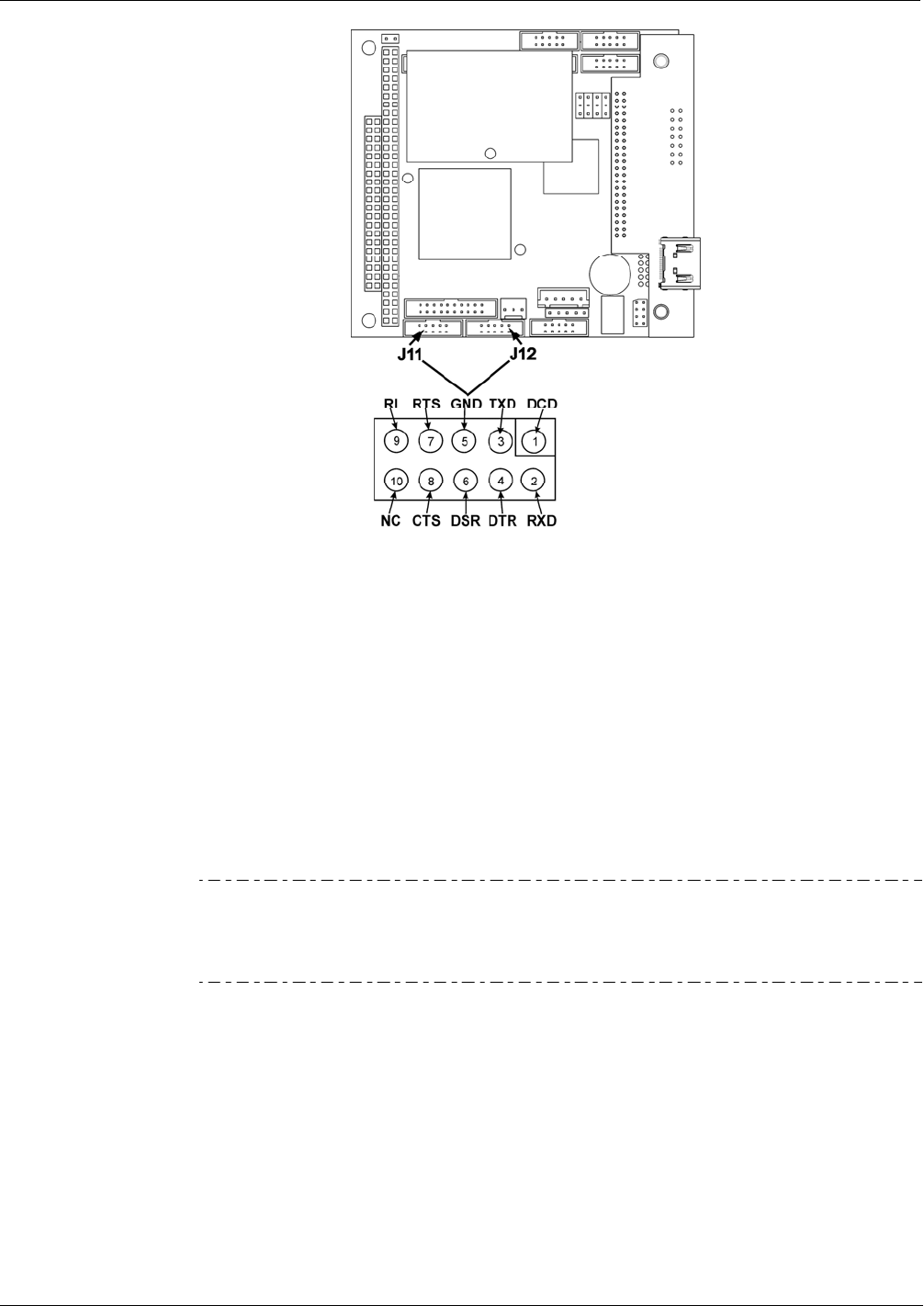

Figure 4-6: CPU COM1 & COM2 Connector Pin-Outs in RS-232 mode. ................................................... 110

Figure 4-7: COM – LAN / Internet Manual Configuration............................................................................ 115

Figure 4-8: Jumper and Cables for Multidrop Mode.................................................................................... 120

Figure 4-9: RS-232-Multidrop Host-to-Analyzer Interconnect Diagram ...................................................... 121

Figure 4-10: Analog Output Connector Key.................................................................................................. 131

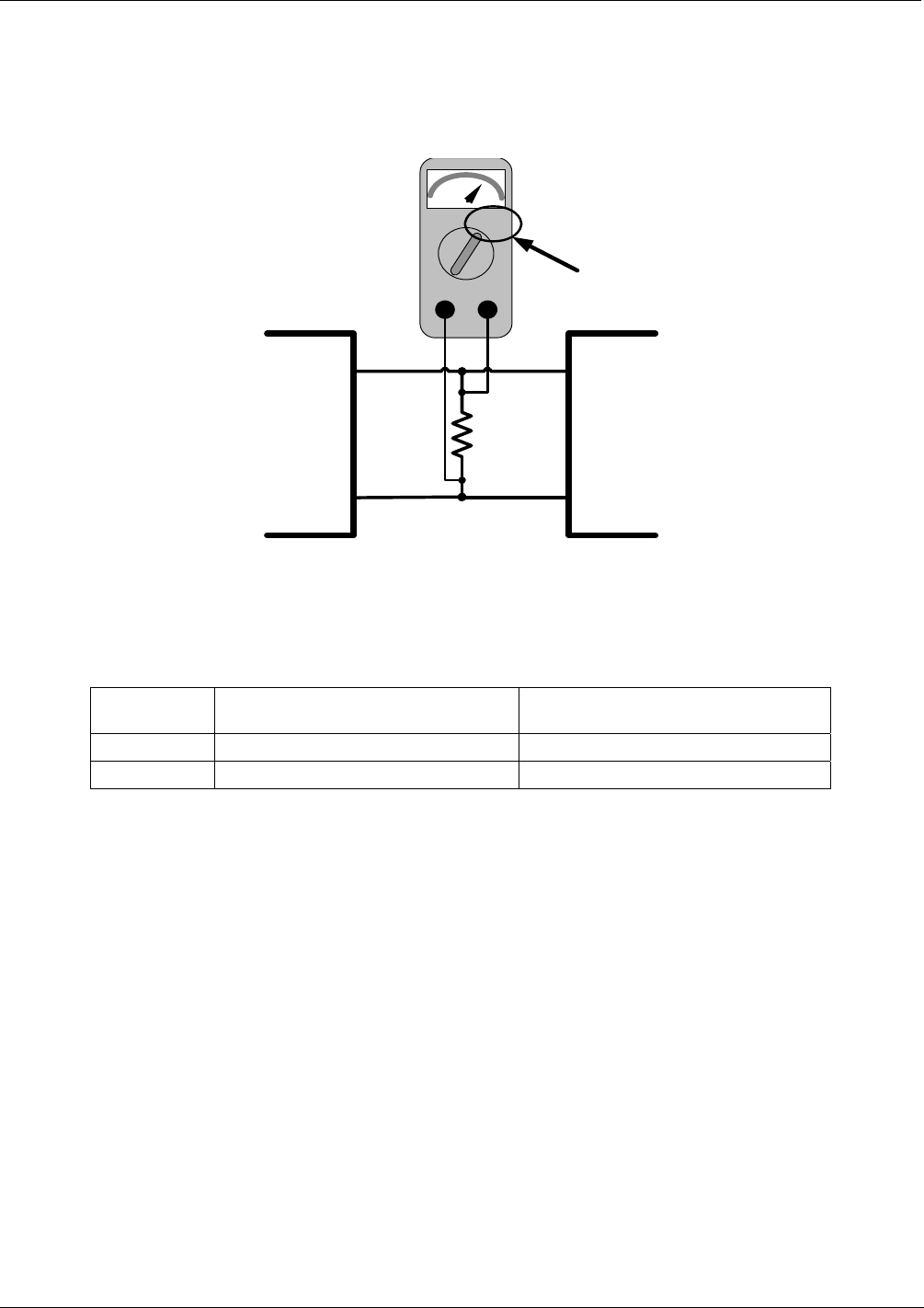

Figure 4-11: Setup for Calibrating Analog Outputs ....................................................................................... 151

Figure 4-12: Setup for Calibrating Current Outputs ...................................................................................... 153

Figure 4-13: Alternative Setup for Calibrating Current Outputs .................................................................... 154

Figure 4-14. DIAG – Analog Inputs (Option) Configuration Menu ................................................................ 157

Figure 4-15: Status Output Connector .......................................................................................................... 167

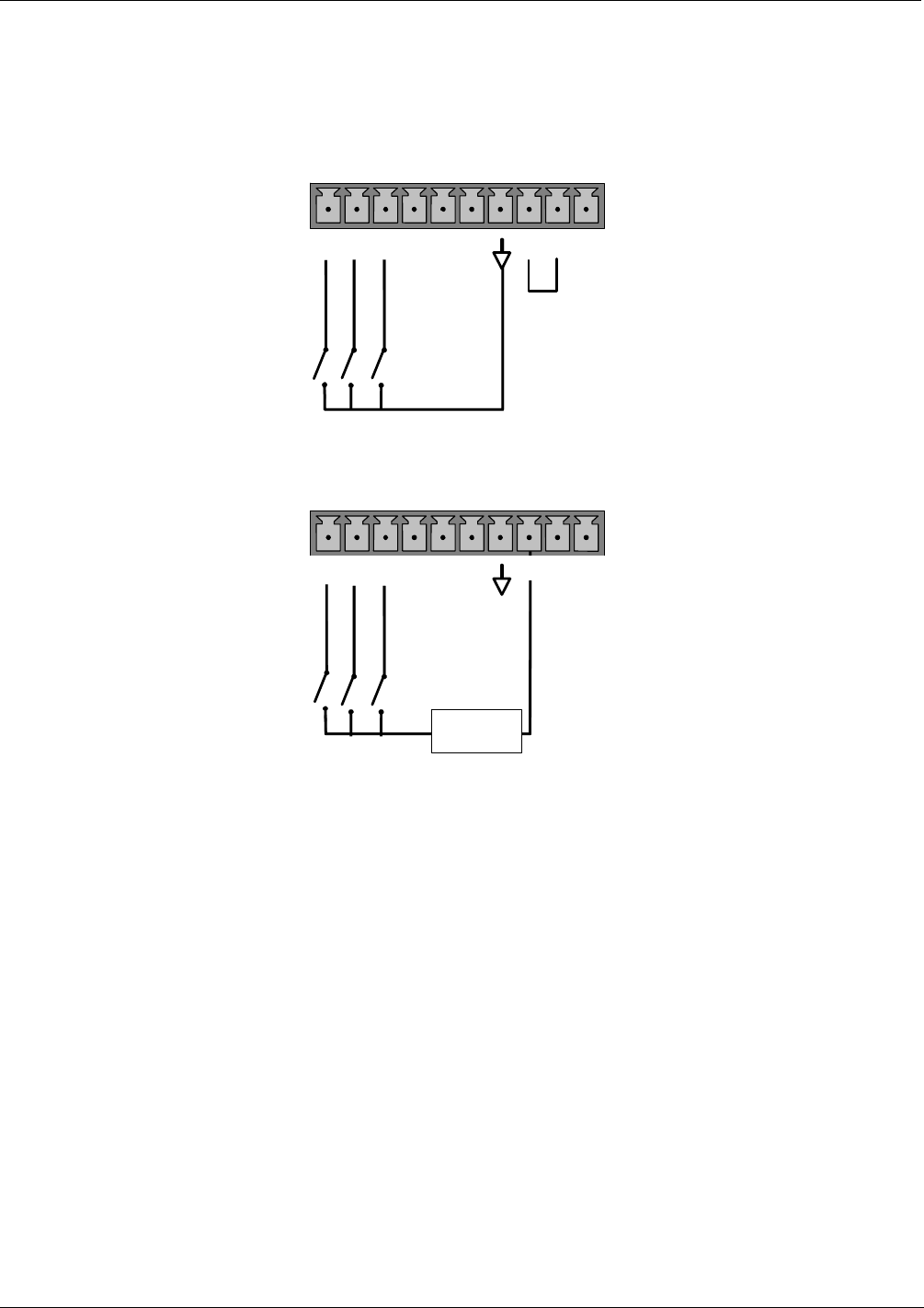

Figure 4-16: Control Inputs with local 5 V power supply............................................................................... 169

Figure 4-17: Control Inputs with external 5 V power supply ......................................................................... 169

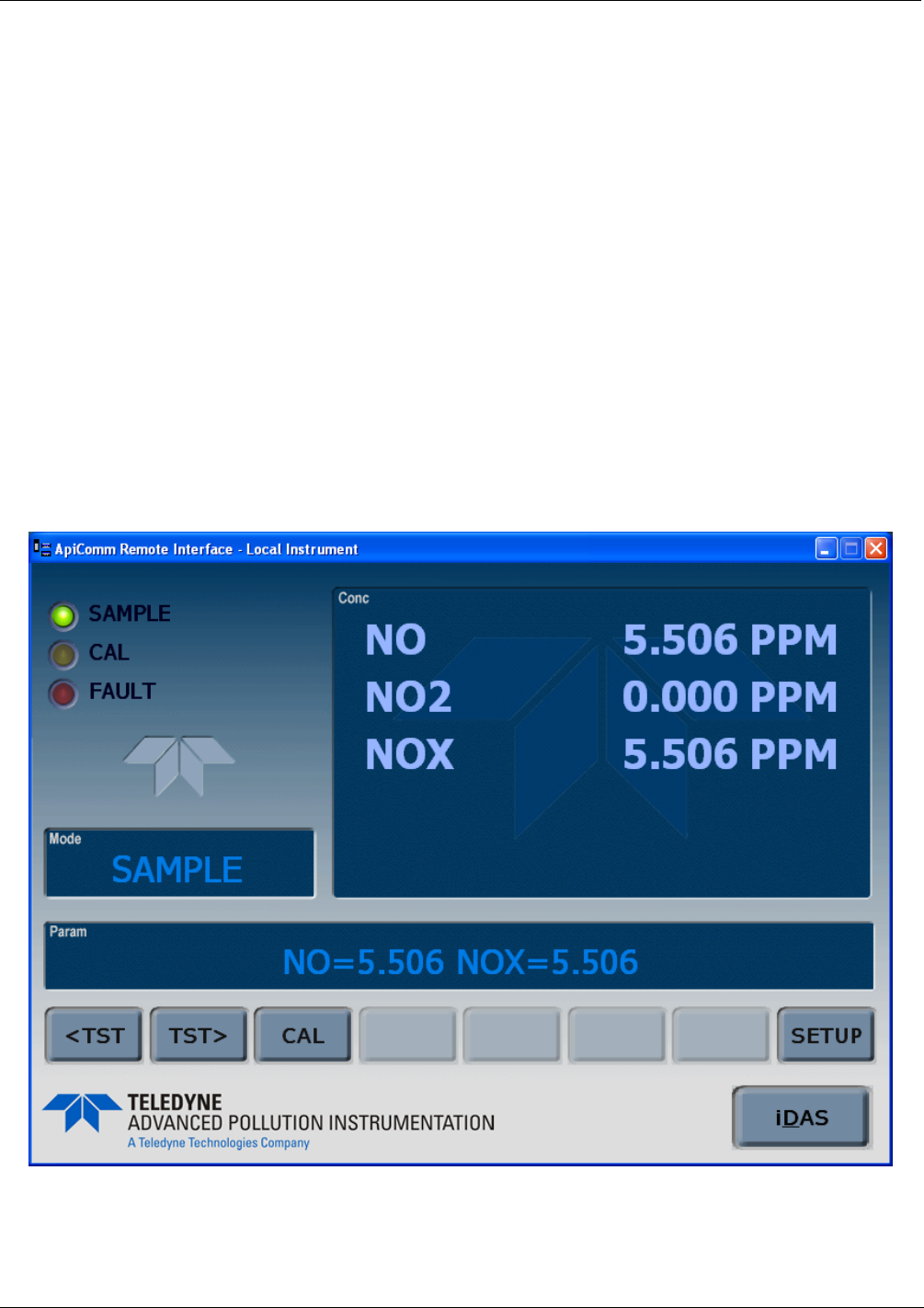

Figure 4-18: APICOM Remote Control Program Interface ........................................................................... 175

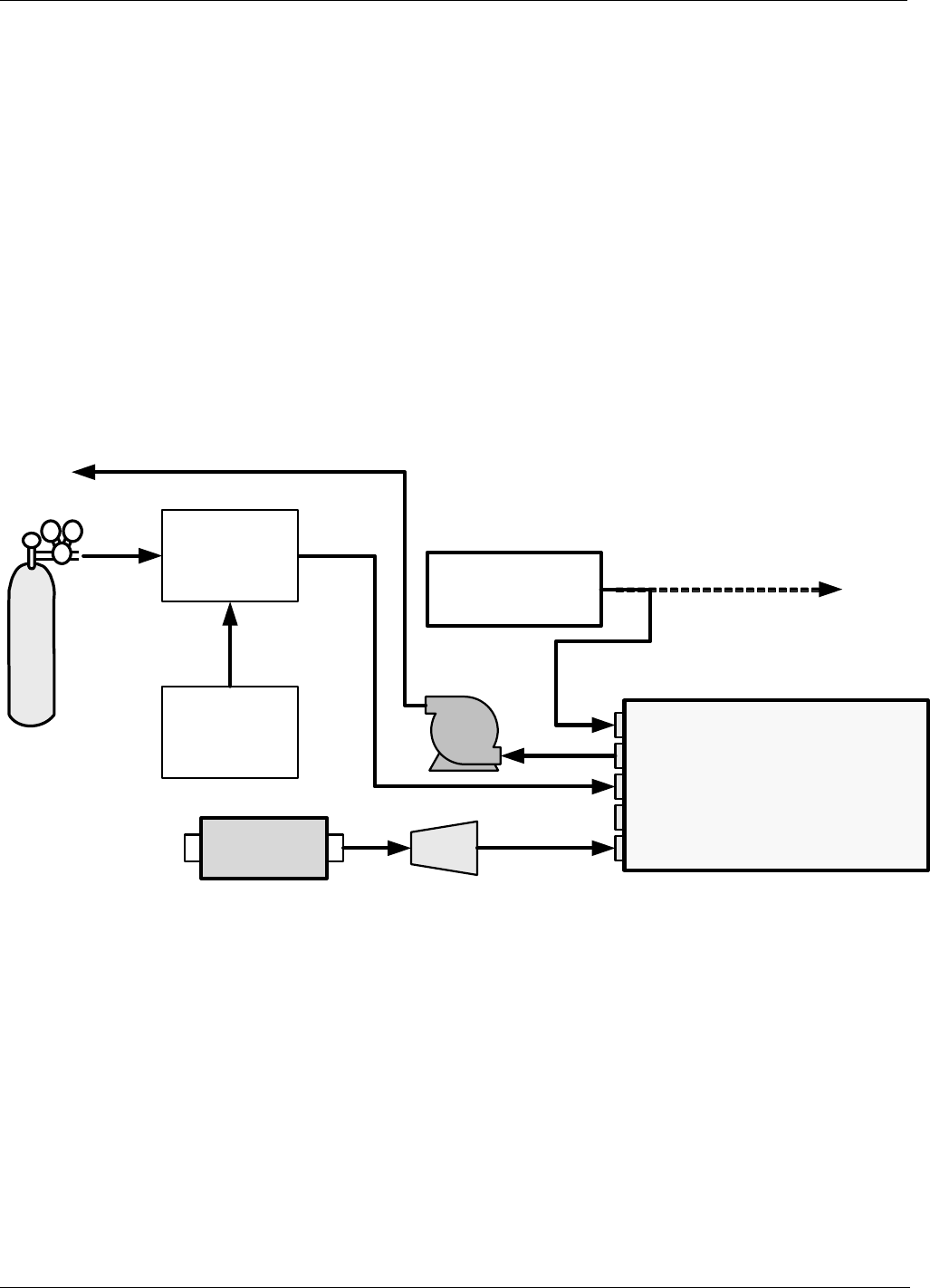

Figure 5-1: Gas Supply Setup for Determination of NO2 Conversion Efficiency......................................... 187

Figure 5-2: Pneumatic Connections–With Zero/Span Valve Option (50A) ................................................. 191

Figure 5-3: Pneumatic Connections–With 2-Span point Option (50D) –Using Bottled Span Gas.............. 192

Figure 5-4: Pneumatic Connections–With Zero/Span Valve Option (50) ................................................... 196

Figure 6-1: Sample Particulate Filter Assembly.......................................................................................... 208

Figure 6-2: Particle Filter on O3 Supply Air Dryer ....................................................................................... 209

Figure 6-3: NO2 Converter Assembly.......................................................................................................... 211

Figure 6-4: Reaction Cell Assembly............................................................................................................ 213

Figure 6-5: Critical Flow Orifice Assembly ..................................................................................................214

Figure 7-1: Viewing and Clearing Warning Messages................................................................................ 219

Figure 7-2: Switching Signal I/O Functions................................................................................................. 221

Figure 7-3: Motherboard Watchdog Status Indicator .................................................................................. 222

Figure 7-4: Relay Board PCA...................................................................................................................... 223

Figure 7-5: T200H – Basic Internal Gas Flow............................................................................................. 226

Figure 7-6: T200H – Internal Gas Flow with Ambient Zero Span, OPT 50A .............................................. 227

Figure 7-7: T200H – Internal Gas Flow with O2 Sensor, OPT 65A............................................................. 228

Figure 7-8: T200M – Basic Internal Gas Flow............................................................................................. 229

Figure 7-9: T200M – Internal Gas Flow with Ambient Zero Span, OPT 50A.............................................. 230

Figure 7-10: T200M – Internal Gas Flow with O2 Sensor, OPT 65A ............................................................ 231

Figure 7-11: Location of AC power Configuration Jumpers .......................................................................... 241

Figure 7-12: Pump AC Power Jumpers (JP7)............................................................................................... 242

Figure 7-13: Typical Set Up of AC Heater Jumper Set (JP2) ....................................................................... 243

Figure 7-14: Typical Set Up of AC Heater Jumper Set (JP6) ....................................................................... 244

Figure 7-15: Typical Set Up of Status Output Test ....................................................................................... 248

Figure 7-16: Pressure / Flow Sensor Assembly............................................................................................ 253

Figure 7-17: Pre-Amplifier Board Layout....................................................................................................... 259

Figure 7-18: T200H/M Sensor Assembly ...................................................................................................... 260

Figure 7-19. 3-Port Reaction Cell Oriented to the Sensor Housing.............................................................. 261

Figure 7-20: Relay PCA with AC Relay Retainer In Place............................................................................ 263

Figure 7-21: Relay PCA Mounting Screw Locations.................................................................................... 263

Figure 8-1: T200H/M Sensitivity Spectrum ................................................................................................. 268

Figure 8-2: NO2 Conversion Principle ......................................................................................................... 269

07270B DCN6512

Table of Contents Teledyne API - Model T200H/T200M Operation Manual

xvi

Figure 8-3: Reaction Cell with PMT Tube ................................................................................................... 270

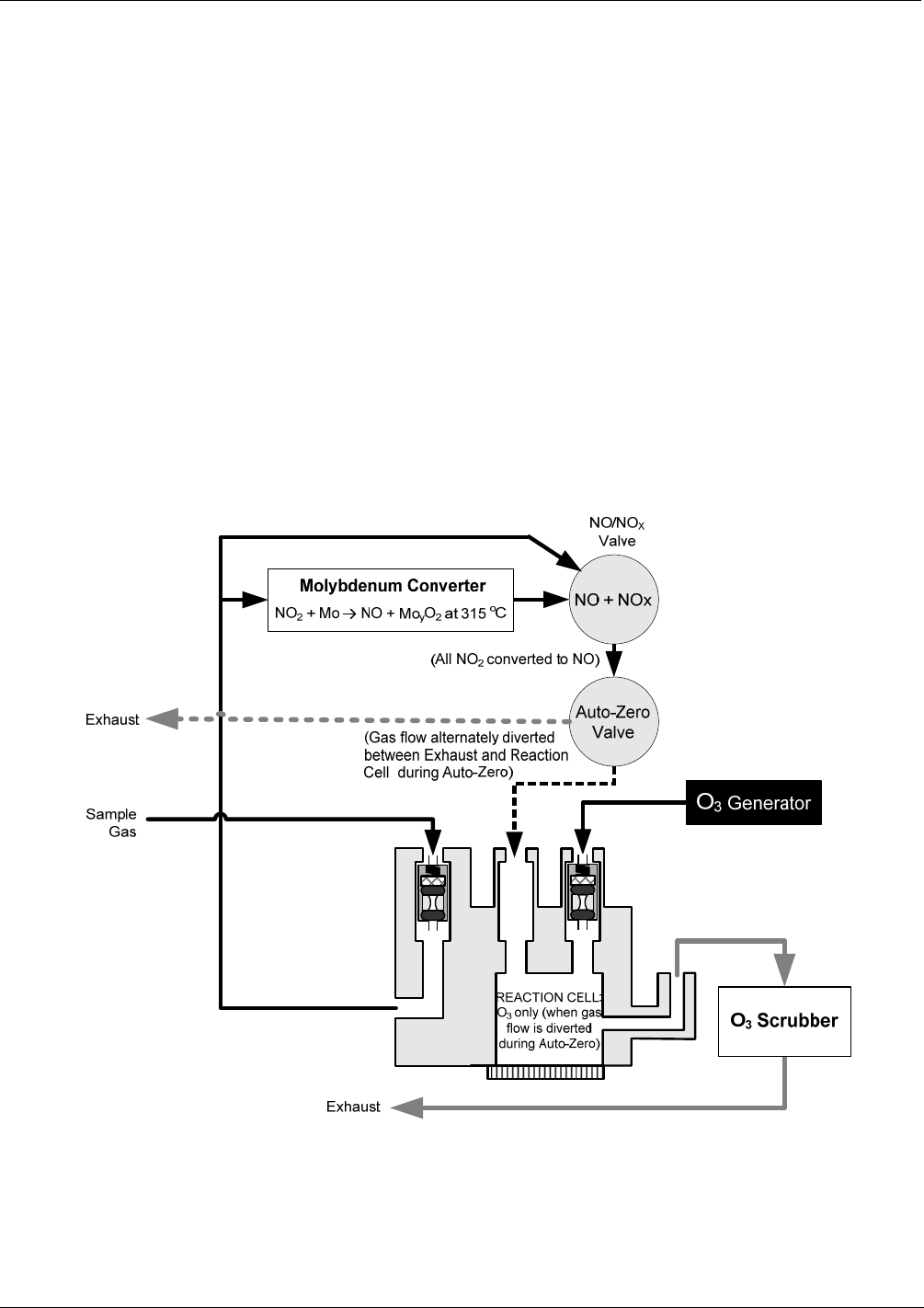

Figure 8-4: Reaction Cell During the AutoZero Cycle................................................................................. 271

Figure 8-5: External Pump Pack ................................................................................................................. 275

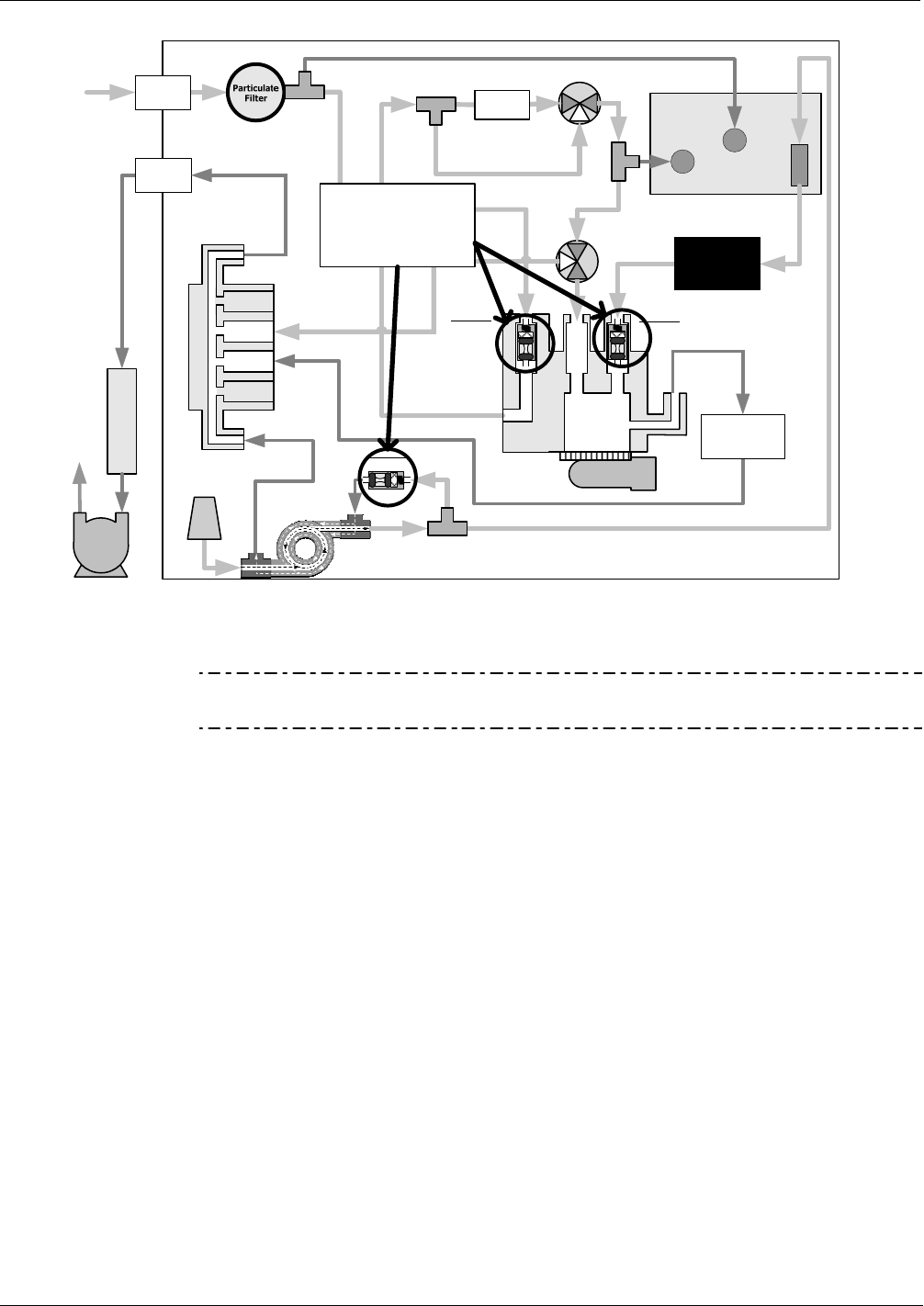

Figure 8-6: Location of Gas Flow Control Assemblies for T200H............................................................... 277

Figure 8-7: Location of Gas Flow Control Assemblies for T200M .............................................................. 278

Figure 8-8: Flow Control Assembly & Critical Flow Orifice ......................................................................... 279

Figure 8-9: Ozone Generator Principle .......................................................................................................282

Figure 8-10: Semi-Permeable Membrane Drying Process ........................................................................... 283

Figure 8-11: T200H/M Perma Pure® Dryer ................................................................................................... 284

Figure 8-12: Vacuum Manifold ...................................................................................................................... 286

Figure 8-13: Dilution Manifold ....................................................................................................................... 288

Figure 8-14: Oxygen Sensor - Principle of Operation ................................................................................... 289

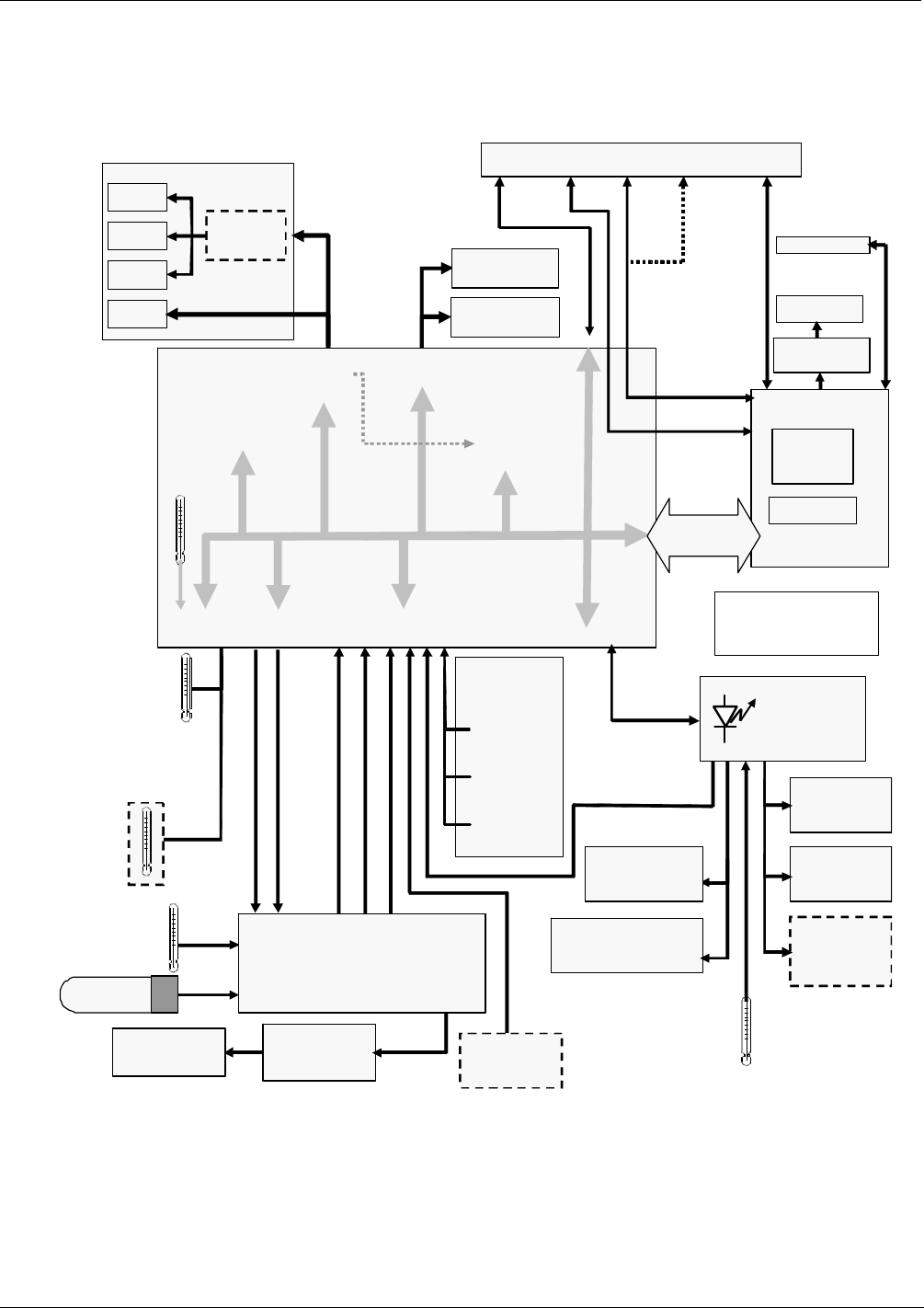

Figure 8-15: T200H/M Electronic Block Diagram.......................................................................................... 290

Figure 8-16: T200H/M CPU Board Annotated .............................................................................................. 291

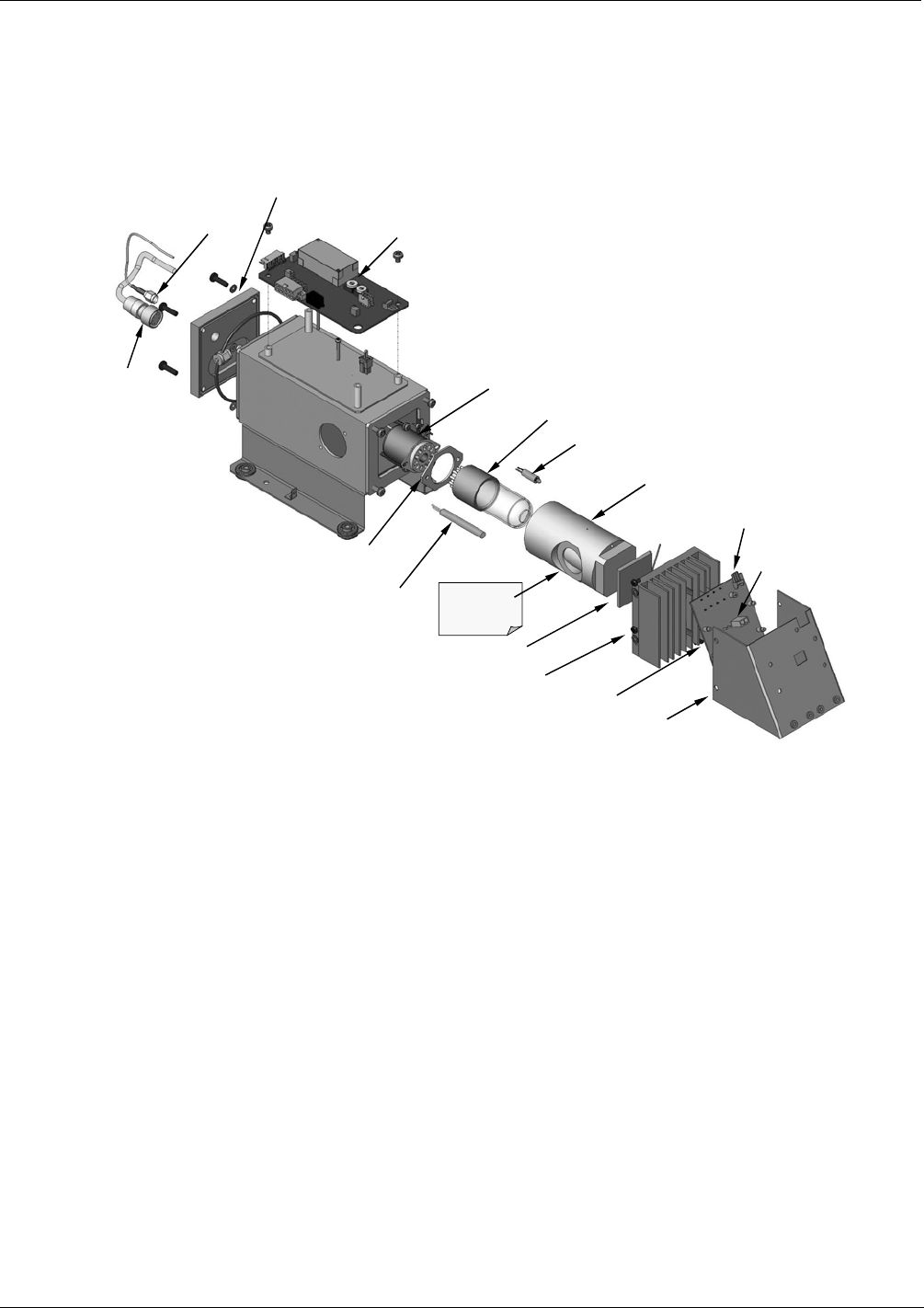

Figure 8-17: PMT Housing Assembly ........................................................................................................... 293

Figure 8-18: Basic PMT Design .................................................................................................................... 294

Figure 8-19: PMT Cooling System ................................................................................................................ 295

Figure 8-20: PMT Preamp Block Diagram .................................................................................................... 296

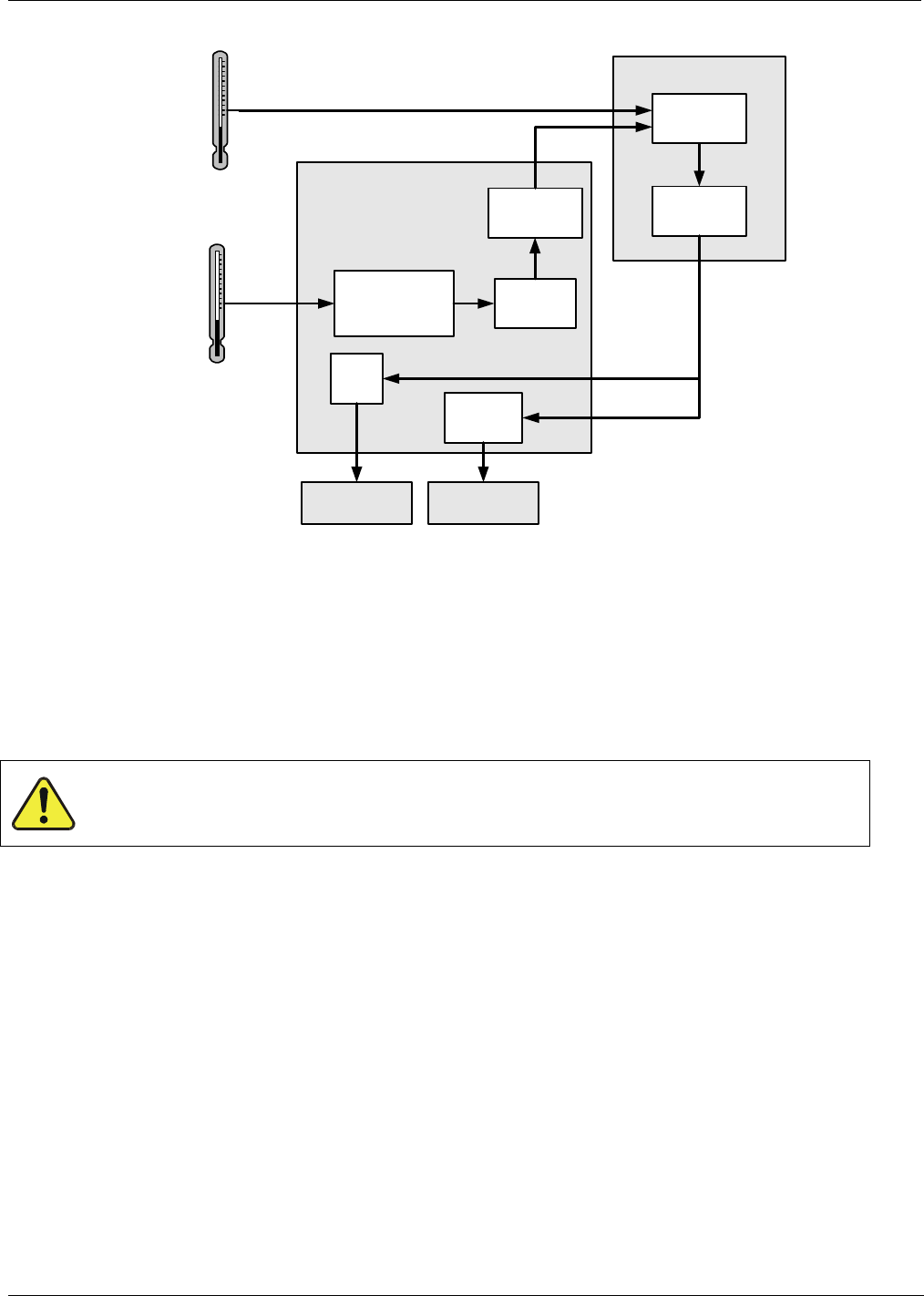

Figure 8-21: Heater Control Loop Block Diagram......................................................................................... 298

Figure 8-22: Thermocouple Configuration Jumper (JP5) Pin-Outs............................................................... 299

Figure 8-23: Status LED Locations – Relay PCA.......................................................................................... 301

Figure 8-24: Power Distribution Block Diagram ............................................................................................ 305

Figure 8-25: Front Panel and Display Interface Block Diagram.................................................................... 306

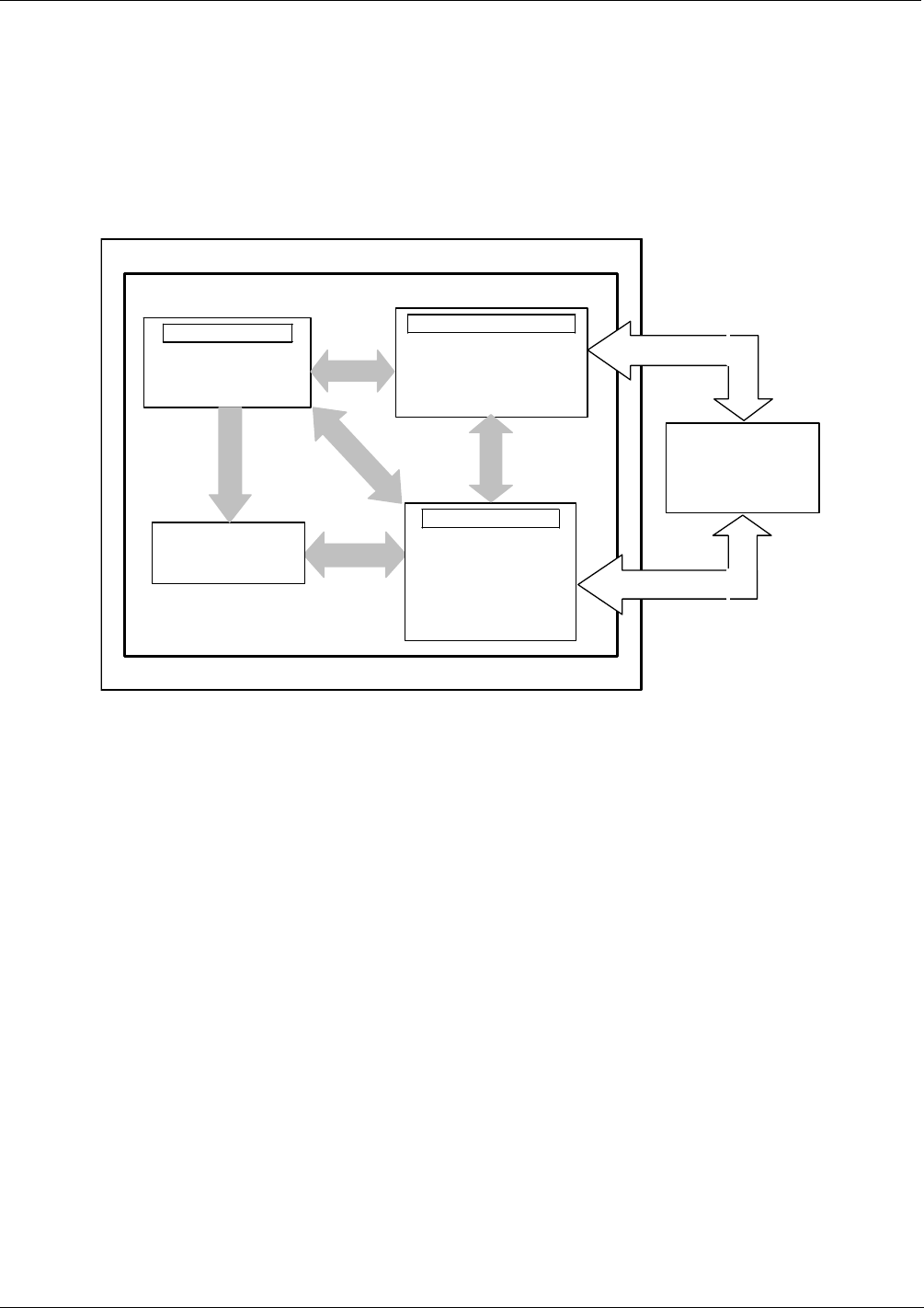

Figure 8-26: Basic Software Operation ......................................................................................................... 307

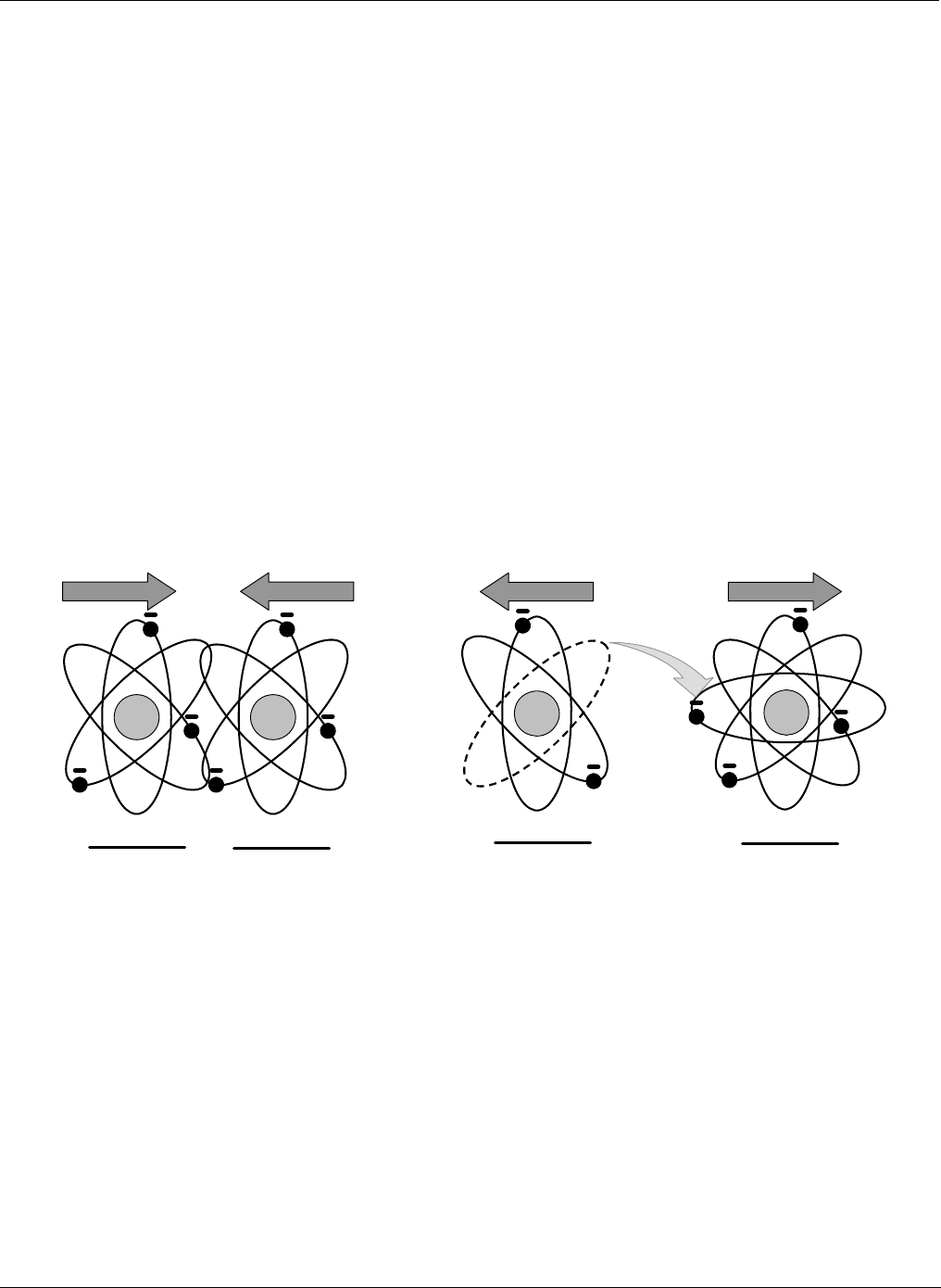

Figure 9-1: Triboelectric Charging............................................................................................................... 311

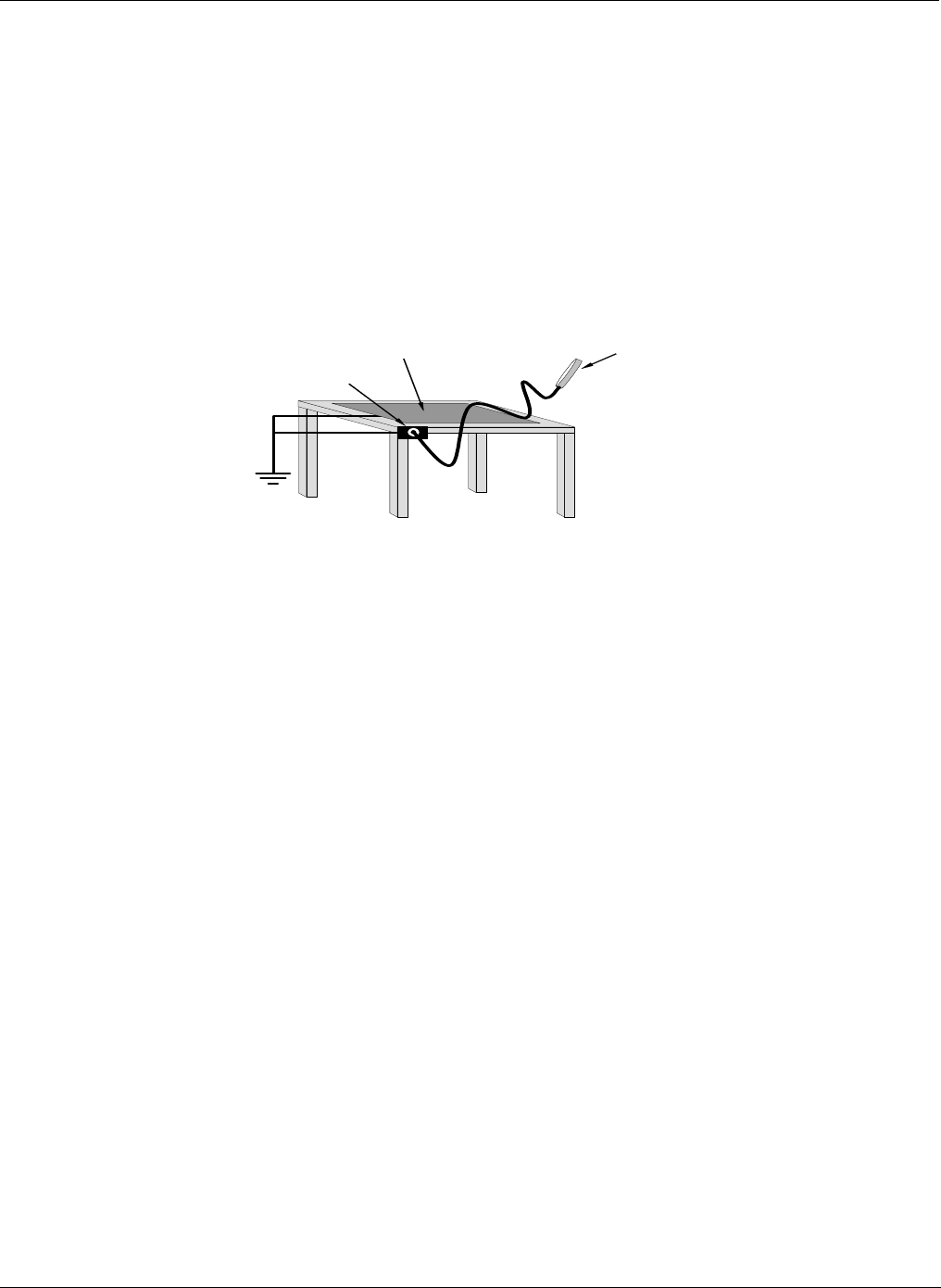

Figure 9-2: Basic anti-ESD Work Station .................................................................................................... 314

LIST OF TABLES

Table 2-1: Model T200H/M Basic Unit Specifications...................................................................................23

Table 3-1: Analog Output Data Type Default Settings..................................................................................34

Table 3-4: Analog Output Pin-Outs...............................................................................................................34

Table 3-5: Status Output Signals ..................................................................................................................35

Table 3-6: Control Input Signals ...................................................................................................................38

Table 5-5: Alarm Relay Output Assignments................................................................................................39

Table 3-8: Inlet / Outlet Connector Descriptions...........................................................................................42

Table 3-9: NIST-SRM's Available for Traceability of NOx Calibration Gases ................................................43

Table 3-10: Zero/Span Valve States...............................................................................................................51

Table 3-11: Two-Point Span Valve Operating States .....................................................................................53

Table 4-1: Analyzer Operating modes ..........................................................................................................73

Table 4-2: Test Functions Defined................................................................................................................74

Table 4-3: List of Warning Messages ...........................................................................................................76

Table 4-4: Primary Setup Mode Features and Functions .............................................................................77

Table 4-5: Secondary Setup Mode Features and Functions ........................................................................78

Table 4-6: Front Panel LED Status Indicators for DAS.................................................................................80

Table 4-7: DAS Data Channel Properties.....................................................................................................81

Table 4-8: DAS Data Parameter Functions ..................................................................................................82

Table 4-9: T200H/M Default DAS Configuration...........................................................................................84

Table 4-10: Password Levels..........................................................................................................................99

Table 4-11: COM Port Communication modes............................................................................................ 104

Table 4-13: LAN/Internet Configuration Properties...................................................................................... 113

Table 4-14: Internet Configuration Menu Button Functions......................................................................... 116

Table 4-15: Variable Names (VARS) ...........................................................................................................124

Table 4-16: T200H/M Diagnostic (DIAG) Functions .................................................................................... 127

Table 4-17: Analog Output Voltage Ranges with Over-Range Active ......................................................... 131

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Table of Contents

xvii

Table 4-18: Analog Output Pin Assignments............................................................................................... 131

Table 4-19: Analog Output Current Loop Range ......................................................................................... 132

Table 4-20: Example of Analog Output Configuration for T200H/M ............................................................ 132

Table 4-21: DIAG - Analog I/O Functions .................................................................................................... 134

Table 4-22: Analog Output Data Type Default Settings............................................................................... 140

Table 4-23: Analog Output DAS Parameters Related to Gas Concentration Data ..................................... 141

Table 4-24: Voltage Tolerances for Analog Output Calibration ................................................................... 151

Table 4-25: Current Loop Output Calibration with Resistor ......................................................................... 154

Table 4-26: T200H/M Available Concentration Display Values................................................................... 158

Table 4-27: T200H/M Concentration Display Default Values ...................................................................... 159

Table 4-28: Concentration Alarm Default Settings....................................................................................... 166

Table 4-30: Control Input Pin Assignments ................................................................................................. 168

Table 4-31: Terminal Mode Software Commands ....................................................................................... 170

Table 4-32: Command Types....................................................................................................................... 170

Table 4-33: Serial Interface Documents ......................................................................................................176

Table 4-34: RS-232 Communication Parameters for Hessen Protocol ....................................................... 177

Table 6-28: T200H/M Hessen Protocol Response Modes .......................................................................... 178

Table 4-35: T200H/M Hessen GAS ID List.................................................................................................. 180

Table 4-36: Default Hessen Status Bit Assignments ................................................................................... 181

Table 5-1: NIST-SRM's Available for Traceability of NOx Calibration Gases ............................................. 185

Table 5-2: AutoCal Modes ......................................................................................................................... 201

Table 5-3: AutoCal Attribute Setup Parameters......................................................................................... 201

Table 5-4: Example Auto-Cal Sequence.................................................................................................... 202

Table 5-5: Calibration Data Quality Evaluation.......................................................................................... 204

Table 6-1: T200H/M Preventive Maintenance Schedule ........................................................................... 206

Table 6-2: Predictive Uses for Test Functions........................................................................................... 207

Table 7-4: Power Configuration for Standard AC Heaters (JP2)............................................................... 243

Table 7-5: Power Configuration for Optional AC Heaters (JP6) ................................................................ 244

Table 7-6: DC Power Test Point and Wiring Color Code........................................................................... 245

Table 7-7: DC Power Supply Acceptable Levels ....................................................................................... 245

Table 7-8: Relay Board Control Devices.................................................................................................... 246

Table 7-9: Analog Output Test Function - Nominal Values ....................................................................... 247

Table 7-10: Status Outputs Pin Assignments ............................................................................................. 248

Table 7-11: Example of HVPS Power Supply Outputs ................................................................................ 252

Table 8-1: List of Interferents ..................................................................................................................... 273

Table 8-2: T200H/M Valve Cycle Phases.................................................................................................. 276

Table 8-3: T200H/M Critical Flow Orifice Diameters and Gas Flow Rates................................................ 280

Table8-4: Thermocouple Configuration Jumper (JP5) Pin-Outs............................................................... 299

Table 8-5: Typical Thermocouple Settings ................................................................................................ 300

Table 9-1: Static Generation Voltages for Typical Activities ...................................................................... 312

Table 9-2: Sensitivity of Electronic Devices to Damage by ESD............................................................... 312

LIST OF APPENDICES

APPENDIX A - VERSION SPECIFIC SOFTWARE DOCUMENTATION

APPENDIX B - T200H/M SPARE PARTS LIST

APPENDIX C - REPAIR QUESTIONNAIRE - T200H/M

APPENDIX D - ELECTRONIC SCHEMATICS

07270B DCN6512

Table of Contents Teledyne API - Model T200H/T200M Operation Manual

xviii

This page intentionally left blank.

07270B DCN6512

1. INTRODUCTION, FEATURES, AND OPTIONS

1.1. OVERVIEW

The Models T200H and T200M (also referred to in this manual as T200H/M when

applicable to both models) use the proven chemiluminescence measurement principle,

coupled with state-of-the-art microprocessor technology for monitoring high and

medium levels of nitrogen oxides. User-selectable analog output ranges and a linear

response over the entire measurement range make them ideal for a wide variety of

applications, including extractive and dilution CEM, stack testing, and process control.

1.2. FEATURES

The Models T200H and T200M include the following features:

 LCD Graphical User Interface with capacitive touch screen

 Bi-directional RS-232, and 10/100Base-T Ethernet (optional USB and RS-485) ports

for remote operation

 Front panel USB ports for peripheral devices

 T200H: 0-5 ppm to 0-5000 ppm, user selectable

 T200M: 0-1 to 0-200 ppm, user selectable

 Independent ranges for NO, NO2, NOX

 Auto ranging and remote range selection

 NOX-only or NO-only modes

 Microprocessor controlled for versatility

 Multi-tasking software allows viewing of test variables while operating

 Continuous self checking with alarms

 Permeation drier on ozone generator

 Digital status outputs provide instrument condition

 Adaptive signal filtering optimizes response time

 Temperature & pressure compensation, automatic zero correction

 Converter efficiency correction software

 Minimum CO2 and H2O interference

 Catalytic ozone scrubber

 Internal data logging with 1 min to 365 day multiple averages

1.3. USING THIS MANUAL

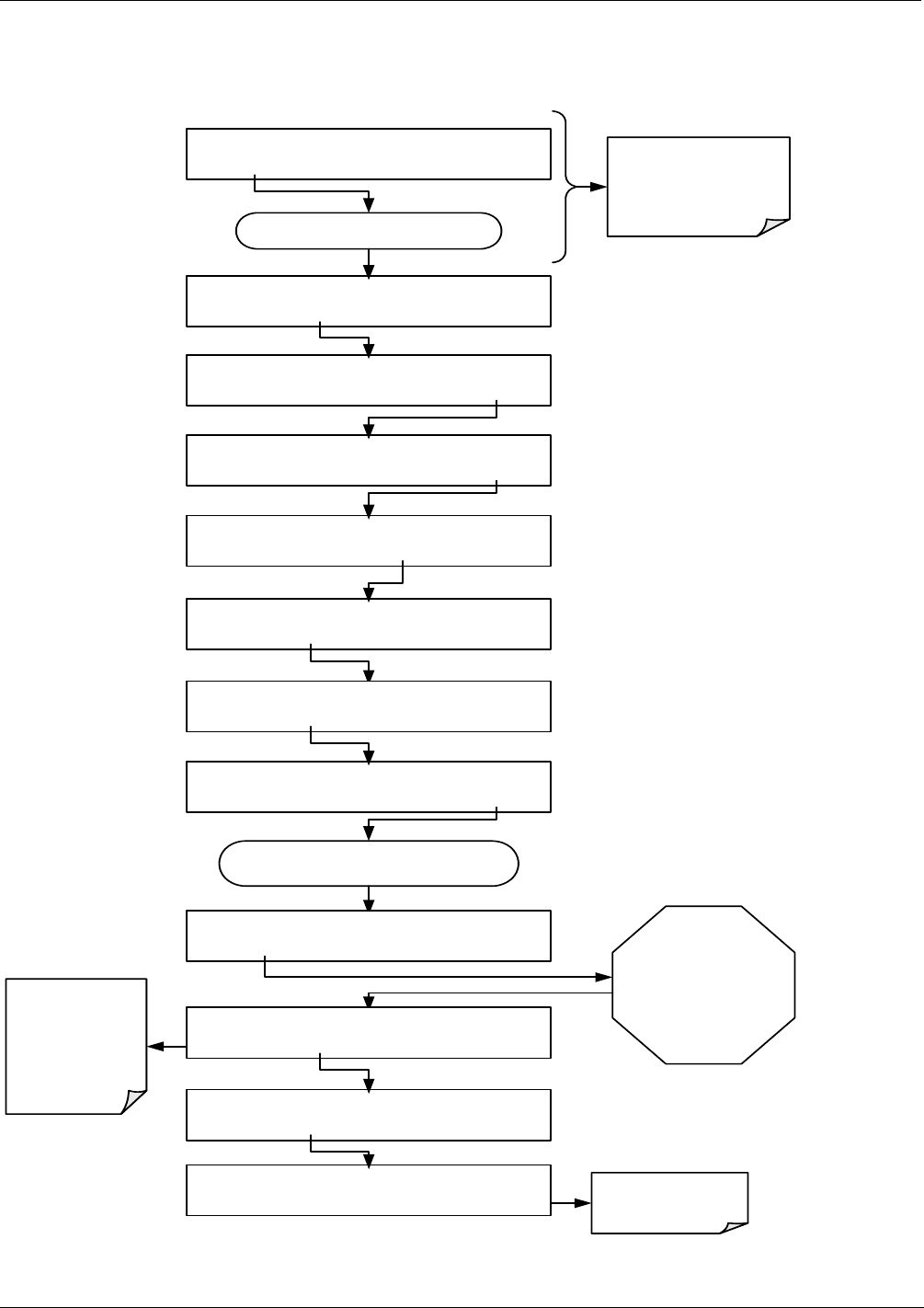

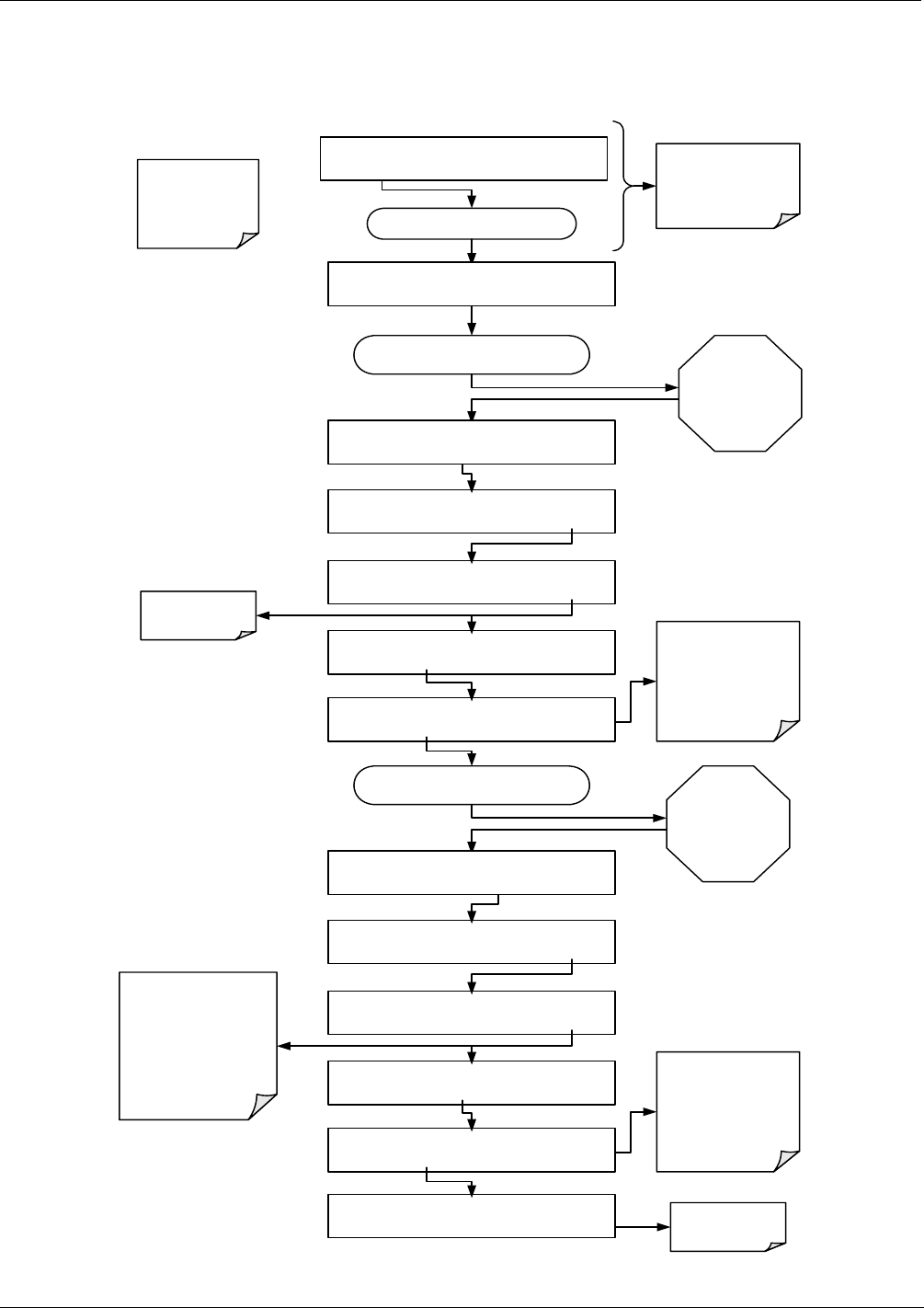

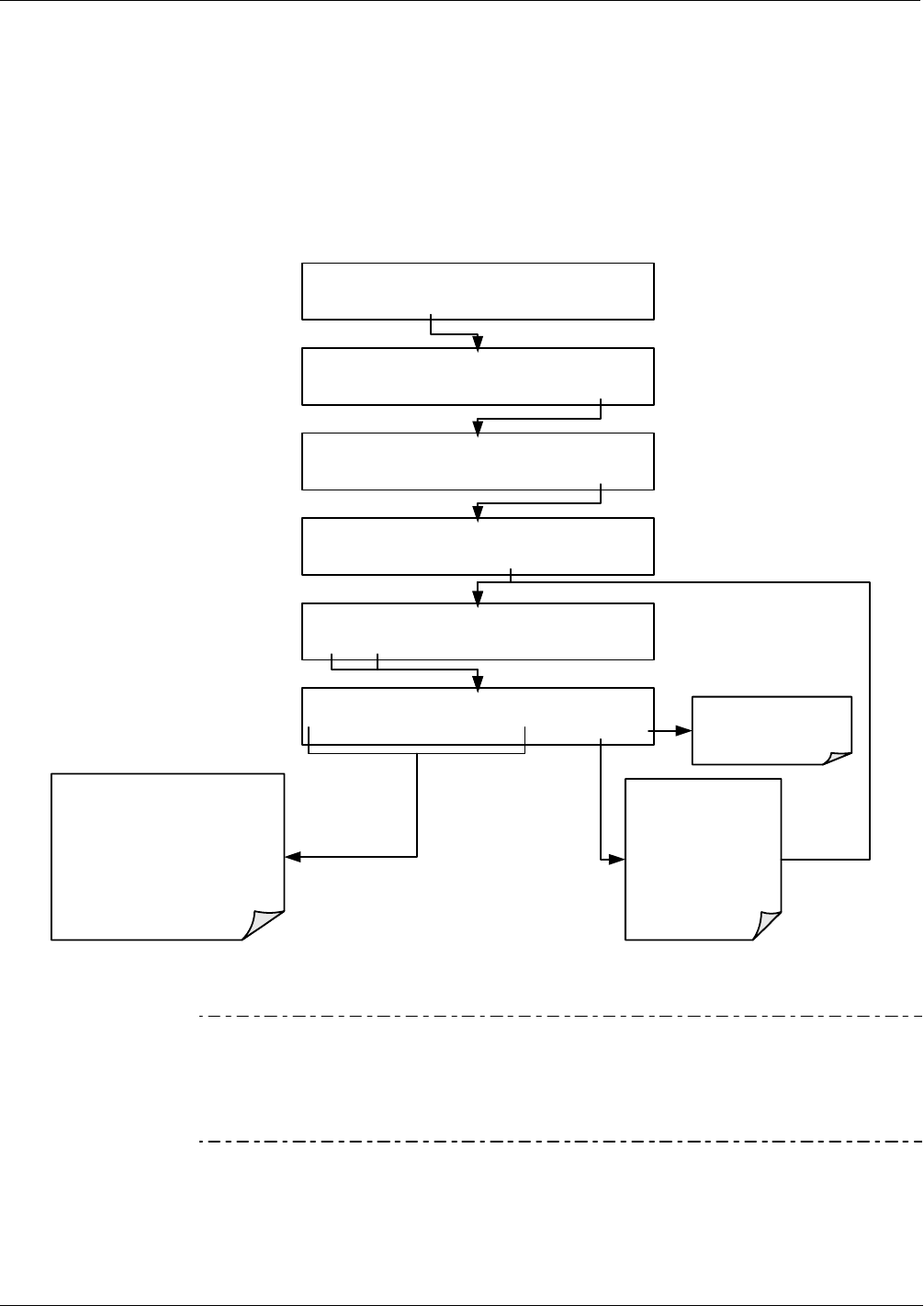

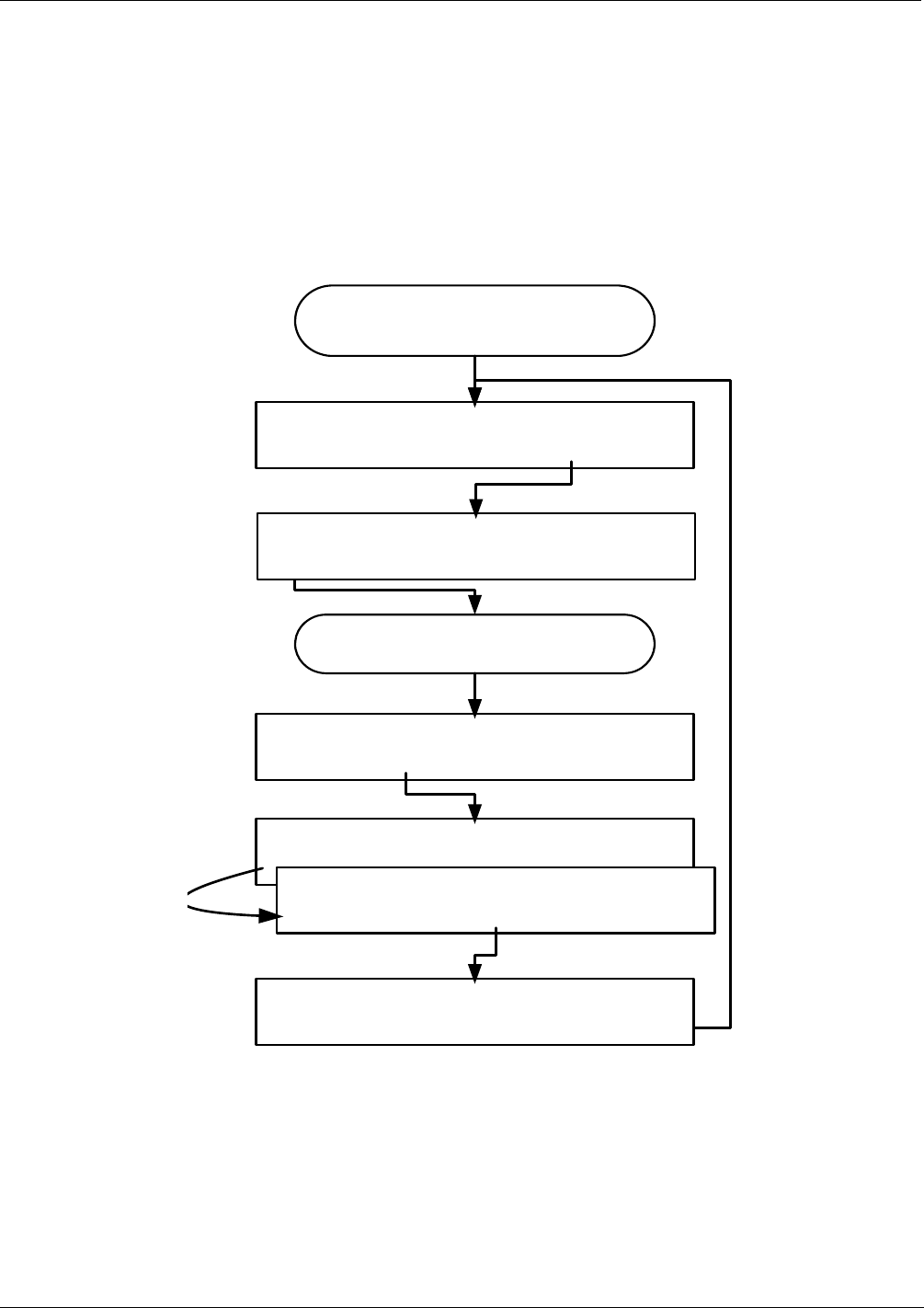

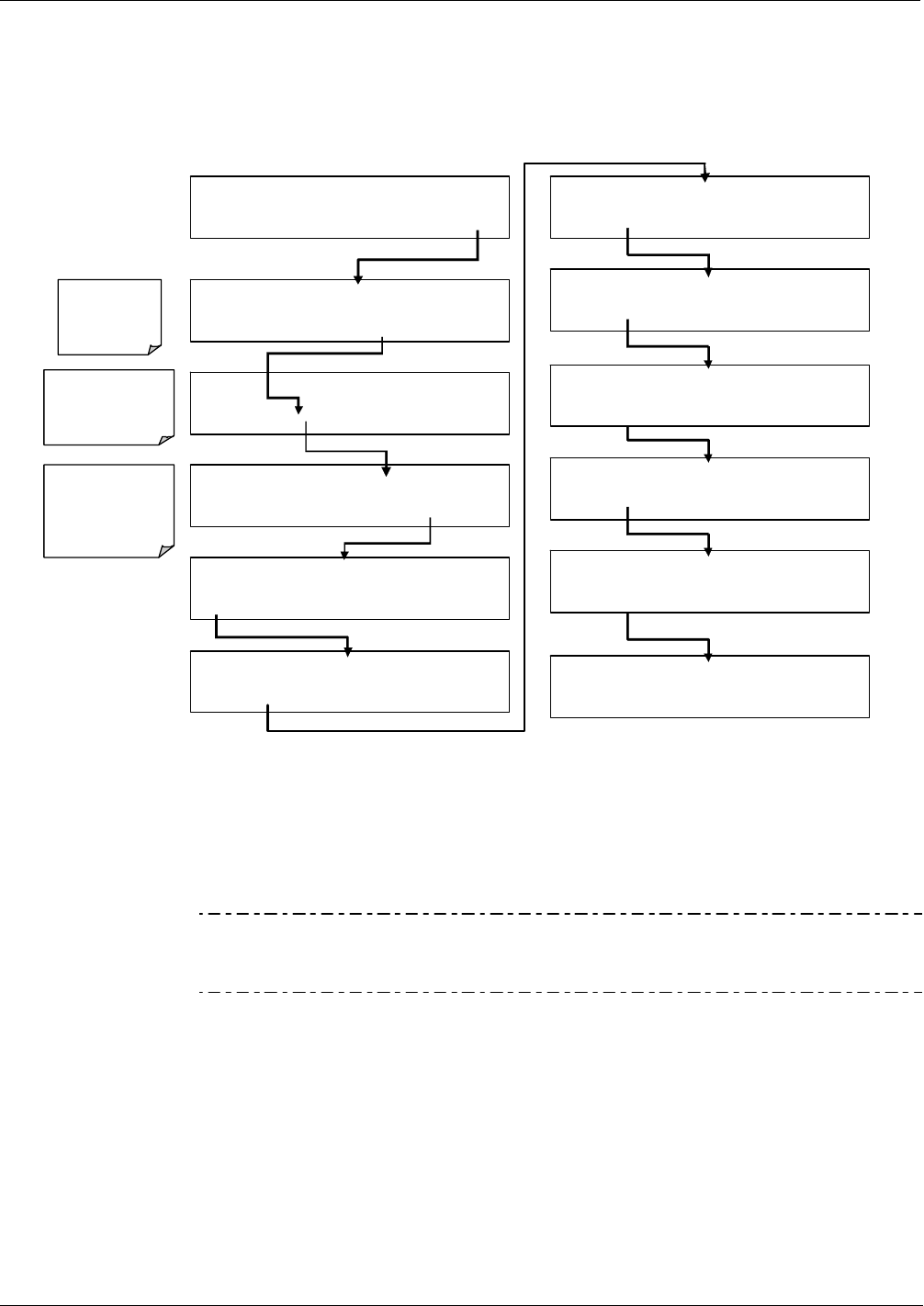

The flowcharts in this manual contain typical representations of the analyzer’s display

during the various operations being described. These representations are not intended to

be exact and may differ slightly from the actual display of your instrument.

07270B DCN6512

Introduction, Features, and Options Teledyne API - Model T200H/T200M Operation Manual

1.4. OPTIONS

Option Option

Number Description/Notes Reference

Pumps Pumps meet all typical AC power supply standards while exhibiting same

pneumatic performance.

11A Ship without pump N/A

11B Pumpless Pump Pack N/A

12A Internal Pump 115V @ 60 Hz N/A

12B Internal Pump 220V @ 60 Hz N/A

12C Internal Pump 220V @ 50 Hz N/A

Rack Mount

Kits Options for mounting the analyzer in standard 19” racks

20A Rack mount brackets with 26 in. (660 mm) chassis slides N/A

20B Rack mount brackets with 24 in. (610 mm) chassis slides N/A

21 Rack mount brackets only (compatible with carrying strap, Option 29) N/A

23 Rack mount for external pump pack (no slides) N/A

Carrying Strap/Handle Side-mounted strap for hand-carrying analyzer

Extends from “flat” position to accommodate hand for carrying.

Recesses to 9mm (3/8”) dimension for storage.

Can be used with rack mount brackets, Option 21.

Cannot be used with rack mount slides.

N/A

CAUTION – GENERAL SAFETY HAZARD

THE T200H OR T200M ANALYZER WEIGHS ABOUT 18 KG (40 POUNDS).

TO AVOID PERSONAL INJURY WE RECOMMEND THAT TWO PERSONS LIFT AND CARRY THE

ANALYZER. DISCONNECT ALL CABLES AND TUBING FROM THE ANALYZER BEFORE MOVING IT.

Analog Input and USB port Used for connecting external voltage signals from other instrumentation (such as

meteorological instruments).

64B

Also can be used for logging these signals in the analyzer’s internal

DAS Section 3.4.2

Current Loop Analog

Outputs

Adds isolated, voltage-to-current conversion circuitry to the analyzer’s analog

outputs.

Can be configured for any output range between 0 and 20 mA.

May be ordered separately for any of the analog outputs.

Can be installed at the factory or retrofitted in the field.

Section 3.4.5

Parts Kits Spare parts and expendables

42A

Expendables Kit includes a recommended set of expendables for

one year of operation of this instrument including replacement

sample particulate filters.

Appendix B

Calibration Valves Used to control the flow of calibration gases generated from external sources,

rather than manually switching the rear panel pneumatic connections.

50A

AMBIENT ZERO AND AMBIENT SPAN VALVES

Zero Air and Span Gas input supplied at ambient pressure.

Gases controlled by 2 internal valves; SAMPLE/CAL & ZERO/SPAN.

Section 3.5.3.1

50D

ZERO SCRUBBER AND DUAL PRESSURIZED SPAN VALVES

Zero Air Scrubber produces/supplies zero air to the ZERO inlet port.

Dual Pressurized Span Valves for two gas mixtures to separate inlet ports,

HIGH SPAN and LOW SPAN.

Section 3.5.3.2

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Introduction, Features, and Options

Option Option

Number Description/Notes Reference

Communication Cables For remote serial, network and Internet communication with the analyzer.

Type Description

60A RS-232

Shielded, straight-through DB-9F to DB-25M cable, about

1.8 m long. Used to interface with older computers or

code activated switches with DB-25 serial connectors.

Section 3.4.8

60B RS-232

Shielded, straight-through DB-9F to DB-9F cable of about

1.8 m length. Section 3.4.8

60C Ethernet

Patch cable, 2 meters long, used for Internet and LAN

communications. Section 3.4.8

60D USB

Cable for direct connection between instrument (rear

panel USB port) and personal computer. Section 3.4.8

USB Port For remote connection

64A

For connection to personal computer. (Separate option only when

Option 64B, Analog Input and USB Com Port not elected).

Sections 3.4.8.2

and 4.11.8

Concentration Alarm Relays Issues warning when gas concentration exceeds limits set by user.

Four (4) “dry contact” relays on the rear panel of the instrument. This

relay option is different from and in addition to the “Contact Closures”

that come standard on all TAPI instruments.

Section 3.4.7

RS-232 Multidrop Enables communications between host computer and up to eight analyzers.

Multidrop card seated on the analyzer’s CPU card.

Each instrument in the multidrop network requres this card and a

communications cable (Option 60B).

Sections 3.4.8.3

and 4.11.9

Other Gas Options Second gas sensor and gas conditioners

65A Oxygen (O2) Sensor

Figure 3-23, Figure

3-24 and Sections

3.7.2 and 8.4

86A

Sample Gas Conditioner (Dryer/NH3 Removal) for sample gas

stream only. Converts analyzer to dual-conditioner instrument. (contact Sales)

Sample Oxygenator for proper operation of the NO2-to-NO catalytic

converter. Injects oxygen into sample gas that is depleted of oxygen. (contact Sales)

Special Features Built in features, software activated

N/A

Maintenance Mode Switch, located inside the instrument, places

the analyzer in maintenance mode where it can continue sampling,

yet ignore calibration, diagnostic, and reset instrument commands.

This feature is of particular use for instruments connected to

Multidrop or Hessen protocol networks.

Call Customer Service for activation.

N/A

Second Language Switch activates an alternate set of display

messages in a language other than the instrument’s default

language.

Call Customer Service for a specially programmed Disk on Module containing

the second language.

N/A

Dilution Ratio Option allows the user to compensate for diluted

sample gas, such as in continuous emission monitoring (CEM) where

the quality of gas in a smoke stack is being tested and the sampling

method used to remove the gas from the stack dilutes the gas.

Call Customer Service for activation.

Section 4.8.2

07270B DCN6512

Introduction, Features, and Options Teledyne API - Model T200H/T200M Operation Manual

This page intentionally left blank.

07270B DCN6512

2. SPECIFICATIONS AND APPROVALS

2.1. T200H/M OPERATING SPECIFICATIONS

Table 2-1: Model T200H/M Basic Unit Specifications

Min/Max Range

(Physical Analog Output) T200H: Min: 0-5 ppm; Max: 0-5000 ppm T200M: Min: 0-1 ppm; Max: 0-200 ppm

Measurement Units ppm, mg/m3 (user selectable)

Zero Noise <20 ppb (RMS)

Span Noise <0.2% of reading above 20 ppm

Lower Detectable Limit 40 ppb (2x noise as per USEPA)

Zero Drift (24 hours) <20 ppb (at constant temperature and voltage.)

Zero Drift (7 days) <20 ppb (at constant temperature and voltage.)

Span Drift (7 Days) <1% of reading (at constant temperature and voltage.)

Linearity 1% of full scale

Precision 0.5% of reading

Lag Time 20 s

Rise/Fall Time 95% in <60 s (~10 s in NO only or NOX only modes)

T200H:

 40 cm³/min sample gas through NO2

converter & sensor module

 250 cm3/min ± 10% through bypass

manifold

 290 cm³/min total flow

T200M:

250 cm³/min sample gas through NO2

converter & sensor module

Gas Flow Rates

O2 Sensor option adds 80 cm³/min to total flow though T200H/M when installed.

Temperature Range 5 - 40 C operating range

Humidity Range 0-95% RH non-condensing

Dimensions H x W x D 18 cm x 43 cm x 61 cm (7" x 17" x 23.6")

Weight, Analyzer 18 kg (40 lbs) without options

Weight, Ext Pump Pack 7 kg (16 lbs)

AC Power

T200H:

100V-120V, 60 Hz (175W)

220V-240V, 50 Hz (155W)

T200M:

100V-120V, 60 Hz (55W)

220V-240V, 50 Hz (75W)

Power, Ext Pump 100 V, 50 Hz (300 W); 100 V, 60 Hz (255 W); 115 V, 60 Hz (285 W);

220 - 240 V, 50 Hz (270 W); 230 V, 60 Hz (270 W)

Environmental Installation category (over-voltage category) II; Pollution degree 2

Analog Outputs 4 user configurable outputs

Analog Output Ranges

All Outputs: 0.1 V, 1 V, 5 V or 10 V

Three outputs convertible to 4-20 mA isolated current loop.

All Ranges with 5% under/over-range

Analog Output Resolution 1 part in 4096 of selected full-scale voltage (12 bit)

Status Outputs 8 Status outputs from opto-isolators, 7 defined, 1 spare

Control Inputs 6 Control inputs, 4 defined, 2 spare

Alarm outputs 2 relay alarms outputs (Optional equipment) with user settable alarm limits

- 1 Form C: SPDT; 3 Amp @ 125 VAC

Standard I/O

1 Ethernet: 10/100Base-T

2 RS-232 (300 – 115,200 baud)

2 USB device ports

8 opto-isolated digital outputs

6 opto-isolated digital inputs

4 analog outputs

Optional I/O

1 USB com port

1 RS485

8 analog inputs (0-10V, 12-bit)

4 digital alarm outputs

Multidrop RS232

3 4-20mA current outputs

07270B DCN6512

Specifications and Approvals Teledyne API - Model T200H/T200M Operation Manual

2.2. APPROVALS AND CERTIFICATIONS

The Teledyne API Nitrogen Oxides Analyzers T200H and T200M were tested and

certified for Safety and Electromagnetic Compatibility (EMC). This section presents the

compliance statements for those requirements and directives.

2.2.1. SAFETY

IEC 61010-1:2001, Safety requirements for electrical equipment for measurement,

control, and laboratory use.

CE: 2006/95/EC, Low-Voltage Directive

North American:

cNEMKO (Canada): CAN/CSA-C22.2 No. 61010-1-04

NEMKO-CCL (US): UL No. 61010-1 (2nd Edition)

2.2.2. EMC

EN 61326-1 (IEC 61326-1), Class A Emissions/Industrial Immunity

EN 55011 (CISPR 11), Group 1, Class A Emissions

FCC 47 CFR Part 15B, Class A Emissions

CE: 2004/108/EC, Electromagnetic Compatibility Directive

07270B DCN6512

3. GETTING STARTED

3.1. UNPACKING AND INITIAL SETUP

CAUTION

THE T200H AND THE T200M EACH WEIGHS ABOUT 18 KG (40 POUNDS) WITHOUT

OPTIONS INSTALLED. TO AVOID PERSONAL INJURY, WE RECOMMEND TO USE TWO

PERSONS TO LIFT AND CARRY THE ANALYZER.

Note It is recommended that you store shipping containers/materials for future

use if/when the instrument should be returned to the factory for repair

and/or calibration service. See Warranty section in this manual and

shipping procedures on our Website at http://www.teledyne-api.com

under Customer Support > Return Authorization.

WARNING

NEVER DISCONNECT ELECTRONIC CIRCUIT BOARDS, WIRING HARNESSES OR

ELECTRONIC SUBASSEMBLIES WHILE THE UNIT IS UNDER POWER.

1. Inspect the received packages for external shipping damage. If damaged, please

advise the shipper first, then Teledyne API.

2. Included with your analyzer is a printed record of the final performance

characterization performed on your instrument at the factory. This record, titled

Final Test and Validation Data Sheet (P/N 04413) is an important quality assurance

and calibration record for this instrument. It should be placed in the quality records

file for this instrument.

3. Carefully remove the top cover of the analyzer and check for internal shipping

damage, as follows:

a. Remove the set-screw located in the top, center of the front panel.

CAUTION – Avoid Warranty Invalidation

Printed circuit assemblies (PCAs) are sensitive to electro-static discharges too small to be

felt by the human nervous system. Damage resulting from failure to use ESD protection

when working with electronic assemblies will void the instrument warranty.

See A Primer on Electro-Static Discharge section in this manual for more information on preventing

ESD damage.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

b. Remove the 2 screws fastening the top cover to the unit (one per side towards

the rear).

c. Slide the cover backwards until it clears the analyzer’s front bezel.

d. Lift the cover straight up.

4. Inspect the interior of the instrument to make sure all circuit boards and other

components are in good shape and properly seated.

5. Check the connectors of the various internal wiring harnesses and pneumatic hoses

to make sure they are firmly and properly seated.

6. Verify that all of the optional hardware ordered with the unit has been installed.

These are checked on the paperwork (Form 04490) accompanying the analyzer.

3.2. VENTILATION CLEARANCE

Whether the analyzer is set up on a bench or installed into an instrument rack, be sure to

leave sufficient ventilation clearance.

AREA MINIMUM REQUIRED CLEARANCE

Back of the instrument 10 cm / 4 inches

Sides of the instrument 2.5 cm / 1 inch

Above and below the instrument. 2.5 cm / 1 inch

3.3. T200H/M LAYOUT

Figure 3-1 shows the front panel layout of the analyzer, and Figure 3-4 shows the rear

panel with optional zero-air scrubber mounted to it and two optional fittings for the IZS

option. Figure 3-5 shows a top-down view of the analyzer. This configuration includes

the IZS option, zero-air scrubber and an additional sample dryer (briefly described in

Section 1.4).

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

Figure 3-1: Front Panel

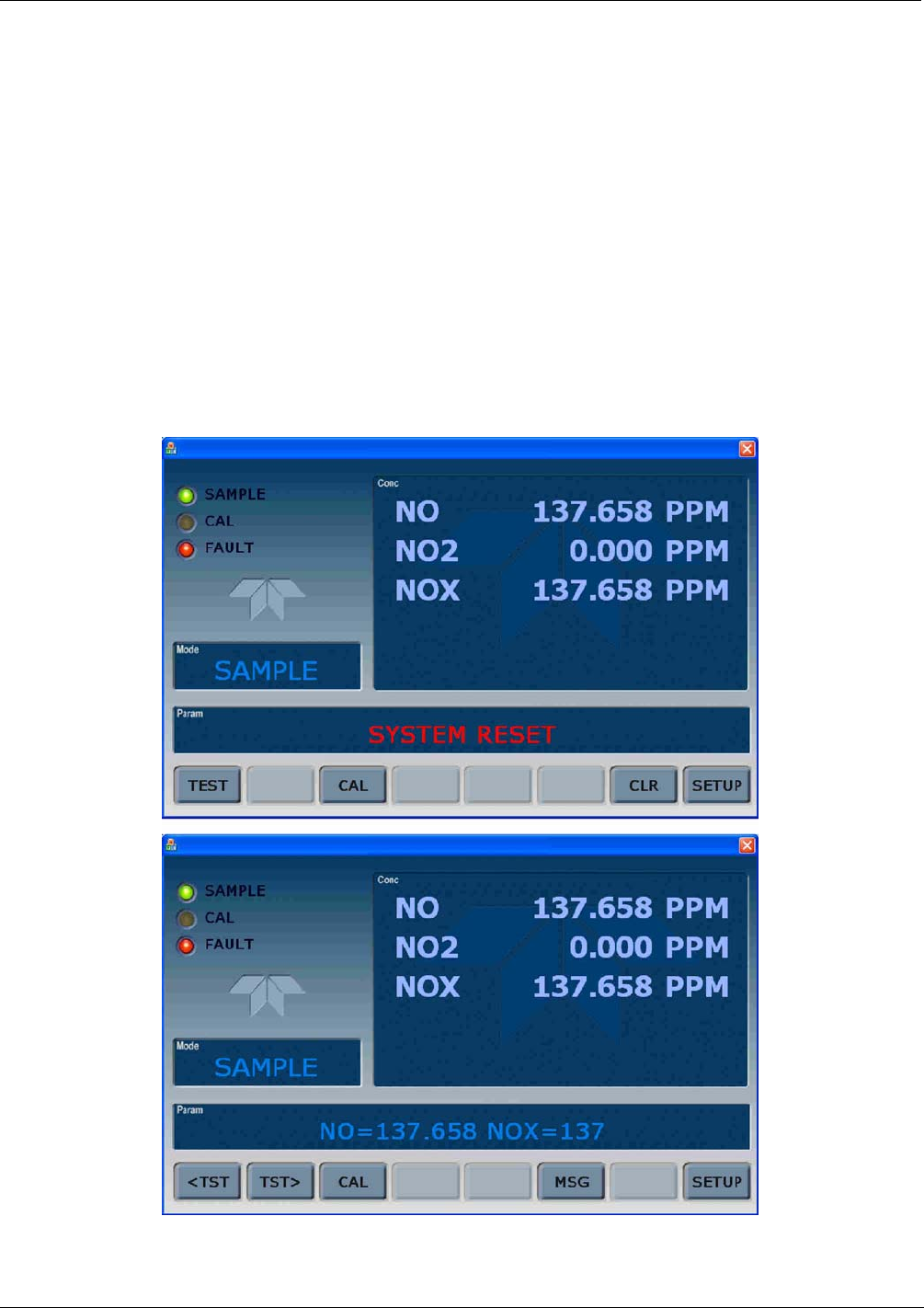

Figure 3-2: Display Screen and Touch Control

CAUTION – Avoid Damaging Touch screen

Do not use hard-surfaced instruments such as pens to operate the touch screen.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

The front panel liquid crystal display screen includes touch control. Upon analyzer start-

up, the screen shows a splash screen and other initialization indicators before the main

display appears, similar to Figure 3-2 above (may or may not display a Fault alarm). The

LEDs on the display screen indicate the Sample, Calibration and Fault states; also on the

screen is the gas concentration field (Conc), which displays real-time readouts for the

primary gas and for the secondary gas if installed. The display screen also shows what

mode the analyzer is currently in, as well as messages and data (Param). Along the

bottom of the screen is a row of touch control buttons; only those that are currently

applicable will have a label. Table 3-1 provides detailed information for each component

of the screen.

Table 3-1: Display Screen and Touch Control Description

Field Description/Function

LEDs indicating the states of Sample, Calibration and Fault, as follows:

Name Color State Definition

SAMPLE Green

Off

Blinking

Unit is not operating in sample mode, DAS is disabled.

Sample Mode active; Front Panel Display being updated; DAS data

being stored.

Unit is operating in sample mode, front panel display being updated,

DAS hold-off mode is ON, DAS disabled

CAL Yellow

Off

Blinking

Auto Cal disabled

Auto Cal enabled

Unit is in calibration mode

Status

FAULT Red Off

Blinking

No warnings exist

Warnings exist

Conc Displays the actual concentration of the sample gas currently being measured by the analyzer in the

currently selected units of measure

Mode Displays the name of the analyzer’s current operating mode

Param Displays a variety of informational messages such as warning messages, operational data, test function

values and response messages during interactive tasks.

Control Buttons Displays dynamic, context sensitive labels on each button, which is blank when inactive until applicable.

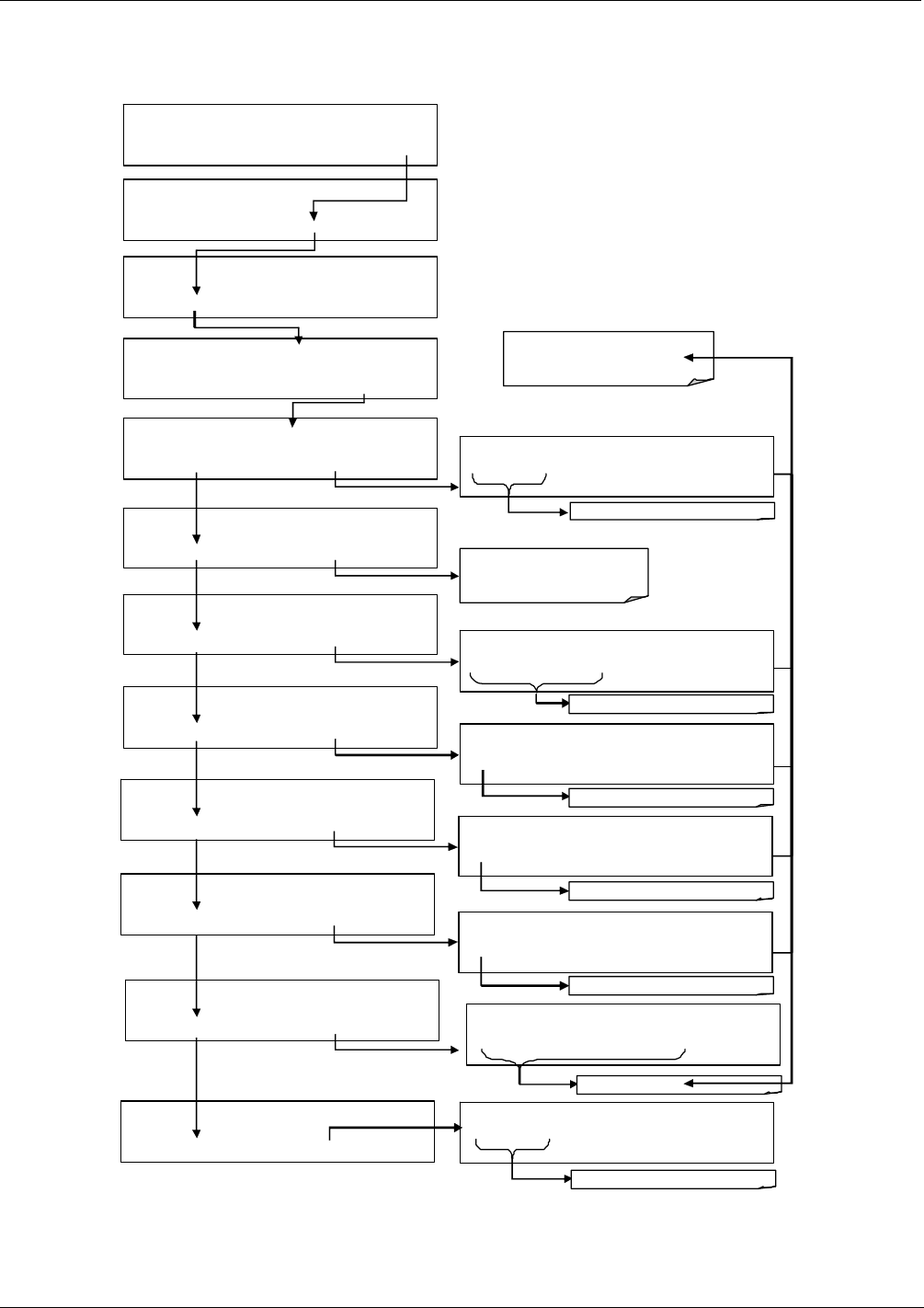

Figure 3-3 shows how the front panel display is mapped to the menu charts illustrated in

this manual. The Mode, Param (parameters), and Conc (gas concentration) fields in the

display screen are represented across the top row of each menu chart. The eight touch

control buttons along the bottom of the display screen are represented in the bottom row

of each menu chart.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

Figure 3-3: Display/Touch Control Screen Mapped to Menu Charts

The rear panel is illustrated in Figure 3-4 and described in Table 3-2.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

Figure 3-4: T200H/M Rear Panel Layout

Table 3-2: Rear Panel Description

Component Function

Cooling Fan Pulls ambient air into chassis through side vents and exhausts through rear.

AC power

connector

Connector for three-prong cord to apply AC power to the analyzer.

CAUTION! The cord’s power specifications (specs) MUST comply with the power

specs on the analyzer’s rear panel Model number label

Model label Identifies the analyzer model number and provides voltage and frequency specs

SAMPLE Connect a gas line from the source of sample gas here.

Calibration gases are also inlet here on units without zero/span valve options installed.

EXHAUST Connect an exhaust gas line of not more than 10 meters long here that leads outside

the shelter or immediate area surrounding the instrument.

SPAN 1 On units with zero/span valve options installed, connect a gas line to the source of

calibrated span gas here.

ZERO AIR

(option)

Internal Zero Air: On units with zero/span valve options installed but no internal zero air

scrubber attach a gas line to the source of zero air here.

RX TX LEDs indicate receive (RX) and transmit (TX) activity on the when blinking.

COM 2 Serial communications port for RS-232 or RS-485.

RS-232 Serial communications port for RS-232 only.

DCE DTE Switch to select either data terminal equipment or data communication equipment

during RS-232 communication.

STATUS For outputs to devices such as Programmable Logic Controllers (PLCs).

ANALOG OUT For voltage or current loop outputs to a strip chart recorder and/or a data logger.

CONTROL IN For remotely activating the zero and span calibration modes.

ALARM Option for concentration alarms and system warnings.

ETHERNET Connector for network or Internet remote communication, using Ethernet cable

ANALOG IN Option for external voltage signals from other instrumentation and for logging these

signals.

USB Option for direct connection to laptop computer, using USB cable.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

Figure 3-5: T200H/M Internal Layout

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

3.4. ELECTRICAL CONNECTIONS

Note To maintain compliance with EMC standards, it is required that the cable

length be no greater than 3 meters for all I/O connections, which include

Analog In, Analog Out, Status Out, Control In, Ethernet/LAN, USB, RS-232,

and RS-485.

Refer to Figure 3-4 for the location of the rear panel electrical and pneumatic

connections.

3.4.1. POWER CONNECTION

Attach the power cord to the analyzer and plug it into a power outlet capable of carrying

at least 10 A current at your AC voltage and that it is equipped with a functioning earth

ground.

CAUTION

CHECK THE VOLTAGE AND FREQUENCY SPECIFICATIONS ON THE REAR PANEL

LABEL SHOWING THE MODEL NAME AND NUMBER OF THE INSTRUMENT FOR

COMPATIBILITY WITH THE LOCAL POWER BEFORE PLUGGING THE T200H/M INTO

LINE POWER.

Do not plug in the power cord if the voltage or frequency is incorrect.

WARNING – RISK OF ELECTRIC SHOCK

HIGH VOLTAGES ARE PRESENT INSIDE THE INSTRUMENT’S CHASSIS.

POWER CONNECTION MUST HAVE FUNCTIONING GROUND CONNECTION.

DO NOT DEFEAT THE GROUND WIRE ON POWER PLUG.

TURN OFF ANALYZER POWER BEFORE DISCONNECTING OR

CONNECTING ELECTRICAL SUBASSEMBLIES.

DO NOT OPERATE WITH COVER OFF.

The T200H/M analyzer can be configured for both 100-130 V and 210-240 V at either

50 or 60 Hz. To avoid damage to your analyzer, make sure that the AC power voltage

matches the voltage indicated on the rear panel serial number label and that the

frequency is between 47 and 63 Hz.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

3.4.2. ANALOG INPUTS (OPTION 64) CONNECTIONS

The Analog In connector is used for connecting external voltage signals from other

instrumentation (such as meteorological instruments) and for logging these signals in the

analyzer’s internal DAS. The input voltage range for each analog input is 0-10 VDC,

and the input impedance is nominally 20kΩ in parallel with 0.1µF.

Figure 3-6: Analog In Connector

Pin assignments for the Analog In connector are presented in Table 3-3.

Table 3-3: Analog Input Pin Assignments

PIN DESCRIPTION DAS

PARAMETER1

1 Analog input # 1 AIN 1

2 Analog input # 2 AIN 2

3 Analog input # 3 AIN 3

4 Analog input # 4 AIN 4

5 Analog input # 5 AIN 5

6 Analog input # 6 AIN 6

7 Analog input # 7 AIN 7

8 Analog input # 8 AIN 8

GND Analog input Ground N/A

1 See Section 4.7 for details on setting up the DAS.

3.4.3. ANALOG OUTPUT CONNECTIONS

The T200H/M is equipped with four analog output channels accessible through a

connector on the back panel of the instrument. Each of these outputs may be set to

reflect the value of any of the instrument’s DAS data types. (see Table A-6 of T200H/M

Appendix A – P/N 05147).

The following table lists the default settings for each of these channels. To change these

settings, see Sections 6.13.4

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

Table 3-1: Analog Output Data Type Default Settings

CHANNEL DEFAULT SETTING

PARAMETER A1 A2 A3 A43

DATA TYPE1 NXCNC1 NOCNC1 N2CNC1 NXCNC2

RANGE 0 - 5 VDC2

REC OFS 0 mVDC

AUTO CAL. ON

CALIBRATED NO

OUTPUT ON

SCALE 100 ppm

UPDATE 5 sec

1 See Table A-6 of T200H/M Appendix A for definitions of these DAS data types

2 Optional current loop outputs are available for analog output channels A1-A3.

3 On analyzers with O2 sensor options installed, DAS parameter O2CONC is assigned to output A4.

To access these signals attach a strip chart recorder and/or data-logger to the appropriate

contacts of the analog output connecter on the rear panel of the analyzer.

NALOG OUT

+ - + - + - + -

Figure 3-7: Analog Output Connector

Table 3-4: Analog Output Pin-Outs

PIN ANALOG OUTPUT VOLTAGE SIGNAL CURRENT SIGNAL

1 V Out I Out +

Ground I Out -

3 V Out I Out +

Ground I Out -

5 V Out I Out +

Ground I Out -

7 V Out Not Available

Ground Not Available

3.4.4. CONNECTING THE STATUS OUTPUTS

The analyzer’s status outputs to interface with a device that accepts logic-level digital

inputs, such as programmable logic controller (PLC) chips, are accessed through a 12

pin connector labeled STATUS on the analyzer’s rear panel.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

EMITTER BUS

FOR PINS 1-8

STATUS

1 2 3 4 5 6 7 8 D +

SYSTEM OK

HIGH RANGE

CONC VALID

ZERO CAL

SPAN CAL

DIAGNOSTIC

MODE

LOW SPAN

Figure 3-8: Status Output Connector

Note Most PLCs have internal provisions for limiting the amount of current the

input will draw. When connecting to a unit that does not have this feature,

external resistors must be used to limit the current through the individual

transistor outputs to ≤50mA (120 Ω for 5V supply).

Table 3-5: Status Output Signals

PIN # STATUS CONDITION (ON = CONDUCTING)

1 SYSTEM OK ON if no faults are present.

2 CONC VALID ON if concentration measurement (NO, NO2 or NOx) is valid.

OFF any time the hold-off feature is active.

3 HIGH RANGE ON if unit is in high range of the Auto Range Mode.

4 ZERO CAL ON whenever the instrument is in ZERO point calibration mode.

5 SPAN CAL ON whenever the instrument is in SPAN point calibration mode.

6 DIAG MODE ON whenever the instrument is in diagnostic mode.

7 LOW SPAN CAL ON when in low span calibration (optional equipment necessary)

8 Not Used

D EMITTER BUS The emitters of the transistors on pins 1-8 are tied together.

Not Used

+ DC POWER + 5 VDC, 300 mA (combined rating with Control Output, if used).

Digital Ground The ground level from the analyzer’s internal DC power supplies

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

3.4.5. CURRENT LOOP ANALOG OUTPUTS (OPT 41) SETUP

This option adds isolated, voltage-to-current conversion circuitry to the analyzer’s

analog outputs. This option may be ordered separately for the first three of the analog

outputs and can be installed at the factory or added later. Call Teledyne API sales for

pricing and availability.

The current loop option can be configured for any output range between 0 and 20 mA

(for example 0-20, 2-20 or 4-20 mA). Information on calibrating or adjusting these

outputs can be found in Section 4.13.6.3.

Figure 3-9: Current Loop Option Installed on the Motherboard

CAUTION – Avoid Warranty Invalidation

Printed circuit assemblies (PCAs) are sensitive to electro-static discharges too small

to be felt by the human nervous system. Damage resulting from failure to use ESD

protection when working with electronic assemblies will void the instrument warranty.

See A Primer on Electro-Static Discharge in this manual for more information on preventing

ESD damage.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

3.4.5.1. Converting Current Loop Analog Outputs to Standard Voltage Outputs.

To convert an output configured for current loop operation to the standard 0 to 5 VDC

output operation:

1. Turn off power to the analyzer.

2. If a recording device was connected to the output being modified, disconnect it.

3. Remove the top cover:

a. Remove the set screw located in the top, center of the rear panel

b. Remove the screws fastening the top cover to the unit (four per side).

c. Lift the cover straight up.

4. Disconnect the current loop option PCA from the appropriate connector on the

motherboard.

5. Place a shunt between the leftmost two pins of the connector (see Figure 3-9).

6. Reattach the top case to the analyzer.

The analyzer is now ready to have a voltage-sensing, recording device attached to that

output.

CAUTION – Avoid Warranty Invalidation

Printed circuit assemblies (PCAs) are sensitive to electro-static discharges too small

to be felt by the human nervous system. Damage resulting from failure to use ESD

protection when working with electronic assemblies will void the instrument warranty.

See A Primer on Electro-Static Discharge in this manual for more information on preventing

ESD damage.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

3.4.6. CONNECTING THE CONTROL INPUTS

Control Inputs are used to remotely activate the zero and span calibration modes. Locate

the 10-pin connector labeled CONTROL IN on the analyzer’s rear panel.

There are two methods for energizing the control inputs. The internal +5V available

from the pin labeled “+” is the most convenient method. However, if full isolation is

required, an external 5 VDC power supply should be used.

SPAN CAL

ZERO CAL

LOW SPAN

CONTROL IN

Local Power Connections External Power Connections

SPAN CAL

ZERO CAL

LOW SPAN

CONTROL IN

5 VDC Power

Supply

A B C D E F U + A B C D E F U +

RANGE HI

Figure 3-10: Control Input Connector

Table 3-6: Control Input Signals

INPUT # STATUS DEFINITION ON CONDITION

A REMOTE ZERO CAL The analyzer is placed in Zero Calibration mode. The mode field of

the display will read ZERO CAL R.

B REMOTE SPAN CAL The analyzer is placed in Span Calibration mode. The mode field of

the display will read SPAN CAL R.

C REMOTE LO SPAN CAL

The analyzer is placed in low span calibration mode as part of

performing a low span (midpoint) calibration. The mode field of the

display will read LO CAL R.

D REMOTE RANGE HI The analyzer is placed into high range when configured for dual

ranges..

E SPARE

F SPARE

Digital Ground The ground level from the analyzer’s internal DC power supplies

(same as chassis ground).

U External Power input Input pin for +5 VDC required to activate pins A - F.

+ 5 VDC output

Internally generated 5V DC power. To activate inputs A - F, place a

jumper between this pin and the “U” pin. The maximum amperage

through this port is 300 mA (combined with the analog output supply,

if used).

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

3.4.7. CONNECTING THE ALARM RELAY OPTION (OPT 61)

The T200H/M can be equipped with a set of 2 concentration alarms. Each alarm can be

independently enabled or disabled as well as programmed with its own, individual alarm

limit point (see Section 4.14 for details on programming the alarms).

The status of each alarm is available via a set of alarm relay outputs located on the lower

right hand corner of the analyzer’s rear panel (see Figure 3-4). While there are four

relay outputs on the back of the analyzer, only Two of the outputs correspond to the

instrument’s two concentration alarms.

Table 5-5: Alarm Relay Output Assignments

RELAY NAME AL1 AL2 AL3 AL4

ASSIGNED ALARM ST_SYSTEM_OK21 CONCENTRATION

ALARM 1

CONCENTRATION

ALARM 2 SPARE

1 ST_SYSTEM OK2 is a second system OK status alarm available on some analyzers.

LARM OUT

AL1 AL2 AL3 AL4

NO C NC NO C NC NO C NC NO C NC

ST_SYSTEM_OK2

(Optional Alert)

CONCENTRATION

ALARM 1

CONCENTRATION

ALARM 2 SPARE

Figure 3-11: Alarm Relay Output Pin Assignments

Each of the two concentration relay outputs has 3-pin connections that allow the relay to

be connected for either normally open or normally closed operation. Table 3-7 describes

how to connect the alarm relays.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

Table 3-7: Concentration Alarm Relay Output Operation

RELAY PIN

STATE1

RELAY FUNCTION N

O C N

COMMENTS

Concentration Alarm 1

Active

Gas concentration level is above the trigger limit set for

CONC_ALARM_1

 DAS Trigger CONCW1 ACTIVATED

 CONC ALARM1 WARN appears on Analyzer Display

AL2

Concentration Alarm 1

Inactive Gas concentration level is below the trigger limit set for

CONC_ALARM_1

Concentration Alarm 2

Active

Gas concentration level is above the trigger limit set for

CONC_ALARM_2

 DAS Trigger CONCW2 ACTIVATED

 CONC ALARM2 WARN appears on Analyzer Display

AL3

Concentration Alarm 2

Inactive Gas concentration level is below the trigger limit set for

CONC_ALARM_2

1 NO = Normally Open operation.

C = Common

NC = Normally Closed operation.

3.4.8. CONNECTING THE COMMUNICATIONS PORTS

For RS-232 or RS-485 (option) communications through the analyzer’s two serial

interface ports, refer to Section 4.11 for information and connection instructions.

3.4.8.1. Connecting to a LAN or the Internet

For network or Internet communication with the analyzer, connect an Ethernet cable

from the analyzer’s rear panel Ethernet interface connector to an Ethernet port. See

Section 4.11.7 for configuration instructions.

Note The T200H/M firmware supports dynamic IP addressing or DHCP. If your

network also supports DHCP, the analyzer will automatically configure its

LAN connection appropriately. If your network does not support DHCP,

see Section 4.11.7.2 for instructions on manually configuring the LAN

connection.

3.4.8.2. Connecting to a Personal Computer (PC)

If the USB port is configured for direct communication between the analyzer and a

desktop or a laptop PC, connect a USB cable between the analyzer and the PC or laptop

USB ports, and follow the set-up instructions in Section 4.11.8. (RS-485 communication

is not available with the USB com port option).

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

3.4.8.3. Connecting to a Multidrop Network

The multidrop option is used with RS-232 and utilizes both com port DB-9 connectors

(RS-232 and COM2) on the rear panel to enable communications of up to eight

analyzers with the host computer over a chain of RS-232 cables. It is subject to the

distance limitations of the RS 232 standard.

The option consists of a small printed circuit assembly, which is seated on the analyzer’s

CPU card (see Figure 3-12). One Option 62 is required for each analyzer along with one

6’ straight-through, DB9 male  DB9 Female cable (P/N WR0000101).

If your unit has a Teledyne API RS-232 multidrop card (Option 62), see Section 4.11.9

for instructions on setting it up.

Figure 3-12: T200H/M Multidrop Card

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

3.5. PNEUMATIC CONNECTIONS

Note To prevent dust from getting into the analyzer, it was shipped with small

plugs inserted into each of the pneumatic fittings on the rear panel.

Remove and store the dust plugs for future use, such as storage, moving,

shipping.

CAUTION!

Do not operate this instrument until you’ve removed dust plugs from SAMPLE and EXHAUST

ports on the rear panel!

Table 3-8: Inlet / Outlet Connector Descriptions

REAR PANEL LABEL FUNCTION

SAMPLE Connects the sample gas to the analyzer. When operating the analyzer

without zero span option, this is also the inlet for any calibration gases.

EXHAUST Connects the exhaust of the analyzer with the external vacuum pump.

SPAN On Units with a zero/span valve, this port connects the external calibration gas

to the analyzer.

ZERO AIR On Units with a zero/span valve, this port connects the zero air gas or the zero

air cartridge to the analyzer.

3.5.1. ABOUT ZERO AIR AND CALIBRATION (SPAN) GASES

3.5.1.1. Zero Air

Zero air or zero calibration gas is defined as a gas that is similar in chemical

composition to the measured medium but without the gas to be measured by the

analyzer, in this case NO and NO2. If your analyzer is equipped with an external zero

air scrubber option, it is capable of creating zero air from ambient air.

If your application is not a measurement in ambient air, the zero calibration gas should

be matched to the matrix of the measured medium. Pure nitrogen could be used as a

zero gas for applications where NOX is measured in nitrogen. Special considerations

apply if measuring NOX in a matrix that does not contain oxygen, see Section 8.3.11 for

more information.

3.5.1.2. Calibration (Span) Gas

Calibration (or Span) gas is a gas specifically mixed to match the chemical composition

of the type of gas being measured at near full scale of the desired measurement range.

In this case, NOX, NO and NO2 measurements made with the T200H/M, it is

recommended that you use a span gas with an NO concentration equal to 80% of the

measurement range for your application.

EXAMPLE: If the application is to measure between 0 ppm and 500 ppm, an

appropriate span gas concentration would be 400 ppm NOx.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

Even though NO gas in nitrogen could be used as a span gas, the matrix of the balance

gas is different and may cause interference problems or yield incorrect calibrations. The

same applies to gases that contain high concentrations of other compounds (for example,

CO2 or H2O). The span gas should match all concentrations of all gases of the measured

medium as closely as possible.

Cylinders of calibrated NO gas traceable to NIST-standard reference materials

specifications (also referred to as EPA protocol calibration gases) are commercially

available.

Table 3-9: NIST-SRM's Available for Traceability of NOx Calibration Gases

NIST-SRM4 TYPE NOMINAL

CONCENTRATION

2627a

2628a

2629a

Nitric Oxide (NO) in N2

5 ppm

10 ppm

20 ppm

1683b

1684b

1685b

1686b

1687b

Nitric Oxide (NO) in N2

50 ppm

100 ppm

250 ppm

5000 ppm

1000 ppm

2630

2631a

2635

2636a

Nitric Oxide (NO) in N2

1500 ppm

3000 ppm

800 ppm

2000 ppm

2631a

1684b

Oxides of Nitrogen (NOx) in N2

3000 ppm

100 ppm

Note If a dynamic dilution system such as the Teledyne API Model T700 is used

to dilute high concentration gas standards to low, ambient

concentrations, make sure that the NO concentration of the reference gas

matches the dilution range of the calibrator. Choose an NO gas

concentration that is in the middle of the dilution system’s range.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

3.5.2. PNEUMATIC CONNECTIONS TO T200H/M BASIC CONFIGURATION

Figure 3-13 and Figure 3-14 show the most common configurations for gas supply and

exhaust lines to the Model T200H/M analyzer. Please refer to Figure 3-4 for the

locations of pneumatic connections on the rear panel and Table 3-2 for the descriptions.

Note Sample and calibration gases should only come into contact with PTFE

(Teflon) or glass or materials. They should not come in contact with FEP

or stainless steel materials.

Source of

SAMPLE GAS

Removed during

calibration

Instrument

Chassis

SAMPLE

EXHAUST

PUMP

MODEL T700

Gas Dilution

Calibrator

VENT (if no vent

on calibrator)

MODEL 701

Zero Gas

Generator

NOx Gas

(High Concentration)

VENT here if input

is pressurized

Figure 3-13: Pneumatic Connections–Basic Configuration–Using Gas Dilution Calibrator

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

Source of

SAMPLE GAS

Removed during

calibration

Instrument

Chassis

SAMPLE

EXHAUST

PUMP

MODEL 701

Zero Gas

Generator

VENT

3-way Valve

Manual

Control Valve

VENT here if input

is pressurized

NOX Gas

(High Concentration)

Figure 3-14: Pneumatic Connections–Basic Configuration–Using Bottled Span Gas

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

1. Attach a 1/4" exhaust line between the external pump and the EXHAUST port of the

analyzer.

2. Attach an additional 1/4" exhaust port of the pump.

CAUTION

The exhaust from the analyzer must be vented outside the shelter or immediate

area surrounding the instrument and conform to all safety requirements using

a maximum of 10 meters of 1/4” PTFE tubing.

3. Attach a sample inlet line to the SAMPLE inlet port. Ideally, the pressure of the

sample gas should be equal to ambient atmospheric pressure.

Note Maximum pressure of any gas at the SAMPLE inlet should not exceed 1.5

in-Hg above ambient pressure and ideally should equal ambient

atmospheric pressure.

In applications where the sample gas is received from a pressurized

manifold, a vent must be provided to equalize the sample gas with

ambient atmospheric pressure before it enters the analyzer.

The vented gas must be routed outside the immediate area or shelter

surrounding the instrument.

4. Once the appropriate pneumatic connections have been made, check all pneumatic

fittings for leaks using procedures defined in Section 7.5.1.

Figure 3-15 and Figure 3-16 show the internal pneumatic flow of the standard

configuration of the T200H and T200M respectively.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

Figure 3-15: T200H Internal Pneumatic Block Diagram - Standard Configuration

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

VACUUM

PRESSURE

SENSOR

SAMPLE

PRESSURE

SENSOR

O3 FLOW

SENSOR

FLOW PRESSURE

SENSOR PCA

INSTRUMENT CHASSIS

PERMAPURE

DRYER

NO/NOX

VALVE

AUTOZERO

VALVE O3

GENERATOR

SAMPLE

GAS

INLET

Filter

Orifice Dia.

0.004"

PUMP

NOXExhaust

Scrubber

Destruct

EXHAUST

GAS

OUTLET

EXHAUST MANIFOLD

Orifice Dia.

0.007"

Orifice Dia.

0.007"

REACTION

CELL

PMT

COMNO

COM

NO2

Converter

Figure 3-16: T200M Internal Pneumatic Block Diagram - Standard Configuration

Note Pneumatic Diagrams do not reflect the physical layout of the instrument.

The most significant differences between the T200H and T200M versions in regards to

pneumatic flow are:

 A bypass line leading directly from the particulate filter to the exhaust manifold is

present on the T200H, but not in the T200M.

 The diameter of the critical flow orifice controlling the gas flow into the sample

chamber is smaller and therefore the flow rate of sample gas through the instrument

is lower.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

3.5.3. CONNECTIONS WITH INTERNAL VALVE OPTIONS INSTALLED

If your analyzer is equipped with either the zero/span valve option (50A) or the 2-span

point valve option (50D), the pneumatic connections should be made as shown in Figure

3-17 and Figure 3-18:

VENT here if input

is pressurized

Source of

SAMPLE Gas

PUMP

Instrument

Chassis

Sample

Exhaust

Span Point

Zero Air

Calibrated NO

at HIGH Span

Concentration

MODEL T700

Gas Dilution

Calibrator

MODEL 701

Zero Gas

Generator

Figure 3-17: Pneumatic Connections–With Zero/Span Valve Option (50A)

VENT here if input

is pressurized

Source of

SAMPLE Gas

PUMP

VENT

Instrument

Chassis

Sample

Exhaust

High Span Point

Low Span Point

Zero Air

Calibrated NO

at HIGH Span

Concentration

Calibrated NO

at LOW Span

Concentration

VENT

On/Off

Valves

Figure 3-18: Pneumatic Connections–With 2-Span Point Option (50D) –Using Bottled Span Gas

Once the appropriate pneumatic connections have been made, check all pneumatic

fittings for leaks using the procedures defined in Section 7.5.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

3.5.3.1. Ambient Zero/Ambient Span Valves (OPT 50A)

The Model T200H/M NOx analyzer can be equipped with a zero/span valve option for controlling the flow of

calibration gases generated from external sources. This option contains two solenoid valves located inside the

analyzer that allow the user to switch either zero, span or sample gas to the instrument’s sensor.

The user can control these valves from the front panel keyboard either manually or by activating the instrument’s

CAL or AutoCal features (Section 5.8). The valves may also be opened and closed remotely through the serial

ports (Section 4.11) or through the external, digital control inputs (Section 4.15).

This option also includes a two-stage, external zero air scrubber assembly that removes all NO and NO2 from

the zero air source (ambient air). The scrubber is filled with 50% Purafil Chemisorbant® (for conversion of NO to

NO2) and 50% activated charcoal (for removal of NO2). This assembly also includes a small particle filter to

prevent scrubber particles to enter the analyzer as well as two more rear panel fittings so each gas can enter the

analyzer separately.

Figure 3-19 and Figure 3-20 show the internal, pneumatic layouts with the zero/span valve option installed for a

Model T200H and T200M respectively.

O3 FLOW

SENSOR

Filter

NOXExhaust

Scrubber

EXHAUST MANIFOLD

Figure 3-19: T200H – Internal Pneumatics with Ambient Zero-Span Valve Option 50A

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

Figure 3-20: T200M – Internal Pneumatics with Ambient Zero-Span Valve Option 50A

Table 3-10: Zero/Span Valve States

MODE VALVE CONDITION

Sample/Cal Open to sample gas inlet

SAMPLE Zero/Span Open to zero air inlet

Sample/Cal Open to zero/span inlet (activated)

ZERO

CALIBRATION Zero/Span Open to zero air inlet

Sample/Cal Open to zero/span inlet (activated)

SPAN

CALIBRATION Zero/Span Open to span gas inlet / IZS gas (activated)

The state of the zero/span valves can also be controlled:

 Manually from the analyzer’s front panel by using the SIGNAL I/O controls located

under the DIAG Menu (Section 4.13.2),

 By activating the instrument’s AutoCal feature (Section 5.8),

 Remotely by using the external digital control inputs (Section 4.15.1.2) or Ethernet

option.

 Remotely through the RS-232/485 serial I/O ports (Section 4.11).

All supply lines should be vented outside of the analyzer’s enclosure. In order to

prevent back-diffusion and pressure drop effects, these vent lines should be between 2

and 10 meters in length.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

3.5.3.2. Zero Scrubber/Dual Pressurized Span Valve (OPT 50D)

The zero air scrubber of Option 50D is a cartridge, which is used to produce and supply

zero air to the analyzer’s ZERO inlet port. The cartridge mounts to the outside rear panel

and contains two chemicals: 50% volume of Purafil Chemisorbant to convert NO to

NO2, followed by 50% volume of charcoal to absorb NO2.

The dual pressurized span valves of Option 50D are a special set of valves that allows

two separate NOx mixtures to enter the analyzer from two independent sources.

Typically these two gas mixtures will come from two, separate, pressurized bottles of

certified calibration gas: one mixed to produce a NO, NO2 or NOx concentration equal

to the expected span calibration value for the application and the other mixed to produce

a concentration at or near the midpoint of the intended measurement range. Individual

gas inlets, labeled HIGH SPAN and LOW SPAN are provided at the back on the

analyzer.

The valves allow the user to switch between the two sources via the front panel

touchscreen control buttons or from a remote location by way of either the analyzer’s

digital control inputs or by sending commands over its serial I/O port(s).

Note The analyzer’s software only allows the SLOPE and OFFSET to be

calculated when sample is being routed through the HIGH SPAN inlet.

The LOW SPAN gas is for midpoint reference checks only.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

The state of the optional valves can be controlled:

 Manually from the analyzer’s front panel by using the SIGNAL I/O submenu located

under the DIAG menu (Section 4.13.2),

 By activating the instrument’s CAL or AutoCal features (Section 5.8),

 Remotely by using the external digital control inputs (Section 4.15.1.2) or Ethernet.

 Remotely through the RS-232/485 serial I/O ports (Section 4.11).

Table 3-11: Two-Point Span Valve Operating States

MODE VALVE CONDITION

Sample/Cal Open to SAMPLE inlet

Zero Gas Valve Closed to ZERO AIR inlet

High Span Valve Closed to HIGH SPAN inlet

SAMPLE

Low Span Valve Closed to LOW SPAN inlet

Sample/Cal Closed to SAMPLE inlet

Zero Gas Valve Open to ZERO AIR inlet

High Span Valve Closed to HIGH SPAN inlet

ZERO

CAL

Low Span Valve Closed to LOW SPAN inlet

Sample/Cal Closed to SAMPLE inlet

Zero Gas Valve Closed to ZERO AIR inlet

High Span Valve Open to HIGH SPAN inlet

HIGH

SPAN

CAL

Low Span Valve Closed to LOW SPAN inlet

Sample/Cal Closed to SAMPLE inlet

Zero Gas Valve Closed to ZERO AIR inlet

High Span Valve Closed to HIGH SPAN inlet

Low Span

Check

Low Span Valve Open to LOW SPAN inlet

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

This page intentionally left blank.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

Figure 3-21: T200H - Internal Pneumatics for Zero Scrubber/Dual Pressurized Span, Option 50D

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

Figure 3-22: T200M - Internal Pneumatics for Zero Scrubber/Dual Pressurized Span, Option 50D

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

3.5.3.3. Internal Flow for O2 Sensor Option 65A

Please see Section 3.7.2 for calibration connections and method.

VACUUM

PRESSURE

SENSOR

SAMPLE

PRESSURE

SENSOR

O3 FLOW

SENSOR

FLOW PRESSURE

SENSOR PCA

INSTRUMENT CHASSIS

NO/NOX

VALVE

AUTOZERO

VALVE

Destruct

GENERATOR

EXHAUST

GAS

OUTLET

SAMPLE

GAS

INLET

EXHAUST MANIFOLD

Sensor

Orifice Dia.

0.007"

Orifice Dia.

0.004"

PUMP

NOXExhaust

Scrubber

Orifice Dia.

0.007"

REACTION

CELL

PMT

PERMAPURE

DRYER

Filter

Orifice Dia.

0.004"

OPTION, O2

SENSOR, P/N 04453

COMNO

COM

NO2

Converter

Figure 3-23: T200H – Internal Pneumatics with O2 Sensor Option 65A

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

Figure 3-24: T200M – Internal Pneumatics with O2 Sensor Option 65A

07270B DCN6512

3.6. INITIAL OPERATION

CAUTION!

If the presence of ozone is detected at any time, call Teledyne API Technical Support as soon

as possible:

800-324-5190 or email: sda_techsupport@teledyne.com

If you are unfamiliar with the theory of operation of the T200H/M analyzer, we

recommend that you read Section 8 before proceeding. For information on navigating

the analyzer’s software menus, see the menu trees described in Appendix A.

3.6.1. STARTUP

After the electrical and pneumatic connections are made, an initial functional check is in

order. Turn on the instrument. The pump and exhaust fan should start immediately. The

display will briefly show a logo splash screen at the start of initialization.

The analyzer should automatically switch to Sample Mode after completing the boot-up

sequence and start monitoring NOX, NO, NO2 gases. Allow a one-hour warm-up period.

During the warm-up period, the front panel display may show messages in the

Parameters field, such as WARNING messages.

3.6.2. WARNING MESSAGES

During warm-up, internal temperatures and other parameters may be outside of specified

limits. The software will suppress most warning conditions for 30 minutes after power

up.

SAMPLE HVPS WARNING NOX = 0.0

TEST CAL MSG CLR SETUP

Press CLR to clear the current

message.

If more than one warning is active, the

next message will take its place

Once the last warning has been

cleared, the analyzer returns to

SAMPLE mode

SAMPLE RANGE=200.0 PPM NO = 0.0

< TST TST > CAL MSG CLR SETUP

SAMPLE HVPS WARNING NOX = 0.0

TEST CAL MSG CLR SETUP

TEST deactivates warning

messages

MSG activates warning

messages.

<TST TST> keys replaced with

TEST key

NOTE:

If the warning message persists after several attempts to

clear it, the message may indicate a real problem and not

an artifact of the warm-u

eriod

Section 4.2.2 provides a table of warning messages with their definitions and the steps to

view and clear them. If warning messages persist after 30 minutes, investigate their

cause using the troubleshooting guidelines in Section 7.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

3.6.3. FUNCTIONAL CHECK

After the analyzer’s components have warmed up for at least 30 minutes, verify that the

software properly supports any hardware options that were installed.

Check to make sure that the analyzer is functioning within allowable operating

parameters. Appendices A and C include a list of test functions viewable from the

analyzer’s front panel as well as their expected values. These functions are also useful

tools for diagnosing performance problems with your analyzer (Section 7). The

enclosed Final Test and Validation Data Sheet (part number 04490) lists these values

before the instrument left the factory. To view the current values of these test functions

press the <TST TST> buttons:

1:NXCNC1=100 PPM

A2:N0CNC1=100 PPM1

A3:N2CNC1=25 PPM1

A4:NXCNC2=100%1

NOX STB

SAMP FLOW

OZONE FLOW

PMT

NORM PMT

AZERO

HVPS

RCELL TEMP

BOX TEMP

PMT TEM P

MF TEMP

O2 CELL TEMP2

MOLY TEMP

RCEL

SAMP

NOX SLOPE

NOX OFFSET

NO SLOPE

NO OFFSET

O2 SLOPE2

O2 OFFSET2

TIME

SAMPLE A1:NXCNC1=100 PPM NOX = XXX

< TST TST > CAL SETUP

default settings for us er

selectable reporting range

settings.

2 Only appears if O2 sensor

tion is installed.

Toggle <TST TST> to scroll

throu

h list of functions

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

3.7. CALIBRATION

An initial calibration and functional check should be conducted upon first-time startup.

Note Once you have completed the followng set-up procedures, please fill out

the quality questionnaire that was shipped with your unit and return it to

Teledyne API.

This information is vital to our efforts in continuously improving our

service and our products. Thank you.

3.7.1. BASIC NOX CALIBRATION PROCEDURE

The initial calibration should be carried out using the same reporting range set up as

used during the analyzer’s factory calibration. This will allow you to compare your

calibration results to the factory calibration as listed on the Final Test and Validation

Data Sheet.

The following procedure assumes that the instrument does not have any of the available

valve options installed. Section 5 contains instructions for calibrating instruments with

these options.

If both available DAS parameters for a specific gas type are being reported via the

instrument’s analog outputs e.g. NXCNC1 and NXCNC2, separate calibrations should

be carried out for each parameter.

 Use the LOW button when calibrating for NXCNC1

 Use the HIGH button when calibrating for NXCNC2.

See Sections 4.13.3 and 4.13.4 for more information on analog output reporting ranges.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

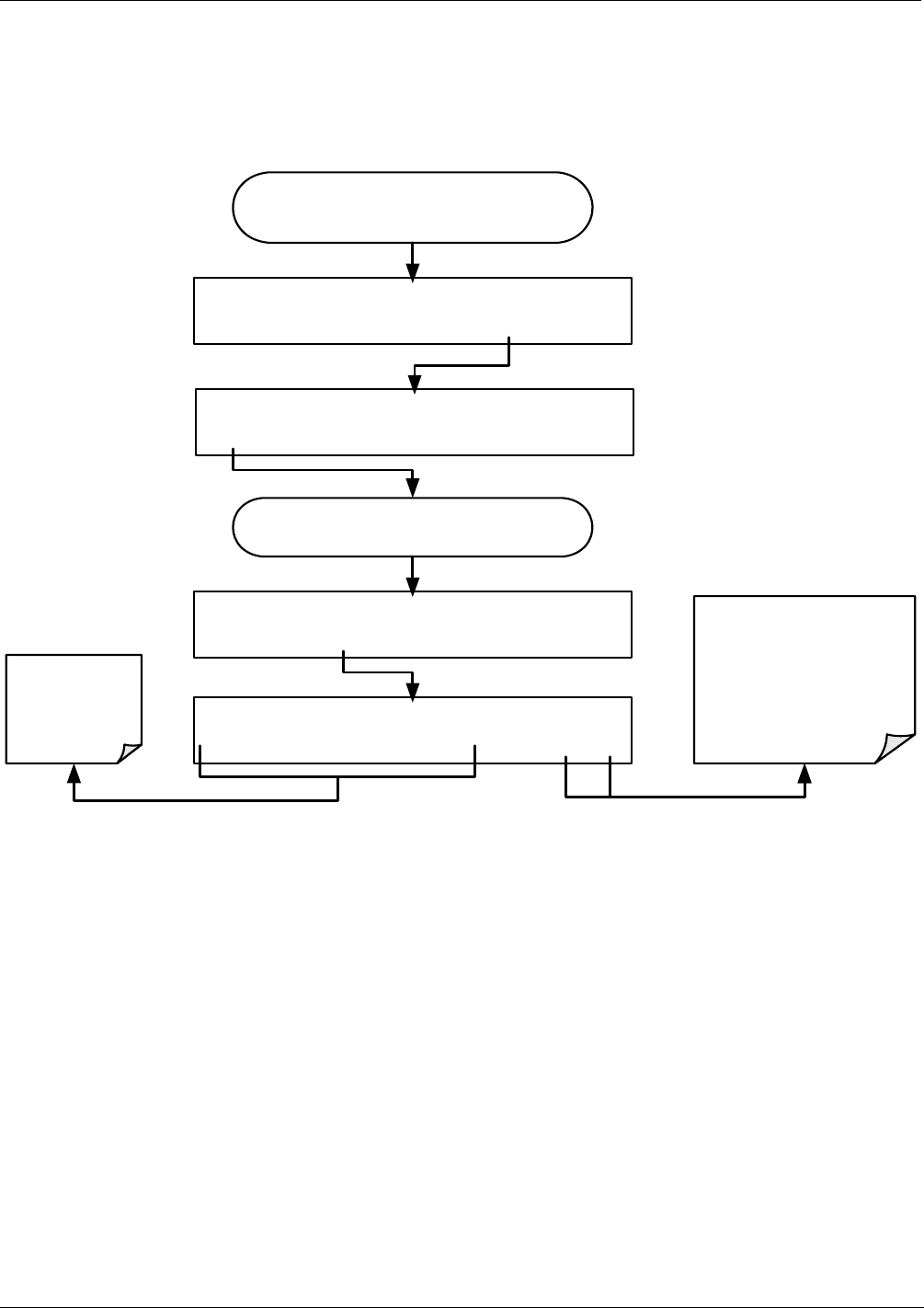

STEP 1 - Set Units:

To select the concentration units of measure press:

SETUP X.X PRIMARY SETUP MENU

CFG DAS RNGE PASS CLK MORE EXIT

SETUP X.X RANGE CONTROL MENU

UNIT DIL EXIT

SETUP X.X CONC UNITS: PPM

PPM MGM ENTR EXIT

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

< TST TST > CAL SETUP

Press this button to

select the

concentration units

of measure:

PPM or MGM

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

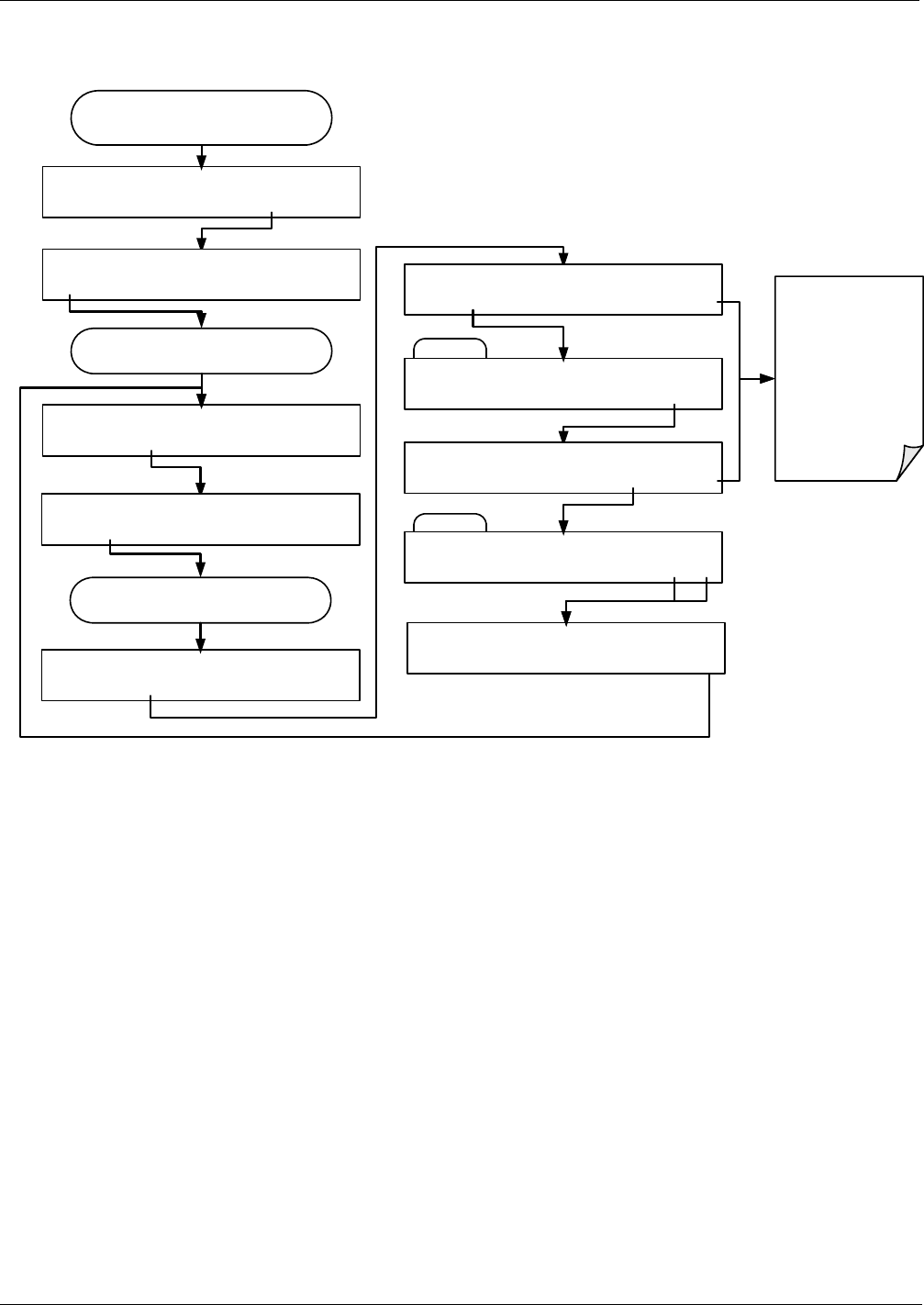

STEP 2 - Dilution Ratio:

If the dilution ratio option is enabled on your T200H/M and your application involves

diluting the sample gas before it enters the analyzer, set the dilution ratio as follows:

SETUP X.X PRIMARY SETUP MENU

CFG DAS RNGE PASS CLK MORE EXIT

SETUP X.X RANGE CONTROL MENU

UNIT DIL EXIT

SETUP X.X DIL FACTOR:1.0 Gain

0 0 0 0 .0 ENTR EXIT

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

< TST TST > CAL SETUP

Toggle these

buttons to select the

dilution ratio factor

EXIT ignores the new

setting and returns to the

previous display.

ENTR accepts the new

setting and returns to the

previous display..

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

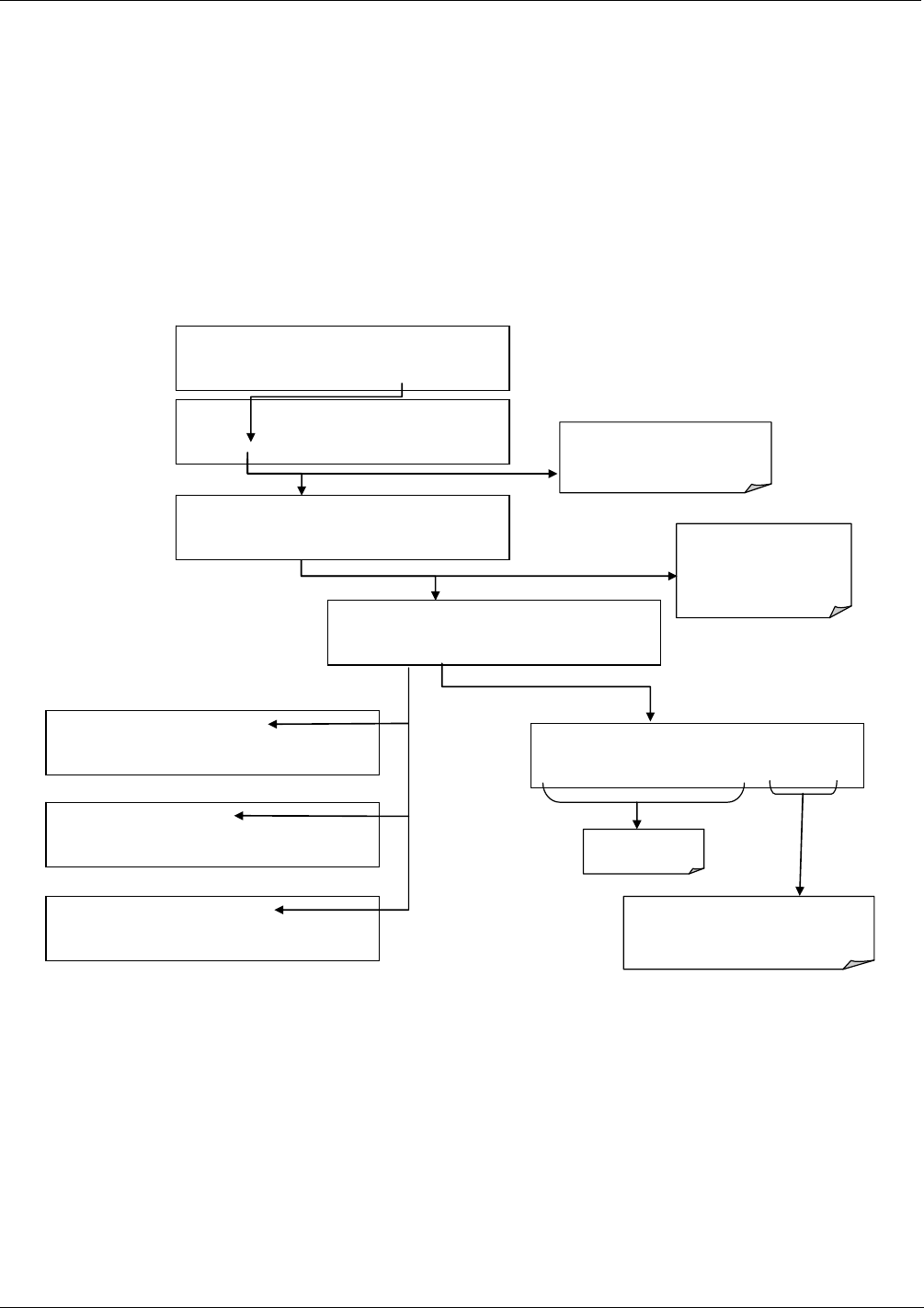

STEP 3 – Set NOx and NO span gas concentrations :

Set the expected NO and NOx span gas concentration. These should be 80% of range of

concentration values likely to be encountered in this application. The default factory

setting is 100 ppm. If one of the configurable analog outputs is to be set to transmit

concentration values, use 80% of the reporting range set for that output (see Section

4.13.4)

If you supply NO span gas to the analyzer as well as NOx, the values for expected NO

and NOx span gas concentrations need to be identical.

SAMPLE GAS TO CAL:NOX

NOX O2 ENTR EXIT

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

< TST TST > CAL SETUP

M-P CAL A1:NXCNC1 =100PPM NOX=X.XXX

<TST TST> ZERO SPAN CONC EXIT

SAMPLE RANGE TO CAL:LOW

LOW HIGH ENTR EXIT

M-P CAL CONCENTRATION MENU

NOX NO CONV EXIT

M-P CAL NOX SPAN CONC:80.0 Conc

0 0 8 0 .0 ENTR EXIT

The NOX & NO span concentration

values automatically default to

80.0 Conc.

If this is not the the concentration of

the span gas being used, toggle

these buttons to set the correct

concentration of the NOX and NO

calibration gases.

EXIT ignores the new

setting and returns to

the previous display.

ENTR accepts the new

setting and returns to

the

CONCENTRATION

MENU.

If using NO span gas

in addition to NOX

repeat last step.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

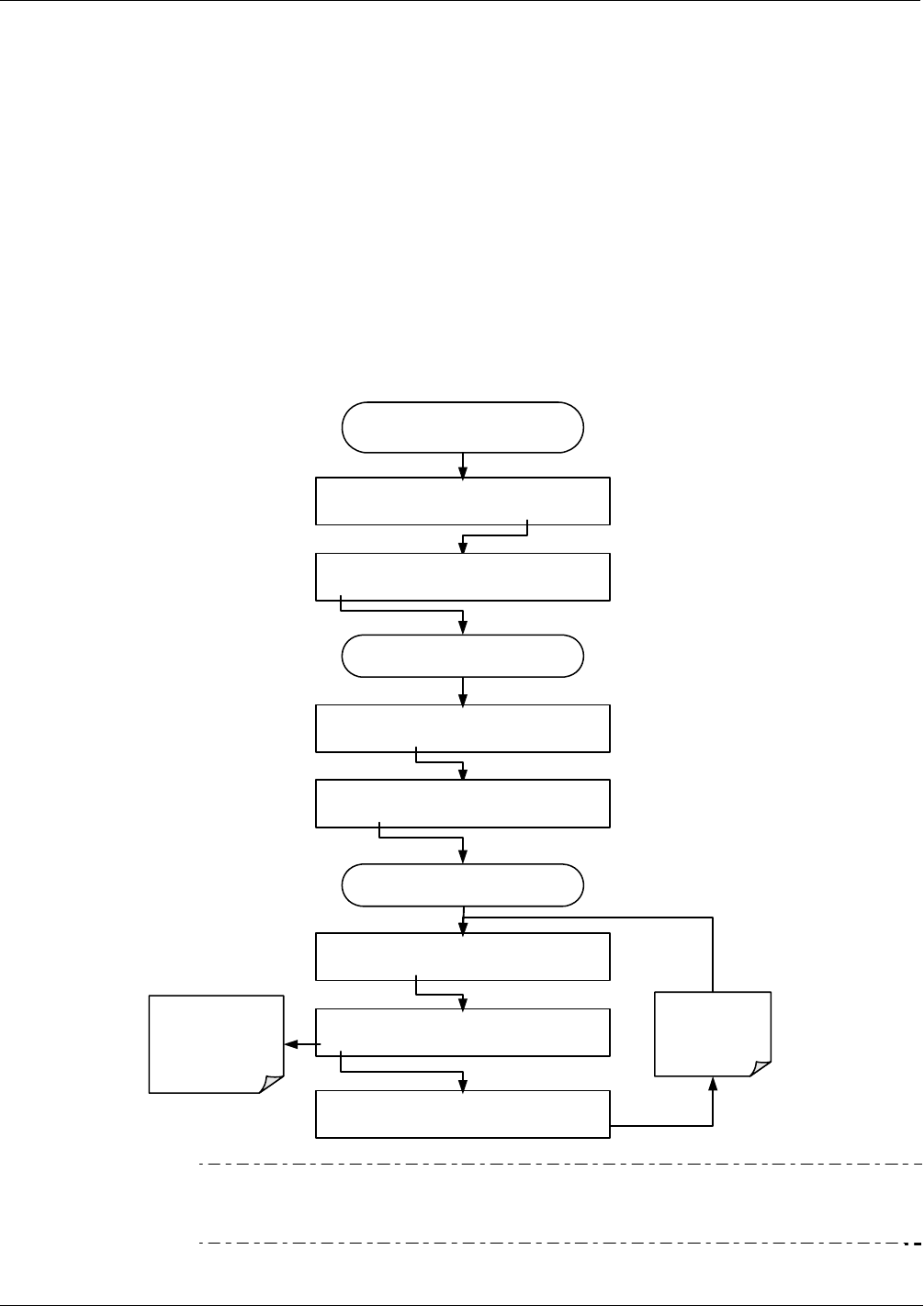

STEP 4 – Zero/Span Calibration :

To perform the zero/span calibration procedure:

Press ENTR to changes

the OFFSET & SLOPE

values for both the NO

and NOx measurements.

Press EXIT to leave the

calibration unchanged and

return to the previous

menu.

SAM PLE GAS TO CAL:NOX

NOX O2 ENTR EXIT

SAM PLE NOX STB= XXX.X PPM NOX=XXX.X

< TST TS T > C AL SETUP

M-P CAL NOX STB= XXX.X PPM NOX=XXX.X

<TST TST> ZERO CONC EXIT

SAM PLE RANGE TO CAL:LOW

LOW HIGH ENTR EXIT

EXIT at this point

returns to the

SAMPLE menu.

Press ENTR to changes

the OFFSET & SLOPE

values for both the NO

and NOx measurements.

Press EXIT to leave the

calibration unchanged and

return to the previous

menu.

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

< TST TST > CAL SETUP

Set the Display to show

the NOX STB test

function.

This function calculates

the stability of the NO/NOx

measurement

Toggle TST> button until ...

Allow zero gas to enter the sample port

at the rear of the analyzer.

W ait until NOX STB

falls below 0.5 ppm.

This may take several

minutes.

SAM PLE NOX STB= XXX.X PPM NOX=XXX.X

< TST TST > CAL SETUP

M-P CAL NOX STB= XXX.X PPM NOX =X.XXX

<TST TST> ENTR CONC EXIT

SAMPLE GAS TO CAL:NOX

NOX O2 ENTR EXIT

M-P CAL NOX STB= XXX.X PPM NOX=X .XX X

<TST TST> ZERO SPAN CONC EXIT

SAMPLE RANGE TO CAL:LOW

LOW HIGH ENTR EXIT

Allow span gas to enter the sample port

at the rear of the analyzer.

W ait until NOX STB

falls below 0.5 ppm.

This may take several

minutes.

SAM PLE NOX STB= XXX.X PPM NOX=XXX.X

< TST TST > CAL SETUP

M-P CAL NOX STB= XXX.X PPM NOX=X.XXX

<TST TST> ENTR CONC EXIT

M-P CAL NOX STB= XXX.X PPM NOX=X.XXX

<TST TST> ENTR CONC EXIT

The SPAN key now appears

during the transition from

zero to span.

You may see both keys.

If either the ZERO or SPAN

buttons fail to appear see

Section 10 for

troubleshooting tips.

Analyzer continues to

cycle through NOx,

NO, and NO2

measurements

throughout this

procedure.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

3.7.2. BASIC O2 SENSOR CALIBRATION PROCEDURE

If your instrument has an O2 sensor option installed that should be calibrated as well.

3.7.2.1. O2 Calibration Setup

The pneumatic connections for calibrating are as follows:

Calibrated N2

at HIGH Span

Concentration

Calibrated O2

at 20.8% Span

Concentration

Source of

SAMPLE GAS

Removed during

calibration

Instrument

Chassis

SAMPLE

EXHAUST

PUMP

VENT

3-way

Valve

Manual

Control Valve

VENT here if input

is pressurized

Figure 3-25: O2 Sensor Calibration Set Up

O2 SENSOR ZERO GAS: Teledyne API’ recommends using pure N2 when calibration

the zero point of your O2 sensor option.

O2 SENSOR SPAN GAS: Teledyne API’ recommends using 21% O2 in N2 when

calibration the span point of your O2 sensor option.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

3.7.2.2. O2 Calibration Method

STEP 1 – Set O2 span gas concentration :

Set the expected O2 span gas concentration.

This should be equal to the percent concentration of the O2 span gas of the selected

reporting range (default factory setting = 20.8%; the approximate O2 content of ambient

air).

SAMPLE GAS TO CAL:NOX

NOX O2 ENTR EXIT

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

< TST TST > CAL SETUP

M-P CAL A1:NXCNC1 =100PPM NOX=X.XXX

<TST TST> ZERO SPAN CONC EXIT

SAMPLE GAS TO CAL:O2

NOX O2 ENTR EXIT

M-P CAL O2 SPAN CONC:20.8%

02 0.80 ENTREXIT

The O2span concentration value automatically defaults to

20.8 %.

If this is not the the concentration of the span gas being

used, toggle these buttons to set the correct concentration

of the O2calibration gases.

EXIT ignores the new

setting and returns to

the previous display.

ENTR accepts the new

setting and returns to

the previous menu.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

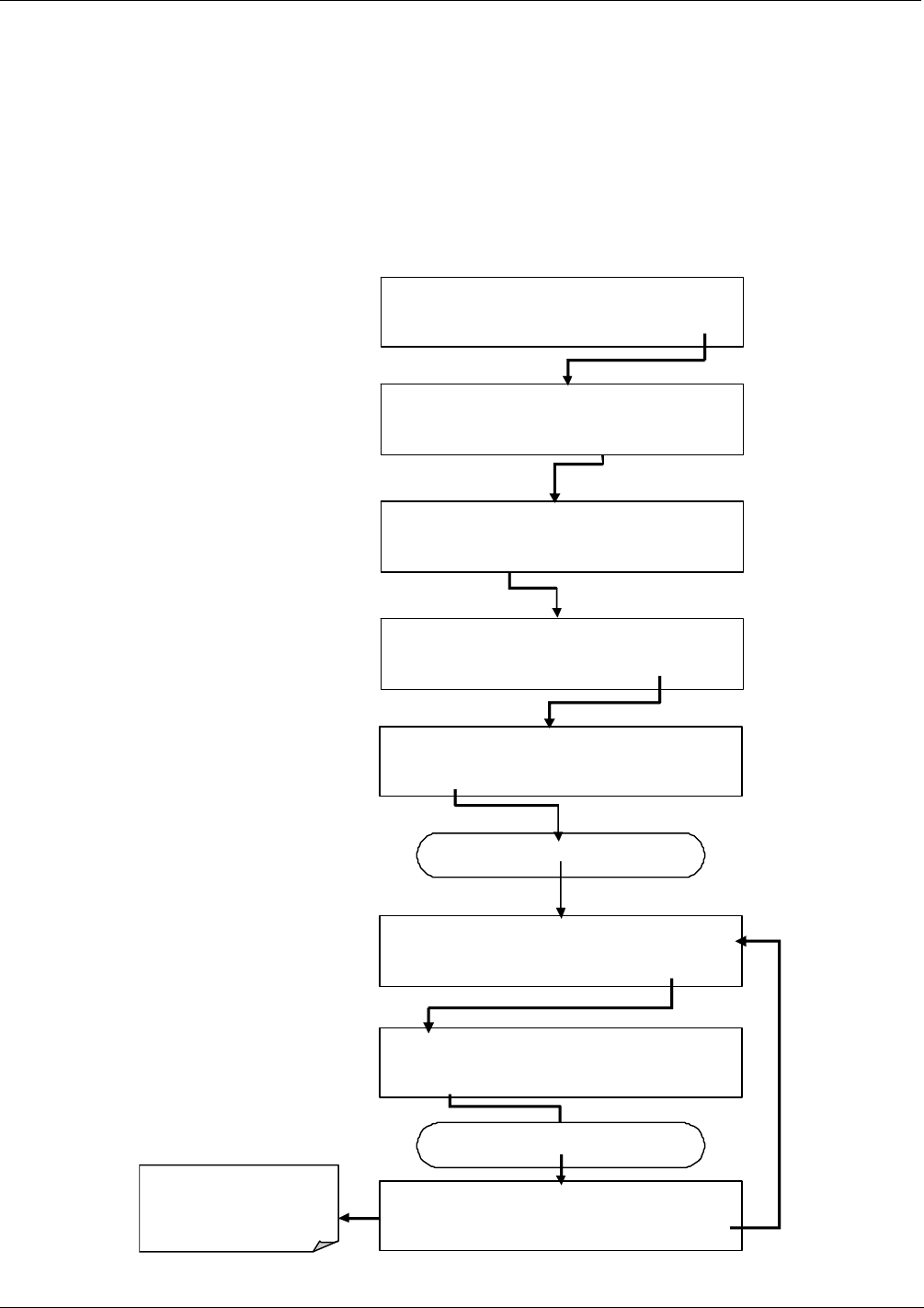

STEP 2 – Activate O2 sensor stability function

To change the stability test function from NOx concentration to the O2 sensor output,

press:

SETUP X.X STABIL_GAS:O2

NO NO2 NOX O2 ENTR EXIT

Press ENTR to keep

changes, then press

EXIT 3 times to return

to SAMPLE menu

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

< TST TST > CAL SETUP

SETUP X.X PRIMARY SETUP MENU

CFG DAS RNGE PASS CLK MORE EXIT

SETUP X.X SECONDARY SETUP MENU

COMM VARS DIAG ALRM EXIT

SETUP X.X ENTER PASSWORD:818

8 1 8 ENTREXIT

SETUP X.X 0) DAS_HOLD_OFF=15.0 Minutes

<PREV NEXT> JUMP EDIT PRNT EXIT

SETUP X.X 2) STABIL_GAS=NOX

<PREV NEXT> JUMP EDIT PRNT EXIT

SETUP X.X STABIL_GAS:NOX

NO NO2 NOX O2 ENTR EXIT

Continue pressing NEXT until ...

Note Use the same procedure to reset the STB test function to NOx when the O2

calibration procedure is complete.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Getting Started

STEP 4 – O2 ZERO/SPAN CALIBRATION :

To perform the zero/span calibration procedure:

The Model T200H/M analyzer is now ready for operation.

07270B DCN6512

Getting Started Teledyne API - Model T200H/T200M Operation Manual

This page intentionally left blank.

07270B DCN6512

4. OPERATING INSTRUCTIONS

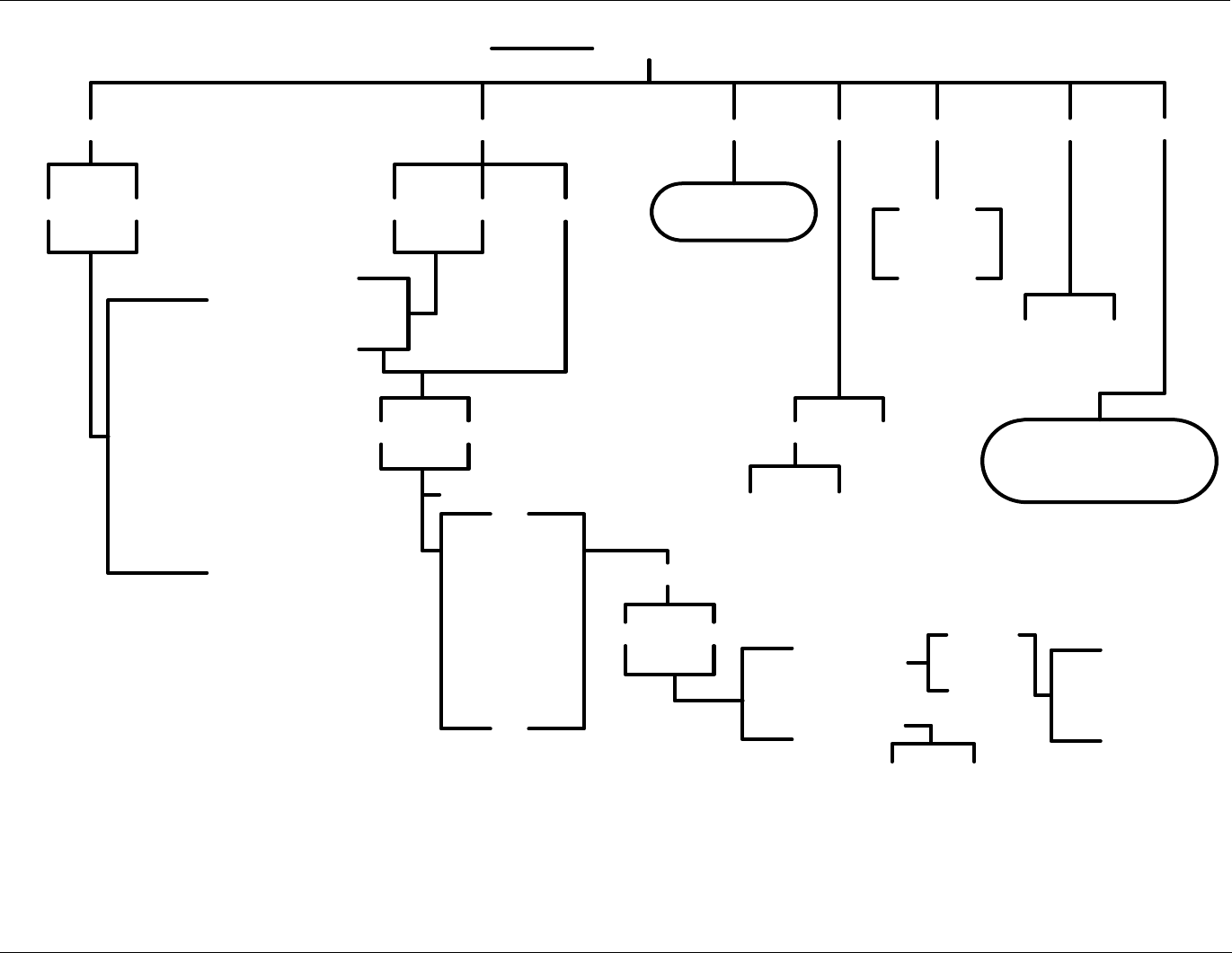

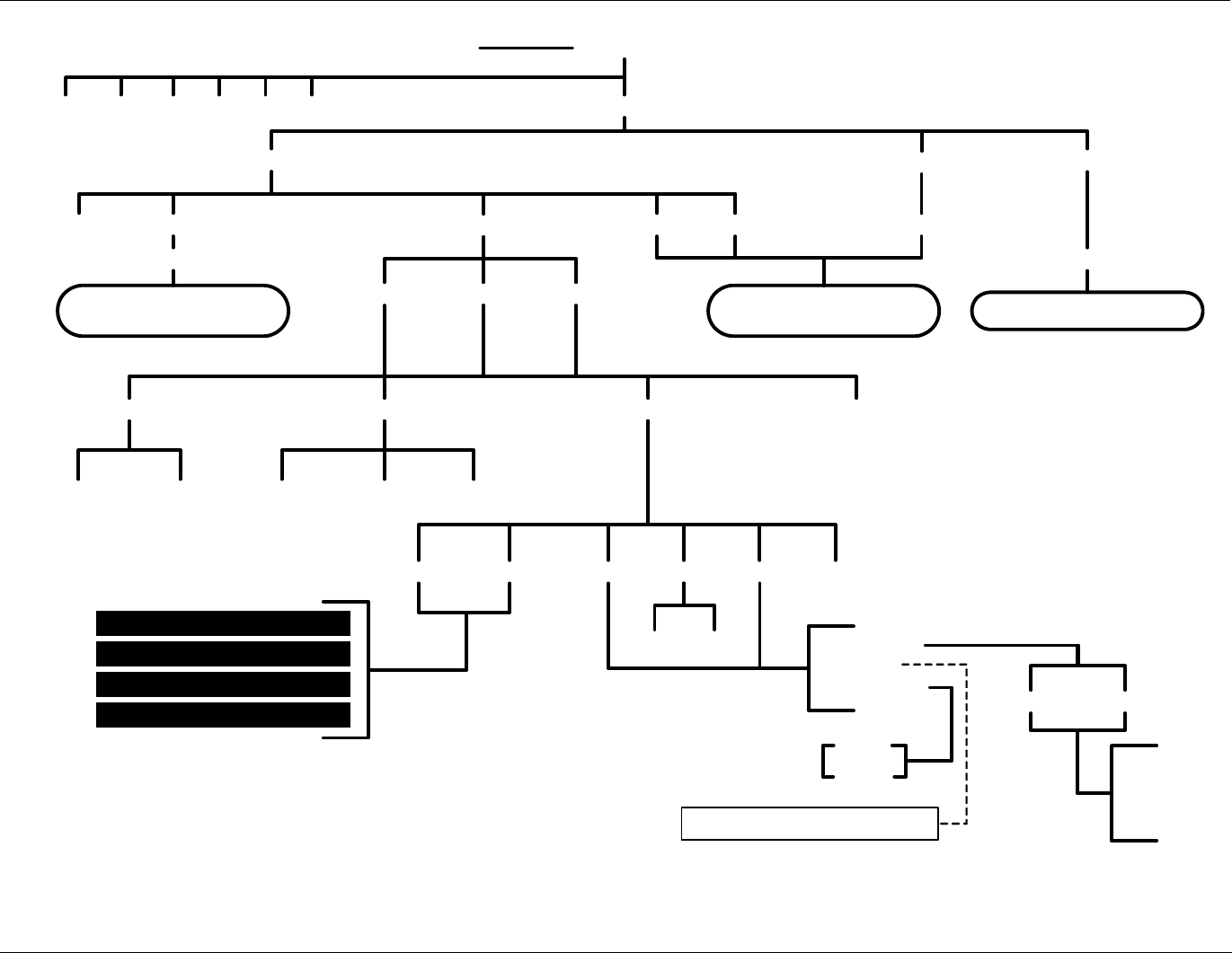

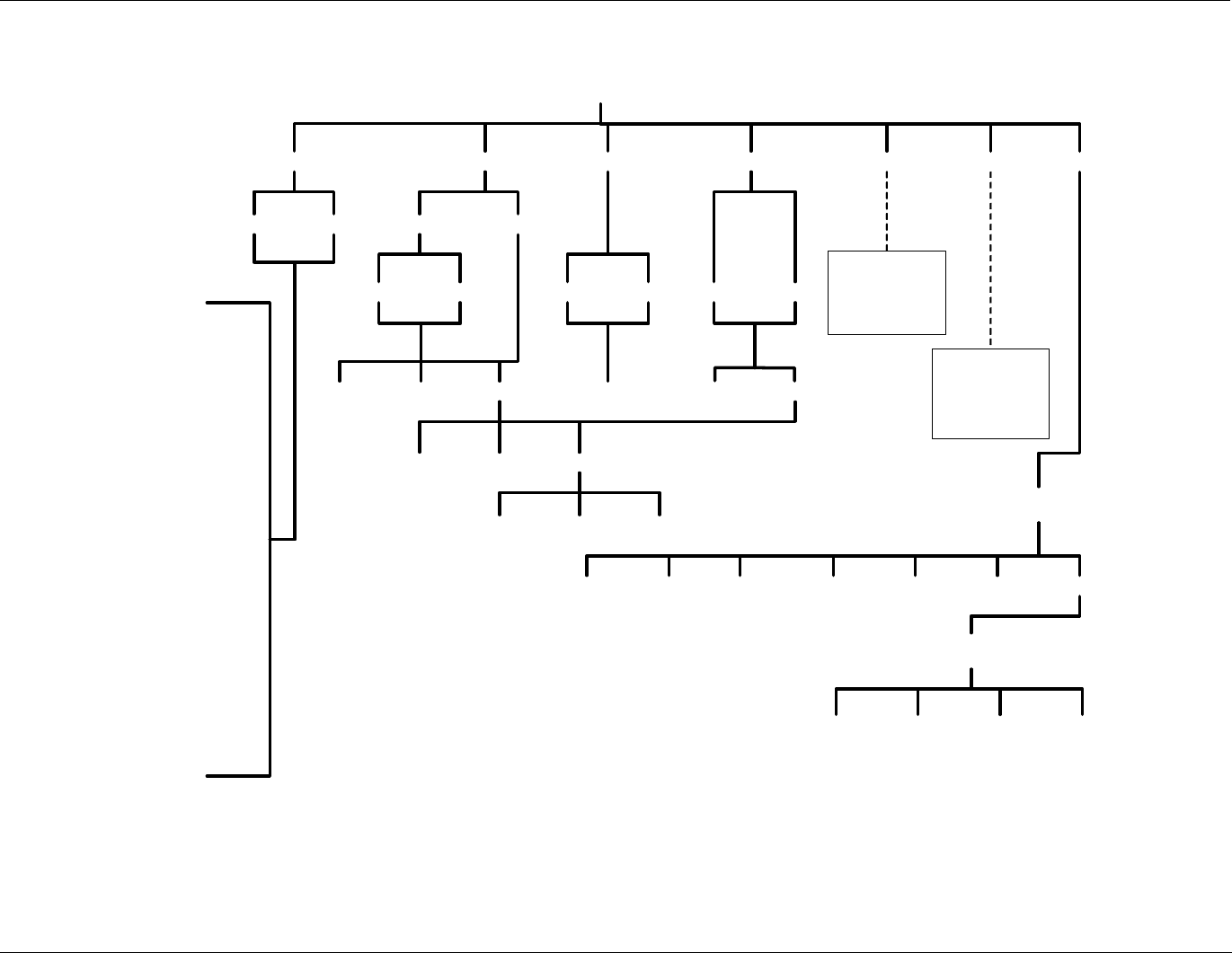

To assist in navigating the analyzer’s software, a series of menu trees can be found in

Appendix A of this manual.

Note The flow charts appearing in this section contain typical representations

of the analyzer’s display during the various operations being described.

These representations may differ slightly from the actual display of your

instrument.

The ENTR button may disappear if you select a setting that is invalid or

out of the allowable range for that parameter, such as trying to set the 24-

hour clock to 25:00:00. Once you adjust the setting to an allowable value,

the ENTR button will re-appear.

4.1. OVERVIEW OF OPERATING MODES

The T200H/M software has a variety of operating modes. Most commonly, the analyzer

will be operating in SAMPLE mode. In this mode, a continuous read-out of the NO,

NO2 and NOx concentrations are displayed on the front panel and are available to be

output as analog signals from the analyzer’s rear panel terminals. Also, calibrations can

be performed, and TEST functions and WARNING messages can be examined.

The second most important operating mode is SETUP mode. This mode is used for

performing certain configuration operations, such as for the DAS system, configuring

the reporting ranges, or the serial (RS-232/RS-485/Ethernet) communication channels.

The SET UP mode is also used for performing various diagnostic tests during

troubleshooting.

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

Figure 4-1: Front Panel Display with “SAMPLE” Indicated in the Mode Field

The mode field of the front panel display indicates to the user which operating mode the

unit is currently running.

In addition to SAMPLE and SETUP, other modes the analyzer can be operated in are:

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

Table 4-1: Analyzer Operating modes

MODE EXPLANATION

SAMPLE Sampling normally, flashing text indicates adaptive filter is on.

M-P CAL This is the basic calibration mode of the instrument and is activated

by pressing the CAL key.

SETUP X.#2 SETUP mode is being used to configure the analyzer. The gas

measurement will continue during this process.

SAMPLE A Indicates that unit is in SAMPLE mode and AUTOCAL feature is

activated.

ZERO CAL M1 Unit is performing ZERO calibration procedure initiated manually by

the user.

ZERO CAL A1 Unit is performing ZERO calibration procedure initiated automatically

by the AUTOCAL feature.

ZERO CAL R1 Unit is performing ZERO calibration procedure initiated remotely

through the COM ports or digital control inputs.

LO CAL A Unit is performing LOW SPAN (midpoint) calibration initiated

automatically by the analyzer’s AUTOCAL feature.

LO CAL R Unit is performing LOW SPAN (midpoint) calibration initiated remotely

through the COM ports or digital control inputs.

SPAN CAL M1 Unit is performing SPAN calibration initiated manually by the user.

SPAN CAL A1 Unit is performing SPAN calibration initiated automatically by the

analyzer’s AUTOCAL feature.

SPAN CAL R1 Unit is performing SPAN calibration initiated remotely through the

COM ports or digital control inputs.

DIAG One of the analyzer’s diagnostic modes is active (Section 4.13).

1 Only Appears on units with Z/S valve or IZS options.

2 The revision of the analyzer firmware is displayed following the word SETUP, e.g., SETUP

F.0.

The very important CAL mode, which allows calibration of the analyzer in various

ways, is described in detail in Section 7.

4.2. SAMPLE MODE

This is the analyzer’s standard operating mode. In this mode, the instrument is

analyzing NO and NOX and calculating NO2 concentrations.

4.2.1. TEST FUNCTIONS

A series of test functions is available at the front panel while the analyzer is in SAMPLE

mode. These parameters provide information about the present operating status of the

instrument and are useful during troubleshooting (Section 7). They can also be recorded

in one of the DAS channels (Section 4.7) for data analysis or output on one of the

configurable analog outputs.

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

Table 4-2: Test Functions Defined

DISPLAY PARAMETER UNITS DESCRIPTION

Analog output

range

configuration

A1:NXCNC1=100 PPM

A2:N0CNC1=100 PPM

A3:N2CNC1=25 PPM

A4:NXCNC2=100%

These functions show the default settings for the enabled analog

output channels. See section 4.13.4 for more information.

NOX STB STABILITY PPM, MGM

The stability is a standard deviation of the NOX concentration over 25

samples, each recorded every 10 seconds. A low NOX STB value

indicates low variability in NOX.

SAMP FLW SAMPLE FLOW cm³/min (cc/m) The flow rate of the sample gas through the reaction cell. This value is

not measured but calculated from the sample pressure.

OZONE FL OZONE cm³/min (cc/m) Flow rate of the O3 gas stream as measured with a flow meter

PMT PMT Signal MV The raw output voltage of the PMT.

NORM PMT NORMALIZED PMT

Signal MV The output voltage of the PMT after normalization for auto-zero offset and

temperature/pressure compensation (if activated).

AZERO AUTO-ZERO MV

The PMT signal with zero NOX, which is usually slightly different from 0 V.

This offset is subtracted from the PMT signal and adjusts for variations in

the zero signal.

HVPS HVPS V The PMT high voltage power supply.

RCELL TEMP REACTION CELL TEMP C The current temperature of the reaction cell.

BOX TEMP BOX TEMPERATURE C The ambient temperature of the inside of the analyzer case.

PMT TEMP PMT TEMPERATURE C The current temperature of the PMT.

CONV TEMP CONVERTER

TEMPERATURE C The current temperature of the NO2 converter.

RCEL REACTION CELL

PRESSURE in-Hg-A The current gas pressure of the reaction cell as measured at the vacuum

manifold. This is the vacuum pressure created by the external pump.

SAMP SAMPLE PRESSURE in-Hg-A The current pressure of the sample gas as it enters the reaction cell,

measured between the NO/NOx and Auto-Zero valves.

NOX SLOPE NOx SLOPE - - The slope of the current NOx calibration as calculated from a linear fit

during the analyzer’s last zero/span calibration.

NOX OFFS NOx OFFSET MV The offset of the current NOx calibration as calculated from a linear fit

during the analyzer’s last zero/span calibration.

NO SLOPE NO SLOPE - - The slope of the current NO calibration as calculated from a linear fit

during the analyzer’s last zero/span calibration.

NO OFFS NO OFFSET MV The offset of the current NO calibration as calculated from a linear fit

during the analyzer’s last zero/span calibration.

NO2 NO2 concentration PPM, MGM The current NO2 concentration in the chosen unit.

NOX NOx concentration PPM, MGM The current NOx concentration in the chosen unit.

NO NO concentration PPM, MGM The current NO concentration in the chosen unit.

TEST TEST SIGNAL2 MV Signal of a user-defined test function on output channel A4.

TIME CLOCK TIME hh:mm:ss The current day time for DAS records and calibration events.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

1:NXCNC1=100 PPM

A2:NOCNC1=100 PPM1

A3 :N2 CNC1= 2 5 PP M1

A4:NXCNC2=100%1

RANGE

NOX STB

SAMP FLW

OZONE FL

PMT

NORM PMT

AZE RO

HVPS

RCELL TEMP

BOX TEMP

PMT TEMP

CONV TEMP

O2 CELL TEMP2

RCEL

SAMP

NOX SLOPE

NOX OFFS

NO SLOPE

NO OFFS

O2 SLOPE2

O2 OFFS2

TIME

SAMPLE A1:NXCNC1=100 PPM

NOX = XXX

< TST TST > CAL SETUP

Default settings for user

selectable reporting range

settings.

2 Only appears if O2 sensor

tion is installed.

Toggle <TST TST> to scroll

through list of functions

Figure 4-2: Viewing T200H/M TEST Functions

Note A value of “XXXX” displayed for any of the TEST functions indicates an

out-of-range reading or the analyzer’s inability to calculate it. All pressure

measurements are represented in terms of absolute pressure. Absolute,

atmospheric pressure is 29.92 in-Hg-A at sea level. It decreases about 1

in-Hg per 300 m gain in altitude. A variety of factors such as air

conditioning and passing storms can cause changes in the absolute

atmospheric pressure.

4.2.2. WARNING MESSAGES

The most common instrument failures will be reported as a warning on the analyzer’s

front panel and through the COM ports. Appendix A provides the recommended action

and explains how to use these messages to troubleshoot problems. 7.1.1 shows how to

view and clear warning messages.

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

Table 4-3: List of Warning Messages

MESSAGE DEFINITION

ANALOG CAL WARNING The instrument’s analog-to-digital converter (A/D) circuitry or one of the analog

outputs are not calibrated.

AZERO WRN XXX.X MV

The reading taken during the Auto-zero cycle is outside the specified limits. The

value shown here as “XXX.X” indicates the actual auto-zero reading at the time of

the warning.

BOX TEMP WARNING The temperature inside the T200H/M chassis is outside the specified limits.

CANNOT DYN SPAN Remote span calibration failed while the dynamic span feature was ON.

CANNOT DYN ZERO Remote zero calibration failed while the dynamic zero feature was ON.

CONFIG INITIALIZED Configuration storage was reset to factory configuration or was erased.

CONV TEMP WARNING NO2 converter temperature is outside of specified limits.

DATA INITIALIZED DAS data storage was erased.

HVPS WARNING High voltage power supply for the PMT is outside of specified limits.

OZONE FLOW WARNING Ozone flow is outside of specified limits.

OZONE GEN OFF Ozone generator is off. This is the only warning message that automatically

clears itself when the ozone generator is turned on.

PMT TEMP WARNING PMT temperature is outside of specified limits.

RCELL PRESS WARN Reaction cell pressure is outside of specified limits.

RCELL TEMP WARNING Reaction cell temperature is outside of specified limits.

REAR BOARD NOT DET The firmware is unable to communicate with the motherboard.

RELAY BOARD WARN The firmware is unable to communicate with the relay board.

SAMPLE FLOW WARN The flow rate of the sample gas is outside the specified limits.

SYSTEM RESET The computer rebooted or was powered up.

To view and clear warning messages

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

TEST CAL MSG CLR SETUP

Make sure warning messages are

not due to real problems.

Press CLR to clear the current

message.

If more than one warning is active, the

next message will take its place

Once the last warning has been

cleared, the analyzer returns to

SAMPLE mode

SAMPLE

1:NXCNC1=100PPM NO=XXX.X

< TST TST > CAL MSG CLR SETUP

SAMPLE HVPS W

RNING NO2=XXX.X

TEST CAL MSG CLR SETUP

TEST deactivates warning

messages MSG activates warning

messages.

<TST TST> keys replaced with

TEST key

All Warning messages are hidden,

but MSG button appears

NOTE:

If the warning message persists

after several attempts to clear it,

the message may indicate a

real problem and not an artifact

of the warm-up period

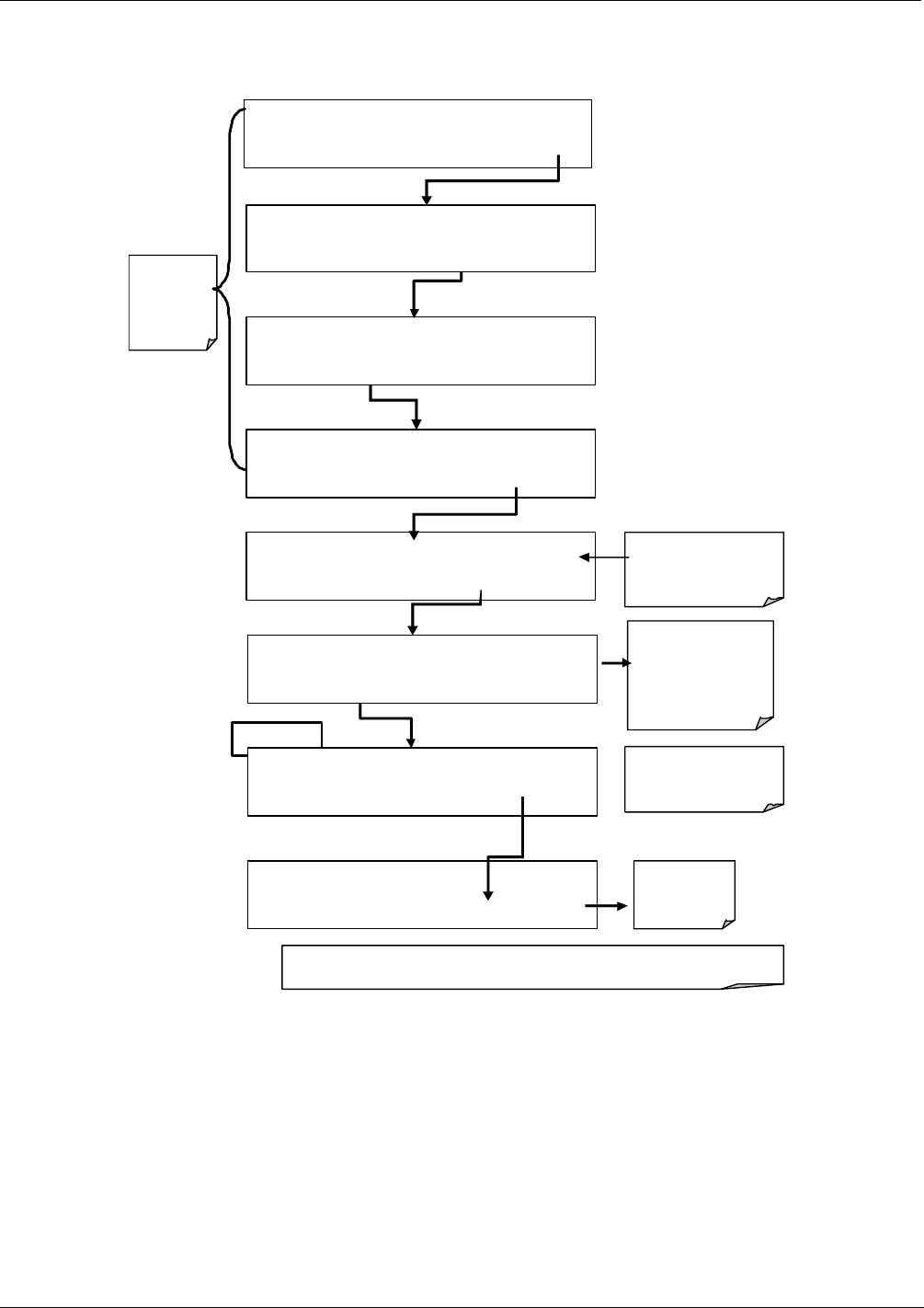

Figure 4-3: Viewing and Clearing T200H/M WARNING Messages

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

4.3. CALIBRATION MODE

4.3.1. CALIBRATION FUNCTIONS

Pressing the CAL key switches the T200H/M into calibration mode. In this mode, the

user can calibrate the instrument with the use of calibrated zero or span gases.

If the instrument includes the zero/span valve option, the display will also include

CALZ and CALS buttons. Pressing either of these buttons also puts the instrument into

multipoint calibration mode.

 The CALZ button is used to initiate a calibration of the zero point.

 The CALS button is used to calibrate the span point of the analyzer. It is

recommended that this span calibration is performed at 90% of full scale of the

analyzer’s currently selected reporting range.

Because of their critical importance and complexity, calibration operations are described

in detail in Section 5.

4.4. SETUP MODE

The SETUP mode contains a variety of choices that are used to configure the analyzer’s

hardware and software features, perform diagnostic procedures, gather information on

the instruments performance and configure or access data from the internal data

acquisition system (DAS). The areas access under the Setup mode are:

Table 4-4: Primary Setup Mode Features and Functions

MODE OR FEATURE MENU

BUTTON DESCRIPTION

Analyzer Configuration CFG Lists key hardware and software configuration information

Auto Cal Feature ACAL Used to set up an operate the AutoCal feature. Only appears if

the analyzer has one of the internal valve options installed

Internal Data Acquisition

(DAS) DAS Used to set up the DAS system and view recorded data

Analog Output Reporting

Range Configuration RNGE Used to set the units of measure for the display and set the

dilution ratio on instruments with that option active.

Calibration Password Security PASS Turns the password feature ON/OFF

Internal Clock Configuration CLK Used to Set or adjust the instrument’s internal clock

Advanced SETUP features MORE This button accesses the instruments secondary setup menu

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

Table 4-5: Secondary Setup Mode Features and Functions

MODE OR FEATURE KEYPAD

LABEL DESCRIPTION MANUAL

SECTION

External Communication

Channel Configuration COMM

Used to set up and operate the analyzer’s various external I/O

channels including RS-232; RS 485, modem communication

and/or Ethernet access.

6.11 &

6.15

System Status Variables VARS Used to view various variables related to the instruments current

operational status 6.12

System Diagnostic Features

and

Analog Output Configuration

DIAG

Used to access a variety of functions that are used to configure,

test or diagnose problems with a variety of the analyzer’s basic

systems.

Most notably, the menus used to configure the output signals

generated by the instruments Analog outputs are located here.

6.13

Alarm Limit Configuration1 ALRM Used to turn the instrument’s two alarms on and off as well as

set the trigger limits for each. 6.14

1 Only present if the optional alarm relay outputs (Option 61) are installed.

Note Any changes made to a variable during one of the following procedures is

not acknowledged by the instrument until the ENTR button is pressed. If

the EXIT button is pressed before the ENTR button, the analyzer will beep,

alerting the user that the newly entered value has not been accepted.

4.5. SETUP  CFG: VIEWING THE ANALYZER’S

CONFIGURATION INFORMATION

Pressing the CFG key displays the instrument configuration information. This display

lists the analyzer model, serial number, firmware revision, software library revision,

CPU type and other information. Use this information to identify the software and

hardware when contacting Technical Support. Special instrument or software features

or installed options may also be listed here.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

< TST TST > CAL SETUP

SAMPLE PRIMARY SETUP MENU

CFG DAS RNGE PASS CLK MORE EXIT

SAMPLE T200 NOX ANALYZER

NEXT PREV EXIT

Press EXIT at

any time to

return to

SETUP menu

Press EXIT

any time to

return to the

AMPLE

Press NEXT of PREV to move back

and forth through the following list

of Configuration information:

 MODEL NAME

 SERIAL NUMBER

 SOFTWARE REVISION

 LIBRARY REVISION

 iCHIP SOFTWARE REVISION1

 HESSEN PROTOCOL REVISION1

 ACTIVE SPECIAL SOFTWARE

OPTIONS1

 CPU TYPE

 DATE FACTORY CONFIGURATION

SAVED

Only appears if rel evant option of Feature is active.

4.6. SETUP  ACAL: AUTOMATIC CALIBRATION

Instruments with one of the internal valve options installed can be set to automatically

run calibration procedures and calibration checks. These automatic procedures are

programmed using the submenus and functions found under the ACAL menu.

A menu tree showing the ACAL menu’s entire structure can be found in Appendix A-1

of this manual.

Instructions for using the ACAL feature are located in the Section 7.7 of this manual

along with all other information related to calibrating the T200H/M analyzer.

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

4.7. SETUP  DAS - USING THE DATA ACQUISITION SYSTEM

(DAS)

The T200H/M analyzer contains a flexible and powerful, internal data acquisition

system (DAS) that enables the analyzer to store concentration and calibration data as

well as a host of diagnostic parameters. The data points can cover days, weeks or

months of valuable measurements, depending on how the DAS is configured. The data

are stored in non-volatile memory and are retained even when the instrument is powered

off. Data are stored in plain text format for easy retrieval and use in common data

analysis programs (such as spreadsheet-type programs).

Note Please be aware that all stored data will be erased if the analyzer’s disk-

on-module, CPU board or configuration is replaced/reset.

The DAS is designed to be flexible. Users have full control over the type, length and

reporting time of the data. The DAS permits users to access stored data through the

instrument’s front panel or its communication ports. Teledyne API also offers

APICOM, a program that provides a visual interface for configuration and data retrieval

of the DAS or using a remote computer. Additionally, the analyzer’s four analog output

channels can be programmed to carry data related to any of the available DAS

parameters.

The principal use of the DAS is logging data for trend analysis and predictive

diagnostics, which can assist in identifying possible problems before they affect the

functionality of the analyzer. The secondary use is for data analysis, documentation and

archival in electronic format.

DAS STATUS

The green SAMPLE LED on the instrument front panel, which indicates the analyzer

status, also indicates certain aspects of the DAS status:

Table 4-6: Front Panel LED Status Indicators for DAS

LED STATE DAS STATUS

Off

System is in calibration mode. Data logging can be enabled or disabled for this mode.

Calibration data are typically stored at the end of calibration periods, concentration data

are typically not sampled, diagnostic data should be collected.

Blinking

Instrument is in hold-off mode, a short period after the system exits calibrations. DAS

channels can be enabled or disabled for this period. Concentration data are typically

disabled whereas diagnostic should be collected.

On Sampling normally.

The DAS can be disabled only by disabling or deleting its individual data channels.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

4.7.1. DAS STRUCTURE

The DAS is designed around the feature of a “record”, an automatically stored single

data point. (e.g. concentration, PMT signal level, etc.). Records are organized into data

channels which are defined by properties that characterize the:

 Type of date recorded (e.g. concentration, PMT signal level, etc.);

 Trigger event that causes the record to be made (e.g. every minute, upon exiting

calibration mode, etc.);

 How many records to be stored, as well as;

 How the information is to be stored (e.g. average over 1 hour, individual points,

minimum value over last 5 minutes, etc.).

The configuration of each DAS channel is stored in the analyzer’s memory as a script,

which can be edited from the front panel or downloaded, edited and uploaded to the

instrument in form of a string of plain-text lines through the communication ports.

4.7.1.1. DAS Channels

The key to the flexibility of the DAS is its ability to store a large number of

combinations of triggering events and data parameters in the form of data channels.

Users may create up to 20 data channels. For each channel one triggering event is

selected and one or all of the T200H/M’s 25 data parameters are allowed. The number

of parameters and channels is limited by available memory.

The properties that define the structure of an DAS data channel are:

Table 4-7: DAS Data Channel Properties

PROPERTY DESCRIPTION DEFAULT SETTING RANGE

NAME The name of the data channel. “NONE” Up to 6 letters or digits1.

TRIGGERING

EVENT

The event that triggers the data channel to

measure and store the datum ATIMER Any available event

(see Appendix A-5).

NUMBER AND

LIST OF

PARAMETERS

A User-configurable list of data types to be

recorded in any given channel. 1 - PMTDET Any available parameter

(see Appendix A-5).

REPORT PERIOD The amount of time between each channel data

point. 000:01:00

000:00:01 to

366:23:59

(Days:Hours:Minutes)

NUMBER OF

RECORDS

The number of reports that will be stored in the

data file. Once the limit is exceeded, the oldest

data is over-written.

100 1 to 1 million, limited by

available storage space.

RS-232 REPORT Enables the analyzer to automatically report

channel values to the RS-232 ports. OFF OFF or ON

CHANNEL

ENABLED

Enables or disables the channel. Allows a channel

to be temporarily turned off without deleting it. ON OFF or ON

CAL HOLD OFF Disables sampling of data parameters while

instrument is in calibration mode2. OFF OFF or ON

1 More with APICOM, but only the first six are displayed on the front panel).

2 When enabled records are not recorded until the DAS HOLD OFF period is passed after calibration mode. DAS HOLD OFF set in

the VARS menu (see Section 4.12.)

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

4.7.1.2. DAS Parameters

Data parameters are types of data that may be measured by the analyzers instrumentality

concentrations of measured gases, temperatures of heated zones,, pressures and flows of

the pneumatic subsystem as well as calibration data such as slope and offset for each

gas. For each Teledyne API analyzer model, the list of available data parameters is

different, fully defined and not customizable (see Appendix A for a list of T200H/M

parameters).

Most data parameters have associated measurement units, such as mV, ppm, cm³/min,

etc., although some parameters have no units. The only units that can be changed are

those of the concentration readings according to the SETUP-RANGE settings.

Note The DAS does not keep track of the unit of each concentration value and

DAS data files may contain concentrations in multiple units if the unit was

changed during data acquisition.

Each data parameter has user-configurable functions that define how the data are

recorded.

Table 4-8: DAS Data Parameter Functions

FUNCTION EFFECT

PARAMETER Instrument-specific parameter name.

SAMPLE MODE INST: Records instantaneous reading.

AVG: Records average reading during reporting interval.

MIN: Records minimum (instantaneous) reading during reporting interval.

MAX: Records maximum (instantaneous) reading during reporting interval.

SDEV: Records the standard deviation of the data points recorded during the reporting

interval.

PRECISION Decimal precision of parameter value(0-4).

STORE NUM.

SAMPLES

OFF: stores only the average (default).

ON: stores the average and the number of samples in each average for a parameter.

This property is only useful when the AVG sample mode is used. Note that the

number of samples is the same for all parameters in one channel and needs to be

specified only for one of the parameters.

4.7.1.3. DAS Triggering Events

Triggering events define when and how the DAS records a measurement of any given

data channel. Triggering events are firmware-specific and are listed in Appendix A-5.

The most common triggering events are:

 ATIMER: Sampling occurs at regular intervals specified by an automatic timer.

Trending information is often stored via such intervals, as either individual datum or

averaged.

 EXITZR, EXITSP, SLPCHG (exit zero, exit span, slope change): Sampling at the

end of an irregularly occurring event such as calibration or when the slope changes.

These events create individual data points. Zero and slope values can be used to

monitor response drift and to document when the instrument was calibrated.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

 WARNINGS: Some data may be useful when stored if one of several warning

messages appears. This is helpful for trouble-shooting by monitoring when a

particular warning occurred.

4.7.2. DEFAULT DAS CHANNELS

The T200H/M is configured with a basic DAS configuration, which is enabled by

default. New data channels are also enabled by default but each channel may be turned

off for later or occasional use. Note that DAS operation is suspended while its

configuration is edited through the front panel. To prevent such data loss, it is

recommended to use the APICOM graphical user interface for DAS changes.

A set of default data channels has been included in the analyzer’s software for logging

nitrogen oxides concentrations, calibration and predictive diagnostic data. They are:

 CONC: Samples NOX, NO and NO2 concentration at one minute intervals and

stores an average every hour with a time and date stamp along with the number of

(1-minute) samples within each average(for statistical evaluation). Readings during

calibration and calibration hold off are not included in the data. By default, the last

800 hourly averages are stored.

 CALDAT: Every time a zero or span calibration is performed CALDAT logs

concentration, slope and offset values for NOX and NO with a time and date stamp.

The NOX stability (to evaluate calibration stability) as well as the converter

efficiency (for reference) are also stored. This data channel will store data from the

last 200 calibrations and can be used to document analyzer calibration. The slope

and offset data can be used to detect trends in (instrument response.

 CALCHECK: This channel logs concentrations and the stability each time a zero or

span check (not calibration) is finished. This allows the user to track the quality of

zero and span responses over time and assist in evaluating the quality of zero and

span gases and the analyzer’s noise specifications. The last 200 data points are

retained.

 DIAG: Daily averages of temperature zones, flow and pressure data as well as

some other diagnostic parameters (HVPS, AZERO). These data are useful for

predictive diagnostics and maintenance of the T200H/M. The last 1100 daily

averages are stored to cover more than four years of analyzer performance.

 HIRES: Records one minute, instantaneous data of all active parameters in the

T200H/M. Short-term trends as well as signal noise levels can be detected and

documented. Readings during calibration and the calibration hold off period are

included in the averages. The last 1500 data points are stored, which covers a little

more than one day of continuous data acquisition. This data channel is disabled by

default but may be turned on when needed such as for trouble-shooting problems

with the analyzer.

The default data channels can be used as they are, or they can be customized from the

front panel or through APICOM to fit a specific application. The Teledyne API website

contains this default and other sample DAS scripts for free download. We recommend

that the user backs up any DAS configuration and its data before altering it.

Note Teledyne-API recommends downloading and storing existing data and the

DAS configurations regularly for permanent documentation and future

data analysis. Sending a DAS configuration to the analyzer through its

COM ports will replace the existing configuration and will delete all stored

data.

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

Table 4-9: T200H/M Default DAS Configuration

PARAMETERS

CHANNELS with PROPERTIES NAME MODE EVENT PRECISION

NUM

SAMPLES

NOXCNC1 AVG - - 4 ON

NOCNC1 AVG - - 4 OFF

N2CNC1 AVG - - 4 OFF

Name: CONC

Event: ATIMER

Sample Period: 000:00:01

Report Period: 000:01:00

Number of Records: 800

RS-232 report: OFF

Channel enabled: ON

DAS HOLDOFF: ON STABIL AVG - - 4 OM

NXZSC1 - - SLPCHG 4 OFF

NOXSLP1 - - SLPCHG 4 OFF

NOXOFFS1 - - SLPCHG 4 OFF

NOZSC1 - - SLPCHG 4 OFF

NOSLP1 - - SLPCHG 4 OFF

NOOFFS1 - - SLPCHG 4 OFF

N2ZSC1 - - SLPCHG 4 OFF

CNVEF1 - - SLPCHG 4 OFF

Name: CALDAT

Event: SLPCHG

Number of Records: 200

RS-232 report: OFF

Channel enabled: ON

DAS HOLDOFF: OFF

STABIL - - SLPCHG 4 OFF

NXZSC1 - - EXITMP 4 OFF

NOZSC1 - - EXITMP 4 OFF

N2ZSC1 - - EXITMP 4 OFF

Name: CALCHECK

Event: EXITMP

Number of Records: 200

RS-232 report: OFF

Channel enabled: ON

DAS HOLDOFF: OFF STABIL - - EXITMP 4 OFF

SMPFLW AVG - - 2 OFF

O3FLOW AVG - - 2 OFF

RCPRESS AVG - - 2 OFF

SMPPRES AVG - - 2 OFF

RCTEMP AVG - - 2 OFF

PMTTMP AVG - - 2 OFF

CNVTMP AVG - - 2 OFF

BOXTMP AVG - - 2 OFF

HVPS AVG - - 2 OFF

Name: CALCHECK

Event: EXITMP

Number of Records: 200

RS-232 report: OFF

Channel enabled: ON

DAS HOLDOFF: OFF

AZERO AVG - - 2 OFF

NOXCNC1 AVG - - 4 OFF

NOCNC1 AVG - - 4 OFF

N2CNC1 AVG - - 4 OFF

STABIL AVG - - 4 OFF

SMPFLW AVG - - 2 OFF

O3FLOW AVG - - 2 OFF

RCPRESS AVG - - 2 OFF

SMPPRES AVG - - 2 OFF

RCTEMP AVG - - 2 OFF

PMTTMP AVG - - 2 OFF

CNVTMP AVG - - 2 OFF

BOXTMP AVG - - 2 OFF

HVPS AVG - - 1 OFF

AZERO AVG - - 2 OFF

REFGND AVG 1 OFF

Name: HIRES

Event: ATIMER

Sample Period: 000:00:01

Report Period: 000:00:01

Number of Records: 1500

RS-232 report: OFF

Channel enabled: OFF

DAS HOLDOFF: OFF

REF4096 AVG 1 OFF

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

4.7.2.1. Viewing DAS Data and Settings

DAS data and settings can be viewed on the front panel through the following keystroke

sequence.

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

< TST TST > CAL SETUP

SETUP X.X CONC : DATA AVAILABLE

NEXT VIEW EXIT

SETUP X.X CALDAT: DATA

VAILABLE

PREV NEXT VIEW EXIT

SETUP X.X CALCHE: DATA AVAILABLE

PREV NEXT VIEW EXIT

SETUP X.X 285: 00:00 SMPFLW= X.XXX cc/

PV10 PREV <PRM PRM> EXIT

SE TUP X.X 287: 10:00 NXCNC1: XXX.X PPM

PV 10 PREV NEXT NX10 <P RM PRM > EXIT

SE TUP X.X 281:15:10 NXZCS1: X.XXX PPM

PV 10 PREV NEXT NX10 <P RM PRM > EXIT

SETUP X.X DATA ACQUISITION

VIEW

EDIT EXIT

SETUP X.X PRIMARY SETUP MENU

CFG DAS RNGE PASS CLK MORE EXIT

FRONT PANEL CONTROL BUTTON FUNCTIONS

BUTTON FUNCTION

<PRM Moves to the next Parameter

PRM> Moves to the previous

Parameter

NX10 Moves the view forwar d 10

data points/channels

NEXT Moves to the next data

point/channel

PREV Moves to the previous data

point/channel

PV10 Moves the view back 10 data

points/channels

Buttons only appear if applicable

EXIT will return to the

main SAMPLE Display.

SETUP X.X DIAG: DATA AVAILABLE

PREV NEXT VIEW EXIT

SETUP X.X 00:00::00 PMTDET=0000.0000 m

PV10 PREV <PRM PRM> EXIT

SETUP X.X HIRE

: NO DATA AVAILABLE

PREV EXIT

Default

setting for

HIRES is

DISABLED.

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

4.7.2.2. Editing DAS Data Channels

DAS configuration is most conveniently done through the APICOM remote control

program. The following sequence of touchscreen button presses shows how to edit

using the front panel.

Edit Data Channel Menu

SAMPLE A1:NXCNC1=100PPM NOX=XXX.X

< TST TST > CAL SETUP

SETUP X.X 0) CONC: ATIMER, 8, 800

PREV NEXT INS DEL EDIT PRNT EXIT

SETUP X.X DATA ACQUISITION

VIEW

EDIT EXIT

SETUP X.X PRIMARY SETUP MENU

CFG DAS RNGE PASS CLK MORE EXIT

EXIT will return to the

previous SAMPLE

display.

SETUP X.

ENTER DAS PASS: 818

8 1 8 ENTR EXIT

Moves the

display up &

down the list of

Data Channels

Inserts a new Data

Channel into the list

BEFORE the Channel

currently being displayed Deletes The Data

Channel currently

being displayed

Exports the

configuration of all

data channels to

RS-232 interface.

Exits to the Main

Data Acquisition

SETUP X.X NAME:CONC

<SET SET> EDIT PRNT EXIT

Moves the display

between the

PROPERTIES for this

data channel.

Reports the configuration of current

data channels to the RS-232 ports.

EXITS returns to

the previous

Allows to edit the channel name, see next key sequence.

When editing the data channels, the top line of the display indicates some of the

configuration parameters. For example, the display line:

0) CONC : ATIMER, 4, 800

Translates to the following configuration:

Channel No.: 0

NAME: CONC

TRIGGER EVENT: ATIMER

PARAMETERS: Four parameters are included in this channel

EVENT: This channel is set up to record 800 data points.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

To edit the name of a data channel, follow the above key sequence and then press:

FROM THE PREVIOUS BUTTON SEQUENCE …

SETUP X.X NAME:CONC

C O N C - - ENTR EXIT

ENT

accepts the new

string and returns to the

previous menu.

EXIT ignores the new

string and returns to the

revious menu.

Press each key repeatedly to cycle through the available character

set:

0-9,

-Z, s

ace ’ ~ !  # $ % ^ & *

(

)

= +

[

]

{

}

< >

; : , . / ?

SETUP X.X NAME:CONC

<SET SET> EDIT PRINT EXIT

4.7.2.3. Trigger Events

To edit the list of data parameters associated with a specific data channel, press:

ENTR accepts the new string

and returns to the previous

menu.

EXIT ignores the new string

and returns to the previous

menu.

SETUP X.X EVENT:ATIMER

<PREV NEXT> ENTR EXIT

Edit Data Channel Menu

SETUP X.X 0) CONC: ATIMER, 8, 800

PREV NEXT INS DEL EDIT PRNT EXIT

From the DATA ACQUISITION menu

(see Section 6.7.2.2)

EXITS to the Main

Data Acquisition

Press each key repeatedly to cycle through the

list of available trigger events.

SETUP X.X NAME:CONC

<SET SET> EDIT PRINT EXIT

SETUP X.X EVENT:ATIMER

<SET SET> EDIT PRINT EXIT

See Appendix A for list of DAS trigger events available on the T200H/M.

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

4.7.2.4. Editing DAS Parameters

Data channels can be edited individually from the front panel without affecting other

data channels. However, when editing a data channel, such as during adding, deleting or

editing parameters, all data for that particular channel will be lost, because the DAS can

store only data of one format (number of parameter columns etc.) for any given channel.

In addition, an DAS configuration can only be uploaded remotely as an entire set of

channels. Hence, remote update of the DAS will always delete all current channels and

stored data.

To modify, add or delete a parameter, follow the instruction shown in section 4.7.2.2

then press:

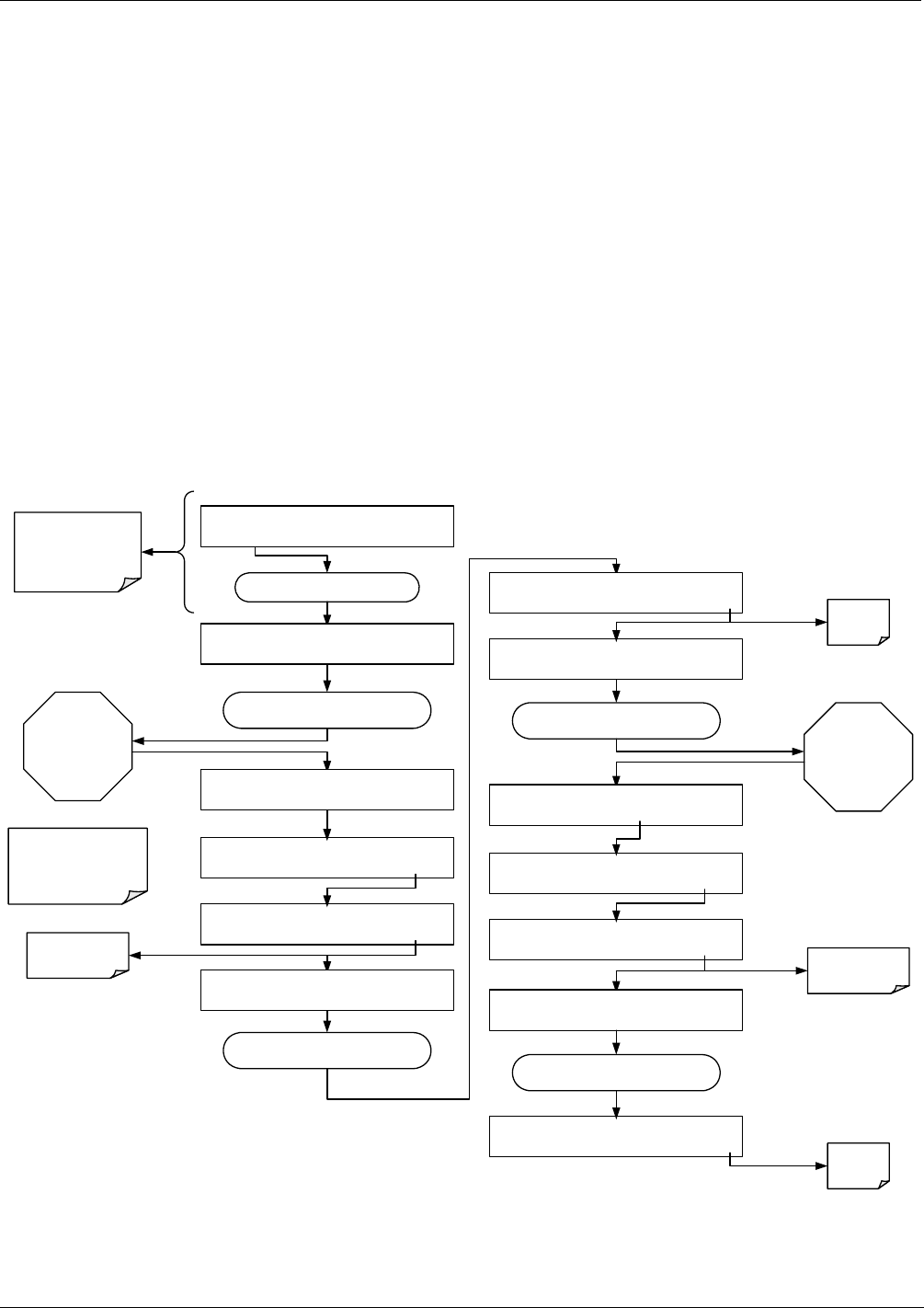

Edit Data Parameter Menu

Edit Data Channel Menu

SETUP X.X 0) CONC: ATIMER, 8, 800

PREV NEXT INS DEL EDIT PRNT EXIT

From the DATA ACQUISITION menu

(see Section 6.7.2.2)

Exits to the main

Data Acquisition

SETUP X.X NAME:CONC

<SET SET> EDIT PRINT EXIT

SETUP X.X PARAMETERS: 8

<SET SET> EDIT PRINT EXIT

SETUP X.X 0) PARAM=DETREP, MODE=INST

PREV NEXT INS DEL EDIT EXIT

Press SET> key until…

SETUP X.X EDIT PARAMS (DELETE DATA)

YES NO

NO returns to

the previous

menu and

retains all data.

Moves the

display between

availabl e

ete

Inserts a new Parameter

before the currently

displayed Parameter

Deletes the Parameter

currently displayed.

Use to configure

the functions for

this Parameter.

Exits to the main

Data Acquisition

YES will delete

all data in that

entire channel.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

To configure the parameters for a specific data parameter, press:

FROM THE EDIT DATA PARAMETER MENU

(see previous section)

SETUP X.X 0) PARAM=NXCNC1, MODE=AV

PREV NEXT INS DEL EDIT EXIT

SETUP X.X PARAMETERS: NOCNC1

SET> EDIT EXIT

SETUP X.X SAMPLE MODE: INST

<SET SET> EDIT EXIT

SETUP X.X PARAMETER: NXCNC1

PREV NEXT ENTR EXIT

Cycle thr ough list of available

Param eter s.

ENTR accepts the

new setti ng and

returns to the previous

menu.

EXIT ignor es the new

setting and returns to

the pr evious menu.

SETUP X.X SAMPLE MODE: INST

INST AVG MIN MAX EXIT

Press the key for the desired mode

SETUP X.X PRECISION:4

<SET SET> EDIT EXIT

SETUP X.X PR ECISION:

1 EXIT

Set for 0-4

SETUP X.X STORE NUM. SAMPLES: OFF

<SET EDIT EXIT

SETUP X.X STORE NUM. SAMPLES: OFF

OFF ENTR EXIT

Turn ON o r OFF

<SET Returns to

Functions

See Appendix A-5 for list of DAS parameters available on the T200H/M.

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

4.7.2.5. Sample Period and Report Period

The DAS defines two principal time periods by which sample readings are taken and

permanently recorded:

 SAMPLE PERIOD: Determines how often DAS temporarily records a sample

reading of the parameter in volatile memory. The SAMPLE PERIOD is set to one

minute by default and generally cannot be accessed from the standard DAS front

panel menu, but is available via the instruments communication ports by using

APICOM or the analyzer’s standard serial data protocol.

SAMPLE PERIOD is only used when the DAS parameter’s sample mode is set for

AVG, MIN or MAX.

 REPORT PERIOD: Sets how often the sample readings stored in volatile memory

are processed, (e.g. average, minimum or maximum are calculated) and the results

stored permanently in the instrument’s Disk-on-Module as well as transmitted via

the analyzer’s communication ports. The REPORT PERIOD may be set from the

front panel.

If the INST sample mode is selected the instrument stores and reports an instantaneous

reading of the selected parameter at the end of the chosen REPORT PERIOD

In AVG, MIN or MAX sample modes, the settings for the SAMPLE PERIOD and the

REPORT PERIOD determine the number of data points used each time the average,

minimum or maximum is calculated, stored and reported to the com ports. The actual

sample readings are not stored past the end of the of the chosen REPORT PERIOD.

Also, the SAMPLE PERIOD and REPORT PERIOD intervals are synchronized to

the beginning and end of the appropriate interval of the instruments internal clock.

 If SAMPLE PERIOD were set for one minute the first reading would occur at the

beginning of the next full minute according to the instrument’s internal clock.

 If the REPORT PERIOD were set for of one hour the first report activity would occur

at the beginning of the next full hour according to the instrument’s internal clock.

EXAMPLE: Given the above settings, if DAS were activated at 7:57:35 the first sample

would occur at 7:58 and the first report would be calculated at 8:00 consisting of data

points for 7:58. 7:59 and 8:00.

During the next hour (from 8:01 to 9:00) the instrument will take a sample reading every

minute and include 60 sample readings.

When the STORE NUM. SAMPLES feature is turned on the instrument will also store

how many sample readings were used for the AVG, MIN or MAX calculation but not

the readings themselves.

4.7.2.6. Report Periods in Progress when Instrument Is Powered Off

If the instrument is powered off in the middle of a REPORT PERIOD, the samples

accumulated so far during that period are lost. Once the instrument is turned back on,

the DAS restarts taking samples and temporarily them in volatile memory as part of the

REPORT PERIOD currently active at the time of restart. At the end of this REPORT

PERIOD only the sample readings taken since the instrument was turned back on will

be included in any AVG, MIN or MAX calculation. Also, the STORE NUM.

SAMPLES feature will report the number of sample readings taken since the instrument

was restarted.

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

To define the REPORT PERIOD, follow the instruction shown in Section 4.7.2.2 then

press:

Edit Data Channel Menu

SETUP X.X 0) CONC: ATIMER, 8, 8500

PREV NEXT INS DEL EDIT PRNT EXIT

Exits to the mai n

Data Acquisition

menu.

SETUP X.X NAME: CONC

<SET SET> EDIT PRINT EX IT

Press SET> until you reach REPORT PERIOD (OR SAMPLE PERIOD) …

SETUP X.X REPORT PERIODD:DAYS:

0 0 0 ENTR EXIT

ENT

accepts the new stri ng and

returns to the previous menu.

EXIT ignores the new string and

returns to the previous menu.

Press buttons to set hours

between reports in the format :

HH:MM (max: 23:59). This is a

24 hour clock . PM hours are 13

thru 23, midnight is 00:00.

Example 2:15 PM = 14:15

Set the number of days

between reports (0-366).

IIf at any time an illegal entry is selected (e.g., days > 366)

the ENTR button will disappear from the display.

SETUP X.X REPORT PERIODD:TIME:01:01

0 1 0 0 ENTR EXIT

Use the PREV and NEXT

buttons to scroll to the

data channel to be edited.

SETUP X.X REPORT PERIOD:000:01:00

<SET SET> EDIT PRINT EXIT

From the DATA ACQUISITION menu

(see Section 6.7.2.2)

SETUP X.X ENTER DAS PASS: 818

9 2 9 ENTR EXIT

Changing the SAMPLE

PERIOD or REPORT

PERIOD Requires a

special password

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

4.7.2.7. Number of Records

The DAS is capable of capturing several months worth of data, depending on the

configuration. Every additional data channel, parameter, number of samples setting etc.

will reduce the maximum amount of data points somewhat. In general, however, the

maximum data capacity is divided amongst all channels (max: 20) and parameters (max:

50 per channel).

The DAS will check the amount of available data space and prevent the user from

specifying too many records at any given point. If, for example, the DAS memory space

can accommodate 375 more data records, the ENTR key will disappear when trying to

specify more than that number of records. This check for memory space may also make

an upload of an DAS configuration with APICOM or a Terminal program fail, if the

combined number of records would be exceeded. In this case, it is suggested to either

try from the front panel what the maximum number of records can be or use trial-and-

error in designing the DAS script or calculate the number of records using the DAS or

APICOM manuals. To set the number of records for one channel from the front panel,

follow the instruction shown in section 4.7.2.2 then press.

Edit Data Channel Menu

SETUP X.X 0) CONC: ATIMER, 8, 80

PREV NEXT INS DEL EDIT PRNT EXIT

Exits to the main

Data Acquisition

SETUP X.X NAME:CONC

<SET SET> EDIT PRINT EXIT

SETUP X.X NUMBER OF RECORDS:000

<SET SET> EDIT PRINT EXIT

SETUP X.X REPORT PERIODD:DAYS:

0 0 0 0 0 ENTR EXIT

ENTR accepts the new

setting and returns to the

previous menu.

EXIT ignores the new setting

and returns to the previous

menu.

Toggle buttons to set

number of records

(1-99999)

SETUP X.X EDIT RECOPRDS (DELET DATA)

YES NO

NO returns to the

previous menu.

YES will delete all data

in this channel.

Press SET> key until…

From the DATA ACQUISITION menu

(see Section 6.7.2.2)

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

4.7.2.8. RS-232 Report Function

The T200H/M DAS can automatically report data to the communications ports, where

they can be captured with a terminal emulation program or simply viewed by the user.

To enable automatic COM port reporting, follow the instruction shown in section 4.7.2.2

then press:

Edit Data Channel Menu

SETUP X.X 0) CONC: ATIMER, 8, 800

PREV NEXT INS DEL EDIT PRNT EXIT

Exits to the mai n

Data Acquisition

SETUP X.X NAME:CONC

<SET SET> EDIT PRINT EXIT

SETUP X.X RS-232 REPORT: OFF

<SET SET> EDIT PRINT EXIT

ENTR accepts the new

setting and returns to the

previous menu.

EXIT ignores the new setting

and returns to the previous

menu.

SETUP X.X RS-232 REPORT: OFF

OFF ENTR EXIT

Toggle button to turn

reporting ON or OFF

Press SET> key until…

From the DATA ACQUISITION menu

(see Section 6.7.2.2)

4.7.2.9. Compact Report

When enabled, this option avoids unnecessary line breaks on all RS-232 reports. Instead

of reporting each parameter in one channel on a separate line, up to five parameters are

reported in one line, instead. For example, channel DIAG would report its record in two

lines (10 parameters) instead of 10 lines. Individual lines carry the same time stamp and

are labeled in sequence.

4.7.2.10. Starting Date

This option allows to specify a starting date for any given channel in case the user wants

to start data acquisition only after a certain time and date. If the Starting Date is in the

past, the DAS ignores this setting.

07270B DCN6512

Operating Instructions Teledyne API - Model T200H/T200M Operation Manual

4.7.2.11. Disabling/Enabling Data Channels

Data channels can be temporarily disabled, which can reduce the read/write wear on the

disk-on-chip. The HIRES channel of the T200H/M, for example, is disabled by default.

To disable a data channel, follow the instruction shown in section 4.7.2.2 then press:

Edit Data Channel Menu

SETUP X.X 0) CONC: ATIMER, 8, 800

PREV NEXT INS DEL EDIT PRNT EXIT

Exits to the mai n

Data Acquisition

SETUP X.X NAME:CONC

<SET SET> EDIT PRINT EXIT

SETUP X.X CHANNEL ENABLE:ON

<SET SET> EDIT PRINT EXIT ENTR accepts the new

setting and returns to the

previous menu.

EXIT ignores the new setting

and returns to the previous

menu.

SETUP X.X CHANNEL ENABLE:ON

OFF ENTR EXIT

To ggl e butto n to tu rn

channel ON or OFF

Press SET> key until…

From the DATA ACQUISITION menu

(see Section 6.7.2.2)

07270B DCN6512

Teledyne API - Model T200H/T200M Operation Manual Operating Instructions

4.7.2.12. HOLDOFF Feature

The DAS HOLDOFF feature allows to prevent data collection during calibrations and

during the DAS_HOLDOFF period enabled and specified in the VARS (Section 4.12).

To enable or disable the HOLDOFF for any one DAS channel, follow the instruction

shown in section 6.7.2.2 then press:

Edit Data Channel Menu

SETUP X.X 0) CONC: ATIMER, 2, 900

PREV NEXT INS DEL EDIT PRNT EXIT Exits to the mai n

Data Acquisition

SETUP X.X NAME:CONC

<SET SET> EDIT PRINT EXIT

SETUP X.X CAL HOLD OFF:ON

SET> EDIT PRINT EXIT

ENTR accepts the new

setting and returns to the

previous menu.

EXIT ignores the new setting

and returns to the previous

menu.

SETUP X.X CAL HOLD OFF:ON

ON ENTR EXIT

Toggle button to turn

HOLDOFF ON or OFF

Press SET> key until…
