Teledyne Analytical Instruments

QUICKSTART GUIDE

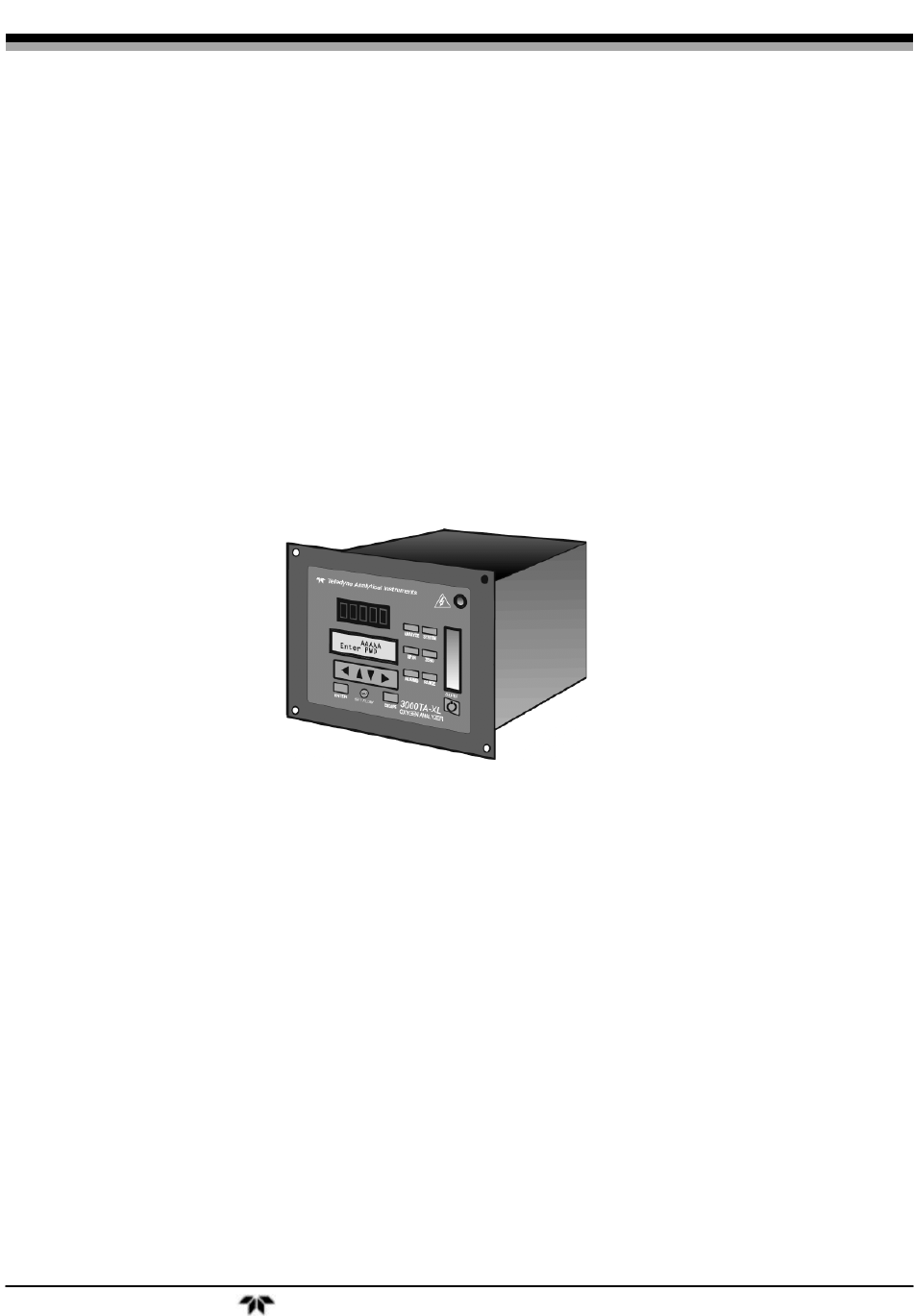

MODEL 3000 TA -XL -EU

Trace Oxygen Analyzer

Quickstart Guide Trace Oxygen Analyzer

Teledyne Analytical Instruments

Model 3000 TA-XL-EU Quickstart Guide

Teledyne Analytical Instruments 1

GETTING STARTED

This Quickstart Guide is designed to get you set up and operating your Teledyne Analytical

Instruments Analyzer quickly. It shortcuts the details so you can install and use your new

analyzer with a minimum of fuss. This Quickstart Guide should be used in conjunction with the

Instruction Manual that shipped with your instrument. Only necessary features to get you

operational are discussed in this guide. Many of the advanced features of this analyzer are not

described here so you should refer to the Instruction Manual to get the most from your analyzer

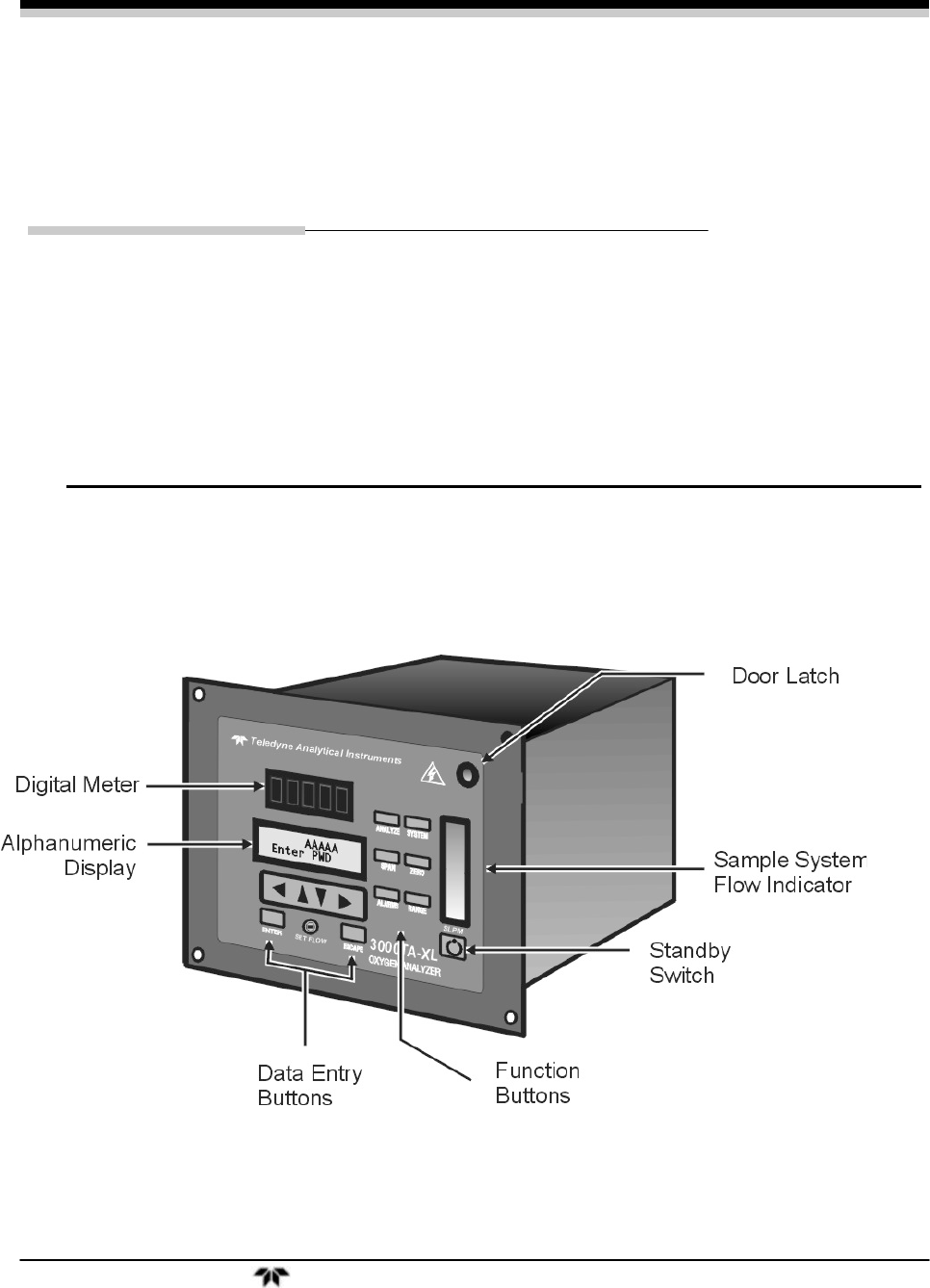

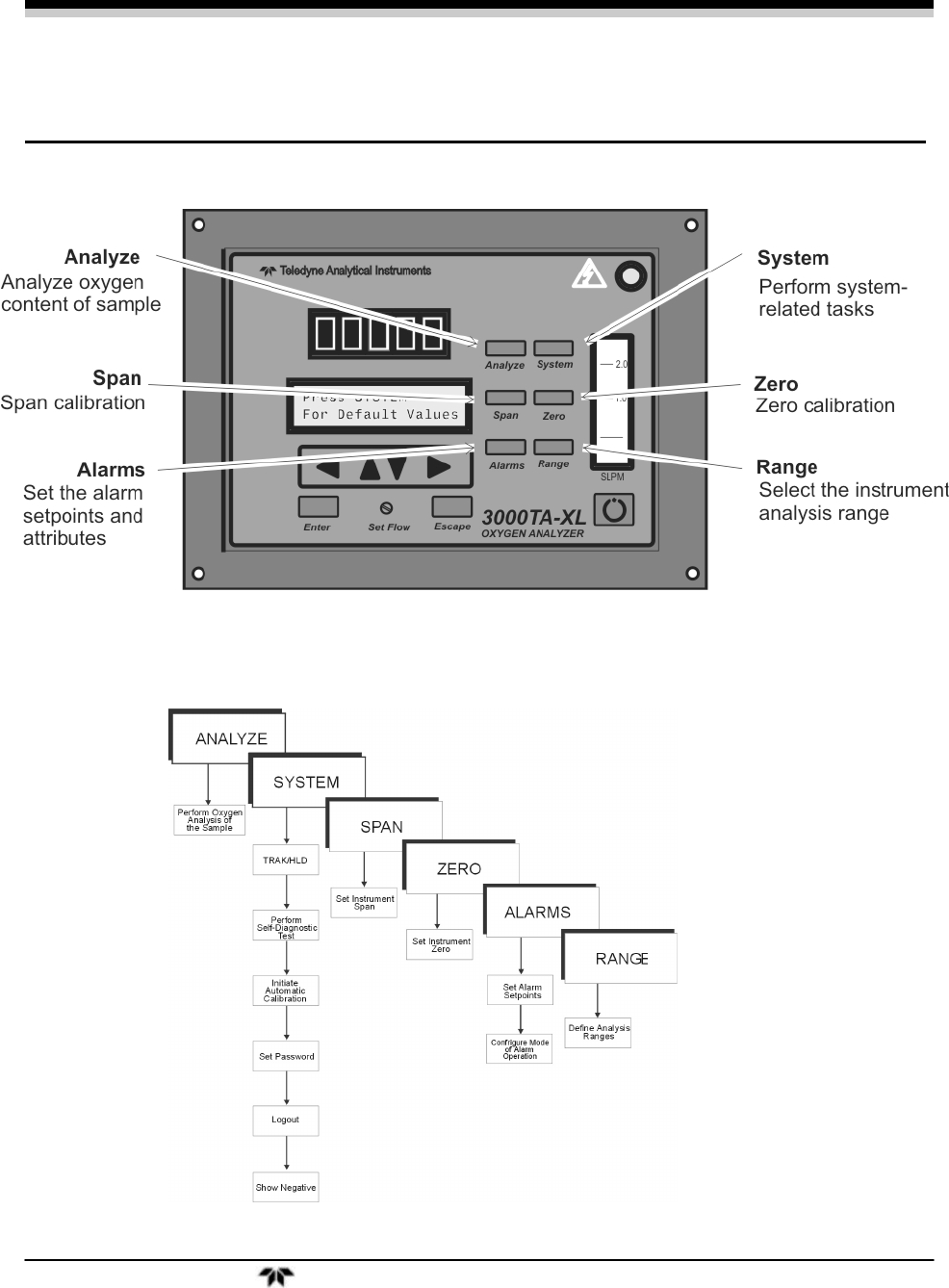

Front Panel (Operator Interface)

Take a minute to familiarize yourself with the analyzer’s interface. The standard 3000TA-

EU is housed in a rugged metal case with all controls and displays accessible from the front

panel. The operator interface consists of thirteen buttons for operating the analyzer, a digital

meter, an alphanumeric display, and a window for viewing the sample flowmeter.

Quickstart Guide Trace Oxygen Analyzer

Teledyne Analytical Instruments 2

Function Keys:

Six touch-sensitive membrane switches are used to change the specific function performed by

the analyzer:

• Analyze Perform analysis for oxygen content of a sample gas.

• System Perform system-related tasks (described in detail in chapter 4, Operation.).

• Span Span calibrate the analyzer.

• Zero Zero calibrate the analyzer.

• Alarms Set the alarm setpoints and attributes.

• Range Set up the 3 user definable ranges for the instrument.

Data Entry Keys:

Six touch-sensitive membrane switches are used to input data to the instrument via the

alphanumeric VFD display:

• Left & Right Arrows Select between functions currently displayed on the VFD

screen.

• Up & Down Arrows Increment or decrement values of functions currently displayed.

• Enter Advances VFD display to the next screen in a series or returns to the Analyze

screen if none remain.

• Escape Backs VFD display to the previous screen in a series or returns to the Analyze

screen if none remain.

Digital Meter Display:

The meter display is a Light Emitting Diode (LED) device that produces large, bright, 7-segment

numbers that are legible in any lighting. It produces a continuous readout from 0-10,000 ppm and

then switches to a continuous percent readout from 1-25%.

Alphanumeric Interface Screen

The VFD screen displays values, options, and messages for immediate feedback.

Set Flow:

Needle valve used to adjust flow of gas sample

Flowmeter:

Monitors the flow of gas past the sensor. Readout is 0.2 to 2.4 SLPM of nitrogen.

Standby Button:

The Standby turns off the display and outputs, but circuitry is still operating.

Access Door:

For access to the Micro-fuel Cell,the front panel swings open when the latch in the upper right

corner of the panel is pressed all the way in.

Model 3000 TA-XL-EU Quickstart Guide

Teledyne Analytical Instruments 3

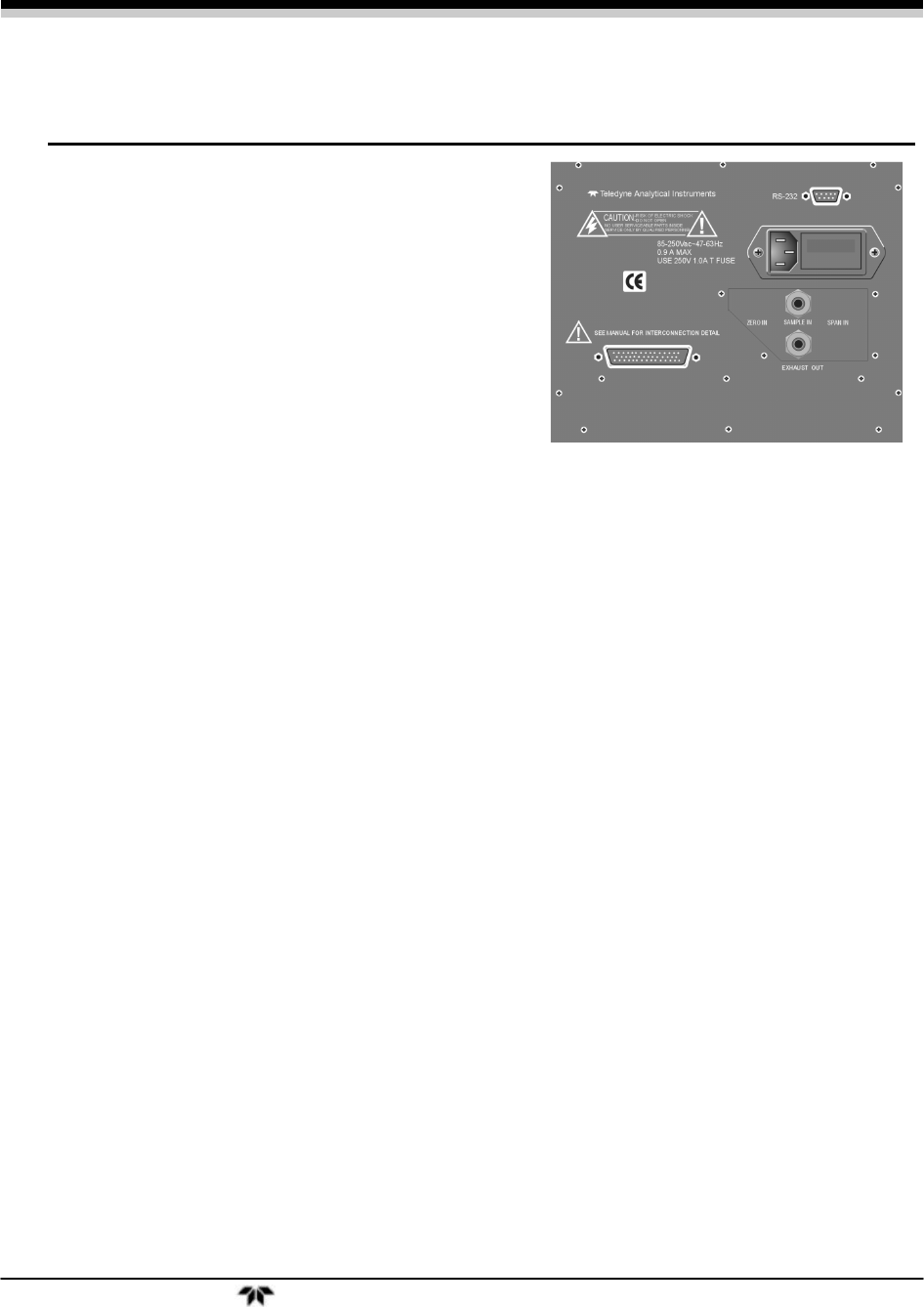

Rear Panel (Equipment Interface)

At the rear panel you make the gas and electrical

connections to the instrument.

• Power Connection: Universal AC power

source.

• Gas Inlet and Outlet: One inlet and one

exhaust out.

• RS-232 Port : Serial digital concentration

signal output and control input.

• Equipment Interface Connector:

Interconnections for analyzer functions including:

• Analog Outputs: 0–1 VDC oxygen concentration plus 0-1 VDC range ID, and

isolated 4–20 mA DC oxygen concentration plus 4-20 mA DC range ID.

• Alarm Connections: 2 concentration alarms and 1 system alarm.

• Remote Probe: Used in the 3000TA -EU for controlling external solenoid valves

only.

• Remote Span/Zero: Digital inputs allow external control of analyzer calibration.

• Calibration Contact : To notify external equipment that instrument is being

calibrated and readings are not monitoring sample.

• Range ID Contacts: Four separate, dedicated, range relay contacts. Low,

Medium, High, Cal.

• Network I/O: Serial digital communications for local network access. For future

expansion. Not implemented at this printing.

Quickstart Guide Trace Oxygen Analyzer

Teledyne Analytical Instruments 4

SETUP AND INSTALL

Mount the Analyzer

The Model 3000TA -EU is for indoor use in a general purpose area. It is NOT for hazardous

environments of any type. It is designed for flush panel mounting. Use the four mounting holes—

one in each corner of the rigid frame to panel mount the instrument.

Make Gas Connections

Note: Do not remove plastic caps on VCR fittings, unless you are ready to make

connections.

The analyzer is equipped with 1/4 inch tube fittings, and 6 mm adapters are supplied for

metric system installations.

1. Connect your sample gas to the SAMPLE IN port.

2. Connect a vent line to EXHAUST OUT port.

3. Calibration gases should be tee'd into the sample inlet with appropriate valves.

4. Regulate the sample gas pressure between 2 and 50 psig sufficient to keep the front

panel flowmeter reading in an acceptable range (0.5 to 2.0 SLPM). For non-

pressurized sample or very low pressure, (less than 2 psig) vacuum service plumbing

is recommended.

5. If greater sample flow is required for improved response time, install a bypass in the

sampling system upstream of the analyzer input.

6. For optional vacuum application where the sample pressure is at atmospheric or very

low pressure, the instrument should be fitted with the vacuum service option. This

option locates the flow control valve on the exhaust side of the Micro-fuel Cell.

Note: Exhaust connections must be consistent with the hazard level of the constituent

gases. Check Local, State, and Federal laws, and ensure that the exhaust

stream vents to an appropriately controlled area, if required.

Model 3000 TA-XL-EU Quickstart Guide

Teledyne Analytical Instruments 5

Electrical Connections

CAUTION: READ ALL SAFETY INFORMATION REGARDING ELECTRICAL HAZARDS

ASSOCIATIED WITH THIS INSTRUMENT BEFORE MAKING ELECTRICAL

CONNECTIONS.

CAUTION: POWER IS APPLIED TO THE INSTRUMENT'S CIRCUITRY AS LONG AS THE

INSTRUMENT IS CONNECTED TO THE POWER SOURCE. THE RED

SWITCH ON THE FRONT PANEL IS FOR SWITCHING POWER ON OR OFF

TO THE DISPLAYS AND OUTPUTS ONLY.

• Connect primary input power:

Insert the power cord into the power cord receptacle.

• Install the fuse:

Fuses are not installed at the factory. Be sure to install the proper fuse as part of

installation.

Place small screwdriver in notch,

and pry cover off, as shown in the

figure.

To change between American and

European fuses, remove the single

retaining screw, flip fuse block

over 180 degrees, and replace

screw.

Replace fuse as shown below.

Reassemble Housing

Quickstart Guide Trace Oxygen Analyzer

Teledyne Analytical Instruments 6

• Install 50-Pin Equipment Interface Connector

Connect the 50 pin connector to the mating connector on the rear panel.

• Connect the 9-pin D connector to the RS-232 serial port.

See Section 3.3.2.3 in the Instruction Manual for information on setting up serial

communication for this instrument.

Install the Micro-fuel Cell

The Model 3000TA-XL-EU can be equipped with either the standard B-2CXL Micro-fuel

Cell or as an option, Teledyne’s Insta Trace cell.

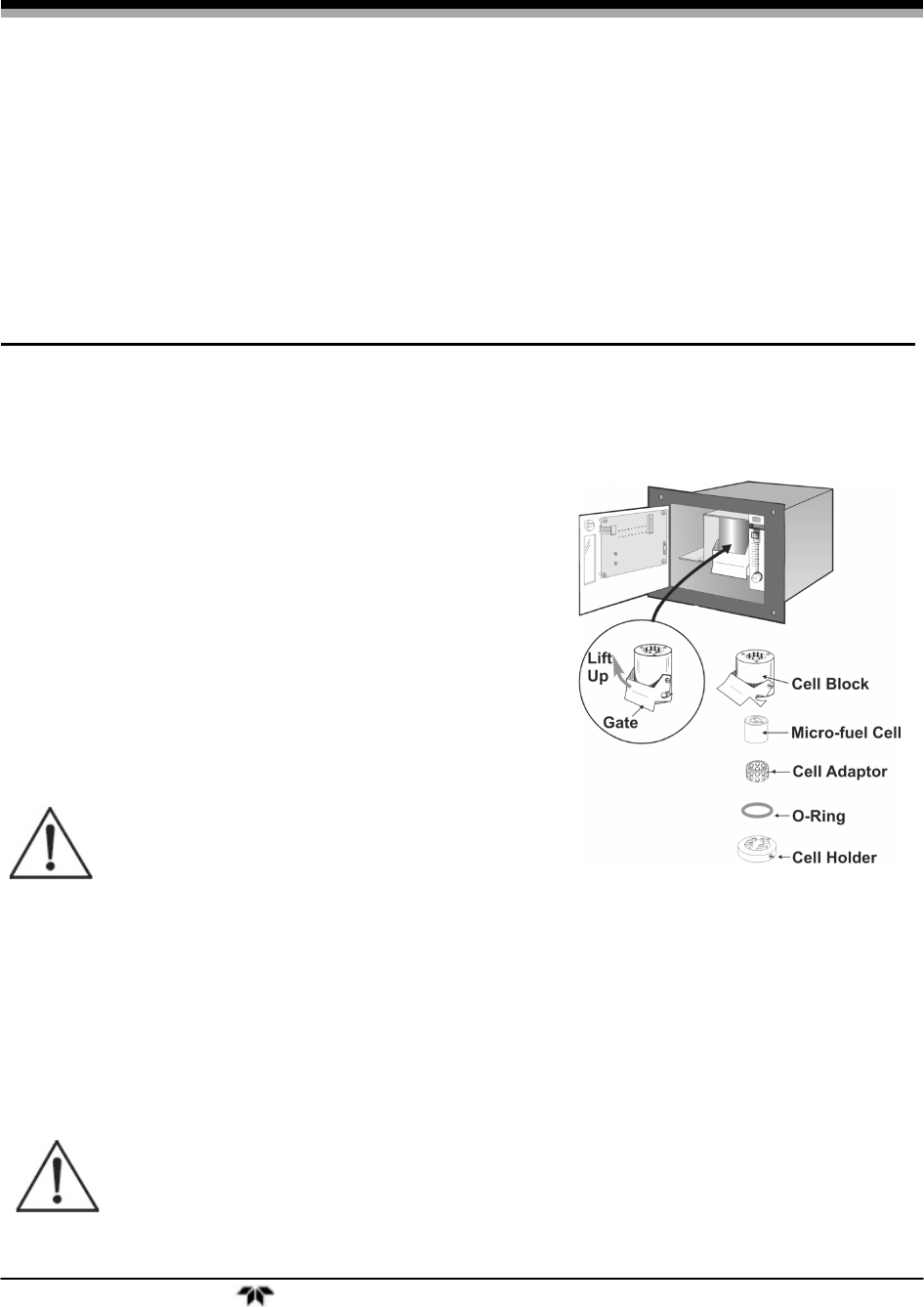

B-2CXL Micro-fuel Cell

To install this cell:

1. Remove power to the instrument.

2. Open the front panel door.

3. With one hand placed underneath the cell

block ready to catch the Micro-Fuel cell, lift

up on the stainless steel gate in front of the

cell block. This releases the cell and cell

holder from the block. The cell and holder will

fall out in your hand.

CAUTION: THE CELL IS SHIPPED SEPARATELY

INSIDE TWO BAGS FILLED WITH

OXYGEN-FREE INERT GAS. USE

CARE TO AVOID EXPOSING THE

CELLTO AIR FOR ANY LONGER THEN

NECESSARY TO INSTALL THE ITEM.

Insta-Trace Micro-fuel Cell

Note: The Insta Trace Micro-fuel Cell has a short recovery time after ambient air

exposure, however minimizing this exposure still reduces the recovery time

necessary.

CAUTION: DO NOT TOUCH THE SENSING SURFACE OF THE CELL. IT IS COVERED

WITH A DELICATE TEFLON MEMBRANE THAT CAN LEAK WHEN

PUNCTURED.

Model 3000 TA-XL-EU Quickstart Guide

Teledyne Analytical Instruments 7

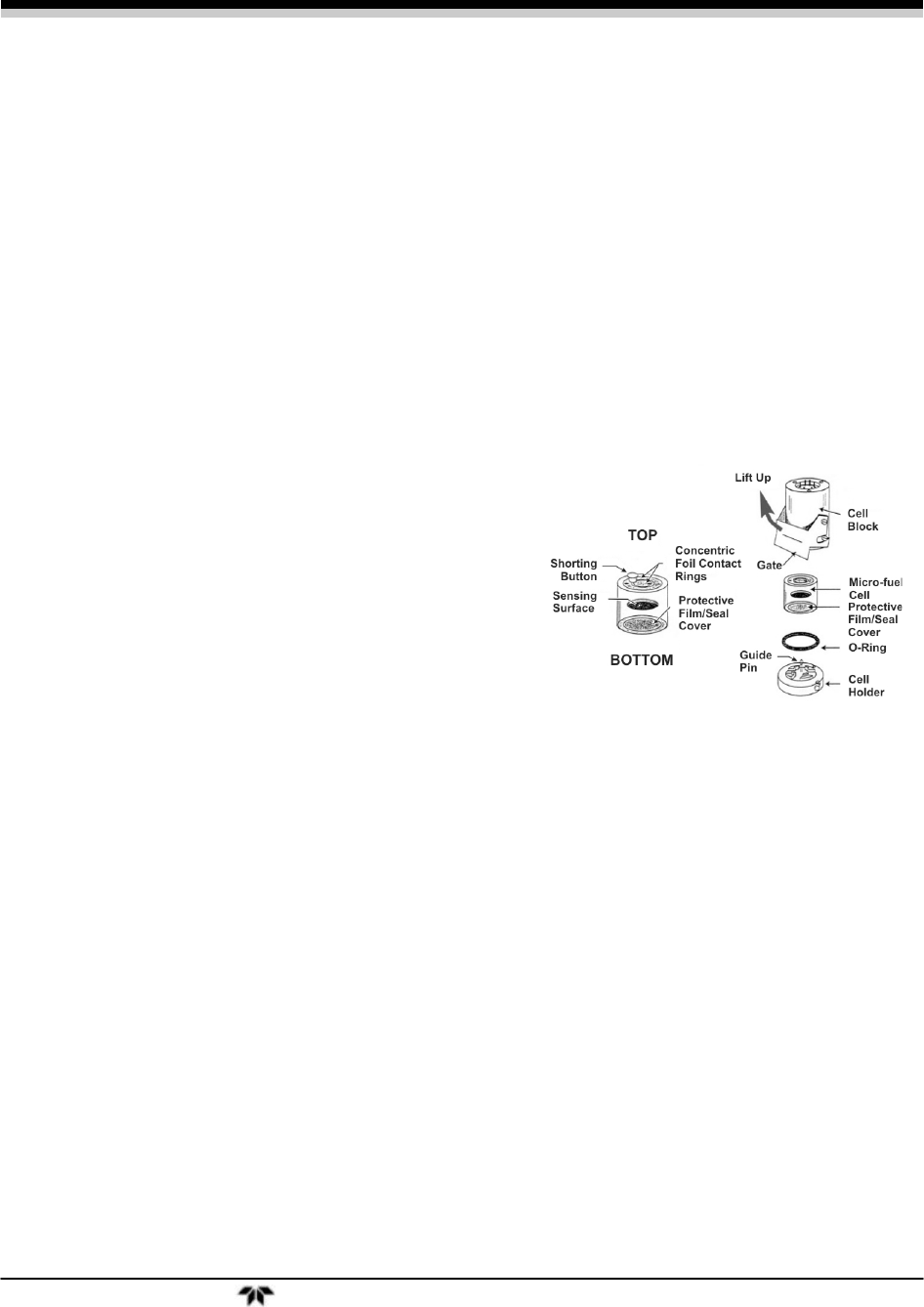

1. Place the cell on the holder with the screen side facing down.

Note: There is a small location hole drilled in the holder. This hole mates with a guide

pin on the bottom rear of the cell block. The hole in the cell block holder must

align with the guide pin on the cell block.

2. Remove power from the instrument.

3. Remove the old sensor (if installed). Discard in accordance with all Federal, State,

Local or other regulations which may apply.

4. Purge the analyzer at approximately 1 SCFH flow rate with nitrogen (or applicable

sample gas with the sensor holder removed).

5. Remove the new sensor from its double bag

storage.

6. Remove the sensor shorting button.

7. Place the sensor inside the cell block.

8. Hold the sensor up into the block while

positioning the cap under the sensor.

Vigorously push the cell holder with the

sensor into the cell block, thus puncturing

the protective film/seal cover.

9. Push the gate on the cell block down so that

the slots on the side of the gate engage the

locating screws on the side of the block. This forces the holder into position and

forms a gas-tight seal.

10. Purge the system using sample or zero gas.

11. Power the system back up.

The Insta Trace sensor will typically reach a stable low value within 30 minutes or less after

installation.

Quickstart Guide Trace Oxygen Analyzer

Teledyne Analytical Instruments 8

BASIC OPERATION

Once the analyzer has been installed, it can be configured for your application. Prior to

using the instrument you must:

• Calibrate the instrument

• Define the analysis ranges and choose whether to use autoranging or a fixed range.

• Set alarm setpoints and modes of alarm operation.

Additional configuration parameters are available to tailor the instrument to your particular

application. Refer to the Instruction Manual for specific information on setting of additional

system parameters.

Default Configuration

The default analyzer configuration is as follows:

Ranges: LO = 1 ppm, MED = 10 ppm, HI = 100 ppm.

Auto Ranging: ON

Alarm Relays: Defeated, 10.00 ppm, HI, Not failsafe, Not latching.

Zero: Auto, every 0 days at 0 hours.

Span: Auto, at 000,008.00 ppm, every 0 days at 0 hours.

If you choose not to use password protection, the default password is automatically

displayed on the password screen when you start up, and you simply press Enter for access to all

functions of the analyzer.

Using the Data Entry and Function Buttons

The ◄► arrow buttons select options from the menu currently being displayed on the

display. When selected, the option blinks.

When the selected option includes a modifiable item, the ▲▼ arrow buttons can be used to

increment or decrement that modifiable item.

The Enter button is used to accept any new entries on the VFD screen.

The Escape button is used to abort any new entries on the VFD screen that are not yet

accepted by use of the Enter button.

Model 3000 TA-XL-EU Quickstart Guide

Teledyne Analytical Instruments 9

Available Functions

The six function buttons are used to control the analyzer.

Some functions have submenus that allow additional choices as shown below.

Quickstart Guide Trace Oxygen Analyzer

Teledyne Analytical Instruments 10

Any function can be selected at any time by pressing the appropriate button (unless

password restrictions apply).

Password Protection

If a password is assigned, then setting the following system parameters can be done only

after the password is entered: span and zero settings, alarm setpoints, analysis range definitions,

switching between autoranging and manual override, setting up an auto-cal, and assigning a new

password. However, the instrument can still be used for analysis or for initiating a self-test

without entering the password.

If you have decided not to employ password security, use the default password TETAI. This

password will be displayed automatically by the microprocessor. The operator just presses the

Enter key to be allowed total access to the instrument’s features.

Note: If you use password security, it is advisable to keep a copy of the password in a

separate, safe location.

Entering the Password

To install a new password or change a previously installed password, you must key in and

Enter the old password first. If the default password is in effect, pressing the Enter button will

enter the default TETAI password for you.

• Press System

TRAK/HLD Auto—Cal

PSWD Logout More

• Use the ◄► arrow keys to scroll the blinking over to PSWD,

• Press Enter to select the password function.

Either the default TETAI password or AAAAA place holders for an existing

password will appear on screen depending on whether or not a password has been

previously installed.

T E T A I

Enter PWD

—or—

A A A A A

Enter PWD

• If you are not using password protection, press Enter to accept TETAI as the default

password. If a password has been previously installed, enter the password using the

Model 3000 TA-XL-EU Quickstart Guide

Teledyne Analytical Instruments 11

◄► arrow keys to scroll back and forth between letters, and the ▲▼ arrow keys to

change the letters to the proper password.

• Press Enter to enter the password.

Change Password?

<ENT>=Yes <ESC>=No

• Press Escape.

Calibration of the Analyzer

For trace analysis, the analyzer must be purged before calibration. Refer to the Instruction

manual for purging procedure.

Zero Calibration

Make sure an appropriate zero gas is connected to the sample port for this procedure.

Auto Mode Zero Calibration

• Press Zero to enter the zero function mode.

• Use the ▲▼ arrow keys to toggle between AUTO and MAN zero settling. Stop when

AUTO appears blinking.

Zero: Settling: AUTO

<ENT> To Begin

• Press Enter to begin zeroing.

#### PPM Zero

Slope=#### ppm/s

.

.

.

#### PPM Zero

4 Left=### ppm/s

Quickstart Guide Trace Oxygen Analyzer

Teledyne Analytical Instruments 12

The zeroing process will automatically conclude when the output is within the acceptable

range for a good zero. Then the analyzer automatically returns to the Analyze mode.

Manual Mode Zeroing

• Press Zero to enter the Zero function.

• Use the ▲▼ keys to toggle between AUTO and MAN zero settling. Stop when MAN

appears, blinking, on the display.

Zero: Settling: Man

<ENT> To Begin

• Press Enter to begin the zero calibration.

#### ppm Zero

Slope=#### ppm/s

Once zero settling is completed, the instrument automatically returns to the Analyze mode.

Span Calibration

Make sure an appropriate span gas is connected to the sample port.

Auto Mode Spanning:

• Press Span to enter the span function.

• Use the arrow keys to toggle between AUTO and MAN span settling. Stop when AUTO

appears, blinking on the display.

Span: Settling: AUTO

<ENT> For Next

• Press Enter.

Calib. Holding time

Cal hold: 5 min

• Press Enter to move to the next screen.

Span Val: 000008.00

<ENT>Span <UP>Mod #

• Use the ▲▼ arrow keys to enter the oxygen-concentration mode. The ◄► arrows

choose the digit, and the ▲▼ arrows choose the value of the digit. When you have

finished typing in the concentration of the span gas you are using, press Enter to

begin the span calibration.

Model 3000 TA-XL-EU Quickstart Guide

Teledyne Analytical Instruments 13

#### ppm Span

Slope=#### ppm/s

The instrument automatically returns to the Analyze mode at the conclusion of the auto span

cycle..

Manual Mode Spanning:

• Press Span to start the Span function.

Span: Settling:MAN

<ENT> For Next

• Use the ▲▼ keys to toggle between AUTO and MAN span settling. Stop when MAN

appears, blinking, on the display. Press Enter to move to the next screen.

Calib. Holding time

Cal hold: 5 min

• Press Enter key to continue.

Span Val: 000008.00

<ENT>Span <UP>Mod #

• Press ▲ (<UP>) to permit modification (Mod #) of span value.

• Use the arrow keys to enter the oxygen concentration of the span gas you are using

(209000.00 if you are using air). The ◄► arrows choose the digit, and the ▲▼

arrows choose the value of the digit.

• Press Enter to enter the span value into the system and begin the span calibration.

#### % Span

Slope=#### ppm/s

• When the Span value displayed on the screen is sufficiently stable, press Enter and

the span reading changes to the correct value.

The instrument automatically returns to the Analyze mode.

Setting Alarm Parameters

If you are using password protection, you will need to enter your password to access the

alarm functions. Follow the instructions above for Entering the Password to enter your

password. Once you have clearance to proceed, you can set the alarms.

Quickstart Guide Trace Oxygen Analyzer

Teledyne Analytical Instruments 14

• Press the Alarm button on the front panel to enter the Alarm function. Make sure that

AL–1 is blinking.

AL—1 AL—2

Choose Alarm

• Using the ◄► arrow keys to move the blinking over to AL–1. Then press Enter.

AL—1 1000 ppm HI

Dft—N Fs—N Ltch—N

Five parameters can be changed on this screen:

• Value of the alarm setpoint, AL–1 #### ppm (oxygen); value can be set from 0.00

to 10,000.00 ppm

• Out-of-range direction, HI or LO

• Defeated? Dft–Y/N (Yes/No)

• Failsafe? Fs–Y/N (Yes/No)

• Latching? Ltch–Y/N (Yes/No).

• To change any of the alarm parameters, use the ◄► arrow keys to move the blinking

over to the specific parameter.

• Use the ▲▼ arrow keys to change the value of the parameter. Holding down the key

speeds up the incrementing or decrementing.

• Once the parameters for alarm 1 have been set, press Alarms again, and repeat this

procedure for alarm 2 (AL–2).

• To reset a latched alarm, go to Dft– and then press either ▲ two times or ▼ two

times. (Toggle it to Y and then back to N.)

—or—

Go to Ltch– and then press either ▲ two times or ▼ two times. (Toggle it to N and

back to Y.)

Set The Range Function

To set the 3 programmable ranges:

• Enter the range function mode by pressing the Range button on the front panel.

L—1 M—10

H—100 Mode—AUTO

Model 3000 TA-XL-EU Quickstart Guide

Teledyne Analytical Instruments 15

• Use the ◄► arrow keys to blink the range to be set: low (L), medium (M), or high

(H).

• Use the ▲▼ arrow keys to enter the upper value of the range (all ranges begin at 0

ppm). Repeat for each range you want to set.

• Press Enter to accept the values and return to analyze mode.

Note: The ranges must be increasing from low to high, for example, if range 1 is set as

0–100 ppm and range 2 is set as 0–1,000 ppm, range 3 cannot be set as 0– 500

ppm since it is lower than range 2.

Fixed Range or Autoranging Analysis

To switch from autoranging to fixed range analysis:

• Enter the range function by pressing the Range button.

• Use the ◄► arrow keys to move the blinking over AUTO.

• Use the ▲▼ arrow keys to switch from AUTO to FX/LO, FX/MED, or FX/HI to set the

instrument on the desired fixed range (low, medium, or high).

L—1 M—10

H—100 Mode—FX/LO

—or—

L—1 M—10

H—100 Mode—FX/MED

—or—

L—1 M—10

H—100 Mode—FX/HI

Press Escape to re-enter the analyze mode using the fixed range.

The Analyze Function

Normally, all of the functions automatically switch back to the Analyze function when they

have completed their assigned operations. Pressing the Escape button in many cases also

switches the analyzer back to the Analyze function. Alternatively, you can press the Analyze

button at any time to return to analyzing your sample.
