Users Manual
Model TC25211
2-Line DECT 6.0 Cordless Handset Telephone
With DECT 6.0 Cordless Headset
User’s Guide
2
Equipment Approval Information
Your telephone equipment is approved for connection to the Public Switched Telephone
Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the
Technical Requirements for Telephone Terminal Equipment published by ACTA.
Notication to the Local Telephone Company
On the bottom of this equipment is a label indicating, among other information, the
US number and Ringer Equivalence Number (REN) for the equipment. You must, upon
request, provide this information to your telephone company.
The REN is useful in determining the number of devices you may connect to your tele-
phone line and still have all of these devices ring when your telephone number is called.
In most (but not all) areas, the sum of the RENs of all devices connected to one line
should not exceed 5. To be certain of the number of devices you may connect to your
line as determined by the REN, you should contact your local telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68 rules and requirements adopted
by the ACTA. A compliant telephone cord and modular plug is provided with this prod-
uct. It is designed to be connected to a compatible modular jack that is also compliant.
See installation instructions for details.
Notes
• Thisequipmentmaynotbeusedoncoinserviceprovidedbythetelephonecompany.
• Partylinesaresubjecttostatetaris,andtherefore,youmaynotbeabletouseyour
own telephone equipment if you are on a party line. Check with your local telephone
company.
• Noticemustbegiventothetelephonecompanyuponpermanentdisconnectionofyour
telephone from your line.
• Ifyourhomehasspeciallywiredalarmequipmentconnectedtothetelephoneline,en-
sure the installation of this product does not disable your alarm equipment. If you have
questions about what will disable alarm equipment, consult your telephone company or
a qualied installer.
US Number is located on the cabinet bottom
REN number is located on the cabinet bottom
• RJ14Cforline1andRJ11Cforline2
List all applicable certication jack Universal Service Order Codes (“USOC”) for the
equipment. For some types of analog and digital systems, list associated Facility
Interface Codes (“FIC”) and Service Order Codes (“SOC”). These are required when the
customer orders service from the local telephone company. Refer to Alliance for Tele-
communications Industry Solutions (“ATIS”) Technical Report No. 5 for a more extensive
listingofjackcongurationsandtheirdesignations(e.g.,RJ11C),orrefertotheTelcor-
dia NC/NCITM Decoder for a full listing.
3
Rights of the Telephone Company
Should your equipment cause trouble on your line which may harm the telephone
network, the telephone company shall, where practicable, notify you that temporary
discontinuance of service may be required. Where prior notice is not practicable and the
circumstances warrant such action, the telephone company may temporarily discon-
tinue service immediately. In case of such temporary discontinuance, the telephone
companymust:(1)promptlynotifyyouofsuchtemporarydiscontinuance;(2)aord
you the opportunity to correct the situation; and (3) inform you of your right to bring a
complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68,
FCC Rules and Regulations.
The telephone company may make changes in its communications facilities, equipment,
operations or procedures where such action is required in the operation of its business
and not inconsistent with FCC Rules and Regulations. If these changes are expected to
aecttheuseorperformanceofyourtelephoneequipment,thetelephonecompany
must give you adequate notice, in writing, to allow you to maintain uninterrupted
service.
Interference Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
twoconditions:(1)Thisdevicemaynotcauseharmfulinterference;and(2)Thisdevice
must accept any interference received, including interference that may cause undesired
operation. Privacy of communications may not be ensured when using this phone.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
canbedeterminedbyturningtheequipmentoandon,theuserisencouragedtotryto
correct the interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna(thatis,theantennaforradioortelevision
that is “receiving” the interference).
• Reorientorrelocateandincreasetheseparationbetweenthetelecommunications
equipment and Receiver.
• Connectthetelecommunicationsequipmentintoanoutletonacircuitdierentfrom
that to which the receiving antenna is connected.
If these measures do not eliminate the interference, please consult your dealer or an experi-
enced radio/television technician for additional suggestions. Also, the Federal Communica-
tions Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV
Interference Problems.” This booklet is available from the U.S. Government Printing Oce,
4
Washington,D.C.20402.Pleasespecifystocknumber004-000-00345-4whenorderingcop-
ies.
Warning: The changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
aminimumdistanceof20centimetersbetweentheradiatorandyourbody.This
transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.”
For body worn operation, this handset has been tested and meets the FCC RF
exposure guidelines. Use of accessories may not ensure compliance with FCC RF
exposure guidelines.
ThisClassBdigitalapparatuscomplieswithCanadianICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003du
Canada.
Licensing
LicensedunderUSPatent6,427,009.
Hearing Aid Compatibility
This telephone system meets FCC standards for Hearing Aid Compatibility.
Use of other accessories may not ensure compliance with
FCC RF exposure guidelines.
5
Table of Contents
EquipmentApprovalInformation................2
Inter ference Information ..............................3
FCCRFRadiationExposureStatement......4
Licensing.............................................................4
HearingAidCompatibility.............................4
Introduction.......................................................7
PartsChecklist...................................................7
TelephoneJackRequirements......................8
INSTALLATION.....................................................8
Digital Security System .............................8
Important Installation Guidelines ..........8
HandsetLayout............................................9

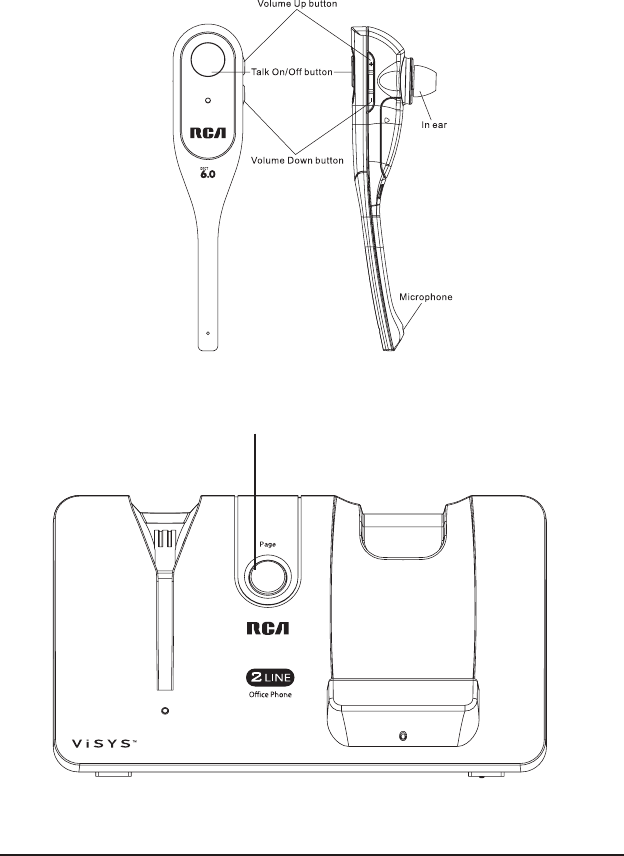

HeadsetLayout..........................................10
BaseLayout................................................10
INSTALLING THE PHONE ...............................11
INSTALLING THE HEADSET BATTERY .........11
HEADSETSETUP............................................12
EAR HOOK ATTACHMENT .............................13
TO SWITCH FROM EAR TO EAR ..................13
IN EAR ATTACHMENT ...................................13
BaseStation....................................................14
PROGRAMMING THE TELEPHONE .............15
Standby Screen ..........................................15
Programming Functions ..........................15
Phone Setting ............................................15
Date/Time ....................................................15
Set Date/Time ............................................15
Set Format ..................................................16
Time Format ...............................................16
Date Format ...............................................16
Dial Mode ....................................................16
Area Code ....................................................16
2ndCallAlert.............................................17
AutoAnswer...............................................17
Handset Name (Only applicable for
handset)..................................................17
Display Setting ..........................................18
Language .....................................................18
Display Contrast ........................................18
Sound Settings ........................................18
Ring Tones ...................................................18
RingVolume...............................................19
Key Touch Tone..........................................19
VoiceMail...................................................19
CallVM.........................................................19
Settings.......................................................19
Priority Settings ........................................20
PriorityLine.................................................20
PriorityMode.............................................20
RestoreSetting..........................................20
TelephoneOperation.....................................21
MakingCallswiththehandset.............21
MakingCallswiththeSpeakerphone.21
Making a Call with the cordless Headset
..................................................................21
MakingCallswithawiredHeadset.....21
Pre-dialing..................................................22
AnsweringaCall.......................................22
Switch Between the Speakerphone,
Handset,andHeadset.......................22
Mute.............................................................22
Flash.............................................................22
Inserting a Pause in the Dialing
Sequence...............................................23
Redial...........................................................23
ReviewingtheRedialNumbers.............23
Storing a Redial Record in PhoneBook
.................................................................23
RingerOn/O.............................................24
Speakerphone, Handset, and Headset
Volume...................................................24
Hold..............................................................24
ConferenceCalls.........................................24
Page..............................................................24
6
Table of Contents
AutoStandby.............................................25
RingIndicatoronHeadset.....................25
VisualIndicatorsonHeadset.................25
CALLERID(CID).........................................25
ReceivingandStoringCIDRecords.....25

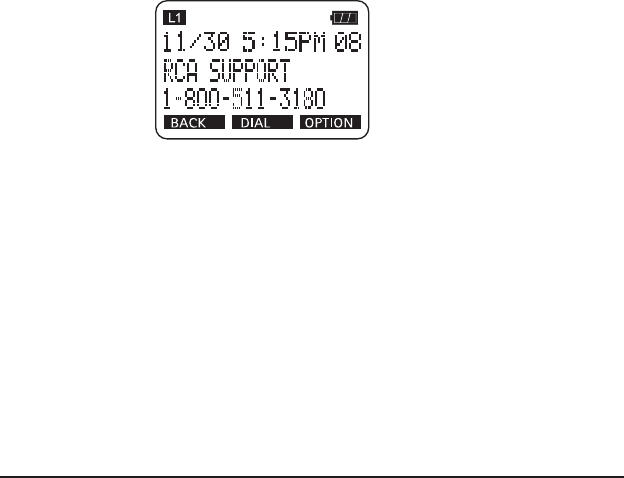

ReviewingCIDRecords...........................25
Saving a CID Record to Phone Book
Memory.................................................26
DeletingaCIDRecord.............................26
DeletingAllCallRecords........................26
DialingBack...............................................26
If You Programmed Your Local Area
Code.......................................................26
If you Did Not Program Your Local
AreaCode.............................................27
CallWaitingCallerID.............................27
PhoneBook(Directory)Memory..........27
AddingPhoneBookEntries...................27
ReviewingPhoneBookRecords...........28
EditingaPhoneBookRecord...............28
DeletingaPhoneBookRecord..............28
DeletingallPhoneBookRecord..........28
DialingaPhoneBookRecord...............29
Dial a phone book record while
reviewingit..........................................29
Speeddialfunction..................................29
Speeddialout............................................29
SpeeddialnumberStore........................29
ChangingTheBattery.............................30
DisplayMessages.....................................30
Handset Sound Signals ...........................31
Troubleshooting Guide .................................31
Telephone Solutions .................................31
No dial tone ................................................31
Dial tone is ok, but can’t dial out ........31
Handset does not ring .............................31
You experience static, noise, or
fading in and out ..........................31
Memory dialing doesn’t work ..........31
Unit locks up and no communication
between the base and cordless
handset............................................32
Date/Time setting is restored to
defaultsetting................................32
CallerIDSolutions.........................................32
NoDisplay...............................................32
NoCallerID............................................32
Battery..............................................................32
GeneralProductCare....................................32
Causes of Poor Reception ............................33
Service ..............................................................33
Warranty..........................................................34
7
Introduction
CAUTION: When using telephone equipment, there are basic safety
instructions that should always be followed. Refer to the IMPORTANT
SAFETY INSTRUCTIONS provided with this product and save them for
future reference.
IMPORTANT: Because cordless phones operate on electricity, you should have at
least one phone in your home that isn’t cordless, in case the power in your home
goes out.
Parts Checklist
Make sure your package includes the following items:
8
Telephone Jack Requirements
Tousethisphone,youwillneedanRJ11C
(forasingleline)oraRJ14C(fortwolines)
type modular telephone jack, which might look like
the one pictured here, installed in your home. If you
don’t have a modular jack, call your local phone
company to nd out how to get one installed.
INSTALLATION
Digital Security System
Your cordless phone uses a digital security system to protect against false ringing, unau-
thorized access, and charges to your phone line.
INSTALLATION NOTE: Some cordless telephones operate at frequencies that may cause or re-
ceive interference with nearby TVs, microwave ovens, and VCRs. To minimize or prevent such
interference, the base of the cordless telephone should not be placed near or on top of a TV,
microwave ovens, or VCR. If such interference continues, move the cordless telephone farther
away from these appliances.Certain other communications devices may also use the 1.9 GHz
frequency for communication, and, if not properly set, these devices may interfere with each
other and/or your new telephone. If you are concerned with interference, please refer to the
owner’s manual for these devices on how to properly set channels to avoid interference. Typi-
cal devices that may use the 1.9 GHz frequency for communication include wireless audio/
video senders, wireless computer networks, multi-handset cordless telephone systems, and
some long-range cordless telephone systems.
Important Installation Guidelines
•Avoidsourcesofnoiseandheat,suchasmotors,uorescentlighting,microwaveovens,
heating appliances and direct sunlight.
•Avoidareasofexcessivedust,moistureandlowtemperature.
•Avoidothercordlesstelephonesorpersonalcomputers.
•Neverinstalltelephonewiringduringalightningstorm.
•Neverinstalltelephonejacksinwetlocationsunlessthejackisspecicallydesignedfor
wet locations.
•Nevertouchnon-insulatedtelephonewiresorterminals,unlessthetelephonelinehas
been disconnected at the network interface.
•Usecautionwheninstallingormodifyingtelephonelines.
9
Handset Layout
10
Headset Layout
Base Layout
Page
Button
11
INSTALLING THE PHONE
Installing the Handset Battery
NOTE: You must connect the handset battery before use.
CAUTION: To reduce the risk of re or personal injury, use only the
Nickel-metalHydride(Ni-MH)batterymodelT-T104(GP,2.4V,550mAh),
which is compatible with this unit.
Risk of explosion if battery is replaced by an Incorrect type. Dispose of used
batteries according to the instructions.
1. Locate battery which is packaged inside a plastic bag and is separate from the
handset.
2.Locatethebatterycompartmentonthebackofthehandset.
3. Plug the battery pack cord into the jack inside the compartment.
NOTE: To ensure proper battery installation, the connector is keyed and can be inserted
only one way.
4.Insertthebatterypack.
5. Close the battery compartment by placing the handset back cover slightly higher than
the handset and then sliding the cover down into position.
INSTALLING THE HEADSET BATTERY
NOTE: You must connect the headset battery before
use.
CAUTION: To reduce the risk of re or
personal injury, use only the Teleeld NA
Inc. approved Li-Polymer battery Model
T-T101(A.E.,3.7V,240mAh),whichis
compatible with this unit.
Risk of explosion if battery is replaced by an
Incorrect type. Dispose of used batteries
according to the instructions.
12
1. If the battery door is attached, press on both sides of the battery compartment cover
andliftthecoverupando.
2.InsertthebatteryintothebatterycompartmentwiththewarninglabelfacingUp.
3. Push the battery plug into the connector inside the compartment according to the
color-coded label and place the wires neatly inside the compartment.
4.Insertthetabonthebottomofthebatterycoverintothebatterycompartment.Press
down gently on the battery cover until it snaps into place.
5. Place cordless headset in charger. Plug the power supply cord into the power jack on
the bottom of the charger and the other end into an electrical outlet. Place headset in
the charger. Within a few seconds, the charge indicator should illuminate, verifying the
battery is charging.
6.Allowtheunittochargefor14hourspriortorstuse.Ifyoudon’tproperlychargethe
unit, battery performance may be compromised.
NOTE: Remove the ear hook from the headset before battery replacement.
HEADSET SET UP
Headband Attachment
Attaching the headset to the headband:
1. Remove ear hook if currently attached to the headset.
2.Inserttheearpieceintotheheadbandring.
3. Push the earpiece towards the headband ring
until it clicks into place.
4.Adjusttheheadbandtotyourheadcomfortably.
Adjust and rotate the angle of the headset until the
microphone is pointing toward your mouth.
NOTE:
To wear on the other ear, rotate the headset within the headband ring.
Firmly grip the padded earpiece with one hand, adjusting the headset microphone up or
down . To remove the headset from the headband, hold the headset with one hand and the
headband ring with the other hand. Twist and pull the headset gently until it separates
from the ring of the headband.
NOTES:
When you use the headband, you can use the highest in ear tip to keep the volume state.
13
EAR HOOK ATTACHMENT
To attach the ear hook to the headset.
1. Remove the headband if currently attached to the headset.
2.Inserttheearpieceintotheearhook.
3. Press the ear hook onto the earpiece until it clicks into place
4.Hooktheheadsetontothedesiredearandadjusttheangleof
the headset until the microphone is pointing towards your mouth.
Note: Insert ear hook into either side of ear hook ring, matching with
the L or R marked on ear clip ring to either your left or right ear.
Note: Adjust the ear hook to your ear shape comfortably.
TO SWITCH FROM EAR TO EAR
Unplug the ear hook from ear hook ring.
Insert the ear hook to ear hook ring with L mark for Left ear.
Insert the ear hook to R mark for Right ear.
Rotate microphone boom to reposition nearer to mouth.
Note: Ear hook is made out of a exible material that can be reshaped to t your ear.
Gently manipulate into the desired shape for maximum comfort.
IN EAR ATTACHMENT
If the Earplug is bigger or smaller than your ear, you can change the In-Ear tip for
maximum comfort.
14
Base Station
Thephonemustbeconnectedtotwoline(RJ14C)walljackstoaccommodatebothlines.
1.Chooseanareanearanelectricaloutletandatelephonewalljack(RJ11C),andplace
your cordless telephone on a level surface, such as a desktop or tabletop If you choose to,
you may also mount it on the wall.
2.Plugthepowersupplycordintothepowerjackonthebackofthebaseandtheother
end into an electrical outlet.
3. Connect the telephone line cords:
Ifyouhave2single-linewalljacksinstalledinyourhomeoroce,youcanuseadaptors/
couplers(notincluded)tocombinethe2singletelephonelinesinto1dualline.Theadap-
tor/coupler may look similar to the one pictured here and can be purchased from your local
telephone products retailer.
Or, you can plug the two includedsingle line telephone cords in to the two jacks on the back
of the telephone.
4. Place the handset and headset in the base cradle. The charge/in use indicator turns on,
verifying the battery is charging.
5.Allowthephonetochargefor14hourspriortorstuse.Ifyoudon’tproperlychargethe
phone, battery performance is compromised.
CAUTION: Use only the T-T007 power adaptor that came with this unit. Using
other power adaptors may damage the unit.
UseonlyClass(Classe)2PowerSource7.5VDC500mA.
15
PROGRAMMING THE TELEPHONE
Standby Screen
The handset displays the handset name, date, time, battery status, the quantity of new calls
and the three soft keys status.
NOTE: The three soft keys will change depending on the status of the phone or what menu
you are in.
Programming Functions
The system uses a menu structure to give you access to all of the built-in features. You may
program the following items in main menu: Phone Setting, Display Setting, Sound Settings,
Voice Mail, Priority Settings and Restore Setting.
NOTE: If the handset is out of range, Setup BS and Date/Time are not programmable, and
Unavailable displays as you try to enter these two menus.
NOTE: During programming, you may press the back soft key at any time to return to the pre-
vious menu, and press and hold back soft key for about 2 seconds to exit the the idle mode.
NOTE: If no key is pressed for 30 seconds, the handset will automatically the menu and return
to the standby screen.
Phone Setting
1. Make sure your phone is in standby mode (not in talk mode).
2.PresstheMenusoftkeyonHSthehandsettogotothemainmenu.
3. Press VOL (- or +) button to scroll to Phone Setting.
4.PressSelectsoftkeytoconrmandyoumayprogramthefollowingitems:Date/Time,
Dialmode,AreaCode,AutoAnswer,2ndCallAlertandHandsetName.
Date/Time
From the Phone Setting Menu
1. Press the VOL (- or +) button to scroll to Date/Time sub-menu.
2.PressSelectsoftkeytoconrmandyoumayprogramthefollowingitems:SetDate/
Time, Set Format.
Set Date/Time
From the Date/Time sub-menu
1. Use VOL (- or +) button to select Set Date/Time.
2.PressOKsoftkeytoconrm.
3. LCD will display last set time (or, if the device is new or has been reset to default, the
LCDwilldisplay12:00AM01/01/10)
4.Usethedial-padtoenterdigitsforthecurrenttimeanddate.
16
Note: Use ‘*’ button or press AM/PM soft key to set the time AM or PM.
NOTE: Enter the Year as a 2-digit number. For instance, enter 10 for 2010, 11 for 2011, etc.
5. Press SAVE softkey to conrm the setting, a conrmation tone will indicate that your
selection has been saved.
Note: If you subscribe to Caller ID service, the current date/time is set automatically when
you receive your rst CID record and will override manually set date/time.
Set Format
From the Date/Time Menu:
1. Press the VOL (- or +) button to scroll to Set Format.
2.PressOKsoftkeytoconrmandyoumayprogramthefollowingitems:TimeFormatand
Date Format
Time Format
From the Date/Time Menu:
1. Use the VOL (- or +) button to scroll to Time Format.
2.PresstheOKsoftkey.
3.UsetheVOL(-or+)buttontoscrolltoselecteither12Hoursor24Hours.
4.PresstheOKsoftkeytoselect.
5. A conrmation tone will indicate that your selection has been saved.
Date Format
From the Date/Time Menu:
1. Use the VOL (- or +) button to scroll to Date Format.
2.PresstheOKSoftkey.
3. Use the VOL (- or +) button to scroll to select either DD/MM or MM/DD format.
4.PresstheOKSoftkey.
5. A conrmation tone will indicate that your selection has been saved.
Dial Mode
From the Phone Settings Menu:
1. Use the VOL (- or +) button to scroll to Dial Mode.
2.PresstheSELECTsoftkey.
3.UsetheVOL(-or+)buttontoscrolltoselecteitherLine1orLine2.
4.PresstheOKsoftkeytoselect.
5. Press the OK Soft key.
6. A conrmation tone will indicate that your selection has been saved.
Area Code
From the Phone Settings Menu:
1. Use the VOL (- or +) button to scroll to Area Code.
2.PresstheSelectsoftkey.
17
3. Use the dial-pad to enter your area code.
4.PresstheOKsoftkeytoconrmyourentry.
5. A conrmation tone will indicate that your entry has been saved.
Note: The area code default setting is empty.
2nd Call Alert
From the Phone Settings Menu:
1.UsetheVOL(-or+)buttontoscrollto2ndCallAlert.
2.PresstheSelectsoftkey.
3.UsetheVOL(-or+)buttontoscrolltoselecteitherOnorO.
4.PresstheSELECT Soft key to select.
5. A conrmation tone will indicate that your selection has been saved.
Note: The default setting is On.
Auto Answer
This option allows you to pick up the handset from base to answer an incoming call without
pressingtheHandset/SPKRbuttonsorL1/L2softkeys.
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to the Auto Answer sub-menu.
2.PresstheSelectsoftkey.
3.UsetheVOL(-or+)buttontoscrolltoselecteitherOnorO.
4.PresstheSELECT Soft key to select.
5. A conrmation tone will indicate that your selection has been saved.
NOTE: The default setting is O.
Handset Name (only applicable for handset)
From the Phone Setting Menu:
1. Press the VOL (- or +) button to scroll to the Handset Name sub-menu.
2.PressSelectsoftkeytoenterthemenu.ThedefaultnameisHandset.
3. Use the touch-tone pad to enter a name (up to 11 characters). More than one letter is
storedineachofthenumberkeys.Forexample,toenterBillSmith,pressthe2keytwice
fortheletterB.Pressthe4key3timesfortheletterI.Pressthe5key3timesfortheletter
L. Press the 5 key 3 times for the second letter L, and press the 1 key to insert a space be-
tweentherstandlastname.Pressthe7key4timesfortheletterS;pressthe6keyonce
fortheletterM;pressthe4key3timesfortheletterI;pressthe8keyonce for the letter T;
pressthe4keytwicefortheletterH.
NOTE: If you make a mistake, press VOL (- or +) button to move the cursor forward or back-
ward, and then use the Clear soft key to backspace and delete one character at a time.
NOTE: To avoid confusion, ABC/abc is a soft key to switch/toggle between the upper case &
low case of characters during text edit.
4.PresstheSave soft key to save your name. You will hear a conrmation tone.
18
Display Setting
1. Make sure your phone is in standby mode (not in talk mode).
2.PresstheMenusoftkeyonthehandsettogotothemainmenu.
3. Press VOL (- or +) button to scroll to Display Setting.
4.PressSelectsoftkeytoconrmandyoumayprogramthefollowingitems:Languages,
Display contrast.
Language
From the Display Setting Menu:
1. Press the VOL (- or +) button to scroll to the Language sub-menu.
2.PressSelectsoftkeytoenterthemenu.
3. Use the VOL (- or +) button to select English, Francais or Espanol. The default setting is
English.
4.PresstheOKsoftkeytosaveyourselection.
NOTE: The default setting is English.
Display contrast
From the Display Setting Menu
1. Press the VOL(- or +) button to scroll to the Display contrast sub-menu.
2.PressSelectsoftkeytoenterthemenu.TheMINandMAXcontrastscaleshowsonthe
display.
3. Use the VOL(- or +) button to adjust the contrast. The display instantly adjusts with each
press of the VOL(- or +) button.
4.PresstheSelect soft key to save the desired contrast level.
NOTE: The default setting is level 3.
Sound Settings
1. Make sure your phone is in standby mode (not in talk mode).
2.PresstheMenusoftkeyonthehandsettogotothemainmenu.
3. Press VOL(- or +) button to scroll to Sound Setting.
4.PressSelectsoftkeytoconrmandyoumayprogramthefollowingitems:RingTone,Ring
Volume and Key Touch Tone.
Ring Tones
1. Use the VOL (- or +) button to scroll to Ring Tones.
2.PresstheSelectSoftkey.
3.UsetheVOL(-or+)buttontoscrolltoselecteitherLine1orLine2.
4.PresstheSelectSoftkeytoselect.
5. Use the VOL (- or +) button to scroll to select any of eight unique ring tones.
6. Press the Select Soft key to select.
7.Aconrmationtonewillindicatethatyourselectionhasbeensaved.
19
Note: The line 1 default ring tone is ring tone 1 and the line 2 default is ring tone 2.
Ring Volume
Thereare6volumelevelsforyourselection.TheyareVolume1to5andRingerO.
From the Sound Settings Menu:
1. Press the VOL (- or +) button to scroll to the Ring Volume sub-menu.
2.PressSelectsoftkeytoenterthemenu.
3.UsetheVOL(-or+)buttontoscrolltoselecteitherLine1orLine2.
4.PresstheSelectSoftkeytoselect.
5. Use the VOL (- or +) button to scroll to select the volume level. The default setting is VOL 3.
6. Press the Select soft key to save your selection.
Key Touch Tone
From the Sound Settings Menu:
1. Press the VOL (- or +) button to scroll to the Key Touch Tone sub-menu.
2.PressSelectsoftkeytoenterthemenu.
3.UsetheVOL(-or+)buttontoselectOnorO.
4.PresstheSelectsoftkeytosaveyourselectionandSavedshowsinthedisplay.
NOTE: The default setting is On.
Voice Mail
This feature is used to conveniently your voicemail provided by your telephone service
provider.
NOTE: You must subscribe to telephone service provider-oered voicemail on at least one
phone line in order for this feature to operate.
1. Make sure your phone is in standby mode. (not in talk mode)
2.PresstheMenusoftkeytogotothemainmenu.
3. Press VOL (- or +) button to scroll to Voice Mail.
4.PressOKsoftkeytoconrmandyoumayprogramthefollowingitems:CallVMand
Settings
Call VM
From the Voice Mail Menu:
1. Press VOL (- or +) button to scroll to Call VM.
2.PressOKsoftkey
3.UsetheVOL(-or+)buttontotogglebetweenLine1andLine2andpresstheOKsoft
key to select.
4.Thephonewilldialyourvoicemailaccessnumber.Youmayproceedtoaccessyourvoice-
mail per your service provider’s instructions.
NOTE: The default setting is empty.
Settings
From the Voice Mail Menu:
20
1. Press VOL (- or +) button to scroll to Settings.
2.PressOKsoftkey
3.UsetheVOL(-or+)buttontotogglebetweenLine1andLine2andpresstheOKsoft
key to select.
4.Usethedialpadtoenterthecall-inaccessnumberforyourvoicemail.PresstheClear
soft key to backspace and delete characters, if necessary.
5. Press OK soft key.
6. A conrmation tone will indicate that your selection has been saved.
Priority Settings
1. Make sure your phone is in standby mode (not in talk mode).
2.PresstheMenusoftkeyonthehandsettogotothemainmenu.
3. Press VOL (- or +) button to scroll to Priority Settings.
4.PressSelectsoftkeytoconrmandyoumayprogramthefollowingitems:PriorityLine,
Priority mode.
Priority Line
From the Priority Settings Menu:
1. Use the VOL (- or +) button to scroll to Priority Line.
2.PresstheSelectsoftkey.
3.UsetheVOL(-or+)buttontoscrolltoselectAuto,Line1orLine2.
4.PresstheOKsoftkeytoselect.
5. A conrmation tone will indicate that your selection has been saved.
NOTE: the default setting is Line1.
Priority Mode
From the Priority Settings Menu:
1. Use the VOL (- or +) button to scroll to Priority Mode.
2.PresstheSelectsoftkey.
3. Use the VOL (- or +) button to scroll to select Handset, Headset or Speaker.
4.PresstheSELECT soft key to select.
5. A conrmation tone will indicate that your selection has been saved.
NOTE: The default setting is Handset.
Restore Setting
From the Phone Settings Menu:
1. Use the VOL (- or +) button to scroll to Restore Setting.
2.PresstheSelectsoftkey.
3. Display shows Restore?
Warning: Pressing YES will return phone to its default state. This will erase redial list re-
cords, date/time and all menu selections.
4.PresstheYESsoftkeytoconrm.
21
5. The LCD will display Please Wait… followed by Initialization…
6. A conrmation tone will indicate that your phone has been restored to its default state.
Telephone Operation
Your phone provides the convenience of accessing two separate telephone lines, each
obtained from the telephone company and each having its own phone number.
Making Calls with the Handset
1.PresstheHANDSETbutton,theprioritylinewhichsetinmenuwillgoohookifboth
lines are available.
OR
Press a LINE softkey to select a line.
2.Waitforadialtonethendialaphonenumber.
3. Press the END soft key when nished.
Making Calls with the Speakerphone
1.PresstheSPEAKERbutton,theprioritylinewhichsetinmenuwillgoohookifboth
lines are available.
OR
Press a LINE soft key to select a line, then press SPEAKER button to change to Speaker
phone mode
2.Waitforadialtonethendialaphonenumber.
3. Press the END soft key when nished.
NOTE: If a line goes o-hook, the call timer counts time until all the lines go on hook. The
timer works for 2 lines.
Making a Call with the cordless Headset
1.PresstheTalkOn/ObuttonontheheadsetORtheHEADSETbuttononthehandsetto
get a dial tone.
2.Whennished,presstheTalkon/ObuttonontheheadsetORtheEND soft key on the
handset to hang up.
Making Calls with a wired Headset
1. Connect the headset plug to the headset jack on the side of the Handset.
2.Adjusttheheadsettorestcomfortablyontopofyourheadandoveryourear.
3.Movethemicrophonetoapproximately2to3inchesfromyourmouth.
4.PresstheHEADSETbuttonandthephoneautomaticallyselectsrstavailableline,ifboth
lines are available, the priority line will be used.
5. Wait for a dial tone, then dial a phone number using the handset dial pad.
6. Press End soft key when nished.
CAUTION: For servicing or replacement, you can purchase a suitable headset through
service center or retailer shop.
22
NOTE: Headset performance may vary depending on the quality of the headset.
Pre-dialing
1. With the phone idle, manually enter the telephone number. The telephone number shows
in the display.
2.PresstheDialsoftkey,SPEAKERbutton,HANDSETbutton,HEADSETbuttonorLine1or
Line2softkeytoopenaline,andthetelephonenumberisautomaticallydialed.
Answering a Call
1. Press the HANDSET button to answer the call in handset mode, OR
2.PresstheSPEAKERbuttontoanswerthecallinspeakerphonemode,OR
3. Press the Line soft key to answer the call in the handset mode, OR
4.PresstheHEADSETbuttonorTalkon/obuttononheadsettoanswerthecallinheadset
mode.
5. When nished, press the End soft key.
NOTE: If you have turned the Auto Talk function on, you can pick up the handset from the
base to answer the incoming call directly, without pressing any buttons.
NOTE: Adjust the handset volume by pressing the VOL (- or +) button during a call.
Switching Between the Speakerphone, Handset, and Headset
To switch to the speakerphone, press SPEAKER button on handset.
Toswitchtotheheadset,presstheHEADSETbuttonorTalkOn/Obuttononheadsetto
enable the headset, and the headset indicator turns on.
To switch to the cordless handset receiver, press the HANDSET button to enable the handset
receiver.
NOTE: If a wired headset is plugged into the jack on the base, the wireless headset will be
temporarily disabled.
Mute
Tohaveaprivate,o-lineconversation,usetheMUTEfeature.Thepartyontheotherend
of the line cannot hear you, but you can still hear them.
1. Press MUTE button to activate the mute feature. The mute indicator turns on.
2.PressMUTEbuttonagaintoturnito.
Flash
If you subscribe to Call Waiting service from your telephone service provider and you re-
ceive an incoming call on while a call is currently active on the same line, you will hear an
audible tone to indicate another call is waiting.
Also, Caller ID information (if available) for the waiting call will be displayed.
1. To connect to the waiting call, press the FLASH soft key on your phone. This will place
the original call on hold and connect you to the new incoming call.
2.Toswitchbetweenthetwocalls,presstheFLASHsoft key.
23
Inserting a Pause in the Dialing Sequence
Press the #/Pause button twice to insert a delay in dialing sequence when a pause is
neededtowaitforadialtone(forexample,afteryoudial9foranoutsideline,ortowait
for a computer access tone.) Each pause counts as one digit in the dialing sequence, and is
shown as P in the display.
Redial
1.PresstheSPEAKERbutton,theprioritylinewhichsetinmenuwillgoohookifboth
lines are available.
OR
Press a Line soft key to select a line, then press SPEAKER button to change to Speaker
phone mode
2.PresstheREDIALbutton.Theredialnumberlistisshowninthedisplay.
3. Use the VOL (- or +) button to select the number, press the dial soft key to dial the
desired number.
NOTE: If the number is longer than 32 digits, only the rst 32 digits will be saved in the
redial list.
Reviewing the Redial Numbers
Your phone records up to three previously dialed phone numbers.
1. When the phone is idle, press the REDIAL button.
2.UsetheVOL(-or+)buttontoviewthelastthreepreviouslydialednumbers.
3. While the preferred number is displayed, press the HEADSET, SPEAKER, HANDSET, Dial
soft key, or a Line soft key to dial the phone number.
NOTE: If you do not select a line button, the line is automatically opened and the number is
dialed accordingly.
Storing a Redial Record in Phone Book
1. Make sure the phone is in standby mode (not in talk mode).
2.PresstheREDIALbutton,thenusetheVOL(-or+)buttontoscrolltothedesiredredial
number.
3. Press the Option soft key, then use the VOL (- or +) button to scroll to Store,press Select
soft key to enter edit mode.
4.Enternameshowsinthedisplay.Inputaname.Pleaserefertosection“HandsetName”
for name editing method.
NOTE: A name must be input otherwise the record cannot be stored.
5. Press the Save soft key , Enter number shows in the display.
6. Edit the numbers with the dial pad.
7.PresstheSavesoftkeytoenterVIPToneMelodyselection.
8. Use the VOL (- or +) button to scroll to the desired melody.
9.PressSelectsoftkeyandatonewillconrmyourselection.Repeatsteps2through7to
24
save other records.
Ringer On/O
1. Make sure the phone is in standby mode (not in talk mode).
2.PresstheVOL(-or+)buttontoenter.
3.UsetheVOL(-or+)buttontoscrolltoLine1orLine2,pressSelectsoftkeytoconrm.
4.UsetheVOL(-or+)buttontoscrolltoyourselection.ThedefaultsettingisVOL3.
5. Press the Select soft key to save your selection and the new volume setting shows in the
display.
NOTE: If you choose the ringer OFF, L1/L2 RINGER OFF shows in the display.
Speakerphone, Handset, and Headset Volume
While the phone is in use, during the desired mode, press the VOLUME up or down buttons
until you reach a comfortable listening level. The phone stores the setting after the last
button press.
Hold
InTalkmode,presstheHOLDbuttononhandsettoholdtheline.LineXONHOLDshowsin
theLCDdisplay,andthelineiconwillash.
When the line is on hold, the hold alert tone will remind both the person on hold and
the user that the call is still on hold.
Press the corresponding Line soft key (on handset) to release the hold and pick up the call
again.
Conference Calls
3-way conference call with two lines:
1. During a call on Line 1, press the HOLD button to put the call on hold.
2.PresstheLine2softkeyonthehandsettogetadialtone.Dialtheothernumber,and
then talk to the other person.
3. The originating caller can then press the Conf soft key shown on the display to establish
a 3-way conference between the two lines.
4.Whennished,presstheEnd soft key to end the call.
Note: After you enter a 3-way conference, press Line 1 or Line 2 soft key to talk with the
desired line, and the other line will be released automatically.
Page
The page feature helps you locate a misplaced handset.
1. Press the PAGE button on the base. The handset beeps and Page from Base shows in the
handset display.
2.Tocancelthepage,pressthePAGEbuttononthebase,orpressanykeyonthehandset.
Otherwisethepagingwilllastfor2minutes.
25
Auto Standby
Ifyouplacethehandsetinthecradlewhilethehandsetisothehook(duringacall),the
call is automatically disconnected.
Ring Indicator on Headset
TheredLEDwillashwhenthereisanincomingcallorthebaseispagingthewireless
headset.
Visual Indicators on Headset
Charge Indicator on the Headset
While charging, the LED on the headset will glow blue.
CALLER ID (CID)
IMPORTANT: In order to use this unit’s Caller ID features, you must subscribe to either the
standard Name/Number Caller ID Service or Call Waiting Caller ID Service. To know who is
calling while you are on the phone, you must subscribe to Call Waiting Caller ID Service.
The summary screen shows the current time, current date, number of new CID records to be
reviewed or total number of records saved to CID memory. It is displayed until any button is
pressed.
Receiving and Storing CID Records
This unit receives and displays information transmitted by your local phone company. This
information can include the phone number, date and time; or the name, phone number,
dateandtime.Theunitcanstoreupto99callsforlaterreview.Whenthememoryisfull,
a new call automatically replaces the oldest call in memory. NEW appears in the display
for calls received that have not been reviewed. The line number for the call received is also
displayed.
Reviewing CID Records
•PresstheMEMbuttonandthenpresstheCIDsoftkeytoentertheCalllogreviewmode.
•UseVOL(-or+)buttontoscrollthroughthecallrecords.
Note: Press the MEM/Exit button to exit the memory during reviewing.
26
Saving a CID Record to Phone Book Memory
1. While viewing a CID record, press the Option soft key.
2.UsetheVOL(-or+)buttontoscrolltoStore,presstheSelectsoftkeytoentereditmode.
3. Enter Name shows in the display. Input a name. Please refer to section “Handset Name”
for name editing method.
NOTE: A name must be input otherwise the record cannot be stored.
4.PresstheSavesoftkey,Enternumbershowsinthedisplay.
5. Edit the numbers with the dial pad.
6. Press the Save soft key to enter VIP Tone Melody selection.
7.UsetheVOL(-or+)buttontoscrolltothedesiredmelody.
8.PressSelectsoftkeyandyouwillhearaconrmationtone.Repeatsteps2through7to
save other records.
Deleting a CID Record
1. While viewing a CID record, press the Option soft key.
2.UsetheVOL(-or+)buttontoscrolltoDelete,pressSelectsoftkeytoenterDeletemode.
3. Delete? Will show in the display, press OK soft key to conrm, and you will hear a conr-
mation tone.
Deleting All Call Records
This feature allows you to clear all CID records at once.
1. While viewing a CID record, press the Option soft key.
2.UsetheVOL(-or+)buttontoscrolltoDeleteAll,pressSelectsoftkeytoenterDeleteall
mode.
3. Delete all? Will show in the display, press OK soft key to conrm.
4.AconrmtoneemitandEmptyshowsinthedisplayforabout3seconds.
Dialing Back
When reviewing CID records, you can dial back the numbers showing on the display by
pressing the HEADSET button, the HANDSET button, the SPEAKER button or either the Line
1orLine2softkey.
If You Programmed Your Local Area Code
1. When reviewing CID records, use the VOL (- or +) button to display the number you want
to dial.
2.Ifyouseeanumberwith7digits(i.e.555-1234),thenthecallwasreceivedfromwithin
your area code. However, this does not guarantee the call is a local call. If you see a number
with11digits(i.e.1-234-555-1234),thenthecallreceivedwasnotfromyourareacode.
3. To adjust the phone number format, press Option soft key and then use the VOL (- or +)
button to enter Format mode, press Format soft key to change the format. For instance, a
7-digitlocalnumbersometimescannotbedialedbecauseitrequiresa10-digitor11-digit
27
format.UsetheFormatsoftkeytoscrollthrough7,10and11-digitnumbers.
Number of digits Explanation Example
7-digits: 7-digittelephonenumber(i.e.555-5555)
10-digits:3-digitareacode (i.e.123-555-5555)
+7-digittelephonenumber
11-digits: long distance code 1 (i.e. 1-123-555-5555)
+3-digit area code
+7-digittelephonenumber
4.Todialthedisplayednumber,selectalineorpressHANDSET,SPEAKER,orHEADSETbut-
ton.
If You Did Not Program Your Local Area Code
1.UsetheCIDbuttontodisplaythenumberyouwanttodial.Youwillonlysee10-digit
numbers (i.e.123-555-1234).
2.PressHANDSET,SPEAKER,orHEADSETbuttontodialback.Youmayadjustthenumber
format by entering the Format mode before dialing.
Call Waiting Caller ID
This feature allows you to see who is calling when you hear the call waiting beep. The caller
identication information appears in the display after you hear the tone.
•PresstheFLASHsoft key to put the person to whom you’re talking on hold and answer
the incoming call.
IMPORTANT: To use all the features of this unit, you must subscribe to either the standard
Name/Number Caller ID Service or Caller ID with Call Waiting Service. To know who is calling
while you are on the phone, you must subscribe to Caller ID with Call Waiting Service.
Phone Book (Directory) Memory
You may store data in the Phone Book Directory. The Phone Book stores up to 16
charactersand32digits.
The records are stored by alphabetically ascending order.
Adding Phone Book Entries
1. Make sure the phone is in standby mode (not in talk mode).
2.PresstheMEMbuttonandthenpresstheDIRsoftkeytoenterPhonebookreviewmode.
3. Press the Option soft key, use VOL (- or +) to select NEW ENTRY.
4. Press the Select soft key, Enter name shows in the display.
5. Input a name. Please refer to section “Handset Name” for name editing method.
NOTE: A name must be input otherwise the record cannot be stored.
6. Press the Save soft key, Enter number shows in the display.
7. Edit the numbers with the dial pad.
28
8. Press the Save soft key to enter VIP Tone Melody selection.
9. Use the VOL (- or +) button to scroll to the desired melody.
10. Press Select soft key, and you will hear a conrmation tone.
Reviewing Phone Book Records
1. Make sure the phone is in standby mode (not in talk mode).
2.PresstheMEMbuttonandthenpresstheDIRsoftkeytoenterPhonebookreviewmode.
3. Use VOL (- or +) button to scroll through the call records.
-OR-
Press the number keys to go to the name of the records started with the corresponding
character.
Note: Press the MEM/Exit button to exit the memory during reviewing.
Editing a Phone Book Record
1. When reviewing the phone book records, use the VOL (- or +) button or the number keys
to scroll to the desired record.
2.PresstheOptionsoftkey,useVOL(-or+)toselectEDIT ENTRY, then press the Select soft
key to enter edit mode.
3. Enter name shows in the display. You may now change the name, if desired. Please refer
to section “Handset Name” for name editing method.
4.PresstheSavesoftkey,Enternumbershowsinthedisplay.
5. Edit the numbers with the dial pad.
6. Press the Save soft key to enter VIP Tone Melody selection.
7.UsetheVOL(-or+)buttontoscrolltothedesiredmelody.
8. Press Select soft key, and you will hear a conrmation tone.
NOTE: Press the Back soft key to keep the previous setting (making no changes) and return to
the standby mode.
Deleting a Phone Book Record
1. While viewing a Phone book record, press the Option soft key.
2.UsetheVOL(-or+)buttontoscrolltoDelete,pressSelectsoftkeytoenterDeletemode.
3. Delete? Will show in the display, press OK soft key to conrm and you will hear a conr-
mation tone.
Deleting all Phone Book Record
This feature allows you to clear all Phone Book records at once.
1. While viewing a Phone Book record, press the Option soft key.
2.UsetheVOL(-or+)buttontoscrolltoDeleteAll,pressSelectsoftkeytoenterDeleteall
mode.
3. Delete all? Will show in the display, press OK soft key to conrm.
4.YouwillhearaconrmationtoneandEmptywillshowinthedisplayforabout3
seconds.
29
Dialing a Phone Book Record
Dial a phone book record while in talk mode:
1. Make sure the phone is in use (in talk mode) by pressing the HANDSET, SPEAKER button,
HEADSET button, or by selecting a Line.
2.PresstheMEMbuttonandthenpresstheDIRsoftkeytoenterPhonebookreviewmode.
3. Use VOL (- or +) button to scroll to the desired record.
4.PresstheDialsoftkeytodialthenumber.
-OR-
Dial a phone book record while reviewing it:
1. Make sure the phone is in standby mode (not in talk mode).
2.PresstheMEMbuttonandthenpresstheDIRsoftkeytoenterPhonebookreviewmode.
3. Use VOL (- or +) button to scroll to the desired record.
4.PresstheHANDSET,SPEAKER,HEADSET button or DIAL soft key. The number will dial
automatically.
Speed dial function
Thisfunctionallowsusertodialoutthenumberswhichstoresinthe0~9locationquickly.
Speed dial out
1. Make sure the phone is in standby mode (not in talk mode).
2.PresstheMEMbuttonandthenpresstheSPEEDsoftkey,thedisplaywillshow“Select
button Location”.
3.Pressthedigitbutton(0~9)toselecttheSpeeddiallocation.
If the location is not empty, the unit will seize the line automatically and then dial out the
numbers which stored in the location.
Note: if the location is empty, the unit will emit an error tone and enter Speed dial store
mode.
Speed dial numbers Store
1. Make sure the phone is in standby mode (not in talk mode).
2.PresstheMEMbuttonandthenpresstheSPEEDsoftkey,thedisplaywillshow”Select
button Location”.
3.pressthe“Edit”softkeyandthenpressthedigitbutton(0~9)toselecttheSpeeddial
location.
4.Enternameshowsinthedisplay.Inputaname.Pleaserefertosection“HandsetName”
for name editing method.
5. Press the Save soft key , Enter number shows in the display.
6. Edit the numbers with the dial pad.
7.presstheSAVEsoftkeytoconrm,thelocationwillstorethenumberandcanbedial
out follow the speed dial steps.
30
Changing The Battery
Handset battery
CAUTION: To reduce the risk of re or personal injury, use only the Teleeld NA
Inc.approvedNickel-metalHydride(Ni-MH)batterymodelT-T104(GP,2.4V,
550mAh),whichiscompatiblewiththisunit.
Headset battery
CAUTION: To reduce the risk of re or personal injury, use only the Teleeld NA
Inc.approvedLi-PolymerbatteryModelT-T101(A.E.,3.7V,240mAh),whichis
compatible with this unit.
1. Make sure the telephone is in standby mode (not in TALK mode) before you replace bat-
tery.
2.Removethebatterycompartmentdoor.
3. Disconnect the cord attached to the battery pack and remove the battery pack from the
handset.
4.Insertthenewbatterypackandconnectthecordtothejackinsidethebatterycompart-
ment.
5. Put the battery compartment door back on.
6. Place handset in the base or handset charge cradle to charge. Allow the handset battery
toproperlycharge(for14hours)priortorstuseorwhenyouinstallanewbatterypack.
If you do not properly charge the phone, battery performance may be compromised.
Display Messages
The following messages show the status of the phone, provides Caller ID information, or
helps you set up and use your phone.
BLOCKED Indicates the person is calling from a number which is
blocked from transmission.
DELETE ALL? Prompt asking if you want to erase all records.
DELETE? Prompt asking if you want to erase the current record.
ENTER NAME Prompt telling you to enter a name.
ENTER NUMBER Prompt telling you to enter a telephone number.
NEW CALLS Indicates call or calls which have not been reviewed.
HANDSET NAME Prompt telling you to enter a user name for the handset.
UNAVAILABLE The handset is not yet registered or is out of range.
NO LINE Indicates that the telephone line is not connected.
EMPTY Indicates there are no CID records in memory.
31
PAGE FROM BASE Someone pressed the PAGE button on the base.
UNKNOWN Indicates incoming call is from an area not serviced by CID or the CID
information was not sent.
Handset Sound Signals
Signal Meaning
A long warbling tone (with ringer on) Signals an incoming call
Three short beeps (several times) Page signal
Onebeepevery14seconds Lowbatterywarning
Troubleshooting Guide
Telephone Solutions
No dial tone
•Checkorrepeatinstallationsteps:
Make sure the base power cord is connected to a working electrical outlet. Make sure the
telephone line cord is connected to the base and the wall jack.
•Connectanotherphonetothesamejack.Ifitdoesn’twork,theproblemmightbeyour
wiring or local service.
•Thehandsetmaybeoutofrangeofthebase.Moveclosertothebase.
•Makesurethebatteryisproperlycharged(for14hours).
Dial tone is ok, but can’t dial out
•MakesurethetypeofphoneserviceyouaresubscribedtoisTONEorPULSE.
Handset does not ring
•Makesurethehandsetringerissettoon.
•Thehandsetmaybeoutofrangeofthebase.Moveclosertothebase.
•Youmayhavetoomanyextensionphonesonyourline.Tryunpluggingsomeextensions.
•Checkforadialtone.Ifnodialtoneisheard,see“Nodialtone”.
You experience static, noise, or fading in and out
•Thehandsetmaybeoutofrangeofthebase.Moveclosertobase.
•Makesurebaseisnotpluggedintoanelectricaloutletwithanotherhouseholdappliance.
If necessary, relocate the base.
•Chargethebattery(for14hours).
Memory dialing doesn’t work
•Didyoufollowproperdialingsequence?
32
Unit locks up and no communication between the base and
cordless handset
•Unplugthepoweradaptorfromtheelectricaloutletandthebottomofthebase.Remove
thehandsetbattery.Waitfor30secondsandplugthepoweradaptorbackintothebase
andelectricaloutlet.Reconnectthebatteryandchargefor14hours.
Date/Time setting is restored to default setting
•Maybecausedbypowerfailure.SetDate/Timeagain.
Caller ID Solutions
No Display
•Chargethebattery(for14hours).Orreplacethebattery.
•Makesuretheunitisconnectedtoanon-switchedelectricaloutlet.Disconnectthe
power adaptor from the base and reconnect it.
No Caller ID
•YoumustbesubscribedtothestandardName/NumberCallerIDservicefromyourlocal
telephone company to receive CID information.
Battery
If you experience any of the following problems, even after recharging the battery, you may
need to replace the battery pack:
•Shorttalktime
•Poorsoundquality
•Limitedrange
General Product Care
To keep your unit working and looking good, follow these guidelines:
•Avoiddroppingthehandset,aswellasotherroughtreatmenttothephone.
•Cleanthephonewithasoftcloth.
•Neverusestrongcleaningagents,paintthinner,abrasivepowder,alcohol,orotherchemi-
cal products to clean the unit. Doing so will damage the nish.
•Retaintheoriginalpackagingincaseyouneedtoshipthephoneatalaterdate.
•Periodicallycleanthechargecontactsonthehandsetandbasewithacleanpencileraser
33
Causes of Poor Reception
•Aluminumsiding.
•Foilbackingoninsulation.
•Heatingductsandothermetalconstructionthatcanshieldradiosignals.
•You’retooclosetoappliancessuchasmicrowaves,stoves,computers,etc.
•Atmosphericconditions,suchasstrongstorms.
•Baseisinstalledinthebasementorloweroorofthehouse.
•BaseispluggedintoACoutletwithotherelectronicdevices.
•Babymonitorisusingthesamefrequency.
•Handsetbatteryislow.
•You’reoutofrangeofthebase.
Service
If trouble is experienced with this equipment, for repair or warranty information, please
contactcustomerserviceat1-800-511-3180.Iftheequipmentiscausingharmtothe
telephone network, the telephone company may request that you disconnect the equipment
until the problem is resolved.
This product may be serviced only by the manufacturer or its authorized service agents.
Changes or modications not expressly approved by Teleeld NA Inc. could void the user’s
authority to operate this product. For instructions on how to obtain service, refer to the
warrantyincludedinthisguideorcallcustomerserviceat1-800-511-3180.
Or refer inquires to:
Teleeld NA Inc.
Manager, Consumer Relations
4915 SW Grith Dr. #205
Beaverton, Or 97005
Attach your sales receipt to the booklet for future reference or jot down the date this
product was purchased or received as a gift. This information will be valuable if service
should be required during the warranty period.
Purchase date ________________________________________________
Name of store ________________________________________________
34
Warranty
Limited Warranty
What your warranty covers:
•Defectsinmaterialsorworkmanship
For how long after your purchase:
•Twoyears,fromdateofpurchase
What we will do:
•Provideyouwithareplacementunit.Theexchangeunitisunderwarrantyforthe
remainder of
the original product’s warranty period.
How you get service:
•Locateyourproofofpurchaseintheformofabillofsaleorreceiptedinvoicewhichis
evidence
that the product is within the warranty period. Proof of warranty eligibility is required and
must be presented to obtain warranty service.
•ContactRCACustomerCareat(800)511-3180.Ourrepresentativeswillhelpyou
troubleshoot and diagnose the problem. As you may be asked to disconnect your RCA
telephone from it’s power source, you must call from another telephone. If the issue cannot
be resolved by our Customer Care Team, you will be issued an RMA (Return Merchandise
Authorization) number and be given instructions on how to submit your proof-of-purchase
paperwork and where to send your defective merchandise.
•Youwillberesponsibleforshippingthedefectiveunitbacktoourwarrantyfulllment
center at your own expense. You are responsible for damage or loss during shipment so
insuring the product during return shipping is highly recommended.
•Wewillshipareplacementtoyoufreightpre-paid.
What your warranty does not cover:
•Customerinstruction.(YourInstructionBookprovidesinformationregardingoperating
instructionsandusercontrols.Additionally,ourCustomerCareCenterisstaed24x7with
product experts that can assist you with any questions that may arise during setup and use
of your RCA telephone.
•Installationandsetupserviceadjustments
•Batteries
•Damagefrommisuseorneglect
•ProductsthathavebeenmodiedofservicedoutsidetheUSA
•Productspurchasedfromnon-authorizedretailers,dealersorresellers
35
•ProductspurchasedorservicedoutsidetheUSA
•Actsofnature,suchas,butnotlimitedtolightningdamage
Product Registration:
•PleasecompleteandmailtheProductRegistrationCardpackedwithyourunit. It will
make it easier to contact you should it ever be neccessary. The return of the card is not
required for warranty coverage.
Limitation of Warranty:
• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS
PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED
(INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN
INFORMATION GIVEN BY TELEFIELD NA INC., ITS AGENTS, OR EMPLOYEES SHALL
CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.
•REPAIR OF REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER. TELEFIELD NA INC. SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY
ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY
ARE GOVERENED BY THE LAWS OF THE STATE OF OREGON. EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE
APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
How state law relates to this warranty:
•Somestatesdonotallowtheexclusionnorlimitationofincidentalorconsequential
damages, or limitations on how long an implied warranty lasts so the above limitations or
exclusions may not apply to you.
•Thiswarrantygivesyouspeciclegalrights,andyoualsomayhaveotherrightsthat vary
from state to state.
If you purchased your product outside the USA, Mexico or Canada:
This warranty does not apply. Contact your dealer for warranty information.
Visit the RCA web site at www.rca4business.com
Please do not send any products to the Oregon address listed in this manual or on the
carton. This will only add delays in service for your product.
Teleeld NA Inc.
4915 SW Grith Dr. #205
Beaverton, Or 97005
RCA is a trademark of RCA Trademark Management S.A.,
Used under license.
©2011.Allrightsreserved.
Model: TC25211
T0000131 (Rev. 1 E)
11-11
Printed in China
