1 Product Introduction
MOFI Router Quick Installation Guide
02
MOFI Wireless Router
1 Product Introduction
Thank you for purchasing Telempire MOFI broadband router This
......................................................
1-1 Package
Contents......................................................................................
1-2 Front Panel
...............................................................................................
1-3 Back Panel
................................................................................................
2 Network Setup
...............................................................
2-1 Hardware Installation:
..............................................................................
2-2 PC LAN IP Configuration
..........................................................................
2-3 Internet Configuration
..............................................................................
2-3-1 Wireless Setup
...............................................................................
Copyright by Telempire Digital Technology Co.,LTD
02
03
04
05
05
06
09
09
11
11
11
12
15
15
15
high cost-efficiency router is the best choice for Mobile / Small office / Home
office users, all computers and network devices can share a single wireless
WISP or xDSL / cable** modem internet connection at high speed. Easy
install procedures allows any computer users to setup a network environment
in short time - within minutes.
Please follow the procedures in this Quick Installation Guide to configure the
router.
Note 1: Only one Internet connection (WISP or xDSL/Cable) can be
used at the same time.
Note 2: The USB cable is only for charging, it can not replace the battery , if
you want to operate the router only three types of power source are
recommend Power Adaptor ,Battery and Battery+DC .
1-1 Package Contents
Before you starting to use this router, please check if there’s anything
The product you have purchased and the setup screen may appear slightly
different from those shown in this quick installation guide. For more detailed
information about this product, please refer to the User Manual on our web
site. The software and specifications are subject to change without notice.
missing in the package, and contact your dealer of purchase to claim for
missing items：
◎ Mofi mobile router (main body, 1 PCS)
Please visit our web site www.telempire.net/router /index.html. All rights
reserved including all brand and product names mentioned in this manual are
trademarks and/or registered trademarks of their respective holders .
01
◎ Quick installation guide (1 PCS)
02
◎ 5V power adapter(1 PCS)
Telempire
1-2 Panel
MOFI Router Quick Installation Guide
1-3 Switch &
Port
MOFI Wireless Router
MOFI Portable Wireless Router

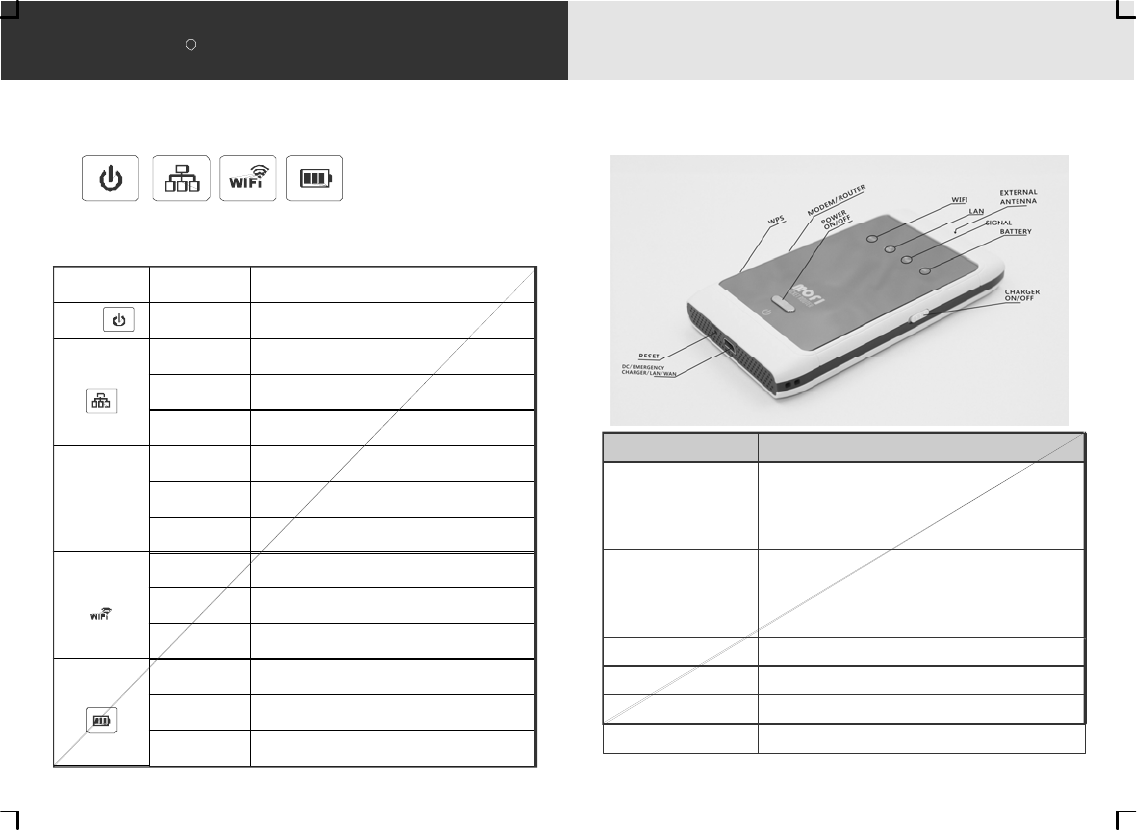

LED Light Status
Description
PWR
WAN /LAN
WLAN
Battery
ON
ON
Off
Flashing
ON
Off
Flashing
Green
Off
Router Is Powered on
WAN is connected
WAN is unconnected
WAN port is sending / receiving data
Wireless LAN has been activated
Wireless LAN is disabled
Wireless LAN is sending / receiving data
Battery Connected
No Battery
Item Name
WPS
Reset
Mini USB
Power
USB
Description
Press this button for 2 ~ 5 seconds to start
WPS function( enable this feature first).
Reset the router to factory default settings
(clear all settings) Press this button and hold
for 3-10 seconds to clear all settings.
WAN/LAN/Power Connector/Charger
Press this button to On/Off device
Charger in?OUT
Orange
03
Charging External ANT External antenna for signal enhancement
04
Telempire
MOFI Router Quick Installation Guide
MOFI Wireless Router
2 Network Setup
2-1 Hardware Installation:
2-2 PC LAN IP Configuration
Configure the PC LAN setting to automatically obtain an IP address from the
router by following the below steps.
Instructions for using the router to share the Internet with multiple PCs. “ ” “Control Panel”
(Power on Router.)
(A) Router installation:
1. Connect power adapter to MOFI Router or direct power on with battery.
.(B) Cable Modem installation:You can also access Internet by xDSL/Cable
modem, please follow the following instructions:
1. Connect the Ethernet cable from the router’s USB port (V902) to the
LAN port of the modem.
Click Start in the task bar then select the .
2. Check to make sure the router’s LINK LED is lighting; to confirm the cable
connections are made correctly.
05
Click “Switch to Classic View” on the left top to see more setting icons.
06
Telempire
MOFI Router Quick Installation Guide
MOFI Wireless Router

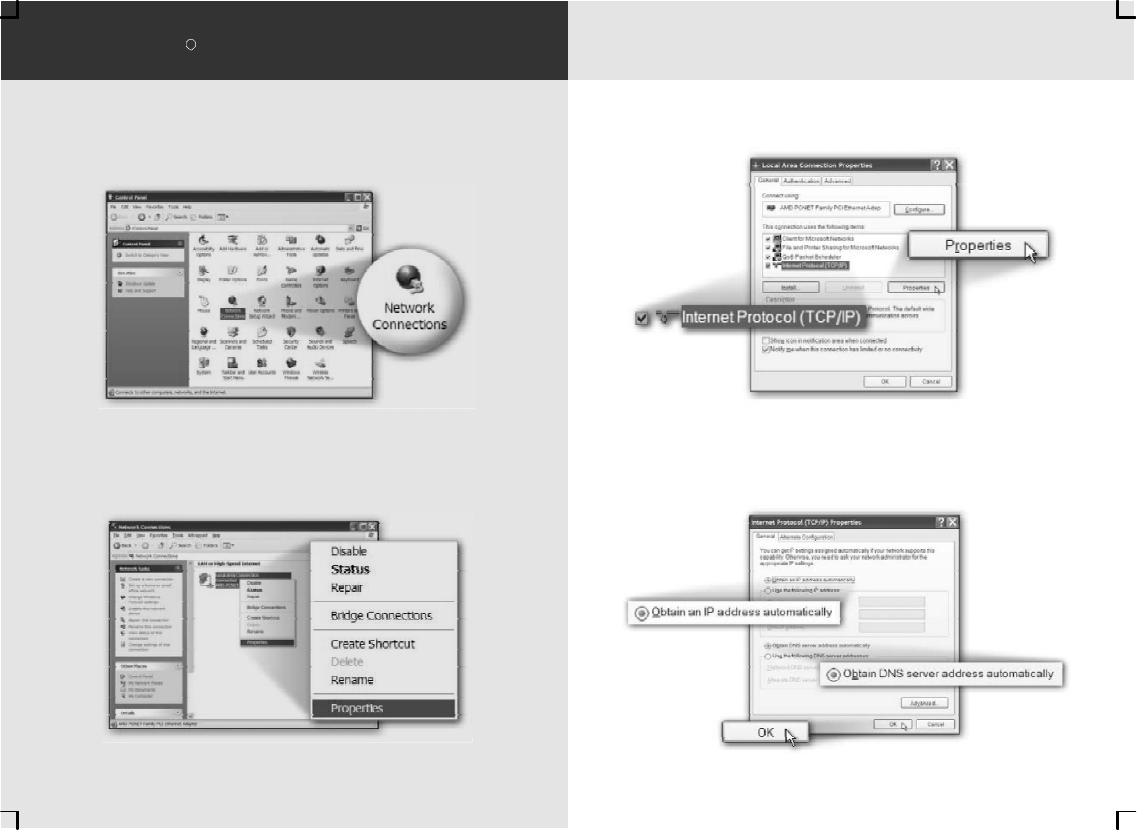

Find an icon “Network Connection” then Double-Click to open the network
connection setting.
You will see an icon “Local Area Connection”, select the icon then Right-Click
the mouse to open the sub-menu and select the “Properties” .
07
Select the “Internet Protocol (TCP/IP)” then click the “Properties”
Ensure the parameter marked in blue are checked in “Obtain an IP address
automatically” and “Obtain DNS server address automatically” then press
“OK” to close.
08
Telempire
MOFI Router Quick Installation Guide
MOFI Wireless Router
2-3 Internet Configuration
MOFI Router provides one types of Internet connection method:
wired (xDSL / cable modem) connection. You can access
via wired xDSL / cable modem connection.
2-3-1 Wireless Setup
09

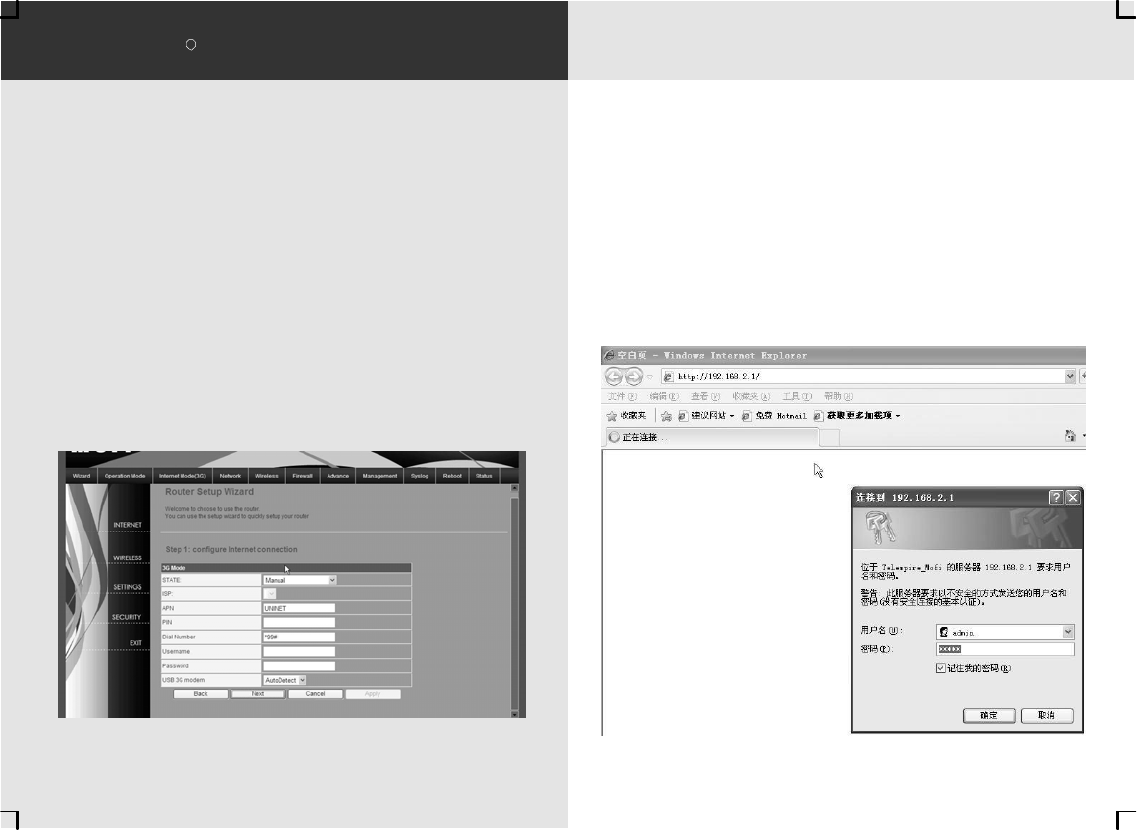

If you still can’t access Internet, please enter the router’s default IP
address:“192.168.2.1” into your PC’s web browser and press “enter”.
The login screen below will appear. Enter the “User Name” and
“Password” and click “OK” to login. The default User name is
“admin” and Password is “admin”,
If following window does not appear, please make sure you finished ‘PC
LAN IP Configuration’ as described in chapter 1, and then try again.
10
Telempire
Click “Next” button.
MOFI Router Quick Installation Guide
MOFI Wireless Router
Password box and input the user name / password provided by operator, then
click ‘ OK ’ button. Wait for 1 minute (for Router to reboot), then you can
access Internet.

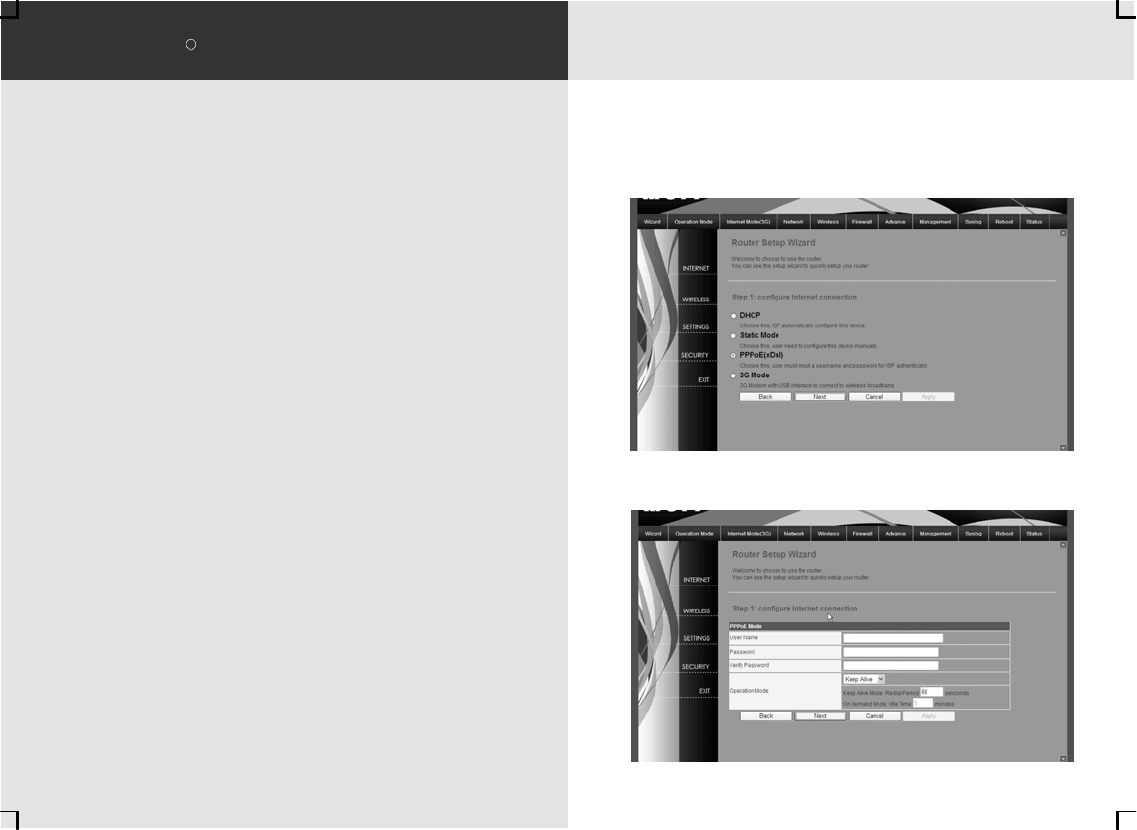

Select the type of connection method you want.
DHCP ,Static Mode, PPPOE (xDSL)
DHCP (like the cable connection all the network configuration will assigned by
server) Static mode the IP address and network setting are fixed provided by
your network operator.
PPPOE it required the user name and password provided by your network
operator.
Please check the authentication method you want to use. Most of operators
require you to input PIN Code, please input the PIN code provided by
operator.
Most of options listed here are optional and you don’t have to provide
those
information if operator doesn’t provide you with those information.
11
“User Name” and “Password” that ISP provided and leave the Others
Enter the
and click “Next & Apply” to save the setting then reboot the router
12
Telempire
Telempire
MOFI Router Quick Installation Guide
MOFI Wireless Router
3 Advanced Setup
3-1 Change management password
Default password of this router is admin, and it’s displayed on the login
prompt when accessed from web browser. There’s a security risk if you
don’t change the default password, since everyone can see it.
To change password, please follow the following instructions: Please click
‘SETTINGS’ menu on the left of web management interface, then fill the
details in "Administrator Settings" to change the user name and password.
When you finish, click ‘Apply’; If you want to keep original password
unchanged, click‘Cancel’.
3-2 Firmware Upgrade
The system software used by this router is called as ‘firmware’, just like
any applications on your computer, when you replace the old application with
a new one, your computer will be equipped with new function. You can also
use this firmware upgrade function to add new functions to your router, even
fix the bugs of this router.
To upgrade firmware, please follow the following instructions:

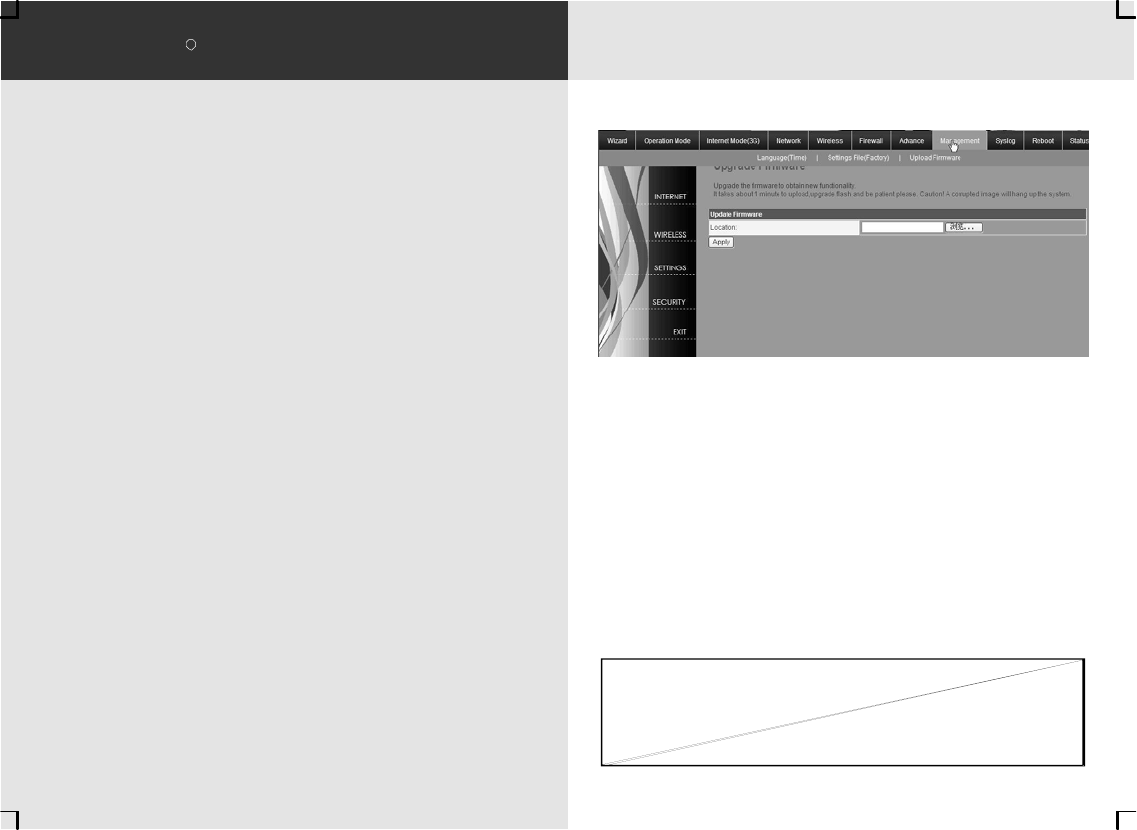

Please click ‘Management’ located top menu and select "Upload
firmware",then the following message will be displayed on your web browser:
13
Click ‘Browse’ button first, you’ll be prompted to provide the filename of
firmware upgrade file. Please download the latest firmware file from our
website, and use it to upgrade your router.
After a firmware upgrade file is selected, click ‘Apply’ button, and the
router will start firmware upgrade procedure automatically. The procedure
may take several minutes, please be patient.
.
NOTE: Never interrupt the upgrade procedure by closing the web browser
or physically disconnect your computer from router. If the firmware you
uploaded is corrupt, the firmware upgrade will fail, and you may have to
return this router to the dealer of purchase to ask for help. (Warranty voids if
you interrupted the upgrade procedure).
14
Telempire
MOFI Router Quick Installation Guide
MOFI Wireless Router

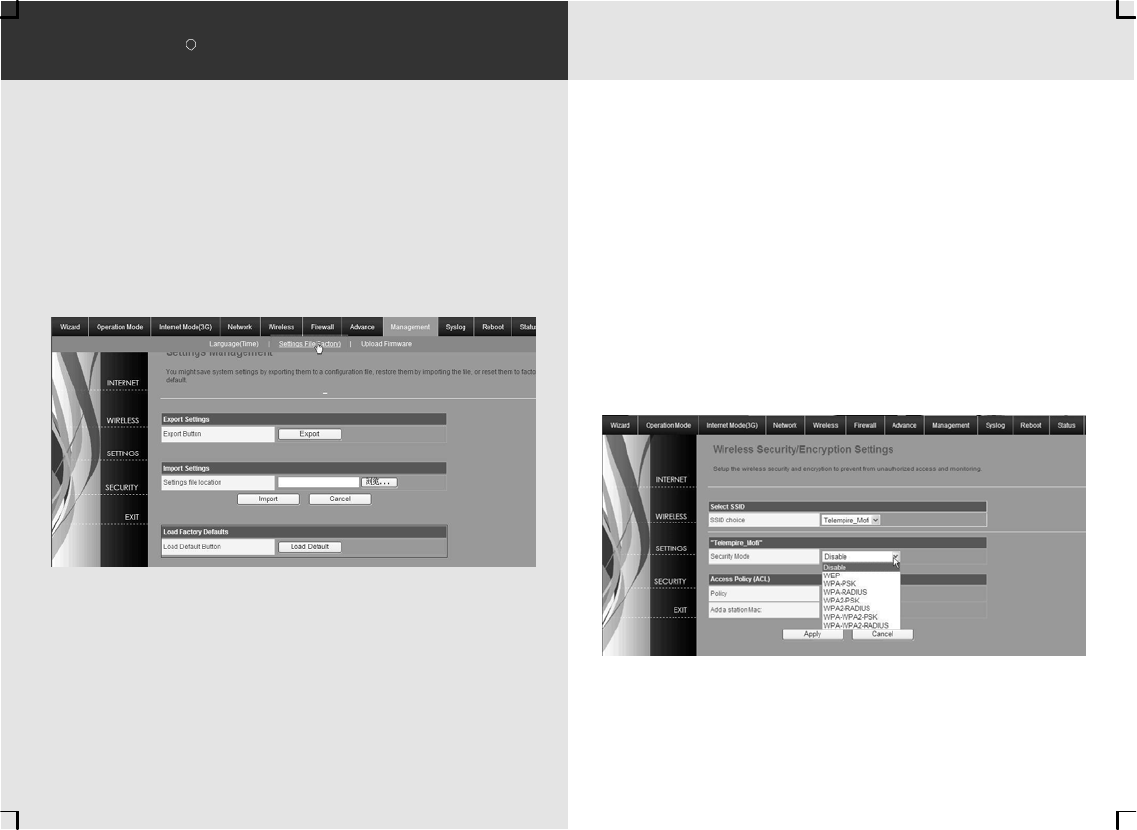

3-3 Restart and Reset to Default Setting
If you found the router behaves strangely, you can perform a reset,
sometimes it will solve the problem.You can either reset your router without
losing your current settings or restore to factory defaults. If you wish to reset
the router to the factory default settings, select Management” then select
“Settings File(Factory)”. And click "Load Default" to reset your router and it
will be available again after few minutes, please be patient.
Alternatively, you can use the Reset button at the Real Panel of the router.
3-4 Wireless Setup
SSID is the name of the wireless router. You may change your SSID to a
meaningful name so that you can identify your wireless router from others. You
can use any alphanumeric characters, up to 32 characters. Default the SSID
15
is‘Telempire_Mofi’.
It’s very important to set wireless security settings properly! If you don’t,
hackers and malicious users can reach your network and valuable data
without your consent and this will cause serious security problem.
To secure your wireless network, please click “Security”, then click
“Security Mode”, and follow the following instructions to configure the
wireless security settings:
It’s recommended to use WPA to protect your wireless router from hackers.
Select Enabled WPA-PSK and enter the Pre-Share Key below.
Use 8-32 alphanumeric characters. Please remember this key, you need this
Note: Please refer to the User Manual in our website:
www.telempire.net/router/index.html for more details information on Internet
connection type and to configure all others setting.
