Introduction



TelergyStrikerHDisaset‐topboxthatconnectstoyourTVviaHDMIorA/Vconnectors

thatturnyourTVintoamultimediaentertainmentTV.Itcanconnectyourotherdevices

toitandbecomesaHDmediaplayer.It’strulyarevolutionaryentertainmentproduct

thatyoucanenjoyathome.



Features



720MHZDUALCOREMIPSCPU(1345DMIPS).

MAXIMUMOF512MBYTESOF1600MHZDDR3.

W3CCOMPLIANT,HTTP1.1,HTTPS,CSS2ANDSOMECSS3,HTML5,XML1.0JAVASCRIPT1.5.

USBSUPPORTFORMASSSTORAGEPLAYBACK,KEYBOARD,MOUSE.

VIDEOFOMATSUPPORT:MPEG‐1MPEG‐2MP@HL,MPEG‐4.2ASP,MPEG4.10AVC(H.264&H.263),MP

&HPTOLEVEL4.1,VC‐1AP@L3,WMV9,SD&HD,DIVX,AVI,AVS,XVID.

AUDIOFORMATSUPPORT:MPEG‐1LAYER1,2.MP3,WMA,WMAPRO,AACLC,AALC+SBRL2,AAC+L2,

AAC+L4,AAC5.1,AC3DOLBYDIGITAL&DOLBYDIGITALPLUS,3DSRSAUDIO.

TRANSPORTPROTOCOLS:MPEG‐TS,RTSP/RTPOVERUDP/IPORMMS,CONSTANT,VARIABLE,MULTIPLE

ANDADAPTIVEBITRATE(HLS).

DISPLAYNOTES:PAL,NTSC,720P,1080I,FULLHD1080P.

ASPECTRATIOS:4:3AND16:9LETTERBOXZOOMANDFULLSCREENMODES.

NETWORKCONNECTIVITY:ETHERNETANDOPTIONAL802.11N150/300MB/SECWI‐FI.

IRREMOTECONTROL



TelergyStrikerHDUser’sManual Page2



StartUpSetupWizardGuide



Note:YouwillonlyseethisSetupWizardwhentheset‐topboxisbeingusedforthe

firsttimeorafterasuccessfulfactoryreset.Tomanuallyresettheindividualsettings

pleasegototheSettingspageonthemainmenu.



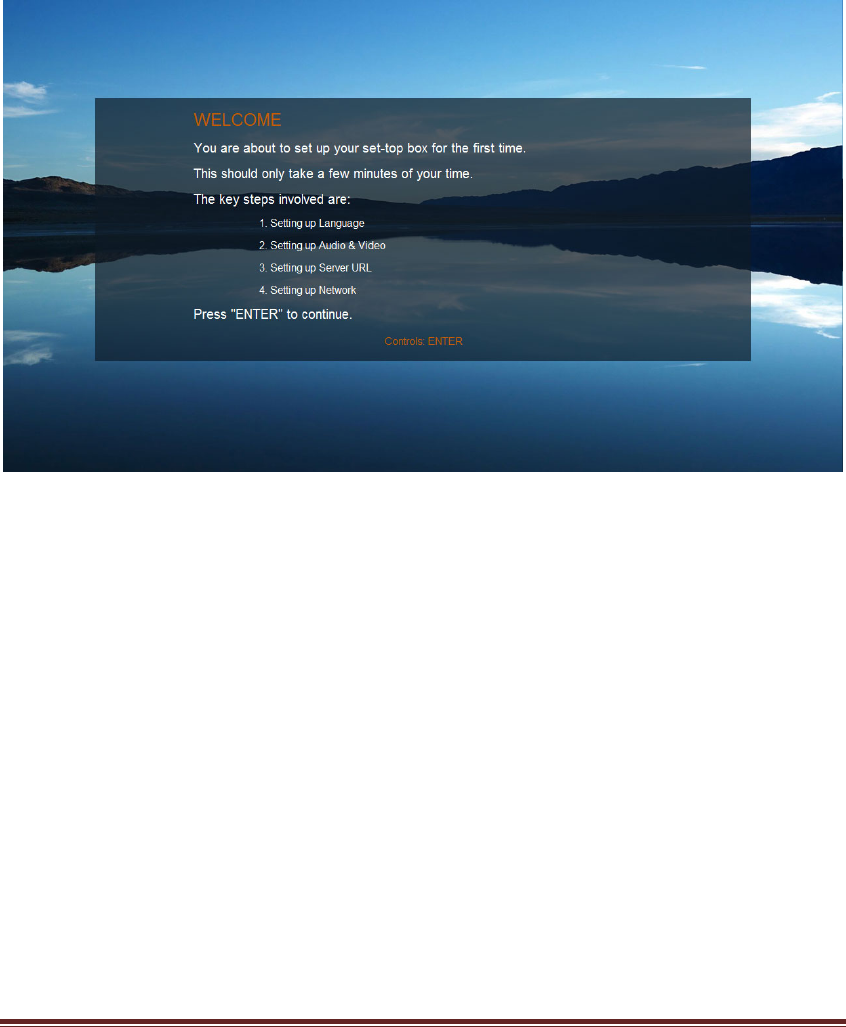

1.Welcomepage



Whenyoupress“ENTER”ontheremotecontrol,thelanguagesettingpagewillbe

loaded.



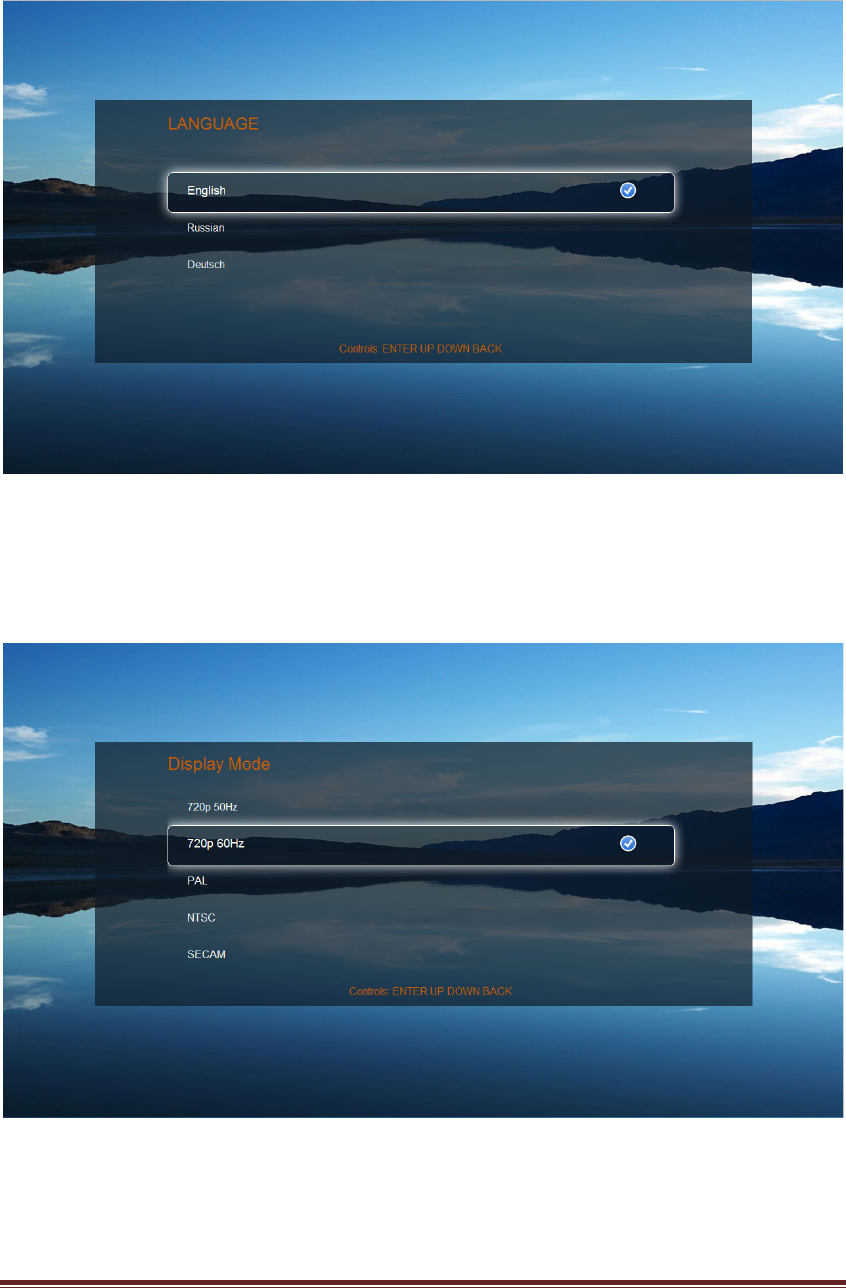

2.Languagepage

TelergyStrikerHDUser’sManual Page3



Selectoneoftheavailablelanguagesbypressingupanddownarrowkeys,thenpress

“ENTER”.Thewholeset‐topboxlanguagewillbechangedautomaticallyaccordingto

yourselection,anditwillgotothenextpage.



3.DisplayModepage



Selectoneofthedisplaymodes,thenpress“ENTER”.Aconfirmationdialogboxwillpop

up.



TelergyStrikerHDUser’sManual Page4



Ifyouselect‘No’andpress“Enter”,thedisplaymodewillbesettotheprevioussettings.

Ifyouselect‘Yes’andpress“Enter”,thedisplaymodethatyouchoseissaved,anditwill

bringyoutothenextpage.



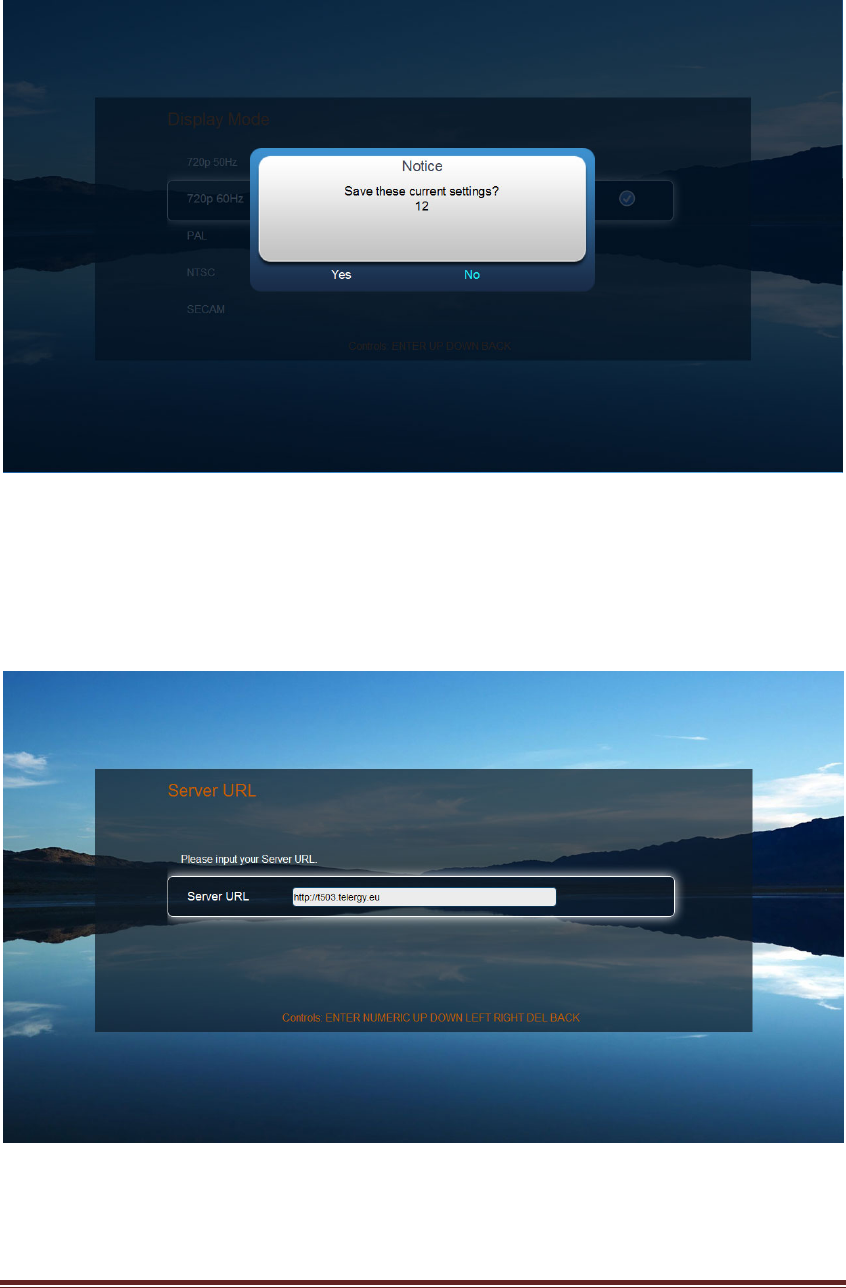

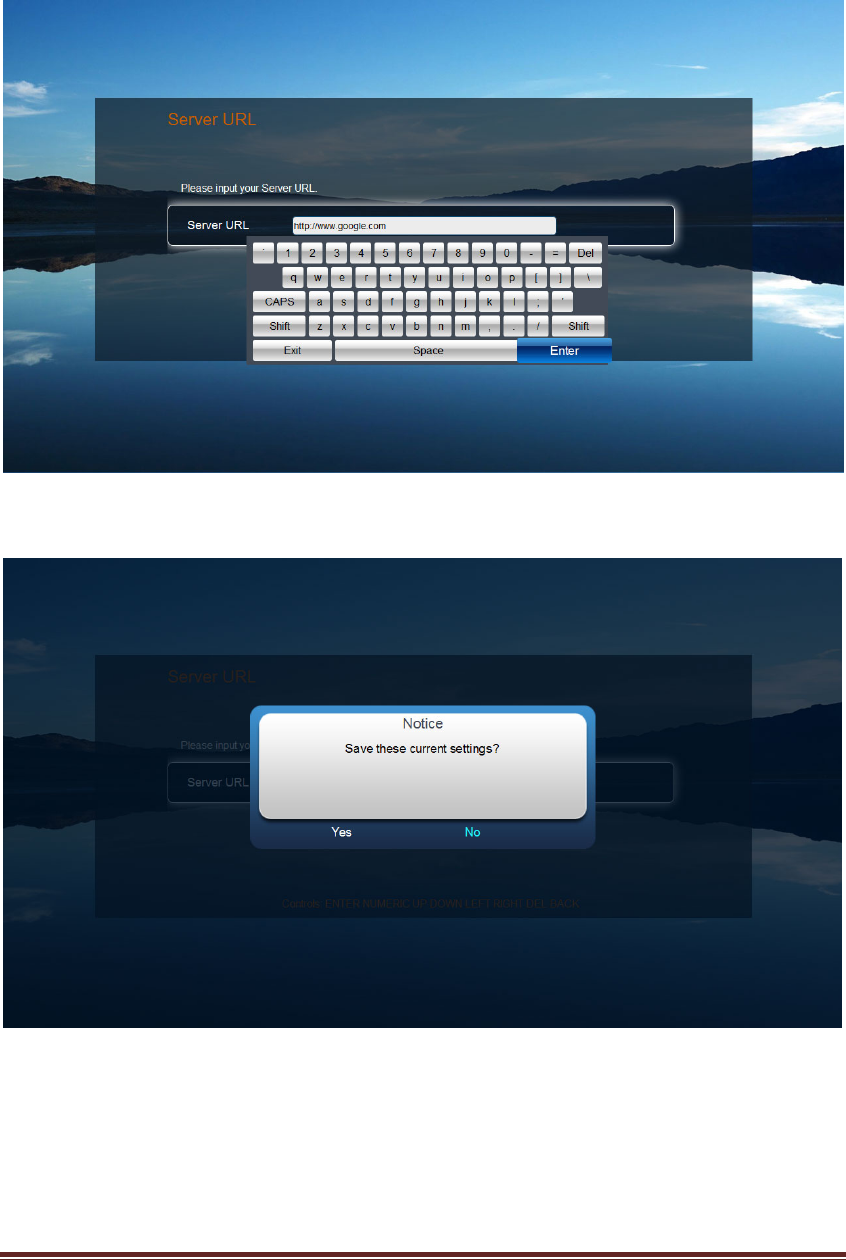

4.ServerURLpage



Pressanynumerickey(0,1,2…)toshowthe“softkeyboard”whereyoucanconveniently

inputtheURLthatyouwant(e.g.http://www.google.com).

TelergyStrikerHDUser’sManual Page5



Press“Enter”keytosave,andaconfirmationdialogboxwillpopup.



Ifyouselect‘No’andpress“Enter”,thedialogboxwilldisappear,anditwillgobackto

theServerURLsettingpage.Ifyouselect‘Yes’andpress“Enter”,itwillsavetheserver

URLthatyouinput,andthenloadthenextpage.

Note:WhenyouhavesuccessfullycompletedtheSetupWizardwithoutanyerror,the

set‐topboxwillautomaticallyredirecttothisserverURLtostartwith.



TelergyStrikerHDUser’sManual Page6

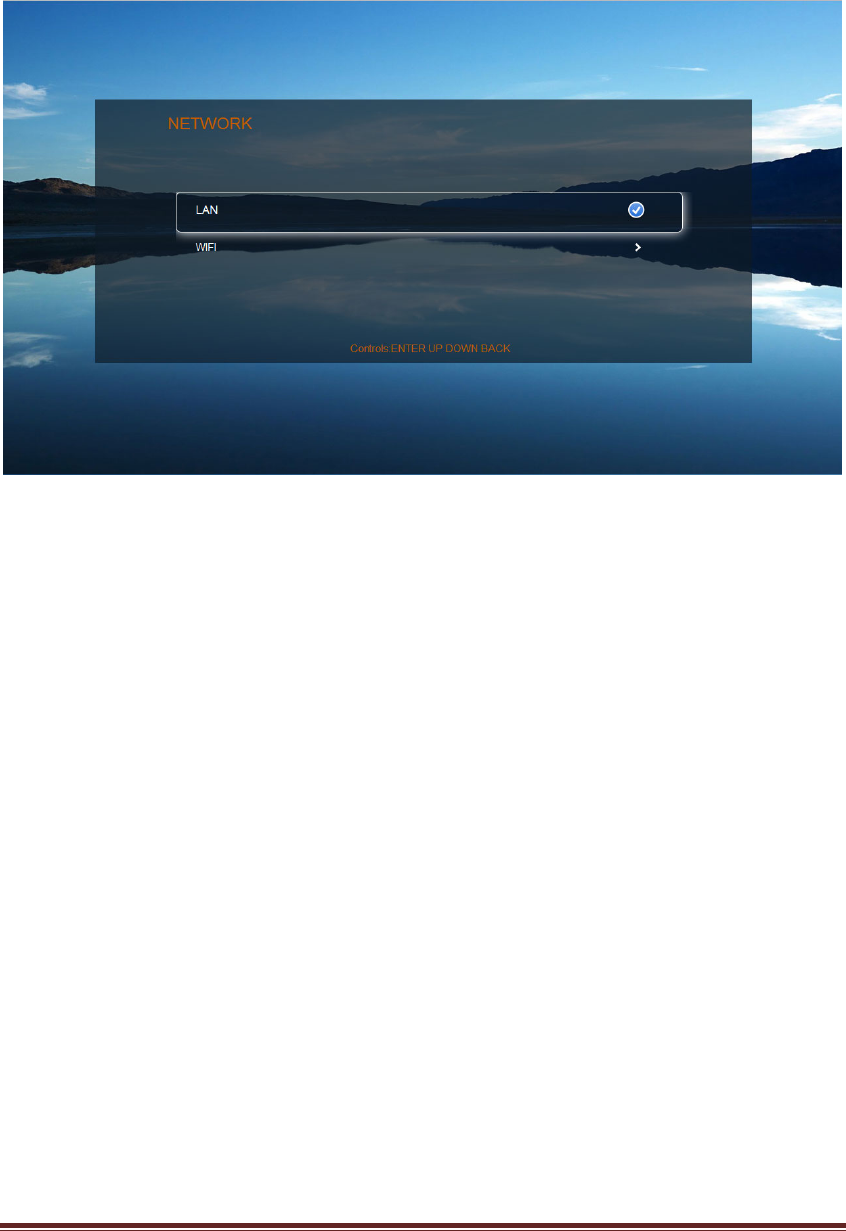

5.Networkpage



Therearetwooptionsavailableforthenetworksettings:LAN(forwiredwithaRJ‐45

networkcable)andWiFi(forawirelessconnection).Youhavetochooseappropriately

whichtypeyouwanttouse,butalsoconsideringthenetworkenvironmentthatyou

have.



IfyouchoosetouseLANconnection,thenpleasemakesureyouhavepluggedinthe

networkcablefirst.

Press“Enter”key,andanetworktestpagewillbeloadedanditwillanalyzeyourLAN

settingsautomatically.



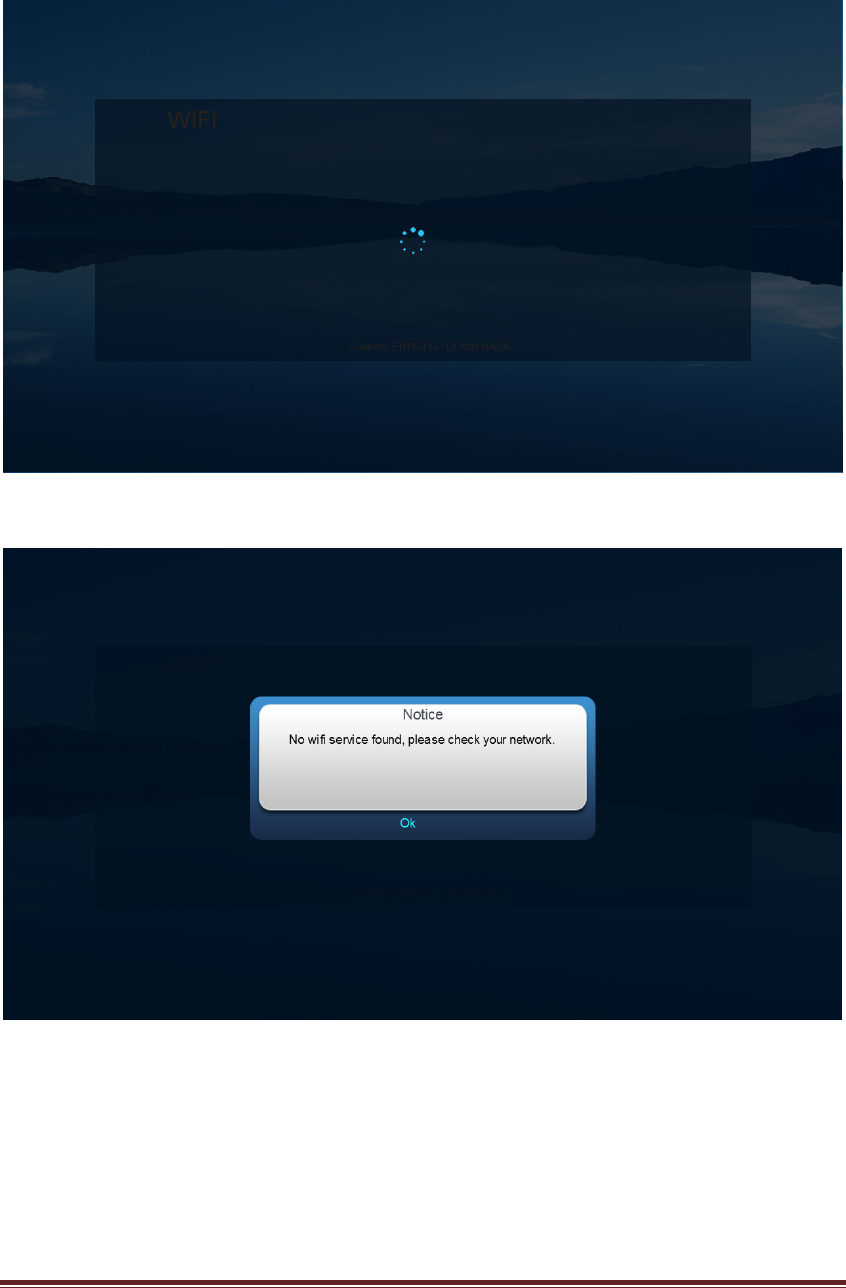

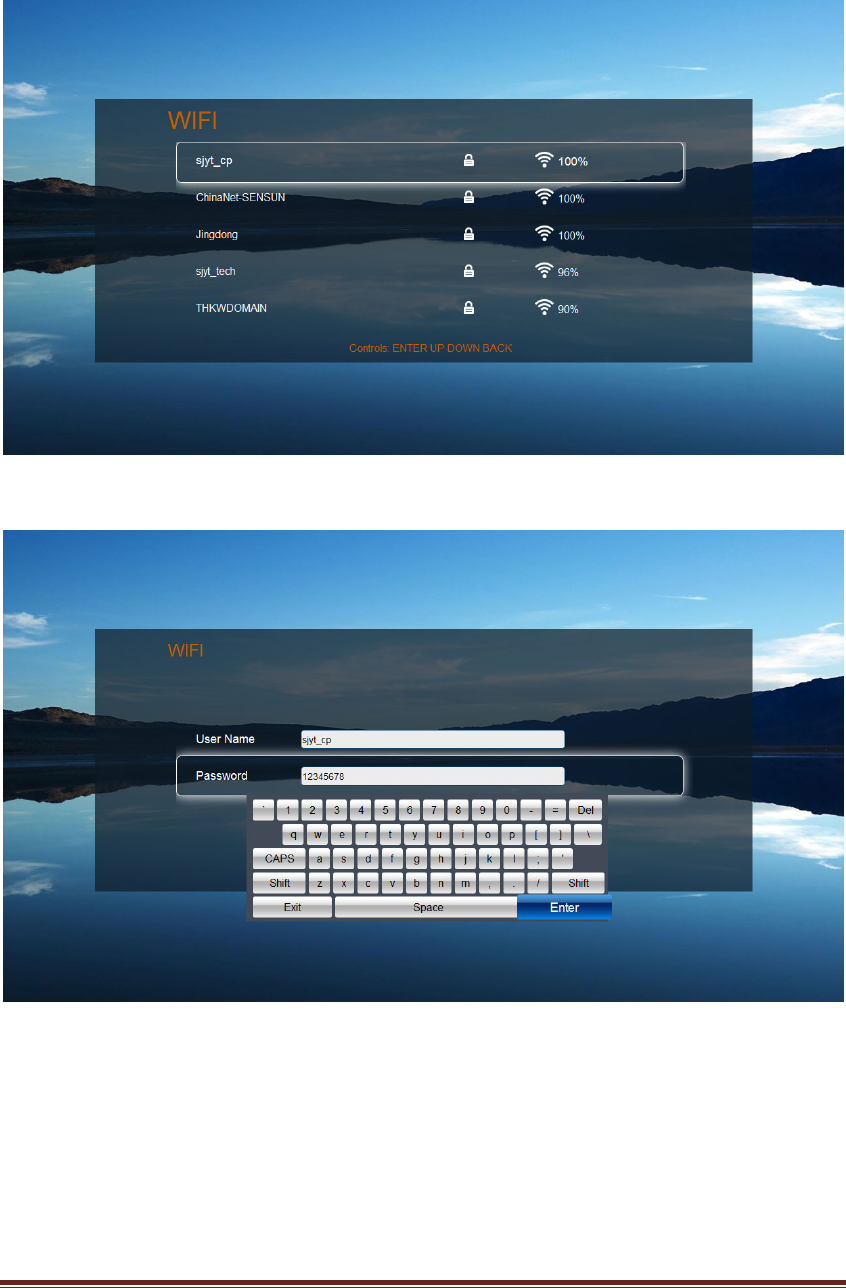

IfyouchoosetouseWiFi,thenselecttheWiFioption,andpress‘ENTER’,itwillscanthe

WiFinetworkandshowtheavailablenetworklistatonce.



TelergyStrikerHDUser’sManual Page7



Ifthescanhasfailed,pleasedoublecheckyourWiFirouter.



Ifthescanissuccessful,thentheWiFiservicelistwillbeshown.Pleaseusethe

UP/DOWNkeytoselectthenetworkthatyouwanttoconnectto.



TelergyStrikerHDUser’sManual Page8



Press“Enter”keytoconfiguretheWiFisettings.



Pleaseinputthecorrectpasswordintheappropriatefield.Ifthere’snopassword

specified,thenpleaseleaveitblank.Selectandpress‘Enter’keyonthesoftkeyboard,

anditwillconnecttothatWiFinetwork.

Note:CurrentlytheSTBcan’tverifywhetherthepasswordyou’veenterediscorrector

not,sopleasemakesureyouhaveinputthepasswordcorrectly.



TelergyStrikerHDUser’sManual Page9



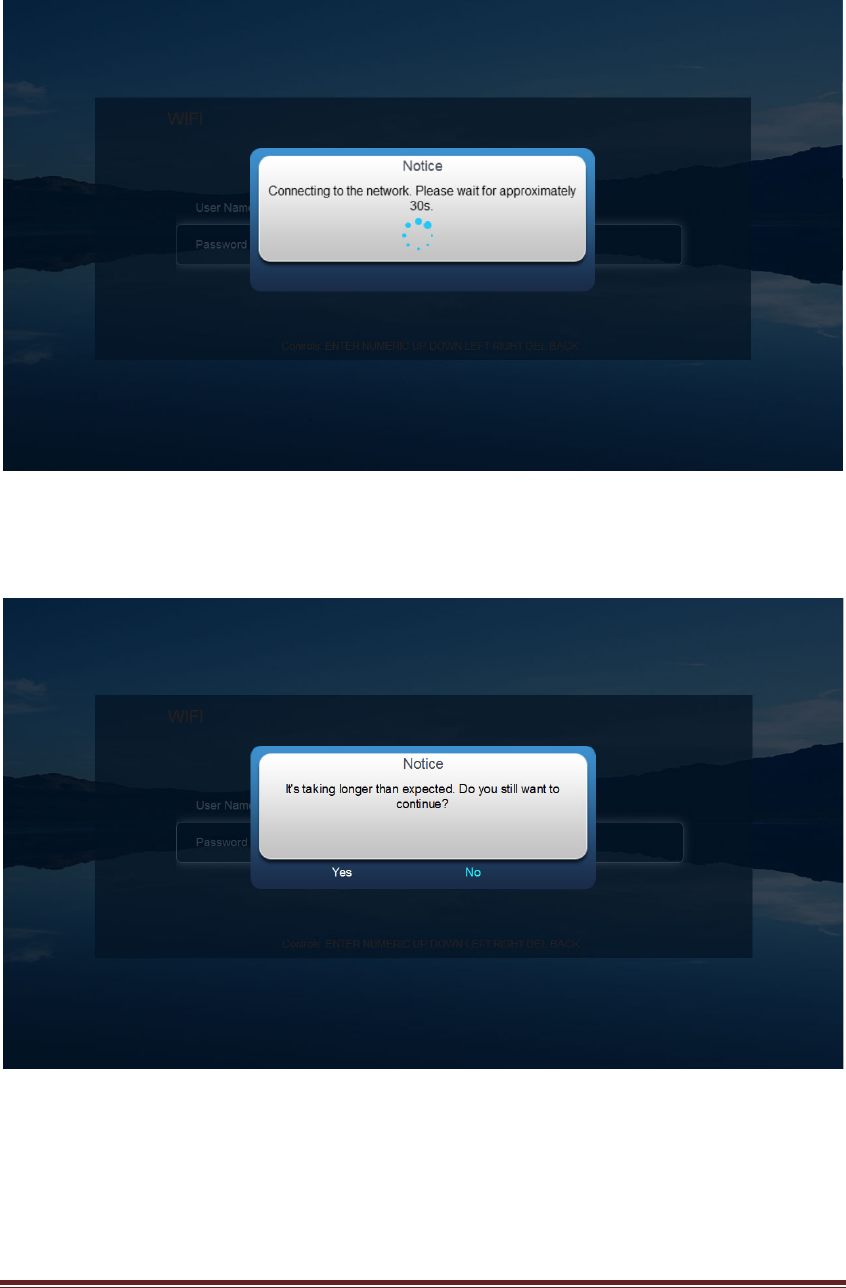

Duringthe30seconds,iftheconnectionfails,adialogboxsuchas‘It’stakinglonger

thanexpected.Doyoustillwanttocontinue?’willpopup.



Ifyouselect‘No’,thedialogboxwilldisappear.PleasecheckyourpasswordandWiFi

networkagainatthistime.

Ifyouselect‘Yes’,itwillcontinuetotryingtoconnecttothatWiFinetwork.



TelergyStrikerHDUser’sManual Page10

Ifconnectionissuccessful,anetworktestpagewillbeloadedanditwillanalyzeyour

networksettingautomatically.



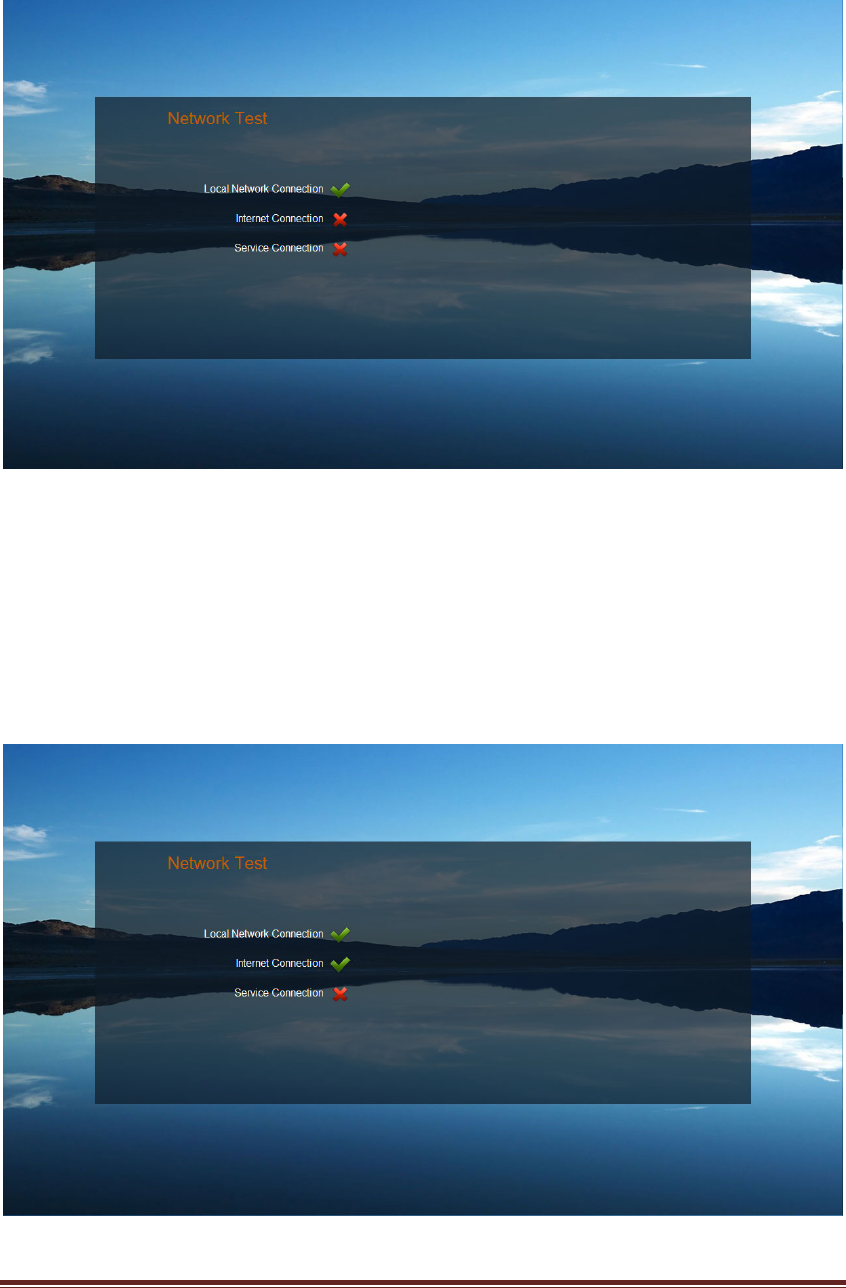

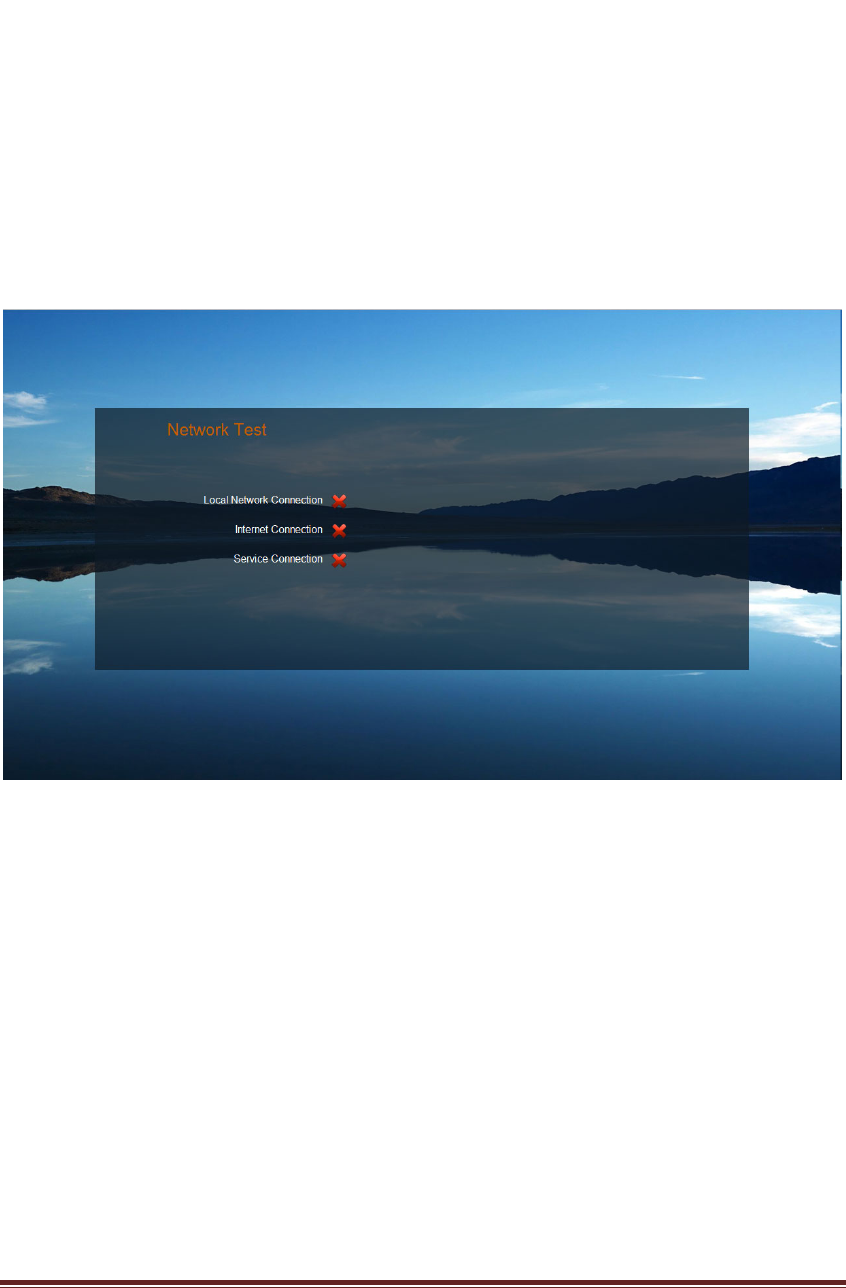

6.NetworkTestpage



These3connections:LocalNetworkconnection,InternetconnectionandService

connectionwillbechecked.



LocalNetworkConnectionistocheckiftheset‐topboxisreadytousethenetwork.Ifit

fails,pleasecheckyourdevice(e.g.thenetworkcableorWiFinetwork).



IftheLocalNetworkConnectiontestissuccessful,itwillgotochecktheInternet

connectionnext.

InternetConnectionistocheckwhethertheset‐topboxcanaccesstheInternetornot.

Theset‐topboxwill“ping”aGooglehost.IfithasnoresponsefromGoogle,itwill

simplyassumeatthispointthattheset‐topboxcannotconnecttoInternetand

thereforethetesthasfailed.



TelergyStrikerHDUser’sManual Page11



IfitreceivestherightresponsefromGoogle,thenitwillassumetheconnectionismade

successfully,andthereforeitwillgotochecktheServiceconnectionnext.



ServiceConnectionistocheckthattheset‐topboxcanindeedconnecttotheServer

URLthatyou’veinputtedintheServerURLsettingpage.

Theset‐topboxwill“ping”theServerURLhost.Ifithasnoresponsefromit,thenitwill

simplyassumetheset‐topboxcannotconnecttotheServerURLthereforetheService

Connectiontesthasfailed.



TelergyStrikerHDUser’sManual Page12

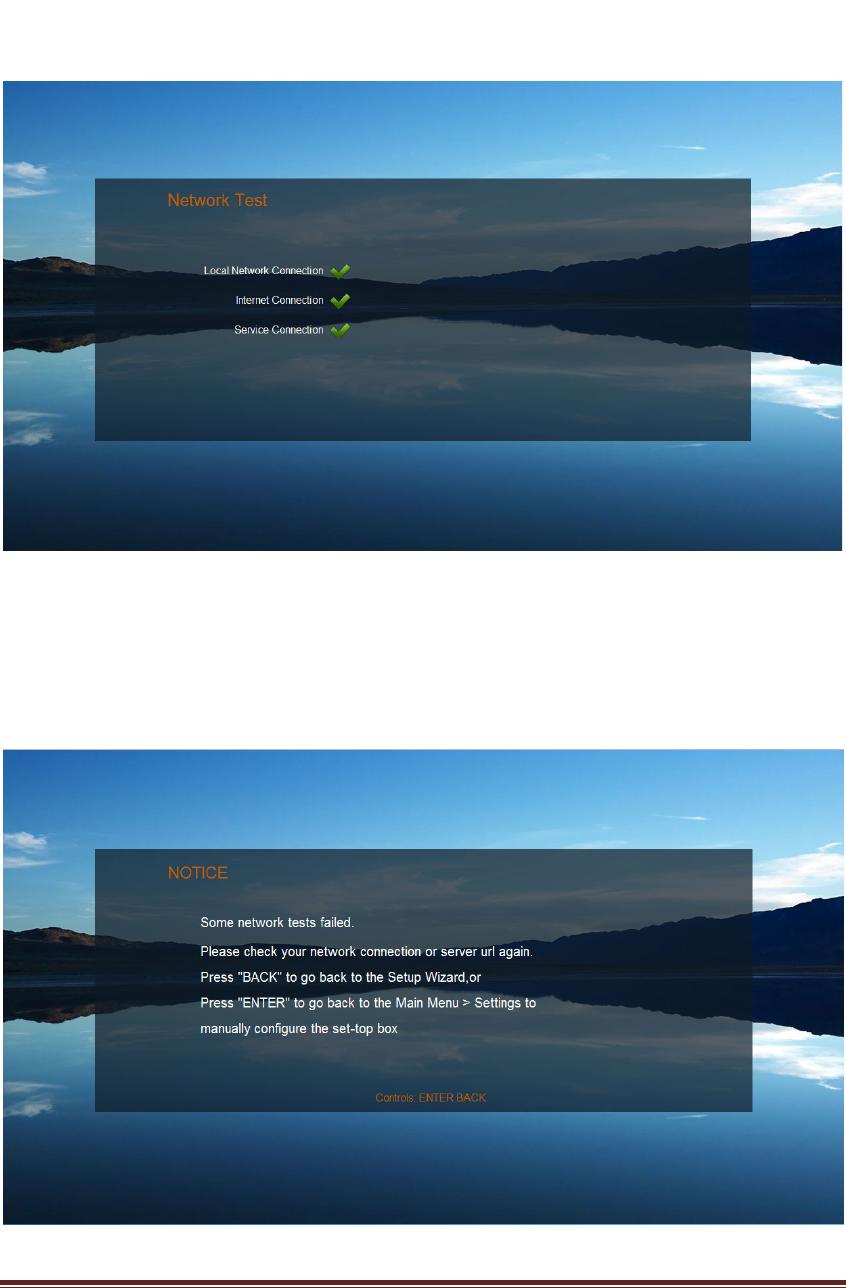

Belowishowitlookslikewhentheset‐topboxhaspassedallthetestssuccessfully,and

itwillshowthesuccessnotificationpagenext.



Ifanyoneofthetestshasfailed,itwillberedirectedtothenoticepage.



7.Noticepage



Ifthetesthasfailed,thefailednotificationpagewillbeloaded.



TelergyStrikerHDUser’sManual Page13

Press‘Back’tocheckyournetworksettingsortheServerURLsetting.Ifhoweverfor

whateverreasonyouchoosetoignorethisnotificationpage,thenpress‘Enter’key,and

themainmenupagewillbeloaded.YoucanselectSETTINGStomanuallyconfigurethe

set‐topboxlater.



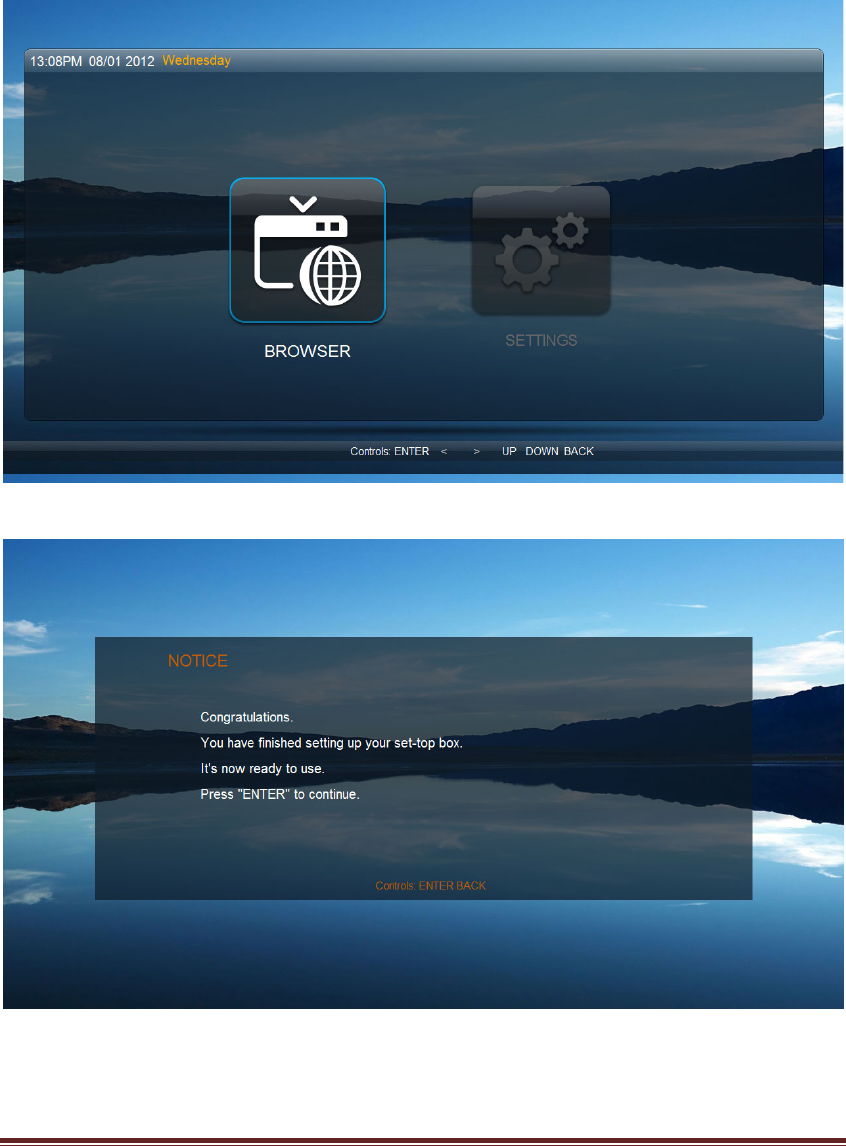

Ifalltestissuccessful,thensuccessnoticepagewillbeloadedlikebelow.



TelergyStrikerHDUser’sManual Page14

Whenyoupress‘Enter’,theset‐topboxwillredirecttotheappropriateServerURLpage.



FCCWarningStatement

Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the

userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing

measures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCCRadiationExposureStatement

Theantennasusedforthistransmittermustbeinstalledtoprovideaseparation

distanceofatleast20cmfromallpersonsandmustbeco‐locatedforoperatingin

conjunctionwithanyotherantennaortransmitter.
