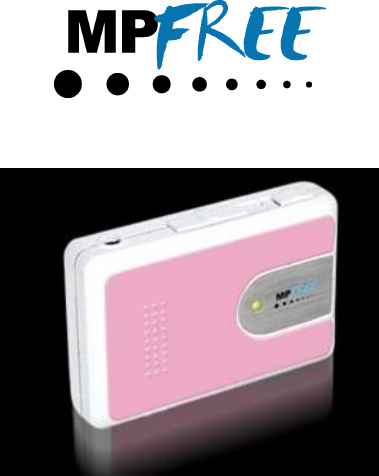

Teleway TMP3FT12345 MPFree Music Transmitter User Manual MPFREE

Teleway Industrial Ltd MPFree Music Transmitter MPFREE

Users Manual

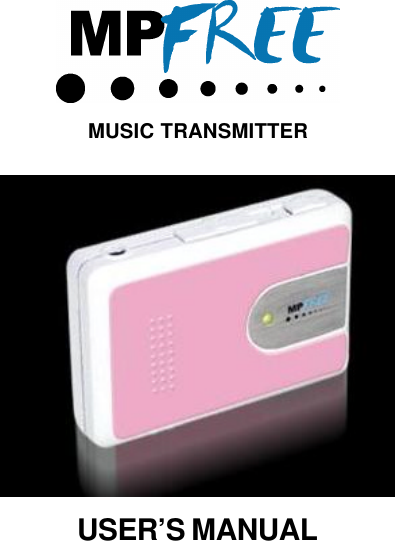

MUSIC TRANSMITTER
USER’S MANUAL

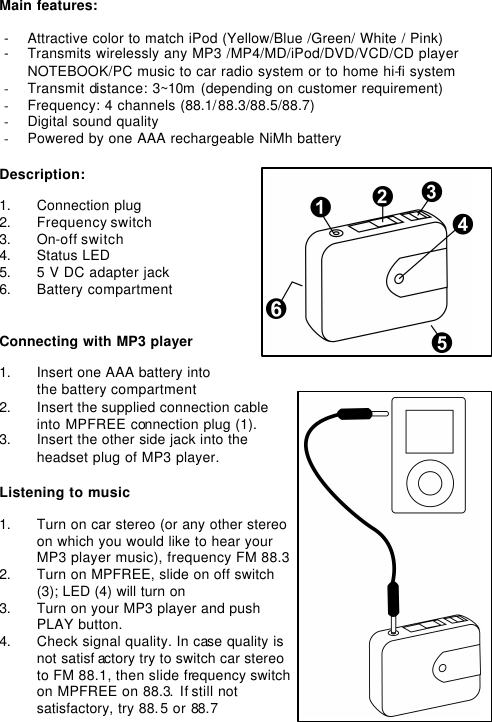

Main features:
- Attractive color to match iPod (Yellow/Blue /Green/ White / Pink)
- Transmits wirelessly any MP3 /MP4/MD/iPod/DVD/VCD/CD player
NOTEBOOK/PC music to car radio system or to home hi-fi system
- Transmit distance: 3~10m (depending on customer requirement)
- Frequency: 4 channels (88.1/ 88.3/88.5/88.7)
- Digital sound quality
- Powered by one AAA rechargeable NiMh battery

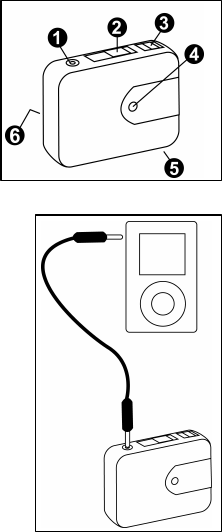

Description:
1. Connection plug
2. Frequency switch
3. On-off switch
4. Status LED
5. 5 V DC adapter jack
6. Battery compartment
Connecting with MP3 player
1. Insert one AAA battery into
the battery compartment
2. Insert the supplied connection cable
into MPFREE connection plug (1).
3. Insert the other side jack into the
headset plug of MP3 player.
Listening to music
1. Turn on car stereo (or any other stereo
on which you would like to hear your
MP3 player music), frequency FM 88.3
2. Turn on MPFREE, slide on off switch
(3); LED (4) will turn on
3. Turn on your MP3 player and push
PLAY button.
4. Check signal quality. In case quality is
not satisf actory try to switch car stereo
to FM 88.1, then slide frequency switch
on MPFREE on 88.3. If still not
satisfactory, try 88. 5 or 88.7

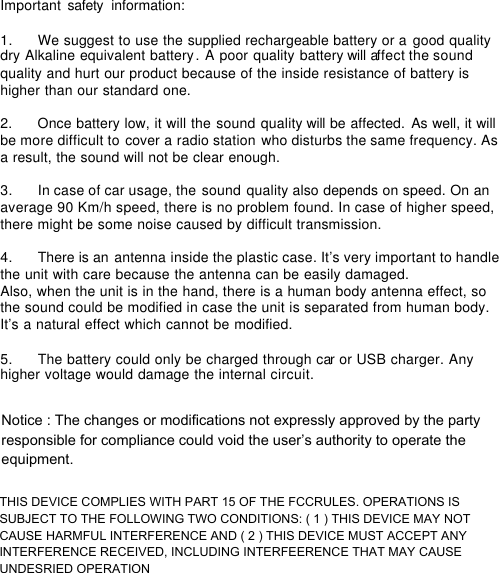

Important safety information:
1. We suggest to use the supplied rechargeable battery or a good quality
dry Alkaline equivalent battery. A poor quality battery will affect the sound
quality and hurt our product because of the inside resistance of battery is
higher than our standard one.
2. Once battery low, it will the sound quality will be affected. As well, it will
be more difficult to cover a radio station who disturbs the same frequency. As
a result, the sound will not be clear enough.
3. In case of car usage, the sound quality also depends on speed. On an
average 90 Km/h speed, there is no problem found. In case of higher speed,
there might be some noise caused by difficult transmission.
4. There is an antenna inside the plastic case. It’s very important to handle
the unit with care because the antenna can be easily damaged.
Also, when the unit is in the hand, there is a human body antenna effect, so
the sound could be modified in case the unit is separated from human body.
It’s a natural effect which cannot be modified.
5. The battery could only be charged through car or USB charger. Any
higher voltage would damage the internal circuit.
Notice : The changes or modifications not expressly approved by the party 
responsible for compliance could void the user’s authority to operate the 
equipment.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATIONS IS 
SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT 
CAUSE HARMFUL INTERFERENCE AND ( 2 ) THIS DEVICE MUST ACCEPT ANY 
INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY CAUSE 
UNDESRIED OPERATION 
