Teleway TMP3FTF Full Frequency FM Transmitter User Manual

Teleway Industrial Ltd Full Frequency FM Transmitter

User Manual

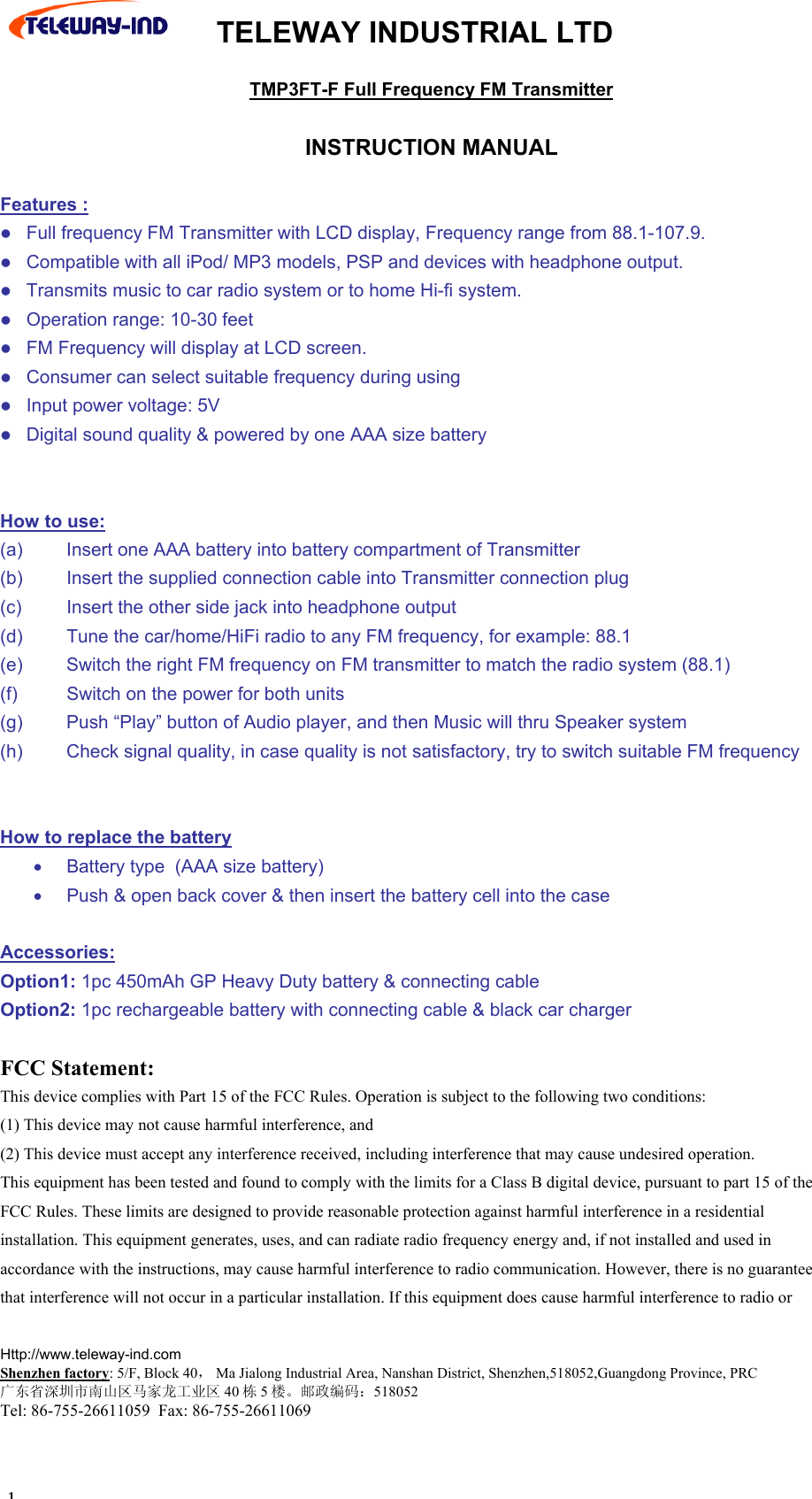

TELEWAY INDUSTRIAL LTD Http://www.teleway-ind.com Shenzhen factory: 5/F, Block 40， Ma Jialong Industrial Area, Nanshan District, Shenzhen,518052,Guangdong Province, PRC 广东省深圳市南山区马家龙工业区 40 栋5楼。邮政编码：518052 Tel: 86-755-26611059 Fax: 86-755-26611069 TMP3FT-F Full Frequency FM Transmitter INSTRUCTION MANUAL Features :  Full frequency FM Transmitter with LCD display, Frequency range from 88.1-107.9.  Compatible with all iPod/ MP3 models, PSP and devices with headphone output.  Transmits music to car radio system or to home Hi-fi system.  Operation range: 10-30 feet  FM Frequency will display at LCD screen.  Consumer can select suitable frequency during using  Input power voltage: 5V  Digital sound quality & powered by one AAA size battery How to use: (a) Insert one AAA battery into battery compartment of Transmitter (b) Insert the supplied connection cable into Transmitter connection plug (c) Insert the other side jack into headphone output (d) Tune the car/home/HiFi radio to any FM frequency, for example: 88.1 (e) Switch the right FM frequency on FM transmitter to match the radio system (88.1) (f) Switch on the power for both units (g) Push “Play” button of Audio player, and then Music will thru Speaker system (h) Check signal quality, in case quality is not satisfactory, try to switch suitable FM frequency How to replace the battery • Battery type (AAA size battery) • Push & open back cover & then insert the battery cell into the case Accessories: Option1: 1pc 450mAh GP Heavy Duty battery & connecting cable Option2: 1pc rechargeable battery with connecting cable & black car charger FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or 1
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modification made to this equipment not expressly approved by the manufacturer. May void the FCC authorization to operate this equipment. 2.4G USB Wireless Phone Ver.1.1 2006-2-171
