Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

-Q

-P

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

Contents

1 OVERVIEW 5

2 HARDWARE COMMANDS 6

2.1 Turning ON the GE863-QUAD/PY 6

2.2 Turning OFF the GE863-QUAD/PY 8

2.2.1 Hardware shutdown 8

2.3 Hardware Unconditional Reboot 8

3 POWER SUPPLY 10

3.1 Power Supply Requirements 10

3.2 General Design Rules 11

3.2.1 Electrical design Guidelines 11

3.2.1.1 + 5V input Source Power Supply Design Guidelines 11

3.2.1.2 + 12V input Source Power Supply Design Guidelines 13

3.2.1.3 Battery Source Power Supply Design Guidelines 14

3.2.1.4 Battery Charge control Circuitry Design Guidelines 14

3.2.2 Thermal Design Guidelines 16

3.2.3 Power Supply PCB layout Guidelines 17

4 ANTENNA 18

4.1 GSM Antenna Requirements 18

4.2 GSM Antenna - PCB line Guidelines 19

4.3 GSM Antenna - installation Guidelines 20

5 SERIAL PORTS 20

5.1 MODEM SERIAL PORT 20

5.2 MODEM SERIAL PORT 2 (DEBUG) 22

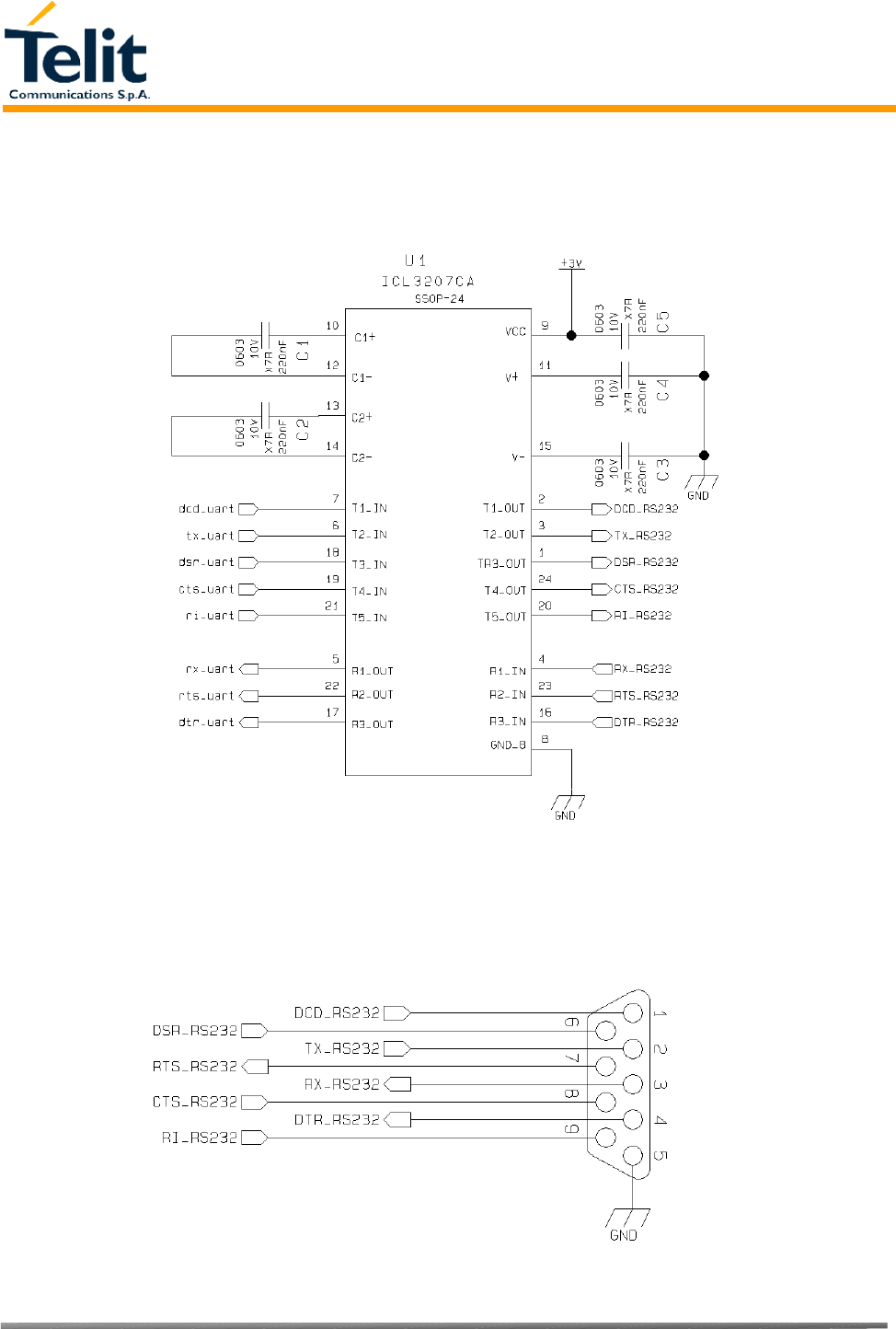

5.3 RS232 level translation 23

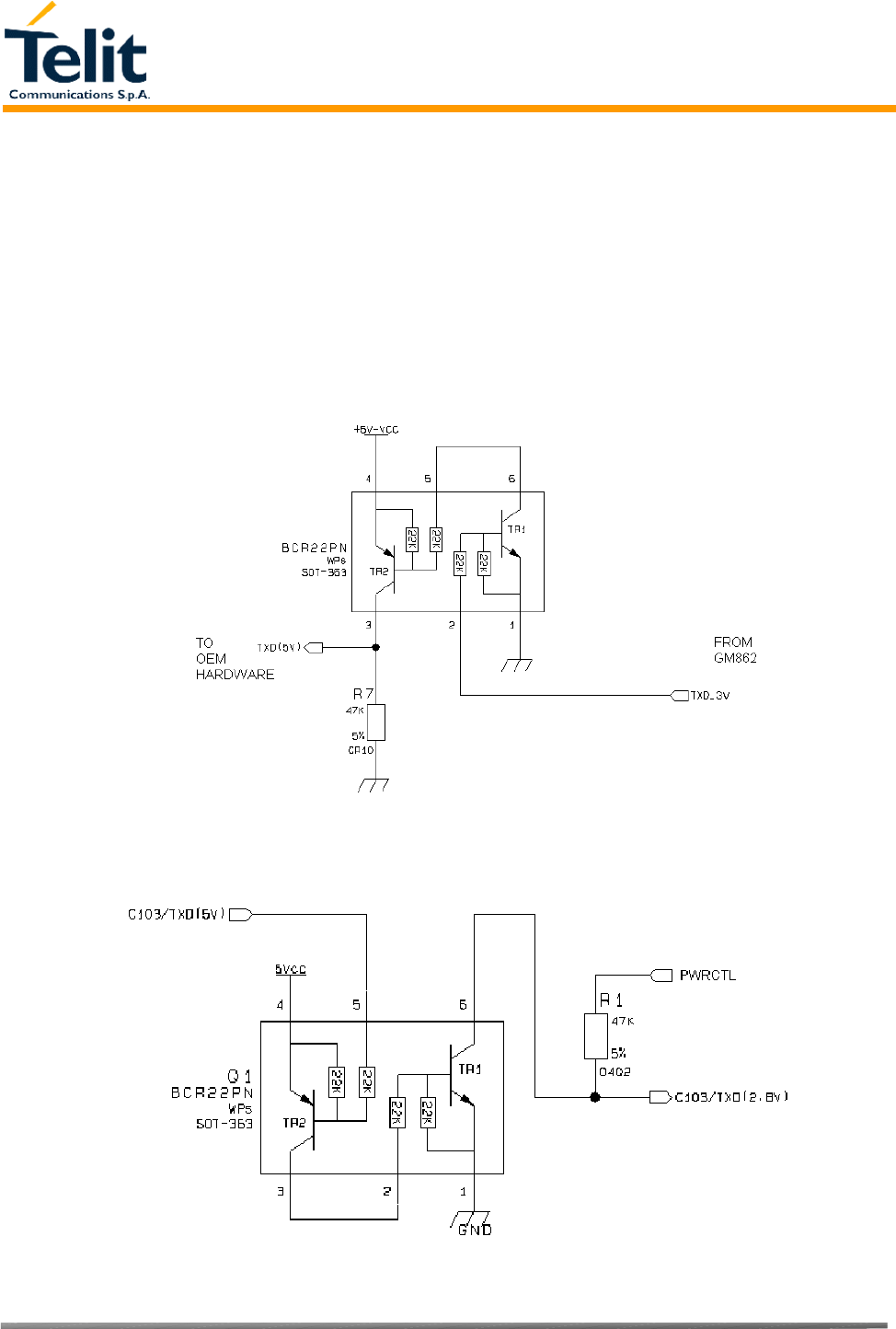

5.4 5V UART level translation 25

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

6 MICROPHONE 27

6.1 Microphone line Characteristic and requirements 27

6.2 General Design Rules 30

6.3 Microphone Biasing 30

6.3.1 Balanced Microphone biasing 31

6.3.2 Unbalanced Microphone biasing 33

6.4 Microphone buffering 34

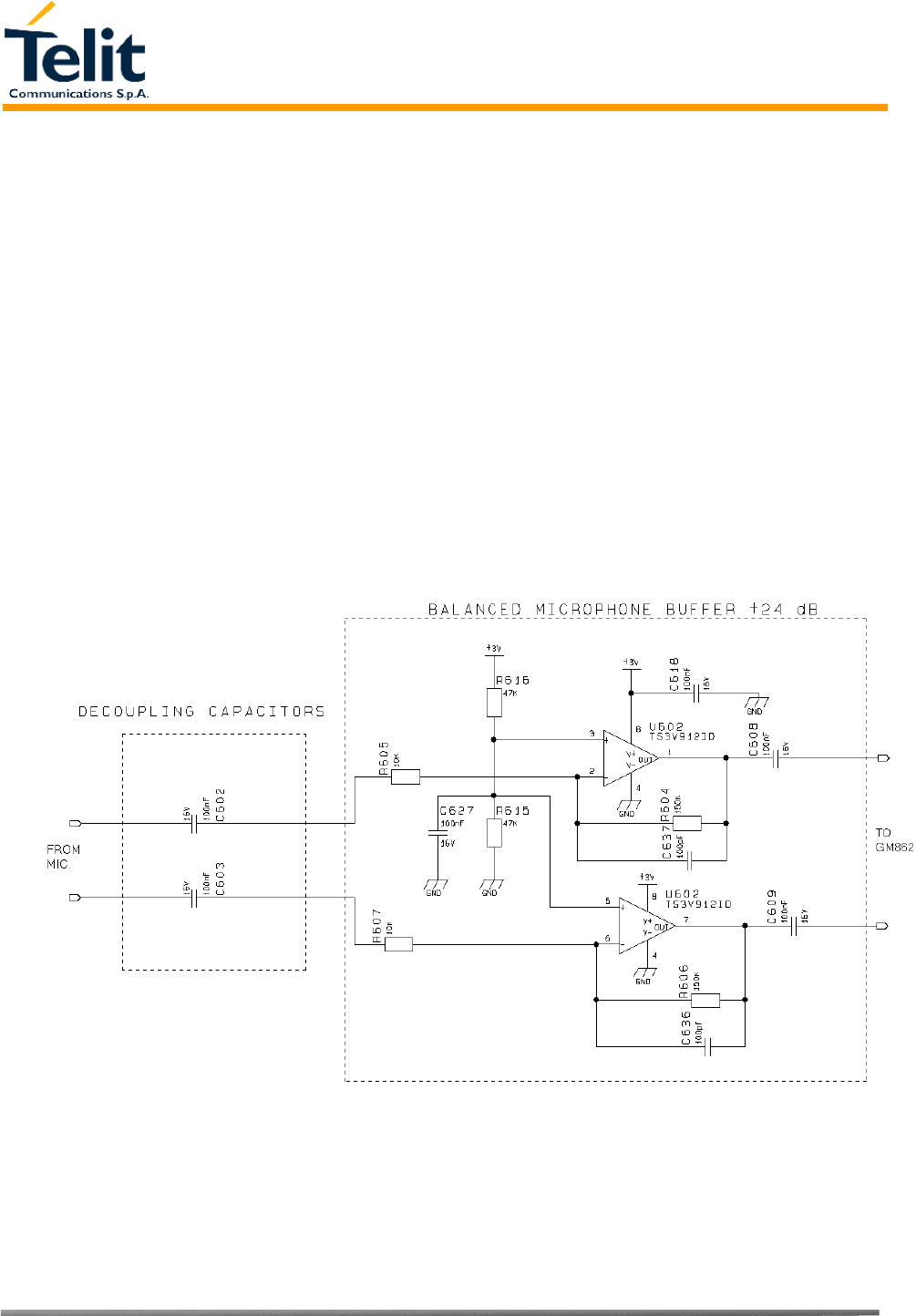

6.4.1 Buffered Balanced Mic. 34

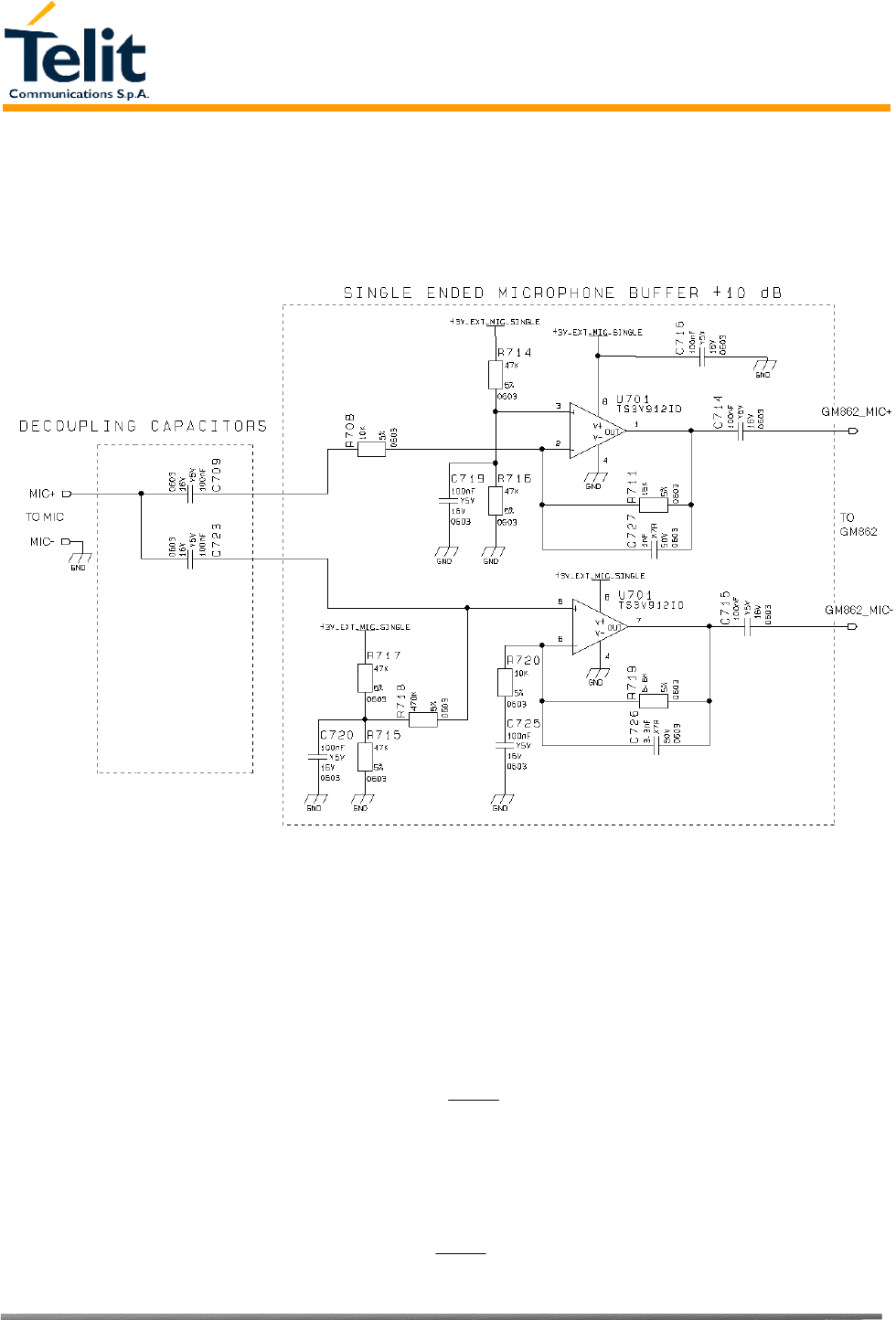

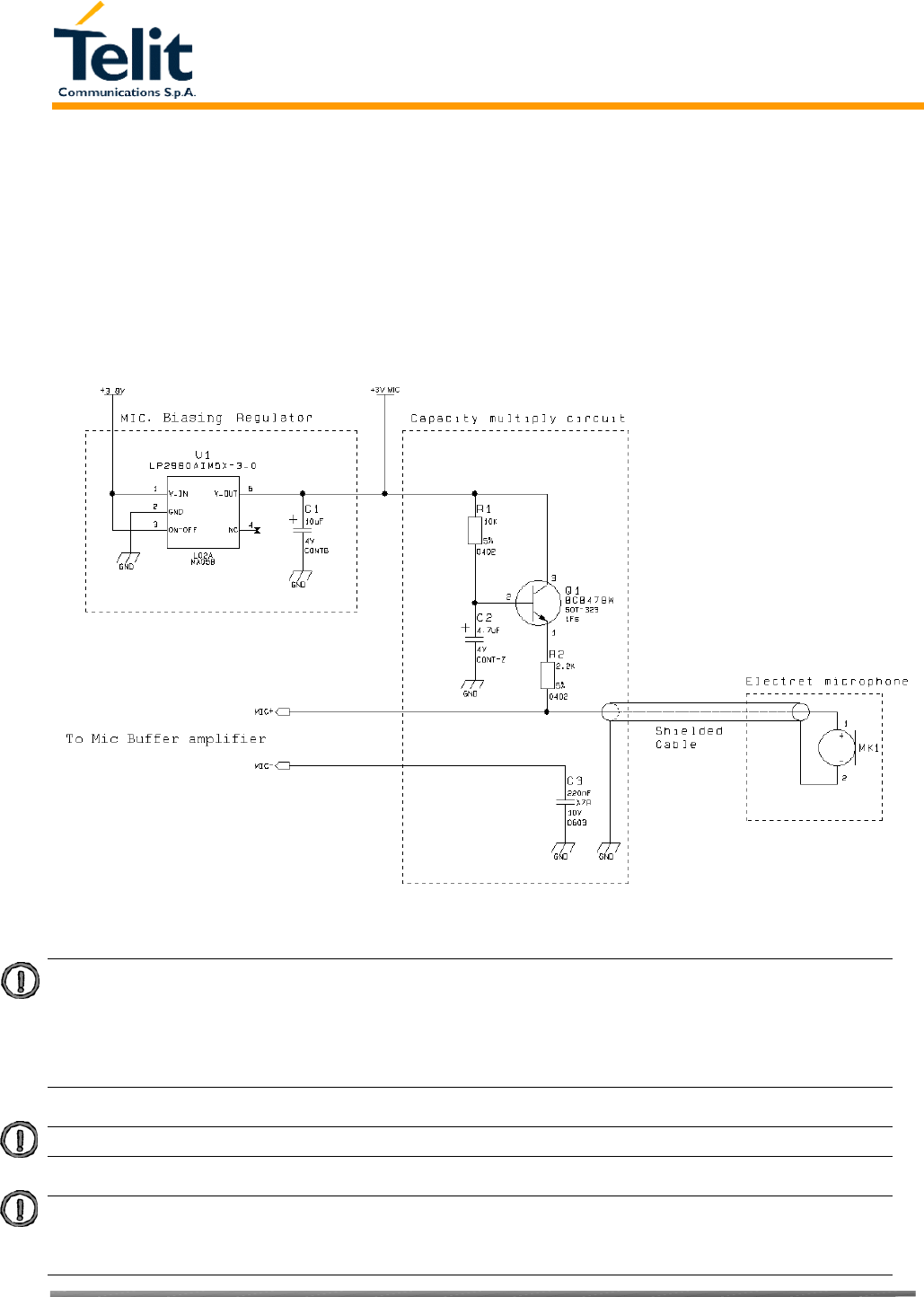

6.4.2 Buffered Unbalanced (Single Ended) Mic. 37

7 SPEAKER 40

7.1 Speaker lines characteristics and requirements 40

7.2 General Design rules 42

7.2.1 Noise Filtering 43

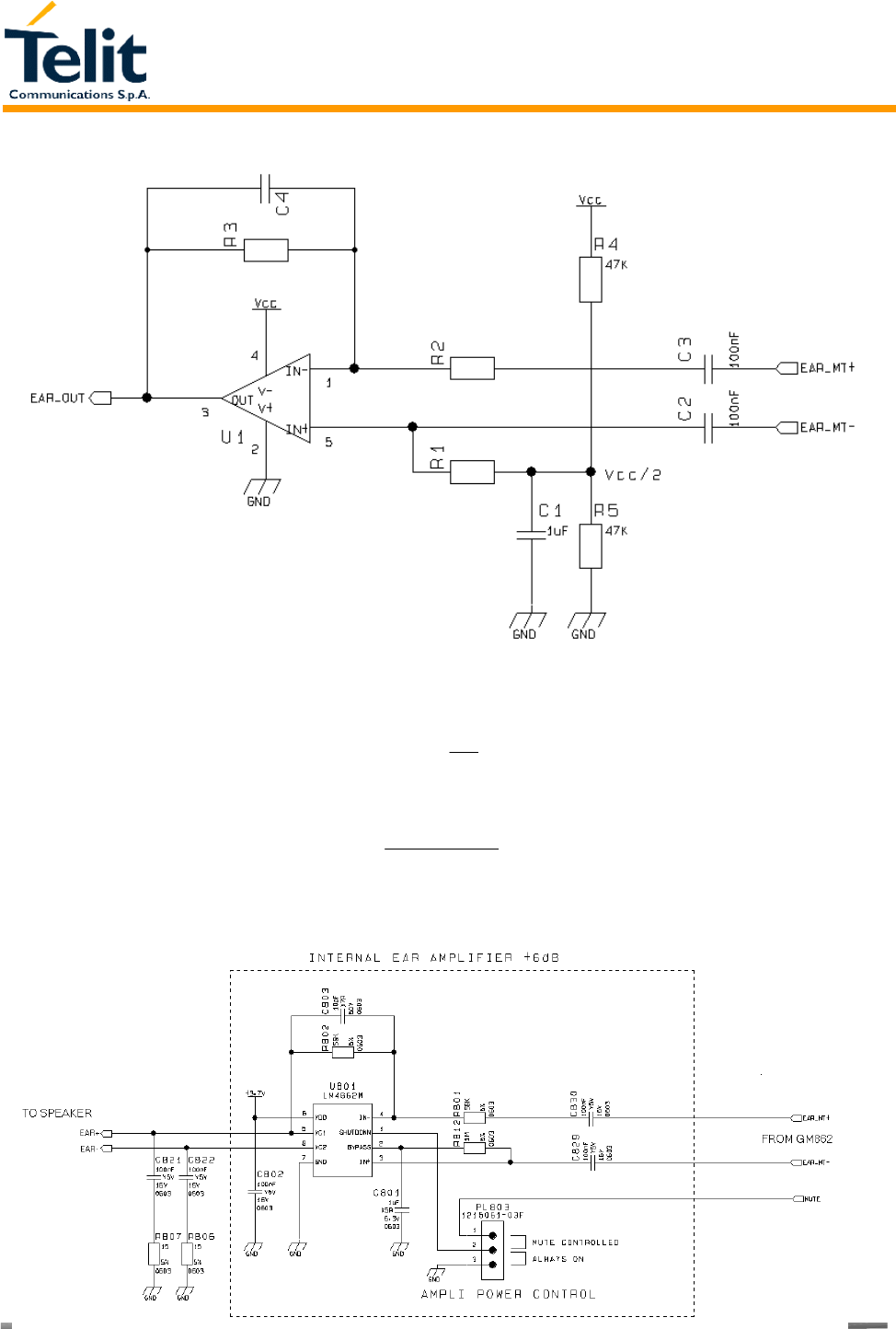

7.3 Handset earphone design 43

7.4 Hands Free earphone (low power) design 45

7.5 Car Kit speakerphone design 45

8 GENERAL PURPOSE I/O 47

8.1 Using a GPIO pad as INPUT 47

8.2 Using a GPIO pad as OUTPUT 47

8.3 Using the Alarm Output GPIO6 48

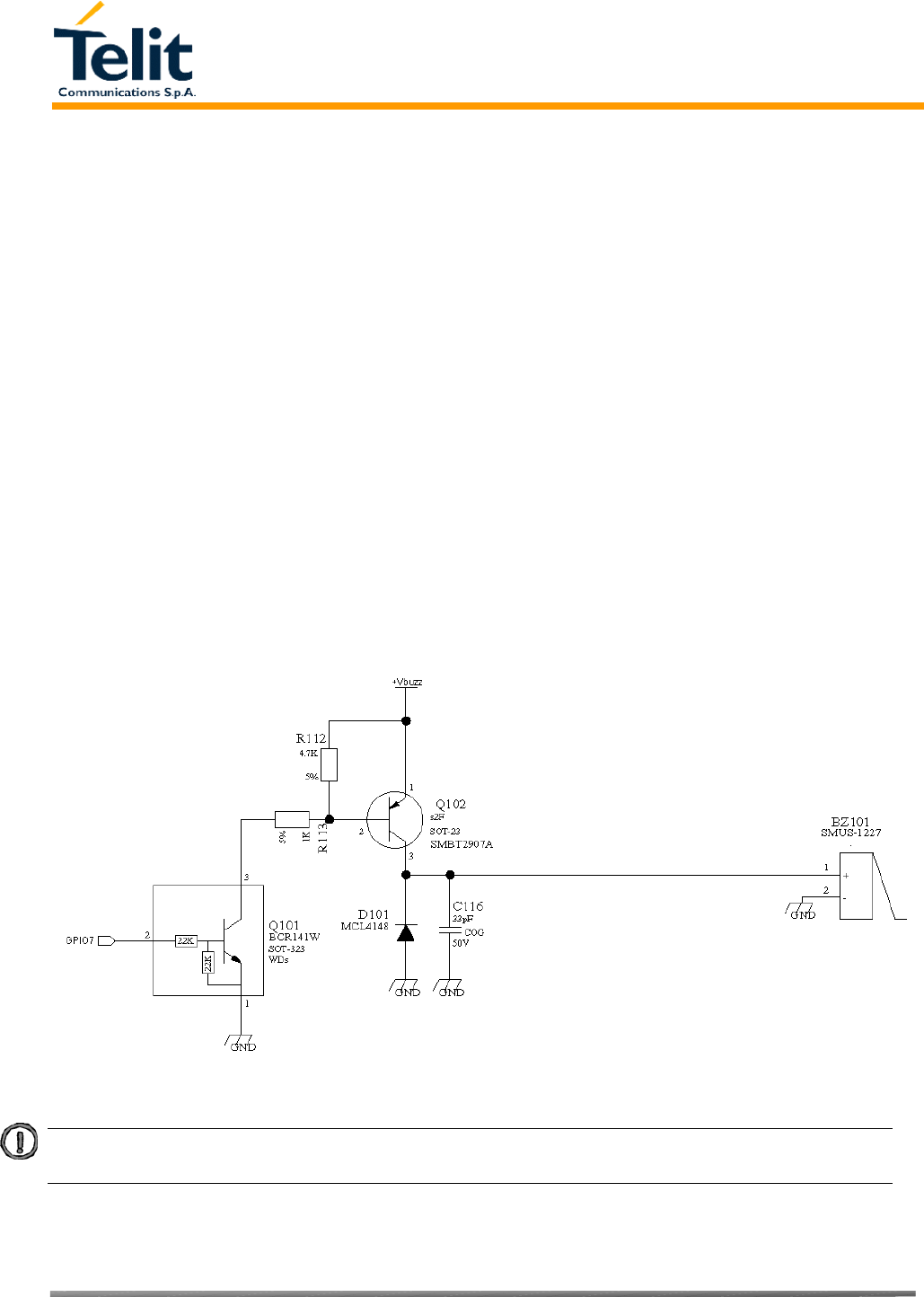

8.4 Using the Buzzer Output GPIO7 48

9 CAMERA 49

9.1 Transchip Camera 49

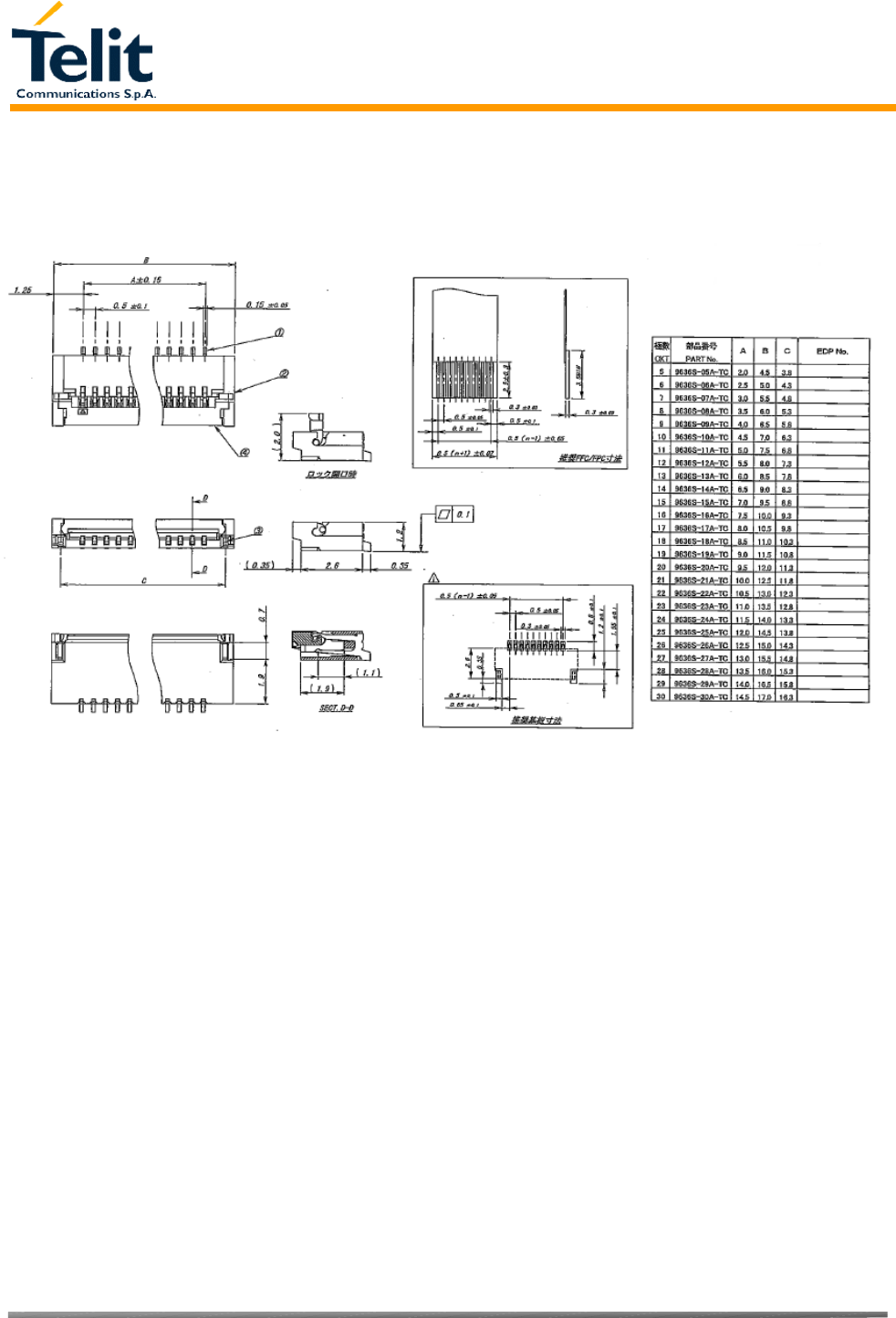

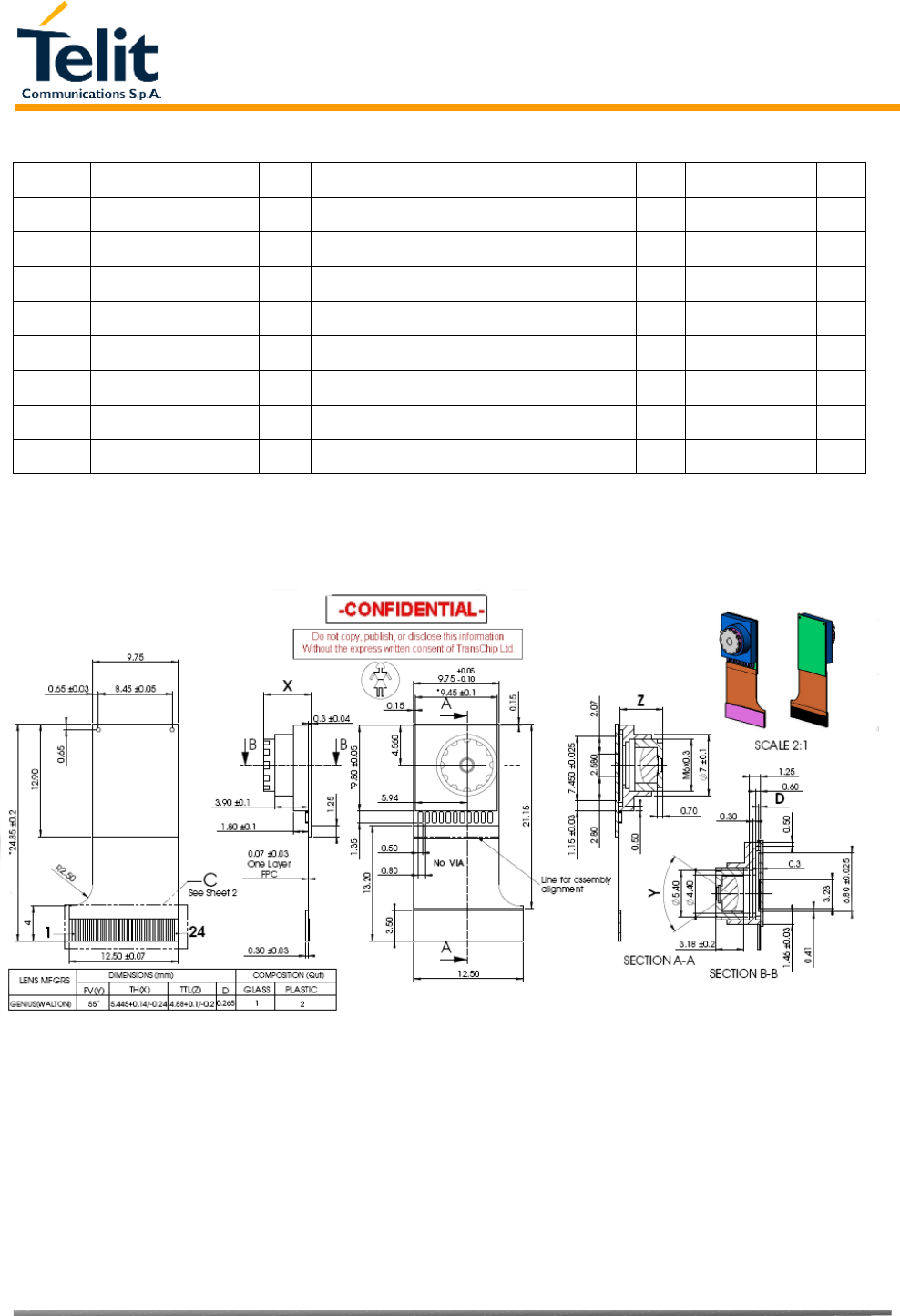

9.1.1 Camera interface connectors 49

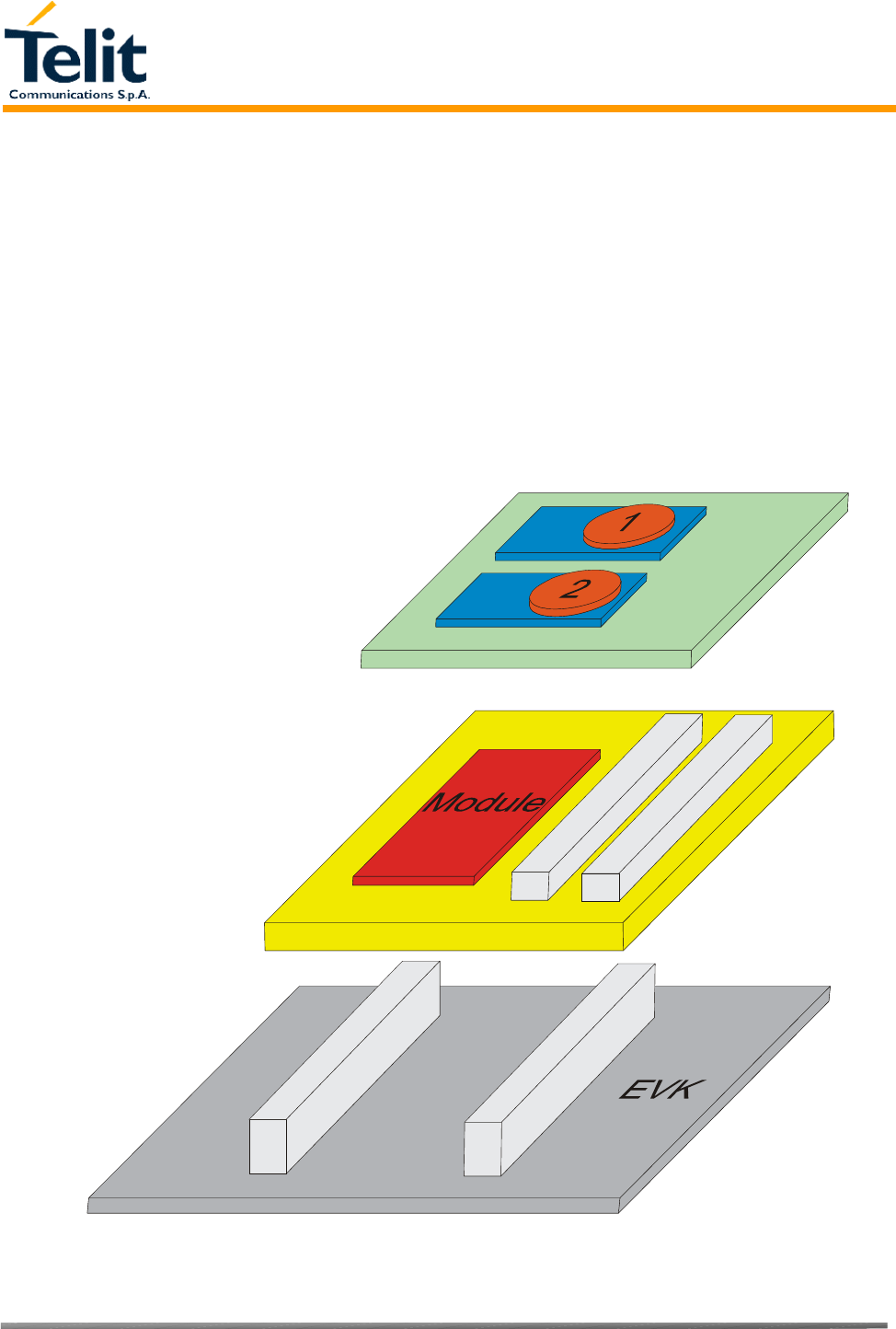

9.1.2 EVB for Transchip camera support 52

9.1.3 Block Diagram for supported cameras 53

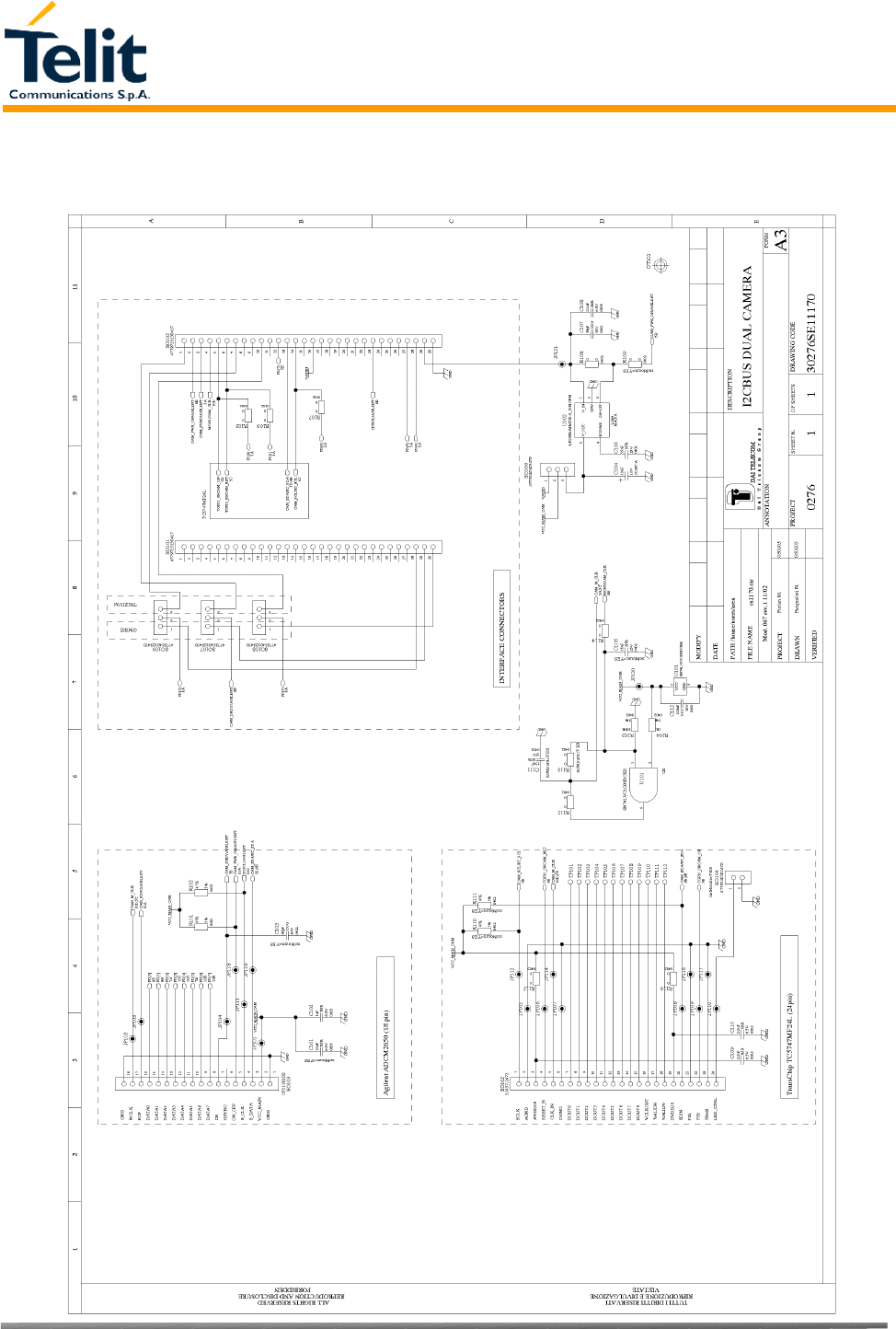

9.1.4 Schematic Diagrams for supported cameras 54

9.1.5 Example usage script for camera 55

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

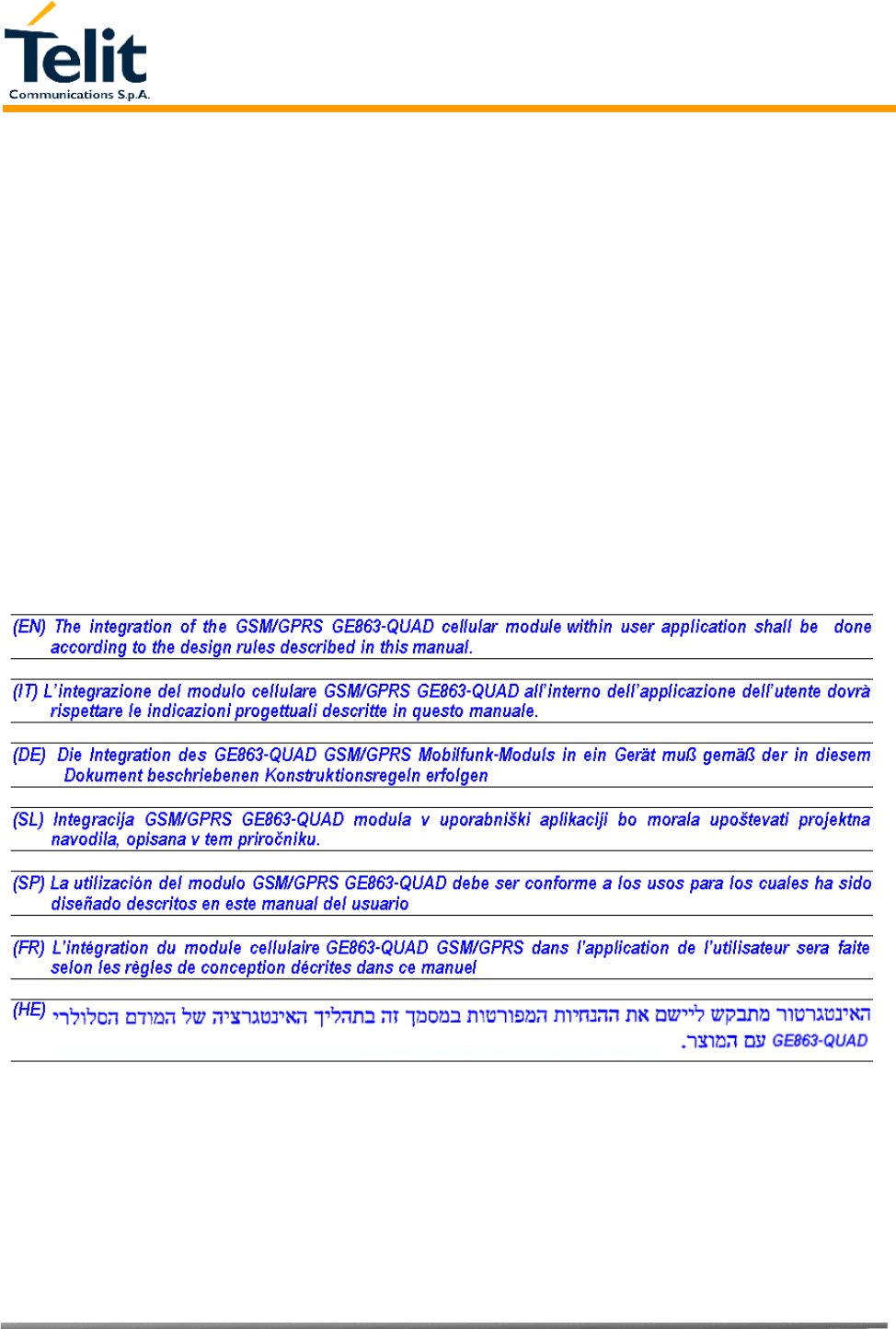

10 CONFORMITY ASSESSMENT ISSUES 57

11 SAFETY RECOMMANDATIONS 59

DOCUMENT CHANGE LOG 61

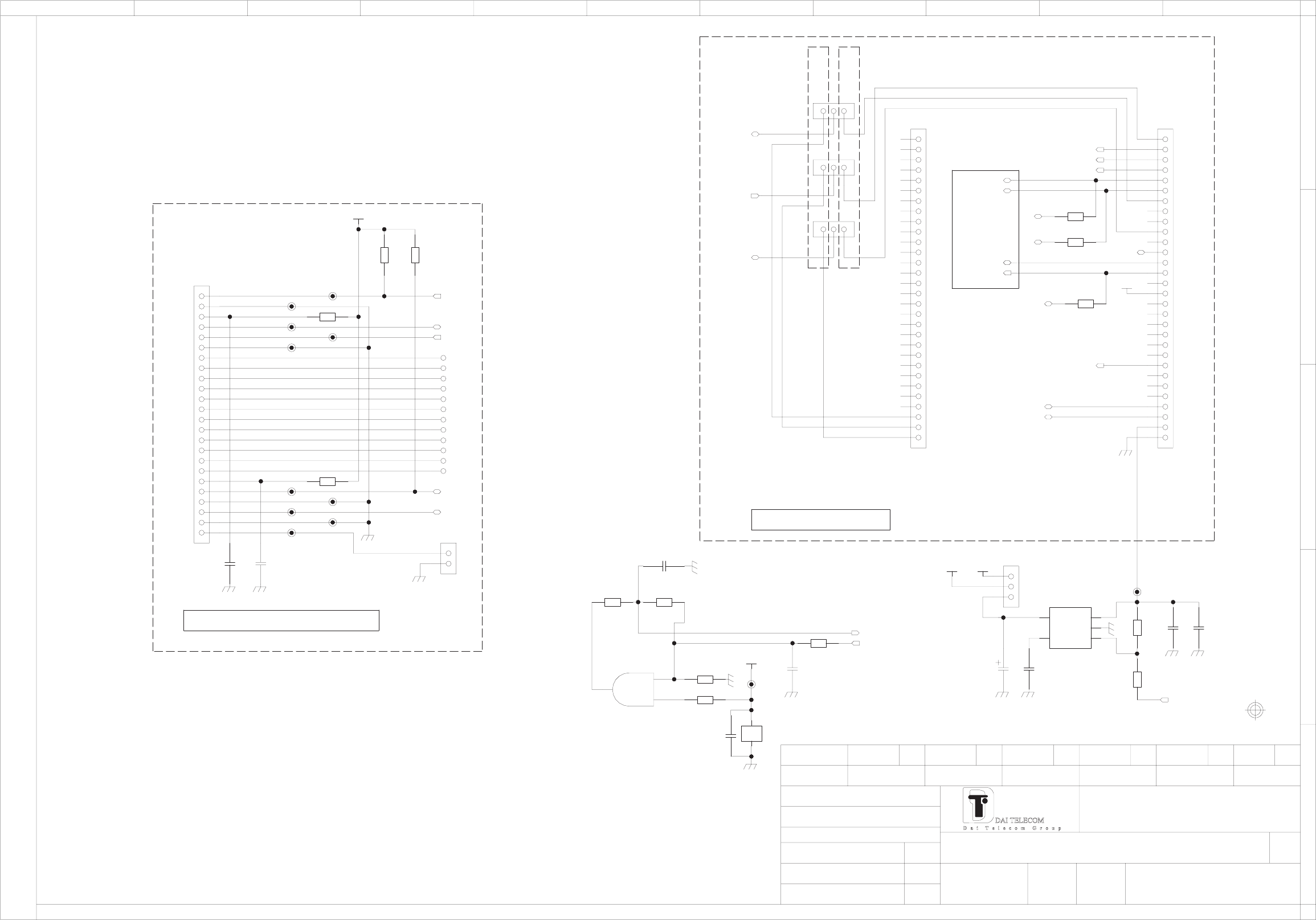

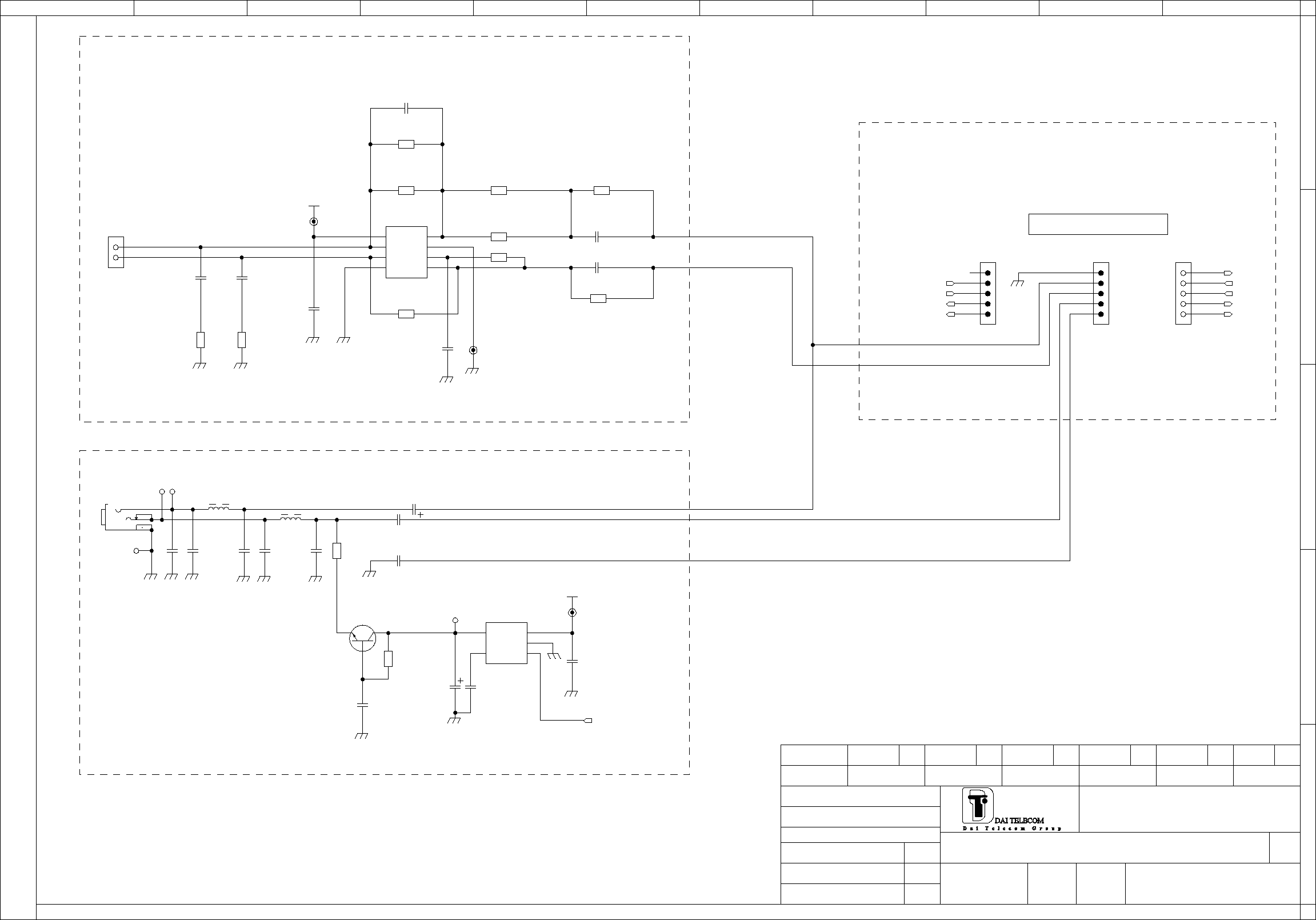

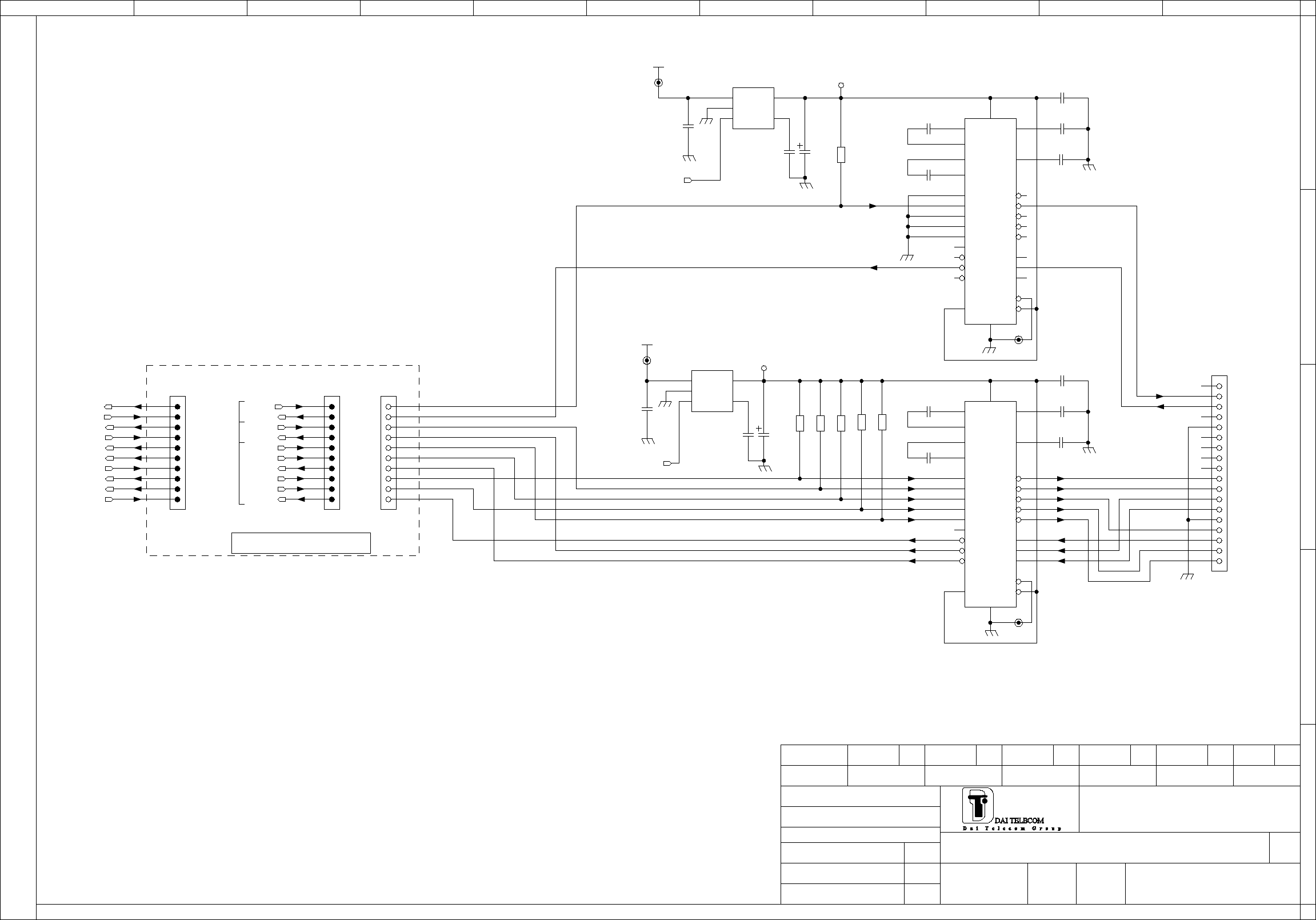

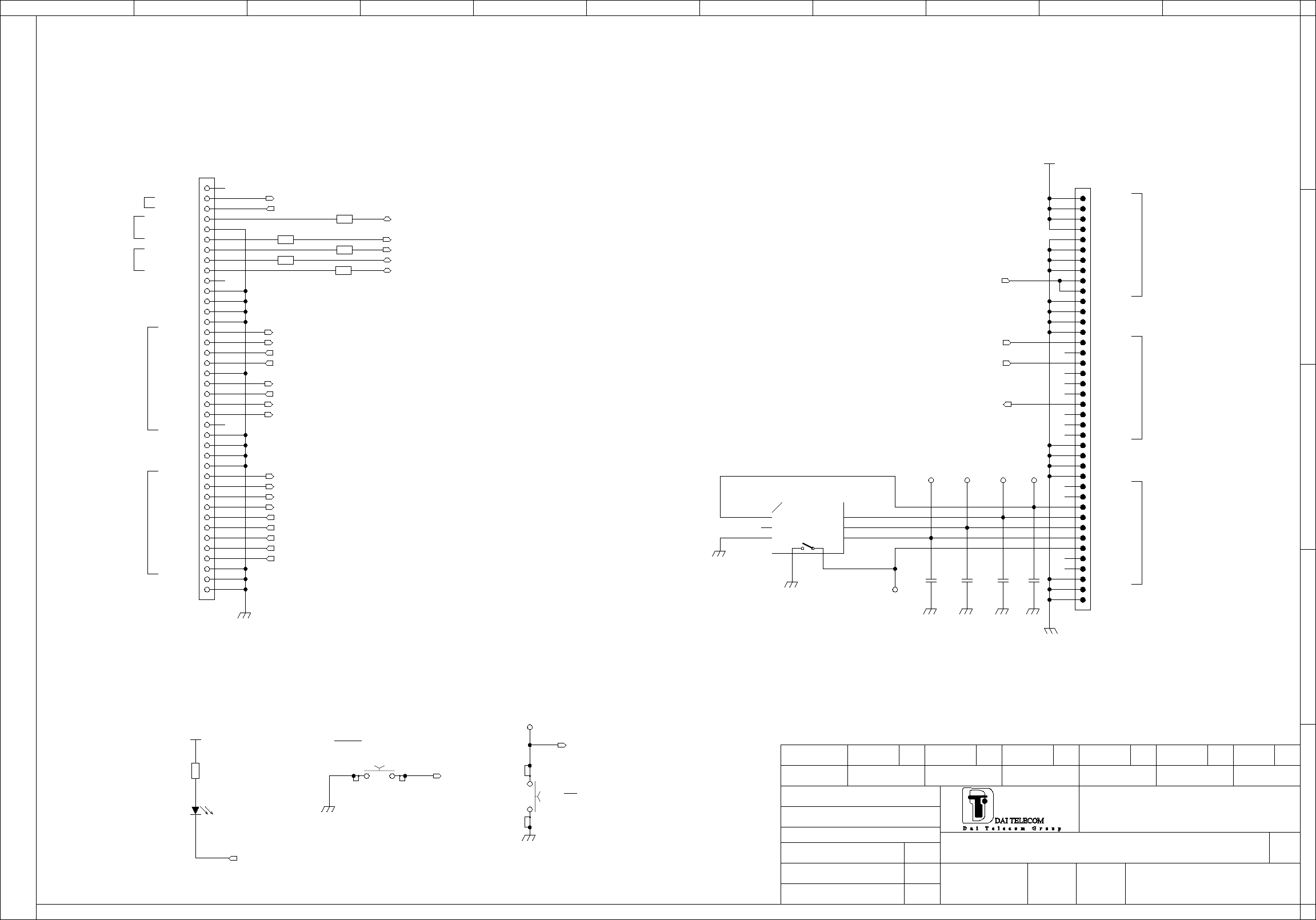

12 EVK 2 SCHEMATICS 62

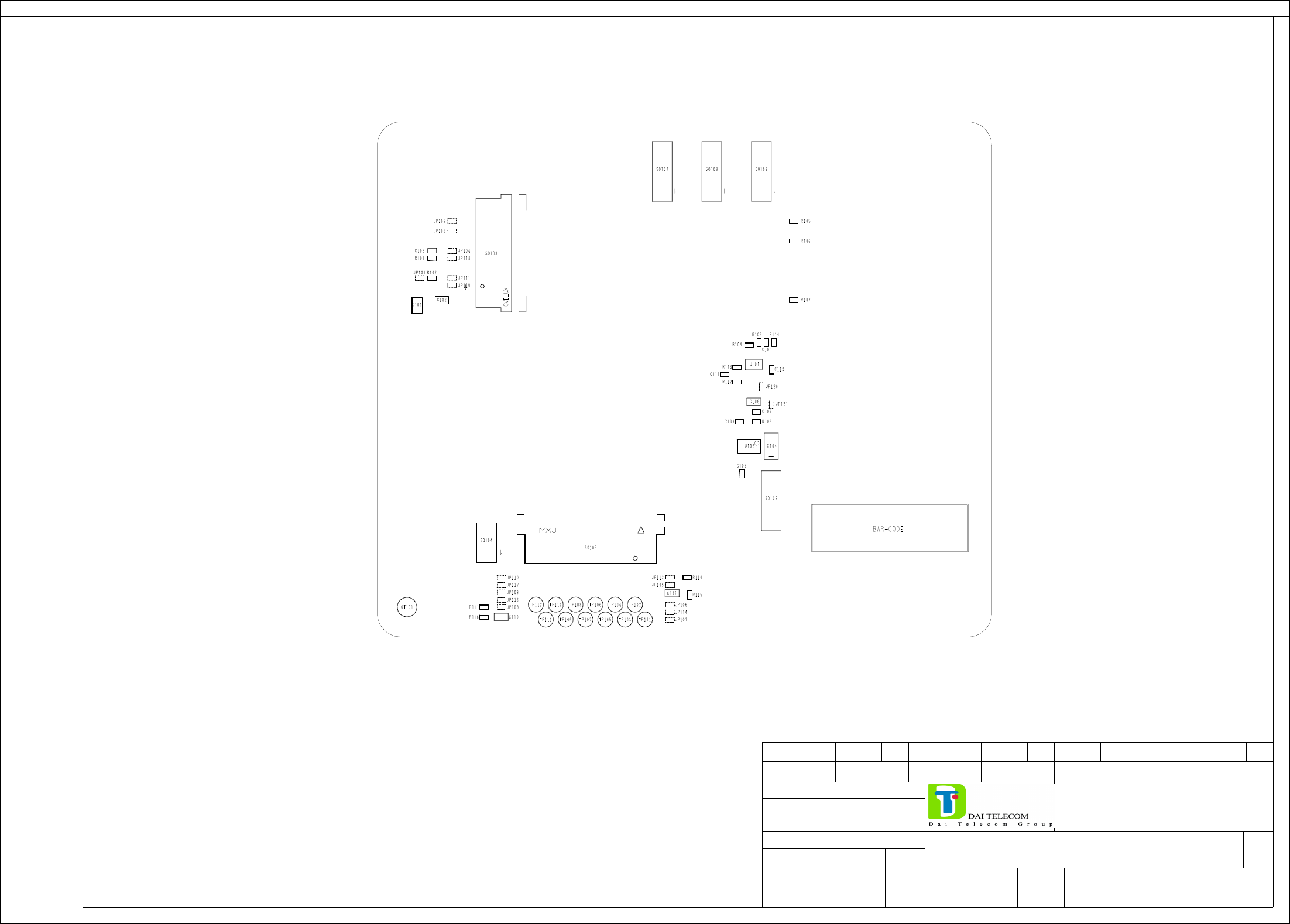

13 EVB CAMERA SCHEMATICS 68

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

1 Overview

The aim of this document is the description of some hardware solutions useful for developing a

product with the Telit GE863-QUAD/PY module.

In this document all the basic functions of a mobile phone will be taken into account; for each

one of them a proper hardware solution will be suggested and eventually the wrong solutions and

common errors to be avoided will be evidenced. Obviously this document cannot embrace the

whole hardware solutions and products that may be designed. The wrong solutions to be avoided

shall be considered as mandatory, while the suggested hardware configurations shall not be

considered mandatory, instead the information given shall be used as a guide and a starting point

for properly developing your product with the Telit GE863-QUAD/PY module. For further

hardware details that may not be explained in this document refer to the Telit GE863-QUAD/PY

Product Description document where all the hardware information is reported.

NOTICE

The information presented in this document is believed to be accurate and reliable. However, no responsibility is

assumed by Telit Communication S.p.A. for its use, nor any infringement of patents or other rights of third parties

which may result from its use. No license is granted by implication or otherwise under any patent rights of Telit

Communication S.p.A. other than for circuitry embodied in Telit products. This document is subject to change

without notice.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

2 Hardware Commands

2.1 Turning ON the GE863-QUAD/PY

To turn on the GE863-QUAD/PY the pad ON# must be tied low for at least 1 second and then

released.

The maximum current that can be drained from the ON# pad is 0,1 mA.

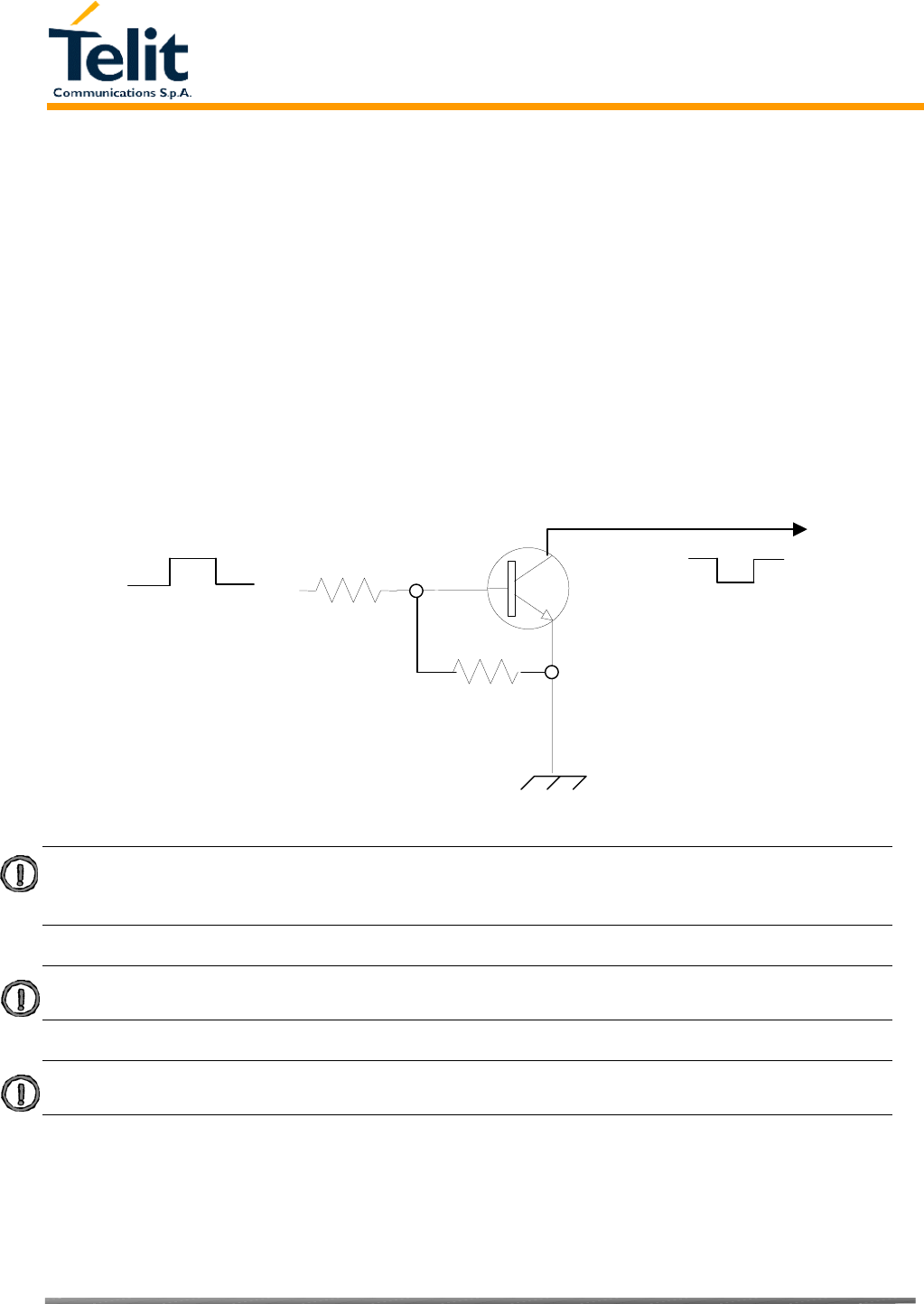

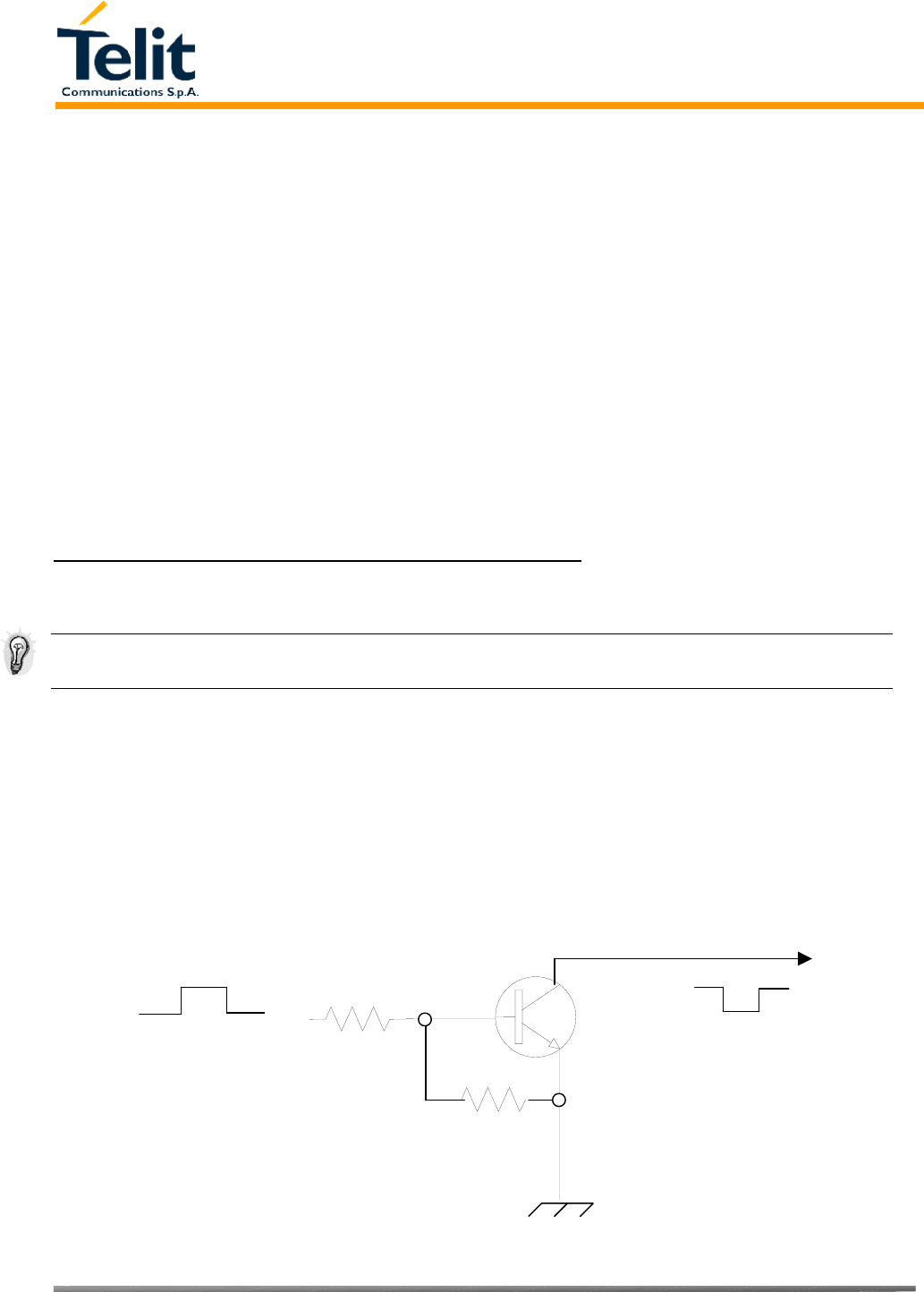

A simple circuit to do it is:

NOTE: don't use any pull up resistor on the ON# line, it is internally pulled up. Using pull up resistor

may bring to latch up problems on the GE863-QUAD/PY power regulator and improper power on/off

of the module. The line ON# must be connected only in open collector configuration.

NOTE: In this document all the lines that are inverted, hence have active low signals are labeled

with a name that ends with a "#" or with a bar over the name.

NOTE: The GE863-QUAD/PY turns fully on also by supplying power to the Charge pad (provided

there's a battery on the VBATT pads).

ON#

Power ON impulse

GND

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

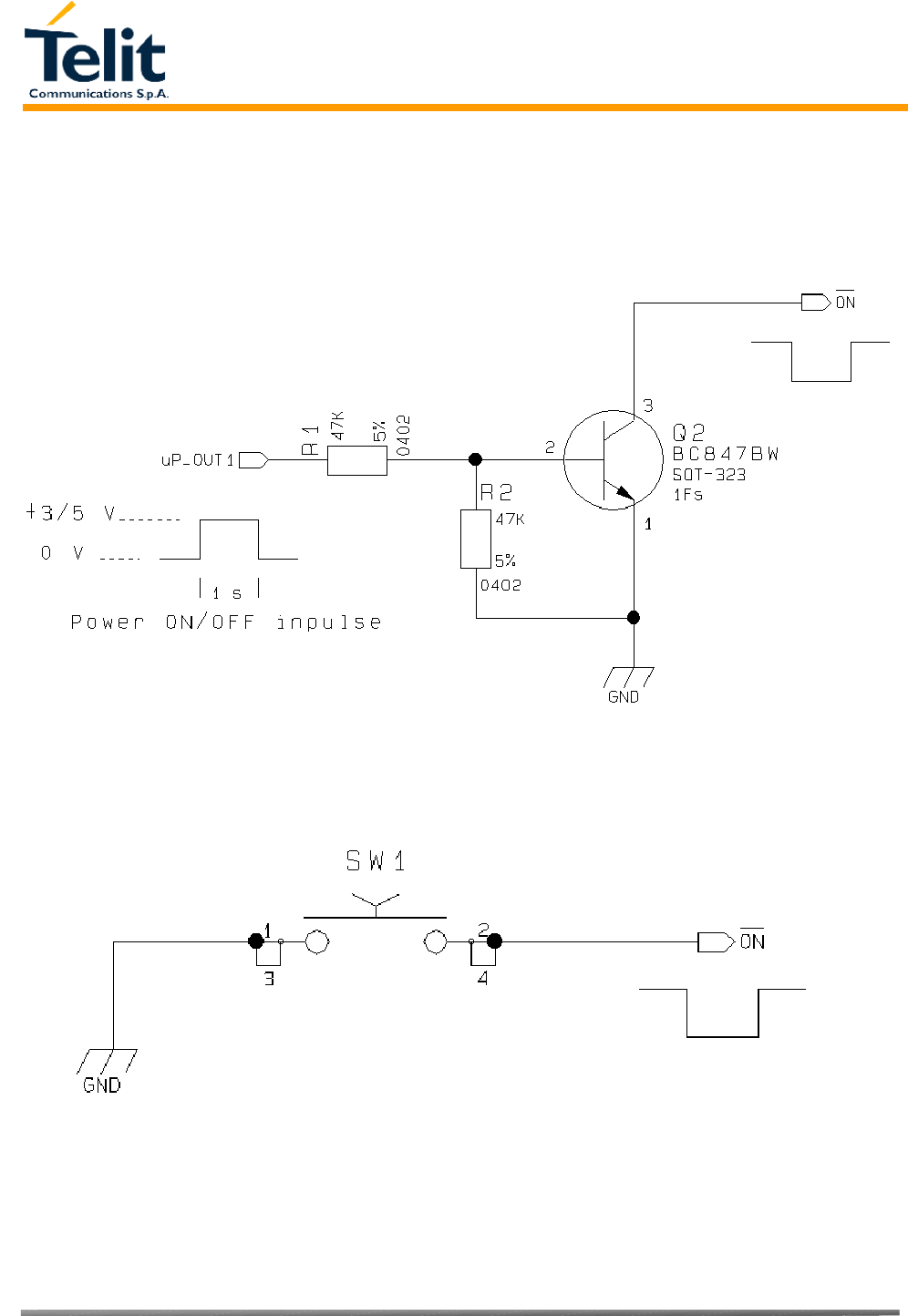

For example:

1- Let's assume you need to drive the ON# pad with a totem pole output of a +3/5 V

microcontroller (uP_OUT1):

2- Let's assume you need to drive the ON# pad directly with an ON/OFF button:

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

2.2 Turning OFF the GE863-QUAD/PY

The turning off of the device can be done in two ways:

• by software command (see GE863-QUAD/PY Software User Guide)

• by hardware shutdown

When the device is shut down by software command or by hardware shutdown, it issues to the

network a detach request that informs the network that the device will not be reachable any

more.

2.2.1 Hardware shutdown

To turn OFF the GE863-QUAD/PY the pad ON# must be tied low for at least 1 second and then

released.

The same circuitry and timing for the power on shall be used.

The device shuts down after the release of the ON# pad.

TIP: To check if the device has powered off, the hardware line PWRCTL should be monitored. When

PWRCTL goes low, the device has powered off.

2.3 Hardware Unconditional Reboot

To unconditionally Reboot the GE863-QUAD/PY, the pad RESET# must be tied low for at least

200 milliseconds and then released.

The maximum current that can be drained from the ON# pad is 0,15 mA.

A simple circuit to do it is:

RESET#

Unconditional Reboot

impulse

GND

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

NOTE: don't use any pull up resistor on the RESET# line nor any totem pole digital output. Using

pull up resistor may bring to latch up problems on the GE863-QUAD/PY power regulator and

improper functioning of the module. The line RESET# must be connected only in open collector

configuration.

TIP: The unconditional hardware reboot should be always implemented on the boards and software

should use it as an emergency exit procedure.

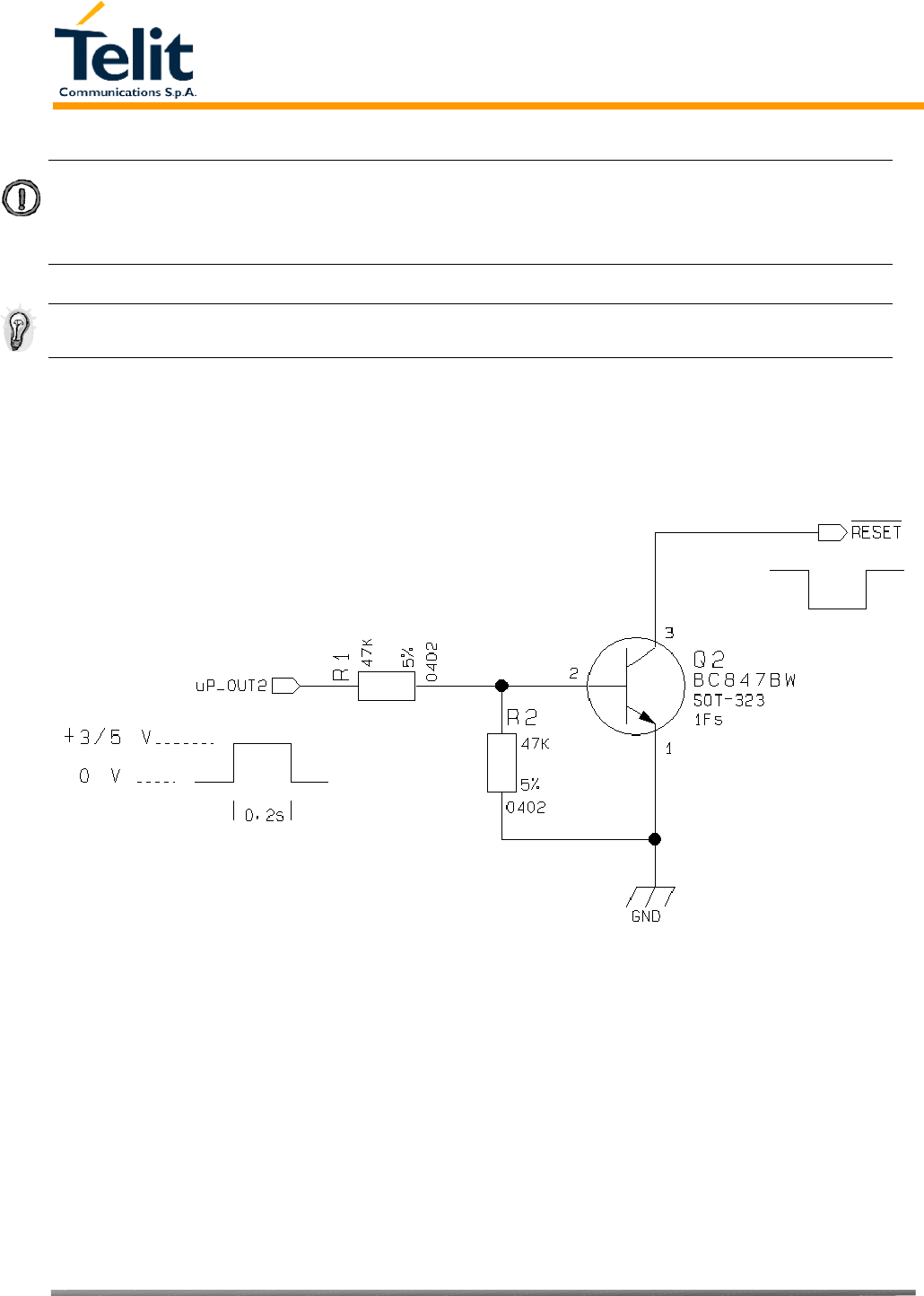

For example:

1- Let's assume you need to drive the RESET# pad with a totem pole output of a +3/5 V

microcontroller (uP_OUT2):

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

3 Power Supply

The power supply circuitry and board layout are a very important part in the full product design

and they strongly reflect on the product overall performances, hence read carefully the

requirements and the guidelines that will follow for a proper design.

3.1 Power Supply Requirements

The GE863-QUAD/PY power requirements are:

• Nominal Supply Voltage: 3.8 V

• Max Supply Voltage: 4.2 V

• Supply voltage range: 3.4 V - 4.2 V

• Max Peak current consumption (impulsive): 1.9 A

• Max Average current consumption during GPRS transmission (rms): 500 mA

• Max Average current consumption during VOICE/CSD transmission (rms): 270 mA

• Average current during Power Saving: ≈ 4 mA

• Average current during idle (Power Saving disabled) ≈ 19 mA

The GSM system is made in a way that the RF transmission is not continuous, else it is packed

into bursts at a base frequency of about 216 Hz, the relative current peaks can be as high as about

2A. Therefore the power supply has to be designed in order to withstand with these current peaks

without big voltage drops; this means that both the electrical design and the board layout must be

designed for this current flow.

If the layout of the PCB is not well designed a strong noise floor is generated on the ground and

the supply; this will reflect on all the audio paths producing an audible annoying noise at 216 Hz;

if the voltage drop during the peak current absorption is too much, then the device may even

shutdown as a consequence of the supply voltage drop.

TIP: The electrical design for the Power supply should be made ensuring it will be capable of a peak

current output of at least 2 A.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

3.2 General Design Rules

The principal guidelines for the Power Supply Design embrace three different design steps:

- the electrical design

- the thermal design.

- the PCB layout.

3.2.1 Electrical design Guidelines

The electrical design of the power supply depends strongly from the power source where this

power is drained. We will distinguish them into three categories:

• +5V input (typically PC internal regulator output)

• +12V input (typically automotive)

• Battery

3.2.1.1 + 5V input Source Power Supply Design Guidelines

• The desired output for the power supply is 3.8V, hence there's not a big difference between

the input source and the desired output and a linear regulator can be used. A switching power

supply will not be suited because of the low drop out requirements.

• When using a linear regulator, a proper heat sink shall be provided in order to dissipate the

power generated.

• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the

current absorption peaks close to the GE863-QUAD/PY, a 100μF tantalum capacitor is

usually suited.

• Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is

rated at least 10V.

• A protection diode should be inserted close to the power input, in order to save the GE863-

QUAD/PY from power polarity inversion.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

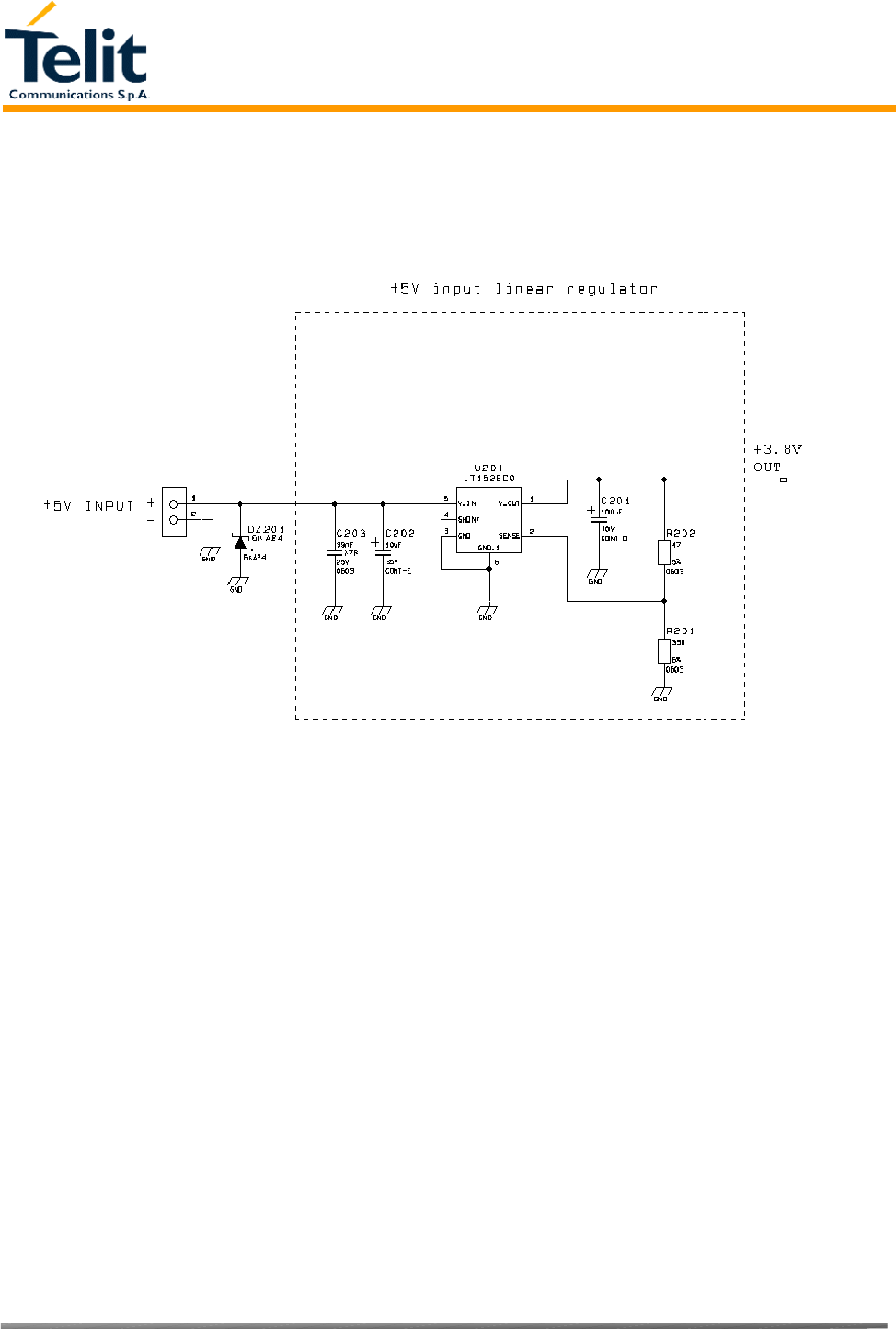

An example of linear regulator with 5V input is:

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

3.2.1.2 + 12V input Source Power Supply Design Guidelines

• The desired output for the power supply is 3.8V, hence due to the big difference between the

input source and the desired output, a linear regulator is not suited and shall not be used. A

switching power supply will be preferable because of its better efficiency especially with the

2A peak current load represented by the GE863-QUAD/PY.

• When using a switching regulator, a 500kHz or more switching frequency regulator is

preferable because of its smaller inductor size and its faster transient response. This allows

the regulator to respond quickly to the current peaks absorption.

• For car PB battery the input voltage can rise up to 15,8V and this should be kept in mind

when choosing components: all components in the power supply must withstand this voltage.

• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the

current absorption peaks, a 100μF tantalum capacitor is usually suited.

• Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is

rated at least 10V.

• For Car applications a spike protection diode should be inserted close to the power input, in

order to clean the supply from spikes.

• A protection diode should be inserted close to the power input, in order to save the GE863-

QUAD/PY from power polarity inversion. This can be the same diode as for spike

protection.

An example of switching regulator with 12V input is:

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

3.2.1.3 Battery Source Power Supply Design Guidelines

• The desired nominal output for the power supply is 3.8V and the maximum voltage allowed

is 4.2V, hence a single 3.7V Li-Ion cell battery type is suited for supplying the power to the

Telit GE863-QUAD/PY module.

The three cells Ni/Cd or Ni/MH 3,6 V Nom. battery types or 4V PB types MUST NOT BE

USED DIRECTLY since their maximum voltage can rise over the absolute maximum

voltage for the GE863-QUAD/PY and damage it.

NOTE: DON'T USE any Ni-Cd, Ni-MH, and Pb battery types directly connected with GE863-QUAD/PY.

Their use can lead to overvoltage on the GE863-QUAD/PY and damage it. USE ONLY Li-Ion battery

types.

• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the

current absorption peaks, a 100μF tantalum capacitor is usually suited.

• Make sure the low ESR capacitor (usually a tantalum one) is rated at least 10V.

• A protection diode should be inserted close to the power input, in order to save the GE863-

QUAD/PY from power polarity inversion. Otherwise the battery connector should be done in

a way to avoid polarity inversions when connecting the battery.

• The battery capacity must be at least 500mAh in order to withstand the current peaks of 2A;

the suggested capacity is from 500mAh to 1000mAh.

3.2.1.4 Battery Charge control Circuitry Design Guidelines

The charging process for Li-Ion Batteries can be divided into 4 phases:

• Qualification and trickle charging

• Fast charge 1 - constant current

• Final charge - constant voltage or pulsed charging

• Maintenance charge

The qualification process consists in a battery voltage measure, indicating roughly its charge

status. If the battery is deeply discharged, that means its voltage is lower than the trickle

charging threshold, then the charge must start slowly possibly with a current limited pre-

charging process where the current is kept very low with respect to the fast charge value: the

trickle charging.

During the trickle charging the voltage across the battery terminals rises; when it reaches the fast

charge threshold level the charging process goes into fast charge phase.

During the fast charge phase the process proceeds with a current limited charging; this current

limit depends on the required time for the complete charge and from the battery pack capacity.

During this phase the voltage across the battery terminals still raises but at a lower rate.

Once the battery voltage reaches its maximum voltage then the process goes into its third state:

Final charging. The voltage measure to change the process status into final charge is very

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

important. It must be ensured that the maximum battery voltage is never exceeded, otherwise the

battery may be damaged and even explode. Moreover for the constant voltage final chargers, the

constant voltage phase (final charge) must not start before the battery voltage has reached its

maximum value, otherwise the battery capacity will be highly reduced.

The final charge can be of two different types: constant voltage or pulsed. GE863-QUAD/PY

uses constant voltage.

The constant voltage charge proceeds with a fixed voltage regulator (very accurately set to the

maximum battery voltage) and hence the current will decrease while the battery is becoming

charged. When the charging current falls below a certain fraction of the fast charge current value,

then the battery is considered fully charged, the final charge stops and eventually starts the

maintenance.

The pulsed charge process has no voltage regulation, instead the charge continues with pulses.

Usually the pulse charge works in the following manner: the charge is stopped for some time,

let's say few hundreds of ms, then the battery voltage will be measured and when it drops below

its maximum value a fixed time length charging pulse is issued. As the battery approaches its full

charge the off time will become longer, hence the duty-cycle of the pulses will decrease. The

battery is considered fully charged when the pulse duty-cycle is less than a threshold value,

typically 10%, the pulse charge stops and eventually the maintenance starts.

The last phase is not properly a charging phase, since the battery at this point is fully charged and

the process may stop after the final charge. The maintenance charge provides an additional

charging process to compensate for the charge leak typical of a Li-Ion battery. It is done by

issuing pulses with a fixed time length, again few hundreds of ms, and a duty-cycle around 5%

or less.

This last phase is not implemented in the GE863-QUAD/PY internal charging algorithm, so that

the battery once charged is left discharging down to a certain threshold so that it is cycled from

full charge to slight discharge even if the battery charger is always inserted. This guarantees that

anyway the remaining charge in the battery is a good percentage and that the battery is not

damaged by keeping it always fully charged (Li-Ion rechargeable battery usually deteriorate

when kept fully charged).

Last but not least, in some applications it is highly desired that the charging process restarts

when the battery is discharged and its voltage drops below a certain threshold, GE863-

QUAD/PY internal charger does it.

As you can see, the charging process is not a trivial task to be done; moreover all these

operations should start only if battery temperature is inside a charging range, usually 5°C - 45°C.

The GE863-QUAD/PY measures the temperature of its internal component, in order to satisfy

this last requirement, it's not exactly the same as the battery temperature but in common

application the two temperature should not differ too much and the charging temperature range

should be guaranteed.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

NOTE: For all the threshold voltages, inside the GE863-QUAD/PY all threshold are fixed in order to

maximize Li-Ion battery performances and do not need to be changed.

NOTE: In this application the battery charger input current must be limited to less than 400mA. This

can be done by using a current limited wall adapter as the power source.

3.2.2 Thermal Design Guidelines

The thermal design for the power supply heat sink should be done with the following

specifications:

• Average current consumption during transmission @PWR level max (rms): 500mA

• Average current consumption during transmission @ PWR level min (rms): 100mA

• Average current during Power Saving: 4mA

• Average current during idle (Power Saving disabled) 19mA

• Average GPS current during Power Saving: 1mA

• Average GPS current during Tracking (Power Saving disabled) 60mA

NOTE: The average consumption during transmissions depends on the power level at which the

device is requested to transmit by the network. The average current consumption hence varies

significantly.

TIP: The thermal design for the Power supply should be made keeping an average consumption at

the max transmitting level during calls of 500mA rms plus 60mA rms for GPS in tracking mode.

Considering the very low current during idle, especially if Power Saving function is enabled, it is

possible to consider from the thermal point of view that the device absorbs current significantly

only during calls.

If we assume that the device stays into transmission for short periods of time (let's say few

minutes) and then remains for a quite long time in idle (let's say one hour), then the power supply

has always the time to cool down between the calls and the heat sink could be smaller than the

calculated one for 500mA maximum RMS current, or even could be the simple chip package (no

heat sink).

Moreover in the average network conditions the device is requested to transmit at a lower power

level than the maximum and hence the current consumption will be less than the 500mA, being

usually around 150mA.

For these reasons the thermal design is rarely a concern and the simple ground plane where the

power supply chip is placed can be enough to ensure a good thermal condition and avoid

overheating.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

For the heat generated by the GE863-QUAD/PY, you can consider it to be during transmission

1W max during CSD/VOICE calls and 2W max during class10 GPRS upload.

This generated heat will be mostly conducted to the ground plane under the GE863-QUAD/PY,

you must ensure that your application can dissipate it.

3.2.3 Power Supply PCB layout Guidelines

As seen on the electrical design guidelines the power supply shall have a low ESR capacitor on

the output to cut the current peaks and a protection diode on the input to protect the supply from

spikes and polarity inversion. The placement of these components is crucial for the correct

working of the circuitry. A misplaced component can be useless or can even decrease the power

supply performances.

• The Bypass low ESR capacitor must be placed close to the Telit GE863-QUAD/PY power

input pads or in the case the power supply is a switching type it can be placed close to the

inductor to cut the ripple provided the PCB trace from the capacitor to the GE863-QUAD/PY

is wide enough to ensure a dropless connection even during the 2A current peaks.

• The protection diode must be placed close to the input connector where the power source is

drained.

• The PCB traces from the input connector to the power regulator IC must be wide enough to

ensure no voltage drops occur when the 2A current peaks are absorbed. Note that this is not

made in order to save power loss but especially to avoid the voltage drops on the power line

at the current peaks frequency of 216 Hz that will reflect on all the components connected to

that supply, introducing the noise floor at the burst base frequency. For this reason while a

voltage drop of 300-400 mV may be acceptable from the power loss point of view, the same

voltage drop may not be acceptable from the noise point of view. If your application doesn't

have audio interface but only uses the data feature of the Telit GE863-QUAD/PY, then this

noise is not so disturbing and power supply layout design can be more forgiving.

• The PCB traces to the GE863-QUAD/PY and the Bypass capacitor must be wide enough to

ensure no significant voltage drops occur when the 2A current peaks are absorbed. This is for

the same reason as previous point. Try to keep this trace as short as possible.

• The PCB traces connecting the Switching output to the inductor and the switching diode

must be kept as short as possible by placing the inductor and the diode very close to the

power switching IC (only for switching power supply). This is done in order to reduce the

radiated field (noise) at the switching frequency (100-500 kHz usually).

• The use of a good common ground plane is suggested.

• The placement of the power supply on the board should be done in such a way to guarantee

that the high current return paths in the ground plane are not overlapped to any noise

sensitive circuitry as the microphone amplifier/buffer or earphone amplifier.

• The power supply input cables should be kept separate from noise sensitive lines such as

microphone/earphone cables.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

4 Antenna

The antenna connection and board layout design are the most important part in the full product

design and they strongly reflect on the product overall performances, hence read carefully and

follow the requirements and the guidelines for a proper design.

4.1 GSM Antenna Requirements

As suggested on the Product Description the antenna and antenna line on PCB for a Telit

GE863-QUAD/PY device shall fulfil the following requirements:

ANTENNA REQUIREMENTS

Frequency range Standard Dual Band GSM/DCS frequency

range or

Standard Quad Band GSM/DCS/PCS

frequency range if used for all four bands

Bandwidth 80 MHz in GSM & 170 MHz in DCS & 140

MHz PCS band

Gain Gain < 3dBi

Impedance 50 ohm

Input power > 2 W peak power

VSWR absolute

max

<= 10:1

VSWR

recommended

<= 2:1

When using the Telit GE863-QUAD/PY, since there's no antenna connector on the module, the

antenna must be connected to the GE863-QUAD/PY through the PCB with the antenna pad.

In the case that the antenna is not directly developed on the same PCB, hence directly connected

at the antenna pad of the GE863-QUAD/PY, then a PCB line is needed in order to connect with

it or with its connector.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

This line of transmission shall fulfil the following requirements:

ANTENNA LINE ON PCB REQUIREMENTS

Impedance 50 ohm

Max Attenuation 0,3 dB

No coupling with other signals allowed

Cold End (Ground Plane) of antenna shall be equipotential to

the GE863-QUAD/PY ground pins

Furthermore if the device is developed for the US market and/or Canada market, it shall comply

to the FCC and/or IC approval requirements:

This device is to be used only for mobile and fixed application. The antenna(s) used for this

transmitter must be installed to provide a separation distance of at least 20 cm from all persons

and must not be co-located or operating in conjunction with any other antenna or transmitter.

End-Users must be provided with transmitter operation conditions for satisfying RF exposure

compliance. OEM integrators must ensure that the end user has no manual instructions to

remove or install the GE863-QUAD/PY module. Antennas used for this OEM module must not

exceed 3dBi gain for mobile and fixed operating configurations.

4.2 GSM Antenna - PCB line Guidelines

• Ensure that the antenna line impedance is 50 ohm;

• Keep the antenna line on the PCB as short as possible, since the antenna line loss shall be

less than 0,3 dB;

• Antenna line must have uniform characteristics, constant cross section, avoid meanders and

abrupt curves;

• Keep, if possible, one layer of the PCB used only for the Ground plane;

• Surround (on the sides, over and under) the antenna line on PCB with Ground, avoid having

other signal tracks facing directly the antenna line track;

• The ground around the antenna line on PCB has to be strictly connected to the Ground Plane

by placing vias once per 2mm at least;

• Place EM noisy devices as far as possible from GE863-QUAD/PY antenna line;

• Keep the antenna line far away from the GE863-QUAD/PY power supply lines;

• If you have EM noisy devices around the PCB hosting the GE863-QUAD/PY, such as fast

switching ICs, take care of the shielding of the antenna line by burying it inside the layers of

PCB and surround it with Ground planes, or shield it with a metal frame cover.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

• If you don't have EM noisy devices around the PCB of GE863-QUAD/PY, by using a strip-

line on the superficial copper layer for the antenna line, the line attenuation will be lower

than a buried one;

4.3 GSM Antenna - installation Guidelines

• Install the antenna in a place covered by the GSM signal.

• The Antenna must be installed to provide a separation distance of at least 20 cm from all

persons and must not be co-located or operating in conjunction with any other antenna or

transmitter;

• Antenna shall not be installed inside metal cases

• Antenna shall be installed also according Antenna manufacturer instructions.

5 Serial Ports

The serial port on the Telit GE863-QUAD/PY is the core of the interface between the module

and OEM hardware.

2 serial ports are available on the module:

• MODEM SERIAL PORT

• MODEM SERIAL PORT 2 (DEBUG)

• GPS SERIAL PORT A (SIRF BINARY)

• GPS SERIAL PORT B (NMEA)

5.1 MODEM SERIAL PORT

Several configurations can be designed for the serial port on the OEM hardware, but the most

common are:

- RS232 PC com port

- microcontroller UART @ 2.8V - 3V (Universal Asynchronous Receive Transmit)

- microcontroller UART@ 5V or other voltages different from 2.8V

Depending from the type of serial port on the OEM hardware a level translator circuit may be

needed to make the system work. The only configuration that doesn't need a level translation is

the 2.8V UART.

The serial port on the GE863-QUAD/PY is a +2.8V UART with all the 7 RS232 signals. It

differs from the PC-RS232 in the signal polarity (RS232 is reversed) and levels. The levels for

the GE863-QUAD/PY UART are the CMOS levels:

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

Absolute Maximum Ratings -Not Functional

Parameter Min Max

Input level on any

digital pad when on

-0.3V +3.75V

Input voltage on

analog pads when on

-0.3V +3.0 V

Operating Range - Interface levels (2.8V CMOS)

Level Min Max

Input high level VIH 2.1V 3.3V

Input low level VIL 0V 0.5V

Output high level VOH 2.2V 3.0V

Output low level VOL 0V 0.35V

The signals of the GE863-QUAD/PY serial port are:

RS232

Number

Signal GE863-

QUAD/PY

Pad Number

Name Usage

1 DCD -

dcd_uart

42 Data Carrier Detect Output from the GE863-QUAD/PY that

indicates the carrier presence

2 RXD -

tx_uart

38 Transmit line *see Note Output transmit line of GE863-QUAD/PY

UART

3 TXD -

rx_uart

37 Receive line *see Note Input receive of the GE863-QUAD/PY

UART

4 DTR -

dtr_uart

39 Data Terminal Ready Input to the GE863-QUAD/PY that

controls the DTE READY condition

5 GND 8-17-28-36-

45-48-50-56

Ground ground

6 DSR -

dsr_uart

43 Data Set Ready Output from the GE863-QUAD/PY that

indicates the module is ready

7 RTS -

rts_uart

40 Request to Send Input to the GE863-QUAD/PY that

controls the Hardware flow control

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

8 CTS -

cts_uart

41 Clear to Send Output from the GE863-QUAD/PY that

controls the Hardware flow control

9 RI -

ri_uart

44 Ring Indicator Output from the GE863-QUAD/PY that

indicates the incoming call condition

NOTE: According to V.24, RX/TX signal names are referred to the application side, therefore on the

GE863-QUAD/PY side these signal are on the opposite direction: TXD on the application side will be

connected to the receive line (here named TXD/ rx_uart ) of the GE863-QUAD/PY serial port and

viceversa for RX.

TIP: For a minimum implementation, only the TXD and RXD lines can be connected, the other lines

can be left open provided a software flow control is implemented.

The signals in the UART connector on the EVK are:

DCD RXD

TXD DTR

GND DSR

RTS CTS

RI GND

5.2 MODEM SERIAL PORT 2 (DEBUG)

It is available on the following pins:

PIN # NAME DESCRIPTION TYPE

25 TX_TRACE TX Data CMOS 2.8V

26 RX_TRACE RX Data CMOS 2.8V

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

5.3 RS232 level translation

In order to interface the Telit GE863-QUAD/PY with a PC com port or a RS232 (EIA/TIA-232)

application a level translator is required. This level translator must

- invert the electrical signal in both directions

- change the level from 0/3V to +15/-15V

Actually, the RS232 UART 16450, 16550, 16650 & 16750 chipsets accept signals with lower

levels on the RS232 side (EIA/TIA-562) , allowing for a lower voltage-multiplying ratio on the

level translator. Note that the negative signal voltage must be less than 0V and hence some sort

of level translation is always required.

The simplest way to translate the levels and invert the signal is by using a single chip level

translator. There are a multitude of them, differing in the number of driver and receiver and in

the levels (be sure to get a true RS232 level translator not a RS485 or other standards).

By convention the driver is the level translator from the 0-3V UART level to the RS232 level,

while the receiver is the translator from RS232 level to 0-3V UART.

In order to translate the whole set of control lines of the UART you will need:

- 5 driver

- 3 receiver

NOTE: The digital input lines working at 2.8VCMOS have an absolute maximum input voltage of

3,75V; therefore the level translator IC shall not be powered by the +3.8V supply of the module.

Instead it shall be powered from a +2.8V / +3.0V (dedicated) power supply.

This is because in this way the level translator IC outputs on the module side (i.e. GE863-QUAD/PY

inputs) will work at +3.8V interface levels, stressing the module inputs at its maximum input

voltage.

This can be acceptable for evaluation purposes, but not on production devices.

NOTE: In order to be able to do in circuit reprogramming of the GE863-QUAD/PY firmware, the

serial port on the Telit GE863-QUAD/PY shall be available for translation into RS232 and either it's

controlling device shall be placed into tristate, disconnected or as a gateway for the serial data

when module reprogramming occurs.

Only RXD, TXD, GND and the On/off module turn on pad are required to the reprogramming of the

module, the other lines are unused.

All applicator shall include in their design such a way of reprogramming the GE863-QUAD/PY.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

An example of level translation circuitry of this kind is:

The RS232 serial port lines are usually connected to a DB9 connector with the following layout:

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

5.4 5V UART level translation

If the OEM application uses a microcontroller with a serial port (UART) that works at a voltage

different from 2.8 - 3V, then a circuitry has to be provided to adapt the different levels of the two

set of signals. As for the RS232 translation there are a multitude of single chip translators, but

since the translation requires very few components, then also a discrete design can be suited. For

example a possible inexpensive translator circuit for a 5V driver can be:

and for a 5V receiver:

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

NOTE: The UART input line TXD (rx_uart) of the GE863-QUAD/PY is NOT internally pulled up with a

resistor, so there may be the need to place an external 47KΩ pull-up resistor, either the DTR

(dtr_uart) and RTS (rts_uart) input lines are not pulled up internally, so an external pull-up resistor

of 47KΩ may be required.

A power source of the internal interface voltage corresponding to the 2.8VCMOS high level is

available at the VAUX pad, whose absolute maximum output current is 50mA.

If VAUX is also used to supply a Camera no additional devices could be connected.

Pull-up resistors can be connected to the VAUX pad provided that the pulled-up lines are

GE863-QUAD/PY input lines connected to open collector outputs in order to avoid latch-up

problems on the GE863-QUAD/PY.

Care must be taken to avoid latch-up on the GE863-QUAD/PY and the use of this output line to

power electronic devices shall be considered with care, especially for devices that generate

spikes and noise such as level translators, digital ICs or microcontroller, failure in any of these

condition can severely compromise the GE863-QUAD/PY functionality.

NOTE: The input lines working at 2.8VCMOS can be pulled-up with 47KΩ resistors that can be

connected directly to the VAUX line.

NO disturbing devices should be powered with the VAUX line; otherwise the module functionality

may be compromised.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

6 Microphone

The microphone circuitry is the more noise sensitive and its design and layout must be done with

particular care.

6.1 Microphone line Characteristic and requirements

The Telit GE863-QUAD/PY provides two audio paths for the microphone and the earpiece: the

internal and the external audio paths. Only one of the two paths can be active at a time and it is

selectable by hardware line AXE or by AT command. The audio characteristics of the two paths

are slightly different and this should be kept in mind when designing. The internal audio path

should be used for handset function, while the external audio path is suited for hands free

function (car kit).

Both microphone paths from the Telit GE863-QUAD/PY are balanced and the OEM circuitry

should be designed balanced to reduce the common mode noise typically generated on the

ground plane, however for particular OEM application needs also an unbalanced circuitry can be

used.

The microphone input lines characteristics are:

internal microphone path

• line coupling: AC ( 100nF cond.)

• line type: balanced

• differential input resistance: 25kΩ

• line nominal sensitivity: 50 mVrms

• max input voltage: 360 mVrms

• microphone nominal sensitivity/analog gain suggested: -45 dBVrms/Pa / +24dB

• echo canceller type: handset

external microphone path

• line coupling: AC ( 100nF cond.)

• line type: balanced

• differential input resistance: 25kΩ

• line nominal sensitivity: 3 mVrms

• max input voltage: 22 mVrms

• microphone nominal sensitivity/analog gain suggested: -45 dBVrms/Pa / +10dB

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

• echo canceller type: car kit hands free

TIP: Due to the difference in the echo canceller type, the internal audio path is suited for handset

applications while the external audio path is suited for car kit hands free. The headset applications

should be made by using the external audio path but DISABLING the echo canceller by software AT

command. If the echo canceller is left active with the headset, then some echo might be introduced

by the echo cancel algorithm.

The nominal sensitivity of the line indicates the voltage level on the GE863-QUAD/PY pads that

should be present during "normal spoken" conditions: for a handset a voice signal coming from

the mouth of the talker at 7 cm of distance from the microphone, producing an acoustic pressure

of -4,7 dBPa (@ 1 kHz) on the microphone membrane.

For example:

With the internal mic. having the suggested nominal sensitivity -45dBVrms/Pa

at the "normal spoken" conditions: -4.7dB Pa on the microphone membrane.

At that acoustic pressure the voltage output from the microphone is:

Voltage Output (dB) = ( -45) + (-4.7) = -49.7 dBVrms

corresponding to:

Voltage Output = 10 ( -49.7 / 20 ) = 3.3* 10 -3 Vrms

by having the microphone gain set to +24 dB (corresponding to 15.8 times) the signal in the

nominal conditions on the input mic. pads of the GE863-QUAD/PY will be:

Voltage @ GE863-QUAD/PY_mic = 3.3 * 10 -3 * 15.8 = 51 mVrms

During the spoken conditions the signal varies according to the volume of the voice of the talker,

usually a rough thumb rule for the dynamic range may be considered:

* +20dB (10 times) at maximum voice level (talker screaming)

* -50 dB (1/300 times) at minimum voice level (talker whispering).

For the handsfree/car kit microphone the voice attenuation due to the distance between the

microphone and the talker must be taken into account when designing the microphone amplifier.

For a car cabin usually the distance between the talker and the mic. is about 50cm; in these

conditions the attenuation can be considered as a thumb rule around 20dB.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

Another thing to consider, especially for cabin car use, is the fact that the external mic. will pick

up also ambient noise; to overcome this problem it is preferable to set the gain of the microphone

10dB lower with respect to the calculated value for a nominal sensitivity. The corresponding

reduction in signal level will be compensated by an increased voice volume of the talker which

will speak louder because of the ambient noise.

For the headset we shall distinguish two different types: the headsets having the microphone

sustained close to the mouth and the headsets having the microphone on the earpiece cable.

The same considerations for the additional voice attenuation due to the distance from the

microphone and the noise pick up can be made for the headset having the microphone on the

earpiece cable, while the other kind of headset shall be threaten as an handset.

For example:

With the external mic. having the suggested nominal sensitivity -45dBVrms/Pa

at the "normal spoken" conditions: -4.7dB Pa at 7 cm from the mouth of the talker and with a

further attenuation of 20dB due to the distance from the microphone (about 50 cm).

At that acoustic pressure the voltage output from the microphone is:

Voltage Output (dB) = ( -45) + (-4.7) - 20 = -69.7 dBVrms

corresponding to:

Voltage Output = 10 ( -69.7 / 20 ) = 3.3* 10 -4 Vrms

by having the microphone gain set to +10 dB (corresponding to 3 times) the signal in the

nominal conditions on the input external mic. pads of the GE863-QUAD/PY will be:

Voltage @ GE863-QUAD/PY__extmic = 3.3 * 10 -4 * 3 = 1 mVrms

Hence in these conditions the signal level on the input pads of the external mic. of the GE863-

QUAD/PY is 10 dB (3 times) lower than the nominal, as suggested.

The microphones usually need a biasing network that provides the necessary DC current to the

mic., this will be explained further on.

In the EVK2 all the microphone input jacks have the hot wire connected to the central pole.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

6.2 General Design Rules

There are several configurations for the audio path, but the most effective difference is between

balanced and unbalanced microphone.

It is highly recommended to keep the whole microphone path balanced even if this means having

2 wires connecting the microphone instead of one needed (plus ground) in the unbalanced case.

The balanced circuitry is more suited because of its good common mode noise rejection,

reducing the 216 Hz burst noise produced during the GSM transmissions.

• Where possible use balanced microphone circuitry

• Keep the microphone traces on the PCB and wires as short as possible.

• If your application requires an unbalanced microphone, then keep the lines on the PCB

balanced and "unbalance" the path close to the microphone wire connector if possible.

• For the microphone biasing voltage use a dedicated voltage regulator and a capacitor

multiply circuit.

• Make sure that the microphone traces in the PCB don't cross or run parallel to noisy traces

(especially the power line)

• If possible put all around to the microphone lines a ground trace connected to the ground

plane by several vias. This is done in order to simulate a shielded trace on the PCB.

• The biasing circuit and eventually the buffer can be designed in the same manner for the

internal and external microphones.

6.3 Microphone Biasing

The electret microphones usually need a biasing voltage to work properly. Refer to your

microphone provider for the characteristics required.

NOTE: The microphones have a hot wire were the positive biasing must be connected, usually it is

indicated by a + sign or a red point. If the polarity of the bias is reversed, then the microphone will

not work properly. For this reason be sure to respect the mic. biasing polarity.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

6.3.1 Balanced Microphone biasing

The balanced microphone bias voltage should be obtained from a dedicated voltage regulator, in

order to eliminate the noise present on the power lines. This regulator can be the same for all the

audio paths. The microphone should be supplied from a capacitor multiply circuit.

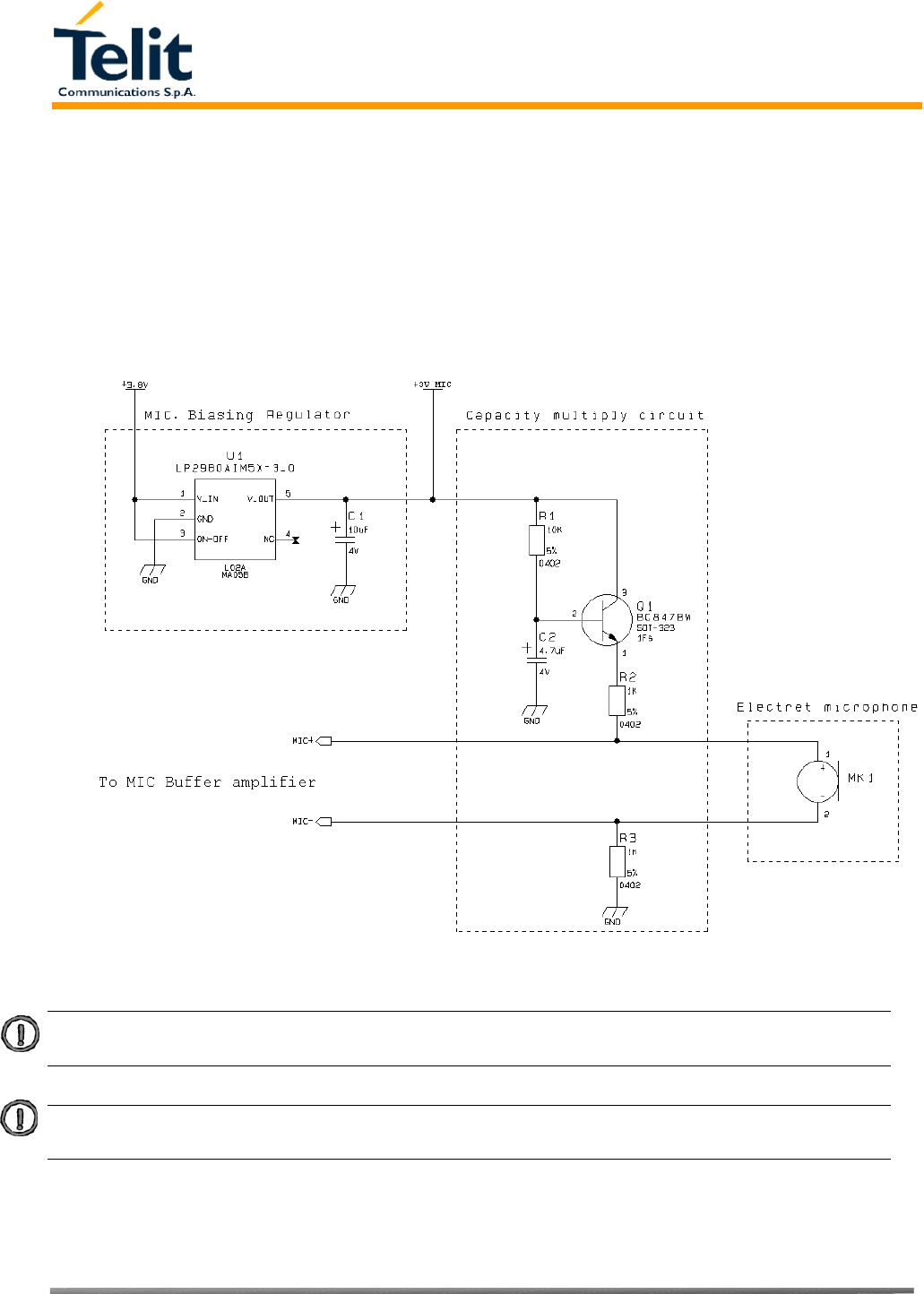

For example a circuit for the balanced microphone biasing can be:

NOTE: In the balanced application the resistors R2 and R3 must have the same value to keep the

circuit balanced.

NOTE: The cable to the microphone should not be shielded, instead a twisted pair cable shall be

used.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

NOTE: The microphone sensitivity changes with the value of R2 and R3. Usually the microphones

are characterized with 2kΩ biasing resistance, so try to keep the sum of R2 and R3 around 2kΩ.

Refer to your microphone manufacturer for the mic. characteristics.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

6.3.2 Unbalanced Microphone biasing

The unbalanced microphone biasing voltage should be obtained from a dedicated voltage

regulator, in order to eliminate the noise present on the power lines. This regulator can be the

same for all the audio paths. The microphone should be supplied from a capacitor multiply

circuit.

For example a circuit for the unbalanced microphone biasing can be:

NOTE: In the unbalanced application the capacitor C3 shall be > 200nF otherwise the frequency

response will be cut at low band frequencies (down to 300Hz). This capacitor can be placed close to

the MIC- pad (EXT_MIC- or INT_MIC- depending on the audio path chosen) or if possible it should

be placed close to the shielded cable connector. If the ground return path is well designed, then it

is possible to eliminate the C3 capacitor, provided the buffer is close to the mic. input.

NOTE: The cable to the microphone should be shielded.

NOTE: The microphone sensitivity changes with the value of R2. Usually the microphones are

characterized with 2kΩ biasing resistance, so try to keep the value of R2 around 2kΩ. For mic.

characteristics refer to the manufacturer.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

6.4 Microphone buffering

As seen previously, a microphone shall be connected to the input pads of the GE863-QUAD/PY

through a buffer amplifier that boosts the signal level to the required value.

Again the buffered microphone circuitry can be balanced or unbalanced. Where possible it is

always preferable a balanced mic. solution. The buffering circuit shall be placed close to the

microphone or close to the microphone wire connector.

6.4.1 Buffered Balanced Mic.

A sample circuit can be:

This circuit has a gain of 15 times (+24 dB), and is therefore suited for the internal mic. input,

having a microphone with a sensitivity close to the suggested one (-45 dBVrms/Pa), if the used

microphone has a different sensitivity, or if the buffer is connected to the external mic. input,

then a gain adjustment shall be done by changing resistors R604-R605 and R606-R607 and as a

consequence the capacitors C636 and C637 to maintain the bandwidth 150-8000 (-3dB).

The buffer gain is given by the formula:

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

607

606

605

604

Gain ==

The C636 and C637 capacitors are placed in order to cut off the gain at higher frequencies than

the transmitted GSM band, the cutoff frequency (-3dB) should be 8 kHz in order to have -1dB at

4kHz.

The cutoff frequency is given by the formula:

636*606*2

637*604*2

.CRCR

freq

ππ

== [Hz]

For example:

- Let's assume you have a microphone with these characteristics:

- sensitivity -45 dBVrms/Pa

and you want to use it in the internal mic. audio path.

With the mic. having nominal sensitivity -45dBVrms/Pa at the "normal spoken" conditions: -

4.7dB Pa at 7 cm from the mouth of the talker.

At that acoustic pressure the voltage output from the microphone is:

Mic Voltage Output (dB) = ( -45) + (-4.7) = -49.7 dBVrms

corresponding to:

Mic_Voltage_Output = 10 ( -49.7 / 20 ) = 3.3* 10 -3 Vrms

in order to have a signal of 50 mVrms on the GE863-QUAD/PY internal mic. inputs then the

buffer must have a gain of:

Voltage @ GE863-QUAD/PY_intmic/ Mic_Voltage_Output = (50 * 10 -3 )/( 3.3 * 10 -3 ) = 15

Hence in these conditions the signal level on the input pads of the internal mic. of the GE863-

QUAD/PY is 24 dB (15 times) higher than the microphone output and therefore the buffer has to

gain 24 dB.

The corresponding values for the resistors on the buffer could be ( if we keep the input resistance

10kΩ )

R604 = R606 = gain* R603= gain* R605 = 15* 10 = 150 kΩ

The commercial values of 150kΩ & 10kΩ are then chosen.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

As a consequence the values of the capacitors C636 and C637 shall be:

C636=C637= 1/ (2π*8000*R606)= 132 *10 -12 F

A commercial value of 100pF is then chosen.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

6.4.2 Buffered Unbalanced (Single Ended) Mic.

A sample schematic for a buffered unbalanced (single ended) microphone can be:

The schematic does not include the required mic. biasing circuitry. For the biasing the same

circuit as seen before can be used; to be noticed that the capacitor C3 on the unbalanced biasing

circuit is not anymore needed if this Buffered design is used.

Two different configurations are used, one inverting and the other not inverting, hence an

additional +6dB (2 times) gain is achieved by doubling the mic. signal path.

The gain of the not inverting buffer is given by the formula:

720

719

Gain +=

and hence it cannot be less than 1. In the example shown the gain of the not inverting buffer is

1,5 (4dB).

While the gain of the inverting buffer is given by the formula:

708

711

Gain =

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

As shown in the balanced buffered mic. the gain adjustments can be done by changing R719 -

R720 and R708 - R711 and as a consequence the capacitors C726 and C727.

The bandwidth (-3dB) is given by the approximated formula (considering C725 >> C726) :

727*711*2

726*719*2

.CRCR

freq

ππ

== [Hz]

The buffer bandwidth at -3dB shall be 8kHz.

Note that the biasing of the operational amplifier is given for the inverting amplifier by the series

divider R714-R715. The 100nF capacitor C719 is needed to filter the noise that could be coupled

to that divider. For the not inverting operational the biasing is given by a different divider R715-

R717 with the capacitor C720 and through a series resistor R718 of 470KΩ.

For example:

- Let's assume you have a microphone with these characteristics:

- sensitivity -45 dBVrms/Pa

and you want to use it in the external mic. audio path.

With the mic. having nominal sensitivity -45dBVrms/Pa at the "normal spoken" conditions: -

4.7dB Pa but at 50 cm from the mouth of the talker an additional 20 dB loss shall be considered.

At that acoustic pressure the voltage output from the microphone is:

Mic Voltage Output (dB) = ( -45) + (-4.7) -20 = -69.7 dBVrms

corresponding to:

Mic_Voltage_Output = 10 ( -69.7 / 20 ) = 3.3* 10 -4 Vrms

in order to have a signal of 1 mVrms (10 dB lower than the nominal input for the GE863-

QUAD/PY external mic. path) on the GE863-QUAD/PY internal mic. inputs then the buffer must

have a gain of:

Voltage @ GE863-QUAD/PY_intmic/ Mic_Voltage_Output = (1 * 10 -3 )/( 3.3 * 10 -4 ) = 3

Hence in these conditions the signal level on the input pads of the internal mic. of the GE863-

QUAD/PY is 10 dB (3 times) higher than the microphone output and therefore the buffer has to

gain 10 dB.

To calculate the resistor values it must be kept in mind that balancing the line will double the

signal and hence already add +6 dB, therefore the buffer must gain only 1.5 times.

The corresponding values for the resistors on the buffer could be ( if we keep the input resistance

10kΩ )

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

R711 = gain* R708= 1.5* 10 = 15 kΩ

R719 = (gain -1) * R720 = (1.5 -1) * 10 = 5 kΩ

The commercial values of 15kΩ & 5.6kΩ are then chosen.

As a consequence the values of the capacitors C726 and C727 shall be:

C726= 1/ (2π*8000*R719)= 3.5 *10 -9 F

C727= 1/ (2π*8000*R711)= 1,2 *10 -9 F

The commercial values of 3.3nF and 1nF are then chosen.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

7 Speaker

7.1 Speaker lines characteristics and requirements

The Telit GE863-QUAD/PY provides two audio paths for both the microphone and the earpiece:

the internal and the external audio paths. Only one of the two paths can be active at a time and it

is selectable by hardware line AXE or by AT command. The audio characteristics of the two

paths are slightly different and this should be kept in mind when designing your application. The

internal audio path should be used for handset function, while the external audio path is suited

for hands free function (car kit).

Both speaker outputs from the Telit GE863-QUAD/PY are bridged type and the OEM circuitry

shall be designed bridged to reduce the common mode noise typically generated on the ground

plane and to get the maximum power output from the device; however for particular OEM

application needs also a single ended circuitry can be designed.

The GE863-QUAD/PY speaker output lines characteristics are:

internal speaker path ( EAR_MT+ , EAR_MT- )

• line coupling: DC

• line type: bridged

• speaker impedance (operating conditions): ≥ 16 Ω ± 5% @ 1kHz

• minimum load impedance: 15 Ω

• signal bandwidth: 150 - 8000 Hz @ -3 dB

• maximum differential output: 850 mVrms

• rated output power: 10 mW

• maximum power output: 30 mW

• volume level steps (SW): - 2 dB

• number of volume steps(SW): 10

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

external speaker path ( EAR_HF+ , EAR_HF- )

• line coupling: DC

• line type: bridged

• speaker impedance (operating conditions): ≥ 16 Ω ± 15% @ 1kHz

• minimum load impedance: 15 Ω

• signal bandwidth: 150 - 8000 Hz @ -3 dB

• maximum differential output: 425 mVrms

• rated output power: 2.5 mW

• maximum power output: 7.5 mW

• volume level steps (SW): - 2 dB

• number of volume steps (SW): 10

The EVK2 v.1.2 audio output characteristics are:

internal/external ear single ended

• line coupling: AC

• line type: single ended referred to GND

• speaker impedance (operating conditions): ≥ 8 Ω

• minimum load impedance: 8 Ω

• signal bandwidth: 150 - 8000 Hz @ -3 dB

• maximum output: 800 mVrms

• maximum power output: 80 mW @ 8 Ω

• THD+N 1% @ 80mW

internal/external ear bridged

• line coupling: DC

• line type: bridged not referred to GND

• speaker impedance (operating conditions): ≥ 8 Ω

• minimum load impedance: 8 Ω

• signal bandwidth: 150 - 8000 Hz @ -3 dB

• maximum output: 1.6 Vrms

• maximum power output: 320 mW @ 8 Ω

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

• THD+N 1% @ 330mW

high power external ear

• line coupling: DC

• line type: bridged not referred to GND

• speaker impedance (operating conditions): ≥ 4 Ω

• minimum load impedance: 4 Ω

• signal bandwidth: 150 - 8000 Hz @ -3 dB

• maximum power output: 6 W

• THD+N 10% @ 6 W

7.2 General Design rules

There are several configurations for the audio output path, but the various design requirements

can be grouped into three different categories:

• handset earphone (low power, typically a handset)

• hands free earphone (low power, typically a headset)

• car kit speakerphone (high power, typically a speaker)

The three groups have different power requirements, usually the first two applications need only

few mW of power, which can be directly drained from the GE863-QUAD/PY pads, provided a

suited speaker is used. This direct connect design is the cheaper and simpler solution and will be

suited for the most of the earphone design requirements. There's no need to decouple the output

ear lines if a suited earpiece is connected. For the last group, the speakerphone, a power

amplifier is required to raise the output power up to 5-10W required in a car cabin application.

All the designs shall comply with the following guidelines:

• Where possible use a bridged earphone circuitry, to achieve the maximum power output from

the device.

• Keep the earphone traces on the PCB and wires as short as possible.

• If your application requires a single ended earpiece and you want a direct connection, then

leave one of the two output lines open and use only the other referred to ground. Remember

that in this case the power output is 4 times lower than the bridged circuit and may not be

enough to ensure a good voice volume.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

• Make sure that the earphone traces in the PCB don't cross or run parallel to noisy traces

(especially the power line)

• The cable to the speaker shall be a twisted pair with both the lines floating for the bridged

output type, shielded with the shield to ground for the single ended output type.

7.2.1 Noise Filtering

The I/O of the PCB should have a noise filter close to the connector, to filter the high frequency

GSM noise. The filter can be a Π of 2 capacitor and a inductance, with the one capacitor of 39pF

- 0603 case , and the other capacitor of 1nF - 0603; the inductance shall have a value of 39μH .

7.3 Handset earphone design

As seen previously, a 16Ω speaker can be directly connected to the output pads EAR_MT+ and

EAR_MT- of the GE863-QUAD/PY.

This solution is often the more cost effective, reducing the components count to a minimum.

There are several limitations to the use of this solution: speaker direct connect imposes the

speaker characteristics to be almost exactly the suggested ones, otherwise the power output may

be reduced (if speaker impedance is bigger than 16Ω) or the GE863-QUAD/PY ear port may be

damaged (if speaker impedance is less than 15Ω).

The other limitation of the speaker direct connection is the power output capability of the

GE863-QUAD/PY which is limited and for some particular applications may not be enough.

For these reasons, when the power output of the GE863-QUAD/PY is not enough or if the

speaker characteristics are different from the suggested, then it is preferable to use an amplifier

to increase the power and current output capabilities.

Again the output from the GE863-QUAD/PY is bridged and both lines should be used, where

possible, as inputs to the power amplifier. This ensures a higher common mode rejection ratio,

reducing the GSM current busts noise on the speaker output.

In this case the EAR_MT lines from the GE863-QUAD/PY should be AC coupled with a

capacitor of 100nF.

It is always desirable to have a mute control on the amplifier, in order to turn it off while the

device is not sending signal to the output, in this manner the amplifier background noise which

may be audible during idle conditions is cut off.

A principle schematic may be:

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

The resulting gain and high pass cut can be obtained with the formula:

Gain =

4*3*2

.CR

freq

= [Hz]

And an example of internal Ear amplifier is:

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

Some amplifier require a low impedance load at high frequency in order to avoid auto

oscillation, this can be made with a capacitor (100nF) in series with a resistor (15Ω).

When designing your application, remember to provide an adequate bypass capacitor to the

amplifier and place it close to the power input pin of the IC, keeping the traces as short as

possible.

7.4 Hands Free earphone (low power) design

The same design considerations made for the handset are valid for the hands free earphone, the

only difference is that the external ear audio output level from the GE863-QUAD/PY is 6dB

lower than the internal one, so the gain of the amplifier must be 6dB higher to provide the same

audio level.

7.5 Car Kit speakerphone design

For the car kit speaker phone function the power output requirement is usually at least 4W,

therefore an amplifier is needed to boost the GE863-QUAD/PY output.

The design of the amplifier shall comply with the following guidelines:

• The input to the amplifier MUST be taken from the external audio path (EAR_HF+,

EAR_HF-) of the GE863-QUAD/PY, because of its echo canceller parameters suited to a

car cabin use.

• The amplifier shall have a gain of 30-40 times ( 29-32 dB) to provide the desired output

power of 5-10W with the signal from the GE863-QUAD/PY external audio output lines

(EAR_HF).

• If the amplifier has a fixed gain then it can be adjusted to the desired value by reducing the

input signal with a resistor divider network.

• The amplifier shall have a mute control to be used while not in conversation. This results in

two benefits: eliminating the background noise when not in conversation and saving power.

• The power to the amplifier should be decoupled as much as possible from the GE863-

QUAD/PY power supply, by either keeping separate wires and placing bypass capacitors of

adequate value close to the amplifier power input pads.

• The biasing voltage of the amplifier shall be stabilised with a low ESR (e.g. a tantalum)

capacitor of adequate value.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

NOTE: The GE863-QUAD/PY audio path connected to the car kit hands free amplifier MUST be the

external one (EAR_HF), otherwise the echo cancellation will not be done due to the difference in the

echo canceller characteristics of the GE863-QUAD/PY internal audio path from the external audio

path.

An example of car kit amplifier schematic can be:

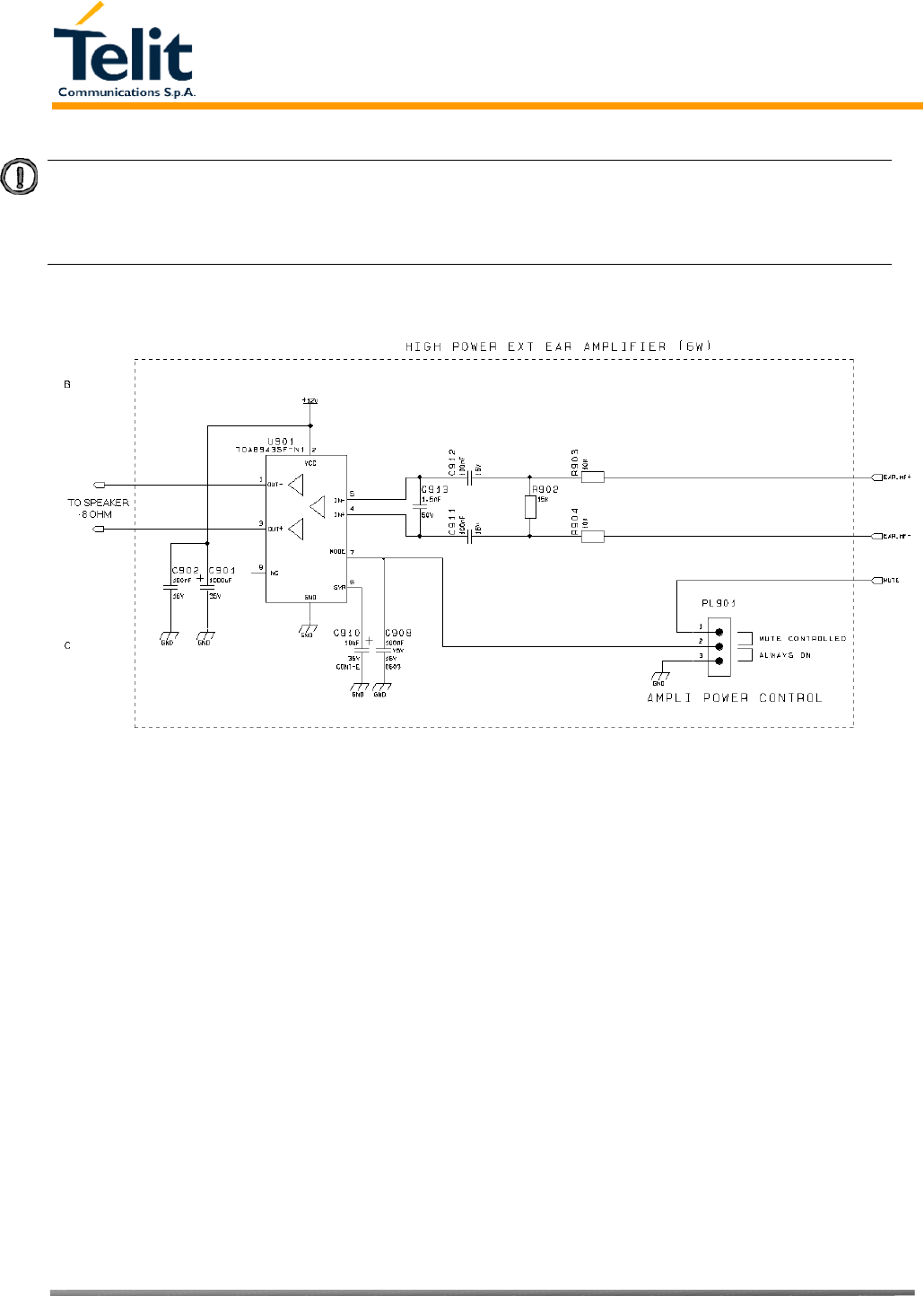

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

8 General Purpose I/O

The general purpose I/O pads can be configured to act in three different ways:

- input

- output

- alternate function (internally controlled)

Input pads can only be read and report the digital value (high or low) present on the pad at the

read time; output pads can only be written or queried and set the value of the pad output; an

alternate function pad is internally controlled by the GE863-QUAD/PY firmware and acts

depending on the function implemented.

Not all GPIO pads support all these three modes:

- GPIO5 supports all three modes and can be input, output, RFTX monitor output (Alternate

function)

- GPIO6 supports all three modes and can be input, output, alarm output (Alternate function)

- GPIO7 supports all three modes and can be input, output, buzzer output (Alternate function)

All GPIO pads are 2.8V CMOS signals and their interface levels are the same specified in the

paragraph 4 .

8.1 Using a GPIO pad as INPUT

The GPIO pads, when used as inputs, can be connected to a digital output of another device and

report its status, provided this device has interface levels compatible with the 2.8V CMOS levels

of the GPIO.

If the digital output of the device to be connected with the GPIO input pad has interface levels

different from the 2.8V CMOS, then it can be connected to GPIO1 or can be buffered with an

open collector transistor, provided a 47KΩ pull-up resistor is connected as seen in the paragraph

5.4 5V UART level translation.

8.2 Using a GPIO pad as OUTPUT

The GPIO pads, when used as outputs, can drive 2.8V CMOS digital devices or compatible

hardware. When set as outputs, the pads have a push-pull output and therefore the pull-up

resistor may be omitted.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

8.3 Using the Alarm Output GPIO6

The GPIO6 pad, when configured as Alarm Output, is controlled by the GE863-QUAD/PY

module and will rise when the alarm starts and fall after the issue of a dedicated AT command.

This output can be used to power up the GE863-QUAD/PY controlling microcontroller or

application at the alarm time, giving you the possibility to program a timely system wake-up to

achieve some periodic actions and completely turn off either the application and the GE863-

QUAD/PY during sleep periods, drammatically reducing the sleep comsumption to few μA.

In battery powered devices this feature will greatly improve the autonomy of the device.

8.4 Using the Buzzer Output GPIO7

The GPIO7 pad, when configured as Buzzer Output, is controlled by the GE863-QUAD/PY

module and will drive with appropriate square waves a Buzzer driver.

This permits to your application to easily implement Buzzer feature with ringing tones or melody

played at the call incoming, tone playing on SMS incoming or simply playing a tone or melody

when needed by your application.

A sample interface scheme is included below to give you an idea of how to interface a Buzzer to

the GPIO7:

NOTE: To correctly drive a buzzer a driver must be provided, its characteristics depend on the

Buzzer and for them refer to your buzzer vendor.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

9 Camera

9.1 Transchip Camera

The GE863-QUAD/PY provides a direct support for Transchip digital cameras with the

following characteristics:

9.1.1 Camera interface connectors

The ballout of the module and a 24 pins ZIF connector for the CMOS camera provide the

interface connection between GE863-QUAD/PY and Transchip camera.

GE863-QUAD/PY signal TC5747MF24L

Pin Signal I/O Notes Pin Signal I/O

55 GPIO3 O I2C bus serial clock 1 SCLK I

8-17… GND Ground 2 AGND I

31 VAUX O Power Supply 3 AVDD28* I

5 GPIO9 O Camera Reset 4 RESET_N I

7 MON1_CAM O Clock 5 CLK_IN** I

8-17… GND Ground 6 DGND I

n.c n.c. 7 DOUT_0 I/O

n.c n.c. 8 DOUT_1 I/O

n.c n.c. 9 DOUT_2 I/O

n.c n.c. 10 DOUT_3 I/O

n.c n.c. 11 DOUT_4 I/O

n.c n.c. 12 DOUT_5 I/O

n.c n.c. 13 DOUT_6 I/O

n.c n.c. 14 DOUT_7 I/O

n.c n.c. 15 DOUT_8 I/O

Type: TRANSCHIP TC5747

Technology: CMOS COLOR camera

Max picture size: VGA 480x640 pixels landscape

Output format: JPEG

Sensitivity: 4 Lux

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

n.c n.c. 16 VCLKOUT O

n.c n.c. 17 VALIDH O

n.c n.c. 18 VALIDV O

31 VAUX O Power Supply 19 DVDD28 I

32 GPIO4 I/O I2C bus serial data 20 SDIN I/O

8-17.. GND Ground 21 PS1 I

6 GPIO8 O Camera power type selector 22 PS2 I

8-17… GND Ground 23 SHIELD -

Flash Enable 24 LED_CTRL O

* Filter the AVDD28.

** Use a Buffer between module clk out, MON1_CAM and camera clk in, CLK_IN.

*** Non-connected.

Fig 1. Camera Physical Detail & Connector

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

Fig 2. Camera Socket Connector

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

9.1.2 EVB for Transchip camera support

In order to interface the Telit GE863-QUAD/PY with a CMOS camera, Telit has developed an

evaluation board. The EVK allows the connector of all Telit modules through 2 connectors of 40

pins each.

The I2CBUS DUAL CAMERA board is plugged in the 2 connectors of 30 pins each on the

module board.

MODULE

BOARD

MAIN

BOARD

CAMERA

BOARD

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

9.1.3 Block Diagram for supported cameras

The numbers on the left side of the Camera’s connectors refers to Module Connector’s pin

number.

DVDD is VAUX1 power supply from GE863-QUAD/PY

GND

AVDD

CAM_CLK

GND

DVDD

IICSDA_CAM

GND

PD[1]

PD[0]

PD[6]

CAM_CLK

DVDD AVDD

GND

CAMERA TRANSCHIP

MON1_CAM

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

9.1.4 Schematic Diagrams for supported cameras

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

9.1.5 Example usage script for camera

Camera setting: (shown here are the defaults ones)

>AT#CAMSEL=0 (camera selection: 0-auto, 1-agilent, 2-transchip)

>AT#CMODE=0 (camera mode: 0-day, 1-night)

>AT#CAMQUA=0 (camera quality: 0-low, 1-medieum, 2-high)

>AT#CAMRES=0 (camera resolution: 0-VGA, 1-QVGA, 2-QQVGA)

>AT#CAMCOL=0* (camera color: 0-color, 1-grayscale)

>AT#CAMZOOM=0 (camera zoom: 0-x1, 1-x2, 2-x4)

>AT#CAMTXT=0* (camera timestamp: 0-no, 1-time only, 2-data only, 3-time&data)

Taking an reading a photo:

>AT#CAMEN=1 (camera ON)

>AT#TPHOTO (take photo)

>AT+OBJL? (see photo dimension)

#OBJL: Snapshot,38900 (where 38900 is the file dimension in bytes of the photo taken)

>AT#RPHOTO (download the photo)

…data….. (where …data… Correspond to the photo data in binary)

>AT#TPHOTO

>AT#RPHOTO Repeating photo capture and download n times

…data…..

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

>AT#CAMEN=O (camera OFF)

*only Transchip camera

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

10 Conformity Assessment Issues

The GE863-QUAD/PY module is assessed to be conform to the R&TTE Directive as stand-

alone products, so If the module is installed in conformance with Dai Telecom installation

instructions require no further evaluation under Article 3.2 of the R&TTE Directive and do not

require further involvement of a R&TTE Directive Notified Body for the final product.

In all other cases, or if the manufacturer of the final product is in doubt then the equipment

integrating the radio module must be assessed against Article 3.2 of the R&TTE Directive.

In all cases assessment of the final product must be made against the Essential requirements of

the R&TTE Directive Articles 3.1(a) and (b), safety and EMC respectively, and any relevant

Article 3.3 requirements.

The GE863-QUAD/PY module is conform with the following European Union Directives:

• R&TTE Directive 1999/5/EC (Radio Equipment & Telecommunications Terminal

Equipments)

• Low Voltage Directive 73/23/EEC and product safety

• Directive 89/336/EEC for conformity for EMC

In order to satisfy the essential requisite of the R&TTE 99/5/EC directive, the GE863-

QUAD/PY module is compliant with the following standards:

• GSM (Radio Spectrum). Standard: EN 301 511 and 3GPP 51.010-1

• EMC (Electromagnetic Compatibility). Standards: EN 301 489-1 and EN 301 489-7

• LVD (Low Voltage Directive) Standards: EN 60 950

In this document and the Hardware User Guide, Software User Guide all the information you

may need for developing a product meeting the R&TTE Directive is included.

The GE863-QUAD/PY module is conform with the following US Directives:

• Use of RF Spectrum. Standards: FCC 47 Part 24 (GSM 1900)

• EMC (Electromagnetic Compatibility). Standards: FCC47 Part 15

To meet the FCC's RF exposure rules and regulations:

- The system antenna(s) used for this transmitter must be installed to provide a separation

distance of at least 20 cm from all the persons and must not be co-located or operating in

conjunction with any other antenna or transmitter.

- The system antenna(s) used for this module must not exceed 3 dBi for mobile and fixed or

mobile operating configurations.

- Users and installers must be provided with antenna installation instructions and transmitter

operating conditions for satisfying RF exposure compliance.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

Manufacturers of mobile, fixed or portable devices incorporating this module are advised to

clarify any regulatory questions and to have their complete product tested and approved for

FCC compliance.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

11 SAFETY RECOMMANDATIONS

READ CAREFULLY

Be sure the use of this product is allowed in the country and in the environment required. The

use of this product may be dangerous and has to be avoided in the following areas:

 Where it can interfere with other electronic devices in environments such as hospitals,

airports, aircrafts, etc

 Where there is risk of explosion such as gasoline stations, oil refineries, etc

It is responsibility of the user to enforce the country regulation and the specific environment

regulation.

Do not disassemble the product; any mark of tampering will compromise the warranty validity.

We recommend following the instructions of the hardware user guides for a correct wiring of the

product. The product has to be supplied with a stabilized voltage source and the wiring has to be

conforming to the security and fire prevention regulations.

The product has to be handled with care, avoiding any contact with the pins because electrostatic

discharges may damage the product itself. Same cautions have to be taken for the SIM, checking

carefully the instruction for its use. Do not insert or remove the SIM when the product is in

power saving mode.

The system integrator is responsible of the functioning of the final product; therefore, care has to

be taken to the external components of the module, as well as of any project or installation issue,

because the risk of disturbing the GSM network or external devices or having impact on the

security. Should there be any doubt, please refer to the technical documentation and the

regulations in force.

Every module has to be equipped with a proper antenna with specific characteristics. The

antenna has to be installed with care in order to avoid any interference with other electronic

devices and has to guarantee a minimum distance from the body (20 cm). In case of this

requirement cannot be satisfied, the system integrator has to assess the final product against the

SAR regulation.

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

The European Community provides some Directives for the electronic equipments introduced on

the market. All the relevant information’s are available on the European Community website:

http://europa.eu.int/comm/enterprise/rtte/dir99-5.htm

The text of the Directive 99/05 regarding telecommunication equipments is available, while the

applicable Directives (Low Voltage and EMC) are available at:

http://europa.eu.int/comm/enterprise/electr_equipment/index_en.htm

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

Document Change Log

Revision Date Changes

ISSUE #0 21/02/06 First release

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

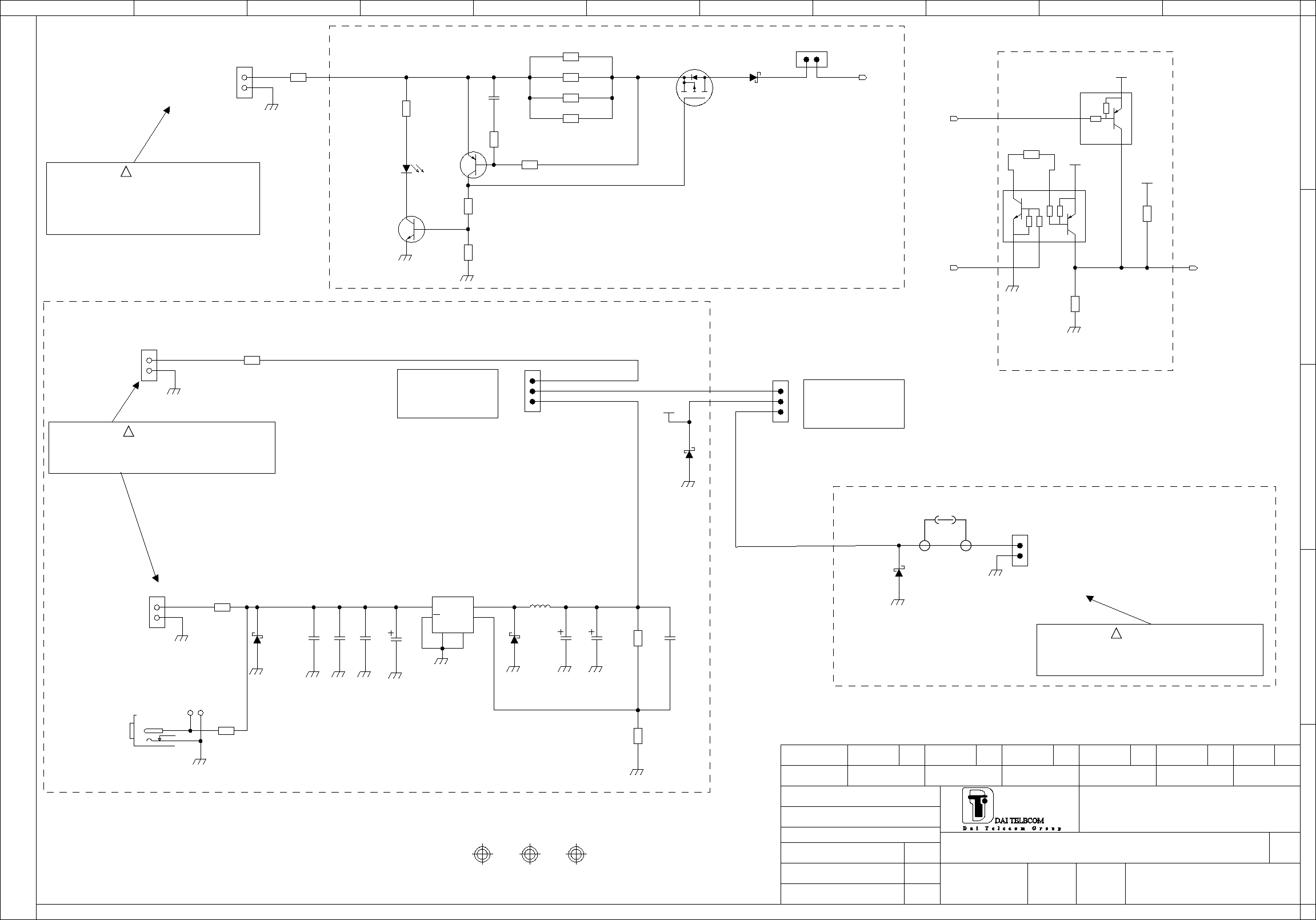

12 EVK 2 SCHEMATICS

FORBIDDENVIETATE

RIPRODUZIONE E DIVULGAZIONE REPRODUCTION AND DISCLOSURE

PROJECT

DESCRIPTION

DRAWING CODE

FORM

MODIFY

OF SHEETS

DATE

SHEET N.

VERIFIED

PROJECT

DRAWN

PATH /home/users/area

Mod. 067 rev.1 11/02 ANNOTATION

FILE NAME

42 9810713 1165

1215061-03F

PL104

GND

1206

4.7

R113

GND

1206

4.7

R110

0603

680

R108

TR1

TR2

47K

2K2

WTs

BCR48PN

SOT-363

Q104

GND

1984617PT1.5_2-3.5-H

PL101

OT103

G36

STPS3L60U

SMB

D102

ON_OFF*

2:5E;2:9B

RESET*

2:4E;2:9C

GND

50V

0603

10nF

X7R

C103

STPS140Z

SOD123

D103

GND

16V

0402

10nF

X7R

C108

0402

8.2K

R106

GND

1984617PT1.5_2-3.5-H

PL103

GND

6.3V

CONT-E

330uF

C106

GND

0402

2.2K

R107

GND 50V

16X16.5 NR

470uF

C104

0603

1.0K

R115

CHARGE

2:9B

0603

5.6K

R109

0402

47K

R117

GND

1215061-03F

PL105

6.3V

CONT-E

330uF

C107

TP101

0603

680

R105

RAPC712X

RAPC

SO101

1206

4.7

R111

STPS140Z

SOD123

D105

0603

R101

+3.7V

IRL5602SPBF

TO-263AB

Q103

50V

0603

10nF

X7R

C102

0603

R104

GND

LDO_ON_OFF*

3:6C;3:7B;4:6E;5:2B;5:2D;5:8C

STPS340U

SMB

U34

D104

1206

4.7

R112

0603

R103

TP102

+3.7V

3Fs

BC857B

SOT-23

Q102

OT102

0603

2.0K

R114

1984617PT1.5_2-3.5-H

PL107

GND

+3.7V

0603

R102

GND

0402

47K

R116

OT101

50V

0603

10nF

X7R

C101

50V

0603

4.7nF

X7R

C105

0402

noMount=YES

R118

GND

+3.7V

47K

10K

WNs

BCR185W

SOT-323

Q105

LY-M676-Q2S1-26

M676

YELLOW

DL101

1984617PT1.5_2-3.5-H

PL102

SLF12575

L101

1Fs

BC847BW

SOT-323

Q101

LM2596S-ADJ-NOPB

U101

1+VIN

FBACK

VOUT

5ON/OFF

TAB

GND

G36

STPS3L60U

SMB

D101

GND

9019915102410

PL106

EVK 2

0276

080705

1 30276SE11139A

cs1139a.cir

Furlan M.

POWER REGULATOR / BATTERY CHARGE

BATTERY CHARGER INPUT

6 Vcc

3,7V(Li-Ion) Nominal

BATTERY LI-ION

max voltage 4,2V (Li-Ion)

polarity is respected!

! WARNING!!!!

When using battery care must be

taken to ensure that the right

CURRENT UNLIMITED

power input is respected!

! WARNING!!!!

Care must be taken to ensure

that the right polarity in the

DO NOT Supply power when the

Battery is not connected

suggested capacity: 1000mAh

power input is respected!

Care must be taken to ensure

that the right polarity in the

MIN 5V

MAX 40V

INPUT -

WARNING!!!!

080705

POWER

JACK

3.8V

1-2 : 5-40V IN

2-3 : 3.8V IN

Nonis R.

Serdi M.

FUSE 1206

080705

1-2 : Regulator

2-3 : Battery

CHARGER ON

FORBIDDENVIETATE

RIPRODUZIONE E DIVULGAZIONE REPRODUCTION AND DISCLOSURE

PROJECT

DESCRIPTION

DRAWING CODE

FORM

MODIFY

OF SHEETS

DATE

SHEET N.

VERIFIED

PROJECT

DRAWN

PATH /home/users/area

Mod. 067 rev.1 11/02 ANNOTATION

FILE NAME

42 9810713 1165

MIC_HF-

4:11B

50V

0402

33pF

COG

C203

+3.7V

GND

4731955140400

PL202

0402

R205

C106/CTS

3:3C

GND

IIC_SDA_HW

5:5D

C104/RXD

3:3C

C109/DCD

3:3C

SSC0_MRST

5:11B

0402

R203

C103/TXD

3:3C

TX_TRACE

3:3C

GND

ON_OFF*

1:9A;5E

SSC0_MTSR

5:11B

GND

MIC_HF+

4:11B

0402

R206

RX_TRACE

3:3C

GND

C125/RING

3:3C

TP201

TP206

C107/DSR

3:3C

0603

330

R201

TP204

SIM_CARD

FMS006Z-2001-0

SO201

6C7

5C6

4C5

EAR_HF+

4:11B

TP205

GND

4731955140400

PL201

GND

RESET*

1:9B;4E

+3.7V

EAR_MT-

4:9B

ON_OFF*

1:9A;9B

0402

R204

GND

50V

0402

33pF

COG

C202

EAR_HF-

4:11B

IIC_SCL_HW

5:5D

STAT_LED

AXE

4:11B

0402

R202

RESET*

1:9B;9C

SSC0_CLK

5:11B

50V

0402

33pF

COG

C201

SKHHAL

SW201

LY-M676-Q2S1-26

M676

YELLOW

DL201

TP203

MIC_MT+

4:9B

C105/RTS

3:3C

GND

TP202

SKHHAL

SW202

GND

MIC_MT-

4:9B

50V

0402

33pF

COG

C204

EAR_MT+

4:9B

CHARGE

1:8A

C108/DTR

3:3C

50276

EVK 2

080705

Furlan M.

30276SE11139A

cs1139a.cir

INTERFACE CONNECTORS

SIMIO

SIMIN

SIMCLK

SIMVCC

SIMRST

YELLOW - STAT LED

RESET BUTTON

080705

Nonis R.

Serdi M.

VBATT

GND

SIMRST

GND

SIMCLK

GND

SIMIN

CHARGE

SIMVCC

STAT_LED

SUPPLY

ON_OFF*

VBATT

2 x 5

GND

VBATT

SIM

GND

CHARGE

GND

RESET*

2 x 5

SIMIO

GND

2 x 5

GND

VBATT

C106/CTS

DATA

GND

MIC_HF-

EAR_HF+

GND

C107/DSR

GND

C108/DTR

GND

AXE

GND

C103/TXD

MIC_MT+

C105/RTS

TRACE

GND

MIC_HF+

EAR_MT-

EAR_MT+

GND

C104/RXD

RX_TRACE

GND

2 x 5

C109/DCD

TX_TRACE

AUDIO

EAR_HF-

C125/RING

2 x 5

MIC_MT-

080705

ON BUTTON

IIC_SDA_HW

IIC_SCL_HW

SSC0_CLK

SSC0_MTSR

SSC0_MRST

IIC

SSC

FORBIDDENVIETATE

RIPRODUZIONE E DIVULGAZIONE REPRODUCTION AND DISCLOSURE

PROJECT

DESCRIPTION

DRAWING CODE

FORM

MODIFY

OF SHEETS

DATE

SHEET N.

VERIFIED

PROJECT

DRAWN

PATH /home/users/area

Mod. 067 rev.1 11/02 ANNOTATION

FILE NAME

42 9810713 1165

1215061-10F

PL302

0402

47K

R301

25V

0402

15nF

X7R

C303

RTS_USB

5:5E

RI_USB

5:5E

+3.7V

GND

10V

0603

220nF

X7R

C312

6.3V

0603

2.2uF

X5R

C302

10V

0603

220nF

X7R

C316

10V

0603

220nF

X7R

C308

0402

47K

R306

10V

CONT-A

10uF

C304

GND

RX_PROG_USB

5:5D

C125/RING

2:3C

CTS_USB

5:5E C106/CTS

2:3C

LDO_ON_OFF*

1:11B;6C;4:6E;5:2B;5:2D;5:8C

TP301

DTR_USB

5:5E

0402

47K

R304

TX_TRACE_USB

5:11C

GND

+3.7V

MAX3237CAI+

SSOP-28

U303

24 T1IN

23 T2IN

22 T3IN 7

T3OUT

T2OUT

T1OUT

V-

R3IN

17 T5IN

19 T4IN

VCC

SHDN*

25 C1-

GND

28 C1+

20 R2OUT

T4OUT

21 R1OUT

R2IN

1C2+

T5OUT

3C2-

EN*

R1IN

15 MBAUD

V+

16 R1OUTB

18 R3OUT

1215061-10F

PL303

CD81V1SSAAC

SO301

LDO_ON_OFF*

1:11B;7B;4:6E;5:2B;5:2D;5:8C

JP304

GND

10V

0603

220nF

X7R

C311

10V

0603

220nF

X7R

C315

GND

TX_PROG_USB

5:5D

10V

0603

220nF

X7R

C309

0402

47K

R303

C103/TXD

2:3C

C107/DSR

2:3C

10V

0603

220nF

X7R

C310

DCD_USB

5:5E

GND

C104/RXD

2:3B

1215061-10F

PL301

6.3V

0603

2.2uF

X5R

C313

RX_TRACE_USB

5:11C

10V

CONT-A

10uF

C306

GND

C108/DTR

2:3C

L20A

LP2982AIM5X-3_0-NOPB

MA05A

U301

1V_IN

3ON-OFF* 4

BYPASS

V_OUT

2GND

0402

47K

R305

10V

0603

220nF

X7R

C307

JP303

6.3V

0603

2.2uF

X5R

C314

MAX3237CAI+

SSOP-28

U304

24 T1IN

23 T2IN

22 T3IN 7

T3OUT

T2OUT

T1OUT

V-

R3IN

17 T5IN

19 T4IN

VCC

SHDN*

25 C1-

GND

28 C1+

20 R2OUT

T4OUT

21 R1OUT

R2IN

1C2+

T5OUT

3C2-

EN*

R1IN

15 MBAUD

V+

16 R1OUTB

18 R3OUT

JP301 GND

TP302

DSR_USB

5:5E

0402

47K

R302

GND

25V

0402

15nF

X7R

C305

GND

RX_TRACE

2:3B

C109/DCD

2:3B

JP302

TX_TRACE

2:3B

GND

C105/RTS

2:3C

6.3V

0603

2.2uF

X5R

C301

L20A

LP2982AIM5X-3_0-NOPB

MA05A

U302

1V_IN

3ON-OFF* 4

BYPASS

V_OUT

2GND

30276SE11139A

080705

Serdi M.

UART

0276

cs1139a.cir

Furlan M.

080705

EVK 2

RTS

DCD

CTS

TXD

PROG

RXD

ASC1

DSR

ASC0

DTR

GND

TRACE

USB/RS232 Switch

HW FLOW CONTROL

ASC0

(PROG)

ASC1

(TRACE)

USB RS232

Nonis R. 080705

FORBIDDENVIETATE

RIPRODUZIONE E DIVULGAZIONE REPRODUCTION AND DISCLOSURE

PROJECT

DESCRIPTION

DRAWING CODE

FORM

MODIFY

OF SHEETS

DATE

SHEET N.

VERIFIED

PROJECT

DRAWN

PATH /home/users/area

Mod. 067 rev.1 11/02 ANNOTATION

FILE NAME

42 9810713 1165

GND

TP402

MIC_MT-

2:3D

LM4862MX-NOPB

U401

6VDD

BYPASS

IN+

8VC2

SHUTDOWN

7GND

IN-

5VC1

BLM21

2250

L401

EAR_MT-

2:3C

GND

25V

0402

15nF

X7R

C418

0603

R411

noMount=YES

0603

100K

R404

GND GND

10V

0402

100nF

Y5V

C411

0603

R408

noMount=YES

0603

R402

GND

0402

22K

R405

JP401

6.3V

0603

1uF

X5R

C414

GND

EAR_HF-

2:3C

AXE

2:3C

10V

CONT-A

10uF

C417

6.3V

0603

2.2uF

X5R

C409

MIC_HF-

2:3D

TP401

16V

0603

100nF

Y5V

C408

MIC_MT+

2:3D

GND

10V

CONT-D

100uF

C413

0603

R407

0402

2.2K

R403

0603

R410

noMount=YES

GND

16V

0603

100nF

Y5V

C404

GND

0603

R412

noMount=YES

GND

TP404

10V

0402

100nF

Y5V

C410

EAR_MT+

2:3C

TP403

JP402

0603

R401

16V

0402

10pF

COG

C405

+3.7V

50V

0402

22pF

COG

C406

MIC_HF+

2:3D

16V

0603

100nF

Y5V

C403

BLM21

2250

L402

1215061-05F

PL404

0603

100K

R406

GND

EAR_HF+

2:3C

GND

6.3V

0603

2.2uF

X5R

C419

L20A

LP2982AIM5X-3_0-NOPB

MA05A

U402

V_IN

ON-OFF*

4BYPASS

5V_OUT

GND

LDO_ON_OFF*

1:11B;3:6C;3:7B;5:2B;5:2D;5:8C

PJ25605-T2

SO401

+3.7V

1215061-05F

PL402

1Fs

BC847BW

SOT-323

Q401

50V

0402

22pF

COG

C401

16V

0603

100nF

Y5V

C416

1215061-05F

PL403

16V

0402

1nF

X7R

C402

16V

0402

1nF

X7R

C407

50V

0603

10pF

COG

C412

9019915102410

PL401

0603

R409

noMount=YES

JP403

GND

16V

0603

100nF

Y5V

C415

Serdi M.

AUDIO

080705

0276

Furlan M.

5 30276SE11139A

EVK 2

cs1139a.cir

080705

EARPIECE

OPTIONAL POWER AMPLIFIER

AUDIO Switch

Nonis R. 080705

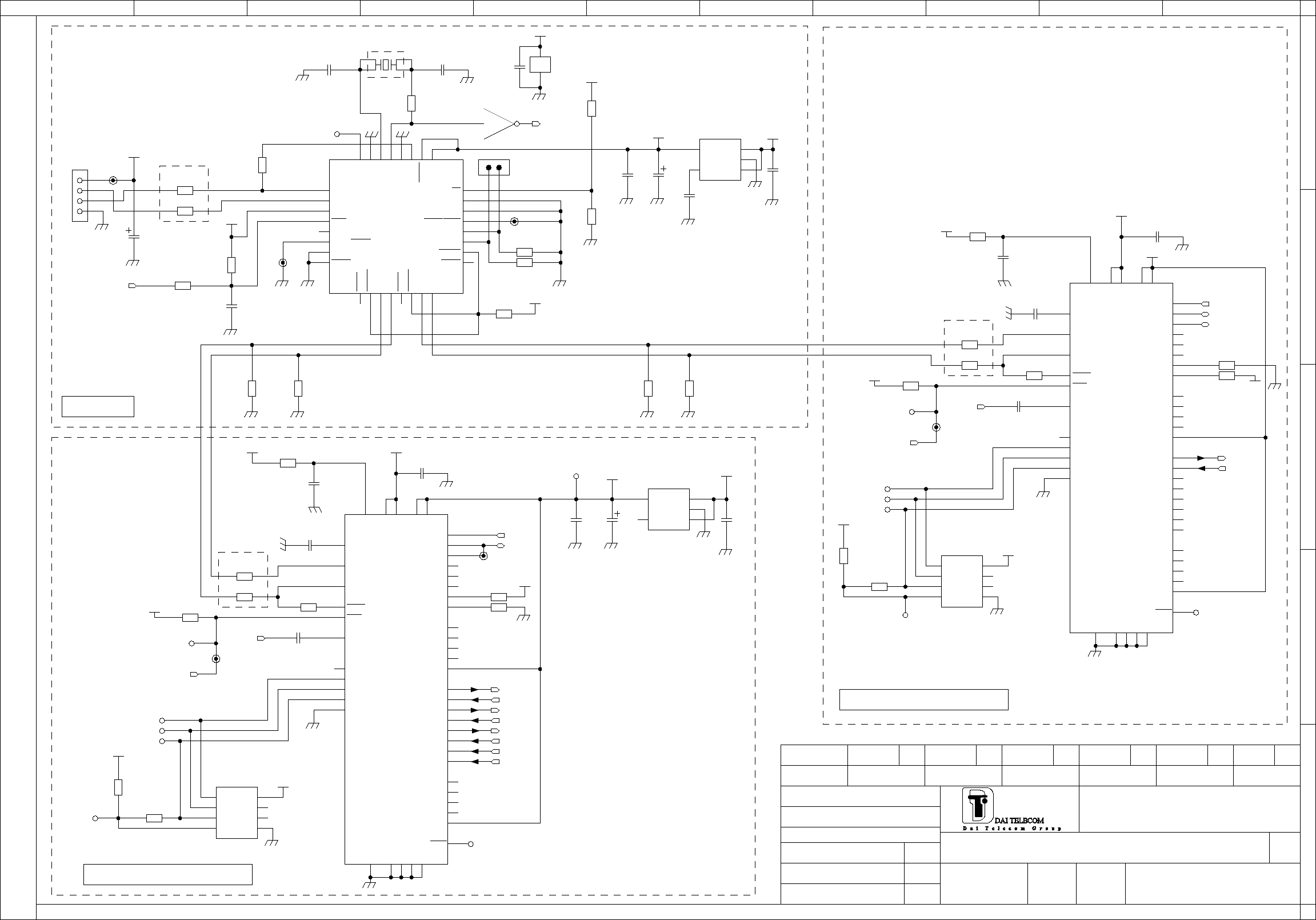

FORBIDDENVIETATE

RIPRODUZIONE E DIVULGAZIONE REPRODUCTION AND DISCLOSURE

PROJECT

DESCRIPTION

DRAWING CODE

FORM

MODIFY

OF SHEETS

DATE

SHEET N.

VERIFIED

PROJECT

DRAWN

PATH /home/users/area

Mod. 067 rev.1 11/02 ANNOTATION

FILE NAME

42 9810713 1165

GND

50V

0402

27pF

COG

C505

0402

1.5K

R531

TP533

+5V_USB

0402

1.5K

R513

0402

15K

R520

10V

0402

100nF

X5R

C506

0402

100K

R505

GND

10V

CONT-A

10uF

C510

TP526

GND

3.0V_USB

GND

0402

R503

+5V_USB

50V

0402

47pF

COG

C520

0402

470

R511

TX_TRACE_USB

3:2C

RTS_USB

3:2C

0402

R528

+5V_USB

TX_PROG_USB

3:2C

10V

0402

100nF

X5R

C509

GND

0402

18K

R535

noMount=YES

10V

0402

100nF

X5R

C502

SSC0_MTSR

2:4B

0402

15K

R509

XTIN_FT2232

3D;5A

25V

0402

15nF

X7R

C514

0402

1.5K

R516

TP515

GND

TP530

GND

93LC56B_I-SNG

U507

VCC

3DI

4DO

NC_6

2CLK

VSS

1CS

NC_7

16V

0402

47nF

X7R

C521

93LC56B_I-SNG

U501

VCC

3DI

4DO

NC_6

2CLK

VSS

1CS

NC_7

TP529

GND

0402

18K

R537

noMount=YES

10V

0402

100nF

X5R

C512

RI_USB

3:2C

0402

R507

LDO_ON_OFF*

1:11B;3:6C;3:7B;4:6E;2B;8C

GND

JP504

0402

18K

R506

10V

CONT-A

10uF

C513

LDO_ON_OFF*

1:11B;3:6C;3:7B;4:6E;2D;8C

GND

USBE-004

SO501

10V

0402

100nF

X5R

C501

GND

0402

15K

R519

TEXTUSB2036VFRG4

S-PQFP-G32

U502

1DP0

2DM0

3VCC_3

4RESET

5EECLK

6EEDATA/GANGED

7GND_7

8BUSPWR

9PWRON1

10 OVRCUR1

11 DM1

12 DP1

13 PWRON2

14 OVRCUR2

15 DM2

16 DP2

PWRON3

OVRCUR3

DM3

DP3

OCPROT/PWRSW

NPINT0

NPINT1

NP3

VCC_25

EXTMEM

DP0PUR

GND_28

XTAL2

XTAL1/CLK48

MODE

SUSPND

3.3V_HUB

NX1255GB

CP12A

6.000MHz

X501

50V

0402

27pF

COG

C508

+5V_USB

TP516

GND

6.3V

0603

2.2uF

X5R

C516

16V

0402

47nF

X7R

C507

JP506

+5V_USB

GND

0402

4.7K

R525

3.3V_HUB

3.0V_USB

0402

R529

GND

+5V_USB

GND

TP532

0402

15K

R522

0402

R517

DTR_USB

3:2C

10V

0402

100nF

X5R

C519

0402

1.5K

R510

TP535

TP528

GND

0402

18K

R538

JP511

GND

0402

470

R527

IIC_SDA_HW

2:4B

GND

+5V_USB

JP502

6.3V

0603

2.2uF

X5R

C515

GND

0402

18K

R524

TP502

RX_PROG_USB

3:2C

10V

0402

100nF

X5R

C503

74AHC1GU04DCKRG4

U504

VCC

GND

3.3V_HUB

0402

15K

R523

GND

TP527

GND

IIC_SCL_HW

2:4B

+5V_USB

FT2232L

LQFP48

U509

63V3OUT

8USBDM

7USBDP

5RSTOUT

4RESET

43 XTIN

44 XTOUT

48 EECS

1EESK

2EEDATA

47 TEST

45 AGND

9GND_9

18 GND_18

25 GND_25

34 GND_34

PWREN

SI/WUB

BCBUS3

BCBUS2

BCBUS1

BCBUS0

BDBUS7

BDBUS6

BDBUS5

BDBUS4

BDBUS3

BDBUS2

BDBUS1

BDBUS0

SI/WUA

ACBUS3

ACBUS2

ACBUS1

ACBUS0

ADBUS7

ADBUS6

ADBUS5

ADBUS4

ADBUS3

ADBUS2

ADBUS1

ADBUS0

VCCIOB

VCCIOA

VCC_42

VCC_3

AVCC

TP531

0402

18K

R526

+5V_USB

DSR_USB

3:2C

0402

18K

R501

TP505

GND

DCD_USB

3:2C

+5V_USB

0402

R515

noMount=YES

GND

TP534

XTIN_FT2232

3D;9C

GND

XTIN_FT2232

5A;9C

0402

18K

R536

3.3V_HUB

CTS_USB

3:2C

JP501

L05A

LP2981AIM5X-3_0-NOPB

MA05A

U505

VIN

ON/OFF*

4NC

5OUT

GND

JP503

GND

LDO_ON_OFF*

1:11B;3:6C;3:7B;4:6E;2B;2D

0402

4.7K

R502

0402

noMount=YES

R512

GND

FT2232L

LQFP48

U503

63V3OUT

8USBDM

7USBDP

5RSTOUT

4RESET

43 XTIN

44 XTOUT

48 EECS

1EESK

2EEDATA

47 TEST

45 AGND

9GND_9

18 GND_18

25 GND_25

34 GND_34

PWREN

SI/WUB

BCBUS3

BCBUS2

BCBUS1

BCBUS0

BDBUS7

BDBUS6

BDBUS5

BDBUS4

BDBUS3

BDBUS2

BDBUS1

BDBUS0

SI/WUA

ACBUS3

ACBUS2

ACBUS1

ACBUS0

ADBUS7

ADBUS6

ADBUS5

ADBUS4

ADBUS3

ADBUS2

ADBUS1

ADBUS0

VCCIOB

VCCIOA

VCC_42

VCC_3

AVCC

9019915102410

noMount=YES

PL502

50V

0402

47pF

COG

C504

0402

15K

R514

0402

15K

R521

GND

L19A

LP2982AIM5X-3_3

MA05A

U506

V_IN

ON-OFF*

4BYPASS

5V_OUT

GND

10V

CONT-A

10uF

C518

GND

+5V_USB

GND

RX_TRACE_USB

3:2C

+5V_USB

GND

0402

R508

+5V_USB

GND

SSC0_CLK

2:4B

+5V_USB

SSC0_MRST

2:4B

0402

R504

74AHC1GU04DCKRG4

U504

10V

0402

100nF

X5R

C517

3.3V_HUB

USB0 <-> PROG. + I2C

USB

connector

USB1 <-> TRACE + SSC

USB <-> PROG,TRACE,I2C,SSC

USB HUB

cs1139a EVK 2

0276 30276SE11139A

Furlan M.

Serdi M.

Nonis R.

080705

Telit GE863-QUAD / GE863-PY

Hardware User guide

1vv0300715, Rev. ISSUE#0, - 21/02/06

13 EVB CAMERA SCHEMATICS

0402

47K

noMount=YES

R111

L18A

LP2982AIM5X–2_8–NOPB

MA05A

U102

V_IN

ON–OFF

4BYPASS

5V_OUT

GND

IICSCL/AGILENT

CAM_SCL/IIC_SCL

CAM_M_CLK

10D;5A

CAM_M_CLK

5A;5C

CAM_SDA/IIC_SDA

5D;6B

TP101

TP106

GND

VAUX1

TP105

GND

0402

R104

GND

TP108

VAUX1

TP110

0402

noMount=YES

R113

GND

JP116

25V

0402

15nF

X7R

noMount=YES

C106

JP120

JP109

10V

CONT–A

10uF

C104

FORBIDDENVIETATE

RIPRODUZIONE E DIVULGAZIONE REPRODUCTION AND DISCLOSURE

PROJECT

DESCRIPTION

DRAWING CODE

FORM

MODIFY

OF SHEETS

DATE

SHEET N.

VERIFIED

PROJECT

DRAWN

PATH /home/users/area

Mod. 067 rev.1 11/02 ANNOTATION

FILE NAME

42 98 10

71 3 1165

0402

47K

noMount=YES

R110

VCC_MAIN_CAM

6.3V

0603

2.2uF

X5R

C109

CAM_DRDY/AGILENT

PD[5]

4773540103470

SO107

PD[1]

JP106

JP107

GND

TP109

0402

R115

0402

R112

PD[0]

PD[2]

0402

R106

10V

0402

100nF

Y5V

C112

CAM_PWR_ON/AGILENT

VCC_MAIN_CAM

SN74LVC1G08DCKR

U101

VCC

GND

TGPIO_08/CAM_ON

PD[4]

JP114

0402

R105

CAM_SYNC/AGILENT

MON1/CAM_CLK

10D

PD[3]

PD[6]

VCC_MAIN_CAM

CAM_SDA/IIC_SDA

6B;9B

4773540103470

SO109

TP102

25V

0402

15nF

X7R

C105

25V

0402

15nF

X7R

noMount=YES

C111

TGPIO_08/CAM_ON

0402

R109

noMount=YES

52437–2472

SO105

CAM_SCL/IIC_SCL

TP111

4773540103470

SO106

TP107

TGPIO_09/CAM_RST

OT101

JP105

JP117

4779723130417

SO102

0402

R114

SN74LVC1G08DCKR

U101

0402

R116

0402

R108

4779723130417

SO101

TP104

6.3V

0603

2.2uF

X5R

C110

50V

0402

33pF

COG

C107

GND

PD[7]

CAM_PWR_ON/AGILENT

6.3V

0603

2.2uF

X5R

C108

GND

JP108

TGPIO_09/CAM_RST

0402

R107

0402

100K5%

R103

GND

JP112

TP112

TP103

JP121

4773540102470

noMount=YES

SO104

JP110

GND

4773540103470

SO108

MON1/CAM_CLK

10276

Furlan M. 060905

1 30276SE11170

Pasqualini N.

cs1170.cir I2CBUS DUAL CAMERA

060905

SCLK

RESET_N

DVDD28

Shield

SDIN

PS1

VALIDH

AVDD28

VCLKOUT

LED_CTRL

TransChip TC5747MF24L (24pin)

VALIDV

PS2

AGND

DGND

CLK_IN

INTERFACE CONNECTORS

TC5747MF24L

DOUT1

DOUT3

DOUT2

DOUT0

DOUT6

DOUT4

DOUT5

DOUT7

DOUT8

GM862

TRIZIUM

– 1 –

MODIFY

DATE

PATH

FILE NAME

Mod. 048 Rev.0 6/99

Project by

Verif. by

DESCRIPTION

FORM

I2CBUS DUAL CAMERA

cs1170

Drawn by: Pasqualini Natascia

Project

0276

SHEET N.

OF SHEETS

DRAWING CODE

CS1170.SM

06/09/2005

ANNOTATION

Silkscreen side A

RIPRODUZIONE E DIVULGAZIONE

VIETATE

REPRODUCTION AND DISCLOSURE

FORBIDDEN

FILE GERBER

cs1170

/Archivio_PCB/cs1170

MODIFY

DATE

PATH

FILE NAME

Mod. 048 Rev.0 6/99

Project by

Verif. by

DESCRIPTION

FORM

I2CBUS DUAL CAMERA

cs1170

Drawn by: Pasqualini Natascia

Project

0276

SHEET N.

OF SHEETS

DRAWING CODE

CS1170.SM

06/09/2005

ANNOTATION

Silkscreen side B

RIPRODUZIONE E DIVULGAZIONE

VIETATE

REPRODUCTION AND DISCLOSURE

FORBIDDEN

FILE GERBER

cs1170

/Archivio_PCB/cs1170

Telit Communications S p A GE863L Quad-Band GSM/GPRS module - Type: GE863 User Manual Telit GE863 QUAD PY Hardware User Guide

Telit Communications S.p.A. Quad-Band GSM/GPRS module - Type: GE863 Telit GE863 QUAD PY Hardware User Guide

Users Manual

Navigation menu

Namespaces

Views

Navigation
