User Manual

APS-NR2
User Manual
Revision 1.0.0
1 | P a g e
APS-NR2 User Manual
© 2014 ALTUS Positioning Systems Inc. All rights reserved. ALTUS and the ALTUS logo
are trademarks of ALTUS Positioning Systems Inc. registered in the U.S. and other
countries. No part of this document may be copied, used or reproduced without the
prior written permission of ALTUS Positioning Systems.
No part of this manual me by reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying and recording, or any purpose without
the express written permission of ALTUS Positioning Systems Inc.
Mention of third-party products in this document is for informational purposes only and
does not constitute an endorsement or a recommendation. ALTUS Positioning Systems
assumes no responsibility with regard to the performance or use of the APS-NR2 due to
GNSS characteristics, USA Department of Defense operations control, atmospheric
effects, multipath and RF interference. All understandings, agreements, or warranties
take place directly between the seller and the prospective users. Every effort has been
made to ensure that the information in this manual is accurate. ALTUS is not
responsible for printing or clerical errors. All specifications are typical and subject to
change without prior notice.
2 | P a g e
Table of Contents
1 Introduction ....................................................................................... 4
1.1 Foreword .......................................................................................................................... 4
1.2 APS-NR2 Technical Characteristics ................................................................................... 5
1.3 User Notice ....................................................................................................................... 6
1.4 Warranty .......................................................................................................................... 6
1.5 Technical Support ............................................................................................................. 7
1.6 CE NOTICE ......................................................................................................................... 8
1.7 ROHS/WEEE NOTICE ......................................................................................................... 8
1.8 FCC Regulations ................................................................................................................ 9
1.9 IC Regulations ................................................................................................................. 10
1.10 Safety Information ......................................................................................................... 11
2 Shipping Case Contents ................................................................... 12
3 APS-NR2 Overview ........................................................................... 13
3.1 Front Panel ..................................................................................................................... 13
3.2 Power Button Functions ................................................................................................. 14
3.3 Location of Batteries and SIM card ................................................................................ 15
3.4 Closing the battery door ................................................................................................ 15

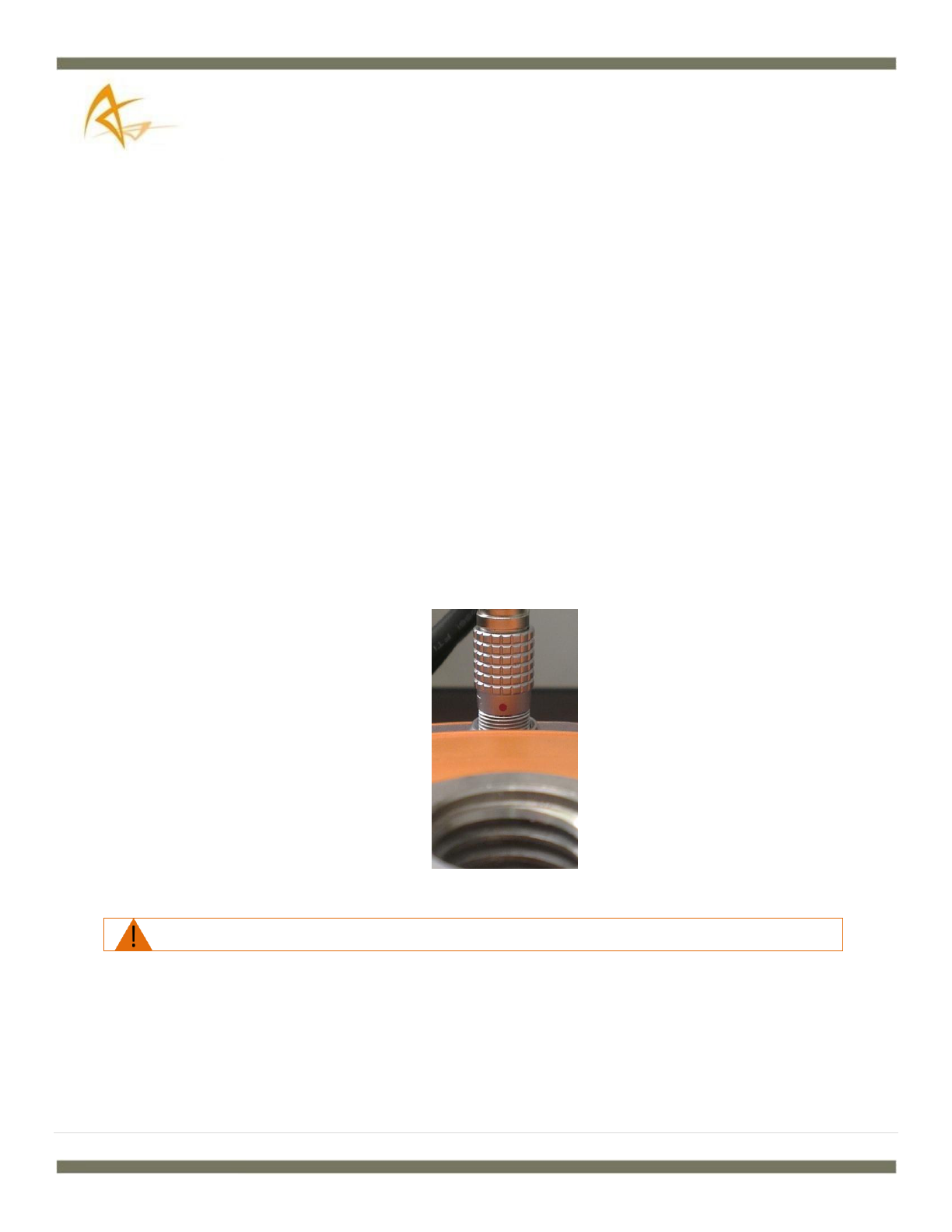

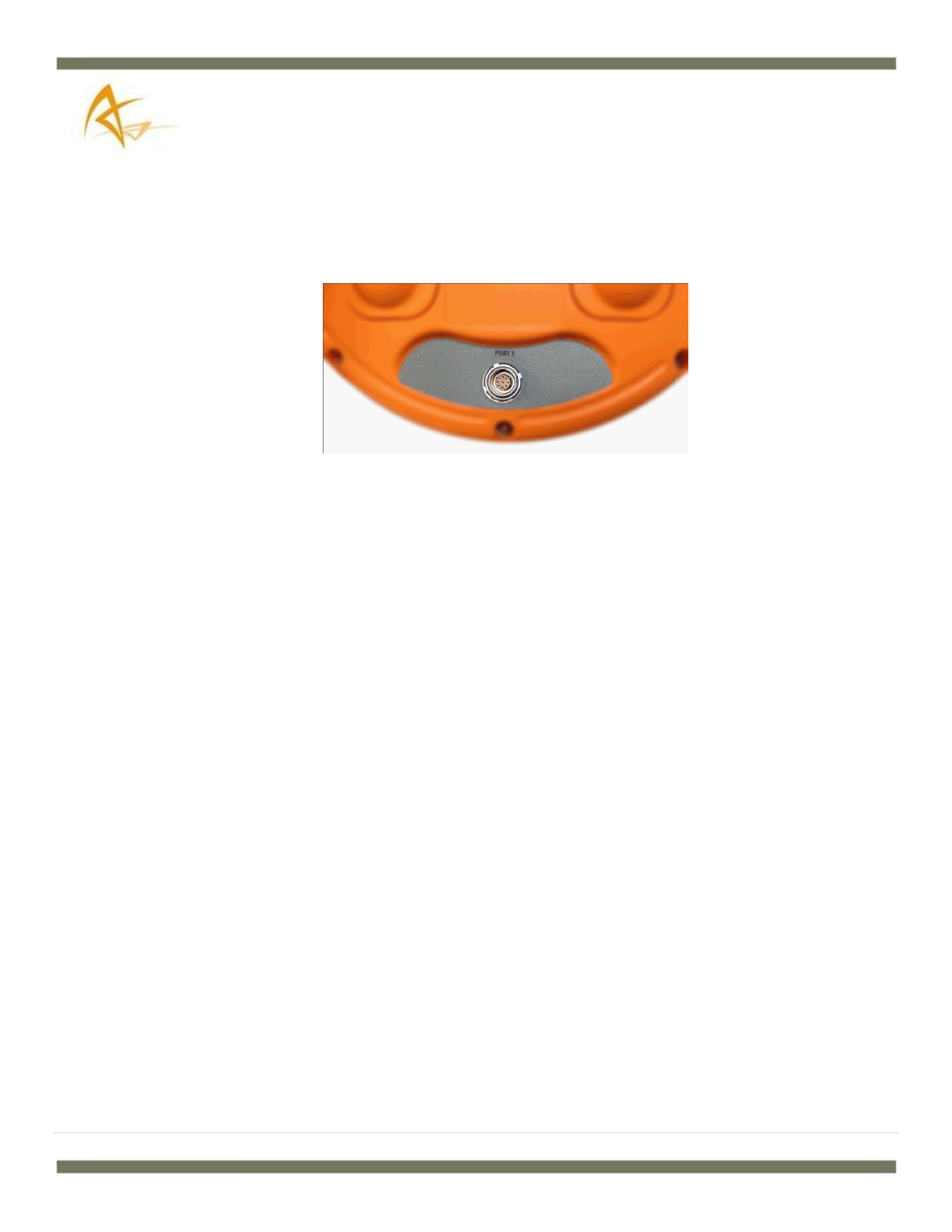

3.5 APS-NR2 Connector ........................................................................................................ 16

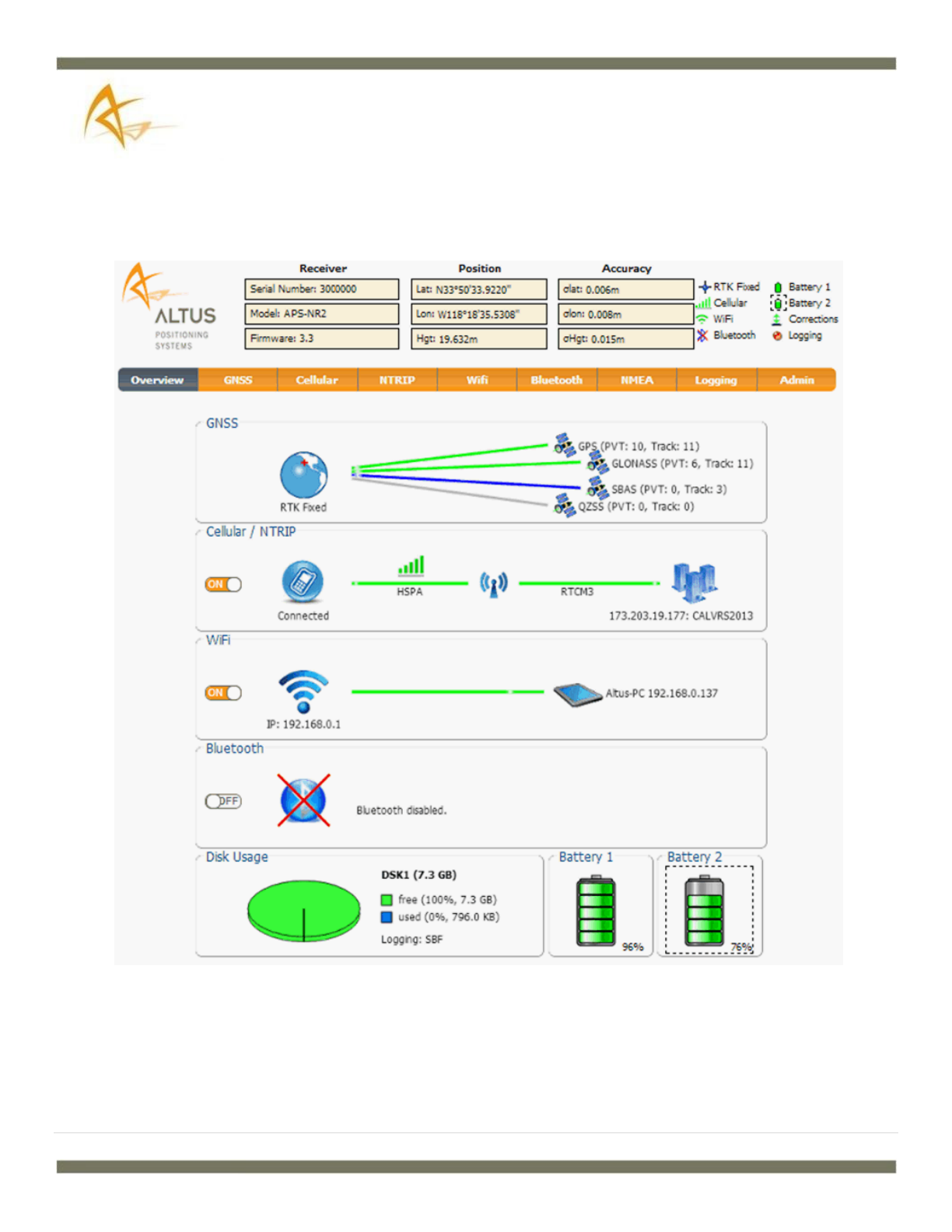

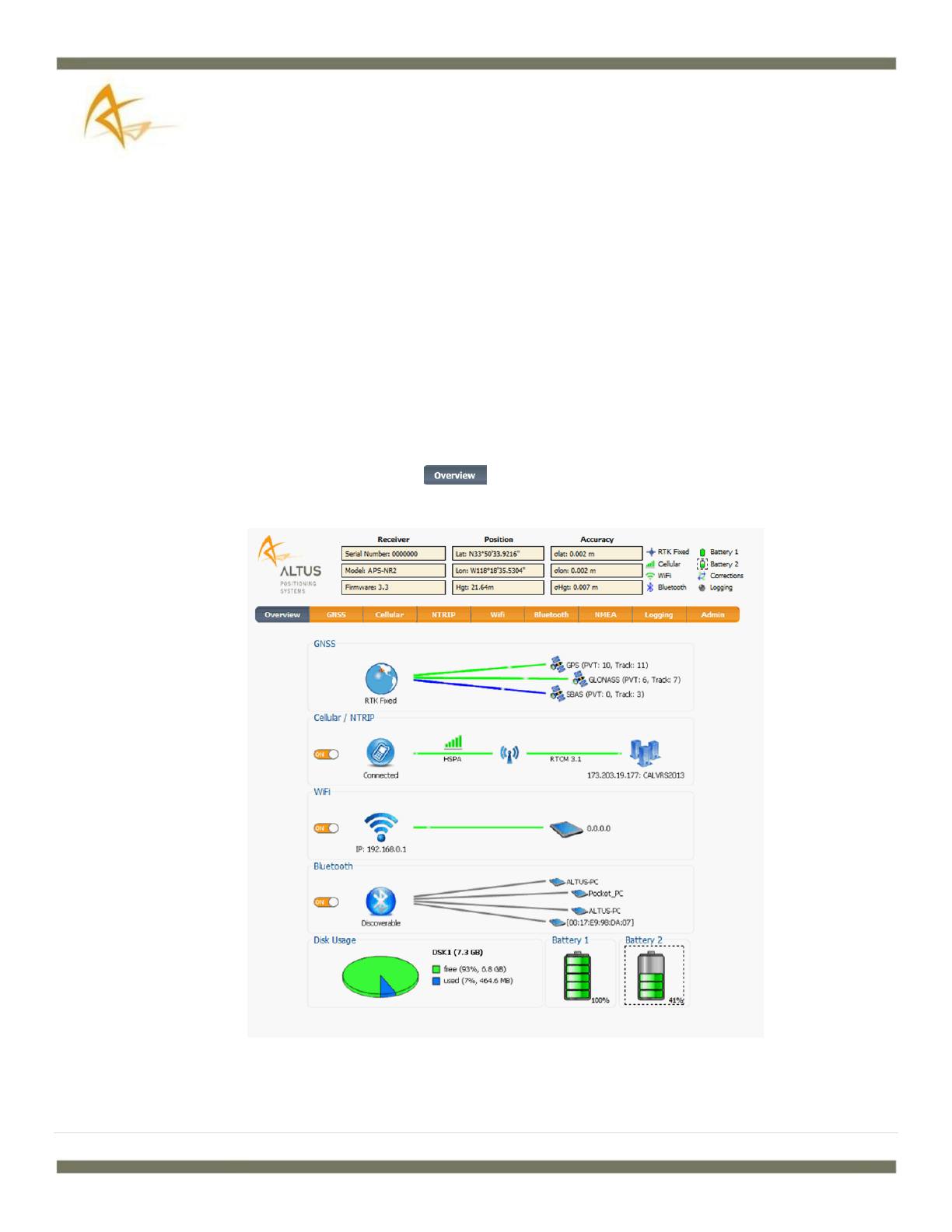

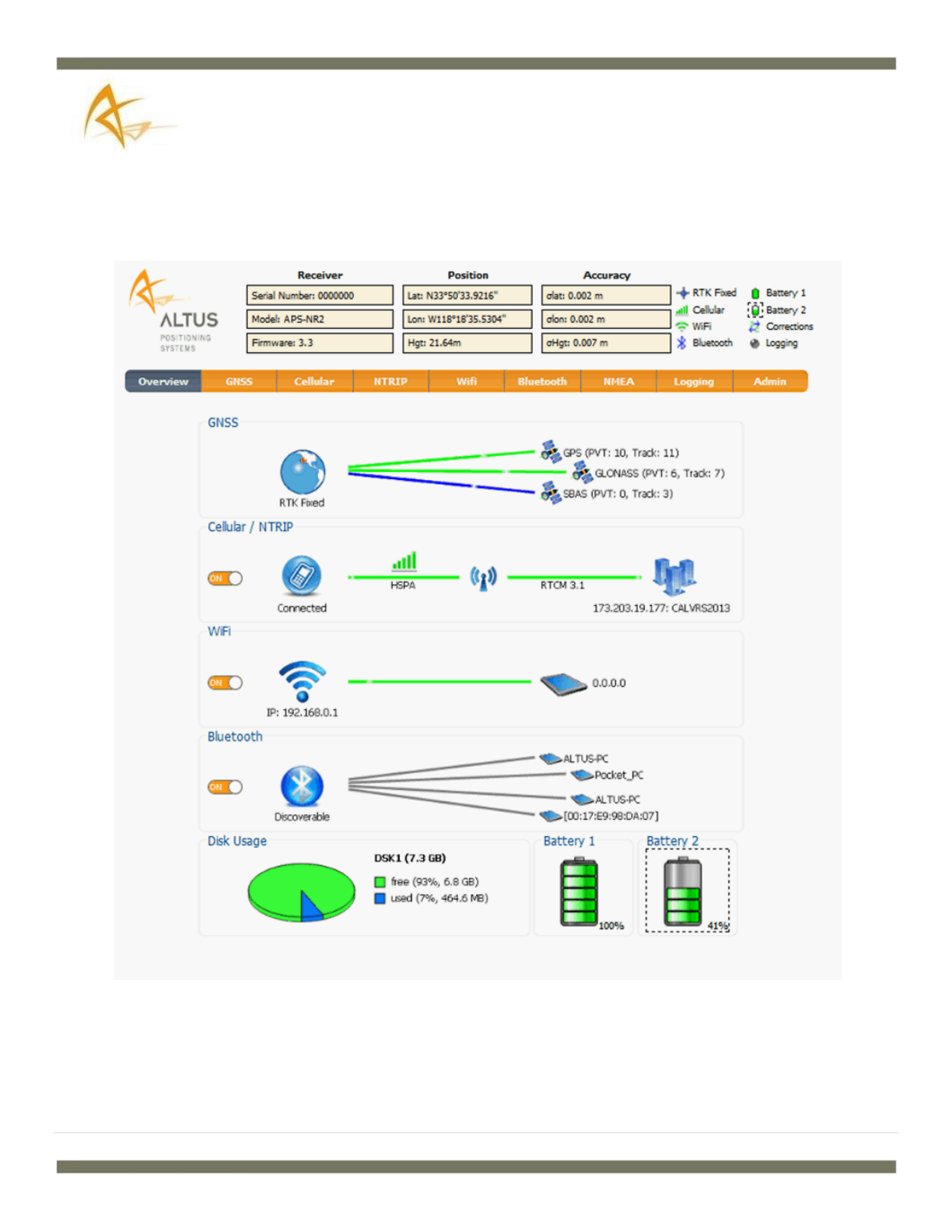

3.6 The Web Interface .......................................................................................................... 17
4 Initial set up ..................................................................................... 18
4.1 Prerequisites................................................................................................................... 18
4.2 Insert the micro SIM card ............................................................................................... 19
4.3 Insert the batteries ......................................................................................................... 19
4.4 Switch on the APS-NR2................................................................................................... 19
4.5 Wait for the APS-NR2 to start up ................................................................................... 19
4.6 Make sure the Wi-Fi radio is switched on ...................................................................... 19
4.7 Connect to the Web Interface ........................................................................................ 20
5 Basic Configuration of the APS-NR2 for RTK .................................... 21

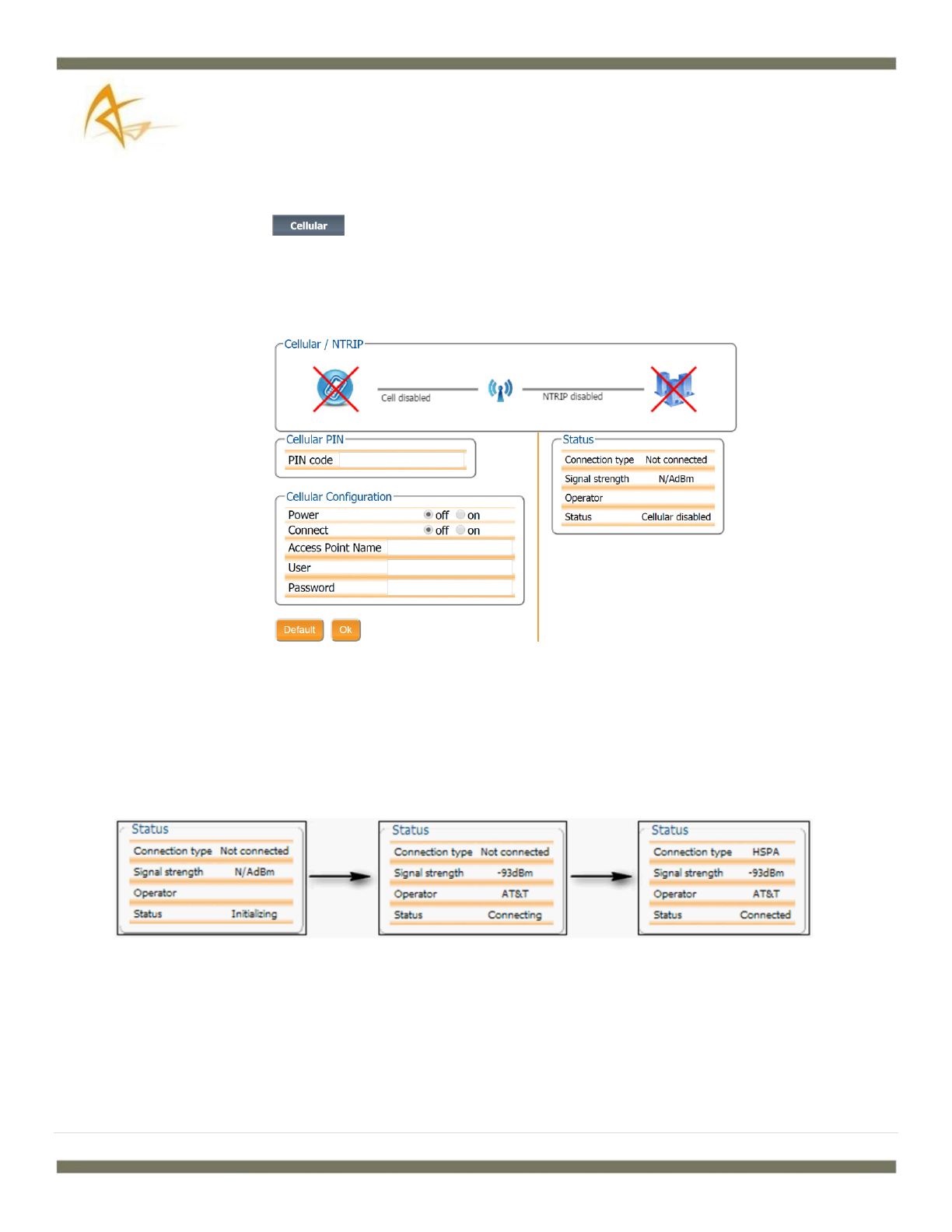

5.1 Set up the cellular modem ............................................................................................. 22

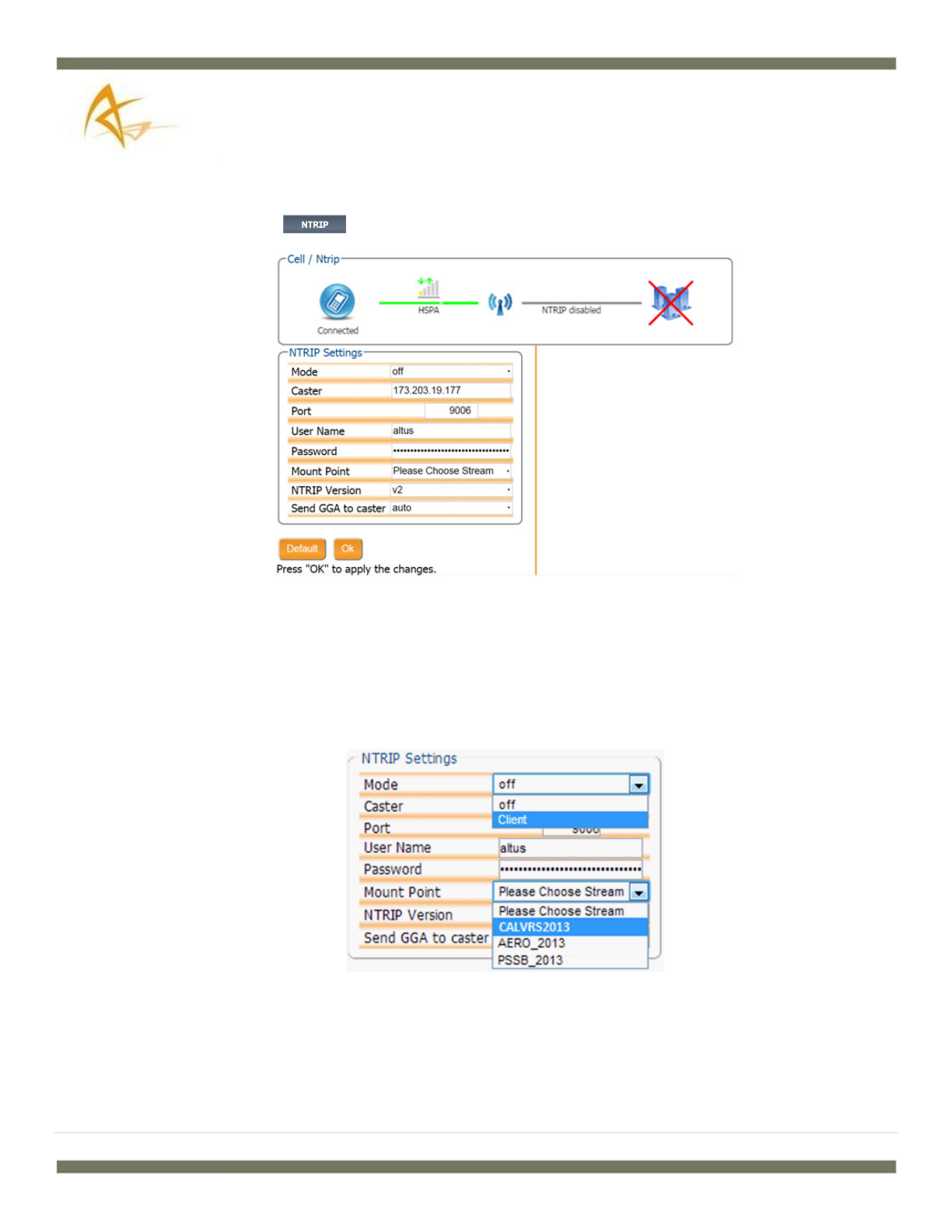

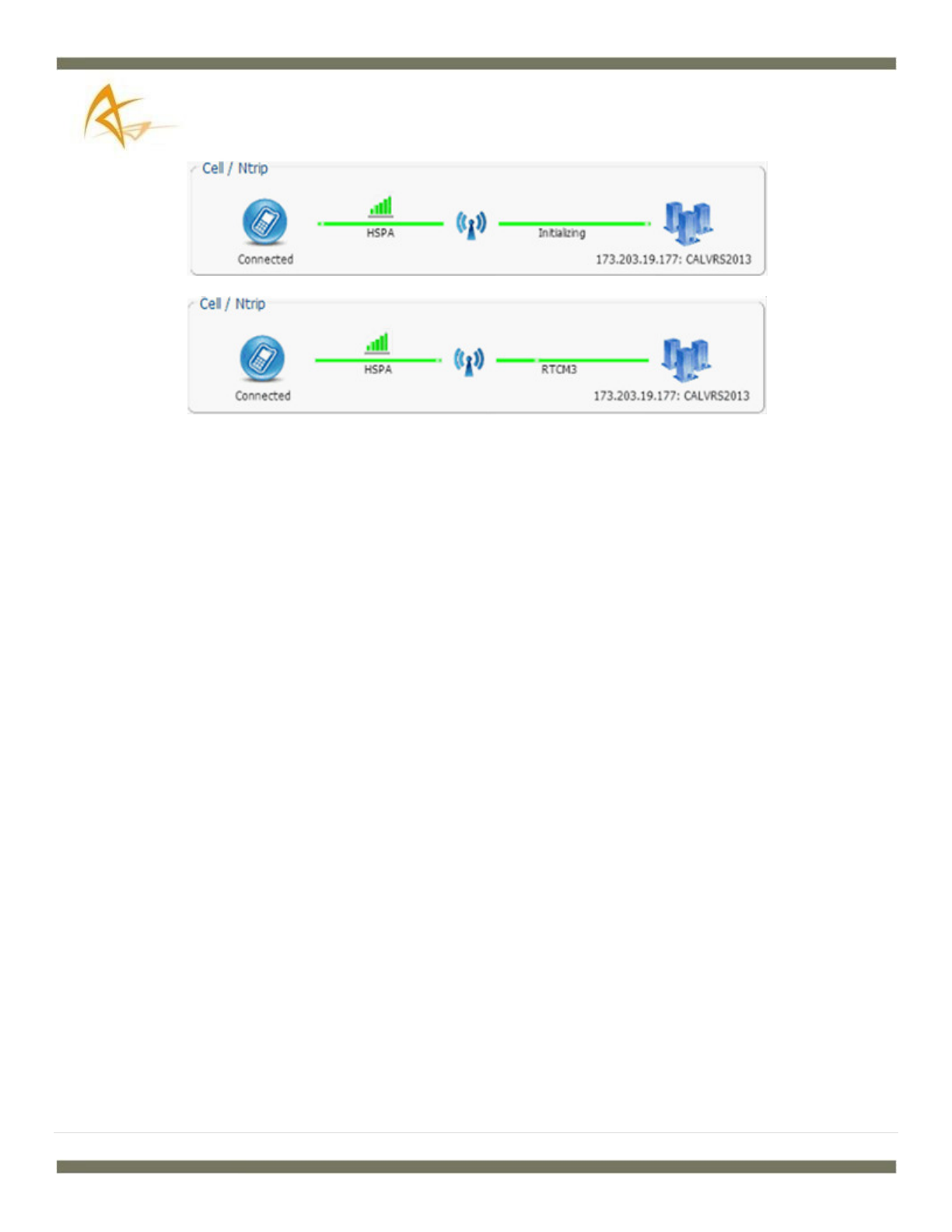

5.2 Configure as NTRIP client ............................................................................................... 24
5.3 APS-NR2 Configured for RTK .......................................................................................... 26
6 Configuring the output .................................................................... 27

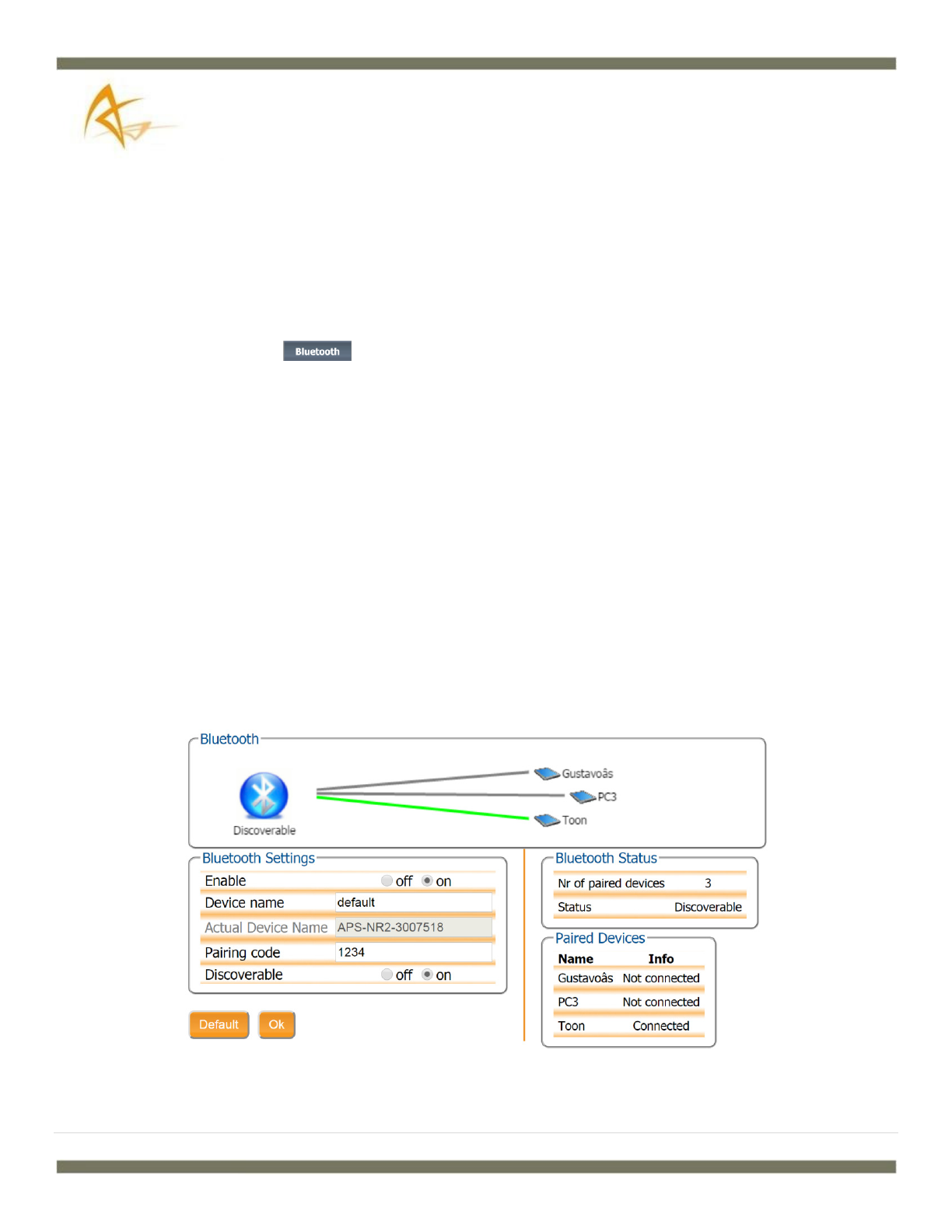

6.1 Connect Bluetooth ......................................................................................................... 27

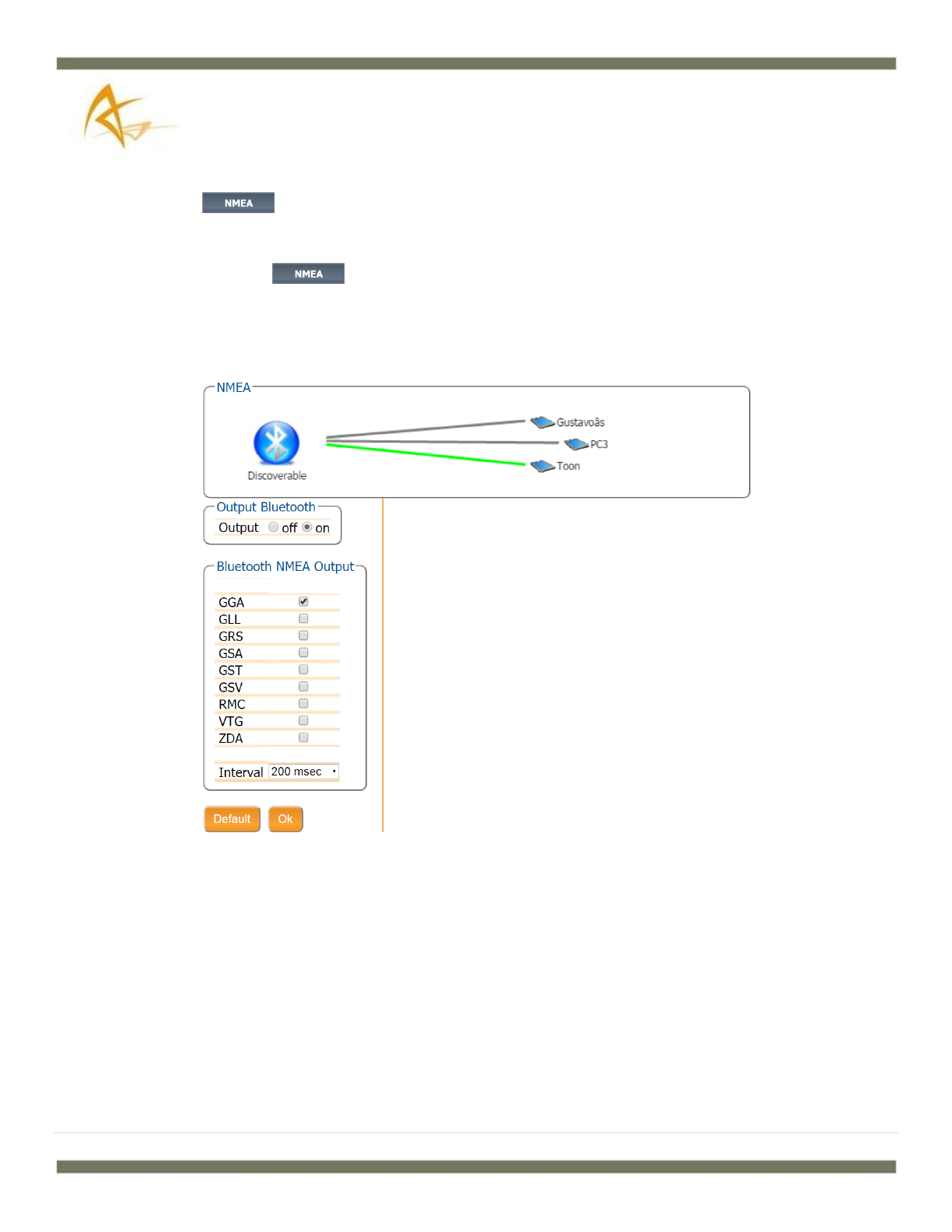

6.2 Configure the NMEA for Bluetooth output .................................................................... 28
3 | P a g e

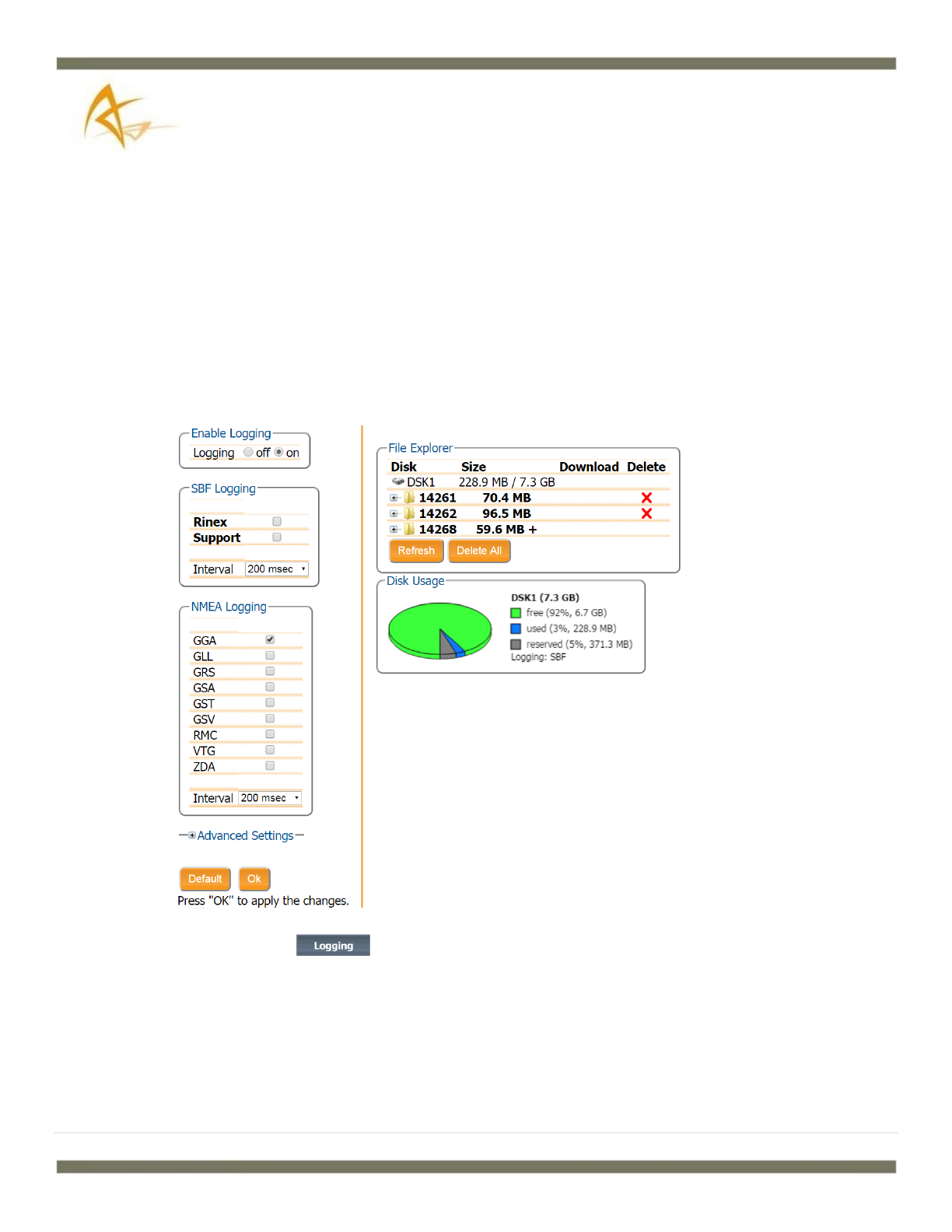

6.3 Activate Logging ............................................................................................................. 29
7 Set the Antenna Height ................................................................... 31
8 Finalizing the configuration ............................................................. 32

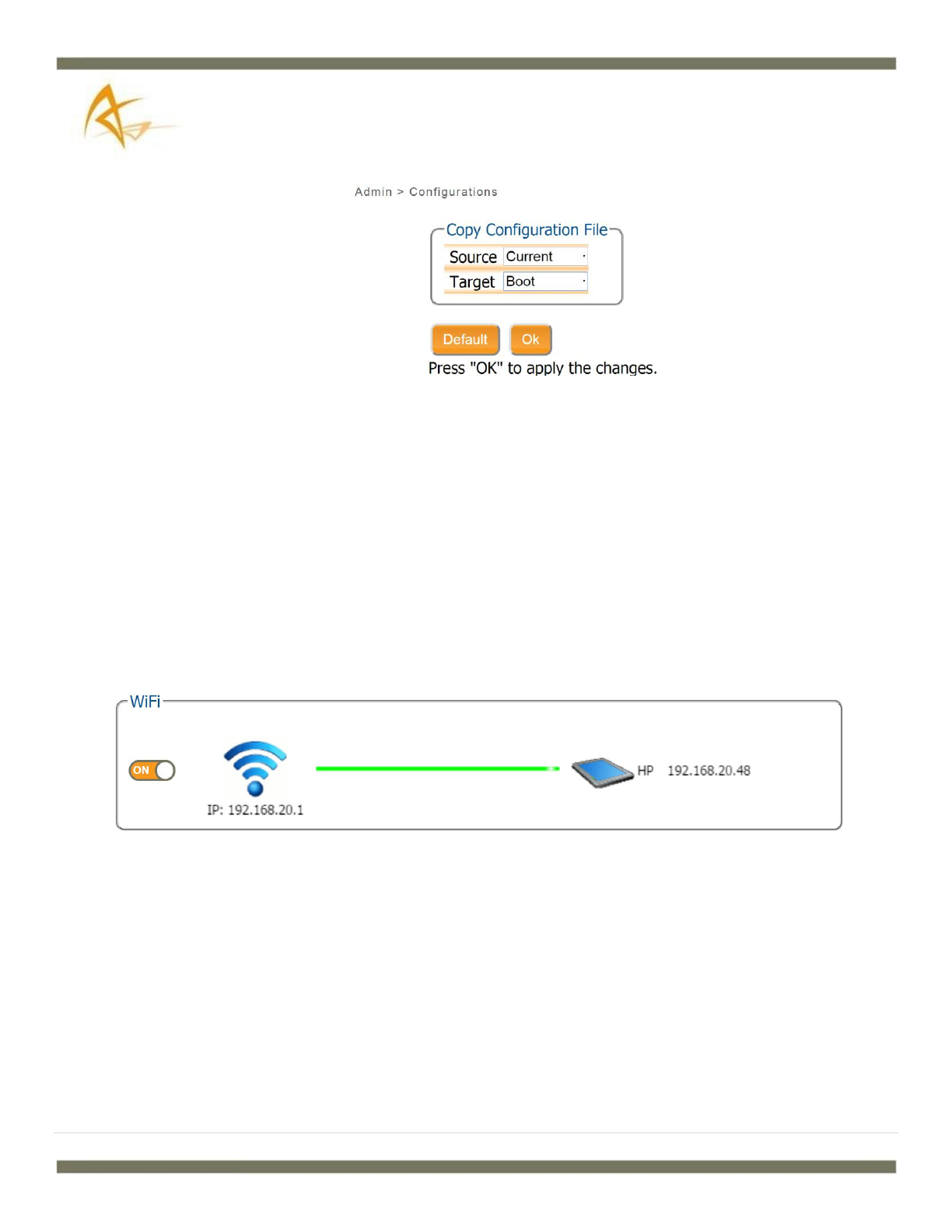

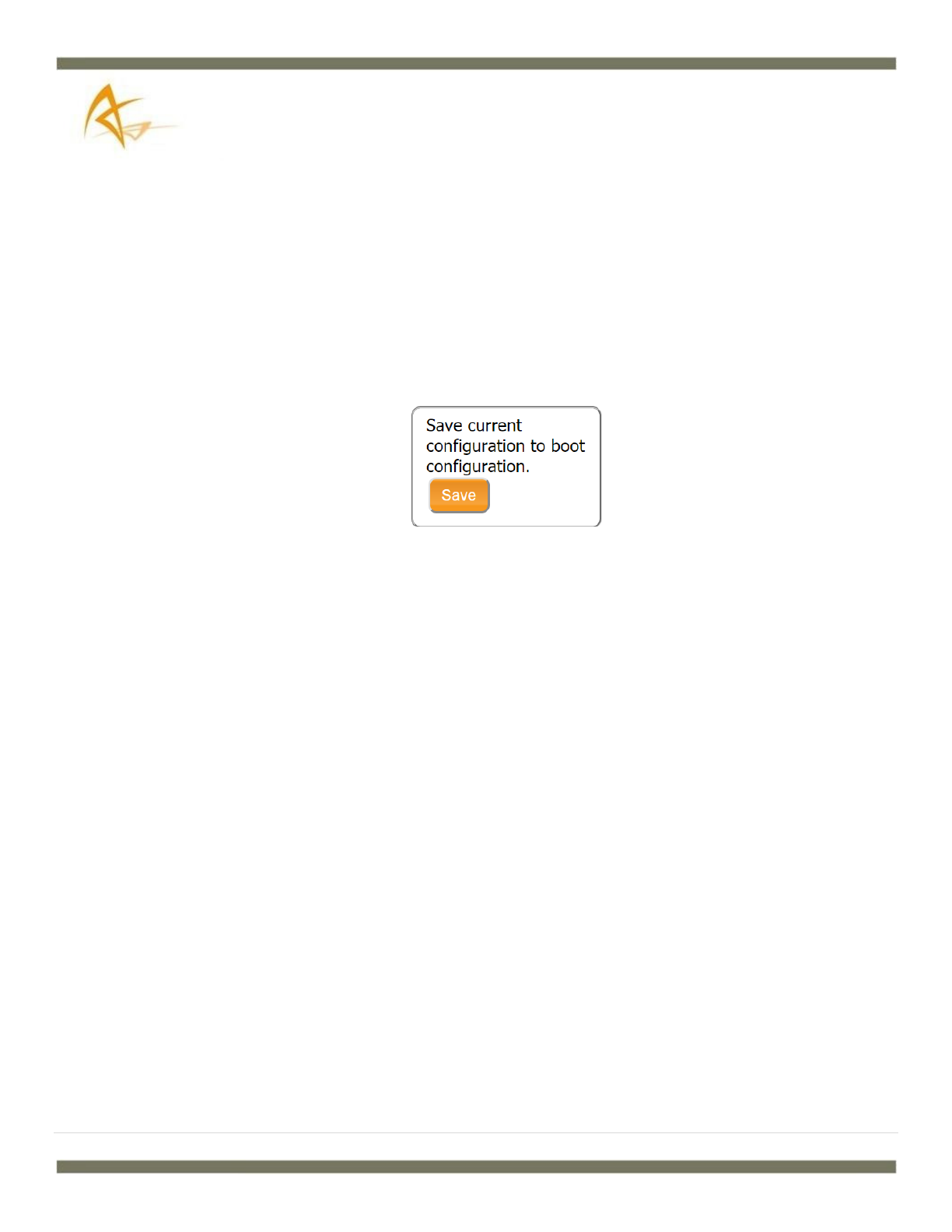

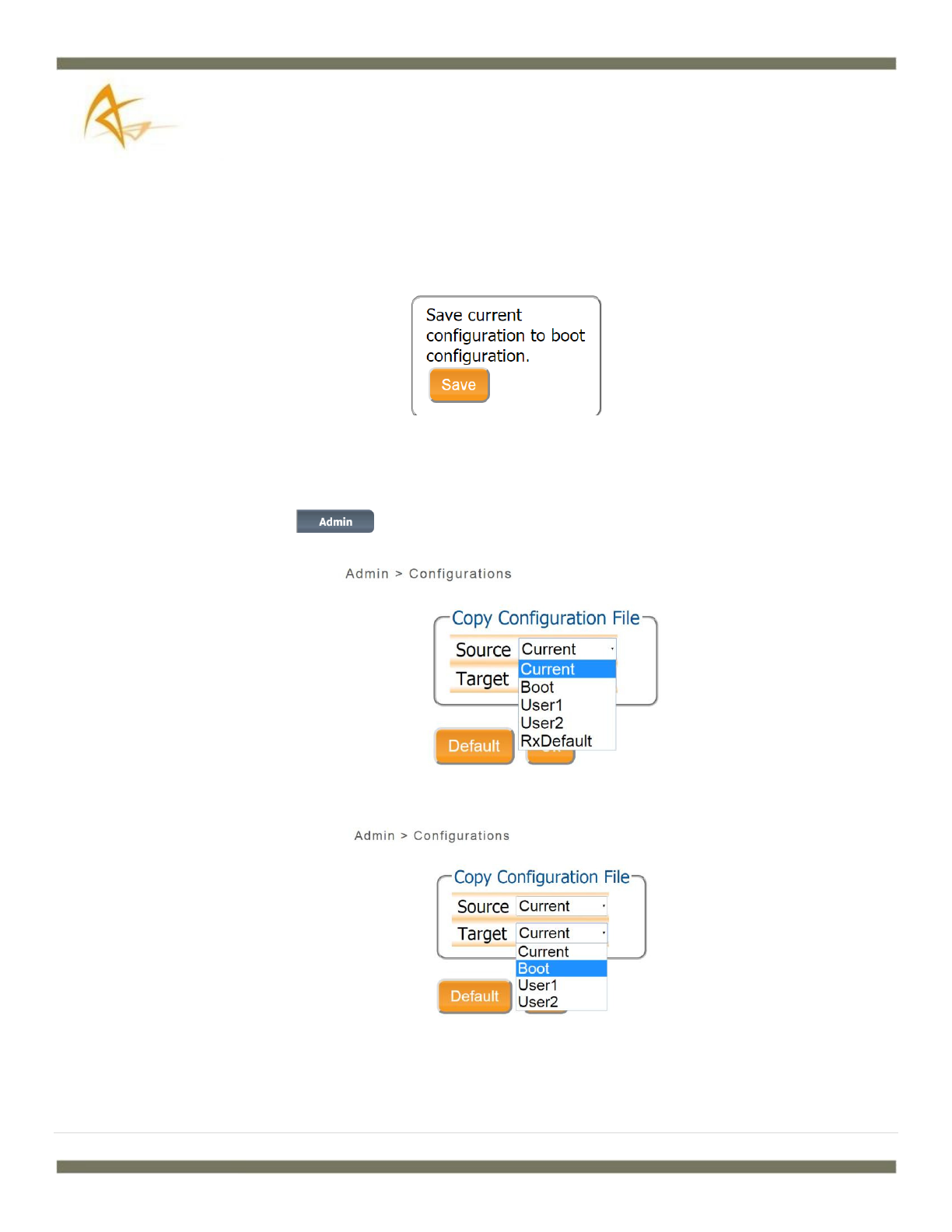

8.1 Make the settings persistent.......................................................................................... 32
8.2 Switch off Wi-Fi .............................................................................................................. 33
9 Retrieving the collected data from the receiver .............................. 34

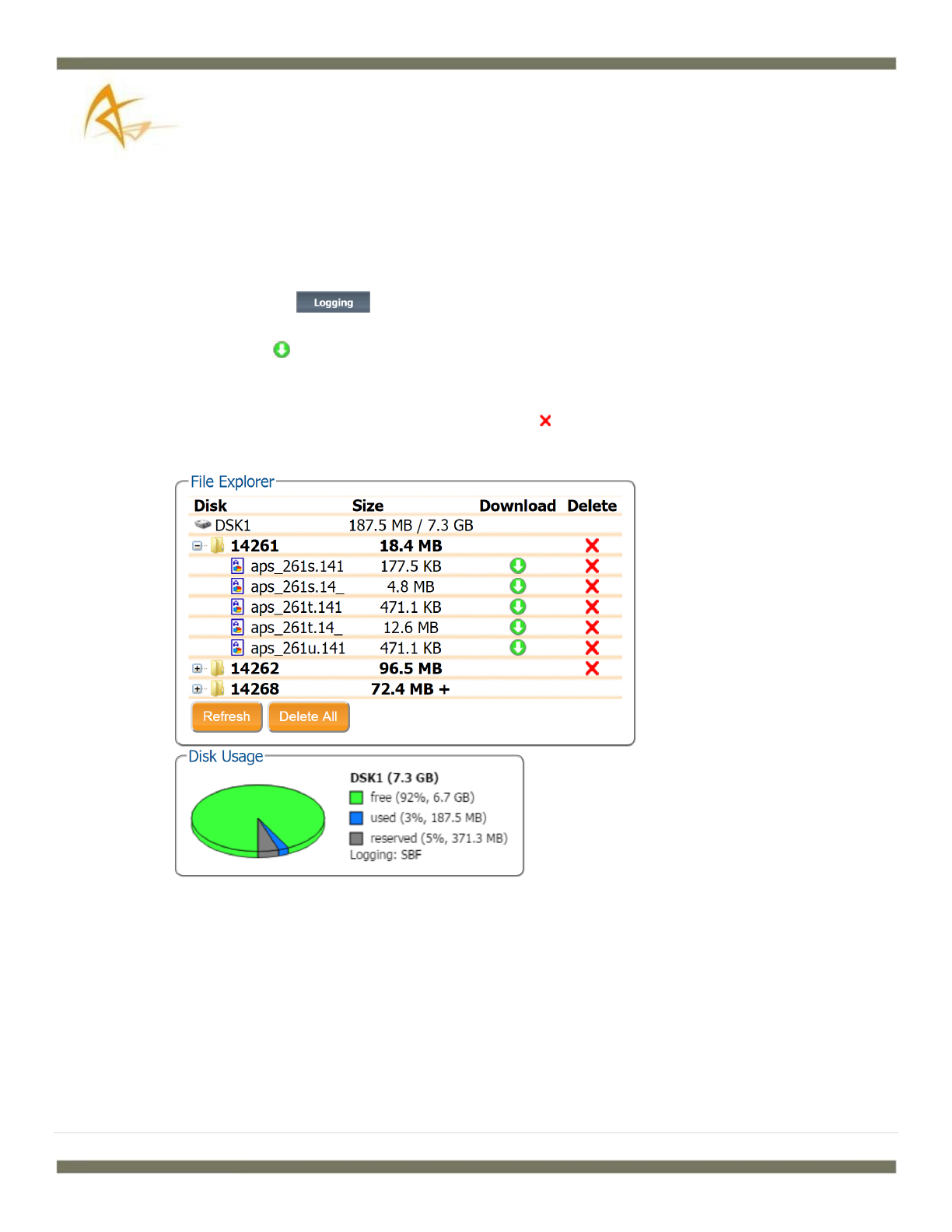

9.1 Using the Web Interface ................................................................................................ 34
9.2 Using the USB connection .............................................................................................. 35
10 Hot Swapping the batteries and charging ........................................ 37
10.1 Battery Swapping ........................................................................................................... 37
10.2 Battery Charging ............................................................................................................. 38

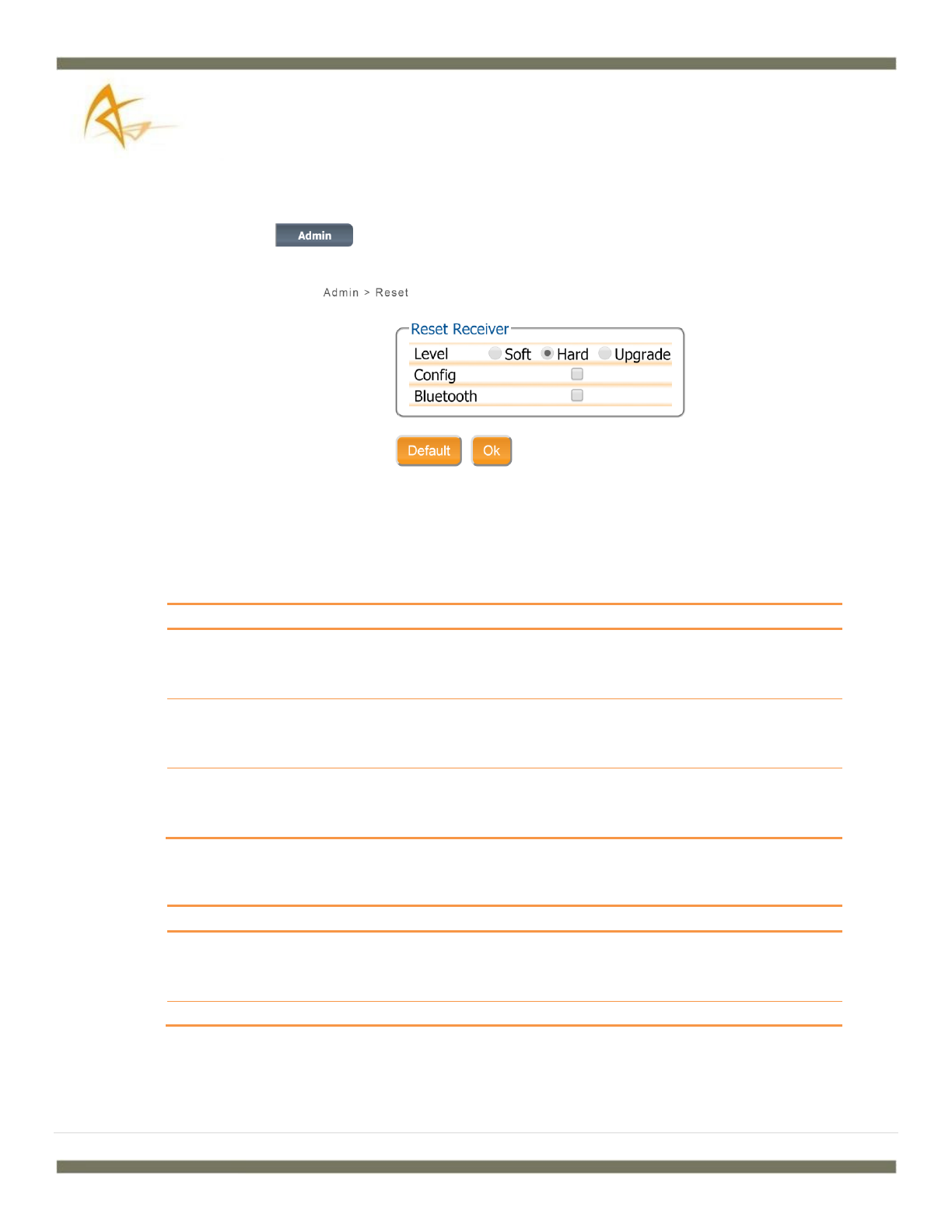

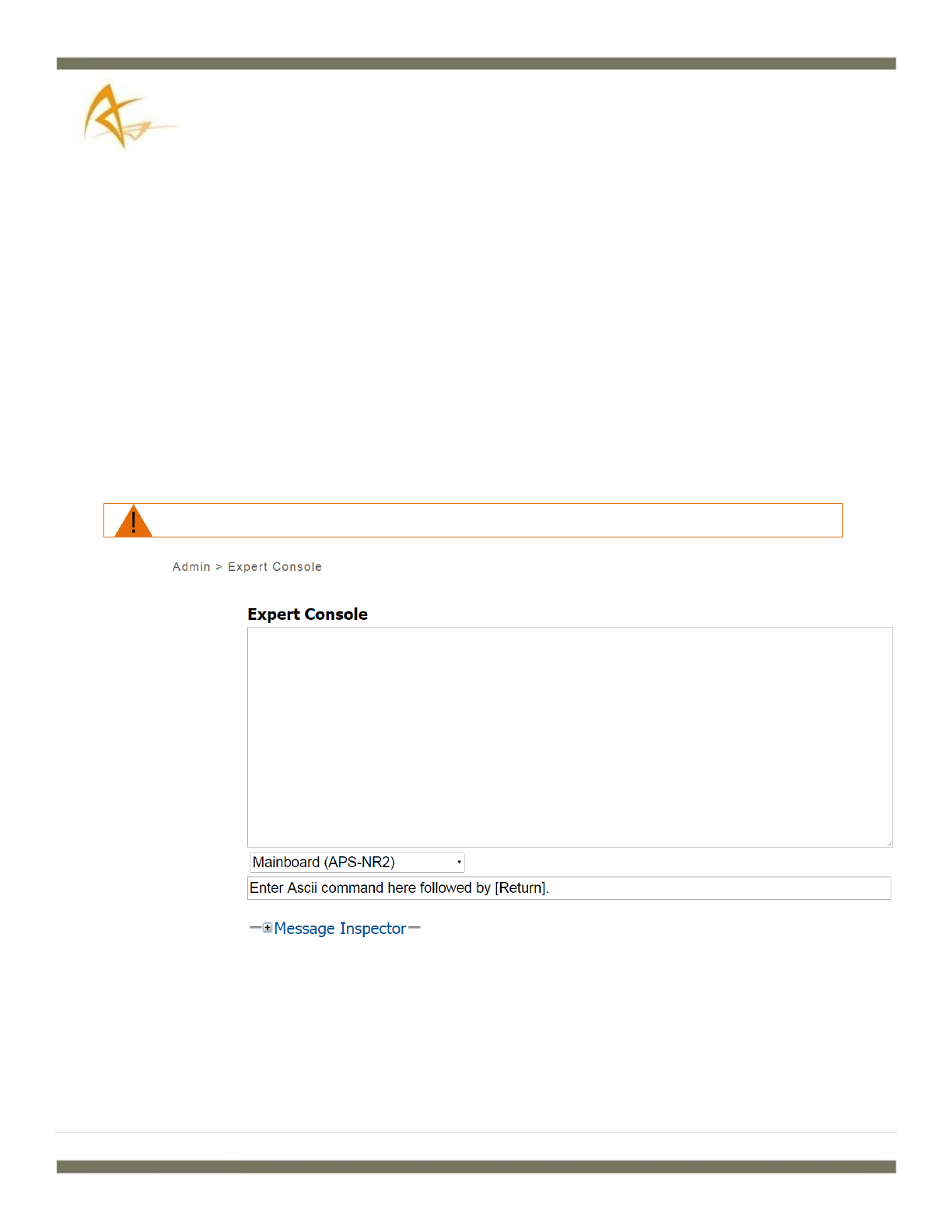

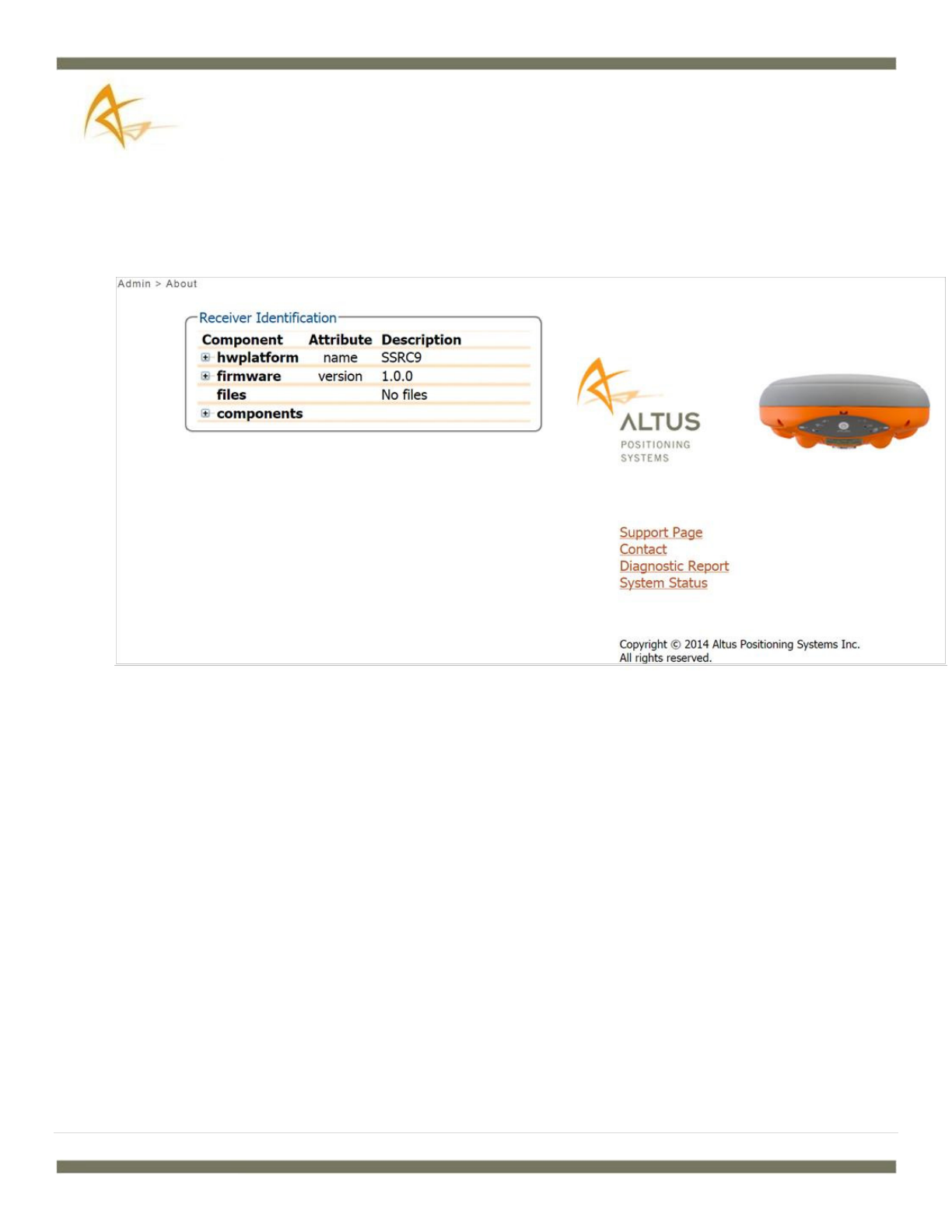

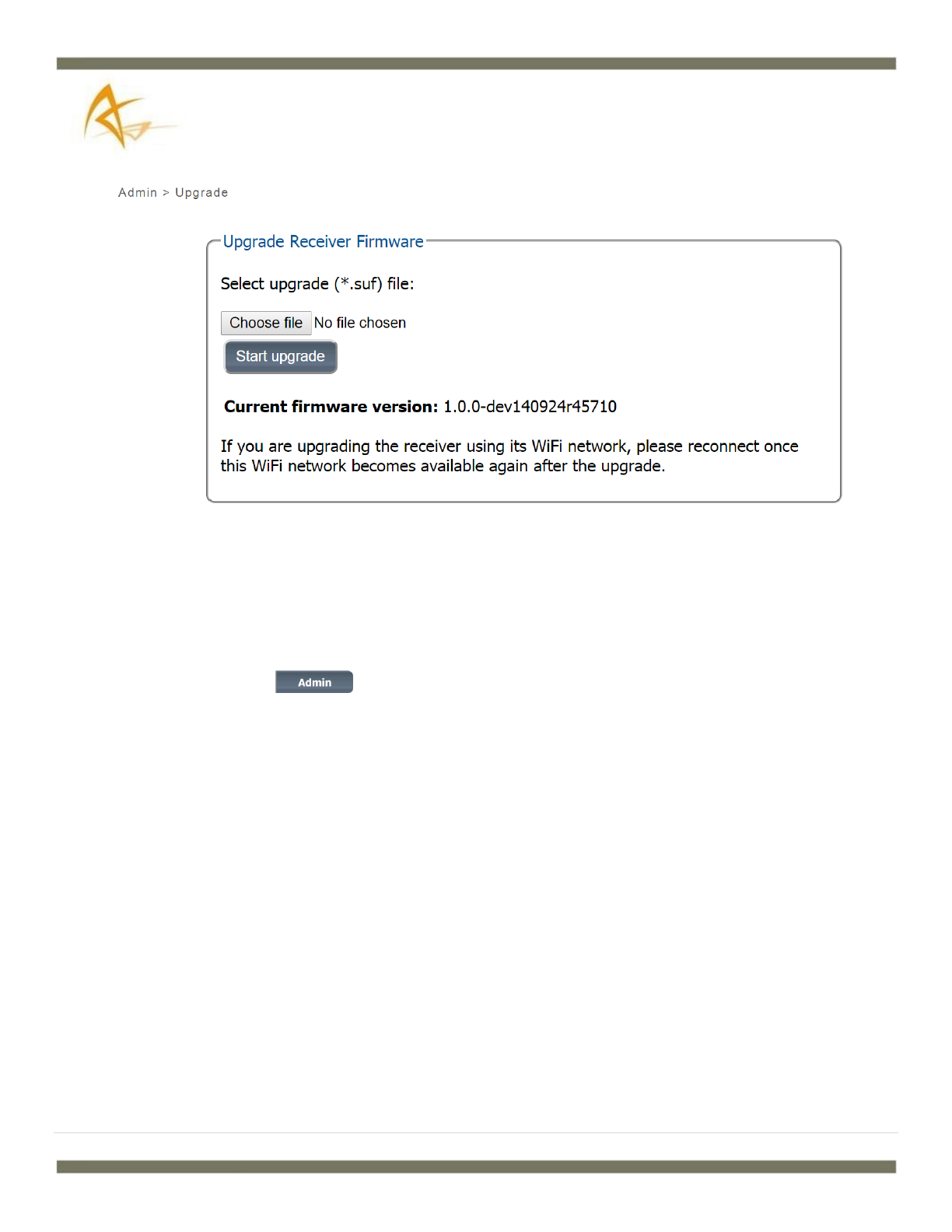

11 System Administration using the Web Interface ............................. 39
12 Appendix ......................................................................................... 46

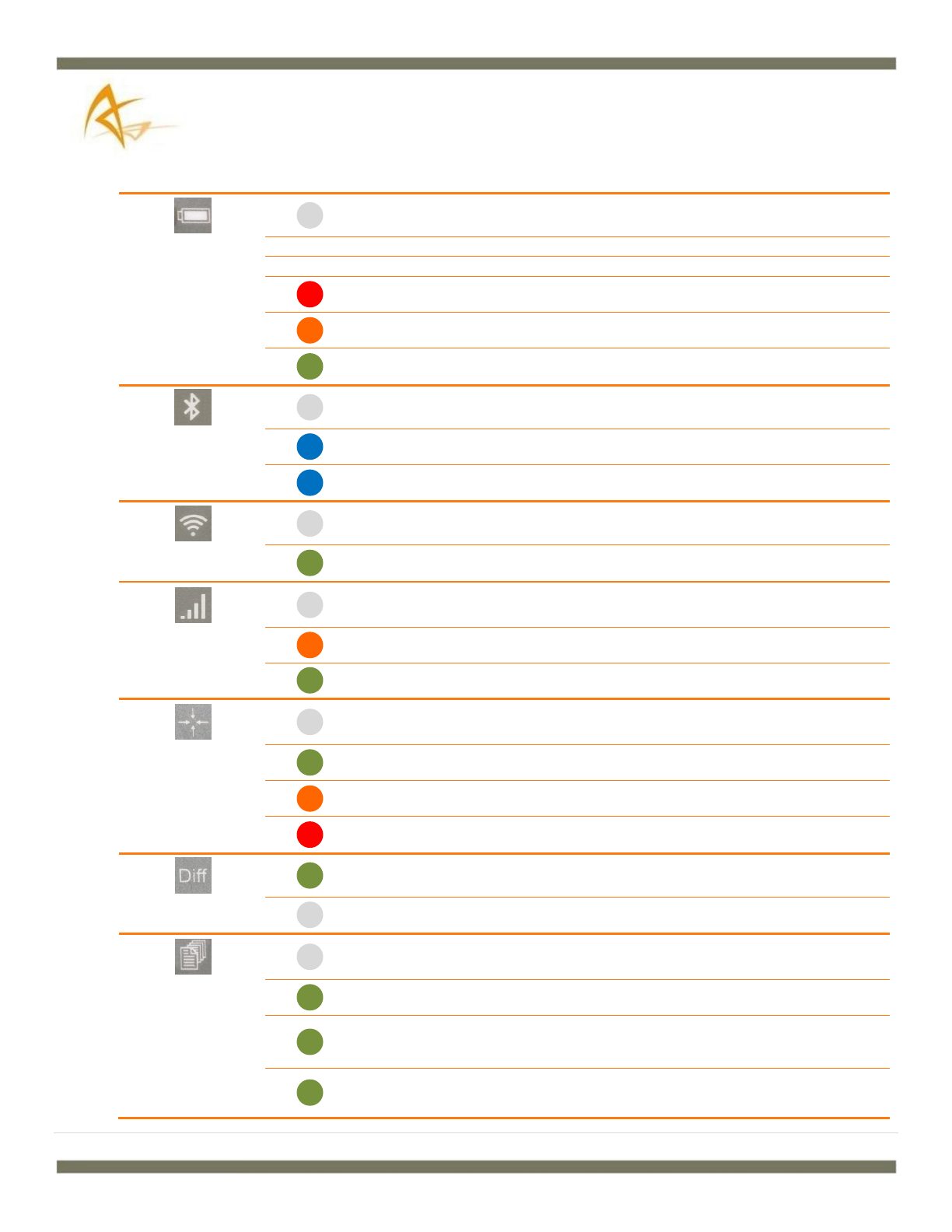

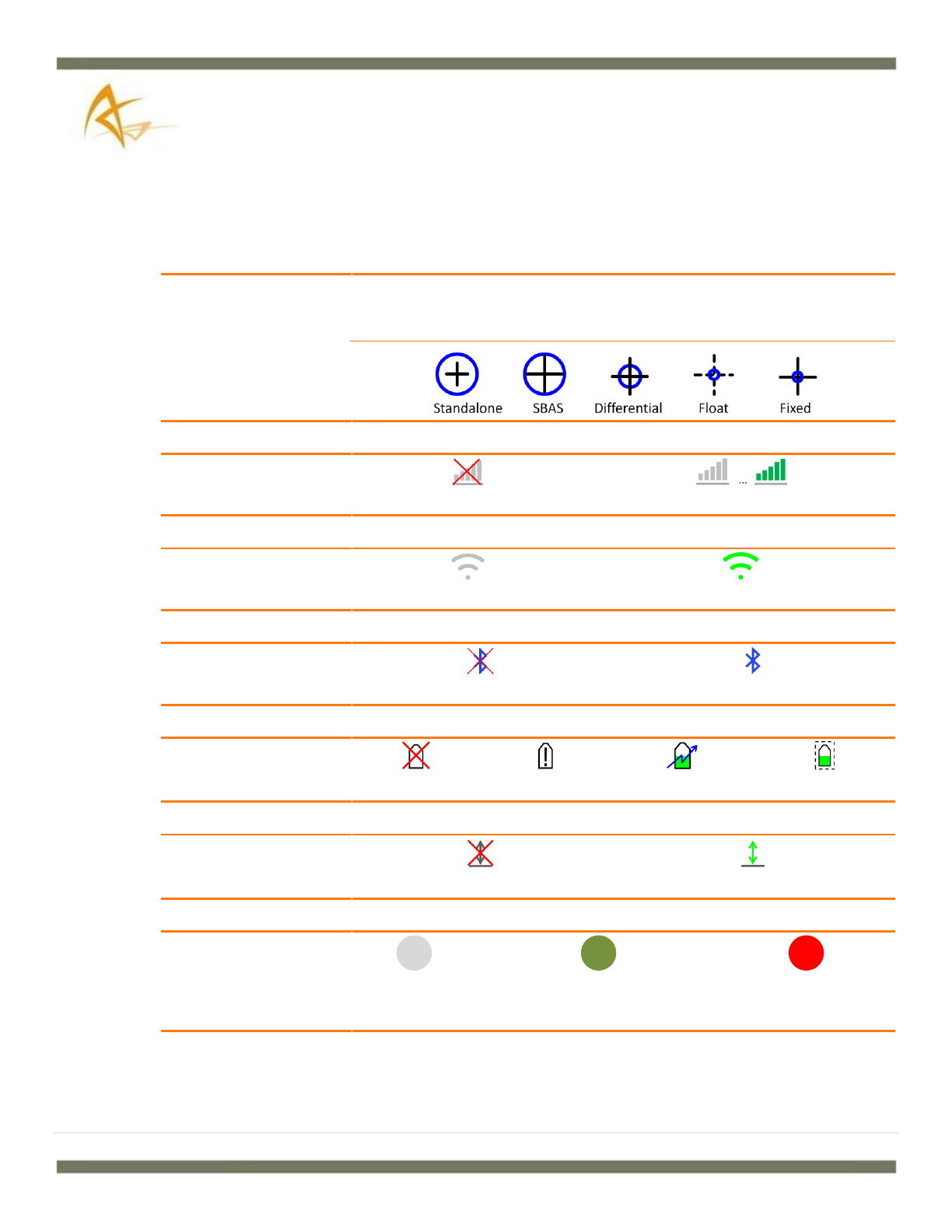

12.1 Status Icons on the Web Interface ................................................................................. 46

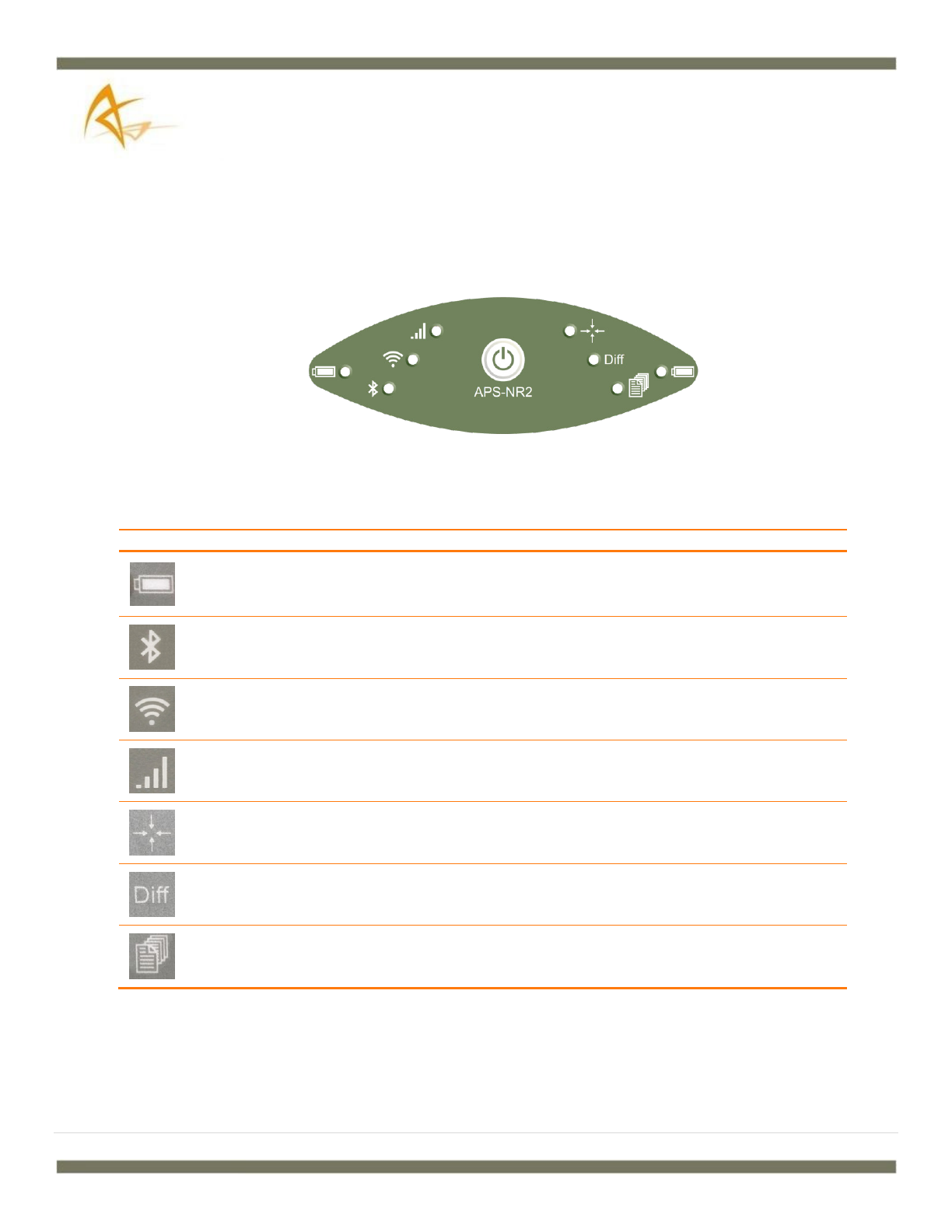

12.2 Front Panel LEDs ............................................................................................................. 47
12.3 The batteries .................................................................................................................. 48
12.4 Cell modem Commands ................................................................................................. 49
12.5 List of Typical GNSS Related Acronyms .......................................................................... 50
4 | P a g e
1 Introduction
1.1 Foreword
You made an excellent choice buying the Altus Positioning Systems Network Rover.
Don’t drop the call!
Do not lose time with dropped calls. Your source of corrections is most secure with
APS-NR2.
It has been designed with a dual antennae cell modem to optimize call retention.
Light
Despite its smarts on board and the wireless technologies the APS-NR2 only weighs
760 grams and measures only 167mm in diameter.
Work all day
The batteries of the APS-NR2 are hot swappable.
With the two batteries in the device and the two spares you will span more than a
full working day!
The charger and batteries are non proprietary so it is easy and inexpensive to keep
spares.
Use your existing phone or tablet
The APS-NR2 communicates with any device having a Wi-Fi radio.
Simply connect to the APS-NR2, open your browser and your APS-NR2 is configured
within minutes.
Esri ready
The APS-NR2 has been designed specifically for users of ArcGIS to enrich their
database with highly accurate positions. Alternatively you may use the APS-NR2
with industry leading survey software like SurvCE, Field Genius or Digiterra.
Works in any network
The APS-NR2 works within all types of RTK networks. Its auto detect function
selects the correction type!
5 | P a g e
1.2 APS-NR2 Technical Characteristics
The APS-NR2 provides multi-frequency GNSS capability and wireless communications.
a Septentrio AsteRx-m GNSS receiver inside.
Fully wireless operations via Wi-Fi, Bluetooth and Cell networks.
Intuitive device-independent graphical web-interface.
Four Li-Ion hot-swappable batteries.
8GB memory for internal data logging.
1.2.1 GNSS Key Features
136 Channel AsteRx-m, with L1/L2/L2C GPS, GLONASS and SBAS.
RTK, SBAS, DGPS and Standalone positioning modes.
Navigation Performance
Horizontal (m)
Vertical (m)
Standalone (Autonomous)
1.3
1.9
SBAS (WAAS, EGNOS, MSAS)
0.6
0.8
DGPS (RTCM1,3 / 9,3)
0.5
0.9
RTK (Fixed)
0.006 + 0.5 ppm
0.01 + 1 ppm
Table 1: APS-NR2 Facts & Figures
The APS-NR2 can be mounted on a standard survey rod with a 5/8" thread.
6 | P a g e
1.3 User Notice
This section provides information regarding Warranty and Customer Service. ALTUS
Positioning Systems reserves the right for improvements and changes to this document,
products and services without notice or obligation.
1.4 Warranty
ALTUS provides a two-year warranty for the APS-NR2 receiver, free from defects in
materials and workmanship, from the date of sale on the invoice of the original buyer.
A ninety-day warranty is provided for the cables and other accessories. Firmware
upgrades are free for life. Software support is free for one year from date of purchase.
The warranty does not cover:
Defects due to accidents, abuse, misuse, negligence, abnormal use or any other
non-recommended use.
Defects due to environmental conditions that do not conform to APS-NR2
specifications.
Defects due to improper installation or operating procedures.
Defects due to modifications, alterations, or changes not made in accordance
with the APS-NR2 User Manual and other technical documentation or directly
authorized by ALTUS.
Normal wear and tear use.
Shipping damage.
Third party software included with the product, other than the warranty of the
original manufacturer to the extent the manufacturer permits.
The warranty is void if the APS-NR2 has been tampered with or opened.
7 | P a g e
1.5 Technical Support
Contact your ALTUS dealer for first-line support. For further information, please see the
Altus support website for documentation and firmware upgrades, or contact ALTUS
Technical Support:
North and South America:
Phone: +1 (310) 541-8139
Fax: +1 (310) 541-8257
sales@altus-ps.com
support@altus-ps.com
EMEA APAC
Septentrio Satellite Navigation
Interleuvenlaan 15G
BE3001 Leuven Belgium
phone: +32 (0) 16 300 800
Fax: +32 (0) 16 221 640
sales@septentrio.com
support@altus-ps.com
8 | P a g e
1.6 CE NOTICE
Receivers of the APS-NR2 family carry the CE mark and are as
such compliant with the 2004/108/EC -EMC Directive and
amendments, 2006/95/EC - Low Voltage Directive, both
amended by the CE marking directive 93/68/EC.
With regards to EMC, these devices are declared as class B,
suitable for residential or business environment.
CE RF exposure compliance
This device meets the EU requirements (1999/519/EC) and the
International Commission on Non-Ionizing Radiation Protection
(ICNIRP) on the limitation of exposure of the general public to
electromagnetic fields by way of health protection.
To comply with the RF exposure requirements, this equipment
must be operated in a minimum of 20 cm separation distance
to the user.
1.7 ROHS/WEEE NOTICE
Receivers of the APS-NR2 family comply with European Union (EU)
Directive 2002/95/EC on the restriction of the use of certain
hazardous substances in electrical and electronic equipment
(RoHS Directive).
Receivers of the APS-NR2 family comply with the European Union
(EU) Directive 2002/96/EC on waste electrical and electronic
equipment (WEEE). The purpose of this Directive is the prevention of
waste electrical and electronic equipment (WEEE), and in addition,
the reuse, recycling and other forms of recovery of such wastes so as
to reduce the disposal of waste. If purchased in the European Union,
please return the receiver at the end of its life to the supplier from
which it was purchased.
9 | P a g e
1.8 FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
uses authoity to opeate the euipet.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
1.8.1 FCC RF Exposure Compliance
This equipment complies with radio frequency (RF) exposure limits adopted by the Federal
Communications Commission for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator & your body.
10 | P a g e
1.9 IC Regulations
RSS-Gen 7.1.3
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
1.9.1 IC RF Exposure Compliance (MPE)
This equipment complies with IC RSS-102 RF exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.
1.9.2 Déclaration d'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
20 cm de distance entre la source de rayonnement et votre corps.
11 | P a g e
1.10 Safety Information
Statement 0000/WARNING: IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger and indicates that you are in a situation that may result in body
injury and physical damage. Before you work on any equipment, be aware of the hazards involved with
electrical circuitry and familiarize yourself with standard practices for preventing accidents. Use the
statement number provided at the beginning of each warning to locate its translation in the translated
safety warnings that accompany this device.
Statement 0001/WARNING: The power supply provided by Altus should not be replaced by another.
Statement 0002/WARNING: Ultimate disposal of this product should be handled according to all
national laws and regulations.
Statement 0003/WARNING: The equipment and all the accessories included with the product may only
be used according to the specifications in the delivered release note, in the manual and in all other
documents delivered with the receiver.
Statement 0004/WARNING: Never place the equipment or its batteries in an environment where the
specified maximum storage temperature can be exceeded.
Statement 0005/WARNING: The outside of the instrument may be cleaned using a clean, lightly
dampened cloth. Do not use any cleaning liquids containing alcohol, methylated spirit, ammonia etc.
12 | P a g e
2 Shipping Case Contents
One APS-NR2 system includes the following items:
Item
Purpose
USB Cable
Configuration via USB
Four Li-Ion Batteries
Powering the APS-NR2
Battery Charger
Dual bay external battery charger via a wall plug or a cigarette lighter
USB stick
Software Programs and Manuals
Wall Charger
Charging the batteries from a wall plug while they are inside the APS-NR2
Table 2: APS-NR2 Delivery Package
The package always contains two EU power cables: One is needed for the battery
charger and one for the wall charger. The power cables of the battery charger and the
wall charger are interchangeable.
When shipped outside of continental Europe, two extra power cables matching the
requirements of the country of destination are added.
Figure 1: Shipping Contents
13 | P a g e
3 APS-NR2 Overview
This section will guide the user through the main parts of the APS-NR2. The detailed
steps how to configure the APS-NR2 will be elaborated in later sections.
3.1 Front Panel
The APS-NR2 has an intuitive front panel with status LEDs and the power button.
Figure 2: APS-NR2 Front Panel
The table below provides a brief overview of the LED indications.
A complete table is provided in section "12.2 Front Panel LEDs" on page 47.
Function
Indication
Battery Power Level
Battery Power level (Green to Red)
solidly lit = battery is in use, blinking = battery is not in use
Bluetooth (not) paired
Bluetooth is off (not lit), connecting (blinking), Paired (blue)
Wi-Fi On/Off
Wi-Fi On (Green) or Off (not lit)
Cellular Modem Status
The modem is not in use (not lit), connecting (orange), connected
(green) or there is an error in the connection (red)
Position Mode
The epoted positio is RTK Fixed gee, “tad aloe red), any
other mode (orange) or no position can be calculated (not lit)
Differential Corrections
Differential Corrections are being received (Green) or
differential Corrections are not being received (not lit)
Data Logging
Logging is disabled (not lit), active (green)
Table 3: APS-NR2 : Front LED Short
14 | P a g e
3.2 Power Button Functions
APS-NR2 power status
User Action
Effect
While the device is off
CLICK
Switches on the APS-NR2
HOLD
4 seconds
Resets the device to factory default
While the device is on
CLICK CLICK
Toggles the Wi-Fi radio on and off
CLICK
Toggles logging on and off
The LED only switches on if
messages have been selected for
logging
HOLD
2 seconds
Powers off the device
15 | P a g e
3.3 Location of Batteries and SIM card
The APS-NR2 contains two battery bays. The positive lead for the batteries is located
nearest to the front label.
The SIM card slot is located under the left battery bay.
The SIM card slot is covered with a watertight cover.
Only a micro SIM card will fit into the slot.
Figure 3: SIM Card Slot
3.4 Closing the battery door
Figure 4: Closing the battery door
Press firmly at the position indicated by the grey arrow.
The battery door is only latched after a firm click is heard.
16 | P a g e
3.5 APS-NR2 Connector
The APS-NR2 has one 9-Pin Lemo connection. This allows charging the batteries while
they are inside the APS-NR2 using the wall charger. Using the USB cable it allows for
data transfer.
Figure 5: APS-NR2 Port Connections
17 | P a g e
3.6 The Web Interface
The APS-NR2 can be fully configured and monitored using its Web Interface.
In the following sections it will be explained how to get access the Web Interface and
use it to configure to APS-NR2 to your needs.

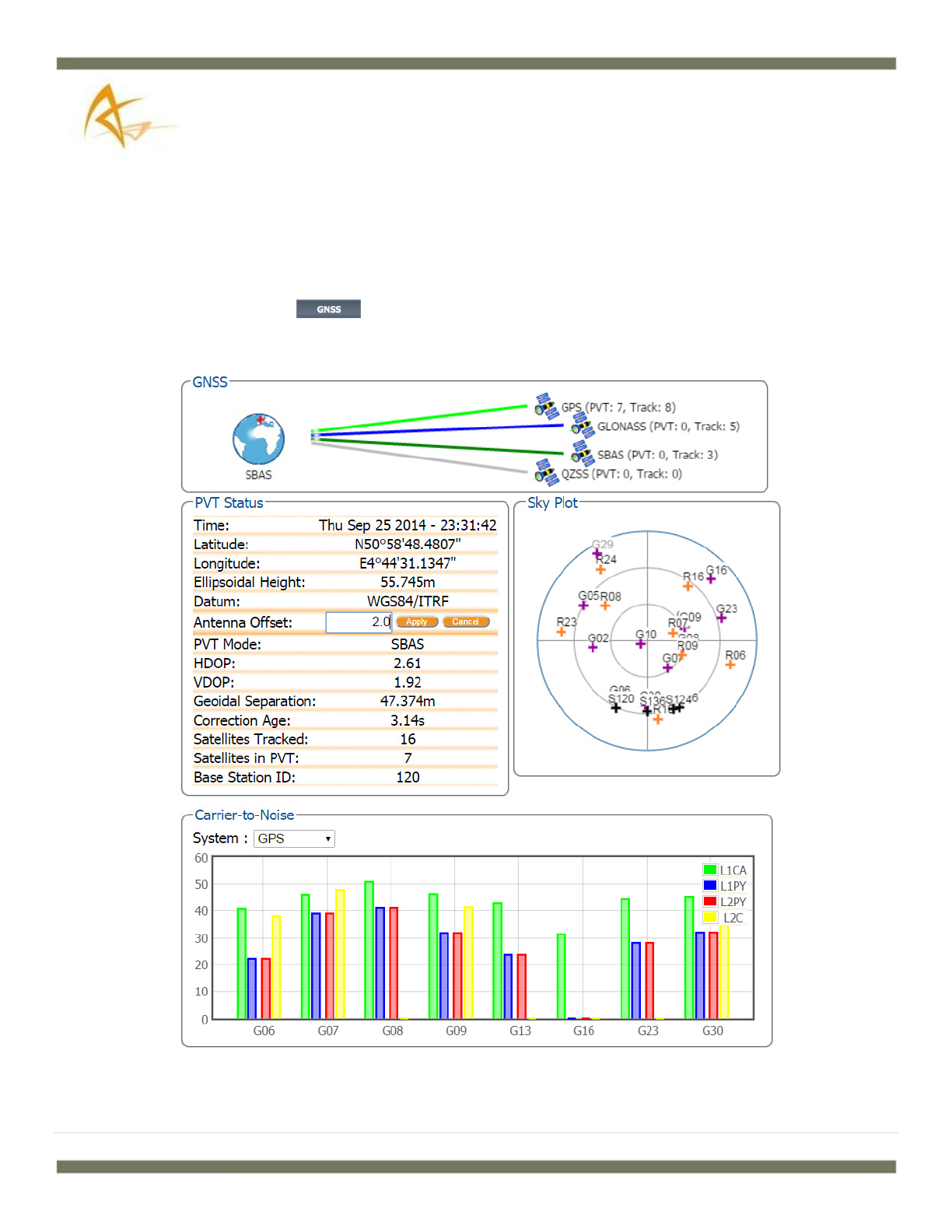

Figure 6: APS-NR2 Web Interface
18 | P a g e
4 Initial set up
4.1 Prerequisites
An Activated Micro SIM Card
In some countries a PIN and PUK code are required to use the card.
If so, make sure you have the codes at hand.
To establish a data connection an Access Point Name (APN), user name and
password are needed. If you do not have this information, you need to request it
from the telecom provider.
An active RTK (NTRIP or TCP/IP) service
A subscription for a (NTRIP or TCP/IP) correction service.
Charged Batteries
Make sure you have two charged batteries.
Empty batteries may take three to four hours to charge.
A APS-NR2 Wall Charger
As an alternative you can power the APS-NR2 using the wall charger when
configuring the APS-NR2.
A phone, tablet or computer with a Wi-Fi radio
A Wi-Fi enabled device is needed to configure the APS-NR2 using the Web
Interface.
19 | P a g e
4.2 Insert the micro SIM card
Turn off the APS-NR2 to install or remove the SIM card. Damage to the SIM card may occur if installed or
removed while power is on
1. Put the APS-NR2 on a flat surface with its battery compartments facing up as shown
in Figure 3 on page 15.
2. Open the battery compartment.
3. Open the SIM card compartment
4. Put the micro SIM card down in the SIM card compartment.
5. Slide the micro SIM card gently towards the front panel of the APS-NR2 until a click
sounds.
6. Gently close the SIM card compartment.
4.3 Insert the batteries
1. Place the two batteries in their compartments with their positive leads pointing to
the front panel of the APS-NR2.
2. Close the two battery doors.
The doors click audibly when latched.
4.4 Switch on the APS-NR2
Click the power button once to switch on the APS-NR2.
4.5 Wait for the APS-NR2 to start up
It takes about two minutes for the APS-NR2 to start up.
It is advised to avoid clicking the power button during the start up sequence.
During the start up test sequence the LEDs will blink before they stabilize and indicate
the status correctly.
4.6 Make sure the Wi-Fi radio is switched on
The default way of configuring the APS-NR2 is using the Web Interface over Wi-Fi.
1. If the Wi-Fi radio is already switched on, the Wi-Fi LED is lit.
2. If the Wi-Fi LED is not lit, click the Power Button twice briefly.
The Wi-Fi LED will switch on, indicating the radio is now active.

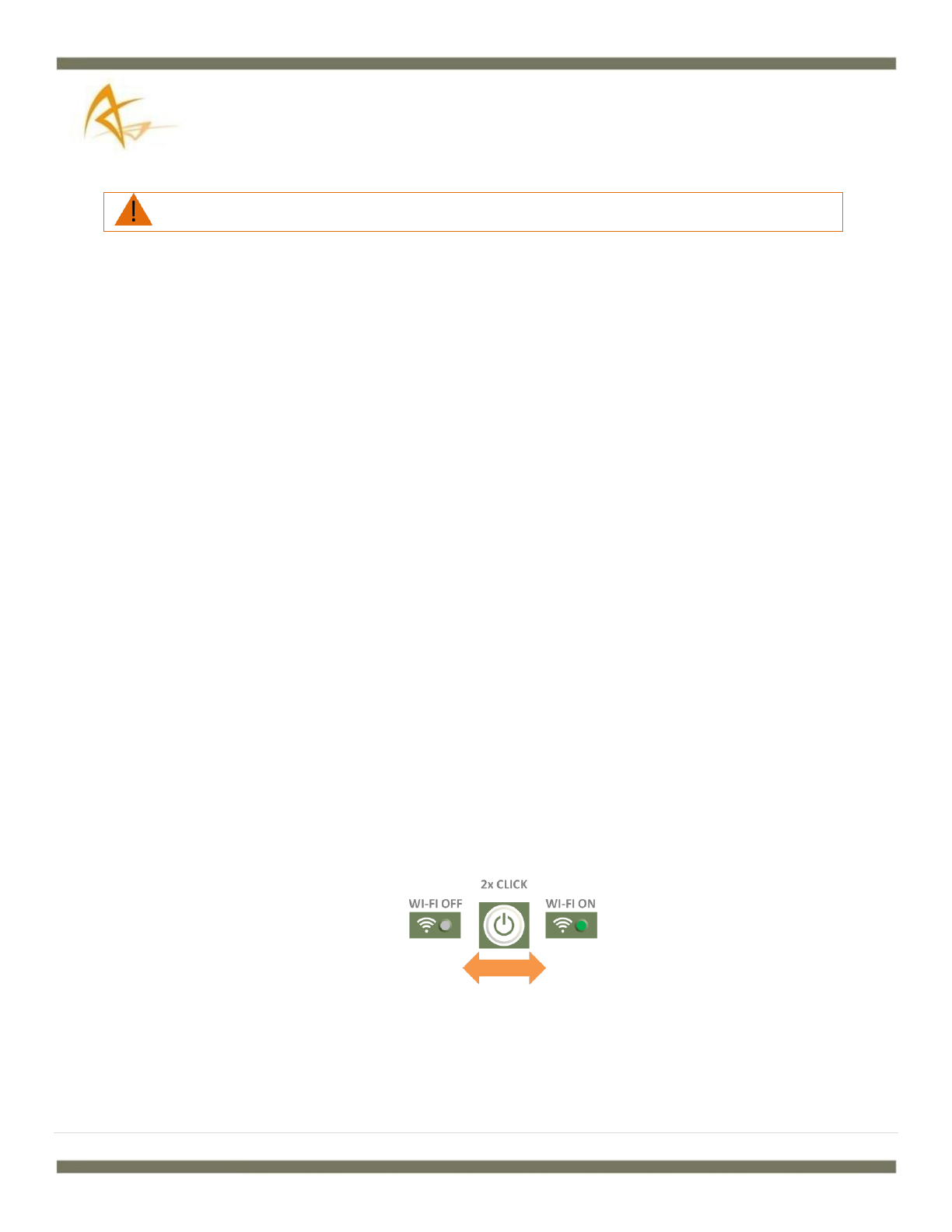

Figure 7: APS-NR2 Wi-Fi On-Off
20 | P a g e
4.7 Connect to the Web Interface
Any device with Wi-Fi can connect to the APS-NR2 and use the Web Interface.
The APS-NR2 identifies itself as wireless network or an access point.
Before starting the procedure below, it is advised to get acquainted with the procedure
of your device (phone, tablet, computer) for connecting to a Wi-Fi network.
1. Ensure the APS-NR2 is fully booted (about 2 minutes).
2. Ensure the Wi-Fi is enabled on the APS-NR2 as described in section 4.6 on page 19.
3. Using your preferred device, select the Wi-Fi application and
find the wireless network called APS-NR2-<Serial Number>.
4. The default password is empty.
5. Open a browser and type the default IP .6.. in the address bar
6. The browser will land on the tab of the APS-NR2 Web Interface.
Figure 8: Web Interface Overview Tab
21 | P a g e
5 Basic Configuration of the APS-NR2 for RTK
After successfully executing the steps in "Initial set up", your APS-NR2 is ready to be
configured to receive corrections and output position data.
After each change made to the APS-NR2's configuration while executing the steps in the
following sections the pop up will appear in the bottom right of the browser window.
If the user clicks Save, the settings are stored in the boot configuration and will be
applied again when the APS-NR2 is restarted.
The configuration mechanism is explained in detail in section "11.1.1 Configuration" on
page 39.
Figure 9: Save to Boot pop up
22 | P a g e
5.1 Set up the cellular modem
1. Click the tab on the Web Interface to show the status of the Cell Modem.
2. Enter a Cellular PIN, APN, Username and Password from this tab.
3. Make sure the 'on' radio buttons of both Power and Connect are selected.
4. Click OK
Figure 10: Cellular Status : Cell disabled
If the connection has been established successfully, the Status will change from
InitializingConnectingConnected as shown in Figure 11 and Figure 12.
The line on the left hand will turn green and indicate the connection type (e.g. HSPA) and Status fields
on the bottom right of the page will be filled as shown in Figure 10.
Figure 11: Cellular Status: Getting connected
23 | P a g e
Figure 12: Cellular Status: Connected
24 | P a g e
5.2 Configure as NTRIP client
1. Make sure you have a cellular connection as described in the previous section.
2. Select the tab on the APS-NR2's Web Interface.
Figure 13:NTRIP tab of the Web Interface
3. Select 'Client' in the Mode drop down box.
4. Enter the Caster server name or IP address and the Port of your CORS.
5. Enter the User Name and Password of your account.
The NTRIP password will automatically be encrypted and not shown for security.
6. Once the NTRIP Mode, Caster, and Port are entered, the Mount Point drop down
box will be populated.
Figure 14: NTRIP Settings
7. Select a Mount Point in the drop down box.
8. Click OK
9. The APS-NR2 will automatically initialize and connect.
25 | P a g e
Figure 15: NTRIP Initialization
If the Mode Field is set to Cliet, the APS-NR2 will auto-connect to the NTRIP Caster
each time it is powered.
If the Mode Field is set to Off, o oetios will be received and the APS-NR2 will not
auto-connect to the caster when switched on.
26 | P a g e
5.3 APS-NR2 Configured for RTK
After finishing the steps in the sections "Introduction" and "Basic Configuration of the
APS-NR2 for RTK" the APS-NR2 is receiving corrections and is able to calculate a
position.
Figure 16: Overview tab after Basic Configuration
27 | P a g e
6 Configuring the output
6.1 Connect Bluetooth
The APS-NR2 uses its Bluetooth connection to output data to an application running on
a tablet, phone or computer.
Before starting the procedure below, it is advised to get acquainted with the procedure
of your device (phone, tablet, computer) to connect to a Bluetooth accessory (APS-NR2).
1. Select the tab on the APS-NR2's Web Interface.
2. The Bluetooth tab shows the Device name and Pairing code you need to connect to
your device consuming the data produced by the APS-NR2
3. Using your preferred device, select the Bluetooth application and
find the Bluetooth device name of your APS-NR2 and
Execute the pairing sequence.
By default the Bluetooth Device name is APS-NR2-<Serial Number>.
4. The Bluetooth name of the device you connected to appears on the right hand side
of the Bluetooth icon in the Bluetooth tab.
5. Using your preferred GIS or Survey application on the device make sure you connect
to the Bluetooth port created by the Bluetooth manager of your device.
Unless there are specific reasons to make the APS-NR2 undiscoverable, it is advised to
leave the Discoverable option switched on.
The device name and pairing code may be changed for user preference. Also, the
Bluetooth module may be powered on/off and set to discoverable from this tab.
Figure 17: Web Interface Bluetooth
28 | P a g e
6.2 Configure the NMEA for Bluetooth output
The tab allows the user to view paired Bluetooth devices and start/stop
NMEA.
1. Click the tab on the APS-NR2's Web Interface
2. Select the required NMEA messages and the required Interval
3. Make sure the Output is set to On
4. Click OK
Figure 18: Web Interface NMEA
29 | P a g e
6.3 Activate Logging
6.3.1 Basic Configuration of Logging
The Logging functionality allows data to be stored on the APS-NR2's internal disk.
This disk has a capacity of 8GB.
The user may select SBF blocks (Septentrio Binary Format) and/or NMEA messages
(National Marine Electronics Association) to be logged.
Data logged can be downloaded in the File Explorer menu by clicking the green arrow in
the Download column.
The doloaded file ill e i the oses doload dietoy.
Figure 19: Logging Tab
1. Click on the tab.
2. Check the required SBF blocks and NMEA messages.
3. Select the logging interval.
4. Activate the logging by setting Logging to on.
5. Click OK to apply the settings.
30 | P a g e
6.3.2 Advanced Settings for Logging
Typically the Advanced Settings for Logging are not reconfigured by the user.
So this section may be skipped during the initial configuration.
The Advanced settings for logging are elaborated in APS-NR2 Firmware Command Line
Interface Reference Guide.
The "Disk Full Action" and "SBF and NMEA File Naming Conventions" are elaborated in
the section "Logging Commands"
The Marker Parameters are elaborated in the section "Session Settings Commands"
1. Click on the tab
2. Click on Advanced Settings.
Advanced settings allow for a filename and marker name to be specified.
Figure 20: Web Interface Logging - Advanced Settings
31 | P a g e
7 Set the Antenna Height
The antenna height is the offset between the measured point and the Antenna Reference Point.
Practically this is the height of the survey rod.
The APS-NR2 automatically compensates for the Antenna Phase Center.
1. Click on the tab and enter in an antenna height.
2. Click Apply when finished.
In this example, 2 meters was used.
Figure 21: GNSS Tab : setting Antenna Offset
32 | P a g e
8 Finalizing the configuration
8.1 Make the settings persistent
If the user has consistently pressed Save when the pop up shown below has appeared
on the screen, all settings will be persistent and will be applied again when the device
powered on.
Figure 22: Save to Boot pop up
If the user is not sure all settings have been stored, the procedure below is to be
executed.
1. Click on the tab
2. Select Current in the Source drop down box as shown in Figure 23.
Figure 23: Select Current as Source
3. Select Boot in the Target drop down box as shown in Figure 24
Figure 24: Select Boot as Target
33 | P a g e
4. Click the OK button shown in Figure 25
Figure 25: OK to execute the copy
8.2 Switch off Wi-Fi
The nominal battery lifetime of a full working day can only be improved if Wi-Fi is
switched on only during configuration.
Therefore the user is advised to switch off Wi-Fi after the configuration is completed.
The user can switch off Wi-Fi by clicking the power button twice as described in section
"3.2 Power Button Functions" on page 14 or by clicking the on/off toggle button in the
Overview tab of the Web Interface as shown in Figure 26.
Figure 26: Wi-Fi On/Off toggle button in the Overview tab
34 | P a g e
9 Retrieving the collected data from the receiver
As described in section "6.3 Activate Logging" on page 29 the collected data can be
stored on the internal disk.
The data can be retrieved over Wi-Fi using the Web Interface or via the USB data cable.
9.1 Using the Web Interface
1. Click on the tab.
2. All the recorded files are shown in the File Explorer.
3. Click the in the Download column of the file to be downloaded.
4. The file is o doloaded to the oses doload dietoy.
5. Obsolete files can be deleted by clicking the next to the file
Figure 27: Logging Tab download
35 | P a g e
9.2 Using the USB connection
Connecting the USB cable will stop logging.
9.2.1 Connecting the USB data cable for the first time
To install the drivers, the user needs Adiistatos ights.
An executable will have to be run to install the drivers.
The USB plug will have to unplugged and plugged in again to trigger Windows to activate the
drivers.
1. Make sure the computer is connected to the internet.
- Connect the computer using an Ethernet connection or
- Disconnect the Wi-Fi connection between the computer and the APS-NR2.
2. Open the Windows File Explorer.
3. Connect the APS-NR2 to a USB port of your computer using the USB communication
cable.
4. A new drive called APS-NR2 will appear in the File Explorer.
This may take some seconds.
Pop ups may show indicating that drivers are being installed.
Ignore these messages.
5. Ope the e die ad go to the folde die.
6. Run the driver installer.
7. Unplug the USB cable from the computer
8. Plug the USB cable into the computer.
9. Windows will automatically start looking for the drivers.
Windows will show a pop in the left bottom the screen indicating it is looking for
the necessary drivers.
10. A pop will show indicating that drivers have been installed successfully.
36 | P a g e
9.2.2 Retrieving data via the USB connection
Connecting the USB cable will stop logging.
If the APS-NR2 has not been connected to the computer being used before then first
execute the steps described in the section "9.2.1 Connecting the USB data cable for the
first time" on page 35.
If the APS-NR2 has already been connected to the computer used the following steps
apply:
1. Open the Windows File Explorer
2. Connect the APS-NR2 to a USB port of your computer using the USB communication
cable.
3. On a Windows computer the APS-NR2 will appear as an extra drive in the file
explorer after a few seconds.
4. The APS-NR2 appears as a drive named "APS-NR2".
5. The data files can be retrieved from the SSN folder.
9.2.3 Connecting via Ethernet over USB
The web Interface of the APS-N‘ a e aessed oe a Etheet oe U“B oetio.
Connecting the USB cable will stop logging.
If the APS-NR2 has not been connected to the computer being used before then first
execute the steps described in the section "9.2.1 Connecting the USB data cable for the
first time" on page 35.
If the APS-NR2 has already been connected to the computer used the following steps
apply:
1. Connect the APS-NR2 to a USB port of your computer using the USB
communication cable.
2. Open your web browser and use the IP address: 192.168.3.1
37 | P a g e
10 Hot Swapping the batteries and charging
10.1 Battery Swapping
Both the Web Interface and front panel LEDS give information about the battery status.
NO BATTERY
Insert a charged battery
BATTERY
BLINKING
LESS THAN 5% REMAINING
IN USE
Replace the battery!
BLINKING
LESS THAN 20% REMAINING
IN USE
BLINKING
OK
IN USE
No action needed,
but battery can be replaced.
Table 4: Battery not in use
SOLIDLY LIT
LESS THAN 5% REMAINING
IN USE
Do not open the battery cover!
BATTERY
SOLIDY LIT
LESS THAN 20% REMAINING
IN USE
SOLIDLY LIT
OK
IN USE
Table 5: Battery in use
When both batteries are below 5% then the APS-NR2 will make use of both batteries.
The user may replace either battery without interrupting operation.
38 | P a g e
10.2 Battery Charging
To prevent premature aging of the batteries it is good practice to always:
charge the batteries completely before re-inserting them into the APS-NR2.
use the batteries until they are discharged.
10.2.1 Using the external battery charger
The APS-N‘s atteies a best be charged in the APS-NR2 external battery charger.
For a totally drained battery of 3400mAh a charging time of 3.5 to 4 hours can be
expected.
10.2.2 Using the A/C adapter
The APS-NR's batteries can be charged while in the device using the wall charger.
If the batteries are being charged while the APS-NR2 is switched off, there is no visual
indication of the charging, all LEDs on the APS-NR2 will be off.
When inserting the Lemo plug into the APS-NR2, the red dot has to point to the
center of the device.
Insert the plug until the edge of the plug touches the connector.
Figure 28: Lemo plug
If the Lemo plug is not properly inserted, damage may occur to the electronics of the APS-NR2.
10.2.3 Using USB adapter
The batteries can be charged using the USB cable. The charging speed is very dependent of the
quality of the charger. It is recommended to use the A/C adapter for charging the batteries in
the unit.
39 | P a g e
11 System Administration using the Web Interface
The tab has five options:
Configuration
where user profiles can be saved and used upon startup,
Reset
where the APS-NR2 can be reset,
Upgrade
where the APS-NR2 can be upgraded,
Expert Console
where line commands can be sent and specific data can
be viewed,
About
where hardware and software versions can be viewed and
a Diagnostic Report can be generated.
Further detail on each option is shown below.
11.1.1 Configuration
11.1.1.1 What is a configuration?
A collection of all settings and values that determine the behavior of the APS-NR2 are
called a configuration.
The configuration that is actually being used is the Current configuration. If the user
changes settings of the APS-NR2 using the Web Interface or the Expert Console these
changes are stored in the Current configuration.
If the user wants to make the changes to the Current configuration persistent, the
values of the Current configuration are to be copied to the Boot configuration.
Each time the APS-NR2 is started, it copies the Boot configuration into the Current
configuration.
The factory defaults are stored in the RxDefault configuration. The user can enforce the
APS-NR2 factory defaults by applying a reset as described in section "11.1.2 Reset" on
page 42.
When the APS-NR2 is used in different set ups requiring their own specific settings, the
APS-NR2 allows storing two user profiles or user configurations, User 1 and User2.
The user can store a configuration into a user profile by simply copying the Boot or the
Current configuration to User1 or User2.
To restore a user profile, the User1 or User 2 configuration is copied into Boot or
Current.
40 | P a g e
The table below gives an overview of the APS-NR2s configurations.
Configuration
Persistent?
Writable?
Description
RxDefault
Yes
No
Contains the factory default.
Current
No
Yes
Settings that are actually being used.
Boot
Yes
Yes
The values of Boot are copied into Current at
start up.
User1, User 2
Yes
Yes
Two configurations can be stored for later
use.
Table 6: APS-NR2 Configurations
The Web Interface provides the following operations on configurations:
Copy
The Copy operation allows the user to copy any of the five
configurations into another configuration.
Download
The Download operation allows the user to export a selected
configuration to a text file.
Upload
The Upload operation allows the user to import a selected
configuration from a text file.
Table 7: APS-NR2 Operations on configurations
11.1.1.2 Managing Configurations
The APS-NR2's configurations can be managed from the Admin tab.
1. Click the tab.
2. Select Configurations.
The Configurations tab will resemble Figure 29.
Figure 29: Web Interface Admin-Configurations
41 | P a g e
11.1.1.2.1 Copy Configuration File
1. Select the configuration to be copied in the Source drop down box.
2. Select where the Source configuration is to be copied into using the Target drop
down box.
3. Click OK
11.1.1.2.2 Download Configuration
1. Click the next to the configuration to be downloaded.
2. The download is started immediately.
3. The configuration can be found in the browser's download folder.
11.1.1.2.3 Upload Configuration
1. Click the next to the configuration to be uploaded.
2. A window pops up for the user to select a file.
3. After a file has been selected the upload is started immediately.
If the uploaded file contains invalid commands, the complete file is ignored and the
configuration remains unchanged.
11.1.1.3 Intermediate saving of the Configuration
After each change made to the APS-NR2's configuration while executing the steps in the
following sections a pop up will appear in the bottom right of the browser window.
If the user wants to make the last changes made persistent, the user has to click Save.
Figure 30: Save to Boot pop up
42 | P a g e
11.1.2 Reset
1. Click The tab.
2. Select the Reset Option.
Figure 31: Admin - Reset
3. Select the desired reset level using Table 8 and Table 9.
4. Click OK
5. The APS-NR2 restarts.
Level
Description
Soft
This is a reset of the receiver's firmware.
The receiver will restart operating in the same configuration as
before the command was issued, unless Config has been ticked.
Hard
This is similar to a power off/on sequence.
After hardware reset, the receiver will copy the Boot configuration
into the Current configuration..
Upgrade
Set the receiver into upgrade mode. After a few seconds, the
receiver is ready to accept an upgrade file (SUF format) from any of
its connections.
Table 8: APS-NR2 Reset Levels
Erase
Description
Config
The RxDefault configuration is copied into the receiver's Boot and
Current configurations.
The User1 and User2 configurations remain unchanged.
Bluetooth
All information about previously paired devices is cleared.
Table 9: APS-NR2 Reset- Memory Erase Options
43 | P a g e
11.1.3 Firmware Upgrade
Figure 32: Web Interface Admin-Upgrade
1. Read the Release Notes carefully before performing an upgrade
An upgrade may consist of a set of .suf files and there may be a specific sequence to
be followed.
2. Click The tab.
3. Select the Upgrade Option.
4. Store the .suf files required for the upgrade in a folder on your computer.
5. Click the Browse button and
navigate to the folder where you stored the .suf files.
Select the (first) .suf file to be loaded into the APS-NR2.
After selecting the .suf file its name will appear next to the Browse button.
6. Click the Start upgrade button.
7. After processing the upgrade file the APS-NR2 will reset.
8. The upgrade process possibly disconnects the Wi-Fi connection.
If so, re-establish the connection as described in section "4.7 Connect to the Web
Interface" on page 20.
9. Repeat step 5 to 8 until all .suf files have been uploaded.
44 | P a g e
11.1.4 Expert Console
Line commands can be sent to the APS-NR2 via the Expert Console menu.
The drop down box showing "Mainboard (APS-NR2)" in Figure 33 allows selecting the
APS-NR2's sub system the commands will be directed to.
The sub systems of the APS-NR2 are the Mainboard (APS-NR2), GNSS Receiver and the
Cell modem.
Responses will be shown the window below the label Expert Console.
Specific messages may be viewed via the Message Inspector, shown near the bottom of
the tab.
The command set of the APS-NR2 is described in the document named Command Line
Interface Reference Guide.pdf.
Changing the APS-NR's configuration using the Expert Console may cause the device to malfunction.
Figure 33: Web Interface Admin-Expert Console
45 | P a g e
11.1.5 About
The APS-N‘s speifi hadae ad softae opoets a be inspected in the
About menu. The Receiver Identification will show this information. Also, the user may
select to obtain a Diagnostic Report.
Figure 34: Web Interface Admin-About
46 | P a g e
12 Appendix
12.1 Status Icons on the Web Interface
The icons on the right hand side of the top banner quickly show the user the status of
the APS-NR2.
Position mode
The APS-NR2 will function in modes of increasing accuracy, depending on the
configuration.
Cellular Status
Off
On, showing signal quality
Wi-Fi
Off
On
Bluetooth
Off
On
Battery
No battery
Empty
Charging
In use
Corrections
No Corrections received
Corrections being received
Logging
Off
Logging
Disk full or not
mounted
Figure 35: Web Interface Status Icons
47 | P a g e
12.2 Front Panel LEDs
NO BATTERY
BATTERY
BLINKING
NOT IN USE
SOLIDLY LIT
IN USE
LESS THAN 5% REMAINING
LESS THAN 20% REMAINING
OK
OFF
BLUETOOTH
BLINKING
RADIO ON/DISCOVERABLE
CONNECTED
OFF
WIFI
ON
OFF
MODEM
CONNECTING
CONNECTED
NO POSITION CALCULATED
POSITION
FIXED POSITION
SBAS, DGPS, FLOAT
STAND ALONE
RECEIVING
CORRECTIONS
NOT RECEIVING
DISABLED
LOGGING
LOGGING
BLINKING SLOWLY
LOGGING
DISK > 80% FULL
BLINKING FAST
LOGGING
DISK FULL OR NOT MOUNTED
48 | P a g e
12.3 The batteries
12.3.1 Batteries
Altus supplies high quality 18650 3.7V Li-Ion batteries with the APS-NR2.
These batteries are available as spare parts.
The user may choose to buy spare batteries from another source.
Before buying spare batteries from another source, it is advised to read reviews of the
batteries.
The battery specification must state that the batteries contain a protection
circuit.
The cell inside the battery must be supplied by a well known brand (Panasonic,
LG, Samsung,...)
The warranty is void if the APS-NR2 is damaged by using low quality spare batteries
12.3.2 Charging
The APS-N‘s atteies a best be charged in the supplied external battery charger.
For a totally drained battery a charging time of 3,5 to 4 hours can be expected.
The user may choose to buy a charger from another source.
Before buying a charger from another source, it is advised to read reviews of the
charger.
Low quality battery chargers do not fully charge the batteries.
Battery chargers that can charge batteries of different technologies (e.g. Li-Ion
and NiMH) typically do not optimally charge the batteries.
The APS-NR2's batteries can also be charged while they are in the device using the
supplied wall charger.
Although the APS-NR2 can be charged using the USB communication cable, it is not
advised. Depending on the design of the USB charger used, connecting the charger may
stop logging to the internal disk.
Connecting the APS-NR2 to a USB charger may stop the logging.
49 | P a g e
12.4 Cell modem Commands
The APS-NR2 uses a Telit H24 cell modem.
Specific commands for the cell modem are described in H24 AT Commands Reference
Guide 80389ST10086a Rev.4 2013-02-19.
The Web Interface or the data collection software accompanying the product uses these
commands to configure the modem.
It is not advised for the user to issue commands to the modem using e.g. the expert
console.
Issuing commands to the cell modem using the Expert Console may cause malfunctioning of the device
and will be considered improper use.
50 | P a g e
12.5 List of Typical GNSS Related Acronyms
APME A Posteriori Multipath Estimation
ARP Antenna Reference Point
ASCII American Standard Code for Information Interchange
CMR Compact Measurement Record
CPU Central Processing Unit
CR Carriage Return
CTS Clear to Send
DGPS Differential Global Positioning System
DOP Dilution of Precision
EGNOS European Geostationary Navigation Overlay System
ESTB EGNOS System Test Bed
FPGA Field Programmable Gate Array
GLONASS Global Orbiting Navigation Satellite System (Russian alternative for GPS)
GNSS Global Navigation Satellite System
GPRS General Packet Radio Service
GPS Global Positioning System
GPX GPS exchange
GSM Global System for Mobile communications
GUI Graphical User Interface
HERL Horizontal External Reliability Level
HPL Horizontal Protection Level
IGS International GNSS Service
LAMBDA Least-squares AMBiguity Decorrelation Adjustment
LED Light Emitting Diode
MDB Minimal Detectable Bias
MOPS Minimum Operational Performance Standards
MSAS Multi-functional Satellite Augmentation System
MT Message Type
NGS National Geodetic Survey
NMEA National Marine Electronics Association
OEM Original Equipment Manufacturer
OTF On the Fly
PPS Pulse Per Second
PVT Position Velocity Time
RAIM Receiver Autonomous Integrity Monitoring
RINEX Receiver Independent Exchange Format
ROM Read Only Memory
RTCA Radio Technical Commission for Aeronautics
RTCM Radio Technical Commission for Maritime Services
RTK Real Time Kinematic
SBAS Satellite Based Augmentation System
SD Secure Digital
SDHC Secure Digital High Capacity
SIM Subscriber Identity Module
UHF Ultra high frequency
VRS Virtual Reference Station
WAAS Wide Area Augmentation System

Navigation menu
