1 Overview

The aim of this document is the description of some hardware solutions useful for developing a product with the

Telit UC864-G module.

In this document all the basic functions of a mobile phone will be taken into account; for each one of them a

proper hardware solution will be suggested and eventually the wrong solutions and common errors to be

avoided will be evidenced. Obviously this document cannot embrace the whole hardware solutions and products

that may be designed. The wrong solutions to be avoided shall be considered as mandatory, while the

suggested hardware configurations shall not be considered mandatory, instead the information given shall be

used as a guide and a starting point for properly developing your product with the Telit UC864-G module. For

further hardware details that may not be explained in this document refer to the Telit UC864-G Product

Description document where all the hardware information is reported.

NOTICE

(EN) The integration of the GSM/GPRS/EGPRS/WCDMA/HSDPA UC864G cellular module within user

application shall be done according to the design rules described in this manual.

(IT) L’integrazione del modulo cellulare GSM/GPRS/EGPRS/WCDMA/HSDPA UC864-G all’interno

dell’applicazione dell’utente dovrà rispettare le indicazioni progettuali descritte in questo manuale.

(DE) Die integration des UC864-G GSM/GPRS/EGPRS/WCDMA/HSDPA Mobilfunk-Moduls in ein Gerät

muß gemäß der in diesem Dokument beschriebenen Kunstruktionsregeln erfolgen

(SL) Integracija GSM/GPRS/EGPRS/WCDMA/HSDPA UC864-G modula v uporabniški aplikaciji bo morala

upoštevati projektna navodila, opisana v tem piročniku.

(SP) La utilización del modulo GSM/GPRS/EGPRS/WCDMA/HSDPA UC864-G debe ser conforme a los

usos para los cuales ha sido deseñado descritos en este manual del usuario.

(FR) L’intégration du module cellulaire GSM/GPRS/EGPRS/WCDMA/HSDPA UC864-G dans l’application

de l’utilisateur sera faite selon les règles de conception décrites dans ce manuel.

The information presented in this document is believed to be accurate and reliable. However, no responsibility is

assumed by Telit Communication S.p.A. for its use, nor any infringement of patents or other rights of third parties

which may result from its use. No license is granted by implication or otherwise under any patent rights of Telit

Communication S.p.A. other than for circuitry embodied in Telit products. This document is subject to change

without notice.

UC864-G

UC864-G Hardware User Guide

DRAFT - 29/10/07

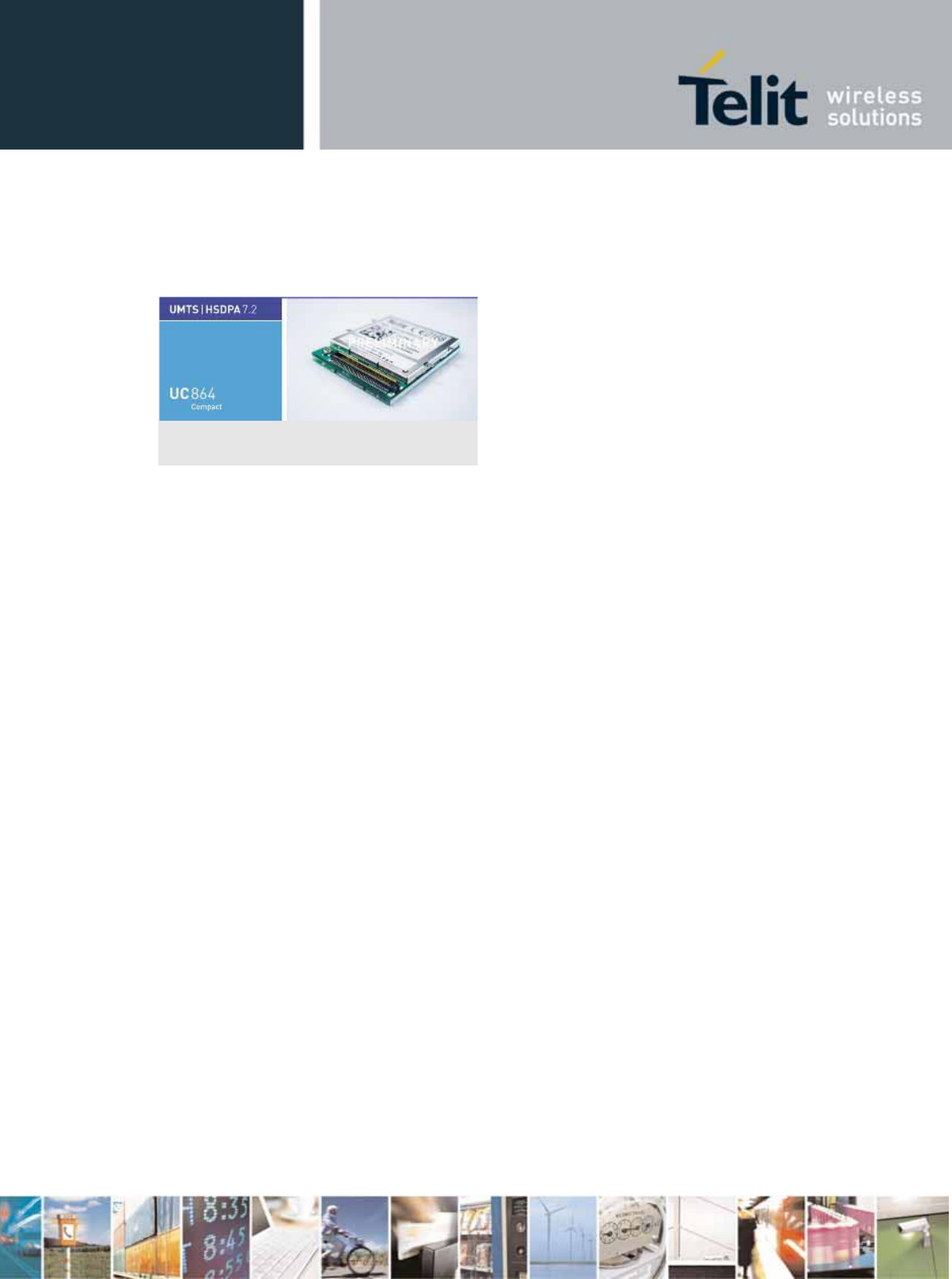

2 Mechanical Dimensions

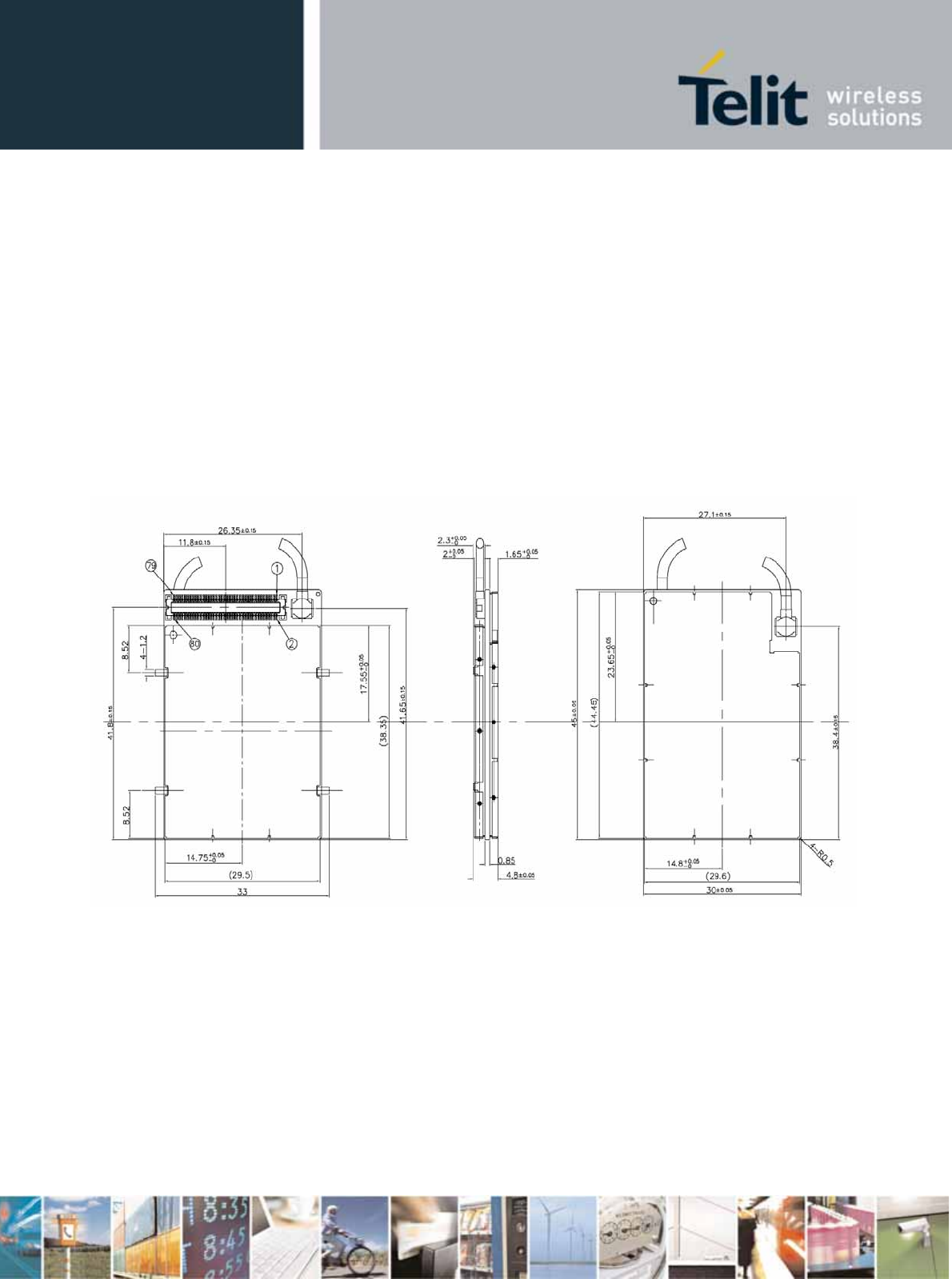

The Telit UC864-G module overall dimensions are:

• Length: 45 mm

• Width: 30 mm

• Thickness: 4.8mm

UC864-G Hardware User Guide

DRAFT - 29/10/07

3 UC864-G module connections

3.1 PIN-OUT

UC864-G uses an 80 pin Molex p.n. 53949-0878 male connector for the connections with the external

applications. This connector matches the 54150-0878 models.

Pin Signal I/O Function Internal

Pull up

Type

UC864-E

Power Supply

1 VBATT - Main power supply Power

2 VBATT - Main power supply Power

3 VBATT - Main power supply Power

4 VBATT - Main power supply Power

5 GND - Ground Power

6 GND - Ground Power

7 GND - Ground Power

Audio

8 AXE I Hands-free switching 100K

Ω

CMOS 2.6V

9 EAR_HF+ AO Hands-free ear output, phase + Audio

10 EAR_HF- AO Hands-free ear output, phase - Audio

11 EAR_MT+ AO Handset earphone signal output, phase + Audio

12 EAR_MT- AO Handset earphone signal output, phase - Audio

13 MIC_HF+ AI Hands-free microphone input; phase +, nominal level 3mVrms Audio

14 MIC_HF- AI Hands-free microphone input; phase -, nominal level 3mVrms Audio

15 MIC_MT+ AI Handset microphone signal input; phase+, nominal level 50mVrms Audio

16 MIC_MT- AI Handset microphone signal input; phase-, nominal level 50mVrms Audio

SIM Card Interface

181 SIMVCC - External SIM signal – Power supply for the SIM 1.8 / 3V

19 SIMRST O External SIM signal – Reset 1.8 / 3V

20 SIMIO I/O External SIM signal - Data I/O 1.8 / 3V

21 SIMIN I External SIM signal - Presence (active low) 47K

Ω

1.8 / 3V

22 SIMCLK O External SIM signal – Clock 1.8 / 3V

Trace

23 RX_TRACE I RX Data for debug monitor CMOS 2.6V

1 On this line a maximum of 10nF bypass capacitor is allowed

UC864-G Hardware User Guide

DRAFT - 29/10/07

Pin Signal I/O Function Internal

Pull up

Type

UC864-E

24 TX_TRACE O TX Data for debug monitor CMOS 2.6V

Prog. / Data + Hw Flow Control

25 C103/TXD I Serial data input (TXD) from DTE CMOS 2.6V

26 C104/RXD O Serial data output to DTE CMOS 2.6V

27 C107/DSR O Output for Data set ready signal (DSR) to DTE CMOS 2.6V

28 C106/CTS O Output for Clear to send signal (CTS) to DTE CMOS 2.6V

29 C108/DTR I Input for Data terminal ready signal (DTR) from DTE CMOS 2.6V

30 C125/RING O Output for Ring indicator signal (RI) to DTE CMOS 2.6V

31 C105/RTS I Input for Request to send signal (RTS) from DTE CMOS 2.6V

32 C109/DCD O Output for Data carrier detect signal (DCD) to DTE CMOS 2.6V

IIC

33 I2C_SCL I/O IIC Hardware interface CMOS 2.6V

34 I2C_SDA I/O IIC Hardware interface CMOS 2.6V

Miscellaneous Functions

35 USB_ID AI

Analog input used to sense whether a peripheral device is

connected, and determine the peripheral type, a host or a

peripheral

Analog

36 PCM_CLOCK I/O PCM clock out CMOS 2.6V

DAC and ADC

37 ADC_IN1 AI Analog/Digital converter input A/D

38 ADC_IN2 AI Analog/Digital converter input A/D

39 ADC_IN3 AI Analog/Digital converter input A/D

40 DAC_OUT AO Digital/Analog converter output D/A(PDM)

Miscellaneous Functions

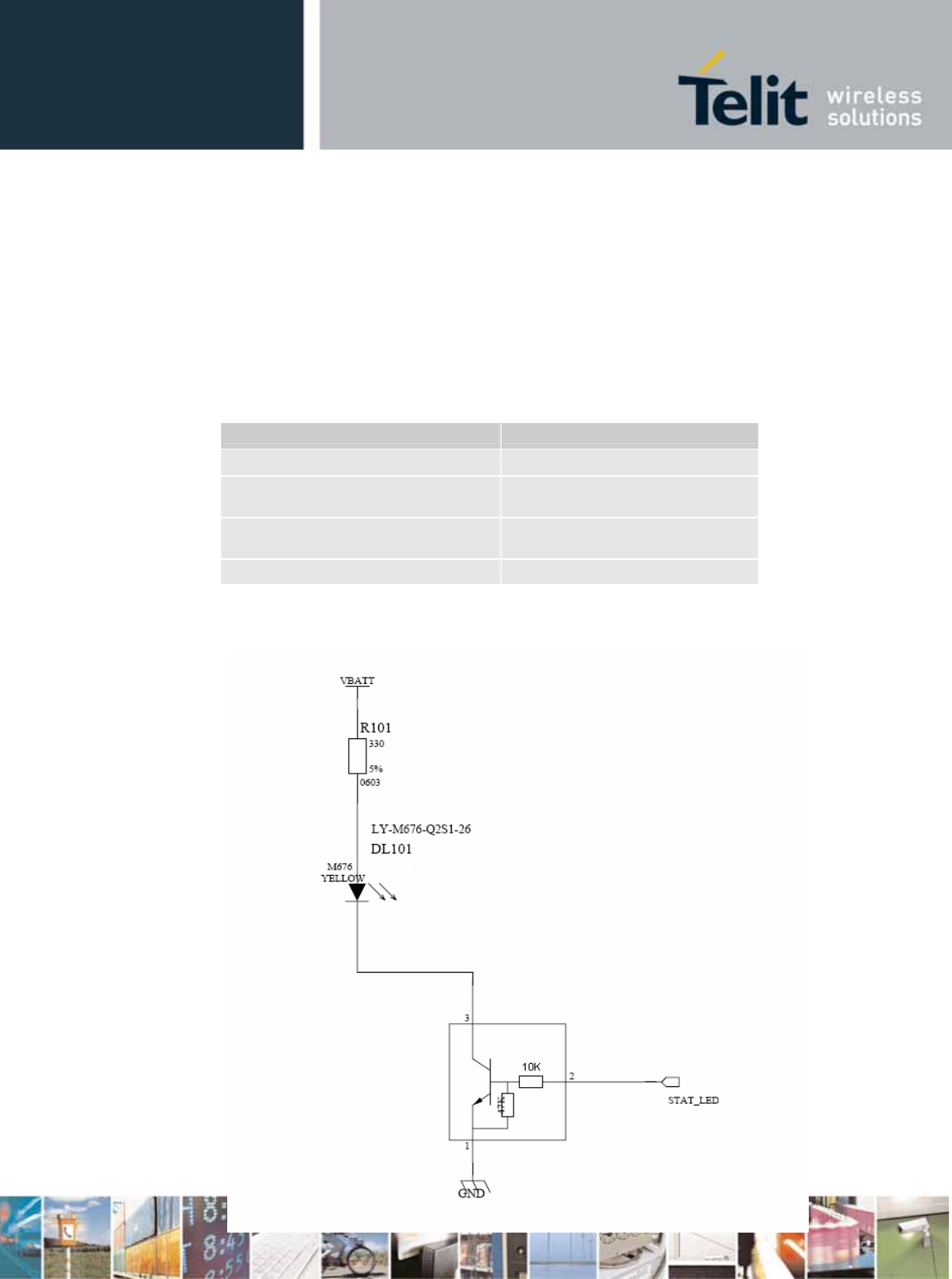

45 STAT_LED O Status indicator led CMOS 1.8V

46 GND - Ground Ground

48 USB_VBUS AI

/AO

Power supply for the internal USB transceiver. This pin is

configured as an analog input or an analog output depending

upon the type of peripheral device connected. 4.4V ~5.25V

49 PWRMON O Power ON Monitor CMOS 2.6V

50 VAUX1 - Power output for external accessories 2.85V

51 CHARGE AI Charger input (*) Power

52 CHARGE AI Charger input (*) Power

53 ON/OFF* I

Input command for switching power ON or OFF (toggle

command). The pulse to be sent to the UC864-E must be equal or

greater than 1 second.

Pull up to

VBATT

54 RESET* I Reset input

55 VRTC AO VRTC Backup capacitor Power

Telit GPIOs

56 TGPIO_19 I/O Telit GPIO19 Configurable GPIO CMOS 2.6V

57 TGPIO_11 I/O Telit GPIO11 Configurable GPIO CMOS 2.6V

UC864-G Hardware User Guide

DRAFT - 29/10/07

Pin Signal I/O Function Internal

Pull up

Type

UC864-E

58 TGPIO_20 I/O Telit GPIO20 Configurable GPIO CMOS 2.6V

59 TGPIO_04 I/O Telit GPIO4 Configurable GPIO CMOS 2.6V

60 TGPIO_14 I/O Telit GPIO14 Configurable GPIO CMOS 2.6V

61 TGPIO_15 I/O Telit GPIO15 Configurable GPIO CMOS 2.6V

62 TGPIO_12 I/O Telit GPIO12 Configurable GPIO CMOS 2.6V

63 TGPIO_10/

PCM_TX I/O Telit GPIO10 Configurable GPIO / PCM Data Output CMOS 2.6V

64 TGPIO_22 I/O Telit GPIO22 Configurable GPIO CMOS 1.8V

65 TGPIO_18/

PCM_RX I/O Telit GPIO18 Configurable GPIO / PCM Data input CMOS 2.6V

66 TGPIO_03 I/O Telit GPIO3 Configurable GPIO CMOS 2.6V

67 TGPIO_08 I/O Telit GPIO8 Configurable GPIO CMOS 2.6V

68 TGPIO_06 / ALARM I/O Telit GPIO6 Configurable GPIO / ALARM CMOS 2.6V

70 TGPIO_01 I/O Telit GPIO1 Configurable GPIO CMOS 2.6V

71 TGPIO_17/

PCM_SYNC I/O Telit GPIO17 Configurable GPIO / PCM Sync CMOS 2.6V

72 TGPIO_21 I/O Telit GPIO21 Configurable GPIO CMOS 2.6V

73 TGPIO_07/

BUZZER I/O Telit GPIO7 Configurable GPIO / Buzzer CMOS 2.6V

74 TGPIO_02 I/O Telit GPIO02 I/O pin CMOS 2.6V

75 TGPIO_16 I/O Telit GPIO16 Configurable GPIO CMOS 2.6V

76 TGPIO_09 I/O Telit GPIO9 Configurable GPIO CMOS 2.6V

77 TGPIO_13 I/O Telit GPIO13 Configurable CMOS 2.6V

78 TGPIO_05/

RFTXMON I/O Telit GPIO05 Configurable GPIO / Transmitter ON monitor CMOS 2.6V

USB Interface

79 USB_D+ I/O USB differential Data (+) 2.8V~3.6V

80 USB_D- I/O USB differential Data (-) 2.8V~3.6V

RESERVED

17 -

41 -

42 -

43 -

44 -

47 -

69 -

NOTE: RESERVED pins must not be connected

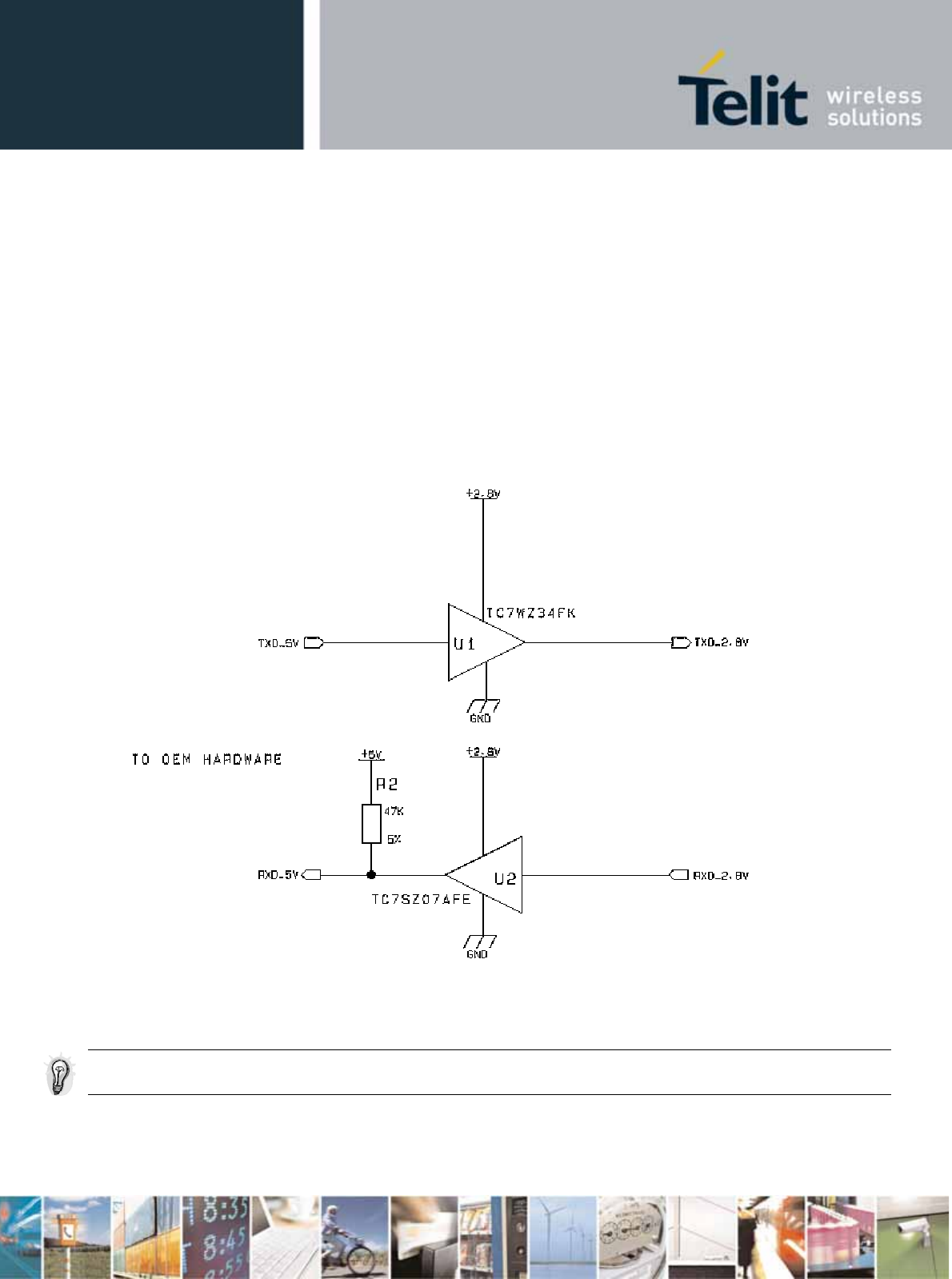

RTS should be connected to the GND (on the module side) if flow control is not used

UC864-G Hardware User Guide

DRAFT - 29/10/07

NOTE: If not used, almost all pins should be left disconnected. The only exceptions are the following

pins:

Pin Signal Function

1 VBATT Main power supply

2 VBATT Main power supply

3 VBATT Main power supply

4 VBATT Main power supply

5 GND Ground

6 GND Ground

7 GND Ground

46 GND Ground

25 C103/TXD Serial data input (TXD) from DTE

26 C104/RXD Serial data output to DTE

31 C105/RTS Input for Request to send signal (RTS) from DTE

53 ON/OFF* Input command for switching power ON or OFF (toggle command).

54 RESET* Reset input

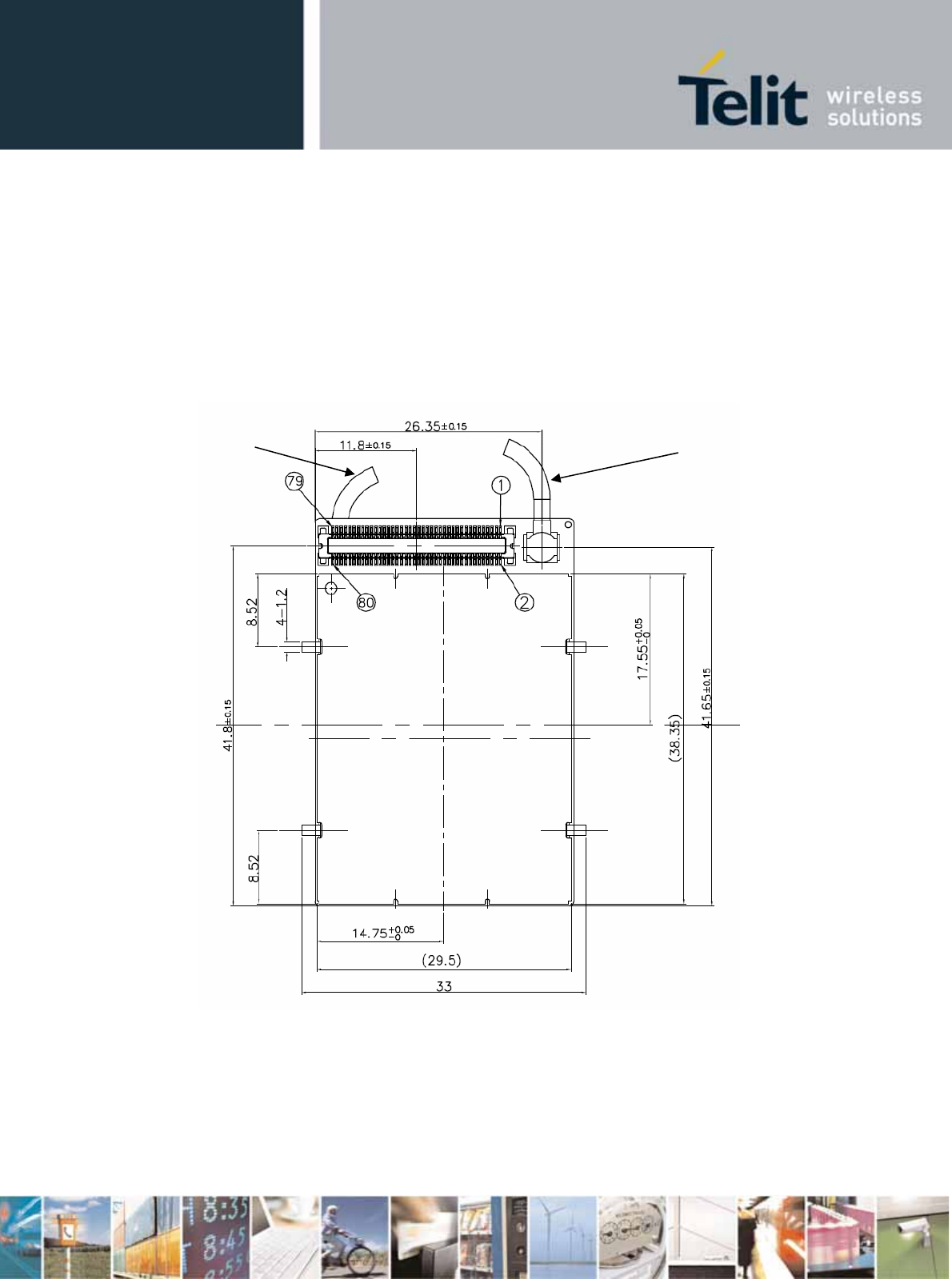

3.1.1 UC864-G Antenna connector

The UC864-G module is equipped with a 50 Ohm RF connector from Murata, GSC type P/N MM9329-

2700B.

The counterpart suitable is Murata MXTK92 Type or MXTK88 Type.

UC864-G Hardware User Guide

DRAFT - 29/10/07

4 Hardware Commands

4.1 Turning ON the UC864-G

To turn on UC864- G, the pad ON# must be tied low for at least 1 second and then released.

The maximum current that can be drained from the ON# pad is 0,1 mA.

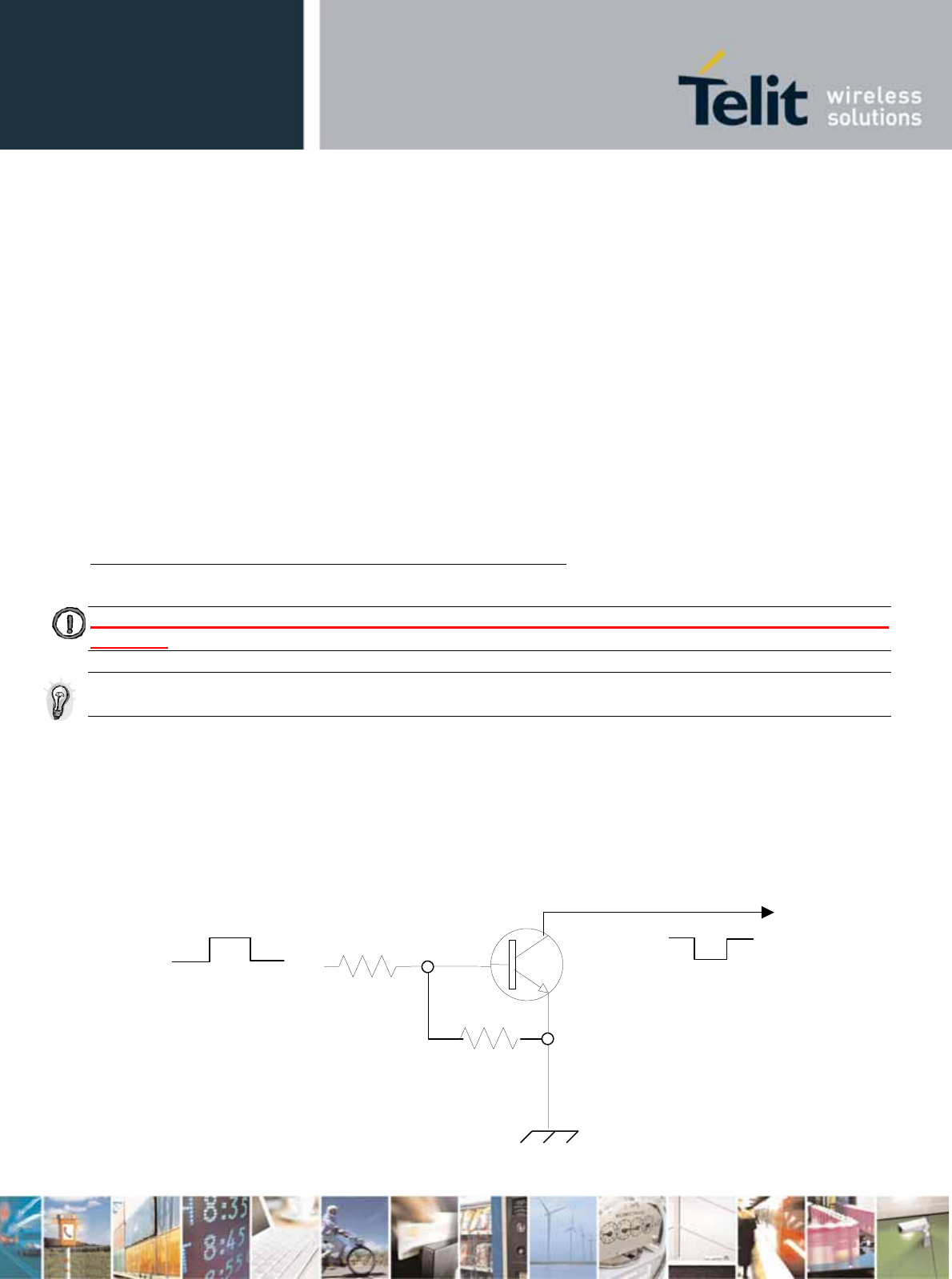

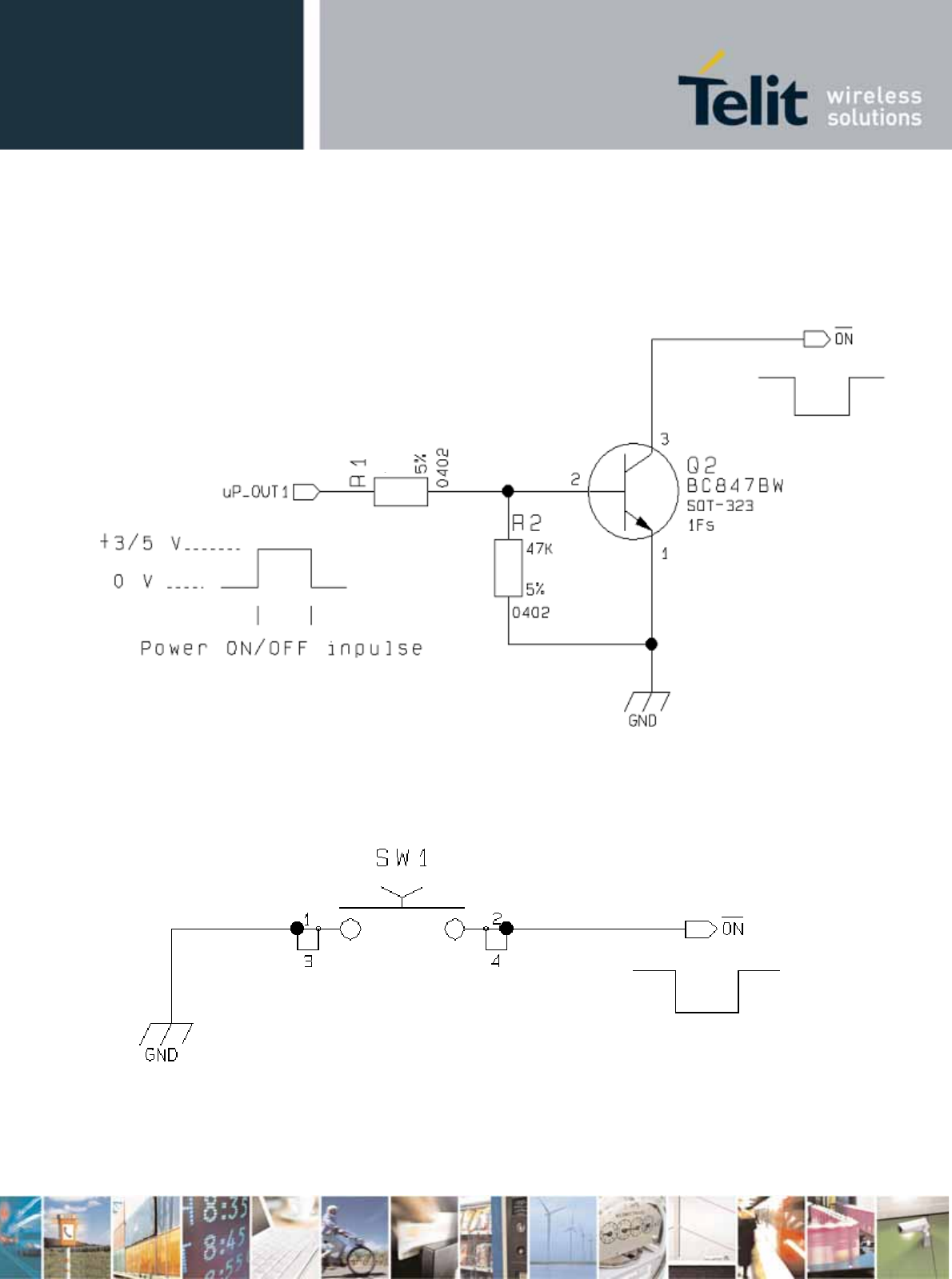

A simple circuit to do it is:

NOTE: UC864-G turns fully on also by supplying power to the USB_VBUS pin (provided there's a battery on the

VBATT pads). Care must be taken to avoid supplying power to the USB_VBUS pin before the module turns on.

To check if the UC864-G has powered on, the hardware line PWRMON should be monitored. When PWRMON goes

high, the module has powered on.

NOTE: don't use any pull up resistor on the ON# line, it is internally pulled up. Using pull up resistor may bring to

latch up problems on the UC864-G power regulator and improper power on/off of the module. The line ON# must be

connected only in open collector configuration.

NOTE: In this document all the lines that are inverted, hence have active low signals are labeled with a name that

ends with a "#" or with a bar over the name.

NOTE: UC864-G turns fully on also by supplying power to the Charge pad (provided there's a battery on the VBATT

pads).

ON#

Power ON impulse

GND

UC864-G Hardware User Guide

DRAFT - 29/10/07

For example:

1- Let's assume you need to drive the ON# pad with a totem pole output of a +3/5 V microcontroller

(uP_OUT1):

2- Let's assume you need to drive the ON# pad directly with an ON/OFF button:

10k

UC864-G Hardware User Guide

DRAFT - 29/10/07

4.2 Turning OFF the UC864-G

The turning off of the device can be done in three ways:

• by software command (see UC864-G Software User Guide)

• by hardware shutdown

• by Hardware Unconditional Restart

When the device is shut down by software command or by hardware shutdown, it issues to the

network a detach request that informs the network that the device will not be reachable any more.

4.2.1 Hardware shutdown

To turn OFF UC864-G, first, you MUST cut off supplying power to the USB_VBUS pin, then the pad

ON# must be tied low for at least 2 seconds and then released.

The same circuitry and timing for the power on shall be used.

The device shuts down after the release of the ON# pad.

NOTE: To turn OFF UC864-G, first of all, you MUST cut off supplying power to the USB_VBUS, or the module does

not turn off

TIP: To check if the device has powered off, the hardware line PWRMON should be monitored. When PWRMON goes

low, the device has powered off.

4.2.2 Hardware Unconditional Restart

To unconditionally restart UC864-G, the pad RESET# must be tied low for at least 200 milliseconds

and then released.

The maximum current that can be drained from the ON# pad is 0,15 mA.

A simple circuit to do it is:

RESET#

Unconditional Restart

impulse

GND

UC864-G Hardware User Guide

DRAFT - 29/10/07

NOTE: Do not use any pull up resistor on the RESET# line or any totem pole digital output. Using pull up resistor

may bring to latch up problems on the UC864-G power regulator and improper functioning of the module. The line

RESET# must be connected only in open collector configuration.

TIP: The unconditional hardware Restart should be always implemented on the boards and software should use it

as an emergency exit procedure.

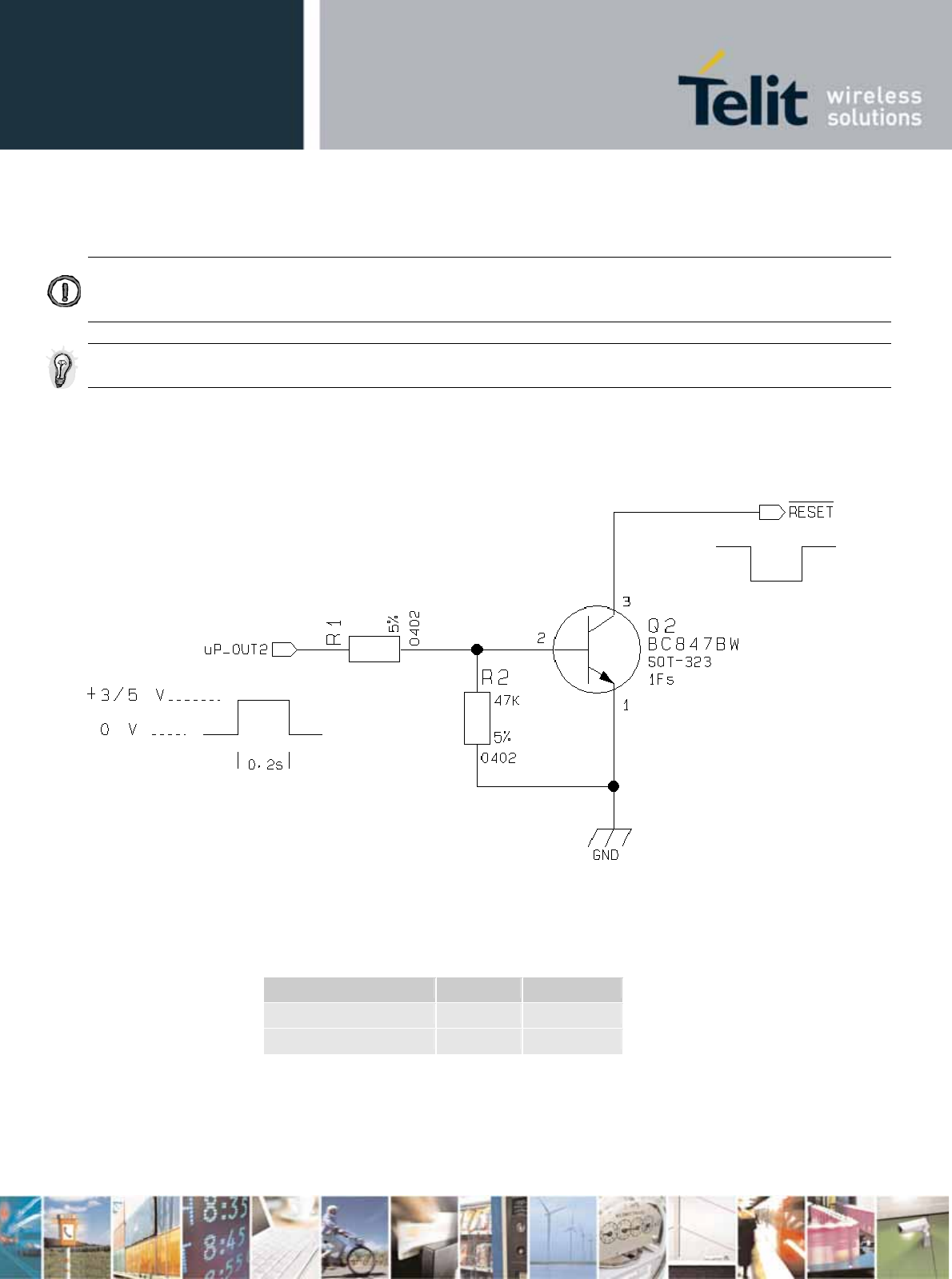

For example:

1- Let's assume you need to drive the RESET# pad with a totem pole output of a +3/5 V

microcontroller (uP_OUT2):

Reset Signal Operating levels:

Signal Min Max

RESET Input high 2.2V* 3.3V

RESET Input low 0V 0.2V

* This signal is internally pulled up so the pin can be left floating if not used.

10k

UC864-G Hardware User Guide

DRAFT - 29/10/07

5 Power Supply

The power supply circuitry and board layout are a very important part in the full product design and

they strongly reflect on the product overall performances, hence read carefully the requirements and

the guidelines that will follow for a proper design.

5.1 Power Supply Requirements

The UC864-G power requirements are:

• Nominal Supply Voltage: 3.8 V

• Max Supply Voltage: 4.2 V

• Supply voltage range: 3.4 V - 4.2 V

• Max Peak current consumption (impulsive): 1.8A

• Max Average current consumption during WCDMA transmission: 700mA

• Max Average current consumption during class 12 GPRS transmission(@4TX): 930mA

• Max Average current consumption during GPS Tracking : TBD

• Max Average current consumption during VOICE/CSD transmission: 340mA

• Average current during Power Saving (with CFUN=5) during WCDMA mode: TBD

• Average current during idle (Power Saving disabled) during WCDMA mode: TBD

• Average current during Power Saving (with CFUN=5) during GSM/GPRS mode: TBD

• Average current during idle (Power Saving disabled) during GSM/GPRS mode: 37mA

• Average GPS current during Power Saving : TBD

In GSM/GPRS mode, RF transmission is not continuous and it is packed into bursts at a base

frequency of about 216 Hz, and the relative current peaks can be as high as about 2A. Therefore the

power supply has to be designed in order to withstand with these current peaks without big voltage

drops; this means that both the electrical design and the board layout must be designed for this

current flow.

If the layout of the PCB is not well designed a strong noise floor is generated on the ground and the

supply; this will reflect on all the audio paths producing an audible annoying noise at 216 Hz; if the

voltage drop during the peak current absorption is too much, then the device may even shutdown as a

consequence of the supply voltage drop.

TIP: The electrical design for the Power supply should be made ensuring it will be capable of a peak current output

of at least 2 A.

UC864-G Hardware User Guide

DRAFT - 29/10/07

5.2 General Design Rules

The principal guidelines for the Power Supply Design embrace three different design steps:

• the electrical design

• the thermal design

• the PCB layout.

5.2.1 Electrical Design Guidelines

The electrical design of the power supply depends strongly from the power source where this power is

drained. We will distinguish them into three categories:

• +5V input (typically PC internal regulator output)

• +12V input (typically automotive)

• Battery

5.2.1.1 + 5V input Source Power Supply Design Guidelines

• The desired output for the power supply is 3.8V, hence there's not a big difference between the

input source and the desired output and a linear regulator can be used. A switching power supply

will not be suited because of the low drop out requirements.

• When using a linear regulator, a proper heat sink shall be provided in order to dissipate the power

generated.

• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the current

absorption peaks close to UC864-G, a 100µF tantalum capacitor is usually suited.

• Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is rated at

least 10V.

• A protection diode should be inserted close to the power input, in order to save UC864-G from

power polarity inversion.

UC864-G Hardware User Guide

DRAFT - 29/10/07

An example of linear regulator with 5V input is:

5.2.1.2 + 12V input Source Power Supply Design Guidelines

• The desired output for the power supply is 3.8V, hence due to the big difference between the input

source and the desired output, a linear regulator is not suited and shall not be used. A switching

power supply will be preferable because of its better efficiency especially with the 2A peak current

load represented by UC864-G.

• When using a switching regulator, a 500kHz or more switching frequency regulator is preferable

because of its smaller inductor size and its faster transient response. This allows the regulator to

respond quickly to the current peaks absorption.

• For car PB battery the input voltage can rise up to 15.8V and this should be kept in mind when

choosing components: all components in the power supply must withstand this voltage.

• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the current

absorption peaks, a 100µF tantalum capacitor is usually suited.

• Make sure the low ESR capacitor on the power supply output (usually a tantalum one) is rated at

least 10V.

• For Car applications a spike protection diode should be inserted close to the power input, in order

to clean the supply from spikes.

• A protection diode should be inserted close to the power input, in order to save UC864-G from

power polarity inversion. This can be the same diode as for spike protection.

An example of switching regulator with 12V input is in the below schematic (it is split in 2 parts):

UC864-G Hardware User Guide

DRAFT - 29/10/07

UC864-G Hardware User Guide

DRAFT - 29/10/07

5.2.1.3 Battery Source Power Supply Design Guidelines

• The desired nominal output for the power supply is 3.8V and the maximum voltage allowed is 4.2V,

hence a single 3.7V Li-Ion cell battery type is suited for supplying the power to the Telit UC864-G

module.

The three cells Ni/Cd or Ni/MH 3.6 V Nom. battery types or 4V PB types MUST NOT BE USED

DIRECTLY since their maximum voltage can rise over the absolute maximum voltage for UC864-

G and damage it.

NOTE: DON'T USE any Ni-Cd, Ni-MH, and Pb battery types directly connected with UC864-G. Their use can

lead to overvoltage on UC864-G and damage it. USE ONLY Li-Ion battery types.

• A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the current

absorption peaks, a 100µF tantalum capacitor is usually suited.

• Make sure the low ESR capacitor (usually a tantalum one) is rated at least 10V.

• A protection diode should be inserted close to the power input, in order to save UC864-G from

power polarity inversion. Otherwise the battery connector should be done in a way to avoid polarity

inversions when connecting the battery.

• The battery capacity must be at least 500mAh in order to withstand the current peaks of 2A; the

suggested capacity is from 500mAh to 1000mAh.

5.2.1.4 Battery Charge control Circuitry Design Guidelines

The charging process for Li-Ion Batteries can be divided into 4 phases:

• Qualification and trickle charging

• Fast charge 1 - constant current

• Final charge - constant voltage or pulsed charging

• Maintenance charge

The qualification process consists in a battery voltage measure, indicating roughly its charge status. If

the battery is deeply discharged, that means its voltage is lower than the trickle charging threshold,

then the charge must start slowly possibly with a current limited pre-charging process where the

current is kept very low with respect to the fast charge value: the trickle charging.

During the trickle charging the voltage across the battery terminals rises; when it reaches the fast

charge threshold level the charging process goes into fast charge phase.

During the fast charge phase the process proceeds with a current limited charging; this current limit

depends on the required time for the complete charge and from the battery pack capacity. During this

phase the voltage across the battery terminals still raises but at a lower rate.

Once the battery voltage reaches its maximum voltage then the process goes into its third state: Final

charging. The voltage measure to change the process status into final charge is very important. It

must be ensured that the maximum battery voltage is never exceeded, otherwise the battery may be

damaged and even explode. Moreover for the constant voltage final chargers, the constant voltage

phase (final charge) must not start before the battery voltage has reached its maximum value;

otherwise the battery capacity will be highly reduced.

The final charge can be of two different types: constant voltage or pulsed. UC864-G uses constant

voltage.

UC864-G Hardware User Guide

DRAFT - 29/10/07

The constant voltage charge proceeds with a fixed voltage regulator (very accurately set to the

maximum battery voltage) and hence the current will decrease while the battery is becoming charged.

When the charging current falls below a certain fraction of the fast charge current value, then the

battery is considered fully charged, the final charge stops and eventually starts the maintenance.

The pulsed charge process has no voltage regulation, instead the charge continues with pulses.

Usually the pulse charge works in the following manner: the charge is stopped for some time, let's say

few hundreds of ms, then the battery voltage will be measured and when it drops below its maximum

value a fixed time length charging pulse is issued. As the battery approaches its full charge the off

time will become longer, hence the duty-cycle of the pulses will decrease. The battery is considered

fully charged when the pulse duty-cycle is less than a threshold value, typically 10%, the pulse charge

stops and eventually the maintenance starts.

The last phase is not properly a charging phase, since the battery at this point is fully charged and the

process may stop after the final charge. The maintenance charge provides an additional charging

process to compensate for the charge leak typical of a Li-Ion battery. It is done by issuing pulses with

a fixed time length, again few hundreds of ms, and a duty-cycle around 5% or less.

This last phase is not implemented in the UC864-G internal charging algorithm, so that the battery

once charged is left discharging down to a certain threshold so that it is cycled from full charge to

slight discharge even if the battery charger is always inserted. This guarantees that anyway the

remaining charge in the battery is a good percentage and that the battery is not damaged by keeping it

always fully charged (Li-Ion rechargeable battery usually deteriorates when kept fully charged).

Last but not least, in some applications it is highly desired that the charging process restarts when the

battery is discharged and its voltage drops below a certain threshold, UC864-G internal charger does

it.

As you can see, the charging process is not a trivial task to be done; moreover all these operations

should start only if battery temperature is inside a charging range, usually 5°C - 45°C.

UC864-G measures the temperature of its internal component, in order to satisfy this last requirement,

it's not exactly the same as the battery temperature but in common application the two temperature

should not differ too much and the charging temperature range should be guaranteed.

NOTE: For all the threshold voltages, inside UC864-G, all thresholds are fixed in order to maximize Li-Ion

battery performances and do not need to be changed.

NOTE: In this application the battery charger input current must be limited to less than 400mA. This can

be done by using a current limited wall adapter as the power source.

NOTE: When starting the charger from Module powered off the startup will be in CFUN4; to activate the

normal mode a command AT+CFUN=1 has to be provided.

UC864-G Hardware User Guide

DRAFT - 29/10/07

5.2.2 Thermal Design Guidelines

The thermal design for the power supply heat sink should be done with the following specifications:

• Average current consumption during WCDMA transmission @PWR level max: 700mA

• Average current consumption during class12 GPRS transmission @PWR level max: 930mA

• Average GPS current during Tracking (Power Saving disabled) TBD

NOTE: The average consumption during transmissions depends on the power level at which the device is requested

to transmit by the network. The average current consumption hence varies significantly.

TIP: The thermal design for the Power supply should be made keeping an average consumption at the max

transmitting level during calls of 700mA rms plus GPS current during tracking.

Considering the very low current during idle, especially if Power Saving function is enabled, it is

possible to consider from the thermal point of view that the device absorbs current significantly only

during calls.

If we assume that the device stays into transmission for short periods of time (let's say few minutes)

and then remains for a quite long time in idle (let's say one hour), then the power supply has always

the time to cool down between the calls and the heat sink could be smaller than the calculated one for

930mA maximum RMS current, or even could be the simple chip package (no heat sink).

Moreover in the average network conditions the device is requested to transmit at a lower power level

than the maximum and hence the current consumption will be less than the 930mA, being usually

around 150mA.

For these reasons the thermal design is rarely a concern and the simple ground plane where the

power supply chip is placed can be enough to ensure a good thermal condition and avoid overheating.

For the heat generated by the UC864-G, you can consider it to be during transmission 1W max during

CSD/VOICE calls and 2W max during class12 GPRS upload.

This generated heat will be mostly conducted to the ground plane under the UC864-G; you must

ensure that your application can dissipate it.

In the WCDMA mode, since UC864-G emits RF signals continuously during WCDMA transmission,

you should pay special attention on how to dissipate the heat generated.

The current consumption will be up to about 700mA continuously at the maximum TX output

power(24dBm). Thus, you should arrange the PCB area as large as possible under UC864-G which

you will mount.You can mount UC864-G on the large ground area of your application board and make

many ground vias for heat sink.

The peak current consumption in the GSM mode is higher than that in WCDMA. However, considering

the heat sink is more important with WCDMA.

As mentioned before, GSM signal is bursty. Thus, the temperature drift is more insensible than

WCDMA. Consequently, if you prescribe the heat dissipation in the WCDMA mode, you don’t need to

think more about the GSM mode

UC864-G Hardware User Guide

DRAFT - 29/10/07

5.2.3 Power Supply PCB layout Guidelines

As seen on the electrical design guidelines the power supply shall have a low ESR capacitor on the

output to cut the current peaks and a protection diode on the input to protect the supply from spikes

and polarity inversion. The placement of these components is crucial for the correct working of the

circuitry. A misplaced component can be useless or can even decrease the power supply

performances.

• The Bypass low ESR capacitor must be placed close to the Telit UC864-G power input pads or in

the case the power supply is a switching type it can be placed close to the inductor to cut the ripple

provided the PCB trace from the capacitor to UC864-G is wide enough to ensure a drop-less

connection even during the 2A current peaks.

• The protection diode must be placed close to the input connector where the power source is

drained.

• The PCB traces from the input connector to the power regulator IC must be wide enough to ensure

no voltage drops occur when the 2A current peaks are absorbed. Note that this is not made in

order to save power loss but especially to avoid the voltage drops on the power line at the current

peaks frequency of 216 Hz that will reflect on all the components connected to that supply,

introducing the noise floor at the burst base frequency. For this reason while a voltage drop of 300-

400 mV may be acceptable from the power loss point of view, the same voltage drop may not be

acceptable from the noise point of view. If your application doesn't have audio interface but only

uses the data feature of the Telit UC864-G, then this noise is not so disturbing and power supply

layout design can be more forgiving.

• The PCB traces to UC864-G and the Bypass capacitor must be wide enough to ensure no

significant voltage drops occur when the 2A current peaks are absorbed. This is for the same

reason as previous point. Try to keep this trace as short as possible.

• The PCB traces connecting the Switching output to the inductor and the switching diode must be

kept as short as possible by placing the inductor and the diode very close to the power switching

IC (only for switching power supply). This is done in order to reduce the radiated field (noise) at the

switching frequency (100-500 kHz usually).

• The use of a good common ground plane is suggested.

• The placement of the power supply on the board should be done in such a way to guarantee that

the high current return paths in the ground plane are not overlapped to any noise sensitive circuitry

as the microphone amplifier/buffer or earphone amplifier.

• The power supply input cables should be kept separate from noise sensitive lines such as

microphone/earphone cables.

UC864-G Hardware User Guide

DRAFT - 29/10/07

6 Antenna

The antenna connection and board layout design are the most important part in the full product design

and they strongly reflect on the product overall performances, hence read carefully and follow the

requirements and the guidelines for a proper design.

6.1 GSM/WCDMA Antenna Requirements

As suggested on the Product Description the antenna for a Telit UC864-G device shall fulfill the

following requirements:

If the device is developed for the US market and/or Canada market, it shall comply to the FCC and/or

IC approval requirements:

This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter

must be installed to provide a separation distance of at least 20 cm from all persons and must not be

co-located or operating in conjunction with any other antenna or transmitter. End-Users must be

provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators

must ensure that the end user has no manual instructions to remove or install the UC864-G module.

Antennas used for this OEM module must not exceed 3dBi gain for mobile and fixed operating

configurations.

GSM /WCDMA ANTENNA REQUIREMENTS

Frequency range Depending by frequency band(s) provided by

the network operator, the customer shall use

the most suitable antenna for that/those

band(s)

Bandwidth 70 MHz in GSM850, 80 MHz in GSM900,

170 MHz in DCS & 140 MHz PCS

70 MHZ in WCDMA850,

140 MHz in WCDMA1900 &

250 MHz in WCDMA2100 band

Gain Gain < 3dBi

Impedance 50 ohm

Input power > 33dBm(2 W) peak power in GSM

> 24dBm Average power in WCDMA

VSWR absolute

max

<= 10:1

VSWR

recommended

<= 2:1

UC864-G Hardware User Guide

DRAFT - 29/10/07

6.2 GSM/WCDMA Antenna - Installation Guidelines

• Install the antenna in a place covered by the GSM/WCDMA signal.

• The Antenna must be installed to provide a separation distance of at least 20 cm from all persons

and must not be co-located or operating in conjunction with any other antenna or transmitter;

• Antenna shall not be installed inside metal cases

• Antenna shall be installed also according Antenna manufacturer instructions.

6.3 GPS Antenna Requirements (TBD)

z The use of an active antenna is recommended to achieve a good performance.

z The use of combined GPS antennas is NOT recommended; this solution could generate an

extremely poor GPS reception and also the combination antenna requires additional diplexer and

adds a loss in the RF route.

GPS ANTENNA REQUIREMENTS

Frequency range 1575.42 MHz(GPS L1 band)

Bandwidth +/- 2 MHz

Gain TBD

Impedance 50 ohm

Amplification TBD

Supply voltage Must accept from 3 to 4V DC

Current consumption TBD

If the device is developed for the US market and/or Canada market, it shall comply to the FCC and/or

IC approval requirements:

This device is to be used only for mobile and fixed application.

6.4 GPS Antenna - Installation Guidelines

z The UC864-G due to its characteristics of sensitivity is capable to perform a Fix inside the buildings.

(In any case the sensitivity could be affected by the building characteristics i.e. shielding)

z The Antenna must not be co-located or operating in conjunction with any other antenna or

transmitter.

z Antenna shall not be installed inside metal cases.

z Antenna shall be installed also according Antenna manufacturer instructions.

UC864-G Hardware User Guide

DRAFT - 29/10/07

7 Logic level specifications

Where not specifically stated, all the interface circuits work at 2.6V CMOS logic levels. The following

table shows the logic level specifications used in the Telit UC864-G interface circuits:

For 2.6V CMOS signals:

Absolute Maximum Ratings -Not Functional

UC864-G

Parameter Min Max

Input level on any

digital pin when on

-0.3V +3.0V

Input voltage on

analog pins when on

-0.3V +3.0 V

Operating Range - Interface levels

UC864-G

Level Min Max

Input high level 2.0V 2.9 V

Input low level -0.3V 0.6V

Output high level 2.2V 2.6V

Output low level 0V 0.35V

For 2,0V signals:

Operating Range - Interface levels (2.0V CMOS)

UC864-G

Level Min Max

Input high level 1.5V 2.1V

Input low level -0.3V 0.5V

Output high level 1.4V 1.8V

Output low level 0V 0.35V

UC864-G Hardware User Guide

DRAFT - 29/10/07

7.1 Reset signal

Signal Function I/O PIN Number

RESET Phone reset I 54

RESET is used to reset the UC864-G module. Whenever this signal is pulled low, UC864-G is reset.

When the device is reset it stops any operation. After the release of the reset UC864-G is

unconditionally shut down, without doing any detach operation from the network where it is registered.

This behaviour is not a proper shut down because any device is requested to issue a detach request

on turn off. For this reason the Reset signal must not be used to normally shutting down the device,

but only as an emergency exit in the rare case the device remains stuck waiting for some network

response.

The RESET is internally controlled on start-up to achieve always a proper power-on reset sequence,

so there's no need to control this pin on start-up. It may only be used to reset a device already on that

is not responding to any command.

NOTE: do not use this signal to power off UC864-G. Use the ON/OFF signal to perform this function or

the AT#SHDN command.

Reset Signal Operating levels:

Signal Min Max

RESET Input high 2.0V* 2.2V

RESET Input low 0V 0.2V

* This signal is internally pulled up so the pin can be left floating if not used.

If unused, this signal may be left unconnected. If used, then it must always be connected with an

open collector transistor, to permit to the internal circuitry the power on reset and under voltage

lockout functions.

UC864-G Hardware User Guide

DRAFT - 29/10/07

8 Serial Ports

The serial port on the Telit UC864-G is the interface between the module and OEM hardware.

2 serial ports are available on the module:

• MODEM SERIAL PORT

• MODEM SERIAL PORT 2 (DEBUG)

8.1 MODEM SERIAL PORT

Several configurations can be designed for the serial port on the OEM hardware, but the most

common are:

• RS232 PC com port

• microcontroller UART @ 2.8V - 3V (Universal Asynchronous Receive Transmit)

• microcontroller UART @ 5V or other voltages different from 2.8V

Depending from the type of serial port on the OEM hardware a level translator circuit may be needed

to make the system work. The only configuration that doesn't need a level translation is the 2.8V

UART.

The serial port on UC864-G is a +2.6V UART with all the 7 RS232 signals. It differs from the PC-

RS232 in the signal polarity (RS232 is reversed) and levels. The levels for UC864-G UART are the

CMOS levels:

Absolute Maximum Ratings -Not Functional

UC864-G

Parameter Min Max

Input level on any

digital pin when on

-0.3V +3.0V

Input voltage on

analog pins when on

-0.3V +3.0 V

Operating Range - Interface levels

UC864-G

Level Min Max

Input high level 2.0V 2.9 V

Input low level -0.3V 0.6V

Output high level 2.2V 2.6V

Output low level 0V 0.35V

UC864-G Hardware User Guide

DRAFT - 29/10/07

The signals of the UC864-G serial port are:

RS232

Number

Signal

UC864-G

Pad

Number

Name Usage

1 DCD -

dcd_uart

32 Data Carrier Detect Output from the UC864-G that indicates

the carrier presence

2 RXD -

tx_uart

26 Transmit line *see Note Output transmit line of UC864-G UART

3 TXD -

rx_uart

25 Receive line *see Note Input receive of the UC864-G UART

4 DTR -

dtr_uart

29 Data Terminal Ready Input to the UC864-G that controls the

DTE READY condition

5 GND 5,6,7 Ground ground

6 DSR -

dsr_uart

27 Data Set Ready Output from the UC864-G that indicates

the module is ready

7 RTS -

rts_uart

31 Request to Send Input to the UC864-G that controls the

Hardware flow control

8 CTS -

cts_uart

28 Clear to Send Output from the UC864-G that controls

the Hardware flow control

9 RI - ri_uart 30 Ring Indicator Output from the UC864-G that indicates

the incoming call condition

NOTE: According to V.24, RX/TX signal names are referred to the application side, therefore on

the UC864-G side these signal are on the opposite direction: TXD on the application side will

be connected to the receive line (here named TXD/ rx_uart ) of the UC864-G serial port and

vice versa for RX.

TIP: For a minimum implementation, only the TXD and RXD lines can be connected, the other

lines can be left open provided a software flow control is implemented.

UC864-G Hardware User Guide

DRAFT - 29/10/07

8.2 RS232 level translation

In order to interface the Telit UC864-G with a PC com port or a RS232 (EIA/TIA-232) application a

level translator is required. This level translator must

 invert the electrical signal in both directions

 change the level from 0/3V to +15/-15V

Actually, the RS232 UART 16450, 16550, 16650 & 16750 chipsets accept signals with lower levels on

the RS232 side (EIA/TIA-562), allowing for a lower voltage-multiplying ratio on the level translator.

Note that the negative signal voltage must be less than 0V and hence some sort of level translation is

always required.

The simplest way to translate the levels and invert the signal is by using a single chip level translator.

There are a multitude of them, differing in the number of driver and receiver and in the levels (be sure

to get a true RS232 level translator not a RS485 or other standards).

By convention the driver is the level translator from the 0-3V UART level to the RS232 level, while the

receiver is the translator from RS232 level to 0-3V UART.

In order to translate the whole set of control lines of the UART you will need:

• 5 drivers

• 3 receivers

NOTE: The digital input lines working at 2.6V CMOS have an absolute maximum input voltage

of 3.0V; therefore the level translator IC shall not be powered by the +3.8V supply of the

module. Instead it shall be powered from a +2.6V / +3.0V (dedicated) power supply.

This is because in this way the level translator IC outputs on the module side (i.e. UC864-G

inputs) will work at +3.8V interface levels, stressing the module inputs at its maximum input

voltage.

This can be acceptable for evaluation purposes, but not on production devices.

NOTE: In order to be able to do in circuit reprogramming of the UC864-G firmware, the serial

port on the Telit UC864-G shall be available for translation into RS232 and either it's

controlling device shall be placed into tri-state, disconnected or as a gateway for the serial

data when module reprogramming occurs.

Only RXD, TXD, GND and the On/off module turn on pad are required to the reprogramming of

the module, the other lines are unused.

All applicator shall include in their design such a way of reprogramming UC864-G.

UC864-G Hardware User Guide

DRAFT - 29/10/07

An example of level translation circuitry of this kind is:

The RS232 serial port lines are usually connected to a DB9 connector with the following layout:

UC864-G Hardware User Guide

DRAFT - 29/10/07

8.3 5V UART level translation

If the OEM application uses a microcontroller with a serial port (UART) that works at a voltage different

from 2.6 - 3V, then a circuitry has to be provided to adapt the different levels of the two set of signals.

As for the RS232 translation there are a multitude of single chip translators. For example a possible

translator circuit for a 5V TRANSMITTER/RECEIVER can be:

TIP: This logic IC for the level translator and 2.8V pull-ups (not the 5V one) can be powered directly from PWRMON

line of UC864-G. Note that the TC7SZ07AE has open drain output; therefore the resistor R2 is mandatory.

TO TELIT

MODULE

UC864-G Hardware User Guide

DRAFT - 29/10/07

NOTE: The UART input line TXD (rx_uart) of UC864-G is NOT internally pulled up with a resistor, so there may be

the need to place an external 47KΩ pull-up resistor, either the DTR (dtr_uart) and RTS (rts_uart) input lines are not

pulled up internally, so an external pull-up resistor of 47KΩ may be required.

A power source of the internal interface voltage corresponding to the 2.6V CMOS high level is

available at the PWRMON pin on the connector, whose absolute maximum output current is 1mA.

A maximum of 9 resistors of 47 KΩ pull-up can be connected to the PWRMON pin, provided no other

devices are connected to it and the pulled-up lines are UC864-G input lines connected to open

collector outputs in order to avoid latch-up problems on UC864-G.

Care must be taken to avoid latch-up on UC864-G and the use of this output line to power electronic

devices shall be avoided, especially for devices that generate spikes and noise such as switching level

translators, micro controllers, failure in any of these condition can severely compromise the UC864-G

functionality.

NOTE: The input lines working at 2.6VCMOS can be pulled-up with 47KΩ resistors that can be connected directly to

the PWRMON line provided they are connected as in this example.

NO OTHER devices than those suggested should be powered with the PWRMON line; otherwise the module

functionality may be compromised.

It is important to consider that the added circuit must have consumption lower than 1mA.

In case of reprogramming of the module has to be considered the use of the RESET line to start correctly the

activity.

The preferable configuration is having an external supply for the buffer.

UC864-G Hardware User Guide

DRAFT - 29/10/07

9 USB Port

UC864-G includes an integrated universal serial bus (USB) transceiver, compliant with USB 2.0

specification, for interfacing UC864-G to a computer as a USB peripheral or connecting the UC864-G

to other peripherals. It supports the USB low-speed (1.5 Mbits/s) and full-speed (12 Mb/s) modes. In

HSDPA (High Speed download Packet Access) mode, the downlink data speed rates up to 7.2Mbps.

Hence you need to interface UC864-G to your applications in full-speed (12Mbits/s) mode.

You can use USB for the following purposes: communication with external peripheral devices, debug

monitor

USB

Pin No.

Signal UC864-G

Pad No.

Usage

1 USB_VBUS 48 Power supply for the internal USB transceiver. This pin is

configured as an analog input or an analog output

depending upon the type of peripheral device connected.

2 USB_D- 80 Minus (-) line of the differential, bi-directional USB signal

to/from the peripheral device

3 USB D+ 79 Plus (+) line of the differential, bi-directional USB signal

to/from the peripheral device

4 USB_ID 35 Analog input used to sense whether a peripheral device is

connected, and determine the peripheral type, a host or a

slave

UC864-G Hardware User Guide

DRAFT - 29/10/07

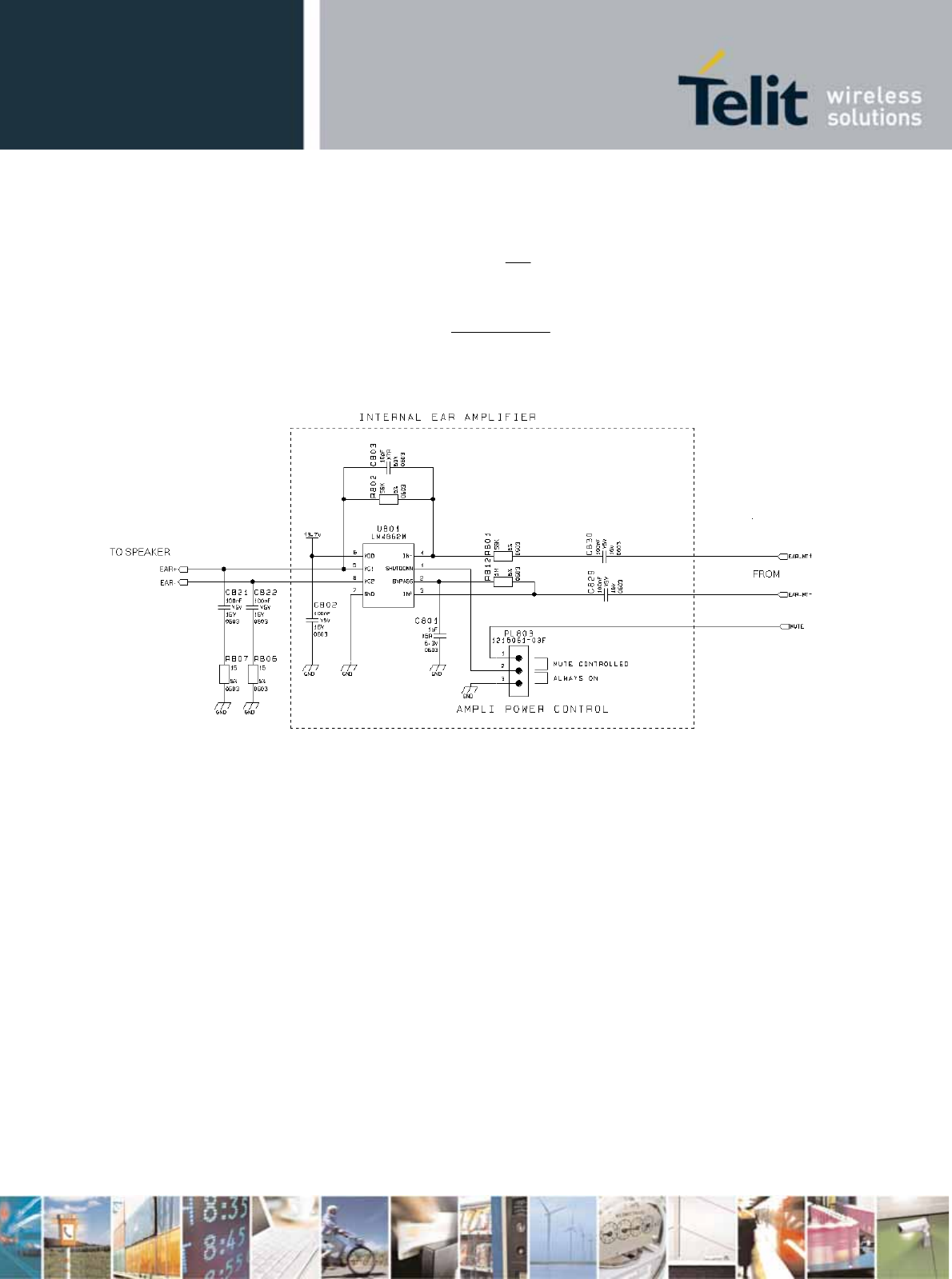

10 Audio Section Overview

The Base Band Chip of the UC864-G Telit Module provides two different audio blocks; both in transmit

(Uplink) and in receive (Downlink) direction:

“MT lines” should be used for handset function,

“HF lines” is suited for hands -free function (car kit).

These two blocks can be active only one at a time, selectable by AXE hardware line or by AT

command. The audio characteristics are equivalent in transmit blocks, but are different in the receive

ones and this should be kept in mind when designing.

Differential

Line-Out Drivers

Fully Differential

Power Buffers

EXTERNAL

MPLIFIER

-12dBFS

+10dB

-45dBV/Pa

Mic_HF-

Ear_HF-

BalancedSingle

ended

Mic_HF+

Ear_HF+

50cm

23mV

rms

0,33m

rms

audio2.skd

+20dB

7cm

-45dBV/Pa

3,3m

rms

365mV

rms

Mic_MT+

Ear_MT+

Mic_MT-

Ear_MT-

UC864-G Hardware User Guide

DRAFT - 29/10/07

10.1 Microphone Paths Characteristic and

Requirements

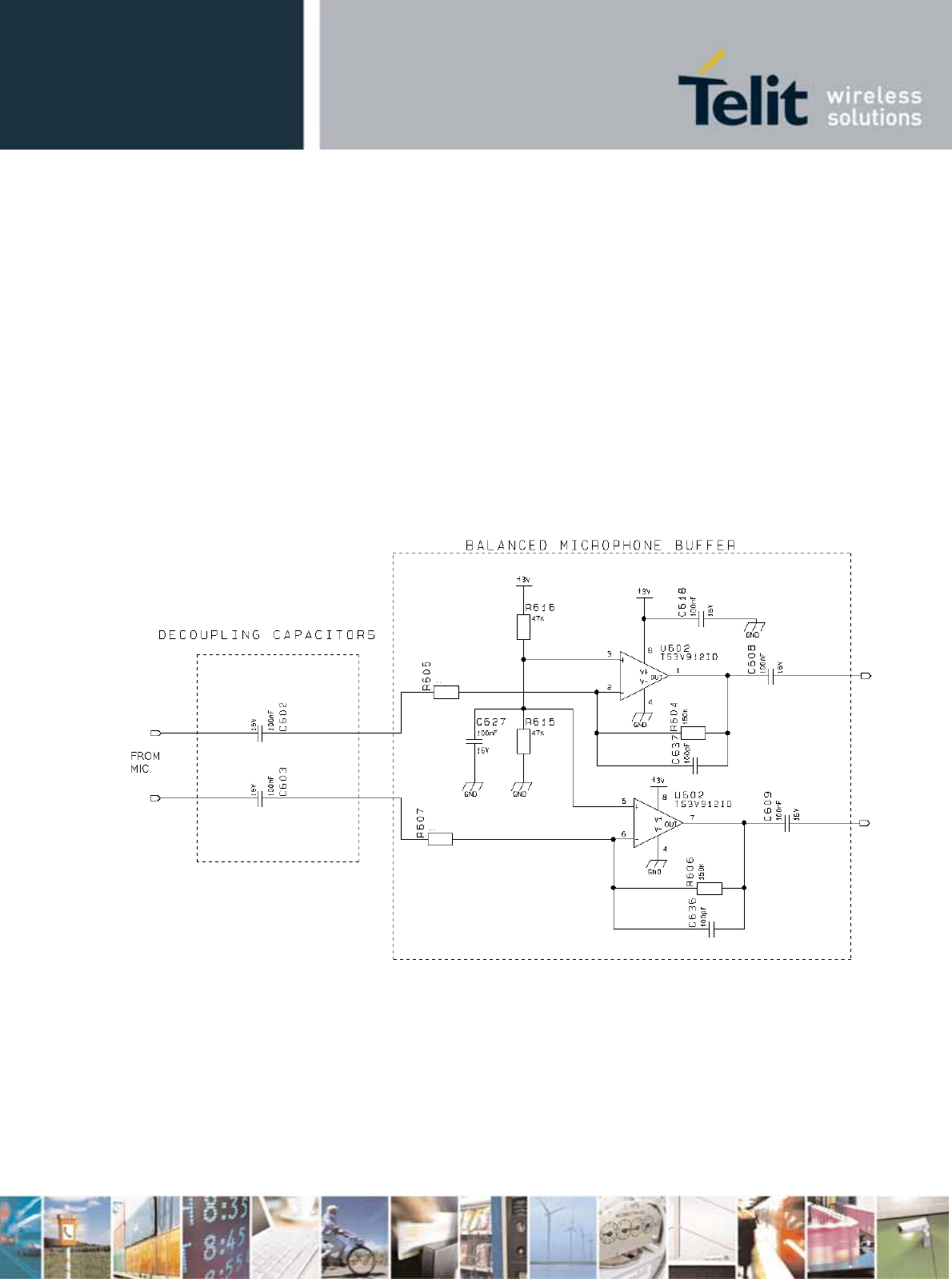

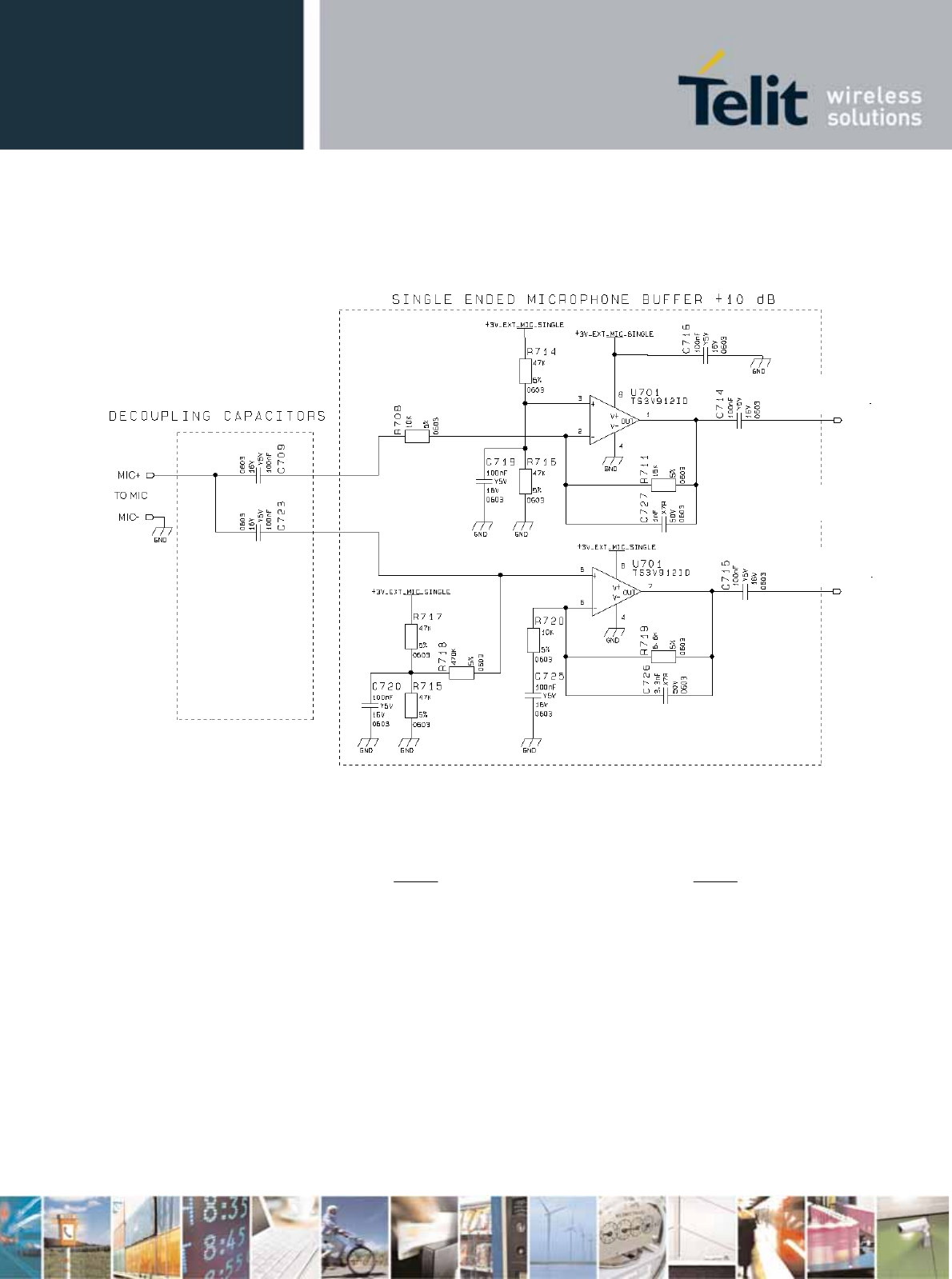

TIP: Being the microphone circuitry the more noise sensitive, its design and layout must be

done with particular care. Both microphone paths are balanced and the OEM circuitry should

be balanced designed to reduce the common mode noise typically generated on the ground

plane. However an unbalanced circuitry can be also used for particular OEM application needs.

TIP: Due to the difference in the echo canceller type, the “Mic_MT” audio path is suited for

Handset applications, while the “Mic_HF”audio path is suited for hands-free function (car kit).

The Earphone applications should be made using the “Mic_HF” audio path but DISABLING the

echo canceller by software AT command. If the echo canceller is left active with the Earphone,

then some echo might be introduced by the echo cancel algorithm.

UC864-G;

“Mic_MT” 1st differential microphone path

• line coupling AC

• line type balanced

• coupling capacitor ≥ 100nF

• differential input impedance 20kΩ

• differential input voltage ≤ 1,03Vpp (365mVrms)

• microphone nominal sensitivity -45 dBVrms/Pa

• analog gain suggested +20dB

• echo canceller type handset

“Mic_HF” 2nd differential microphone path

• line coupling AC

• line type balanced

• coupling capacitor ≥ 100nF

• differential input resistance 20kΩ

• differential input voltage ≤ 65mVpp (23mVrms)

• microphone nominal sensitivity -45 dBVrms/Pa

• analog gain suggested +10dB

• echo canceller type car kit hands-free

UC864-G Hardware User Guide

DRAFT - 29/10/07

TIP: Definition of the nominal sensitivity of the microphone lines.

The nominal sensitivity of the microphone lines indicates the voltage level on the UC864-G pins

present during "normal spoken" conditions.

For a handset , the "normal spoken” conditions take place when the talker mouth is 7cm far from the

microphone ; under these conditions the voice will produce an acoustic pressure of -4,7dBPa @1kHz

on the microphone membrane .

TIP: Electrical equivalent signal and operating voice levels.

At "normal spoken" conditions, a microphone having the suggested nominal sensitivity of -

45dBVrms/Pa, will produce

the electrical equivalent signal :

that means :

During a call, this level varies according to the volume of the talker voice; usually the following rough

thumb rule for the dynamic range may be used:

1) the talker is screaming . This is the strongest voice level condition: the signal increases by

+20dB;

2) the talker is whispering. This is the lowest voice level condition: the voice level decreases by –

50dB.

These changes must be considered for designing the external microphone amplifier.

TIP: Example of external microphone amplifier calculation

Let’s suppose to use the 1stdifferential microphone path .In this case the maximum differential input

voltage to “Mic_MT” lines is 365mVrms(1,03Vpp) corresponding to –8,76dBV.

Now we can calculate the maximum voltage gain of an external microphone amplifier GA :

()

[]

dBVGdBMicLevel A76,820 −

[]

76,8207,49 −=++− A

G−=+− 209,40

dBGA94,20= You can set GA= +20dB to use standard resistor values .

MicLevel = ( -45) + (-4.7) = -49.7 dBVrms

MicVoltage = 10 (

49.7 / 20 ) = 3.3* 10

Vrms

UC864-G Hardware User Guide

DRAFT - 29/10/07

TIP: Environment consideration

For handsfree/car kit microphone, you must take into account the voice attenuation, due to the

distance between the microphone itself and the talker, when designing the external microphone

amplifier.

Not only, you must consider that the microphone will pick up also ambient noise; to overcome this

problem it is preferable to set the gain of the microphone 10dB lower with respect to the calculated

value for a nominal sensitivity. The corresponding reduction in signal level will be compensated by an

increased voice volume of the talker which will speak louder because of the ambient noise.

For a car cabin usually the distance between the microphone itself and the talker is 40/50cm; in these

conditions the attenuation can be considered as a thumb rule around 20dB.

For the earphone we shall distinguish two different types: the earphones having the microphone

sustained close to the mouth and the ones having the microphone on the earpiece cable.

The same considerations for the additional voice attenuation due to the distance from the microphone

and the noise pick up can be made for the earphone having the microphone on the earpiece cable,

while the other kind of earphone shall be threaten as a handset.

TIP: How to compensate the losses in the car cabin hands-free condition

The voice signal , that in the "normal spoken” conditions produces on the microphone membrane an

acoustic pressure of -4,7dBPa at 1kHz , will have a further attenuation of 20dB due the 50cm

distance .

Therefore a microphone having the suggested nominal sensitivity of -45dBVrms/Pa, will produce a

lower electrical

equivalent signal :

that means :

Setting the “microphone gain” at +10dB (3 times), the signal in the nominal conditions on the “Mic_HF”

inputs s of UC864-G Telit Module will be:

Hence in these conditions the signal level on the“Mic_HF” input pads of UC864-E is 10 dB (3 times)

lower than the nominal, as suggested.

MicLevel = ( -45) + (-4.7)-20 = -69.7

MicVoltage = 10 (

49.7 / 20 ) = 0,33* 10

“Mic_HF” Level = 0,33* 10

* 3=1* 10

UC864-G Hardware User Guide

DRAFT - 29/10/07

10.2 General Design Rules

There are several configurations for the audio paths, but the most effective difference is between

balanced and unbalanced microphone configuration.

It is highly recommended to keep the whole microphone path balanced even if this means having 2

wires connecting the microphone instead of one needed (plus ground) in the unbalanced case. The

balanced circuitry is more suited because of its good common mode noise rejection, reducing the 216

Hz burst noise produced during the GSM transmissions.

• Where possible use balanced microphone circuitry

• Keep the microphone traces on the PCB and wires as short as possible.

• If your application requires an unbalanced microphone, then keep the lines on the PCB balanced

and "unbalance" the path close to the microphone wire connector if possible.

• For the microphone biasing voltage use a dedicated voltage regulator and a capacitor multiply

circuit.

• Make sure that the microphone traces in the PCB don't cross or run parallel to noisy traces

(especially the power line)

• If possible put all around to the microphone lines a ground trace connected to the ground plane by

several vias. This is done in order to simulate a shielded trace on the PCB.

• The biasing circuit and eventually the buffer can be designed in the same manner for the internal

and external microphones.

10.3 Other considerations

If your application is a hands-free/car kit scenario, but you need to put microphone and speaker inside

the same box:

• try to have the maximum possible distance between them, at least 7cm ;

• because the microphone type is very important, if you use an omni-directional one ( and this is the

typical application) please seal it on the rear side (no back cavity) in order not to collect unwanted

signals ;

• try to make divergent the main axes of the two devices .

UC864-G Hardware User Guide

DRAFT - 29/10/07

10.4 Microphone Biasing

The electret microphones usually need a biasing voltage to work properly. Refer to your microphone

provider for the characteristics required.

NOTE: The microphones have a hot wire were the positive biasing must be connected. Usually

it is indicated by a + symbol or a red point. If the polarity of the bias is reversed, then the

microphone will not work properly. For this reason be sure to respect the mic. biasing polarity.

10.4.1 Balanced Microphone Biasing

The balanced microphone bias voltage should be obtained from a dedicated voltage regulator, in order

to eliminate the noise present on the power lines. This regulator can be the same for all the audio

paths. The microphone should be supplied from a capacitor multiply circuit.

For example a circuit for the balanced microphone biasing can be:

UC864-G Hardware User Guide

DRAFT - 29/10/07

NOTE: In the balanced application the resistors R2 and R3 must have the same value to keep

the circuit balanced.

NOTE: The cable to the microphone should not be shielded, instead a twisted pair cable shall

be used.

NOTE: The microphone sensitivity changes with the value of R2 and R3. Usually the

microphones are characterized with 2kΩ biasing resistance, so try to keep the sum of R2 and

R3 around 2kΩ. Refer to your microphone manufacturer for the mic. characteristics.

10.4.2 Unbalanced Microphone Biasing

The unbalanced microphone biasing voltage should be obtained from a dedicated voltage regulator, in

order to eliminate the noise present on the power lines. This regulator can be the same for all the

audio paths. The microphone should be supplied from a capacitor multiply circuit.

For example a circuit for the unbalanced microphone biasing can be:

UC864-G Hardware User Guide

DRAFT - 29/10/07

NOTE: In the unbalanced application the capacitor C3 shall be > 200nF otherwise the frequency

response will be cut at low band frequencies (down to 300Hz). This capacitor can be placed

close to the MIC- pad (MIC_HF- or MIC_MT- depending on the audio path chosen) or if possible

it should be placed close to the shielded cable connector. If the ground return path is well

designed, then it is possible to eliminate the C3 capacitor, provided the buffer is close to the

mic. input.

NOTE: The cable to the microphone should be shielded.

NOTE: The microphone changes with the value of R2. Usually the microphone sensitivity is

characterized with 2kΩ biasing resistance, so try to keep the value of R2 around 2kΩ. For mic.

characteristics refer to the manufacturer.

UC864-G Hardware User Guide

DRAFT - 29/10/07

10.5 Microphone Buffering

As seen previously, a microphone shall be connected to the input pins of UC864-G through a buffer

amplifier that boosts the signal level to the required value.

Again the buffered microphone circuitry can be balanced or unbalanced: where possible it is always

preferable a balanced solution. The buffering circuit shall be placed close to the microphone or close

to the microphone wire connector.

10.5.1 Buffered Balanced Mic

A sample circuit can be:

This circuit has a gain of 10 times (+20 dB), and is therefore suited for the “Mic_MT “ input if you have

a microphone with a sensitivity close to the suggested one (-45 dBVrms/Pa). If your microphone has a

different sensitivity or if the buffer is connected to the “Mic_HF “ inputs, then a gain adjustment shall

be done by changing resistors R604 and R606 ( if the required value is not a standard one , you can

change R605 and R607 ) and as a consequence the capacitors C636 and C637 to maintain the

bandwidth 150-4000Hz (at -3dB).

270pF

+20dB

15K

GE863

UC864-G Hardware User Guide

DRAFT - 29/10/07

The buffer gain is given by the formula:

607

606

605

604

Gain ==

The C636 and C637 capacitors are placed in order to cut off the gain at higher frequencies than the

transmitted GSM band, the cutoff frequency (-3dB) should be 3500Hz in order to have -1dB at 3kHz.

The cutoff frequency is given by the formula:

636*606*2

637*604*2

.CRCR

freq

ππ

== [Hz]

TIP: Example of calculation

Let's assume you have a microphone with a sensitivity of -45 dBVrms/Pa and you want to use it in 1st

differential microphone path (“Mic_MT” inputs) in “normal spoken" conditions at acoustic pressure of -

4.7dBPa.

As reported at page 33, the electrical level output from the microphone will be:

corresponding to:

When the talker is screaming ,we will have a signal of 330 mVrms on the “Mic_MT “ inputs due to a

20dB higher Mic Level (see TIP 1) with a buffer gain GA :

GA =20 log (AmplifierOutput / MicVoltage) =20 log (330 * 10 -3 )/( 33 * 10 -3 ) = 20 log 10=20dB

The corresponding values for the resistors on the buffer could be (if we keep the input resistance

10kΩ)

R604 = R606 = gain* R607= gain* R605 = 10* 15 = 150 kΩ

The commercial values of 150kΩ & 15kΩ are then chosen.

As a consequence the values of the capacitors C636 and C637 shall be:

C636=C637= 1/ (2π*4000*R606)= 265 *10 -12 F

A commercial value of 270pF gives a cutoff frequency of 3931Hz with an errorless than 1,8% .

MicLevel = ( -45) + (-4.7) = -49.7 dBVrms

MicVoltage = 10 (

49.7 / 20 ) = 3.3* 10

Vrms

UC864-G Hardware User Guide

DRAFT - 29/10/07

10.5.2 Buffered Unbalanced (Single Ended) Microphone

The above schematic can be used for a single ended (buffered unbalanced) microphone; the required

biasing circuitry is not included. Note also that the capacitor C3 is not needed

The gains of the two amplifiers are given by the formulas:

()

720

719

1buffer invertingnot R

Gain +=

()

708

711

buffer inverting R

Gain =

Assigning half of overall gain to each amplifier, you will obtain the requested gain because of doubling

the microphone signal path; in fact by the use of two amplifiers (the upper as “inverting” and the lower

as “not inverting” configuration) we obtain an additional +6dB gain (2 times).

Remember: the “not inverting “amplifier section gain shall not be less than 1.

Like for the balanced buffered microphone, the amplifier overall gain can be modify changing the value

of resistor R719/R720 and R711 and as a consequence the capacitors C726 and C727. It is

advisable to change R708 only if you have difficulty to find a commercial value for R711; in this case

change R708 as little as possible.

The -3dB bandwidth is given by the approximated formula (considering C725 >> C726):

2,7nF

6,8nF

GE863

Mic+

GE863

Mic-

UC864-G Hardware User Guide

DRAFT - 29/10/07

727*711*2

726*719*2

.CRCR

freq

ππ

== [Hz]

The buffer bandwidth at -3dB shall be 4KHz.

Note that the biasing of the operational amplifier is given for the inverting amplifier by the series divider

R714-R715. The 100nF capacitor C719 is needed to filter the noise that could be coupled to that

divider. For the not inverting operational amplifier the biasing is given by a different divider R715-R717

with the capacitor C720 and through a series resistor R718 of 470KΩ.

TIP: Example of calculation.

Llet's assume you have a microphone with a sensitivity of -45dBVrms/Pa and you want to use it in 2nd

differential microphone path (“Mic_HF” inputs) in "normal spoken" conditions at acoustic pressure of

-4.7dBPa.

As reported at page XX,, the electrical level output from the microphone will be :

but we have to consider 20dB loss due to the higher distance from the mouth of the talker ( 50cm ) .

corresponding to

In order to have a signal of 1 mVrms at the “Mic_HF” inputs , as suggested at TIP “environment

consideration “,

the buffer must have a gain or +10 dB

Keeping in mind that “balancing the line will double the signal”, to calculate the resistor values assign

half of required gain GA to each amplifier section . And therefore, GS =1,5times (or +3,52dB).

Choosing as 10kΩ as the input resistance, the corresponding values for the resistors on the buffer will

be:

R711 = GS * R708= 1.5*10 =15 kΩ

R719 = (GS -1) * R720 = (1.5 -1)*10 =5 kΩ

The commercial values of 15kΩ and 5.6kΩ be accepted.

As a consequence of the assigned values of the resistors, the nominal values of C726 and C727 are:

MicLevel = ( -45) + (-4.7) = -49.7 dBVrms

MicVoltage = 10 (

69.7 / 20 ) = 0,33* 10

MicLevel = ( -49.7) + (-20) = -69.7 dBVrms

GA= “Mic_HF /MicVoltage = (1*10

)/(0,33*10

)=3

UC864-G Hardware User Guide

DRAFT - 29/10/07

C726= 1/ (2π*4000*R719)= 7.10 *10 -9 F

C727= 1/ (2π*4000*R711)= 2,65 *10 -9 F

modified in 6,8nF (fc1=4181Hz ) and 2,7nF (fc2=3931Hz) because of commercial values .

UC864-G Hardware User Guide

DRAFT - 29/10/07

11 OUTPUT LINES (Speaker)

11.1 Short description

The Telit UC864-G provides two audio paths in receive section. Only one of the two paths can be

active at a time, selectable by AXE hardware line or by AT command.

You must keep in mind the different audio characteristics of the receive blocks when designing:

Æ the “Ear_MT” lines EPN1 and EPP1 are the Differential Line-Out Drivers ; they can drive an

external amplifier or directly a 32 Ω earpiece at –12dBFS (*) ;

Æ the “Ear_HF” lines EPPA1_2 and EPPA2 are the Fully Differential Power Buffers ; they can directly

drive a 32Ω speaker in differential (balanced) or single ended (unbalanced) operation mode .

(*) FS: acronym of Full Scale. It is equal to 0dB, the maximum Hardware Analog Receive Gain of

BaseBand Chip.

The “Ear_MT” audio path should be used for handset function, while the “Ear_HF” audio path is suited

for hands-free function (car kit).

Both receiver outputs are B.T.L. type (Bridged Tie Load) and the OEM circuitry shall be designed

bridged to reduce the common mode noise typically generated on the ground plane and to get the

maximum power output from the device; however also a single ended circuitry can be designed for

particular OEM application needs.

UC864-G Hardware User Guide

DRAFT - 29/10/07

11.2 Output Lines Characteristics

UC864-G;

“Ear_MT” Differential output path

• line coupling: DC

• line type: differential

• output load resistance : 32 Ω

• max. load capacitance 500pF(max.)

• differential output impedance: 1 Ω (max) @1.02KHz

• signal bandwidth: 150 - 4000 Hz @ -3 dB

• differential output voltage 1060mVrms (typ.)@0dBm0

• SW volume level step -2dB

• number of SW volume steps 10

“Ear_HF” differential output path

• line coupling: DC

• line type: differential

• output load resistance : 32 Ω

• max. load capacitance 500pF(max.)

• differential output impedance: 1 Ω (max) @1.02KHz

• signal bandwidth: 150 - 4000 Hz @ -3 dB

• differential output voltage 833 mVrms (typ,)@0dBm0

• SW volume level step -2dB

• number of SW volume steps 10

UC864-G Hardware User Guide

DRAFT - 29/10/07

11.3 General Design Rules

There are several configurations for the audio output path, but the various design requirements can be

grouped into three different categories:

• handset earphone (low power, typically a handset)

• hands-free earphone (low power, typically a earphone)

• car kit speakerphone (high power, typically a speaker)

The three groups have different power requirements; usually the first two applications need only few

mW of power, which can be directly drained from the UC864-G pads, provided a suited speaker is

used. This direct connect design is the cheaper and simpler solution and will be suited for the most of

the earphone design requirements. There's no need to decouple the output ear lines if a suited

earpiece is connected. For the last group, the speakerphone, a power amplifier is required to raise the

output power up to 5-10W required in a car cabin application.

All the designs shall comply with the following guidelines:

• Where possible use a bridged earphone circuitry, to achieve the maximum power output from the

device.

• Keep the earphone traces on the PCB and wires as short as possible.

• If your application requires a single ended earpiece and you want a direct connection, then leave

one of the two output lines open and use only the other referred to ground. Remember that in this

case the power output is 4 times lower than the bridged circuit and may not be enough to ensure

a good voice volume.

• Make sure that the earphone traces in the PCB don't cross or run parallel to noisy traces

(especially the power line)

• The cable to the speaker shall be a twisted pair with both the lines floating for the bridged output

type, shielded with the shield to ground for the single ended output type.

11.3.1 Noise Filtering

The I/O of the PCB should have a noise filter close to the connector, to filter the high frequency GSM

noise. The filter can be a Π formed by 2 capacitor and a inductance, with the one capacitor of 39pF -

0603 case, and the other capacitor of 1nF - 0603; the inductance shall have a value of 39µH.

UC864-G Hardware User Guide

DRAFT - 29/10/07

11.4 Handset Earphone Design

As seen previously, a 32Ω earpiece can be directly connected to the output pads EAR_MT+ and

EAR_MT- of the UC864-G.

This solution is often the more cost effective, reducing the components count to a minimum. There are

several limitations to the use of this solution: speaker direct connect imposes the speaker

characteristics to be almost exactly the suggested ones, otherwise the power output may be reduced

(if speaker impedance is bigger than 32Ω) or the UC864-G ear port may be damaged (if speaker

impedance is less than 15Ω).

The other limitation of the speaker direct connection is the power output capability of the UC864-G

which is limited and for some particular applications may not be enough.

For these reasons, when the power output of the UC864-G is not enough or if the speaker

characteristics are different from the suggested, then it is preferable to use an amplifier to increase the

power and current output capabilities.

Again the output from the UC864-G is bridged and both lines should be used, where possible, as

inputs to the power amplifier. This ensures a higher common mode rejection ratio, reducing the GSM

current busts noise on the speaker output.

In this case the “EAR_MT” lines from the UC864-G should be AC coupled with a ceramic capacitor of

100nF (or bigger).

It is always desirable to have a mute control on the amplifier, in order to turn it off while the device is

not sending signal to the output, in this manner the amplifier background noise which may be audible

during idle conditions is cut off.

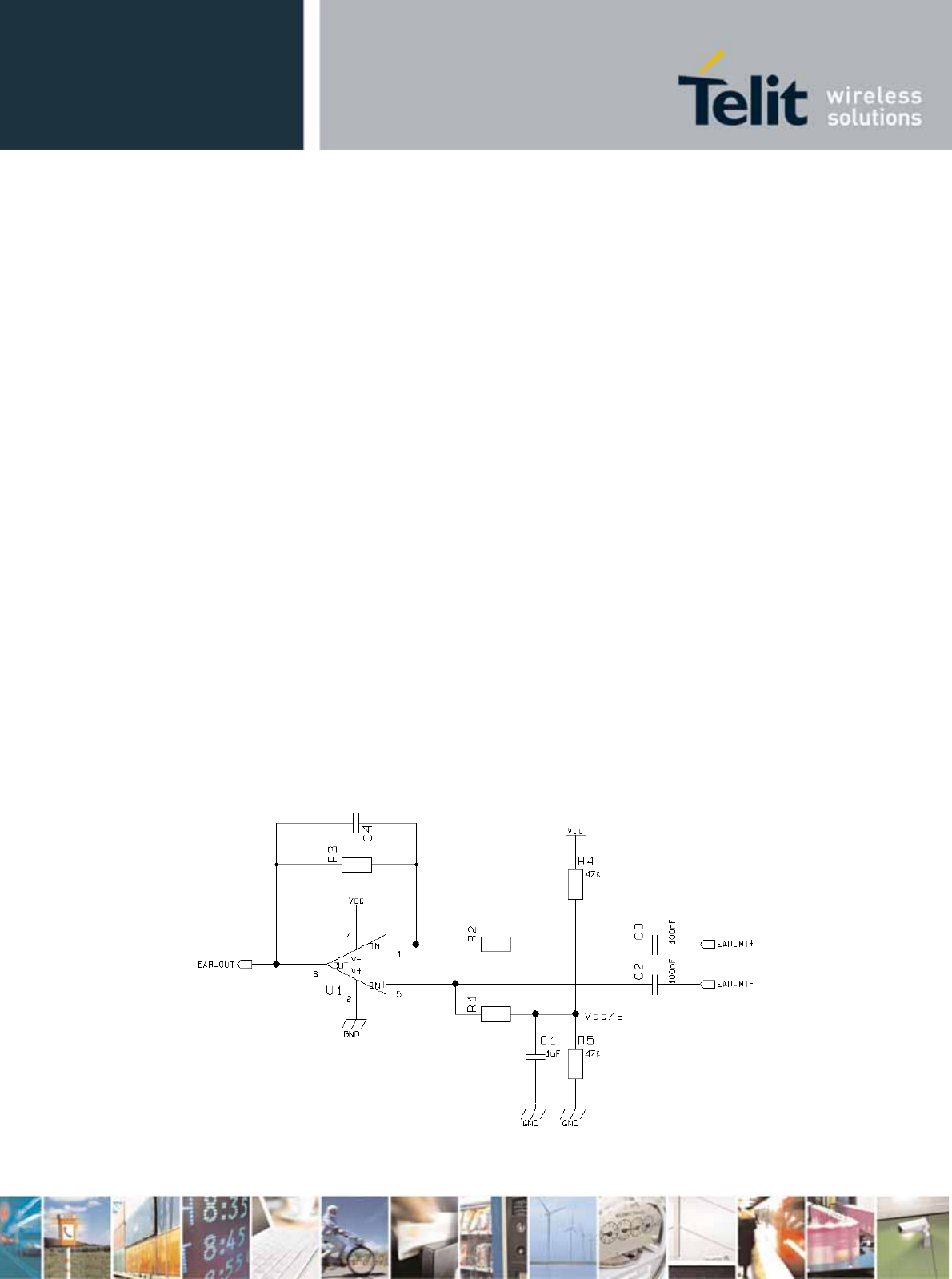

A principle schematic may be:

UC864-G Hardware User Guide

DRAFT - 29/10/07

The resulting gain and high pass cut can be obtained with the formula:

Gain =

4*3*2

.CR

freq

= [Hz]

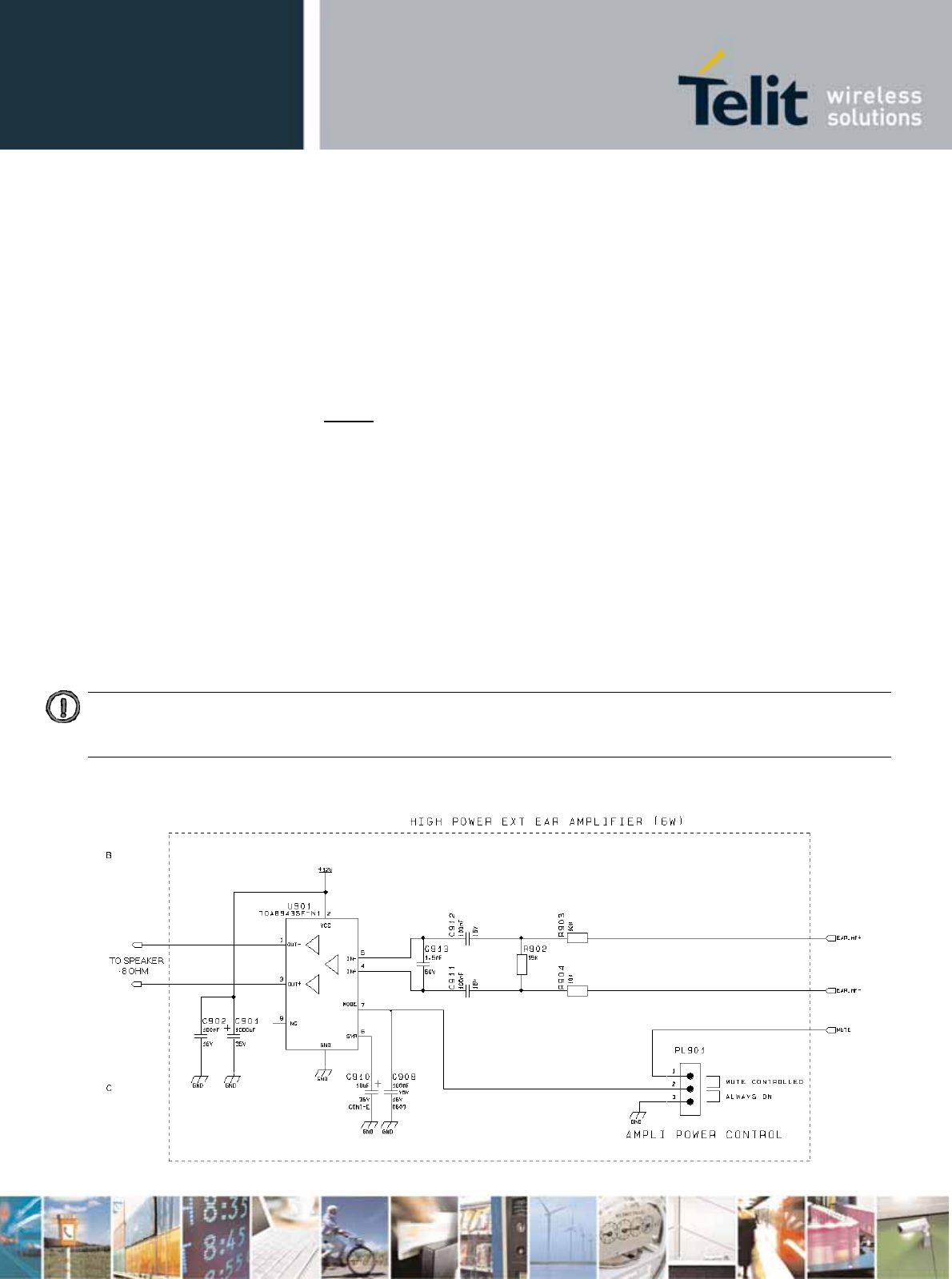

And an example of internal Ear amplifier could be:

Some amplifier require a low impedance load at high frequency in order to avoid auto oscillation, this

can be made with a capacitor (100nF) in series with a resistor (15Ω).

When designing your application, remember to provide an adequate bypass capacitor to the amplifier

and place it close to the power input pin of the IC, keeping the traces as short as possible.

11.5 Hands-Free Earphone (Low Power) Design

The same design considerations made for the handset are valid for the hands-free earphone.

+12dB

UC864-E

UC864-G Hardware User Guide

DRAFT - 29/10/07

11.6 Car Kit Speakerphone Design

For the car kit speaker phone function the power output requirement is usually at least 4W, therefore

an amplifier is needed to boost the UC864-G output.

The design of the amplifier shall comply with the following guidelines:

• The input to the amplifier MUST be taken from the “Ear_HF” audio path of UC864-G, because of

its echo canceller parameters suited to a car cabin use.

• The amplifier shall have a gain of 30-40 times (29-32 dB) to provide the desired output power of 5-

10W with the signal from the UC864-G “Ear_HF” audio output lines.

• If the amplifier has a fixed gain then it can be adjusted to the desired value by reducing the input

signal with a resistor divider network.

• The amplifier shall have a mute control to be used while not in conversation. This provides two

benefits: eliminating the background noise when not in conversation and saving power.

• The power to the amplifier should be decoupled as much as possible from the UC864-G power

supply, by either keeping separate wires and placing bypass capacitors of adequate value close to

the amplifier power input pads.

• The biasing voltage of the amplifier shall be stabilized with a low ESR (e.g. a tantalum) capacitor of

adequate value.

NOTE: The UC864-G audio path connected to the car kit hands-free amplifier MUST be

“Ear_HF” one, otherwise the echo cancellation will not be done due to the difference in the

echo canceller characteristics of the UC864-G internal audio path from the external audio path.

Example of car kit amplifier schematic

UC864-G Hardware User Guide

DRAFT - 29/10/07

12 General Purpose I/O

The general-purpose I/O pads can be configured to act in three different ways:

• Input

• Output

• Alternate function (internally controlled)

Input pads can only be read and report the digital value (high or low) present on the pad at the read

time; output pads can only be written or queried and set the value of the pad output; an alternate

function pad is internally controlled by the UC864-G firmware and acts depending on the function

implemented.

Not all GPIO pads support all these three modes:

• GPIO5 supports all three modes and can be input, output, RFTX monitor output (Alternate

function)

• GPIO6 supports all three modes and can be input, output, alarm output (Alternate function)

• GPIO7 supports all three modes and can be input, output, buzzer output (Alternate function)

Some alternate functions for UC864-G may be added later on

UC864-G Hardware User Guide

DRAFT - 29/10/07

12.1 Logic level specifications

Where not specifically stated, all the interface circuits work at 2.6V CMOS logic levels.

The following table shows the logic level specifications used in the UC864-G interface circuits:

Absolute Maximum Ratings -Not Functional

UC864-G

Parameter Min Max

Input level on any

digital pin when on

-0.3V +3.0V

Input voltage on

analog pins when on

-0.3V +3.0 V

For 2.6V CMOS signals;

Operating Range - Interface levels

UC864-G

Level Min Max

Input high level 2.0V 2.9 V

Input low level -0.3V 0.6V

Output high level 2.2V 2.6V

Output low level 0V 0.35V

For 2,0V signals:

Operating Range - Interface levels (2.0V CMOS)

UC864-G

Level Min Max

Input high level 1.5V 2.1V

Input low level -0.3V 0.5V

Output high level 1.4V 1.8V

Output low level 0V 0.35V

UC864-G Hardware User Guide

DRAFT - 29/10/07

12.2 Using a GPIO Pad as INPUT

The GPIO pads, when used as inputs, can be connected to a digital output of another device and

report its status, provided this device has interface levels compatible with the 2.6V CMOS levels of the

GPIO.

NOTE: If the digital output of the device to be connected with the GPIO input pad has interface levels

different from the 2.6V CMOS, it can be buffered with an open collector transistor, provided a 47KΩ

pull-up resistor is connected as seen in the paragraph 8.3

12.3 Using a GPIO Pad as OUTPUT

The GPIO pads, when used as outputs, can drive 2.6V CMOS digital devices or compatible hardware.

When set as outputs, the pads have a push-pull output and therefore the pull-up resistor may be

omitted.

12.4 Using the RFTXMON Output GPIO5

The GPIO5 pin, when configured as RFTXMON Output, is controlled by the UC864-G module and will

rise when the transmitter is active and fall after the transmitter activity is completed.

For example, if a call is started, the line will be HIGH during all the conversation and it will be again

LOW after hanged up.

The line rises up 300ms before first TX burst and will become again LOW from 500ms to 1sec

after last TX burst.

12.5 Using the Alarm Output GPIO6

The GPIO6 pad, when configured as Alarm Output, is controlled by the UC864-G module and will rise

when the alarm starts and fall after the issue of a dedicated AT command.

This output can be used to power up the UC864-G controlling microcontroller or application at the

alarm time, giving you the possibility to program a timely system wake-up to achieve some periodic

actions and completely turn off either the application and the UC864-G during sleep periods,

dramatically reducing the sleep consumption to few µA.

In battery-powered devices this feature will greatly improve the autonomy of the device.

UC864-G Hardware User Guide

DRAFT - 29/10/07

NOTE: During RESET the line is set to HIGH logic level.

12.6 Using the Buzzer Output GPIO7

The GPIO7 pad, when configured as Buzzer Output, is controlled by the UC864-G module and will

drive with appropriate square waves a Buzzer driver.

This permits to your application to easily implement Buzzer feature with ringing tones or melody

played at the call incoming, tone playing on SMS incoming or simply playing a tone or melody when

needed by your application.

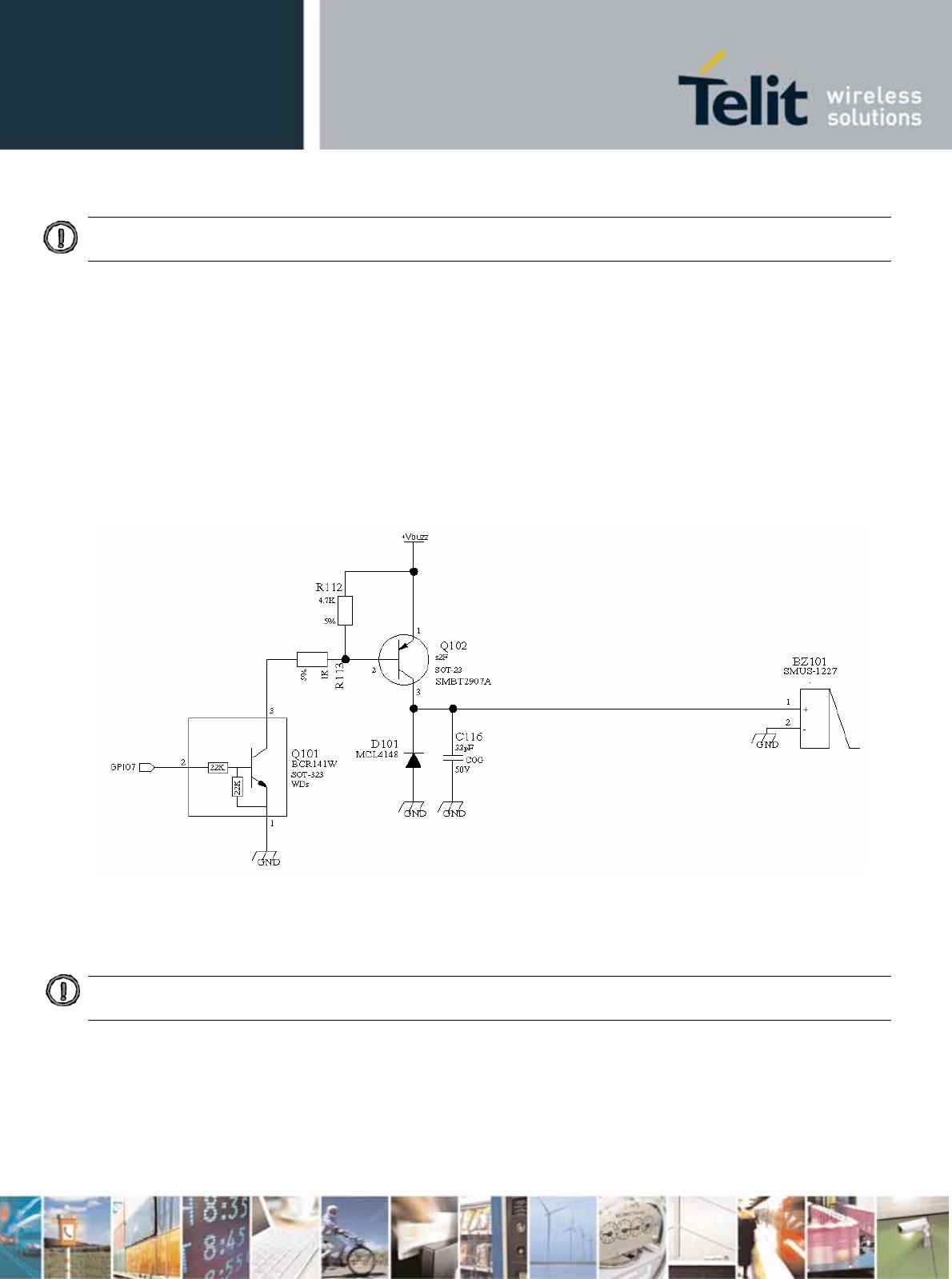

A sample interface scheme is included below to give you an idea of how to interface a Buzzer to the

GPIO7:

NOTE: To correctly drive a buzzer a driver must be provided, its characteristics depend on the Buzzer and for them

refer to your buzzer vendor.

UC864-G Hardware User Guide

DRAFT - 29/10/07

12.7 Indication of network service availability

The STAT_LED pin status shows information on the network service availability and Call status.

In the UC864-G modules, the STAT_LED usually needs an external transistor to drive an external

LED.

Therefore, the status indicated in the following table is reversed with respect to the pin status.

LED status Device Status

Permanently off Device off

Fast blinking

(Period 1s, Ton 0,5s)

Net search / Not registered /

turning off

Slow blinking

(Period 3s, Ton 0,3s)

Registered full service

Permanently on a call is active

UC864-G Hardware User Guide

DRAFT - 29/10/07

12.8 RTC Bypass out

The VRTC pin brings out the Real Time Clock supply, which is separate from the rest of the digital part,

allowing having only RTC going on when all the other parts of the device are off.

To this power output a backup capacitor can be added in order to increase the RTC autonomy during

power off of the battery.

NOTE: NO Devices must be powered from this pin.

12.9 VAUX1 power output

A regulated power supply output is provided in order to supply small devices from the module.

This output is active when the module is ON and goes OFF when the module is shut down.

The operating range characteristics of the supply are:

Operating Range – VAUX1 power supply

Min Typical Max

Output voltage 2.75V 2.85V 2.95V

Output current 100mA

Output bypass capacitor 2.2µF

UC864-G Hardware User Guide

DRAFT - 29/10/07

13 DAC and ADC section

13.1 DAC Converter(TBD)

13.1.1 Description

The UC864-G module provides a Digital to Analog Converter. The signal (named DAC_OUT) is

available on pin 40 of the UC864-G module and on pin 17 of PL102 on EVK2 Board (CS1203).

The on board DAC is a 16-bit converter, able to generate a analogue value based a specific input in

the range from 0 up to 65535. However, an external low-pass filter is necessary

Min Max Units

Voltage range (filtered) 0 2,6 Volt

Range 0 65535 Steps

The precision is 16 bits so, if we consider that the maximum voltage is 2V, the integrated voltage could

be calculated with the following formula:

Integrated output voltage = 2 * value / 65535

DAC_OUT line must be integrated (for example with a low band pass filter) in order to obtain an

analog voltage.

13.1.2 Enabling DAC

An AT command is available to use the DAC function.

The command is AT#DAC[=<enable>[,<value>]]

<value> - scale factor of the integrated output voltage (0..65535 - 16 bit precision)

it must be present if <enable>=1

Refer to SW User Guide or AT Commands Reference Guide for the full description of this function.

NOTE: The DAC frequency is selected internally. D/A converter must not be used during

POWERSAVING.

UC864-G Hardware User Guide

DRAFT - 29/10/07

13.1.1 Low Pass Filter Example

UC864-G Hardware User Guide

DRAFT - 29/10/07

13.2 ADC Converter

13.2.1 Description

The on board ADCs are 8-bit converters. They are able to read a voltage level in the range of 0-2.6

volts applied on the ADC pin input, store and convert it into 8 bit word.

Min Max Units

Input Voltage range 0 2.6 Volt

AD conversion - 8 bits

Resolution - <11 mV

The UC864-G module provides 3 Analog to Digital Converters. The input lines are:

ADC_IN1 available on Pin 37 and Pin 19 of PL102 on EVK2 Board (CS1203).

ADC_IN2 available on Pin 38 and Pin 20 of PL102 on EVK2 Board (CS1203).

ADC_IN3 available on Pin 39 and Pin 21 of PL102 on EVK2 Board (CS1203).

13.2.2 Using ADC Converter

An AT command is available to use the ADC function.

The command is AT#ADC=1,2

The read value is expressed in mV

Refer to SW User Guide or AT Commands Reference Guide for the full description of this function.

UC864-G Hardware User Guide

DRAFT - 29/10/07

13.3 Mounting UC864-G on your board

The position of the Molex board to board connector and the pin 1 are shown in the following picture.

NOTE: metal tabs present on UC864-G should be connected to GND

MOVABLE RF(GSM/WCDMA)

MOVABLE RF(GPS)

UC864-G Hardware User Guide

DRAFT - 29/10/07

13.3.1 Debug of the UC864-G in production

To test and debug the mounting of the UC864-G, we strongly recommend to foreseen test pads on the

host PCB, in order to check the connection between the UC864-G itself and the application and to test

the performance of the module connecting it with an external computer. Depending by the customer

application, these pads include, but are not limited to the following signals:

• TXD

• RXD

• ON/OFF

• RESET

• GND

• VBATT

• TX_TRACE

• RX_TRACE

• PWRMON

UC864-G Hardware User Guide

DRAFT - 29/10/07

14 Document Change Log

DRAFT 29/10/07

Regulatory Notices

This device is compliant with Parts 15, 22 and 24 of the FCC Rules.

Operation of this device is subject to the following two conditions:

1.This device may not cause harmful interference, and

2.This device must accept any interference received, including interference that may cause undesirable

operations. 

Telit Communications S p A UC864G GSM850/1900(GPRS/EGPRS)/UMTS850/1900(HSDPA) Module User Manual

Telit Communications S.p.A. GSM850/1900(GPRS/EGPRS)/UMTS850/1900(HSDPA) Module

User Manual

Navigation menu

Namespaces

Views

Navigation
