UL865-N3G V2 Hardware User
Guide
1VV0301177 Rev 2– 2015-04-20
![](/img.php?id=2626970&img=bg2.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 2 of 70
Mod. 0805 2011-07 Rev.2
APPLICABILITY TABLE
PRODUCT
UL865-N3G V2
![](/img.php?id=2626970&img=bg3.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 3 of 70
Mod. 0805 2011-07 Rev.2
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Notice
While reasonable efforts have been made to assure the accuracy of this document, Telit
assumes no liability resulting from any inaccuracies or omissions in this document, or from
use of the information obtained herein. The information in this document has been carefully
checked and is believed to be entirely reliable. However, no responsibility is assumed for
inaccuracies or omissions. Telit reserves the right to make changes to any products described
herein and reserves the right to revise this document and to make changes from time to time
in content hereof with no obligation to notify any person of revisions or changes. Telit does
not assume any liability arising out of the application or use of any product, software, or
circuit described herein; neither does it convey license under its patent rights or the rights of
others.
It is possible that this publication may contain references to, or information about Telit
products (machines and programs), programming, or services that are not announced in your
country. Such references or information must not be construed to mean that Telit intends to
announce such Telit products, programming, or services in your country.
Copyrights
This instruction manual and the Telit products described in this instruction manual may be,
include or describe copyrighted Telit material, such as computer programs stored in
semiconductor memories or other media. Laws in the Italy and other countries preserve for
Telit and its licensors certain exclusive rights for copyrighted material, including the
exclusive right to copy, reproduce in any form, distribute and make derivative works of the
copyrighted material. Accordingly, any copyrighted material of Telit and its licensors
contained herein or in the Telit products described in this instruction manual may not be
copied, reproduced, distributed, merged or modified in any manner without the express
written permission of Telit. Furthermore, the purchase of Telit products shall not be deemed
to grant either directly or by implication, estoppel, or otherwise, any license under the
copyrights, patents or patent applications of Telit, as arises by operation of law in the sale of a
product.
Computer Software Copyrights
The Telit and 3rd Party supplied Software (SW) products described in this instruction manual
may include copyrighted Telit and other 3rd Party supplied computer programs stored in
semiconductor memories or other media. Laws in the Italy and other countries preserve for
Telit and other 3rd Party supplied SW certain exclusive rights for copyrighted computer
programs, including the exclusive right to copy or reproduce in any form the copyrighted
computer program. Accordingly, any copyrighted Telit or other 3rd Party supplied SW
computer programs contained in the Telit products described in this instruction manual may
not be copied (reverse engineered) or reproduced in any manner without the express written
permission of Telit or the 3rd Party SW supplier. Furthermore, the purchase of Telit products
shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents or patent applications of Telit or other 3rd Party supplied
SW, except for the normal non-exclusive, royalty free license to use that arises by operation
of law in the sale of a product.
![](/img.php?id=2626970&img=bg4.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 4 of 70
Mod. 0805 2011-07 Rev.2
Usage and Disclosure Restrictions
License Agreements
The software described in this document is the property of Telit and its licensors. It is
furnished by express license agreement only and may be used only in accordance with the
terms of such an agreement.
Copyrighted Materials
Software and documentation are copyrighted materials. Making unauthorized copies is
prohibited by law. No part of the software or documentation may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language or computer language,
in any form or by any means, without prior written permission of Telit
High Risk Materials
Components, units, or third-party products used in the product described herein are NOT
fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control
equipment in the following hazardous environments requiring fail-safe controls: the operation
of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic
Control, Life Support, or Weapons Systems (High Risk Activities"). Telit and its supplier(s)
specifically disclaim any expressed or implied warranty of fitness for such High Risk
Activities.
Trademarks
TELIT and the Stylized T Logo are registered in Trademark Office. All other product or
service names are the property of their respective owners.
Copyright © Telit Communications S.p.A. 2014
![](/img.php?id=2626970&img=bg5.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 5 of 70
Mod. 0805 2011-07 Rev.2
Contents
1. Introduction ................................................. 8
1.1. Scope ..................................................... 8
1.2. Audience .................................................. 8
1.3. Contact Information, Support .............................. 8
1.4. Document Organization ..................................... 9
1.5. Text Conventions ......................................... 10
1.6. Related Documents ........................................ 10
1.7. Document History ......................................... 11
2. Overview .................................................... 12
3. UL865-N3G V2 Mechanical Dimensions .......................... 13
4. UL865-N3G V2 module connections ............................. 14
4.1. PIN-OUT .................................................. 14
4.2. Debug in Production ...................................... 16

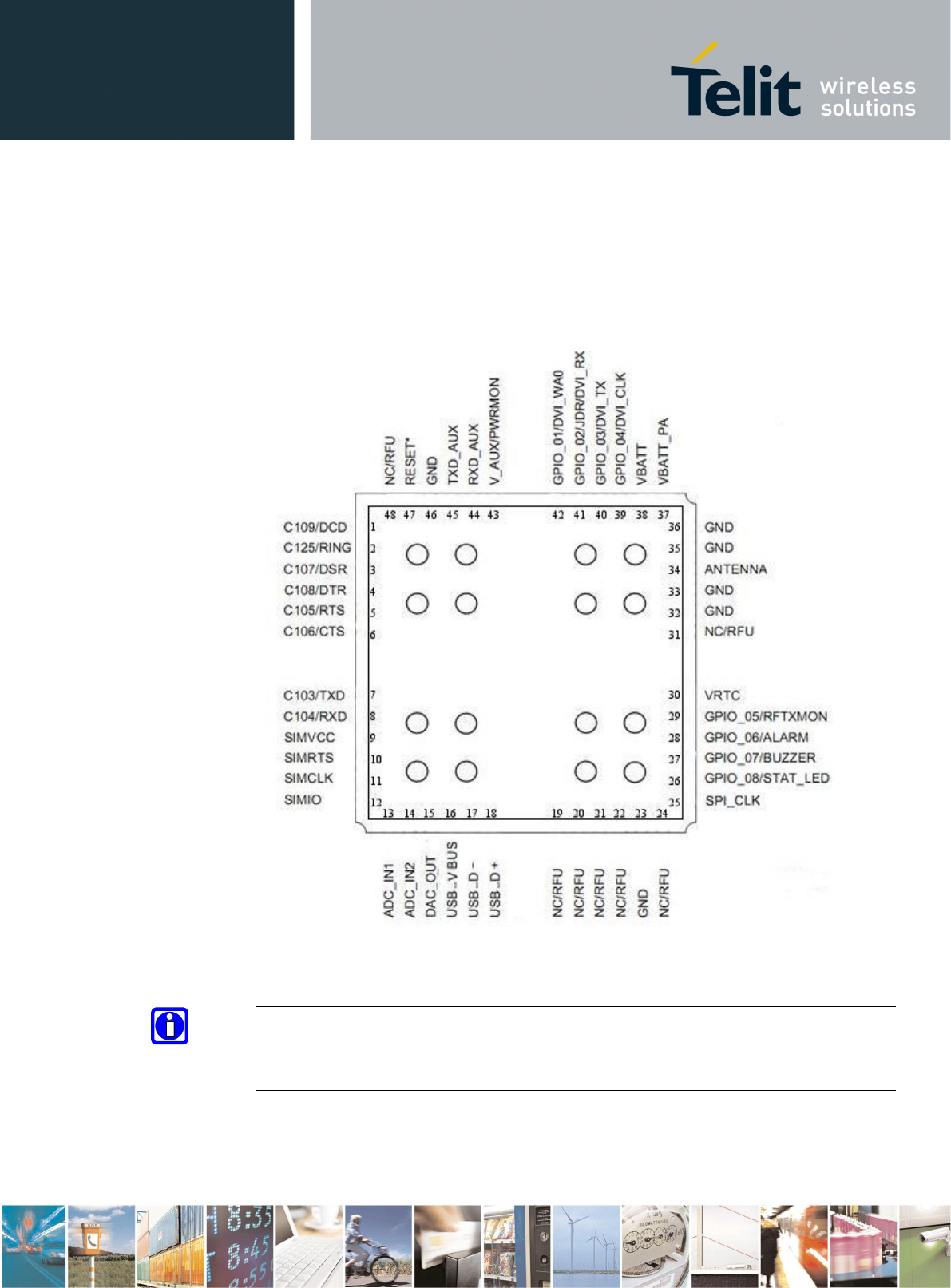

4.3. Pin Layout ............................................... 17
5. Hardware Commands ........................................... 18
5.1. Auto-Turning ON the UL865-N3G V2 ......................... 18
5.2. Turning OFF the UL865-N3G V2 ............................. 21
5.3. Resetting the UL865-N3G V2 ............................... 22
5.3.1. Hardware Unconditional restart ............................. 22
6. Power Supply ................................................ 25
6.1. Power Supply Requirements ................................ 25
6.2. Power Consumption ........................................ 26
6.3. General Design Rules ..................................... 26
6.3.1. Electrical Design Guidelines ............................... 26
6.3.2. Thermal Design Guidelines .................................. 30
6.3.3. Power Supply PCB layout Guidelines ......................... 31
7. Radio Section ............................................... 33
7.5. TX Output Power .......................................... 33
7.6. Sensitivity .............................................. 33
![](/img.php?id=2626970&img=bg6.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 6 of 70
Mod. 0805 2011-07 Rev.2
7.7. Antenna Requirements ..................................... 33
7.7.1. UL865-N3G V2 Antenna – PCB line Guidelines ................. 34

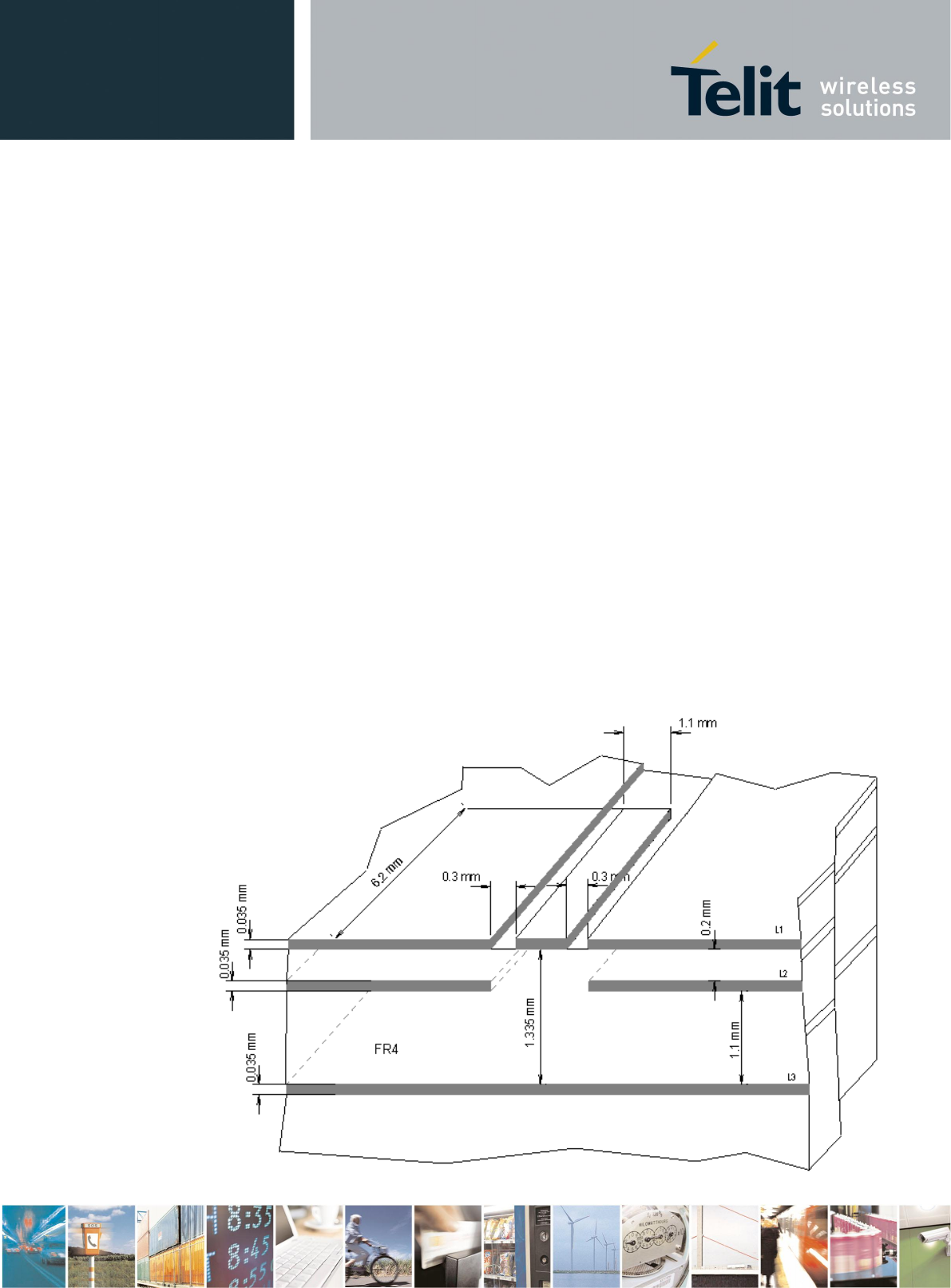

7.8. PCB Guidelines in case of FCC certification .............. 35
7.8.1. Transmission line design ................................... 35
7.8.2. Transmission line measurements ............................. 36
7.9. Antenna - Installation Guidelines ........................ 38
8. Logic level specifications .................................. 39
8.5. Reset signal ............................................. 40
9. USB Port .................................................... 41
9.1. USB 2.0 HS ............................................... 41
10. SPI Port .................................................... 42

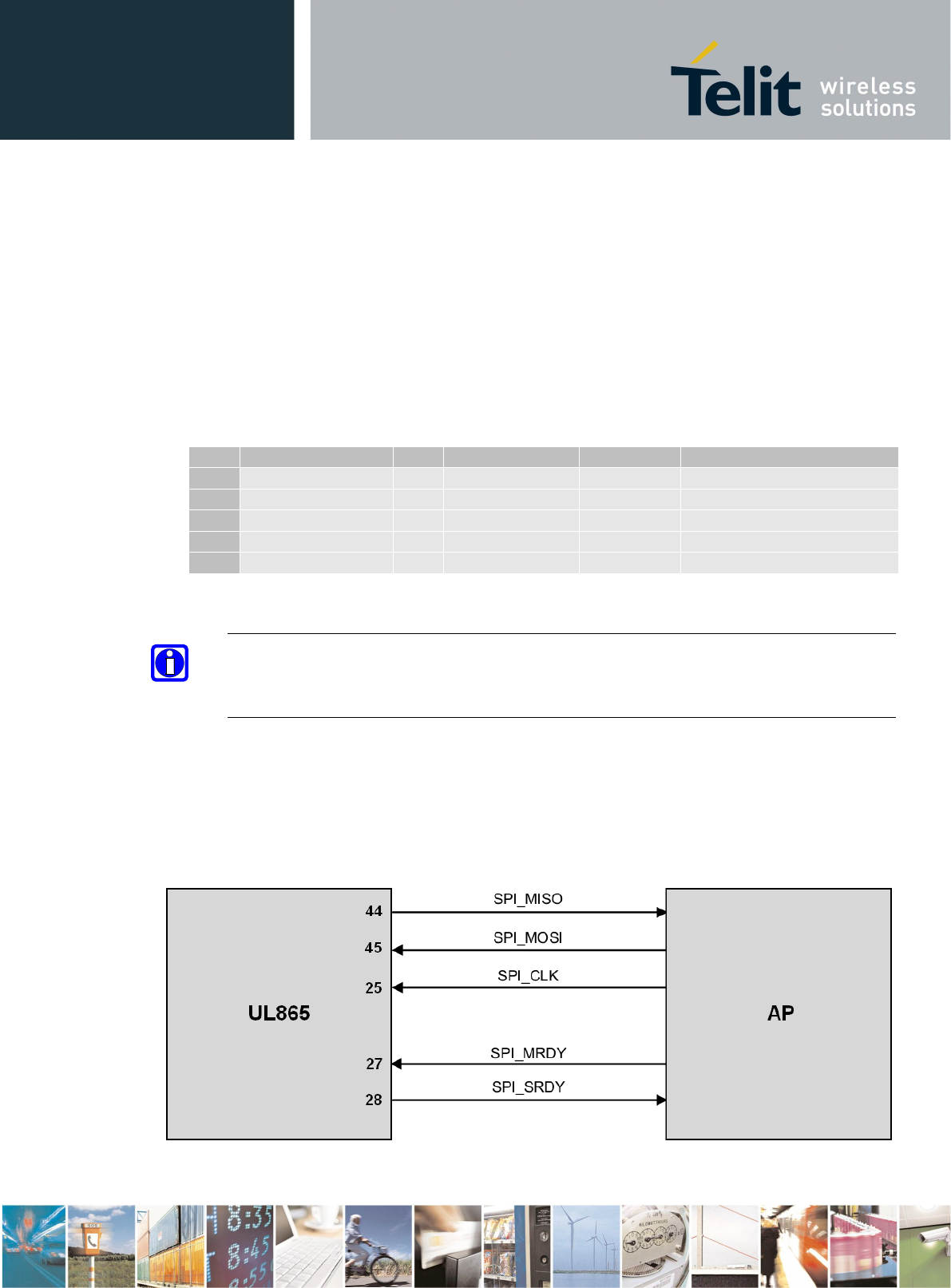

10.5. SPI Connections ........................................ 42
11. Serial Ports ................................................ 43
11.1. MODEM SERIAL PORT 1 .................................... 43
11.2. MODEM SERIAL PORT 2 .................................... 45

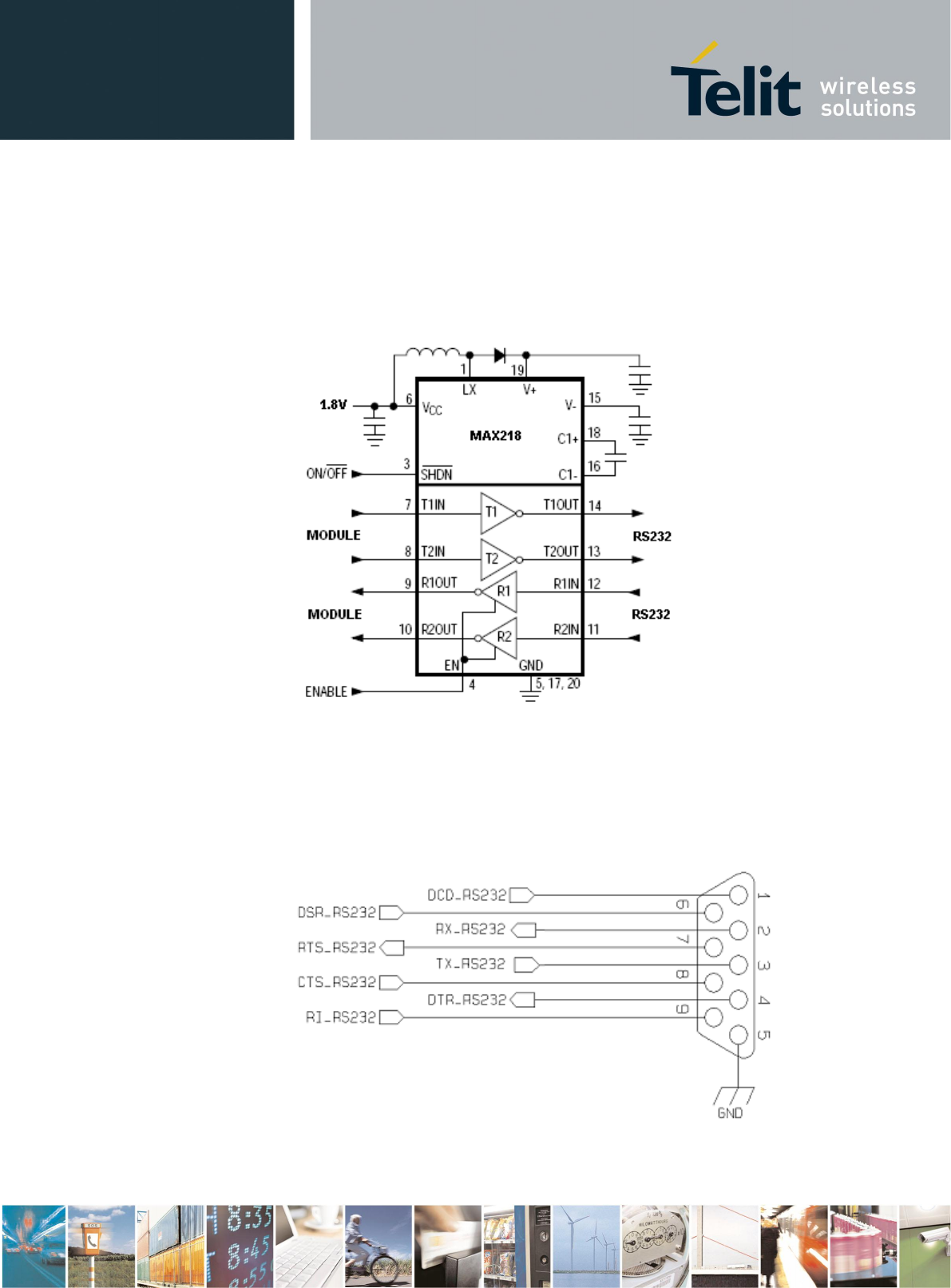

11.3. RS232 level translation ................................ 46
12. Audio Section Overview ...................................... 48
13. General Purpose I/O ......................................... 48
13.1. GPIO Logic levels ...................................... 50
13.2. Using a GPIO Pad as INPUT .............................. 51
13.3. Using a GPIO Pad as OUTPUT ............................. 51
13.4. Indication of network service availability ............. 52
13.5. SIMIN detect function .................................. 53
13.6. RTC Bypass out ......................................... 53
13.7. SIM Holder Implementation .............................. 53
14. DAC and ADC section ......................................... 54
14.1. DAC Converter .......................................... 54
14.1.1. Description .............................................. 54
14.1.2. Enabling DAC ............................................. 55
14.1.3. Low Pass Filter Example .................................. 55
14.2. ADC Converter .......................................... 56
![](/img.php?id=2626970&img=bg7.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 7 of 70
Mod. 0805 2011-07 Rev.2
14.2.1. Description .............................................. 56
14.2.2. Using ADC Converter ...................................... 56
14.3. VAUX Power Output ...................................... 57
15. Mounting the UL865-N3G V2 on your Board ..................... 58
15.1. General ................................................ 58
15.2. Module finishing & dimensions .......................... 58

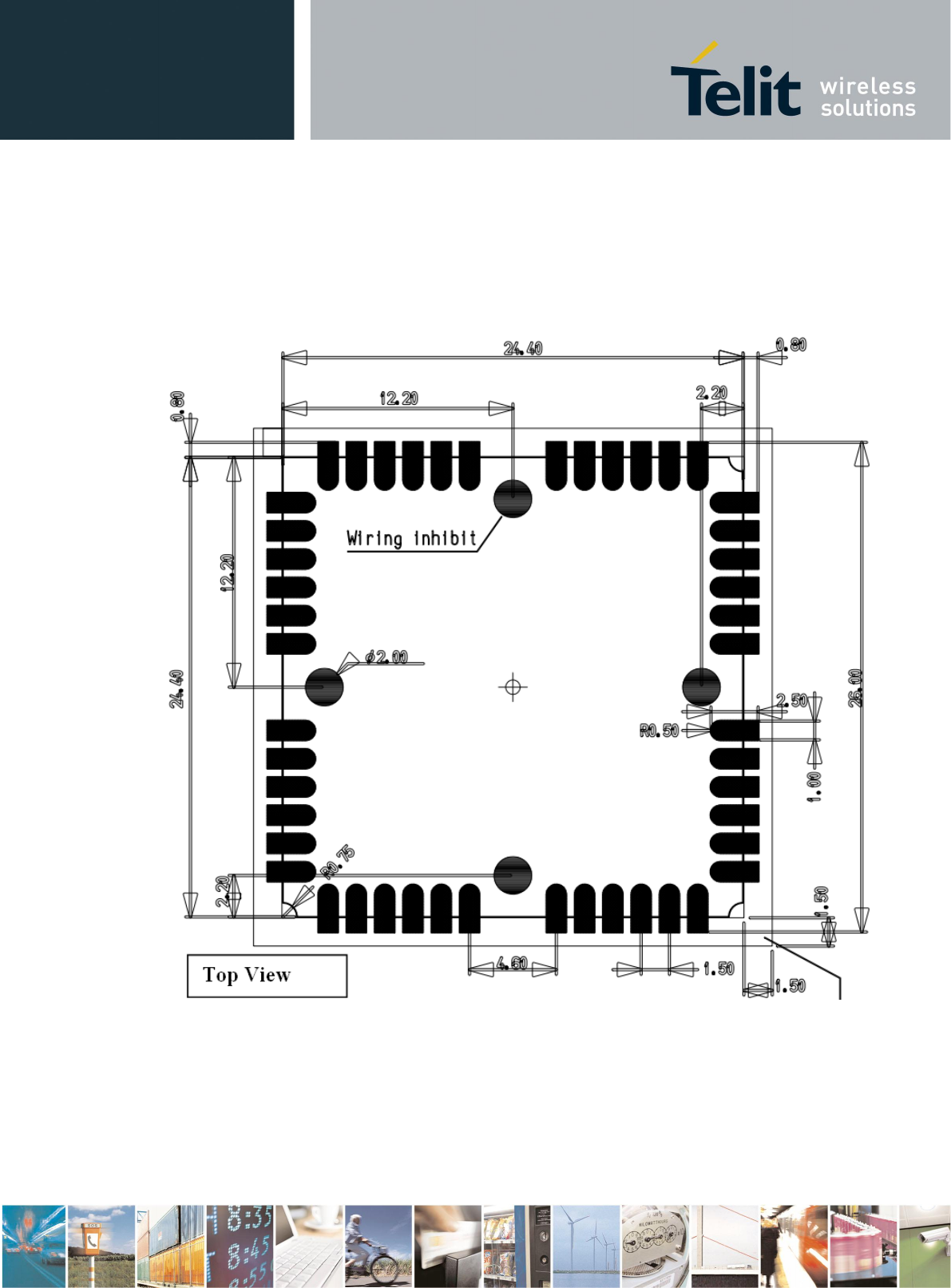

15.3. Recommended foot print for the application ............. 59
15.4. Stencil ................................................ 60
15.5. PCB pad design ......................................... 60
15.6. Recommendations for PCB pad dimensions (mm): ........... 61
15.7. Solder paste ........................................... 62
15.8. UL865-N3G V2 Solder reflow ............................. 62
16. Packing system .............................................. 64

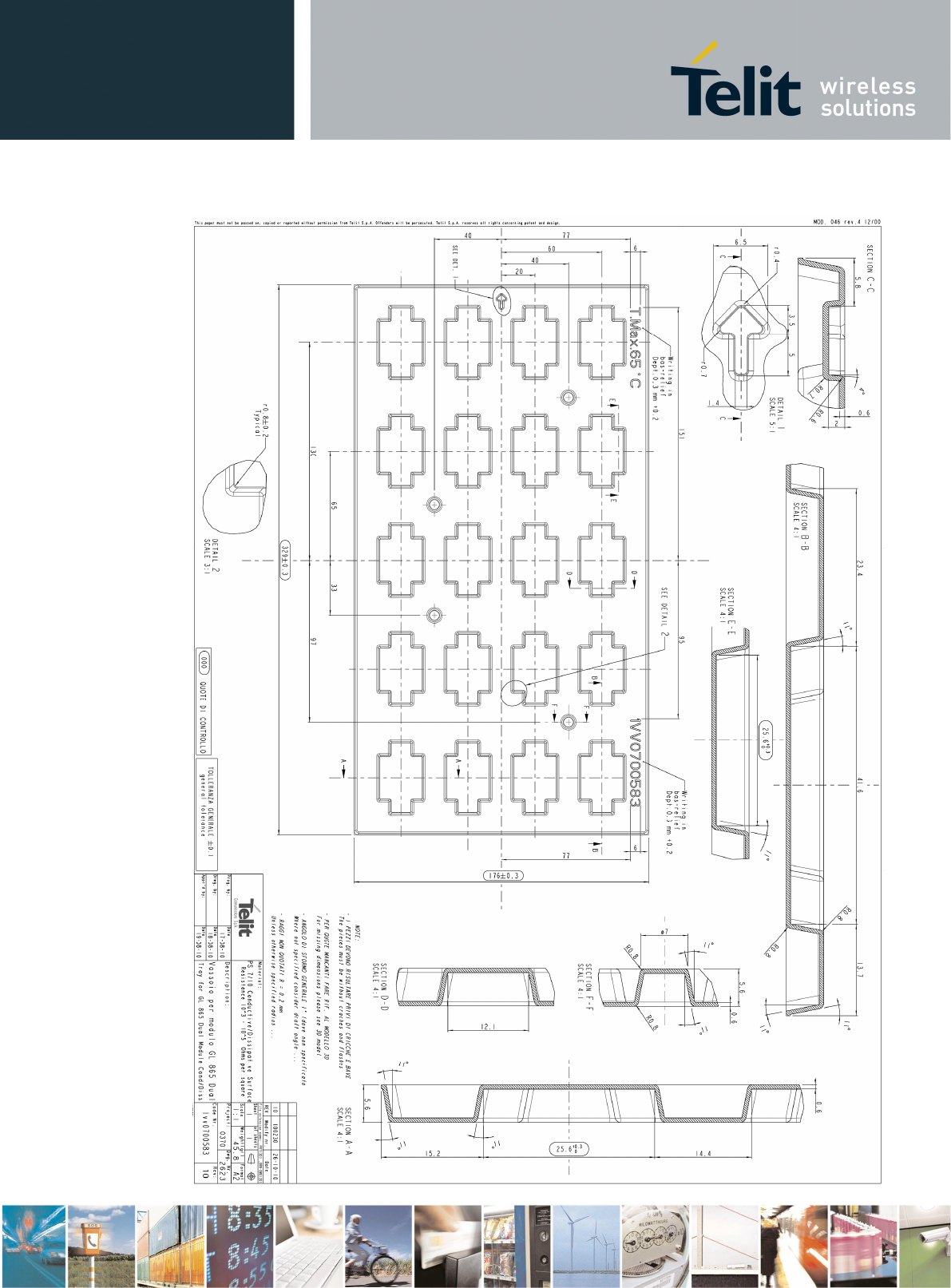

16.1. Packing on tray ........................................ 64
16.2. Packing in Reel ........................................ 66
16.3. Moisture sensitivity ................................... 67
17. SAFETY RECOMMANDATIONS ...................................... 68
18. FCC/IC REGULATORY NOTICES ................................... 69
![](/img.php?id=2626970&img=bg8.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 8 of 70
Mod. 0805 2011-07 Rev.2
1. Introduction
1.1. Scope
The aim of this document is the description of some hardware solutions useful for developing
a product with the Telit UL865-N3G V2 module.
1.2. Audience
This document is intended for Telit customers, who are integrators, about to implement their
applications using our UL865-N3G V2 modules.
1.3. Contact Information, Support
For general contact, technical support, to report documentation errors and to order manuals,
contact Telit Technical Support Center (TTSC) at:
TS-EMEA@telit.com
TS-NORTHAMERICA@telit.com
TS-LATINAMERICA@telit.com
TS-APAC@telit.com
Alternatively, use:
http://www.telit.com/en/products/technical-support-center/contact.php
For detailed information about where you can buy the Telit modules or for recommendations
on accessories and components visit:
http://www.telit.com
To register for product news and announcements or for product questions contact Telit
Technical Support Center (TTSC).
Our aim is to make this guide as helpful as possible. Keep us informed of your comments and
suggestions for improvements.
Telit appreciates feedback from the users of our information.
![](/img.php?id=2626970&img=bg9.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 9 of 70
Mod. 0805 2011-07 Rev.2
1.4. Document Organization
This document contains the following chapters:
Chapter 1: “Introduction” provides a scope for this document, target audience, contact and support
information, and text conventions.
Chapter 2: “Overview” provides an overview of the document.
Chapter 3: “UL865-N3G V2 Mechanical Dimensions”
Chapter 4: “UL865-N3G V2 Module Connections” deals with the pin out configuration and layout.
Chapter 5: “Hardware Commands” How to operate on the module via hardware.
Chapter 6: “Power supply” Power supply requirements and general design rules.
Chapter 7: “GSM/WCDMA Radio Section” The antenna connection and board layout design are the
most important parts in the full product design.
Chapter 8: “Logic Level specifications” Specific values adopted in the implementation of logic levels
for this module.
Chapter 9: “USB ports” The serial port on the Telit UL865-N3G V2 is the core of the interface between
the module and OEM hardware
Chapter 10: “Serial ports” The serial port on the Telit UL865-N3G V2 is the core of the interface
between the module and OEM hardware
Chapter 11: “Audio Section overview”
Chapter 12: “General Purpose I/O” How the general purpose I/O pads can be configured.
Chapter 13 “DAC and ADC Section” Deals with these two kind of converters.
Chapter 14: “Mounting the UL865-N3G V2 on the application board” Recommendations and specifics
on how to mount the module on the user’s board.
Chapter 15: “Packaging system” Recommendations and specifics on how the system is packaged.
Chapter 16: “Conformity Assessment Issues”
Chapter 17: “Safety Recommendations”
![](/img.php?id=2626970&img=bga.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 10 of 70
Mod. 0805 2011-07 Rev.2
1.5. Text Conventions
Danger – This information MUST be followed or catastrophic equipment failure or bodily
injury may occur.
Caution or Warning – Alerts the user to important points about integrating the module, if
these points are not followed, the module and end user equipment may fail or malfunction.
Tip or Information – Provides advice and suggestions that may be useful when
integrating the module.
All dates are in ISO 8601 format, i.e. YYYY-MM-DD.
1.6. Related Documents
Digital Voice Interface Application Note 80000NT10050A
SPI Port Application Note 80000NT10053A
SIM Holder Design Guides 80000NT10001a
AT Commands Reference Guide 80378ST10091A
Telit EVK2 User Guide 1vv0300704
![](/img.php?id=2626970&img=bgb.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 11 of 70
Mod. 0805 2011-07 Rev.2
1.7. Document History
Revision Date Changes
Rev 0 2014-10-13 Preliminary Version
Rev.1 2015-04-01 Added par. 17/18
Rev.2 2015-04-20 Updated chapter 12
![](/img.php?id=2626970&img=bgc.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 12 of 70
Mod. 0805 2011-07 Rev.2
2. Overview
The aim of this document is the description of some hardware solutions useful for developing
a product with the Telit UL865-N3G V2 module.
In this document all the basic functions of a mobile phone will be taken into account; for each
one of them a proper hardware solution will be suggested and eventually the wrong solutions
and common errors to be avoided will be evidenced. Obviously this document cannot
embrace all hardware solutions and products that may be designed. Avoiding the wrong
solutions shall be considered as mandatory. While the suggested hardware configurations
shall not be considered mandatory, the information given shall be used as a guide and a
starting point for properly developing your product with the Telit UL865-N3G V2 module.
For further hardware details that may not be explained in this document refer to the Telit
UL865-N3G V2 Product Description document where all the hardware information is
reported.
NOTICE:
(EN) The integration of the GSM/GPRS/WCDMA UL865-N3G V2 cellular module within user
application shall be done according to the design rules described in this manual.
(IT) L’integrazione del modulo cellulare GSM/GPRS/WCDMA UL865-N3G V2 all’interno
dell’applicazione dell’utente dovrà rispettare le indicazioni progettuali descritte in questo manuale.
(DE) Die Integration des UL865-N3G V2 GSM/GPRS/WCDMA Mobilfunk-Moduls in ein Gerät muß
gemäß der in diesem Dokument beschriebenen Kunstruktionsregeln erfolgen.
(SL) Integracija GSM/GPRS/WCDMA UL865-N3G V2 modula v uporabniški aplikaciji bo morala
upoštevati projektna navodila, opisana v tem priročniku.
(SP) La utilización del modulo GSM/GPRS/WCDMA UL865-N3G V2 debe ser conforme a los usos
para los cuales ha sido deseñado descritos en este manual del usuario.
(FR) L’intégration du module cellulaire GSM/GPRS/WCDMA UL865-N3G V2 dans l’application de
l’utilisateur sera faite selon les règles de conception décrites dans ce manuel.
(HE)
The information presented in this document is believed to be accurate and reliable. However,
no responsibility is assumed by Telit Communications S.p.A. for its use, nor any infringement
of patents or other rights of third parties which may result from its use. No license is granted
by implication or otherwise under any patent rights of Telit Communications S.p.A. other
than for circuitry embodied in Telit products. This document is subject to change without
notice.
UL865-N3G V2
![](/img.php?id=2626970&img=bgd.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 13 of 70
Mod. 0805 2011-07 Rev.2

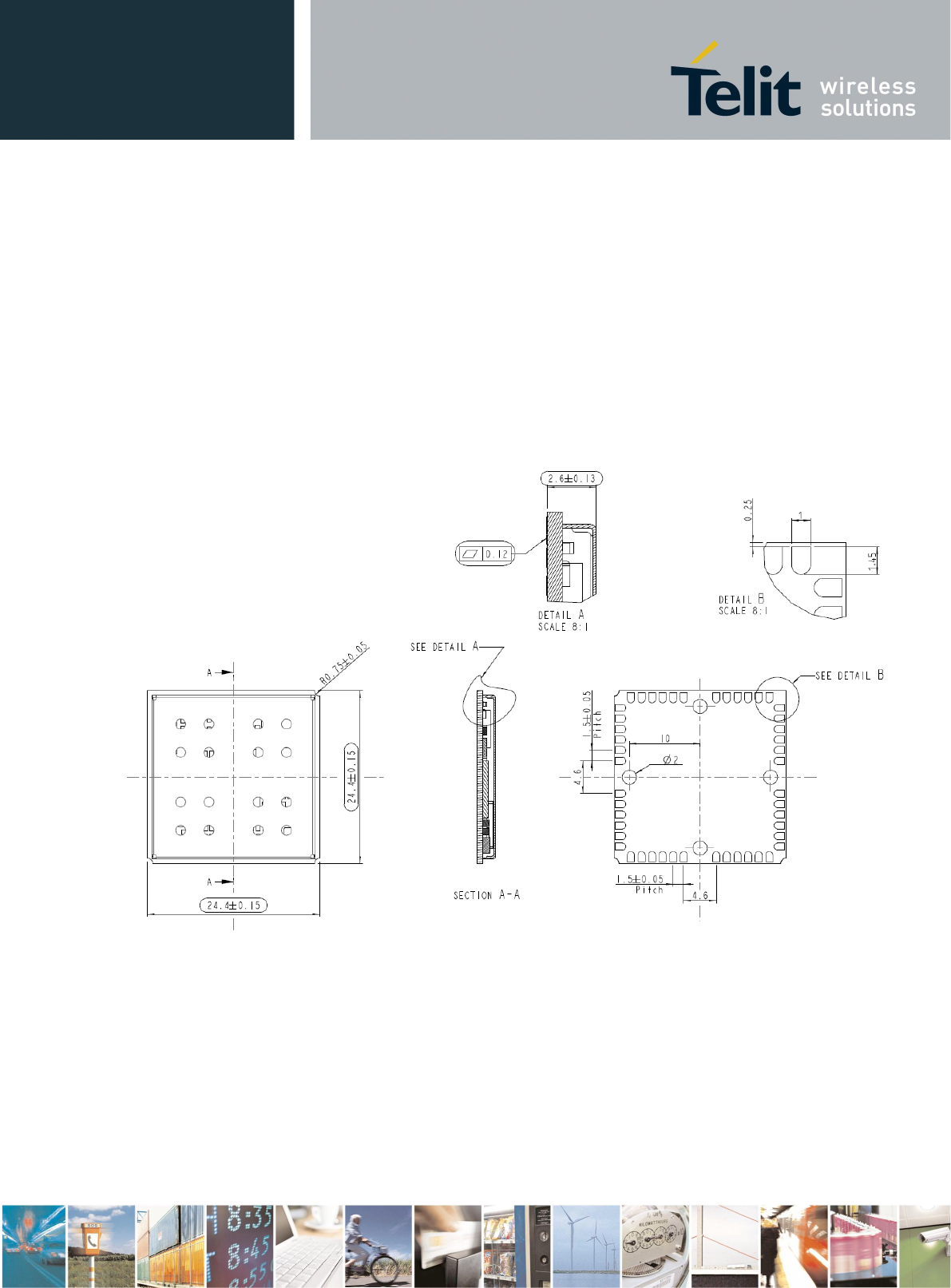

3. UL865-N3G V2 Mechanical Dimensions
The UL865-N3G V2 overall dimensions are:
Length: 24.4 mm
Width: 24.4 mm
Thickness: 2.6 mm
Weight 4 g
![](/img.php?id=2626970&img=bge.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 14 of 70
Mod. 0805 2011-07 Rev.2
4. UL865-N3G V2 module connections
4.1. PIN-OUT
Pad Signal I/O
Function Note Type
Audio
18 USB_D+ I/O USB differential Data (+)
17 USB_D- I/O USB differential Data (-)
16 USB_VBUS AI Power sense for the internal USB transceiver.
SIM card interface
9 SIMVCC - External SIM signal – Power supply for the SIM 1,8 / 3V
10 SIMRST O External SIM signal – Reset 1,8 / 3V
11 SIMCLK O External SIM signal – Clock 1,8 / 3V
12 SIMIO I/O External SIM signal – Data I/O 4.7k Pull up
1,8 / 3V
X
All GPI0
can be
program
med
SIMIN I Presence SIM input CMOS 1.8V
Auxiliary
44 RXD_AUX
/SPI_MISO
I
O
Auxiliary UART (RX Data)
SPI_MISO CMOS 1.8V
45 TXD_AUX /
SPI_MOSI
O
I
Auxiliary UART (TX Data)
SPI_MOSI CMOS 1.8V
Prog. / Data + HW Flow Control
1 C109/DCD/GPO O Output for Data carrier detect signal (DCD) to DTE
/ GP output CMOS 1.8V
2 C125/RING/GPO O Output for Ring indicator signal (RI) to DTE
/ GP output CMOS 1.8V
3 C107/DSR/GPO O Output for Data set ready signal (DSR) to DTE
/ GP output CMOS 1.8V
4 C108/DTR/GPI I Input for Data terminal ready signal (DTR) from DTE
/ GP input CMOS 1.8V
5 C105/RTS/GPI I Input for Request to send signal (RTS) from DTE
/ GP input CMOS 1.8V
6 C106/CTS/GPO O Output for Clear to send signal (CTS) to DTE
/ GP output CMOS 1.8V
7 C103/TXD I Serial data input (TXD) from DTE CMOS 1.8V
8 C104/RXD O Serial data output to DTE CMOS 1.8V
DAC and ADC
13 ADC_IN1 AI Analog/Digital converter input
Accepted
values 0 to
1.2V DC
A/D
14 ADC_IN2 AI Analog/Digital converter input
Accepted
values 0 to
1.2V DC
A/D
15 DAC_OUT AO
Digital/Analog converter output D/A
Miscellaneous Functions
30 VRTC AO
backup for the embedded RTC supply (1.8V) Power
47 RESET* I Reset Input CMOS 1.8V
43 V_AUX / PWRMON O 1.8V stabilized output Imax=100mA
/ Power ON monitor Power Out 1.8V
![](/img.php?id=2626970&img=bgf.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 15 of 70
Mod. 0805 2011-07 Rev.2
Pad Signal I/O
Function Note Type
34 Antenna I/O Antenna pad – 50 Ω RF
GPIO
42 GPIO_01 / DVI_WA0 I/O GPIO01 Configurable GPIO
/ Digital Audio Interface (WA0) CMOS 1.8V
41 GPIO_02 / JDR /
DVI_RX I/O
GPIO02 I/O pin
/ Jammer Detect Report
/ Digital Audio Interface (RX)
CMOS 1.8V
40 GPIO_03 / DVI_TX I/O GPIO03 GPIO I/O pin
/ Digital Audio Interface (TX) CMOS 1.8V
39 GPIO_04 / DVI_CLK I/O GPIO04 Configurable GPIO
Digital Audio Interface (CLK) CMOS 1.8V
29 GPIO_05 I/O GPIO05 Configurable GPIO CMOS 1.8V
28 GPIO_06 / SPI_SRDY I/O GPIO06 Configurable GPIO
/ ALARM / SPI_SRDY CMOS 1.8V
27 GPIO_07 / SPI_MRDY
I/O GPIO07 Configurable GPIO
/ Buzzer / SPI_MRDY CMOS 1.8V
26 GPIO_08 / STAT_LED
I/O GPIO08 Configurable GPIO
/ Digital Audio Interface (CLK) CMOS 1.8V
25 SPI_CLK I/O SPI_CLK CMOS 1.8V
Power Supply
38 VBATT - Main power supply (Baseband) Power
37 VBATT_PA - Main power supply (Radio PA) Power
23 AGND - AF Signal Ground (see audio section) AF Signal
32 GND - Ground Power
33 GND - Ground Power
35 GND - Ground Power
36 GND - Ground Power
46 GND - Ground Power
23 GND - Ground -
RESERVED
19 -
20 -
21 -
22 -
24 -
31 -
48 -
WARNING:
Reserved pins must not be connected.
![](/img.php?id=2626970&img=bg10.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 16 of 70
Mod. 0805 2011-07 Rev.2
NOTE:
If not used, almost all pins should be left disconnected. The only exceptions are the
following pins:
4.2. Debug in Production
To test and debug the assembled UL865-N3G V2, we strongly recommend foreseeing test
pads on the host PCB, in order to check the connection between the UL865-N3G V2 itself and
the application and to test the performance of the module connecting it with an external
computer. Depending by the customer application, these pads include, but are not limited to
the following signals:
TXD
RXD
RESET*
GND
VBATT
VBATT_PA
TX_AUX
RX_AUX
PWRMON
Pin signal
38, 37 VBATT & VBATT_PA
32, 33, 35, 36, 46 GND
23 AGND
7 C103/TXD If not used should be connected to a Test Point
8 C104/RXD If not used should be connected to a Test Point
5 C105/RTS If not used should be connected to a Test Point
6 C106/CTS If not used should be connected to a Test Point
43 V_AUX / PWRMON
47 RESET*
45 TXD_AUX If not used should be connected to a Test Point
44 RXD_AUX If not used should be connected to a Test Point
18 USB D+ If not used should be connected to a Test Point or
an USB connector
17 USB D- If not used should be connected to a Test Point or
an USB connector
16 USB_VBUS If not used should be connected to a Test Point or
an USB connector
![](/img.php?id=2626970&img=bg11.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 17 of 70
Mod. 0805 2011-07 Rev.2
4.3. Pin Layout
TOP VIEW
NOTE:
The pins defined as NC/RFU shall be considered RESERVED and must not be connected
to any pin in the application.
![](/img.php?id=2626970&img=bg12.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 18 of 70
Mod. 0805 2011-07 Rev.2
5. Hardware Commands
5.1. Auto-Turning ON the UL865-N3G V2
The UL865-N3G V2 will automatically power on itself when VBATT & VBATT_PA are
applied to the module.
V_AUX / PWRMON pin will be at the high logic level and the module can be considered
fully operating after 5 seconds.

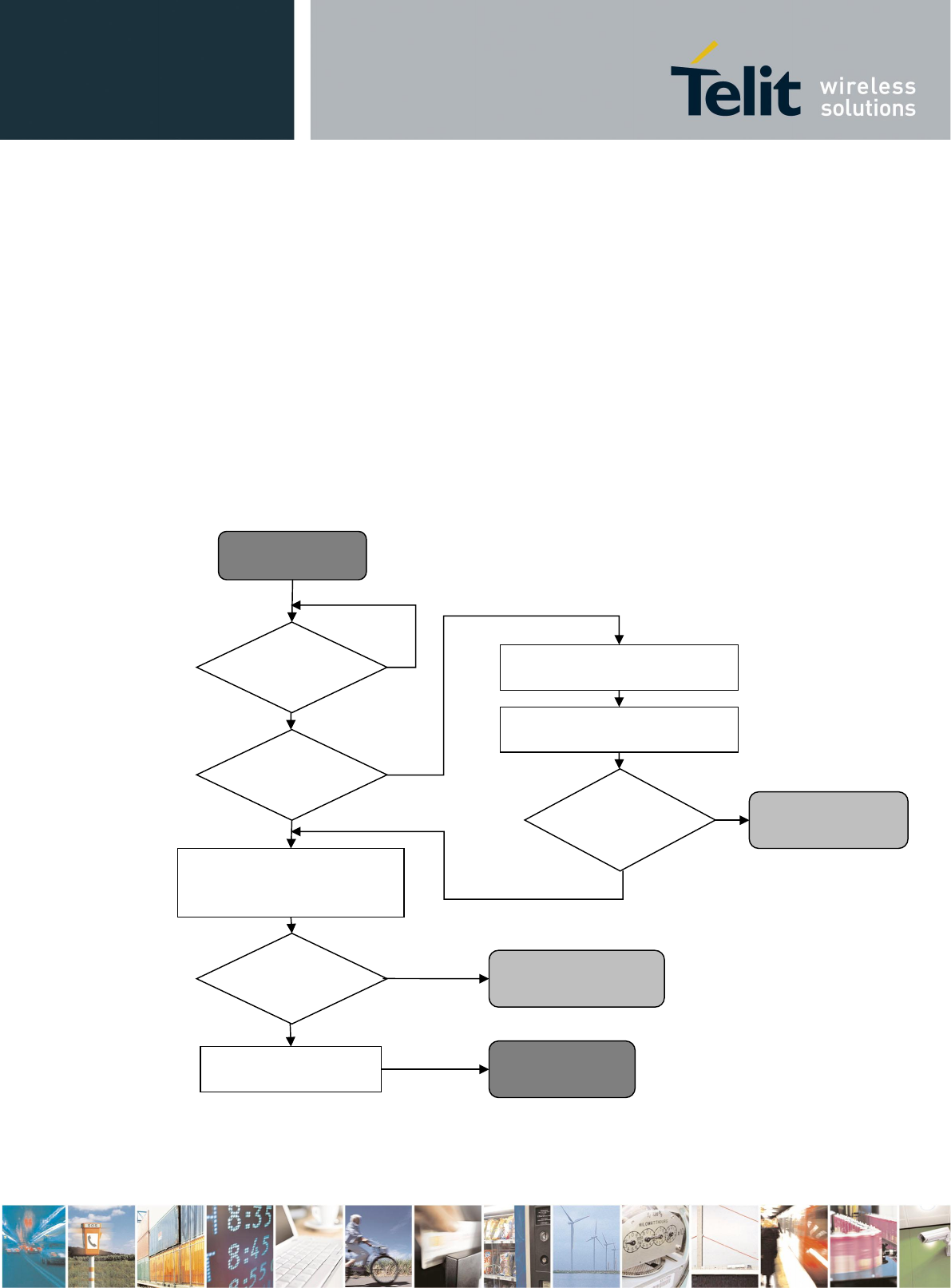

The following flow chart shows the proper turn on procedure:
Modem ON Proc.
PWR supply ON
and >3.22V?
Y
Delay 1s - 5s for Low
Voltage Operating
Y
Modem Reset Proc.
AT init sequence.
N
Start AT CMD.
N
PWMON = ON?
Y
PWMON = ON?
Delay 300mS
Enter AT<CR>
AT answer in
1second ?
N
Y
N
Delay 1s
![](/img.php?id=2626970&img=bg13.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 19 of 70
Mod. 0805 2011-07 Rev.2
NOTE:
The power supply must be applied either at the same time on pins VBATT and
VBATT_PA.
NOTE:
To guarantee a correct module’s start-up please check that the Power Supply is with a
level >3.22V within 21mS.
NOTE:
In order to prevent a back powering effect it is recommended to avoid having any HIGH
logic level signal applied to the digital pins of the UL865-N3G V2 when the module is
powered OFF or during an ON/OFF transition.
![](/img.php?id=2626970&img=bg14.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 20 of 70
Mod. 0805 2011-07 Rev.2

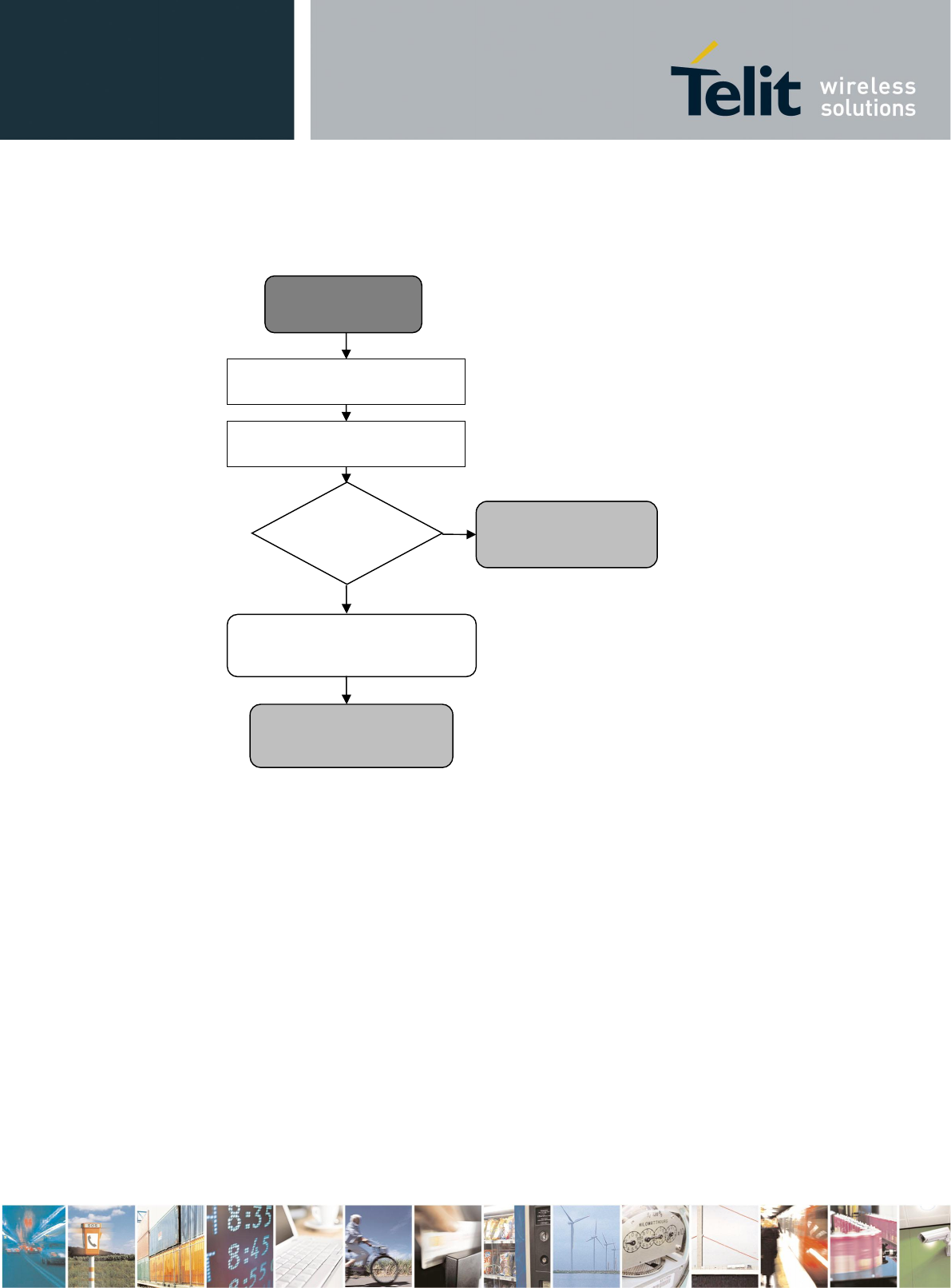

A flow chart showing the AT commands managing procedure is displayed below:
Modem ON Proc.
Disconnect PWR supply
AT init sequence.
Delay 300mS
Enter AT<CR>
AT answer in
1second?
Y
N
Start AT CMD.
![](/img.php?id=2626970&img=bg15.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 21 of 70
Mod. 0805 2011-07 Rev.2
5.2. Turning OFF the UL865-N3G V2

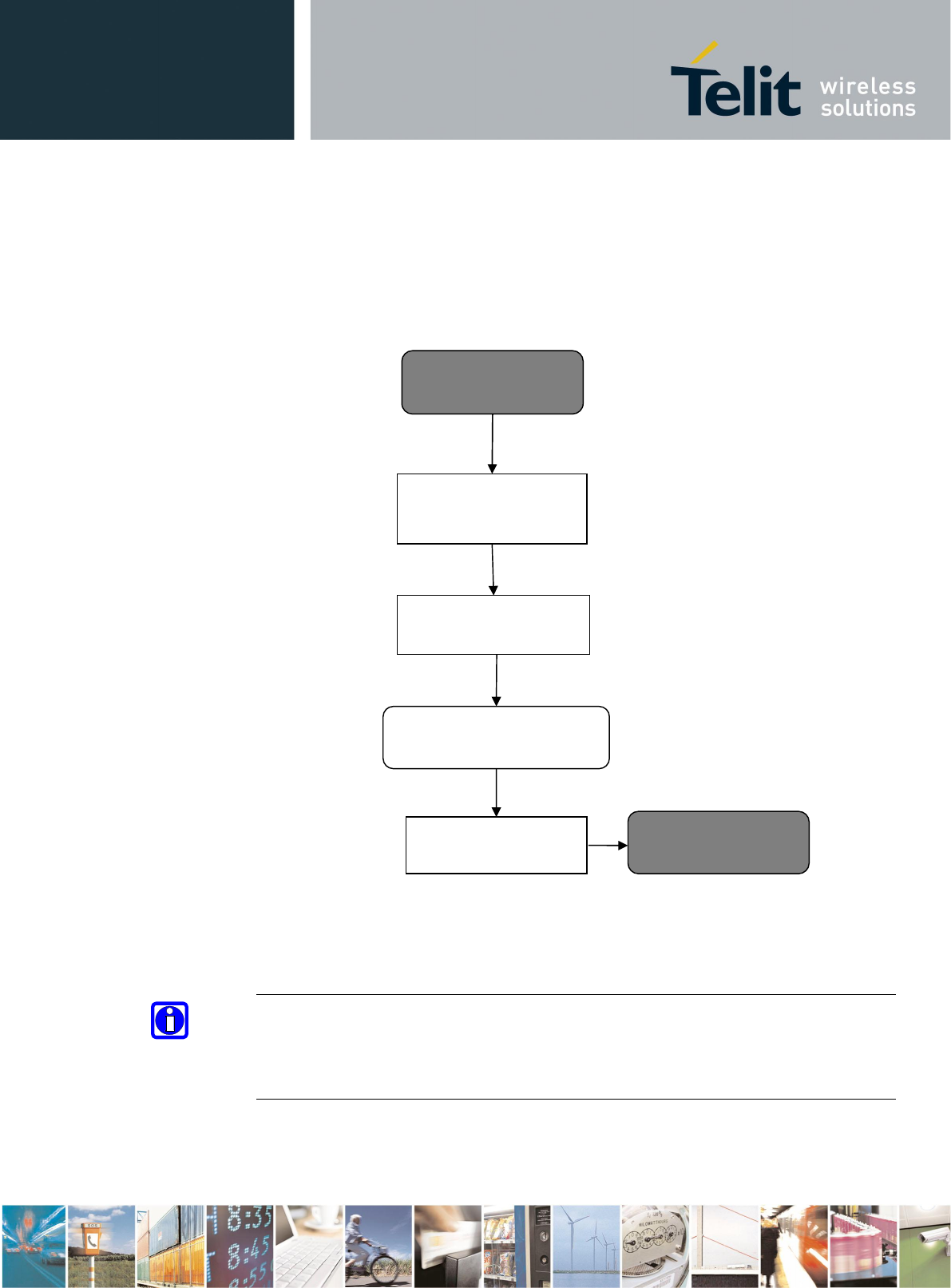

The following flow chart shows the proper turnoff procedure:
NOTE:
In order to prevent a back powering effect it is recommended to avoid having any HIGH
logic level signal applied to the digital pins of the UL865-N3G V2 when the module is
powered off or during an ON/OFF transition.
Modem OFF Proc.
AT#SYSHALT
Disconnect PWR supply
10s timeout
Modem ON Proc.
Delay 1.5s
![](/img.php?id=2626970&img=bg16.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 22 of 70
Mod. 0805 2011-07 Rev.2
5.3. Resetting the UL865-N3G V2
5.3.1. Hardware Unconditional restart
To unconditionally reboot the UL865-N3G V2, the pad RESET* must be tied low for at
least 200 milliseconds and then released.
The maximum current that can be drained from the ON* pad is 0,15 mA.
WARNING:
The hardware unconditional Restart must not be used during normal operation of the
device since it does not detach the device from the network. It shall be kept as an
emergency exit procedure to be done in the rare case that the device gets stuck waiting for
some network or SIM responses.
NOTE:
Do not use any pull up resistor on the RESET* line nor any totem pole digital output.
Using pull up resistor may bring to latch up problems on the UL865-N3G V2 power
regulator and improper functioning of the module.
The line RESET* must be connected only in open collector configuration; the transistor
must be connected as close as possible to the RESET* pin.
TIP:
The unconditional hardware restart must always be implemented on the boards and the
software must use it as an emergency exit procedure.
![](/img.php?id=2626970&img=bg17.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 23 of 70
Mod. 0805 2011-07 Rev.2
A simple circuit to do it is:
![](/img.php?id=2626970&img=bg18.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 24 of 70
Mod. 0805 2011-07 Rev.2
In the following flow chart is detailed the proper restart procedure:
NOTE:
In order to prevent a back powering effect it is recommended to avoid having any HIGH
logic level signal applied to the digital pins of the UL865-N3G V2 when the module is
powered OFF or during an ON/OFF transition.
Modem Reset
Proc.
Reset = LOW
Delay 200ms
Reset = HIGH
Delay 1s
Start AT CMD.
![](/img.php?id=2626970&img=bg19.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 25 of 70
Mod. 0805 2011-07 Rev.2
6. Power Supply
The power supply circuitry and board layout are a very important part in the full product
design and they strongly reflect on the product overall performance, hence read the
requirements carefully and the guidelines that will follow for a proper design.
6.1. Power Supply Requirements
The external power supply must be connected to VBATT & VBATT_PA signals and
must fulfill the following requirements:
POWER SUPPLY
Nominal Supply Voltage
3.8 V
Normal Operating Voltage Range
3.40 V÷ 4.20 V
Extended Operating Voltage Range
3.1 V÷ 4.50 V
NOTE:
The Operating Voltage Range MUST never be exceeded; care must be taken in order to
fulfil min/max voltage requirement.
NOTE:
Overshoot voltage (regarding MAX Extended Operating Voltage) and drop in voltage
(regarding MIN Extended Operating Voltage) MUST never be exceeded;
The “Extended Operating Voltage Range” can be used only with complete assumption
and application of the HW User guide suggestions.
If the voltage drop is exceeding the limits it could cause a Power Off of the module.
The Power supply must be higher than 3.22 V to power on the module.
![](/img.php?id=2626970&img=bg1a.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 26 of 70
Mod. 0805 2011-07 Rev.2
6.2. Power Consumption
UL865-N3G V2
Mode Average (mA) Mode description
SWITCHED OFF Module supplied but Switched Off
Switched Off 180 uA
IDLE mode (WCDMA)
AT+CFUN=5 1.8 Disabled TX and RX; DRX7
Operative mode (WCDMA)
WCDMA Voice 152 WCDMA voice call (TX = 10dBm)
WCDMA HSDPA (0dBm) 187 WCDMA data call (Cat 8, TX = 0dBm)
WCDMA HSDPA (22dBm) 494 WCDMA data call (Cat 8, TX = 24dBm)
NOTE:
The electrical design for the Power supply should be made ensuring it will be capable of a
peak current output of at least 2 A.
6.3. General Design Rules
The principal guidelines for the Power Supply Design embrace three different design
steps:
the electrical design
the thermal design
the PCB layout.
6.3.1. Electrical Design Guidelines
The electrical design of the power supply depends strongly from the power source where
this power is drained. We will distinguish them into three categories:
+5V input (typically PC internal regulator output)
+12V input (typically automotive)
Battery
![](/img.php?id=2626970&img=bg1b.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 27 of 70
Mod. 0805 2011-07 Rev.2
6.3.1.1. + 5V input Source Power Supply Design
Guidelines
The desired output for the power supply is 3.8V, hence there's not a big difference
between the input source and the desired output and a linear regulator can be used. A
switching power supply will not be suited because of the low drop out requirements.
When using a linear regulator, a proper heat sink shall be provided in order to
dissipate the power generated.
A Bypass low ESR capacitor of adequate capacity must be provided in order to cut
the current absorption peaks close to the UL865-N3G V2, a 100μF tantalum capacitor
is usually suited.
Make sure the low ESR capacitor on the power supply output (usually a tantalum
one) is rated at least 10V.
A protection diode should be inserted close to the power input, in order to save the
UL865-N3G V2 from power polarity inversion.
An example of linear regulator with 5V input is:
![](/img.php?id=2626970&img=bg1c.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 28 of 70
Mod. 0805 2011-07 Rev.2
6.3.1.1. + 12V input Source Power Supply Design
Guidelines
The desired output for the power supply is 3.8V, hence due to the big difference
between the input source and the desired output, a linear regulator is not suited and
shall not be used. A switching power supply will be preferable because of its better
efficiency especially with the 2A peak current load represented by the UL865-N3G
V2.
When using a switching regulator, a 500kHz or more switching frequency regulator is
preferable because of its smaller inductor size and its faster transient response. This
allows the regulator to respond quickly to the current peaks absorption.
In any case the frequency and Switching design selection is related to the application
to be developed due to the fact the switching frequency could also generate EMC
interferences.
For car PB battery the input voltage can rise up to 15,8V and this should be kept in
mind when choosing components: all components in the power supply must
withstand this voltage.
A Bypass low ESR capacitor of adequate capacity must be provided in order to cut
the current absorption peaks, a 100μF tantalum capacitor is usually suited.
Make sure the low ESR capacitor on the power supply output (usually a tantalum
one) is rated at least 10V.
For Car applications a spike protection diode should be inserted close to the power
input, in order to clean the supply from spikes.
A protection diode should be inserted close to the power input, in order to save the
UL865-N3G V2 from power polarity inversion. This can be the same diode as for
spike protection.

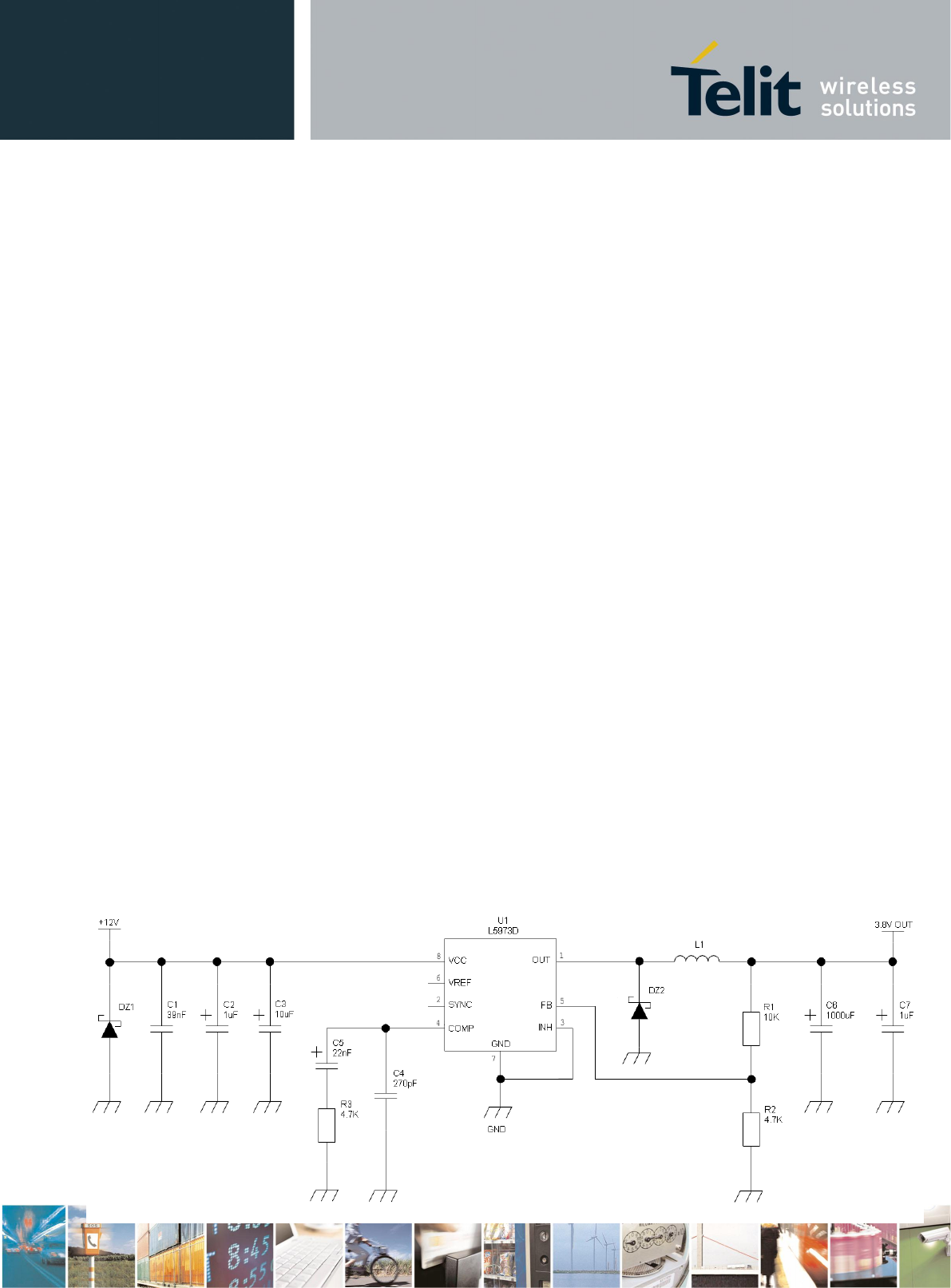

An example of switching regulator with 12V input is in the below schematic:
![](/img.php?id=2626970&img=bg1d.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 29 of 70
Mod. 0805 2011-07 Rev.2
6.3.1.1. Battery Source Power Supply Design Guidelines
The desired nominal output for the power supply is 3.8V and the maximum voltage
allowed is 4.2V, hence a single 3.7V Li-Ion cell battery type is suited for supplying the
power to the Telit UL865-N3G V2 module.
WARNING:
The three cells Ni/Cd or Ni/MH 3,6 V Nom. battery types or 4V PB types MUST NOT
BE USED DIRECTLY since their maximum voltage can rise over the absolute maximum
voltage for the UL865-N3G V2 and damage it.
NOTE:
DON'T USE any Ni-Cd, Ni-MH, and Pb battery types directly connected with UL865-
N3G V2. Their use can lead to overvoltage on the UL865-N3G V2 and damage it. USE
ONLY Li-Ion battery types.
A Bypass low ESR capacitor of adequate capacity must be provided in order to cut the
current absorption peaks, a 100μF tantalum capacitor is usually suited.
Make sure the low ESR capacitor (usually a tantalum one) is rated at least 10V.
A protection diode should be inserted close to the power input, in order to save the
UL865-N3G V2 from power polarity inversion. Otherwise the battery connector should
be done in a way to avoid polarity inversions when connecting the battery.
The battery capacity must be at least 500mAh in order to withstand the current peaks of
2A; the suggested capacity is from 500mAh to 1000mAh.
![](/img.php?id=2626970&img=bg1e.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 30 of 70
Mod. 0805 2011-07 Rev.2
6.3.2. Thermal Design Guidelines
The thermal design for the power supply heat sink should be done with the following
specifications:
Average current consumption during HSDPA transmission @PWR level max :
600 mA
Average current during idle:
1.5 mA
NOTE:
The average consumption during transmissions depends on the power level at which the
device is requested to transmit by the network. The average current consumption hence varies
significantly.
Considering the very low current during idle, especially if Power Saving function is enabled,
it is possible to consider from the thermal point of view that the device absorbs current
significantly only during calls.
If we assume that the device stays into transmission for short periods of time (let's say few
minutes) and then remains for a quite long time in idle (let's say one hour), then the power
supply has always the time to cool down between the calls and the heat sink could be smaller
than the calculated one for 600mA maximum RMS current, or even could be the simple chip
package (no heat sink).
Moreover in the average network conditions the device is requested to transmit at a lower
power level than the maximum and hence the current consumption will be less than the
600mA, being usually around 150mA.
For these reasons the thermal design is rarely a concern and the simple ground plane where
the power supply chip is placed can be enough to ensure a good thermal condition and avoid
overheating.
For the heat generated by the UL865-N3G V2, you can consider it to be during transmission
1W max during CSD/VOICE calls.
This generated heat will be mostly conducted to the ground plane under the UL865-N3G V2;
you must ensure that your application can dissipate it.
![](/img.php?id=2626970&img=bg1f.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 31 of 70
Mod. 0805 2011-07 Rev.2
6.3.3. Power Supply PCB layout Guidelines
As seen on the electrical design guidelines the power supply shall have a low ESR capacitor
on the output to cut the current peaks and a protection diode on the input to protect the supply
from spikes and polarity inversion. The placement of these components is crucial for the
correct working of the circuitry. A misplaced component can be useless or can even decrease
the power supply performances.
The Bypass low ESR capacitor must be placed close to the Telit UL865-N3G V2
power input pads or in the case the power supply is a switching type it can be
placed close to the inductor to cut the ripple provided the PCB trace from the
capacitor to the UL865-N3G V2 is wide enough to ensure a dropless connection
even during the 2A current peaks.
The protection diode must be placed close to the input connector where the
power source is drained.
The PCB traces from the input connector to the power regulator IC must be wide
enough to ensure no voltage drops occur when the 2A current peaks are absorbed.
Note that this is not made in order to save power loss but especially to avoid the
voltage drops on the power line at the current peaks frequency of 216 Hz that
will reflect on all the components connected to that supply, introducing the noise
floor at the burst base frequency. For this reason while a voltage drop of 300-400
mV may be acceptable from the power loss point of view, the same voltage drop
may not be acceptable from the noise point of view. If your application doesn't
have audio interface but only uses the data feature of the Telit UL865-N3G V2,
then this noise is not so disturbing and power supply layout design can be more
forgiving.
The PCB traces to the UL865-N3G V2 and the Bypass capacitor must be wide
enough to ensure no significant voltage drops occur when the 2A current peaks
are absorbed. This is for the same reason as previous point. Try to keep this trace
as short as possible.
The PCB traces connecting the Switching output to the inductor and the
switching diode must be kept as short as possible by placing the inductor and the
diode very close to the power switching IC (only for switching power supply).
This is done in order to reduce the radiated field (noise) at the switching
frequency (100-500 kHz usually).
The use of a good common ground plane is suggested.
The placement of the power supply on the board should be done in such a way to
guarantee that the high current return paths in the ground plane are not
overlapped to any noise sensitive circuitry as the microphone amplifier/buffer or
earphone amplifier.
![](/img.php?id=2626970&img=bg20.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 32 of 70
Mod. 0805 2011-07 Rev.2
The power supply input cables should be kept separate from noise sensitive lines
such as microphone/earphone cables.
The insertion of EMI filter on VBATT pins is suggested in those designs where
antenna is placed close to battery or supply lines.
A ferrite bead like Murata BLM18EG101TN1 or Taiyo Yuden P/N
FBMH1608HM101 can be used for this purpose.
The below figure shows the recommended circuit:
![](/img.php?id=2626970&img=bg21.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 33 of 70
Mod. 0805 2011-07 Rev.2
7. Radio Section
7.5. TX Output Power
7.6. Sensitivity
7.7. Antenna Requirements
The antenna connection and board layout design are the most important aspect in the full
product design as they strongly affect the product overall performances, hence read carefully
and follow the requirements and the guidelines for a proper design.
The antenna and antenna transmission line on PCB for a Telit UL865-N3G V2 device shall
fulfill the following requirements:
UL865-N3G V2
Frequency range Depending by frequency band(s) provided by the network operator,
the customer shall use the most suitable antenna for that/those band(s)
Bandwidth
(WCDMA)
70 MHz in WCDMA Band V
140 MHz in WCDMA Band II
Impedance 50 ohm
Input power > 24dBm Average power in WCDMA
VSWR absolute max ≤ 10:1 (limit to avoid permanent damage)
VSWR recommended ≤ 2:1 (limit to fulfill all regulatory requirements)
Band Power Class
WCDMA FDD B2, B5 Class 3 (0.25W)
Band Typical Note
WCDMA FDD B2
-110 dBm
BER <0.1%
WCDMA FDD B5
-111 dBm
BER <0.1%
![](/img.php?id=2626970&img=bg22.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 34 of 70
Mod. 0805 2011-07 Rev.2
7.7.1. UL865-N3G V2 Antenna – PCB line Guidelines
When using the Telit UL865-N3G V2 module, since there's no antenna connector on the
module, the antenna must be connected to the UL865-N3G V2 through the PCB with the
antenna pad (pin 34).
In the case that the antenna is not directly developed on the same PCB, hence directly
connected at the antenna pad of the UL865-N3G V2, then a PCB line is needed in order to
connect with it or with its connector.
This transmission line shall fulfill the following requirements:
ANTENNA LINE ON PCB REQUIREMENTS
Impedance 50 ohm
Max Attenuation 0,3 dB
No coupling with other signals allowed
Cold End (Ground Plane) of antenna shall be equipotential to the
UL865-N3G V2 ground pins
This transmission line should be designed according to the following guidelines:
Ensure that the antenna line impedance is 50 ohm;
Keep the antenna line on the PCB as short as possible, since the antenna line loss shall be
less than 0,3 dB;
Antenna line must have uniform characteristics, constant cross section; avoid meanders and
abrupt curves;
Keep, if possible, one layer of the PCB used only for the Ground plane;
Surround (on the sides, over and under) the antenna line on PCB with Ground, avoid having
other signal tracks facing directly the antenna line track;
The ground around the antenna line on PCB has to be strictly connected to the Ground Plane
by placing vias every 2mm at least;
Place EM noisy devices as far as possible from UL865-N3G V2 antenna line;
Keep the antenna line far away from the UL865-N3G V2 power supply lines;
If you have EM noisy devices around the PCB hosting the UL865-N3G V2, such as fast
switching ICs, take care of the shielding of the antenna line by burying it inside the layers of
PCB and surround it with Ground planes, or shield it with a metal frame cover.
If you don't have EM noisy devices around the PCB of UL865-N3G V2, by using a micro
strip on the superficial copper layer for the antenna line, the line attenuation will be lower
than a buried one;
![](/img.php?id=2626970&img=bg23.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 35 of 70
Mod. 0805 2011-07 Rev.2
7.8. PCB Guidelines in case of FCC certification
In the case FCC certification is required for an application using UL865-N3G V2, according
to FCC KDB 996369 for modular approval requirements, the transmission line has to be
similar to that implemented on UL865-N3G V2 interface board and described in the following
chapter.
7.8.1. Transmission line design
During the design of the UL865-N3G V2 interface board, the placement of components has
been chosen properly, in order to keep the line length as short as possible, thus leading to
lowest power losses possible. A Grounded Coplanar Waveguide (G-CPW) line has been
chosen, since this kind of transmission line ensures good impedance control and can be
implemented in an outer PCB layer as needed in this case. A SMA female connector has been
used to feed the line.
The interface board is realized on a FR4, 4-layers PCB. Substrate material is characterized by
relative permittivity εr = 4.6 ± 0.4 @ 1 GHz, TanD= 0.019 ÷ 0.026 @ 1 GHz.
A characteristic impedance of nearly 50 Ω is achieved using trace width = 1.1 mm, clearance
from coplanar ground plane = 0.3 mm each side. The line uses reference ground plane on
layer 3, while copper is removed from layer 2 underneath the line. Height of trace above
ground plane is 1.335 mm. Calculated characteristic impedance is 51.6 Ω, estimated line loss
is less than 0.1 dB. The line geometry is shown below:
![](/img.php?id=2626970&img=bg24.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 36 of 70
Mod. 0805 2011-07 Rev.2
7.8.2. Transmission line measurements
HP8753E VNA (Full-2-port calibration) has been used in this measurement session. A
calibrated coaxial cable has been soldered at the pad corresponding to RF output; a SMA
connector has been soldered to the board in order to characterize the losses of the transmission
line including the connector itself. During Return Loss / impedance measurements, the
transmission line has been terminated to 50 Ω load.
Return Loss plot of line under test is shown below:
![](/img.php?id=2626970&img=bg25.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 37 of 70
Mod. 0805 2011-07 Rev.2

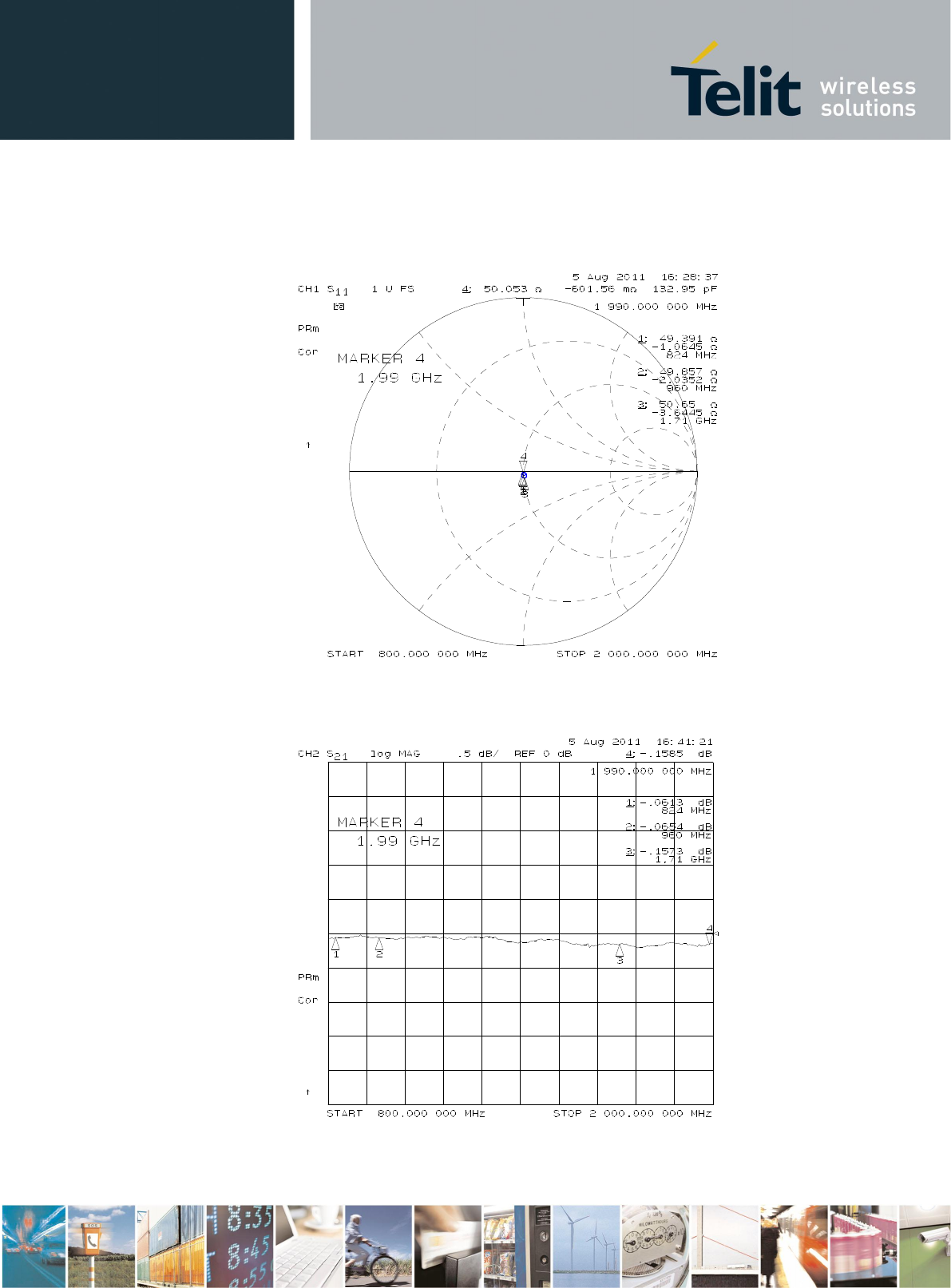

Line input impedance (in Smith Chart format, once the line has been terminated to 50 Ω load)
is shown in the following figure:
Insertion Loss of G-CPW line plus SMA connector is shown below:
![](/img.php?id=2626970&img=bg26.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 38 of 70
Mod. 0805 2011-07 Rev.2
7.9. Antenna - Installation Guidelines
Install the antenna in a place covered by the GSM / WCDMA signal.
If the device antenna is located farther than 20cm from the human body and there are no co-
located transmitter then the Telit FCC/IC approvals can be re-used by the end product.
If the device antenna is located closer than 20cm from the human body or there are co-located
transmitter then the additional FCC/IC testing may be required for the end product (Telit
FCC/IC approvals cannot be reused).
Antenna shall not be installed inside metal cases.
Antenna shall be installed also according to antenna manufacturer instructions.
![](/img.php?id=2626970&img=bg27.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 39 of 70
Mod. 0805 2011-07 Rev.2
8. Logic level specifications
Where not specifically stated, all the interface circuits work at 1.8V CMOS logic levels. The
following table shows the logic level specifications used in the UL865-N3G V2 interface
circuits:
Absolute Maximum Ratings -Not Functional
Parameter Min Max
Input level on any digital pin
(CMOS 1.8) when on -0.3V
+2.1V
Operating Range - Interface levels (1.8V CMOS)
Level Min Max
Input high level 1.5V 1.9V
Input low level 0V 0.35V
Output high level 1.6V 1.9V
Output low level 0V 0.2V
Current characteristics
Level Typical
Output Current 1mA
Input Current 1uA
![](/img.php?id=2626970&img=bg28.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 40 of 70
Mod. 0805 2011-07 Rev.2
8.5. Reset signal
Signal Function I/O pin
RESET* Phone reset I 47
RESET* is used to reset the UL865-N3G V2. Whenever this signal is pulled low, the UL865-
N3G V2 is reset. When the device is reset it stops any operation. After the release of the reset
UL865-N3G V2 is unconditionally shut down, without doing any detach operation from the
network where it is registered. This behavior is not a proper shut down because any GSM
device is requested to issue a detach request on turn off. For this reason the Reset signal must
not be used to normally shutting down the device, but only as an emergency exit in the rare
case the device remains stuck waiting for some network response.
The RESET* is internally controlled on start-up to achieve a proper power-on reset sequence,
so there's no need to control this pin on start-up. It may only be used to reset a device already
on that is not responding to any command.
NOTE:
Do not use this signal to power OFF the UL865-N3G V2. Use the ON/OFF procedure to
perform this function.
Reset Signal Operating levels:
Signal Min Max
RESET* Input high 1.5V(NOTE1) 1.9V
RESET* Input low 0V 0.35V
(NOTE1) this signal is internally pulled up so the pin can be left floating if not used.
If unused, this signal may be left unconnected. If used, then it must always be connected with
an open collector transistor, to permit to the internal circuitry the power on reset and under
voltage lockout functions.
![](/img.php?id=2626970&img=bg29.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 41 of 70
Mod. 0805 2011-07 Rev.2
9. USB Port
The UL865-N3G V2 includes one integrated universal serial bus (USB) transceiver.
9.1. USB 2.0 HS
This port is compliant with the USB 2.0 HS only.
The following table is listing the available signals:
PAD
Signal I/O Function Type NOTE
18 USB_D+ I/O USB differential Data (+) 3.3V
17 USB_D- I/O USB differential Data (-) 3.3V
6 VUSB AI Power sense for the internal USB
transceiver. 5V Accepted range:
4.4V to 5.25V
The USB_DPLUS and USB_DMINUS signals have a clock rate of 480 MHz.
The signal traces should be routed carefully. Trace lengths, number of vias and capacitive
loading should be minimized. The characteristic impedance value should be as close as
possible to 90 Ohms differential.

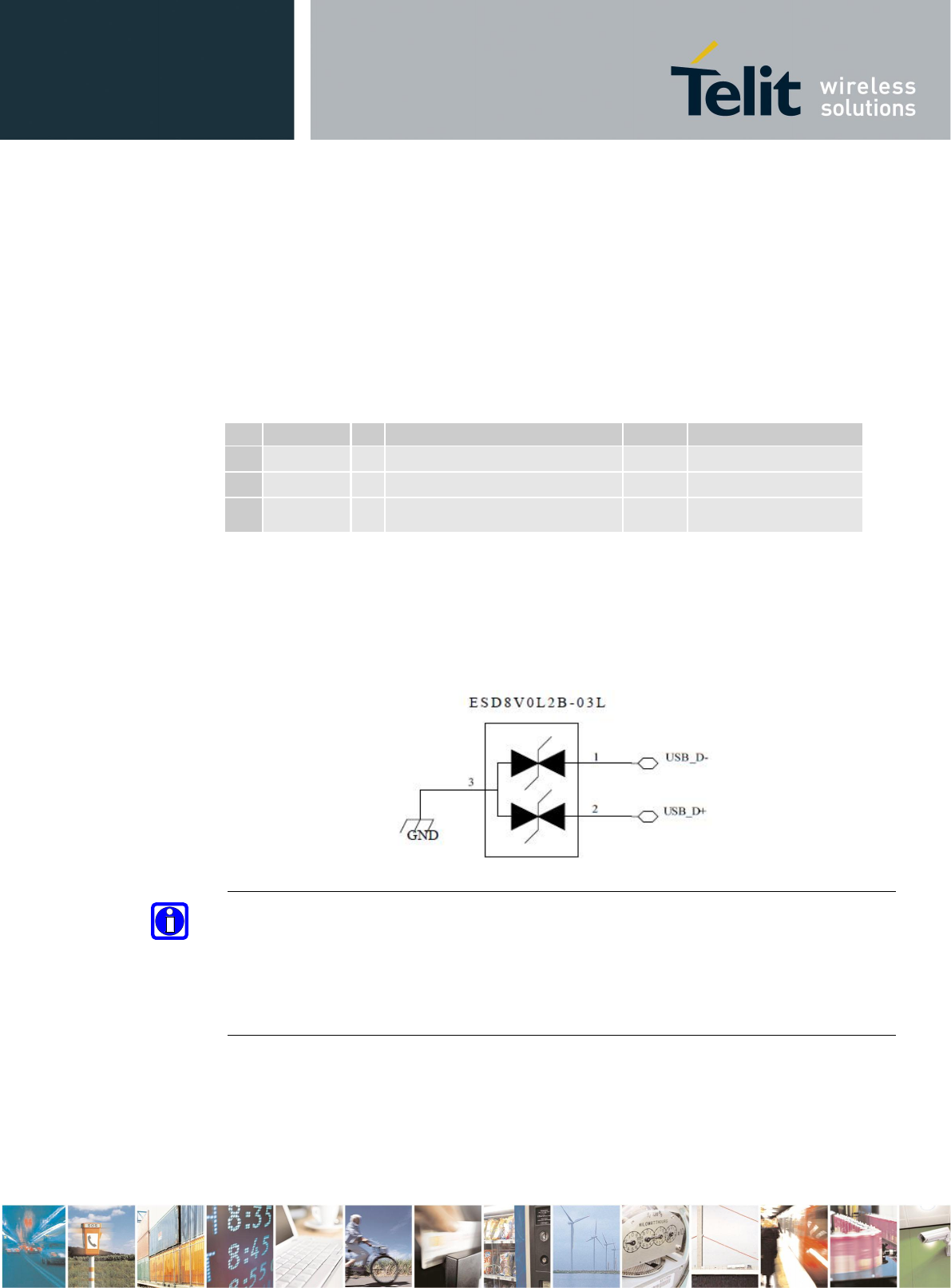

In case there is a need to add an ESD protection the suggested connection is the following:
NOTE:
VUSB pin should be disconnected before activating the Power Saving Mode.
The USB FS mode could be used to provide AT Commands / Data communication but not
for a SW upgrade.
The USB FS mode is supported only when the module is fully operative.
![](/img.php?id=2626970&img=bg2a.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 42 of 70
Mod. 0805 2011-07 Rev.2
10. SPI Port
The UL865-N3G V2 Module is provided by one SPI interface.
The SPI interface defines two handshake lines for flow control and mutual wake-up of the
modem and the Application Processor: SRDY (slave ready) and MRDY (master ready).
The AP has the master role, that is, it supplies the clock.
The following table is listing the available signals:
PAD Signal I/O Function Type Comment
44 SPI_MISO O SPI_MISO CMOS 1.8V Shared with RX_AUX
45 SPI_MOSI I SPI_MOSI CMOS 1.8V
28 SPI_SRDY I/O SPI_SRDY CMOS 1.8V Shared with GPIO_06 / ALARM /
27 SPI_MRDY I/O SPI_MRDY CMOS 1.8V Shared with GPIO_07 / BUZZER /
25 SPI_CLK I/O SPI_CLK CMOS 1.8V CMOS 1.8V
NOTE:
Due to the shared functions, when the SPI port is used, it is not possible to use the Auxiliary
UART, GPIO_06, GPIO_07 and related alternate functions.
10.5. SPI Connections
![](/img.php?id=2626970&img=bg2b.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 43 of 70
Mod. 0805 2011-07 Rev.2
11. Serial Ports
The serial port on the UL865-N3G V2 is the core of the interface between the module and
OEM hardware.
2 serial ports are available on the module:
MODEM SERIAL PORT 1 (Main, ASC0)
MODEM SERIAL PORT 2 (Auxiliary, ASC1)
11.1. MODEM SERIAL PORT 1
Several configurations can be designed for the serial port on the OEM hardware, but the most
common are:
RS232 PC com port
microcontroller UART @ 1.8V (Universal Asynchronous Receive Transmit)
microcontroller UART @ 3V or other voltages different from 1.8V
microcontroller UART @ 5V or other voltages different from 1.8V
Depending from the type of serial port on the OEM hardware a level translator circuit may be
needed to make the system work. The only configuration that doesn't need a level translation
is the 1.8V UART.
The serial port on the UL865-N3G V2 is a +1.8V UART with all the 8 RS232 signals. It
differs from the PC-RS232 in the signal polarity (RS232 is reversed) and levels. The levels
for the UL865-N3G V2 UART are the CMOS levels:
Absolute Maximum Ratings -Not Functional
Parameter Min Max
Input level on any digital
pad when on
-0.3V +2.1V
Operating Range - Interface levels (1.8V CMOS)
Level Min Max
Input high level VIH 1.5V 1.9V
Input low level VIL 0V 0.35V
Output high level VOH 1.6V 1.9V
Output low level VOL 0V 0.2V
![](/img.php?id=2626970&img=bg2c.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 44 of 70
Mod. 0805 2011-07 Rev.2

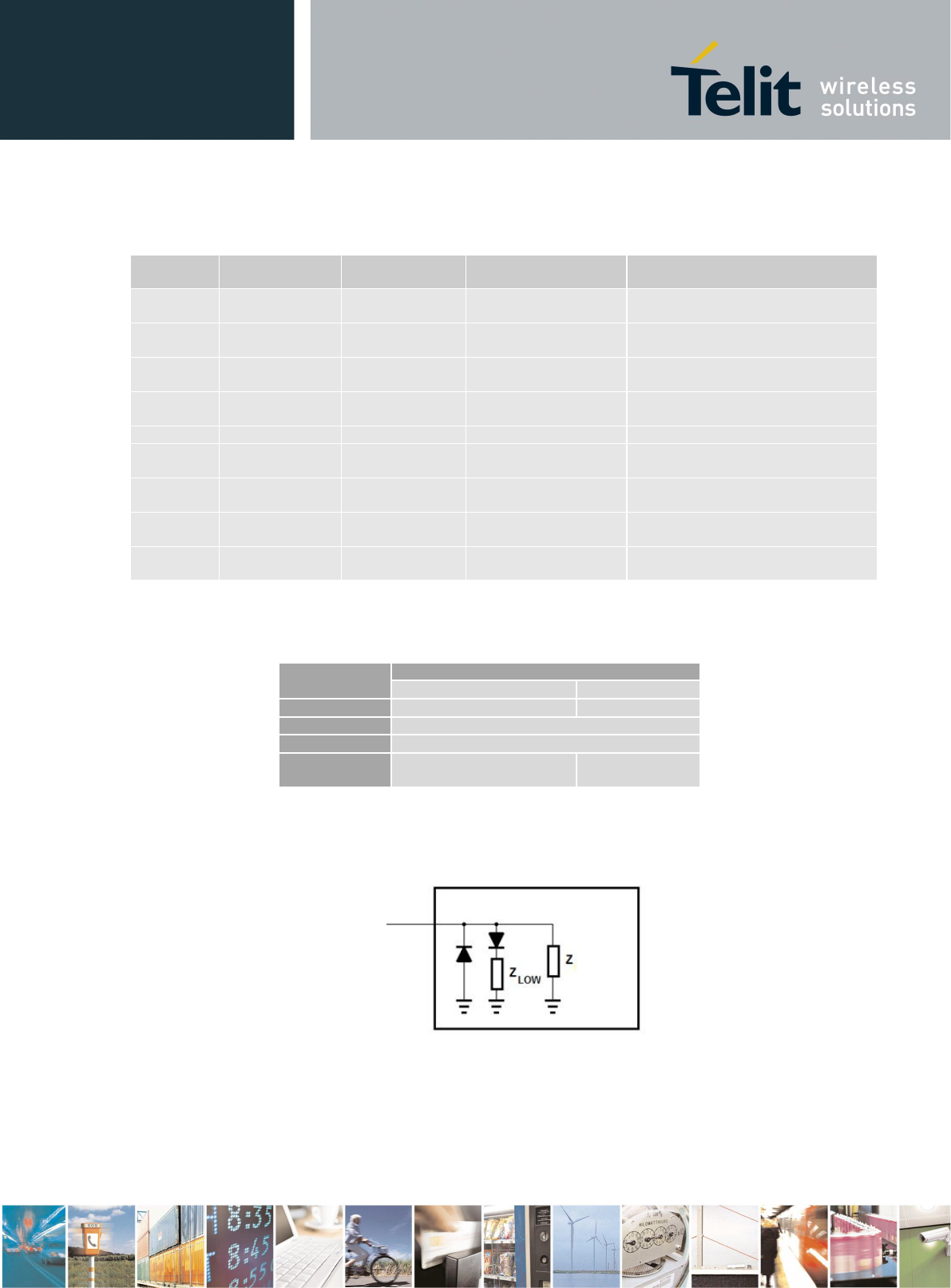

The signals of the UL865-N3G V2 serial port are:
RS232 Pin
Number Signal UL865-N3G V2
Pad Number Name Usage
1 DCD - dcd_uart 1 Data Carrier Detect Output from the UL865-N3G V2 that
indicates the carrier presence
2 RXD - tx_uart 8 Transmit line *see Note Output transmit line of UL865-N3G V2
UART
3 TXD - rx_uart 7 Receive line *see Note Input receive of the UL865-N3G V2
UART
4 DTR - dtr_uart 4 Data Terminal Ready Input to the UL865-N3G V2 that controls
the DTE READY condition
5 GND 32, 33, 35, 36, 46 Ground Ground
6 DSR - dsr_uart 3 Data Set Ready Output from the UL865-N3G V2 that
indicates the module is ready
7 RTS -rts_uart 5 Request to Send Input to the UL865-N3G V2 that controls
the Hardware flow control
8 CTS - cts_uart 6 Clear to Send Output from the UL865-N3G V2 that
controls the Hardware flow control
9 RI - ri_uart 2 Ring Indicator Output from the UL865-N3G V2 that
indicates the incoming call condition
The following table shows the typical input value of internal pull-up resistors for RTS DTR
and TXD input lines and in all module states:
STATE
RTS DTR TXD
Pull up tied to
ON 5K to 12K 1V8
OFF Schottky diode
RESET Schottky diode
POWER
SAVING 5K to 12K 1V8
The input line ON_OFF and RESET state can be treated as in picture below
![](/img.php?id=2626970&img=bg2d.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 45 of 70
Mod. 0805 2011-07 Rev.2
NOTE:
According to V.24, RX/TX signal names are referred to the application side, therefore on the
UL865-N3G V2 side these signal are on the opposite direction: TXD on the application side
will be connected to the receive line (here named TXD/ rx_uart ) of the UL865-N3G V2
serial port and vice versa for RX.
NOTE:
For a minimum implementation, only the TXD and RXD lines can be connected, the other
lines can be left open provided a software flow control is implemented.
NOTE:
In order to avoid a back powering effect it is recommended to avoid having any HIGH logic
level signal applied to the digital pins of the UL865-N3G V2 when the module is powered off
or during an ON/OFF transition.
11.2. MODEM SERIAL PORT 2
The secondary serial port on the UL865-N3G V2 is a CMOS1.8V with only the RX and TX
signals. The signals of the UL865-N3G V2 serial port are:
PAD Signal I/O Function Type Comment
44 RXD_AUX I Auxiliary UART (RX Data from DTE) CMOS 1.8V Shared with SPI_MISO
45 TXD_AUX O Auxiliary UART (TX Data to DTE) CMOS 1.8V Shared with SPI_MOSI
NOTE:
Due to the shared functions, when the SPI port is used, it is not possible to use the SPI port.
NOTE:
In order to avoid a back powering effect it is recommended to avoid having any HIGH logic
level signal applied to the digital pins of the UL865-N3G V2 when the module is powered off
or during an ON_OFF transition.
![](/img.php?id=2626970&img=bg2e.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 46 of 70
Mod. 0805 2011-07 Rev.2
11.3. RS232 level translation
In order to interface the UL865-N3G V2 with a PC com port or a RS232 (EIA/TIA-232)
application a level translator is required. This level translator must:
invert the electrical signal in both directions;
change the level from 0/1.8V to +15/-15V
Actually, the RS232 UART 16450, 16550, 16650 & 16750 chipsets accept signals with lower
levels on the RS232 side (EIA/TIA-562), allowing a lower voltage-multiplying ratio on the
level translator. Note that the negative signal voltage must be less than 0V and hence some
sort of level translation is always required.
The simplest way to translate the levels and invert the signal is by using a single chip level
translator. There are a multitude of them, differing in the number of drivers and receivers and
in the levels (be sure to get a true RS232 level translator not a RS485 or other standards).
By convention the driver is the level translator from the 0-1.8V UART to the RS232 level.
The receiver is the translator from the RS232 level to 0-1.8V UART.
In order to translate the whole set of control lines of the UART you will need:
5 drivers
3 receivers
NOTE:
The digital input lines working at 1.8V CMOS have an absolute maximum input voltage of
2.1V; therefore the level translator IC shall not be powered by the +3.8V supply of the
module. Instead, it must be powered from a +1.8V (dedicated) power supply.
![](/img.php?id=2626970&img=bg2f.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 47 of 70
Mod. 0805 2011-07 Rev.2
An example of RS232 level adaptation circuitry could be done using a MAXIM transceiver
(MAX218).
In this case the chipset is capable to translate directly from 0/1.8V to the RS232 levels
(Example done on 4 signals only).
The RS232 serial port lines are usually connected to a DB9 connector with the following
layout:
![](/img.php?id=2626970&img=bg30.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 48 of 70
Mod. 0805 2011-07 Rev.2
12. Audio Section Overview
The Base Band Chip of the UL865-N3G V2 provides one Digital Audio Interface.
Please refer to the UL865-N3G V2 DVI Application Note for additional details on this
function.
13. General Purpose I/O
The general purpose I/O pads can be configured to act in three different ways:
input
output
alternate function (internally controlled)
Input pads can be read; they report the digital value (high or low) present on the pad at the
read time.
Output pads can only be written or queried and set the value of the pad output.
An alternate function pad is internally controlled by the UL865-N3G V2 firmware and acts
depending on the function implemented.
The following table shows the available GPIO on the UL865-N3G V2 and their state.
Pin Signal I/O Function Type
Input /
output
current
Default
State
ON_OFF
state
State
during
Reset
Note
42 GPIO_01 I/O Configurable GPIO CMOS 1.8V 1uA/1mA INPUT 0 0 Alternate function
DVI_WA0
41 GPIO_02 I/O Configurable GPIO CMOS 1.8V 1uA/1mA INPUT 0 0 Alternate function
JDR and DVI_RX
40 GPIO_03 I/O Configurable GPIO CMOS 1.8V 1uA/1mA INPUT 0 0 Alternate function
DVI_TX
39 GPIO_04 I/O Configurable GPIO CMOS 1.8V 1uA/1mA INPUT 0 0
Alternate function
TX Disable and
DVI_CLK
29 GPIO_05 I/O Configurable GPIO CMOS 1.8V 1uA/1mA INPUT 0 0
28 GPIO_06 I/O Configurable GPIO CMOS 1.8V 1uA/1mA INPUT 0 0 Alternate function
/SPI_SRDY
27 GPIO_07 I/O Configurable GPIO CMOS 1.8V 1uA/1mA INPUT 0 0 Alternate function
/SPI_MRDY
26 GPIO_08 I/O Configurable GPIO CMOS 1.8V 1uA/1mA INPUT 0 0 Alternate function
STAT_LED
NOTE:
The internal GPIO’s pull up/pull down could be set to the preferred status for the application
using the AT#GPIO command.
Please refer for the AT Commands User Guide for the detailed command Syntax.
![](/img.php?id=2626970&img=bg31.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 49 of 70
Mod. 0805 2011-07 Rev.2
WARNING:
During power up the GPIOs may be subject to transient glitches.
Also the UART‘s control flow pins can be usable as GPI/O.
Pin Signal I/O Function Type
Input /
output
current
Default
State
ON_OFF
state
State
during
Reset
Note
1 GPO_A O Configurable GPO CMOS
1.8V 1uA/1mA INPUT 0 0 Alternate function
C109/DCD
2 GPO_B O Configurable GPO CMOS
1.8V 1uA/1mA INPUT 0 0 Alternate function
C125/RING
3 GPO_C O Configurable GPO CMOS
1.8V 1uA/1mA INPUT 0 0 Alternate function
C107/DSR
4 GPI_E I Configurable GPI CMOS
1.8V 1uA/1mA INPUT 0 0 Alternate function
C108/DTR
5 GPI_F I Configurable GPI CMOS
1.8V 1uA/1mA INPUT 0 0 Alternate function
C105/RTS
6 GPO_D O Configurable GPO CMOS
1.8V 1uA/1mA INPUT 0 0 Alternate function
C106/CTS
![](/img.php?id=2626970&img=bg32.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 50 of 70
Mod. 0805 2011-07 Rev.2
13.1. GPIO Logic levels
Where not specifically stated, all the interface circuits work at 1.8V CMOS logic levels.
The following table shows the logic level specifications used in the UL865-N3G V2 interface
circuits:
Absolute Maximum Ratings -Not Functional
Parameter Min Max
Input level on any digital pin
(CMOS 1.8) when on
-0.3V
+2.1V
Operating Range - Interface levels (1.8V CMOS)
Level Min Max
Input high level 1.5V 1.9V
Input low level 0V 0.35V
Output high level 1.6V 1.9V
Output low level 0V 0.2V
Current characteristics
Level Typical
Output Current 1mA
Input Current 1uA
![](/img.php?id=2626970&img=bg33.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 51 of 70
Mod. 0805 2011-07 Rev.2
13.2. Using a GPIO Pad as INPUT
The GPIO pads, when used as inputs, can be connected to a digital output of another device
and report its status, provided this device has interface levels compatible with the 1.8V
CMOS levels of the GPIO.
If the digital output of the device to be connected with the GPIO input pad has interface levels
different from the 1.8V CMOS, then it can be buffered with an open collector transistor with a
47K pull up to 1.8V.
NOTE:
In order to avoid a back powering effect it is recommended to avoid having any HIGH logic
level signal applied to the digital pins of the UL865-N3G V2 when the module is powered
OFF or during an ON/OFF transition.
TIP:
The V_AUX / PWRMON pin can be used for input pull up reference or/and for ON
monitoring.
13.3. Using a GPIO Pad as OUTPUT
The GPIO pads, when used as outputs, can drive 1.8V CMOS digital devices or compatible
hardware. When set as outputs, the pads have a push-pull output and therefore the pull-up
resistor may be omitted.
![](/img.php?id=2626970&img=bg34.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 52 of 70
Mod. 0805 2011-07 Rev.2
13.4. Indication of network service availability
The STAT_LED pin status shows information on the network service availability and Call
status. The function is available as alternate function of GPIO_08 (to be enabled using the
AT#GPIO=8,0,2 command).
In the UL865-N3G V2 modules, the STAT_LED needs an external transistor to drive an
external LED.
Therefore, the status indicated in the following table is reversed with respect to the pin status.
Device Status LED status
Device off Permanently off
Not Registered Permanently on
Registered in idle Blinking 1sec on + 2 sec off
Registered in idle + power saving It depends on the event that triggers the wakeup
(In sync with network paging)
Voice Call Active Permanently on
Dial-Up Blinking 1 sec on + 2 sec off

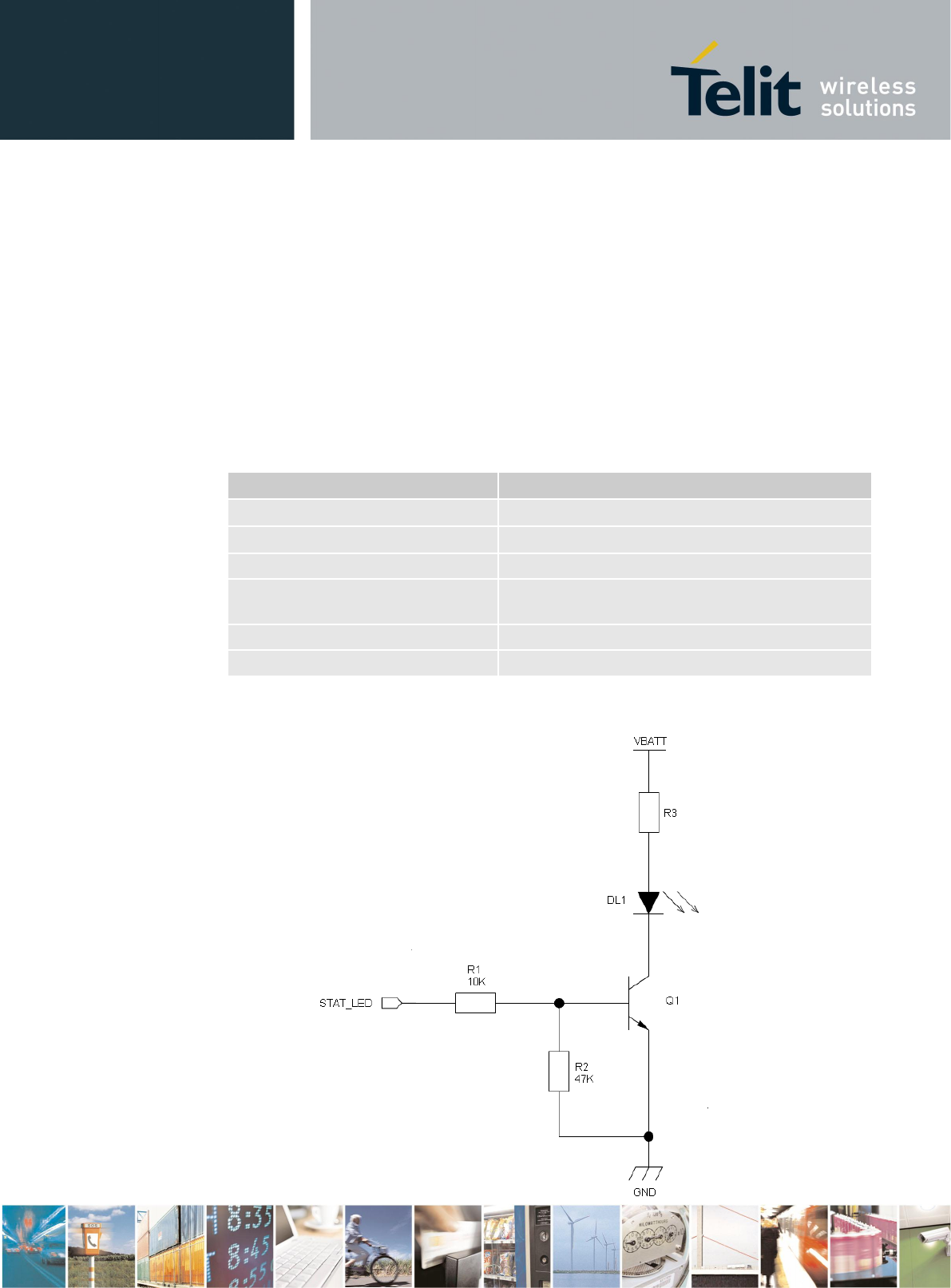

A schematic example could be:
13.5.
![](/img.php?id=2626970&img=bg35.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 53 of 70
Mod. 0805 2011-07 Rev.2
13.5. SIMIN detect function
All the GPIO pins can be used as SIM DETECT input. The AT Command used to enable the
function is:
AT#SIMINCFG
Use the AT command AT#SIMDET=2 to enable the SIMIN detection
Use the AT command AT&W0 and AT&P0 to store the SIMIN detection in the common
profile.
For full details see AT Commands Reference Guide, 80000ST10025a.
NOTE:
Don’t use the SIM IN function on the same pin where the GPIO function is enabled and vice
versa!
13.6. RTC Bypass out
The VRTC pin brings out the Real Time Clock supply, which is separate from the rest of the
digital part, allowing having only RTC going on when all the other parts of the device are off.
To this power output a backup capacitor can be added in order to increase the RTC autonomy
during power off of the battery. NO Devices must be powered from this pin.
In order to keep the RTC active when VBATT is not supplied it is possible to back up the
RTC section connecting a backup circuit to the related VRTC signal (pad 30 on module’s
Pinout).
For additional details on the Backup solutions please refer to the related application note
(RTC Backup Application Note)
13.7. SIM Holder Implementation
Please refer to the related User Guide (SIM Holder Design Guides, 80000NT10001a).
![](/img.php?id=2626970&img=bg36.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 54 of 70
Mod. 0805 2011-07 Rev.2
14. DAC and ADC section
14.1. DAC Converter
14.1.1. Description
The UL865-N3G V2 provides a Digital to Analog Converter. The signal (named DAC_OUT)
is available on pin 15 of the UL865-N3G V2.
The on board DAC is a 10 bit converter, able to generate an analogue value based on a
specific input in the range from 0 up to 1023. However, an external low-pass filter is
necessary
Min Max Units
Voltage range (filtered) 0 1.8 Volt
Range 0 1023 Steps
The precision is 10 bits so, if we consider that the maximum voltage is 2V, the integrated
voltage could be calculated with the following formula:
Integrated output voltage = (2 *value) / 1023
DAC_OUT line must be integrated (for example with a low band pass filter) in order to obtain
an analog voltage.
![](/img.php?id=2626970&img=bg37.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 55 of 70
Mod. 0805 2011-07 Rev.2
14.1.2. Enabling DAC
An AT command is available to use the DAC function.
The command is: AT#DAC= [<enable> [, <value>]]
<value> - scale factor of the integrated output voltage (0..1023 - 10 bit precision)
it must be present if <enable>=1
Refer to SW User Guide or AT Commands Reference Guide for the full description of this
function.
NOTE:
The DAC frequency is selected internally. D/A converter must not be used during
POWERSAVING.
14.1.3. Low Pass Filter Example
![](/img.php?id=2626970&img=bg38.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 56 of 70
Mod. 0805 2011-07 Rev.2
14.2. ADC Converter
14.2.1. Description
The UL865-N3G V2 is provided by two A/D converters. They are able to read a voltage level
in the range of 0÷1.2 volts applied on the ADC pin input, store and convert it into 10 bit word.
The following table is showing the ADC characteristics:
Min Typical
Max Units
Input Voltage range 0 - 1.2 Volt
AD conversion - - 10 bits
Input Resistance 1 - - Mohm
Input Capacitance - 1 - pF
The signal is available on the following pads:
PAD Name I/O Description Notes
13 ADC_IN1 AI Analog/Digital converter
input Accepted values 0 to 1.2V DC
14 ADC_IN2 AI Analog/Digital converter
input Accepted values 0 to 1.2V DC
14.2.2. Using ADC Converter
An AT command is available to use the ADC function.
The command is AT#ADC=1,2
The read value is expressed in mV
Refer to SW User Guide or AT Commands Reference Guide for the full description of this
function.
![](/img.php?id=2626970&img=bg39.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 57 of 70
Mod. 0805 2011-07 Rev.2
14.3. VAUX Power Output
A regulated power supply output is provided in order to supply small devices from the
module. The signal is present on Pad 43 and it is in common with the PWRMON (module
powered ON indication) function.
This output is always active when the module is powered ON.
The operating range characteristics of the supply are:
Level Min Typical Max
Output voltage 1.78V 1.80V 1.82V
Output current - - 60mA
Output bypass capacitor
(inside the module) 1uF
![](/img.php?id=2626970&img=bg3a.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 58 of 70
Mod. 0805 2011-07 Rev.2
15. Mounting the UL865-N3G V2 on your
Board
15.1. General
The UL865-N3G V2 modules have been designed to be compliant with a standard lead-free
SMT process.

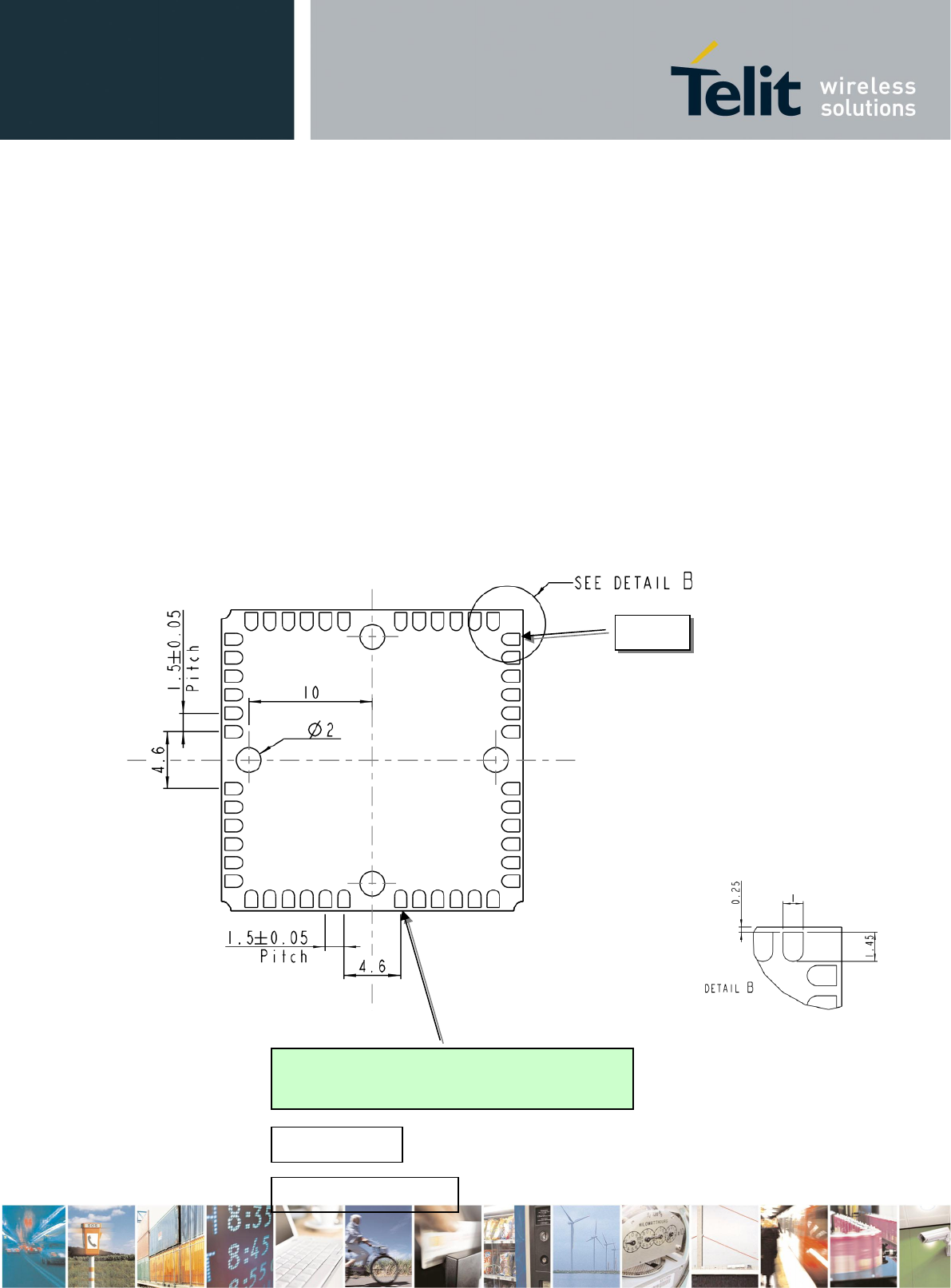

15.2. Module finishing & dimensions
Pin 1
Lead-free Alloy:
Surface finishing Ni/Au for all solder pads
Bottom View
Dimensions in mm
![](/img.php?id=2626970&img=bg3b.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 59 of 70
Mod. 0805 2011-07 Rev.2
15.3. Recommended foot print for the application
In order to easily rework the UL865-N3G V2 is suggested to consider on the application a 1.5
mm placement inhibited area around the module.
It is also suggested, as common rule for an SMT component, to avoid having a mechanical
part of the application in direct contact with the module.
![](/img.php?id=2626970&img=bg3c.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 60 of 70
Mod. 0805 2011-07 Rev.2
15.4. Stencil
Stencil’s apertures layout can be the same of the recommended footprint (1:1), we suggest a
thickness of stencil foil ≥ 120µm.
15.5. PCB pad design
Non solder mask defined (NSMD) type is recommended for the solder pads on the PCB.
PCB
Copper Pad
Pad
Solder Mask
SMD
(Solder Mask Defined)
NSMD
(Non Solder Mask Defined)
![](/img.php?id=2626970&img=bg3d.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 61 of 70
Mod. 0805 2011-07 Rev.2
15.6. Recommendations for PCB pad dimensions
(mm):
It is not recommended to place via or micro-via not covered by solder resist in an area of 0.3 mm
around the pads unless it carries the same signal of the pad itself (see following figure).
Inhibit area for micro-via
Solder resist opening
![](/img.php?id=2626970&img=bg3e.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 62 of 70
Mod. 0805 2011-07 Rev.2
Holes in pad are allowed only for blind holes and not for through holes.
Recommendations for PCB pad surfaces:
Finish Layer thickness [µm] Properties
Electro-less Ni / Immersion Au 3 –7 / 0.03 – 0.15 good solder ability protection,
high shear force values
The PCB must be able to resist the higher temperatures which are occurring at the lead-free
process. This issue should be discussed with the PCB-supplier. Generally, the wettability of tin-
lead solder paste on the described surface plating is better compared to lead-free solder paste.
It is not necessary to panel the application PCB, however in that case it is suggested to use milled
contours and predrilled board breakouts; scoring or v-cut solutions are not recommended.
15.7. Solder paste
Lead free
Solder paste Sn/Ag/Cu
We recommend using only “no clean” solder paste in order to avoid the cleaning of
the modules after assembly.
15.8. UL865-N3G V2 Solder reflow
Recommended solder reflow profile
TL
Tsmin
Tsmax
ts
tL
tp
ttp
![](/img.php?id=2626970&img=bg3f.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 63 of 70
Mod. 0805 2011-07 Rev.2
Profile Feature Pb-Free Assembly
Average ramp-up rate (TL to TP) 3°C/second max
Preheat
– Temperature Min (Tsmin)
– Temperature Max (Tsmax)
– Time (min to max) (ts)
150°C
200°C
60-180 seconds
Tsmax to TL
– Ramp-up Rate
3°C/second max
Time maintained above:
– Temperature (TL)
– Time (tL)
217°C
60-150 seconds
Peak Temperature (Tp) 245 +0/-5°C
Time within 5°C of actual Peak
Temperature (tp)
10-30 seconds
Ramp-down Rate 6°C/second max.
Time 25°C to Peak Temperature (ttp) 8 minutes max.
NOTE:
All temperatures refer to topside of the package, measured on the package body
surface
WARNING:
The UL865-N3G V2 module withstands one reflow process only.
![](/img.php?id=2626970&img=bg40.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 64 of 70
Mod. 0805 2011-07 Rev.2
16. Packing system

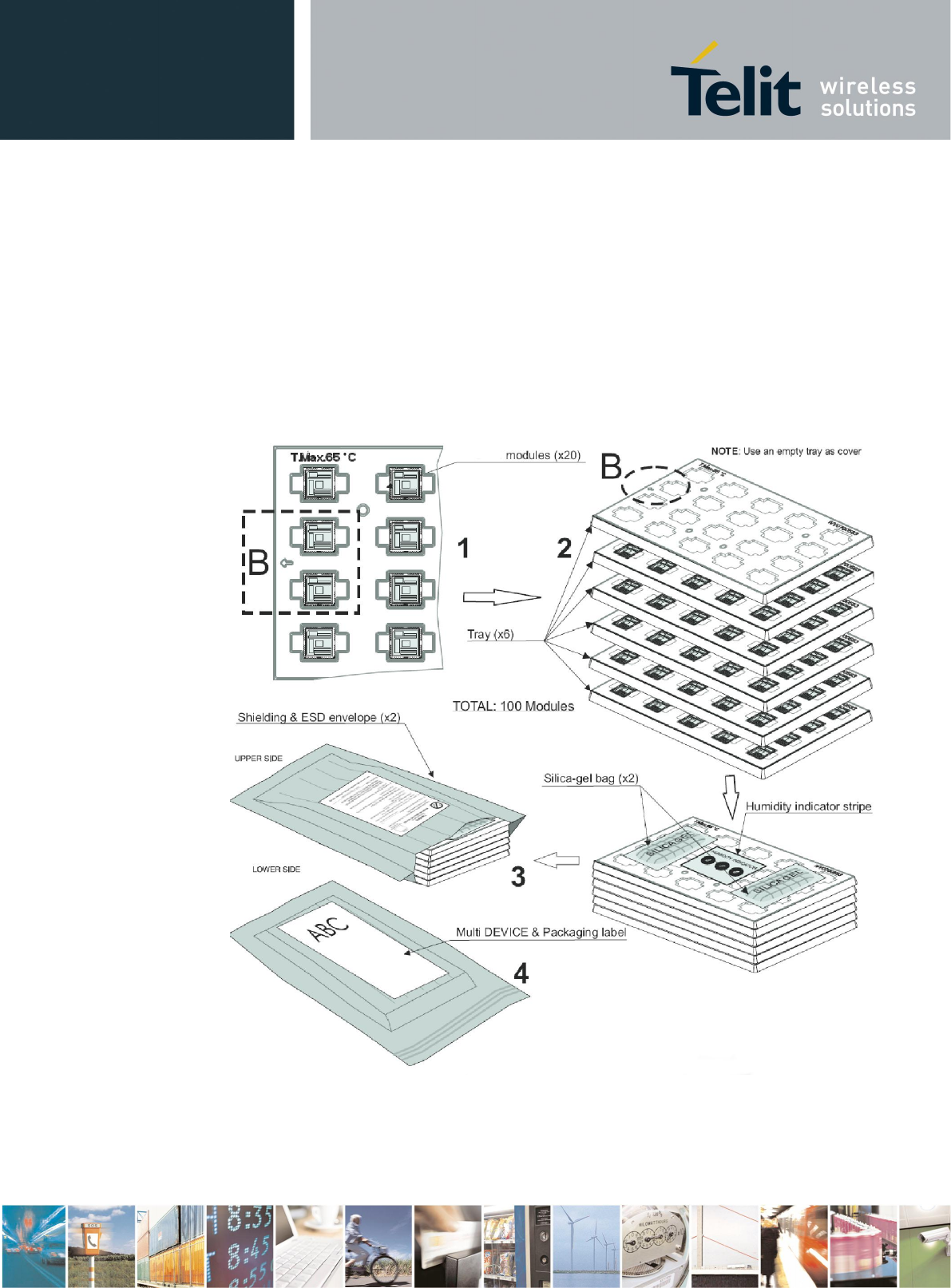

16.1. Packing on tray
The UL865-N3G V2 modules are packaged on trays of 20 pieces each. These trays can be
used in SMT processes for pick & place handling.
![](/img.php?id=2626970&img=bg41.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 65 of 70
Mod. 0805 2011-07 Rev.2
![](/img.php?id=2626970&img=bg42.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 66 of 70
Mod. 0805 2011-07 Rev.2

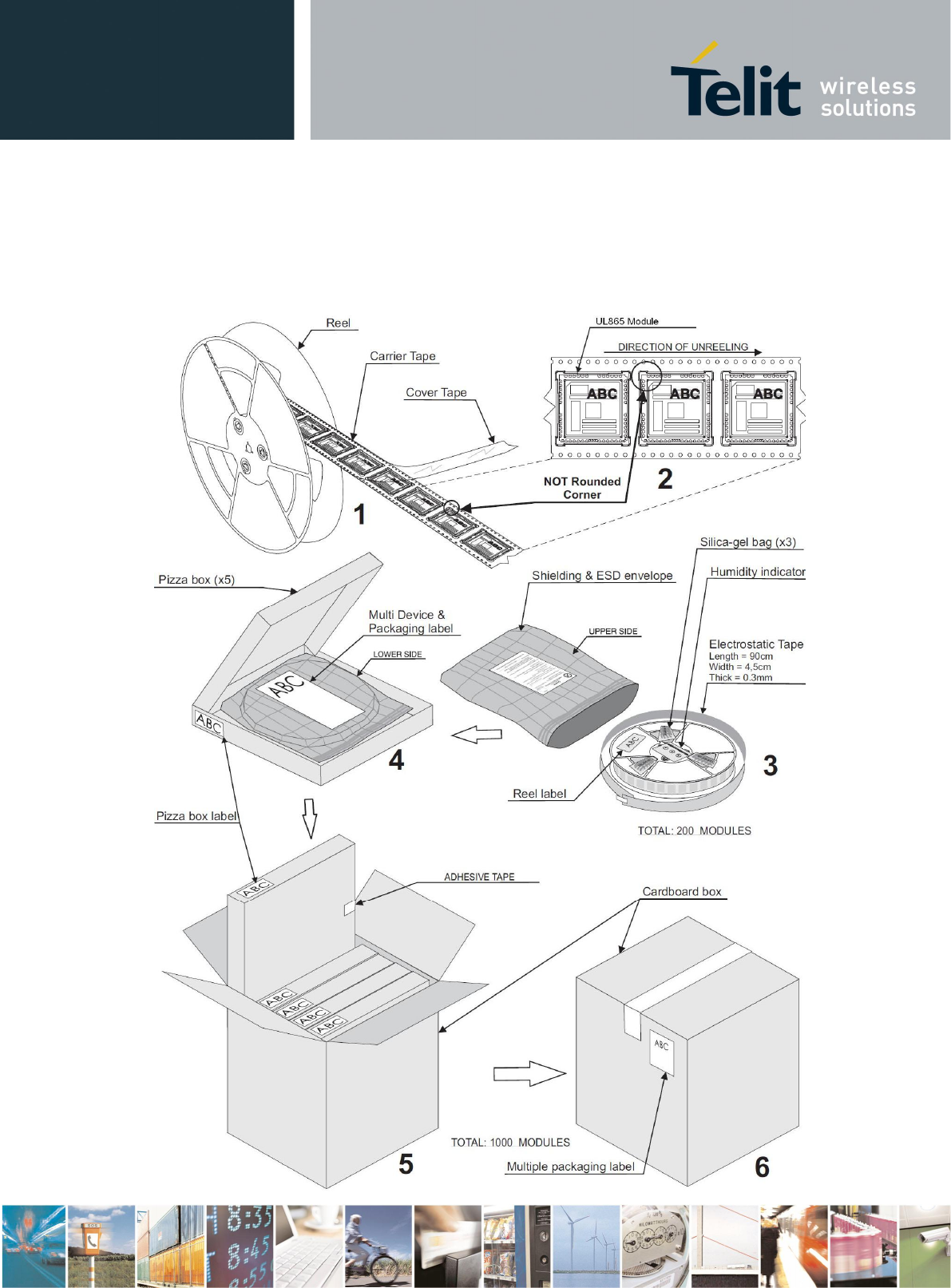

16.2. Packing in Reel
![](/img.php?id=2626970&img=bg43.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 67 of 70
Mod. 0805 2011-07 Rev.2
16.3. Moisture sensitivity
The moisture sensitivity level of the Product is “3” according with standard IPC/JEDEC J-
STD-020, take care of all the relative requirements for using this kind of components.
Moreover, the customer has to take care of the following conditions:
a) The shelf life of the Product inside of the dry bag is 12 months from the bag seal date,
when stored in a non-condensing atmospheric environment of < 40°C and < 90% RH.
b) Environmental condition during the production: <= 30°C / 60% RH according to
IPC/JEDEC J-STD-033B.
c) The maximum time between the opening of the sealed bag and the reflow process must be
168 hours if condition b) “IPC/JEDEC J-STD-033B paragraph 5.2” is respected.
d) Baking is required if conditions b) or c) are not respected
e) Baking is required if the humidity indicator inside the bag indicates 10% RH or more.
![](/img.php?id=2626970&img=bg44.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 68 of 70
Mod. 0805 2011-07 Rev.2
17. SAFETY RECOMMANDATIONS
READ CAREFULLY
Be sure the use of this product is allowed in the country and in the environment required. The
use of this product may be dangerous and has to be avoided in the following areas:
Where it can interfere with other electronic devices in environments such as hospitals,
airports, aircrafts, etc.
Where there is risk of explosion such as gasoline stations, oil refineries, etc
It is responsibility of the user to enforce the country regulation and the specific environment
regulation.
Do not disassemble the product; any mark of tampering will compromise the warranty
validity.
We recommend following the instructions of the hardware user guides for a correct wiring of
the product. The product has to be supplied with a stabilized voltage source and the wiring
has to be conforming to the security and fire prevention regulations.
The product has to be handled with care, avoiding any contact with the pins because
electrostatic discharges may damage the product itself. Same cautions have to be taken for the
SIM, checking carefully the instruction for its use. Do not insert or remove the SIM when the
product is in power saving mode.
The system integrator is responsible of the functioning of the final product; therefore, care has
to be taken to the external components of the module, as well as of any project or installation
issue, because the risk of disturbing the GSM network or external devices or having impact
on the security.
Should there be any doubt, please refer to the technical documentation and the regulations in
force.
Every module has to be equipped with a proper antenna with specific characteristics. The
antenna has to be installed with care in order to avoid any interference with other electronic
devices and has to guarantee a minimum distance from the body (20 cm). In case of this
requirement cannot be satisfied, the system integrator has to assess the final product against
the SAR regulation.
The European Community provides some Directives for the electronic equipments introduced
on the market. All the relevant information’s are available on the European Community
website:
http://europa.eu.int/comm/enterprise/rtte/dir99-5.htm
The text of the Directive 99/05 regarding telecommunication equipments is available, while
the applicable Directives (Low Voltage and EMC) are available at:
http://europa.eu.int/comm/enterprise/electr_equipment/index_en.htm
![](/img.php?id=2626970&img=bg45.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 69 of 70
Mod. 0805 2011-07 Rev.2
18. FCC/IC REGULATORY NOTICES
Modification statement
Telit has not approved any changes or modifications to this device by the user. Any changes
or modifications could void the user’s authority to operate the equipment.
Telit n’approuve aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit
la nature.
Tout changement ou modification peuvent annuler le droit d’utilisation de l’appareil par
l’utilisateur.
Interference statement
This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Wireless notice
This equipment complies with FCC and IC radiation exposure limits set forth for an
uncontrolled environment. The antenna should be installed and operated with minimum
distance of 20 cm between the radiator and your body. Antenna gain must be below:
Frequency Band Gain
Band II (1900 MHz) 9.01 dBi
Band V (850 MHz) 7.76 dBd
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC pour un
environnement non contrôlé. L'antenne doit être installé de façon à garder une distance
minimale de 20 centimètres entre la source de rayonnements et votre corps. Gain de l'antenne
doit être ci-dessous:
Bande de fréquence Gain
Band II (1 900 MHz) 9.01 dBi
Band V (850 MHz) 7.76 dBd
![](/img.php?id=2626970&img=bg46.png)
UL865-N3G Hardware User Guide
1VV0301177 Rev 2– 2015-04-20
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights
Reserved. Page 70 of 70
Mod. 0805 2011-07 Rev.2
L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre antenne ou
autreémetteur.
FCC Class B digital device notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Labelling Requirements for the Host device
The host device shall be properly labelled to identify the modules within the host device. The
certification label of the module shall be clearly visible at all times when installed in the host
device, otherwise the host device must be labelled to display the FCC ID and IC of the
module, preceded by the words "Contains transmitter module", or the word "Contains", or
similar wording expressing the same meaning, as follows:
Contains FCC ID: RI7UL865N3G
Contains IC: 5131A- UL865N3G
L'appareil hôte doit être étiqueté comme il faut pour permettre l'identification des modules qui
s'y trouvent. L'étiquette de certification du module donné doit être posée sur l'appareil hôte à
un endroit bien en vue en tout temps. En l'absence d'étiquette, l'appareil hôte doit porter une
étiquette donnant le FCC ID et le IC du module, précédé des mots « Contient un module
d'émission », du mot « Contient » ou d'une formulation similaire exprimant le même sens,
comme suit :
Contains FCC ID: RI7UL865N3G
Contains IC: 5131A- UL865N3G
CAN ICES-3 (B) / NMB-3 (B)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003.
