Outdoor CPE8000
Installation and Configuration Guide V1.0
Page 2
Table of contents
1.
OVERVIEW
................................................................................................................................................ 4
1.1. USER INTERFACE SPECIFICATION ......................................................................................................... 4
1.2. LTE INTERFACE SPECIFICATION ........................................................................................................... 4
2.
GETTINGSTARTED
................................................................................................................................. 4
2.1. PACKING LIST AND CPE UNIT ............................................................................................................... 4
2.2. INSTALLING THE EQUIPMENT ................................................................................................................. 5
Device logic connection
...................................................................................................................... 5
Installing Outdoor Unit (ODU)
........................................................................................................... 6
LED Display
......................................................................................................................................... 7
3.
MANAGING CPE DEVICE
...................................................................................................................... 8
3.1. WEB LOGIN--192.168.0.1 ................................................................................................................... 8
3.2. LTE STATUS DISPLAY-OVERVIEW ........................................................................................................ 8
3.3. LTE CONFIGURATION .......................................................................................................................... 10
Radio Settings-ND&S Configure
..................................................................................................... 10
APN Setting-Bearer configure
......................................................................................................... 10
3.4. ENODEB SELECTION ........................................................................................................................... 12
PLMN Selection
................................................................................................................................. 12
eNodeB Setting
................................................................................................................................. 13
3.5. NETWORK CONFIGURATION ................................................................................................................ 14
Modify MTU Size
............................................................................................................................... 14
Change model from Router to Bridge
............................................................................................ 15
3.6. SERVICE CONFIGURATION-DMZ SETTING .......................................................................................... 16
3.7. SYSTEM MAINTENANCE ....................................................................................................................... 16
Telnet Enable
..................................................................................................................................... 16
TR069 Configuration
......................................................................................................................... 17
Firmware Upgrade over HTTP
........................................................................................................ 18

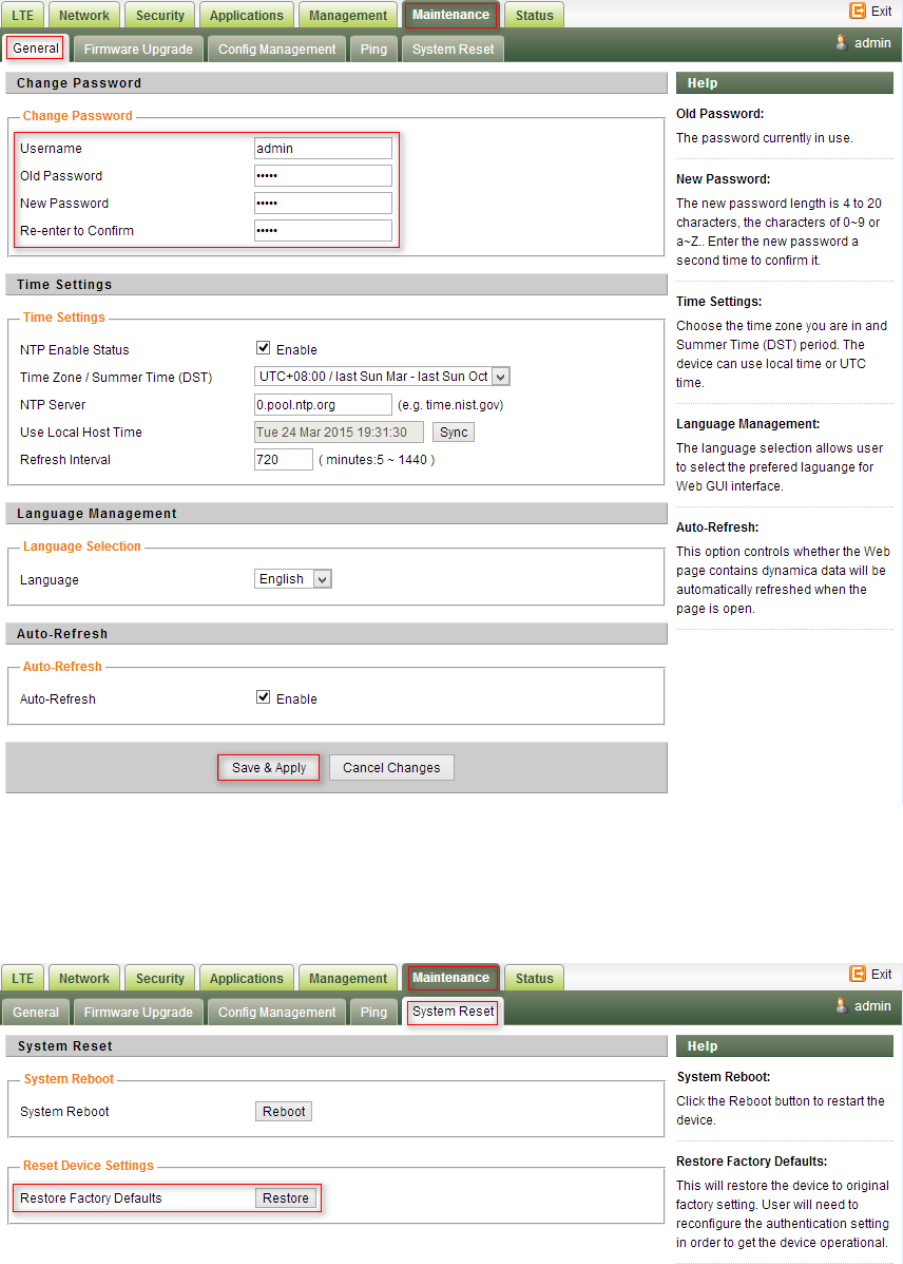

Change Password
............................................................................................................................. 19
Load Factory Default
........................................................................................................................ 19
4.
FAQ AND TROUBLESHOOTING
......................................................................................................... 20
Page 3
PLEASE READ THESE SAFETY PRECAUTIONS!
RF Energy Health Hazard
The radio equipment described in this guide uses radio frequency transmitters. Although the
power level is low, the concentrated energy from a directional antenna may pose a health
hazard.
Do not allow people to come in close proximity to the front of the antenna while the transmitter is
operating.
Protection from Lightning
Before connecting this instrument to the power line, make sure that the voltage of the power
source matches the requirements of the instrument. The unit must be standards.
Disposal and Recycling Information
Pursuant to the WEEE EU Directive electronic and electrical waste must not be disposed of
with unsorted waste.Please contact your local recycling authority for disposal of this product.
Reduction of Hazardous Substances
This CPE is compliant with the EU Registration, Evaluation, Authorisation and Restriction
ofChemicals (REACH) Regulation (Regulation No 1907/2006/EC of the European Parliament
and of the Council) and the EU Restriction of Hazardous Substances (RoHS)
Directive(Directive 2002/95/EC of the European Parliament and of the Council).
FCC Notice, USA
The CPE8000 units comply with Part 25 of the FCC rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received including interference that may cause undesired
operation.
This device is specifically designed to be used under Part 15, Subpart E of the FCC Rules and
Regulations. Any unauthorized modification or changes to this device may void the user’s authority to
operate this device.
Furthermore, this device is intended to be used only when installed in accordance with the instructions
outlined in this manual. Failure to comply with these instructions may also void the user’s authority to
operate this device and/or the manufacturer’s warranty.
The grantee is not responsible for any changes or modifications not expressly approved by the party
responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
Page 4
1.
Overview

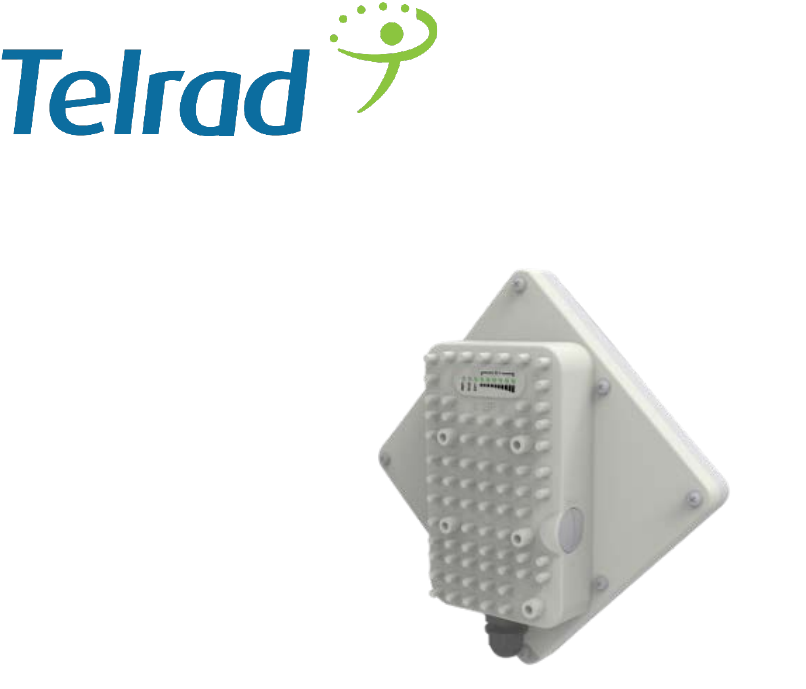

The ODU is a high performance 4G LTE outdoor CPE product designed
to enable quick LTE fixed data service deployment to the remote
customers. It provides high data throughput and networking features to
end users who need both bandwidth and quality service in the remote
area.
1.1.
User Interface Specification
Model
Description & User Interface
ODU
- Panel antenna:
B3_7 14dBi, B20 7dBi, B38_40_41 13dBi, B42_43 15dBi
- 1 RJ45 10/100M LAN Port
- PWR, RUN, LAN, SIM, LTE(1-5) LEDs
- 48 VDC PoE supply, ODU Power <10 Watts
- Dimensions: 203 mm (L) × 203 mm (W) × 76.5 mm (D)
- Weight: < 2 Kg
1.2.
LTE Interface Specification
Frequency Bands Band 3_7 / 20 / 38_40_41 / 42_43
Radio Access 3GPP LTE Release9
Operation Mode TDD, 2RX, 1TXD, DLMIMO
Output Power Up to 23 dBm at antenna port
Throughput Category 4
SIM Support SIM card slot
2.
GettingStarted
2.1.
Packing list and CPE Unit
Page 5
Upon receiving the product, please unpack the product package carefully. Each product is shipped with
the following items:
Table 2-1 Packing List
Outdoor CPE Products
Quantity
ODU unit 1
Power adapter 1
Power Line 1
Mounting brackets 1
PC Ethernet Cable 1
If you find any of the items is missing, please contact our local distributor immediately.
CPE Unit：
Unpacking the Equipment Table 2-1 lists all the standard parts that are supplied in your LTE CPE
Unit Installation Package. Please take the time to unpack the package and check its contents
against this list.
2.2.
Installing the Equipment
Device logic connection
For outdoor CPE product, it is suggested that the CPE device be installed in a shaded area to
avoid direct sun light exposure which may cause over heat in certain extreme weather condition.
The CPE should be properly grounded for proper protection against lighting or power surge.
To power on the device, the outdoor CPE must uses a 48V PoE integrated DC power supply
adapter. The power adapters can operate in 90-250V AC range and therefore can be used in
different country. Once the device is powered up, the user should wait for about 2 minutes before
Page 6
the device becomes operational. For CPE with the RUN LED indicator, a slowly flashing light
indicates the system has completed the startup procedure.
To connect PC, LAN switch or other type of IP device to the CPE product, the user should use
standard CAT5 Ethernet cable and connect to the appropriate LAN port. Once connect the CPE
LAN LED indicator should come on.

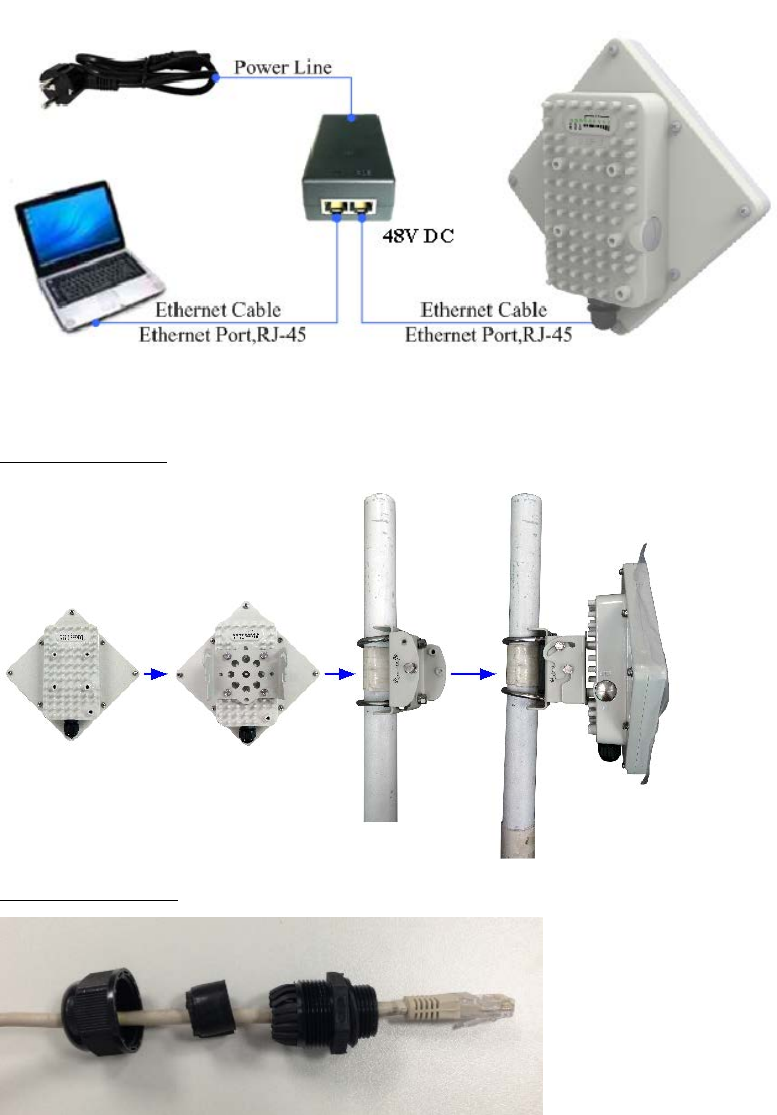

Installing Outdoor Unit (ODU)
Mounting Bracket::
Header Connection:
Page 7
LED Display
LED
Indicator
Function
Description
PWR Power Indicator Green Color – Device is powered on
RUN System Run Indicator Fast Blinking – Device is rebooting
Slow Blinking – Device is in normal operation
LAN LAN port status Solid Green – LAN port is up
Blinking Green – LAN data activity in progress
SIM SIM Card Indicator Light is on – SIM card state ready.
RF(5LEDs) RF Signal Strength
5 level signal strengths indication by 5 green
LEDs
1 green LED: RSRP<= -118dBm
2 green LEDS: -118 dBm <=RSRP< -105 dBm
3 green LEDS:-105dBm<=RSRP< -95dBm
4 green LEDS:-95dBm<=RSRP< -85dBm
5 green LEDS:-85dBm<=RSRP
Page 8
3.
Managing CPE Device
The ODU supports several management interfaces including TELNET, WEB, and TR-069 for
local or remote managements. However normal end user is only provided with WEB based
access
3.1.
WEB Login--192.168.0.1
It is a preferred to setup the CPE using a Web browser from a local PC connected to device LAN
port. The user should ensure that the connected PC acquired IP address via DHCP from the device.
After IP connectivity is established between the PC and CPE device, the user may launch a Web
browser and specify http://192.168.0.1 in the address bar. A window will pop up requesting
password. Input the user login password and then click the “Log In” button. After successful log on,
the default home page of the WEB GUI interface will appear. Note that the default user password
is “admin123”.
3.2.
LTE Status Display-Overview

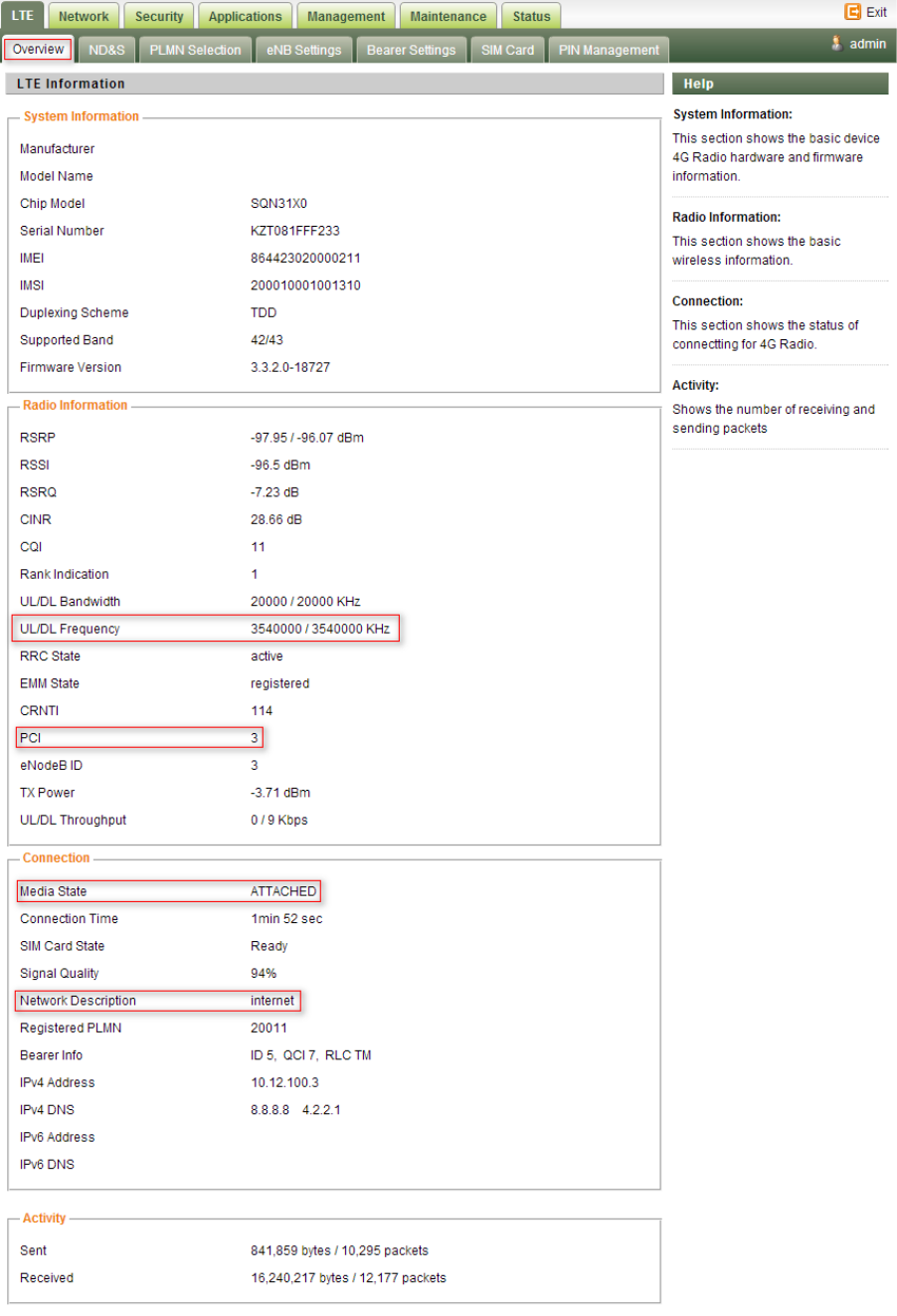

Once the user is logged in, the following window LTE Information window will be prompted for
viewing. The page gives quite detailed LTE information including the System Information, the
UL/DL Frequency, the PCI and the Connection status
Page 9
Page 10
3.3.
LTE Configuration
Radio Settings-ND&S Configure
There is a LTE radio button which is used for the user can turn the radio on or off to restart the
LTE module.
The CPE would scan frequency auto as soon as the system has completed the startup procedure,
and you can configure the fixed Frequency manual as follow:
Note: After configure any parameters of the device, you must click the “
Save & Apply
” button to
save the configuration otherwise the configuration will not take effect.
APN Setting-Bearer configure

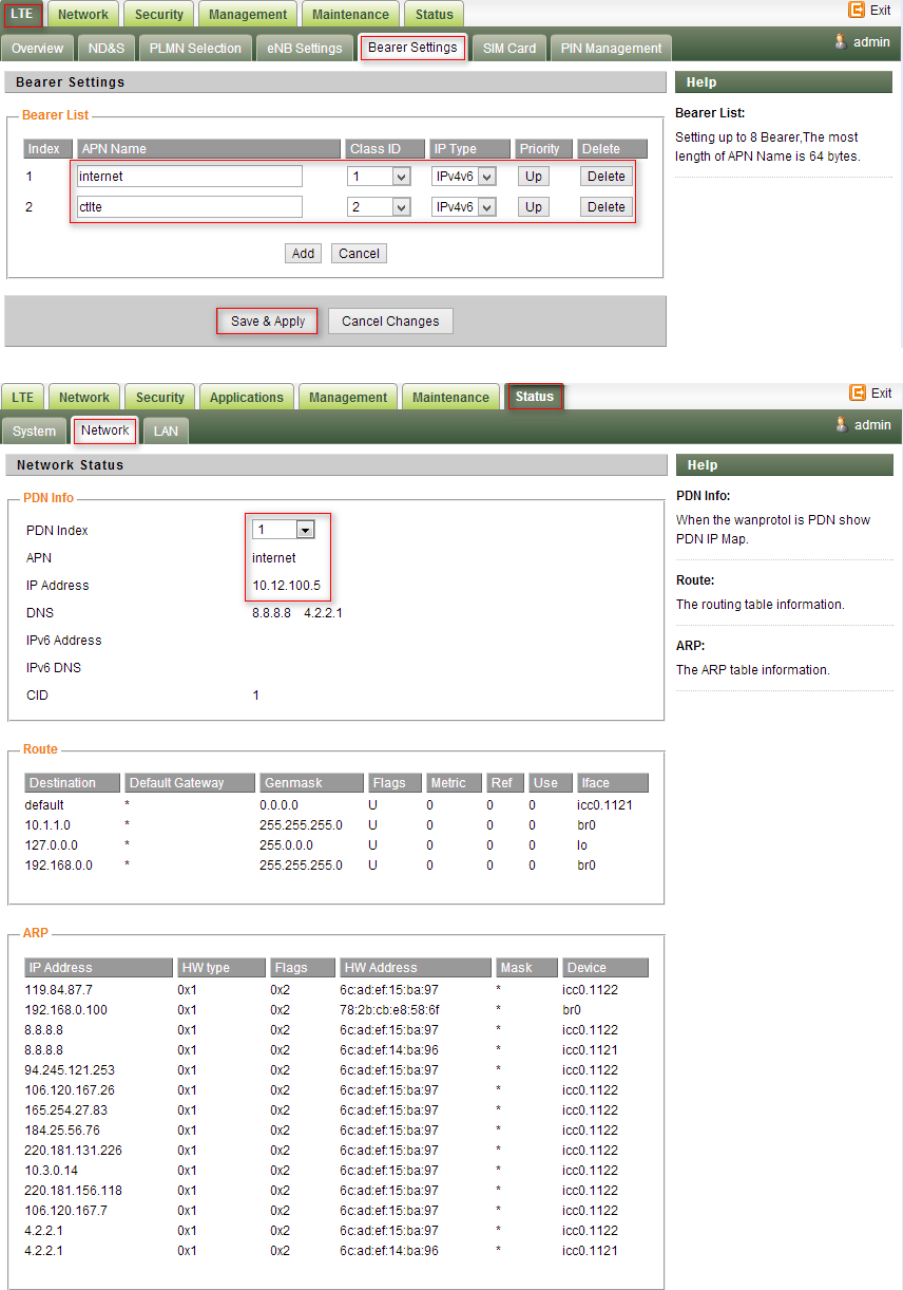

The Bearer List is design for the operator to configure the APN. You can configure the only one
APN for all the service classes, as follow:
And the operator also can configure two APNs for Manage and data service classes. As follow
picture, the Management Data Class will be transport via the “internet“ network and the Data Traffic
Class will be transport via the “ctlte” network.
Page 11

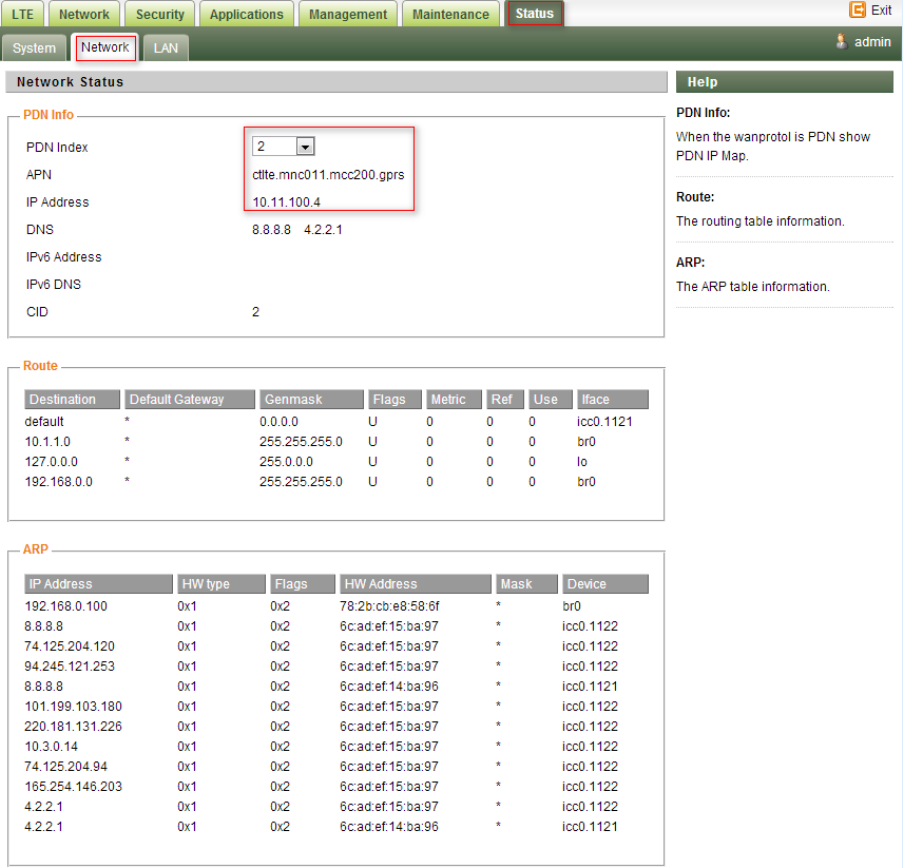

And the CPE will obtain two different IP for two networks, as follow:
Page 12
3.4.
eNodeB Selection
The CPE would lock on the ND&S to connecting after the operator enabled the
Lock
ND&S
when
the Co-Channel Interference (CCI) is around.
PLMN Selection
Setting “
Network Mode
” as
Nomadic
, then click the “
Search
” button, After the CPE searched the
“
PLMN ID
”, select the applicable PLMN ID and click “
Add Info list
” button to add the PLMN ID to
the PLMN-List.
Page 13
eNodeB Setting

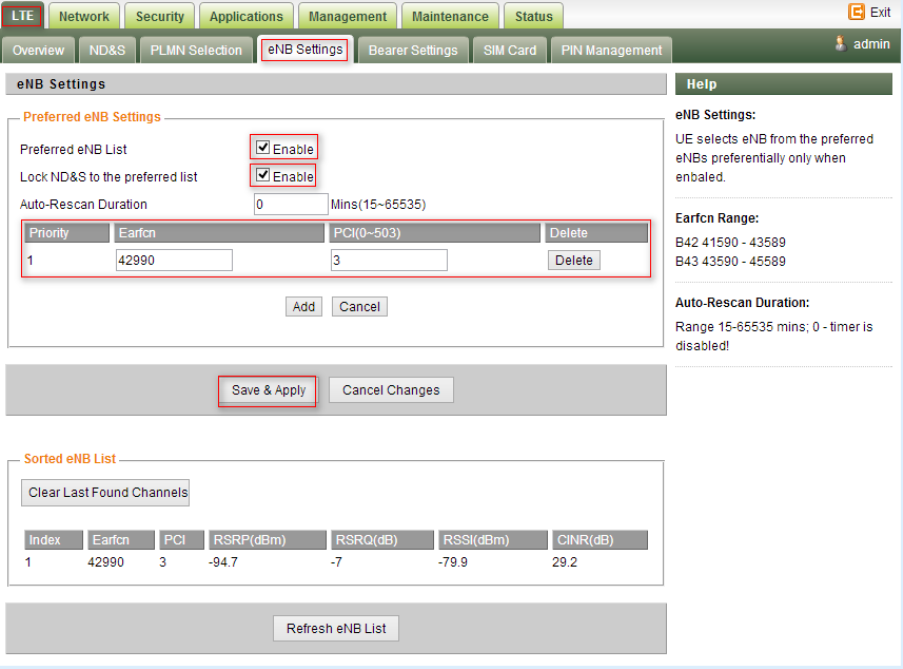

After Enable the
Preferred eNB Lis
t and configure the
Earfcn/PCI
, the CPE will scan the
corresponding ND&S and connecting to
LTE
— >eNB Settings— >Enable Preferred eNB List —>Enable Lock ND&S to the preferred
list—>add the Earfcn and PCI—>Save & Apply
Page 14
3.5.
Network Configuration
Modify MTU Size
The default Operation Mode is Router, and the PC of the user that connected to device LAN port
will obtain IP address via DHCP server of the device. The default MTU Size is 1428, user can
modify the MTU Size if necessary
Page 15
Change model from Router to Bridge
The operation mode could be changed from Router to Bridge if necessary .Change model as follow
picture:
Network—>Internet—>L3 Bridge—>Save & Apply
The operator’s PC which connected the LAN port of CPE will auto obtain the IP of APN Net
when the CPE attached to the APN network, then you can connected to the APN network for
Page 16
data services. And the PC should configure a static IP address as 10.1.1.x manual in order to
visit the CPE managing page http://10.1.1.1 .
3.6.
Service Configuration-DMZ Setting
By enabling this option will make the specified local LAN host (DMZ IP) was exposed to the Internet,
all ports can be accessed by other computers on the Internet.
3.7.
System Maintenance
WEB GUI menu to configure the device in more details (see diagram below). The configuration is
easy to use and self explanatory.
Telnet Enable(for beta release)
The users can telnet to the CPE in the beta release when set Telnet Management as Enable All.
cmd shell and run command:
telnet 192.168.0.1
Login: admin
Password: root123
Page 17
TR069 Configuration
After setting the Device Management Mode as TR069, you must also configure the validity acs url
for monitoring the device via standard TR-069 ACS systems.
Page 18
Firmware Upgrade over HTTP
Select the
Default settings
to reset the CPE after upgrade
Click on the Browser button to select the firmware file to be uploaded to the device.
Click the”
Upgrade
” button to begin the upgrade process.
Please do not interrupt the upgrade process and continue to wait for the following pop window to
appear. The CPE will reboot after upgrade successful.
Page 19
Change Password
You can select the language or modify the web login password via the Maintenance page.
Load Factory Default
Click the “
Restore
” button will restore the device to original factory setting. User will need to
reconfigure the authentication setting in order to get the device operational.
Maintance—>System Rest—>Restore
Page 20
4.
FAQ and Troubleshooting
1)
My PC cannot connect to the CPE.
Re-plug the PC Ethernet cable and check if the PC LAN connection is up or showing activity.
Check if the system run LED is on. If it is not, check the power cord and make sure it is
connected properly. Also verify that the AC power supply is available.
If the PC LAN shows no activity and system run LED is off but the power cord is connected
properly and there is AC supply, then it is likely the adapter is damaged. Please contact
distributor to obtain replacement part.
2)
My PC cannot acquire IP from the CPE.
First check if the NIC is up and working properly. Then check the PC NIC configuration and
make sure the DHCP is enabled.
Open the MS-DOS window, enter “ipconfig /release” and “ipconfig /renew” commands and
see if PC can obtain IP correctly.
If the problem persists, please contact the operator or distributor for further diagnose.
3)
My CPE networking is not working properly.
You may want to check if the LTE connection is up and running properly. You can do this
by login the WEB GUI and check the Interface Info page.
You may want to perform a factory reset and see if the problem is being corrected. You
can do this by log into the WEB GUI using “admin” password and perform restore the unit
to default factory setting.
If the problem cannot be corrected by factory reset, please contact the operator or
distributor for further diagnose.
4)
I forget the login password and like to reset the unit to factory default.
Please contact the operator or distributor and give them the MAC address of the unit. The
operator or distributor can issue you a RESET password for you to enter in the WEB login
window.
After the unit is reset to factory default, you can login using the default password.

Navigation menu
