Teltronic U PTRKTTRM300410 TRM-300 TETRA Radiomodem User Manual
Teltronic S.A.U. TRM-300 TETRA Radiomodem
User Manual
en
TRM-300 TETRA Radiomodem
Integration Guide
Code: F070033PT
Release: 05.01
© PowerTrunk Inc.
TRM-300 / Integration guide
F070033PT_5.1_en
Page 2 of 26
en
WASTE MANAGEMENT
The symbol means that the product must be taken to separate collection at the
product end-of life. Do not dispose of these products as unsorted municipal
waste.
NOTE
PowerTrunk Inc. is the subsidiary of Teltronic S.A.U. responsible for business development, distribution and customer
support for Teltronic’s Land Mobile Radio products in North America. The company is headquartered in New York City.
Teltronic S.A.U. distributes the same products for Land Mobile Radio under different trademarks and brand names in
other regions of the world.
Disclaimer
Although every reasonable effort has been made to ensure the accuracy of the information contained herein and any
other referred document, this should not be construed as a commitment on the part of Teltronic S.A.U. and/or
PowerTrunk Inc., and the liability of Teltronic S.A.U. and/or PowerTrunk Inc. for any errors and omissions shall be
limited to the correction of such errors and omissions. Teltronic S.A.U. and/or PowerTrunk Inc. welcomes any comment
as a way to improve any delivered documentation.
The information contained herein has been prepared for the use of appropriately trained personnel, and it is intended
for the purpose of the agreement under which the information is submitted. Any party using or relying upon this
information assumes full responsibility for such use and in no event shall Teltronic S.A.U. and/or PowerTrunk Inc. be
liable to anyone for especial, collateral, incidental, or consequential damages in connection with or arising out of the
use of this information.
The information or statements given in these documents regarding the suitability, capacity or performance of the
mentioned hardware or software products cannot be considered binding but shall be defined in the agreement made
between Teltronic S.A.U. and/or PowerTrunk Inc. and the customer.
Teltronic S.A.U. and/or PowerTrunk Inc. reserves the right to revise these documents and to make changes to its
content at any time, without prior notification.
Copyrights
No part of the information contained herein and the other referred documents may be copied, distributed or transmitted
by any means to any other party without prior written permission of Teltronic S.A.U. and/or PowerTrunk Inc. The
distribution of this document may be also covered by NDA (non-disclosure agreement) between Teltronic S.A.U. and/or
PowerTrunk Inc. and the receiver.
Please also note that part of these contents even may be covered by patent rights.
This document, the referred documents and the described product are considered protected by copyright according to
the applicable laws.
PowerTrunk and the PowerTrunk logo are registered trademarks of Teltronic S.A.U.
Copyright © PowerTrunk Inc. All rights reserved
TRM-300 / Integration guide
F070033PT_5.1_en
Page 3 of 26
en
CONTENTS
1 INTRODUCTION ........................................................................................................... 5
2 REFERENCES .............................................................................................................. 5
3 ABBREVIATIONS ......................................................................................................... 6
4 GUARANTEE ................................................................................................................ 6
5 SAFETY PRECAUTIONS ............................................................................................. 7
5.1 GENERAL ....................................................................................................................... 7
5.2 EXPOSURE TO RADIOFREQUENCY ENERGY ............................................................ 7
5.3 ELECTROMAGNETIC COMPATIBILITY ......................................................................... 7
5.4 VEHICLES ...................................................................................................................... 8
5.5 POTENTIALLY EXPLOSIVE ENVIRONMENTS .............................................................. 8
6 ESD HANDLING PRECAUTIONS ................................................................................ 9
7 PARTS REQUIRED FOR THE INTEGRATION .......................................................... 10
7.1 PARTS CONTAINED IN THE PACK ............................................................................. 10
7.2 ADDITIONAL PARTS .................................................................................................... 10
8 MECHANICAL INTEGRATION ................................................................................... 11

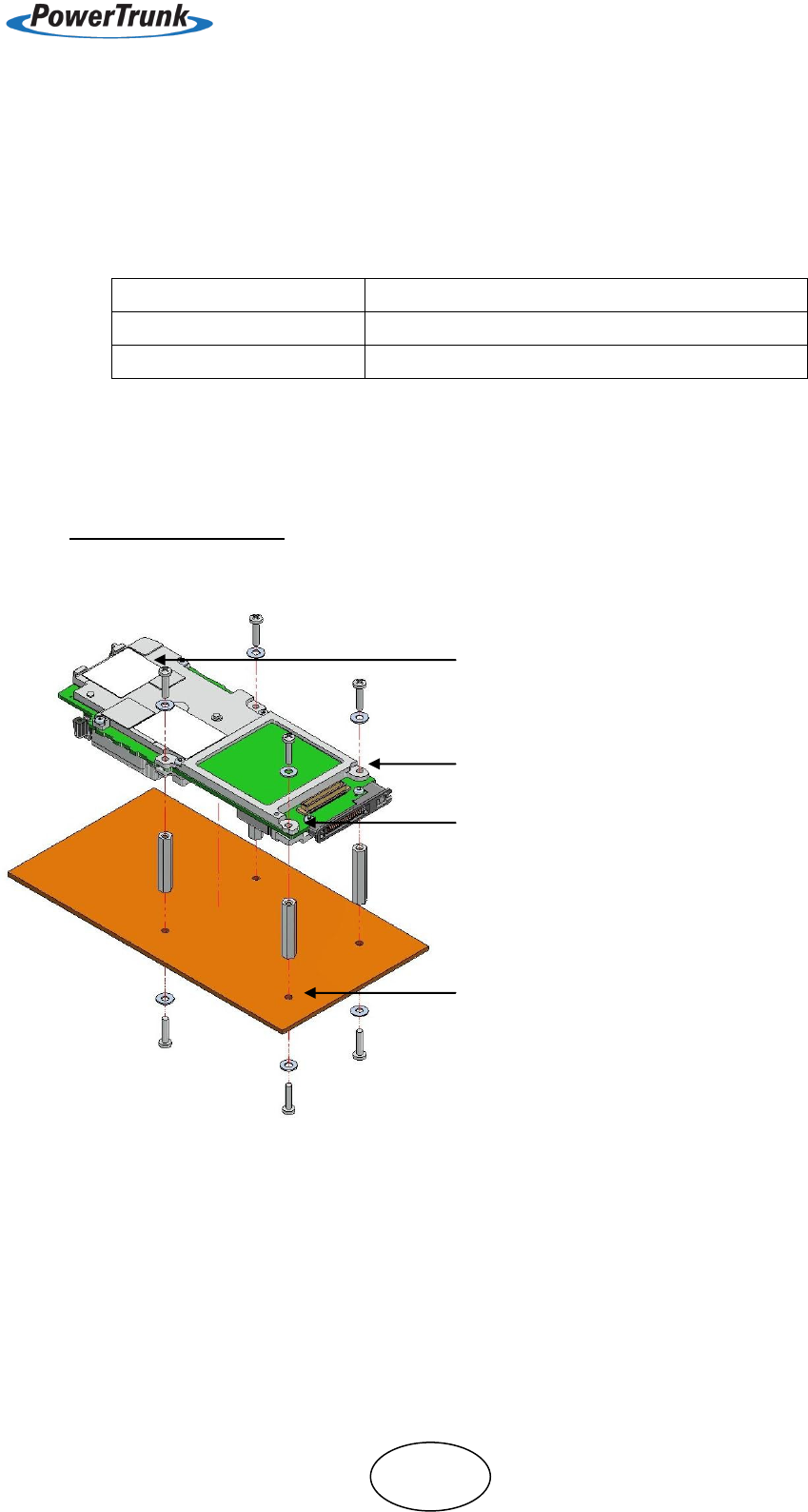

8.1 STANDARD MOUNTING .............................................................................................. 11

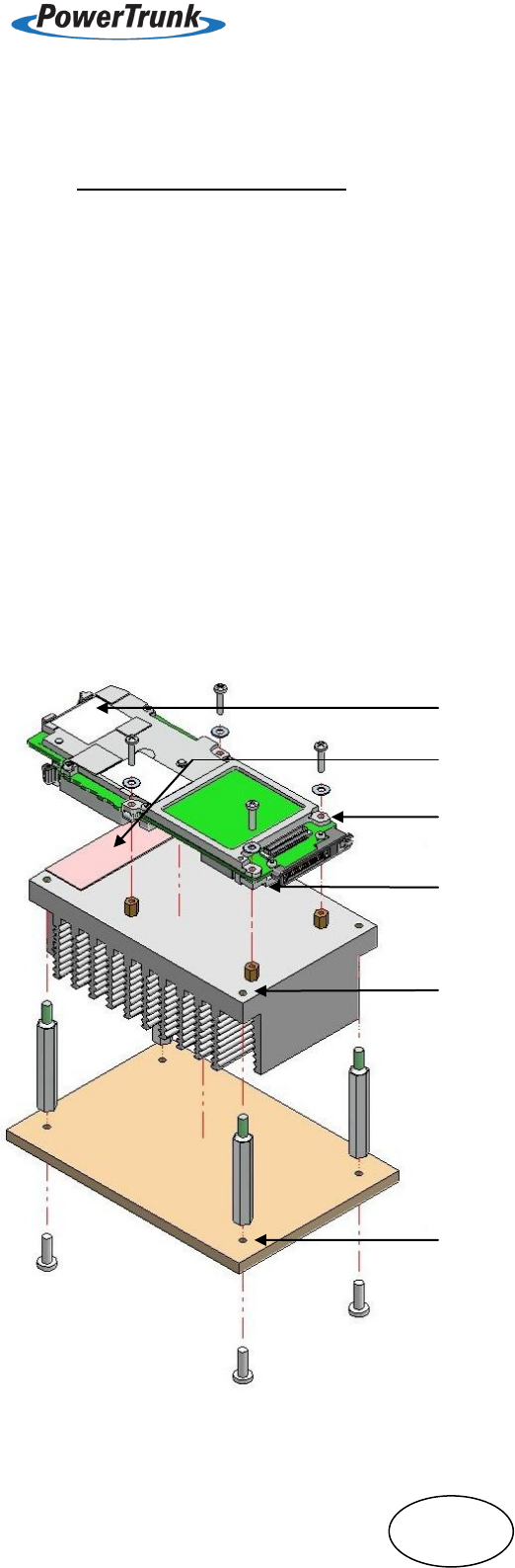

8.2 MOUNTING WITH HEATSINK ...................................................................................... 12
8.3 POWER AUXILIARY CABLE ........................................................................................ 13
8.4 CARE AND MAINTENANCE ......................................................................................... 13
9 ELECTRICAL INTEGRATION .................................................................................... 14
9.1 GROUNDING ................................................................................................................ 15
9.2 POWER SUPPLY.......................................................................................................... 15
9.3 DATA AND CONTROL INTERFACE ............................................................................. 16
9.3.1 SERIAL INTERFACE ............................................................................................................... 16

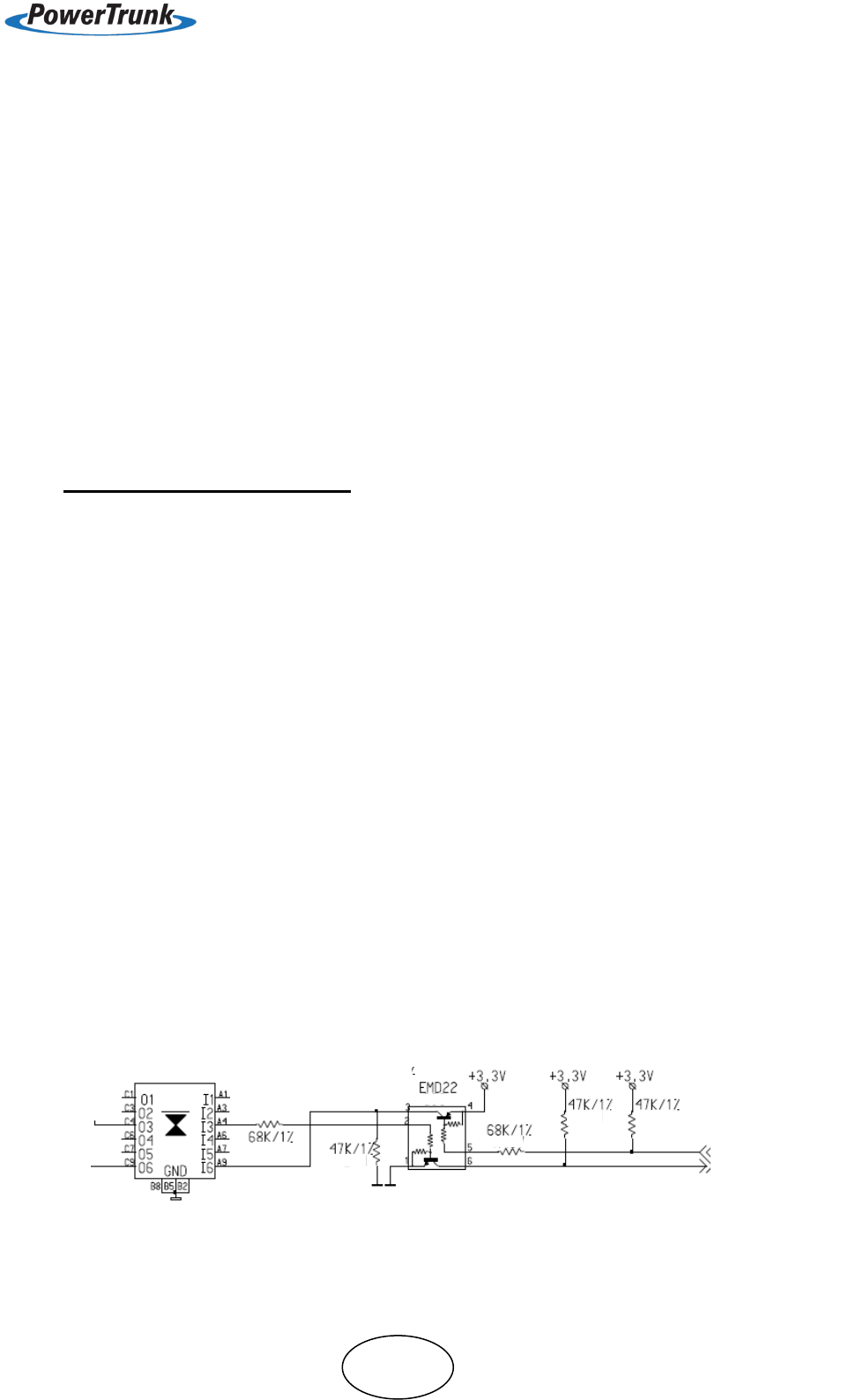

9.3.2 PROGRAMMABLE INPUT/OUTPUT INTERFACE ......................................................................... 16
9.3.3 SWITCH ON/OFF INTERFACE ................................................................................................. 17
10 RF AND ANTENNA INTEGRATION ........................................................................... 18
10.1 TETRA ANTENNA ........................................................................................................ 18
10.2 GPS ANTENNA ............................................................................................................. 19
10.3 ANTENNA INSTALLATION ........................................................................................... 20
11 START-UP AND CHECK ............................................................................................ 21
TRM-300 / Integration guide
F070033PT_5.1_en
Page 4 of 26
en
12 REGULATORY COMPLIANCE AND CERTIFICATIONS ........................................... 23
12.1 ABOUT THE FINAL PRODUCT .................................................................................... 23
12.2 FREQUENCY RANGE .................................................................................................. 24

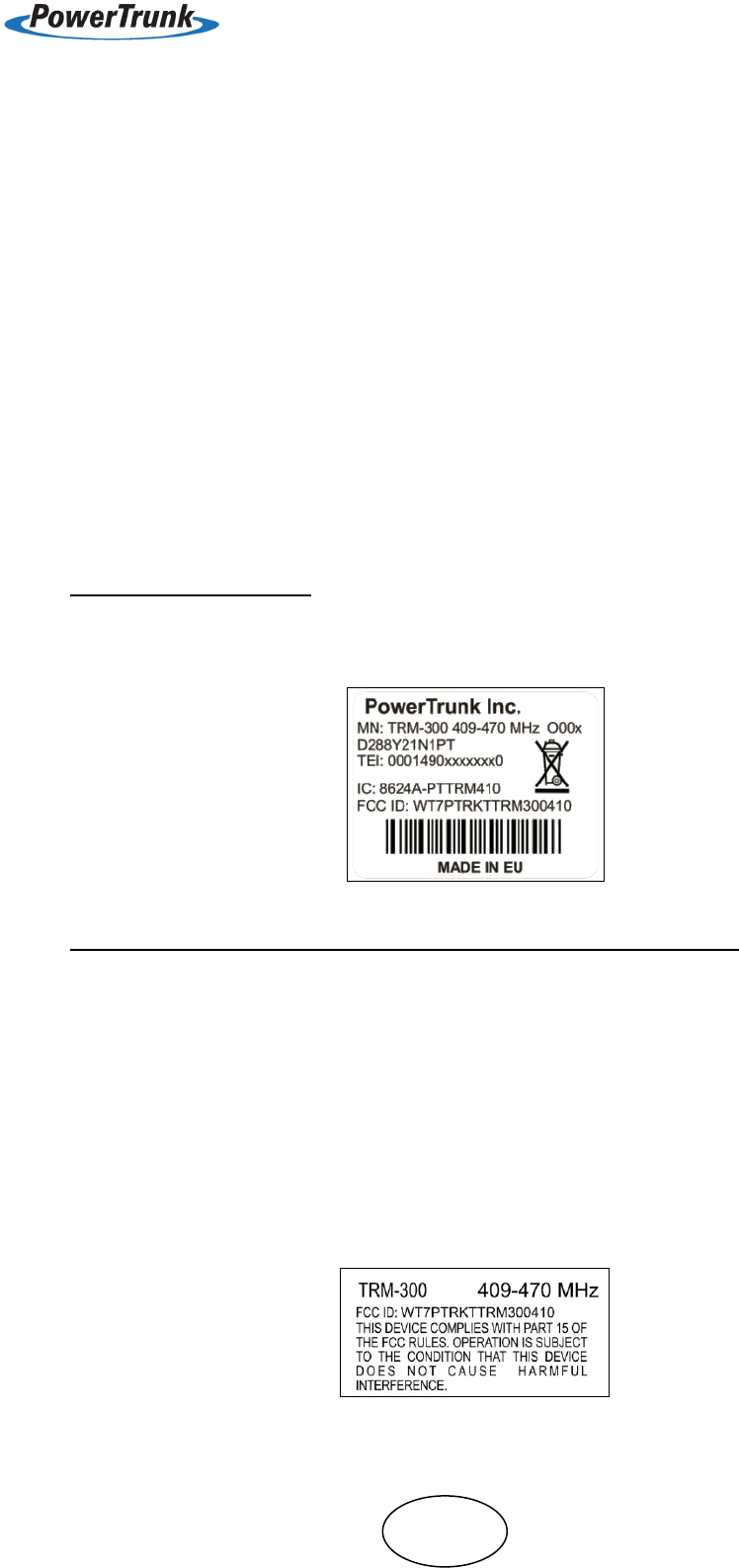

12.3 IDENTIFICATION LABELS ........................................................................................... 25
12.4 INFORMATION ON SAFETY AND ELECTROMAGNETIC COMPATIBILITY ............... 25
12.5 RF EXPOSURE AND SAR REQUIREMENTS ............................................................... 26
12.6 EXTERNAL INTERFACE SPECIFICATION .................................................................. 26
TRM-300 / Integration guide
F070033PT_5.1_en
Page 5 of 26
en
1 INTRODUCTION
This document provides instructions for the TRM-300 TETRA radiomodem hardware integration. It is
intended to help the system integrator to integrate the TRM-300 into a remote final hardware application.
The document describes the mechanical, electrical and radiofrequency integration as well as the antenna
installation.
The TRM-300 has not a user interface (display or keypad) and it is designed to be managed from a data
application through the serial interface via AT commands or PPP connection. The equipment is ready to
transmit and receive audio in PCM digital format.
For more information on the TRM-300 features or its accessories, see the
Functional Design Specification (included in the Technical Reference Documentation).
For more information on the TRM-300 usage and software integration, see the
T2PRO_Programming Guide (included in the T2PRO software tool) and the
Data Service Reference Guide (included in the Technical Reference Documentation).
Before integrating the product, read carefully this guide.
Keep the guide for future reference, it contains important information.
NOTE:
This product is sensitive to electro-static discharge.
Therefore, ESD handling precautions are to be carefully observed.
2 REFERENCES
[1] FCS1362:2010 UK Code of Practice for the installation of mobile radio and related ancillary
equipment in land based vehicles
http://www.fcs.org.uk/my%20files/fcs_pdfs/codesofpractice/fcs1362_2010.pdf
[2] Transmitter Module Equipment Authorization Guide, 996369 D01 Module Certification Guide v01r04
https://apps.fcc.gov/kdb/GetAttachment.html?id=cIpbiLbTdDomywhbMgK6ng%3D%3D
TRM-300 / Integration guide
F070033PT_5.1_en
Page 6 of 26
en
3 ABBREVIATIONS
EMC Electromagnetic Compatibility
ESD Electrostatic Discharge
GPS Global Positioning System
PCM Pulse Code Modulation
PPP Point to Point Protocol
RF Radiofrequency
RSSI Received Signal Strength Indication
SMT Surface Mount Technology
TCF Technical Construction File
TETRA TErrestrial Trunked RAdio
UART Universal Asynchronous Receiver/Transmitter
USB Universal Serial Bus
VSWR Voltage Standing Wave Ratio
4 GUARANTEE
PowerTrunk Inc. guarantees the repair or replacement, free of charge, of the products that present defects
due to anomalies, according to the general guarantee conditions of PowerTrunk Inc.
PowerTrunk Inc. will not, under any circumstances, be held responsible for problems or damage caused by
any accessory or auxiliary element that has not been approved or supplied by PowerTrunk Inc. for this
product. It will not guarantee that this product will function in conjunction with an auxiliary unit or accessory
that has not been approved or supplied by PowerTrunk Inc. for this product.
PowerTrunk Inc. will not be held responsible for damage caused by installation performed by staff who is not
authorised by PowerTrunk Inc.
TRM-300 / Integration guide
F070033PT_5.1_en
Page 7 of 26
en
5 SAFETY PRECAUTIONS
5.1 GENERAL
PowerTrunk strongly recommends performing the integration by people with experience in the field of
radiofrequency technologies.
PowerTrunk has approved a wide range of accessories for the terminal. These accessories have passed all
types of tests that ensure their suitability and safety for the use for which they are intended. So, it is
recommended only to use approved accessories.
For your safety, only allow PowerTrunk qualified staff to disassemble/repair the terminal or its accessories.
If the disassemble/repair is not correct, it may be dangerous and will void the guarantee of the terminal.
Make sure that all specifications within this document are followed, especially concerning temperature, supply
voltage and antenna parameters. Do not use the terminal without the TETRA antenna.
During prolonged operating periods in transmission mode high temperatures may be reached at the back of
the equipment where the power amplifier heatsink is located. Burns may result if bare skin comes into contact
with an uncovered antenna during radio transmissions.
Make sure that the final product operates according to the local regulations. As detailed in Chapter about
Regulatory Compliance and Certifications, the equipment has been designed to fulfill the applicable
compliance regulations.
5.2 EXPOSURE TO RADIOFREQUENCY ENERGY
This product makes use of radio spectrum and emits radiofrequency energy. Care should be taken when the
product is integrated in systems. The exposure level is dependent on the radiating section (antenna used and
its installation). Radiation performance is always the responsibility of the integrator.
The transmitter and antenna must not be situated or operated in conjunction with any other transmitter or its
antenna. Failure to observe this warning could produce an RF exposure condition.
TRM-300 is restricted to occupational/controller use to safety RF energy exposure limits. This
radio is NOT authorized for general population.
Use only accessories and antennas approved by PowerTrunk. Use of non-approved accessories
and antennas may exceed RF energy exposure limits.
5.3 ELECTROMAGNETIC COMPATIBILITY
Most electronic devices are susceptible to electromagnetic interference if they are not properly shielded,
designed or configured for electromagnetic compatibility.
Always respect the current regulations of the area you are in to avoid these compatibility conflicts.
Turn off the terminal whenever its use is prohibited, when it may cause interference or be hazardous, for
example, at hospitals or health care premises, where equipment sensitive to external RF radiation may be
being used.
Aircraft
Follow all existing restrictions, according to the regulations of the airlines or the instructions of the crew.
TRM-300 / Integration guide
F070033PT_5.1_en
Page 8 of 26
en
Pacemakers
Pacemaker manufacturers recommend keeping a minimum safety distance between a radio terminal and a
pacemaker, to avoid possible interferences with the latter. People with pacemakers should turn off the
terminal immediately if, for any reason, it is suspected to cause interference.
Hearing aids or other medical devices
Some digital devices may interfere with these appliances. If this interference occurs, contact your service
supplier or the manufacturer of the hearing aid or medical device.
5.4 VEHICLES
Although the equipment has been approved to assure its safety in a vehicular installation (e-mark), the RF
signals may affect the electronic systems of motor vehicles that could be not well installed or protected, for
example, electronic injection systems, electronic anti-locking brake systems (ABS), speed control systems or
airbag systems. For further information, verify these aspects of your vehicle, or equipment that has been
added, with the corresponding manufacturers.
PowerTrunk recommends do not place the terminal in the area above the airbag or in the area where it would
inflate. Airbags inflate with great force and the terminal may be thrown, causing serious injury to the
occupants of the vehicle.
The complete installation should be carried out in accordance with FCS1362. UK Code of Practice for the
installation of mobile radio and related ancillary equipment in land based vehicles [1].
5.5 POTENTIALLY EXPLOSIVE ENVIRONMENTS
Disconnect the terminal when it is in an area where explosions may occur and obey all signs and instructions.
The areas where explosions may occur are usually, but not always, marked. These areas include fuel loading
areas, such as ship decks, petrol stations, premises for storage and transport of motor fuel or chemical
products, vehicles that use liquid gas petroleum and areas where the air contains chemical particles or
elements, as grain, powder or metallic particles.
Sparks in these areas may cause explosions or fire, with the subsequent risk of injury or even death.
TRM-300 / Integration guide
F070033PT_5.1_en
Page 9 of 26
en
6 ESD HANDLING PRECAUTIONS
This product is sensitive to electro-static discharge. Therefore, ESD handling precautions are to be carefully
observed:
- Handle the product only while wearing a grounded wrist (or similar device) strap and working at a static
free workstation.
- The product should be stored in an antistatic bag and in its original shipping packaging.
- If a wrist strap (or similar device) and static free workstation are not available, and the product must
be handled, use the following procedure to reduce the possibility of ESD damage.
- To discharge any static charge from your body, place one hand in contact with a grounded surface
before touching the product.
Keep your hand in contact with that grounded surface while handling the product. Do not touch any of
the electronic components and pick up the board only at the edges.
- Do not set the board down on a worksurface.
- Return boards to anti-static bags as soon as possible.
TRM-300 / Integration guide
F070033PT_5.1_en
Page 10 of 26
en

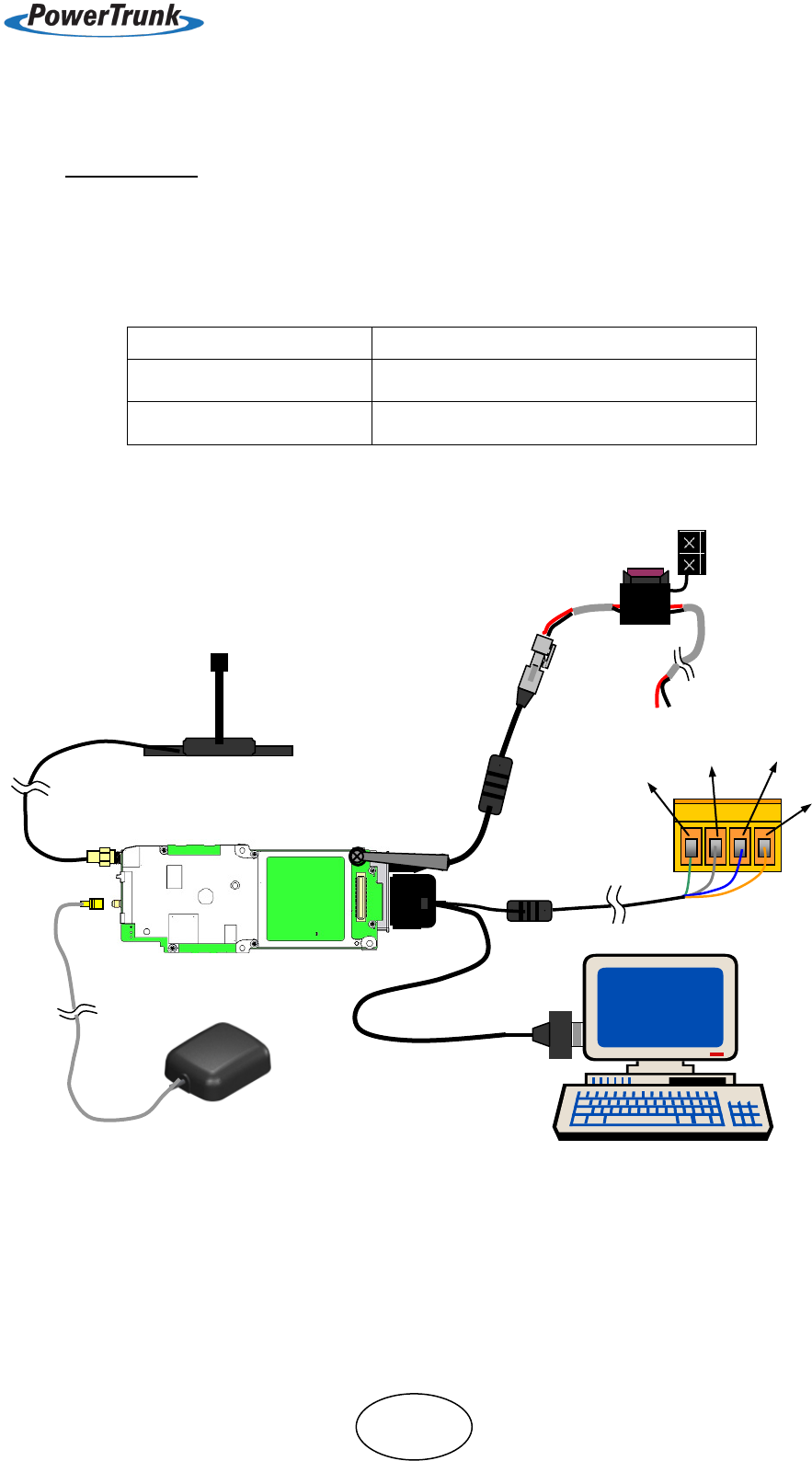

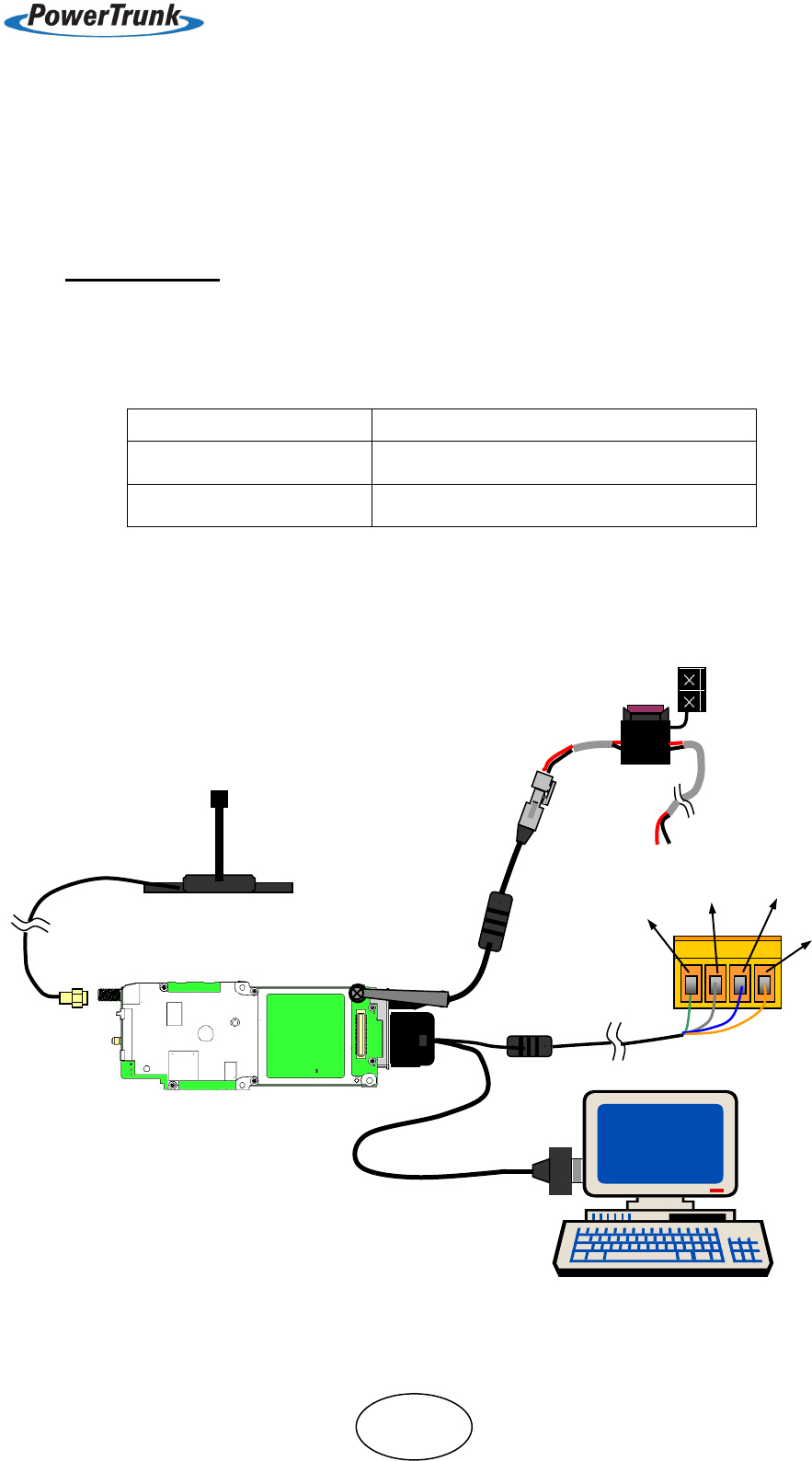

7 PARTS REQUIRED FOR THE INTEGRATION
7.1 PARTS CONTAINED IN THE PACK
Check that the pack includes the following parts:
- TRM-300 enclosed in an anti-ESD bag.
- Power auxiliary cable.
- Standard mounting kit, which includes screws, washers and spacers.
- Integration Guide at CD format.
7.2 ADDITIONAL PARTS
In addition to the parts of the pack, the following PowerTrunk accessories, detailed in the Functional Design
Specification, are recommended for the integration:
- 8VDC power cable.
- In case of availability of a voltage supply which is different from the TRM-300 nominal voltage,
a Voltage Adapter.
- Serial communication + I/O + Switch Cable (RS232 and USB models).
- TETRA Antenna, which must be of the same frequency band as TRM-300.
- In case of a TRM-300 configuration with GPS, a GPS Antenna.
- In case of applications with multislot data service, a Thermal Dissipator Kit.
Besides, a computer with USB or RS232 ports and Windows XP or Windows 7 operating system is required,
in which the following PowerTrunk software tools must be installed:
- Maintenance Kit.
- Programming Kit (which includes the T2PRO_Programming Guide).
TRM-300
Parts of
Standard mounting kit
Power auxiliary cable
TRM-300 / Integration guide
F070033PT_5.1_en
Page 11 of 26
en
8 MECHANICAL INTEGRATION
The following table defines the required environment conditions:
A mechanical enclosure is required of the integrator for environment protection.
There are two possible mountings for the TRM-300; standard mounting and mounting with heatsink.

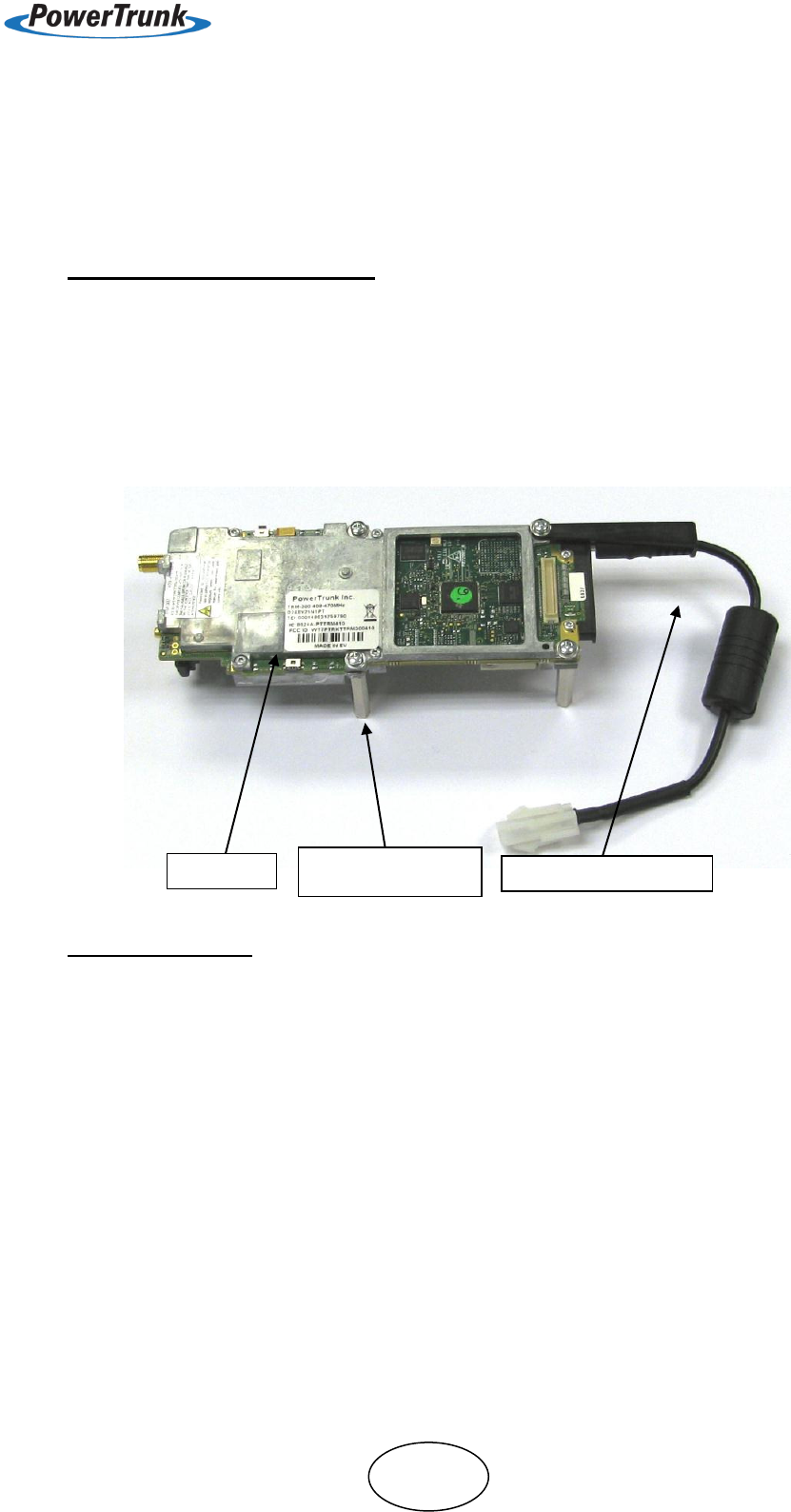

8.1 STANDARD MOUNTING
PowerTrunk recommends its Standard Mounting Kit, which is included in the pack.
Place the TRM-300 so that the labels are visible.
Ensure the instructions of the section 8.3 are carried
out, regarding this hole specifically.
In the other three holes, fix the TRM-300 to the
spacers with screws (11mm -0.43 inches- length)
and washers.
Fix the four spacers with screws and washers to a
flat surface, in which four holes have been drilled
according to the file D288W21NX_SP01.
Parameter
Specification Limit
Operating temperature
From -30ºC up to +60ºC (from -22ºF up to 140ºF)
Storage temperature
From -40ºC up to +85ºC (from -40ºF up to 185ºF)
TRM-300 / Integration guide
F070033PT_5.1_en
Page 12 of 26
en
8.2 MOUNTING WITH HEATSINK
This mounting is required in case of applications with multislot data service, in order to optimize the thermal
dissipation. The Programming Kit accessory is needed in order to configure the Terminal to maximize the
data capacity of the channel. Pick Mounting with heatsink at the Options -> Configuration screen.
The TRM-300 chassis is supported on a heatsink with a thermal interface material between them.
The height of the spacers must be chosen according to the thermal interface material thickness.
The thermal interface material must have a thermal resistance less than 0.75ºC/W (inch2).
- The heatsink contact area must be perfectly flat. A flat contact area allows you to use a thinner layer
of thermal interface material, which will reduce its thermal resistance.
- The pressure on the thermal interface material must be high (such as 30KPa), while still being
reasonably easy to install.
The heatsink must have a thermal resistance less than 1.5ºC/W and include a label with the text:
“Warning – Hot surface – Do not touch” or an equivalent safety symbol.
In the case a fan is used, ensure the proper flow of air inside the mechanical enclosure.
PowerTrunk recommends its Thermal Dissipator Kit accessory.
Place the TRM-300 so that the labels are visible.
Remove the protective tape of the thermal interface
material.
Ensure the instructions of the section 8.3 are carried out,
regarding this hole specifically. Apply a 44cN·m torque.
In the other three holes, fix the TRM-300 to the spacers
with screws (11mm -0.43 inches- length) and washers.
Apply a 44cN·m torque.
Screw the four thick spacers to the heatsink.
Fix the four thick spacers with screws to a flat surface, in
which four holes have been drilled according to the file
D288W21NX_SP02.
TRM-300 / Integration guide
F070033PT_5.1_en
Page 13 of 26
en

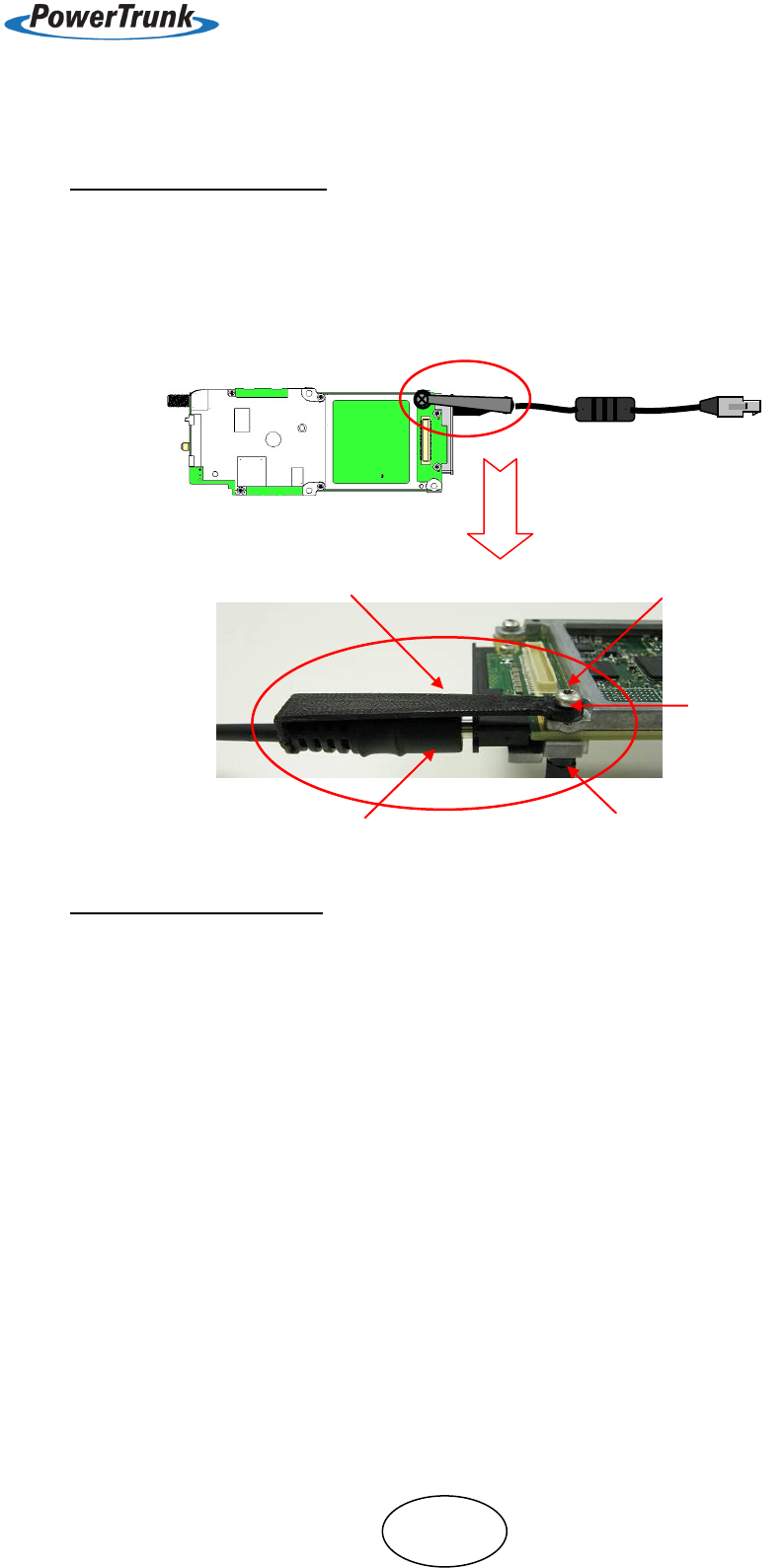

8.3 POWER AUXILIARY CABLE
This section is common to both mountings.
Insert the power auxiliary cable (DC-plug) in the TRM-300 power supply connector (DC-jack).
Fix the clamping element to the TRM-300 and to the spacer with a screw (11mm -0.43 inches- length) and a
washer, in order to assure the mechanical requirements.
8.4 CARE AND MAINTENANCE
The following recommendations will help increasing the useful life of your terminal and protecting the cover of
your guarantee:
- Do not use the terminal in dirty or dusty places. The electronic components could be damaged.
- Do not expose the terminal to extreme temperatures, for example by a window with direct sunlight.
The terminal should be situated away from heat sources such as radiators, heat registers, stoves or
other equipment that produce heat.
The high temperatures may reduce the useful life of the electronic components.
- Do not keep the terminal in cold places. When the device returns to its normal temperature, moisture
may form inside, which may damage the electronic components.
- Do not hit or drop the terminal. The electronic components and the mechanical parts may break.
- Do not place any heavy object on top of the terminal or on its power cable.
The electronic components and the mechanical parts may break.
- Do not insert any object in the grooves of the terminal. The electronic components could be damaged
- Install the terminal in a well-ventilated place.
Power auxiliary cable
Clamping element
DC-plug
Spacer
Screw
Washer
TRM-300 / Integration guide
F070033PT_5.1_en
Page 14 of 26
en
9 ELECTRICAL INTEGRATION
The following table defines the required electrical conditions:
The TRM-300 auxiliary connector contains the power supply connector (DC-jack) and the I/O connector. It is
an AVX semicustom socket connector (model 58-9157-019-000-094S) with the pin-out according to the
following table and drawing. The application mating I/O connector would be an AVX semicustom plug (or the
model 58-9157-019-000-085 SMT plug along with any standard cover 30-9157-9700-00-xxx; or the model 58-
9157-019-000-086 SMT right angle plug).
N
Name
I/O
Electrical interface
Description
1
GND
---
0 v
Ground
2
UART1.TX
O
Digital 0 – 3.3 v
UART Tx
3
UART1.RTS
I
Digital 0 – 3.3 v
UART RTS
4
UART1.DCD
O
Digital 0 – 3.3 v
UART DCD
5
UART1.RX
I
Digital 0 – 3.3 v
UART Rx
6
UART1.CTS
O
Digital 0 – 3.3 v
UART CTS
7
UART1.DTR
I
Digital 0 – 3.3 v
UART DTR
8
GPS.LOGGER
O
Digital 0 – 3.3 v
GPS data
9
POWER_OUT
O
Analog 0 – 7.4 v, I < 250 mA
Power controlled output
10
SW_ON_OFF
I
Digital 0 – 3.3 v
Switch on/off
They are internally connected
11
SW_ON_OFF
I
Digital 0 – 3.3 v
12
SIG_IN
I
Digital 0 – 3.3 v
HiZ, look it up in 9.3.2
Digital input signal
13
SIG_OUT
O
Digital 0 – 3.3 v
Open colector, look it up 9.3.2
Digital output signal
14
EXTPCM_FS
O
Digital 0 – 3.3 v
Audio PCM frame sync
15
EXTPCM_DX
O
Digital 0 – 3.3 v
Audio PCM transmit data
16
EXTPCM_DR
I
Digital 0 – 3.3 v
Audio PCM receive data
17
EXTPCM_CLK
O
Digital 0 – 3.3 v
Audio PCM transmit clock,
512 KHz
18
ID_BOTTOM
I
Analog 0 to 3.3 v,
47KΩ pull-up to 3.3 v internally
Accessory detector
19
GND
---
0 v
Ground
20
GND
---
0 v
Ground
21
DC_IN
I
6.3 to 8.4 v, nominal value = 7.4 v
I < 3.5 A
Power supply
22
GND
---
0 v
Ground
Parameter
Specification Limit
Operating supply voltage
From 6.3V up to 8.4V (7.4V nominal)
Supply current
Up to 3.5A of peak value
TRM-300 / Integration guide
F070033PT_5.1_en
Page 15 of 26
en

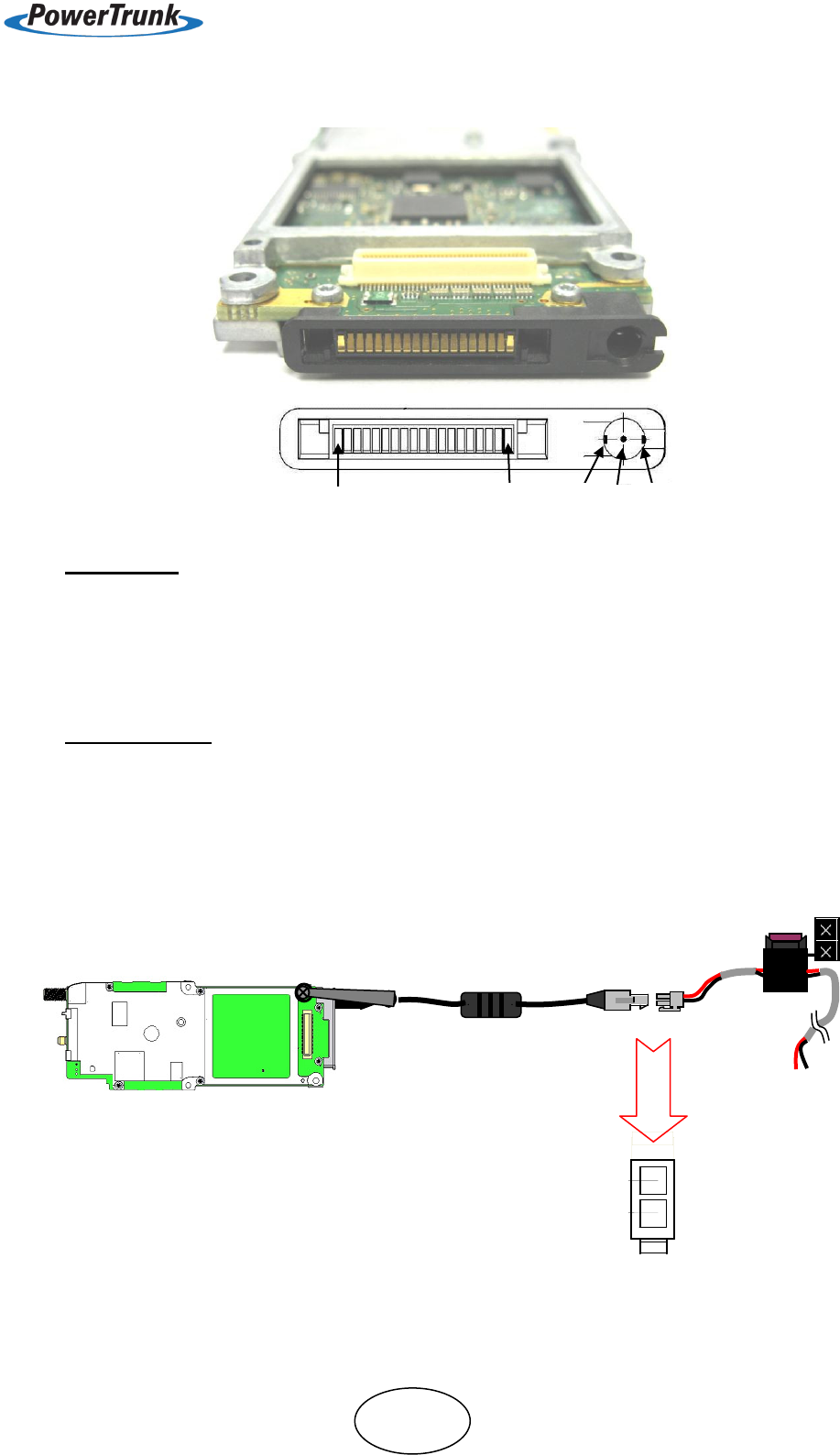

9.1 GROUNDING
There is only one common ground for the power supply and I/Os in the TRM-300. That is, there are no
separate analog/digital ground pins in the auxiliary connector.
All ground pins must be connected together in the final application.
9.2 POWER SUPPLY
The TRM-300 is powered by the hardware application in which it is integrated, always through the
PowerTrunk power auxiliary cable.
The power auxiliary cable connector is a 2 pin Molex Mini-Fit Jr.TM Plug (model 5559-39-01-2021) with the
pin-out according to the following drawing. The application mating connector would be a 2 pin Molex Mini-Fit
Jr.TM Receptacle (model 5557-39-01-2020). Avoid a reverse polarity connection.
The power supply must be capable of supplying at least 3.5A. The TRM-300 does not have protection for
over-current, so the hardware application should include, at least, a 4A fuse.
PowerTrunk recommends its 8VDC power cable accessory.
19
1
20
21
22
SUPPLY
GROUND
Power auxiliary cable
Fuse
TRM-300 / Integration guide
F070033PT_5.1_en
Page 16 of 26
en
Check voltage level prior to applying power to the TRM-300. The specified voltage shall be that measured at
the point of connection of the power auxiliary cable to the TRM-300.
The operating voltage must not fall below the specification limit under any circumstances.
Take into consideration the current consumption when transmitting at full power.
The operating voltage must not rise above the specification limit under any circumstances.
In case of availability of a voltage supply which is different from the TRM-300 nominal voltage, a voltage
adapter is required.
PowerTrunk recommends its 12VDC Adapter accessory (if the TRM-300 is intended for operation from the
usual types of regulated lead-acid battery power source of vehicles) and its 100-240VAC Adapter accessory
(if the TRM-300 is intended for operation from the AC mains).
The ripple on the operating voltage must not exceed 80mV on the load.
9.3 DATA AND CONTROL INTERFACE
9.3.1 Serial Interface
A UART is available, which provides one asynchronous channel with handshaking capability (RTS, CTS,
DTR and DCD, in addition to TxD and RxD) and a maximum data rate of 115200 bits/sec.
It supports the industry standard RS232 connection, but an external level converter is required. It can also be
converted to USB through a bridge controller.
In both cases the external electronics must isolate the connection if the TRM-300 is switched off. For it, the
pin 9 signal can be used to control that external electronics. If a 47KΩ resistance is connected between the
pin 18 and ground, and afterwards the TRM-300 is switched on, then the pin 9 signal will be activated,
providing the TRM-300 supply voltage (7.4V nominal).
The usage of the port can be configured with the PowerTrunk Programming Kit (which includes the
T2PRO_Programming Guide).
9.3.2 Programmable Input/Output Interface
A digital input signal and a digital output signal are available for applications that require them.
The usage of this interface can be configured with the PowerTrunk Programming Kit.
The input signal can be configured to send a status message whenever it is active-high (3.3V) during an
established time. The application must generate the digital input signal voltage.
The output signal can be configured to be active-high (3.3V) during an established time whenever a certain
status message is received. It can also be inactive-low (0V) whenever other status message is received.
Pin 12
SIG_IN
Pin 13
SIG_OUT
Microprocessor
Unidirectional TVS
Maximum Reverse Working Voltage = 5V
TRM-300 / Integration guide
F070033PT_5.1_en
Page 17 of 26
en
9.3.3 Switch on/off Interface
An input signal is available to switch on/off the TRM-300.
If the pins 10 and/or 11, which are internally connected, are left in open-circuit then the TRM-300 will be
switched off. If they are connected to ground, then the TRM-300 will be switched on.
For the data and control interfaces, shielded interconnecting cables are required in order to minimize the
possibility of RF interference.
PowerTrunk recommends its RS232, I/O & Switch Cable accessory and its USB, I/O & Switch Cable
accessory.
Digital input
Ground
(GND)
Switch on/off
input
Digital output
Fuse
TRM-300 / Integration guide
F070033PT_5.1_en
Page 18 of 26
en
10 RF AND ANTENNA INTEGRATION
10.1 TETRA ANTENNA
The TRM-300 TETRA antenna connector is a female SMA jack. The application mating connector should be
a male SMA plug. In order to install it, consult document D288W21NX_SP04.
The following table defines the required radiofrequency conditions:
The antenna RF impedance is specified on the same frequency band as TRM-300.
PowerTrunk recommends its TETRA Antenna accessory.
Parameter
Specification limit
TETRA Antenna
RF impedance
VSWR < 2 :1 50ohm
TETRA Antenna
RF power
3W for 380-430MHz & 410-470MHz
1.8W for 806-870MHz
Digital input
Ground
(GND)
Switch on/off
input
Digital output
Fuse
TRM-300 / Integration guide
F070033PT_5.1_en
Page 19 of 26
en
10.2 GPS ANTENNA
In case of a TRM-300 configuration with GPS, the terminal supplies power to an active GPS antenna through
the TRM-300 GPS antenna connector which is a male SMC jack. The application mating connector should be
a female SMC plug. In order to install it, consult document D288W21NX_SP03.
The following table defines the required conditions:
PowerTrunk recommends its GPS Antenna accessory.
By programming, you can configure various parameters to send the GPS position to a central application
which will manage this location information.
Consult your services supplier for how to configure your terminal for this service.
Parameter
Specification limit
GPS Antenna
supply voltage
3.0V
GPS Antenna
supply current
Up to 15mA
Digital input
Ground
(GND)
Switch on/off
input
Digital output
Fuse
TRM-300 / Integration guide
F070033PT_5.1_en
Page 20 of 26
en
The GPS technology uses radio signals from earth orbiting satellites to establish the location co-ordinates.
Maximizing the view of clear, unobstructed sky is essential for optimum performance.
In places where adequate signals from multiple satellites are not available (usually because a view of a wide
area of the sky could not be established) the GPS feature of your terminal will not work. Such situations
include but are not limited to:
- Underground locations.
- Inside of buildings, trains, or other covered vehicles.
- Under any other metal or concrete roof or structure.
- Between tall buildings or under dense tree-cover.
10.3 ANTENNA INSTALLATION
The antennas must be placed in areas with a good RF field, where the signal strength is adequate. Relocate
the antennas in order to avoid near field obstructions or to get appropriate polarization.
Regarding the cable needed between each antenna and the TRM-300, use low-loss coaxial cables and
connectors, with 50 ohm characteristic impedance. Every additional cable, adapter, and connector increases
the loss of signal power.
Electronic devices can cause interference, which affects the performance of the TRM-300. Do not place the
antennas close to electronic devices or other antennas.
Using two TETRA terminals nearby may cause interference between them, for example when these two
devices are in the same vehicle. If this happens, separate the terminals until the interference disappears.
When designing the hardware application in which the TRM-300 is integrated, it is important to take care of
TETRA RF emissions. Do not place any sensitive components near the TETRA antenna, such as the GPS
antenna.
At high or exposed sites, the use of a lightning arrester is recommended. Should a lightning strike occur,
most of the energy should be diverted to ground leaving the product with little or no damage.
TRM-300 / Integration guide
F070033PT_5.1_en
Page 21 of 26
en
11 START-UP AND CHECK

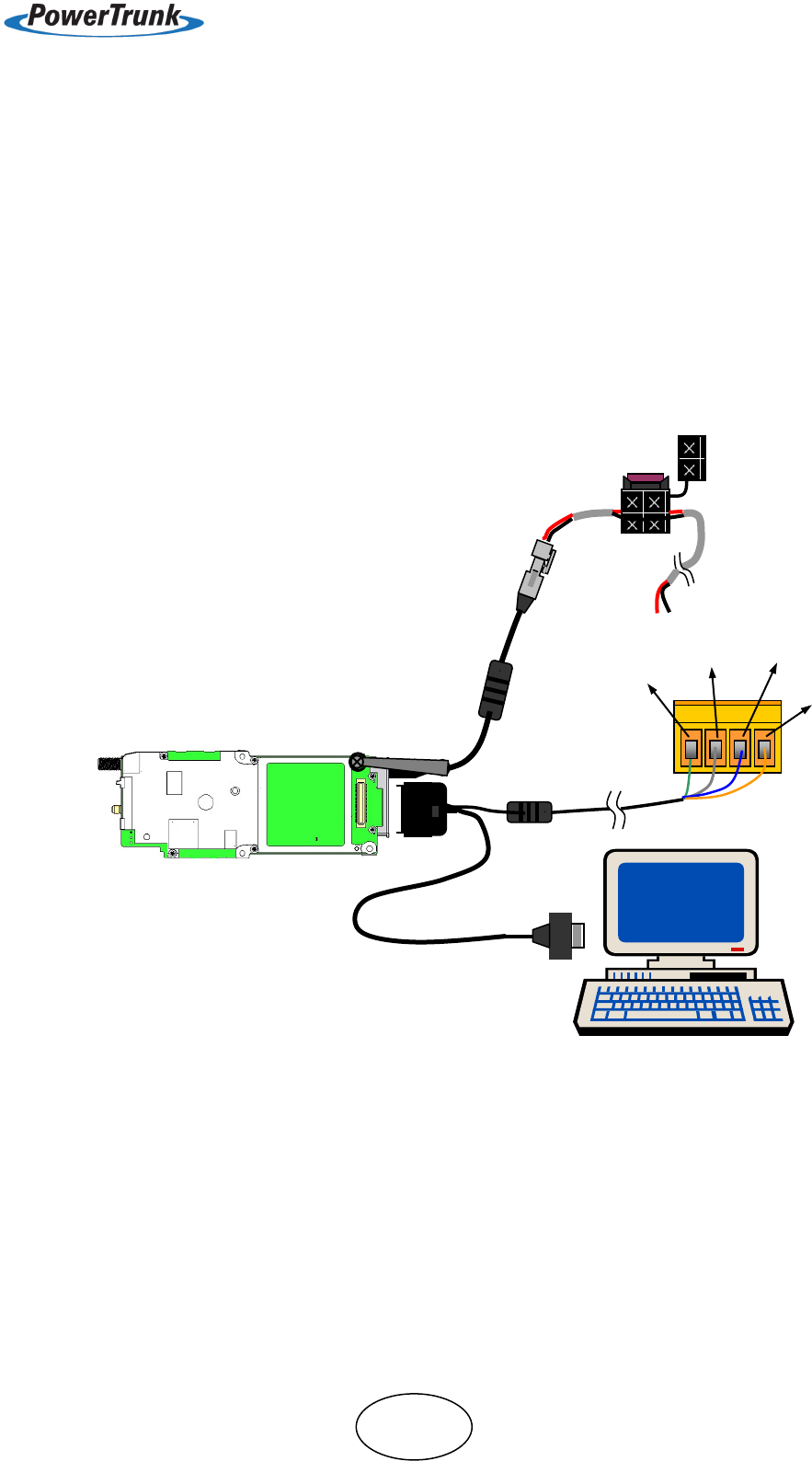

Once you have prepared the TRM-300 integration according to the previous sections, you can switch on the
computer and the radiomodem, according to section 9.3.3.
Programming Kit accessory, which includes the T2PRO_Programming Guide, is needed in order to configure
the terminal according to the TETRA network. The terminal will be operative when it has successfully
registered on the system. In case of detection of error mode, check that the terminal is properly programmed.
The TRM-300 has two indicator lights on the Main_PCB, one on each side and both showing the same
information. They indicate the Terminal status regarding TETRA operation, according to the following table:
In case of a TRM-300 configuration with GPS, a third indicator light is present on the GPS_PCB.
It indicates the Terminal status regarding to GPS operation, according to the following table:
PowerTrunk recommends its Maintenance Kit accessory, which allows to verify:
- The integration critical aspects (by means of the sensors located into the TRM-300):
o Operating temperature. See section 8.
o Operating supply voltage. See section 9.
A specific test allows measuring the voltage under the circumstance of standby mode
(maximum voltage) and the voltage under the circumstance of transmitting at full power
(minimum voltage), which is sufficient to verify if the power cable length and the power supply
are appropriate.
o TETRA Antenna RF impedance. See section 10.1.
Besides, the previous test provides an approximate value of reflected power under the
circumstance of transmitting at full power, which is sufficient to verify if an antenna of the
same frequency band as TRM-300 is connected.
- TETRA Antenna installation:
o Registration information.
o RF power in transmission.
o Frequency and RSSI in reception, together with neighbour cells information.
Indicator lights on the Main_PCB
Registration Information
Without light
Non operative terminal
Slowly flashes red
On standby and out of service
Flashes orange and red
With pending events and out of service
Slowly flashes green
On standby and registered on the network
Flashes orange and green
With pending events and registered on the network
Slowly flashes orange
Programming mode
Indicator light on the GPS_PCB
Position information
Without light
Non operative Terminal or searching satellites
Slowly flashes green or Steady green
GPS Position Fixed
TRM-300 / Integration guide
F070033PT_5.1_en
Page 22 of 26
en
- GPS Antenna installation:
o Position and speed information.
- Information about Terminal
- Serial port communication, by use of this software tool itself.
TRM-300 / Integration guide
F070033PT_5.1_en
Page 23 of 26
en
12 REGULATORY COMPLIANCE AND CERTIFICATIONS
12.1 ABOUT THE FINAL PRODUCT
PowerTrunk agrees on the document Transmitter Module Equipment Authorization Guide [2].
A transmitter with a modular or limited modular grant can be installed in different end-use products (referred
to as a host, host product, or host device) by the grantee or an integrator; and the host may not require
additional testing or equipment authorization for the transmitter functions provided by that specific module or
limited module.
This device is offered as a limited single-modular transmitter, subject to the licensed radio services rules.
Its compliance with IC and FCC rules can be demonstrated only for:
Specific hosts, which must provide an external power supply regulation.
The integrator shall be responsible for ensuring that the proper power supply is employed.
Professional installation of the end-use product, which is consistent with having a standard antenna
connector.
The installer shall be responsible for ensuring that the proper antenna is employed.
If used in a "portable" application, then the integrator is responsible for passing additional "as
installed" testing; SAR (Specific Absorption Rate) testing, with results submitted to the FCC for
approval prior to selling the integrated unit.
If used in a "mobile" or “fixed” application, the information in Section 12.4 must be included in the
integrator user manual and an appropriate warning label must be placed on the host unit adjacent to
the antenna.

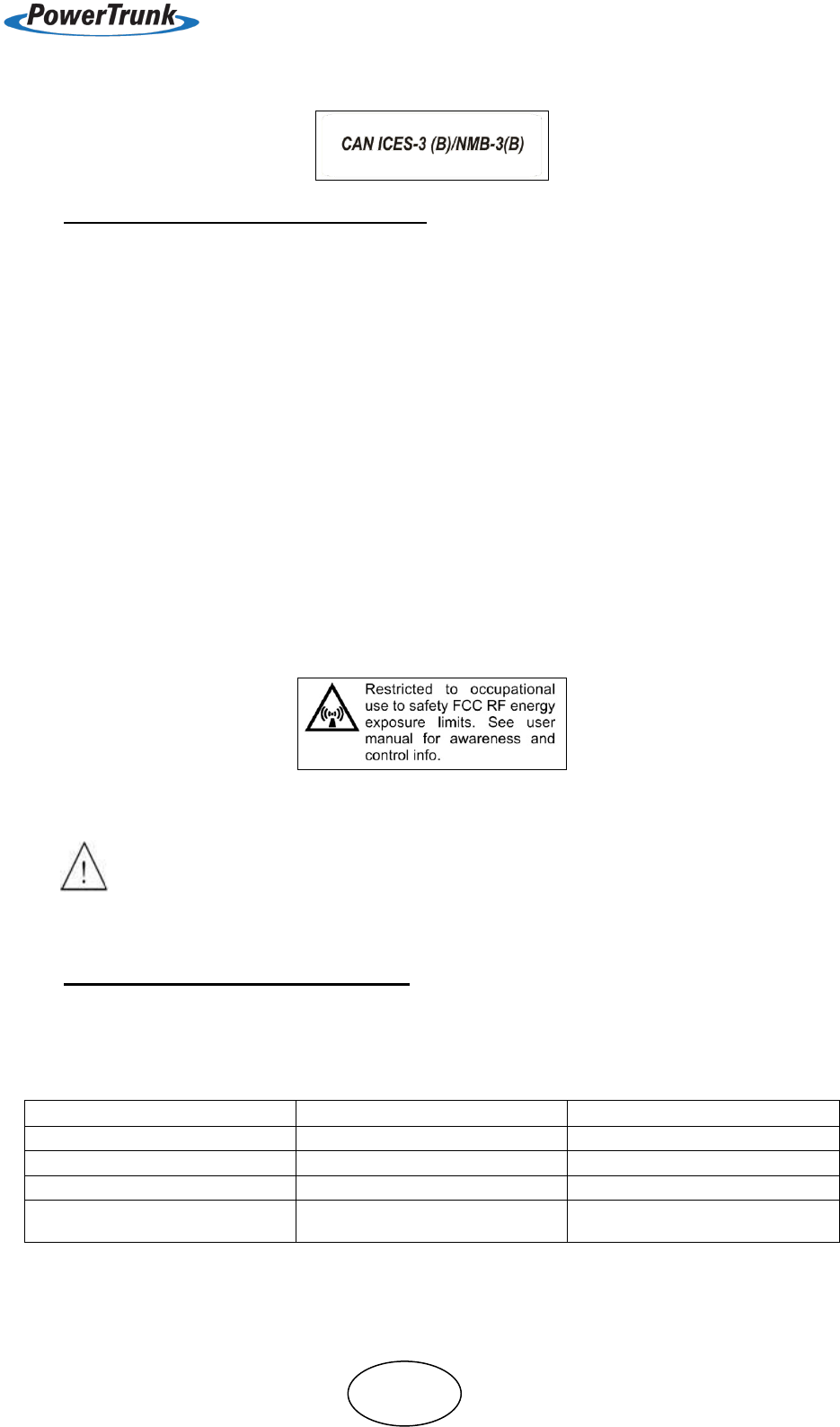

This exterior label can use wording such as the following:
“Restricted to occupational use to safety FCC RF energy exposure limits. See user manual for
awareness and control information”.
A host product is required to comply with all applicable IC and FCC equipment authorizations regulations,
requirements and equipment functions not associated with the transmitter module portion.
To ensure compliance with all non-transmitter functions, the host manufacturer is responsible for ensuring
compliance with the module installed and fully operational.
If the application hardware or software changes, the integrator is responsible for verifying the effect, and if
needed, to perform all required actions again.
Modular or limited modular grant for transmitters under the rules for licensed devices is permitted for the
following conditions:
i. The modular transmitter is a completely self-contained radiofrequency transmitter device, designed
to be incorporated into another device. It doesn´t consist of a radio front end and a transmitter control
element.
ii. Once given the above limitations, the modular transmitter respects the following guidelines for good
engineering practice:
- The radio elements have their own shielding.
- The modular transmitter has buffered modulation/data inputs to ensure that the device will
comply with IC and FCC requirements with any type of input signal.
TRM-300 / Integration guide
F070033PT_5.1_en
Page 24 of 26
en
- The modular transmitter has been tested in a stand-alone configuration, i.e., it hasn´t been inside
another device during testing for compliance with IC and FCC requirements.
- The modular transmitter is labeled with a permanently affixed label, with its IC and FCC
identification number.
If the identification number is not visible when the modular transmitter is installed inside another
device, then the outside of the device into which it is installed must also display a label referring
to the enclosed modular transmitter.
This exterior label must contain the following text:
“Contains FCC ID: xxxnnn
Contains IC: yyyyy-zzzzz”
Where xxxnnn is FCC ID number and yyyyy-zzzz is IC certificate number which can be found in
section 12.3 for the corresponding frequency band.
The integrator user manual must also contain clear instructions on how end users can find and/or
access the module and the IC and FCC ID.
- The modular transmitter complies with any specific rules or operating requirements that ordinarily
apply to a complete transmitter and the manufacturer provides adequate instructions along with
the device to explain any such requirements.
iii. The grantee is required to provide to other parties and end users, clear documented instructions
describing the conditions, limitations and procedures for third-parties to use and/or integrate the
modular transmitter into a host device.
iv. The grantee is responsible for full compliance.
v. Licensed grant conditions shall be listed on the grant.
vi. The modular transmitter manual must provide clear instructions explaining to the integrator the
labeling requirements and integrator user manual instructions that are required.
vii. Licensed modular transmitters must be compliant to all specific applicable licensed radio service
rules.
12.2 FREQUENCY RANGE
For Federal Communication Commission (FCC), the frequency range is:
Modulation
D288Y21NxPT
(FCC ID WT7PTRKTTRM300410)
TETRA
450-470 MHz
TI D-LMR
409-430 MHz
450-470 MHz
For Industry Canada (IC), the frequency range is:
Modulation
D288Y21NxPT
(IC 8624A-PTTRM410)
TETRA
409-430 MHz
450-470 MHz
TI D-LMR
409-430 MHz
450-470 MHz
TRM-300 / Integration guide
F070033PT_5.1_en
Page 25 of 26
en
This device may contain functions that are not operational in U.S Territories except as noted in the
certification filing. The grant has extended frequencies as noted in the certification filing and Section 2.927(b)
applies to this authorization.
The equipment complies with 47 CFR Part 90.203 (e), in that the operator can not directly program the
transmit frequencies using the normal accessible external controls”
Access scheme is Time division multiple access (TDMA) with 4 physical channels per RF channel.
RF Channel Bandwidth (Channel spacing) is 25 KHz. So, the equipment meets a spectrum efficiency of one
voice channel per 6.25 KHz of channel bandwidth.
Modulation scheme is π/4-shifted Differential Quaternary Phase Shift Keying (π/4-DQPSK) with 18Ksym/sec.
modulation rate, equivalent to 36Kbits/sec. So, the equipment meets a data rate on each physical channel of
9000bits/sec. per 6.25 KHz of channel bandwidth.
Unapproved modifications or changes to this equipment may cause harmful interference unless the
modifications are expressly approved by PowerTrunk Inc. In this case, the user could lose the authority to
operate with this equipment.
12.3 IDENTIFICATION LABELS

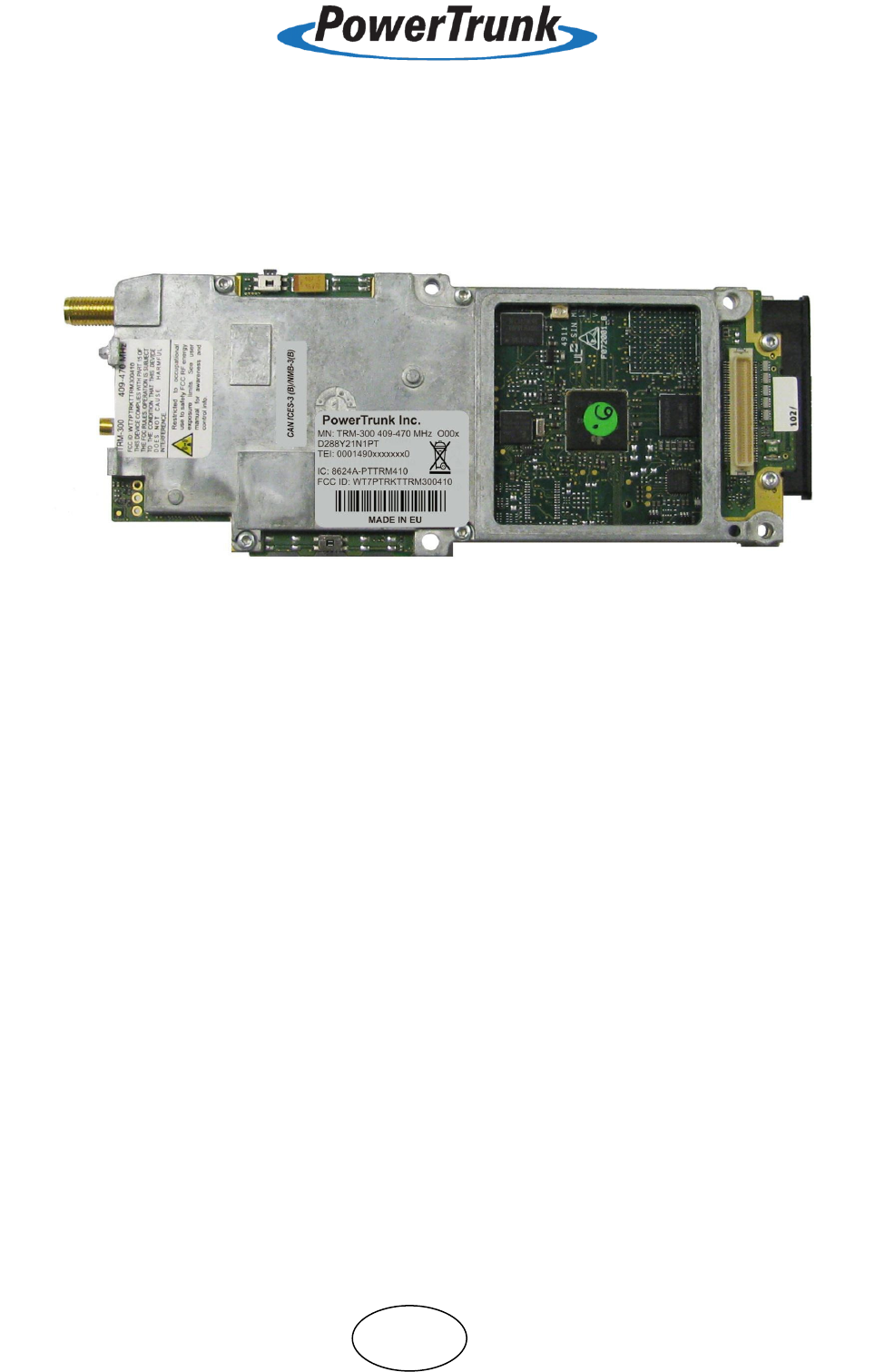

The equipment is supplied with an identification label where the model, the IC Certificate number and the
FCC ID are displayed depending on the frequency work band.
12.4 INFORMATION ON SAFETY AND ELECTROMAGNETIC COMPATIBILITY
The equipment has been designed to fulfil the applicable compliance regulations.
The equipment complies with the applicable Parts of the FCC Title 47 of the Code of Federal Regulation and
Industry Canada (IC) RSS-119 Standard.
This device complies with part 15 of the FCC Rules and Industry Canada ICES-003. Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
The following labels will be placed in conspicuous view on the TRM-300:
TRM-300 / Integration guide
F070033PT_5.1_en
Page 26 of 26
en
12.5 RF EXPOSURE AND SAR REQUIREMENTS
Under Industry Canada regulations and FCC rules, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada or FCC. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
The antenna used for this transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
For D288Y21NxPT model, when used with an 8 dBi gain antenna must be installed to provide a
separation distance of at least 25 cm (10 in.) from any person(s) during normal operation in order to
comply with the FCC or IC RF exposure requirements.
Failure to observe these restrictions will result in exceeding the FCC or IC RF exposure limits.
All the instructions detailed in this manual must be followed in order to ensure compliance with SAR and RF
exposure limits.
Users can obtain Canadian information on RF exposure and compliance at the Industry Canada RSS-102
standard text.
The following label will be placed in conspicuous view on the TRM-300:
TRM-300 is restricted to occupational/controller use to safety RF energy exposure
limits. This radio is NOT authorized for general population.
Use only accessories, batteries and antennas approved by PowerTrunk Inc.
Use of non-approved accessories, batteries and antennas may exceed RF energy
exposure limits and/or occupational SAR values.
12.6 EXTERNAL INTERFACE SPECIFICATION
The next table summarizes the technical parameters for interfacing external data sources to TRM-300
terminal.
Port Type
Connector
Load specification
Radio frequency
Antenna connector
Impedance: 50 ohms
Audio input (PCM)
Auxiliary connector
Hi-Z, Digital 0 - 3.3 Volts.
Audio output (PCM)
Auxiliary connector
Hi-Z, Digital 0 - 3.3 Volts.
Data port (UART)
Auxiliary connector
Hi-Z, Digital 0 - 3.3 Volts.
Maximum data rate 115200bps
