BSR75 TECHNICAL INFORMATION
01.01.00/1 Rev.1
PRODUCT: BSR75
CODE: D198N61_DDS01
VERSION: 01 REVISION: 01 DATE: 17/08/09
CLASSIFICATION:
General information Internal document
DOCUMENT MAINTENANCE
THIS DOCUMENT HAS 21 PAGES
EDIT. DATE AUTHOR DESCRIPTION
1.0 14/07/09 Javier Córdova First edition.
1.1 17/08/09 Javier Córdova Changes in emission designators, clause 1.3.
DOCUMENT APPROVAL
ACTIVITY NAME DATE SIGNATURE
Prepared
Revised
Project Manager
Approved
R&D Director
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 2 of 21
01.01.00/1 Rev.1
Disclaimer
Although every reasonable effort has been made to ensure the accuracy of the information contained herein
and any other referred document, this should not be construed as a commitment on the part of Teltronic S.A.
Unipersonal, and the liability of Teltronic S.A. Unipersonal for any errors and omissions shall be limited to the
correction of such errors and omissions. Teltronic S.A. Unipersonal welcomes any comment as a way to
improve any delivered documentation.
The information contained herein has been prepared for the use of appropriately trained personnel, and it is
intended for the purpose of the agreement under which the information is submitted. Any party using or relying
upon this information assumes full responsibility for such use and in no event shall Teltronic S.A. Unipersonal
be liable to anyone for especial, collateral, incidental, or consequential damages in connection with or arising
out of the use of this information.
The information or statements given in these documents regarding the suitability, capacity or performance of
the mentioned hardware or software products cannot be considered binding but shall be defined in the
agreement made between Teltronic S.A. Unipersonal and the customer.
Teltronic S.A. Unipersonal reserves the right to revise these documents and to make changes to its content at
any time, without prior notification.
Copyrights
No part of the information contained herein and the other referred documents may be copied, distributed or
transmitted by any means to any other party without prior written permission of Teltronic S.A. Unipersonal. The
distribution of this document may be also covered by NDA (non-disclosure agreement) between Teltronic S.A.
Unipersonal and the receiver.
Please also note that part of these contents even may be covered by patent rights.
This document, the referred documents and the described product are considered protected by copyright
according to the applicable laws.
Teltronic and the Teltronic logo are registered trademarks of Teltronic S.A. Unipersonal.
Copyright © Teltronic S.A. Unipersonal. All rights reserved.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 3 of 21
01.01.00/1 Rev.1
CONTENTS:
1.
BSR75 ........................................................................................................................4
1.1.
INTRODUCTION ..................................................................................................4
1.2.
VIEW AND LOCATION ........................................................................................5
1.3.
TECHNICAL CHARACTERISTICS ......................................................................6
2.
BSR75 MODULES......................................................................................................8
2.1.
RPS75 ..................................................................................................................9
2.1.1.
INTRODUCTION...............................................................................................9
2.1.2.
VIEW AND LOCATION......................................................................................9
2.1.3.
TECHNICAL CHARACTERISTICS..................................................................10
2.2.
RPA75................................................................................................................11
2.2.1.
INTRODUCTION.............................................................................................11
2.2.2.
VIEW AND LOCATION....................................................................................11
2.2.3.
TECHNICAL CHARACTERISTICS..................................................................12
2.3.
RTX75 ................................................................................................................13
2.3.1.
INTRODUCTION.............................................................................................13
2.3.2.
VIEW AND LOCATION....................................................................................13
2.3.3.
TECHNICAL CHARACTERISTICS..................................................................14
2.4.
RRX....................................................................................................................15
2.4.1.
INTRODUCTION.............................................................................................15
2.4.2.
VIEW AND LOCATION....................................................................................15
2.4.3.
TECHNICAL CHARACTERISTICS..................................................................16
2.5.
RCPU .................................................................................................................17
2.5.1.
INTRODUCTION.............................................................................................17
2.5.2.
VIEW AND LOCATION....................................................................................17
2.5.3.
TECHNICAL CHARACTERISTICS..................................................................18
2.6.
SYNCHRONISM BOARD...................................................................................19
2.6.1.
INTRODUCTION.............................................................................................19
2.6.2.
VIEW AND LOCATION....................................................................................20
2.6.3.
TECHNICAL CHARACTERISTICS..................................................................21
CAUTION TO USERS
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter. This device is approved with emissions having a source-based time-
averaging duty factor not exceeding 50%.
Vehicle – Antenna Installation:
- Antennas used for this transmitter must not exceed an antenna gain of 3 dBi with a
minimum cable loss of 1dB.
- For rear deck trunk and roof top installations, the antenna must be located at least 91 cm
(36 inches) away from rear-seat passengers and bystanders in order to comply with the
FCC RF exposure requirements.
The following label will be mounted in conspicuous view on the radio.
Failure to observe these restrictions will result in exceeding the FCC RF exposure limits.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 4 of 21
01.01.00/1 Rev.1
1. BSR75
1.1.
INTRODUCTION
The BSR75 is a digital RF transceiver with a transmitter output power of 75 W. It is
manufactured following a robust mechanical modular design which allows simple and
economic maintenance.
The BSR75 is available in the following frequency bands:
380 - 400 MHz
410 - 430 MHz
450 - 470 MHz
806 - 870 MHz
The modules that form the BSR75 are:
RPS75 (Repeater Power Supply)
RPA75 (Repeater Power Amplifier)
RTX75 (Repeater Transmitter)
RRX (Repeater Receiver)
BSYNC (BSR75 Synchronism) - OPTIONAL
RCPU (Repeater Control Processing Unit)
!
CAUTION: Switch the BSR75 off before inserting/removing any of its modules.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 5 of 21
01.01.00/1 Rev.1

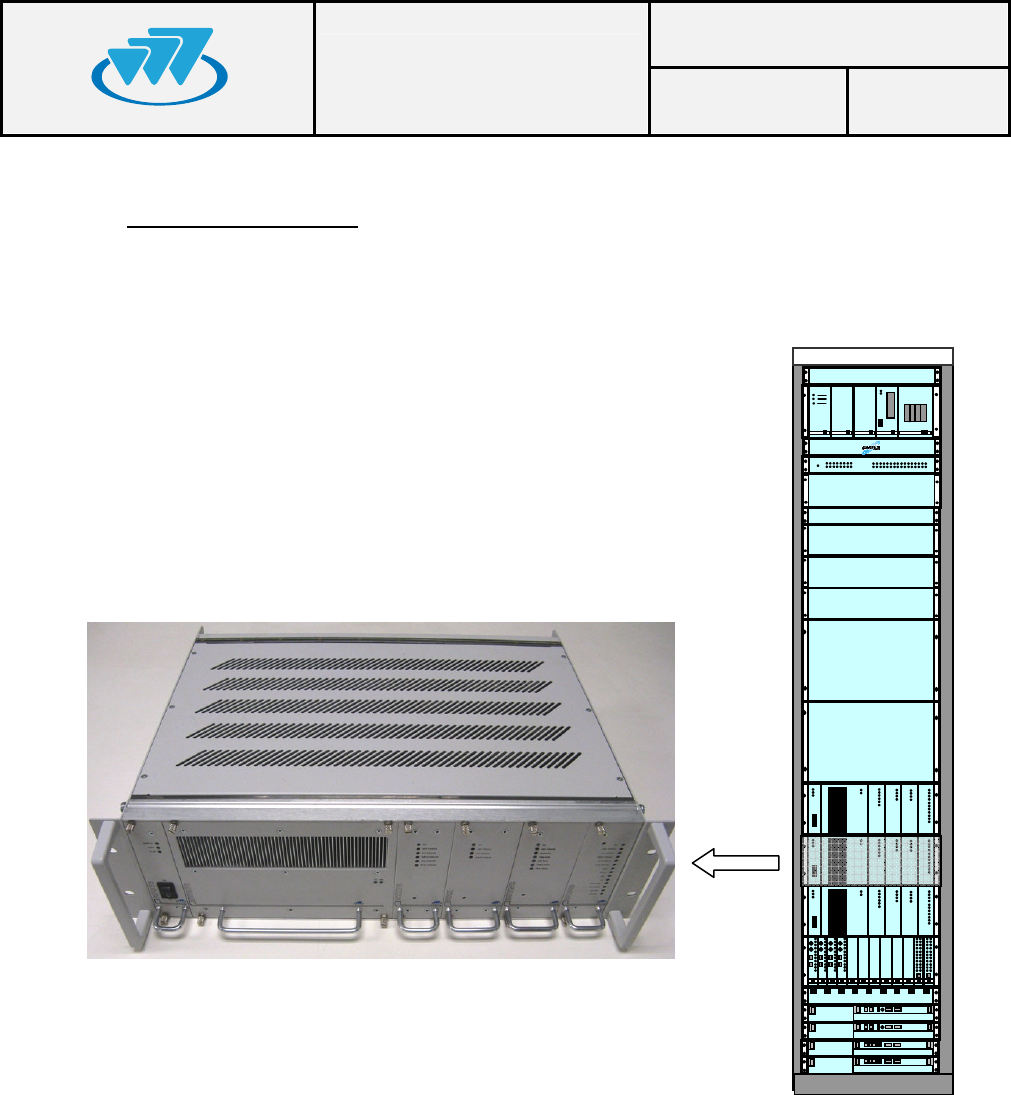

1.2.
VIEW AND LOCATION
The BSR75 typical location is in a Base Station Site.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 6 of 21
01.01.00/1 Rev.1
1.3.
TECHNICAL CHARACTERISTICS
Functional characteristics:
Frequency bands: 380-400, 410-430, 450-470, 806-870 MHz.
Transmit offset frequency: 45MHz for 806-870 MHz band; any for other
frequency bands.
Channel spacing: 6.25 KHz, 12.5 Khz or 25 KHz.
Time Division Multiple Access (TDMA): 4 physical channel per carrier.
Modulation: /4-DQPSK.
Emissions Designators: 20K0D7W, 20K0D7E, 20K0D7D.
Data bit rate: 36 Kbits/s.
Ethernet interface: IEEE 802.3u,x.
BSR75 is hot swap as a unit, but individual modules (RPS75, RPA75, RTX75,
RRX, BSYNC, RCPU) are not.
Electrical characteristics:
Nominal voltage: 26,4 Vdc (21.1 – 31.7 Vdc).
Consumption: 500 W maximum.
Transmitter:
RF Output Power: 75 W (+48.75 dBm) and from 40 W to 0.6 W in 2 dB steps.
Transmitter Frequency Range: 380 - 400, 410 - 430, 450 - 470, 851 - 870
MHz.
Frequency Accuracy: ±0.1 ppm.
Spurious Emissions: < -70 dBc.
Adjacent Channel Power (ACP) Ratio: > 60 dB.
Inter-modulation attenuation: > 40 dB.
Modulation Fidelity (Digital): < 5%.

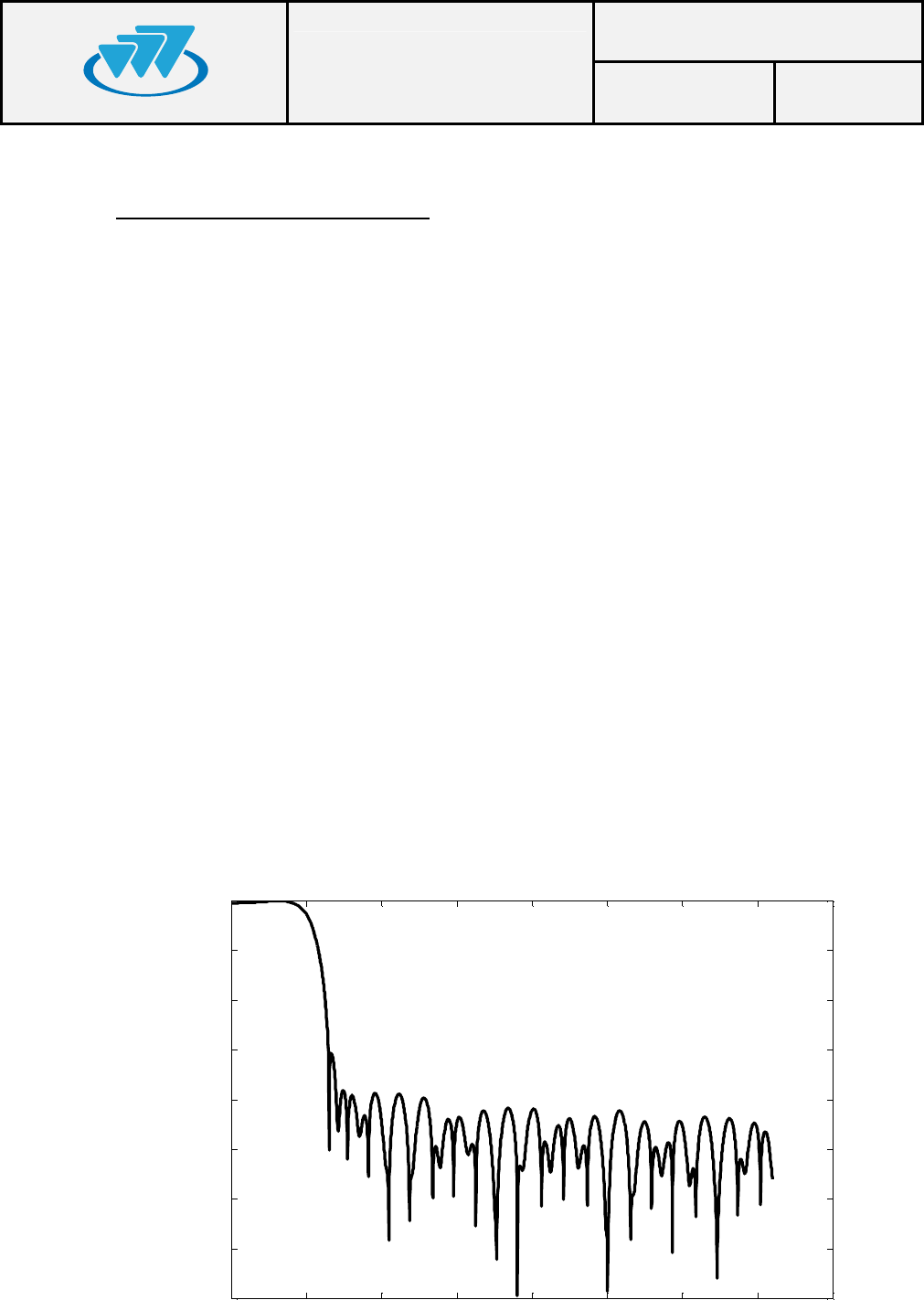

Audio low pass filter response:
012345678
x 10
4
-160
-140
-120
-100
-80
-60
-40
-20
0Low Pass Filter
Hz
dB
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 7 of 21
01.01.00/1 Rev.1
Receiver:
Receiver Frequency Range: 380 - 400, 410 - 430, 450 - 470, 806 - 825 MHz.
Sensitivity: < -115 dBm (0.4 uV).
Faded Sensitivity: < -106 dBm.
Selectivity: > 45 dB.
Co-Channel Rejection: < 19 dB.
Spurious response rejection: > 67 dB.
Intermodulation response rejection: > 65 dB.
Unwanted conducted emissions: < -57 dBm.
Data rate:
Ethernet interface: bandwidth for dimensioning WAN link between Master Site
and Base Station Site: 40 Kbps.
Ethernet interface: bandwidth for dimensioning Base Station Site LAN: 60 Kbps.
Environmental characteristics:
Operating Temperature Range: -30ºC to +60ºC (-22ºF to +140ºF).
Storage Temperature Range: -40ºC to +85ºC (-40ºF to +185ºF).
Humidity: 0 to 90% RH @ 50ºC (122ºF).
Mechanical characteristics:
Dimensions (Length x Height x Width): 379mm x 133mm(3U) x 483mm.
Weight: 10250 gr. (10500 gr. with BSYNC).
BSR75 is assembled in a 19”-wide 3U-high rack.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 8 of 21
01.01.00/1 Rev.1
2. BSR75 MODULES
BSR75 is formed by the following modules, interconnected through the BSR75
rack back-plane board:
RPS75 (Repeater Power Supply)
RPA75 (Repeater Power Amplifier)
RTX75 (Repeater Transmitter)
RRX (Repeater Receiver)
BSYNC (BSR75 Synchronism) - OPTIONAL
RCPU (Repeater Control Processing Unit)
!
CAUTION: Switch the BSR75 off before inserting/removing any of its modules.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 9 of 21
01.01.00/1 Rev.1

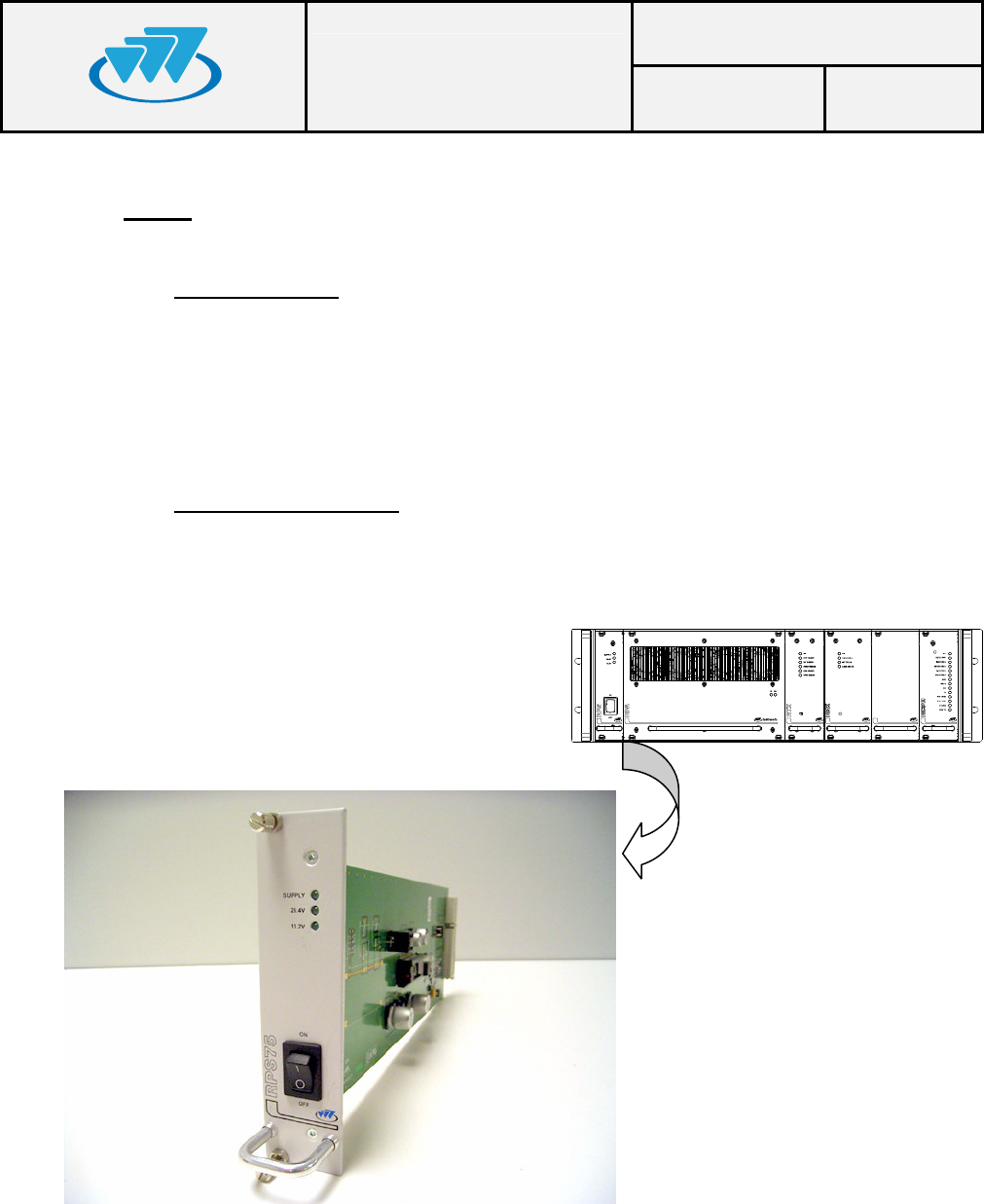

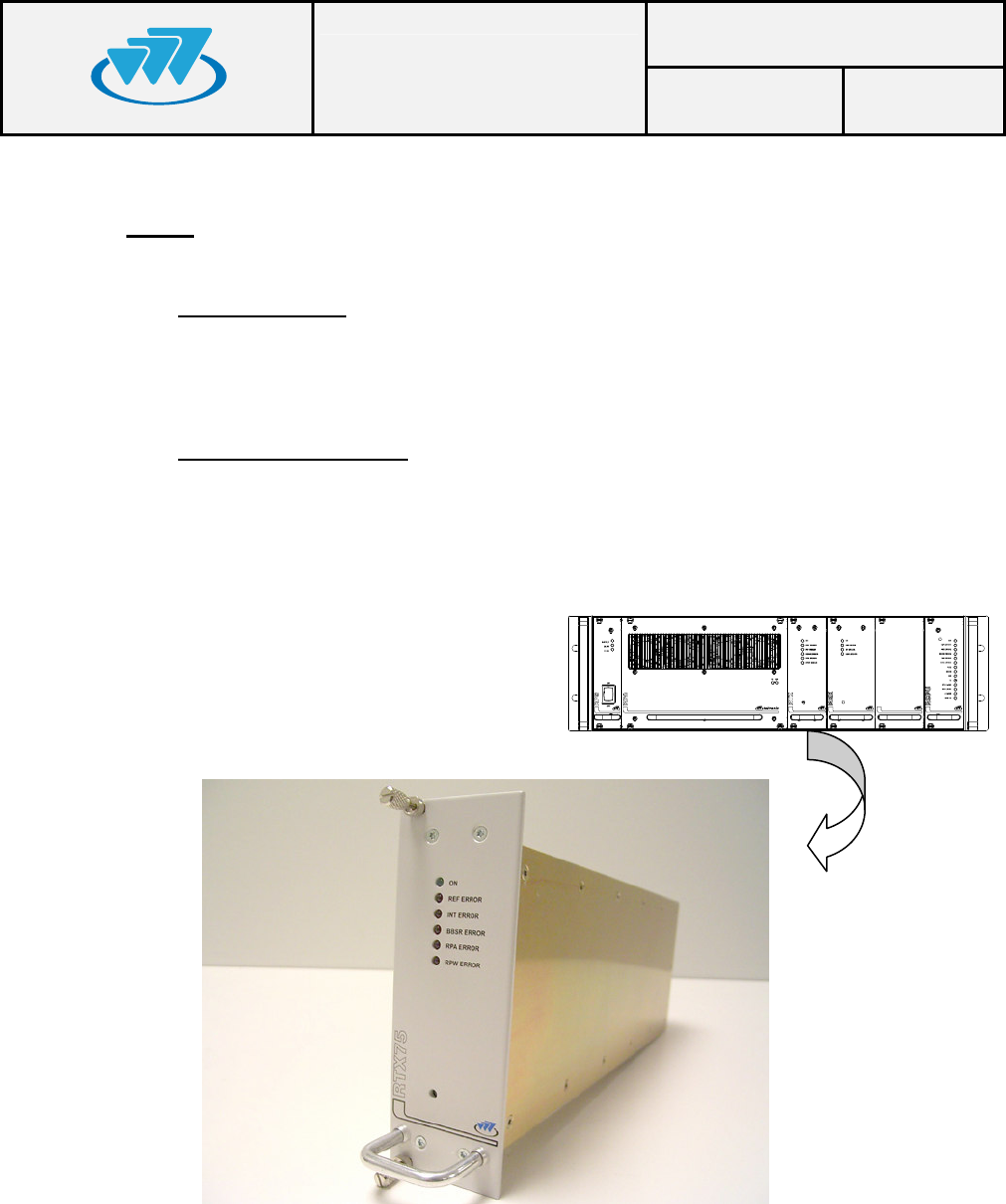

2.1.
RPS75
2.1.1.
INTRODUCTION
RPS75 (Repeater Power Supply) module provides power supply to the rest of
BSR75 modules.
This module features an external switch to turn on or off power supply to the
BSR75 modules.
2.1.2.
VIEW AND LOCATION
RPS75 module is inserted into slot 1 of the BSR75 Rack..
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 10 of 21
01.01.00/1 Rev.1
2.1.3.
TECHNICAL CHARACTERISTICS
Functional characteristics:
The RPS75 module features an external switch for turning on or off supply of
power to the rest of the modules in the BSR75.
Electrical characteristics:
RPS75 module can supply up to 3 amperes at 13.2-volt output voltage.
RPS75 module can supply up to 30 amperes at 26.4-volt output voltage.
RPS75 PCB tracks are over-sized in order to support up to 30-amperes input
current.
characteristics:
Operating Temperature Range: -30ºC to +60ºC (-22ºF to +140ºF).
Storage Temperature Range: -40ºC to +85ºC (-40ºF to +185ºF).
Humidity: 0 to 90% RH @ 50ºC (122ºF).
Mechanical characteristics:
Eurocard format.
Dimensions (Length x Height x Width): 325mm x 128mm (3U) x 33mm (6UP).
Weight: 250 g.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 11 of 21
01.01.00/1 Rev.1

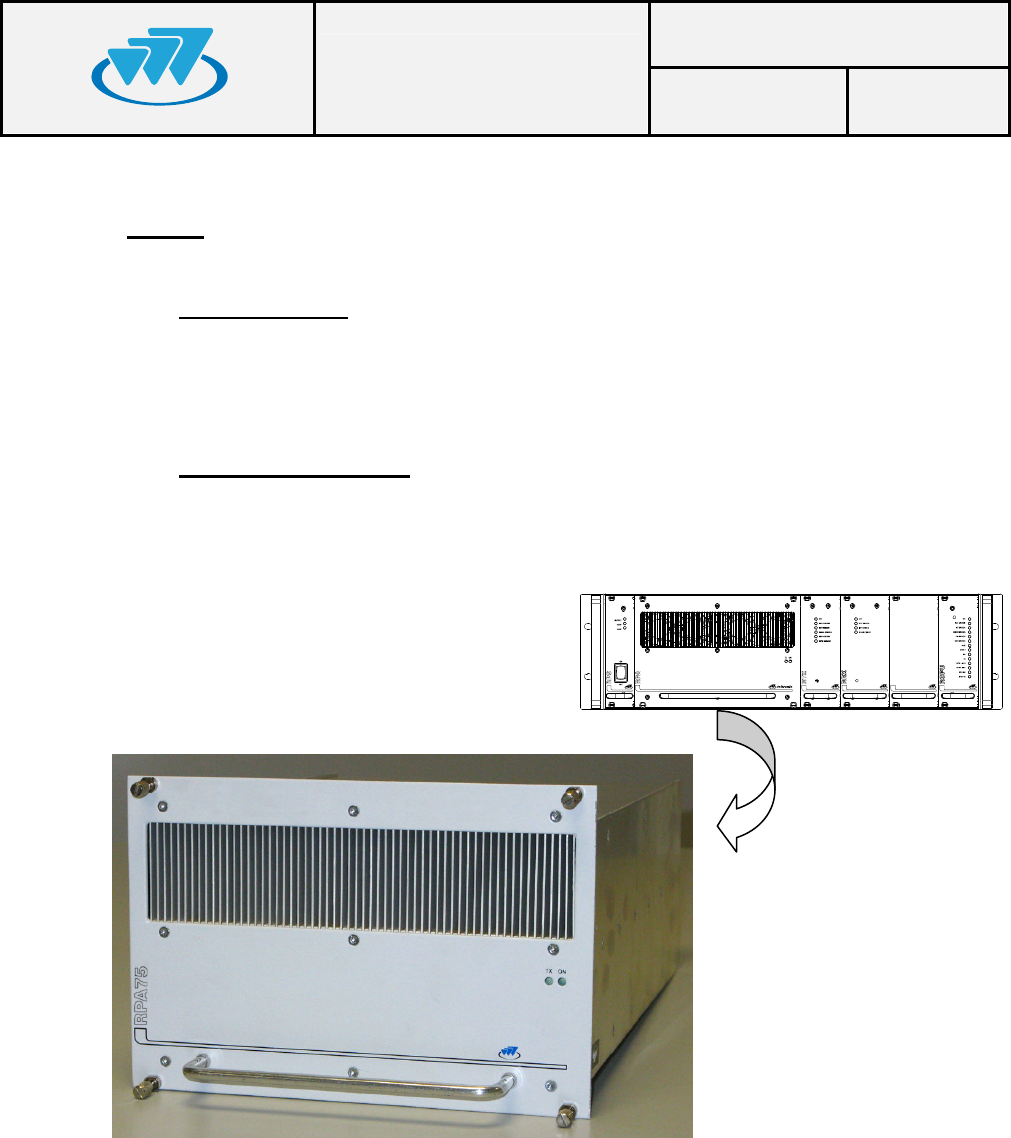

2.2.
RPA75
2.2.1.
INTRODUCTION
The RPA75 module (Repeater Power Amplifier) is the module that amplifies
transmitter signal level up to its final output power.
2.2.2.
VIEW AND LOCATION
The RPA75 module is inserted in slot 2 of the BSR75 Rack.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 12 of 21
01.01.00/1 Rev.1
2.2.3.
TECHNICAL CHARACTERISTICS
Functional characteristics:
The RPA75 Module amplifies the signal modulated by the RTX75 module to its
final power level.
The RPA75 Module informs the RTX75 Module about the power amplifier
temperature.
The RPA75 Module informs the RTX75 Module about the forward power level
and about the reverse power level.
Electrical characteristics:
The RPA75 Module obtains from the BSR75 Back Plane the voltage levels
+26.4Vdc and +13.2Vdc. It also uses two voltage regulators to obtain +10Vdc
and +3.3Vdc.
Consumption: 350 W max.
Output power: 75 W.
Gain: 36 dB min.
Environmental characteristics:
Operating Temperature Range: -30ºC to +60ºC (-22ºF to +140ºF).
Storage Temperature Range: -40ºC to +85ºC (-40ºF to +185ºF).
Humidity: 0 to 90% RH @ 50ºC (122ºF).
Mechanical characteristics:
Dimensions (Length x Height x Width): 335mm x 129mm (3U) x 191mm (38UP).
Weight: 3600g.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 13 of 21
01.01.00/1 Rev.1
2.3.
RTX75
2.3.1.
INTRODUCTION
The RTX75 Module (Repeater Transmitter) is the BSR75 transmitter.
2.3.2.
VIEW AND LOCATION
The RTX75 Module is inserted in slot 3 of the BSR75 Rack.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 14 of 21
01.01.00/1 Rev.1
2.3.3.
TECHNICAL CHARACTERISTICS
Functional characteristics:
The RTX75 Module (Repeater Transmitter) generates a low-power signal
modulated according to data provided by the RCPU.
Electrical characteristics:
Output power: +10 dBm (10 mW).
Consumption: 15 W.
Environmental conditions:
Operating Temperature Range: -30ºC to +60ºC (-22ºF to +140ºF).
Storage Temperature Range: -40ºC to +85ºC (-40ºF to +185ºF).
Humidity: 0 to 90% RH @ 50ºC (122ºF).
Mechanical characteristics:
Dimensions (Length x Height x Width): 323mm x 128mm (3U) x 45mm (9UP)
Weight: 600 g
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 15 of 21
01.01.00/1 Rev.1
2.4.
RRX
2.4.1.
INTRODUCTION
The RRX (Repeater Receiver) is the receiver module of the BSR75.
2.4.2.
VIEW AND LOCATION

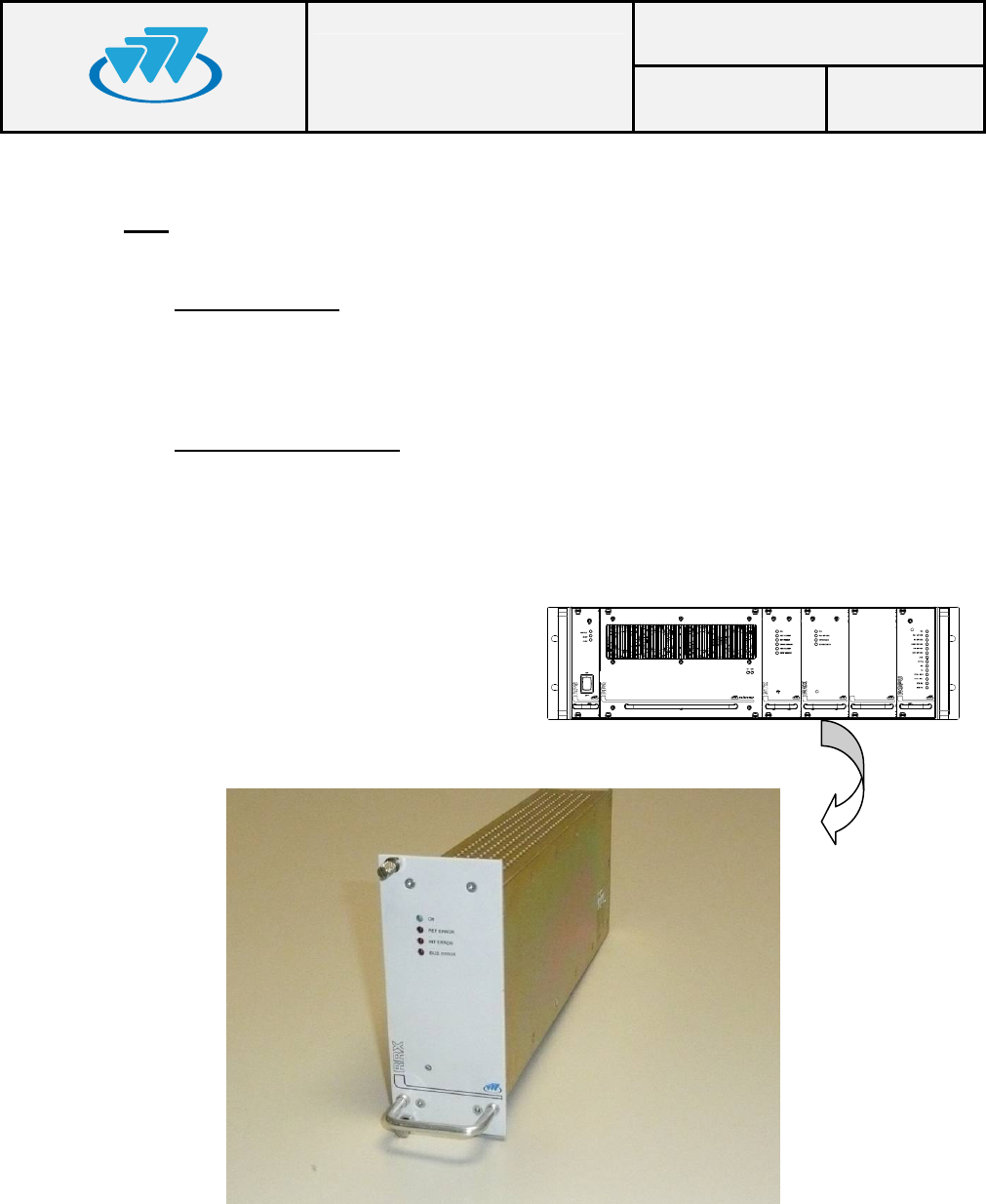

The RRX Module is inserted in slot 4 of the BSR75 Rack.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 16 of 21
01.01.00/1 Rev.1
2.4.3.
TECHNICAL CHARACTERISTICS
Functional characteristics:
The RRX (Radio Receiver) module performs reception tasks in the BSR75 (Base
Station Repeater).
To obtain diversity 2, each RRX Module includes two receptors.
RRX Modules are managed by the RCPU, which also controls the transmitter
module (RTX).
Electrical characteristics:
Consumption: 10 W.
Environmental conditions:
Operating Temperature Range: -30ºC to +60ºC (-22ºF to +140ºF).
Storage Temperature Range: -40ºC to +85ºC (-40ºF to +185ºF).
Humidity.0 to 90% RH @ 50ºC (122ºF).
Mechanical characteristics:
Dimensions (Length x Height x Width): 332mm x 128mm (3U) x 55mm (11UP).
Weight: 650 g.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 17 of 21
01.01.00/1 Rev.1
2.5.
RCPU
2.5.1.
INTRODUCTION
The RCPU module is in charge of controlling the BSR75. It contains the main
microcontroller and the DSPs that manage the RTX75 and RRX modules. The RCPU
performs the functions corresponding OSI layers 1 and 2.
2.5.2.
VIEW AND LOCATION

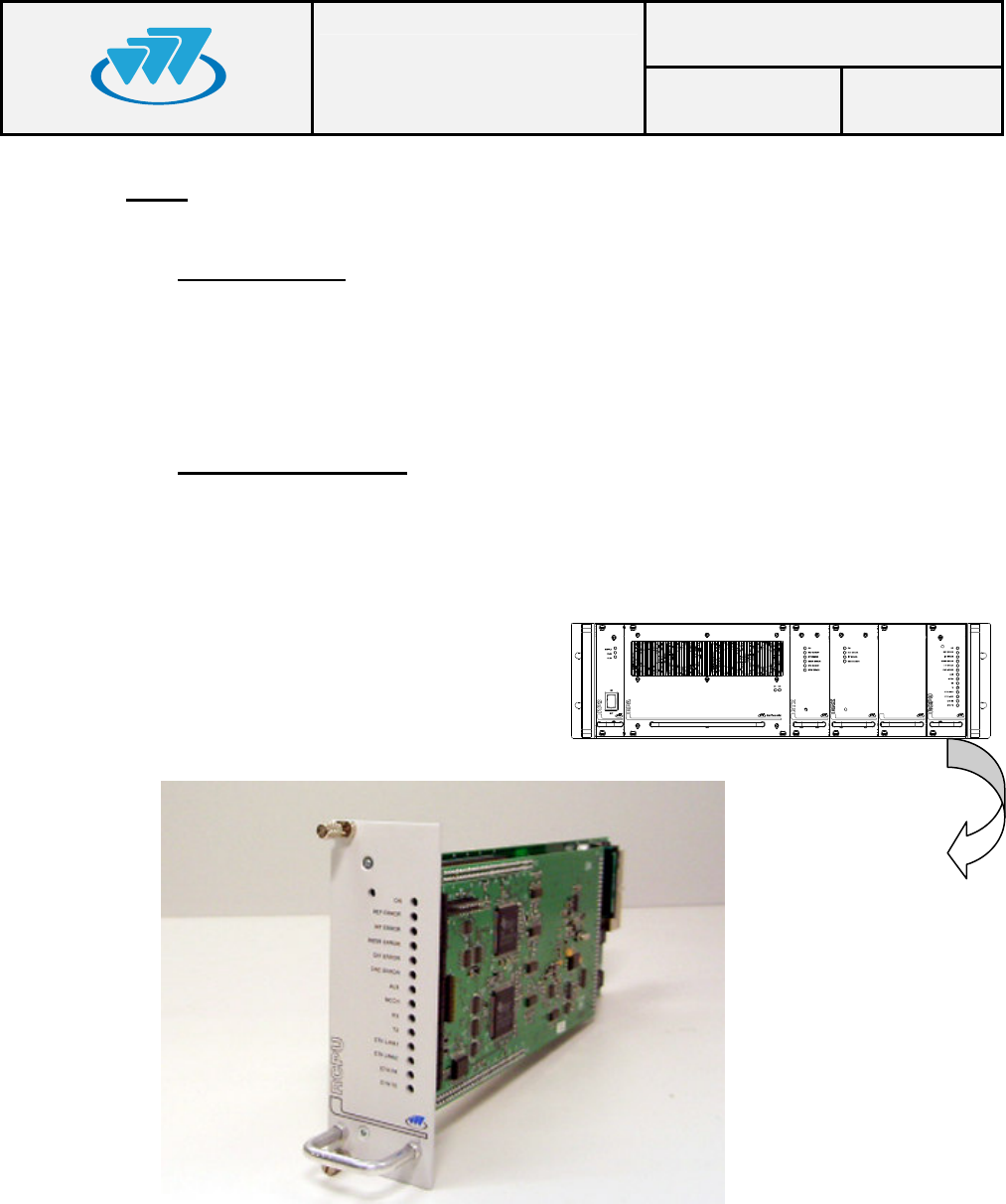

The RCPU Module is inserted in slot 6 of the BSR75 Rack.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 18 of 21
01.01.00/1 Rev.1
2.5.3.
TECHNICAL CHARACTERISTICS
Functional characteristics:
The RCPU (Repeater CPU) controls the rest of the BSR75 modules.
The RCPU module contains two DPSs, TXDSP and RXDSP, and their
associated circuitry. The TXDSP performs modulation tasks while the RXDSP
carries out demodulation tasks.
The RCPU module calculates the RSSI level of incoming RX frames.
The MPC860 microcontroller in the RCPU detects interferences.
The RCPU controls the modules RRX and RTX75 via the BSR75 Bus.
The RCPU forwards to the Site Controller the data received and informs the Site
Controller of its internal status. The Site Controller responds with the necessary
information for its correct operation.
Electrical characteristics:
Interface with the DSPs via a parallel bus (HPI).
Double 100-Mbps Fast Ethernet controller.
Serial port with VT-100 protocol over RS-232C level adapter.
Consumption: 10W.
Environmental characteristics:
Operating Temperature Range: -30ºC to +60ºC (-22ºF to +140ºF).
Storage Temperature Range: -40ºC to +85ºC (-40ºF to +185ºF).
Humidity: 0 to 90% RH @ 50ºC (122ºF).
Mechanical characteristics:
Dimensions (Length x Height x Width): 325mm x 128mm (3U) x 45mm (9UP).
Weight: 350 g.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 19 of 21
01.01.00/1 Rev.1
2.6.
SYNCHRONISM BOARD
2.6.1.
INTRODUCTION
This module carries out two very important tasks in the infrastructure:
It provides a synchronism signal:
It provides an NMEA 0183 V2.01 sequence, consisting of date and time.
It also provides a PPS signal (1 pulse per second), retrieved from the GPS as
well. This pulse makes it possible to synchronise different Base Station Sites
in a network.
This feature may optionally be made redundant to yield two equivalent output
signals.
It provides a reference clock signal.
The module additionally yields a 10-MHz clock signal with a 0.1 ppm stability.
There are four variants of the synchronism board, depending on its location and
availability of GPS in the board . Thus, the board is named MSYNC or MSYNC GPS when it
is positioned in the MNI Rack, or BSYNC or BSYNC GPS when it is placed in a BSR75.
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 20 of 21
01.01.00/1 Rev.1
2.6.2.
VIEW AND LOCATION

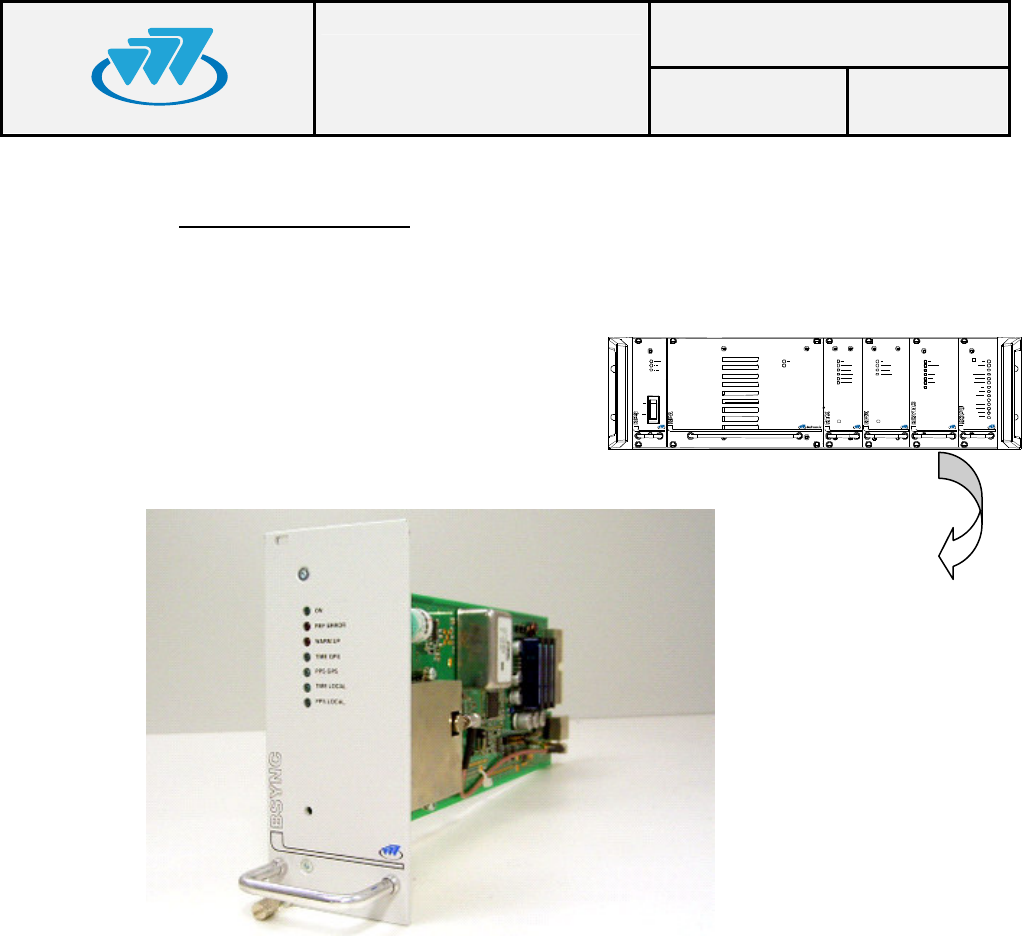

The BSYNC or BSYNC GPS board is inserted in slot 5 of the BSR75.
BSR
Code: D168DDS01
BSR75 TECHNICAL
INFORMATION
Date: 17/08/09 Page: 21 of 21
01.01.00/1 Rev.1
2.6.3.
TECHNICAL CHARACTERISTICS
Functional characteristics:
NMEA 0183 V2.01 sequence.
10-MHz clock signal with 0.1-ppm stability.
PPS signal (Pulse Per Second).
Electrical characteristics:
Nominal voltage: 26.4Vdc (21.1-31.7Vdc).
Consumption: 15 W.
Environmental characteristics:
Operating Temperature Range: -30ºC to +60ºC (-22ºF to +140ºF)
Storage Temperature Range: -40ºC to +85ºC (-40ºF to +185ºF)
Humidity: 0 to 90% RH @ 50ºC (122ºF)
Mechanical characteristics:
Dimensions (Length x Height x Width): 288mm x 130mm(3U) x 55mm(11UP for
BSYNC– BSYNC GPS) or 40mm (8UP for MSYNC – MSYNC GPS).
Weight without GPS: 280 g.
Weight with GPS. 320 g.

Navigation menu
