Teslong Technology FOCUS ScopeAround User Manual 1

Shenzhen Teslong Technology Limited ScopeAround 1

Users manual

USER MANUAL
Fit - Focus - Flexible
The FIT is a macro lens camera that can be placed as close as
1cm (0.4”) away from an object.
Fit
Power Button
(Long press to power the device on and off.
Short press to adjust the LED brightness)
Battery Level Indicator
(Recharge the device when light drops to first level)
MicroUSB Charging Port
(Home use 5V charger
Up to 1.5A charging current)
Reset Button
(Insert a small object and
hold for 8 seconds)
Camera/LEDs

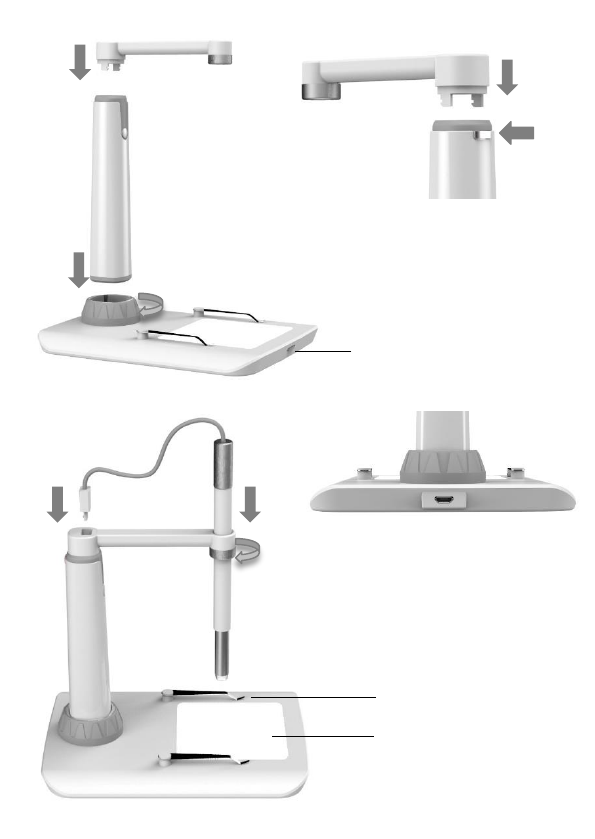

1. Press the lock button
2. Insert the arm 1
2
To attach arm

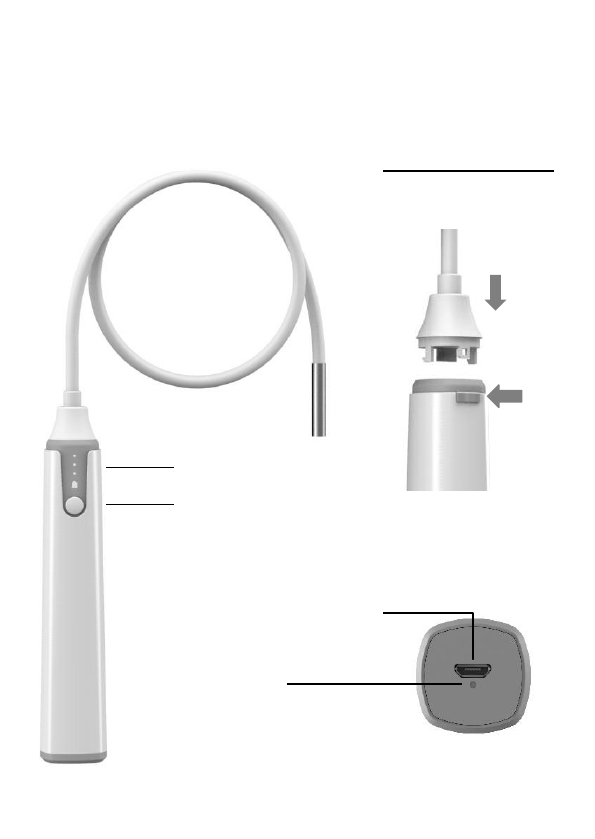

The FLEXIBLE is an endoscope that is just 5.5 mm in diameter
and has 6 LEDs on the camera tip.
Flexible
Power Button
Battery Level Indicator
MicroUSB Charging Port
Reset Button
1. Press the lock button
2. Insert the arm
1
2
Flexible probe
with camera
(IP67 waterproof)
To attach arm
The FOCUS microscope features an adjustment wheel that can
zoom up to 150x. It has a backlit tray for a brighter field of
vision and uses two clips to hold the subject.
Focus
Tray with Backlight
(Turn wheel to adjust the tray backlight)
Clamp
Lock Nut
Focus Wheel
(Rotate the head
Clockwise to zoom in
and counter clockwise
to zoom out)
Power Button
Lock Nut
1. Press the lock button
2. Insert the arm
3. Insert the handle into
the lock nut and tighten it.
1
2
Brightness Adjustment
Wheel
Tray with Backlight
Clamp
3
45
4. Insert the connector into the
handle.
5. Push the pen through the ring
and tighten the lock nut.

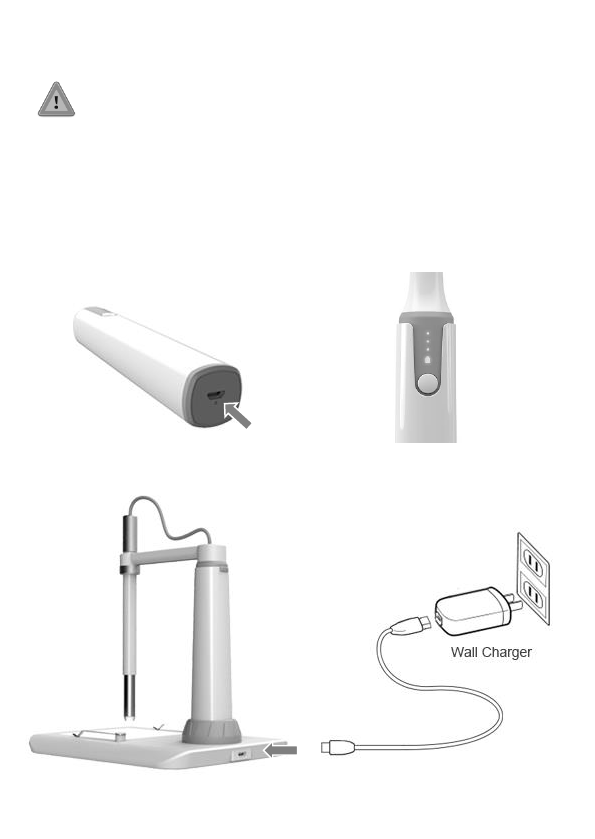

Only use chargers marked: Output 5V 1A, or 5V 2A. If you
do not know the voltage and current of your charger, use the
USB cable to charge the camera with your computer. The camera
charges to 100% in approximately 3.5 hours under 5V 2A and 4.5
hours under 5V 1A. Please do NOT use the camera while charging.
Charge the battery
(not included)
The Indicator flashes when
the battery is charging and
stops flashing when it's
fully charged.
ScopeAround
Download ScopeAround App
www.scopearound.com/sa.exe

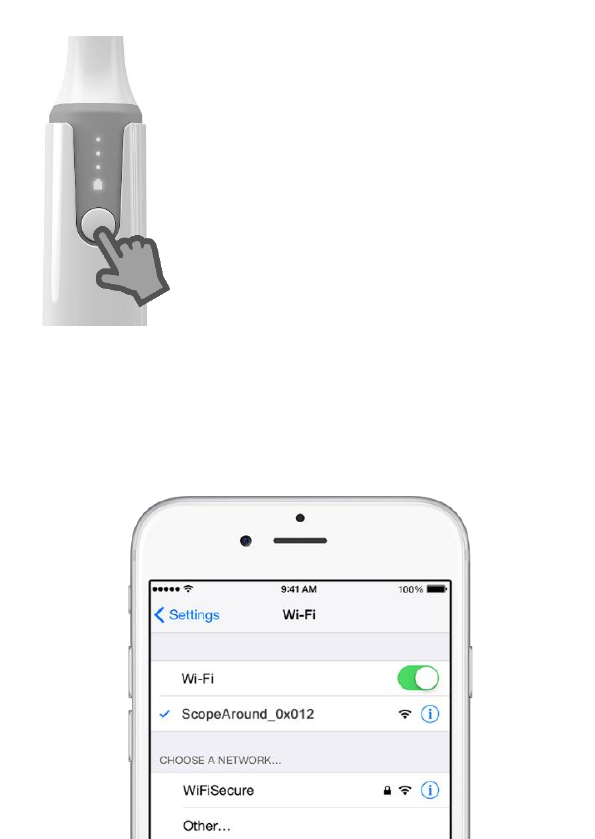

Step 1:
Long press the power button for
2 seconds to power on the device
(Make sure the battery level is high)
Step 2:
Enter Wi-Fi settings on your phone
Connect to ScopeAround_xxxxx with password
00000000

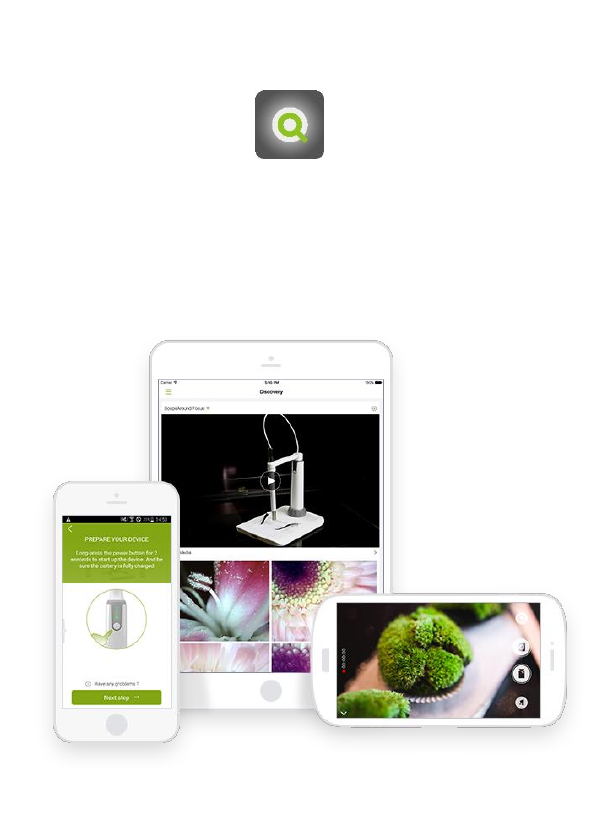

Run the app and enjoy!
Technical Data Fit
Description
Network Standard
Antenna
Operating Frequency
Data Rate
Camera Diameter
Camera Length
Image Sensor
Video Resolution
Viewing angle
Depth of Field
Camera Light Source
IP Code
Operating Temperature
Power Source
Max battery life
Data
IEEE 802.11 b/g/n
Built-in antenna
2.4GHZ
802.11 b/g/n: up to 300Mbps
11mm (0.433 inch)
88 mm (3.46 inch)
CMOS
800x600, 1280x720
45°
10mm — 20mm
6 adjustable high-intensity LEDs
IP67
32°to 113°F (0 °to 45°C)
3.7v Lithium Battery
3 - 4 hours
Charging time
Certifications CE FCC RoHS
6
Technical Data Flexible
Description
Network Standard
Antenna
Operating Frequency
Data Rate
Camera Diameter
Probe Length
Image Sensor
Video Resolution
Viewing angle
Depth of Field
Camera Light Source
IP Code
Operating Temperature
Power Source
Max battery life
Certifications
Data
IEEE 802.11 b/g/n
Built-in antenna
2.4GHZ
802.11 b/g/n: up to 300Mbps
5.5mm (0.217 inch)
1000 mm (39.37 inch)
CMOS
800x600, 1280x720
60°
40mm — 60mm
6 adjustable high-intensity LEDs
IP67
32°to 113°F (0 °to 45°C)
3.7v Lithium Battery
3 - 4 hours
CE FCC RoHS
6
Technical Data Focus
Description
Network Standard
Antenna
Operating Frequency
Data Rate
Camera Diameter
Camera Length
Image Sensor
Video Resolution
Max. Magnification
Focus
Camera Light Source
IP Code
Operating Temperature
Power Source
Max battery life
Certifications
Data
IEEE 802.11 b/g/n
Built-in antenna
2.4GHZ
802.11 b/g/n: up to 300Mbps
8 mm (0.315 inch)
150 mm (5.9 inch)
CMOS
800x600, 1280x720
150x
Manual focusing
8 adjustable high-intensity LEDs
IP67
32°to 113°F (0 °to 45°C)
3.7v Lithium Battery
3 - 4 hours
CE FCC RoHS
6

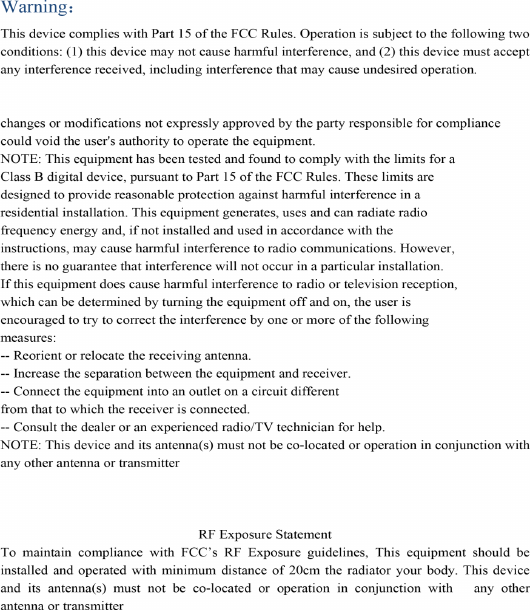

When operating your equipment:
WARNING: ScopeAround products are not intended for use
in patient health care environments unless specifically designated.
ScopeAround products are not designed for use in flammable or
explosive environments.
WARNING: Do not operate your ScopeAround equipment
with any cover(s)(including bezels, panels, housings, etc)removed.
WARNING: Do not use your equipment in a wet
environments. Protect the equipment from liquid intrusion.
•Do not use damaged equipment, including exposed, frayed, or
damaged power cords.
•Disconnect your device and all peripherals from any wall
connection during and electrical (lightning) storm or when you
will be away for extended periods.
•Do not attempt to service the equipment yourself.
Contact ScopeAround if your equipment does not operate
normally.
Power Safety
When connecting your equipment to a power source:
•Check the voltage rating before you connect the ScopeAround
equipment to an electrical outlet.
•Use only branded AC adapter approved for use with this
device.
•Place the AC adapter and the ScopeAround equipment in a
ventilated area, such as desk top or on the floor, when you use
it to charge the battery.
•The AC adapter and the ScopeAround equipment may become
hot during charge operation.
Safety Information
Uncover new views in your daily life!
ScopeAround
ScopeAround Inc., San Francisco, CA 94115 USA
TM and © 2016 ScopeAround Inc. All rights reserved.
www.scopearound.com
Please email support@scopearound.com to get support.
