SWRA276A
March 2013

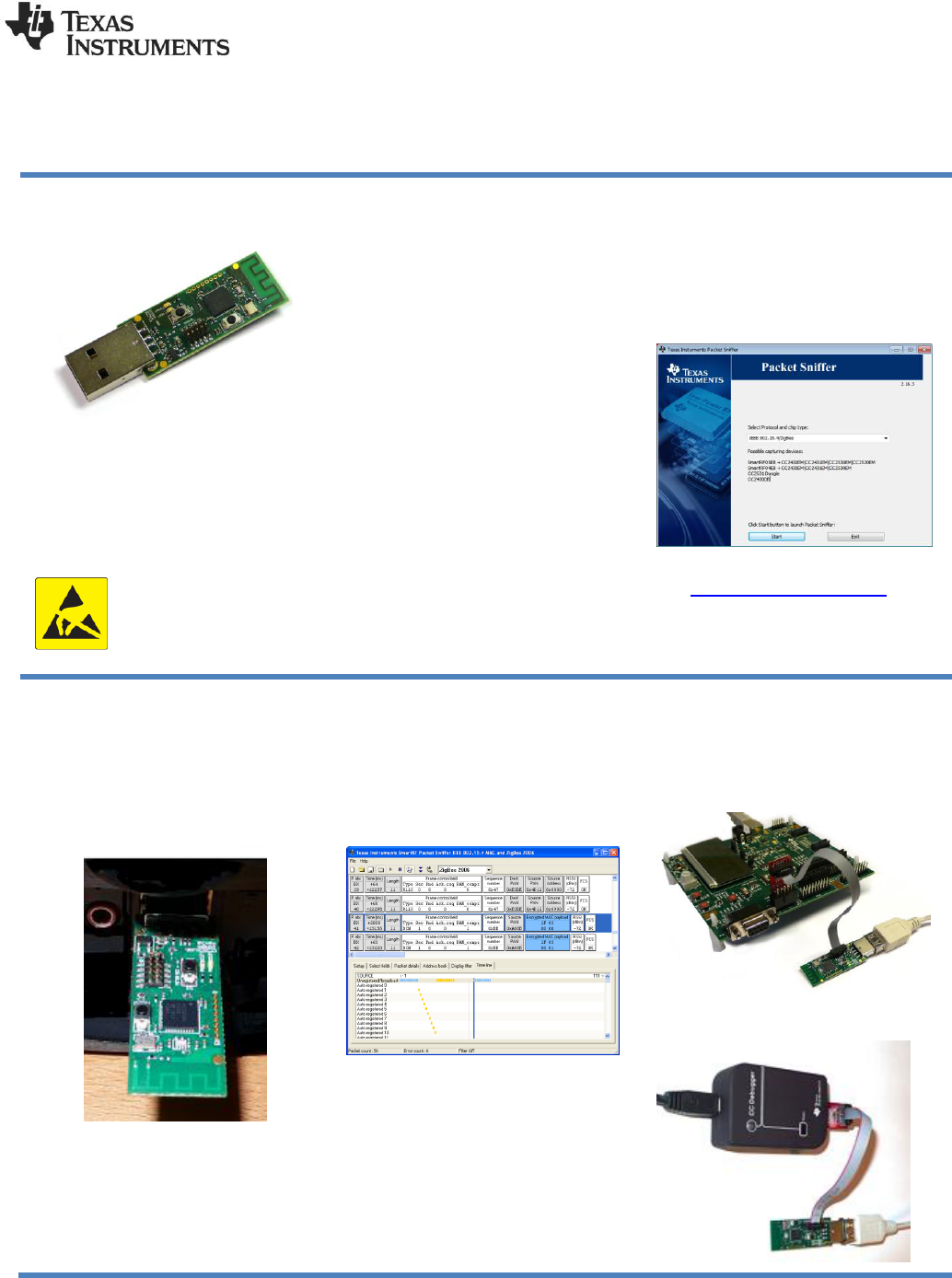

CC2531 USB Evaluation Kit Quick Start Guide
1. Kit Contents
1 x CC2531 USB Dongle
Documentation
The RF boards in this kit are FCC and IC
certified and tested to comply with
ETSI/R&TTE over temperature from 0 to
+35°C.
Caution! The kit contains
ESD sensitive components.
Handle with care to prevent
permanent damage.
2. Getting Started
The CC2531 USB Dongle can be used as
a development platform for USB and RF
applications.
An external development tool, like the CC
Debugger, is required to program and
debug software running on the CC2531.
The CC2531 Dongle comes
preprogrammed with software that lets the
dongle operate as a packet capture device
for the SmartRF Packet Sniffer.
This Quick Start Guide will describe how
to use the dongle with the packet sniffer
and the next steps for your own software
development.
3. Install the driver
Before plugging the dongle into the PC,
please install TI’s SmartRF Packet Sniffer.
When installing the Packet Sniffer, you will
also automatically install the USB driver
required for proper communication
between the dongle and the packet sniffer.
The Packet Sniffer can be downloaded
from www.ti.com/tool/packet-sniffer
4. Insert the USB dongle
When inserting the USB dongle into a
USB slot, Windows’ new hardware wizard
will appear. Select the options for
automatic installation and wait for the
driver installation to complete. After
installation, the Packet Sniffer is ready for
use.
Caution! This USB dongle has been
designed to be powered from a USB port.
Do not attempt to connect other power
sources to the device. Avoid powering the
unit when not in use.
5. Packet Sniffer
TI’s SmartRF Packet Sniffer is a
convenient tool for debugging of RF
protocols. It displays the captured packets
and decodes the packet contents
depending on what protocol you are
running.
When starting the packet sniffer, select the
protocol as required. The Packet Sniffer
for CC2531 supports SimpliciTI, RemoTI
and ZigBee PRO, in addition to a generic
mode (no packet parsing).
6. Debugging and Programming
For software development on the CC2531
an external debugger is necessary. This
can be either a SmartRF05EB [3] as
shown in the first picture,
…or a CC Debugger [4] as shown in the
second picture.
![](/img.php?id=1939535&img=bg2.png)
SWRA276A
March 2013
7. Flash Programmer
Texas Instruments has a simple tool which
can be used to program the flash on the
CC2531.
The Flash Programmer application,
available on the kit web page [3], can be
used to program Intel HEX files, read the
contents of flash and several other
operations.
You will need a SmartRF05EB, a CC
Debugger or other programmers from
Third Parties [5] to program the device.
8. IAR Embedded Workbench
To develop software and debug software
running on the CC2531, you should use
IAR Embedded Workbench for 8051.
A free, code size limited version can be
downloaded from the web. See
www.iar.com/ew8051.
9. Thank You!
We hope you will enjoy working with the
CC2531 and associated Low-Power RF
products from Texas Instruments.
A. Available Software
CC2531 USB Firmware Library and
Examples.
Source code of the USB Protocol Stack
including simple HID and CDC examples
[2].
RemoTI™ Network Protocol
TIs’ implementation of the ZigBee RF4CE
standard: www.ti.com/tool/remoti
TIMAC Software
TI’s IEEE 802.15.4 medium-access-control
stack: www.ti.com/tool/timac
Z-Stack™ Software
TI’s ZigBee-compliant protocol stack
www.ti.com/tool/z-stack
B. More information
On Texas Instruments’ Low-Power RF
web site you will find all our latest
products, application and design notes,
FAQ section, news and events updates,
and much more. Just go to www.ti.com/lprf
The Low Power RF Online Community has
forums, blogs and videos. Use the forums
to find information, discuss and get help
with your design. Join us at
www.ti.com/lprf-forum
The TI LPRF eNewsletter keeps you up to
date on e.g. new products, application
notes, software and events. Sign up at
www.ti.com/lprfnewsletter
C. References
[1] CC2531EMK product web page
www.ti.com/tool/cc2531emk
[2] CC2531 product web page
www.ti.com/product/cc2531
[3] CC2530 Development Kit
www.ti.com/tool/cc2530dk
[4] CC Debugger
www.ti.com/tool/cc-debugger
[5] LPRF Developer’s Network
www.ti.com/general/docs/gencontent.
tsp?contentId=29028
