Texas Instruments 2540EM The CC2540EM is a development tool for TIs 2.4 GHz CC2540 Bluetooth low energy system-on-chip User Manual EVALUATION BOARD KIT MODULE EVM ADDITIONAL TERMS
Texas Instruments Inc. The CC2540EM is a development tool for TIs 2.4 GHz CC2540 Bluetooth low energy system-on-chip EVALUATION BOARD KIT MODULE EVM ADDITIONAL TERMS
Users Manual
December 2013
Web sites: www.ti.com/ble
E2E Forum: www.ti.com/ble-forum
Make sure to subscribe to the Low-Power RF
Newsletter to receive information about updates to
documentation, new product releases, and more.
Sign up on the TI web pages.

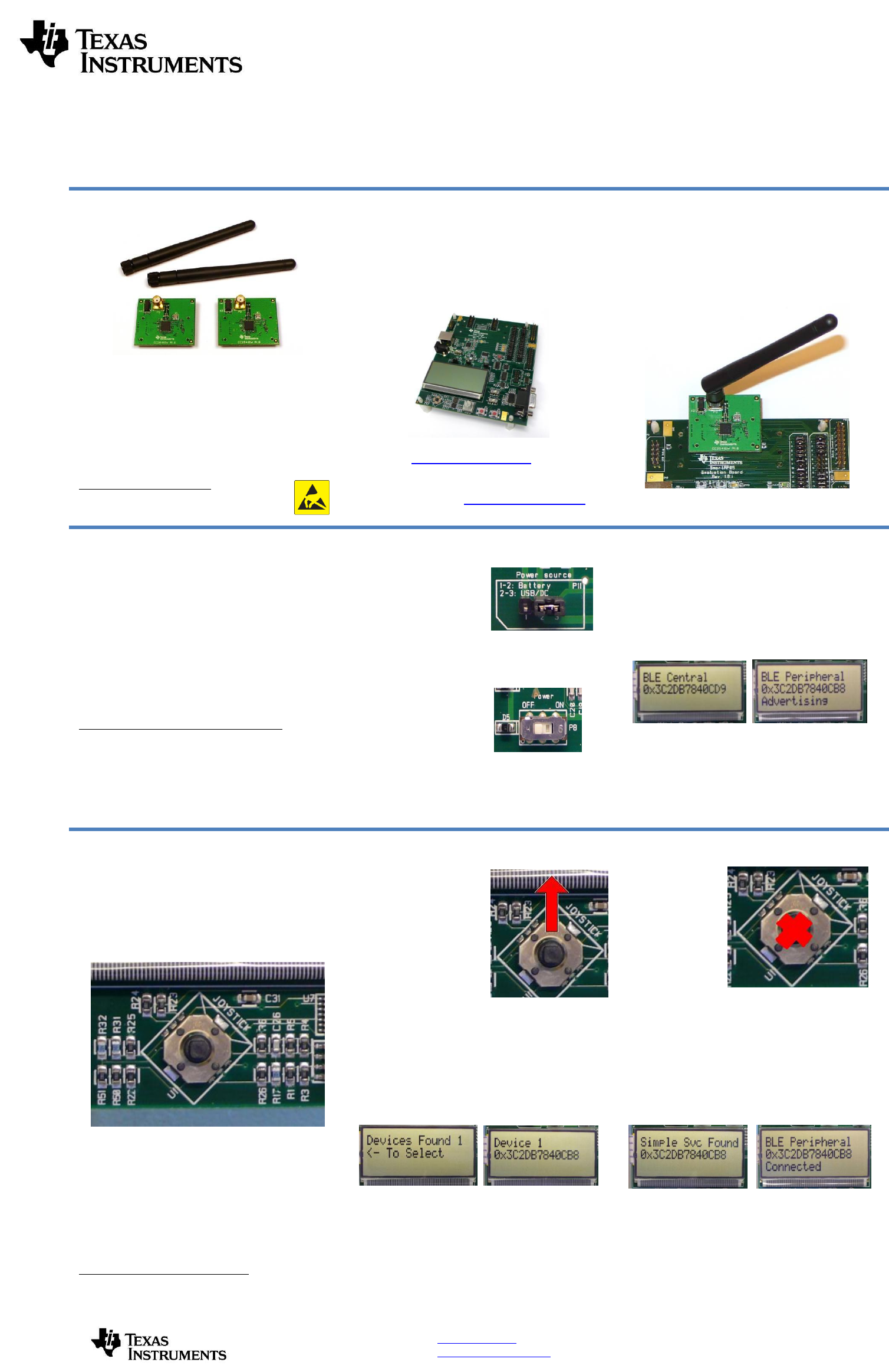

CC2540 Evaluation Module Kit Quick Start Guide
Opening the Box and Running the Bluetooth® Low Energy SimpleBLE Demo Application
1. Kit Contents
2 x CC2540 Evaluation Modules
2 x Pulse W1010 Antennas
Documentation
The kit is FCC and IC certified and tested/complies with
ETSI/R&TTE over temperature from 0 to +35°C. The
antenna, W1010 from Pulse, is a ¼ wave dipole antenna with
2 dBi gain.
FCC/IC Regulatory Compliance
FCC Part 15 Class A Compliant
IC ICES-003 Class A Compliant
2. Hardware Requirements
The CC2540EMK is an add-on kit to the
CC2540DK. To run the example described in this
Quick Start Guide, you would need two
SmartRF05 Boards (Rev 1.8.1 or later). These
boards are included in the CC2540DK (and not in
the CC2540EMK).
More information about the SmartRF05EB can
be found in www.ti.com/lit/swru210.
The CC2540EM boards can also be plugged into
a battery board (see www.ti.com/tool/soc-bb) for
standalone operation.
3. Hardware Setup
Connect the antenna to the SMA connector on
the CC2540 evaluation module (CC2540EM).
Tighten the antenna’s screw firmly on to the SMA
connector. If not properly connected, you might
see reduced RF performance.
Next, mount the CC2540EMs
firmly on to connectors P5
and P6 on the
SmartRF05EB.
4. Power Options
There are several ways of applying power to the
SmartRF05EB;
USB (5V through USB plug)
External Power Supply (see below)
2 x 1.5V AA Non-Rechargeable Alkaline
Batteries
Voltage regulators on the SmartRF05EB will set
the on-board voltage to 3.3V.
External Power Supply1 Requirements:
Nom Voltage: 4 to 20 VDC
Max Current: 1500 mA
Efficiency Level V
Warning! To minimize risk of personal injury or
property damage, never use rechargeable batteries to
power the board.
5. Power the Boards
Locate the power source
header P11 just above
the LCD on the
SmartRF05EB. Connect
pins 1 and 2 if you are
using batteries to power the board. Connect pins
2 and 3 if you are using USB or external power
supply.
Once you have set P11,
find switch P8 just next to
the DC jack on the
SmartRF05EB. To power
on the board, flip the
switch from “OFF” to “ON”.
6. Start-up Screen
One of the CC2540EMs will be pre-loaded with
the SimpleBLECentral application, while the
other will be pre-loaded with the
SimpleBLEPeripheral application. The LCD
screens on the two SmartRF05EBs should
display messages similar to those below:
The “0x…” value displayed on each board is the
device address. Every CC2540 device has a
unique address.
7. Using the Joystick
The SimpleBLEPeripheral application runs
autonomously and does not require any user
interaction. The SimpleBLECentral application,
however, requires user interaction by means of
joystick U1. Find joystick U1 on the top side of
the SmartRF05EB, immediately below the LCD.
The joystick has five different movements: it can
be moved up, down, left, right, and it can be
pressed in, just like a button. Each movement
performs different actions depending on the state
of the device.
8. Device Discovery
Before the two devices
can connect, the central
device must first
discover the peripheral
device. To perform
device discovery, press
up on joystick U1 once.
The LCD on the central
device should display
“Discovering…”.
After a few seconds, it should display “Devices
Found 1 / <- To Select”. This means that the
central device successfully discovered the
peripheral. Press left on joystick U1 to view the
address of the peripheral device. This address
should match the address seen on the
peripheral’s LCD.
9. Establish Connection
To establish a
connection with
the peripheral,
press joystick U1
in towards the
board (push it in
like it is a button).
Once the
connection is
established, the central device will automatically
perform service discovery on the peripheral using
the BLE GATT protocol. This should complete
within a few seconds.
The two LCD screens should appear as in the
images below, with the central still displaying the
peripheral’s address and the peripheral having
changed from “Advertising” to “Connected”:
Be careful that you don’t double tap U1 which
would terminate the connection immediately,
giving Disconnected Reason: 22.
1
When using an external power supply, make sure it meets the listed requirements in addition to complying with applicable regional product regulatory and
safety certification requirements such as UL, CSA, VDE, CCC, and PSE.

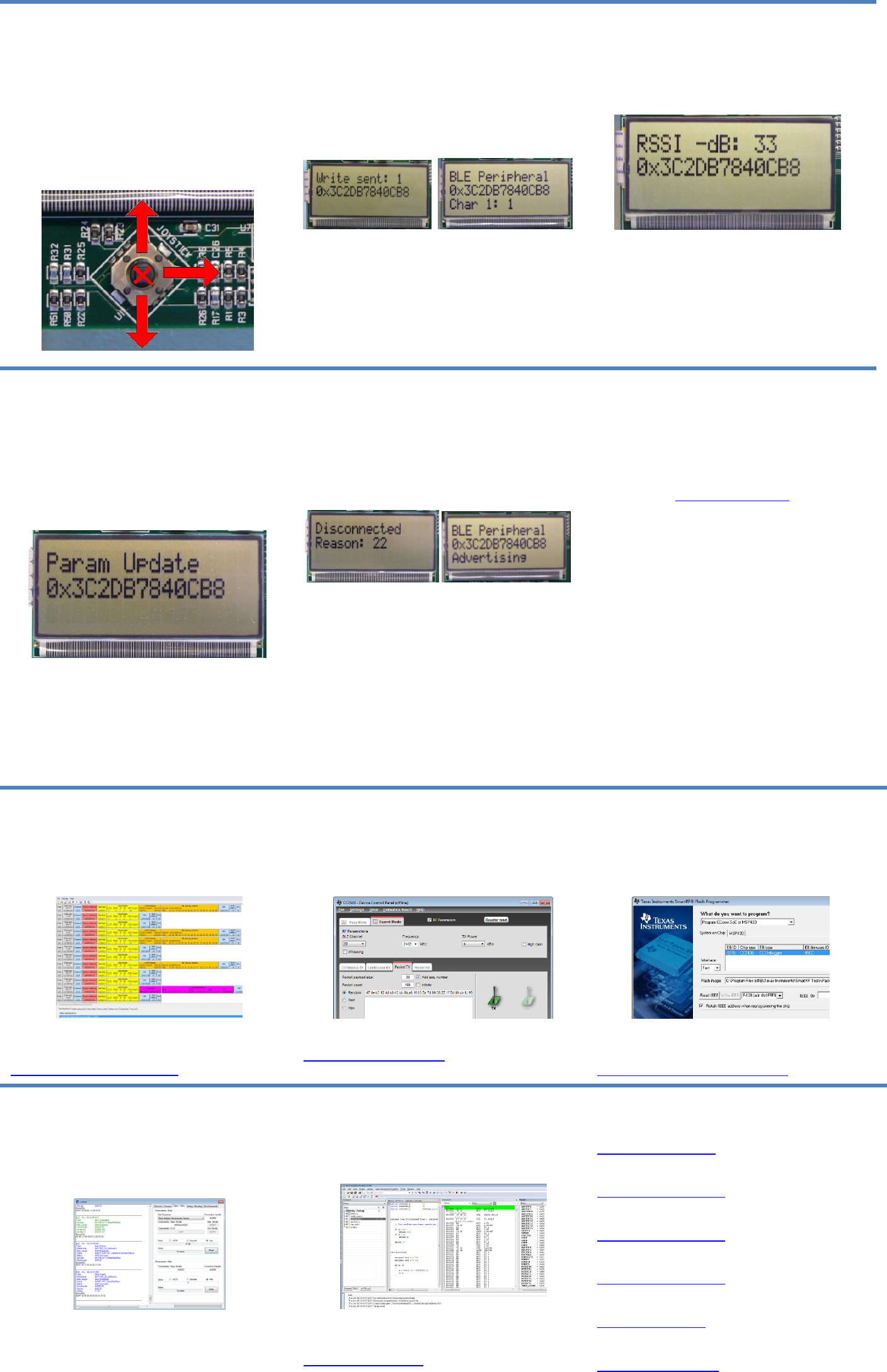

10. Connected Operations
Once the connection has been established and
service discovery is complete, you can perform
the following operations using joystick U1 on the
central device:
Read / Write Data – U1 UP
RSSI Monitoring – U1 DOWN
Connection Parameter Update – U1 RIGHT
Terminate Link – U1 IN (towards the board)
11. Read / Write Data
Pressing up on U1 will send a read request to the
peripheral device. One byte of data will be read,
and the value will be displayed. Pressing up
again will send a write request, and one byte of
data will be written to the peripheral. The
peripheral’s LCD should display the written value
each time this is done.
Bluetooth low energy is an ideal technology for
transmission of small amounts of data between
two devices while consuming very little power, as
is demonstrated here.
Continuing to press up on the joystick will
alternate between reads and writes, with the
value incrementing each time.
12. Monitor RSSI
Pressing down on U1 will turn on RSSI (received
signal strength indication) monitoring. The RSSI
will be displayed on the LCD in units of negative
dBm.
If the boards are moved farther apart from each
other, the RSSI will drop (since the value is
negative, a higher number means lower RSSI). If
they are moved closer together, the RSSI should
rise.
Pressing down on U1 again will turn off RSSI
monitoring.
13. Connection Parameter
Update
Pressing right on U1 will send a connection
parameter update request to the peripheral to
use a longer connection interval. This will result
in much longer latency when performing data
reads and writes; however the power consumed
by both devices is significantly reduced.
14. Terminate Link
Pressing U1 in towards the board will terminate
the link. The peripheral will return to an
advertising state. The central device will display
a “Reason” code, which indicates why the
disconnection occurred (values are defined in the
BLE stack API).
In this case, the reason code of 22 indicates that
the link termination was initiated by the central
device. In the event that the peripheral device
goes out of range or has power disconnected
from it, you will see a reason code of 8 which
indicates that a link timeout has occurred.
You can now perform device discovery and re-
connect to the peripheral if desired.
15. SimpleBLE Demo Source
Code
The project and source code files for these
applications (as well as many others) are
included with the Bluetooth low energy (BLE)
stack from Texas Instruments, which can be
downloaded at www.ti.com/blestack.
The two projects implementing this demo are
called SimpleBLECentral (CC2540EM Master
configuration) and SimpleBLEPeripheral
(CC2540 Slave configuration). These can be
modified as desired, and should provide a good
framework for developing your own custom BLE
applications.
More details on these projects can be found
within the BLE Software Developer’s Guide,
which is included with the stack.
Additional Tools and Links
BLE Packet Sniffer
A CC2540 USB Dongle (not included) can be
used as a BLE sniffer and monitor packets while
the SimpleBLE Demo is running.
The SmartRF Protocol Packet Sniffer application
can be downloaded from
www.ti.com/tool/packet-sniffer.
SmartRF™ Studio
SmartRF Studio allows you to configure the radio,
run RF performance tests, and run link tests
between the two SmartRF05EBs.
SmartRF Studio can be downloaded from
www.ti.com/smartrfstudio
SmartRF Flash Programmer
Texas Instruments has a simple tool which can
be used to program and flash the CC2540.
The SmartRF Flash Programmer application
can be downloaded from
www.ti.com/tool/flash-programmer
BTool
BTool is a Windows application that allows you to
control a central device using the serial interface
and perform various BLE functions while
connected to a peripheral device.
BTool is included as part of the installation of the
BLE stack (see “Useful Links” to the right).
IAR Embedded Workbench
To develop software, program, and debug the
CC2540, you should use IAR Embedded
Workbench for 8051.
More information on IAR EW8051, including a
free evaluation version download, can be found at
www.iar.com/ew8051.
Useful Links
TI BLE Stack and Software:
www.ti.com/ble-stack
CC2540/ Development Kit User Guide:
www.ti.com/lit/swru301
CC2540 BLE Software Developer’s Guide:
www.ti.com/lit/swru271
CC2540/41 User’s Guide:
www.ti.com/lit/swru191
CC2540 Product Page:
www.ti.com/cc2540
For additional help, visit the TI E2E Forums:
www.ti.com/lprf-forum
EVALUATION BOARD/KIT/MODULE (EVM) ADDITIONAL TERMS
Texas Instruments (TI) provides the enclosed Evaluation Board/Kit/Module (EVM) under the following conditions:
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims
arising from the handling or use of the goods.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from
the date of delivery for a full refund. THE FOREGOING LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO
BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH
ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES.
Please read the User's Guide and, specifically, the Warnings and Restrictions notice in the User's Guide prior to handling the product. This
notice contains important safety information about temperatures and voltages. For additional information on TI's environmental and/or safety
programs, please visit www.ti.com/esh or contact TI.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used. TI currently deals with a variety of customers for products, and
therefore our arrangement with the user is not exclusive. TI assumes no liability for applications assistance, customer product design,
software performance, or infringement of patents or services described herein.
REGULATORY COMPLIANCE INFORMATION
As noted in the EVM User’s Guide and/or EVM itself, this EVM and/or accompanying hardware may or may not be subject to the Federal
Communications Commission (FCC) and Industry Canada (IC) rules.
For EVMs not subject to the above rules, this evaluation board/kit/module is intended for use for ENGINEERING DEVELOPMENT,
DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end product fit for general consumer
use. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing
devices pursuant to part 15 of FCC or ICES-003 rules, which are designed to provide reasonable protection against radio frequency
interference. Operation of the equipment may cause interference with radio communications, in which case the user at his own expense will
be required to take whatever measures may be required to correct this interference.
General Statement for EVMs including a radio
User Power/Frequency Use Obligations: This radio is intended for development/professional use only in legally allocated frequency and
power limits. Any use of radio frequencies and/or power availability of this EVM and its development application(s) must comply with local
laws governing radio spectrum allocation and power limits for this evaluation module. It is the user’s sole responsibility to only operate this
radio in legally acceptable frequency space and within legally mandated power limitations. Any exceptions to this are strictly prohibited and
unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory
authorities, which is responsibility of user including its acceptable authorization.
For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
FCC Interference Statement for Class A EVM devices
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Interference Statement for Class B EVM devices
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For EVMs annotated as IC – INDUSTRY CANADA Compliant
This Class A or B digital apparatus complies with Canadian ICES-003.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Concerning EVMs including radio transmitters
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Concerning EVMs including detachable antennas
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the user guide with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Cet appareil numérique de la classe A ou B est conforme à la norme NMB-003 du Canada.
Les changements ou les modifications pas expressément approuvés par la partie responsable de la conformité ont pu vider l’autorité de
l'utilisateur pour actionner l'équipement.
Concernant les EVMs avec appareils radio
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain
maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à
l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le manuel
d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
【【Important Notice for Users of EVMs for RF Products in Japan】】
This development kit is NOT certified as Confirming to Technical Regulations of Radio Law of Japan
If you use this product in Japan, you are required by Radio Law of Japan to follow the instructions below with respect to this product:
1. Use this product in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal Affairs and
Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for Enforcement of Radio Law of
Japan,
2. Use this product only after you obtained the license of Test Radio Station as provided in Radio Law of Japan with respect to this
product, or
3. Use of this product only after you obtained the Technical Regulations Conformity Certification as provided in Radio Law of Japan with
respect to this product. Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note
that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan.
Texas Instruments Japan Limited
(address) 24-1, Nishi-Shinjuku 6 chome, Shinjuku-ku, Tokyo, Japan
http://www.tij.co.jp
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】
本開発キットは技術基準適合証明を受けておりません。
本製品のご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。
日本テキサス・インスツルメンツ株式会社
東京都新宿区西新宿６丁目２４番１号
西新宿三井ビル
http://www.tij.co.jp
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
EVALUATION BOARD/KIT/MODULE (EVM)
WARNINGS, RESTRICTIONS AND DISCLAIMERS
For Feasibility Evaluation Only, in Laboratory/Development Environments. Unless otherwise indicated, this EVM is not a finished
electrical equipment and not intended for consumer use. It is intended solely for use for preliminary feasibility evaluation in
laboratory/development environments by technically qualified electronics experts who are familiar with the dangers and application risks
associated with handling electrical mechanical components, systems and subsystems. It should not be used as all or part of a finished end
product.
Your Sole Responsibility and Risk. You acknowledge, represent and agree that:
1. You have unique knowledge concerning Federal, State and local regulatory requirements (including but not limited to Food and Drug
Administration regulations, if applicable) which relate to your products and which relate to your use (and/or that of your employees,
affiliates, contractors or designees) of the EVM for evaluation, testing and other purposes.
2. You have full and exclusive responsibility to assure the safety and compliance of your products with all such laws and other applicable
regulatory requirements, and also to assure the safety of any activities to be conducted by you and/or your employees, affiliates,
contractors or designees, using the EVM. Further, you are responsible to assure that any interfaces (electronic and/or mechanical)
between the EVM and any human body are designed with suitable isolation and means to safely limit accessible leakage currents to
minimize the risk of electrical shock hazard.
3. Since the EVM is not a completed product, it may not meet all applicable regulatory and safety compliance standards (such as UL,
CSA, VDE, CE, RoHS and WEEE) which may normally be associated with similar items. You assume full responsibility to determine
and/or assure compliance with any such standards and related certifications as may be applicable. You will employ reasonable
safeguards to ensure that your use of the EVM will not result in any property damage, injury or death, even if the EVM should fail to
perform as described or expected.
4. You will take care of proper disposal and recycling of the EVM’s electronic components and packing materials.
Certain Instructions. It is important to operate this EVM within TI’s recommended specifications and environmental considerations per the
user guidelines. Exceeding the specified EVM ratings (including but not limited to input and output voltage, current, power, and
environmental ranges) may cause property damage, personal injury or death. If there are questions concerning these ratings please contact
a TI field representative prior to connecting interface electronics including input power and intended loads. Any loads applied outside of the
specified output range may result in unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or
interface electronics. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the
load specification, please contact a TI field representative. During normal operation, some circuit components may have case temperatures
greater than 60°C as long as the input and output are maintained at a normal ambient operating temperature. These components include
but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors which can be identified using the
EVM schematic located in the EVM User's Guide. When placing measurement probes near these devices during normal operation, please
be aware that these devices may be very warm to the touch. As with all electronic evaluation tools, only qualified personnel knowledgeable
in electronic measurement and diagnostics normally found in development environments should use these EVMs.
Agreement to Defend, Indemnify and Hold Harmless. You agree to defend, indemnify and hold TI, its licensors and their representatives
harmless from and against any and all claims, damages, losses, expenses, costs and liabilities (collectively, "Claims") arising out of or in
connection with any use of the EVM that is not in accordance with the terms of the agreement. This obligation shall apply whether Claims
arise under law of tort or contract or any other legal theory, and even if the EVM fails to perform as described or expected.
Safety-Critical or Life-Critical Applications. If you intend to evaluate the components for possible use in safety critical applications (such
as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, such as devices
which are classified as FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate
Assurance and Indemnity Agreement.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2013, Texas Instruments Incorporated
