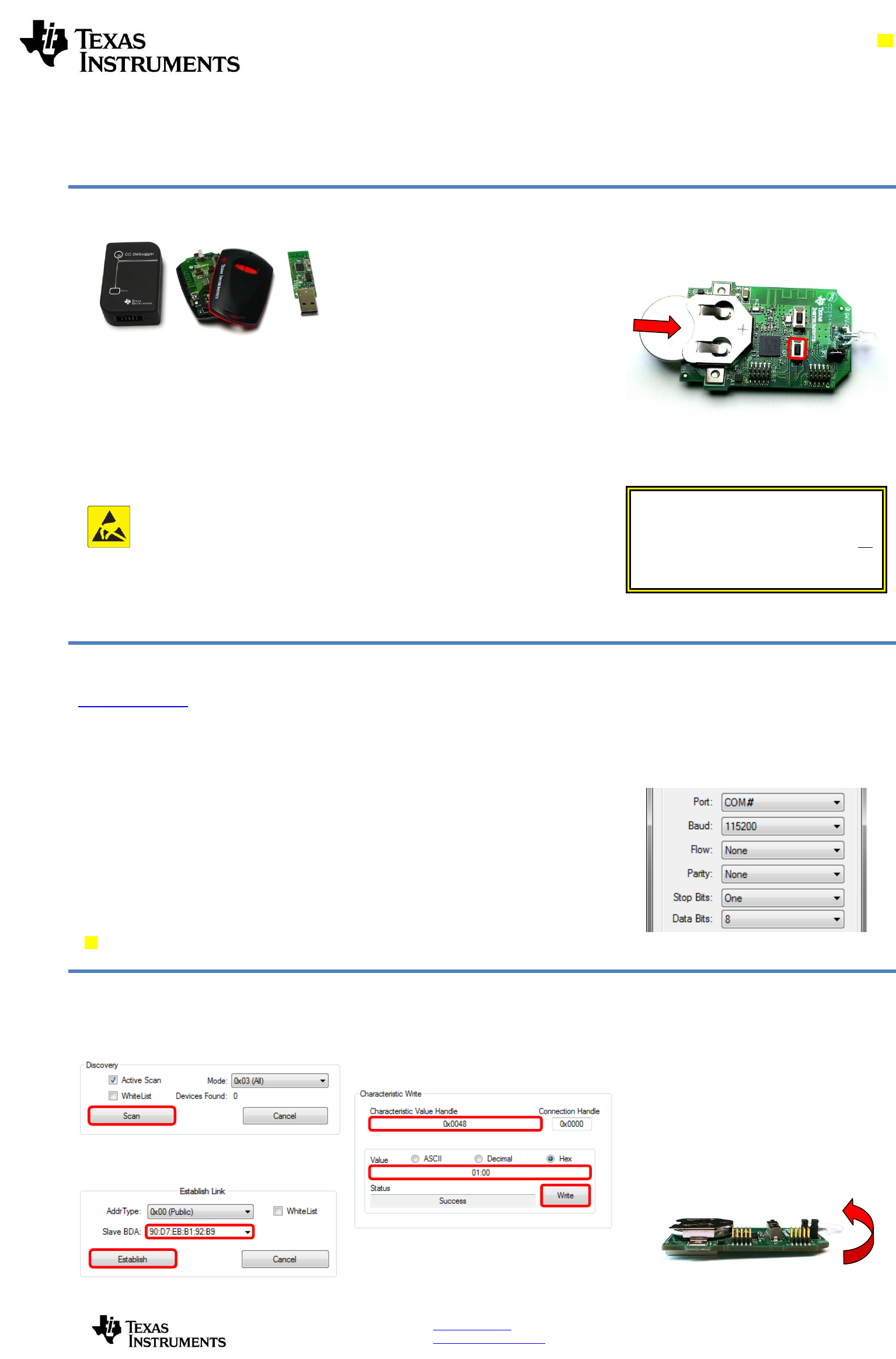

CC2541 Mini Development Kit Quick Start Guide
Opening the Box and Evaluating Bluetooth® Low Energy
Kit Contents
  1 x CC2540 USB dongle
  1 x CC2541 Keyfob board
  1 x Keyfob plastic case
  1 x CC Debugger with cables
  1 x CR2032 Battery
  Documentation
The RF Boards in this kit are FCC and IC certified
and  tested  to  comply  with  ETSI/R&TTE  over
temperature from 0 to +35°C.
Caution!  The  kit  contains  ESD  sensitive
components. Handle with care to prevent
permanent damage.
Introduction
This  document  will  guide  you  through  the  initial
steps required in order to run the pre programmed
Bluetooth® low energy demo application.
You will get familiar with the hardware in the box
and  some  of  the  tools  that  can  be  used  for
developing your own software at a later stage. For
the  CC2541DK-MINI,  there  are  two  ways  of
getting started:
 1. Evaluate  Using  BTool.  BTool  is  a
Windows  application  that  allows  you  to
control  a  central  device  using  the  serial
interface  and  perform  various  BLE
functions while connected to a peripheral
device, such as the CC2541 Keyfob.
2. Evaluate  Using  iPhone  4S/5.  Apple
iPhone 4S and 5 both support BT4.0 and
Texas  Instruments  have  created  an  iOS
Application  to  evaluate  a  peripheral
device, such as the CC2541 Keyfob.
Hardware Setup
First,  you  will  need  to  power  up  the  CC2541
Keyfob. When you insert the CR 2032 battery, the
LED will be lit green for one second.
You  can  toggle  Advertisements  on  and  off  by
pushing  the  right  button  on  the  CC2541  Keyfob.
During  advertisement,  the  LED  will  be  blinking
red.
 Caution!  This  kit  includes  a  non-rechargeable
lithium  battery.  Always  make sure  the  battery  is
removed  from  the  CC2541  Keyfob  when  it  is
connected  to  an  external  power  source  (Do  not
apply  voltage  >  3.6V).  Dispose  the  battery
properly and keep out of the reach of children. If
swallowed, contact a physician immediately.
Evaluate Using BTool
1. Download & Install BLE-Stack
The  latest  BLE  software  can  be  downloaded  at
www.ti.com/ble-stack.
After  the  BLE-Stack  software  installation  is
complete,  the  USB  Dongle  driver  must  be
associated  with  the  device  in  order  to  use  the
BTool application.  To associate the USB Dongle
driver, you must first connect the USB Dongle to
the  PC’s  USB  port,  or  to  a  USB  hub  that
connects to the PC
The first time that the dongle is connected to the
PC,  a  message  will  pop-up,  indicating  that
Windows does not recognize the device.
The  driver  is  found  in  the  folder  Accessories\
Drivers  in  the  default  install  directory.  For  more
information  on  how  to  install  the  driver,  please
refer  to  the  CC254XDK-MINI  User  Guide,  found
at...
2. Identify the COM Port Number
Once the driver is installed, you need to determine
which  COM  port  Windows  has  assigned  to  the
USB  Dongle. Right-click  on  “Computer”,  listed  in
the Start Menu, and select “Properties”.
The “System Properties” window should open up,
where you can select “Device Manager”.
 A  list  of  all  hardware  devices  should  appear.
Under  the  section  “Ports  (COM  &  LPT)”,  the
device  “TI  CC2540  Low-Power RF  to  USB  CDC
Serial  Port”  should  appear.  Next  to  the  name
should be the port number (COM#)
Take note of this port number, as it will be needed
in order to use BTool.
3. Start BTool
BTool is included as part of the installation of the
BLE  stack  and  can  be  found  in  the  folder
\Projects\BTool in the default install directory.
When you start up BTool, you will be prompted to
set  port  settings.  Select  the  options  below  and
press “OK”.
4. Connect to CC2541 Keyfob
Pressing  the  right button on  the  CC2541  Keyfob
starts  the  advertisement.  The  device  advertises
for 30 seconds.  In BTool, press SCAN button:
After the scanning is complete, choose the device
to connect to and press “Establish”.
5. Button Notifications
To  notify  when  buttons  are  presses  on  the
CC2541  Keyfob,  notifications  need  to  be
enabled. This is done in the “Read/Write” Tab of
BTool.  Simply  write  01:00  to  character  handle
0x0048.
If  a  button  on  the  CC2541  Keyfob  is  now
pushed,  notifications  will  be  sent  and  can  be
monitored in the BTool log window.
6. Enable Accelerometer
Similar  to  the  button  notifications,  the
notifications  for  the  accelerometer  data  can  be
enabled.  In  this  example  we  will  only  enable
notifications for the x-axis.
First  of  all,  the  accelerometer  need  to  be
enabled,  which  is  done  by  writing  01:00  to
character handle 0x0034 in the “Read/Write” tab
of BTool.
To enable notifications for the x-axis, write 01:00
to character handle 0x003B. This will enable the
CC2541  Keyfob  to  send  notifications  as  you
move it.

7. Immediate Alert
To  sound  the  buzzer  located  on  the  CC2541
Keyfob,  write  the  following  value  to  handle
0x0028:
  01:00 for low Alert
  02:00 for high Alert
  00:00 to turn off.
The buzzer will sound for 10 seconds.

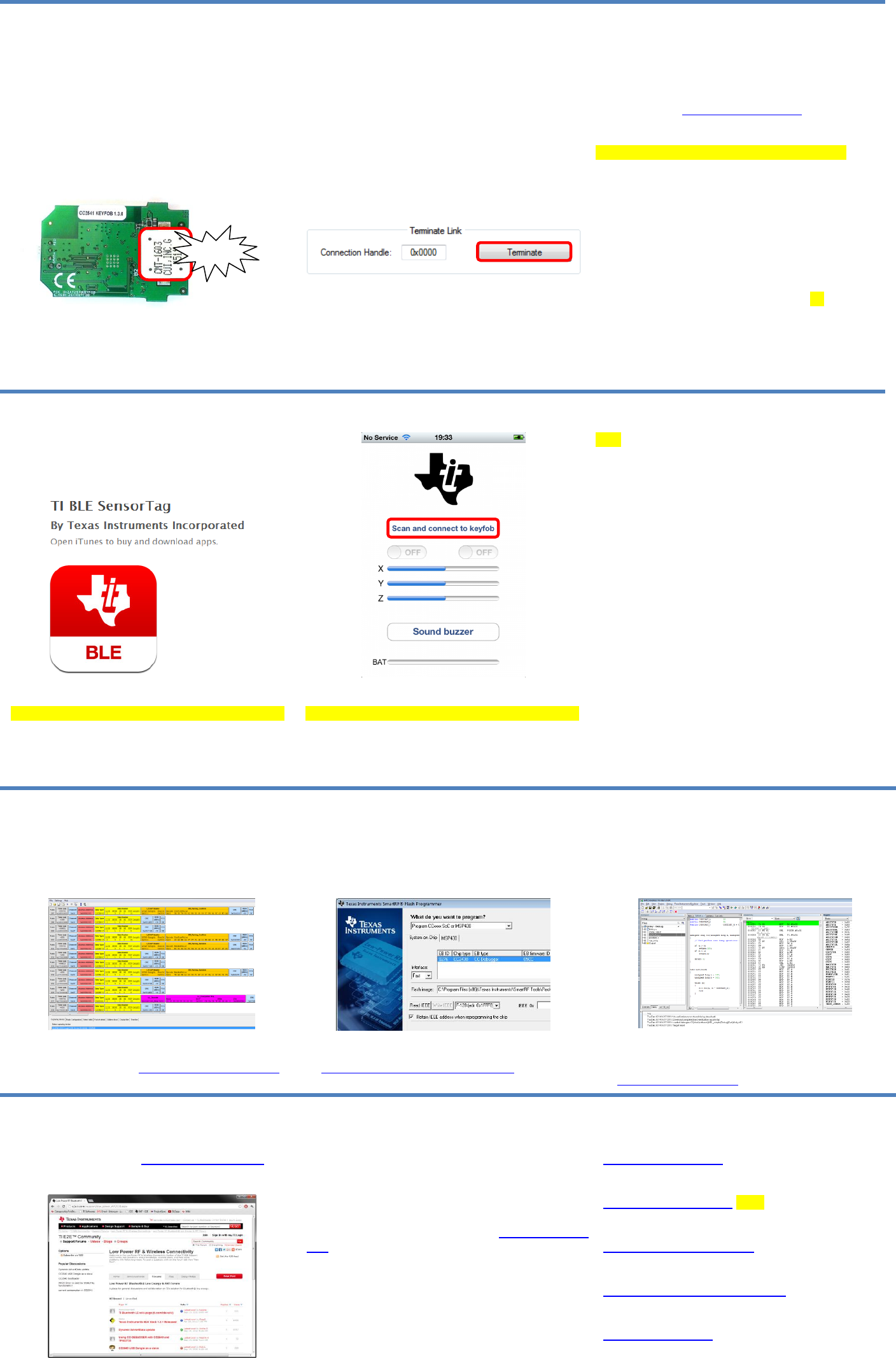

8. Terminate Connection
To terminate the connection you will have three
options:
  Remove  the  battery  from  the  CC2541
Keyfob,  which  will  trigger  a  supervision
timeout.
  Move  the  CC2541  Keyfob  out  of  range
(typically  >10m),  which  will  trigger  a
supervision timeout.
 Press the “Terminate” button in BTool as
indicated in the image below.
9. Source Code
The  project  and  source  code  files  for  the  pre
programmed application (as well as many others)
are included with the Bluetooth low energy (BLE)
stack  from  Texas  Instruments,  which  can  be
downloaded at www.ti.com/ble-stack.
The  project  implementing  this  demo  is  called
Keyfobdemo (CC2541 Slave  configuration).  The
project  can  be modified  as desired,  and should
provide  a  good  framework  for  developing  your
own custom BLE applications.
More  details  on  these  projects  can  be  found
within  the  BLE  Software  Developer’s  Guide,
which is included with the stack.
For  troubleshooting  please  refer  to  the
CC254XDK-MINI User Guide, found at...
Evaluate Using iPhone 4S/5
1. Download the Application
The  iPhone  4S/5  app  can  be  downloaded  via
iTunes (found at www.apple.com/itunes) or App
Store which are pre installed on the iPhone 4S/5.
!! This image will be updated when App released
2. Connect to CC2541 Keyfob
!! This image will be updated when App released
3. Evaluate the Application
TBD
Additional Tools and Links
BLE Packet Sniffer
The CC2540 USB Dongle can be used as a BLE
sniffer and monitor packets while the iPhone 4S
Demo is running.
The  SmartRF  Protocol  Packet  Sniffer  software
can be downloaded at www.ti.com/packetsniffer
SmartRF Flash Programmer
Texas Instruments has a simple tool which can
be used to program and flash the CC2541.
SmartRF  Flash Programmer can be downloaded
at www.ti.com/tool/flash-programmer
IAR Embedded Workbench
To  develop  software,  program,  and  debug  the
CC2541,  you  should  use  IAR  Embedded
Workbench for 8051.
More  information  on  IAR EW8051,  including  a
free evaluation version download, can be found
at www.iar.com/ew8051.
BLE E2E Forum
For  additional  help,  visit  the  TI  Bluetooth  low
energy  E2E  forum,  www.ti.com/ble-forum,  for
instant support during your development.
BLE Wiki
Our  BLE  Wiki  contains  application  examples,
guides  and  documentation  covering  those  extra
steps  you might need  help with. The Wiki  is not
only  managed  by  Texas  Instruments  employees
but  also  E2E  community  members.  Anyone  can
share,  edit  and  make  use  of  the  information
posted here. The Wiki is found at www.ti.com/ble-
wiki.
Useful Links
TI BLE Stack and Software:
www.ti.com/ble-stack
CC2540/41 Development Kit User Guide:
www.ti.com/lit/pdf/swru ####
CC2540/41 BLE Software Developer’s Guide:
www.ti.com/lit/pdf/swru271
CC2540/41 User’s Guide:
http://www.ti.com/lit/pdf/swru191
CC2541 Product Page:
www.ti.com/cc2541
Beep

EVALUATION BOARD/KIT/MODULE (EVM) ADDITIONAL TERMS
Texas Instruments (TI) provides the enclosed Evaluation Board/Kit/Module (EVM) under the following conditions:
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims
arising from the handling or use of the goods.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from
the date of delivery for a full refund. THE FOREGOING LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO
BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH
ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES.
Please read the User's Guide and, specifically, the Warnings and Restrictions notice in the User's Guide prior to handling the product. This
notice contains important safety information about temperatures and voltages. For additional information on TI's environmental and/or safety
programs, please visit www.ti.com/esh or contact TI.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used. TI currently deals with a variety of customers for products, and
therefore our arrangement with the user is not exclusive. TI assumes no liability for applications assistance, customer product design,
software performance, or infringement of patents or services described herein.
REGULATORY COMPLIANCE INFORMATION
As noted in the EVM User’s Guide and/or EVM itself, this EVM and/or accompanying hardware may or may not be subject to the Federal
Communications Commission (FCC) and Industry Canada (IC) rules.
For EVMs not subject to the above rules, this evaluation board/kit/module is intended for use for ENGINEERING DEVELOPMENT,
DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end product fit for general consumer
use. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing
devices pursuant to part 15 of FCC or ICES-003 rules, which are designed to provide reasonable protection against radio frequency
interference. Operation of the equipment may cause interference with radio communications, in which case the user at his own expense will
be required to take whatever measures may be required to correct this interference.
General Statement for EVMs including a radio
User Power/Frequency Use Obligations: This radio is intended for development/professional use only in legally allocated frequency and
power limits. Any use of radio frequencies and/or power availability of this EVM and its development application(s) must comply with local
laws governing radio spectrum allocation and power limits for this evaluation module. It is the user’s sole responsibility to only operate this
radio in legally acceptable frequency space and within legally mandated power limitations. Any exceptions to this are strictly prohibited and
unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory
authorities, which is responsibility of user including its acceptable authorization.
For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
FCC Interference Statement for Class A EVM devices
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Interference Statement for Class B EVM devices
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For EVMs annotated as IC – INDUSTRY CANADA Compliant
This Class A or B digital apparatus complies with Canadian ICES-003.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Concerning EVMs including radio transmitters
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Concerning EVMs including detachable antennas
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the user guide with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Cet appareil numérique de la classe A ou B est conforme à la norme NMB-003 du Canada.
Les changements ou les modifications pas expressément approuvés par la partie responsable de la conformité ont pu vider l’autorité de
l'utilisateur pour actionner l'équipement.
Concernant les EVMs avec appareils radio
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain
maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à
l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le manuel
d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER

【【Important Notice for Users of this Product in Japan】】
This development kit is NOT certified as Confirming to Technical Regulations of Radio Law of Japan
If you use this product in Japan, you are required by Radio Law of Japan to follow the instructions below with respect to this product:
1. Use this product in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal Affairs and
Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for Enforcement of Radio Law of
Japan,
2. Use this product only after you obtained the license of Test Radio Station as provided in Radio Law of Japan with respect to this
product, or
3. Use of this product only after you obtained the Technical Regulations Conformity Certification as provided in Radio Law of Japan with
respect to this product. Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note
that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan.
Texas Instruments Japan Limited
(address) 24-1, Nishi-Shinjuku 6 chome, Shinjuku-ku, Tokyo, Japan
http://www.tij.co.jp
【ご使用にあたっての注】
本開発キットは技術基準適合証明を受けておりません。
本製品のご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
   上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。
日本テキサス・インスツルメンツ株式会社
東京都新宿区西新宿6丁目24番1号
西新宿三井ビル
http://www.tij.co.jp
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
EVALUATION BOARD/KIT/MODULE (EVM)
WARNINGS, RESTRICTIONS AND DISCLAIMERS
For Feasibility Evaluation Only, in Laboratory/Development Environments. Unless otherwise indicated, this EVM is not a finished
electrical equipment and not intended for consumer use. It is intended solely for use for preliminary feasibility evaluation in
laboratory/development environments by technically qualified electronics experts who are familiar with the dangers and application risks
associated with handling electrical mechanical components, systems and subsystems. It should not be used as all or part of a finished end
product.
Your Sole Responsibility and Risk. You acknowledge, represent and agree that:
1. You have unique knowledge concerning Federal, State and local regulatory requirements (including but not limited to Food and Drug
Administration regulations, if applicable) which relate to your products and which relate to your use (and/or that of your employees,
affiliates, contractors or designees) of the EVM for evaluation, testing and other purposes.
2. You have full and exclusive responsibility to assure the safety and compliance of your products with all such laws and other applicable
regulatory requirements, and also to assure the safety of any activities to be conducted by you and/or your employees, affiliates,
contractors or designees, using the EVM. Further, you are responsible to assure that any interfaces (electronic and/or mechanical)
between the EVM and any human body are designed with suitable isolation and means to safely limit accessible leakage currents to
minimize the risk of electrical shock hazard.
3. You will employ reasonable safeguards to ensure that your use of the EVM will not result in any property damage, injury or death, even
if the EVM should fail to perform as described or expected.
4. You will take care of proper disposal and recycling of the EVM’s electronic components and packing materials.
Certain Instructions. It is important to operate this EVM within TI’s recommended specifications and environmental considerations per the
user guidelines. Exceeding the specified EVM ratings (including but not limited to input and output voltage, current, power, and
environmental ranges) may cause property damage, personal injury or death. If there are questions concerning these ratings please contact
a TI field representative prior to connecting interface electronics including input power and intended loads. Any loads applied outside of the
specified output range may result in unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or
interface electronics. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the
load specification, please contact a TI field representative. During normal operation, some circuit components may have case temperatures
greater than 60°C as long as the input and output are maintained at a normal ambient operating temperature. These components include
but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors which can be identified using the
EVM schematic located in the EVM User's Guide. When placing measurement probes near these devices during normal operation, please
be aware that these devices may be very warm to the touch. As with all electronic evaluation tools, only qualified personnel knowledgeable
in electronic measurement and diagnostics normally found in development environments should use these EVMs.
Agreement to Defend, Indemnify and Hold Harmless. You agree to defend, indemnify and hold TI, its licensors and their representatives
harmless from and against any and all claims, damages, losses, expenses, costs and liabilities (collectively, "Claims") arising out of or in
connection with any use of the EVM that is not in accordance with the terms of the agreement. This obligation shall apply whether Claims
arise under law of tort or contract or any other legal theory, and even if the EVM fails to perform as described or expected.
Safety-Critical or Life-Critical Applications. If you intend to evaluate the components for possible use in safety critical applications (such
as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, such as devices
which are classified as FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate
Assurance and Indemnity Agreement.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
