Texas Instruments 2541SBOOST The CC2541S Boosterpack is a development tool for the 2.4 GHz CC2541S BLE Network Processor from TI. User Manual CC2543 CC2544 Development Kit User s Guide

Texas Instruments Inc. The CC2541S Boosterpack is a development tool for the 2.4 GHz CC2541S BLE Network Processor from TI. CC2543 CC2544 Development Kit User s Guide

Users Manual

SWRU3XX
December 2012
Web sites: www.ti.com/ble
E2E Forum: www.ti.com/ble-forum

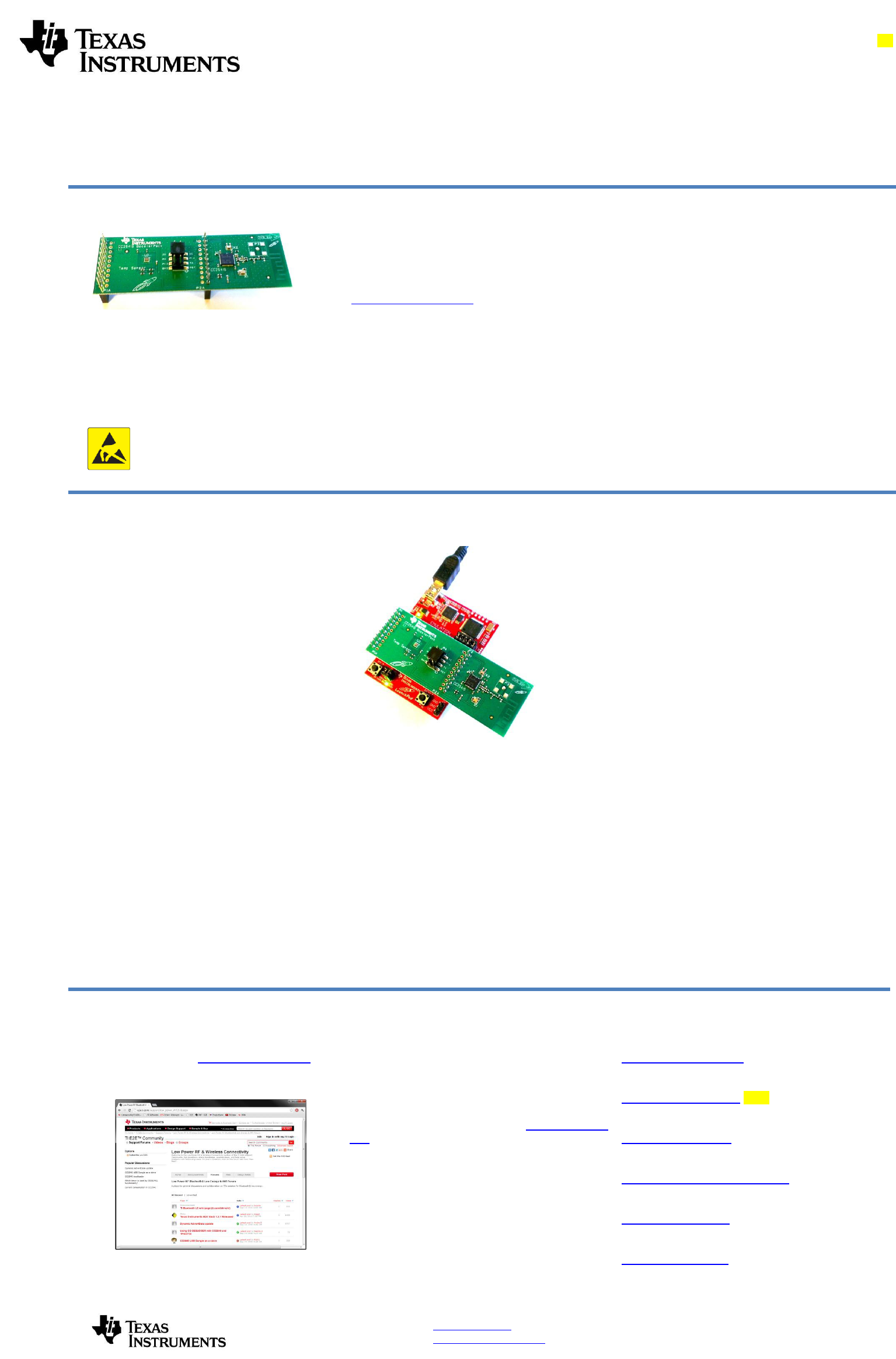

CC2541S BoosterPack Development Kit Quick Start Guide
Opening the Box and Evaluating Bluetooth® Low Energy
BOOST-CC2541S Kit Content
1 x CC2541S BoosterPack
Documentation
The RF Board in this kit are FCC and IC certified
and tested to comply with ETSI/R&TTE over
temperature from 0 to +35°C.
Caution! The kit contains ESD sensitive
components. Handle with care to prevent
permanent damage.
Introduction
The BOOST-CC2541S is a CC2541S
BoosterPack development kit for the Texas
Instrument LaunchPad boards, such as
MSP430™, Stellaris® and C2000™. More
information about the LaunchPad is found at
www.ti.com/LaunchPad.
This document will guide you through the initial
steps required in order to run the pre programmed
Bluetooth® low energy Weather Station demo
application.
CC2541S Boosterpack
The CC2541S is a Wireless Network Processor
(WNP) and adds Bluetooth low energy support to
a system. The WNP includes a complete
Bluetooth low energy Host and Controller software
stack which is accessed by a Host Controller
Interface (HCI) protocol. The HCI protocol can be
accessed over either UART or SPI.
The CC2541S is hosted on a BoosterPack board
together with a Texas Instruments IR
Temperature sensor, TMP006.
The CC2541S BoosterPack supply voltage should
be between 2.2V (TMP006 minimum) and 3.6V
(CC2541S maximum).
Weather Station Demo
The Weather Station demo application runs from
a MSP430G2553 processor on a Texas
Instruments LaunchPad (MSP-EXP430G2). The
application uses the WNP to enable a connection
with a Bluetooth low energy SMART Ready
device and transmit temperature data from the
TMP006.
Hardware Setup
Attach the CC2541S BoosterPack onto the
LaunchPad as follows:
Evaluating Weather Station
Additional Tools and Links
BLE E2E Forum
For additional help, visit the TI Bluetooth low
energy E2E forum, www.ti.com/ble-forum, for
instant support during your development.
.
BLE Wiki
Our BLE Wiki contains application examples,
guides and documentation covering those extra
steps you might need help with. The Wiki is not
only managed by Texas Instruments employees
but also E2E community members. Anyone can
share, edit and make use of the information
posted here. The Wiki is found at www.ti.com/ble-
wiki.
