The Tag-it Commander is the reader in the system. It is designed to operate with loop antennas having
dimensions of 7.25” (L) x 3.5” (W) or less. Smaller dimension antennas may be employed in order to address
applications that have limited space and shorter read range requirements such as the installation of the Tag-it
reader in a printer that would also apply the transponder or read a transponder that had been applied to a page or
object that was to presented to the printer to receive an imprint. Such antennas could be fabricated on a printed
wiring board assembly rather than being a wire loop enclosed in a plastic case such as shown in page 2
(Word97 file: “a92SwRIpic.doc”). Smaller loop antennas would radiate a lower level RF field than would the
antenna shown in this application. In order to accommodate smaller antennas, TI requests that this modular
device be authorized with the following condition pertaining to the antenna:
This device is approved for use only with a loop antenna having dimensions that do not
exceed 7.25” (L) by 3.5” (W). Versions of this device that use larger antennas must be
approved as a Class II permissive change, if applicable, or under a new grant of equipment
authorization.
Any antenna connected to this device will need to be matched to the output of the reader. This will require that
the Tag-it reader be placed in continuous mode. Note that the adjustments set forth below are not adjustments
that are to be made by end users. Instead, they are to be made at the time that any alternative antenna is tested
and before the Tag-it reader is incorporated into another device. The following procedure should be used in
order to accomplish this adjustment.
Steps:
Note: The following adjustments should be undertaken only by a trained electronics
technician.
1. Connect the reader to a 12V /1A DC power source and the RS 232 interface cable to the interface board.
2. Run the Tag-it Navigator demonstration software on the host computer and check connection with
command : > Get Commander version <
3. Place transponder (tag) over the antenna
4. Click command >Get Block <, the tag will be recognized with 32 bit default block data column.
5. Click command > Continuous <
6. Click command > Repeat last <, the tag will be continued to be recognized until the tag is removed.
7. Maximum read distance occurs when antenna is fully tuned at 50Ω impedance and 13.56 MHz. The
housing that covers the antenna matching network circuit should be removed and the three capacitors
located in board’s center should then be adjusted individually in sequence until achieving maximum
distance when the tag is parallel with the antenna. Jumpers (J1-J20) are preset and should not be moved.
Operate to Test & Instruction Manual FCC ID: A92COM320
8578.doc
2 of 3
A2
J1
J2
J3
J4
J5
J6
J7
J8
J9
J10
J11
J12
A1
J13
J14
J16
J17
J18
J19
J20
J15
A3
C5
C19
Short
1500
2200
680
470
220
100
47
1500
2200
680
470
220
100
47
680
470
220
100
47
C1
C3 C2

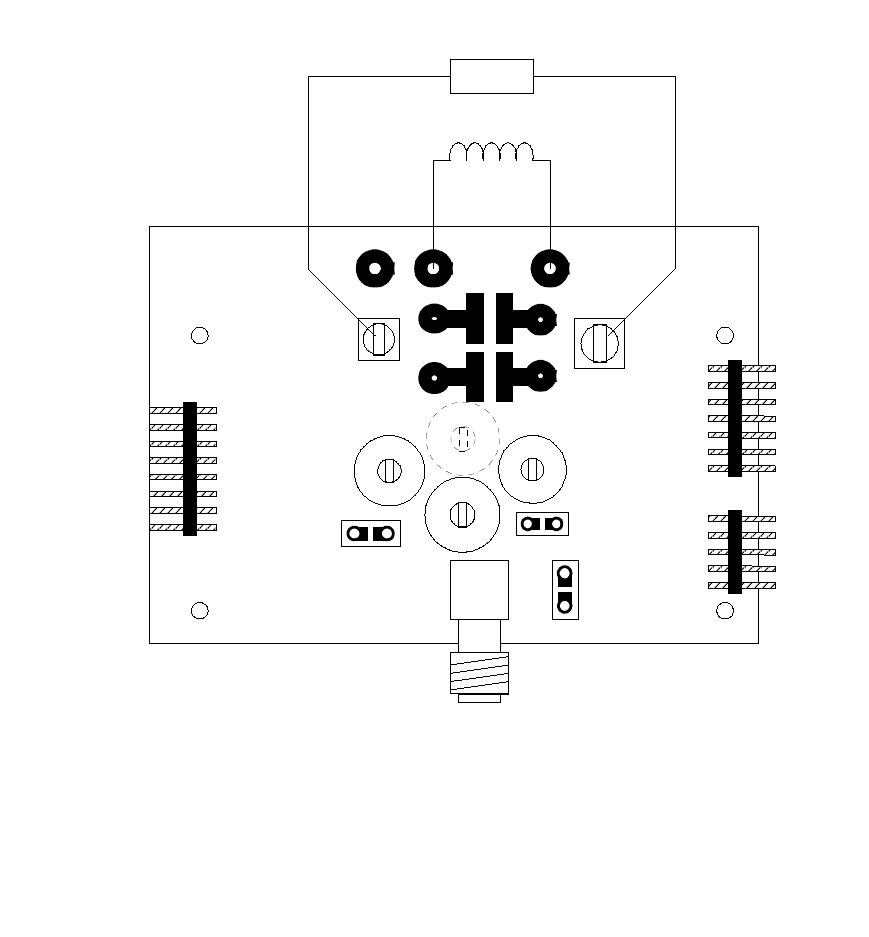

Adjustable Antenna Matching Network
Component Placement
All variable capacitors are5-90pF
R*
* Value depends on antenna inductance
C13
C4
Operate to Test & Instruction Manual FCC ID: A92COM320
8578.doc
3 of 3
Excerpt from Word97 test report file “005-A92COM320.doc”, Attachment 6, page 35
Attachment 6
Instruction Manual
Because this device will be incorporated into other devices and will function automatically, there is no separate
users manual. However, information required under Part 15 of the Rules will be supplied for insertion into the
manuals of devices into which this device is incorporated. The following information will be supplied:
NOTE: This equipment contains a intentional radio frequency radiator approved under the requirements
off FCC Rule Part 15. This equipment also contains digital circuitry that has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
NO MODIFICATIONS: Modifications to this device shall not be made without the written consent of
the party that has been issued the grant of equipment authorization by the Federal Communications Commission
for the intentional radiator contained in this device and the party responsible for verifying compliance of this
device with the FCC Rules pertaining to emissions from unintentional radiators such as the digital circuitry
contained within this device. Unauthorized modifications may void the authority granted under Federal
Communications Commission Rules permitting the operation of this device.
Texas Instruments will also prepare a manual that details the handling and installation of this device into
other devices. This manual, which will set forth the requirement to incorporate the above language into end user
manuals, will be supplied by TI to those companies that purchase the Tag-It™ Commander™ into their
products.
