CC2650 SensorTag Quick Start Guide
Opening the Box and Using the SensorTag
The SensorTag simplifies development of Bluetooth low energy sensor applications. It allows app developers to quickly and easy write smart phone apps for
Bluetooth low energy accessories without any embedded hardware or software development.
www.ti.com/sensortag
1. Kit Contents
•  1 x CC2650 SensorTag with enclosure
•  1 x CR2032 Battery
•  Quick Start Guide
The  RF  board in this  kit  is FCC  and  IC  certified
and  tested/complies  with  ETSI/R&TTE  over
temperature from 0 to +35°C
1
. The RF board has
an integrated PCB antenna.
FCC/IC Regulatory Compliance
FCC Part 15 Class A Compliant
IC ICES-003 Class A Compliant
Caution!  Dispose  the  battery  properly
and  keep  out  of  reach  of  children.  If
swallowed,  contact  a  physician
immediately.

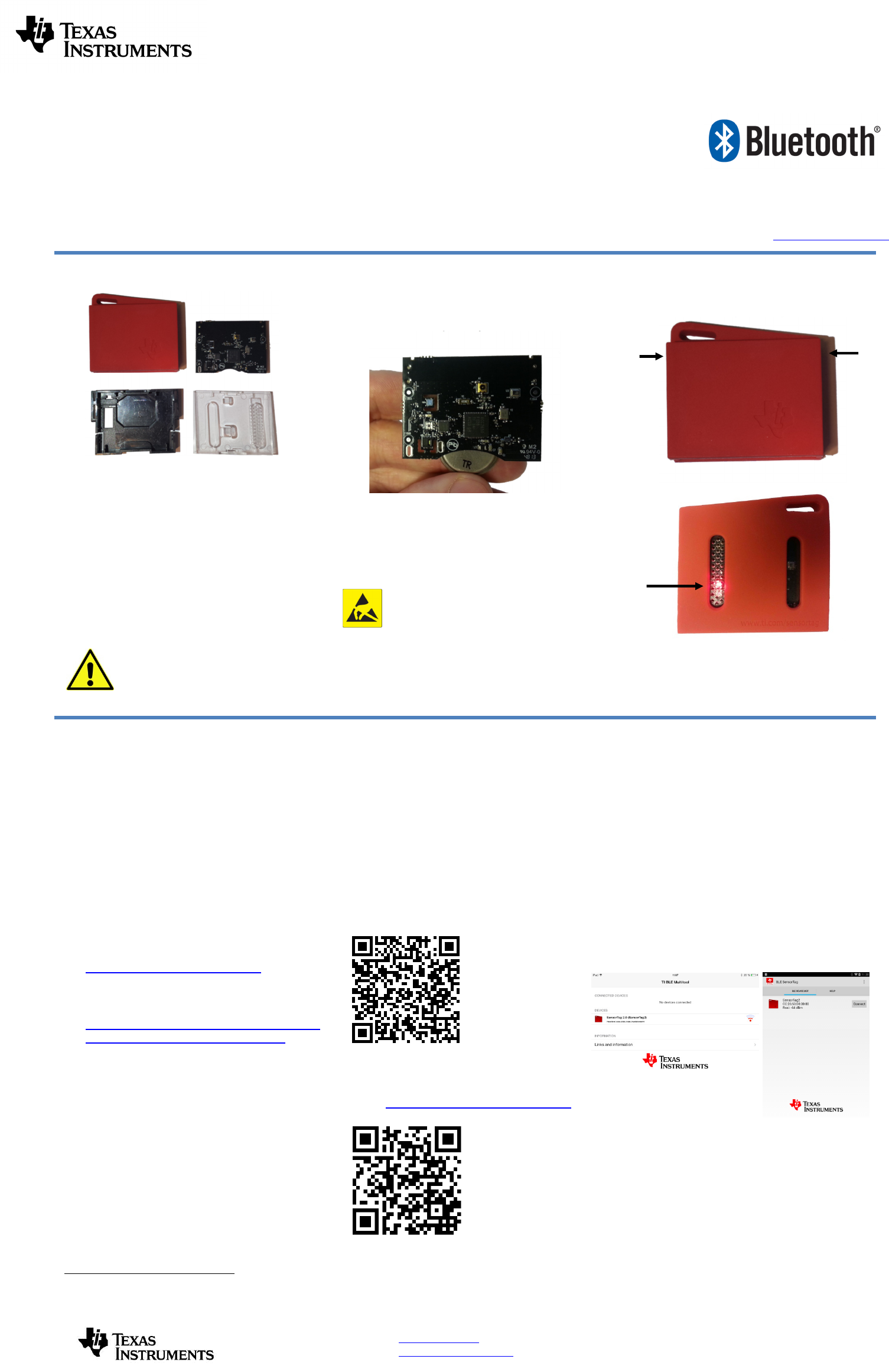

2. Assembly of the SensorTag
Insert  the  battery
2
  in  the  battery  connector  and
place the printed circuit board in the black plastic
cover with the battery facing down.
Note  that  when  inserting  the  battery for  the  first
time, the PCB contact point surface may have a
thin  layer  of  solder  residue  that  can  prevent
contact  with  the  battery.  Remove  and  insert  the
battery a few times to power the SensorTag.
Caution!  The  kit  contains  ESD  sensitive
components.  Handle  with  care  to  prevent
permanent damage.
Add  the  transparent  plastic  cover  to  close  the
inner hard plastic pieces. Complete the assembly
of the SensorTag by adding the red plastic cover.
3. Sensors
The SensorTag is fitted with several sensors and
all  sensors  are  chosen  to  be  small,  energy
efficient and low cost surface mount devices. The
main  communication  interface  with  the  sensors
are  two  separate  I2C  interface,  one  for  the  low
power  sensors  and  one  for  high  power  sensors
(accelerometer/gyroscope).  To  minimize  total
current  consumption  all  sensors  are  by  default
disabled  and  they  are  in  sleep  mode  between
measurements. Each sensor can be enabled and
read  individually.  The  SensorTag  includes  the
following sensors:
•  IR  Temperature  Sensor  (TMP006)  from
Texas Instruments,
http://www.ti.com/product/tmp006
•  Ambient  Light  Sensor  (OPT3001)  from
Texas Instruments
•  Humidity Sensor (SHT21) from Sensirion,
• http://www.sensirion.com/en/products/humidi
ty-temperature/humidity-sensor-sht21/
•  Pressure Sensor (BMP280) from Bosch,
•  Accelerometer/Gyroscope  (MPU-6500)  from
Invensense,
•  Reed Switch (MK24) from Meder
•  Microphone (SPH0641) from Knowles
•  Buzzer  (HCS0503A)  from  Changzhou
Tianyin Electrical Appliance Co.
4. Downloading the SensorTag
app
The  SensorTag  can  communicate  with  any
Bluetooth  4.0  enabled  devices,  for  instance  a
smart phone or a tablet.
The  Bluetooth  SensorTag  app  is  supported  for
both  Bluetooth  4.0  enabled  iOS  devices  and
Bluetooth 4.0 supported Android devices running
Android 4.3.
Download  the  TI  Bluetooth  iOS  SensorTag  app
from Apple’s App Store:
Or search for SensorTag on App Store.
Download  the  TI  Bluetooth  Android  SensorTag
app from http://www.ti.com/tool/sensortag-sw:
5. Connecting to a Bluetooth 4.0
enabled device
For  a  Bluetooth 4.0 device  to communicate  with
the SensorTag, Bluetooth needs to be turned on
and the SensorTag needs to be advertising. The
SensorTag  can  enable  and  disable  advertising
by pushing the power button (see picture above).
When the SensorTag is  advertising the red  LED
will blink.
Start the TI Bluetooth SensorTag app. When the
app is launched it will search for all Bluetooth low
energy devices in the area. Enable advertising by
clicking  on  the  power  button.  The  SensorTag
icon  should  appear  indicating  a  successful
connection.
If  no  Bluetooth  4.0  devices  are  detected  by  the
SensorTag within 2 minutes, advertising will stop
and the SensorTag will go back to sleep. To re-
activate  advertising  and  turning  on  the
SensorTag press the power button once more.
1
 Operating temperature for CC2650 is -40° to 85°C
2
 Maximum input voltage is 3.6V
Action
Button
Power
Button
LED

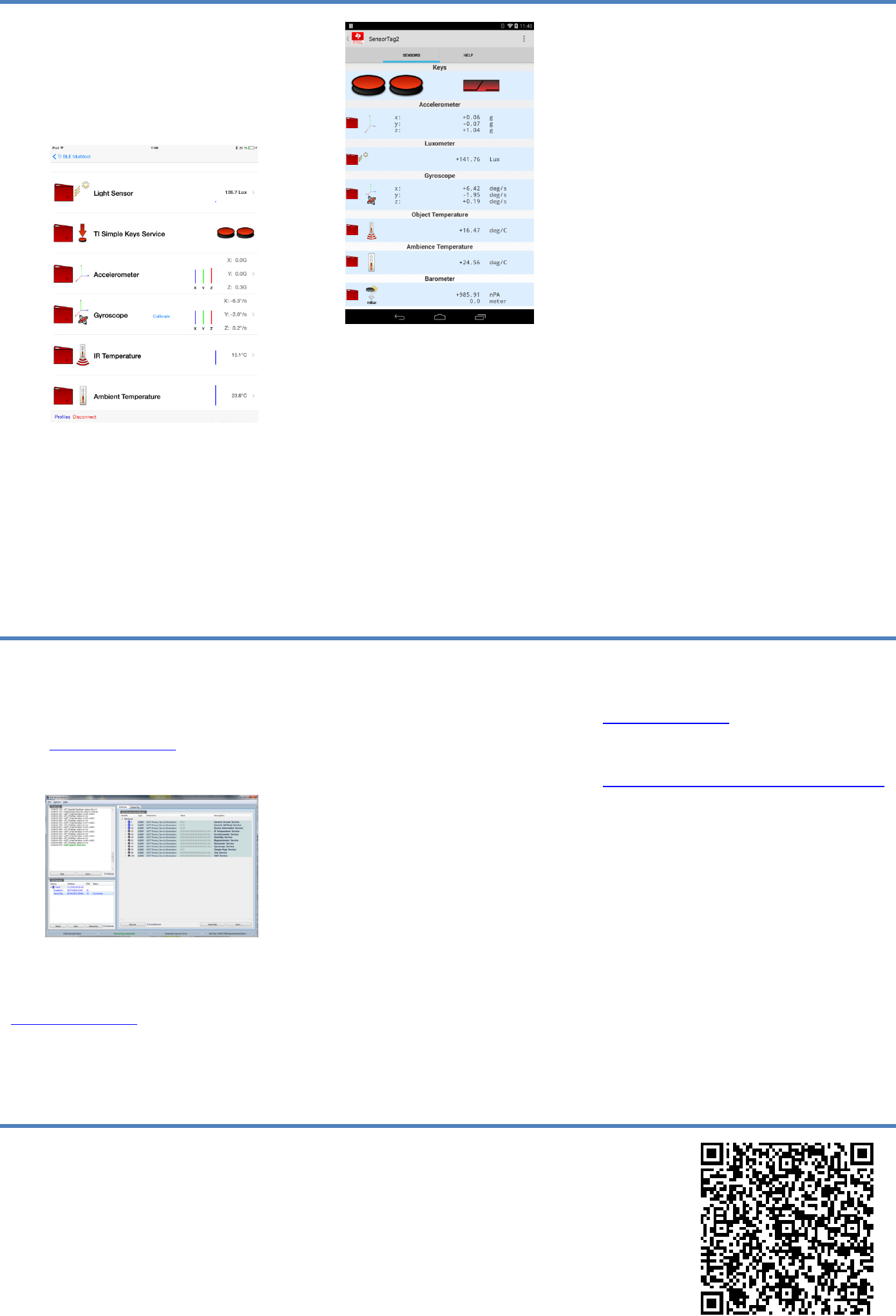

6. Use the SensorTag app
The  TI  Bluetooth  SensorTag  app  allows  you  to
create  your  “own”  app  by  selecting  the  different
sensors you want to use.
When  connected  to  the  SensorTag  click  on  the
SensorTag tab to see readings from the sensors.
Turn  on  and  off  the  sensors  by  selecting
‘Profiles’  in  the  bottom,  left  corner  on  iOS  or
click  on  ‘Services’  on  Android.  In  the  Profiles
section on iOS it is possible to adjust the sensor
data  collection  interval  by  moving  the  sliding
bars,  and  select  which  axis  to  display  for  the
multi-axis sensors. When you click ‘Back’ the TI
Bluetooth  SensorTag  app  will  display  the
selected  sensor  data  with  the  selected  data
interval.
Enable  sensor  information  data  by  clicking  the
different  sensors, this  will  also allow  for  a  graph
view  of  the  sensor  readings.  The  data  collected
in the  graph  view can  then  be sent  to an  e-mail
address by clicking on the icon in the bottom left
corner.
 7. Using the app as an attribute
and service explorer
You can use the Bluetooth SensorTag iOS
app to
read the services and attributes  of any Bluetooth
low energy enabled device.
Connect  the  Bluetooth  low  energy
device,  and
make sure that the Bluetooth low energy
device is
advertising prior to connecting.
When
the  device  is  seen  in  the  available  device
list  select  ‘Advanced Mode’  in  the  bottom  left
corner.  In  advanced  mode  an  RSSI  indicator  is
available  and  by  clicking
on  the  device  it  will
connect  to  the  iOS  device.  If  you  then  click  and
hold  on  the  device  name  you  will  be  able  to;
Show  Profiles,  Show  Services  &  Characteristics,
Show Advertisement data or disconnect.
Select Show Services & Characteristics to view
the  services  and  characteristics  of  the  Bluetooth
low energy device.
When  Show  Services  &  Characteristics  is
selected,  click  on  the  arrow  next  to  the  different
services to see the associated characteristics.
For  Android  an  attribute  and  service  discovery
explorer is provided as an standalone app, which
can be downloaded at Google Play.
8. Using the SensorTag with the
BLE Device Monitor for
Windows
Download  and  install  TI’s  BLE  Device  Monitor
from:  www.ti.com/sensortag.  Please  note  that
you also need a CC2540 USB dongle to use the
BLE Device monitor.
The BLE Device Monitor allows you to discover,
read  and  alter  attributes  on  any  BLE  device.
More detailed  information about the BLE Device
Monitor can be found at:
www.ti.com/sensortag
Note  that  BLE  Device  Monitor  is  currently  only
supported on Windows 7/XP.
9. Supported platforms
To use the SensorTag a Bluetooth  4.0 device is
required and the API of the device must support
the  Bluetooth  low  energy  API.  Currently  the
following devices are supported:
•  Android  devices  (supporting  Bluetooth  4.0)
running Android 4.3 or newer.
•  iPhone 4S or newer
•  iPad (3) or newer and iPad mini
•  iPod Touch (5
th
 generation)
•  MacBook Air ( 2011 model and newer)
•  MacBook Pro (2012 model and newer)
•  Windows  7/XP  PC  with CC2540  USB
dongle connected using BLE Device Monitor.
Part of TI BLE stack v1.30 and newer.
10. Next steps
1. Learn more about the SensorTag
and the BLE
Device Monitor at:
www.ti.com/sensortag
2.  Meet  other  Bluetooth  low  energy
developers
and get technical support at:
http://e2e.ti.com/support/low_power_rf/f/538.aspx
Make sure to subscribe to the Wireless Connectivity eNewsletter. Sign up today to get the latest information on all TI
wireless  connectivity  devices!  The  Wireless  Connectivity  eNewsletter  keeps  you  up  to  date  on  new  software  and
hardware releases, developers' news, and other news and events associated with TI's wireless connectivity solutions.

EVALUATION BOARD/KIT/MODULE (EVM) ADDITIONAL TERMS
Texas Instruments (TI) provides the enclosed Evaluation Board/Kit/Module (EVM) under the following conditions:
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims
arising from the handling or use of the goods.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from
the date of delivery for a full refund. THE FOREGOING LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO
BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH
ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES.
Please read the User's Guide and, specifically, the Warnings and Restrictions notice in the User's Guide prior to handling the product. This
notice contains important safety information about temperatures and voltages. For additional information on TI's environmental and/or safety
programs, please visit www.ti.com/esh or contact TI.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used. TI currently deals with a variety of customers for products, and
therefore our arrangement with the user is not exclusive. TI assumes no liability for applications assistance, customer product design,
software performance, or infringement of patents or services described herein.
REGULATORY COMPLIANCE INFORMATION
As noted in the EVM User’s Guide and/or EVM itself, this EVM and/or accompanying hardware may or may not be subject to the Federal
Communications Commission (FCC) and Industry Canada (IC) rules.
For EVMs not subject to the above rules, this evaluation board/kit/module is intended for use for ENGINEERING DEVELOPMENT,
DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end product fit for general consumer
use. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing
devices pursuant to part 15 of FCC or ICES-003 rules, which are designed to provide reasonable protection against radio frequency
interference. Operation of the equipment may cause interference with radio communications, in which case the user at his own expense will
be required to take whatever measures may be required to correct this interference.
General Statement for EVMs including a radio
User Power/Frequency Use Obligations: This radio is intended for development/professional use only in legally allocated frequency and
power limits. Any use of radio frequencies and/or power availability of this EVM and its development application(s) must comply with local
laws governing radio spectrum allocation and power limits for this evaluation module. It is the user’s sole responsibility to only operate this
radio in legally acceptable frequency space and within legally mandated power limitations. Any exceptions to this are strictly prohibited and
unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory
authorities, which is responsibility of user including its acceptable authorization.
For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
FCC Interference Statement for Class A EVM devices
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Interference Statement for Class B EVM devices
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For EVMs annotated as IC – INDUSTRY CANADA Compliant
This Class A or B digital apparatus complies with Canadian ICES-003.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Concerning EVMs including radio transmitters
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Concerning EVMs including detachable antennas
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the user guide with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Cet appareil numérique de la classe A ou B est conforme à la norme NMB-003 du Canada.
Les changements ou les modifications pas expressément approuvés par la partie responsable de la conformité ont pu vider l’autorité de
l'utilisateur pour actionner l'équipement.
Concernant les EVMs avec appareils radio
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain
maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à
l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le manuel
d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER

【【Important Notice for Users of EVMs for RF Products in Japan】】
This development kit is NOT certified as Confirming to Technical Regulations of Radio Law of Japan
If you use this product in Japan, you are required by Radio Law of Japan to follow the instructions below with respect to this product:
1. Use this product in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal Affairs and
Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for Enforcement of Radio Law of
Japan,
2. Use this product only after you obtained the license of Test Radio Station as provided in Radio Law of Japan with respect to this
product, or
3. Use of this product only after you obtained the Technical Regulations Conformity Certification as provided in Radio Law of Japan with
respect to this product. Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note
that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan.
Texas Instruments Japan Limited
(address) 24-1, Nishi-Shinjuku 6 chome, Shinjuku-ku, Tokyo, Japan
http://www.tij.co.jp
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】
本開発キットは技術基準適合証明を受けておりません。
本製品のご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
   上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。
日本テキサス・インスツルメンツ株式会社
東京都新宿区西新宿6丁目24番1号
西新宿三井ビル
http://www.tij.co.jp
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
EVALUATION BOARD/KIT/MODULE (EVM)
WARNINGS, RESTRICTIONS AND DISCLAIMERS
For Feasibility Evaluation Only, in Laboratory/Development Environments. Unless otherwise indicated, this EVM is not a finished
electrical equipment and not intended for consumer use. It is intended solely for use for preliminary feasibility evaluation in
laboratory/development environments by technically qualified electronics experts who are familiar with the dangers and application risks
associated with handling electrical mechanical components, systems and subsystems. It should not be used as all or part of a finished end
product.
Your Sole Responsibility and Risk. You acknowledge, represent and agree that:
1. You have unique knowledge concerning Federal, State and local regulatory requirements (including but not limited to Food and Drug
Administration regulations, if applicable) which relate to your products and which relate to your use (and/or that of your employees,
affiliates, contractors or designees) of the EVM for evaluation, testing and other purposes.
2. You have full and exclusive responsibility to assure the safety and compliance of your products with all such laws and other applicable
regulatory requirements, and also to assure the safety of any activities to be conducted by you and/or your employees, affiliates,
contractors or designees, using the EVM. Further, you are responsible to assure that any interfaces (electronic and/or mechanical)
between the EVM and any human body are designed with suitable isolation and means to safely limit accessible leakage currents to
minimize the risk of electrical shock hazard.
3. Since the EVM is not a completed product, it may not meet all applicable regulatory and safety compliance standards (such as UL,
CSA, VDE, CE, RoHS and WEEE) which may normally be associated with similar items. You assume full responsibility to determine
and/or assure compliance with any such standards and related certifications as may be applicable. You will employ reasonable
safeguards to ensure that your use of the EVM will not result in any property damage, injury or death, even if the EVM should fail to
perform as described or expected.
4. You will take care of proper disposal and recycling of the EVM’s electronic components and packing materials.
Certain Instructions. It is important to operate this EVM within TI’s recommended specifications and environmental considerations per the
user guidelines. Exceeding the specified EVM ratings (including but not limited to input and output voltage, current, power, and
environmental ranges) may cause property damage, personal injury or death. If there are questions concerning these ratings please contact
a TI field representative prior to connecting interface electronics including input power and intended loads. Any loads applied outside of the
specified output range may result in unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or
interface electronics. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the
load specification, please contact a TI field representative. During normal operation, some circuit components may have case temperatures
greater than 60°C as long as the input and output are maintained at a normal ambient operating temperature. These components include
but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors which can be identified using the
EVM schematic located in the EVM User's Guide. When placing measurement probes near these devices during normal operation, please
be aware that these devices may be very warm to the touch. As with all electronic evaluation tools, only qualified personnel knowledgeable
in electronic measurement and diagnostics normally found in development environments should use these EVMs.
Agreement to Defend, Indemnify and Hold Harmless. You agree to defend, indemnify and hold TI, its licensors and their representatives
harmless from and against any and all claims, damages, losses, expenses, costs and liabilities (collectively, "Claims") arising out of or in
connection with any use of the EVM that is not in accordance with the terms of the agreement. This obligation shall apply whether Claims
arise under law of tort or contract or any other legal theory, and even if the EVM fails to perform as described or expected.
Safety-Critical or Life-Critical Applications. If you intend to evaluate the components for possible use in safety critical applications (such
as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, such as devices
which are classified as FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate
Assurance and Indemnity Agreement.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2013, Texas Instruments Incorporated
