ZigBee Light Link Development Kit Quick Start Guide
Opening the box and setting up a ZLL network in 3 simple steps

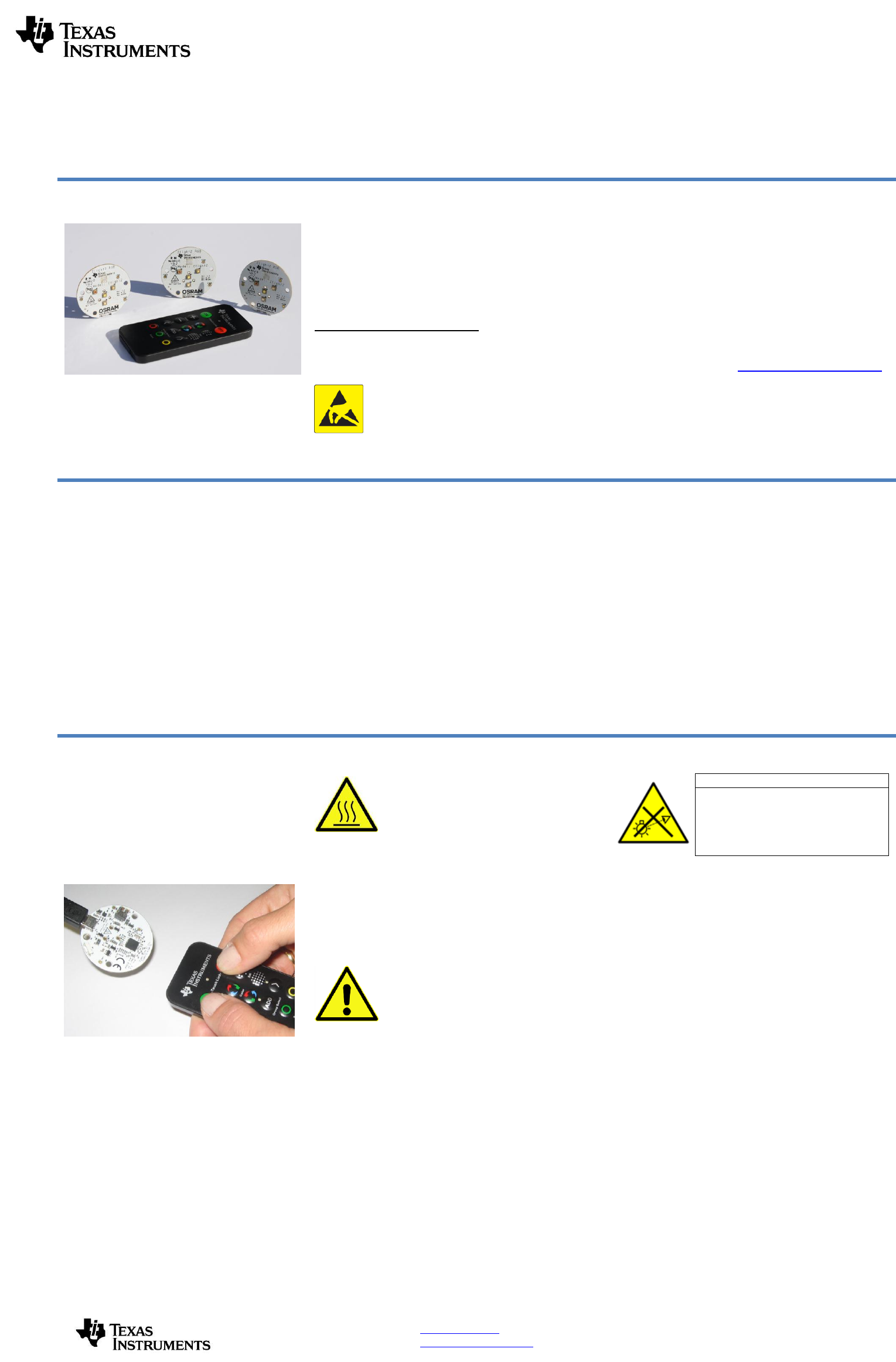

1.  Kit Contents
  3 x Zlight2 LED boards
  1 x Remote control
  3 x micro-USB cables
  Documentation
2.  Regulatory Information
The Zlight2 boards and the Remote control are FCC-
and  IC  certified  and  are  tested/compliant  with
ETSI/R&TTE over temperature from 0 to +35°C. The
Remote  control  has  an  on-board  inverted  F  PCB
antenna while the Zlight2 has an on-board  half wave
dipole PCB antenna.
FCC/IC Regulatory Compliance
FCC Part 15 Class A Compliant
IC ICES-003 Class A Compliant
Caution!  The  kit  contains  ESD  sensitive
components.  Handle  with  care  to  prevent
permanent damage.
3.  Purpose of the Kit
The  CC2531  ZigBee  Light  Link  (ZLL)  development
kit  is  intended  for  customers  who  would  like  to
evaluate ZLL lighting control for LED light products,
and  develop simple applications  and  demonstrators
based on this standard.
The kit contains everything needed to set up a ZLL
network  and  control  the  lights  individually  or  as  a
group. It’s  also possible  to extend  the  kit  with  more
HW  to  allow  cloud  based  control  solutions  such  as
Ninja  blocks  (http://www.ninjablocks.com/).
Information about this can be found by following the
links supplied at the end of the document.
4.  Power Options
The Zlight2 boards are powered through the
USB connector. It is recommended that they
are  powered  from  a  dedicated  USB  power
supply  capable  of supplying  at  least  800mA
and max 5.5V.
The  Remote  control  is  powered  by  a  3V
CR2025 battery (included). Do not use other
battery types.
5.  Powering the Boards (Step 1)
  Connect  the  Zlight2  boards  to  your  USB  power
supply using the supplied cables.
  Insert the CR2025 battery into the remote control
Do not leave the Zlight2 boards powered when
not in use or unattended.
6.  Starting the Network (Step 2)
In ZLL, the process of pairing a new lamp with a
remote control is called touch linking.
Touch  link  the  first  Zlight2  board  by  holding  the
remote  control close and  simultaneously pressing
the  “on”  and  “off”  buttons.  Release  both  buttons.
After a few seconds, the Zlight2 will flash, and the
remote control will give a short beep.(continued)
Starting the Network (cont.)
Continue by Touch linking the remaining 2
Zlight2 boards, one at a time.  Note that if
the two buttons are pressed with too much
time  difference,  the  “on”  or  “off”  command
will  be sent  to  the  previously touch  linked
Zlight2  instead  of  initiating  a  new  Touch
link command. Try again.
Touch link the Zlight2 boards by holding
the remote control close and
simultaneously pressing the “on” and
“off” buttons
7.  Operating the Zlight2 (Step 3)
Caution! To minimize the risk of fire or
equipment  damage,  make  sure  that
ambient  temperature  air  is  allowed  to
circulate freely around the Zlight2 board
when  operating.  Avoid  touching
components  during  operation if symbolized  as  hot.  A
thermal  shutdown  routine  is  implemented  in  the
included firmware running on the lights. Always make
sure that this routine is implemented if you flash your
own firmware. The easiest way to do that is to base it
on ZStack-Lighting-1.0.2 or later releases from Texas
Instruments.
Caution!  DO  NOT  STARE  DIRECTLY  INTO  LED
LIGHT SOURCE.  Intense light sources
have  a  high  secondary  exposure
potential  due  to  their  blinding  effect.  A
temporary reduction in visual acuity and
afterimages  can  occur,  leading  to
irritation,  annoyance,  visual  impairment,  and  even
accidents,  depending  on  the  situation.   Always
consider  the  use of  light  filtering/darkening protective
eyewear and be fully aware of surrounding laboratory
type  set-ups  when  viewing  intense  light  sources  to
minimize/eliminate  such  risks  in  order  to  avoid
accidents related to temporary blindness.
Operating the Zlight2 (cont.)
RISK GROUP 2
CAUTION
Possible hazardous optical
radiation emitted from this product.
Do not stare at operating lamp.
Maybe harmful to eyes.
  Do not stare at operating LEDs –
o  (Risk Group 1 (RG1) @ 0.9m)
  Per  IEC  62471  ed  1.0:  2006-07
(“Photobiological Safety of Lamps and Lamp
Systems”) this product has been classified in
Risk  Group  2.    Products  classified  as  Risk
Group  2  do  not  pose  a  hazard  due  to  the
aversion  response  to  very  bright  light
sources  or  due  to  thermal  discomfort.    It
should  be  noted  that  INTENTIONALLY
staring  at  the  lamp  for  extended  lengths  of
time  from  short  distances  could  lead  to  a
potential risk of eye damage due to a retinal
blue-light  hazard.    In  order  to  reduce  the
potential  of  exposure  to  a  retinal  blue-light
hazard,  the  operator  must  avoid  any  direct
view of the LEDs while in  operation, from a
distance of 0.9m, or closer.

Operating the Zlight2 (cont.)
Once connected to the ZLL network through
touch  linking,  the  Zlight2s  can  be  controlled
with  the  remote  control.  The  remote  control
will always address a target, which can be an
individual lamp, or a group of lamps.
Operating the Zlight2 (cont.)
When  more  than  one  lamp  is  on  the  network,
repeatedly  pressing  the  <  or  >  button  on the  remote
will cycle through all the individual lights, and group 1,
in a circular manner ( > cycles clockwise and < cycles
counter-clockwise).
The  next  command  will  be  sent  to  the  last  selected
target.  Group  1  consists  of  all  the  lamps  on  the
network. The lamps will blink to identify when they are
selected.  Select  group  1  by  pressing the  left  or  right
arrow button until all the lamps blink simultaneously to
identify.
You can now control Level, Color and Saturation on all
the lamps. The on/off commands will also be sent to
the whole network (Group 1).
Level up: Increase intensity
Level down: Decrease intensity
Color (Hue) up: Change colour
Color (Hue) down: Change colour
Sat up: Increase saturation (“more color”)
Sat down: Decrease saturation (“more white”)
Note: Changing the Color (Hue) will not produce a
visible change in the light if the Saturation is set to
minimum, i.e. white light.
8.  Next Steps
For more advanced use and colour control, go to the
TI  ZigBee Light  Link wiki page  by following the  link
found at the end of this document.

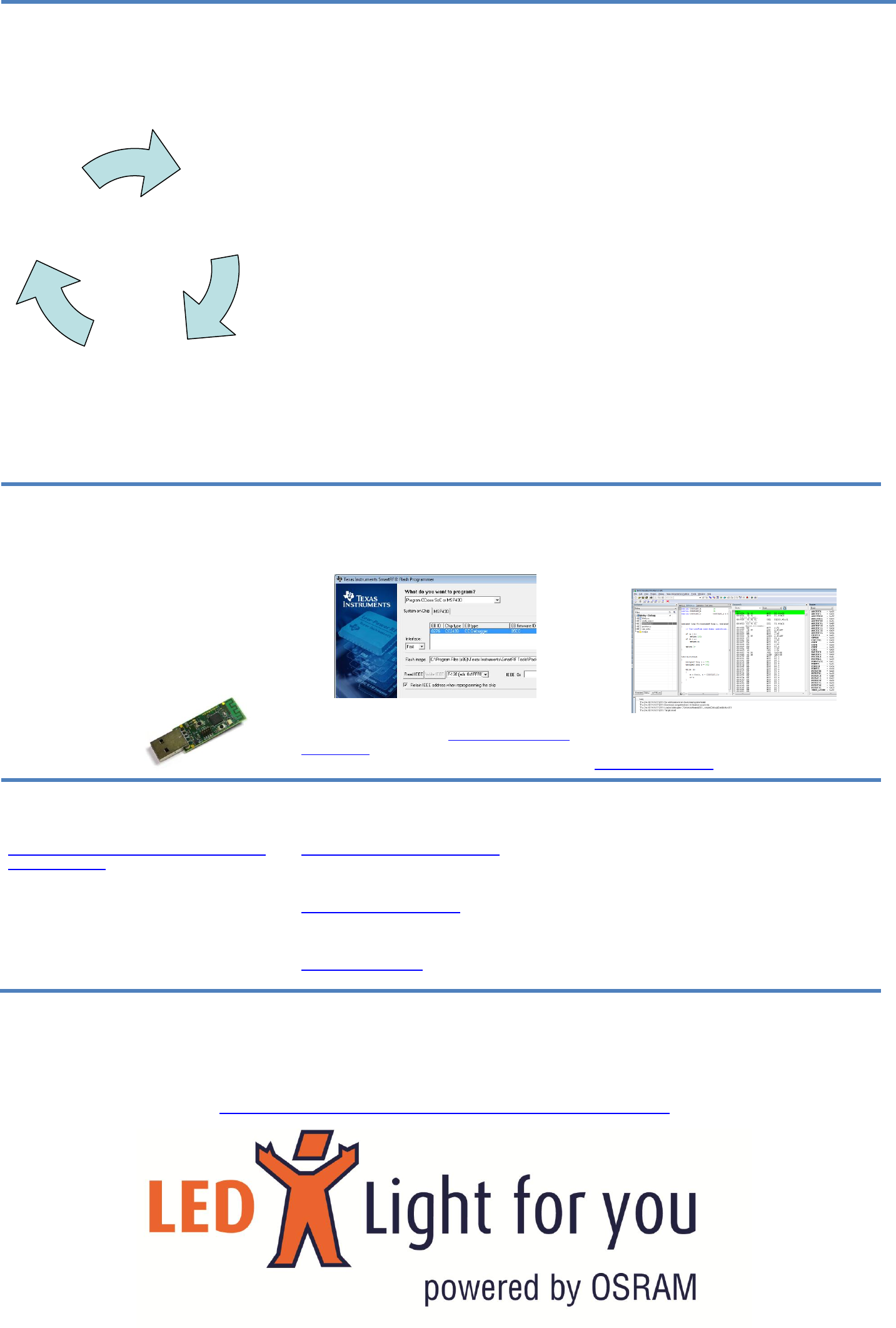

Additional Tools and Links
CC debugger
The CC debugger is a tool that allows you to flash
and  debug  the  Zlight2  using  SmartRF  Flash
Programmer  or  IAR  Embedded  Workbench.  It
connects  to  a  USB  port  on  your  PC  and  to  the
debug header on the Zlight2 board.
CC2531 USB dongle
The  CC2531  USB  dongle  plugs  into  a  Linux  or
Windows  host  and  can  serve  as  a  gateway  for
cloud  based  lighting
control.
SmartRF Flash Programmer
Texas Instruments has a simple tool which can
be used to program and flash the Zlight2.
SmartRF  Flash  Programmer  can  be
downloaded  from  www.ti.com/tool/flash-
programmer
IAR Embedded Workbench
To  develop  software,  program,  and  debug  the
Zlight2,  you  should  use  IAR  Embedded
Workbench for 8051.
More information on IAR EW8051, including a free
evaluation  version  download,  can  be  found  at
www.iar.com/ew8051.
Useful Links
TI ZigBee Light Link wiki page:
http://processors.wiki.ti.com/index.php/ZStack-
Lighting-1.0.1_Kit
Useful Links
Kit Product Page
http://www.ti.com/tool/cc2530zdk-zll
CC2531 User’s Guide
http://www.ti.com/lit/swru191
For additional help, visit the TI E2E Forum
www.ti.com/lprf-forum
 The Zlight2 lights supplied in this kit are powered by OSLON LEDs from Osram. Please visit the LED Light for you web
site to learn more about LED lighting and ZigBee Light Link wireless control examples.
http://www.ledlightforyou.com/Partners/Highlights/en-ZigBee-Lighting-Control.php
Lamp 2
…
Lamp N
..
Group 1
Lamp 1
Use the < > buttons to select target

EVALUATION BOARD/KIT/MODULE (EVM) ADDITIONAL TERMS
Texas Instruments (TI) provides the enclosed Evaluation Board/Kit/Module (EVM) under the following conditions:
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims
arising from the handling or use of the goods.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from
the date of delivery for a full refund. THE FOREGOING LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO
BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH
ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES.
Please read the User's Guide and, specifically, the Warnings and Restrictions notice in the User's Guide prior to handling the product. This
notice contains important safety information about temperatures and voltages. For additional information on TI's environmental and/or safety
programs, please visit www.ti.com/esh or contact TI.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used. TI currently deals with a variety of customers for products, and
therefore our arrangement with the user is not exclusive. TI assumes no liability for applications assistance, customer product design,
software performance, or infringement of patents or services described herein.
REGULATORY COMPLIANCE INFORMATION
As noted in the EVM User’s Guide and/or EVM itself, this EVM and/or accompanying hardware may or may not be subject to the Federal
Communications Commission (FCC) and Industry Canada (IC) rules.
For EVMs not subject to the above rules, this evaluation board/kit/module is intended for use for ENGINEERING DEVELOPMENT,
DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end product fit for general consumer
use. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing
devices pursuant to part 15 of FCC or ICES-003 rules, which are designed to provide reasonable protection against radio frequency
interference. Operation of the equipment may cause interference with radio communications, in which case the user at his own expense will
be required to take whatever measures may be required to correct this interference.
General Statement for EVMs including a radio
User Power/Frequency Use Obligations: This radio is intended for development/professional use only in legally allocated frequency and
power limits. Any use of radio frequencies and/or power availability of this EVM and its development application(s) must comply with local
laws governing radio spectrum allocation and power limits for this evaluation module. It is the user’s sole responsibility to only operate this
radio in legally acceptable frequency space and within legally mandated power limitations. Any exceptions to this are strictly prohibited and
unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory
authorities, which is responsibility of user including its acceptable authorization.
For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
FCC Interference Statement for Class A EVM devices
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Interference Statement for Class B EVM devices
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For EVMs annotated as IC – INDUSTRY CANADA Compliant
This Class A or B digital apparatus complies with Canadian ICES-003.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Concerning EVMs including radio transmitters
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Concerning EVMs including detachable antennas
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the user guide with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Cet appareil numérique de la classe A ou B est conforme à la norme NMB-003 du Canada.
Les changements ou les modifications pas expressément approuvés par la partie responsable de la conformité ont pu vider l’autorité de
l'utilisateur pour actionner l'équipement.
Concernant les EVMs avec appareils radio
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain
maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à
l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le manuel
d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER

【【Important Notice for Users of EVMs for RF Products in Japan】】
This development kit is NOT certified as Confirming to Technical Regulations of Radio Law of Japan
If you use this product in Japan, you are required by Radio Law of Japan to follow the instructions below with respect to this product:
1. Use this product in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal Affairs and
Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for Enforcement of Radio Law of
Japan,
2. Use this product only after you obtained the license of Test Radio Station as provided in Radio Law of Japan with respect to this
product, or
3. Use of this product only after you obtained the Technical Regulations Conformity Certification as provided in Radio Law of Japan with
respect to this product. Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note
that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan.
Texas Instruments Japan Limited
(address) 24-1, Nishi-Shinjuku 6 chome, Shinjuku-ku, Tokyo, Japan
http://www.tij.co.jp
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】
本開発キットは技術基準適合証明を受けておりません。
本製品のご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
   上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。
日本テキサス・インスツルメンツ株式会社
東京都新宿区西新宿6丁目24番1号
西新宿三井ビル
http://www.tij.co.jp
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
EVALUATION BOARD/KIT/MODULE (EVM)
WARNINGS, RESTRICTIONS AND DISCLAIMERS
For Feasibility Evaluation Only, in Laboratory/Development Environments. Unless otherwise indicated, this EVM is not a finished
electrical equipment and not intended for consumer use. It is intended solely for use for preliminary feasibility evaluation in
laboratory/development environments by technically qualified electronics experts who are familiar with the dangers and application risks
associated with handling electrical mechanical components, systems and subsystems. It should not be used as all or part of a finished end
product.
Your Sole Responsibility and Risk. You acknowledge, represent and agree that:
1. You have unique knowledge concerning Federal, State and local regulatory requirements (including but not limited to Food and Drug
Administration regulations, if applicable) which relate to your products and which relate to your use (and/or that of your employees,
affiliates, contractors or designees) of the EVM for evaluation, testing and other purposes.
2. You have full and exclusive responsibility to assure the safety and compliance of your products with all such laws and other applicable
regulatory requirements, and also to assure the safety of any activities to be conducted by you and/or your employees, affiliates,
contractors or designees, using the EVM. Further, you are responsible to assure that any interfaces (electronic and/or mechanical)
between the EVM and any human body are designed with suitable isolation and means to safely limit accessible leakage currents to
minimize the risk of electrical shock hazard.
3. Since the EVM is not a completed product, it may not meet all applicable regulatory and safety compliance standards (such as UL,
CSA, VDE, CE, RoHS and WEEE) which may normally be associated with similar items. You assume full responsibility to determine
and/or assure compliance with any such standards and related certifications as may be applicable. You will employ reasonable
safeguards to ensure that your use of the EVM will not result in any property damage, injury or death, even if the EVM should fail to
perform as described or expected.
4. You will take care of proper disposal and recycling of the EVM’s electronic components and packing materials.
Certain Instructions. It is important to operate this EVM within TI’s recommended specifications and environmental considerations per the
user guidelines. Exceeding the specified EVM ratings (including but not limited to input and output voltage, current, power, and
environmental ranges) may cause property damage, personal injury or death. If there are questions concerning these ratings please contact
a TI field representative prior to connecting interface electronics including input power and intended loads. Any loads applied outside of the
specified output range may result in unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or
interface electronics. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the
load specification, please contact a TI field representative. During normal operation, some circuit components may have case temperatures
greater than 60°C as long as the input and output are maintained at a normal ambient operating temperature. These components include
but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors which can be identified using the
EVM schematic located in the EVM User's Guide. When placing measurement probes near these devices during normal operation, please
be aware that these devices may be very warm to the touch. As with all electronic evaluation tools, only qualified personnel knowledgeable
in electronic measurement and diagnostics normally found in development environments should use these EVMs.
Agreement to Defend, Indemnify and Hold Harmless. You agree to defend, indemnify and hold TI, its licensors and their representatives
harmless from and against any and all claims, damages, losses, expenses, costs and liabilities (collectively, "Claims") arising out of or in
connection with any use of the EVM that is not in accordance with the terms of the agreement. This obligation shall apply whether Claims
arise under law of tort or contract or any other legal theory, and even if the EVM fails to perform as described or expected.
Safety-Critical or Life-Critical Applications. If you intend to evaluate the components for possible use in safety critical applications (such
as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, such as devices
which are classified as FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate
Assurance and Indemnity Agreement.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2013, Texas Instruments Incorporated
