The Kroger SZG3ACWC GEN3Z Camera and WiFi_Wave2_Zigbee Access Point Unit User Manual 7 Manual SRG3ACWC

The Kroger Co. GEN3Z Camera and WiFi_Wave2_Zigbee Access Point Unit 7 Manual SRG3ACWC

Contents

SRG3ACWC_User Manual

SRG3ACWC
User Guide
SRG3ACWC User Guide
Page 2

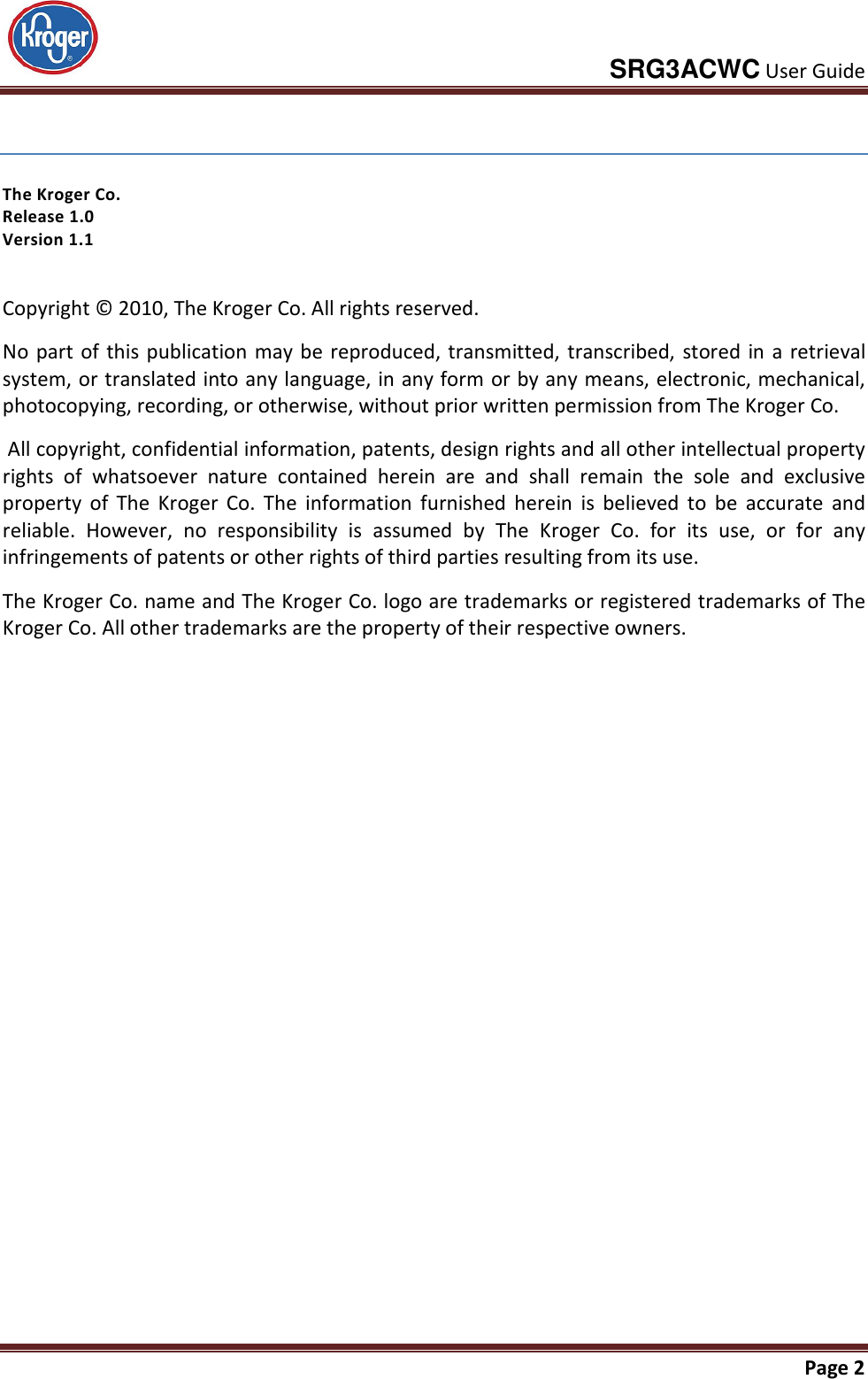

The Kroger Co.
Release 1.0
Version 1.1
Copyright © 2010, The Kroger Co. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior written permission from The Kroger Co.
All copyright, confidential information, patents, design rights and all other intellectual property
rights of whatsoever nature contained herein are and shall remain the sole and exclusive
property of The Kroger Co. The information furnished herein is believed to be accurate and
reliable. However, no responsibility is assumed by The Kroger Co. for its use, or for any
infringements of patents or other rights of third parties resulting from its use.
The Kroger Co. name and The Kroger Co. logo are trademarks or registered trademarks of The
Kroger Co. All other trademarks are the property of their respective owners.
SRG3ACWC User Guide
Page 3

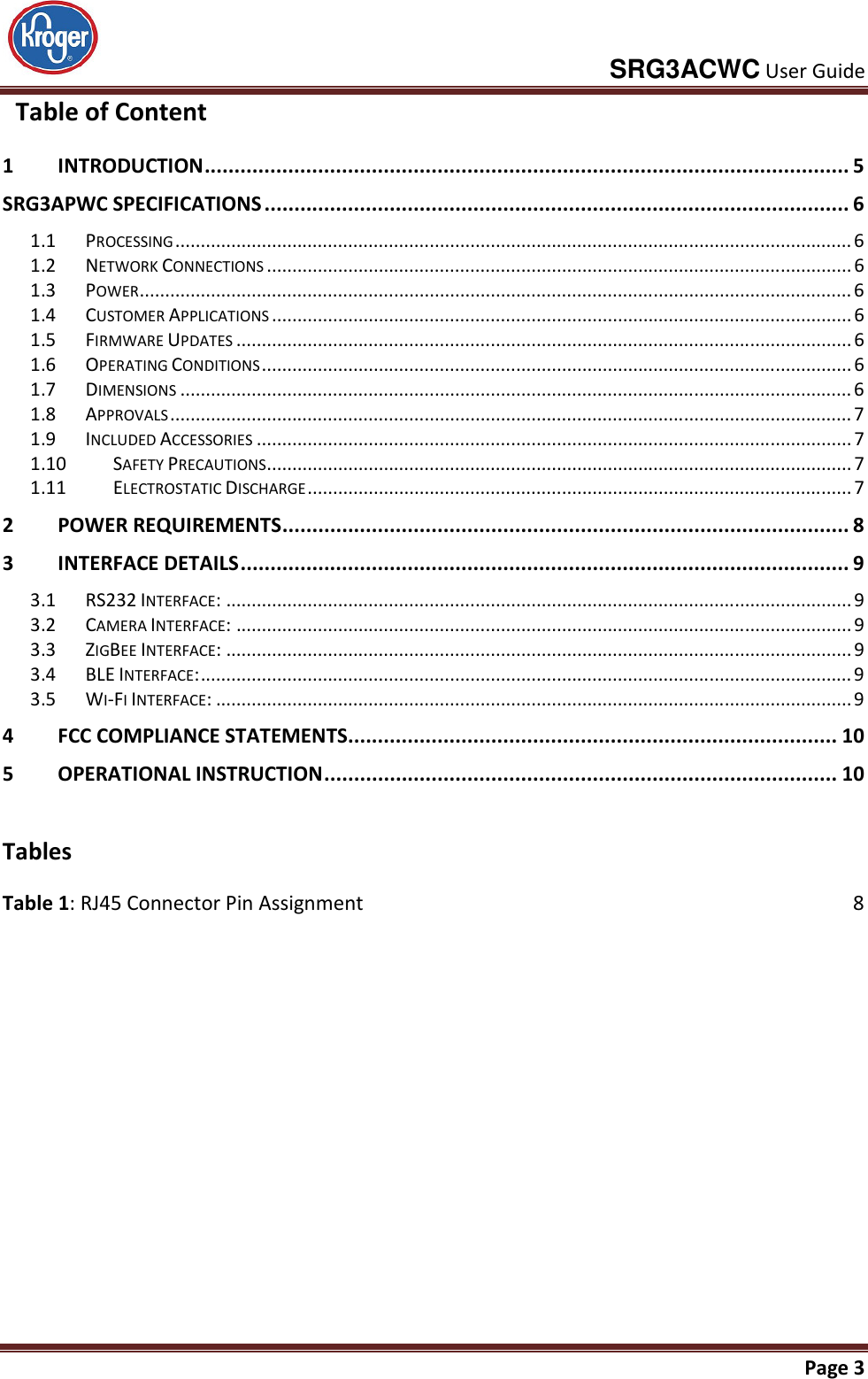

Table of Content
1 INTRODUCTION ............................................................................................................ 5
SRG3APWC SPECIFICATIONS .................................................................................................. 6
1.1 PROCESSING ..................................................................................................................................... 6
1.2 NETWORK CONNECTIONS ................................................................................................................... 6
1.3 POWER ............................................................................................................................................ 6
1.4 CUSTOMER APPLICATIONS .................................................................................................................. 6
1.5 FIRMWARE UPDATES ......................................................................................................................... 6
1.6 OPERATING CONDITIONS .................................................................................................................... 6
1.7 DIMENSIONS .................................................................................................................................... 6
1.8 APPROVALS ...................................................................................................................................... 7
1.9 INCLUDED ACCESSORIES ..................................................................................................................... 7
1.10 SAFETY PRECAUTIONS ................................................................................................................... 7
1.11 ELECTROSTATIC DISCHARGE ........................................................................................................... 7
2 POWER REQUIREMENTS ............................................................................................... 8
3 INTERFACE DETAILS ...................................................................................................... 9
3.1 RS232 INTERFACE: ........................................................................................................................... 9
3.2 CAMERA INTERFACE: ......................................................................................................................... 9
3.3 ZIGBEE INTERFACE: ........................................................................................................................... 9
3.4 BLE INTERFACE: ................................................................................................................................ 9
3.5 WI-FI INTERFACE: ............................................................................................................................. 9
4 FCC COMPLIANCE STATEMENTS.................................................................................. 10
5 OPERATIONAL INSTRUCTION ...................................................................................... 10
Tables
Table 1: RJ45 Connector Pin Assignment 8
SRG3ACWC User Guide
Page 4

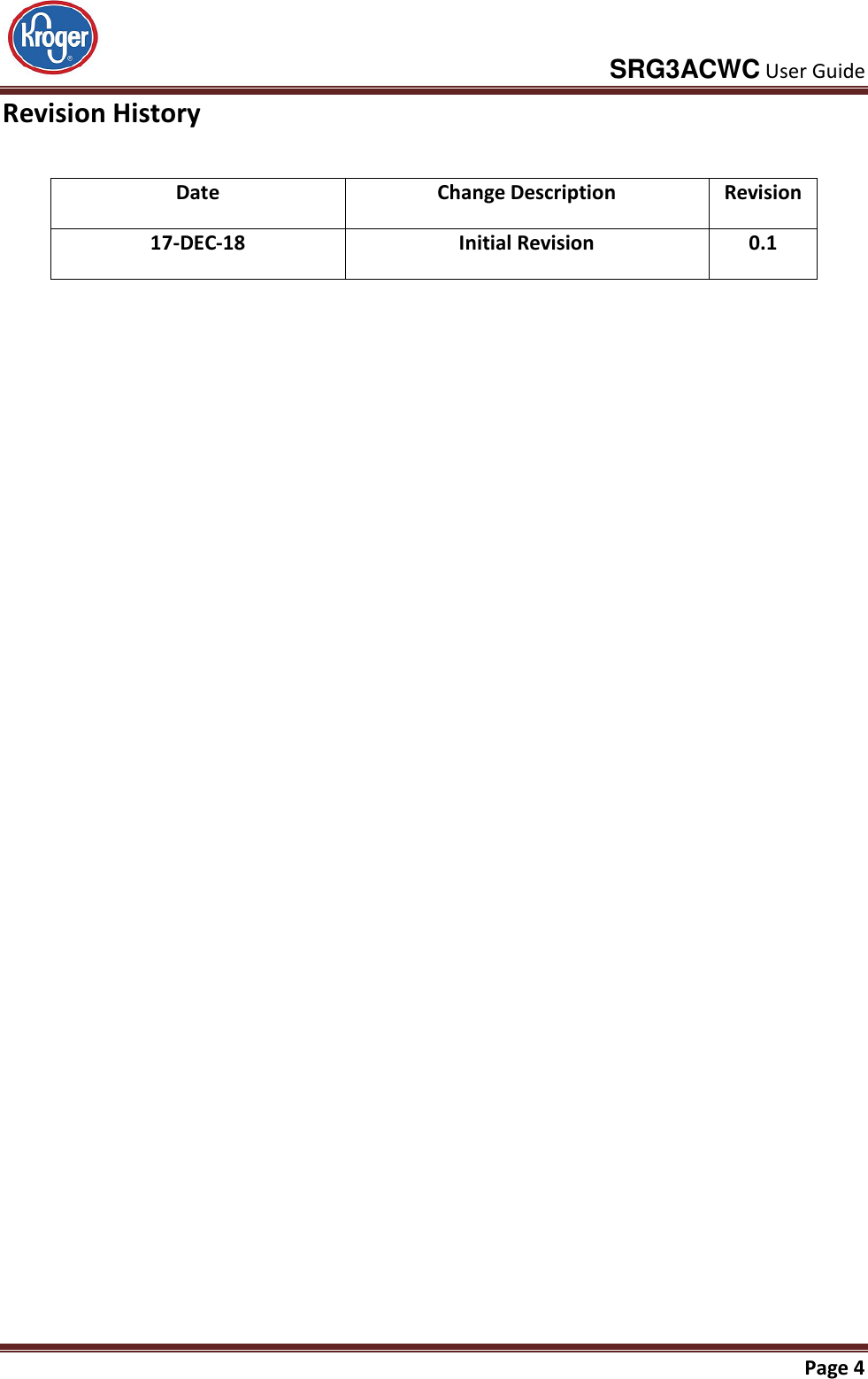

Revision History
Date Change Description Revision
17-DEC-18 Initial Revision 0.1
SRG3ACWC User Guide
Page 5

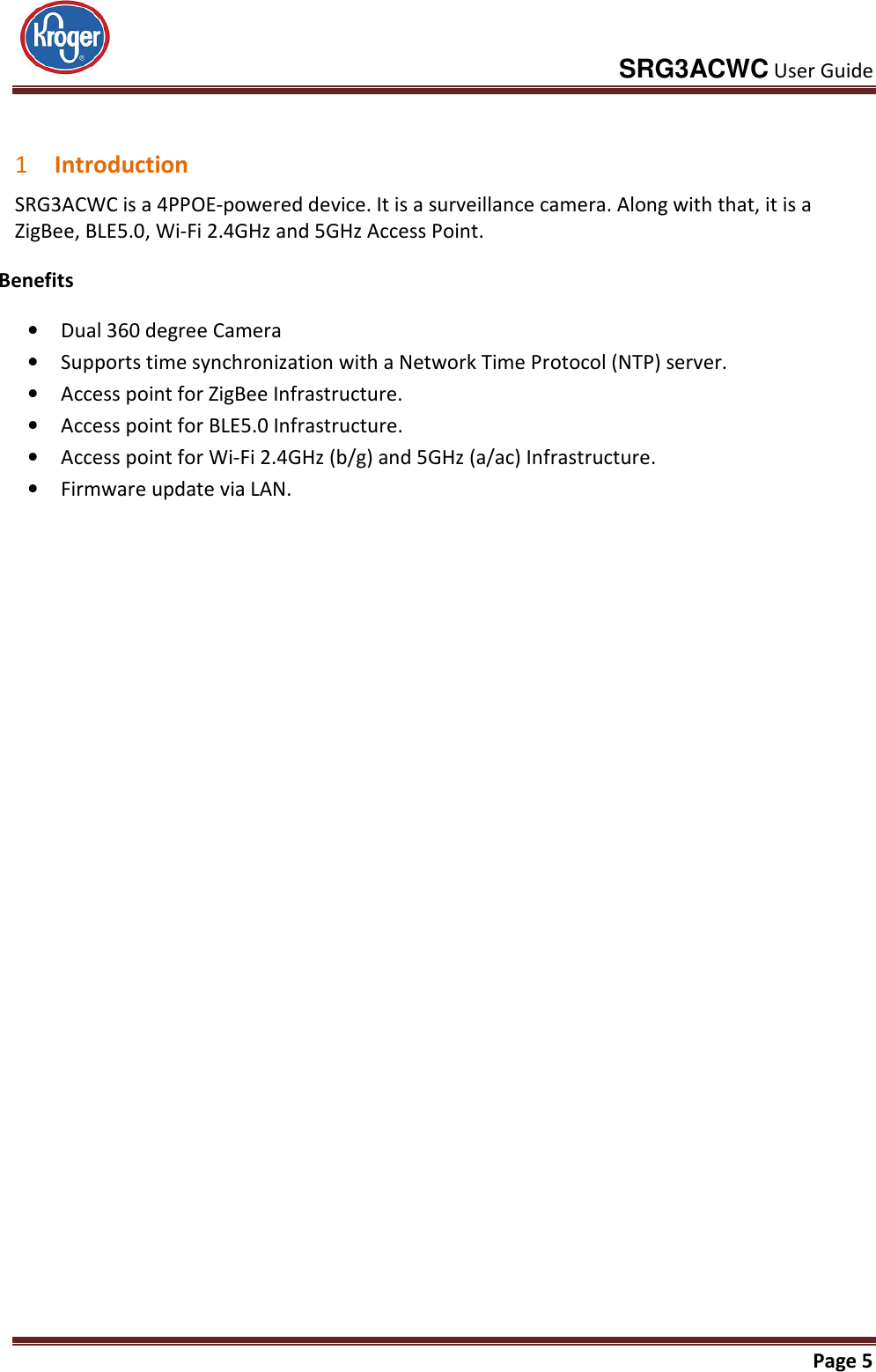

1 Introduction
SRG3ACWC is a 4PPOE-powered device. It is a surveillance camera. Along with that, it is a
ZigBee, BLE5.0, Wi-Fi 2.4GHz and 5GHz Access Point.
Benefits
• Dual 360 degree Camera
• Supports time synchronization with a Network Time Protocol (NTP) server.
• Access point for ZigBee Infrastructure.
• Access point for BLE5.0 Infrastructure.
• Access point for Wi-Fi 2.4GHz (b/g) and 5GHz (a/ac) Infrastructure.
• Firmware update via LAN.
SRG3ACWC User Guide
Page 6

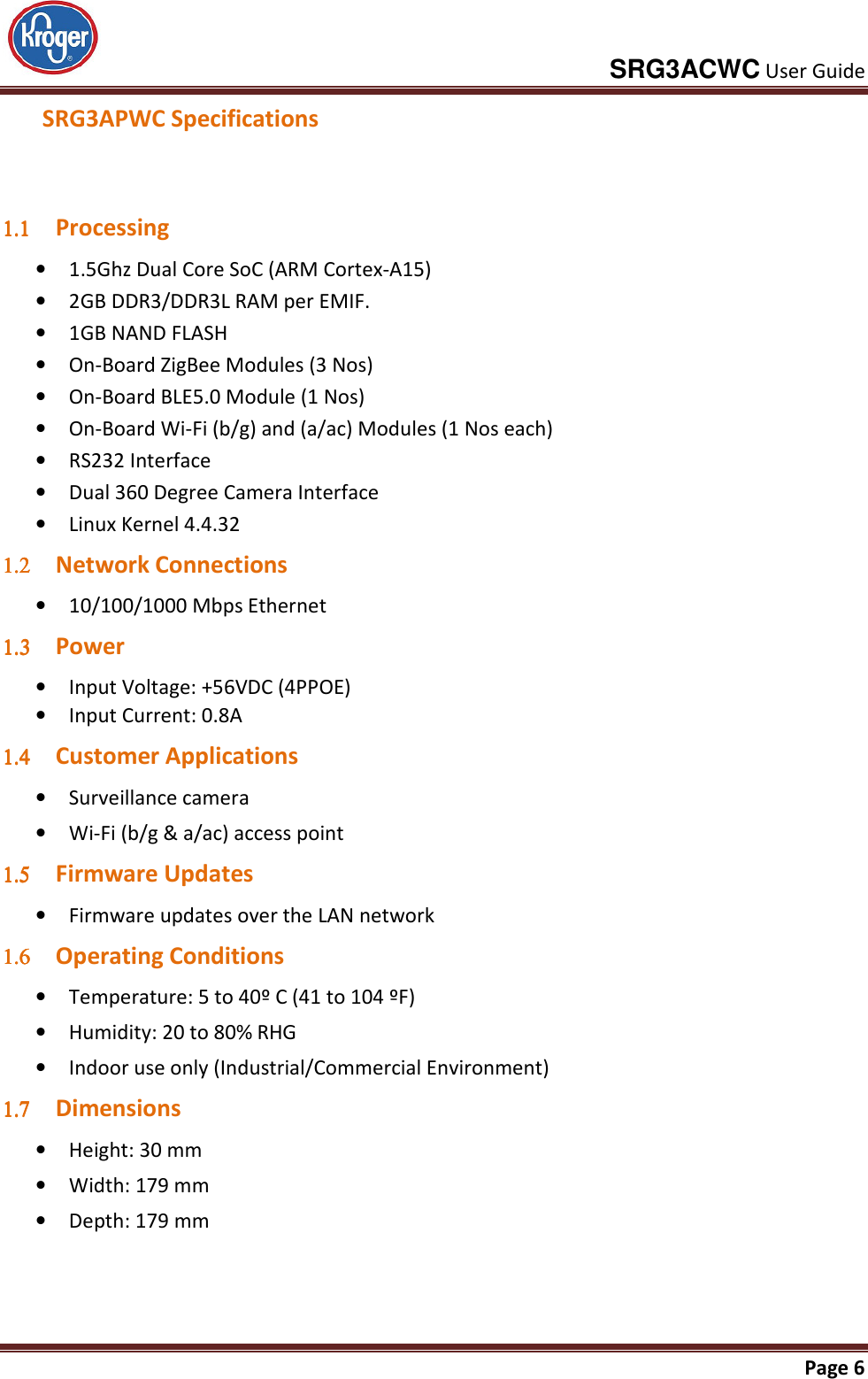

SRG3APWC Specifications
1.1
1.11.1
1.1 Processing
• 1.5Ghz Dual Core SoC (ARM Cortex-A15)
• 2GB DDR3/DDR3L RAM per EMIF.
• 1GB NAND FLASH
• On-Board ZigBee Modules (3 Nos)
• On-Board BLE5.0 Module (1 Nos)
• On-Board Wi-Fi (b/g) and (a/ac) Modules (1 Nos each)
• RS232 Interface
• Dual 360 Degree Camera Interface
• Linux Kernel 4.4.32
1.2
1.21.2
1.2 Network Connections
• 10/100/1000 Mbps Ethernet
1.3
1.31.3
1.3 Power
• Input Voltage: +56VDC (4PPOE)
• Input Current: 0.8A
1.4
1.41.4
1.4 Customer Applications
• Surveillance camera
• Wi-Fi (b/g & a/ac) access point
1.5
1.51.5
1.5 Firmware Updates
• Firmware updates over the LAN network
1.6
1.61.6
1.6 Operating Conditions
• Temperature: 5 to 40º C (41 to 104 ºF)
• Humidity: 20 to 80% RHG
• Indoor use only (Industrial/Commercial Environment)
1.7
1.71.7
1.7 Dimensions
• Height: 30 mm
• Width: 179 mm
• Depth: 179 mm
SRG3ACWC User Guide
Page 7
1.8
1.81.8

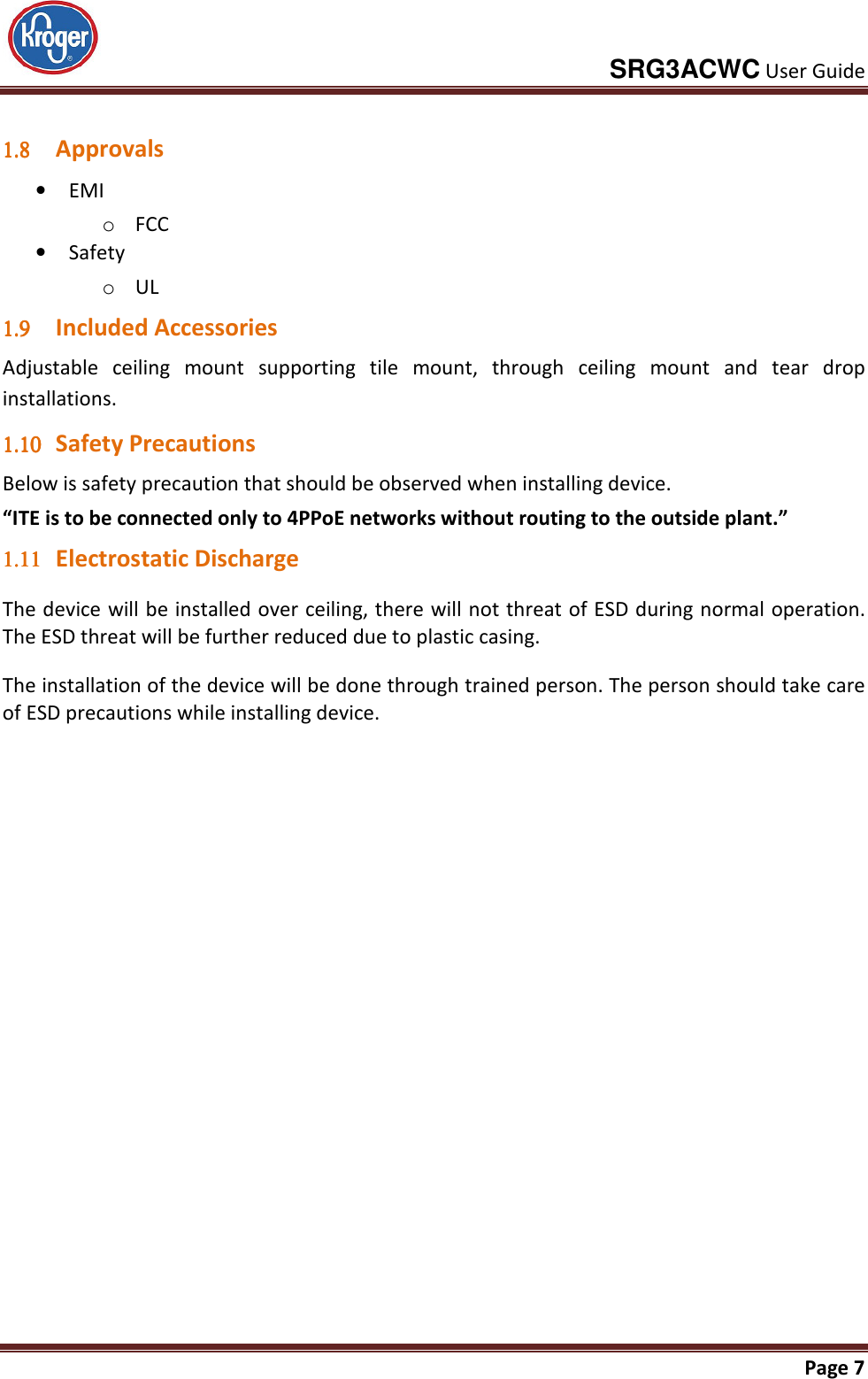

1.8 Approvals
• EMI
o FCC
• Safety
o UL
1.9
1.91.9
1.9 Included Accessories
Adjustable ceiling mount supporting tile mount, through ceiling mount and tear drop
installations.
1.10
1.101.10
1.10 Safety Precautions
Below is safety precaution that should be observed when installing device.
“ITE is to be connected only to 4PPoE networks without routing to the outside plant.”
1.11
1.111.11
1.11 Electrostatic Discharge
The device will be installed over ceiling, there will not threat of ESD during normal operation.
The ESD threat will be further reduced due to plastic casing.
The installation of the device will be done through trained person. The person should take care
of ESD precautions while installing device.
SRG3ACWC User Guide
Page 8

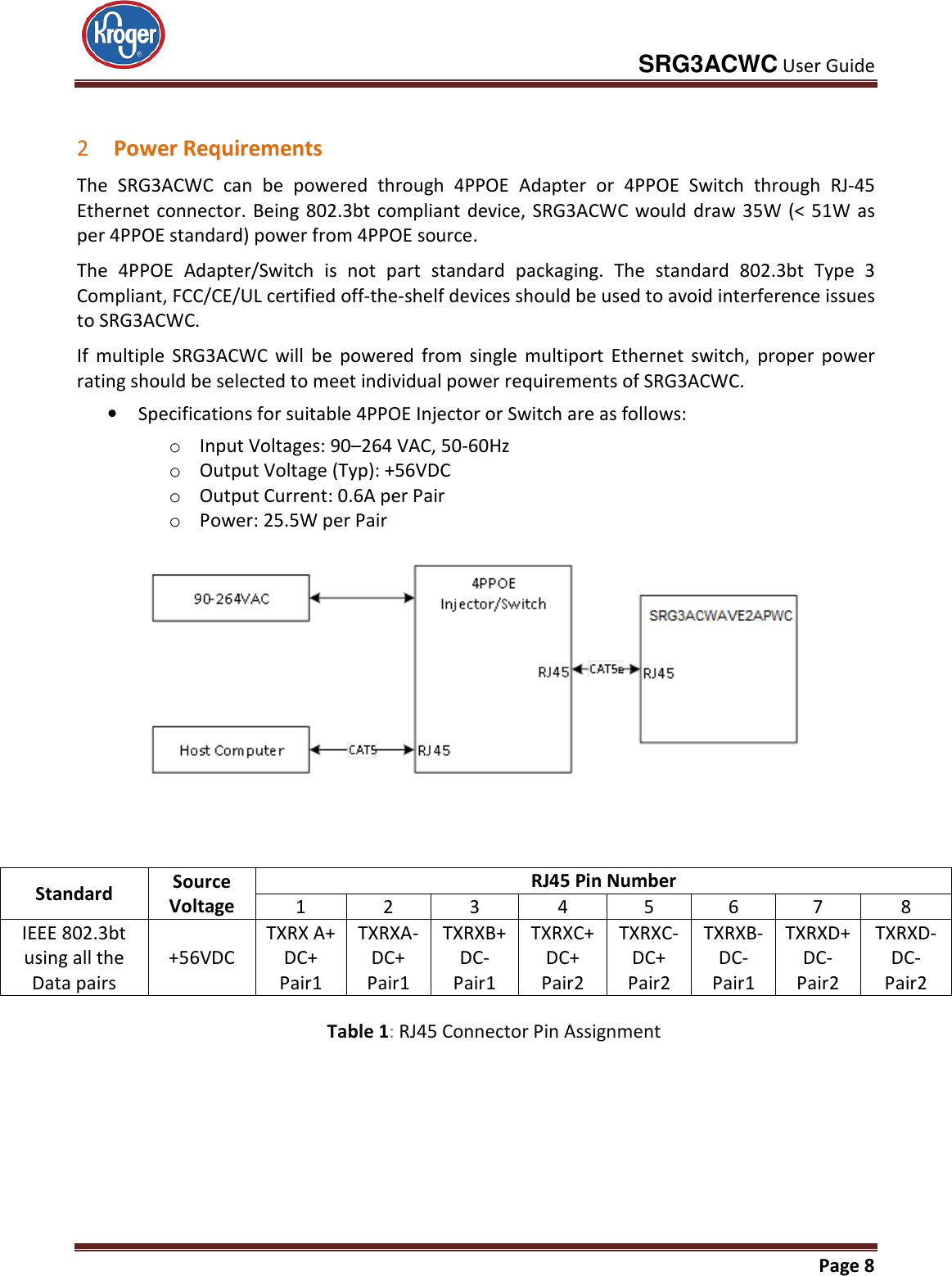

2 Power Requirements
The SRG3ACWC can be powered through 4PPOE Adapter or 4PPOE Switch through RJ-45
Ethernet connector. Being 802.3bt compliant device, SRG3ACWC would draw 35W (< 51W as
per 4PPOE standard) power from 4PPOE source.
The 4PPOE Adapter/Switch is not part standard packaging. The standard 802.3bt Type 3
Compliant, FCC/CE/UL certified off-the-shelf devices should be used to avoid interference issues
to SRG3ACWC.
If multiple SRG3ACWC will be powered from single multiport Ethernet switch, proper power
rating should be selected to meet individual power requirements of SRG3ACWC.

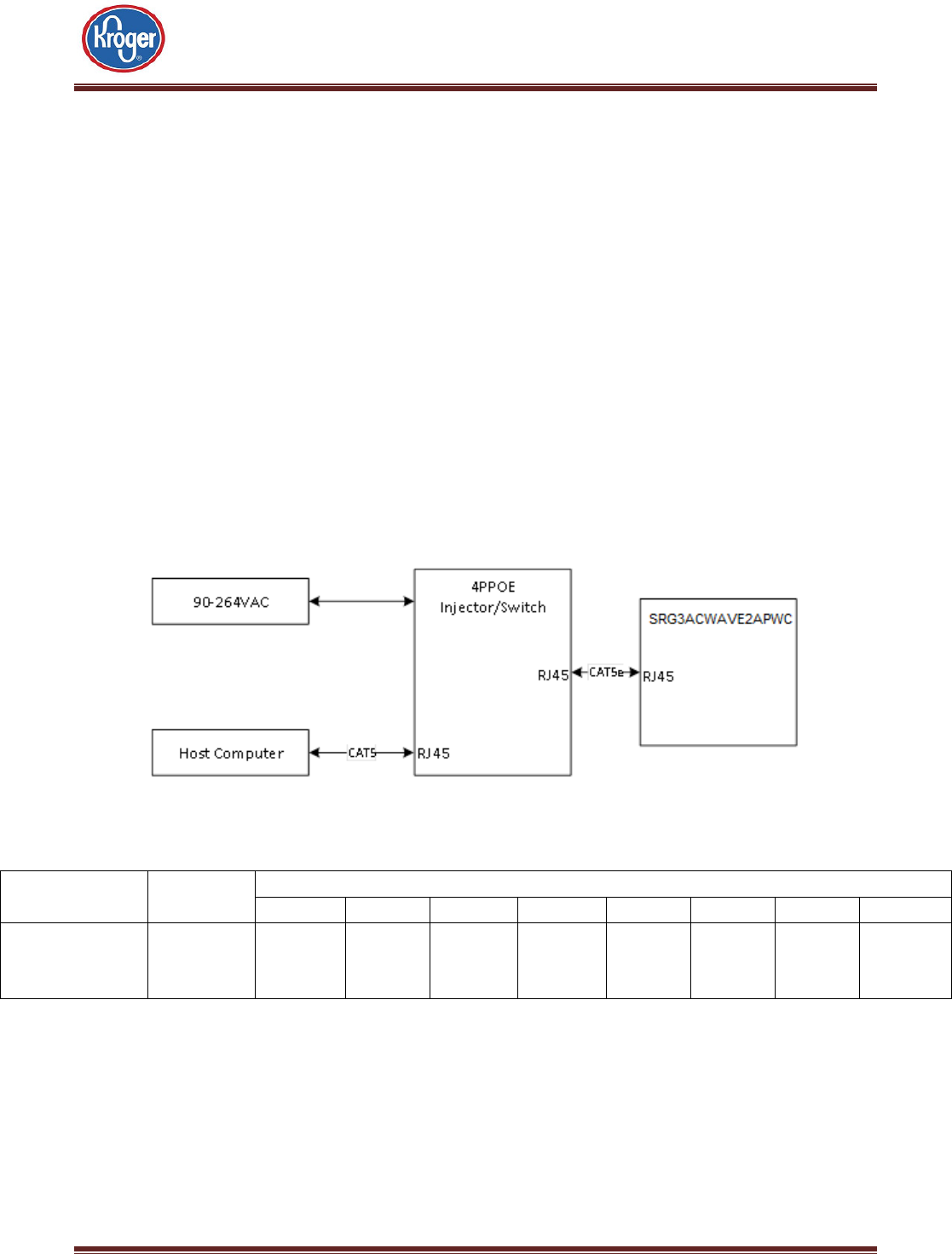

• Specifications for suitable 4PPOE Injector or Switch are as follows:
o Input Voltages: 90–264 VAC, 50-60Hz
o Output Voltage (Typ): +56VDC
o Output Current: 0.6A per Pair
o Power: 25.5W per Pair
Standard Source
Voltage
RJ45 Pin Number
1 2 3 4 5 6 7 8
IEEE 802.3bt
using all the
Data pairs
+56VDC
TXRX A+
DC+
Pair1
TXRXA-
DC+
Pair1
TXRXB+
DC-
Pair1
TXRXC+
DC+
Pair2
TXRXC-
DC+
Pair2
TXRXB-
DC-
Pair1
TXRXD+
DC-
Pair2
TXRXD-
DC-
Pair2
Table 1: RJ45 Connector Pin Assignment
SRG3ACWC User Guide
Page 9

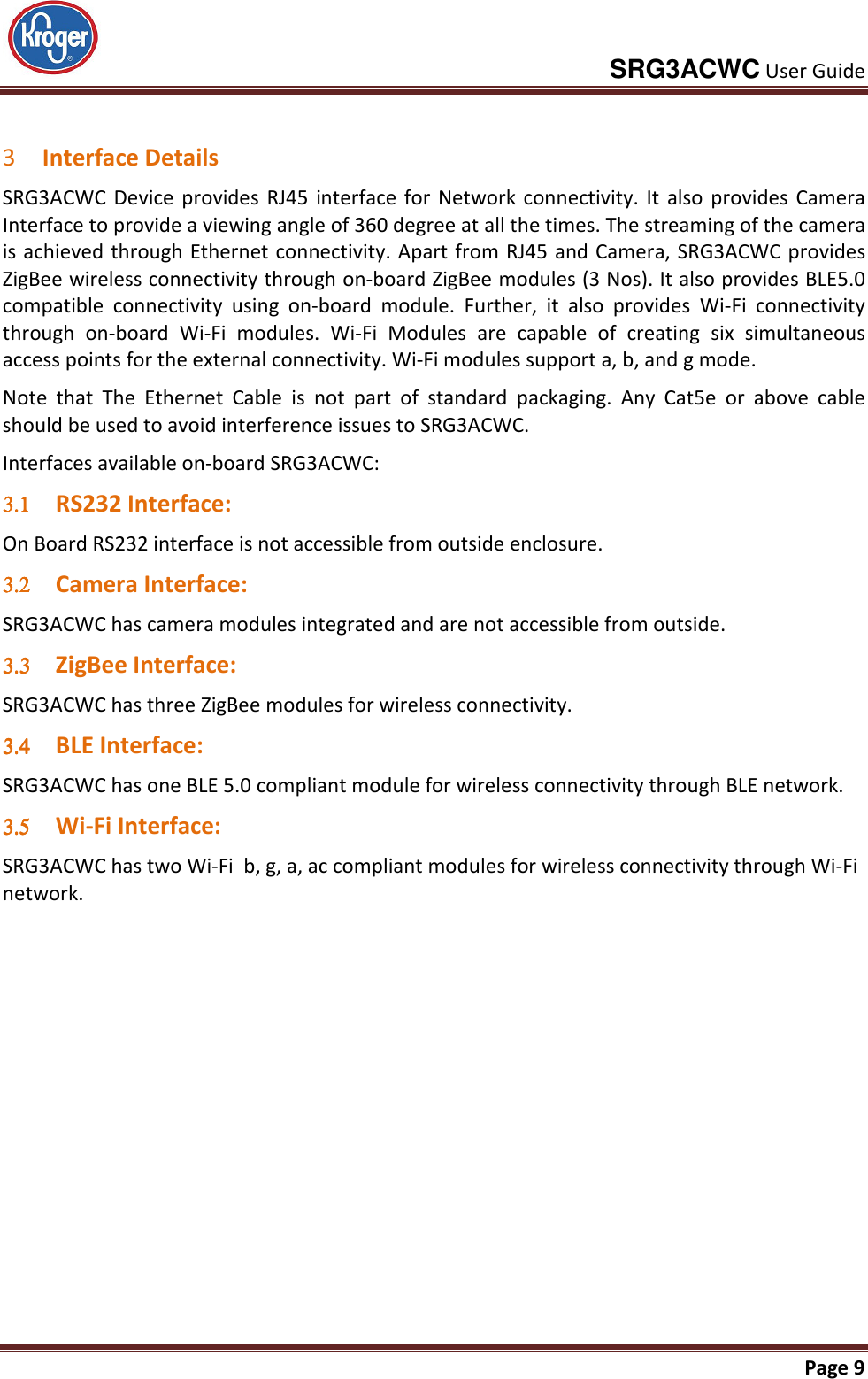

3 Interface Details
SRG3ACWC Device provides RJ45 interface for Network connectivity. It also provides Camera
Interface to provide a viewing angle of 360 degree at all the times. The streaming of the camera
is achieved through Ethernet connectivity. Apart from RJ45 and Camera, SRG3ACWC provides
ZigBee wireless connectivity through on-board ZigBee modules (3 Nos). It also provides BLE5.0
compatible connectivity using on-board module. Further, it also provides Wi-Fi connectivity
through on-board Wi-Fi modules. Wi-Fi Modules are capable of creating six simultaneous
access points for the external connectivity. Wi-Fi modules support a, b, and g mode.
Note that The Ethernet Cable is not part of standard packaging. Any Cat5e or above cable
should be used to avoid interference issues to SRG3ACWC.
Interfaces available on-board SRG3ACWC:
3.1
3.13.1
3.1 RS232 Interface:
On Board RS232 interface is not accessible from outside enclosure.
3.2
3.23.2
3.2 Camera Interface:
SRG3ACWC has camera modules integrated and are not accessible from outside.
3.3
3.33.3
3.3 ZigBee Interface:
SRG3ACWC has three ZigBee modules for wireless connectivity.
3.4
3.43.4
3.4 BLE Interface:
SRG3ACWC has one BLE 5.0 compliant module for wireless connectivity through BLE network.
3.5
3.53.5
3.5 Wi-Fi Interface:
SRG3ACWC has two Wi-Fi b, g, a, ac compliant modules for wireless connectivity through Wi-Fi
network.
SRG3ACWC User Guide
Page 10

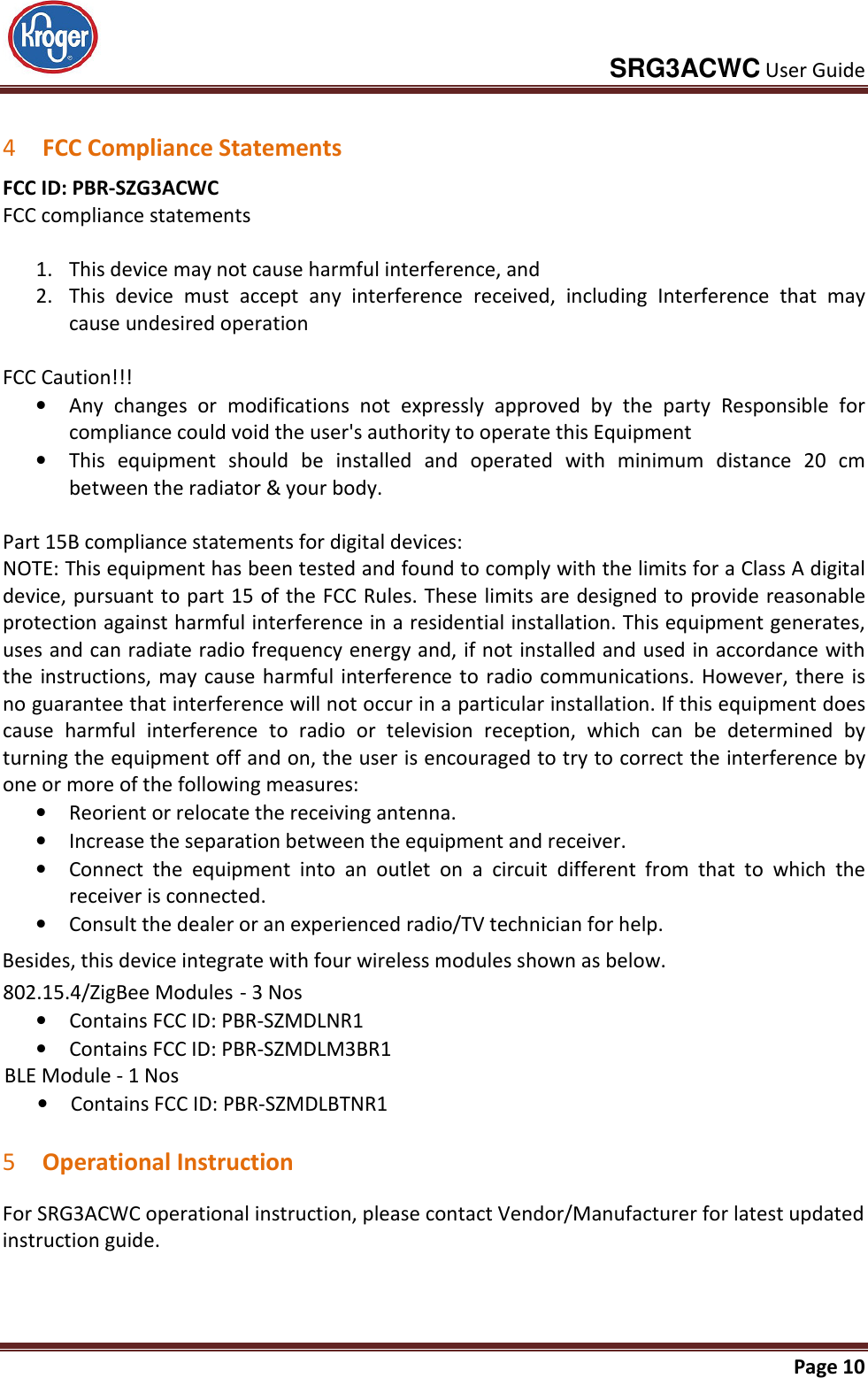

4 FCC Compliance Statements
FCC ID: PBR-SZG3ACWC
FCC compliance statements
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including Interference that may
cause undesired operation
FCC Caution!!!
• Any changes or modifications not expressly approved by the party Responsible for
compliance could void the user's authority to operate this Equipment
• This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.
Part 15B compliance statements for digital devices:
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
5
Operational Instruction
For SRG3ACWC operational instruction, please contact Vendor/Manufacturer for latest updated
instruction guide.
Besides, this device integrate with four wireless modules shown as below.
802.15.4/ZigBee Modules - 3 Nos
•Contains FCC ID: PBR-SZMDLNR1
•Contains FCC ID: PBR-SZMDLM3BR1
BLE Module - 1 Nos
•Contains FCC ID: PBR-SZMDLBTNR1
