The Kroger Co. G3HH2D Zigbee Retail Handheld G2Z CAP User Guide
User Manual
SRHHG32D
User Guide
SRHHG32D User Guide
Page 2
The Kroger Co.
Release 1.0
Version 1.0
Copyright © 2015, The Kroger Co. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior written permission from The Kroger Co.
All copyright, confidential information, patents, design rights and all other intellectual property
rights of whatsoever nature contained herein are and shall remain the sole and exclusive
property of The Kroger Co. The information furnished herein is believed to be accurate and
reliable. However, no responsibility is assumed by The Kroger Co. for its use, or for any
infringements of patents or other rights of third parties resulting from its use.
The Kroger Co. name and The Kroger Co. logo are trademarks or registered trademarks of The
Kroger Co. All other trademarks are the property of their respective owners.
SRHHG32D User Guide
Page 3
Table of Content
1 INTRODUCTION .................................................................................................................5
2 SRHHG32D SPECIFICATIONS..............................................................................................6
PROCESSING ............................................................................................................................... 6
POWER ...................................................................................................................................... 6
CUSTOMER APPLICATIONS ............................................................................................................. 6
FIRMWARE UPDATES .................................................................................................................... 6
OPERATING CONDITIONS ............................................................................................................... 6
DIMENSIONS ............................................................................................................................... 6
APPROVALS ................................................................................................................................ 7
3 POWER REQUIREMENTS ...................................................................................................8
4 INTERFACE DETAILS ..........................................................................................................9
USER INTERFACES ........................................................................................................................ 9
ZIGBEE INTERFACE: ...................................................................................................................... 9
5 FCC COMPLIANCE STATEMENTS .....................................................................................10
6 OPERATIONAL INSTRUCTION ..........................................................................................10
SRHHG32D User Guide
Page 4
Revision History
Date
Change Description
Revision
15-Dec-17
Initial Revision
0.1
18-Dec-17
Sent for Kroger Review
0.2
19-Dec-17
Sent to TUV
0.3
19-Jan-18
Baselined
1.0
SRHHG32D User Guide
Page 5
1 Introduction
SRHHG32D is a rechargeable battery operated shopping device. Gen3 Handheld has two ZigBee
modules for wireless connectivity.
Benefits
SRHHG32D device can be used for shopping without associate help/interference.
Scan barcode and QR Code of any product in Kroger store and get product details from
server and add/remove to your shopping list.
Product detail will transfer over Zigbee network through nearest Zigbee access point.
Handheld can be used as a walkie-talkie for voice communication.
It support vibrator to give a feeling of a button press events
It supports image capturing through CMOS imager.
SRHHG32D User Guide
Page 6
2 SRHHG32D Specifications
Processing
456-MHz ARM926EJ-S RISC Core SoC
256MB DDR2 RAM
256MB NAND FLASH
FCC Certified ZigBee Modules (2 Nos.)
Power
Battery :-
o Input Voltage to handheld system: 3.7 V@2100mAH Li-Io Battery
o Input Current to handheld system: 450mA (MAX.)
Note: Battery can be charged through a Docking station or battery charger. The docking station
and the Battery charger is not a part of supplied item with this device.
Customer Applications
Barcode Laser Scanner
Data transfer over Zigbee network
Voice communication over Zigbee network
CMOS Imager
Firmware Updates
Firmware updates over Zigbee network
Operating Conditions
Temperature: 5 to 45º C (41 to 113 ºF)
Humidity: 20 to 80% RH
Indoor (store) use only
Dimensions
Height: 142 mm
Width: 73mm
Depth: 28 mm
SRHHG32D User Guide
Page 7
Approvals
EMI
o FCC Wireless subpart C
SRHHG32D User Guide
Page 8

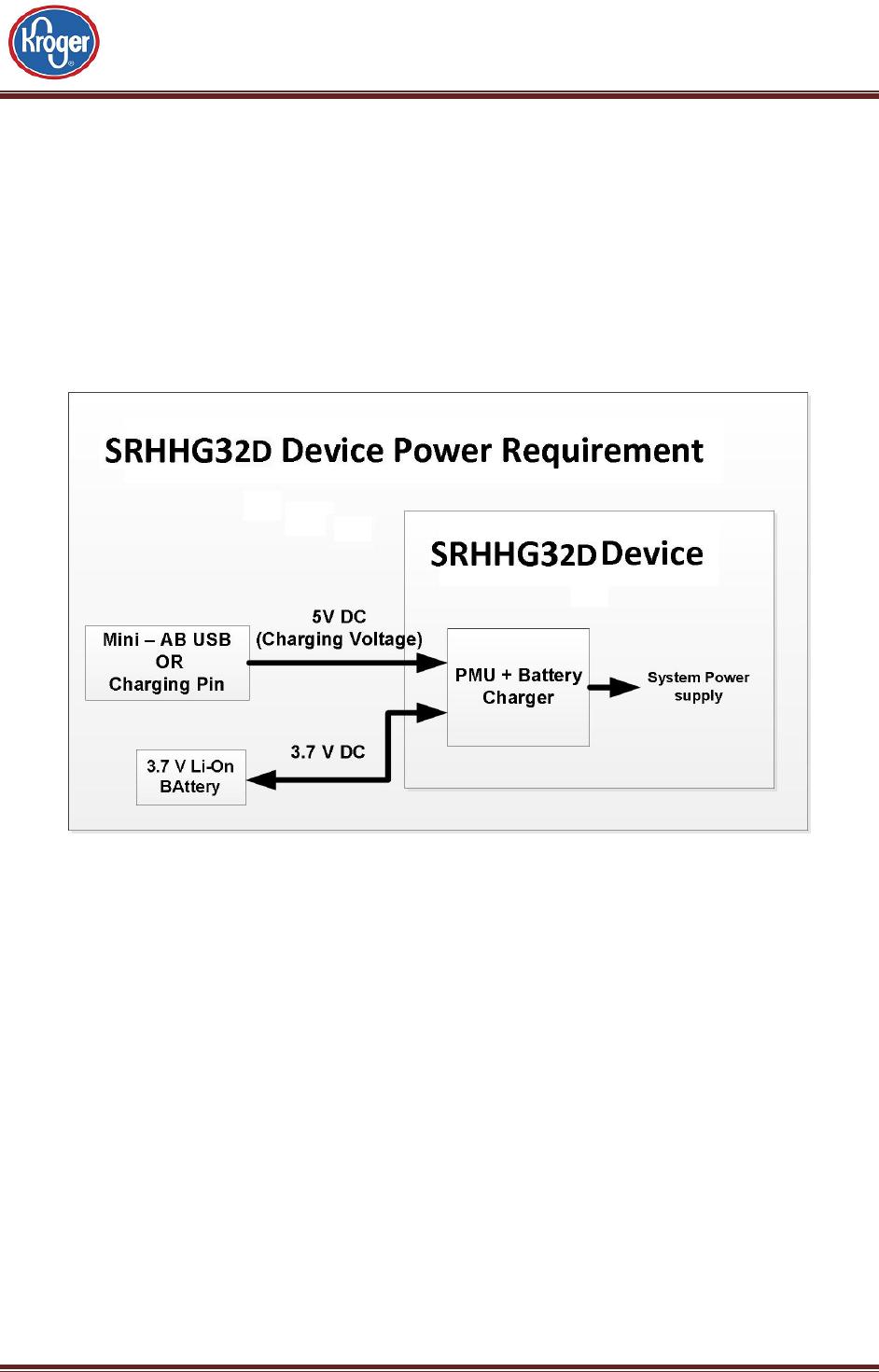

3 Power Requirements
The SRHHG32D is powered by a rechargeable Li-Io battery. This can be recharge through mini
USB connector OR Charging pins.
Battery Charger is not part of standard packaging nor is the docking station for the charging
pins. The standard FCC/CE/UL certified off-the-shelf USB charging devices or certified charging
cradle/docking should be used.
SRHHG32D User Guide
Page 9
4 Interface Details
SRHHG32D Device provides Network terminal access only through debug board connection
which is in-turn password protected.
User Interfaces
Key Interface : Key board for function operation and Power ON/OFF Button
Display : 2.8” RGB Graphic LCD
Microphone : Omani directional mic
Speaker : 1 Watt , SMD
Barcode scanner : Laser base barcode scanner
CMOS Imager : VGA Camera
ZigBee Interface:
SRHHG32D has two FCC certified ZigBee modules place orthogonally on the board for a wireless
connectivity with store’s Zigbee network.
SRHHG32D User Guide
Page 10
5 FCC Compliance Statements
FCC ID: PBR-SZHHG32D
FCC compliance statements
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including Interference that may
cause undesired operation
FCC Caution!!!
Any changes or modifications not expressly approved by the party Responsible for
compliance could void the user's authority to operate this Equipment
Part 15B compliance statements for digital devices:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
6 Operational Instruction
For SRHHG32D operational instruction, please contact Vendor/Manufacturer for latest updated
instruction guide.
