SREXRG Module User Guide Rev 1.2 Page 1 SREXRG MODULE (CC2530-CC2591 ZigBee Module) USER GUIDE
SREXRG Module User Guide Rev 1.2 Page 2 Contents 1 Introduction .......................................................................................................... 4 1.1 Purpose and scope .................................................................................................. 4 1.2 Revision History ...................................................................................................... 4 2 Module Application Circuit ..................................................................................... 5 2.1 Sample Application Connections ............................................................................. 5 2.2 Compliance Limits ................................................................................................... 6 2.3 Module Power Supply ............................................................................................. 6 3 Antenna Options and PCB Footprint........................................................................ 7 3.1 Footprint Overview ................................................................................................. 7 3.2 Module Footprint .................................................................................................... 8 4 Agency Statements ................................................................................................ 9 4.1 Federal Communication Commission Interference Statement................................. 9 4.2 ETSI (European Telecommunications Standards Institute) Statement ..................... 9 4.3 RF Exposure ............................................................................................................ 9 4.4 End Product Labelling............................................................................................ 10 5 Contact Detail ..................................................................................................... 10

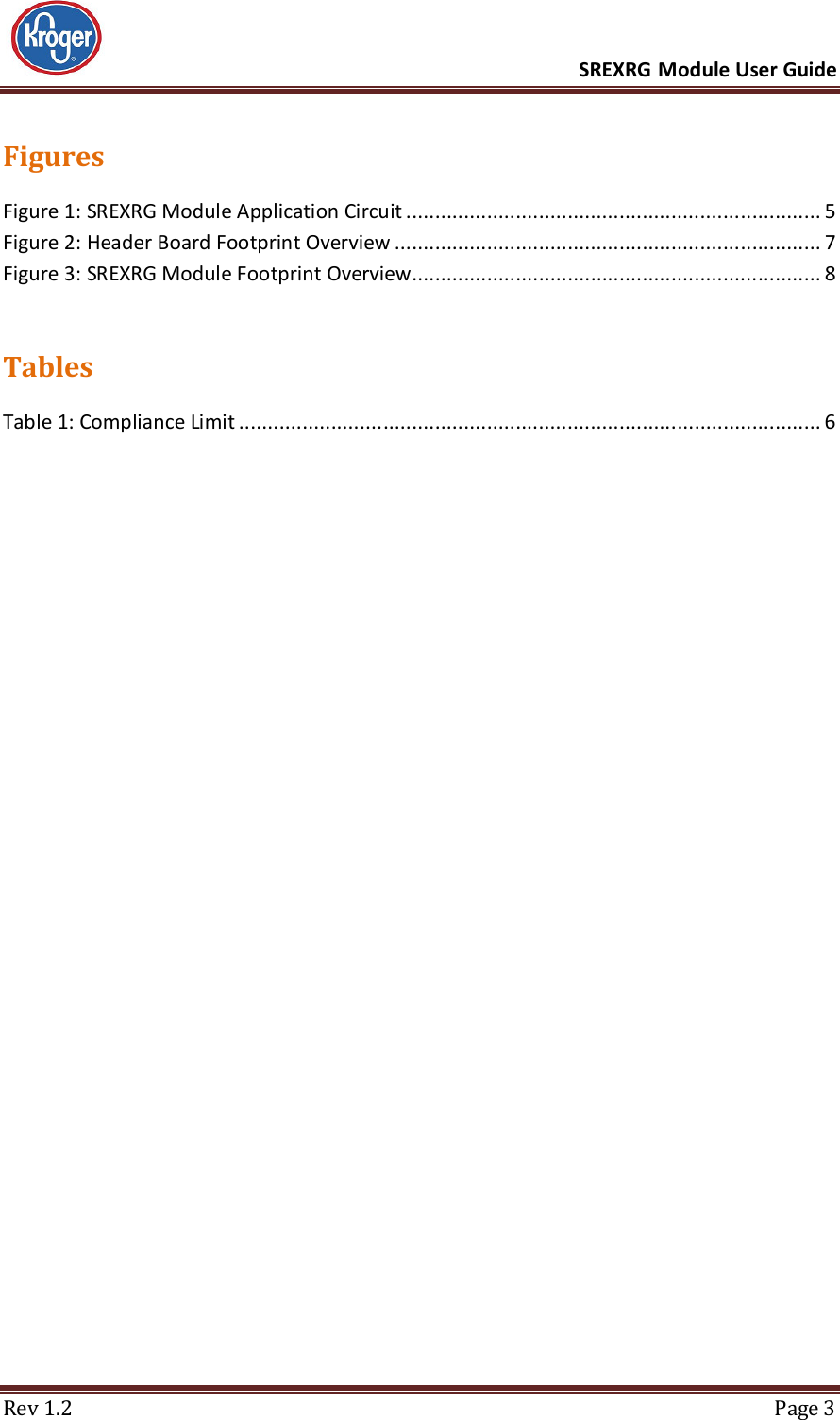

SREXRG Module User Guide Rev 1.2 Page 3 Figures Figure 1: SREXRG Module Application Circuit ........................................................................ 5 Figure 2: Header Board Footprint Overview .......................................................................... 7 Figure 3: SREXRG Module Footprint Overview....................................................................... 8 Tables Table 1: Compliance Limit ..................................................................................................... 6

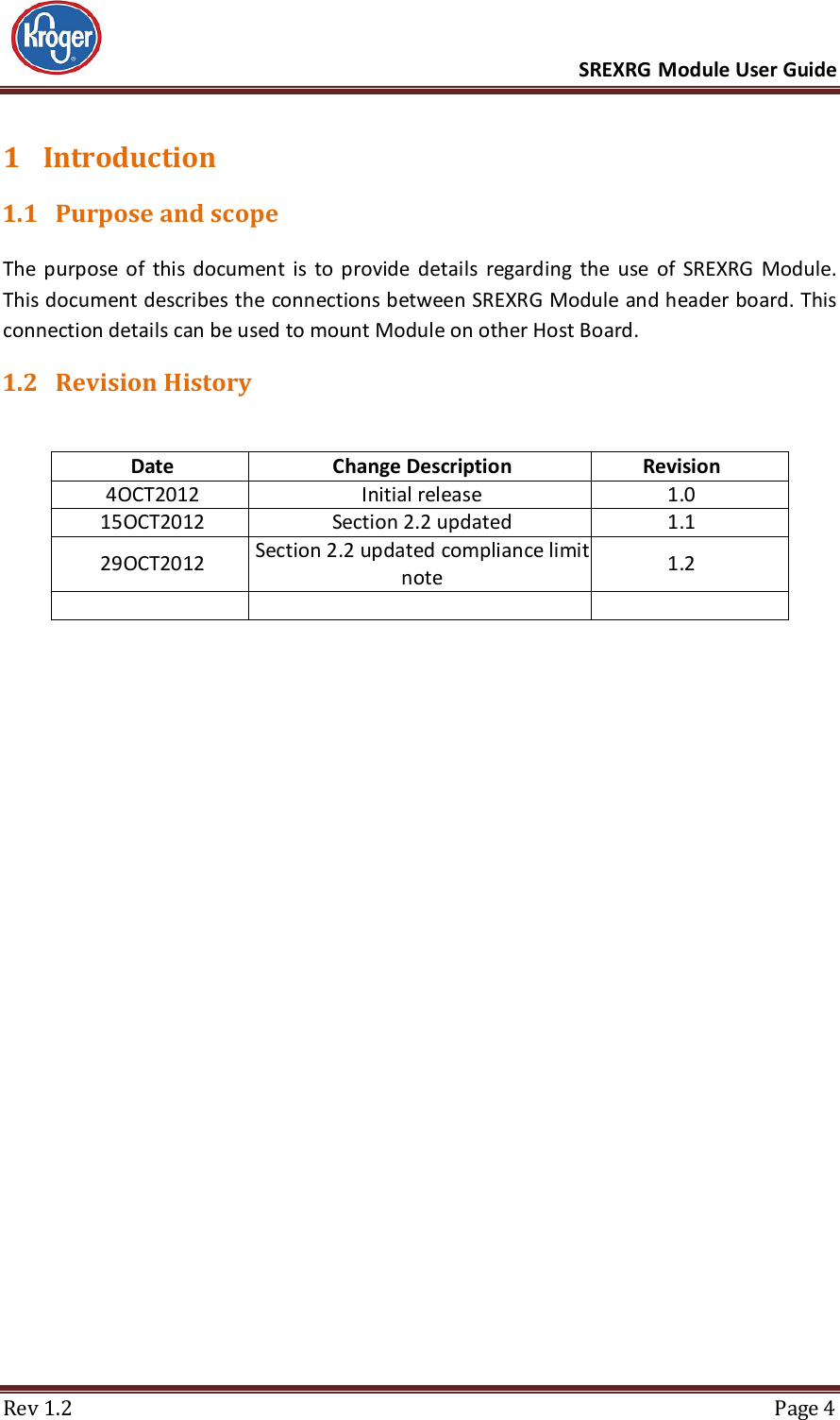

SREXRG Module User Guide Rev 1.2 Page 4 1 Introduction 1.1 Purpose and scope The purpose of this document is to provide details regarding the use of SREXRG Module. This document describes the connections between SREXRG Module and header board. This connection details can be used to mount Module on other Host Board. 1.2 Revision History Date Change Description Revision 4OCT2012 Initial release 1.0 15OCT2012 Section 2.2 updated 1.1 29OCT2012 Section 2.2 updated compliance limit note 1.2
SREXRG Module User Guide Rev 1.2 Page 5 2 Module Application Circuit 2.1 Sample Application Connections Figure 1 shows the circuit connection between SREXRG Module and Header board. Header board provide the power supply to the SREXRG Module and also has debug header for programming the CC2530 chip. Below is the connection diagram of SREXRG module and header board. CC2530_Debug_DATACC2530_Debug_CLKCC2530_RSTSREXRG ModuleVCC3.3VGND3.3V Charge Pump3.3V to 5V InputFrom Battery or External SourceHeader BoardChipcon Flashing headerP2_2P2_1RESET_NAVDD and CVDDGND Figure 1: SREXRG Module Application Circuit Please refer SREXRG datasheet for module pin description. Based on application requirements, host device can be interfaced with other pins on the module. Please refer TI- CC2530 user guide for connection/state information of unused pins.

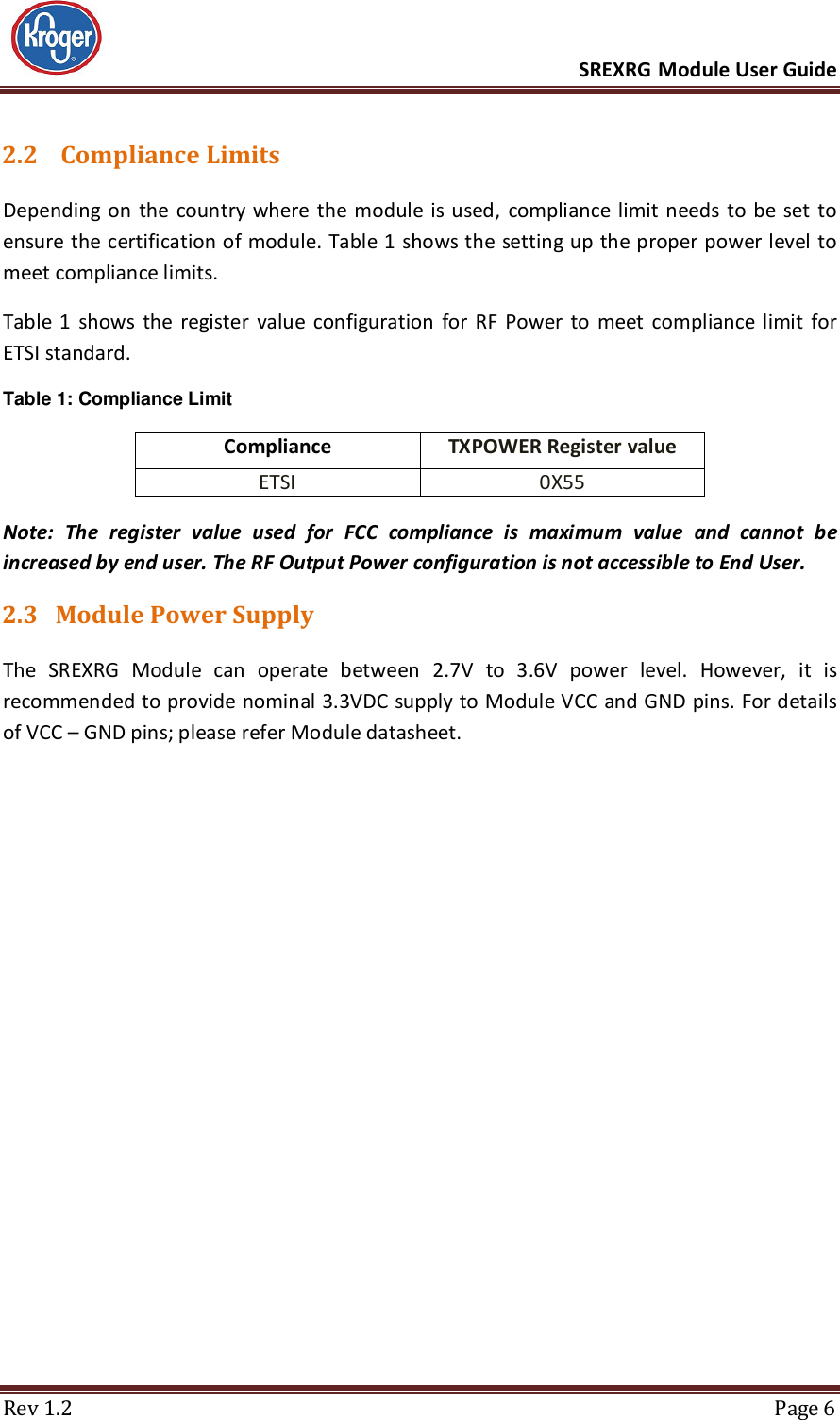

SREXRG Module User Guide Rev 1.2 Page 6 2.2 Compliance Limits Depending on the country where the module is used, compliance limit needs to be set to ensure the certification of module. Table 1 shows the setting up the proper power level to meet compliance limits. Table 1 shows the register value configuration for RF Power to meet compliance limit for ETSI standard. Table 1: Compliance Limit Compliance TXPOWER Register value ETSI 0X55 Note: The register value used for FCC compliance is maximum value and cannot be increased by end user. The RF Output Power configuration is not accessible to End User. 2.3 Module Power Supply The SREXRG Module can operate between 2.7V to 3.6V power level. However, it is recommended to provide nominal 3.3VDC supply to Module VCC and GND pins. For details of VCC – GND pins; please refer Module datasheet.

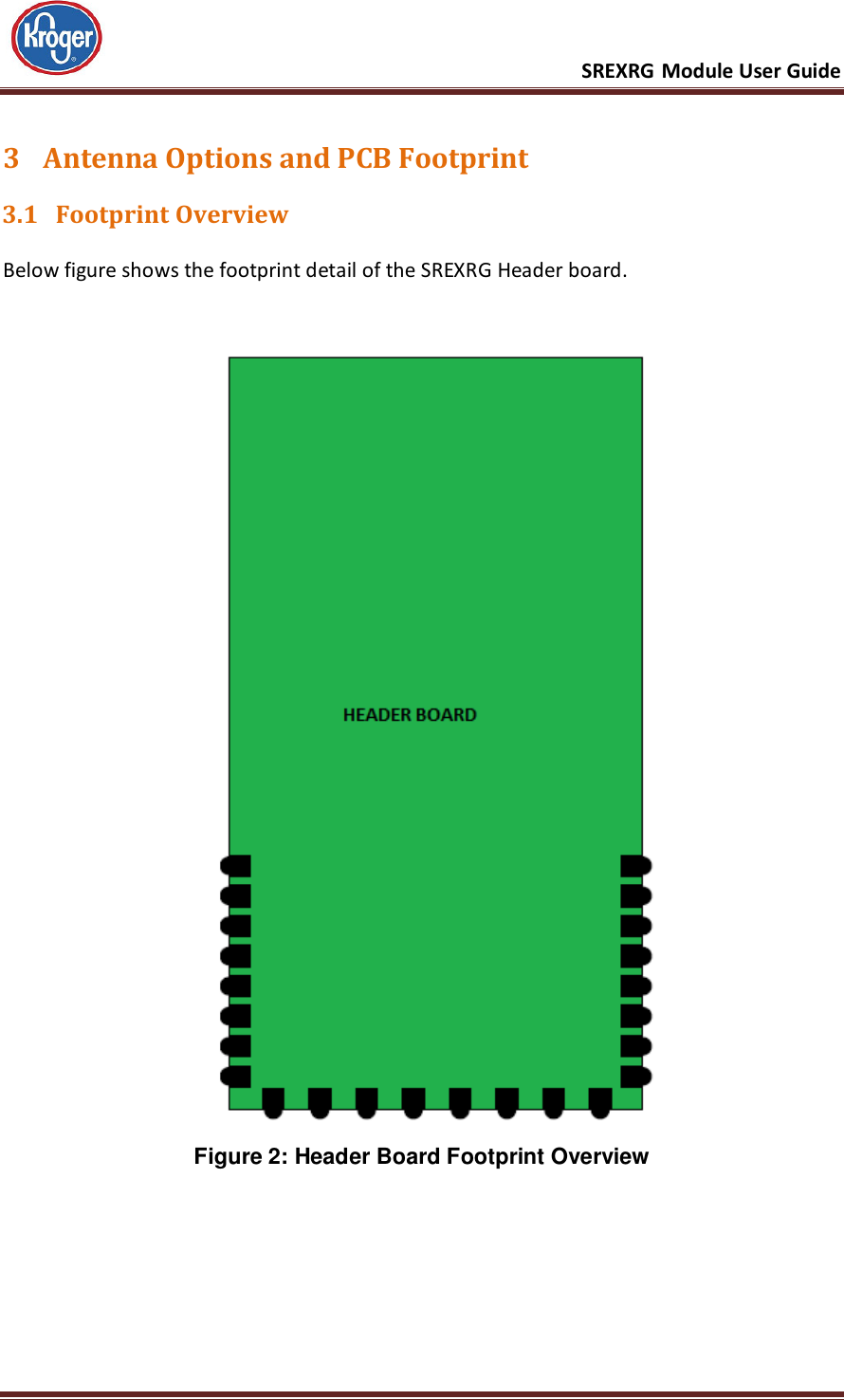

SREXRG Module User Guide Rev 1.2 Page 7 3 Antenna Options and PCB Footprint 3.1 Footprint Overview Below figure shows the footprint detail of the SREXRG Header board. Figure 2: Header Board Footprint Overview
SREXRG Module User Guide Rev 1.2 Page 8 3.2 Module Footprint Figure 3 shows the Module footprint over the Header board Figure 3: SREXRG Module Footprint Overview

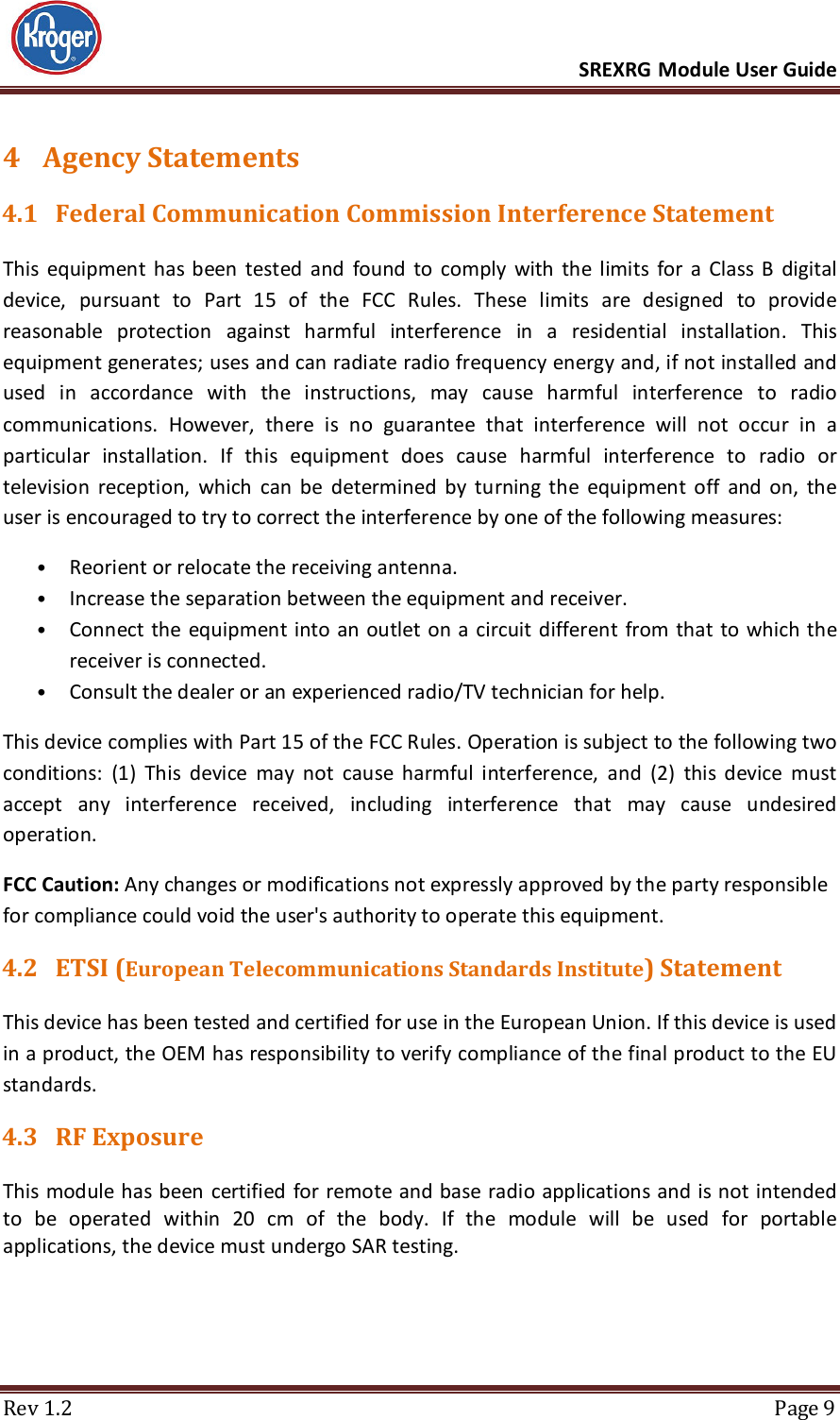

SREXRG Module User Guide Rev 1.2 Page 9 4 Agency Statements 4.1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates; uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 4.2 ETSI (European Telecommunications Standards Institute) Statement This device has been tested and certified for use in the European Union. If this device is used in a product, the OEM has responsibility to verify compliance of the final product to the EU standards. 4.3 RF Exposure This module has been certified for remote and base radio applications and is not intended to be operated within 20 cm of the body. If the module will be used for portable applications, the device must undergo SAR testing.

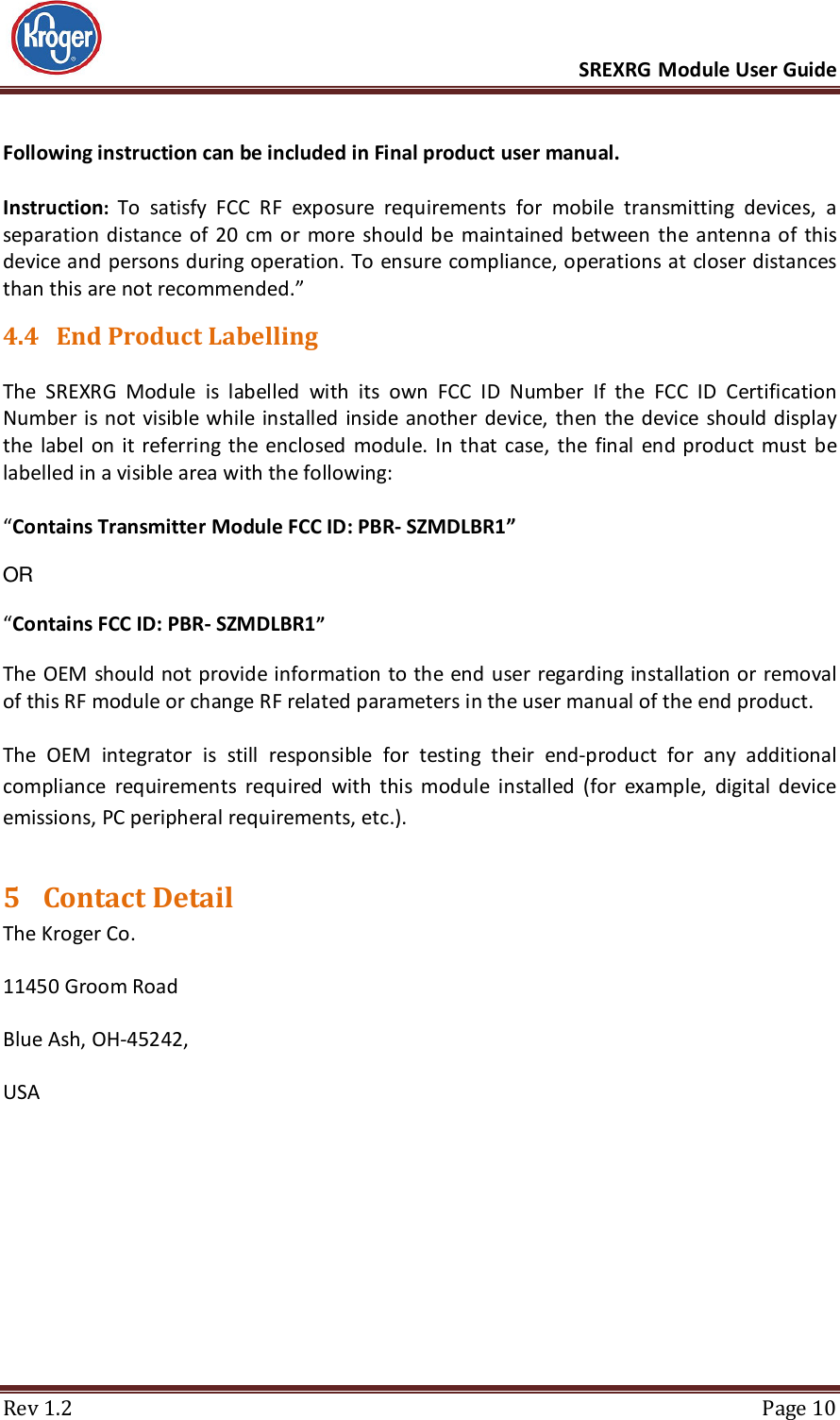

SREXRG Module User Guide Rev 1.2 Page 10 Following instruction can be included in Final product user manual. Instruction: To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during operation. To ensure compliance, operations at closer distances than this are not recommended.” 4.4 End Product Labelling The SREXRG Module is labelled with its own FCC ID Number If the FCC ID Certification Number is not visible while installed inside another device, then the device should display the label on it referring the enclosed module. In that case, the final end product must be labelled in a visible area with the following: “Contains Transmitter Module FCC ID: PBR- SZMDLBR1” OR “Contains FCC ID: PBR- SZMDLBR1” The OEM should not provide information to the end user regarding installation or removal of this RF module or change RF related parameters in the user manual of the end product. The OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). 5 Contact Detail The Kroger Co. 11450 Groom Road Blue Ash, OH-45242, USA
