Q-TRACK® QDOSE™ XL SURVEY METER EMULATOR — QUICK START GUIDE

NOTE: CHARGE BEFORE FIRST USE!

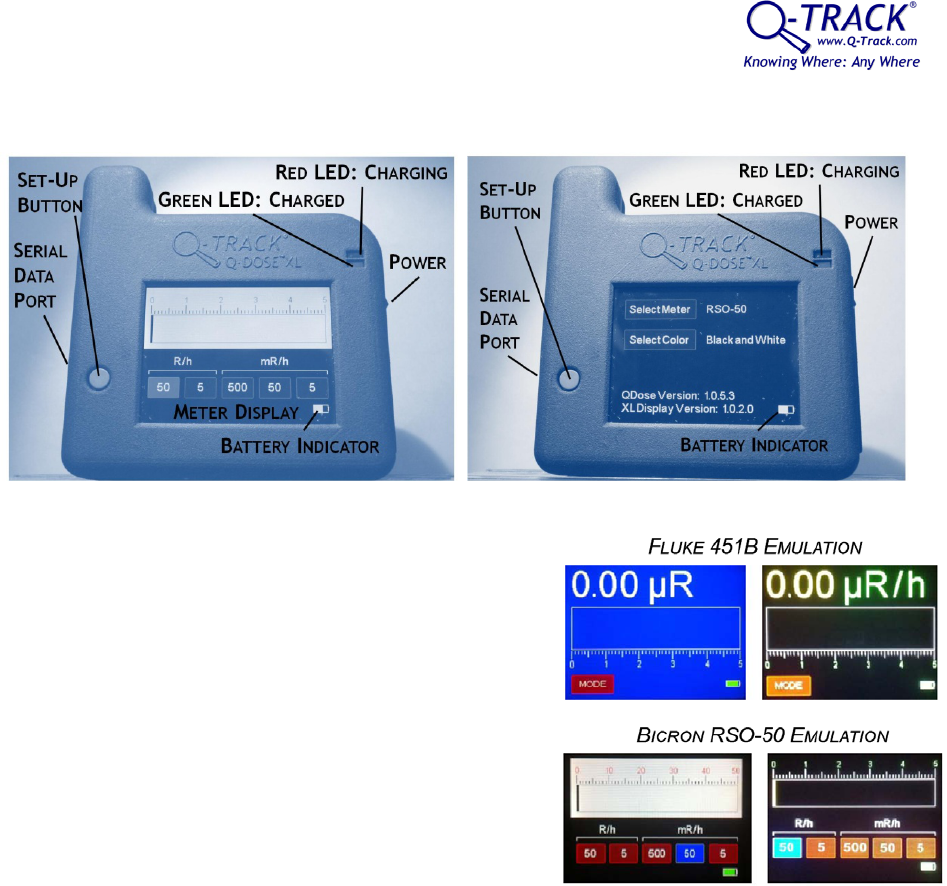

The QDose™-XL operates in a meter emulation mode (left) and a set-up mode (right).

Power Switch: For normal operation, turn the tag “on”

using this rocker switch. Turn the tag “off” to

conserve battery or for long term storage. The Tag

defaults to whatever meter display was last

selected.

Set-Up Button: This toggles the QDose™-XL between

meter emulation mode (above, left) and set-up

mode (above right). The set-up mode enables

selection of meter GUI and optional color schemes.

In meter emulation mode, the QDose™-XL displays

simulated radiation data

Battery Indicator: In either mode, a battery icon in the

lower right corner of the screen denotes

Serial Data Port: The serial data port enables factory

configuration. The serial data port may also be used

in conjunction with the supplied charger (5V

500mA).

LEDs: a red LED lights to denote the tag is charging. A green LED indicates when the battery is fully

charged.

The QDose™ XL Tag Transmitter operates within the AM broadcast band (600–1600kHz). The

specific transmit frequency is carefully chosen for each installation to avoid harmful

interference with licensed emitters. AM broadcast signals would interfere with tracking and

must be avoided. The transmit frequency is set at the factory and cannot be changed by the

user. The QDose™ XL tag transmitter is microprocessor-controlled and powered by a

rechargeable lithium ion battery. The unit cannot transmit while being recharged. The

antennas are self-contained within the plastic enclosure, and cannot be modified or changed

by the user. The QDose™ XL tag transmitter includes a ZigBee data modem for reception of

simulated radiation data.

Q-Track Corp. FCC ID: VJ3-QDOSE-XL. This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful interference, and (2) the device must

accept any interference received, including interference that may cause undesired operation. Caution: Changes or

modifications not expressly approved by the party responsible for compliance could void the user's authority to

operate the equipment. Contains FCC ID: U6TZIGBIT-A2.
