Q-TRACK® QT™-643 TAG TRANSMITTER QUICK START GUIDE
NOTE: CHARGE BEFORE FIRST USE! FOUR HOURS IN THE QT-654 CRADLE CHARGER
THE LED SHOULD BE SOLID GREEN WHEN “CHARGED.”
The QT™-643 Tag Transmitter has a minimum of controls and interfaces:
Power Switch: Turn the tag on by pressing and
releasing the power button. If battery is fully
charged, the LED blinks green once every 3s.
Turn the tag off to conserve battery or for long
term storage by holding button down 3 seconds
until the LED turns yellow, then release.
Charging Pins: These pins work in conjunction with
the QT™-654 charging cradle.
Alert Button (optional): Some versions of the QT™-
643 tag include an Alert Button. Pressing the
Alert Button modulates the tag to notify the
server of an alert situation.
The QT™-643 Tag Transmitter includes LEDs to
communicate tag status:
In charging mode:
Constant Red: Charging.
Constant Green: Fully Charged.
In operational mode:
Green Slow Blink (100ms every 3s): On.
Yellow Slow Blink (100ms every 3s): Tag On; Low
Battery Warning.
Yellow Fast Blink (100ms each 1s): Battery Level Critical; Tag No Longer Transmits.
No Lights Battery discharged or tag off.
The QT™-643 tag transmitter operates from 2750 – 3250kHz (excluding 3020 – 3026 kHz in
Canada). The specific transmit frequency is carefully chosen to avoid harmful interference with
licensed emitters. Broadcast or other signals would interfere with tracking and must be avoided.
The transmit frequency is set at the factory and cannot be changed by the user. The QT™-643
tag transmitter is microprocessor-controlled and powered by a rechargeable lithium ion battery.
The tag cannot transmit while being recharged. The antennas are self-contained within the
plastic enclosure, and cannot be modified or changed by the user.
Q-Track Corp. FCC ID: VJ3-QT-643-TAG. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) the
device must accept any interference received, including interference that may cause undesired
operation. Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Q-Track Corporation; Model: QT-643; IC: 10503A-TXTAG643.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device. This product meets
the applicable Industry Canada technical specifications.
Cet appareil est conforme à Industrie Canada une licence standard RSS exonérés (s). Son fonctionnement
est soumis aux deux conditions suivantes: 1. Cet appareil ne doit pas provoquer d'interférences 2. Cet
appareil doit accepter toute interférence reçue, y compris les interférences pouvant provoquer un
fonctionnement indésirable de l'appareil. Ce produit est conforme aux spécifications d'Industrie Canada.

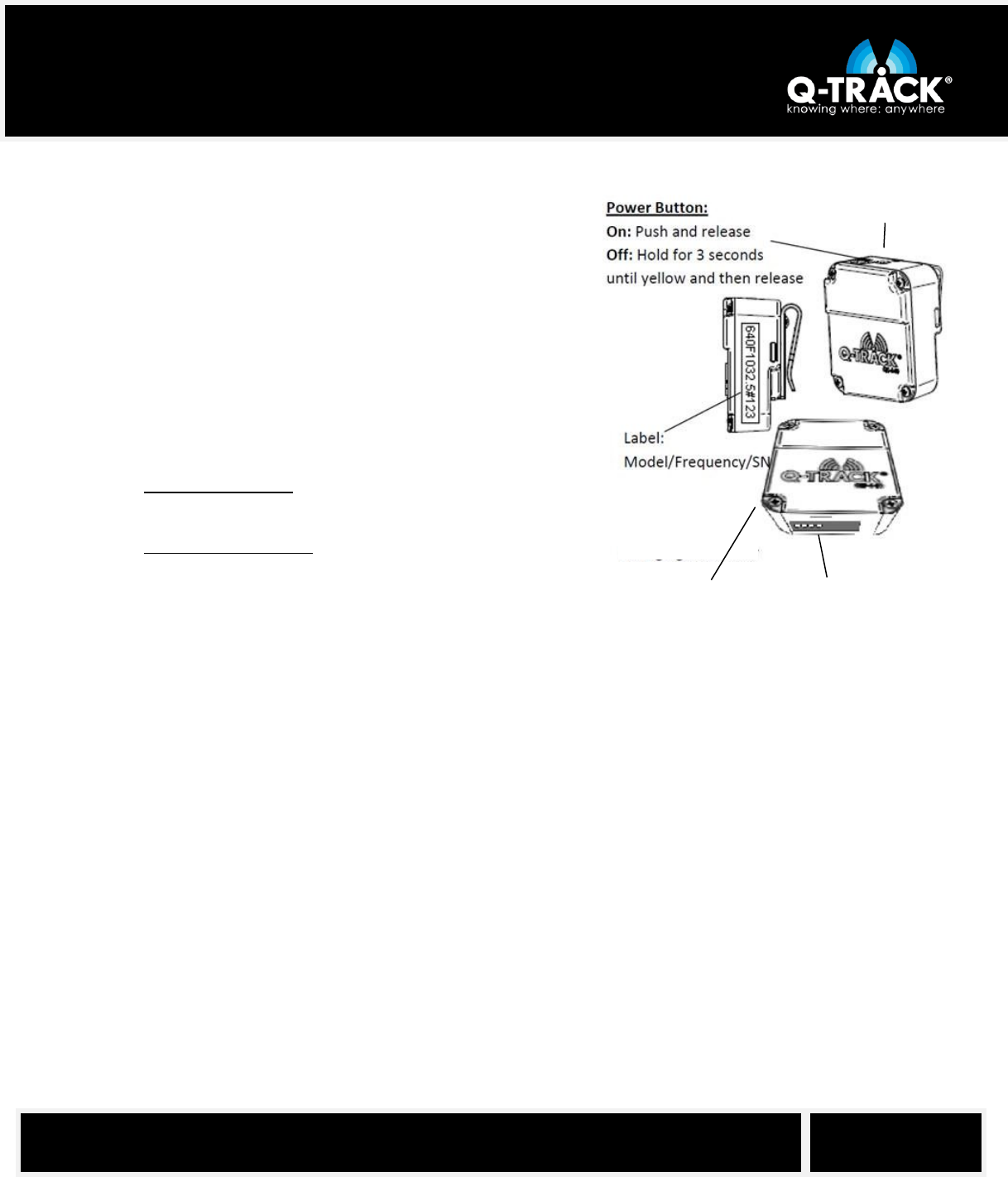

LED
FCC/IC Label Charging Pads
