User Manual
April 2012
914-928 MHz Frequency Hopping Transceiver Module
Model: PCB-HPWR-900-1
FCC ID: R73HPB1
Introduction:
This module is only authorized to be installed in fixed mount installation and may not be
installed in a mobile or portable device.
The HPWR-900-1 RF module is to be used in Sapling Master Clocks such
as the SMA-3000 or Repeater SMA-1000 and equivalent models.
The module is only to be connected to other Sapling products.
Specifications:
The maximum output power will be 30 dBm.
The transmit cycle is a sequence of 57 data strings on 51 different
frequencies, each transmitted for 10 msec.
Every transmit cycle is 570 msec in duration (57 x 10ms).
The frequency hopping pattern is proprietary to Sapling and covers the range
from 914.688 to 927.488 MHz.
Connections:
The module should only be connected to and installed in other Sapling
products
.
The pictures show how the module is mounted in its dedicated case and also
the connections to the rest of the Sapling Wireless Clock System.
HPWR 900-1

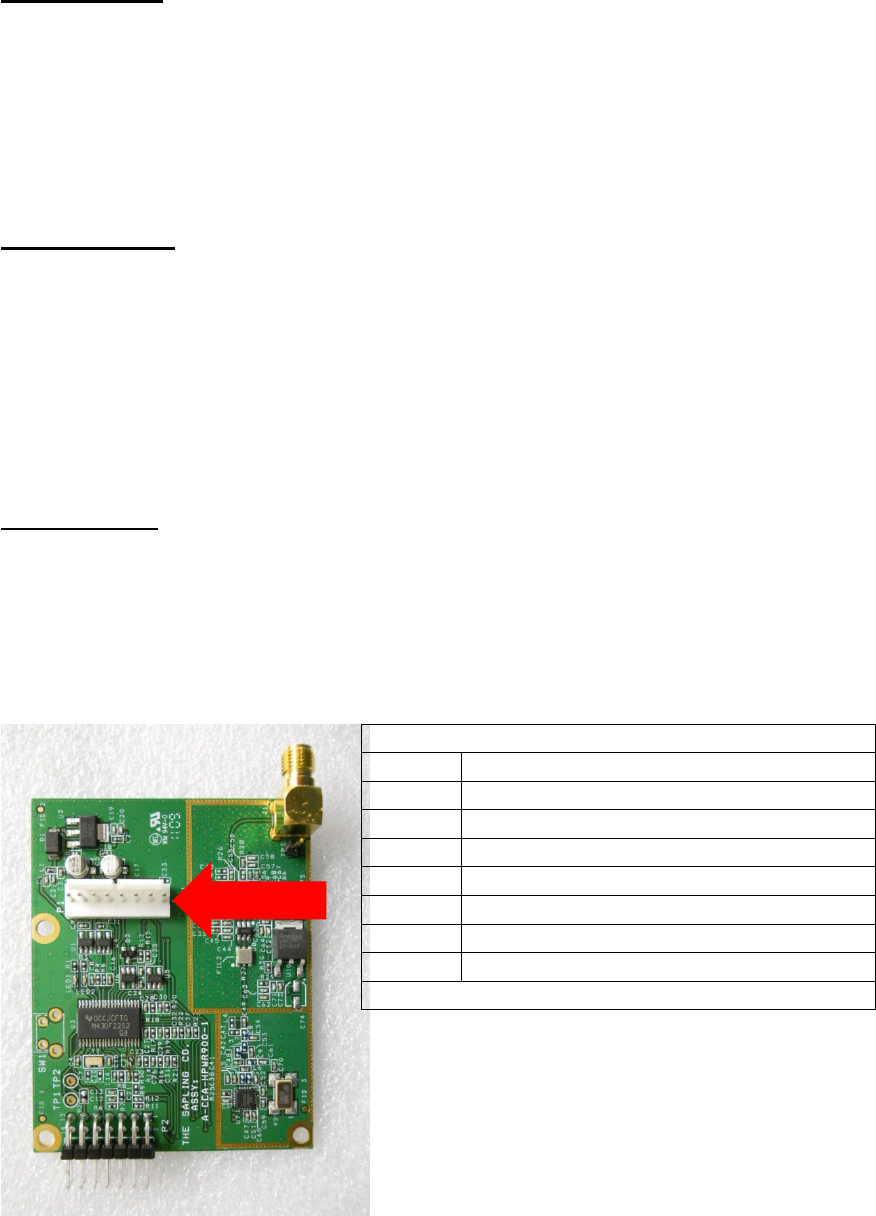

P1 OPERATING CONNECTOR
PIN 1 5 VOLTS
PIN 2 GROUND
PIN 3 NO CONNECTION
PIN 4 TXD
PIN 5 RXD
PIN 6 MSTR/SLV
PIN 7 NO CONNECTION
PIN 8 NO CONNECTION
* PIN 1 IS SQUARE PAD
P1
HPWR 900-1
HPWR-900-1 RF module as a remote antenna, to be connected to a Sapling
Master Clock.

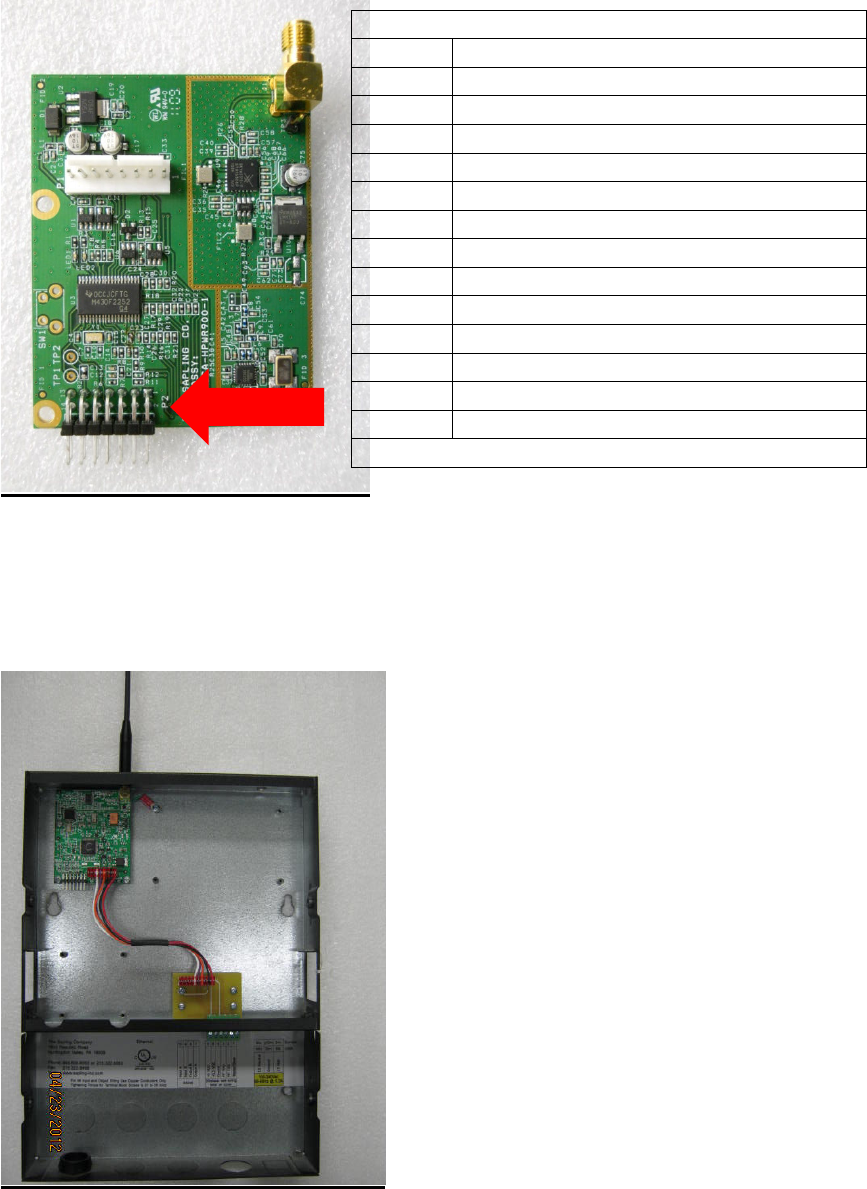

P2 PROGRAMMING CONNECTOR
PIN 1 TDO/TDI
PIN 2 3.3 VOLTS
PIN 3 TDI
PIN 4 3.3 VOLTS
PIN 5 TMS
PIN 6 NO CONNECTION
PIN 7 TCLK
PIN 8 TEST
PIN 9 GROUND
PIN 10 NO CONNECTION
PIN 11 RST
PIN 12 TXD
PIN 13 SHIELD
PIN 14 RXD
* PIN 1 IS SQUARE PAD
P2
Operation:
The module is controlled by the Master Clock and will not operate on its
own. When connected to a Master Clock as a main transmitter, it will
transmit the time for 570 ms, as specified, once a minute.
If used as a Repeater, it will receive time from a main transmitter or clock
and re-transmit the time thereby increasing the coverage area, thus keeping
all the slave clocks synchronized to the Master Clock.
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY
RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
