The Watt Stopper d b a Qmotion 150562Z Zigbee Hardwired Dual Channel Switch User Manual 15 0413 Exhibit Cover
Qmotion Incorporated Zigbee Hardwired Dual Channel Switch 15 0413 Exhibit Cover
Manual
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598
Certification Exhibit
FCC ID: 2ABLX-150562Z
IC: 8832A-150562Z
FCC Rule Part: 15.247
IC Radio Standards Specification: RSS-247
ACS Project Number: 15-0413
Manufacturer: Qmotion Incorporated
Model: QM150562Z
8
REVISION 1.1 07DEC15 REVISION 1.1 07DEC15 Part # Part #
QMotion ZigBee Hard Wired Control
Roller Shade Application Guide
FCC
Warning: Changes or modifications to this device not expressly approved by QMotion® Incorporated -Advanced
Shading Systems could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
RF Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equip-
ment should be installed and operated with minimum distance 20cm between the radiator and your body. This trans-
mitter must not be co-located or operating in conjunction with any other antenna or transmitter.
INDUSTRY CANADA
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'uti-
lisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
RF Exposure
Cet équipement est conforme aux limites ďexposition aux radiations dans un environnement noncontrôlé. Cet
équipement doit être installé et utilisé à distance minimum de 20cm entre le radiateur et votre corps. Cet émetteur ne
doit pas être co-localisées ou opérant en conjunction avec tout autre antenne ou transmetteur.
2 7
REVISION 1.1 07DEC15 REVISION 1.1 07DEC15

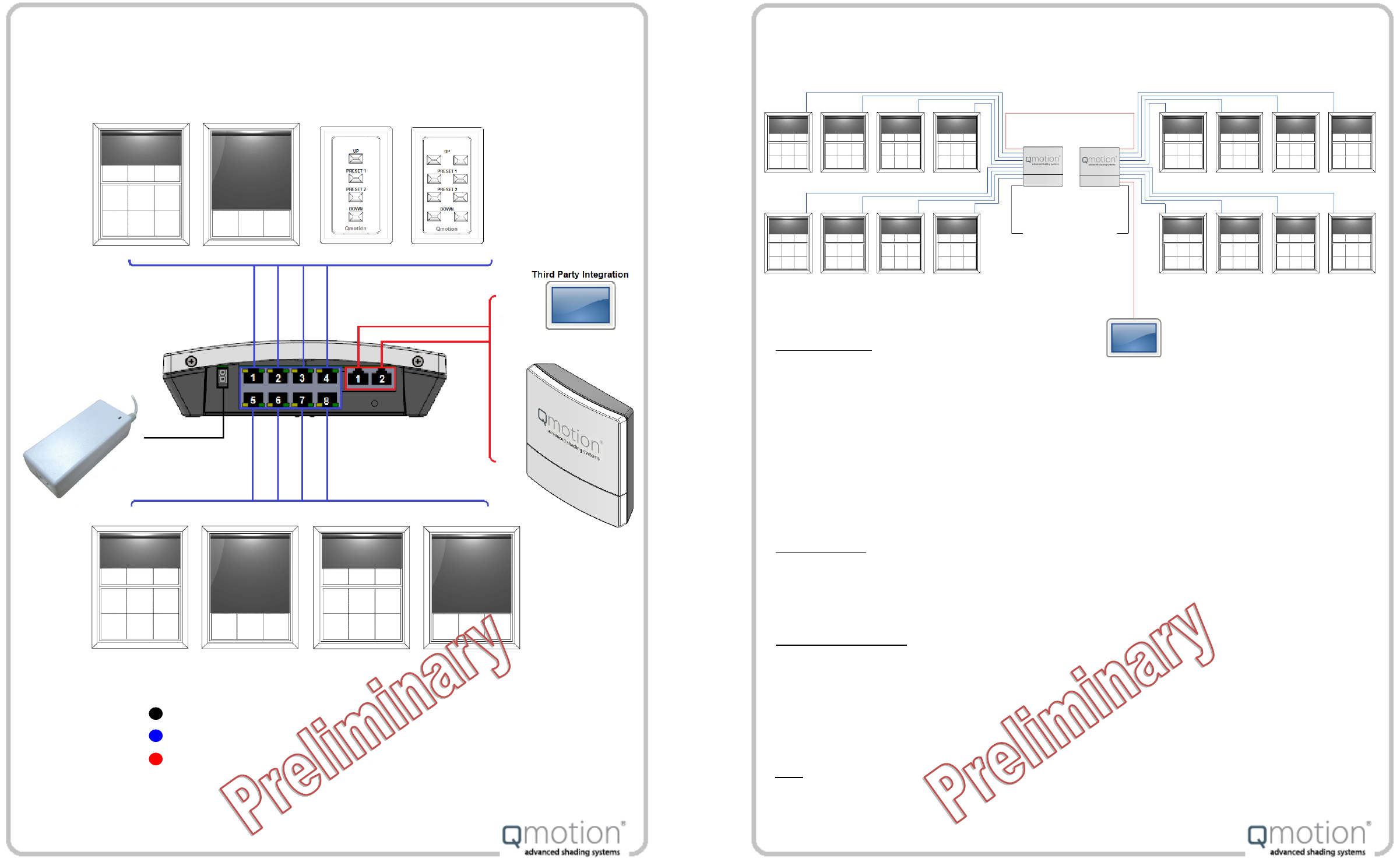

ZigBee Hardwired Roller Shade
System Overview
Power Supply: 24 VDC, 7.5A
RJ-45 Ports for Motorized Shades and Switches - Quanty 8
Communicaon Ports (RJ-45) - Quanty 2
Part # Part #

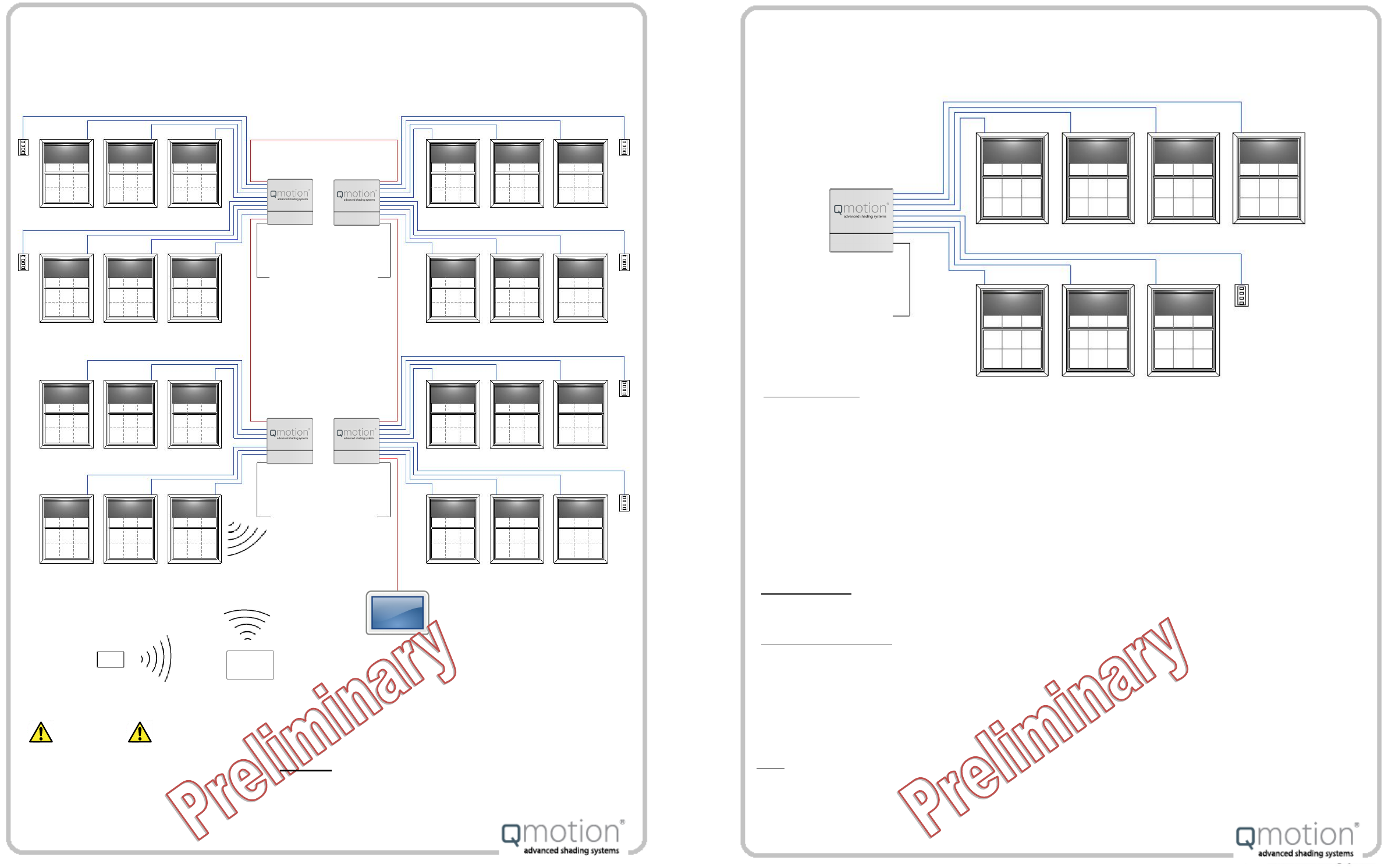

ZigBee Hardwired Roller Shade
Third Party Integration
Wire Specification:
Category 5e/Category 6 for use with RJ-45 Connector
24 AWG
Maximum length of wire from Power Distribution Panel to device :
- 8’ X 8’ Shade with 40:1 motor - 1250’
- 12’ X 12’ Shade with 73:1 motor - 750’
- 12’ X 20’ Shade with 73:1 motor - 500’
- Hardwired 4 and 8 Button Switches - 1000’
*Length based on 115K baud rate
Maximum wire length for RS485 communication - 2000’
Power Distribution Panel:
8 RJ-45 ports for motorized shades and switches
2 additional RJ-45 communication ports dedicated to daisy chain with other Power Distribution Panels
and Third Party Integration via RS485.
Power Supply
- AC Input: 100-240 VAC, 2.5A
- DC Output: 24 VDC, 7.5A
Note:
Standard Roll Applications (Motor Left) - Wire will need to be run to the LEFT side of the window (as shown).
Reverse Roll Applications (Motor Right) - Wire will need to be run to the RIGHT side of the window .
Power
Distribution Panels
24 VDC
Power Supplies
RS485
Communication
Third Party
Integration
System Capacity:
200 Devices (QMotion Shades, QMotion Wireless Remotes, QMotion Hardwired Switches and other
ZigBee devices)
*Specicaons are subject to change without noce
6
3
REVISION 1.1 07DEC15 REVISION 1.1 07DEC15
Wire Specification:
Category 5e/Category 6 for use with RJ-45 Connector
24 AWG
Maximum length of wire from Power Distribution Panel to device:
- 8’ X 8’ Shade with 40:1 motor - 1250’
- 12’ X 12’ Shade with 73:1 motor - 750’
- 12’ X 20’ Shade with 73:1 motor - 500’
- Hardwired 4 and 8 Button Switches - 1000’
*Length based on 115K baud rate
Maximum wire length for RS485 communication - 2000’
Power Distribution Panel:
8 RJ-45 ports for motorized shades and switches
2 additional RJ-45 communication ports dedicated to daisy chain with other Power Distribution Panels
and Third Party Integration via RS485.
Power Supply
- AC Input: 100-240 VAC, 2.5A
- DC Output: 24 VDC, 7.5A
Note:
Standard Roll Applications (Motor Left) - Wire will need to be run to the LEFT side of the window (as shown).
Reverse Roll Applications (Motor Right) - Wire will need to be run to the RIGHT side of the window .
ZigBee Hardwired Roller Shade
Single Hardwired Switch Application
Part # Part #
24 VDC
Power Supply
Power
Distribution Panel
Hardwired
Switch
ZigBee Hardwired Roller Shade
Third Party Integration
24 VDC
Power Supplies
24 VDC
Power Supplies
Hardwired
Switch
RS485
Communication
NOTE: The QMotion ZigBee Hardwired System does not operate on “standard” Power over Ethernet (PoE)
schemes. Do not attempt to connect the QMotion ZigBee Hardwired System to any Ethernet device. Doing so may
damage the system components and/or the external Ethernet or PoE device.
Caution
Third Party
Integration
Power
Distribution Panels
System Capacity:
200 Devices (QMotion Shades, QMotion Hardwired Switches)
ZigBee
Coordinator/
Router
ZigBee
Remote
*Specicaons are subject to change without noce
4 5
REVISION 1.1 07DEC15 REVISION 1.1 07DEC15
Part # Part #
Wire Specification:
Category 5e/Category 6 for use with RJ-45 Connector
24 AWG
Maximum length of wire from Power Distribution Panel to device:
- 8’ X 8’ Shade with 40:1 motor - 1250’
- 12’ X 12’ Shade with 73:1 motor - 750’
- 12’ X 20’ Shade with 73:1 motor - 500’
- Hardwired 4 and 8 Button Switches - 1000’
*Length based on 115K baud rate
Maximum wire length for RS485 communication - 2000’
Power Distribution Panel:
8 RJ-45 ports for motorized shades and switches
2 additional RJ-45 communication ports dedicated to daisy chain with other Power Distribution Panels
and Third Party Integration via RS485.
Power Supply
- AC Input: 100-240 VAC, 2.5A
- DC Output: 24 VDC, 7.5A
Note:
Standard Roll Applications (Motor Left) - Wire will need to be run to the LEFT side of the window (as shown).
Reverse Roll Applications (Motor Right) - Wire will need to be run to the RIGHT side of the window .
ZigBee Hardwired Roller Shade
Wireless Remote / Optional Hardwired Switch Application
ZigBee
Coordinator/
Router
ZigBee
Remote
24 VDC
Power Supply
Power
Distribution Panel
Hardwired
Switch
Wire Specification:
Category 5e/Category 6 for use
with RJ-45 Connector
24 AWG
Maximum length of wire from
Power Distribution Panel to
device:
- 8’ X 8’ Shade with
40:1 motor - 1250’
- 12’ X 12’ Shade with
73:1 motor - 750’
- 12’ X 20’ Shade with
73:1 motor - 500’
- Hardwired 4 and 8 Button
Switches - 1000’
*Length based on 115K baud rate
Maximum wire length for RS485
communication - 2000’
Power Distribution Panel:
8 RJ-45 ports for motorized
shades and switches
2 additional RJ-45 commu-
nication ports dedicated to
daisy chain with other Pow-
er Distribution Panels and
Third Party Integration via
RS485.
Power Supply
- AC Input: 100-240 VAC, 2.5A
- DC Output: 24 VDC, 7.5A
Note:
Standard Roll Applications (Motor Left) - Wire will need to be run to the LEFT side of the window (as shown).
Reverse Roll Applications (Motor Right) - Wire will need to be run to the RIGHT side of the window .
24 VDC
Power Supply
Power
Distribution Panel
24 VDC
Power Supply
Power
Distribution Panel
RS485
Communication

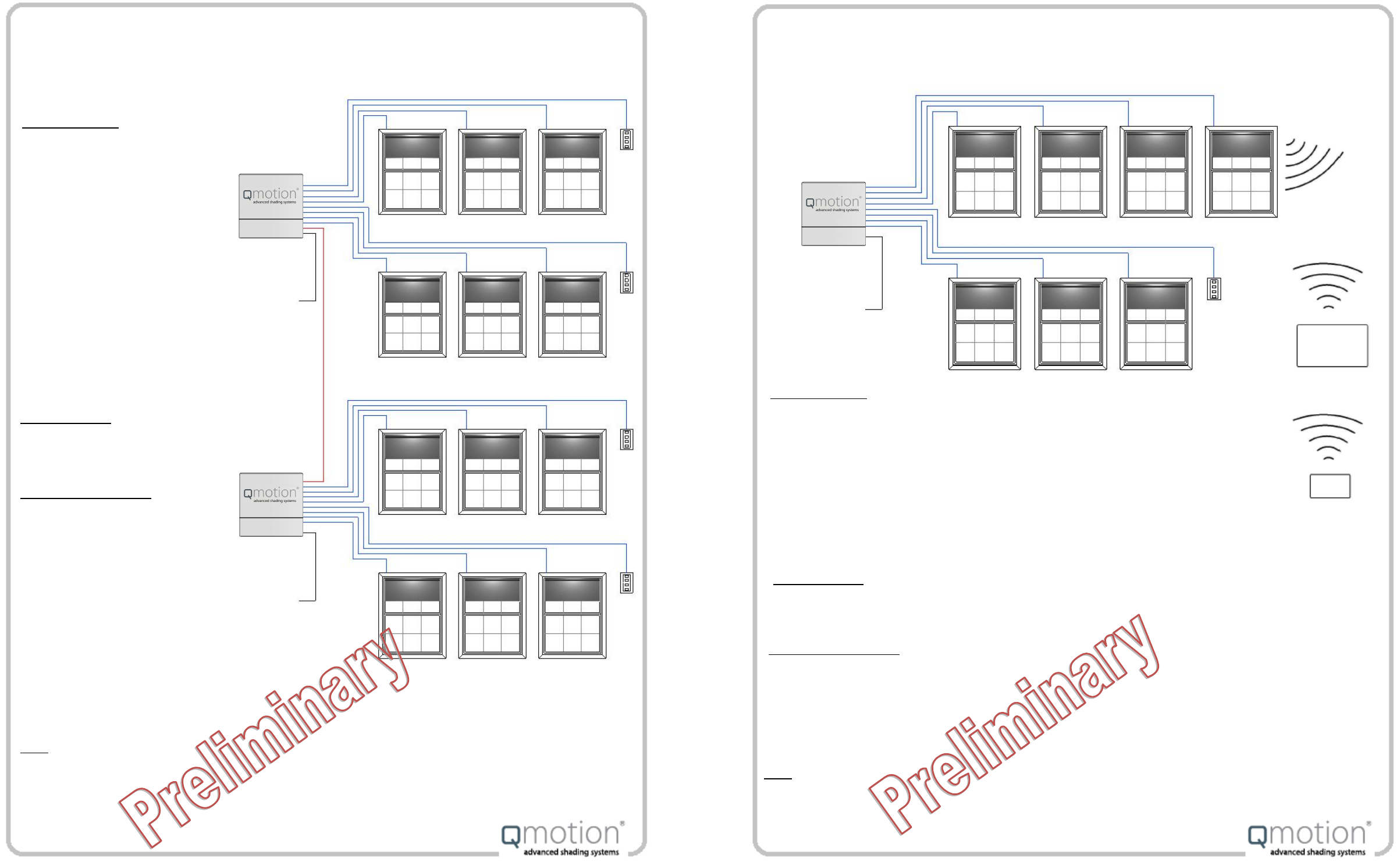

ZigBee Hardwired Roller Shade
Multiple Power Distribution Panel Application
Hardwired
Switch
System Capacity:
200 Devices (QMotion Shades, QMotion Wireless Remotes, QMotion Hardwired Switches and other
ZigBee devices)
System Capacity:
200 Devices (QMotion Shades,
QMotion Hardwired Switches)
*Specicaons are subject to change without noce
*Specicaons are subject to change without noce

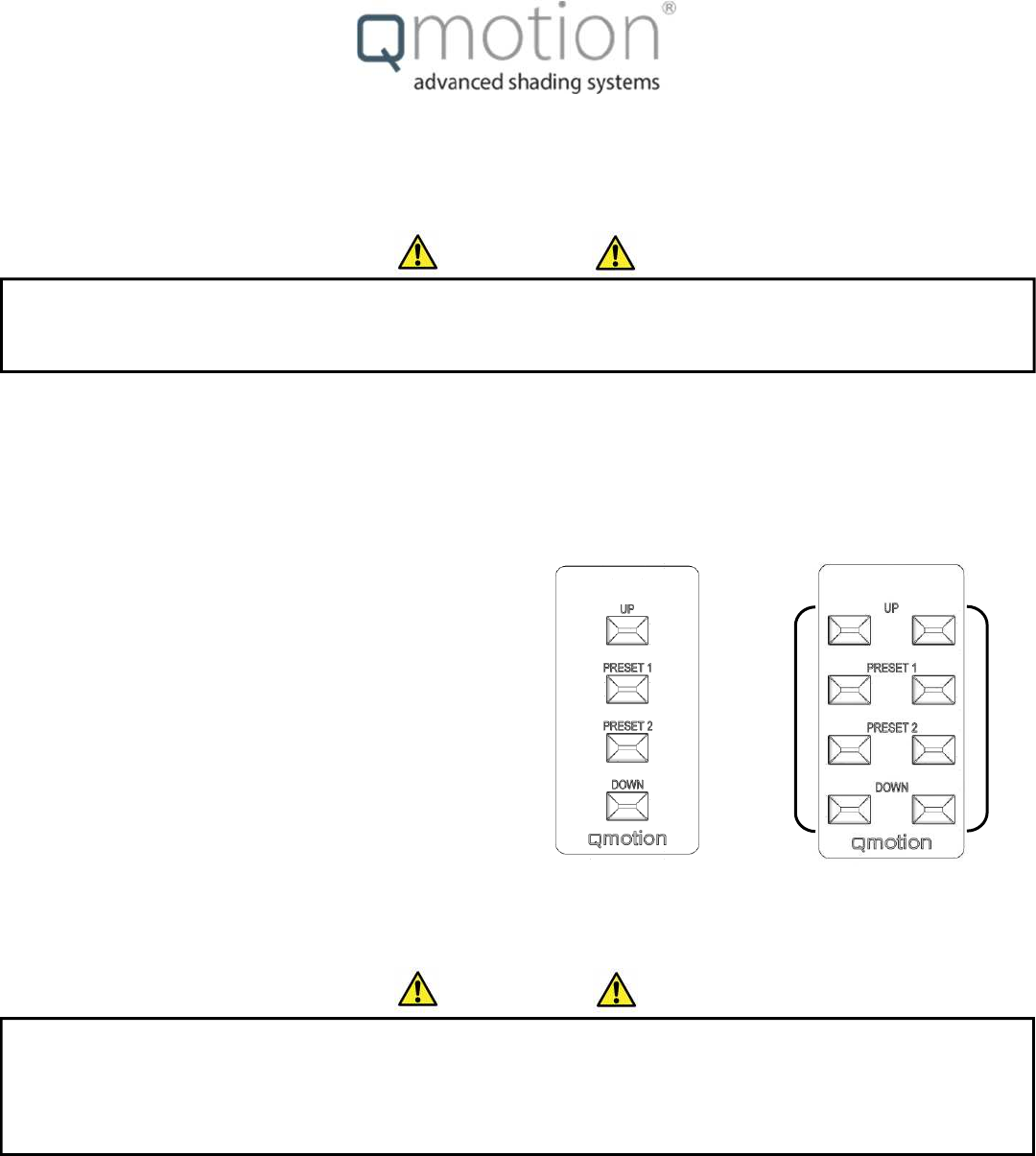

Hardwired Wall Switch Programming Instructions
FIRST TIME SETUP
1. Install shade following appropriate installation instructions
2. CONNECT POWER SUPPLY to power distribution panel and verify power
3. CONNECT SHADE to power distribution panel using network cable
4. CONNECT WALL SWITCH to power distribution panel using network cable
PAIRING / LEARNING WALL SWITCH (or Channel)
1. PRESS both UP and PRESET 1 at the same time
(Shade will JOG in response)
2. TUG shade 6-10 inches
(Shade will JOG in response and is now paired)
UNPAIRING / UNLEARNING WALL SWITCH (or Channel)
1. PRESS both DOWN and PRESET 2 at the same time
(Shade will JOG in response)
2. TUG shade 6-10 inches
(Shade will JOG in response and is now unpaired)
SETTING UPPER AND LOWER LIMITS / LEARNING A NEW POSITION
(Must use paired Wall Switch)
1. PRESS the (UP, DOWN, or PRESET) button that will be programmed (Shade will move to selected position)
2. PRESS and HOLD the same (UP, DOWN, or PRESET) button until shade JOGS
3. TUG shade 6-10 inches (Shade will JOG in response)
4. ADJUST shade to desired position ( Use UP/DOWN buttons or manually adjust shade by hand)
5. PRESS and HOLD the same (UP, DOWN, or PRESET) button (Shade will JOG when learned)
Dual Channel
Wall Switch
IMPORTANT
READ AND UNDERSTAND EACH SECTION BEFORE PERFORMING REQUIRED STEPS
When using a Dual Channel Wall Switch, the left button column corresponds to Channel 1. The right button column
corresponds to Channel 2 as shown below.
CH 1 CH 2
Single Channel
Wall Switch
t ŚŝůĞůĞĂƌŶŝŶŐŶĞǁ ƉŽƐŝƟŽŶƐ͕ ƚŚĞďƵƩ ŽŶĐƵƌƌĞŶƚůLJďĞŝŶŐƉƌŽŐƌĂŵŵĞĚ;ĂŌĞƌ^ƚĞƉϯ ͘ dh ' Ϳǁ ŝůůŶŽƚƐĞŶĚĐŽŵŵĂŶĚƐƚŽƚŚĞƐŚĂĚĞ͘
Example 1: t ŚĞŶůĞĂƌŶŝŶŐĂŶĞǁ WZ^dϭƉŽƐŝƟŽŶ͕ ƉƌĞƐƐŝŶŐWZ^dϭǁ ŝůůĚŽŶŽƚŚŝŶŐ͘ dŚĞƐŚĂĚĞĐĂŶƐƟůůďĞĂĚũƵƐƚĞĚƵƐŝŶŐh W
and DOWN.
Example 2: t ŚĞŶůĞĂƌŶŝŶŐĂŶĞǁ ƵƉƉĞƌůŝŵ ŝƚƉŽƐŝƟŽŶ͕ ƚŚĞh WďƵƩ ŽŶŝƐƐĞŵ ŝ-ĚŝƐĂďůĞ͘ K ŶůLJďLJƉƌĞƐƐŝŶŐƚŚĞh WďƵƩ ŽŶϯ Ɵŵ ĞƐǁ ŝůů
ƚŚĞƐŚĂĚĞŵŽǀ ĞƚŽƚŚĞƵƉƉŽƐŝƟŽŶ͘ ŌĞƌ^ƚĞƉϱĂůůďƵƩ ŽŶƐƌĞƐƵŵĞĨƵůůĨƵŶĐƟŽŶĂůŝƚLJ͘
IMPORTANT
