The Watt Stopper d b a Qmotion QSYNC433AM QSYNC Transceiver User Manual 12 0527 Exhibit Cover

HomeRun Holdings Corp. QSYNC Transceiver 12 0527 Exhibit Cover

Manual

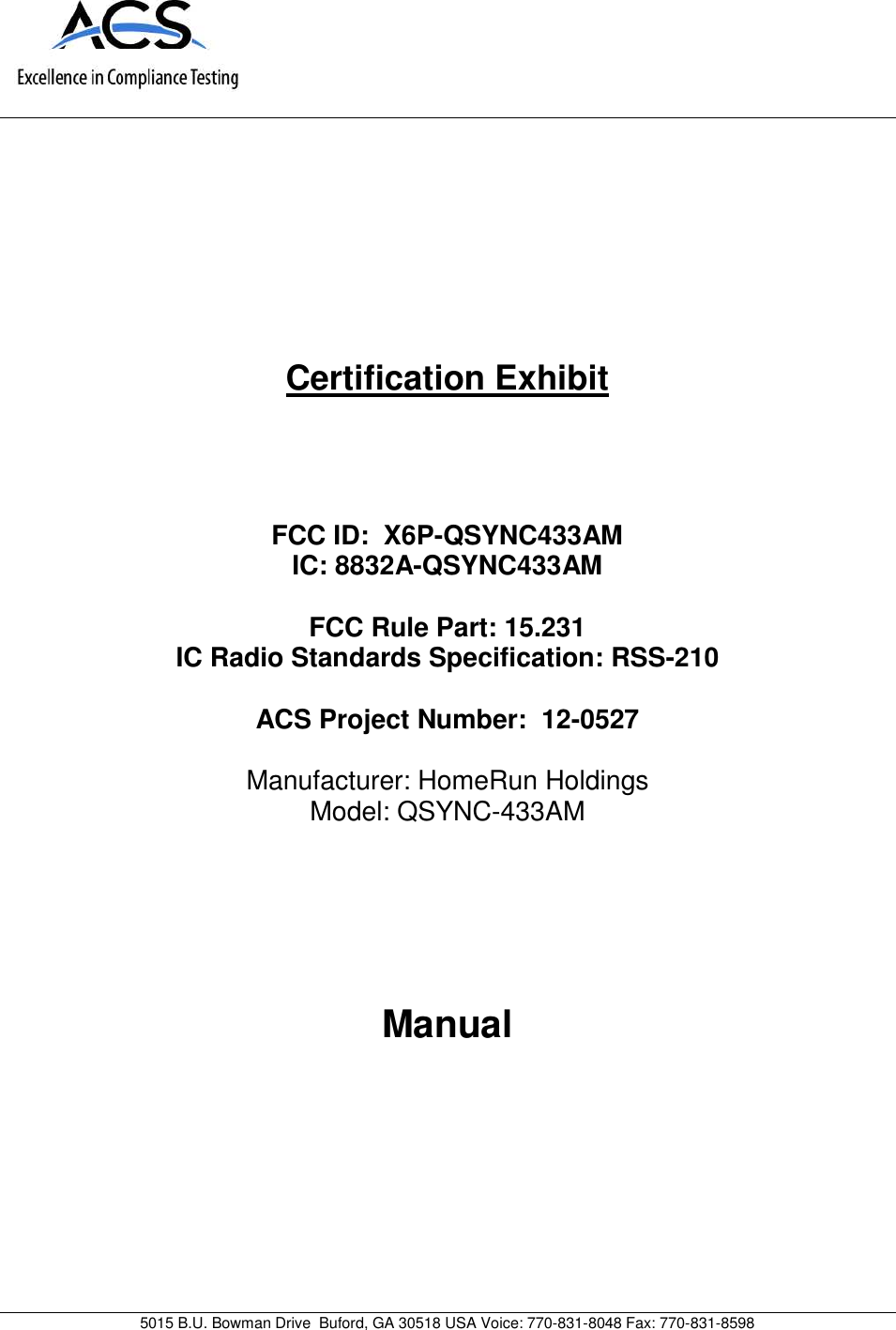

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598Certification ExhibitFCC ID: X6P-QSYNC433AMIC: 8832A-QSYNC433AMFCC Rule Part: 15.231IC Radio Standards Specification: RSS-210ACS Project Number: 12-0527Manufacturer: HomeRun HoldingsModel: QSYNC-433AMManual

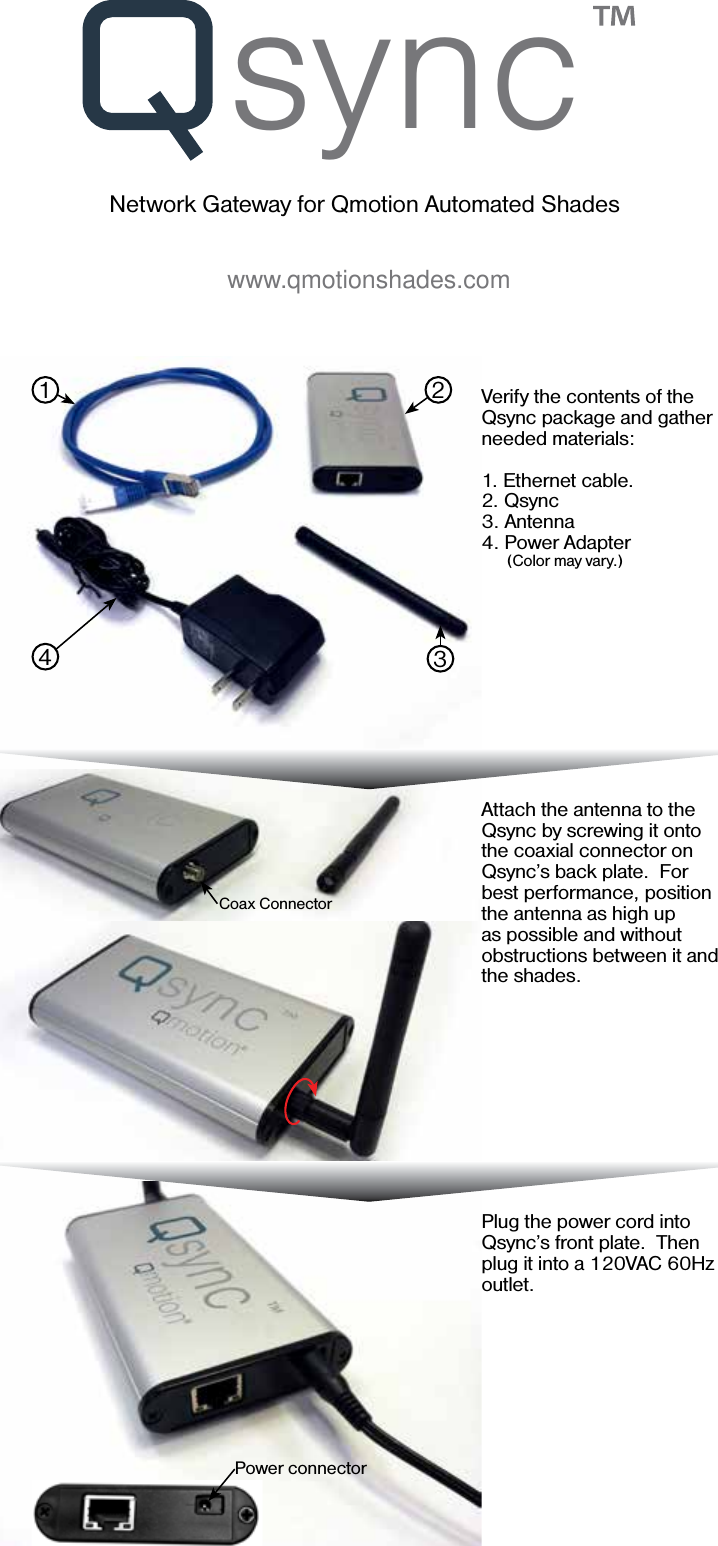

syncNetwork Gateway for Qmotion Automated Shadeswww.qmotionshades.comVerify the contents of the Qsync package and gather needed materials:1. Ethernet cable.2. Qsync3. Antenna4. Power Adapter (Color may vary.)Attach the antenna to the Qsync by screwing it onto the coaxial connector on Qsync’s back plate. For best performance, position the antenna as high up as possible and without obstructions between it and the shades.Plug the power cord into Qsync’s front plate. Then plug it into a 120VAC 60Hz outlet. 1 234Coax ConnectorPower connector

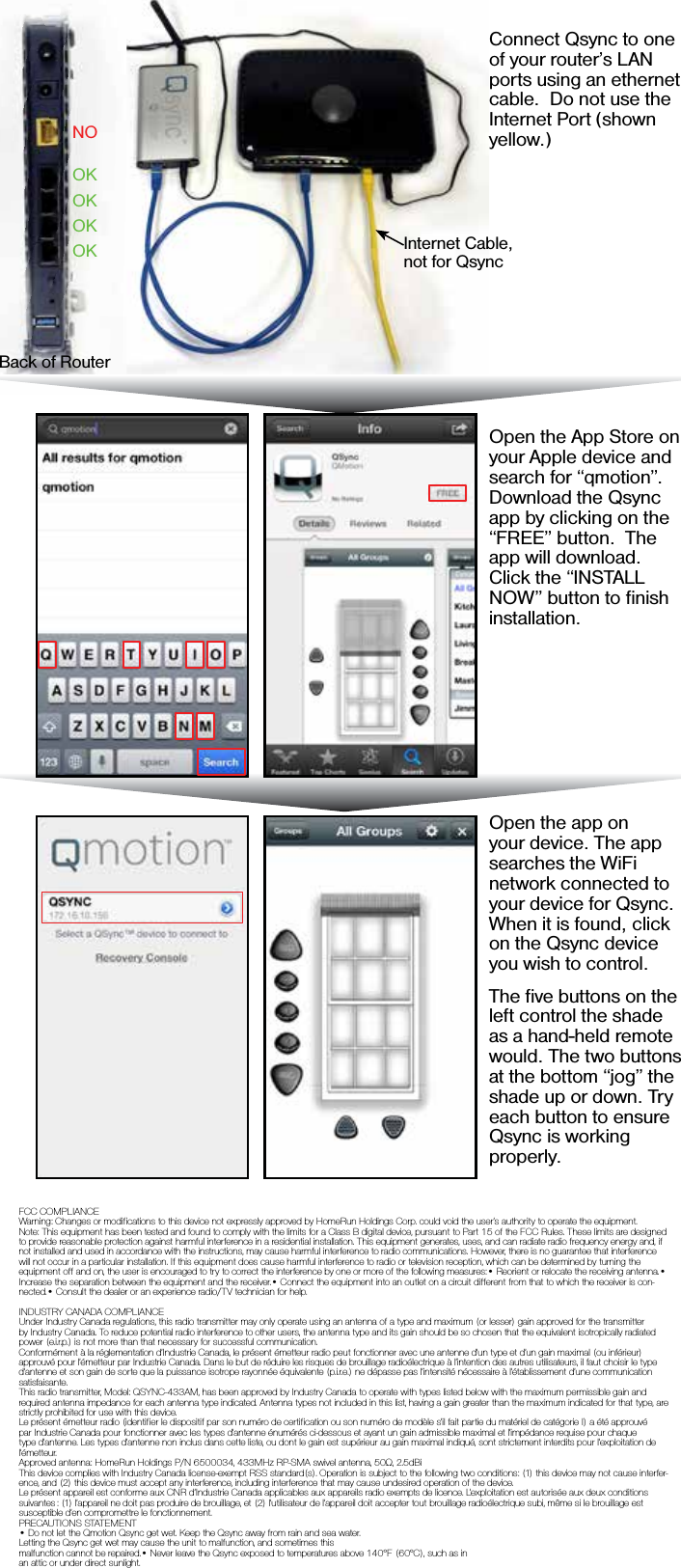

FCC COMPLIANCEWarning: Changes or modifications to this device not expressly approved by HomeRun Holdings Corp. could void the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and the receiver.• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is con-nected.• Consult the dealer or an experience radio/TV technician for help.INDUSTRY CANADA COMPLIANCEUnder Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.This radio transmitter, Model: QSYNC-433AM, has been approved by Industry Canada to operate with types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum indicated for that type, are strictly prohibited for use with this device.Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s’il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur.Approved antenna: HomeRun Holdings P/N 6500034, 433MHz RP-SMA swivel antenna, 50Ω, 2.5dBiThis device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interfer-ence, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.PRECAUTIONS STATEMENT• Do not let the Qmotion Qsync get wet. Keep the Qsync away from rain and sea water.Letting the Qsync get wet may cause the unit to malfunction, and sometimes thismalfunction cannot be repaired.• Never leave the Qsync exposed to temperatures above 140°F (60°C), such as inan attic or under direct sunlight.Connect Qsync to one of your router’s LAN ports using an ethernet cable. Do not use the Internet Port (shown yellow.)Open the App Store on your Apple device and search for “qmotion”. Download the Qsync app by clicking on the “FREE” button. The app will download. Click the “INSTALL NOW” button to finish installation.Open the app on your device. The app searches the WiFi network connected to your device for Qsync. When it is found, click on the Qsync device you wish to control.The five buttons on the left control the shade as a hand-held remote would. The two buttons at the bottom “jog” the shade up or down. Try each button to ensure Qsync is working properly.NOOKOKOKOKBack of RouterInternet Cable, not for Qsync
