Users Manual

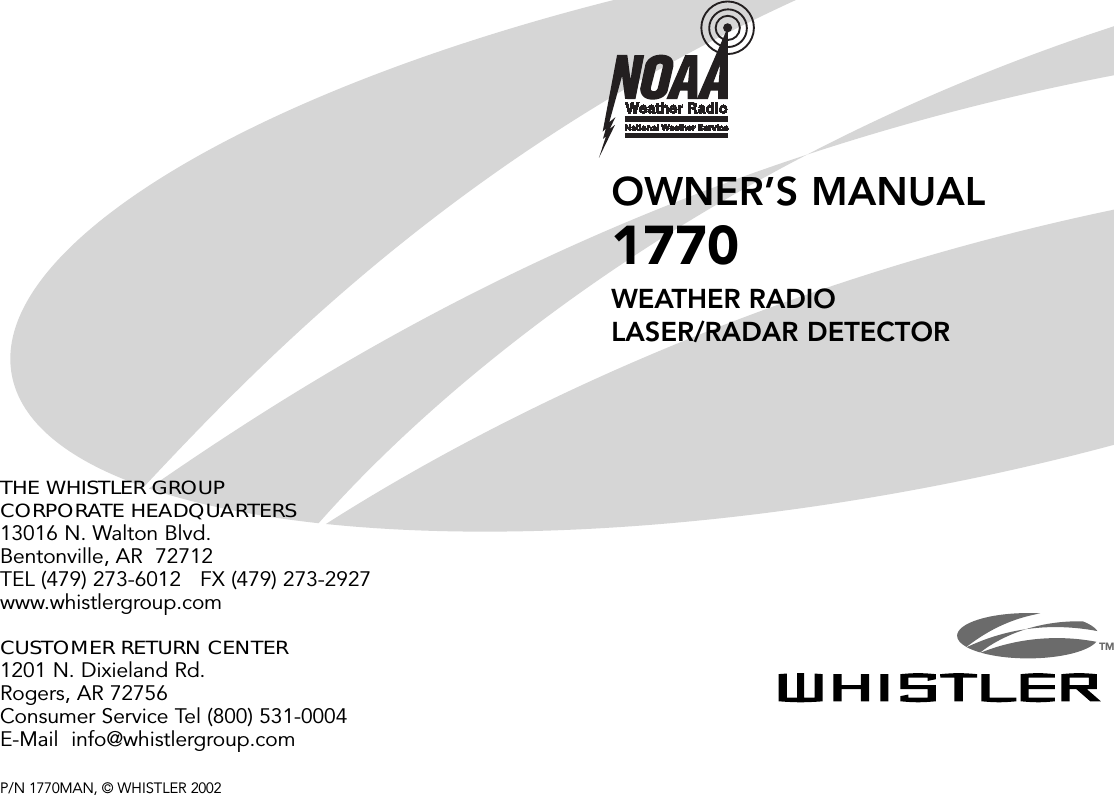

TMOWNER’S MANUAL1770WEATHER RADIOLASER/RADAR DETECTORTHE WHISTLER GROUPCORPORATE HEADQUARTERS13016 N. Walton Blvd.Bentonville, AR 72712TEL (479) 273-6012 FX (479) 273-2927www.whistlergroup.comCUSTOMER RETURN CENTER1201 N. Dixieland Rd.Rogers, AR 72756Consumer Service Tel (800) 531-0004E-Mail info@whistlergroup.comP/N 1770MAN, © WHISTLER 2002

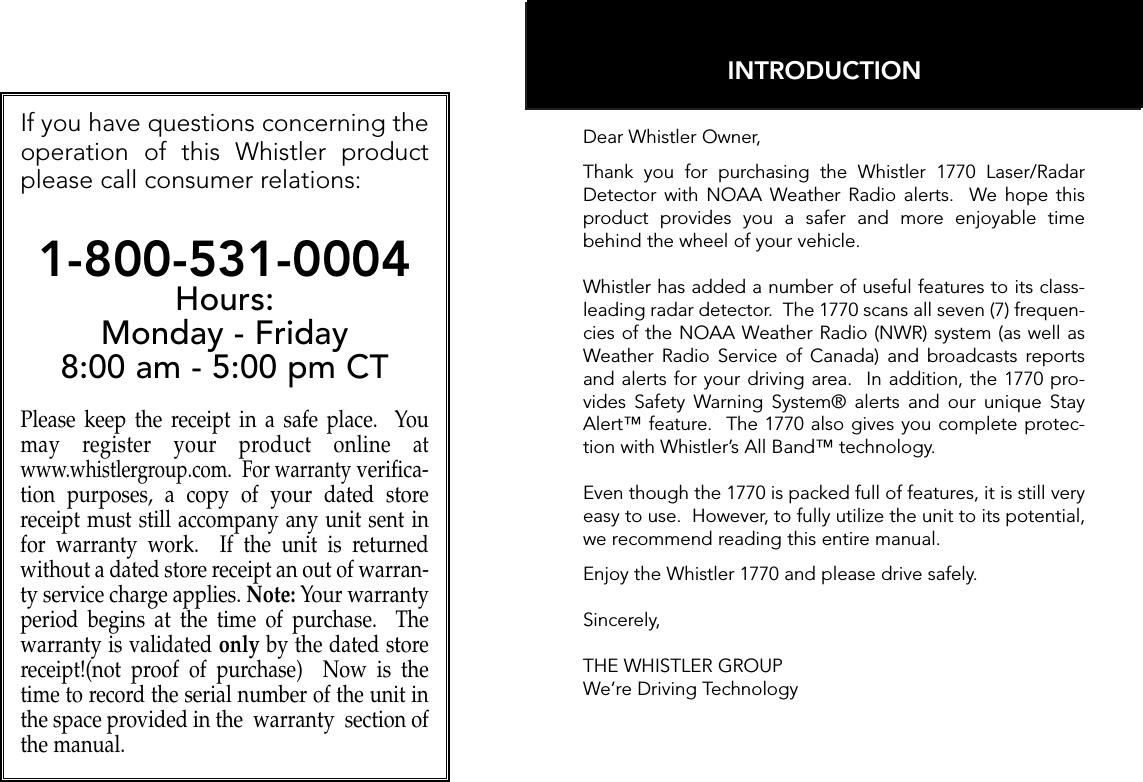

If you have questions concerning theoperation of this Whistler productplease call consumer relations:1-800-531-0004Hours:Monday - Friday8:00 am - 5:00 pm CTPlease keep the receipt in a safe place. Youmay register your product online atwww.whistlergroup.com. For warrantyverifica-tion purposes, a copy of your dated storereceipt must still accompany any unit sent infor warranty work. If the unit is returnedwithout a dated store receipt an out of warran-ty service charge applies. Note: Your warrantyperiod begins at the time of purchase. Thewarranty is validated only by the dated storereceipt!(not proof of purchase) Now is thetime to record the serial number of the unit inthe space provided in the warranty section ofthe manual.INTRODUCTIONDear Whistler Owner,Thank you for purchasing the Whistler 1770 Laser/RadarDetector with NOAA Weather Radio alerts. We hope thisproduct provides you a safer and more enjoyable timebehind the wheel of your vehicle.Whistler has added a number of useful features to its class-leading radar detector. The 1770 scans all seven (7) frequen-cies of the NOAA Weather Radio (NWR) system (as well asWeather Radio Service of Canada) and broadcasts reportsand alerts for your driving area. In addition, the 1770 pro-vides Safety Warning System® alerts and our unique StayAlert™ feature. The 1770 also gives you complete protec-tion with Whistler’s All Band™ technology.Even though the 1770 is packed full of features, it is still veryeasy to use. However, to fully utilize the unit to its potential,we recommend reading this entire manual.Enjoy the Whistler 1770 and please drive safely.Sincerely,THE WHISTLER GROUPWe’re Driving Technology

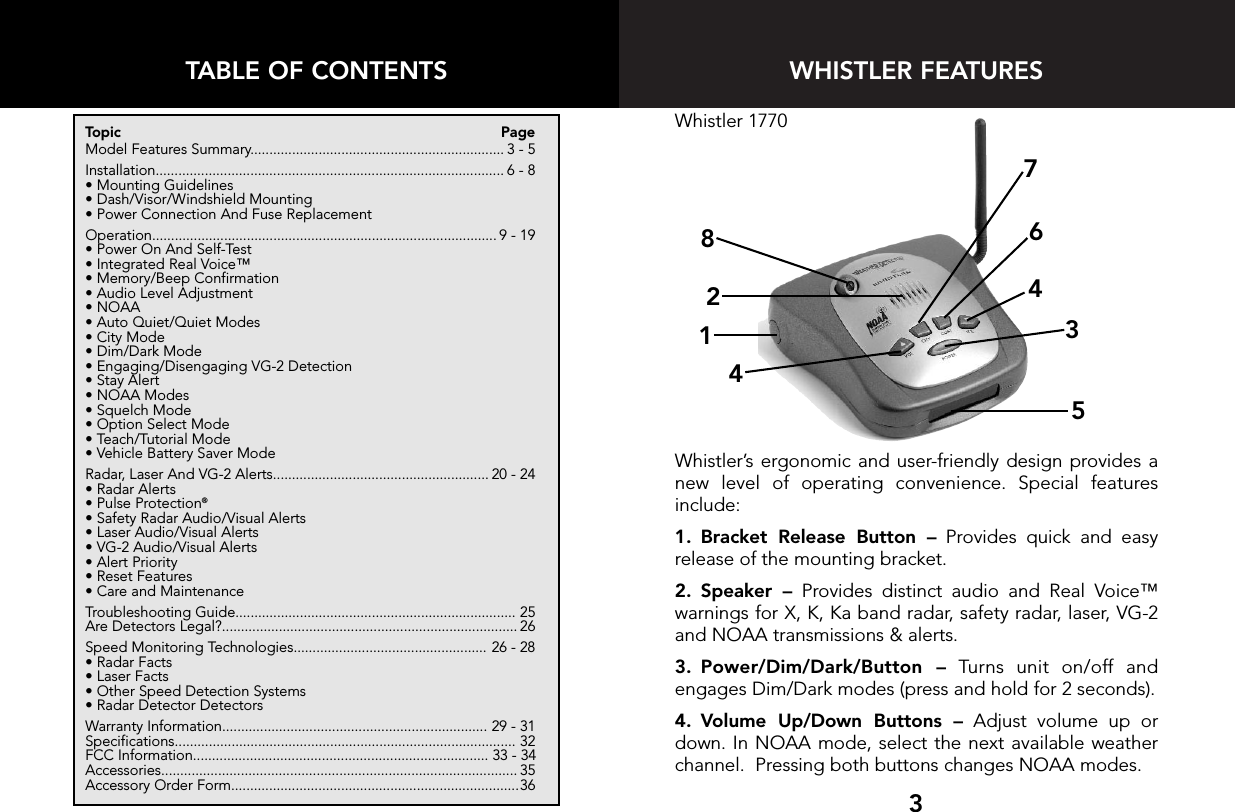

WHISTLER FEATURESWhistler’s ergonomic and user-friendly design provides anew level of operating convenience. Special featuresinclude:1. Bracket Release Button – Provides quick and easyrelease of the mounting bracket.2. Speaker – Provides distinct audio and Real Voice™ warnings for X, K, Ka band radar, safety radar, laser, VG-2and NOAA transmissions & alerts.3. Power/Dim/Dark/Button – Turns unit on/off andengages Dim/Dark modes (press and hold for 2 seconds).4. Volume Up/Down Buttons – Adjust volume up ordown. In NOAA mode, select the next available weatherchannel. Pressing both buttons changes NOAA modes.3TABLE OF CONTENTSWhistler 1770762451438Topic PageModel Features Summary................................................................... 3 - 5Installation............................................................................................ 6 - 8• Mounting Guidelines• Dash/Visor/Windshield Mounting• Power Connection And Fuse ReplacementOperation........................................................................................... 9 - 19• Power On And Self-Test• Integrated Real Voice™• Memory/Beep Confirmation• Audio Level Adjustment• NOAA• Auto Quiet/Quiet Modes• City Mode• Dim/Dark Mode• Engaging/Disengaging VG-2 Detection • Stay Alert• NOAA Modes• Squelch Mode• Option Select Mode• Teach/Tutorial Mode• Vehicle Battery Saver ModeRadar, Laser And VG-2 Alerts......................................................... 20 - 24• Radar Alerts• Pulse Protection®• Safety Radar Audio/Visual Alerts• Laser Audio/Visual Alerts • VG-2 Audio/Visual Alerts• Alert Priority• Reset Features• Care and MaintenanceTroubleshooting Guide.......................................................................... 25Are Detectors Legal?.............................................................................. 26Speed Monitoring Technologies................................................... 26 - 28• Radar Facts• Laser Facts• Other Speed Detection Systems• Radar Detector DetectorsWarranty Information...................................................................... 29 - 31Specifications.......................................................................................... 32FCC Information.............................................................................. 33 - 34Accessories.............................................................................................. 35Accessory Order Form............................................................................36

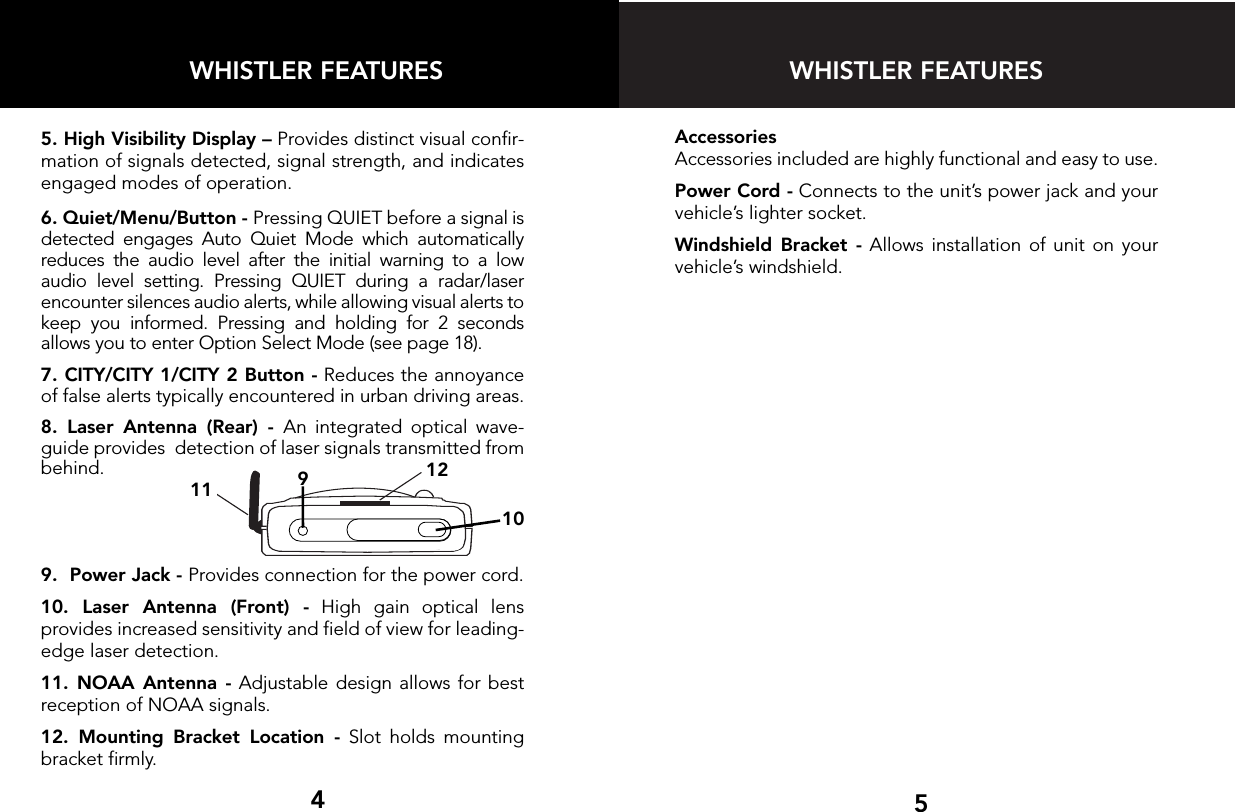

WHISTLER FEATURESAccessoriesAccessories included are highly functional and easy to use.Power Cord - Connects to the unit’s power jack and yourvehicle’s lighter socket.Windshield Bracket - Allows installation of unit on yourvehicle’s windshield.5WHISTLER FEATURES5. High Visibility Display – Provides distinct visual confir-mation of signals detected, signal strength, and indicatesengaged modes of operation.6. Quiet/Menu/Button - Pressing QUIET before a signal isdetected engages Auto Quiet Mode which automaticallyreduces the audio level after the initial warning to a lowaudio level setting. Pressing QUIET during a radar/laserencounter silences audio alerts, while allowing visual alerts tokeep you informed. Pressing and holding for 2 secondsallows you to enter Option Select Mode (see page 18).7. CITY/CITY 1/CITY 2 Button - Reduces the annoyanceof false alerts typically encountered in urban driving areas.8. Laser Antenna (Rear) - An integrated optical wave-guide provides detection of laser signals transmitted frombehind.9. Power Jack - Provides connection for the power cord.10. Laser Antenna (Front) - High gain optical lens provides increased sensitivity and field of view for leading-edge laser detection.11. NOAA Antenna - Adjustable design allows for bestreception of NOAA signals.12. Mounting Bracket Location - Slot holds mountingbracket firmly.41112910

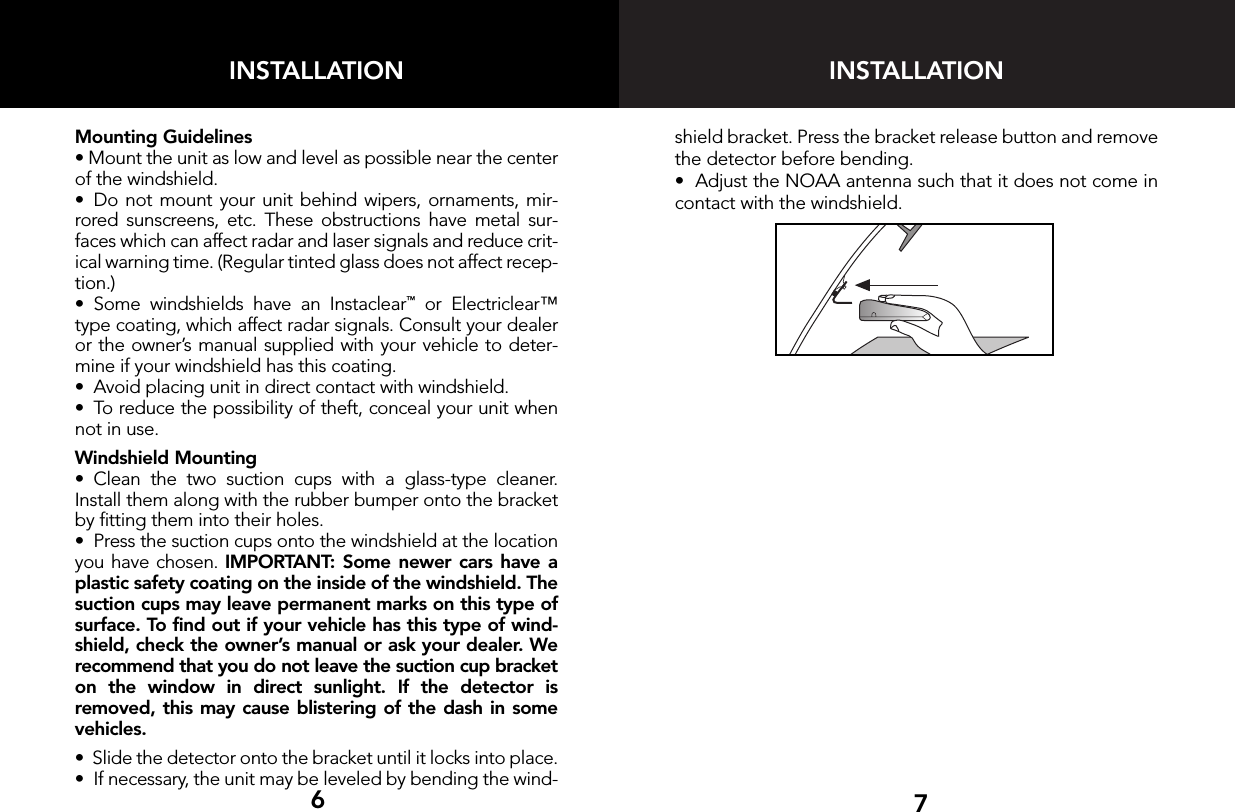

INSTALLATIONshield bracket. Press the bracket release button and removethe detector before bending. • Adjust the NOAA antenna such that it does not come incontact with the windshield.7INSTALLATIONMounting Guidelines•Mount the unit as low and level as possible near the centerof the windshield.•Do not mount your unit behind wipers, ornaments, mir-rored sunscreens, etc. These obstructions have metal sur-faces which can affect radar and laser signals and reduce crit-ical warning time. (Regular tinted glass does not affect recep-tion.)•Some windshields have an Instaclear™or Electriclear™type coating, which affect radar signals. Consult your dealeror the owner’s manual supplied with your vehicle to deter-mine if your windshield has this coating.•Avoid placing unit in direct contact with windshield.•To reduce the possibility of theft, conceal your unit whennot in use.Windshield Mounting•Clean the two suction cups with a glass-type cleaner.Install them along with the rubber bumper onto the bracketby fitting them into their holes.•Press the suction cups onto the windshield at the locationyou have chosen. IMPORTANT: Some newer cars have aplastic safety coating on the inside of the windshield. Thesuction cups may leave permanent marks on this type ofsurface. To find out if your vehicle has this type of wind-shield, check the owner’s manual or ask your dealer. Werecommend that you do not leave the suction cup bracketon the window in direct sunlight. If the detector isremoved, this may cause blistering of the dash in somevehicles.•Slide the detector onto the bracket until it locks into place.• If necessary, the unit may be leveled by bending the wind-6

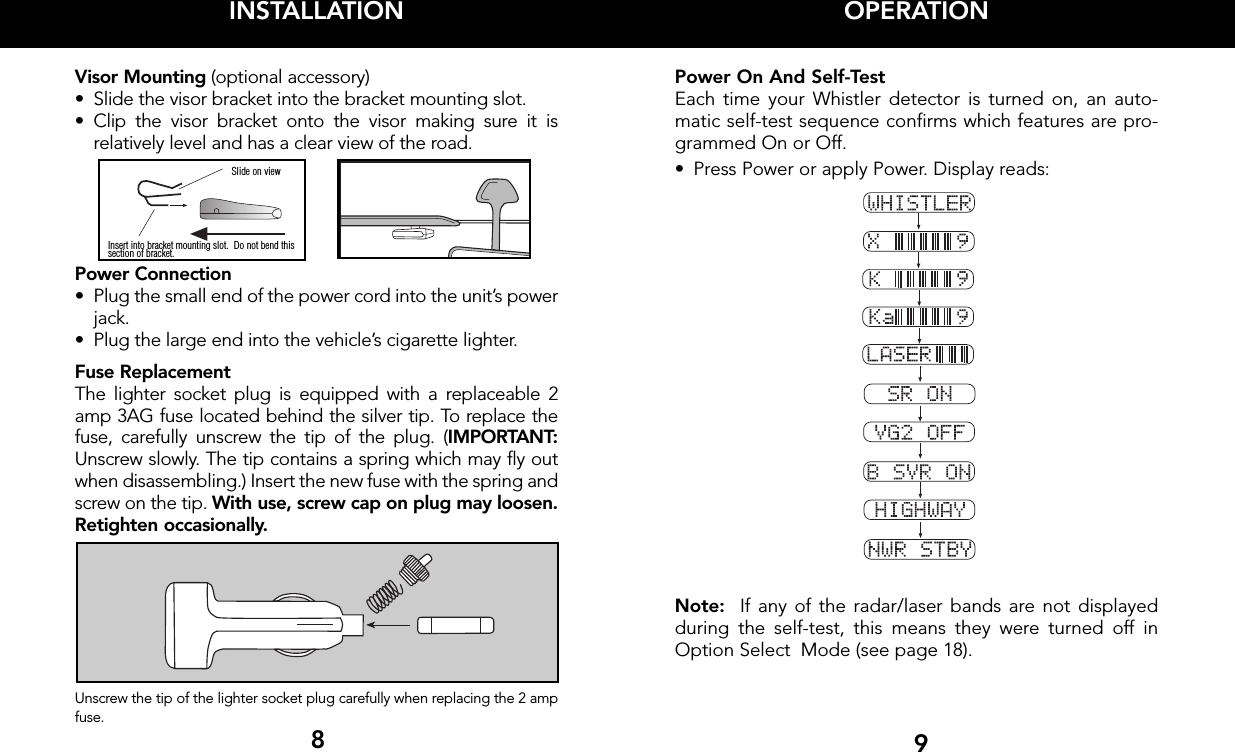

Power On And Self-TestEach time your Whistler detector is turned on, an auto-matic self-test sequence confirms which features are pro-grammed On or Off.• Press Power or apply Power. Display reads:Note: If any of the radar/laser bands are not displayedduring the self-test, this means they were turned off inOption Select Mode (see page 18).OPERATION9INSTALLATIONVisor Mounting (optional accessory)• Slide the visor bracket into the bracket mounting slot.• Clip the visor bracket onto the visor making sure it is relatively level and has a clear view of the road.Power Connection• Plug the small end of the power cord into the unit’s powerjack.• Plug the large end into the vehicle’s cigarette lighter.Fuse ReplacementThe lighter socket plug is equipped with a replaceable 2amp 3AG fuse located behind the silver tip. To replace thefuse, carefully unscrew the tip of the plug. (IMPORTANT:Unscrew slowly. The tip contains a spring which may fly outwhen disassembling.) Insert the new fuse with the spring andscrew on the tip. With use, screw cap on plug may loosen.Retighten occasionally.Unscrew the tip of the lighter socket plug carefully when replacing the 2 ampfuse.8Insert into bracket mounting slot. Do not bend thissection of bracket.Slide on view

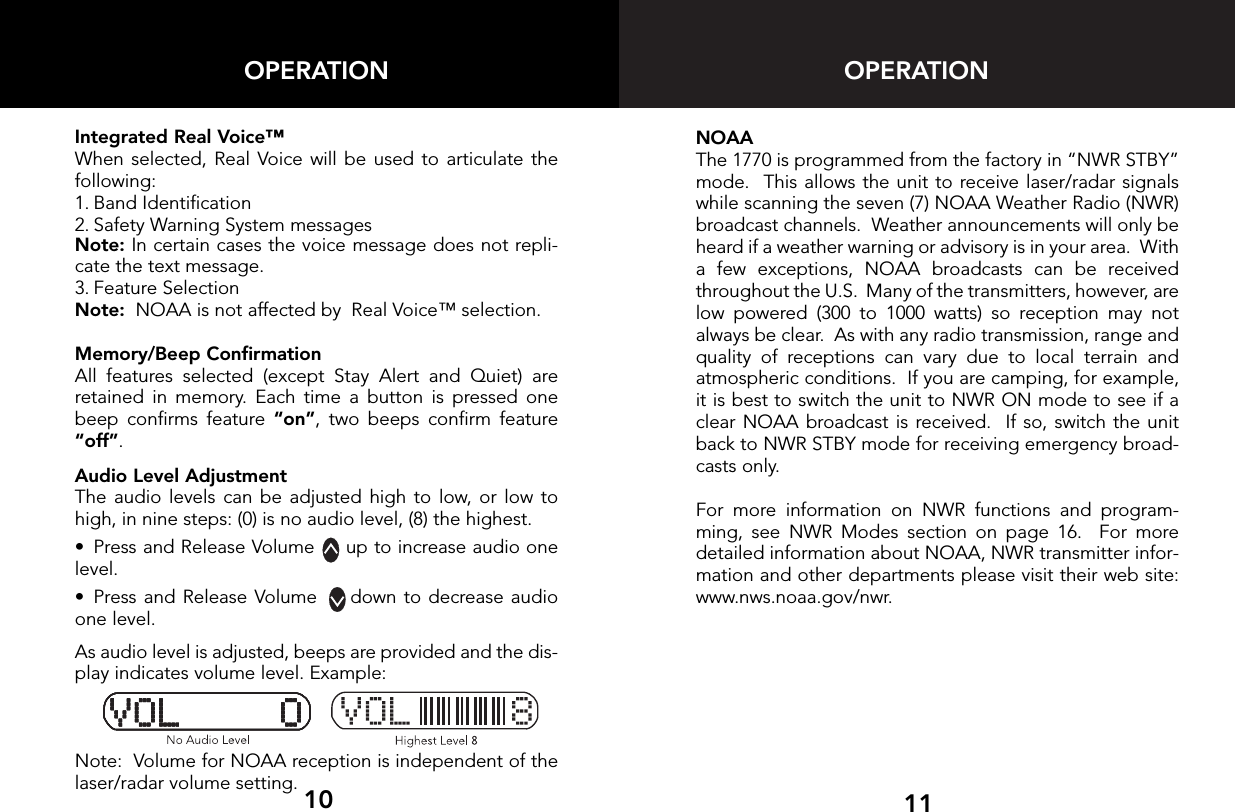

OPERATION11OPERATIONIntegrated Real Voice™When selected, Real Voice will be used to articulate thefollowing:1. Band Identification2. Safety Warning System messagesNote: In certain cases the voice message does not repli-cate the text message.3. Feature SelectionNote: NOAA is not affected by Real Voice™ selection.Memory/Beep ConfirmationAll features selected (except Stay Alert and Quiet) areretained in memory. Each time a button is pressed onebeep confirms feature “on”, two beeps confirm feature“off”.Audio Level AdjustmentThe audio levels can be adjusted high to low, or low tohigh, in nine steps: (0) is no audio level, (8) the highest.• Press and Release Volume up to increase audio onelevel.• Press and Release Volume down to decrease audioone level.As audio level is adjusted, beeps are provided and the dis-play indicates volume level. Example:Note: Volume for NOAA reception is independent of thelaser/radar volume setting. 10NOAA The 1770 is programmed from the factory in “NWR STBY”mode. This allows the unit to receive laser/radar signalswhile scanning the seven (7) NOAA Weather Radio (NWR)broadcast channels. Weather announcements will only beheard if a weather warning or advisory is in your area. Witha few exceptions, NOAA broadcasts can be receivedthroughout the U.S. Many of the transmitters, however, arelow powered (300 to 1000 watts) so reception may notalways be clear. As with any radio transmission, range andquality of receptions can vary due to local terrain andatmospheric conditions. If you are camping, for example,it is best to switch the unit to NWR ON mode to see if aclear NOAA broadcast is received. If so, switch the unitback to NWR STBY mode for receiving emergency broad-casts only.For more information on NWR functions and program-ming, see NWR Modes section on page 16. For moredetailed information about NOAA, NWR transmitter infor-mation and other departments please visit their web site:www.nws.noaa.gov/nwr.VOL OVOL OVOL OVOL OVOL O

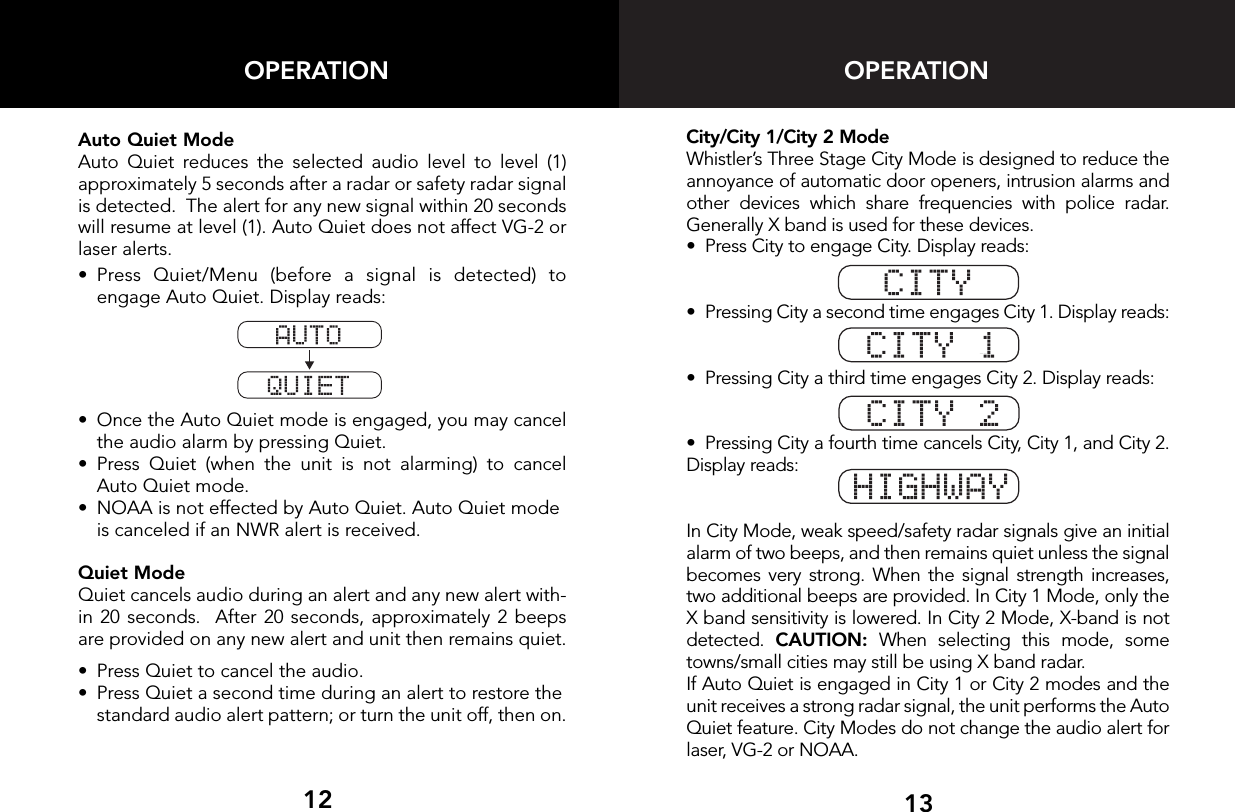

OPERATION13OPERATION12City/City 1/City 2 ModeWhistler’s Three Stage City Mode is designed to reduce theannoyance of automatic door openers, intrusion alarms andother devices which share frequencies with police radar.Generally X band is used for these devices.• Press City to engage City. Display reads:• Pressing City a second time engages City 1. Display reads:• Pressing City a third time engages City 2. Display reads:• Pressing City a fourth time cancels City, City 1, and City 2.Display reads:In City Mode, weak speed/safety radar signals give an initialalarm of two beeps, and then remains quiet unless the signalbecomes very strong. When the signal strength increases,two additional beeps are provided. In City 1 Mode, only theX band sensitivity is lowered. In City 2 Mode, X-band is notdetected. CAUTION: When selecting this mode, sometowns/small cities may still be using X band radar.If Auto Quiet is engaged in City 1 or City 2 modes and theunit receives a strong radar signal, the unit performs the AutoQuiet feature. City Modes do not change the audio alert forlaser, VG-2 or NOAA.Auto Quiet ModeAuto Quiet reduces the selected audio level to level (1)approximately 5 seconds after a radar or safety radar signalis detected. The alert for any new signal within 20 secondswill resume at level (1). Auto Quiet does not affect VG-2 orlaser alerts. • Press Quiet/Menu (before a signal is detected) to engage Auto Quiet. Display reads:• Once the Auto Quiet mode is engaged, you may cancelthe audio alarm by pressing Quiet.• Press Quiet (when the unit is not alarming) to cancel Auto Quiet mode.• NOAA is not effected by Auto Quiet. Auto Quiet mode is canceled if an NWR alert is received.Quiet ModeQuiet cancels audio during an alert and any new alert with-in 20 seconds. After 20 seconds, approximately 2 beepsare provided on any new alert and unit then remains quiet.• Press Quiet to cancel the audio.• Press Quiet a second time during an alert to restore the standard audio alert pattern; or turn the unit off, then on.

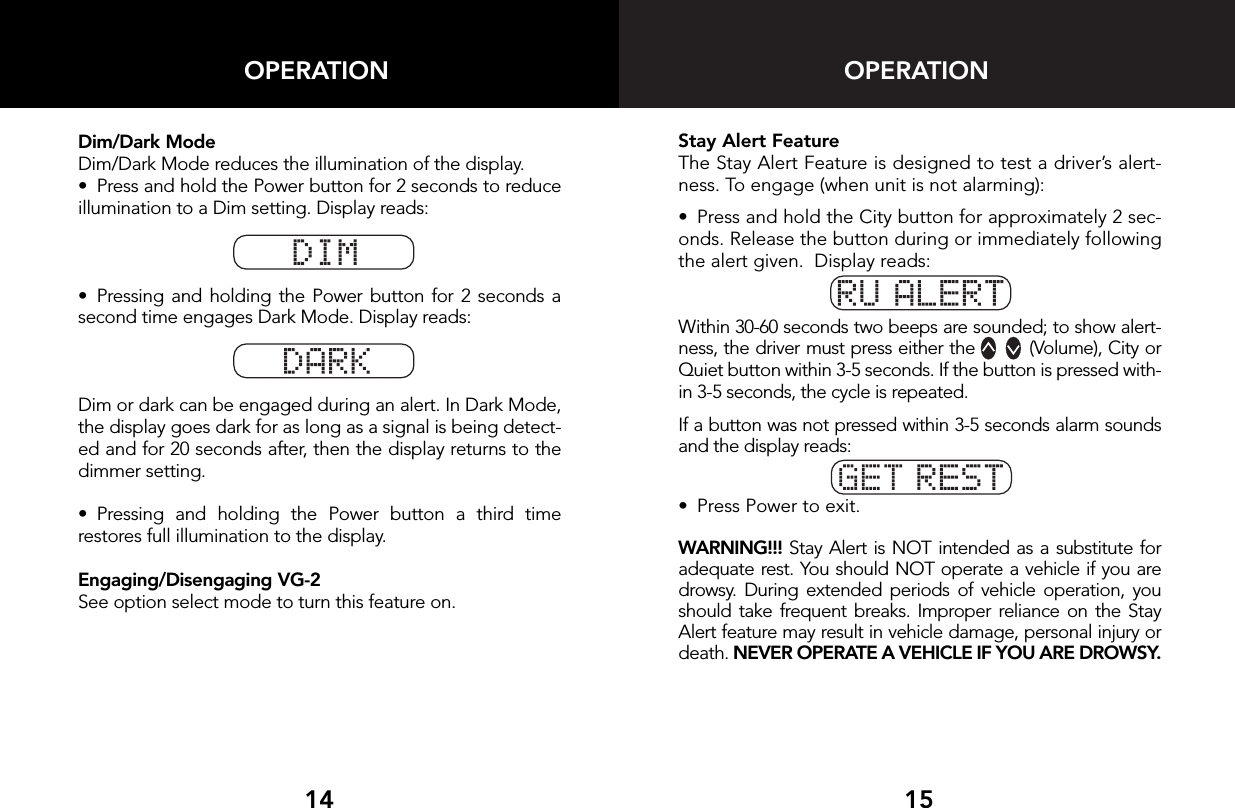

OPERATIONOPERATION14 15Stay Alert FeatureThe Stay Alert Feature is designed to test a driver’s alert-ness. To engage (when unit is not alarming):• Press and hold the City button for approximately 2 sec-onds. Release the button during or immediately followingthe alert given. Display reads:Within 30-60 seconds two beeps are sounded; to show alert-ness, the driver must press either the (Volume), City or Quiet button within 3-5 seconds. If the button is pressed with-in 3-5 seconds, the cycle is repeated.If a button was not pressed within 3-5 seconds alarm soundsand the display reads:• Press Power to exit.WARNING!!! Stay Alert is NOT intended as a substitute foradequate rest. You should NOT operate a vehicle if you aredrowsy. During extended periods of vehicle operation, youshould take frequent breaks. Improper reliance on the StayAlert feature may result in vehicle damage, personal injury ordeath. NEVER OPERATE A VEHICLE IF YOU ARE DROWSY.Dim/Dark ModeDim/Dark Mode reduces the illumination of the display.• Press and hold the Power button for 2 seconds to reduceillumination to a Dim setting. Display reads:• Pressing and holding the Power button for 2 seconds asecond time engages Dark Mode. Display reads:Dim or dark can be engaged during an alert. In Dark Mode,the display goes dark for as long as a signal is being detect-ed and for 20 seconds after, then the display returns to thedimmer setting.• Pressing and holding the Power button a third timerestores full illumination to the display.Engaging/Disengaging VG-2See option select mode to turn this feature on.

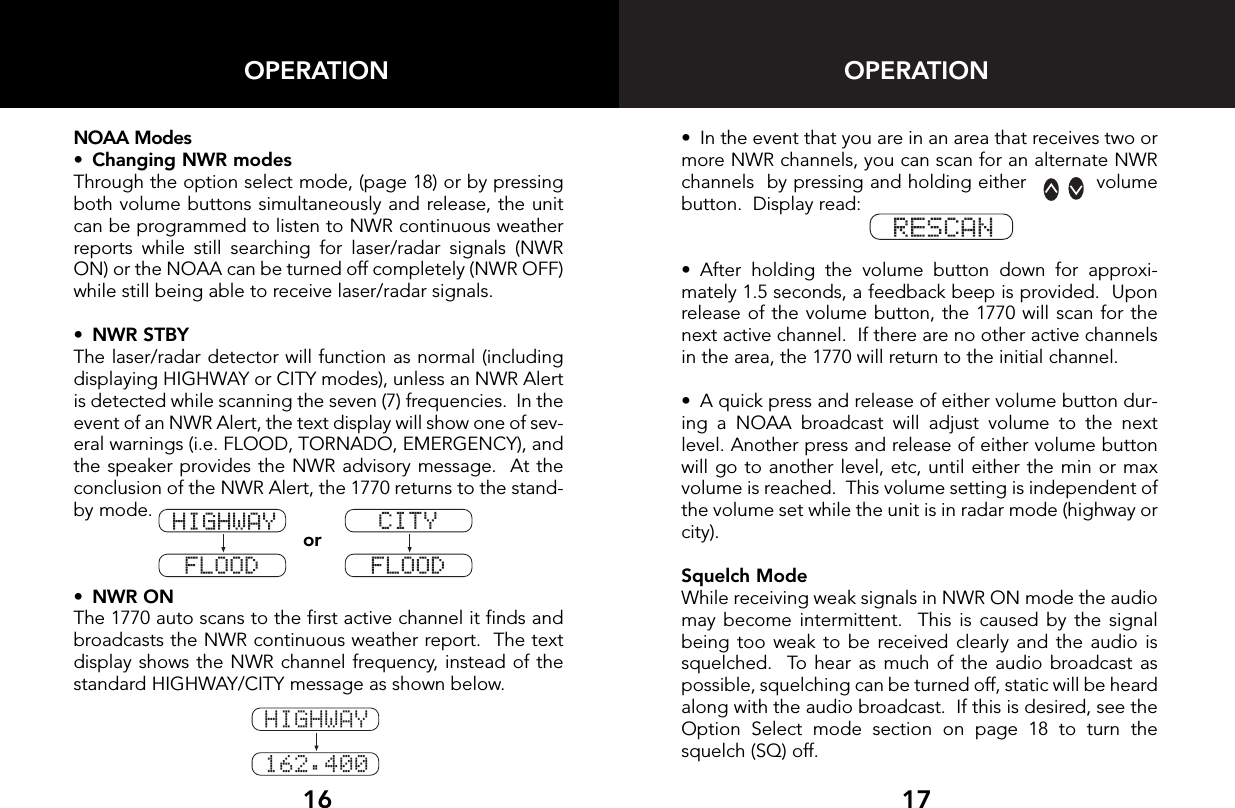

OPERATIONOPERATION16 17NOAA Modes•Changing NWR modesThrough the option select mode, (page 18) or by pressingboth volume buttons simultaneously and release, the unitcan be programmed to listen to NWR continuous weatherreports while still searching for laser/radar signals (NWRON) or the NOAA can be turned off completely (NWR OFF)while still being able to receive laser/radar signals.•NWR STBYThe laser/radar detector will function as normal (includingdisplaying HIGHWAY or CITY modes), unless an NWR Alertis detected while scanning the seven (7) frequencies. In theevent of an NWR Alert, the text display will show one of sev-eral warnings (i.e. FLOOD, TORNADO, EMERGENCY), andthe speaker provides the NWR advisory message. At theconclusion of the NWR Alert, the 1770 returns to the stand-by mode.•NWR ONThe 1770 auto scans to the first active channel it finds andbroadcasts the NWR continuous weather report. The textdisplay shows the NWR channel frequency, instead of thestandard HIGHWAY/CITY message as shown below.• In the event that you are in an area that receives two ormore NWR channels, you can scan for an alternate NWRchannels by pressing and holding either volumebutton. Display read:• After holding the volume button down for approxi-mately 1.5 seconds, a feedback beep is provided. Uponrelease of the volume button, the 1770 will scan for thenext active channel. If there are no other active channelsin the area, the 1770 will return to the initial channel. • A quick press and release of either volume button dur-ing a NOAA broadcast will adjust volume to the nextlevel. Another press and release of either volume buttonwill go to another level, etc, until either the min or maxvolume is reached. This volume setting is independent ofthe volume set while the unit is in radar mode (highway orcity).Squelch ModeWhile receiving weak signals in NWR ON mode the audiomay become intermittent. This is caused by the signalbeing too weak to be received clearly and the audio issquelched. To hear as much of the audio broadcast aspossible, squelching can be turned off, static will be heardalong with the audio broadcast. If this is desired, see theOption Select mode section on page 18 to turn thesquelch (SQ) off.or

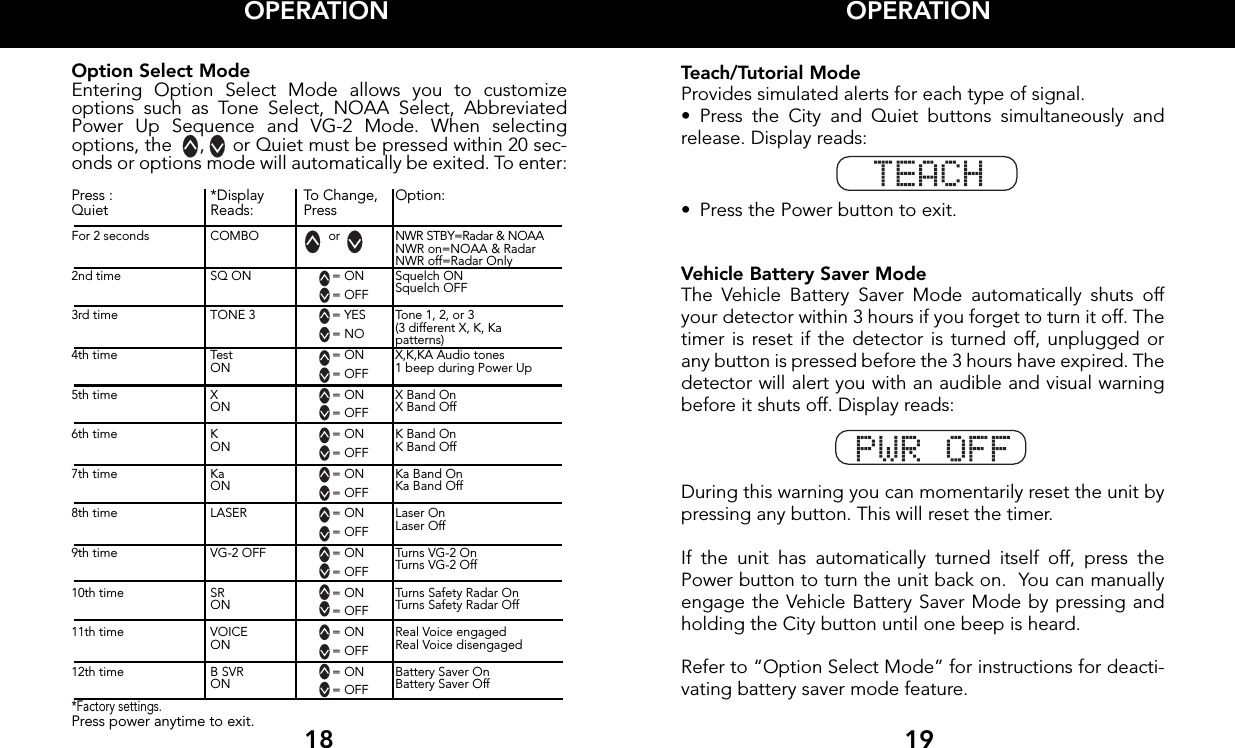

Teach/Tutorial ModeProvides simulated alerts for each type of signal.• Press the City and Quiet buttons simultaneously andrelease. Display reads:• Press the Power button to exit.Vehicle Battery Saver ModeThe Vehicle Battery Saver Mode automatically shuts offyour detector within 3 hours if you forget to turn it off. Thetimer is reset if the detector is turned off, unplugged orany button is pressed before the 3 hours have expired. Thedetector will alert you with an audible and visual warningbefore it shuts off. Display reads:During this warning you can momentarily reset the unit bypressing any button. This will reset the timer.If the unit has automatically turned itself off, press the Power button to turn the unit back on. You can manuallyengage the Vehicle Battery Saver Mode by pressing andholding the City button until one beep is heard.Refer to “Option Select Mode” for instructions for deacti-vating battery saver mode feature.OPERATION18OPERATION19Option Select ModeEntering Option Select Mode allows you to customizeoptions such as Tone Select, NOAA Select, AbbreviatedPower Up Sequence and VG-2 Mode. When selectingoptions, the , or Quiet must be pressed within 20 sec-onds or options mode will automatically be exited. To enter:Press : *Display To Change, Option:Quiet Reads: PressFor 2 seconds COMBO or NWR STBY=Radar & NOAANWR on=NOAA & RadarNWR off=Radar Only2nd time SQ ON = ON Squelch ON= OFF Squelch OFF3rd time TONE 3 = YES Tone 1, 2, or 3= NO (3 different X, K, Kapatterns)4th time Test = ON X,K,KA Audio tonesON = OFF 1 beep during Power Up5th time X = ON X Band OnON = OFF X Band Off6th time K = ON K Band OnON = OFF K Band Off7th time Ka = ON Ka Band OnON = OFF Ka Band Off8th time LASER = ON Laser On= OFF Laser Off9th time VG-2 OFF = ON Turns VG-2 On= OFF Turns VG-2 Off10th time SR = ON Turns Safety Radar OnON = OFF Turns Safety Radar Off11th time VOICE = ON Real Voice engagedON = OFF Real Voice disengaged12th time B SVR = ON Battery Saver OnON = OFF Battery Saver Off*Factory settings.Press power anytime to exit.

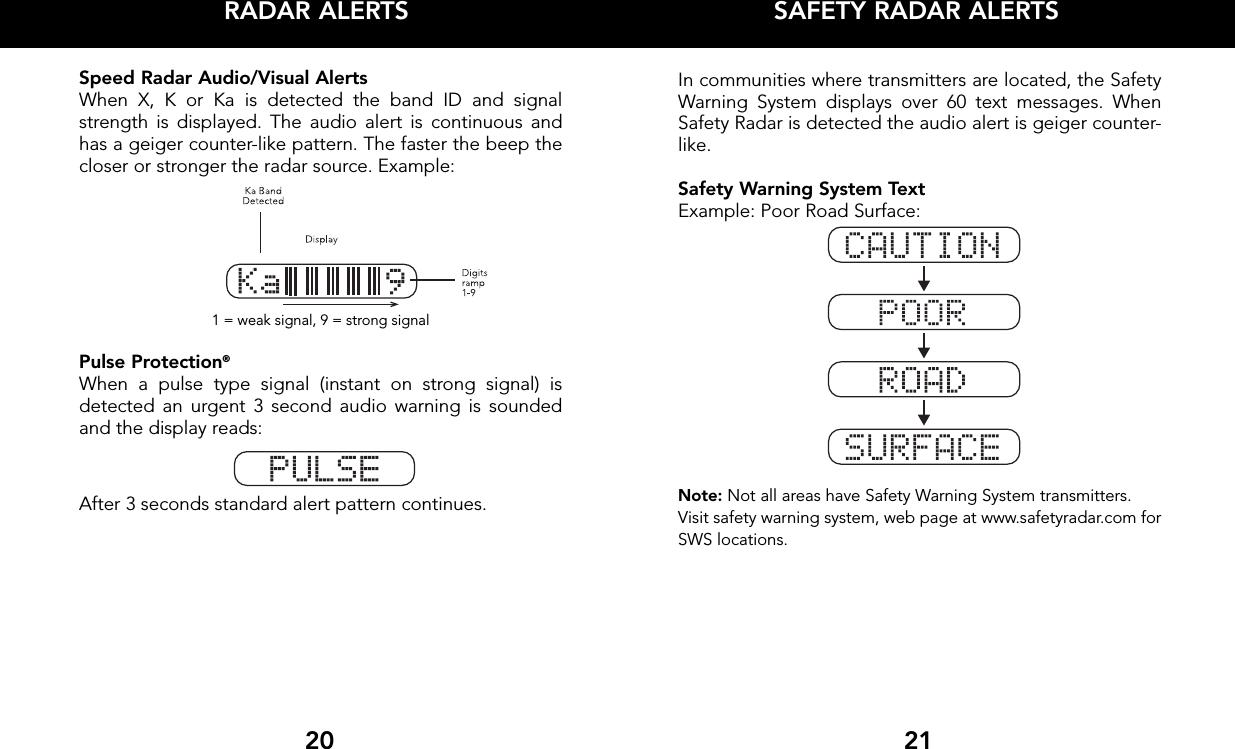

Speed Radar Audio/Visual AlertsWhen X, K or Ka is detected the band ID and signalstrength is displayed. The audio alert is continuous andhas a geiger counter-like pattern. The faster the beep thecloser or stronger the radar source. Example:1 = weak signal, 9 = strong signalPulse Protection®When a pulse type signal (instant on strong signal) isdetected an urgent 3 second audio warning is soundedand the display reads:After 3 seconds standard alert pattern continues.In communities where transmitters are located, the SafetyWarning System displays over 60 text messages. WhenSafety Radar is detected the audio alert is geiger counter-like.Safety Warning System TextExample: Poor Road Surface:Note: Not all areas have Safety Warning System transmitters.Visit safety warning system, web page at www.safetyradar.com forSWS locations.SAFETY RADAR ALERTSRADAR ALERTS20 21

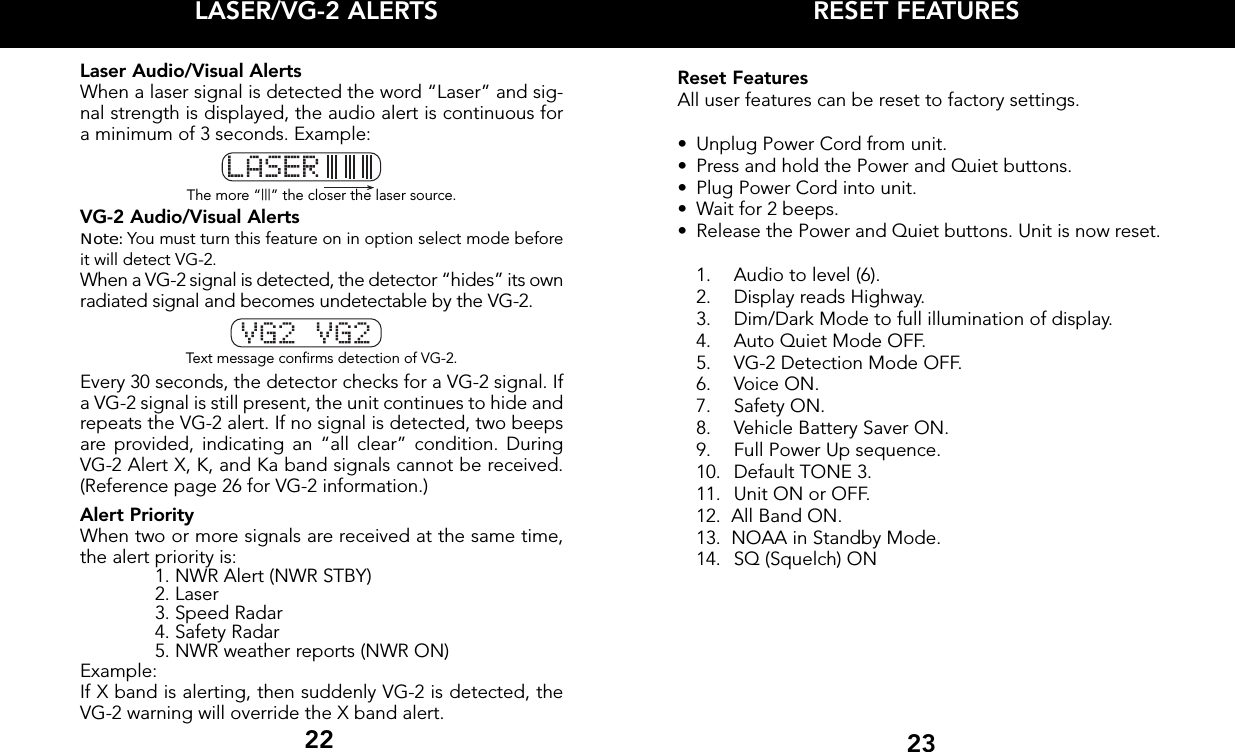

Laser Audio/Visual AlertsWhen a laser signal is detected the word “Laser” and sig-nal strength is displayed, the audio alert is continuous fora minimum of 3 seconds. Example:The more “|||” the closer the laser source.VG-2 Audio/Visual AlertsNote: You must turn this feature on in option select mode beforeit will detect VG-2.When a VG-2 signal is detected, the detector “hides” its ownradiated signal and becomes undetectable by the VG-2.Text message confirms detection of VG-2.Every 30 seconds, the detector checks for a VG-2 signal. Ifa VG-2 signal is still present, the unit continues to hide andrepeats the VG-2 alert. If no signal is detected, two beepsare provided, indicating an “all clear” condition. DuringVG-2 Alert X, K, and Ka band signals cannot be received.(Reference page 26 for VG-2 information.)Alert PriorityWhen two or more signals are received at the same time,the alert priority is:1. NWR Alert (NWR STBY)2. Laser3. Speed Radar4. Safety Radar5. NWR weather reports (NWR ON)Example:If X band is alerting, then suddenly VG-2 is detected, theVG-2 warning will override the X band alert.RESET FEATURES23LASER/VG-2 ALERTS22Reset FeaturesAll user features can be reset to factory settings.• Unplug Power Cord from unit.• Press and hold the Power and Quiet buttons.• Plug Power Cord into unit.• Wait for 2 beeps.• Release the Power and Quiet buttons. Unit is now reset.1. Audio to level (6).2. Display reads Highway.3. Dim/Dark Mode to full illumination of display.4. Auto Quiet Mode OFF.5. VG-2 Detection Mode OFF.6. Voice ON.7. Safety ON.8. Vehicle Battery Saver ON.9. Full Power Up sequence.10. Default TONE 3.11. Unit ON or OFF.12. All Band ON.13. NOAA in Standby Mode.14. SQ (Squelch) ON

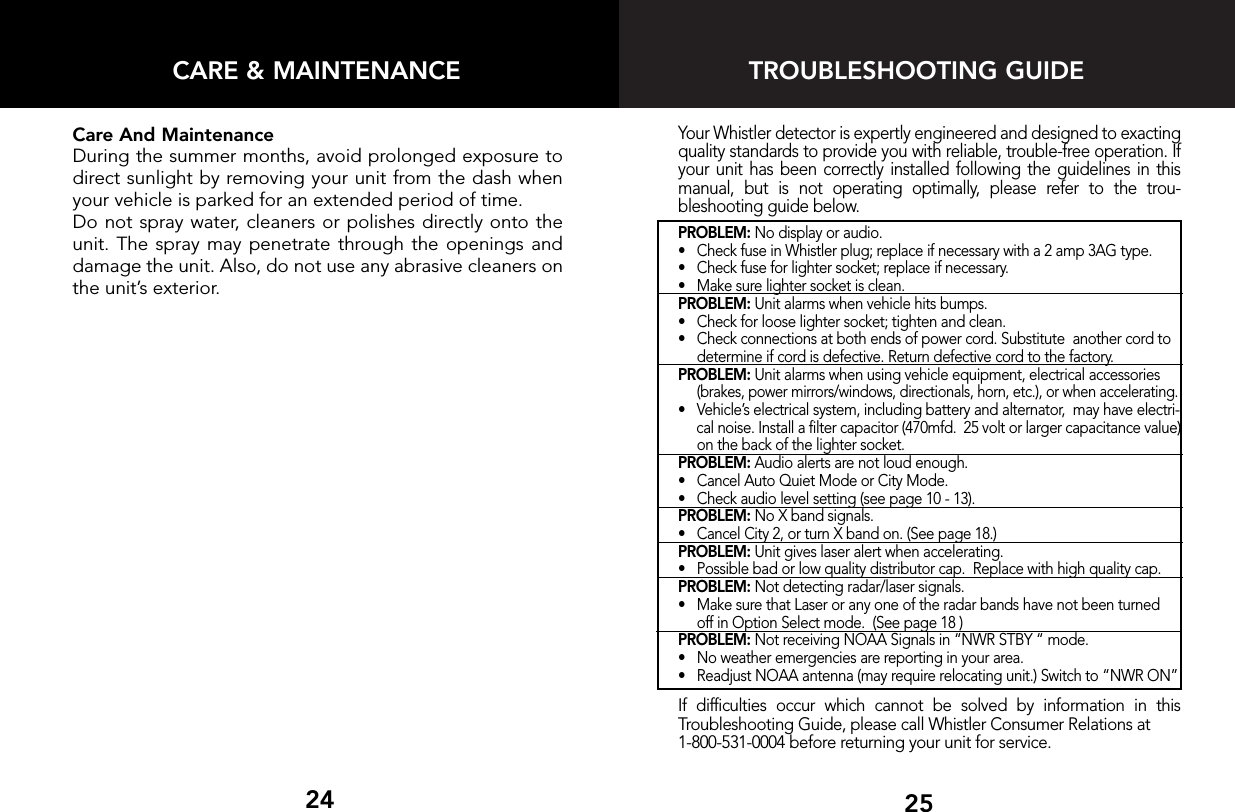

TROUBLESHOOTING GUIDE25CARE & MAINTENANCE24Care And MaintenanceDuring the summer months, avoid prolonged exposure todirect sunlight by removing your unit from the dash whenyour vehicle is parked for an extended period of time.Do not spray water, cleaners or polishes directly onto theunit. The spray may penetrate through the openings anddamage the unit. Also, do not use any abrasive cleaners onthe unit’s exterior.Your Whistler detector is expertly engineered and designed to exactingquality standards to provide you with reliable, trouble-free operation. Ifyour unit has been correctly installed following the guidelines in thismanual, but is not operating optimally, please refer to the trou-bleshooting guide below.PROBLEM: No display or audio.• Check fuse in Whistler plug; replace if necessary with a 2 amp 3AG type.• Check fuse for lighter socket; replace if necessary.• Make sure lighter socket is clean.PROBLEM: Unit alarms when vehicle hits bumps.• Check for loose lighter socket; tighten and clean.• Check connections at both ends of power cord. Substitute another cord to determine if cord is defective. Return defective cord to the factory. PROBLEM: Unit alarms when using vehicle equipment, electrical accessories (brakes, power mirrors/windows, directionals, horn, etc.), or when accelerating.• Vehicle’s electrical system, including battery and alternator, may have electri- cal noise. Install a filter capacitor (470mfd. 25 volt or larger capacitance value) on the back of the lighter socket.PROBLEM: Audio alerts are not loud enough.• Cancel Auto Quiet Mode or City Mode.• Check audio level setting (see page 10 - 13).PROBLEM: No X band signals.• Cancel City 2, or turn X band on. (See page 18.)PROBLEM: Unit gives laser alert when accelerating.• Possible bad or low quality distributor cap. Replace with high quality cap.PROBLEM: Not detecting radar/laser signals.• Make sure that Laser or any one of the radar bands have not been turned off in Option Select mode. (See page 18 )PROBLEM: Not receiving NOAA Signals in “NWR STBY “ mode.• No weather emergencies are reporting in your area.• Readjust NOAA antenna (may require relocating unit.) Switch to “NWR ON”If difficulties occur which cannot be solved by information in thisTroubleshooting Guide, please call Whistler Consumer Relations at 1-800-531-0004 before returning your unit for service.

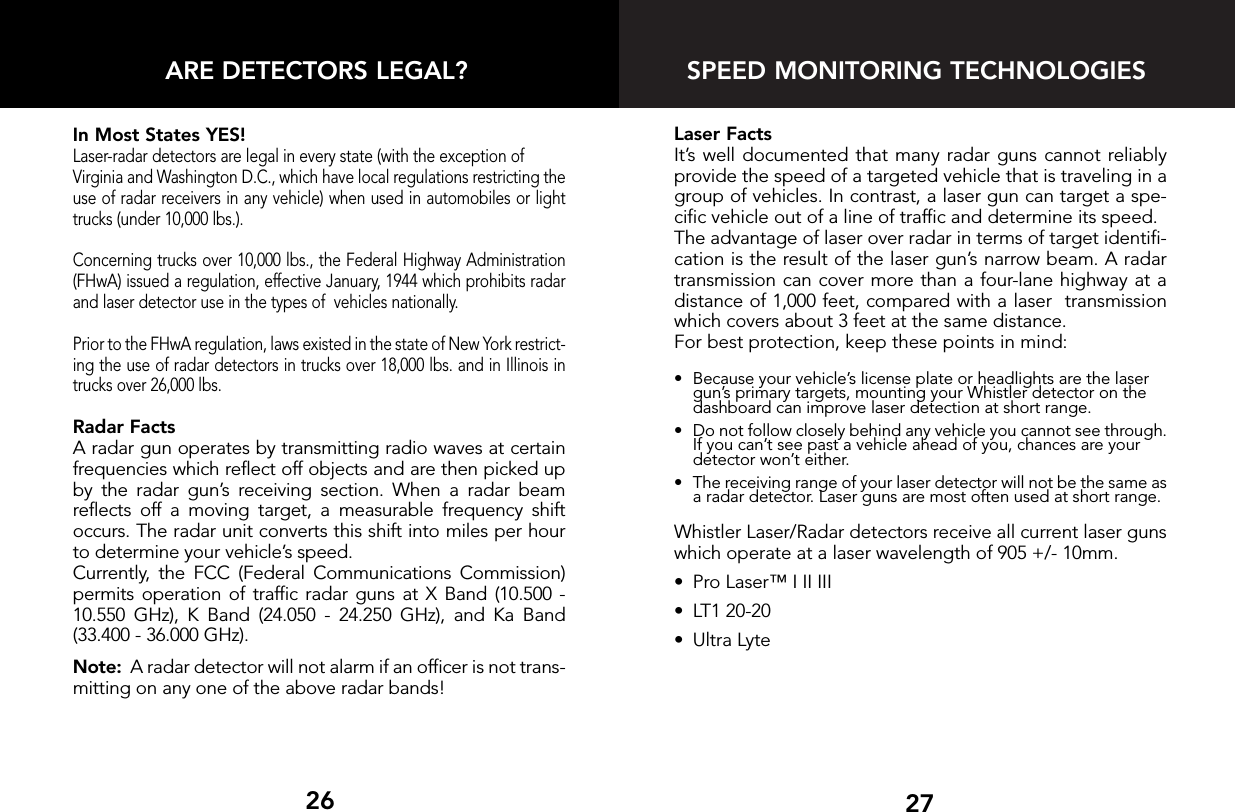

SPEED MONITORING TECHNOLOGIES27ARE DETECTORS LEGAL?26Laser FactsIt’s well documented that many radar guns cannot reliablyprovide the speed of a targeted vehicle that is traveling in agroup of vehicles. In contrast, a laser gun can target a spe-cific vehicle out of a line of traffic and determine its speed.The advantage of laser over radar in terms of target identifi-cation is the result of the laser gun’s narrow beam. A radartransmission can cover more than a four-lane highway at adistance of 1,000 feet, compared with a laser transmissionwhich covers about 3 feet at the same distance.For best protection, keep these points in mind:• Because your vehicle’s license plate or headlights are the laser gun’s primary targets, mounting your Whistler detector on the dashboard can improve laser detection at short range.• Do not follow closely behind any vehicle you cannot see through.If you can’t see past a vehicle ahead of you, chances are your detector won’t either.• The receiving range of your laser detector will not be the same asa radar detector. Laser guns are most often used at short range.Whistler Laser/Radar detectors receive all current laser gunswhich operate at a laser wavelength of 905 +/- 10mm.• Pro Laser™ I II III• LT1 20-20• Ultra LyteIn Most States YES!Laser-radar detectors are legal in every state (with the exception of Virginia and Washington D.C., which have local regulations restricting theuse of radar receivers in any vehicle) when used in automobiles or lighttrucks (under 10,000 lbs.).Concerning trucks over 10,000 lbs., the Federal Highway Administration(FHwA) issued a regulation, effective January, 1944 which prohibits radarand laser detector use in the types of vehicles nationally.Prior to the FHwA regulation, laws existed in the state of New York restrict-ing the use of radar detectors in trucks over 18,000 lbs. and in Illinois intrucks over 26,000 lbs.Radar FactsA radar gun operates by transmitting radio waves at certainfrequencies which reflect off objects and are then picked upby the radar gun’s receiving section. When a radar beamreflects off a moving target, a measurable frequency shiftoccurs. The radar unit converts this shift into miles per hourto determine your vehicle’s speed.Currently, the FCC (Federal Communications Commission)permits operation of traffic radar guns at X Band (10.500 -10.550 GHz), K Band (24.050 - 24.250 GHz), and Ka Band(33.400 - 36.000 GHz).Note: A radar detector will not alarm if an officer is not trans-mitting on any one of the above radar bands!

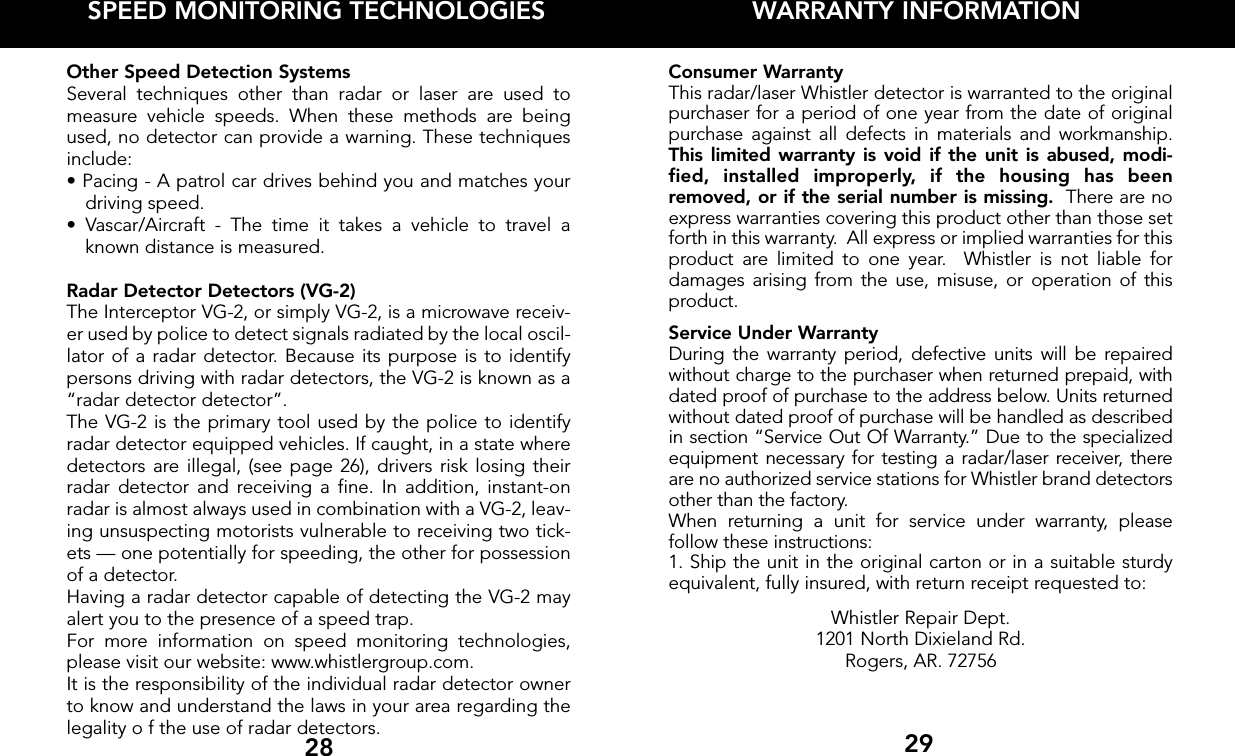

Consumer WarrantyThis radar/laser Whistler detector is warranted to the original purchaser for a period of one year from the date of originalpurchase against all defects in materials and workmanship.This limited warranty is void if the unit is abused, modi-fied, installed improperly, if the housing has beenremoved, or if the serial number is missing. There are noexpress warranties covering this product other than those setforth in this warranty. All express or implied warranties for thisproduct are limited to one year. Whistler is not liable for damages arising from the use, misuse, or operation of thisproduct.Service Under WarrantyDuring the warranty period, defective units will be repairedwithout charge to the purchaser when returned prepaid, withdated proof of purchase to the address below. Units returnedwithout dated proof of purchase will be handled as describedin section “Service Out Of Warranty.” Due to the specializedequipment necessary for testing a radar/laser receiver, thereare no authorized service stations for Whistler brand detectorsother than the factory.When returning a unit for service under warranty, please follow these instructions:1. Ship the unit in the original carton or in a suitable sturdyequivalent, fully insured, with return receipt requested to:Whistler Repair Dept.1201 North Dixieland Rd.Rogers, AR. 72756Other Speed Detection SystemsSeveral techniques other than radar or laser are used tomeasure vehicle speeds. When these methods are beingused, no detector can provide a warning. These techniquesinclude:• Pacing - A patrol car drives behind you and matches your driving speed.• Vascar/Aircraft - The time it takes a vehicle to travel a known distance is measured.Radar Detector Detectors (VG-2)The Interceptor VG-2, or simply VG-2, is a microwave receiv-er used by police to detect signals radiated by the local oscil-lator of a radar detector. Because its purpose is to identifypersons driving with radar detectors, the VG-2 is known as a“radar detector detector”.The VG-2 is the primary tool used by the police to identifyradar detector equipped vehicles. If caught, in a state wheredetectors are illegal, (see page 26), drivers risk losing theirradar detector and receiving a fine. In addition, instant-onradar is almost always used in combination with a VG-2, leav-ing unsuspecting motorists vulnerable to receiving two tick-ets — one potentially for speeding, the other for possessionof a detector.Having a radar detector capable of detecting the VG-2 mayalert you to the presence of a speed trap.For more information on speed monitoring technologies,please visit our website: www.whistlergroup.com.It is the responsibility of the individual radar detector ownerto know and understand the laws in your area regarding thelegality o f the use of radar detectors.WARRANTY INFORMATION29SPEED MONITORING TECHNOLOGIES28

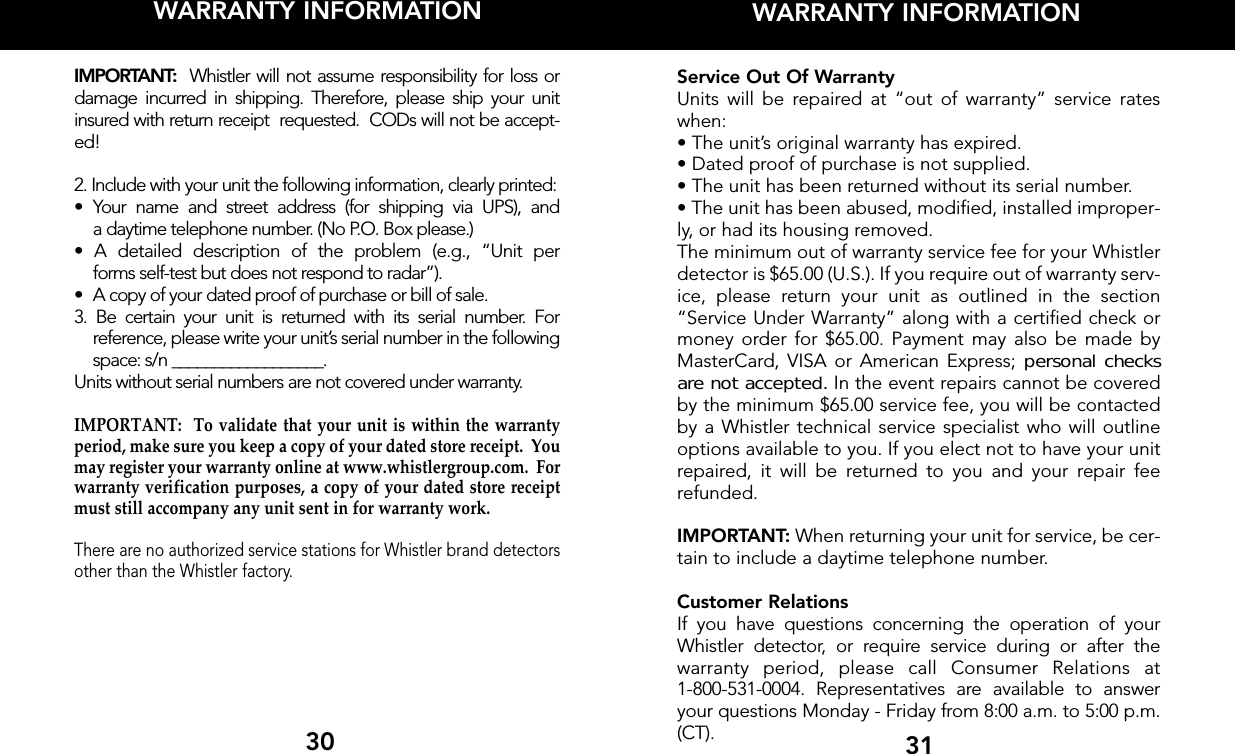

IMPORTANT: Whistler will not assume responsibility for loss ordamage incurred in shipping. Therefore, please ship your unitinsured with return receipt requested. CODs will not be accept-ed!2. Include with your unit the following information, clearly printed:• Your name and street address (for shipping via UPS), and a daytime telephone number. (No P.O. Box please.)• A detailed description of the problem (e.g., “Unit performs self-test but does not respond to radar”).• A copy of your dated proof of purchase or bill of sale.3. Be certain your unit is returned with its serial number. For reference, please write your unit’s serial number in the following space: s/n __________________.Units without serial numbers are not covered under warranty.IMPORTANT: To validate that your unit is within the warrantyperiod, make sure you keep a copy of your dated store receipt. Youmay register your warranty online at www.whistlergroup.com. Forwarranty verification purposes, a copy of your dated store receiptmust still accompany any unit sent in for warranty work.There are no authorized service stations for Whistler brand detectorsother than the Whistler factory.WARRANTY INFORMATION3130Service Out Of WarrantyUnits will be repaired at “out of warranty” service rateswhen:• The unit’s original warranty has expired.• Dated proof of purchase is not supplied.• The unit has been returned without its serial number.• The unit has been abused, modified, installed improper-ly, or had its housing removed.The minimum out of warranty service fee for your Whistlerdetector is $65.00 (U.S.). If you require out of warranty serv-ice, please return your unit as outlined in the section“Service Under Warranty” along with a certified check ormoney order for $65.00. Payment may also be made byMasterCard, VISA or American Express; personal checksare not accepted. In the event repairs cannot be coveredby the minimum $65.00 service fee, you will be contactedby a Whistler technical service specialist who will outlineoptions available to you. If you elect not to have your unitrepaired, it will be returned to you and your repair feerefunded.IMPORTANT: When returning your unit for service, be cer-tain to include a daytime telephone number.Customer RelationsIf you have questions concerning the operation of yourWhistler detector, or require service during or after the warranty period, please call Consumer Relations at 1-800-531-0004. Representatives are available to answeryour questions Monday - Friday from 8:00 a.m. to 5:00 p.m.(CT).WARRANTY INFORMATION

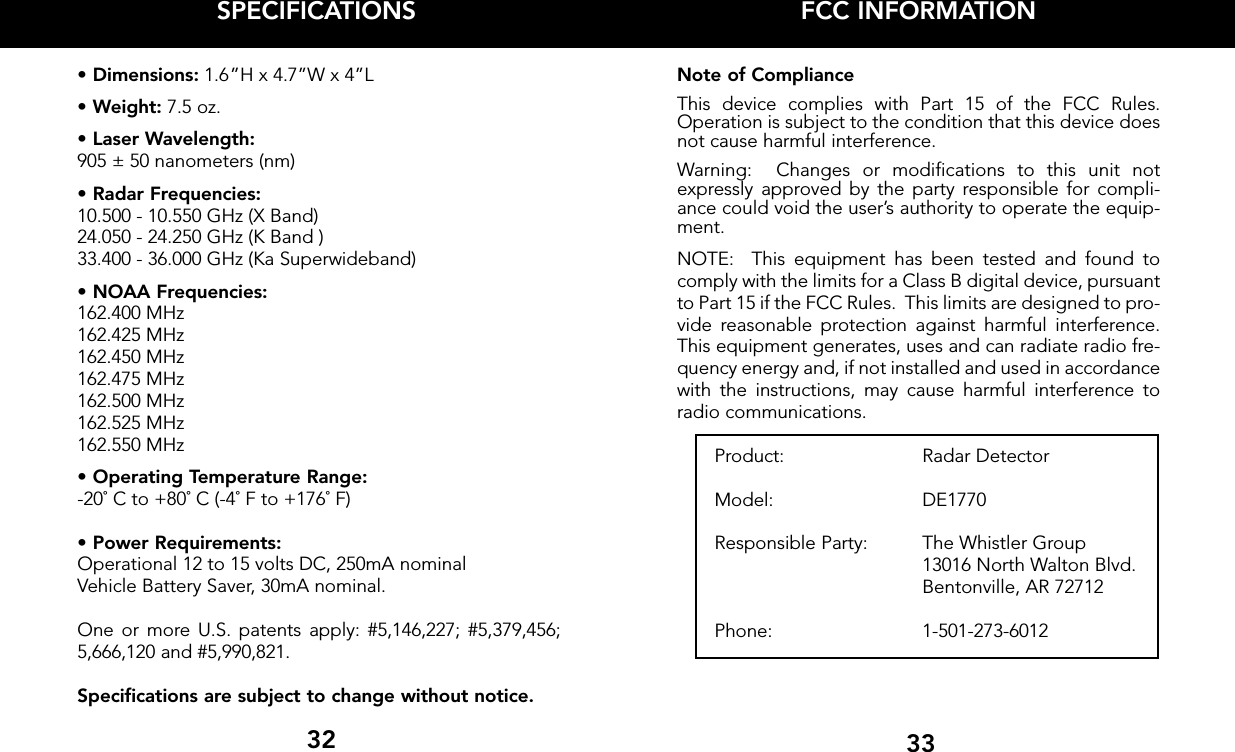

• Dimensions: 1.6”H x 4.7”W x 4”L• Weight: 7.5 oz.• Laser Wavelength:905 ± 50 nanometers (nm)• Radar Frequencies:10.500 - 10.550 GHz (X Band)24.050 - 24.250 GHz (K Band )33.400 - 36.000 GHz (Ka Superwideband)• NOAA Frequencies:162.400 MHz162.425 MHz162.450 MHz162.475 MHz162.500 MHz162.525 MHz 162.550 MHz• Operating Temperature Range:-20˚ C to +80˚ C (-4˚ F to +176˚ F)• Power Requirements:Operational 12 to 15 volts DC, 250mA nominalVehicle Battery Saver, 30mA nominal.One or more U.S. patents apply: #5,146,227; #5,379,456;5,666,120 and #5,990,821.Specifications are subject to change without notice.SPECIFICATIONS3332FCC INFORMATIONNote of ComplianceThis device complies with Part 15 of the FCC Rules.Operation is subject to the condition that this device doesnot cause harmful interference.Warning: Changes or modifications to this unit notexpressly approved by the party responsible for compli-ance could void the user’s authority to operate the equip-ment.NOTE: This equipment has been tested and found tocomply with the limits for a Class B digital device, pursuantto Part 15 if the FCC Rules. This limits are designed to pro-vide reasonable protection against harmful interference.This equipment generates, uses and can radiate radio fre-quency energy and, if not installed and used in accordancewith the instructions, may cause harmful interference toradio communications.Product: Radar DetectorModel: DE1770Responsible Party: The Whistler Group13016 North Walton Blvd.Bentonville, AR 72712Phone: 1-501-273-6012

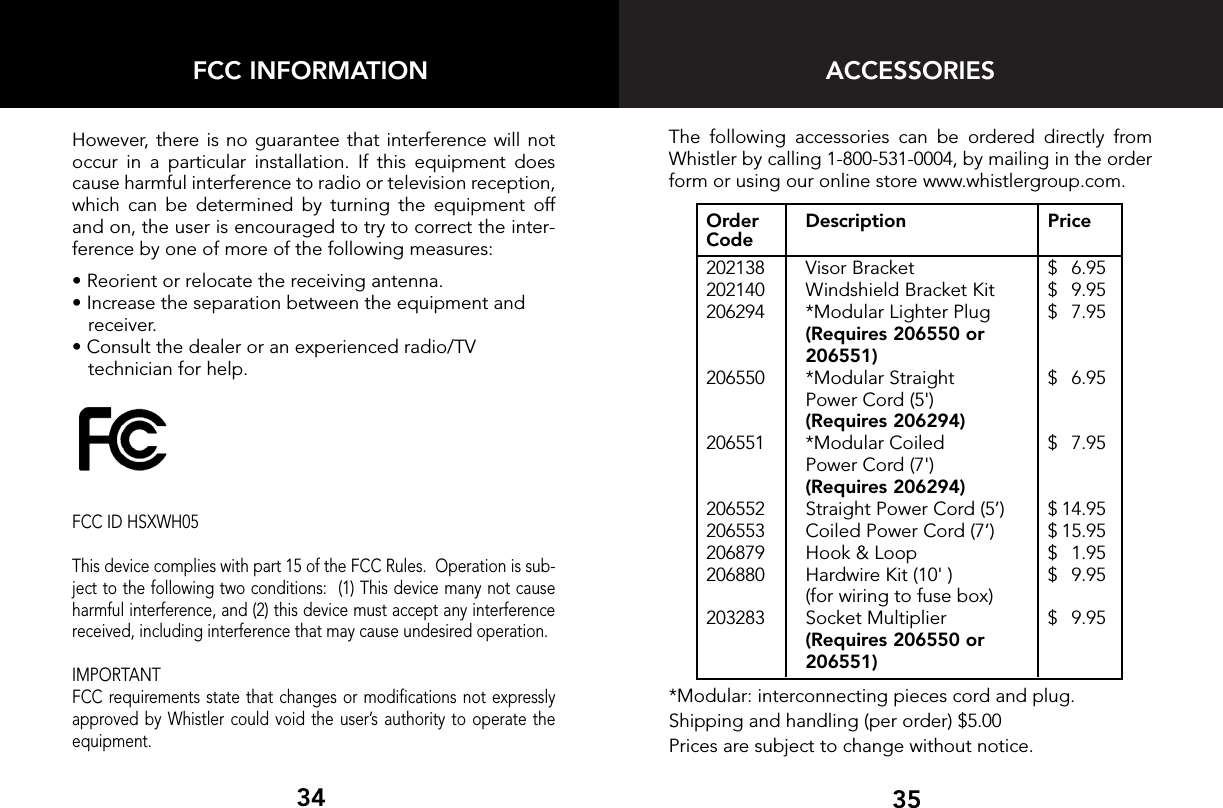

ACCESSORIESThe following accessories can be ordered directly fromWhistler by calling 1-800-531-0004, by mailing in the orderform or using our online store www.whistlergroup.com.Order Description PriceCode202138 Visor Bracket $ 6.95202140 Windshield Bracket Kit $ 9.95206294 *Modular Lighter Plug $ 7.95(Requires 206550 or206551)206550 *Modular Straight $ 6.95Power Cord (5')(Requires 206294)206551 *Modular Coiled $ 7.95Power Cord (7')(Requires 206294)206552 Straight Power Cord (5’) $ 14.95206553 Coiled Power Cord (7’) $ 15.95206879 Hook & Loop $ 1.95206880 Hardwire Kit (10' ) $ 9.95(for wiring to fuse box)203283 Socket Multiplier $ 9.95(Requires 206550 or 206551)*Modular: interconnecting pieces cord and plug.Shipping and handling (per order) $5.00Prices are subject to change without notice.35FCC INFORMATION34However, there is no guarantee that interference will notoccur in a particular installation. If this equipment doescause harmful interference to radio or television reception,which can be determined by turning the equipment offand on, the user is encouraged to try to correct the inter-ference by one of more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Consult the dealer or an experienced radio/TV technician for help.FCC ID HSXWH05This device complies with part 15 of the FCC Rules. Operation is sub-ject to the following two conditions: (1) This device many not causeharmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.IMPORTANTFCC requirements state that changes or modifications not expresslyapproved by Whistler could void the user’s authority to operate theequipment.

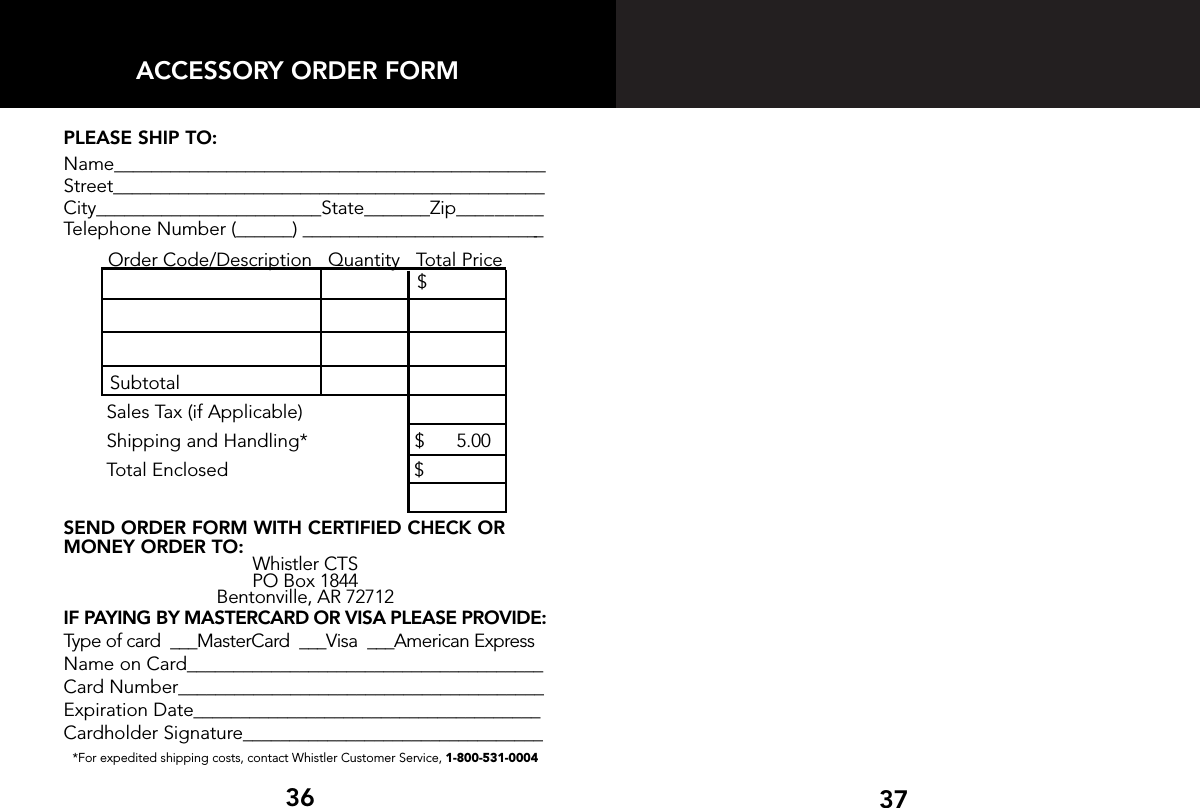

37PLEASE SHIP TO:Name______________________________________________Street______________________________________________City________________________State_______Zip_________Telephone Number (______) __________________________Order Code/Description Quantity Total Price$SubtotalSales Tax (if Applicable) Shipping and Handling* $ 5.00Total Enclosed $SEND ORDER FORM WITH CERTIFIED CHECK OR MONEY ORDER TO: Whistler CTSPO Box 1844Bentonville, AR 72712IF PAYING BY MASTERCARD OR VISA PLEASE PROVIDE:Type of card ___MasterCard ___Visa ___American ExpressName on Card______________________________________Card Number_______________________________________Expiration Date_____________________________________Cardholder Signature________________________________*For expedited shipping costs, contact Whistler Customer Service, 1-800-531-0004ACCESSORY ORDER FORM36
