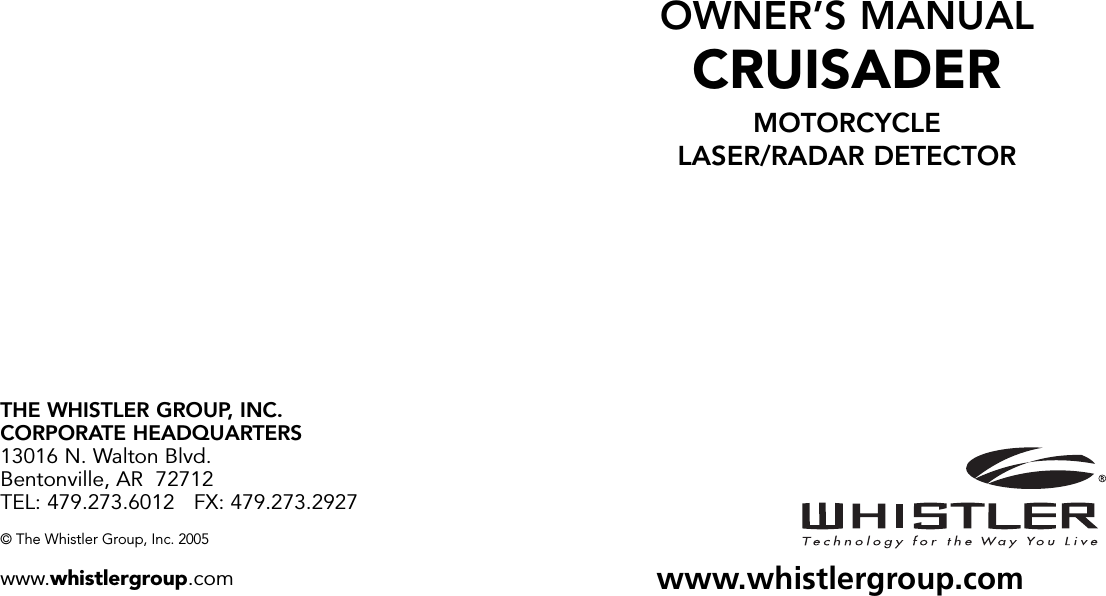

OWNER’S MANUALCRUISADERMOTORCYCLELASER/RADAR DETECTORTHE WHISTLER GROUP, INC.CORPORATE HEADQUARTERS13016 N. Walton Blvd.Bentonville, AR 72712TEL: 479.273.6012 FX: 479.273.2927©The Whistler Group, Inc. 2005www.whistlergroup.com www.whistlergroup.com

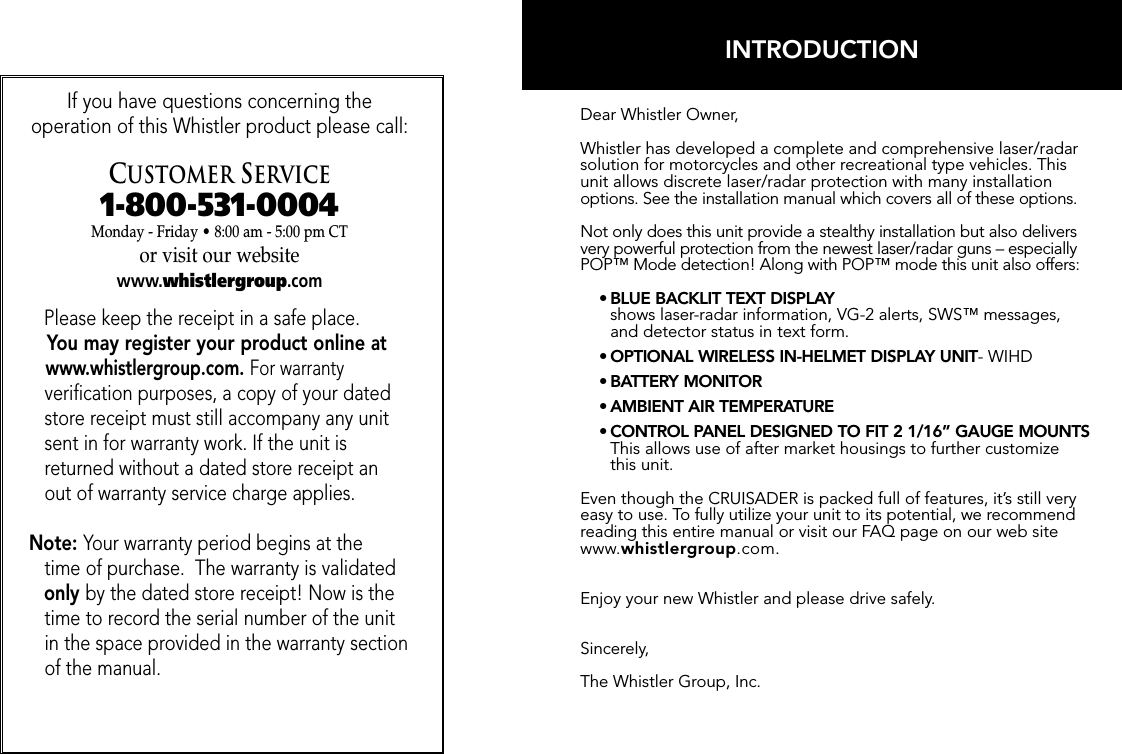

INTRODUCTIONDear Whistler Owner,Whistler has developed a complete and comprehensive laser/radarsolution for motorcycles and other recreational type vehicles. Thisunit allows discrete laser/radar protection with many installationoptions. See the installation manual which covers all of these options.Not only does this unit provide a stealthy installation but also deliversvery powerful protection from the newest laser/radar guns – especiallyPOP™ Mode detection! Along with POP™ mode this unit also offers:•BLUE BACKLIT TEXT DISPLAYshows laser-radar information, VG-2 alerts, SWS™ messages, and detector status in text form.•OPTIONAL WIRELESS IN-HELMET DISPLAY UNIT-WIHD•BATTERY MONITOR•AMBIENT AIR TEMPERATURE•CONTROL PANEL DESIGNED TO FIT 2 1/16” GAUGE MOUNTS This allows use of after market housings to further customize this unit.Even though the CRUISADER is packed full of features, it’s still veryeasy to use. To fully utilize your unit to its potential, we recommendreading this entire manual or visit our FAQ page on our web sitewww.whistlergroup.com.Enjoy your new Whistler and please drive safely.Sincerely,The Whistler Group, Inc.If you have questions concerning the operation of this Whistler product please call:CuSTOmer SeRVICE1-800-531-0004Monday - Friday • 8:00 am - 5:00 pm CTor visit our websitewww.whistlergroup.comPlease keep the receipt in a safe place. You may register your product online atwww.whistlergroup.com. For warrantyverification purposes, a copy of your datedstore receipt must still accompany any unitsent in for warranty work. If the unit isreturned without a dated store receipt an out of warranty service charge applies. Note: Your warranty period begins at the time of purchase. The warranty is validatedonly by the dated store receipt! Now is thetime to record the serial number of the unit in the space provided in the warranty sectionof the manual.
WHISTLER FEATURESWhistler’sergonomic and user-friendly design provides a new levelof operating convenience. Special features include:• Laser- Radar Antenna - Compact, high-efficiency antenna receives both laser and radar signals.• City/City 1/City 2 Mode – Reduces the annoyance of false alerts typically encountered in urban driving areas.•Laser Module – Provides rear laser protection or front detection (if laser/radar antenna is concealed).Note: Specifications and appearance may change without notice.3Model Features Summary....................................................3 - 4Operation ............................................................................5 - 14•Power On And Self-Test•CRUISADER Display•Engaging/Disengaging VG-2•Backlight Settings•City Modes•Stay Alert•Option Select Mode•Teach/Tutorial Mode•Aux Out•Voice Module Port•Memory/Beep Confirmation•Auto Level Adjustment•Auto Quiet/Quiet ModesRadar,Laser And VG-2 Alerts ..........................................15 - 18•Radar Alerts•Pulse Protection®•Safety Radar Audio/Visual Alerts•Laser Audio/Visual Alerts •VG-2 Audio/Visual Alerts•AlertPriority•Reset Features•Careand MaintenanceCommunication Breakdown....................................................19Troubleshooting Guide............................................................20Are Detectors Legal? ...............................................................21•FCC InformationSpeed Monitoring Technologies .....................................22 - 23•Radar Facts• POP™Mode• Total Band Protection™•Laser Facts•Other Speed Detection Systems•Radar Detector DetectorsWarranty Information........................................................24 - 26Specifications............................................................................27Accessories........................................................................28 - 29TABLE OF CONTENTSWhistler CRUISADERPower/Volume ButtonB/L ButtonCity ButtonQuiet/Menu ButtonLaser-Radar AntennaAlert LEDLaser Module TemperatureProbe

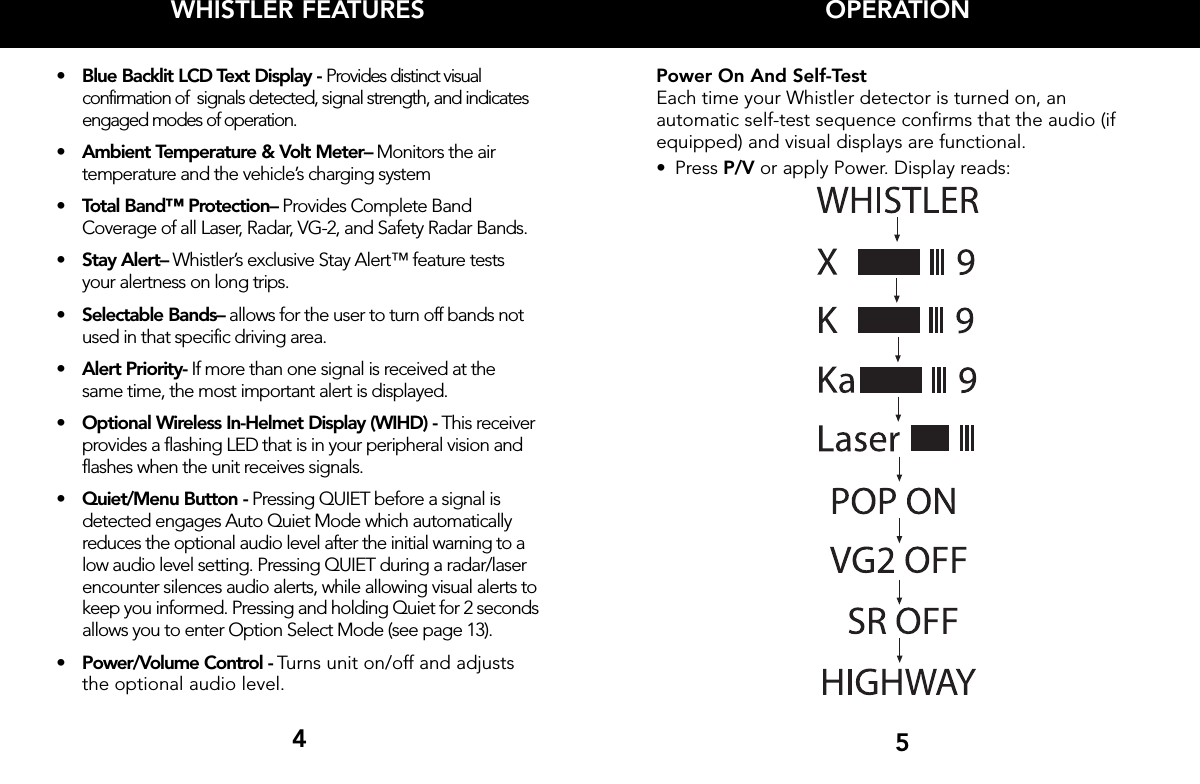

OPERATIONPower On And Self-TestEach time your Whistler detector is turned on, an automatic self-test sequence confirms that the audio (ifequipped) and visual displays are functional.• Press P/V or apply Power. Display reads:5WHISTLER FEATURES• Blue Backlit LCD Text Display - Provides distinct visual confirmation of signals detected, signal strength, and indicates engaged modes of operation. • Ambient Temperature & Volt Meter– Monitors the air temperature and the vehicle’s charging system• Total Band™ Protection– Provides Complete Band Coverage of all Laser, Radar, VG-2, and Safety Radar Bands.• Stay Alert– Whistler’s exclusive Stay Alert™ feature tests your alertness on long trips.• Selectable Bands– allows for the user to turn off bands not used in that specific driving area.•AlertPriority- If morethan one signal is received at the same time, the most important alertis displayed.• Optional Wireless In-Helmet Display (WIHD) - This receiver provides a flashing LED that is in your peripheral vision and flashes when the unit receives signals.•Quiet/Menu Button - Pressing QUIET beforeasignal is detected engages Auto Quiet Mode which automatically reduces the optional audio level after the initial warning to a low audio level setting. Pressing QUIET during a radar/laser encounter silences audio alerts, while allowing visual alerts tokeep you informed. Pressing and holding Quiet for 2 secondsallows you to enter Option Select Mode (see page 13).• Power/Volume Control - Turns unit on/off and adjusts the optional audio level. 4

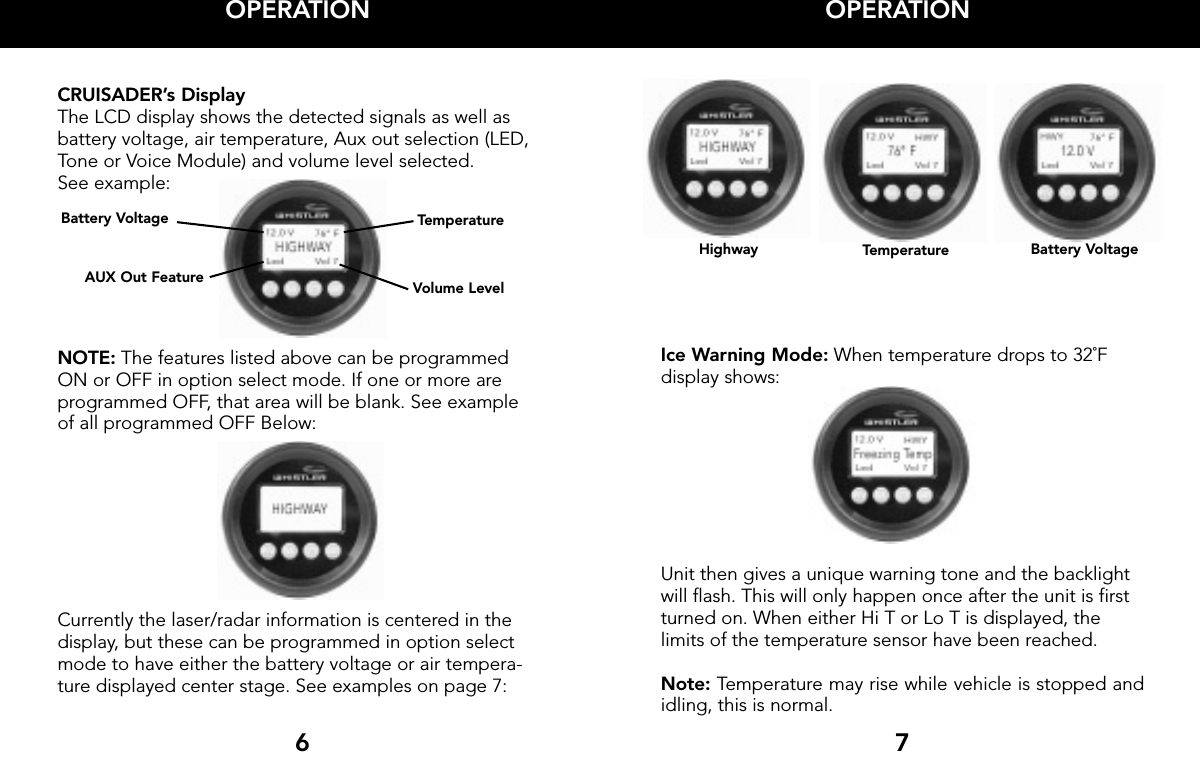

OPERATION7OPERATION6CRUISADER’s DisplayThe LCD display shows the detected signals as well asbattery voltage, air temperature, Aux out selection (LED,Tone or Voice Module) and volume level selected. See example:NOTE: The features listed above can be programmed ON or OFF in option select mode. If one or moreareprogrammed OFF,that area will be blank. See exampleof all programmed OFF Below:Currently the laser/radar information is centered in thedisplay,but these can be programmed in option selectmode to have either the battery voltage or air tempera-turedisplayed center stage. See examples on page 7:Ice Warning Mode: When temperaturedrops to 32˚F display shows:Unit then gives a unique warning tone and the backlightwill flash. This will only happen once after the unit is firstturned on. When either Hi T or Lo T is displayed, the limits of the temperaturesensor have been reached.Note: Temperaturemay rise while vehicle is stopped andidling, this is normal.Battery Voltage TemperatureAUX Out Feature Volume LevelHighway Temperature Battery Voltage

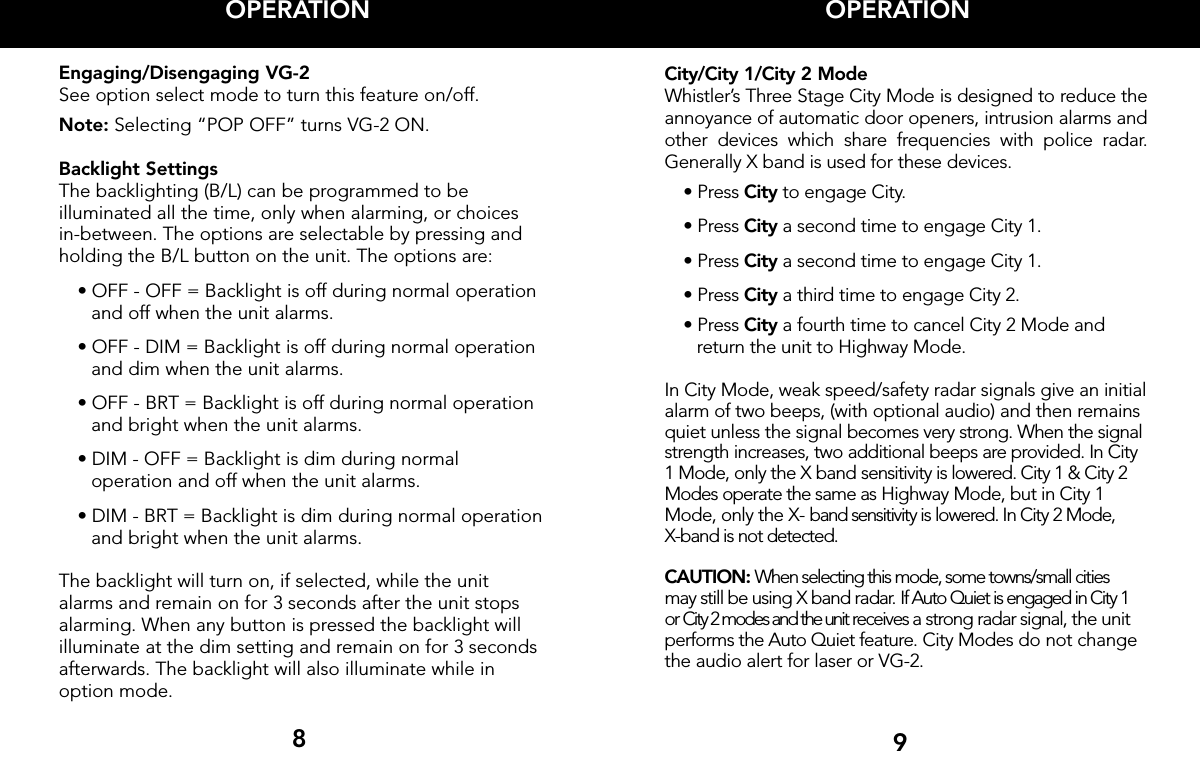

Engaging/Disengaging VG-2 See option select mode to turn this feature on/off.Note: Selecting “POP OFF” turns VG-2 ON.Backlight SettingsThe backlighting (B/L) can be programmed to be illuminated all the time, only when alarming, or choicesin-between. The options are selectable by pressing andholding the B/L button on the unit. The options are:•OFF - OFF = Backlight is offduring normal operation and offwhen the unit alarms.•OFF - DIM = Backlight is off during normal operation and dim when the unit alarms.•OFF - BRT = Backlight is off during normal operation and bright when the unit alarms.•DIM - OFF = Backlight is dim during normal operation and off when the unit alarms.•DIM - BRT = Backlight is dim during normal operationand bright when the unit alarms.The backlight will turn on, if selected, while the unitalarms and remain on for 3 seconds after the unit stopsalarming. When any button is pressed the backlight willilluminate at the dim setting and remain on for 3 secondsafterwards. The backlight will also illuminate while inoption mode.OPERATION9OPERATION8City/City 1/City 2 ModeWhistler’s Three Stage City Mode is designed to reduce theannoyance of automatic door openers, intrusion alarms andother devices which share frequencies with police radar.Generally X band is used for these devices. •Press City to engage City. •Press City asecond time to engage City 1. •Press City asecond time to engage City 1. •Press City athird time to engage City 2.•Press City afourth time to cancel City 2 Mode and return the unit to Highway Mode.In City Mode, weak speed/safety radar signals give an initialalarm of two beeps, (with optional audio) and then remainsquiet unless the signal becomes verystrong. When the signalstrength increases, two additional beeps are provided. In City1Mode, only the X band sensitivity is lowered. City 1 & City 2Modes operate the same as Highway Mode, but in City 1Mode, only the X- band sensitivity is lowered. In City 2 Mode, X-band is not detected.CAUTION: When selecting this mode, some towns/small citiesmay still be using X band radar. If Auto Quiet is engaged in City 1or City 2 modes and the unit receives a strong radar signal, the unitperforms the Auto Quiet feature. City Modes do not changethe audio alert for laser or VG-2.

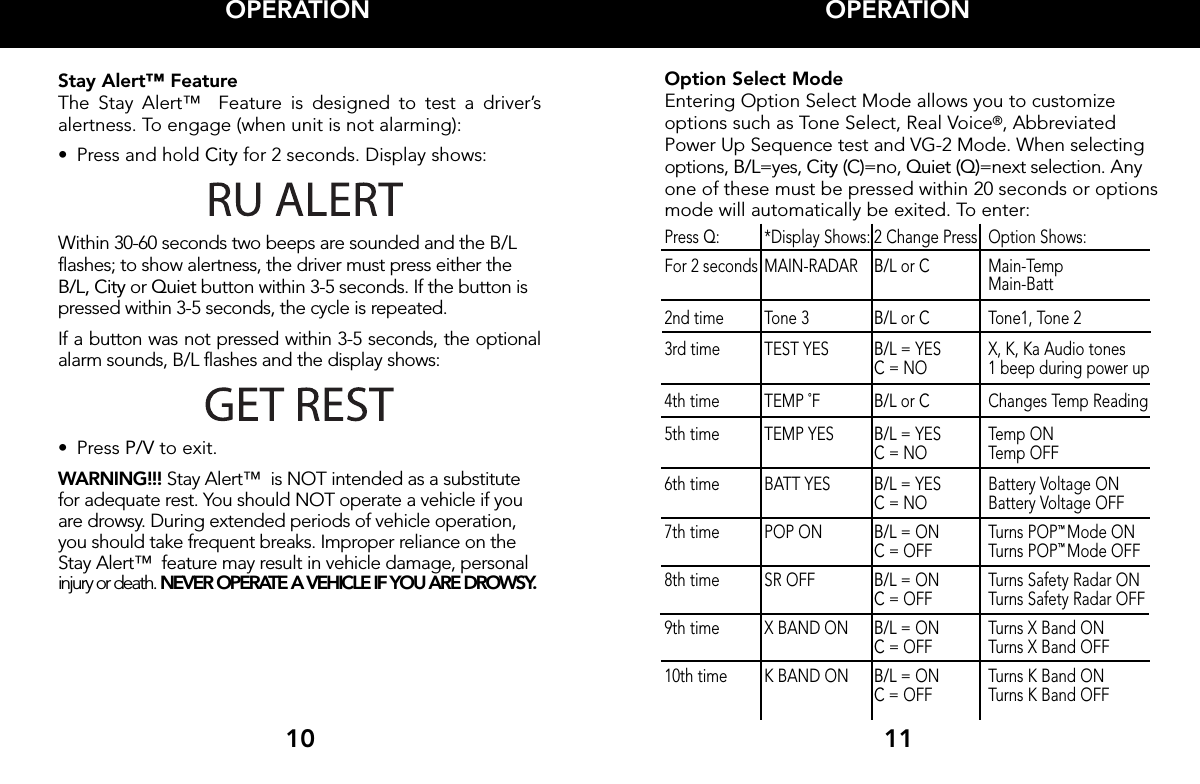

OPERATION11Option Select ModeEntering Option Select Mode allows you to customizeoptions such as Tone Select, Real Voice®,AbbreviatedPower Up Sequence test and VG-2 Mode. When selectingoptions, B/L=yes, City (C)=no, Quiet (Q)=next selection. Anyone of these must be pressed within 20 seconds or optionsmode will automatically be exited. To enter:Press Q:*Display Shows: 2 Change Press Option Shows:For 2 seconds MAIN-RADAR B/L or CMain-TempMain-Batt2nd time Tone 3 B/L or CTone1, Tone 23rdtime TEST YES B/L =YES X, K, Ka Audio tonesC=NO 1beep during power up4th time TEMP ˚F B/L or CChanges Temp Reading5th time TEMP YES B/L =YES Temp ONC=NO Temp OFF6th time BATT YES B/L =YES Battery Voltage ONC=NO Battery Voltage OFF7th time POP ON B/L =ON Turns POP™Mode ONC=OFF Turns POP™Mode OFF8th time SR OFF B/L =ON Turns Safety Radar ONC=OFF Turns Safety Radar OFF9th time X BAND ON B/L =ON Turns X Band ONC=OFF Turns X Band OFF10th time KBAND ON B/L =ON Turns K Band ONC=OFF Turns K Band OFFOPERATION10Stay Alert™ FeatureThe Stay Alert™ Feature is designed to test a driver’salertness. To engage (when unit is not alarming):• Press and hold City for 2 seconds. Display shows:Within 30-60 seconds two beeps are sounded and the B/Lflashes; to show alertness, the driver must press either theB/L, City or Quiet button within 3-5 seconds. If the button ispressed within 3-5 seconds, the cycle is repeated.If a button was not pressed within 3-5 seconds, the optionalalarm sounds, B/L flashes and the display shows:•Press P/V to exit.WARNING!!! Stay Alert™ is NOT intended as a substitutefor adequate rest. You should NOT operate a vehicle if youare drowsy. During extended periods of vehicle operation,you should take frequent breaks. Improper reliance on theStay Alert™ feature may result in vehicle damage, personalinjuryor death. NEVER OPERATE A VEHICLE IF YOU ARE DROWSY.

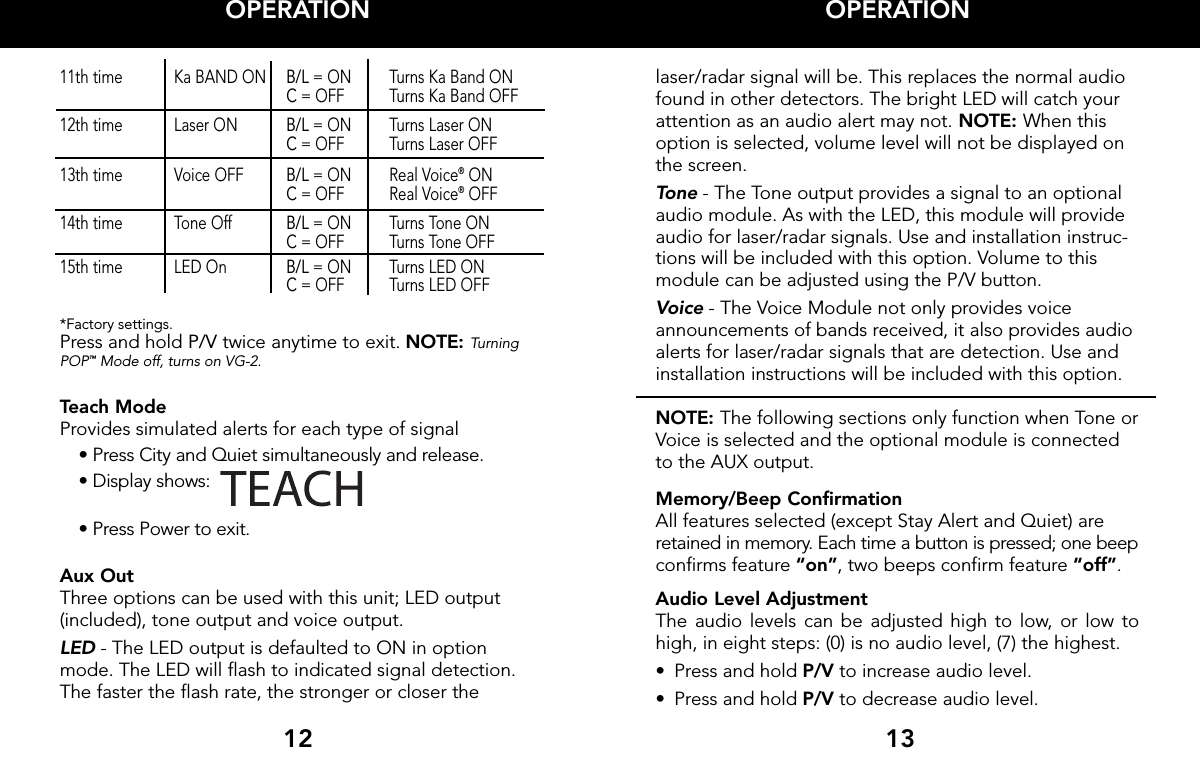

OPERATION13OPERATION1211th time Ka BAND ON B/L =ON Turns Ka Band ONC=OFF Turns Ka Band OFF12th time Laser ON B/L =ON Turns Laser ONC=OFF Turns Laser OFF13th time Voice OFF B/L =ON Real Voice®ONC=OFF Real Voice®OFF14th time Tone Off B/L =ON Turns Tone ONC=OFF Turns Tone OFF15th time LED On B/L =ON Turns LED ONC=OFF Turns LED OFF*Factory settings.Press and hold P/V twice anytime to exit. NOTE: TurningPOP™Mode off, turns on VG-2.Teach ModeProvides simulated alerts for each type of signal•Press City and Quiet simultaneously and release.•Display shows: •Press Power to exit.Aux OutThree options can be used with this unit; LED output(included), tone output and voice output.LED -The LED output is defaulted to ON in optionmode. The LED will flash to indicated signal detection.The faster the flash rate, the stronger or closer the laser/radar signal will be. This replaces the normal audiofound in other detectors. The bright LED will catch yourattention as an audio alert may not. NOTE: When thisoption is selected, volume level will not be displayed onthe screen.Tone -The Tone output provides a signal to an optionalaudio module. As with the LED, this module will provideaudio for laser/radar signals. Use and installation instruc-tions will be included with this option. Volume to thismodule can be adjusted using the P/V button.Voice -The Voice Module not only provides voiceannouncements of bands received, it also provides audioalerts for laser/radar signals that are detection. Use andinstallation instructions will be included with this option.NOTE: The following sections only function when Tone orVoice is selected and the optional module is connectedto the AUX output.Memory/Beep ConfirmationAll features selected (except Stay Alert and Quiet) areretained in memory. Each time a button is pressed; one beepconfirms feature “on”,two beeps confirm feature “off”.Audio Level AdjustmentThe audio levels can be adjusted high to low, or low tohigh, in eight steps: (0) is no audio level, (7) the highest.• Press and hold P/V to increase audio level.• Press and hold P/V to decrease audio level.

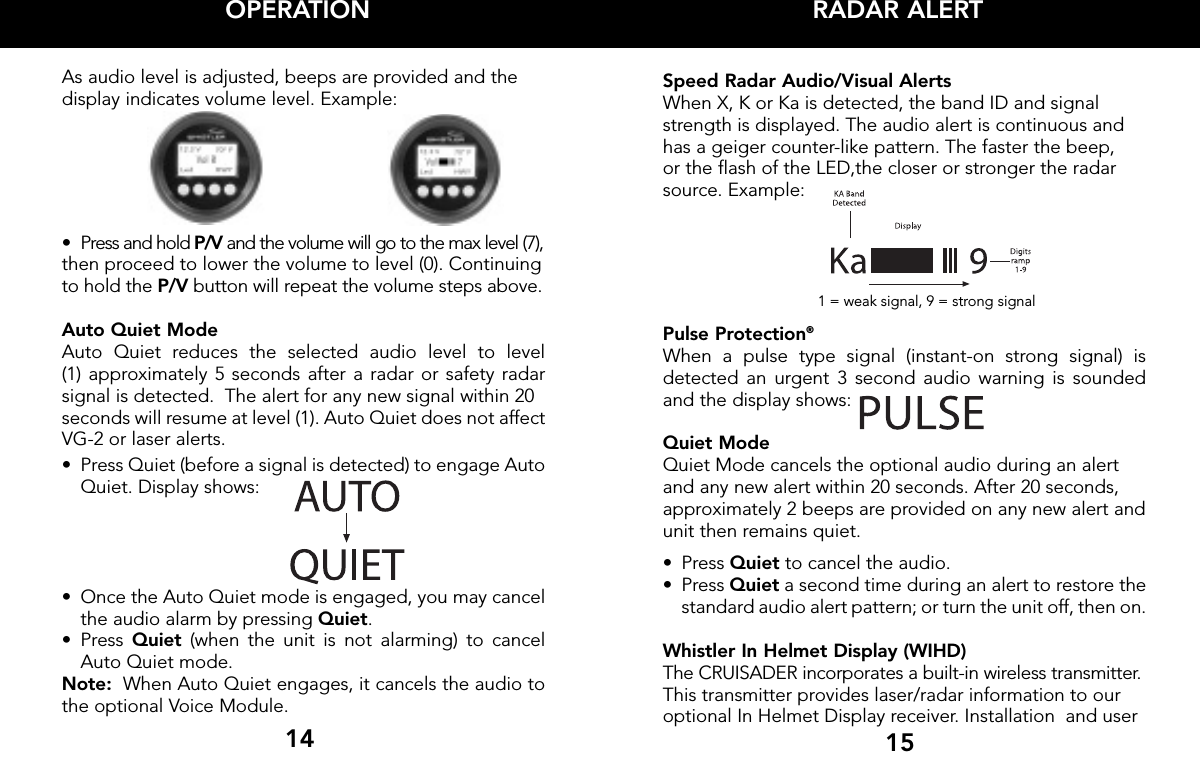

RADAR ALERT15OPERATION14As audio level is adjusted, beeps are provided and the display indicates volume level. Example:• Press and hold P/V and the volume will go to the max level (7),then proceed to lower the volume to level (0). Continuingto hold the P/V button will repeat the volume steps above.Auto Quiet ModeAuto Quiet reduces the selected audio level to level (1) approximately 5 seconds after a radar or safety radarsignal is detected. The alert for any new signal within 20 seconds will resume at level (1). Auto Quiet does not affectVG-2 or laser alerts. • Press Quiet (before a signal is detected) to engage AutoQuiet. Display shows:• Once the Auto Quiet mode is engaged, you may cancelthe audio alarm by pressing Quiet.• Press Quiet (when the unit is not alarming) to cancel Auto Quiet mode.Note: When Auto Quiet engages, it cancels the audio tothe optional Voice Module.Speed Radar Audio/Visual AlertsWhen X, K or Ka is detected, the band ID and signalstrength is displayed. The audio alert is continuous andhas a geiger counter-like pattern. The faster the beep, or the flash of the LED,the closer or stronger the radarsource. Example:1 = weak signal, 9 = strong signalPulse Protection®When a pulse type signal (instant-on strong signal) isdetected an urgent 3 second audio warning is soundedand the display shows:Quiet ModeQuiet Mode cancels the optional audio during an alertand any new alert within 20 seconds. After 20 seconds,approximately 2 beeps are provided on any new alert andunit then remains quiet.• Press Quiet to cancel the audio.• Press Quiet asecond time during an alert to restore the standard audio alert pattern; or turn the unit off, then on.Whistler In Helmet Display (WIHD)The CRUISADER incorporates a built-in wireless transmitter.This transmitter provides laser/radar information to ouroptional In Helmet Display receiver. Installation and user

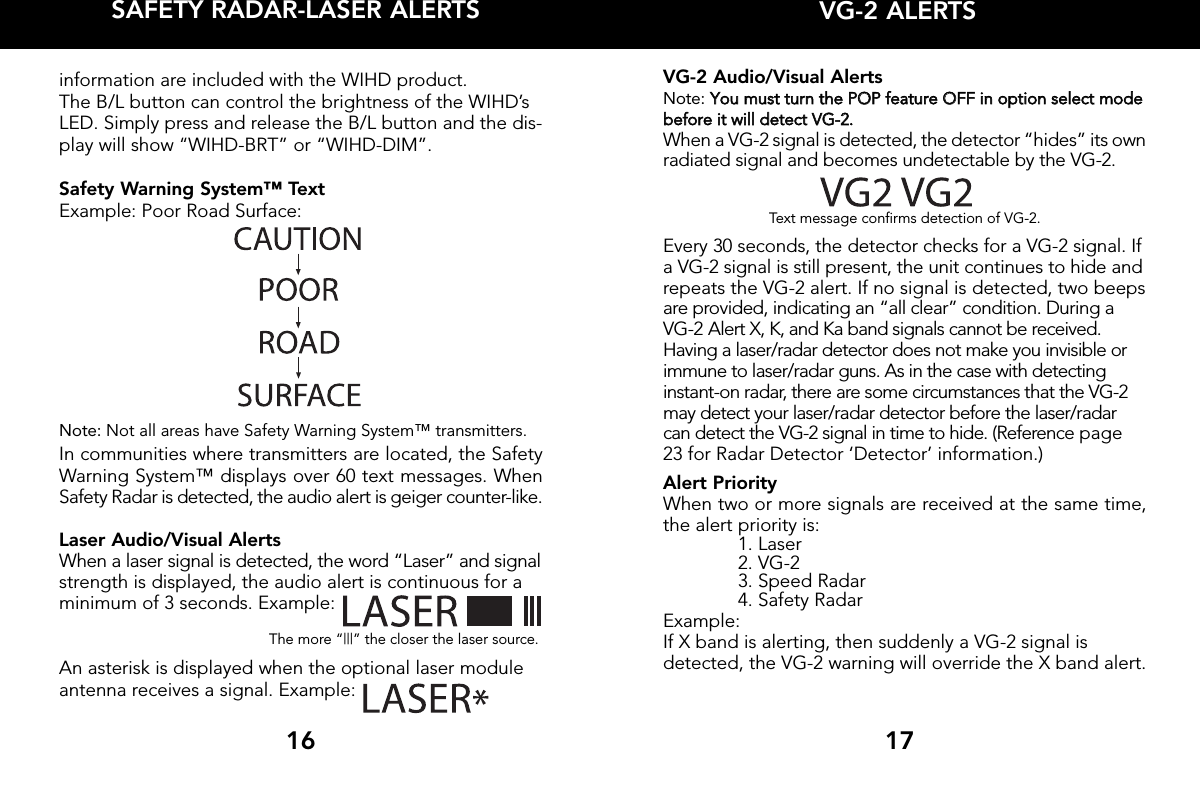

VG-2 ALERTSVG-2 Audio/Visual AlertsNote: YYoouu mmuusstt ttuurrnn tthhee PPOOPP ffeeaattuurree OOFFFF iinn ooppttiioonn sseelleecctt mmooddeebbeeffoorree iitt wwiillll ddeetteecctt VVGG--22..When a VG-2 signal is detected, the detector “hides” its ownradiated signal and becomes undetectable by the VG-2.Text message confirms detection of VG-2.Every 30 seconds, the detector checks for a VG-2 signal. Ifa VG-2 signal is still present, the unit continues to hide andrepeats the VG-2 alert. If no signal is detected, two beepsare provided, indicating an “all clear” condition. During aVG-2 Alert X, K, and Ka band signals cannot be received.Having a laser/radar detector does not make you invisible orimmune to laser/radar guns. As in the case with detectinginstant-on radar, there are some circumstances that the VG-2may detect your laser/radar detector before the laser/radarcan detect the VG-2 signal in time to hide. (Reference page23 for Radar Detector ‘Detector’ information.)Alert PriorityWhen two or more signals are received at the same time,the alert priority is:1. Laser2. VG-23. Speed Radar4. Safety RadarExample:If X band is alerting, then suddenly a VG-2 signal isdetected, the VG-2 warning will override the X band alert.17information are included with the WIHD product.The B/L button can control the brightness of the WIHD’sLED. Simply press and release the B/L button and the dis-play will show “WIHD-BRT” or “WIHD-DIM”.Safety Warning System™ TextExample: Poor Road Surface:Note: Not all areas have Safety Warning System™ transmitters. In communities where transmitters are located, the SafetyWarning System™ displays over 60 text messages. WhenSafety Radar is detected, the audio alert is geiger counter-like.Laser Audio/Visual AlertsWhen a laser signal is detected, the word “Laser” and signalstrength is displayed, the audio alert is continuous for aminimum of 3 seconds. Example:The more “|||” the closer the laser source.An asterisk is displayed when the optional laser moduleantenna receives a signal. Example:16SAFETY RADAR-LASER ALERTS

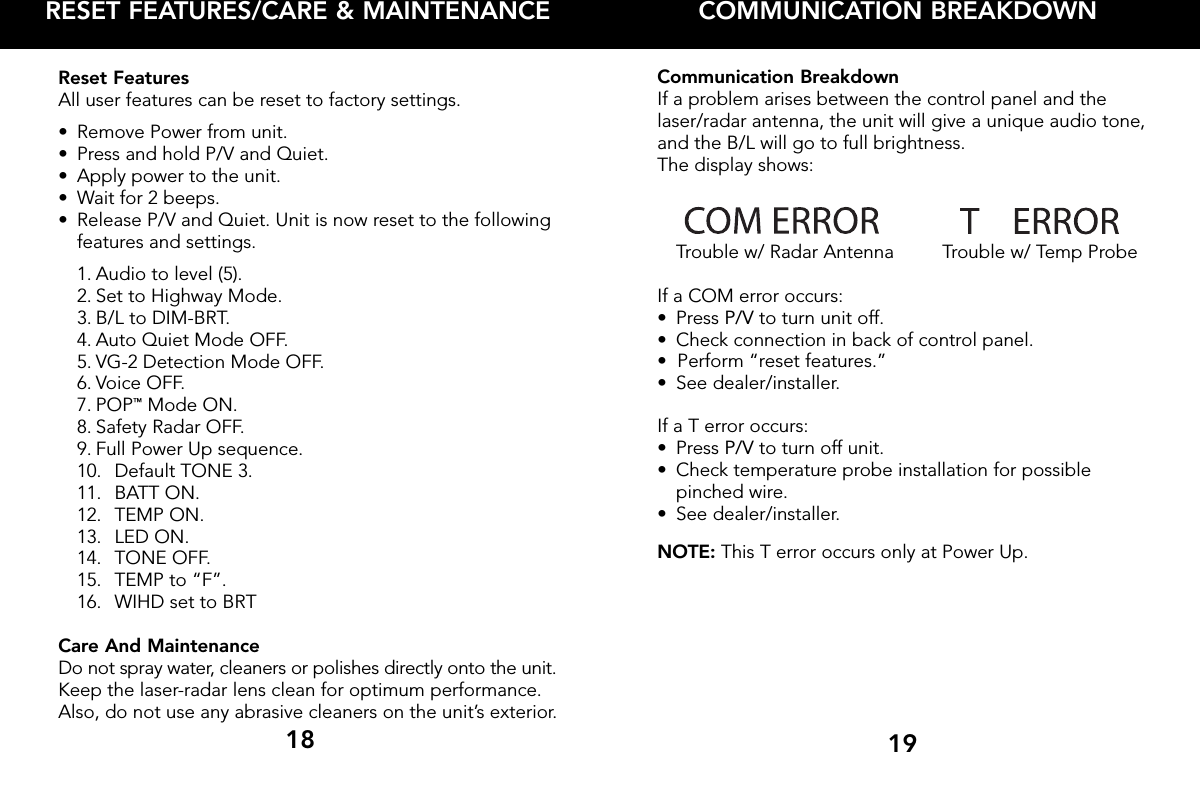

COMMUNICATION BREAKDOWNCommunication BreakdownIf a problem arises between the control panel and thelaser/radar antenna, the unit will give a unique audio tone,and the B/L will go to full brightness. The display shows:Trouble w/ Radar Antenna Trouble w/ Temp ProbeIf a COM error occurs:• Press P/V to turn unit off.• Check connection in back of control panel.• Perform “reset features.”• See dealer/installer.If a T error occurs:•Press P/V to turn off unit.• Check temperature probe installation for possible pinched wire.• See dealer/installer.NOTE: This T error occurs only at Power Up.19RESET FEATURES/CARE & MAINTENANCE18Reset FeaturesAll user features can be reset to factory settings.• Remove Power from unit.• Press and hold P/V and Quiet.• Apply power to the unit.• Wait for 2 beeps.• Release P/V and Quiet. Unit is now reset to the following features and settings.1. Audio to level (5).2. Set to Highway Mode.3. B/L to DIM-BRT.4. Auto Quiet Mode OFF.5. VG-2 Detection Mode OFF.6. Voice OFF.7. POP™Mode ON.8. Safety Radar OFF.9. Full Power Up sequence.10. Default TONE 3.11. BATT ON.12. TEMP ON.13. LED ON.14. TONE OFF.15. TEMP to “F”.16. WIHD set to BRTCare And MaintenanceDo not spray water, cleaners or polishes directly onto the unit.Keep the laser-radar lens clean for optimum performance.Also, do not use any abrasive cleaners on the unit’s exterior.

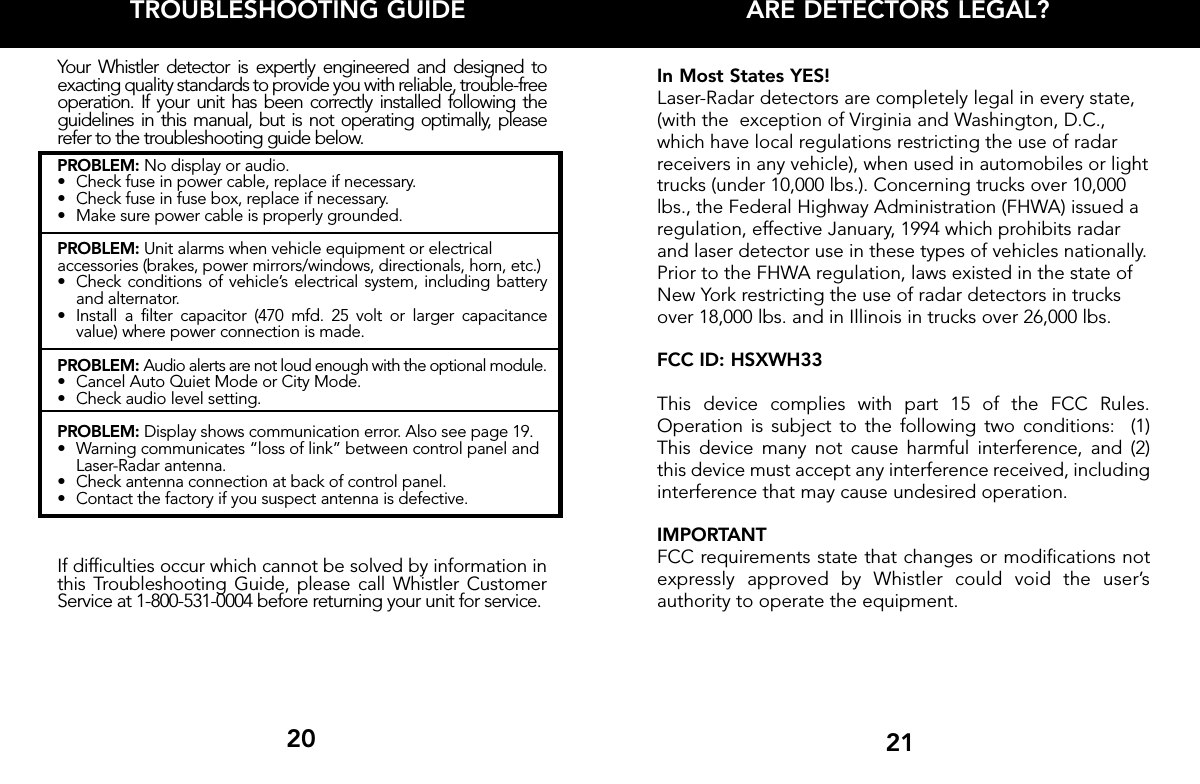

ARE DETECTORS LEGAL?In Most States YES!Laser-Radar detectors are completely legal in every state,(with the exception of Virginia and Washington, D.C.,which have local regulations restricting the use of radarreceivers in any vehicle), when used in automobiles or lighttrucks (under 10,000 lbs.). Concerning trucks over 10,000lbs., the Federal Highway Administration (FHWA) issued aregulation, effective January, 1994 which prohibits radarand laser detector use in these types of vehicles nationally.Prior to the FHWA regulation, laws existed in the state ofNew York restricting the use of radar detectors in trucksover 18,000 lbs. and in Illinois in trucks over 26,000 lbs.FCC ID: HSXWH33This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions: (1)This device many not cause harmful interference, and (2)this device must accept any interference received, includinginterference that may cause undesired operation.IMPORTANTFCC requirements state that changes or modifications notexpressly approved by Whistler could void the user’sauthority to operate the equipment.21TROUBLESHOOTING GUIDE20Your Whistler detector is expertly engineered and designed toexacting quality standards to provide you with reliable, trouble-freeoperation. If your unit has been correctly installed following theguidelines in this manual, but is not operating optimally, pleaserefer to the troubleshooting guide below.PROBLEM: No display or audio.• Check fuse in power cable, replace if necessary.• Check fuse in fuse box, replace if necessary.• Make sure power cable is properly grounded.PROBLEM: Unit alarms when vehicle equipment or electrical accessories (brakes, power mirrors/windows, directionals, horn, etc.)•Check conditions of vehicle’s electrical system, including battery and alternator. •Install a filter capacitor (470 mfd. 25 volt or larger capacitance value) where power connection is made.PROBLEM: Audio alerts are not loud enough with the optional module.•Cancel Auto Quiet Mode or City Mode.• Check audio level setting.PROBLEM: Display shows communication error. Also see page 19.• Warning communicates “loss of link” between control panel and Laser-Radar antenna.• Check antenna connection at back of control panel.• Contact the factory if you suspect antenna is defective.If difficulties occur which cannot be solved by information inthis Troubleshooting Guide, please call Whistler CustomerService at 1-800-531-0004 before returning your unit for service.

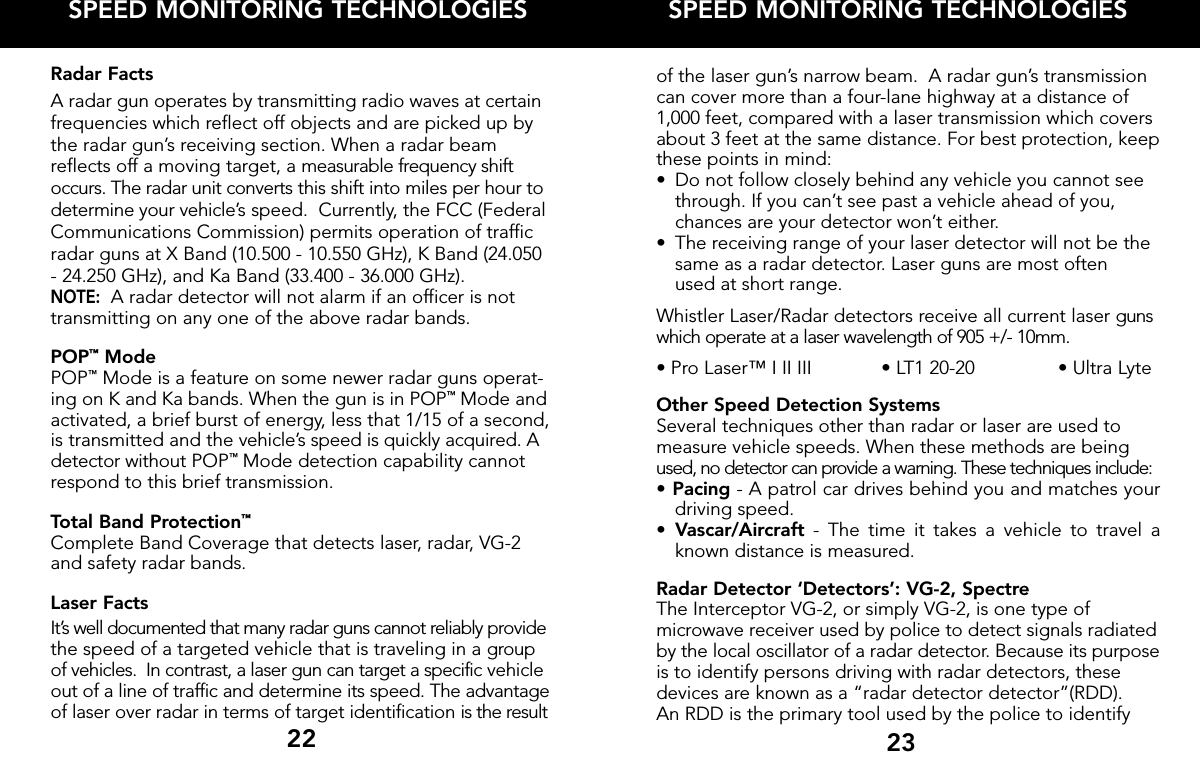

SPEED MONITORING TECHNOLOGIESof the laser gun’s narrow beam. A radar gun’s transmissioncan cover more than a four-lane highway at a distance of1,000 feet, compared with a laser transmission which coversabout 3 feet at the same distance. For best protection, keepthese points in mind:• Do not follow closely behind any vehicle you cannot see through. If you can’t see past a vehicle ahead of you, chances are your detector won’t either.• The receiving range of your laser detector will not be the same as a radar detector. Laser guns are most often used at short range.Whistler Laser/Radar detectors receive all current laser gunswhich operate at a laser wavelength of 905 +/- 10mm.• Pro Laser™ I II III • LT1 20-20 • Ultra LyteOther Speed Detection SystemsSeveral techniques other than radar or laser are used tomeasure vehicle speeds. When these methods are beingused, no detector can provide a warning. These techniques include:• Pacing - A patrol car drives behind you and matches your driving speed.• Vascar/Aircraft - The time it takes a vehicle to travel a known distance is measured.Radar Detector ‘Detectors’: VG-2, SpectreThe Interceptor VG-2, or simply VG-2, is one type ofmicrowave receiver used by police to detect signals radiatedby the local oscillator of a radar detector. Because its purposeis to identify persons driving with radar detectors, thesedevices are known as a “radar detector detector”(RDD).An RDD is the primary tool used by the police to identify 23SPEED MONITORING TECHNOLOGIES22Radar FactsA radar gun operates by transmitting radio waves at certainfrequencies which reflect off objects and are picked up bythe radar gun’s receiving section. When a radar beamreflects off a moving target, a measurable frequency shiftoccurs. The radar unit converts this shift into miles per hour todetermine your vehicle’s speed. Currently, the FCC (FederalCommunications Commission) permits operation of trafficradar guns at X Band (10.500 - 10.550 GHz), K Band (24.050- 24.250 GHz), and Ka Band (33.400 - 36.000 GHz).NOTE:A radar detector will not alarm if an officer is nottransmitting on any one of the above radar bands.POP™ModePOP™Mode is a feature on some newer radar guns operat-ing on K and Ka bands. When the gun is in POP™Mode andactivated, a brief burst of energy, less that 1/15 of a second,is transmitted and the vehicle’s speed is quickly acquired. Adetector without POP™Mode detection capability cannotrespond to this brief transmission. Total Band Protection™Complete Band Coverage that detects laser, radar, VG-2and safety radar bands.Laser FactsIt’s well documented that many radar guns cannot reliably providethe speed of a targeted vehicle that is traveling in a groupof vehicles. In contrast, a laser gun can target a specific vehicleout of a line of traffic and determine its speed. The advantageof laser over radar in terms of target identification is the result

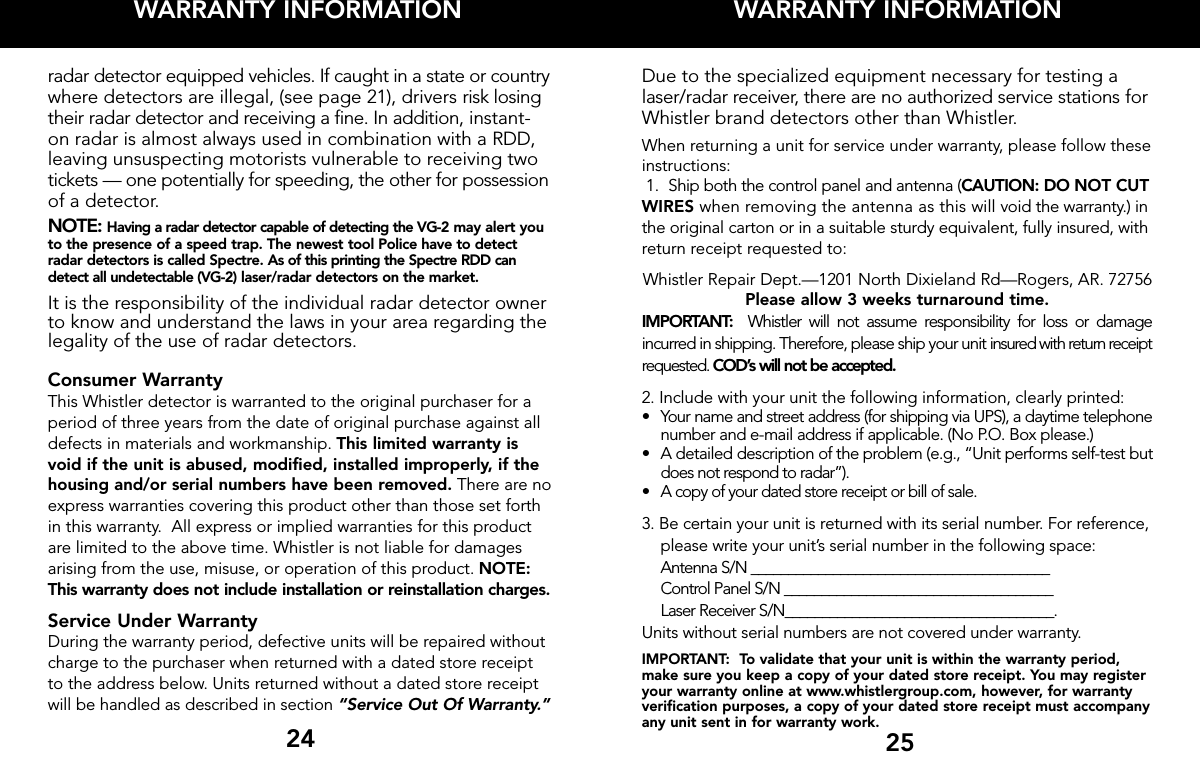

WARRANTY INFORMATIONDue to the specialized equipment necessary for testing alaser/radar receiver, there are no authorized service stations forWhistler brand detectors other than Whistler.When returning a unit for service under warranty, please follow theseinstructions:1. Ship both the control panel and antenna (CAUTION: DO NOT CUTWIRES when removing the antenna as this will void the warranty.) inthe original carton or in a suitable sturdy equivalent, fully insured, withreturn receipt requested to:Whistler Repair Dept.—1201 North Dixieland Rd—Rogers, AR. 72756Please allow 3 weeks turnaround time.IMPORTANT: Whistler will not assume responsibility for loss or damageincurred in shipping. Therefore, please ship your unit insured with return receiptrequested. COD’s will not be accepted.2. Include with your unit the following information, clearly printed:• Your name and street address (for shipping via UPS), a daytime telephonenumber and e-mail address if applicable. (No P.O. Box please.)• A detailed description of the problem (e.g., “Unit performs self-test butdoes not respond to radar”).• A copy of your dated store receipt or bill of sale.3. Be certain your unit is returned with its serial number. For reference,please write your unit’s serial number in the following space: Antenna S/N ________________________________________Control Panel S/N ____________________________________Laser Receiver S/N____________________________________.Units without serial numbers are not covered under warranty.IMPORTANT: To validate that your unit is within the warranty period,make sure you keep a copy of your dated store receipt. You may registeryour warranty online at www.whistlergroup.com, however, for warrantyverification purposes, a copy of your dated store receipt must accompanyany unit sent in for warranty work.25WARRANTY INFORMATIONradar detector equipped vehicles. If caught in a state or countrywhere detectors are illegal, (see page 21), drivers risk losingtheir radar detector and receiving a fine. In addition, instant-on radar is almost always used in combination with a RDD,leaving unsuspecting motorists vulnerable to receiving two tickets — one potentially for speeding, the other for possessionof a detector.NOTE: Having a radar detector capable of detecting the VG-2 may alert youto the presence of a speed trap. The newest tool Police have to detectradar detectors is called Spectre. As of this printing the Spectre RDD candetect all undetectable (VG-2) laser/radar detectors on the market.It is the responsibility of the individual radar detector ownerto know and understand the laws in your area regarding thelegality of the use of radar detectors.Consumer WarrantyThis Whistler detector is warranted to the original purchaser for aperiod of three years from the date of original purchase against alldefects in materials and workmanship. This limited warranty isvoid if the unit is abused, modified, installed improperly, if thehousing and/or serial numbers have been removed. There are noexpress warranties covering this product other than those set forthin this warranty. All express or implied warranties for this productare limited to the above time. Whistler is not liable for damagesarising from the use, misuse, or operation of this product. NOTE:This warranty does not include installation or reinstallation charges.Service Under WarrantyDuring the warranty period, defective units will be repaired withoutcharge to the purchaser when returned with a dated store receiptto the address below. Units returned without a dated store receiptwill be handled as described in section “Service Out Of Warranty.” 24

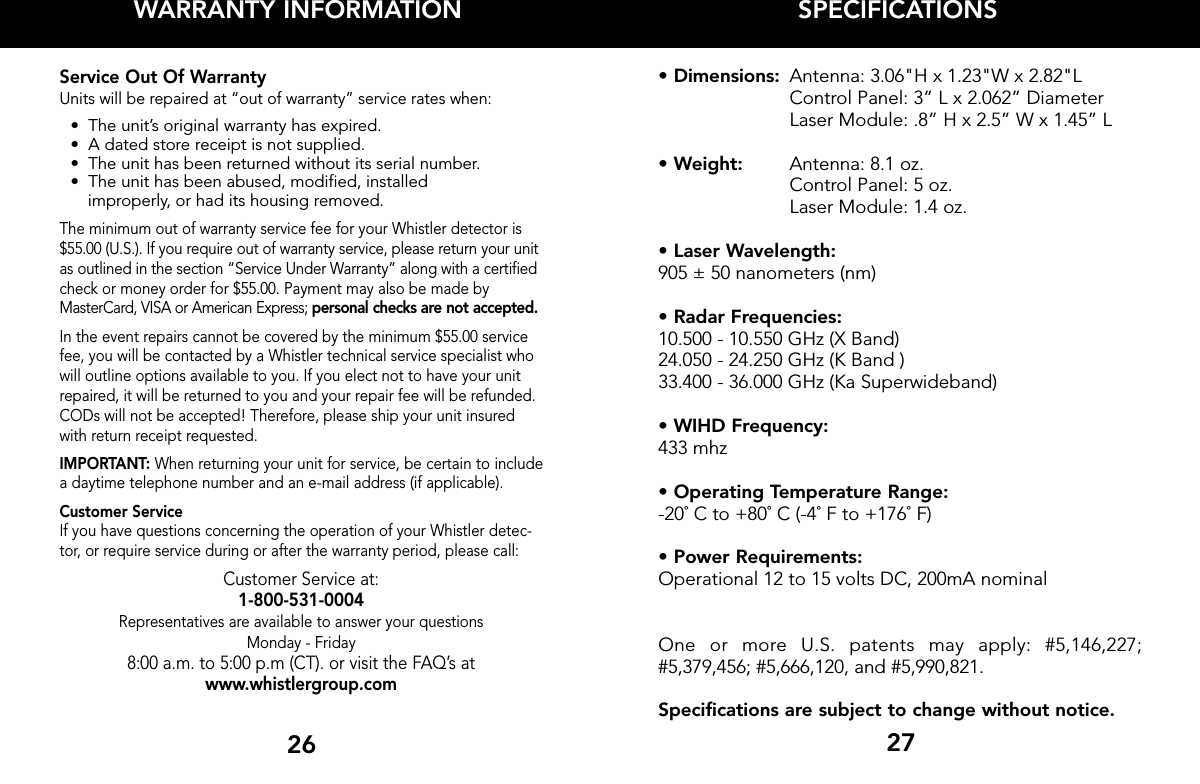

• Dimensions: Antenna: 3.06"H x 1.23"W x 2.82"LControl Panel: 3” L x 2.062” DiameterLaser Module: .8” H x 2.5” W x 1.45” L• Weight: Antenna: 8.1 oz.Control Panel: 5 oz.Laser Module: 1.4 oz.• Laser Wavelength:905 ± 50 nanometers (nm)• Radar Frequencies:10.500 - 10.550 GHz (X Band)24.050 - 24.250 GHz (K Band )33.400 - 36.000 GHz (Ka Superwideband)• WIHD Frequency:433 mhz• Operating Temperature Range:-20˚ C to +80˚ C (-4˚ F to +176˚ F)• Power Requirements:Operational 12 to 15 volts DC, 200mA nominalOne or more U.S. patents may apply: #5,146,227;#5,379,456; #5,666,120, and #5,990,821.Specifications are subject to change without notice.SPECIFICATIONS27WARRANTY INFORMATION26Service Out Of WarrantyUnits will be repaired at “out of warranty” service rates when:• The unit’s original warranty has expired.• A dated store receipt is not supplied.• The unit has been returned without its serial number.• The unit has been abused, modified, installed improperly, or had its housing removed.The minimum out of warranty service fee for your Whistler detector is$55.00 (U.S.). If you require out of warranty service, please return your unitas outlined in the section “Service Under Warranty” along with a certifiedcheck or money order for $55.00. Payment may also be made byMasterCard, VISA or American Express; personal checks are not accepted.In the event repairs cannot be covered by the minimum $55.00 servicefee, you will be contacted by a Whistler technical service specialist whowill outline options available to you. If you elect not to have your unitrepaired, it will be returned to you and your repair fee will be refunded.CODs will not be accepted! Therefore, please ship your unit insuredwith return receipt requested.IMPORTANT: When returning your unit for service, be certain to includea daytime telephone number and an e-mail address (if applicable).Customer ServiceIf you have questions concerning the operation of your Whistler detec-tor, or require service during or after the warranty period, please call:Customer Service at:1-800-531-0004Representatives are available to answer your questionsMonday - Friday8:00 a.m. to 5:00 p.m (CT). or visit the FAQ’s atwww.whistlergroup.com

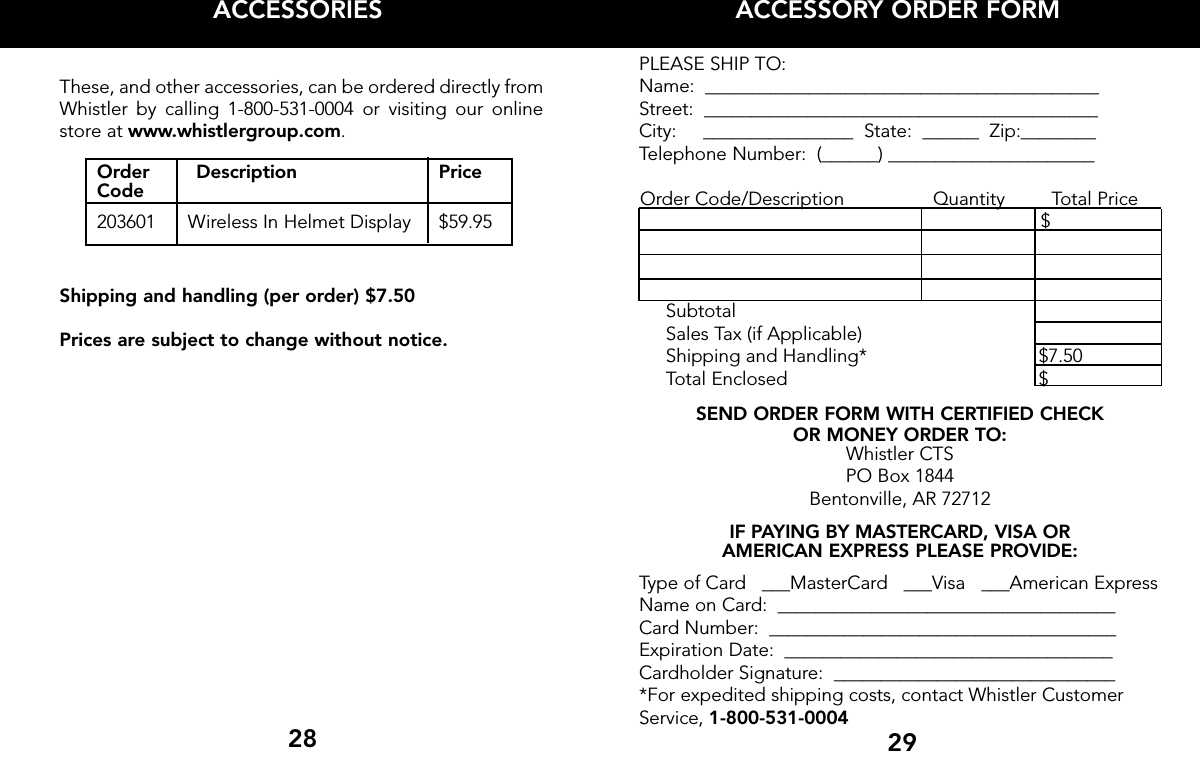

ACCESSORY ORDER FORM29PLEASE SHIP TO:Name: __________________________________________Street: __________________________________________City: ________________ State: ______ Zip:________ Telephone Number: (______) ______________________Order Code/Description Quantity Total Price$SubtotalSales Tax (if Applicable)Shipping and Handling* $7.50Total Enclosed $SEND ORDER FORM WITH CERTIFIED CHECK OR MONEY ORDER TO:Whistler CTSPO Box 1844Bentonville, AR 72712IF PAYING BY MASTERCARD, VISA OR AMERICAN EXPRESS PLEASE PROVIDE:Type of Card ___MasterCard ___Visa ___American Express Name on Card: ____________________________________Card Number: _____________________________________Expiration Date: ___________________________________Cardholder Signature: ______________________________*For expedited shipping costs, contact Whistler CustomerService, 1-800-531-0004ACCESSORIES28These, and other accessories, can be ordered directly fromWhistler by calling 1-800-531-0004 or visiting our onlinestore at www.whistlergroup.com.Order Description PriceCode203601 Wireless In Helmet Display $59.95Shipping and handling (per order) $7.50Prices are subject to change without notice.
