Thermor 336TX OUTDOOR TEMPERATURE AND HUMIDITY SENSOR User Manual

Thermor Ltd. OUTDOOR TEMPERATURE AND HUMIDITY SENSOR

UserManual.wiki >

Thermor >

336TX User Manual HTML Version

User manual



1



KW9007W‐S/M(2)WEATHERSTATION(WWVBVERSIONRC‐NONE)

USERMANUAL

1.Features

1.1WeatherForecast‐Sunny,SlightlyCloudy,Cloudy,RainyandSnowanimation



1.2Time ‐12/24houruserselectable

 ‐DualDailyAlarmfunction

‐DailySunrise/Sunset,Moonrise/Moonsettimefor3countries

‐ MoonPhasedisplay

  ‐PerpetualCalendarUptoYear2099

     ‐ Dayofweekin8languagesuserselectable



1.3BarometricPressure‐   Currentandpast12hrAbsoluteandRelativeBarometricPressure

reading

 ‐BarometricPressurebarchart

 ‐Measuresmb/hPa,inHg&mmHguserselectable



 

1.3Humidity   ‐Measurablerange:20~99%

    ‐Max/MinMemory



1.4Temperature  ‐ Indoormeasurablerange:0~50°C[+32~+122°F]

 ‐Measures°C/°Fuserselectable

  ‐ Outdoormeasurablerange:‐20~50°C[‐4~+122°F]

 ‐Max/MinMemory[indoor&outdoor]



1.5WirelessOutdoorSensor‐Low‐batteryindicatorforOutdoorThermoSensor

  ‐ WallMountorTableStand

 ‐OneWirelessThermoSensorIncluded

 ‐433MHzRFtransmittingfrequency

 ‐30meter[98feet]transmissionrangeinanopenarea



2



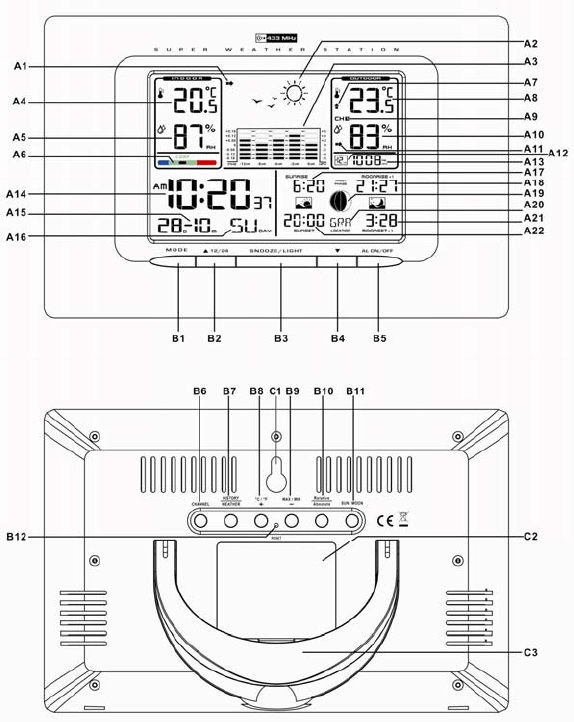

2.MainUnitAppearance

2.1PartA‐LCD

A1:AirPressureTrend

A2:WeatherForecast

A3:BarometricPressureBarGraph

A4:IndoorTemperature

A5:IndoorHumidity

A6:ComfortIndicatorBar

A7:OutdoorTemperatu reTrend

A8:OutdoorTemperatu re

A9:SelectedChannel

A10:OutdoorHumidity

A11:OutdoorHumidityTrend



A12:Barometricpressureofprevioushour

A13:Absolute/RelativeBarometricPressureReading

A14:Time

A15:Date

A16:DayOfWeek

A17:SunriseTime

A18:MoonriseTime

A19:Moonphase

A20:Location

A21:MoonsetTime

A22:SunsetTime



2.2PartB‐Buttons

B1:“MODE“button

B2:“▲/(12/24)”button

B3:“SNOOZE/LIGHT”button

B4:“▼”button

B5:“ALON/OFF”button

B6:“CHANNEL”button

B7:“HISTORY/WEATHER”button

B8:“+/C/F”button

B9:“‐/MAX/MIN”button

B10:“RELATIVE/ABSOLUT”button

B11:“SUN/MOON”button

B12:“RESET”button



3



2.3PartC‐Structure

C1:WallMountHole C2:BatteryCover

C3:Stand

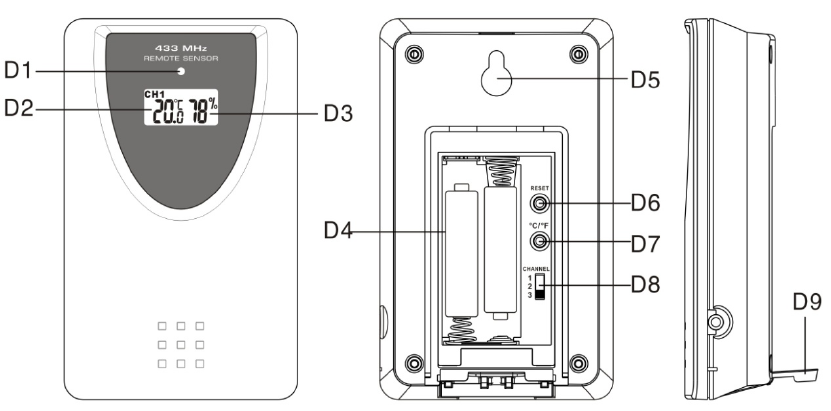

3. Outdoor Thermo Sensor



D1:TransmissionIndicationLED

D2:OutdoorTemperaturedisplay

D3:OutdoorHumiditydisplay

D4:BatteryCompartment

D5:WallMountHole

D6:“RESET”button

D7:“C/F”button

D8:ChannelSelectSwitch

D9:Stand



4.GettingStarted:

4.1MainUnit:

z Openmainunitbatterycompartmentcover[C2]

z Insert3xAAbatteriesobservingpolarity[“+”and“–“marks]

z Replacemainunitbatterycompartmentcover[C2]

z UseapintopresstheRESET[B12]buttonontherearofthemainunit,themain

unitisnowreadyforuse



4.2OutdoorThermoSensor

z Batteriescompartment(D4)ofthermosensorislocatingbehindthebackcover,

unscrewsthebatteriescovertoopen.

z Insert2xAAAbatteriesobservingpolarity[“+”and“–“marks]



4



5.Installation

5.1MainUnit

Themainunitcanbeplacedontoanyflatsurface(C3),orwallmountedbythe

hanginghole(C1)atthebackoftheunit.



5.2OutdoorThermosensor

Theremotesensorshouldbesecurelymountedontoahorizontalsurface.

Note:Transmissionsbetweenreceiverandtransmittercanreachupto30min

openarea.OpenArea:therearenointerferingobstaclessuchasbuildings,trees,

vehicles,highvoltagelines,etc.

6.WeatherForecastFunction

6.1Operation

z AfterBatteriesinserted,orholding“WEATHER”button(B7)for3seconds,

weathericonflash(A2)ontheLCD.Enterthecurrentweatherbypressing“-”(B9)

or“+“(B8)button.Press“WEATHER”(B7)buttontoconfirmthesetting.The

weatherforecastmaynotbeaccurateifthecurrentweatherenteredisnot

correct.

z ThecurrentweatherstatusshouldbeenteredagainifthealtitudeoftheMain

Unitischanged.(Barometricpressureislowerathigheraltitudelocation.

Therefore,altitudechangewillaffecttheweatherforecast).Theweatherstation

willstartthefirstforecastat6hourslaterafterthecurrentweatherstatusis

entered.



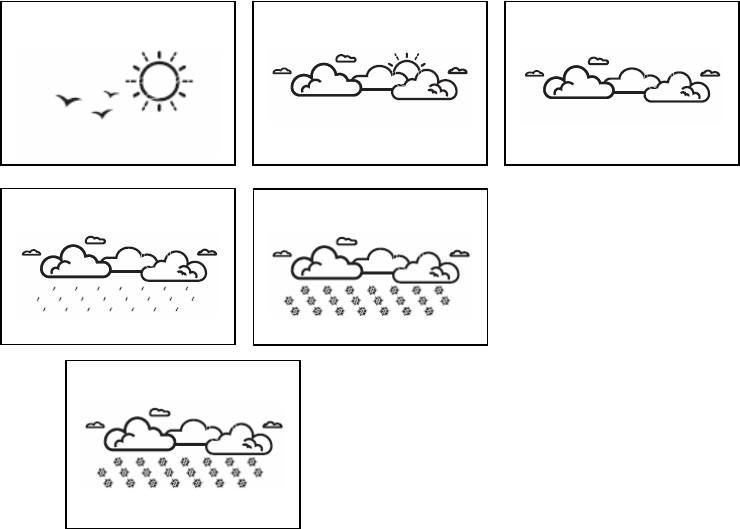

6.2 WeatherConditions

Therearetotally5differentweatherstatusanimationsintheweatherforecast.



Note:

z “ “isshowniftheweatherforecastisRainyandoutdoor

temperature(anychannel)under0

C.

Sunny



SlightlyCloudy Cloudy



Rain



FreezingorSnow

Freezing or Snow



5



z FrostAlert:“ ”isshowniftheoutdoortemperature(anychannel)isbetween‐2

C

~+3

C

z IfthereisanyinconsistencyofweatherforecastbetweenLocalWeatherStationandthis

unit,theLocalWeatherStation'sforecastshouldprevail.Themanufacturewillnothold

responsibleforanytroublethatmaycomeupduetowrongforecastingfromthisunit.



7.BarometricPressureReading

7.1 BarometricTrendPointer(A1)

ThetrendpointerdisplayedontheLCD(A1)indicatesthetrendofthe

Barometricpressure.



Indicatingthebarometric

pressuretrendisrising



Indicatingthebarometric

pressuretrendissteady



Indicatingthebarometric

pressuretrendisfalling



7.2 Absolute/RelativeAirPressure

z Pressthe“Absolute/Relative”button[B10]totogglebetweenAbsoluteor

Relativepressuredisplay.

“ABS”isshownforAbsolutePressure;“REL”isshownforRelativepressure

z AbsolutepressureistheactualpressuremeasuredbytheMainUnit

z WhenviewingRelativepressure,hold“Absolute/Relative”button[B10]for3

seconds,press“‐”(B9)or“+“(B8)buttontoadjust,press“Absolute/Relative”

button[B10]toconfirm.

Note:CheckyourlocalweatherstationforSeaLevelpressureinformation



7.3 PastHourAirPressure(History)Reading

z Press“HISTORY”button[B7]toviewthepast12hour’sBarometricPressure

history.ThehourisindicatedonLCD[A12]





z Hold“+”button[B8]for3secondstoselecttheunitforbarometricpressure

meterinhPa,inHgormmHG.

Press“HISTORY”button

 

 0HR=CurrentBarometricPressureReading

 ‐1HR=BarometricPressureReadingin1hourago

 ‐2HR=BarometricPressureReadingin2hourago……..etc



6



7.4BarometricPressureBarGraph

TheBarometricPressureReadingat0hr,–2hr,‐4hr,‐8hr,‐12hrisrecordedandshown

onBarometricPressureBarGraph[A3].TheGraphisdisplayedinbothhPaandinHg



8.Thermometer

8.1RFTransmissionProcedure:

z Themainunitautomaticallystartsreceivingtransmissionfromoutdoorthermo

sensorforoutdoortemperatureafterweatherconditionsetting.

z Thethermosensorunitwillautomaticallytransmittemperaturetothemainunit

afterbatteriesinserted.Forhavingmorethanoneexternaltransmitter

(Maximum3),selecttheChannel,CH1,CH2orCH3toensureeachsensoris

transmittingdifferencechannelbeforeinsertingbatteries.Thechannelselect

switch(D8)isatthebackofthethermosensor.

z Ifmainunitfailedtoreceivetransmissionfromoutdoorthermosensorinfirst3

minutesafterthebatteriesinserted(“‐‐.–”displayontheLCD),hold“Channel”

button(B6)for3secondstoreceivetransmissionmanually.RFicon“ ”flashes

ontheLCD

Note:“WEATHER/HISTROY”(B7),“+/C/F”(B8),“‐/MAX/MIN“(B9),

“ABSOLUTE/REL ATIVE”(B10)buttonswillnotfunctionwhilescanningforthermo

sensor’ssignalunlesstheyarewellreceivedorstoppedmanually.



8.2Temperature&Humidity

(1)OutdoorTemperature‐‐‐ChannelSelection

z Press“CHANNEL”button(B6)toviewthe3Channels’temperature&humidity.

Thesequenceisshownasfollow:



PRESS“CHANNEL”buttonPRESS“CHANNEL”buttonPRESS“CHANNEL”button

   

Displaythethree

channelsalternatively

z WhenviewingtherecordonCHANNEL1or2,or3,hold“CHANNEL”button(B6)

for3secondstocanceltherecordonthischannelmanually,andreceivethe

transmissionautomaticallyagain.



(2)Maximum/MinimumTemperatureandHumidity

z Press“MAX/MIN”button(B9)toshowthemaximumrecordedIndoor/Outdoor

Temperat ureandHumidity.“MAX”isshownontheLCD

z Press“MAX/MIN”button(B9)againtoshowtheminimumrecorded

Indoor/OutdoorTemperatureandHumidity.“MIN”isshownontheLCD.



7



(3)OutdoorTempe ratureTrend

z Thetrendpointer(A7)displayedontheLCDindicatesthetrendoftheoutdoor

temperature.



Indicatingtheoutdoor

temp.isrising



Indicatingtheoutdoor

temp.issteady



Indicatingtheoutdoor

temp.isfalling



(4)OutdoorHumidityTrend

z Thetrendpointer(A11)displayedontheLCDindicatesthetrendoftheoutdoor

humidity.



Indicatingtheoutdoor

humidityisrising



Indicatingtheoutdoor

humidityissteady



Indicatingtheoutdoor

humiditydown



(5) Celsius/Fahrenheit

z Press“°C/° F ” button(B8)toselectIndoor/OutdoorTemperatureinCelsiusmode

orFahrenheitmode.

z Ifthetemperatureisoutofthemeasurablerange,LL.L(beyondtheminimum

temperature)orHH.H(beyondthemaximumtemperature)willbeshownonthe

LCD.



(6)ComfortIndicatorBar (A6)forthedisplayofpleasant/unpleasant

climate,whentheblackdotingreenzonemeanspleasantclimate.



9.TimeandAlarmSetting

9.1 ManualTimeSetting:

z Hold“MODE”button(B1)for3secondstoenterClock/Calendarsettingmode.

z Press“▲”(B2)or“▼”(B4)buttontoadjustthesettingandpress“MODE”

button(B1)toconfirmeachsetting.

(Bykeepingthe“▲”(B2)or“▼”(B4)buttonpressed,couldacceleratethe

processandreachthedesiredvaluemorequickly)

z Thesettingsequenceisshownasfollow:Hour,Minutes,Second,Year,Month,

Day,Country,City.



8



Note:

(1) Secondadjustedtozeroonly.

(2) TheTimeSettingModewillautomaticallyexitin15secondswithoutany

adjustment.

(3) ToturnDST(DaylightSavingsTime)onoroff,pressandholdthe“▲/(12/24)＂

(B2)button.When“DST”isdisplayedabovetheminutedigitsDaylightSavings

Timeisturnedon.Thesunrise/sunsettimeswilladjustaccordingly.



9.212/24HourDisplaymode:

Press“12/24”button(B2)toselect12or24hoursmode.

9.3DualDailyAlarmFunction:

z Press“MODE”button(B1)toselecttoview:



TimeAlarmTime1(AlarmIcon“ “flashontheLCD)AlarmTime2

(AlarmIcon“ “flashontheLCD)Year



z WhenviewingAlarmTime1orAlarmTime2,hold“MODE”button(B1)for3

secondstoenterthatAlarmTimesetting.Press“▲”(B2)or“▼”(B4)buttonto

adjustthealarmtime,press“MODE”button(B1)toconfirmthesetting.

z WhenviewingAlarmTime1orAlarmTime2,press“ALON/OFF”(B5)buttonto

activatethealarmfunction.Alarmicon“ ”or“”willbeshownontheLCD.

Press“ALON/OFF”(B5)buttonagaintodeactivatethealarmfunction,thealarm

icon“ ”or“ ”disappearfromthedisplay.

z WhenAlarming,press“SNOOZE/LIGHT”button(B3)toactivatethesnooze

alarm,alarmicon(“ ”or“”)flashesonLCD.Thealarmwillsnoozefor5

minutes,thenitalarmsagain.Thissnoozefunctioncanbeenabledformaximum

7times.

z Pressanyof“MODE”(B1)“▲/12/24”(B2),“▼”(B4),“ALON/OFF”(B5),OR

“SUN/MOON”(B11)buttontostopthesnoozealarm.Otherwise,thealarm

signalsoundsforabout2minutes,thenstopsautomatically.



10.Sunrise/Sunset,Moonrise/MoonsetTimeDisplayFunction

z AftersettingtheCalendar,LocalCountryandhomecityintheTimeSetting

Mode,themainunitcalculatestheSunrise/Sunset&Moonrise/Moonset.The



9



Sunrise/Sunset&Moonrise/Moonsettimedigitsblinkduringthecalculation.

z Pressthe“SUN/MOON”button(B11)tothedisplaythetotalSunHoursofthe

selectday.

z Holdthe“SUN/MOON”button(B11)for3secondstoenterSunrise/Sunset,

Moonrise/MoonsetTimesearchmode,locationdigits(A20)blink.

z Enterthe“Country”,“City”,“Year”,“Month”and“Day”whichyouwouldliketo

check.Pressthe“▲”[B2]or“▼“[B4]buttontoadjustandpressthe

“SUN/MOON”button(B11)toconfirmsetting.

z TheSunrise/Sunset,Moonrise/Moonsettimedigitsblinkduringthecalculation.

Aftercalculation,Sunrise/SunsetandMoonset/Moonrisetimeisshown.

z Ifmoonriseormoonsetoccursatnextday,then“MOONRISE+1”or“MOONSET

+1”willbedisplayed.Ifthereisnomoonriseormoonsetoccuronsomeday,

““willbedisplayedontheLCD

Note:TheSunrise/SunsetandMoonrise/Moonsettimedisplayisjustfor

referenceonly.ForexactSunrise/SunsetandMoonrise/Moonsettime,please

refertoyourLocalWeatherStation



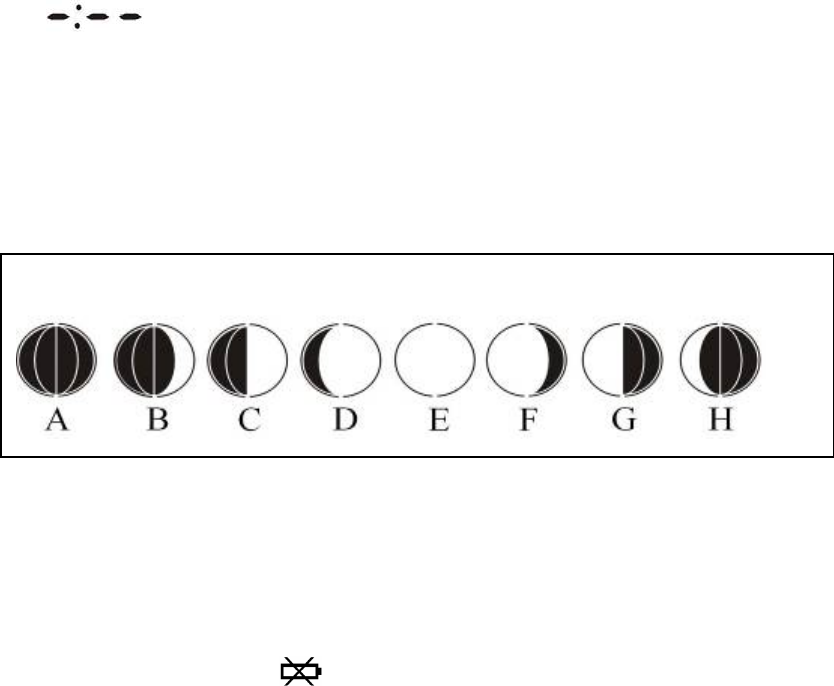

11.MoonPhaseDisplay



A:NewMoonB:WaxingCrescent C:FirstQuarter

D:WaxingGibbousE:FullMoon F:WaningGibbous

G:LastQuarterH:WaningCrescent



12.Lowbatteryindication:

Thelowbatteryicon“”willappearatparticularchannelindicatingthat

thermosensorunitofthechannelisinlowbatterystatus.Thebatteriesshould

bereplaced.



13.Backlight

Press“SNOOZE/LIGHT”button(B3),backlightstatesfor3seconds.



TheMoonPhase(A19)ofeachdayisshownontheLCD.



10



14.Precautions

z Useapintopresstheresetbutton(B12)iftheUnitdoesnotworkproperly.

z Avoidplacingtheclocknearinterferencesources/metalframessuchascomputerorTVsets.

z Theclocklosesitstimeinformationwhenthebatteryisremoved.

z Donotexposeittodirectsunlight,heavyheat,cold,highhumidityorwetareas

z Theoutdoorsensormustnotbesetupandinstalledunderwater.Setitupinawaydirect

sunlightandRain

z Nevercleanthedeviceusingabrasiveorcorrosivematerialsorproducts.Abrasivecleaning

agentsmayscratchplasticpartsandcorrodeelectroniccircuits

z IfthereisanyinconsistencyofweatherforecastbetweenLocalWeatherStationandthisunit,

theLocalWeatherStation'sforecastshouldprevail.Themanufacturerwillnottake

responsibleforincorrectforecastingfromthisunit



15.Specifications

IndoorData:

Temperaturerange:0to50°C[+32to+122°F]

TemperatureUnitsMeasured:°Cor°F[switchable]

HumidityRange:20%to99%

AirPressureRange:850–1050hPa

AirPressureUnitsMeasured:mb/hPa,inHg&mmHG[switchable]

WeatherForecast:5icons[sunny,slightlycloudy,cloudy,rainy

&snow]

OutdoorData:

Transmissiondistance:

(openarea)30m@433MHz

Temperaturerange:‐20°Cto50°C[‐4to+122°F]

Mount:wall/table

MainUnitDimensions:W230xh150xd30mm

ThermoSensorDimensions: w62xh101xd24mm

BatteryRequirements:

BaseStation[indoor]:3xAAbatteries

Sensors[outdoor]:2xAAAbatteries



11



Countries and Cities: there are 3 countries can be chosen from the Time Setting

Mode. They are listed in the following table.

USAUSAIowaIAMississippiMS

AlaskaAKWaterlooALOGreenwoodGWO

JuneauJNUDesMoinesDSMHuntsvilleHUV

AlabamaALDavenportDVNJacksonJAN

BirminghamBHMSiouxCitySUXTupeloTUP

GadsdenGADIdahoIDMontanaMT

MontgomeryMGMBoiseBOIBillingsBIL

MobileMOBGibbonsvilleGIBFt.PeckFTP

ArkansasARPocatelloPIHGreatFallsGFT

FortSmithFSM SandpointSZTHelenaHLN

LittleRockLITIllinoisILSidneySDY

Texar kanaTXKChampaignCMIWhitefishWTF

ArizonaAZChicagoORDNorthCarolinaNC

FlagstaffFLGSpringfieldSPIAshevilleAVL

PhoenixPHXIndianaINCharlotteCLT

TucsonTUSEvansvilleEVVFayettevilleFAY

YumaYUMTerreHauteHUFWilmingtonILM

CaliforniaCAIndianapolisINDWinston‐SalemINT

BakersfieldBFLSouthBendSBNWilliamstonMCZ

BlytheBLHKansasKSRaleigh RDU

EurekaEKADodgeCityDDCNorthDakotaND

FresnoFATWichitaK32BismarckBIS

FortBraggFTBKansasCityKCKBowbellsBWB

LosAngelesLAXWakeeneyOH1FargoFAR

ReddingRODTopekaTOPGrandForksGFK

SacramentoSACKentuckyKYNebraskaNE

SanDiegoSANFrankfortFFTGrandIslandGRI

SanBernardinoSBDLexingtonLEXLincoinLNK

SanFranciscoSFOLouisvilleLOUOmahaOMA

ColoradoCOLouisianaLASidneySNY

DenverDENBatonRougeBTRValentineVTN

DurangoDROLakeCharlesCWFNewHampshireNH

FortCollinsFNLNatchitochesIERConcordCON

GrandJunctionGJTNewOrleansNEWNewJerseyNJ

BurlingtonITRShreveportSHVNewarkEWR

PuebloPUBMassachusettsMATrentonTTN

ConnecticutCTBostonBOSNewMexicoNM

HartfordHFDMarylandMDAlbuquerqueABQ



12



DistrictofColumbiaDCBaltimoreBWIMagdaleneMAG

WashingtonDCAMaineMERoswellROW

DelawareDEAugustaAUGRatonRTN

Dover0N5BangorBGRSantaFeSAF

FloridaFLGCaribouCARNevadaNV

KeyWestEYWPortlandPWMAustinAIN

JacksonvilleJAXMichiganMIACarsonCityCXP

MiamiMIAKalamazooAZOElyELY

OrlandoORLDetroitDETLasVegasLAS

PensacolaPNSFlintFNTWellsLWL

TallahasseeTLHLansingLANRenoRNO

TampaTPARogersCityPZQNewYorkNY

GeorgiaGAMarquetteSAWAlbanyALB

AlbanyABYTraverseCityTVCBuffaloBUF

AugustaAGSMinnesotaMNNewYorkCityJFK

AtlantaATLAlbertLeaAELLakePlacidLKP

ColumbusCSGBemidjiBJISyracuseSYR

MaconMACDuluthDLHOhioOH

SavannaSAVGrandProtageGPOCleveland CLE

HawaiiHIInternationalFallsINLColumbusCMH

HonoluluHNLSt.PaulSTPCincinnatiISZ

HiloITOMissouriMOToledoTOL

KahuluiOGCJeffersonCityJEFYoungstownYNG

WaimeaWAIKansasCityMKCOklahomaOK

MemphisMPHBoiseCity17K

PoplarBluffPOFLawtonLAW

SpringfieldSGFOklahomaCityOKC

St.LouisSTLTulsaTUL



13



OregonORUtahUTWestVirginiaWV

BurnsBNOSalineSALCharlestonCRW

EugeneEUGSt.GeorgeSGUWheelingHLG

MedfordMFRSaltLakeCitySLCWyomingWY

PortlandPDXThompsonTSNBuffaloBYG

SalemSLEVirginiaVACasperCPR

PennsylvaniaPAViennaDONCheyenneCYS

HarrisburgCXYLynchburgLYHLittleAmericaLAA

PhiladelphiaPHLNorfolkORFWestYellowstoneWYE

PittsburghPITRichmondRICCanada CAN

ScrantonSCRRoanokeROACalgaryCAL

PuertoRicoPRVermontVT CharlotteTownCHT

SanJuanSJUBurlingtonBTVEdmontonEDM

RhodeIslandRIMontpelierMPRFrederictonFRE

ProvidencePVDWashingtonWAHalifaxHAL

SouthCarolinaSCRAberdeenABEMontrealMON

CharlestonCHSWallaWallaALWOttawaOTT

ColumbiaCUBKettleFallsKTFQuebecQUE

GreenvilleGMUMountVernonMVNReginaREG

SouthDakotaSDOlympiaOLMSudburySUD

SiouxFallsFSDSeattleSEAThunderBayTHU

PierrePIRSpokaneSFFTorontoTOR

RapidCityRAPTonasket TONVancouverVAN

TennesseeTNYakimaYKMWinnipegWIN

NashvilleBNAWisconsinWIMexicoMEX

ChattanoogaCHAWausauAUWChihuahuaCHH

KnoxvilleDKXGreenBayGRBDurangoDUR

MemphisMFRLaCrosseLSEGuadalupeGUA

TexasTXMadisonMSNHermosilloHER

AbileneABIMilwaukeeMWCMexicoCityMEC

AmarilloAMASpoonerSSQ

AustinAUS

BrownsvilleBRO

Dallas/Ft.WorthDFW

ElPasoELP

HoustonHOU

LaredoLRD

OdessaODO

SanAntonioSAT



14



FCCStatement

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe

followingtwoconditions:



(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation



.

Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatetheequipment.



NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the

userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing

measures:



‐‐Reorientorrelocatethereceivingantenna.



‐‐Increasetheseparationbetweentheequipmentandreceiver.



‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.



‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Thermor 336TX OUTDOOR TEMPERATURE AND HUMIDITY SENSOR User Manual

Thermor Ltd. OUTDOOR TEMPERATURE AND HUMIDITY SENSOR

User manual

Navigation menu

Namespaces

Views

Navigation
